O2A: One-Shot Observational Learning with Action Vectors

We present O₂A, a novel method for learning to perform robotic manipulation tasks from a single (one-shot) third-person demonstration video. To our knowledge, it is the first time this has been done for a single demonstration. The key novelty lies in pre-training a feature extractor for creating a perceptual representation for actions that we call “action vectors”. The action vectors are extracted using a 3D-CNN model pre-trained as an action classifier on a generic action dataset. The distance between the action vectors from the observed third-person demonstration and trial robot executions is used as a reward for reinforcement learning of the demonstrated task. We report on experiments in simulation and on a real robot, with changes in viewpoint of observation, properties of the objects involved, scene background and morphology of the manipulator between the demonstration and the learning domains. O₂A outperforms baseline approaches under different domain shifts and has comparable performance with an Oracle (that uses an ideal reward function). Videos of the results, including demonstrations, can be found in our: project-website.

1 Introduction

Learning new manipulation tasks has always been challenging for robotic systems, whether it is a simple mobile manipulator or a complex humanoid robot. Programming manually step by step (Finkel et al., 1975) is one of the earlier solutions to this problem. But this is labour intensive, requires specialist expertise and lacks autonomy. It is therefore not suitable for consumer robots and fully autonomous systems. Learning from Demonstrations (LfD) (Atkeson and Schaal, 1997) is a potential solution to this problem. It requires only demonstrations of the task for the robot to learn from. Even though LfD has been studied widely, most previous works have stayed within the “Imitation Learning” (Duan et al., 2017; Pathak et al., 2018; Peng et al., 2018; Argall et al., 2009) paradigm, where demonstrations are made from an egocentric perspective, either visually or kinesthetically. This requires the inconvenience of kinaesthetic guidance or teleoperation and also the rich source of third-person demonstrations available on the internet cannot be used. Therefore, in this paper we study the problem of LfD under the “Observational Learning” (Bandura 1986; Pauly, 2018; Torabi et al., 2019; Borsa et al., 2019) paradigm, where the demonstrations are observed as a third-person. This introduces the key challenge in observational learning, the shift between the demonstration and the learning domains. The domain shift can arise due to changes in viewpoints of observation, properties of objects used, scene background or morphology of the manipulator performing the task.

In this paper we present O₂A (One-shot Observational learning with Action vectors), for one-shot observational learning of robotic manipulation tasks under different domain shifts. One-shot learning here means that only a single demonstration of the new task is required for learning. (Note that, it does not refer to the number of trial and error executions by the robot during learning from that single demonstration). We use an abstract perceptual representation: the “action vector”, which is the task-discriminative and domain-invariant representation of the action in a video. The action vector is extracted using a 3D-CNN (Tran et al., 2015), pre-trained on a generic action dataset as an action classifier (we use UCF101 (Soomro et al., 2012) as the pre-training dataset for our experiments). Through our evaluation on a new “Leeds Manipulation Dataset” (LMD), we show that the pre-trained action vector extractor can generalise to unseen manipulation tasks. The action vectors from the demonstration and trial robot execution video clips are then compared to generate a reward for the reinforcement learning algorithm. The algorithm learns an optimal control policy that performs the demonstrated task. Our experiments in simulation (with reaching, pushing tasks) and on a real robot (with pushing, hammering, sweeping, striking tasks) show that O₂A can perform well under different domain shifts. Our contributions can be summarised as follows:

• Implementing for the first time, to the best of our knowledge, a method for observational learning of robotic manipulation tasks from a single demonstration.

• O₂A can handle shifts between the demonstration and the learning domains, caused by changes in viewpoint of observation, object properties, morphology of the manipulator and scene background.

• And finally, we pre-train the action vector extractor on a generic action dataset instead of task-specific manipulation videos. The extractor generalises to unseen manipulation tasks by learning the shared underlying visual dynamics.

Upcoming sections are arranged as follows: Section 2 discusses related works, Section 3 formulates the problem and describes the proposed method, Sections 4 and 5 report on experiments conducted and finally Section 6 presents the conclusions.

2 Related Work

Observational learning: Origins of observational learning of robotic manipulation tasks can be traced back to works from the 1990s (Suehiro, 1994; Kuniyoshi et al., 1994; Bakker and Kuniyoshi, 1996). Most of the early methods required assistance in observing the demonstrations. This assistance was provided by motion capture systems (Ijspeert et al., 2001; Ijspeert et al., 2002; Field et al., 2009), visual detectors (Ramirez-Amaro et al., 2017; Sieb et al., 2020; Zhang and Nikolaidis, 2019), skeleton tracking (Cabrera and Wachs, 2017), trackers/markers (Dillmann, 2004; Dragan and Srinivasa, 2012; Gupta et al., 2016) or a combination of the above (Kuniyoshi et al., 1994). However, the entities to be tracked or detected must be known beforehand and only demonstrations using these entities can be learned.

With the advent of deep learning (LeCun et al., 2015; Goodfellow et al., 2016), it was possible to learn visual features characterising the task directly from raw RGB videos. The features are extracted from raw videos using a variety of methods: deep metric learning (Sermanet et al., 2018), generative adversarial learning (Stadie et al., 2017), domain translation (Liu et al., 2018; Smith et al., 2019; Sharma et al., 2019), transfer learning (Sharma et al., 2018; Sermanet et al., 2017), action primitives (Jia et al., 2020), predictive modelling (Tow et al., 2017), video to text translation (Yang et al., 2019), meta-learning and (Yu et al., 2018a; Yu et al., 2018b). A comparison of these methods is given in the Table 1 and a detailed study can be found in (Pauly, 2021).

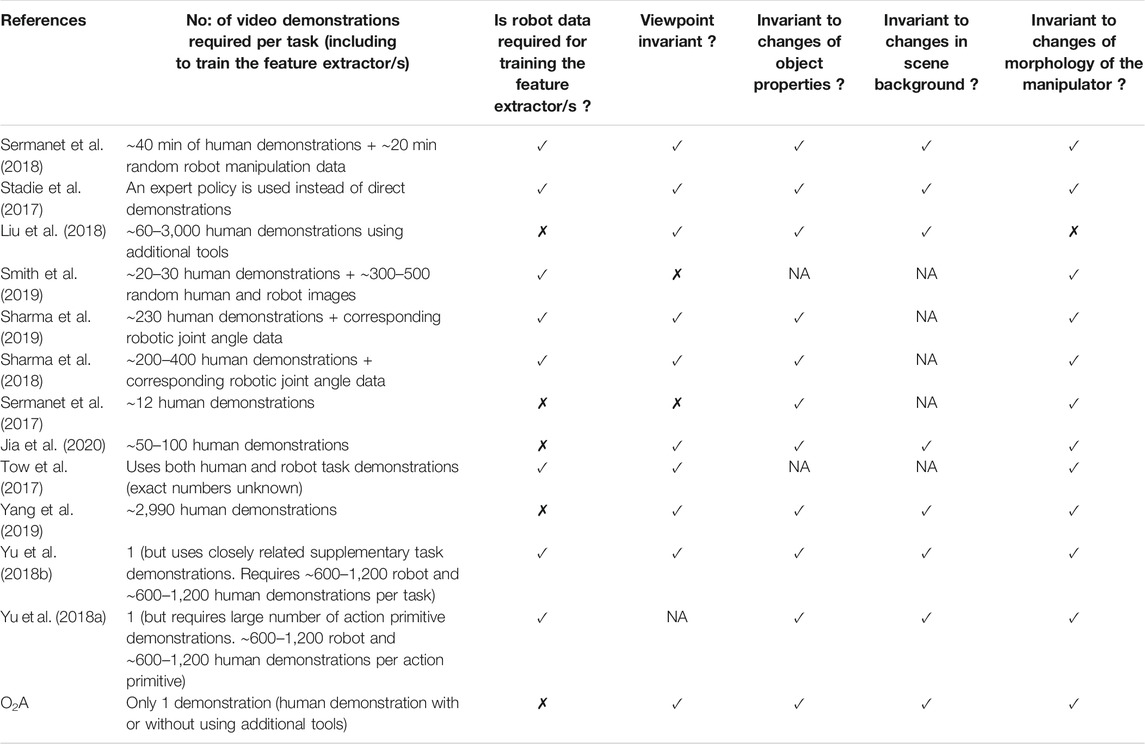

TABLE 1

TABLE 1. Observational learning methods in existing literature are compared. O₂A requires only a single demonstration to learn new tasks. It does not use any robot data for training the action vector extractor and also works well under different domain shifts.

A limitation of these methods is the requirement of a large number of demonstrations for learning new tasks: the feature extractor is trained separately for each of the new task to be learned. Hence demonstration videos are to be collected in substantial numbers for each task. In contrast, our method requires only a single demonstration (hence one-shot) to learn a new task, since pre-trained feature extractors are used. A second limitation is the constrained domain shifts: In existing approaches, assumptions are made regarding shift between learning and demonstration domains. For example viewpoint of observation is fixed (Sermanet et al., 2017) or manipulators with similar morphologies (Liu et al., 2018) are used. Our method O₂A, does not make any such assumptions and can learn under unconstrained domain shifts.

Pre-training with large generic datasets: Pre-training on large generic datasets has become common in the fields of computer vision and natural language processing. Models are first pre-trained on a large generic dataset(s) in a supervised or unsupervised manner. After pre-training, the models are used to solve downstream tasks with minimum/no fine-tuning. Generic language models such as ELMo (Peters et al., 2018), GPT (Radford et al., 2018; Radford et al., 2019; Brown et al., 2020), BERT (Devlin et al., 2018) have shown success in solving several downstream language processing tasks. Similarly, ImageNet models (Xie and Richmond, 2018), Image-GPT (Chen et al., 2020), BiT models (Kolesnikov et al., 2019) have demonstrated that this approach can be applied for computer vision problems as well. We introduce a similar concept into visual robotic manipulation. The action vector extractor is pre-trained using a large generic action dataset and then generalised to manipulation tasks for observational learning.

3 Proposed Method

3.1 Action Vectors

Action vectors are the core of the O₂A method. An action vector is the abstract task-discriminative and domain-invariant perceptual representation of the action being carried out in a video. In O₂A, the action vector extraction is based on the following two assumptions, which we validate in Section 4.

1) The spatio-temporal features generated by the final layers of an action classifier pre-trained on a generic action dataset, are task-discriminative domain-invariant. The features from the videos depicting similar actions should be identical irrespective of the domain in which they are recorded. The assumption is reasonable since the action classifier makes use of the same layer outputs to identify actions, independently of different camera angles, varying scene backgrounds, illumination conditions, actors/manipulators, object appearances, interactions, pose and scale.

2) The action vector extraction model pre-trained on a generic dataset can generalise to unseen manipulation tasks used in robotic observational learning. The intuition is that the underlying visual dynamics between generic action datasets and manipulation tasks are the same. For example, it is the same physical laws of dynamics governing object interactions, both for a cricket shot as well as a robot striking cubes.

3.1.1 Network Architecture and Dataset

Our 3D-CNN model consists of eight 3D convolutional layers, five 3D maxpooling layers and three fully connected layers. The ReLU (Nair and Hinton, 2010) activation function is used for all the convolutional and fully connected layers except the final layer, where we use a Softmax function. The layer wise network architecture along with the kernel sizes, input and output dimensions are given in the Supplementary Section S1. We use the UCF101 action dataset as the generic dataset for our experiments. It consists of 13320 real world action videos from YouTube each lasting around 7 s on average, classified into 101 action categories. The dataset has a large diversity both in terms of variety of actions and domain settings within the same class videos. A dropout of 0.5 is used for the fully connected layers during training to avoid overfitting. We also use a zero-padding layer between the last convolution and pooling layers to control the shrinkage of dimensions.

3.1.2 Pre-training Action Vector Extractors

For pre-training, we first uniformly downsample UCF101 videos in time into 16 frames for providing a fixed-length representation for each video clip. We also resize videos into 112 × 112 pixels to standardize the size. We apply the same pre-processing steps to videos of demonstrations and robot trial executions for action vector extraction during observational learning. These downsampled and resized videos are then used for pre-training the model for action classification from scratch. The pre-training objective is the cross-entropy loss function given as:

$L(y,\bar{y})=-\sum _{i=0}^{NC-1}{y}_{i}log(\overline{y_i})(1)$

where, $\overline{y_i}$ is the ith value in the predicted output and y_i is the corresponding one-hot encoded ground truth value, both of which are expressed as probabilities. NC is the number of classes and for UCF101 dataset NC = 101. The training details are given in the Supplementary Section S1. The pre-trained model will be referred to as “NN:UCF101” hereafter.

After training, we use features from one of the final layers of NN:UCF101 as the action vector. Our experiment (reported in Section 4.1) shows that the features from layers pool5 (size: 8,192) and fc6 (size: 4,096) are best suited to be used as the action vector. We report results, both when the features from pool5 and fc6 layers are used as the action vector in this paper.

3.2 One-Shot Observational Learning

The overview of O₂A is shown in Figure 1. The robot views both the demonstration and its own trial executions from a camera mounted in a fixed position above the manipulator. With reference to Figure 1, let D be the single demonstration video clip of a task to be learned. We extract the n-dimensional action vectors $\overrightarrow{X_D}$ and $\overrightarrow{X_R}$ from the demonstration video D and the video clip of a trial robot execution respectively. The reward (r) for the reinforcement learning is then calculated as the negative of the euclidean distance between action vectors $\overrightarrow{X_D}$ and $\overrightarrow{X_R}$ as given below:

$r=-\Vert \overrightarrow{X_D}-\overrightarrow{X_R}{\Vert }_2(2)$

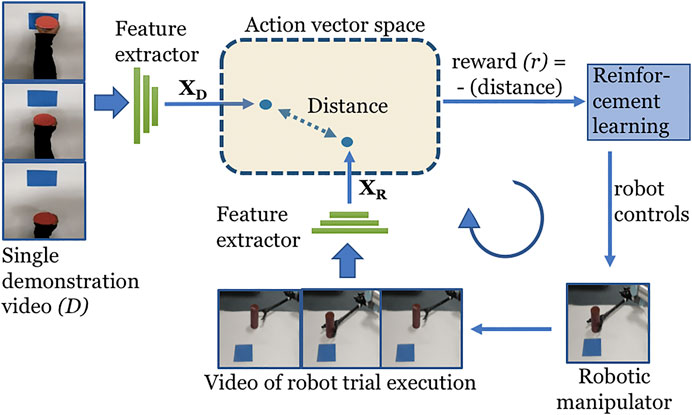

FIGURE 1

FIGURE 1. Overview of O₂A method. A 3D-CNN action vector extractor is used to extract action vectors $\overrightarrow{X_D}$ and $\overrightarrow{X_R}$ from the video clips of the demonstration and robot trial execution respectively. A reward function is used to compare $\overrightarrow{X_D}$ and $\overrightarrow{X_R}$ in the action vector space, generating a reward signal (r) based on their closeness. The reinforcement learning algorithm then iteratively learns an optimal control policy by maximizing this reward signal, thus enabling observational learning.

Thus the reward directly measures the closeness of the actions in the demonstration and of the robot trial execution. The reinforcement learning will then maximize this reward function to learn an optimal control policy. This optimal control policy will enable the robotic manipulator to perform the demonstrated task.

3.2.1 Reinforcement Learning of the Task

Any reinforcement learning algorithm can be used with our method. In the simulation experiment, we use the Deep Deterministic Policy Gradient (DDPG) (Lillicrap et al., 2015) to estimate the optimal control policy. The states used by the control policy are instantaneous visual observations of the environment (as observed by the robotic system). We make use of a VGGNet pre-trained on ImageNet (Simonyan and Zisserman, 2015) for converting raw RGB images into visual state features. The 4,608 long feature obtained from the last convolutional layer of the VGG-16 network is used as the instantaneous state representation.

Reinforcement learning in real robots is an active area of research and remains a challenging problem. So we use a manipulation planning algorithm, the Stochastic Trajectory Optimisation (STO) (Agboh and Dogar, 2018; Kalakrishnan et al., 2011), for the real robot experiment. Using a different manipulation algorithm does not undermine the effectiveness of our method. The objective behind the experiment is to show that O₂A reward can successfully guide a robotic manipulation algorithm to learn the demonstrated tasks. STO generates an optimal control sequence by iteratively improving on the previous sequence guided by our reward function. The cost function C, to be minimized is calculated as:

$C=r^2(3)$

Additionally, this shows that our method is agnostic to the robotic manipulation algorithms and can directly be used with more advanced algorithms when available in future.

4 Action Vector Analysis

In this section, we aim to validate our assumptions for the proposed action vector extraction method explained in Section 3.1. First we collect a manipulation dataset, the “Leeds Manipulation Dataset (LMD)”. Note that this dataset is only used for evaluation and not used during training of the action vector extractor. LMD consists of videos of three different manipulation tasks: reach, push and reach-push, examples of which are shown in Figure 2. The task videos are collected directly with a human hand and by using tools resembling robotic manipulators/end effectors. Each class consists of 17 videos with variations in viewpoint, object properties, scene background and morphology of manipulator within each class. Note that, identical looking task classes were carefully selected and same set of objects and manipulators were used across tasks for collecting videos. These choices are deliberate to make the task differentiation more challenging. Under these circumstances, only an efficient action vector extractor can produce task-discriminative and domain-invariant action vectors for different task classes in LMD.

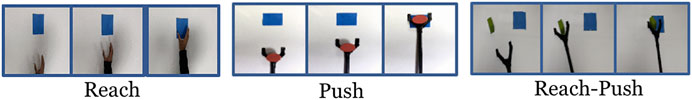

FIGURE 2

FIGURE 2. Snapshots of sample videos from LMD. Identical looking task classes are used to make the task differentiation more challenging.

4.1 Clustering Analysis

We conduct the experiment to identify which one of the final layers of NN:UCF101 provides the best action vector for manipulation tasks. We use the quality of the clusters in the action vector space, as a measure to understand how task-discriminative and domain-invariant are the action vectors from different layers of NN:UCF101 model. The more the action vectors are task-discriminative and domain-invariant, the better the clustering of the action vectors from the same class will be. To analyse the quality of the clusters, we use a standard clustering evaluation measure, the ARI (Hubert and Arabie, 1985) score. The ARI score measures the extent to which the predicted clustering corresponds to the and ground truth clusters by counting pairs that are assigned in the same or different clusters. ARI values are bounded by [−1, 1], where −1 is the lowest score, 0 indicates random clustering and 1 shows that the predicted clustering corresponds to the ground truth clusters perfectly.

For the experiment, we extract the action vector from the pool5, fc6, fc7 and fc8 layers of the NN:UCF101 model, for all the 17 videos in LMD. The Baseline-R is obtained using features from the pool5 layer of the same NN:UCF101 model but initialised with random weights. The features extracted from each layer are then clustered using the K-means clustering algorithm. The value of K = 3 is used, corresponding to the number of task classes. After clustering, the predicted cluster labels are evaluated against ground truth labels and ARI scores are calculated. The results of the experiment are tabulated in Table. 2.

TABLE 2

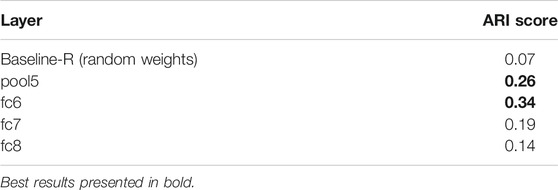

TABLE 2. ARI scores. Results show that the features from layer pool5 and fc6 of the NN:UCF101 model are best suited to be used as action vectors.

The ARI value for Baseline-R is close to zero as expected and gives us the baseline to compare with. The ARI score increases when features from pool5 to fc6 layers are used as the action vector, but drops for the final fc7 and fc8 layers. The results indicate that the features from pool5 and fc6 layers of the NN:UCF101 model are the most suitable to be used as the action vector. These results are in agreement with the previous works (Azizpour et al., 2015; Athiwaratkun and Kang, 2015) that study transferability of features from different layers of a pre-trained CNN to new downstream problems. Specifically, Azizpour et al. (2015) have shown that the first fully connected layer after the convolutional layers of a pre-trained (for classification) network produced the most generic features for a range of 15 downstream problems. An experiment (reported in Supplementary Section S3) using optimal K values for each layer also shows that the features from pool5 and fc6 layers are best suited to be used as the action vector. The optimal K value is obtained by performing clustering analysis and calculating ARI scores for each value of K from 1 to 51 (the total number of samples in LMD). Furthermore, we also performed clustering analysis (while not reported here) when features from different layers are concatenated and used as the action vector. Concatenating features did not produce any significant improvements in the performance.

4.2 Class Similarity Scores

Here we calculate the interclass and intraclass similarity scores for different classes of LMD in the action vector space. For that, we extract action vectors from pool5 and fc6 layers of the NN:UCF101 model, for all the 51 videos in LMD. The Baseline-R is obtained using features from pool5 layer of the same NN:UCF101 model but initialised with random weights. The similarity score between a pair of action vectors, is shown as the cosine of the angle between them. The similarity scores are bounded by [−1, 1] with −1 indicating diametrically opposite vectors and 1 indicating coinciding vectors.

The results are tabulated in Table 3. For each chosen feature layer, the diagonal values represent the average of similarity scores between pairs of action vectors from the same class. And the non-diagonal values are the average of similarity scores between pairs of action vectors from different classes. The diagonal values are greater than the rest of the values indicating adequate task-discrimination and domain-invariance for the action vectors extracted. The only exception is for layer fc6 where a greater inter-class similarity score is observed between reach and push classes than the intraclass similarity score for reach class. Provided that both tasks are extremely similar, these results are promising.

TABLE 3

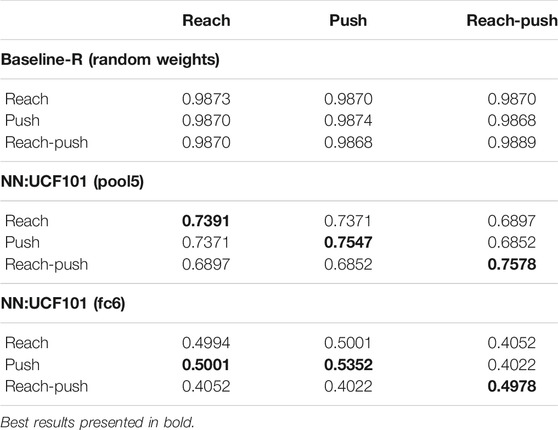

TABLE 3. Class similarity scores. The intraclass similarity (diagonal values) are greater than the rest of the values, indicating adequate task-discrimination and domain-invariance.

We also visualize these action vectors from LMD, projected into 2D using PCA, which are shown in Figure 3. The clustering of action vectors from the same classes, when compared to the Baseline-R is evident. This further indicates the task-discrimination and domain-invariance of our action vectors. It must be noted that this visualisation collapses the vectors, of much greater dimensions, into a 2D space, which might be causing some of the “artificial” overlaps.

FIGURE 3

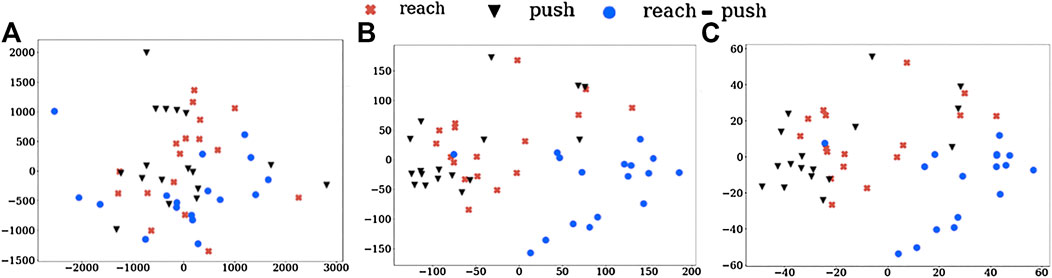

FIGURE 3. Visualising LMD for (A) Baseline-R and using action vectors from (B) pool5 and (C) fc6 layers of NN:UCF101 model. We can see the clustering of the action vectors into different task classes.

The class similarity scores and visualization shows that our pre-trained action vector extractor can generalise to unseen manipulation tasks. In the next section we show how the action vector is used for observational learning and how well O₂A performs under different domain shifts.

5 Robotic Experiments

To explore the resilience of our method to shifts between the demonstrator and learner domains, we conducted the experiments with six different domain shifts, as defined in Table 4. The tasks used are reaching and pushing in simulation and pushing, hammering, sweeping and striking for the real robot experiment. The task definitions and completion measures are given in Table 5. Note that the task completion measures are only used for evaluating the performance of O₂A and not used during learning.

TABLE 4

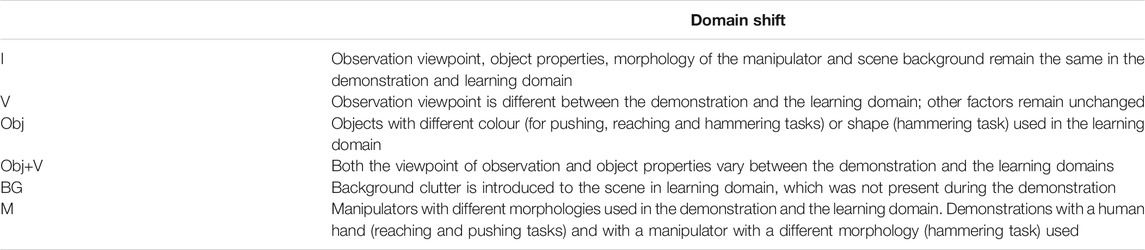

TABLE 4. Domain shifts used in our experiments.

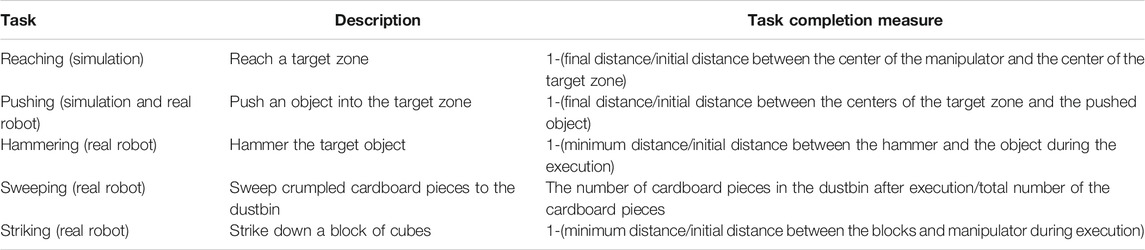

TABLE 5

TABLE 5. Task definitions and completion measures.

5.1 Simulation Experiment

We set up the simulation learning domain with a 3DOF robotic manipulator for reaching and pushing using OpenAI Gym (Brockman et al., 2016) and the MuJuCo physics engine (Todorov et al., 2012). In each setup (characterising a domain shift), we collect a single demonstration in the real world and run DDPG algorithm 10 times. Each run has 20 episodes per run and the number of steps per episode are 60 and 160 for reaching and pushing respectively. We use architectures similar to Lillicrap et al. (2015) for the actor and critic networks. The hyper-parameters used are given in the Supplementary Section S2. For each run, the DDPG returns a control policy that corresponds to the maximum reward obtained. After training, we pick the top-2 (Henderson et al., 2018) control policies with the highest rewards, and the task completion measures are calculated. The top control policies were selected to avoid policies from poorly performing runs affecting the overall performance. The output of the control policy are the robotic controls with a size of three corresponding to each of the joints. The robotic controls could be torques, joint angles or velocities of the manipulator. In our experiment we have used joint angles. We perform the experiment with action vectors extracted from both pool5 and fc6 layers of NN:UCF101 model. Figure 4 shows snapshots of the demonstration and execution of the corresponding learned policy for selected setups. Videos of the simulation experiment results, including demonstrations are available in the project-page.

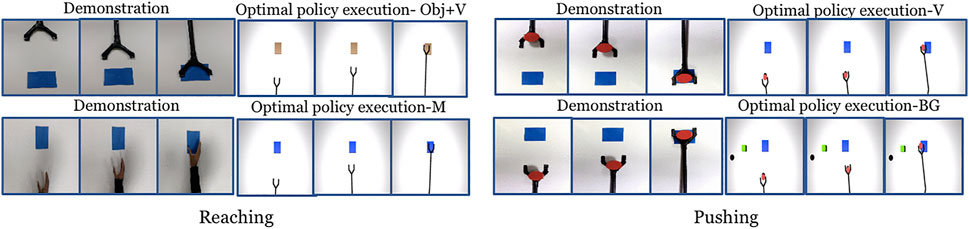

FIGURE 4

FIGURE 4. Snapshots of the demonstration and the execution of corresponding learned policies in the simulation experiment for selected domain shifts. (Results shown for action vectors extracted from pool5 layer of NN:UCF101 model).

We compare our method with an oracle and two baseline approaches. The oracle is trained by using the corresponding task completion measure specified in Table 5 as the reward, in place of a reward derived from action vectors. It represents the upper bound on performance. The two baselines represent a video clip by averaging a “static” representation for each frame, in contrast to the spatio-temporal representation used in O₂A. Rewards are then generated using these representations. In Baseline-1, features from the output of the last convolutional layer of the ImageNet (Simonyan and Zisserman, 2015) pre-trained VGG-16 network are used and in Baseline-2, HOG (Dalal and Triggs, 2005) features are used. The average of the task completion measures for the top two control policies for oracle, O₂A and the baseline approaches are plotted in Figure 5. The learned policies from O₂A were successful in performing the demonstrated task under different domain shifts with good task completion measures. It also significantly outperforms both baseline approaches and has a comparable performance to the oracle.

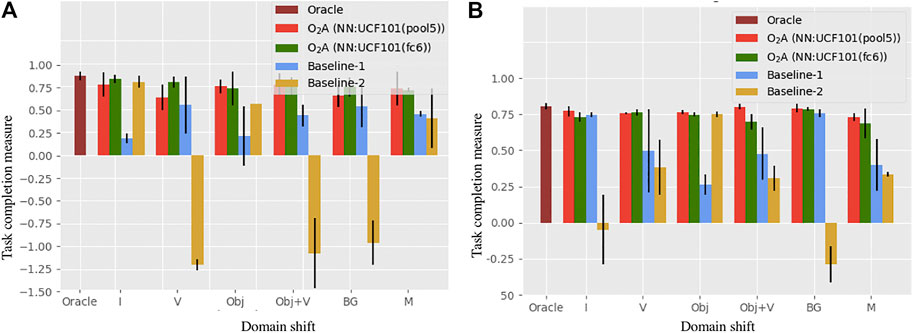

FIGURE 5

FIGURE 5. Task completion measures for the task of (A) reaching and (B) pushing in the simulation experiment. O₂A outperforms both the baselines and has performance comparable to the Oracle under all domain shifts. The Oracle score is shown only once since it is unaffected by the domain shifts (refer to Table 4 for domain shift definitions).

We further analysed the quality of the rewards generated in O₂A, the baseline approaches and the Oracle. To compare, we calculate the Pearson correlation coefficient (Benesty et al., 2009) between the episodic perceptual rewards (O₂A, baselines) and the Oracle rewards for the top two runs. A high positive correlation [typically >0.5 (Tipping and Bishop, 1999)] indicates that the perceptual rewards are as good as the Oracle rewards. All the results are tabulated in Table 6. From the results, the correlation coefficients are greater than 0.5 in all the cases for O₂A, indicating that our rewards are as accurate as the Oracle rewards. Also, the correlation is higher and positive compared to the baselines for a range of domain shifts showing the superior performance of our method.

TABLE 6

TABLE 6. Pearson correlation coefficients between the rewards from the Oracle, and from O2A and two baselines. The coefficients are generally highest and positive for O₂A rewards compared to baseline approaches.

5.1.1 Trajectory Maps

Here we plot the trajectories followed by the robotic manipulator in each episode during reinforcement learning of the task. This visualisation will help to understand, if high rewards are obtained for desired trajectories while learning the demonstrated task. The top-5 trajectories with the highest reward values obtained during task learning are coloured with red and the rest of the trajectories are in blue.

We also show the results when O₂A action vector extractors are pre-trained with a manipulation task dataset, the Multiple Interactions Made Easy (MIME) dataset (Sharma et al., 2018). MIME dataset consists of 8260 videos of 20 commonly seen robotic manipulation tasks, executed by a human as well a Baxter robot. This model is referred to as ‘NN:MIME’. The aim is to study how well O₂A performs when pre-trained on a task specific manipulation dataset compared to a generic dataset. The results are shown in Figure 6 (for reaching task) and in Supplementary Section S4 (for pushing task). The reward values for desired trajectories in Baseline-R are low in all the cases as expected. The results indicate that, when NN:UCF101 is used, high rewards are generated for desired trajectories for all domain shifts. However NN:MIME performs poorly for changes in viewpoint and manipulator used. An insight into this is that, even though the MIME dataset consists of large number of manipulation task examples, the variations in terms of viewpoints and manipulators used are limited. In contrast UCF101 contains examples with extensive range of variations in domain settings like viewpoint and manipulator morphology.

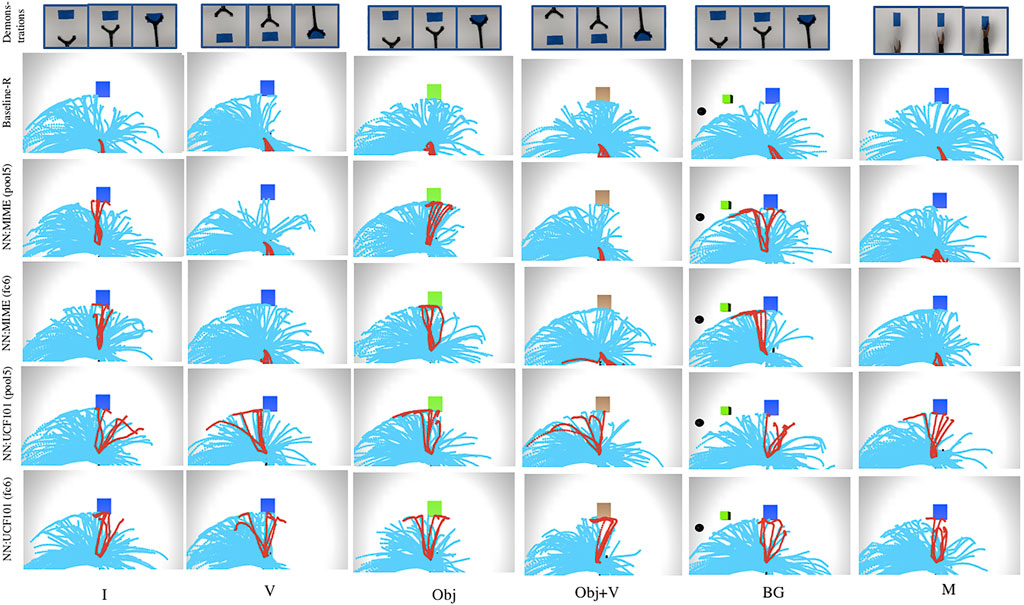

FIGURE 6

FIGURE 6. Trajectory maps obtained during reinforcement learning of the task of reaching, when O₂A action vector extractors are pre-trained with UCF101 dataset [NN:UCF101 (pool5, fc6)] and with MIME dataset [NN:MIME (pool5, fc6)]. NN:UCF101 provides high rewards for desired trajectories for all the domain shifts (I, V, Obj, Obj+V, BG, M). However, NN:MIME performs poorly when viewpoint of observation (V, Obj+V) and morphology of the manipulator (M) changes.

Further, we plotted trajectory maps for O₂A (with NN:UCF101 model) for the task of reaching when a 4DOF manipulator is used. The results are given in Figure 7 for three different domain shifts: I, V and M, along with the manipulators used in the simulation experiment. The results show that O₂A can work with manipulators of different degrees of freedom. We also plotted trajectory maps when domain shifts are characterised by changes in background colour. The results (reported in Supplementary Section S5) show that O₂A provides high rewards for desired trajectories, even when background colour changes.

FIGURE 7

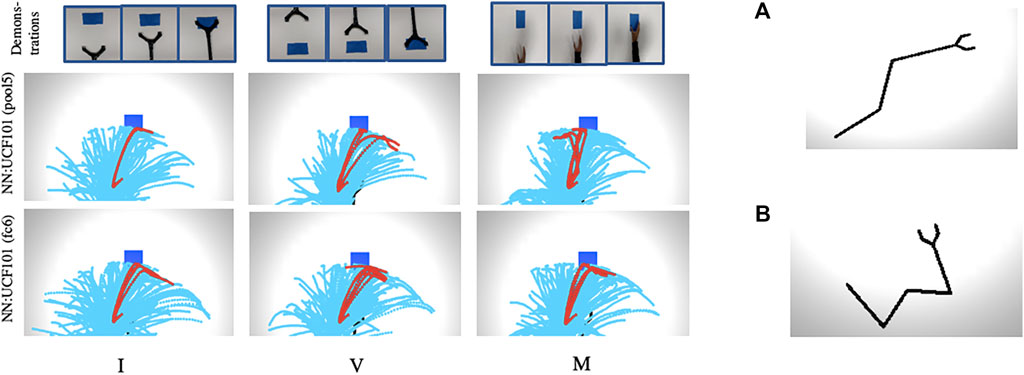

FIGURE 7. (Left side) Trajectory maps for O₂A (with NN:UCF101 model) obtained for the task of reaching with domain shifts: I,V and M when a manipulator with 4DOF is used. High rewards are obtained for desired trajectories for all the cases indicating that our method can work with manipulators of different DOF. (Right side) Manipulators used in the simulation experiment with (A) 3DOF and (B) 4DOF.

Additionally, we experimented with the reach-push task using a set of manually collected video samples showing different degrees of task completion. The results reported in Supplementary Section S6 show that O₂A reward function can successfully model the more complex task of reach-push.

5.2 Real Robot Experiment

For the real robot experiment, we use a 6DOF UR5 robotic arm attached with different end-effectors suitable for each task. All six domain shifts (see Table 4) are used for the pushing and hammering tasks. Whereas, only three domain shifts (I, V and M) are used for the sweeping and striking tasks, since others did not have meaning for these tasks. We only used features from pool5 layer of NN:UCF101 model as the action vector, due to the high cost of running the real robot experiment. Implementation details of the STO algorithm used to generate the optimal sequence of controls are explained below.

Briefly, we begin with an initial candidate control sequence. We execute this sequence using the manipulator to generate an initial cost. Thereafter, at each iteration we create eight random control sequences by adding Gaussian noise to the candidate sequence from the previous iteration and execute them using the real robot. At the end of each iteration, we pick the control sequence with the minimum cost calculated using Eq. 3. Then we set it as the new candidate sequence thereby iteratively reducing the cost. Each control sequence has a length of 16 steps and observed image frames are collected after each step. The action vector is then extracted from these frames at the end of the sequence execution to calculate the cost. The initial control sequence is initialised by providing a near solution path, following common practices in literature (Sermanet et al., 2017). The near path solution is obtained by manually setting the sequence start and end points, and interpolating between them. The Gaussian noise added has a mean zero and the standard deviation is set as hyper-parameter for each task. The detailed step by step STO algorithm is given in the Supplementary Section S7.

Each experiment is run two times with 10 iterations each. In Figure 8 the snapshots of executions of optimal control sequences obtained for the selected setups are given. The average task completion measures for the optimal control sequences are shown in Figure 9. Our method achieves good task completion measures for different domain shifts. This shows the effectiveness of O₂A in learning tasks on a real robot. Videos of all the results of the real robot experiments, including demonstrations are available in our project-page.

FIGURE 8

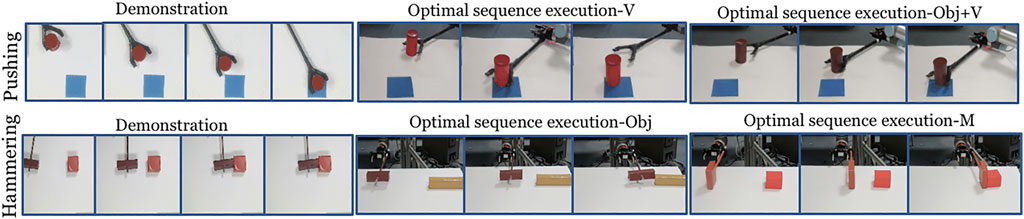

FIGURE 8. Snapshot of the demonstration and execution of the corresponding optimal control sequences obtained for selected domain shifts from the real robot experiment (Results shown for action vectors extracted from pool5 layer of NN:UCF101 model).

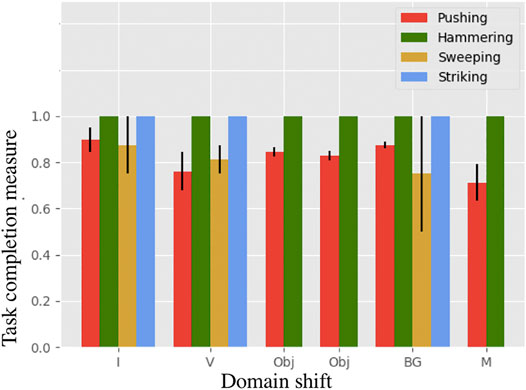

FIGURE 9

FIGURE 9. Task completion measures for the task of pushing, hammering, sweeping and striking in the real robot experiment. The result shows that O₂A performs well under different domain shifts on a real robot.

6 Conclusion

We have presented O₂A, a method for observational learning of robotic manipulation tasks from a single (one-shot) demonstration. The method works by extracting a perceptual representation (the action vector) from videos using a pre-trained action vector extractor. Our analysis shows that the pre-trained action vector extractor can generalise to unseen robotic manipulation tasks. Also experiments in simulation and with a real robot show that O₂A can perform well under different domain shifts and outperforms baseline approaches.

A limitation in our work is the number of trial executions required to learn a task. It would be interesting to see if we can map the action vector from the demonstration directly to a initial near optimal solution. Sim-to-real (Jeong et al., 2020) approches could also be used to speed up the real robot experiments. Also, O₂A is currently evaluated with 2D manipulation tasks. Using 3D tasks such as stacking or grasping would help to further understand the strengths and limitations of the proposed method. Another future direction will be to use additional sensing modalities like touch or audio for situations where the demonstrations are not visually observable (e.g. due to occlusion). Also, it would be interesting to study pre-training on generic action datasets for other robotic manipulation problems. Such pre-training could potentially address the lack of large ImageNet (Simonyan and Zisserman, 2015) like datasets of robotic manipulation task videos. Finally it would be exciting to extend O₂A to multi-step manipulation tasks. One approach to tackle this could be to decompose these tasks into single-step tasks learnt using the current method, within a curriculum learning framework.
