Non-linear Relationships Between the Built Environment and Walking Frequency Among Older Adults in Zhongshan, China

Aim: Promoting walking activity is an effective way to improve the health of older adults. Walking frequency is a critical component of walking behavior and an essential determinant of daily walking levels. To decipher the association between the built environment and walking frequency among older adults, this study's aims are as follows: (1) to empirically test whether non-linear relationships between the two exist, and (2) to identify the thresholds of the built environment characteristics that promote walking.

Methods: The walking frequency of old adults was derived from the Zhongshan Household Travel Survey (ZHTS) in 2012. The sample size of old adults aged 60 or over was 4784 from 274 urban and rural neighborhoods. A semi-parametric generalized additive model (GAMM) is used to analyze the non-linear or non-monotonic relationships between the built environment and the walking frequency among older adults.

Results: We found that non-linear relationships exist among five out of the six built environment characteristics. Within certain thresholds, the population density, sidewalk density, bus stop density, land use mixture, and the percentage of green space are positively related to older adults' walking trips. Furthermore, the land use mixture and the percentage of green space show an inverse “V”-shaped relationship.

Conclusions: Built environment features can either support or hinder the walking frequency among older adults. The findings in the current study contribute to effective land use and transport policies for promoting active travel among older adults.

Introduction

Physical activity (PA) brings numerous positive health outcomes for older adults by lowering the incidence of chronic diseases, disability, and bone fractures (1). As the most common PA for older adults, walking is low-cost and low-risk, and easy to incorporate into daily life (2, 3). All else being equal, walking over 120 minutes per week is positively associated with a more negligible risk of all-cause mortality (4). Older adults are, in general, the least physically active group of the population (5). Therefore, encouraging walking among older adults is a crucial intervention to improve the quality of life and healthy aging (6).

According to the United Nations' latest report, the global population of older adults aged 65 years or over is estimated at 727 million in 2020. The number is projected to more than double by 2050, reaching over 1.5 billion (7). Between 2020 and 2050, Eastern and South-Eastern Asia will experience the most significant percentage increases in the older population. As the most populated country in Eastern and South-Eastern Asia, China's aging population is expected to increase from 180 million in 2020 to 380 million in 2050 (8). However, in a review on the built environmental correlates of older adults' walking (9), only 15% of the studies focused on Eastern and South-Eastern Asia countries with ultra-high residential density. Therefore, the findings in the Western context are not necessarily translatable to the Chinese context. Furthermore, few interventions supporting walking among older adults have been implemented in China, as little is known about the barriers and facilitators of their walking (10). Therefore, it is of great significance to study the walking behavior of old adults in the Chinese context.

The investigation into the effects of the built environment on older adults' walking behaviors has encouraged evidence-based, health-oriented interventions to promote walking activity among older adults (11). Older adults are more susceptible to the built environment because they are more inclined to travel short distances. Therefore, they need safe facilities and spend more time in parks (12). Previous studies have indicated that a walking-friendly built environment, compact and mixed urban form, connective pedestrian infrastructure, accessible commercial and service opportunities, and green spaces and parks are essential determinants of older adults' walking (6, 13–15). However, most literature assumes that the relationships between the built environment and walking are linear or at least linear in variables. The linkages between the built environment and walking behavior remain ambiguous and mixed (16). The impact of a built environment variable on walking behavior may differ when it falls into different ranges of the variable, and its effect may be saturated when it reaches a certain level (17–19). Scholars of land use, transport, and public health called for studies to investigate the non-linear relationships between the built environment and travel behavior (20). Using generalized additive mixed models, the non-linear effects of the built environment on older adults' walking have been implied by Cerin et al. (21). Ding et al. used a gradient boosting decision trees (GBDT) method and found strong non-linearity between the built environment and driving distance in an empirical study in Oslo, Norway (18). Ding et al. applied a gradient boosting logit model to substantiate a non-linearity relationship of ridership, with Metrorail data collected in the Washington Metropolitan Area (19). Using a gradient boosting decision trees (GBDT) algorithm, Tao et al. (22) explored the non-linear associations between spatial attributes and walking distance to public transport (22). Their studies acknowledge the complexity of the effects of the built environment on older adults' walking. The results suggest the potential benefits of exploring threshold effects to inform more effective environmental interventions. However, relevant exploration of the non-linear associations between the built environment and walking among older adults is somewhat limited.

With data collected from the Zhongshan metropolitan area in China, this paper employed a semi-parametric generalized additive mixed model (GAMM) to explore the potential non-linear relationships between the built environment and walking frequency among older adults. The present study contributes twofold to the existing literature. First, it facilitates understanding of the relationships between the built environment and active travel in a developing country with rapid urbanization and motorization. Second, it challenges the linearity assumption and identifies the non-linear associations between various built environment characteristics and walking frequency among older adults. The threshold effects of the built environment observed in the study provide nuanced insights for policymakers and planners on efficient land use and transport planning strategies and policies to encourage walking among older adults.

Materials and Methods

This study chose Zhongshan Metropolitan Area, Guangdong Province, China, as a case to examine the walking frequency among older adults in the Chinese context. Zhongshan is a medium-sized prefecture-level city with 24 districts and towns (Figure 1). In the three largest coastal urban agglomerations with the most competitive economies in China, there are about 20 medium-sized cities with similar urbanization and motorization level and urban transport characteristics to Zhongshan (6). The walking frequency of older adults in Zhongshan averages 1.42 trips per day, covering 55% of all utilitarian trips. Utilitarian walking refers to walking trips undertaken to fulfill common purposes (e.g., accomplishing errands or getting to work) (23, 24).

FIGURE 1

Figure 1. Study area. The upper side of the figure shows the city boundary, district (town) boundary, and the neighborhood boundary of Zhongshan; while the bottom half shows the location of Zhongshan in Guangdong Province.

Data Collections

The walking activity data were obtained from the Zhongshan Household Travel Survey (ZHTS) in 2012. Selected by stratified random sampling, the sample size of older adults was 4,784 (2,905 male and 1,879 female) from 274 urban and rural neighborhoods, with a sample rate of 2%. The numbers of older adults aged 60–69, 70–79, and over 79 were 2,979, 1,078 and 272, respectively. The 2012 ZHTS provided a travel diary including self-reported walking activity, e.g., the frequency, duration, and purpose of walking trips, and the respondents' personal and household socio-demographics. The description of the population are shown in Table 1.

TABLE 1

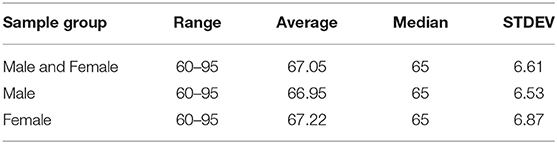

Table 1. Description of the population.

Variable Selection

Ewing and Cervero suggested that each D variable of the “five Ds” built environment contains several features commonly used in the built environment-travel behavior research (25). The “five Ds” are density, design, diversity, distance to transit, and destination accessibility. Additionally, the aesthetic is another built environment feature that influences walking frequency among older adults (14, 20). The meaning and represent variables (considering the best available data) of the five Ds and aesthetics are shown in Table 2.

TABLE 2

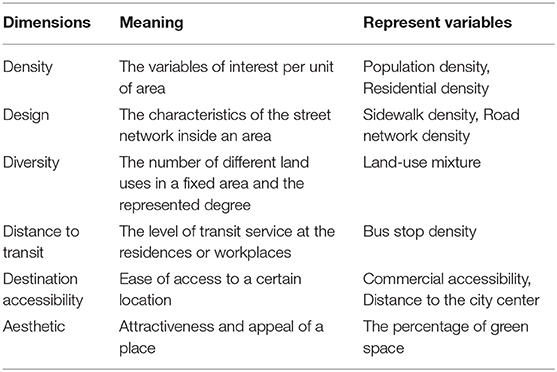

Table 2. Dimensions of the built environment.

This study carries out a Pearson correlation analysis to reduce the multicollinearity of independent variables and select the best variables. Multicollinearity refers to the high correlation between the independent variables in the linear regression model. It makes the model estimation distorted or difficult to estimate accurately. The Pearson correlation coefficient between two independent variables can be used to determine the degree of correlation. If the correlation coefficient between the variables is large, there is usually strong collinearity between them. Therefore, only one of the variables is selected as the independent variable for modeling. In Table 3, the Pearson correlation coefficient between residential density and sidewalk density is 0.843, showing a significant correlation. The correlations of the distance to the city center with other variables were higher than commercial accessibility. Therefore, the built environment variables finally selected in this study are population density, sidewalk density, land-use mixture, bus stop density, commercial accessibility, and the percentage of green space.

TABLE 3

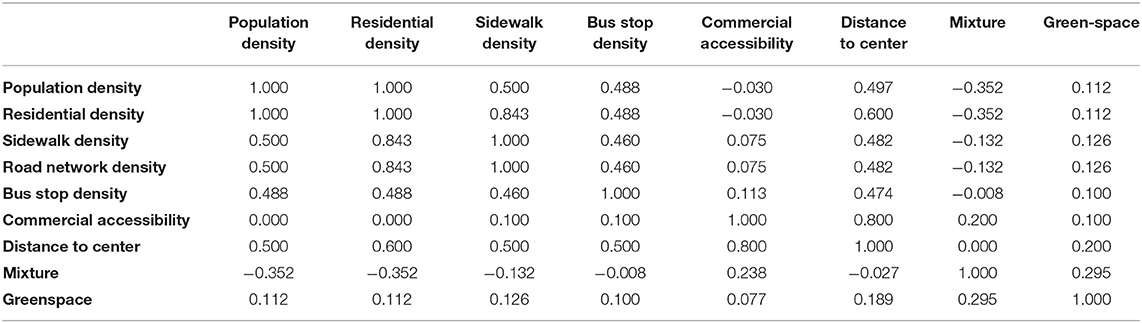

Table 3. Pearson correlation coefficient between explanatory variables.

Main Variables

The built environment data were collected based on neighborhoods, which are spatially equivalent to the traffic analysis zone (TAZ). As designed to be homogeneous concerning socio-demographic characteristics and living conditions, TAZs share boundaries with administrative divisions in most cases. According to the administrative divisions in Zhongshan, a total of 274 traffic analysis zones (neighborhoods) were selected in this study.

The population density, sidewalk density, bus stop density, and the percentage of green space are explained in Table 4. The land-use diversity represents the degree to which different land uses in a neighborhood are mixed. It is calculated by the Entropy Index (EI) (26), where 0 indicates single-use environments and 1 stands for the equalization of different land uses in area coverage. EI is defined by:

$\begin{array}{ll}EI={\sum }_{i=1}^n{P}_{i}log(1/P_i)\dots \dots & (1)\end{array}$

where n = number of unique land uses, n ≥ 1; P_i = percentage of land use i's coverage over total land use coverage (27). Commercial accessibility describes the ease of access to commercial attractions. The neighborhood-level commercial accessibility is defined by the area of coverage of commercial facilities within a one-kilometer distance from the centroid of a neighborhood. The 2012 ZHTS shows that a travel distance of one kilometer covers 70% of older adults' home-based commercial trips. For each neighborhood, we first defined the centroid of each neighborhood as the origin and distributed a one-kilometer travel distance as a buffer to the main roads from the origin. Then we formed an enclosed area with the endpoints of the acceptable travel distances in ArcGIS. Finally, we collected the data of the area covered by commercial facilities in the enclosed area in ArcGIS. The dependent variable and independent variables (i.e., socio-demographics and built environment) used in this study are shown in Table 4.

TABLE 4

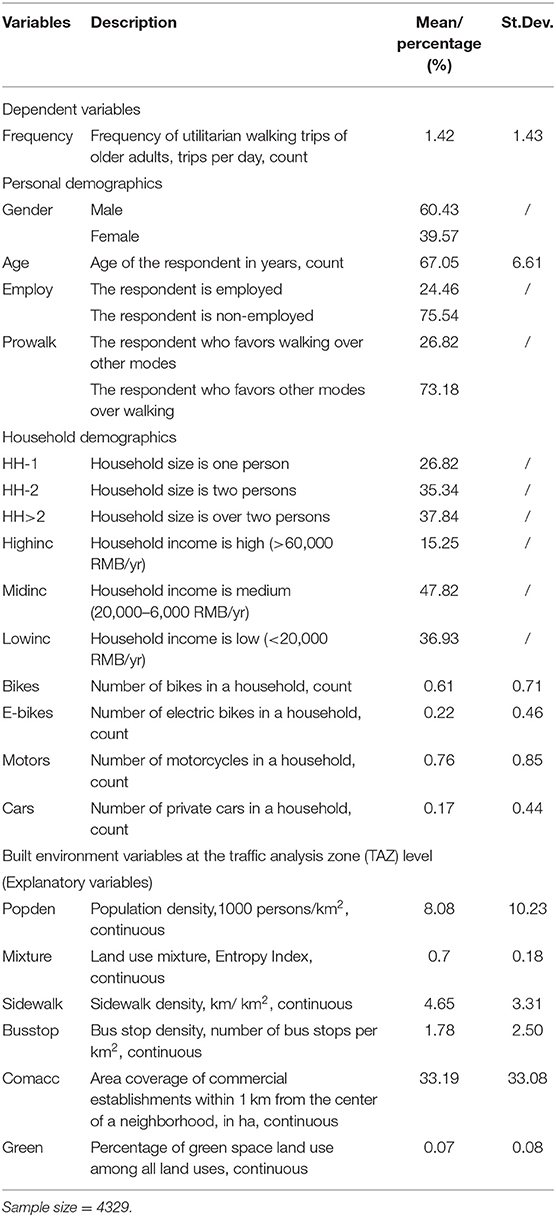

Table 4. Description of variables used in the analysis.

Modeling Approach

The relationship between the built environment and walking trips of older adults is complex, uncertain, and probably non-linear (28). The semi-parametric GAMM as penalized generalized linear models can relax the pre-defined relationship (e.g., linear or log-linear) between the utility and explanatory variables (29). This study adopted a semi-parametric GAMM to disentangle the non-linear or non-monotonic relationships (17, 26). The model relating a univariate response variable μ to a set of explanatory variables x₁, x₂, …, has the general form:

$\begin{array}{ll}g(\mu )=s_0+{\displaystyle \sum {}_{i=1}^r}{\beta }_i{X}_i+{\displaystyle \sum {}_{j=1}^p}{s}_j(X_j)+\epsilon & (2)\end{array}$

where g is a smooth monotonic “link function” that allows a valuable degree of non-linearity into the model structure (27). s₀ is the intercept, μ is the dependent variable, which is the daily utilitarian walking trips (times/day) among older adults. X is the independent variable, X_i represents the household and personal socio-demographic variables (i.e., gender, age, household size, employment status, household income, ownership of bikes, e-bikes, motorcycles, cars), X_j stands for the built environment variables (i.e., population density, land use mix, sidewalk density, bus stop density, commercial, and percentage of green space). s_j(X_j) are smooth functions of built environment variables. With the smooth term, it becomes a semi-parametric model with a parametric component and a non-parametric component. The parametric part is $\sum _{i=1}^r{\beta }_i{X}_i$, and the non-parametric part is ${\sum }_{j=1}^p{s}_j(X_j)$. ε is the residual of the model and ε ~ N(0, σ²). The details of the link function and smooth function estimation process were presented in Appendix A.

Results

Employing the semi-parametric GAMM described in the section of the modeling approach, we developed a model to investigate significant correlates of utilitarian walking frequency among older adults and illustrate the non-linear effects of relationships with the built environment. Model estimation results are presented in Table 5.

TABLE 5

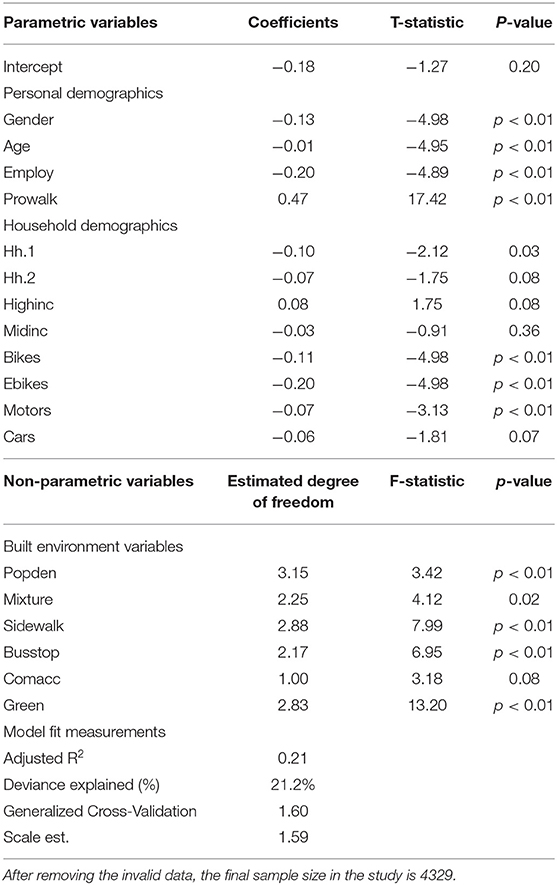

Table 5. Results of the semi-parametric generalized additive mixed model.

The Associations Between Demographics and Utilitarian Walking Trips Among Older Adults

Table 5 presents the associations between personal and household socio-demographics and walking frequency among older adults. It is worth noting that the coefficients of parametric variables in a semi-parametric GAMM represent those in a traditional logit model. In general, socio-demographic variables are significantly correlated to walking frequency among older adults. The results show that the female walks more than the male, which is consistent with Kwan's “family responsibility hypothesis.” In addition, women often participate in more daily family activities, generating more daily trips, including walking. Moreover, the employed older adults walk less than the pensioners. Presumably, walking is not a desirable option for commuting trips (6, 30). Unsurprisingly, being younger or having a positive attitude toward walking is associated with more walking trips (31, 32).

Owning private vehicle instruments, especially bikes, e-bikes, or motorcycles, shows a negative association with walking frequency. Walking frequency among older adults is especially negatively correlated to bikes, e-bikes, and motorcycles. It demonstrates that walking is an alternative to those modes in certain travel distances. Furthermore, e-bike ownership has more significant marginal effects than bike ownership and motorcycle ownership. That implies that e-bike is a stronger competitor for walking than conventional bikes and motorcycles (6, 17). One possible reason is that e-bike is easy to operate, safe, comfortable, and free of exhaust gas and noise pollution. It substitutes for conventional bikes, motorcycles, transit, and cars and meets the needs of the working class and middle-older-aged adult (17, 33).

Non-linear Relationships With Built Environment Variables

This study treated built environment features as non-parametric variables to disentangle their non-linear effects. In Table 6, the estimated degree of freedom (EDF) of commercial accessibility is 1.00, suggesting a stronger linear association, consistent with the plot in Figure 2. However, the EDFs of the other five built environment variables range from 1.38 to 3.15, indicating non-linearity.

TABLE 6

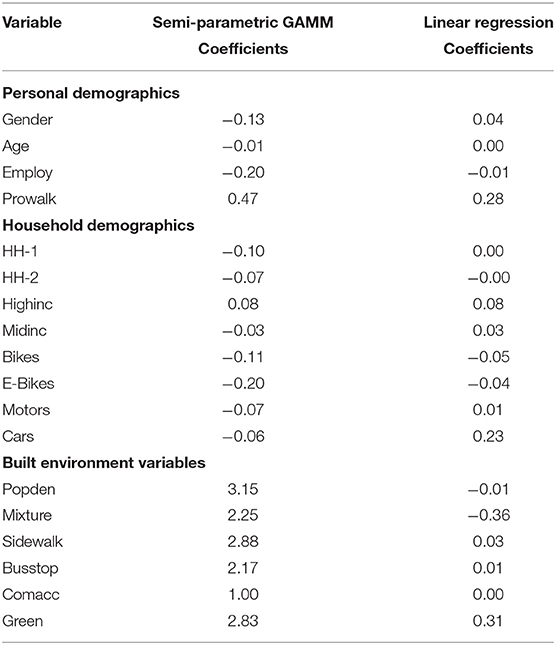

Table 6. Comparison between semi-parametric GAMM and linear regression.

FIGURE 2

Figure 2. The relationships between built environment variables and walking frequency among old adults. The numbers shown on the vertical axis in each plot indicate the estimated degrees of freedom. Solid lines represent the estimated effects of built environment variables. Shaded regions denote the 95% confidence intervals. The estimated curves are centered around zero because of the identifiability constraints.

When the population density is smaller than 7,000 persons/km², it was positively correlated with the walking frequency among older adults. This positive association is somewhat congruent with the literature (34, 35). As population density increases, walking may become a desirable option among older adults. Higher population density tends to support walking-friendly street space and infrastructure, and various services and shops, which has an indirect influence on walking (35). However, beyond 7,000 persons/km², the population density has a trivial marginal effect on walking frequency.

When the land use mix is smaller than 0.65, it was positively associated with the walking frequency among older adults, consistent with previous literature (36, 37). This relationship suggests that abundant commercial, service, and employment opportunities within walking distance promote older adults to walk more. By contrast, the land-use mixture seemed to affect the walking frequency negatively after the threshold of 0.65.

When the sidewalk density is below 6 km/km², it had a limited marginal effect on the walking frequency. However, above the threshold of 6 km/km², the sidewalk density showed a positive effect. This result makes sense because a denser sidewalk network indicates more walking-route choices, a walking-friendly environment, and better street connectivity, which increases older adults' willingness to walk (14, 38–40). These recommended values are significant to improving the cost-effectiveness of land use interventions.

When the bus stop density is within the range of six stops/km², it showed a positive association. Walking is a desirable and prevalent travel option to connect trip origins and destinations with bus stops. More accessible bus stops are potentially correlated to increasing transit use as well as walking trips. However, when the density exceeds six stops/km², the effect is saturated. The possible reason is that it may be hard to increase transit use by extra bus stops in neighborhoods with already high-level bus service provision. Hence, the increase in walking trips is minuscule.

The percentage of green space land use depicts an inverse U relationship with the walking frequency among older adults. In the range of 8–40%, the green space showed a positive association, consistent with the literature on green space and physical activity (6, 41, 42). Therefore, providing abundant green space in a neighborhood could be a desirable option to promote walking among older adults.

Model Comparison With Linear Regression

Zhang et al.'s study (6) is among the earliest attempts on the built environment and the walking behavior among older adults in the Chinese context. Zhang et al. (6) adopted a zero-inflated Poisson regression and assumed that all built environment variables have exponential correlations with walking frequency and duration among older adults. This study employed the same dataset and independent variables as Zhang et al.'s previous work. Therefore, we compared the coefficients of the variables between semi-parametric GAMM and linear regression (Table 6). The assumption of linearity in variables in the zero-inflated Poisson regression renders the non-linear relationship unobservable.

Discussion

Major Findings

Using the 2012 Zhongshan Household Travel Survey (ZHTS) data, we examined the relationships between the built environment and walking frequency among older adults in Zhongshan, China. The walking frequency analyzed in the study is utilitarian walking trips per day. The older adults focus on adults aged 60 and over, in line with the definition of the aging population from the Law of the People's Republic of China on Protection of the Rights and Interests of Older Adults. Personal and household attributes related to gender, age, employment status, and attitudes toward walking are significantly connected to older adults' walking frequency. Specifically, being female or aged 60–69, or retired, or favoring walking over other modes is associated with more walking trips. The findings are consistent with previous literature (30, 31).

This study has shed light on the non-linear associations between the built environment and walking frequency among older adults. The non-linear patterns are demonstrated to be prevalent and vary among built environment attributes. The non-linear relationship shows that the impact of a built environment variable on walking behavior may differ when it falls into different ranges of the variable. Its effect may be saturated when it reaches a certain level (11, 17, 43). Specifically, in Zhongshan, the population density of 7000 persons/km² and the land use mixture index of 0.65 is sufficient to promote walking among old adults. However, the ultra-densely populated areas and excessively mixed land use may negatively impact the frequency of older adults walking. This finding is in line with Cerin et al.'s work (21) that additional residential density in highly compact areas would not increase but even decrease the odds of walking among older adults. Thus, the association between population density and walking frequency is non-linear and different from Zhang et al.'s study in 2014 (6). This difference indicates the limitations of the linear assumption widely used in previous studies.

For land-use mixture, recent studies indicate that in dense Eastern-Asian cities (e.g., Seoul, Hong Kong), when the mixture is beyond a certain level, a decrease in walking frequency is observed (21, 44). Presumably, due to higher proximity to services and destinations, people tend to have trip-chains of multiple trips in a single journey (38, 45). However, the in-depth reasons behind the negative association require further study. Strategies for designing street networks in Zhongshan or similar cities should also account for the non-linear relationships found in this research. Above the threshold of 6 km/km², sidewalk density shows a positive relationship with walking frequency. This finding is in line with the recommendations in China's Design Guidelines for the Pedestrian and Cycling Transportation System (46). The guideline recommended 6–10 km/km² of sidewalk density as the baseline for creating walkability in neighborhoods. Moreover, for neighborhoods where walking is highly intensive, the desirable sidewalk density is 10 to 20 km/km². Access to public transport fosters walking. Therefore, the density of bus stops has a significant impact on achieving regular engagement in walking among older adults. The bus stop density of six stops/km² is sufficient to optimize walking frequency, consistent with previous studies (6, 22).

Greenery, street trees, parks, and green corridors provide a more pleasant and safer walking environment, contributing to the increased walking trips among older adults (47, 48). In Zhongshan, the effective range of green space land use for increasing walking among older adults is between 8% and 40%. When the percentage of green space land use exceeds 40% (two out of 274 neighborhoods fall in the category), the walking frequency decreases, consistent with the literature of Christiansen L B et al. (48). The reason is that the two neighborhoods are located in the city parks and nearly 20 km away from downtown. Therefore, the commercial and service establishments in the two neighborhoods are scarce and beyond the suitable walking distance for older adults.

It is worth mentioning that the present study employed the same dataset and independent variable as in Zhang et al.'s work (6). However, the two studies are significantly different in modeling approach and contribution. Zhang et al. (6) adopted a zero-inflated Poisson regression and assumed that all built environment variables have exponential correlations with walking frequency and duration among older adults. That research design is widely used in the existing literature. However, the present study employed a semi-parametric GAMM, hypothesizing that built environment variables have non-linear associations with the walking frequency among older adults. The results supported the hypotheses and challenged the conventional assumption used in Zhang et al.'s work (Table 6). Furthermore, it confirms that linear regression cannot reveal the complex non-linear associations between built environment variables and the walking frequency among older adults, as shown in Figure 2.

Limitations

The study has a few limitations. First, the cross-sectional data reveals more associations than casual effects. Future studies are suggested to employ panel data or attitudinal attributes to disentangle the causal influences of the built environment on walking behavior. Second, this study does not subdivide age groups, genders, and urban/rural areas. It would be useful to examine how different ages, genders, and urban/rural areas affect the walking behavior of older adults. Third, the thresholds found in Zhongshan may not be transferable for other regions with different sizes or built environment features. The GAMM model used in this study with such smooth functions relaxes the assumption of linear or known parametric functional forms for the relationships which can potentially capture (even complex) non-linear functional forms. However, the modification of just one of the assumptions might have easily led to different estimations. Therefore, there are several uncertainties when using in different cities. We encourage planners to identify specific thresholds in land use planning for older adults according to studies in different regions.

Conclusions

This study explores the non-linear relationships between the built environment and walking frequency among older adults with a semi-parametric generalized additive mixed model. The contributions of the study are threefold.

First, the findings suggest that the non-linear relationships between the built environment and walking frequency among older adults are prevalent. Based on the model results, the five built environment characteristics showing non-linearity are population density, land use mixture, sidewalk density, bus stop density, and the percentage of green space land use. The only linear built environment variable is commercial accessibility. The results are in line with recent literature (17, 22) and challenge the conventional linearity assumption in active travel studies. We also compared the present study with Zhang et al.'s work in 2014 using the same dataset but a zero-inflated Poisson regression (6). The assumption of linearity in variables in Zhang et al.'s work renders the non-linear relationship unobservable. Therefore, the linearity assumption of the regression model is flawed.

Second, the results underscore the critical role of the built environment in older adults' walking activity. Among the six built environment variables tested here, five were significantly associated with the walking frequency of older adults. In specific ranges, all else being equal, dense and mixed land use development, adequate pedestrian infrastructure, convenient bus service, and ample green land space are effective in encouraging older adults to opt for walking. Although the findings may not be directly used in other regions, the model developed in this study could be applied with their local data and facilitate strategies for land use and transport planning.

Third, the results suggest that built environment attributes have apparent threshold effects on the walking frequency among older adults. A built environment attribute may not have equivalent effects across the whole range of that attribute and thus finding the appropriate range would be cost-effective. In Zhongshan, the population density of 7,000 persons/km² is sufficient to optimize walking frequency among older adults. Therefore, it is important to develop neighborhoods with relatively balanced age structures and avoid overly aggregating the elderly population. Moreover, the sidewalk density of 6 km/km² should be the baseline in street network planning for creating walkability in neighborhoods. To promote walking activity among old adults, a bus stop density of 6 stops/km² and a land-use entropy index of 0.65 are suitable as built environment interventions. Furthermore, for the percentage of green space land use, the effective ranges for increasing walking among older adults are between 8% and 40%. These findings can inform planners of the most effective ranges for planning.

Data Availability Statement

The dataset presented in this article are not readily available because it belongs to the Zhongshan Municipality Natural Resources and Planning Bureau and is a part of the ongoing projects (Grant No. 18BSH143 of the National Social Science Foundation of China, Grant No. 20692109900 of Shanghai Science and Technology Program, and Grant No. 2020-APTS-04 of APTSLAB). Therefore, the dataset is confidential during this period.

Ethics Statement

Ethical review and approval were not required for the study on human participants in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study.

Author Contributions

JW conceived of the study and participated in its design and coordination. CZ and YZ led the manuscript preparation. LW and CL contributed to data collection and analysis. TW and YZ contributed to data collection. All authors read, contributed to, and approved the final manuscript.

Funding

This study was funded by the National Social Science Foundation of China (Grant No. 18BSH143).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Ania Z, Stephen MG, Helen F, Thilo K, Skelton DA, Anna G, et al. Promotion of physical activity interventions for community dwelling older adults: a systematic review of reviews. PLoS ONE. (2017) 12: e0180902. doi: 10.1371/journal.pone.0180902

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Dawson J, Hillsdon M, Boller I, Foster C. Perceived barriers to walking in the neighborhood environment: a survey of middle-aged and older adults. J Aging Phys Act. (2007) 15:318–35. doi: 10.1123/japa.15.3.318

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Cunningham G, Michael YL. Concepts guiding the study of the impact of the built environment on physical activity for older adults: a review of the literature. Am J Health Promot. (2004) 18:435–43. doi: 10.4278/0890-1171-18.6.435

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Kelly P, Kahlmeier S, Gtschi T, Orsini N, Foster C. Systematic review and meta-analysis of reduction in all-cause mortality from walking and cycling and shape of dose response relationship. Int J Behav Nutr Phys Act. (2014) 11:132. doi: 10.1186/s12966-014-0132-x

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Liu Z, Kemperman A, Timmermans H. Correlates of older adults' walking trip duration. J Transp Health. (2020) 18:100889. doi: 10.1016/j.jth.2020.100889

CrossRef Full Text | Google Scholar

6. Zhang Y, Li Y, Liu QX, Li CY. The built environment and walking activity of the elderly: an empirical analysis in the zhongshan metropolitan area, China. Sustainability. (2014) 6:1076–92. doi: 10.3390/su6021076

CrossRef Full Text | Google Scholar

7. Ageing WP. World Population Ageing 2020 Highlights: Living Arrangements of Older Persons. ST/ESA/SER.A/451 (2020).

Google Scholar

8. Foundation CDR. China development report 2020: development trends and policies of China's population aging. China Dev Res Found. (2020) 1–3.

Google Scholar

9. Barnett DW, Barnett A, Nathan A, Van Cauwenberg J, Cerin E, Grp COAW. Built environmental correlates of older adults' total physical activity and walking: a systematic review and meta-analysis. Int J Behav Nutr Phys Act. (2017) 14:24. doi: 10.1186/s12966-017-0558-z

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Zhang Y, Wu W, He Q, Li C. Public transport use among the urban and rural elderly in China: effects of personal, attitudinal, household, social-environment and built-environment factors. J Trans Land Use. (2018) 11:701–19. doi: 10.5198/jtlu.2018.978

CrossRef Full Text | Google Scholar

11. Cheng L, Shi K, Vos JD, Cao M, Witlox F. Examining the spatially heterogeneous effects of the built environment on walking among older adults. Transp Policy. (2021) 100:21–30. doi: 10.1016/j.tranpol.2020.10.004

CrossRef Full Text | Google Scholar

12. Joseph A, Zimring C. Where active older adults walk - understanding the factors related to path choice for walking among active retirement community residents. Environ Behav. (2007) 39:75–105. doi: 10.1177/0013916506295572

CrossRef Full Text | Google Scholar

13. Kaczynski A, Potwarka L, Smale B, Havitz M. Association of parkland proximity with neighborhood and park-based physical activity: variations by gender and age. Leisure Sci. (2009) 31:174–91 doi: 10.1080/01490400802686045

CrossRef Full Text | Google Scholar

14. Roe J, Mondschein A, Neale C, Barnes L, Boukhechba M, Lopez S. The urban built environment, walking and mental health outcomes among older adults: a pilot study. Front Public Health. (2020) 8:15. doi: 10.3389/fpubh.2020.575946

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Troped PJ, Starnes HA, Puett RC, Tamura K, Cromley EK, James P, et al. Relationships between the built environment and walking and weight status among older women in three US States. J Aging Phys Act. (2014) 22:114–25. doi: 10.1123/japa.2012-0137

CrossRef Full Text | Google Scholar

16. Zhang W, Zhao Y, Cao X, Lu D, Chai Y. Non-linear effect of accessibility on car ownership in beijing: pedestrian-scale neighborhood planning. Transp Res D-Transp Environ. (2020) 86:102445. doi: 10.1016/j.trd.2020.102445

CrossRef Full Text | Google Scholar

17. Ding C, Cao X, Dong M, Zhang Y, Yang J. Non-linear relationships between built environment characteristics and electric-bike ownership in Zhongshan, China. Transp Res D-Transp Environ. (2019) 75:286–96. doi: 10.1016/j.trd.2019.09.005

CrossRef Full Text | Google Scholar

18. Ding C, Cao X, Naess P. Applying gradient boosting decision trees to examine non-linear effects of the built environment on driving distance in Oslo. Transp Res a-Policy Pract. (2018) 110:107–17. doi: 10.1016/j.tra.2018.02.009

CrossRef Full Text | Google Scholar

19. Ding C, Cao X, Wang Y. Synergistic effects of the built environment and commuting programs on commute mode choice. Transp Res a-Policy Pract. (2018) 118:104–18. doi: 10.1016/j.tra.2018.08.041

CrossRef Full Text | Google Scholar

20. Van Wee B, Handy S. Key research themes on urban space, scale, and sustainable urban mobility. Int J Sustain Transp. (2016) 10:18–24. doi: 10.1080/15568318.2013.820998

CrossRef Full Text | Google Scholar

21. Cerin E, Sit CHP, Barnett A, Johnston JM, Cheung MC, Chan WM. Ageing in an ultra- dense metropolis: perceived neighbourhood characteristics and utilitarian walking in Hong Kong elders. Public Health Nutr. (2014) 17:225–32. doi: 10.1017/S1368980012003862

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Tao T, Wang J, Cao X. Exploring the non-linear associations between spatial attributes and walking distance to transit. J Transp Geogr. (2020) 82. doi: 10.1016/j.jtrangeo.2019.102560

CrossRef Full Text | Google Scholar

23. Elizabeth PG, Leveille SG, Hannan MT, Jie C, Kevin K, Li W. Variations in community prevalence and determinants of recreational and utilitarian walking in older age. J Aging Res. (2015) 2015:382703. doi: 10.1155/2015/382703

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Fonseca F, Conticelli E, Papageorgiou G, Ribeiro P, Jabbari M, Tondelli S, et al. Levels and characteristics of utilitarian walking in the central areas of the cities of bologna and Porto. Sustainability. (2021) 13:3064. doi: 10.3390/su13063064

CrossRef Full Text | Google Scholar

25. Ewing R, Cervero R. Travel and the built environment. J Am Plan Assoc. (2010) 76:265–94. doi: 10.1080/01944361003766766

CrossRef Full Text | Google Scholar

26. Haitao D. Analysis of influencing factors of residents' personal income based on semiparametric generalized additive model. J Suzhou Univ. (2019) 34:68–70, 84.

Google Scholar

27. Wood SN, Goude Y, Shaw S. Generalized additive models for large data sets. J R Stat Soc Ser C-Appl Stat. (2015) 64:139–55. doi: 10.1111/rssc.12068

CrossRef Full Text | Google Scholar

28. Kitahara D, Yamada I editors. Probability density function estimation by positive quartic C2-spline functions. In: ICASSP 2015–2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). IEEE (2015). doi: 10.1109/ICASSP.2015.7178633

CrossRef Full Text | Google Scholar

29. Ouyang F, Ge F. Non-linear analysis of insect population dynamics based on generalized additive model and its implementation in R language. Acta Appl Entomol. (2013) 50:1170–7. doi: 10.7679/j.issn.2095-1353.2013.161

CrossRef Full Text | Google Scholar

30. Jie Z, Yanwei C. Research progress on spatial behaviors of the elderly in China. Progress Geogr. (2013) 32:722–32

Google Scholar

31. Barnes R, Winters M, Ste-Marie N, McKay H, Ashe MC. Age and retirement status differences in associations between the built environment and active travel behaviour. J Transp Health. (2016) 3:513–22. doi: 10.1016/j.jth.2016.03.003

CrossRef Full Text | Google Scholar

32. Ghani F, Rachele JN, Loh VHY, Washington S, Turrell G. Do differences in built environments explain age differences in transport walking across neighbourhoods? J Transp Health. (2018) 9:83–95. doi: 10.1016/j.jth.2018.03.010

CrossRef Full Text | Google Scholar

33. Song E, Wang Y, Chen L. Analysis of the industrialization of china's electric bicycles. In: China Battery Industry Association Electric Vehicles and New Battery Academic Exchange Conference. (2003) p. 4–7.

Google Scholar

34. Tanishita M, Wee BV. Impact of regional population density on walking behavior. Transp Plan Technol. (2017) 40:661–78. doi: 10.1080/03081060.2017.1325137

CrossRef Full Text | Google Scholar

35. Cerin E, Barnett A, Zhang CJP, Lai P-c, Sit CHP, Lee RSY. How urban densification shapes walking behaviours in older community dwellers: a cross-sectional analysis of potential pathways of influence. Int J Health Geogr. (2020) 19(1). doi: 10.1186/s12942-020-00210-8

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Humphrey NP. Does the built environment influence physical activity? Examining the evidence – Special Report 282. Transportation Research Board Special Report. Tr News. (2005):31–3.

Google Scholar

37. Zhong SN, Lee C, Lee H. Community environments that promote intergenerational interactions vs. walking among older adults. Front Public Health. (2020) 8:20. doi: 10.3389/fpubh.2020.587363

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Bentley R, Blakely T, Kavanagh A, Aitken Z, King T, Mcelwee P, et al. A longitudinal study examining changes in street connectivity, land use, and density of dwellings and walking for transport in brisbane, Australia. Environ Health Perspect. (2018) 126:057003. doi: 10.1289/EHP2080

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Etman A, Kamphuis CB, Prins RG, Burdorf A, Pierik FH, Van Lenthe FJ. Characteristics of residential areas and transportational walking among frail and non-frail dutch elderly: does the size of the area matter? Int J Health Geogr. (2014) 13:1–7. doi: 10.1186/1476-072X-13-7

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Lu Z. Investigating walking environments in and around assisted living facilities: a facility visit study. Herd. (2010) 3:58. doi: 10.1177/193758671000300406

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Portegijs E, Timmermans EJ, Castell MV, Dennison EM, Herbolsheimer F, Limongi F, et al. Neighborhood resources associated with active travel in older adults-a cohort study in six european countries. J Aging Phys Act. (2020) 28:920–33. doi: 10.1123/japa.2019-0267

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Sugiyama T, Giles-Corti B, Summers J, Toit LD, Leslie E, Owen N. Initiating and maintaining recreational walking: a longitudinal study on the influence of neighborhood green space. Prev Med. (2013) 57:178–82. doi: 10.1016/j.ypmed.2013.05.015

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Astell-Burt T, Feng X, Kolt GS. Green space is associated with walking and moderate-to-vigorous physical activity (MVPA) in middle-to-older-aged adults: findings from 203 883 Australians in the 45 and up study. Br J Sports Med. (2014) 48:404. doi: 10.1136/bjsports-2012-092006

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Ding C, Wang D, Liu C, Zhang Y, Yang J. Exploring the influence of built environment on travel mode choice considering the mediating effects of car ownership and travel distance. Transp Res A Policy Pract. (2017) 100:65–80. doi: 10.1016/j.tra.2017.04.008

CrossRef Full Text | Google Scholar

45. Han H, Huang C, Ahn KH, Shu X, Lin L, Qiu D. The effects of greenbelt policies on land development: evidence from the deregulation of the greenbelt in the Seoul metropolitan area. Sustainability. (2017) 9:1259. doi: 10.3390/su9071259

CrossRef Full Text | Google Scholar

46. Im HN, Choi CG. The hidden side of the entropy-based land-use mix index: clarifying the relationship between pedestrian volume and land-use mix. Urban Stud. (2018) 56:004209801876331. doi: 10.1177/0042098018763319

CrossRef Full Text | Google Scholar

47. China DoHaU-RDo. Design Guidelines for Pedestrian and Cycling Transportation System. (2013).

48. Christiansen LB, Cerin E, Badland H, Kerr J, Davey R, Troelsen J, et al. International comparisons of the associations between objective measures of the built environment and transport-related walking and cycling:IPEN adult study. J Transp Health. (2016) 3:467–78. doi: 10.1016/j.jth.2016.02.010

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Cadarso-Suárez C, Roca-Pardi?As J, Figueiras A, González-Manteiga W. Non-parametric estimation of the odds ratios for continuous exposures using generalized additive models with an unknown link function. Stat Med. (2010) 24:1169–84. doi: 10.1002/sim.1978

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Vrbik J. Small-sample corrections to kolmogorov–smirnov test statistic. Pioneer J Theor Appl Stat. (2018). 15:15–23.

Google Scholar

51. Chakravarti IM, Laha RG, Roy J. Kolmogorov-Smirnov (K-S) Test. Vol. I. (1967). p. 392–4.

52. Team C. R: A Language and Environment for Statistical Computing. Vienna: R Foundation for Statistical Computing (2012). doi: 10.1890/0012-9658(2002)083[3097:CFHIWS]2.0.CO;2

CrossRef Full Text | Google Scholar

53. Zang P, Liu XH, Zhao YB, Guo HX, Lu Y, Xue CQL. Eye-level street greenery and walking behaviors of older adults. Int J Environ Res Public Health. (2020) 17:9. doi: 10.3390/ijerph17176130

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Conover WJ. Practical nonparametric statistics / by W.J. Conover: Wiley (1980).

Google Scholar

Appendix A

The link function and smooth function estimation process

This section describes the estimation approach of the link function and smooth function of the semi-parametric model. The semi-parametric GAMM uses a link function to establish a relationship between the dependent variable and a smoothed function of the independent variables. The strength of these models is their ability to deal with highly non-linear and non-monotonic relationships between the dependent and the set of independent variables. The link function is defined by the distribution of the response variable (29). The relationship between them is shown in Table A1.

TABLE A1

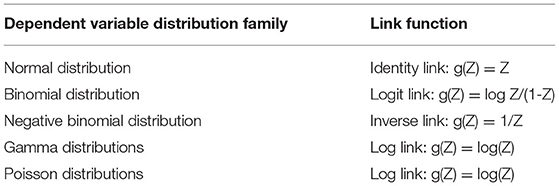

Table A1. Distribution of response variable and link functions.

Misleading conclusions may be reached if an incorrect choice of the link is made (49). To avoid or, at least, mitigate the risks of such a wrong choice, predicting the dependent variable distribution is required. In this study, the dependent variable is walking trips, which is the continuous variable. Statistical literature has proposed that it is best to use the Kolmogorov-Smirnov (K-S) test to analyze whether a variable conforms to a certain distribution or compare whether there are significant differences between the two groups (50–52). Therefore, this study uses the K-S test to compare the actual frequency distribution with Gaussian, Uniform, Poisson, Exponential, etc. When assuming the response variable obeys gamma distribution, the results of the K-S test are D = 0.824, P-value = 0.102 > 0.05. The assumptions are established (53, 54). Finally, we selected the Log link for the link function.

In the semi-parametric GAMM model, it is necessary to consider both the goodness of fit and the smoothness of the curve. After experimental tests and research, we found that the spline-based smooth functions can automatically determine the optimal shape of the non-linearity. Therefore, this study uses the spline-based smoothing function, which has the following general form (27):

$\begin{array}{ll}f(x)={\displaystyle \sum _{r=1}^R}{\lambda }_r{S}_r(x)& (\mathrm{A1})\end{array}$

where S(x) is a basic function, r is the number of basic functions, λ is a smoothing parameter to be estimated (27).

The spline is a continuous function piecewise-defined by polynomials and is widely used to smooth observed data (28). Various functions (e.g., thin plate regression splines, cubic regression splines, and P-splines) can be used as the specified spline basis function. The smoothing parameters are chosen by Generalized Cross-Validation (GCV). The smaller the GCV value, the better fit the model (27). This study chose thin plate regression splines because the GCV value is smallest, ‘knot locations' do not have to be selected and computation time is relatively efficient (17, 27).

In this study, the model estimation was implemented using the “mgcv” package in R (27).
