Distributional Transformation Improves Decoding Accuracy When Predicting Chronological Age From Structural MRI

When predicting a certain subject-level variable (e.g., age in years) from measured biological data (e.g., structural MRI scans), the decoding algorithm does not always preserve the distribution of the variable to predict. In such a situation, distributional transformation (DT), i.e., mapping the predicted values to the variable's distribution in the training data, might improve decoding accuracy. Here, we tested the potential of DT within the 2019 Predictive Analytics Competition (PAC) which aimed at predicting chronological age of adult human subjects from structural MRI data. In a low-dimensional setting, i.e., with less features than observations, we applied multiple linear regression, support vector regression and deep neural networks for out-of-sample prediction of subject age. We found that (i) when the number of features is low, no method outperforms linear regression; and (ii) except when using deep regression, distributional transformation increases decoding performance, reducing the mean absolute error (MAE) by about half a year. We conclude that DT can be advantageous when predicting variables that are non-controlled, but have an underlying distribution in healthy or diseased populations.

1. Introduction

In recent years, probabilistic modeling (1) and machine learning (2) have been increasingly applied to psychiatric populations and problems, leading to the creation of a whole new field of research called “Computational Psychiatry” (3).

The prediction of human age from biological data holds a large promise for computational psychiatry, because biologically predicted age may serve as an important biomarker for a number of human phenotypes (4). For example, brain-predicted age may be an indicator for the memory decline associated with neurodegenerative disorders such as Alzheimer's disease [AD; (5)].

The 2019 Predictive Analytics Competition¹ (PAC), held before the 25th Annual Meeting of the Organization for Human Brain Mapping² (OHBM), addressed this research question by asking teams to predict chronological age of human subjects from raw or preprocessed structural magnetic resonance imaging (sMRI) data using a self-chosen machine learning (ML) approach.

Because brain structure changes significantly when becoming older, age can be predicted from sMRI with considerable precision (4), usually quantified as mean absolute error (MAE). Brain-predicted age difference (BPAD), i.e., the difference between age predicted from sMRI and actual age, can either be a sign of “accelerated” (BPAD > 0) or “decelerated” (BPAD < 0) brain aging. Accelerated brain aging has been associated with lower levels of education and physical exercise (6), less meditation (7), and an increased mortality risk, among others (8).

While early attempts at predicting human age from functional MRI (9) have used decoding algorithms such as support vector machines (SVM), more recent ML-based decoding from structural MRI has focused on deep learning (10), specifically using convolutional neural networks (CNN) to predict chronological age (4, 8, 11), AD disease state (5) or even body mass index (12) from anatomical brain data.

With a complex series of linear and non-linear optimizations involved in those decoding algorithms, it is clear that the distribution of predicted values of the target variable (e.g., chronological age) will not be exactly identical to the distribution of those values learned from (i.e., the training data). Here, we introduce distributional transformation (DT), a post-processing method for ML-based decoding, which allows to circumvent this problem by matching predictions to the training distribution.

Applied to out-of-sample ML prediction, DT operates by transforming the distribution of predicted values into the distribution of learned values of the variable of interest. In this way, prediction of the target variable (here: chronological age) is not only achieved by reconstructing it from the test set features (here: structural MRI), but additionally aided by looking at the training set samples, such that predictions are more likely to be in a realistic range for that particular target variable.

In this study, we apply DT to PAC 2019 data, while predicting chronological age using either multiple linear regression (GLM), support vector regression (SVR), or deep neural networks (DNN). In summary, we find that (i) multiple linear regression outperforms all other methods in a low-dimensional feature space and (ii) distributional transformation reduces prediction error for linear regression and SVR, but not DNN regression.

2. Methods

2.1. Structural MRI Data

Data supplied within the 2019 Predictive Analysis Competition (PAC) included structural scans from n₁ = 2, 640 training set and n₂ = 660 validation set subjects which were all healthy adults. The analyses reported here exclusively used the pre-processed gray matter (GM) and white matter (WM) density images supplied during the competition [for pre-processing details, see (4)]. Covariates included subjects' gender and site of image acquisition; data were acquired at 17 different sites. Subjects' age in years was supplied for the training set (2640 values), but not shared and only after the competition released for the validation set (660 values). The ratio of training to validation set size is 4:1 (see Table 1).

TABLE 1

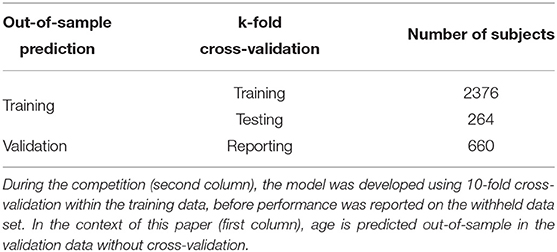

Table 1. Data dimensions and cross-validation.

2.2. Feature Extraction

The Automated Anatomical Labeling [AAL; (13)] atlas parcellates the human brain into 90 cortical and 26 cerebellar regions. We used the AAL label image (supplied with MRIcroN³ and also available from the TellMe package⁴) and resliced it to the first pre-processed GM image in order to match image dimensions and voxel size. We then extracted average GM and WM density from all 116 regions from the pre-processed structural images for each subject.

Acquisition site information was transformed into 17 indicator regressors and subject gender information was transformed into a +1/−1 regressor. Together with the extracted GM and WM densities, this constituted design matrices for training and validation data having p = 2 × 116 + 17 + 1 = 250 columns (see Figure 1).

FIGURE 1

Figure 1. Data vector (left) and design matrix (right) for training set (top) and validation set (bottom). In the design matrices, rows correspond to subjects and columns correspond to brain regions and covariates. Regressors specifying gray matter (GM) and white matter (WM) densities as well as site covariates are separated by vertical black lines.

2.3. Decoding Algorithms

Let y₁ and y₂ be the n₁ × 1 and n₂ × 1 training and validation data vector and let X₁ and X₂ be the n₁ × p and n₂ × p training and validation design matrix.

2.3.1. Multiple Linear Regression

Multiple linear regression proceeds by estimating regression coefficients via ordinary least squares (OLS) from the training data

$\begin{array}{ll}{\widehat{\beta }}_1={(X_1^{\text{T}}{X}_1)}^{-1}{X}_1^{\text{T}}{y}_1& (1)\end{array}$

and generating predictions by multiplying the design matrix with estimated regression coefficients in the validation data,

$\begin{array}{ll}{ŷ}_2={\widehat{f}}_1(X_2)=X_2{\widehat{\beta }}_1.& (2)\end{array}$

2.3.2. Support Vector Regression

Support vector regression (SVR) was implemented in MATLAB using fitrsvm. A support vector machine was calibrated using the training data and then used to predict age in the validation data:

$\begin{array}{l}{ĝ}_1\leftarrow fitrsvm(X_1,y_1)\\ {ŷ}_2={ĝ}_1(X_2)& (3)\end{array}$

2.3.3. Deep Neural Network Regression

Deep neural network (DNN) regression was implemented in MATLAB using trainNetwork. Before training, non-indicator regressors in X₁ and X₂ were z-scored, i.e., mean-subtracted and divided by standard deviation:

$\begin{array}{ll}{x}_{1j}^{*}=\frac{x_{1j}-{\stackrel{-}{x}}_{1j}}{{\widehat{\sigma }}_{1j}},x_{2j}^{*}=\frac{x_{2j}-{\stackrel{-}{x}}_{2j}}{{\widehat{\sigma }}_{2j}},j=1,\dots ,p.& (4)\end{array}$

The network consisted of six layers (see Table 2) following a MathWorks tutorial⁵ on deep learning for linear regression and was solved in training using the Adam optimizer. The number of epochs was set to 100, with a mini batch size of 20, an initial learning rate of 0.01, and a gradient threshold of 1. Similarly to SVR, training and prediction proceeded as follows:

$\begin{array}{l}{ĥ}_1\leftarrow trainNetwork(X_1^{*},y_1,\text{layers},\text{options})\\ {ŷ}_2={ĥ}_1(X_2^{*})& (5)\end{array}$

TABLE 2

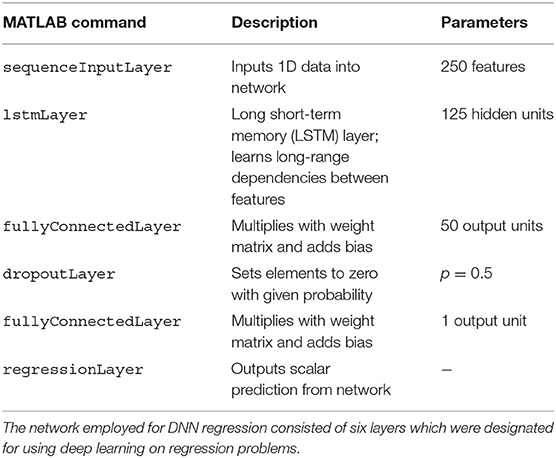

Table 2. Layers of the deep neural network.

2.4. Distributional Transformation

Because the distribution of predicted age values will not exactly match the distribution of validation set age and likely also deviates from the distribution of training set age, one can apply an additional distributional transformation (DT) step after prediction.

DT uses cumulative distribution functions⁶ (CDFs). Let X and Y be two random variables. Then, X is distributionally transformed to Y by replacing each observation of X by that value of Y which corresponds to the same quantile as the original value, i.e.,

$\begin{array}{ll}\tilde{x}=F_Y^{-1}\left(F_X(x)\right)& (6)\end{array}$

where F_X is the CDF of X and $F_Y^{-1}$ is the inverse CDF of Y. Note that DT preserves the complete ordering of X, but changes its CDF to that of Y (see Appendix A).

Here, we apply DT to the predicted ages ŷ₂, with the goal of mapping them to the distribution of the training ages y₁ by calculating

$\begin{array}{ll}{ỹ}_{2i}=F_1^{-1}\left({\widehat{F}}_2({ŷ}_{2i})\right),i=1,\dots ,n_2& (7)\end{array}$

where ${\widehat{F}}_2$ is the empirical CDF of ŷ₂ and $F_1^{-1}$ is the inverse empirical CDF of y₁, obtained in MATLAB using ecdf (see Appendix B).

After the transformation, the ranks of all predictions ŷ_2i are still the same, but the empirical CDF of ỹ₂ matches that of y₁. In other words, we receive something that looks like the training age values in terms of age distribution, but is still predicted from the validation brain data.

The rationale behind this is that, if training and validation set are unbiased, representative and unsystematic samples from the underlying population, then sampling from the training data should in itself be a good prediction strategy for the validation data (14). For example, because it can be suspected that mean age has been controlled for when dividing into training and validation data, the age distributions in training and validation data should be close to each other.

2.5. Performance Assessment

After generating predictions for the validation set, we assessed decoding accuracy using multiple measures of correlation (see Table 3) between predicted ages ŷ₂ and actual ages y₂. During the PAC 2019, Objective 1 was to minimize the mean absolute error. Objective 2 was to minimize Spearman's rank correlation coefficient between y₂ and (y₂ − ŷ₂), as it is desirable that the brain-predicted age difference (BPAD) is not correlated with age. After assessing performance in the validation set, we conducted several statistical analyses.

TABLE 3

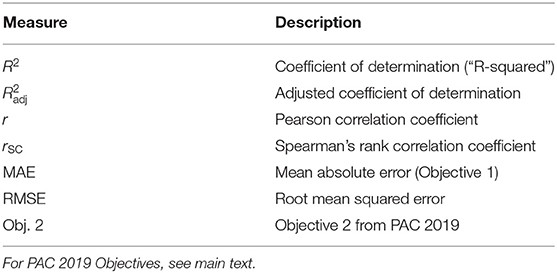

Table 3. Measures of prediction performance.

2.6. Statistical Analyses

First, we submitted absolute errors (AE) between actual and predicted age to Wilcoxon signed-rank tests⁷ in order to test for significant reduction of the MAE between decoding algorithms (linear regression, SVR, DNN) and prediction methods (with and without DT). This non-parametric test was chosen due to the presumably non-normal distribution of absolute errors.

Second, we calculated the empirical Kullback–Leibler (KL) divergence⁸ of the distribution of actual ages from the distributions of predicted ages. The KL divergence is a non-negative distance measure for probability distributions; the more similar two distributions are, the closer it is to zero. Thus, we expect substantial reductions of the KL divergence after applying DT.

Third, we ran two-sample Kolmogorov–Smirnov (KS) tests⁹ between predicted age values and validation set ages, against the null hypothesis that predicted values and validation ages are from the same continuous distribution. Consequently, similarly to the KL divergence, we expect less significant or non-significant results from the KS test after applying DT.

Finally, for purely illustrative purposes, we investigated the influence of model parameters for the most successful method of age prediction (linear regression with DT). To this end, we concatenated training and validation data (because no out-of-sample testing was needed for this analysis) and calculated parameter estimates for regression coefficients and noise variance

$\begin{array}{l}\widehat{\beta }={(X^{\text{T}}X)}^{-1}{X}^{\text{T}}y\\ {\widehat{\sigma }}^2=\frac{1}{n-p}{(y-X\widehat{\beta })}^{\text{T}}(y-X\widehat{\beta })& (8)\end{array}$

which were then used to calculate standard error and confidence interval for each estimated model parameter [(15, Chapter 7, Equation 42; Chapter 8, Equation 9)]

$\begin{array}{l}\text{SE}({\widehat{\beta }}_j)=\sqrt{{\widehat{\sigma }}^2{c}_j^{\text{T}}{(X^{\text{T}}X)}^{-1}{c}_j}\\ {\text{CI}}_{1-\alpha }({\widehat{\beta }}_j)=\left[{\widehat{\beta }}_j-\text{SE}({\widehat{\beta }}_j)·z_{1-\frac{\alpha }{2}},{\widehat{\beta }}_j+\text{SE}({\widehat{\beta }}_j)·z_{1-\frac{\alpha }{2}}\right]& (9)\end{array}$

where c_j is a contrast vector of only zeros except for a single one in j-th position (i.e., testing β_j against 0), z_1−p is the (1 − p)-quantile from the standard normal distribution (“z-score”) and the confidence level was set to (1 − α) = 90% (such that $z_{1-\frac{\alpha }{2}}=1.645$).

The complete data analysis as well as resulting decoding accuracies can be reproduced using the contents of a GitHub repository (see Data Availability Statement).

3. Results

3.1. Influence of Decoding Algorithm

Qualitatively, prediction performance can be assessed via scatterplots of predicted age against actual age in the validation set (see Figure 2). Quantitatively, the ranking is similar across all measures of correlation (see Figure 3): multiple linear regression performs best (r = 0.91, MAE = 5.07 yrs), but only mildly outperforms deep neural network regression (r = 0.89, MAE = 5.18 yrs) and strongly outperforms support vector regression (r = 0.83, MAE = 6.82 yrs). This is true for measures which are to be maximized (R², $R_{\text{adj}}^2$, r, r_SC) as well as for measures which are to be minimized (MAE, RMSE, Obj. 2). Wilcoxon signed-rank tests indicated significantly lower absolute errors for linear regression, except when compared to DNN without applying DT (see Table 4).

FIGURE 2

Figure 2. Predicted vs. actual age for validation set subjects. Solid black lines denote the identity function and dashed black lines are regression lines. Also reported are correlation coefficients (r) and mean absolute errors (MAE) for each analysis (see Figure 3). GLM, multiple linear regression; SVR, support vector regression; DNN, deep neural network regression; DT, distributional transformation.

FIGURE 3

Figure 3. Prediction performance across models, methods and measures. For each performance measure, decoding accuracy is given for multiple linear regression (green), support vector regression (red), and deep neural network regression (blue), with and without distributional transformation (DT). For abbreviations, see Table 3.

TABLE 4

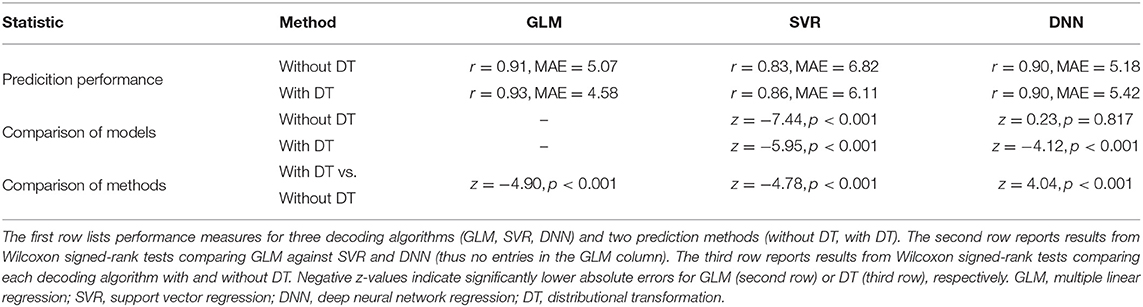

Table 4. Prediction performance across models and methods.

3.2. Influence of Distributional Transformation

When comparing predicted against actual age, one can see that SVR and DNN predictions deviate quite some amount from the actual distribution (see Figure 2, top-middle and top-right), especially by not predicting very high ages [SVR: max(ŷ₂) = 71.25 yrs; DNN: max(ŷ₂) = 75.68 yrs], whereas linear regression creates a more homogeneous picture (see Figure 2, top-left), but also predicts very low ages [min(ŷ₂) = 1.06 yrs].

DT improves the decoding accuracy of linear regression (MAE: 5.07 → 4.58 yrs) and SVR (MAE: 6.82 → 6.11 yrs), reducing their MAE by about half a year. For DNN, the error actually goes up (MAE: 5.18 → 5.42 yrs). Similar results are observed when considering other measures. Wilcoxon signed-rank tests indicated significantly lower absolute errors when applying DT after linear regression and SVR and significantly higher absolute errors when applying DT after DNN regression (see Table 4).

DT especially benefits Objective 2 of PAC 2019, as the Spearman correlation of brain-predicted age difference with age itself goes down considerably for all decoding algorithms when applying DT (see Figure 3, right), thus increasing the independence of prediction error from predicted variable.

When not applying DT (see Figure 4, top row), DNN yields the smallest KL divergence (KL = 0.073), with predictions almost being in the correct range (17 ≤ y₂ ≤ 89), whereas linear regression achieves lower correspondence and SVR suffers from making a lot medium-age predictions (40 ≤ ŷ₂ ≤ 60) and there not being a lot middle-aged subjects in the training and validation sample. When applying DT (see Figure 4, middle row), all methods give rise to the same histogram of predicted ages and have the same minimally possible distance to the actual distribution (KL = 0.027). Still, despite having the same distribution, prediction performance differs between methods (see Figure 3).

FIGURE 4

Figure 4. Empirical distributions of actual age (yellow), predicted age (top) and transformed age (middle). Each panel shows relative frequencies, i.e., number of occurrences divided by total number of subjects. The applied distributional transformation is shown for each decoding algorithm (bottom), with the diagonal line denoting the identity function. The empirical KL divergence was always computed relative to the validation age distribution (middle row, left), thus this distribution has KL = 0. Also reported are statistics from a two-sample Kolmogorov–Smirnov test between predicted values and validation ages, thus D = 0 and p = 1 for validation set age. GLM, multiple linear regression; SVR, support vector regression; DNN, deep neural network regression; DT, distributional transformation; KL, Kullback–Leibler divergence.

These findings are also reflected in results from KS tests which indicate significant differences of actual and predicted age distributions before (see Figure 4, top row), but not after (see Figure 4, middle row) DT was applied to predicted age values. Moreover, it can be seen in the graphical display of the distributional transformations themselves (see Figure 4, bottom row) which deviate stronger from the diagonal line for higher KL divergences before application of DT (see Figure 4).

3.3. Influence of Regression Coefficients

In order to see which features aided successful prediction of age when using multiple linear regression, we report parameter estimates and compute confidence intervals (see Figure 5). These results show that (i) there was no effect of gender on age, putatively because gender was controlled when splitting the data; (ii) there were only mild site effects, putatively because the whole age range was sampled at each site; and (iii) regional GM and WM densities both contributed to the predictions, as variables from both groups have significant effects on subject age (see Figure 5).

FIGURE 5

Figure 5. Parameter estimates and confidence intervals from linear regression, obtained when combining training and validation samples into one data set. For each regressor, the estimated coefficient is plotted as a bar and a 90% confidence interval is reported as well. Model parameters are also reported as being significantly different from zero (^*p < 0.05; ^**p < 0.001; ^***p < 0.05/250).

4. Discussion

We have applied distributional transformation (DT), a post-processing method for prediction analyses based on machine learning (ML), to predict chronological age from structural MRI scans in a very large sample of healthy adults (4). By using DT, we were able to significantly reduce the mean absolute error (MAE) of linear regression and support vector regression, but not deep regression.

4.1. Distributional Transformation

DT can be particularly advantageous when predicting variables which are hard to control experimentally (esp. biological phenotypes), but the distribution of which is known through the availability of training data. The rationale behind distributional transformation for ML-based prediction is simple:

1. A lot of target variables have a natural range into which their values must fall:

(a) Human age cannot be smaller than zero (or at least, smaller than −9 months), is rarely larger than 100 years and has thus far not exceeded 122 years.

(b) Intelligence quotients (IQ) are (by construction) normally distributed with mean 100 and standard deviation 15.

(c) Physical parameters such as weight and height fall into typical ranges differing by gender and age.

(d) Probabilities and frequencies, e.g., proportions of correct responses, are bound to the interval [0, 1].

2. When associations between target variable and feature space are learned by sending training samples through a complex machinery of linear and non-linear optimizations, some test set predictions will likely be outside these areas, thereby violating the natural range of the target variable.

3. Distributional transformation brings the predictions back into the natural range by putting them in reference to the training set samples, but preserving the ranks obtained when reconstructing from the test set features.

The extent to which this transformation will work naturally depends on how precise the cumulative distribution functions of training samples and predicted values can be estimated. Generally speaking, those estimates will be more precise, the more samples are available to generate them.

Note that DT assumes independent subsets and identical distributions. This means, (i) training and validation set must be independent from each other in order not to introduce dependencies between data used for training an algorithm and data used for reporting its performance; and (ii) training and validation samples must be drawn from the same underlying distribution in order to justify the assumption that they have the same cumulative distribution function. The first requirement is usually met when samples are independent from each other (e.g., subjects); the second requirement is usually met when the variable of interest (e.g., age) does not influence whether samples are in the training or validation set.

With the present data set, we were able to show that DT improves age prediction from structural MRI using some methods (i.e., linear regression or SVR), reducing the MAE by about half year (see Figure 2, left and middle). Notably, DT does not increase prediction precision when the decoding algorithm (e.g., DNN regression) generates test set predictions that already have a similar distribution as the training set samples. This can also be seen from the fact that DT does not substantially change the distribution of DNN predictions (see Figure 4, right) which is in clear contrast to linear regression and SVR.

It is also noteworthy that DT substantially reduced the correlation between brain-predicted age difference (BPAD) and actual age (see Figure 3, right). This is a highly desirable property, because it means that the prediction error is less dependent on subjects' age and prediction tends to work as good for a 20-year-old as it works for an 80-year-old adult—which is why this quantity was an objective in the PAC 2019 (see section 2.5) and this finding makes our work complementary to other approaches attempting to reduce bias in brain age estimation (8, 16).

Our explanation for the observed reduction is that DT distributes predicted values more evenly across the age spectrum, thereby avoiding negative prediction errors for older subjects (not predicted as being old) and positive prediction errors for younger subjects (not predicted as being young)—a phenomenon commonly observed [see e.g., (16), Figure 1]. This is also compatible with the fact that linear regression covered the age range more broadly, especially for old ages (see Figure 2, left and Figure 4, top), and achieved the lowest Spearman correlation coefficient with and without applying DT.

4.2. Limitations

The limitations of our study are three-fold:

• First, we were operating in a low-dimensional setting with fewer features than observations (here: n = 2640>250 = p). Our analyses therefore do not show that DT also improves decoding accuracy in high-dimensional settings (where n < p) such as decoding from voxel-wise structural data. Previous studies suggest that DNNs outperform simpler methods in this regime (4, 10), but this does not preclude that DT further improves accuracy of CNN predictions.

• Second, we were performing feature extraction using an a priori selected brain atlas (here: by extracting from AAL regions). Our analyses therefore do not show that DT also improves decoding accuracy under other feature extraction methods or after feature dimensionality reduction. The results reported in this study suggest that DT works well with region-based feature extraction and relatively simple decoding algorithms (linear regression, SVR), but that does not preclude that DT also improves prediction after voxel-based feature extraction.

• Third, we were exclusively analyzing data from healthy subjects (here: by using PAC 2019 data). Our results therefore do not apply to clinically relevant groups such as subjects suffering from Alzheimer's disease (AD) or mild cognitive impairment (MCI). Because structural MRI data contain signatures of chronological age and disease status in patients as well (5), we expect DT to also show its merits in those clinical contexts – provided that training and validation set constitute representative samples from the underlying population.

5. Conclusion

Our results suggest that, when combining distributional transformation with relatively simple decoding algorithms (e.g., linear regression or SVR), predicting chronological age from structural MRI can reach acceptable decoding accuracies in short time. We have provided an algorithm for DT (see Appendix) that can be easily added as a post-processing step to ML-based prediction analyses. Future studies may investigate whether the DT methodology might also be beneficial in other areas of computational psychiatry than brain age prediction.

Data Availability Statement

Data analyzed in this study were available online during the 2019 Predictive Analytics Competition. For this work, no raw images, but only pre-processed maps were used (see section 2.1). Requests for data release should be directed to Tim Hahn (hahnt@wwu.de) and Ramona Leenings (leenings@uni-muenster.de).

MATLAB code for (i) feature extraction from pre-processed data, (ii) decoding analyses underlying the results presented in this paper and (iii) results display to reproduce the figures shown in this paper can be found in an accompanying GitHub repository (https://github.com/JoramSoch/PAC_2019).

Ethics Statement

The organizers of the 2019 Predictive Analytics Competition (James Cole, Tim Hahn, Christian Gaser) obtained ethical approval for acquiring and releasing human subject data analyzed within the competition. Written informed consent to participate in this study was provided by the participants' legal guardian/next of kin.

Author Contributions

JS conceived, implemented, and performed data analysis, created figures and tables, and wrote the paper.

Funding

This work was supported by the Bernstein Computational Neuroscience Program of the German Federal Ministry of Education and Research (BMBF grant 01GQ1001C).

Conflict of Interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The author would like to thank Carsten Allefeld for discussing the linear regression analysis and the distributional transformation method. We acknowledge support from the German Research Foundation (DFG) and the Open Access Publication Fund of Charité—Universitätsmedizin Berlin.

Footnotes

1. ^https://www.photon-ai.com/pac2019

2. ^https://github.com/ohbm/OpenScienceRoom2019/issues/10

3. ^https://people.cas.sc.edu/rorden/mricron/install.html

4. ^https://github.com/JoramSoch/TellMe

5. ^https://de.mathworks.com/help/deeplearning/ug/sequence-to-sequence-regression-using-deep-learning.html, accessible in MATLAB as openExample ('nnet/SequencetoSequenceRegressionUsingDeepLearning Example')

6. ^https://statproofbook.github.io/D/cdf

7. ^https://de.mathworks.com/help/stats/signrank.html

8. ^https://statproofbook.github.io/D/kl

9. ^https://de.mathworks.com/help/stats/kstest2.html

References

1. Stephan KE, Mathys C. Computational approaches to psychiatry. Curr Opin Neurobiol. (2014) 25:85–92. doi: 10.1016/j.conb.2013.12.007

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Rutledge RB, Chekroud AM, Huys QJ. Machine learning and big data in psychiatry: toward clinical applications. Curr Opin Neurobiol. (2019) 55:152–9. doi: 10.1016/j.conb.2019.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Huys QJM, Maia TV, Frank MJ. Computational psychiatry as a bridge from neuroscience to clinical applications. Nat Neurosci. (2016) 19:404–13. doi: 10.1038/nn.4238

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Cole JH, Poudel RPK, Tsagkrasoulis D, Caan MWA, Steves C, Spector TD, et al. Predicting brain age with deep learning from raw imaging data results in a reliable and heritable biomarker. Neuroimage. (2017) 163:115–24. doi: 10.1016/j.neuroimage.2017.07.059

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Lin W, Tong T, Gao Q, Guo D, Du X, Yang Y, et al. Convolutional neural networks-based MRI image analysis for the Alzheimer's disease prediction from mild cognitive impairment. Front Neurosci. (2018) 12:777. doi: 10.3389/fnins.2018.00777

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Steffener J, Habeck C, O'Shea D, Razlighi Q, Bherer L, Stern Y. Differences between chronological and brain age are related to education and self-reported physical activity. Neurobiol Aging. (2016) 40:138–44. doi: 10.1016/j.neurobiolaging.2016.01.014

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Luders E, Cherbuin N, Gaser C. Estimating brain age using high-resolution pattern recognition: Younger brains in long-term meditation practitioners. Neuroimage. (2016) 134:508–13. doi: 10.1016/j.neuroimage.2016.04.007

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Cole JH, Ritchie SJ, Bastin ME, Valdes Hernandez MC, Munoz Maniega S, Royle N, et al. Brain age predicts mortality. Mol Psychiatry. (2018) 23:1385–92. doi: 10.1038/mp.2017.62

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Dosenbach NUF, Nardos B, Cohen AL, Fair DA, Power JD, Church JA, et al. Prediction of individual brain maturity using fMRI. Science. (2010) 329:1358–61. doi: 10.1126/science.1194144

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Plis SM, Hjelm DR, Salakhutdinov R, Allen EA, Bockholt HJ, Long JD, et al. Deep learning for neuroimaging: a validation study. Front Neurosci. (2014) 8:229. doi: 10.3389/fnins.2014.00229

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Jiang H, Lu N, Chen K, Yao L, Li K, Zhang J, et al. Predicting brain age of healthy adults based on structural MRI parcellation using convolutional neural networks. Front Neurol. (2020) 10:1346. doi: 10.3389/fneur.2019.01346

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Vakli P, Deák-Meszlényi RJ, Auer T, Vidnyánszky Z. Predicting body mass index from structural MRI brain images using a deep convolutional neural network. Front Neuroinform. (2020) 14:10. doi: 10.3389/fninf.2020.00010

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Tzourio-Mazoyer N, Landeau B, Papathanassiou D, Crivello F, Etard O, Delcroix N, et al. Automated anatomical labeling of activations in SPM using a macroscopic anatomical parcellation of the MNI MRI single-subject brain. Neuroimage. (2002) 15:273–89. doi: 10.1006/nimg.2001.0978

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Brodersen KH, Ong CS, Stephan KE, Buhmann JM. The balanced accuracy and its posterior distribution. In: 2010 20th International Conference on Pattern Recognition. Istanbul: IEEE (2010). p. 3121–24. doi: 10.1109/ICPR.2010.764

CrossRef Full Text | Google Scholar

15. Ashburner J, Friston K, Penny W, editors. Human Brain Function. 2nd ed. London; New York, NY: Elsevier (2003).

Google Scholar

16. Beheshti I, Nugent S, Potvin O, Duchesne S. Bias-adjustment in neuroimaging-based brain age frameworks: a robust scheme. Neuroimage Clin. (2019) 24:102063. doi: 10.1016/j.nicl.2019.102063

PubMed Abstract | CrossRef Full Text | Google Scholar

Appendix

A. Proof of Distributional Transformation

Let X and Y be two random variables. Then, X is distributionally transformed to Y by replacing each observation of X by that value of Y which corresponds to the same quantile as the original value (see section 2.4), i.e.,

$\begin{array}{ll}\tilde{x}=F_Y^{-1}\left(F_X(x)\right).& (\mathrm{A.1})\end{array}$

where F_X(x) is the cumulative distribution function (CDF) of X and $F_Y^{-1}(y)$ is the inverse CDF of Y. Consequently, the CDF of $\tilde{X}$ follows as

$\begin{array}{l}{F}_{\tilde{X}}(y)=\text{Pr}(\tilde{x}\le y)\\ =\text{Pr}\left(F_Y^{-1}\left(F_X(x)\right)\le y\right)\\ =\text{Pr}\left(F_X(x)\le F_Y(y)\right)\\ =\text{Pr}\left(x\le F_X^{-1}\left(F_Y(y)\right)\right)\\ =F_X\left(F_X^{-1}\left(F_Y(y)\right)\right)\\ =F_Y(y)& (\mathrm{A.2})\end{array}$

which shows that $\tilde{X}$ and Y have the same CDF and are thus identically distributed.

B. Code for Distributional Transformation

The following code distributionally transforms x to y in MATLAB:

  01  function xt = MD_trans_dist(x, y)

  02  % _

  03  % Distributional Transformation

  04  % FORMAT xt = MD_trans_dist(x, y)

  05  %     x  - source data

  06  %     y  - reference data

  07  %     xt - transformed data

  08

  09  % calculate CDFs

  10  [f1, x1] = ecdf(x);

  11  [f2, x2] = ecdf(y);

  12

  13  % transform x

  14  xt = zeros(size(x));

  15  for i = 1:numel(x)

  16      j1 = find(x1==x(i));

  17      j1 = j1(end);

  18     [m, j2] = min(abs(f2-f1(j1)));

  19      xt(i)  = x2(j2);

  20  end;

  21  clear m j1 j2
