Design and Validation of a Real-Time Cassava Planter Seed Quality Monitoring System Based on Optical Fiber Sensors and Rotary Encoders

Provisionally accepted
Bin Yan Bin Yan Zhende Cui Zhende Cui *Ganran Deng Ganran Deng *Guojie Li Guojie Li *Shuang Zheng Shuang Zheng *Fengguang He Fengguang He *Ling Li Ling Li *Pinlan Chen Pinlan Chen *Xilin Wang Xilin Wang *Sili Zhou Sili Zhou *Ye Dai Ye Dai *Shuangmei Qin Shuangmei Qin *Zehua Liu Zehua Liu *
  • Agricultural Machinery Research Institute, Chinese Academy of Tropical Agricultural Sciences, Haikou, China

The final, formatted version of the article will be published soon.

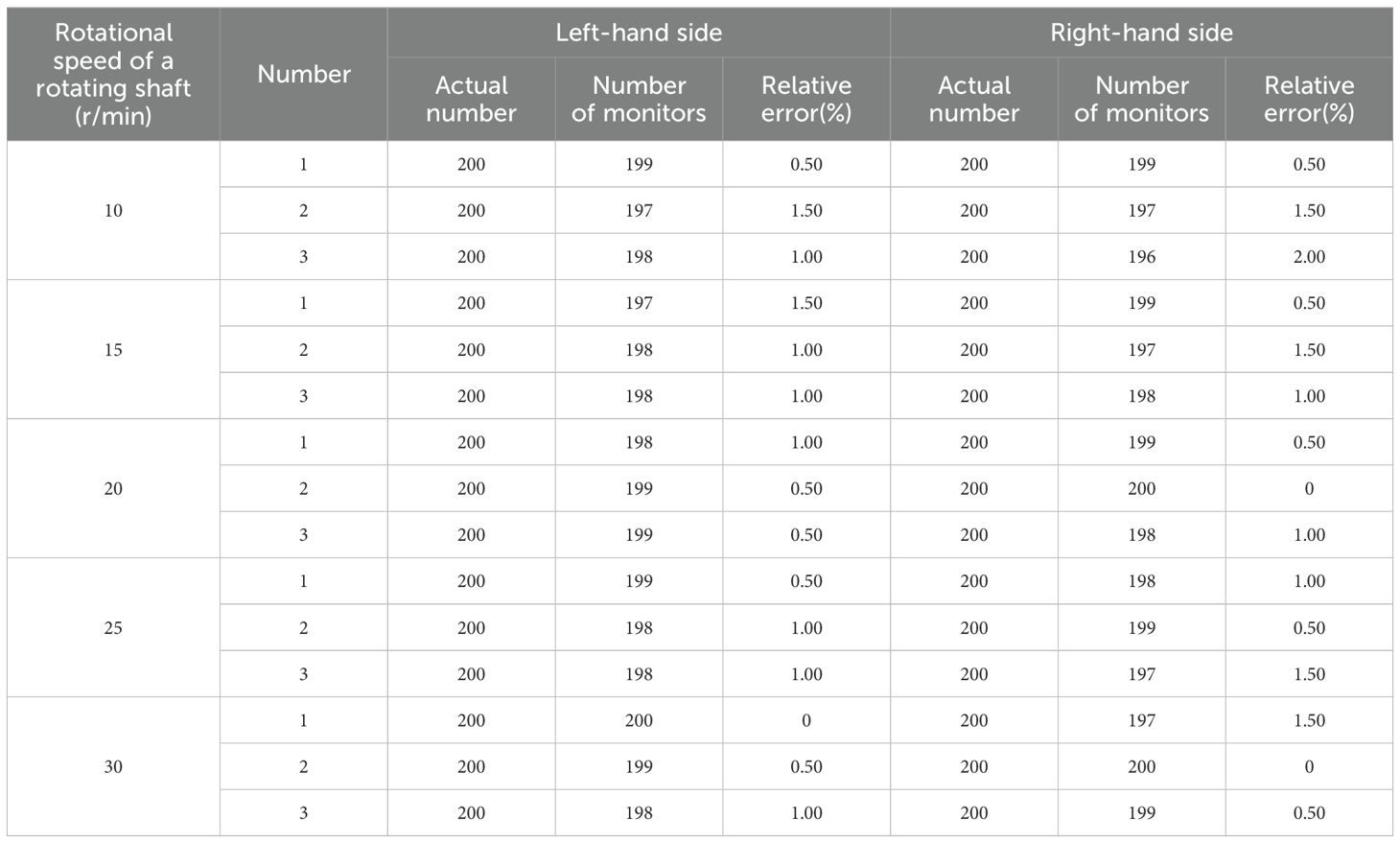

    Targeting the issues of seed leakage and cutting segment adhesion due to poor seed feeding and cutting in real-time seed-cutting cassava planters, this study developed a seeding quality monitoring system. Based on the structure and working principle of the seed cutting and discharging device, the installation methods of the matrix fiber optic sensor and rotary encoder were determined. By combining the operational characteristics of the planter's ground wheel drive with seed cutting and seed dropping, a monitoring model correlating the sowing parameters with seed dropping time was established; a monitoring window was created by extracting and processing the rotary encoder pulse signal, and the number of seeds sown after each opposing cutter's operation was calculated based on the pulse width information within the monitoring window. The monitoring system's statistics were compared and analyzed with the manual statistics, and the bench test showed that the monitoring system designed in this study offers high accuracy. When the simulated rotational speed of the opposing cutter ranges from 10 to 30 rpm, the average monitoring error between the monitored and actual seeding quantities for the left and right rows is less than 1.4%. The monitoring system can promptly and accurately activate sound and light alarms for faults, achieving a 100% success rate in alarms and an average fault response time of less than 0.4 seconds. Field tests demonstrate that the average error in seeding volume is 0.91%, and the monitoring system can timely alert to faults occurring in the planter. The system fulfills the requirements for real-time monitoring of cassava seeding volume at various operating speeds in field conditions, and can serve as a reference for monitoring operational parameters in subsequent cassava combine harvesters.

    Keywords: cassava combine planter, cassava seed stalk, seeding quality monitoring, Fault monitoring, Sensor

    Received: 16 Aug 2024; Accepted: 15 Nov 2024.
