A survey of cranberry fruit rots in commercial production beds in Oregon and Washington

Introduction: Fungal fruit rots are a perennial threat to the production of cranberries. Eleven genera of fungi have been reported to cause cranberry rot in the field and/or during cold storage. Oregon and Washington rank fourth and fifth in the production of cranberries in the USA, but much of the research on cranberry fruit rots has been conducted in Wisconsin, New Jersey, and Massachusetts.

Objective: The primary objective of this project was to describe the current composition of cranberry fruit rot complex in Oregon and Washington.

Methods: A survey of fungal fruit rot pathogens was conducted over four years in commercial cranberry farms located in the Pacific Ocean coastal zone in Oregon and Washington.

Results: Yield, rot incidence, and fungal pathogens isolated varied year-to-year. Pathogens isolated frequently from field-rotted cranberries included the cranberry fruit rot genera described in other cranberry production regions of the USA, such as Colletotrichum, Coleophoma, and Physalospora. Neofabraea actinidiae, a recently described cranberry fruit rot, was isolated consistently from field-rotted cranberries from beds with specific fungicide usage patterns. N. actinidiae also was one of the more common storage rot pathogens in this region, alongside other well-established storage rots like Coleophoma and black rots caused by Allantophomopsis cytisporea, A. lycopodina, and Strasseria geniculata.

Conclusions: These findings may have important implications for Washington cranberry production because a large proportion of the crop is dry-harvested, placed in cold storage, and then sold as fresh cranberries. Climatic differences among the cranberry production areas across the United States may affect the disease incidence and prevalence of different genera of cranberry fruit rot pathogens, as summer months in Oregon and Washington are often much cooler and dryer than in Wisconsin and east coast states and may account for differing presence of various cranberry fruit rot fungi.

1 Introduction

In the United States, commercial cranberry (Vaccinium macrocarpon, L.) production is centered in Wisconsin, Massachusetts, New Jersey, Oregon, and Washington (United States Department of Agriculture, National Agricultural Statistics Service, 2019). Oregon and Washington rank fourth and fifth, respectively, in cranberry production in the USA. Nearly all cranberry farms in Oregon use a “flood harvest” method, which entails a gentle agitation of the low-growing vines to loosen the berries followed by flooding the bed and collecting the floating berries. The cranberries are delivered to a processing plant where they are washed, sorted, and placed in cold storage until they are processed into juice, craisins, sauce, and other products. In Washington, about a third of cranberry production is dry-harvested using a mechanical picking machine (Strik et al., 2002). Dry-harvested cranberries are sold as fresh fruit, allowing for premium crop prices in comparison to processed berries (United States Department of Agriculture, National Agricultural Statistics Service, 2024). Fresh berries are typically placed in cold storage until November and December and sold during the holidays. The dry-harvested acreage makes Washington a unique cranberry-growing region, because less than 5% of cranberry production in the U.S. is destined for the fresh market and not processed after harvest (United States Department of Agriculture, National Agricultural Statistics Service, 2024).

A major concern for growers are cranberry fruit rots (“CFRs”), which are caused by at least 14 different fungal species including: Allantophomopsis cytisporea, A. lycopodina, Botrytis sp., Coleophoma cylindrospora, Colletotrichum acutatum complex and Colletotrichum gloeosporioides complex sp., Diaporthe vaccinii and other Diaporthe sp., Godronia cassandrae, Monilinia oxycocci, Neofabraea actinidiae, Phyllosticta elongata, Phyllostica vaccinii, Physalospora vaccinii, and Strasseria geniculata (Polashock et al., 2017; Valentine et al., 2024). These fungi may cause cranberry rot diseases in the field, during post-harvest storage or both. Failure to manage CFRs can lead to total crop loss (Oudemans et al., 1998).

The combination of warm humid summer weather, the low growth habit of the vines and often-damp nature of cranberry beds may provide a conducive habitat for fruit rot pathogens. With optimal cultural practices and use of fungicides, the percent of berries lost to cranberry fruit rot in Massachusetts and New Jersey ranges from <1% to 15% (Oudemans et al., 1998). In beds where fungicides were not used for disease control, the percent of berries lost to rot ranged from 26% to 100% in New Jersey and <1% to 37% in Wisconsin (Wells-Hansen and McManus, 2017). In contrast to the three other cranberry-growing states the distinctly moderate year-round climate and drier summers in cranberry-growing areas in the Pacific Northwest was proposed to account for historically lower levels of CFRs (Oudemans et al., 1998; Shear et al., 1931). Climate also may affect the species that comprise the cranberry fruit rot complex in the production region along the Pacific coast of Oregon and Washington. A survey of cranberry fruit rot fungi in beds in Grayland, Washington from 1990 to 1992 reported that Allantophomopsis cytisporea, Botrytis cinerea, Colletotrichum gloeosporioides, Godronia cassandrae, Diaporthe vaccinii, and Phyllosticta elongata were isolated from diseased cranberries (Keates, 1993). To the best of our knowledge, more recent surveys of CFRs in cranberry beds in Oregon or Washington have not been published. To address this knowledge gap, cranberries were collected near harvest from farms in the two main cranberry growing regions in the Pacific Northwest to provide yield estimates, fruit rot incidence, and characterization of the fungi in the cranberry fruit rot complex in this region.

2 Materials and methods

2.1 Cranberry farms surveyed

Seven commercial cranberry farms (cv. ‘Stevens’) were sampled from 2020 to 2023. Four farms (numbered 1 to 4) were located near Bandon, Oregon (OR) (43°7’8” N 124°24’30” W), on the southern Oregon coast. Three cranberry farms (numbered 5 to 7) were located in Grayland, Washington (WA) (46°48’36” N 124°5’36” W), which also is a coastal town. The distance between the Oregon and Washington field locations was approximately 530 km. The distance from the cranberry farms sampled in either state to the Pacific Ocean was between 0.9 to 4.7 km.

2.1.1 Fungicides applied to cranberry beds

All farms were conventionally-managed except Farm 4 in Bandon, OR, which was certified organic until 2022 and then converted to conventionally-managed in 2023. Fungicide programs are summarized in Tables 1 and 2. Oregon growers applied fungicides two or three times during the season. Washington growers, producing cranberries for fresh markets, applied fungicides three to seven times in a season (Table 2). Multisite fungicides, which have multiple modes of action and are considered low risk for development of fungicide resistance (Fungicide Resistance Action Committee, 2024), were applied at least once in each farm during the course of this survey, but they were not applied to Farms 1 and 2 every year (Table 2). Among the multisite fungicides, only chlorothalonil was applied in Oregon whereas mancozeb was applied in each farm in Washington and chlorothalonil was applied in two of the three Washington farms sampled (Table 2). Copper, another multisite biocide used in organic and conventional production, was applied as an early season treatment in four of the seven farms (Table 2).

Table 1

Table 1. Fungal isolates from selected Oregon (OR) and Washington (WA) cranberries with field rot symptoms.

Table 2

Table 2. Fungal isolates from Oregon (OR) and Washington (WA) cranberries stored at 4°C that developed rot symptoms.

The FRAC 11 fungicide azoxystrobin was applied as a single fungicide product in two Oregon farms and one Washington farm or as a commercial mixture of azoxystrobin and the FRAC 3 fungicide difenoconazole on beds in two Washington farms (Table 2). The FRAC 3 fungicide fenbuconazole (a triazole) was applied on beds in two farms, one located in Oregon and one in Washington, whereas prothioconazole (a FRAC 3 triazolinthione, Fungicide Resistance Action Committee, 2024) was used on four farms with two located in Oregon and two in Washington (Table 2).

2.2 Sampling of cranberry beds

Annually, cranberries were collected and yield estimates were made near the time of harvest (generally in October; early autumn) with the aid of a fabricated tool consisting of a one-foot diameter (0.09 square meter) metal square. Each of the sampled beds had a rectangular or square footprint covering an area of 0.3 to 1.5 ha. Along three or four of the peripheral edges of a bed, the square metal tool was placed on the surface of the bed. Commercial beds were sampled along the edges to avoid crop damage from walking on the cranberry plants. All berries from the top of the canopy to the bed surface were collected from within the square and placed in a double-layer paper bag. At least two samples were collected from each edge of the bed. Samples along each edge were combined, resulting in at least three replicate samples per bed.

The labeled sample bags were placed in a cooler containing an ice pack and transported to the USDA ARS Horticultural Crops Disease and Pest Management Research Unit laboratory, Corvallis, OR. The sample bags were placed in closed plastic containers and stored at 4°C until berries were sorted and weighed.

2.3 Sorting asymptomatic cranberries from those with fruit rot symptoms

2.3.1 Field rots

Cranberries in each replicate sample from a bed were sorted as asymptomatic or berries with symptoms of field rot. The symptomatic berries were sorted further into general categories, such as soft or swollen, discolored (black, brown, pink or yellow), wrinkled, or aborted. For each replicate, the number of berries in each category and the total weight of the berries within each category was recorded. Fungi were isolated from a selection of cranberries with field rot symptoms by the methods described in section 2.4. The number of asymptomatic berries in each replicate sample and the total weight of the cranberries was recorded.

In 2021, cranberries collected from three Oregon farms were stored at 4°C, but not sorted until 4 to 6 weeks after sampling. The disease incidence data and fungal isolates from the 2021 Oregon samples are presented as storage rots in Table 2 and likely comprise a mixture of field and storage rots.

2.3.2 Storage rots

In 2022 and 2023, the asymptomatic cranberries in each replicate bed sample were put into 20 cm x 16 cm x 5 cm bags, (Lunchskins, Bethesda, MD), with a limit of 150 berries per bag, placed in a closed plastic bin, and stored in darkness at 4°C for 4 to 8 weeks.

After 4 weeks in 2022, and 6 weeks in 2023, the stored cranberries were sorted as asymptomatic or symptomatic using the same categories for fresh-harvested berries. Cranberries with rot symptoms were removed, counted, and fungi were isolated with the methods described below (section 2.4). The asymptomatic cranberries were counted and berries within each replicate were weighed, and the asymptomatic cranberries were returned to cold storage. In 2022, after 4 more weeks of storage (8 weeks total), the stored cranberries were sorted, counted, and weighed as before, and cranberries with rot symptoms were processed as described below (section 2.4).

2.4 Isolation of fungi from cranberries with fruit rot symptoms

Selected symptomatic cranberries collected from the field samples (2020 to 2023) or after storage (2022 and 2023) were surface disinfested with 10% commercial bleach (0.6% sodium hypochlorite in deionized water) and 25 µl Tween 20 per L for 10 min, followed by 70% ethanol for 1 min, and then two 1 min rinses with sterile deionized water. Berries were dried in a laminar flow hood (Labconco, Kansas City, MO) until residual water had evaporated. A sample from the leading edge of a lesion (ca. 3 mm²) was placed on V8 agar (20% V8 juice, 3 g CaCO₃ and 15 g Bacto agar (Difco, Becton, Dickinson and Company, Sparks, MD) per L). In cases where entire berries were rotted, the epidermis was removed and a sample of the rotted mesocarp (ca. 3 mm²) was placed on V8 agar. In 2023, cranberries with field and storage rot symptoms in Oregon Farms 1, 2 and 4 were sliced longitudinally and the cut surface of the berry was placed on V8 agar. All cultures were incubated at room temperature (ca. 22°C) and outgrowing fungi were transferred at least twice to ensure single-species isolation.

2.5 Identification of fruit rot fungi

2.5.1 Colony morphology

Fungal cultures from cranberries were grouped by colony morphology on V8 agar and those with a morphology similar to known CFRs were identified to genus (Wells and McManus, 2013; Polashock et al., 2017; Valentine et al., 2024). Several representative isolates of each colony morphotype were selected each year for ITS 1-4 region sequencing to determine genera and with some fungi, the species.

2.5.2 Analysis of the nuclear internal transcribed spacer region 1-4

Select isolates were cultured on V8 or PDA agar (Difco, Becton, Dickinson and Company, Sparks, MD) for up to 14 days at ambient temperatures and ~50 mg of hyphae was collected and stored at -20°C. Fungal DNA was extracted from the samples by the Core Lab of the Center for Quantitative Life Sciences at Oregon State University, Corvallis, OR with a Thermo KingFisher Flex (Thermo Fischer Scientific, Waltham, MA) and the Omega MagBind Plant DNA DS protocol (Omega Bio-tek, Inc., Norcross, GA).

The nuclear internal transcribed spacer (ITS) region was amplified using primers ITS 1 and ITS 4 (White et al., 1990). Each 25 µl reaction contained of 12.5 µl of AccuStart II PCR ToughMix (Quantabio, Beverly, MA), 0.4 μM of each primer, and approximately 1 to 5 ng of template DNA. PCR conditions were 3 min. at 94°C, 30 cycles: (30 s at 94°C, 30 s at 56°C, 1 min. at 72°C), and final amplification of 10 min. at 72°C. Successful amplification was determined by gel electrophoresis of 5 μl of the reaction on a 1% agarose gel containing ethidium bromide. PCR reaction products were treated with ExoSAP-IT (Thermo Fisher Scientific, Waltham, MA) and sequenced unidirectionally from the ITS 1 primer by the Oregon State University Center for Quantitative Life Sciences, Corvallis, OR. NCBI nucleotide BLAST queries were conducted with each sequence and compared to sequences of type strains of known cranberry fruit rot fungi in GenBank.

2.6 Environmental conditions

Weather data were collected by a Washington State monitoring station installed in Grayland, WA and curated by AgWeatherNet (https://weather.wsu.edu/?p=93050) (Washington State University, 2024). Weather data from a monitoring station installed in Bandon, OR, (Latitude 43.09111, Longitude -124.41722) were downloaded from the AgriMet (Pacific Northwest Cooperative Agricultural Weather Network, US Bureau of Reclamation, Columbia-Pacific Northwest Region, website: www.usbr.gov/pn/agrimet/wxdata.html).

2.7 Climate data

Climatological data were accessed from https://www.weather.gov/wrh/climate (National Oceanic and Atmospheric Administration, 2024). Locations were selected based on proximity to cranberry production areas: North Bend Southwest Oregon Regional AP, OR; Aberdeen, WA; Wisconsin Rapids, WI; Plymouth Municipal AP, MA; and Hammonton 1 NE, NJ. Monthly average temperature and precipitation were downloaded for 1991 through 2020.

2.8 Data analyses

The incidence of cranberry fruit rot was calculated as a ratio of the number of berries with fruit rot symptoms to the total number of berries sampled within a replicate sample. Cranberry yield was estimated based on the total mass (g) of cranberries collected from within 1 ft² metal sampling squares placed on a bed. Yield estimates were converted to Metric Tons per hectare with the following equation:

$$Yield \left(\frac{mt}{hectare}\right)=\frac{mass sampled (g)}{area sampled (f{t}^2)}\frac{107,639 f{t}^2}{1 hectare}\frac{1 mt}{1,000,000 g}$$

3 Results

3.1 Environmental conditions during the survey

During the growing season, from bloom through harvest (June through October), Grayland, WA received more rain compared to Bandon, OR in each of the four years of the study (Tables 3, 4). Mean daily solar radiation in Bandon averaged more than 20 MJ/m² during the summer months (June through August) and was generally greater than Grayland, which averaged between 16.5 and 22.6 MJ/m² per day. From June to September each year, air temperatures were generally cool to moderate in both locations, with monthly mean air temperatures below 17°C and low daily temperatures above 0°C (Tables 3, 4).

Table 3

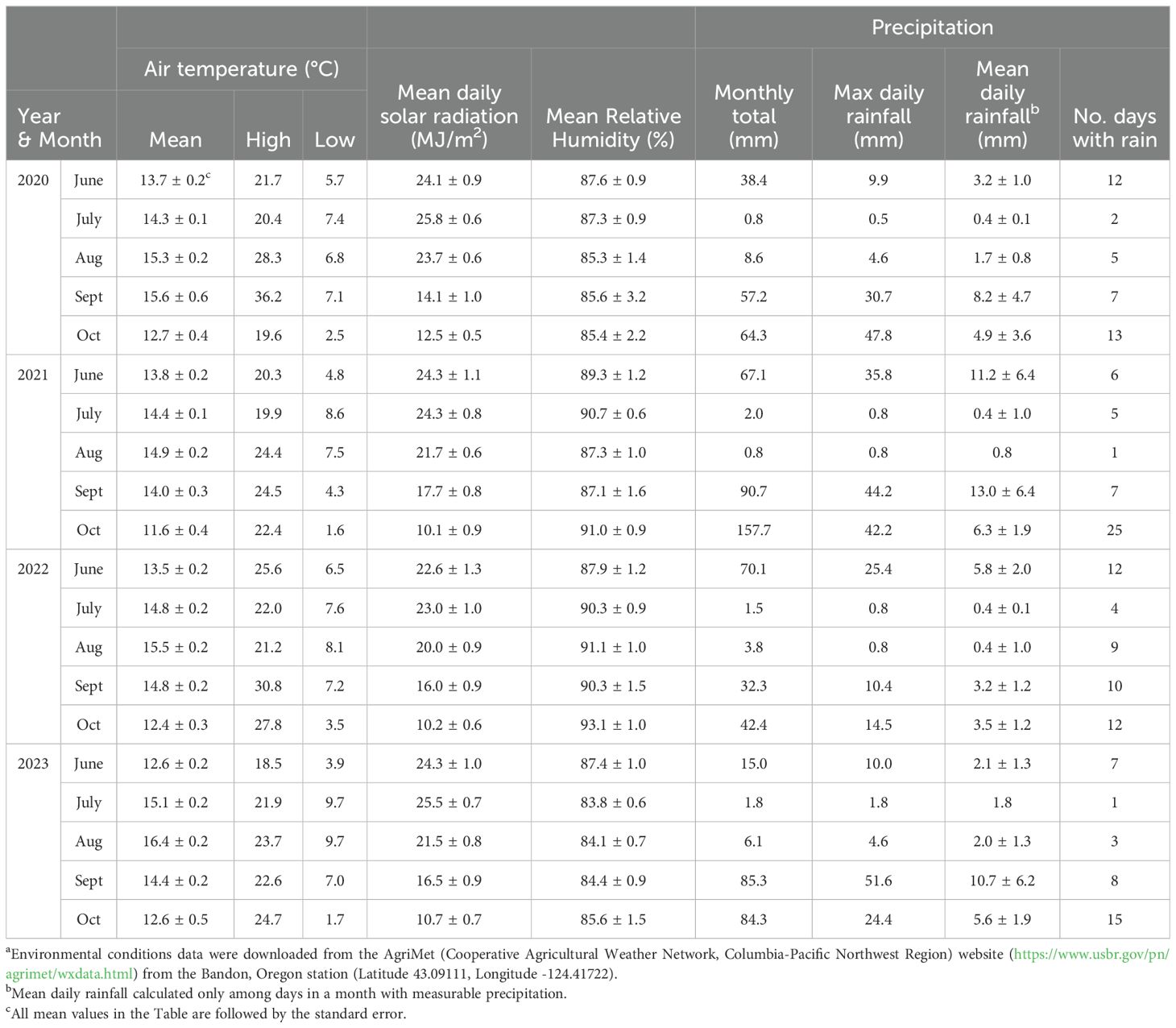

Table 3. Environmental conditions from cranberry bloom to harvest in Bandon, Oregon from 2020 to 2023^a.

Table 4

Table 4. Environmental conditions from cranberry bloom to harvest in Grayland, Washington from 2020 to 2023^a.

One notable weather event during the study was an unusual ‘heat dome’ in the Pacific Northwest in late June of 2021. During the ‘heat dome,’ daily maximum temperatures in Grayland, WA were 28°C (June 26), 40°C (June 27), and 35°C (June 28); these temperatures during bloom and berry set were 20°C higher than the 1991 to 2020 average maximum temperature of 18.2°C and 20.1°C in the area for June and July, respectively (Washington State University, 2024; National Oceanic and Atmospheric Administration, 2024). Bandon, located on the southern Oregon coast did not experience the ‘heat dome’ and the maximum high temperature during this period was 20°C (AgriMet, accessed May 2024).

3.2 Yield and rot incidence

Over the course of four years of sampling seven farms, 43,260 berries were sorted, weighed, and in 2022 and 2023, all asymptomatic berries were stored at 4°C before sorting again to assess storage rot. Estimates of both yield and rot incidence varied, sometimes greatly, over the years within beds, as well as between states and among farms (Table 5). In general, yield per acre was higher in Oregon beds, though it was notably lower in the organically managed farm (#4 from 2020 through 2022) than the three conventionally managed Oregon farms (#1 through 3). Field rot incidence, though variable, was similar among Oregon and Washington beds each year except in 2021 (Figure 1, Table 5). In 2021, a delay in sorting Oregon cranberries prevented an assessment of field rot incidence. The total percent of cranberries with rot symptoms in Oregon 2021 samples stored at 4°C for several weeks prior to sorting was two to four-fold greater than total rot observed in Oregon cranberries sampled in 2020 and five to 12-fold greater than total rot observed in 2022 and 2023 (Figure 1). In Washington state in 2021, the total percent rot in Farm 6 was two to five-fold higher than in the other years of the survey (Figure 1).

Table 5

Table 5. Estimated crop yield and incidence of cranberry fruit rot in beds and after storage at 4°C in commercial cranberry beds in Oregon (OR) and Washington (WA) from 2020 to 2023.

Figure 1

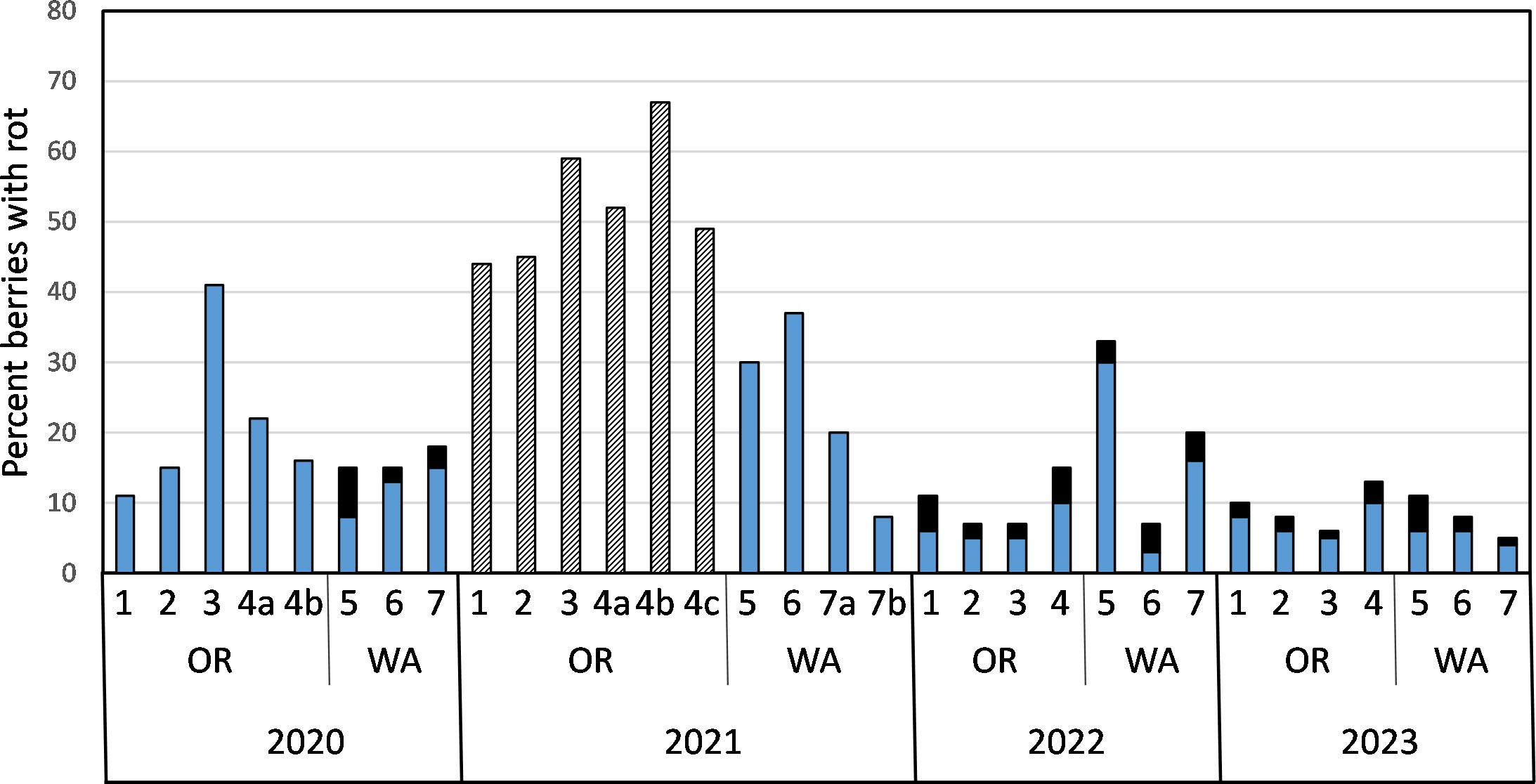

Figure 1. Percent cranberries with fruit rot symptoms in samples collected from beds on farms in Oregon (OR) and Washington (WA) from 2020 to 2023 (blue bars, field rots). Percent of asymptomatic cranberries from field samples that subsequently developed fruit rot symptoms during storage at 4°C for four to eight weeks (solid black bars, storage rot). Black and white striped bars represents total percent fruit rot of cranberries that were collected from Oregon beds in 2021. These field samples consisted of sound and diseased berries that were bulk-stored in paper bags at 4°C for several weeks prior to sorting and assessing the percent total rot (field rot and storage rot).

3.3 Identification of CFRs and non-CFRs

From 2021 through 2023, over 1500 fungi were isolated from cranberries and identified at least to genera. The incidence of identified CFRs from field-rotted berries are summarized in Table 1 (identity of CFRs isolated from field rotted berries). Similarly, the incidence of recovery of various CFR from stored cranberries are presented in Table 2 (identity of CFRs isolated from storage-rotted cranberries). Examples of the colony morphology of isolates grown on V8 agar are shown in Figure 2. The identity of each isolate was verified with ITS sequence analysis.

Figure 2

Figure 2. Cranberry fruit rot fungi isolated from Oregon and Washington beds and cultured on V8 agar. (A) Allantophomopsis cytisporea, (B) Allantophomopsis lycopodina, (C) Botrytis sp., (D–F) Coleophoma sp., (G–J) Colletotrichum acutatum sp., (K, L) Colletotrichum gloeosporioides sp., (M–O) Diaporthe sp., (P) Godronia cassandrae, (Q) Neofabraea actinidiae, (R) Phyllosticta elongata, (S) Physalospora vaccinii (dark strain), (T) Physalospora vaccinii (light strain).

In Tables 1 and 2, Colletotrichum isolates were only identified to the complex level (acutatum or gloeosporioides), not necessarily to species, and are listed as “Colletotrichum.” Diaporthe sp. were not identified to species using the ITS region and are listed as “Diaporthe.” In addition to the cranberry ripe rot pathogen Coloephoma cylindrospora, other Coleophoma species were isolated frequently. It was not determined if the other Coloephoma species are pathogenic to cranberries, so all Coloephoma species were grouped and referred to as “Coleophoma.” Black rots, including A. lycopodina, A. cytisporea, and S. geniculata, were not identified to species using the ITS region, and are listed as “black rots.”

During the survey, we isolated nearly all previously reported CFRs in the Pacific Northwest except for M. oxycocci, which almost 100 years ago “In Wisconsin and on the Pacific coast [M. oxycocci was] practically the only fungus that has been found to cause field rot … [but] never exceeded a fraction of 1 per cent of the total crop” (Shear et al., 1931). Historically, Phyllosticta vaccinii also was reported to cause CFR in the Pacific Northwest, but this fungus was later separated into two species, Phyllosticta vaccinii and Phyllosticta elongata (Weidemann et al., 1982). Phyllosticta elongata was isolated as a CFR in this survey, but not Phyllosticta vaccinii. Due to historic taxonomic ambiguity, it is unclear if Phyllosticta vaccinii was isolated previously from cranberries in the Pacific Northwest or if the isolates were Phyllosticta elongata. N. actinidiae, recently reported as a cranberry fruit rot (Valentine et al., 2024), was isolated from beds in both states. Previously, N. actinidiae was isolated from cranberry woody tissue in British Columbia, Canada (Sabaratnam et al., 2009), but not as a fruit rot. N. actinidiae was most frequently isolated from cranberries stored at 4°C, but the pathogen also was frequently isolated from field rotted cranberries (Tables 1, 2).

Genera of fungi not known to cause cranberry fruit rot were isolated frequently and included Pestalotiopsis, Epicoccum, Cadophora, Cladosporium, Penicillium, Aureobasidium, Lachnum, and Alternaria (data not shown). The cranberry leaf pathogen Cladosporium oxycocci (Polashock et al., 2017), was most often isolated when plating half-berries in 2023, as opposed to smaller samples of rotted berry tissue as done in the prior years. Several non-CFRs could not be identified to genus using only the ITS 1-4 region and would require further research to determine identity.

3.4 Persistence of rot pathogens in beds

Despite the variability of rot incidences and causal agents, certain trends were apparent over time. Several cranberry fruit rot pathogens were isolated at least once in each farm in Oregon and Washington, as either a field rot, storage rot, or both (Tables 1, 2). These included black rots (A. cytisporea, A. lycopodina, and S. geniculata), Coleophoma, Colletotrichum, Diaporthe, N. actinidiae, Physalospora vaccinii, and Phyllosticta elongata. The remaining CFR pathogens often were isolated from the same beds over multiple years. For example, G. cassandrae was isolated multiple times from Farms 2, 4, and 6, but only once from Farm 7 in 2021 (Table 1). There was no clear or consistent correlation between fungicides applied during the growing season and CFR pathogens isolated (Tables 1, 2).

3.5 Climate differences in the five main cranberry producing states

There are notable differences between the climate in Oregon and Washington compared to the other three cranberry producing states (Figure 3). Overall precipitation was higher on average in the Pacific Northwest regions, especially in Washington, but the majority of rainfall occurred in mid-autumn to late spring (October to May), and the rest of the year (June to September, the main growing season for cranberries) was drier than monthly averages in the other three cranberry growing regions, where precipitation was relatively constant over the year. In Wisconsin, however, winter months were drier, averaging less than 5 cm precipitation, and summer months averaged more than 10 cm. Temperatures in the Pacific Northwest growing regions were mild, with mean highs below 21°C in the summer, and mean lows generally above freezing in the winter. For the Wisconsin, Massachusetts, and New Jersey cranberry-growing regions, mean high temperatures often exceeded 25°C in the summer months and mean low temperatures below 0°C were recorded during the winter months.

Figure 3

Figure 3. Climate graphs of monthly mean maximum (red line), minimum (green line), average temperature (yellow line) (°C), and mean total precipitation (blue bars) (cm), for 1991-2020, using data from National Oceanic and Atmospheric Administration (2024). Locations of stations: (A) Aberdeen, Washington (Northeast of Grayland, Washington), (B) North Bend Southwest Oregon Regional AP, Oregon (North of Bandon, Oregon), (C) Wisconsin Rapids, Wisconsin, (D) Plymouth Municipal AP, Massachusetts, (E) Hammonton 1 NE, New Jersey. Cranberry plants generally bloom in May to June in each state, except Wisconsin, when bloom occurs later, in mid-June to July. Cranberries are harvested from late-September into November across the production regions.

4 Discussion

4.1 The heterogeneity of cranberry bogs

A common pattern of cranberry yield and cranberry rot incidence over the duration of this study was the patchy distribution of rots within beds. This was noted in previous studies with regard to rot incidence and CFR types (McManus et al., 2003; Wells et al., 2014). This was apparent with the large variance in average rot incidence or yield calculations from several of the farms over time (Table 1). Variation among the pathogens isolated from different locations within a bed also was observed. For example, certain rots, like Colletotrichum, were isolated frequently from samples from one edge of a bed, but not from samples collected from the other edges of the same bed (data not shown). The sheer number of cranberries that need to be sampled and cultured to determine the prevalence of the various fruit rot fungi in a bed accurately is a daunting task. Recent advances in tools, like multiplex PCR to identify fungal pathogens in cranberries, may support large-scale surveys of the cranberry fruit rot pathogen complex (Conti et al., 2022). Pathogen diversity at the genus and species level and the spatial distribution of pathogen within and among cranberry beds underlines the complexity of studying cranberry fruit rots. Nonetheless, several distinct and important trends were observed which may shed light on factors underlying these complex relationships.

4.2 Environment and fungicide use may drive rot incidence and CFR composition

We speculate that environmental conditions in Oregon and Washington shape the CFR fungal community composition in the Pacific Northwest region. Mild winter and summer temperatures in Grayland WA, and especially Bandon, OR, as well as low precipitation during the growing season (Tables 3, 4), likely affects expression of rots as well as species composition. The question is, by what ways does this occur? C. acutatum species grow better at lower temperatures than C. gloeosporioides species (Dowling et al., 2020), and C. acutatum accounted for most of the Colletotrichum isolates in 2022 and 2023. The incidence of Neofabraea, another species with a lower optimum growth temperature and a storage pathogen on kiwifruit and several other crops (Bogo et al., 2018; Tyson et al., 2019), might be recovered as a cranberry fruit rot in beds in Oregon and Washington because of the cool summer temperatures that are not duplicated in cranberry growing regions outside the Pacific Northwest. Similarly, the ‘Black rot’ complex is primarily described as fungi causing cold-storage rots of cranberries (Polashock et al., 2017), but these pathogens were isolated from cranberries that developed field-rot symptoms in beds in Oregon and Washington, suggesting that the temperatures were sufficiently low to support the expression of black rot symptoms in the field.

Field rot incidence was relatively low each year in all beds, except during 2020 and 2021. Field rot was generally higher in the organically-managed Oregon beds (Table 5, Farm #4, 2020 through 2022) in comparison to the conventionally-managed Oregon beds (Farms 1 to 3). Among the Washington beds, the highest incidence of field rot occurred in 2021, where cranberry fruit rot incidence was between 0.08 to 0.37 (Table 5, Farms 5 to 7). The increased incidence of field rot in Grayland in 2021 may have been influenced by sudden heat stress (temperatures around 40°C for three days) in late June, 2021 during bloom and pinhead stage. We speculate that the sudden high temperatures damaged developing carposphere tissues and increased the incidence of infection. We noted that the incidence of isolation of black rot fungi and Coleophoma sp. was greater from field rotted berries in 2021 Washington beds than the other years (Table 1). This disproportionate representation of field rots in 2021 Washington beds might have occurred via preferential infection of flowers by spores of the CFRs. Additionally, fungicides were applied prior to or during the heat stress event, but we speculate that watering to reduce heat damage may have reduced the concentration of fungicide residues on plants surfaces and disease management efficacy.

Multi-site fungicides, like chlorothalonil and mancozeb, have been highly effective in managing cranberry fruit rots (Wells et al., 2014). However, the U.S. Environmental Protection Agency has listed both compounds as potential carcinogens (Environmental Protection Agency, 2024). This, and the registration of specific single-site fungicides for use in cranberry production, has shifted management of cranberry fruit rot from multisite chemistries to single-site fungicides, and to some extent reduced use of multi-site fungicides.

The single site fungicides used during the survey in Oregon and Washington belong to FRAC groups 3 and 11, which are often considered safer to humans and other mammals than multisite materials. Unfortunately, some of the site-specific fungicides may not be effective against specific fungi within the CFR complex due to intrinsic tolerance to the active ingredient (Fungicide Resistance Action Committee, 2024). Additionally, there is an increased risk of resistance developing to single-site fungicides compared to multi-site fungicides (Fungicide Resistance Action Committee, 2024). At this time, the sensitivities of the CFR fungi to various single-site fungicides has not been fully demonstrated. Nonetheless, the incidence of isolation of Godronia and Neofabraea among cranberries with fruit rot symptoms was low in samples from beds treated with prothioconazole, compared to beds treated with fenbuconazole (Tables 1 and 2). This field data may indicate that Godronia and Neofabraea exhibit greater field sensitivity to prothioconazole (FRAC 3 triazolinthione fungicide) than to fenbuconazole (FRAC 3, triazole fungicide) (Fungicide Resistance Action Committee, 2024). These observations align with recent fungicide sensitivity assays by Wood et al. (2023). They demonstrated higher efficacy of prothioconazole compared to fenbuconazole to reduce mycelial growth and spore germination among CFRs and that G. cassandrae isolates were sensitive to both azole chemistries (Wood et al., 2023). Characterizing the CFR complex members in a bed and their intrinsic tolerance or sensitivity to various fungicides may lead to tailored CFR management programs.

4.3 A Glimpse into the cranberry microbiome and potential for additional CFRs

Several fungi not reported to cause cranberry fruit rots were isolated during this study and have been isolated from cranberries in other regions of North America (Sabaratnam et al., 2009; Wood et al., 2023) and warrant further study on their ecological role in cranberry beds. Some fungi, like Alternaria, Cadophora, and Penicillium, may be capable of causing a cranberry fruit rot but their ability to cause disease on cranberries has not been determined. In highbush blueberry (Vaccinium corymbosum), another Vaccinium sp. that shares many important pathogens with cranberry, Alternaria tenuissima can cause leaf spot and fruit rot (Polashock et al., 2017). Cadophora luteo-olivacea can cause a postharvest rot in kiwifruit (Actinidia deliciosa) (Auger et al., 2019), while Penicillium expansum can cause postharvest rot in pome fruit (Luciano-Rosario et al., 2020).

Other fungi may grow on plant surfaces as a non-pathogenic endophyte or as an epiphyte. The geographic isolation and climate differences may be important drivers of non-characterized fungi isolated from rotted cranberries. Some fungi, such as Aureobasidium, may have biocontrol potential, while Lachnum sp. isolated from cranberry plants in Quebec, Canada, have shown biocontrol activity against some known CFRs (Freimoser et al., 2019; Salhi et al., 2022). These genera were not isolated from some cranberry beds, perhaps related to fungicide use or lack of inoculum sources. We speculate that understanding the effects of fungicides on species which may compete with known CFRs, but do not cause fruit rot, may be important in determining how to improve conditions for species with putative biocontrol properties.

4.4 Constraints, biases, and alternative methods

Sampling of commercial cranberry beds had several constraints and potential biases. Sampling only occurred at the edges of the beds to avoid crop damage (except for farm 6 in 2022, in which dry-harvest was halfway completed, so sampling occurred on a portion of the bed), and in some cases, because of steep inclines on the sides of one bed (Farm 1), not every side of the bed was sampled. In Farm 3 (2020), and Farm 5 (2022), sampling occurred after harvest, around sprinklers and the extreme edges of the beds. All of these may have contributed to biases in CFR composition, as well as yield and rot incidence estimates. The 2021 Oregon cranberry fruit rot incidences from each field were higher than in the other years of the study (0.44 to 0.67, Table 5, Figure 1). The environmental conditions and fungicide use were similar to those in other years with lower fruit rot incidences (Tables 3, 5, and 2). However, unlike samples from other years in Oregon, the 2021 cranberry samples were stored at 4°C for 4 to 6 weeks prior to sorting and determination of rot incidence. We speculate that during storage, CFR fungi may have spread from diseased berries to sound berries collected from beds, resulting in a greater incidence of rot compared to samples from beds where symptomatic cranberries were removed prior to storage. While we cannot determine what the incidence of field or storage rot for the 2021 samples from Oregon would have been if the berries had been sorted prior to storage, these data support the importance of removing symptomatic berries on processing lines to reduce storage rots, especially for fresh-market cranberries.

A common protocol for isolating fungi from surface-disinfested cranberries is to cut the entire berry longitudinally, and place the cut side of the berry on the surface of solidified culture media, such as V8, corn meal, or potato dextrose agar (McManus et al., 2003; Olatinwo et al., 2003; Polashock et al., 2009; Wood et al., 2023). Our method to isolate CFRs often involved placing a sample of the lesion margin or internal mesocarp tissue onto media, which frequently resulted in isolation of a single fungus from a cranberry with rot symptoms. We suspect that some pathogens may be overrepresented as fruit rots when plating half of a berry. Multiple fungi may infect the same fruit, and plating half of the cranberry may increase the likelihood of isolating fungi that have not caused rot in that cranberry, even if the fungus is a known CFR. Additionally, inclusion of a more advanced rotted section of berry may increase the likelihood of isolating opportunistic fungi that can more readily grow on already rotted berry flesh, as opposed to asymptomatic cranberries. Conversely, our method of sampling symptomatic tissues may be prone to not culturing pathogenic fungi residing in berries as a latent infection.

This study, despite its constraints and potential biases, provides a glimpse into the CFR complex in commercial cranberry beds in two main growing regions of the Pacific Northwest. The main CFRs isolated from Oregon and Washington included Colletotrichum (largely from the acutatum complex), Physalospora vaccinii, and Coleophoma sp. From recent studies in Quebec and British Columbia, Canada, G. cassandrae and Phyllosticta elongata were the main species observed, respectively (Conti et al., 2022; Wood et al., 2023). In our study, these fungi were found at much lower incidences overall. In Quebec and British Columbia, Physalospora vaccinii and C. empetri also were found at relatively greater incidences than most other CFRs in those studies. In recent studies from New Jersey and Wisconsin, Colletotrichum was isolated frequently in both states, though C. gloeosporioides was more prevalent in New Jersey than Wisconsin and C. empetri was reported to be more prevalent in Wisconsin (Polashock et al., 2009; Wells-Hansen and McManus, 2017). Physalospora vaccinii was isolated from most beds sampled in Oregon and Washington. These studies all suggest variations in main CFR types among growing regions, though certain species and complexes, like Physalospora vaccinii, and Colletotrichum sp., tend to be highly represented, if not dominant, regardless of region. Further elucidation of interactions between CFR fungi, rot incidence, environmental conditions, and fungicides will be useful to develop and deploy more localized management strategies. This includes additional studies on the sensitivity of various CFR fungi to fungicides, as well as the effect of climate and environment on the expression of cranberry fruit rots. The sheer number of potential CFR fungi in cranberry beds makes this a daunting but nevertheless valuable undertaking.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Author contributions

DV: Data curation, Formal analysis, Investigation, Resources, Validation, Writing – original draft, Writing – review & editing. CB: Conceptualization, Funding acquisition, Methodology, Resources, Supervision, Validation, Writing – review & editing. VS: Conceptualization, Formal analysis, Funding acquisition, Project administration, Resources, Supervision, Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was supported by a research grant from the Northwest Center for Small Fruits Research and base funds from USDA Project 2072-22000-045-00D.

Acknowledgments

Sincere thanks to Samantha Tochen, formerly of Ocean Spray, Grayland, WA and Laura Kraft, WSU, Long Beach Washington Research Unit, for coordinating cranberry bed visits in Washington and help with sampling, to Gayle McGhee and Brenda Shaffer for assistance with molecular methods and analyses and internal manuscript review, to Jayden Christman for technical assistance in processing cranberries and fungal isolations in 2021, and to Cranberry growers in Oregon and Washington for allowing sampling of beds and providing information on fungicides used during the growing season.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
