Jiye Tang
Tenghong Ling
Huiling Li
Chunjie Fan- 1Guangdong Key Laboratory for Innovative Development and Utilization of Forest Plant Germplasm, College of Forestry and Landscape Architectures, South China Agricultural University, Guangzhou, China
- 2State Key Laboratory of Tree Genetics and Breeding, Key Laboratory of State Forestry and Grassland Administration on Tropical Forestry, Research Institute of Tropical Forestry, Chinese Academy of Forestry, Guangzhou, China
The TRICHOME BIREFRINGENCE-LIKE (TBL) gene encodes a class of proteins related to xylan acetylation, which has been shown to play an important role in plant response to environmental stresses. This gene family has been meticulously investigated in Arabidopsis thaliana, whereas there have been no related reports in Eucalyptus grandis. In this study, we identified 49 TBL genes in E. grandis. A conserved amino acid motif was identified, which plays an important role in the execution of the function of TBL gene family members. The expression of TBL genes was generally upregulated in jasmonic acid-treated experiments, whereas it has been found that jasmonic acid activates the expression of genes involved in the defense functions of the plant body, suggesting that TBL genes play an important function in the response of the plant to stress. The principle of the action of TBL genes is supported by the finding that the xylan acetylation process increases the rigidity of the cell wall of the plant body and thus improves the plant’s resistance to stress. The results of this study provide new information about the TBL gene family in E. grandis and will help in the study of the evolution, inheritance, and function of TBL genes in E. grandis, while confirming their functions.
1 Introduction
The plant cell wall consists of three main components: cellulose, lignin, and hemicellulose. The wall of a plant cell gives it cellular strength, while functioning as an osmotic barrier. Cell wall structure is important for plant resistance to abiotic stresses and is essential in stress sensing and signaling (Seifert and Blaukopf, 2010). Hemicellulose, a highly branched polysaccharide composed of xylose, galactose, and glucose, which makes up approximately 1/3 of the dry mass of the cell wall (Pauly and Keegstra, 2010), plays an important role in the structure and function of plant cell walls. Among them, xylan is the main hemicellulose in secondary walls of dicotyledons and monocotyledons. O-acetylation is a prevalent substituent in the hemicellulose and also a common method of modification of xylan (Gille and Pauly, 2012; Pawar et al., 2013; Pauly and Ramírez, 2018).
It has been shown that the acetylation of xylan is a cascade-regulated signaling process, with the initial acetyl group coming from CoA (which is the only source of xylan acetyl groups) (Zhong et al., 2020). The first step in the acetylation of the xylan backbone occurs at the Golgi, where RWA proteins are responsible for transferring CoA to the Golgi (Manabe et al., 2011), with the intermediate product AXY9 acting as a bridge to carry the acetyl group first (Schultink et al., 2015); finally, this acetyl group will be transferred ultimately to the xylan backbone in the presence of TBLs (Xiong et al., 2013; Urbanowicz et al., 2014). These studies suggest that TBL gene family proteins function on the xylan acetylation process in the cell wall.
The enzyme encoded by the TBL family of genes played an important role in the O-acetylation of cell wall polymers in Arabidopsis thaliana (Yuan et al., 2016a; Zhong et al., 2017; Stranne et al., 2018), which contains the conserved motifs Gly-Asp-Ser, Asp-x-x-His, and TBL, and DUF231 structural domains in the TBL proteins (Bischoff et al., 2010; Gille and Pauly, 2012). It was also found that xylan acetylation was reduced by 7%–20% in Arabidopsis double mutants of TBL genes, such as tbl3/tbl31, tbl32/tbl33, and tbl34/tbl35 (Yuan et al., 2016a), whereas in the tbl29/esk1 and tbl11/tbl2 double mutants, xylan acetylation was even significantly reduced by 40% and 55%, respectively (Gao et al., 2017). O-acetylation is prevalent in hardwood xylan, with the degree of acetylation sometimes being as high as 70% (at the C2/C3 position) (Pawar et al., 2013). The degree of acetylation of xylan can regulate the binding of lignin to xylan, thereby affecting biomass energy conversion. At the same time, the degree of acetylation of this xylan also determines its hydrophobicity, which, in turn, affects the structures of the cell wall (Busse-Wicher et al., 2014; Johnson et al., 2017). In poplar, it was found that 63% of xylan is acetylated (Zhong et al., 2018); this suggests that the acetylation of xylan is an important physiological process.
Eucalyptus is a tall tree species of the Myrtaceae family, native to Australia, which is now widely introduced and planted globally (Trueman et al., 2018). On the one hand, eucalyptus has ideal wood properties suitable for papermaking and hardwood processing, while the essential oils in the tree have an important role in the biomedical field, so it has a great value for utilization (Silva et al., 2003). On the other hand, its high growth capacity and resistance to adversity make it widely cultivated in many countries and generate high economic value (Nogueira et al., 2020). Studies have shown that acetylation of cell wall xylan promotes interactions between cell wall polymers and contributes to increased cell wall rigidity. The increase in cell wall rigidity is important for the normal functioning of the plant body in the process of resistance to adversity and other different biological functions (Pauly et al., 2001; Gille and Pauly, 2012; Bacete et al., 2018). Members of the TBL gene family play an important role in the process of xylan acetylation. Owing to the increased demand in the future (Arya et al., 2009), TBL family genes as a breakthrough to enhance the resilience of eucalyptus are a feasible solution to increase their economic value and meet the market demand. Our study will focus on the TBL gene family of eucalyptus, with the aim of contributing to the study of timber utilization in eucalyptus trees.
2 Materials and methods
2.1 Collection of materials
Genomic data of E. grandis were obtained from Phytozome’s database (Myburg et al., 2014), which includes genome sequence (assembled to chromosome level) and gene structure annotation information. Gene expression data were obtained from the literature (https://onlinelibrary.wiley.com/doi/10.1111/pce.14814) (Fan et al., 2024). Sequence files of TBL-related genes of A. thaliana were obtained from the TAIR (https://www.arabidopsis.org/) (Lamesch et al., 2012; Berardini et al., 2015). Genome sequences of Selaginella moellendorffii, Physcomitrium patens, and Chlamydomonas reinhardtii were obtained from the NCBI database (https://www.ncbi.nlm.nih.gov/genome/?term=) (Merchant et al., 2007; Banks et al., 2011; Lang et al., 2018). Genomic data of Populus alba were obtained from the research results of the Chinese Academy of Forestry (https://doi.org/10.1007/s11427–018-9455–2) (Liu et al., 2019).
2.2 Identification and characterization of TBL family members in E. grandis
The genome files were converted into protein sequence files using TBtools (Chen et al., 2020), then the protein sequence data of Arabidopsis and Eucalyptus TBL genes were submitted via the “Blast Compare Two Seqs” plug-in of TBtools. Among the above comparison result files, the TBL gene with the highest match was selected, its ID was copied, and it was submitted to the “Fasta Extract” function plug-in of TBtools along with the TBL protein sequence file, which finally outputted the protein sequence file of the eucalyptus TBL gene. Then, the obtained data were further compared and some sequences with obvious mistakes were deleted.
2.3 Protein property analysis
The protein sequence information of the screened TBL gene family members was submitted to TBtools’ “Protein Parameter Calc” program for analysis to obtain tabular data on the physicochemical properties including isoelectric point (pI), hydrophilicity, and molecular mass of the proteins. This study also utilized tools borrowed to predict the subcellular localization of TBL proteins.
2.4 Classification and sequence analysis of the TBL genes
The construction of the phylogenetic tree used “one step build ML tree” (i.e., maximum likelihood method to build the phylogenetic tree) of TBtools, the processed TBL protein sequence of eucalyptus was submitted, and “Bootstrap=1000” was set to run the program to get the single-species phylogenetic tree. At the same time, the amino acid sequences of TBL proteins of E. grandis, S. moellendorffii, and P. patens were united to draw a big phylogenetic tree (Subramanian et al., 2019).
2.5 Gene structure and conserved motif analysis
After screening the amino acid sequence information of the TBL family proteins of E. grandis, the data were submitted to the MEME website (https://memesuite.org/meme/tools/meme) for conserved motif analysis, and the number of conserved motifs was set to 10. Previously predicted sequences that lacked a large number of conserved motifs were considered as pseudogenes and were deleted (Bailey and Elkan, 1994; Bailey et al., 2009). Meanwhile, the gene annotation file of E. grandis was downloaded from Phytozome’s database, and the conserved structure domain and gene structure of TBL genes were predicted. Finally, the conserved structure domain prediction file, the gene structure annotation information file, and the phylogenetic tree file were submitted to the “Gene Structure View” visualization plug-in of TBtools for visualization.
2.6 Cis-acting element analysis
For cis-acting element analysis, all upstream 2,000 bp of Eucalyptus TBL genes were submitted to the Plant CARE website (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/) (Rombauts et al., 1999; Lescot et al., 2002). The functions related to each cis-acting element are described in the Results section and Supplementary Table 1.
2.7 Chromosome location and collinearity analysis
Chromosomal localization analysis was performed using the plug-in “Gene Location Visualize from GTF/GFF” on TBtools. Collinearity analysis was performed using the TBtools program “One Step MCScanX-Diamond”. “Dual Systeny Plot” was used for visualization, and the TBL gene ID of E. grandis was submitted to be highlighted in the collinearity plot. Finally, the collinearity maps of E. grandis–P. alba and E. grandis–A. thaliana were plotted. During the collinearity analysis, the number of CPU for BlastP is 2, the e-value value is 1e−3, and the number of BlastHits is 10.
2.8 Expression pattern analysis of TBLs in various tissues and under different stresses
The sample of the expression data measurement comes from clone eucalyptus plant GL1, and the eucalyptus is cultivated in the greenhouse at the Research Institute of Tropical Forestry (113.385°E, 23.191°N), Chinese Academy of Forestry, Guangzhou, China. In terms of hormone-induced and coercion, we determined the expression data of salicylic acid (SA), jasmonic acid (JA), and salt stress. The treatment samples were selected from 3-month-old trees and the height of the plant was 25–35 cm. Hormone treatments involved spraying 100 μM SA and JA onto the foliage, and salt stress treatments entailed spraying the leaves using 200 mM NaCl solution; the leaves were collected after 0, 1, 6, 24, and 168 h of treatment. After the training period is over, gently wipe the root, immediately freeze it in liquid nitrogen, and store it under −80°C. The data of the young leaf, adult leaf, xylem, phloem, and stem apex come from the semi-annual eucalyptus in the greenhouse of the Research Institute of Tropical Forestry. The samples of the 1st (Apex), 3rd, 5th, 7th, 9th, and 11th internodes also come from the above semi-annual big eucalyptus seedlings. Three single plants are gathered to represent a biological repetition, and there are three biological replicates.
For expression mapping, we take the average of three replicates, and for the overall viewing effect, we convert the data to Y = Log2(X+1) (Y is the input visualization data and X is the original data); i.e., we perform global normalization, so that small fluctuations in the data can be clearly discerned after processing, so that the color contrast of the expression gap embodied in the heatmap after visualization is larger and is more conducive to the observation of the changes in gene expression. Finally, an expression matrix was constructed with time as the horizontal column and gene IDs as the vertical column. Submit the expression matrix to the heat map visualization tool “Heatmap” in TBtools and get the heat map.
In this study, the significance of expression was analyzed and bar graphs were plotted for the EgTBL36 gene. Significance analysis was done through SPSS software using one-way ANOVA test comparing means, and plotting was done using Origin software (Edwards, 2002).
3 Results
3.1 Identification and characterization of TBL family members in E. grandis
A total of 49 TBL gene family members were identified in E. grandis (sequence information for these members can be found in the Appendix). They were renamed according to the nomenclature of their homologs in A. thaliana and named EgTBL1–EgTBL49. The most characteristic sequences of the TBL gene family are the CDS (Cys-Asp-Ser) conserved motifs, which are highly conserved among the 49 TBL family members. The isoelectric points (pI) of the 49 member proteins ranged from 5.37 to 9.64, among which the proteins with pI greater than 7, which are regarded as alkaline proteins, accounted for most of them. Instability index ranged from 30.05 to 61.91. The lengths ranged from 341 to 520 amino acids while the relative molecular masses ranged from 38.41 to 58.98 KD. The aliphatic index was between 62.87 and 86.5, and the grand average of hydropathy was between −0.592 and −0.122, all of which were hydrophilic proteins. Predictions of subcellular localization indicate that most of the TBL family proteins are localized in chloroplasts and vesicles (Table 1).
Table 1 Physicochemical properties of TBL gene family members.
3.2 Phylogenetic tree and sequence structure analysis
All TBL genes collected from S. moellendorffii, P. patens, A. thaliana, and E. grandis were divided into seven groups labeled I–VII (Figure 1). Interestingly, groups VI and VII only contained TBL genes from Arabidopsis and Eucalyptus (Figure 2A), while the TBL family members of S. moellendorffii and P. patens were significantly divergent at groups I–V. It was also found that TBL genes related to acetylation, including TBL28–35 in Arabidopsis, were mainly clustered in group VI (Qaseem and Wu, 2020). Similarly, Eucalyptus TBL family members were also divided into nine subfamilies and named I to IX (Figure 2A). It was also shown that the number of exons of the Eucalyptus TBL gene family varied from two to seven (Figure 2A).

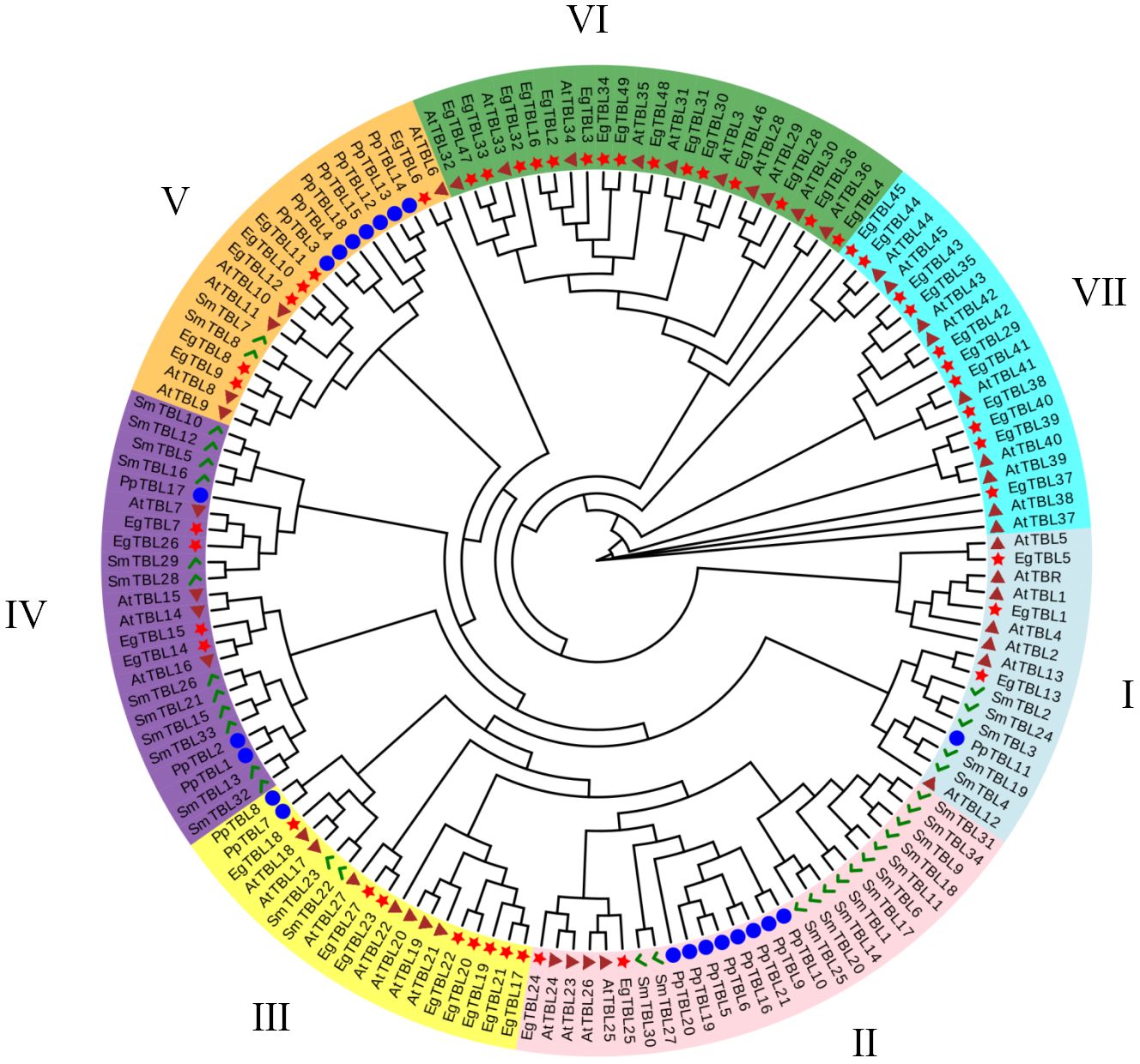

Figure 1 Comprehensive phylogenetic tree construction of TBL genes. AtTBL proteins are from A. thaliana; PpTBL proteins are from P. patens; EgTBL proteins are from E. grandis; SmTBL proteins are from S. moellendorffii.

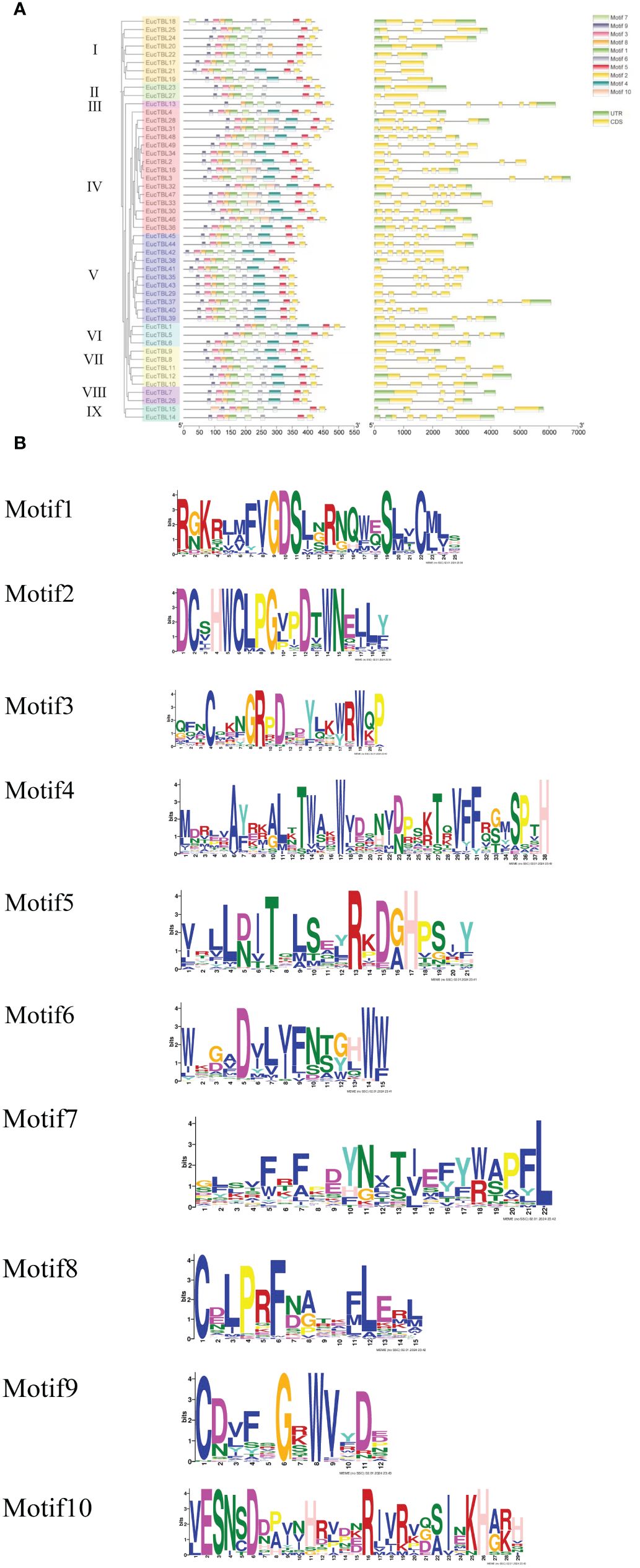

Figure 2 Structure of E grandis TBL gene and structure of expressed proteins. (A) The left side of the figure shows the clustering based on the phylogenetic tree. The middle of the figure shows the conserved motif structures indicated by different color blocks, and the right side of the figure shows the gene structures. (B) Sequence maps of different conserved motifs.
3.3 Conserved protein motif analysis and localization of the TBL gene on chromosomes
A total of 10 conserved protein motifs, Motif 1–Motif 10 (Figure 2B), were screened in this study. The number of conserved motifs in TBL family members ranged from 8 to 10. From the phylogenetic tree, TBLs of group IV (except EgTBL4 and EgTBL36) have 10 conserved motifs, and all of the other TBLs, except group IV, have no Motif 10. In addition, most members of group I (except EgTBL19 and EgTBL21) and all members of groups II, III, and IX have no Motif 4. Other conserved motifs except Motif 4 and Motif 10 basically exist in all members, even orientational consistent. Among the motifs, the sequence of Motif 2 is the most conserved (Figure 2B), and the typical amino acid sequence is DCXHWCLPGXXDXWN.
A total of 47 TBL genes are uneven localized on 11 chromosomes, with 10 TBL family members distributed on chromosome 11 and only 1 member distributed on chromosome 4. Meanwhile, two TBL genes are localized on the scaffold. In addition, some TBL genes are clustered together on chromosomes as gene islands, especially on chromosome 11, with up to five genes localized in the same position (Figure 3).

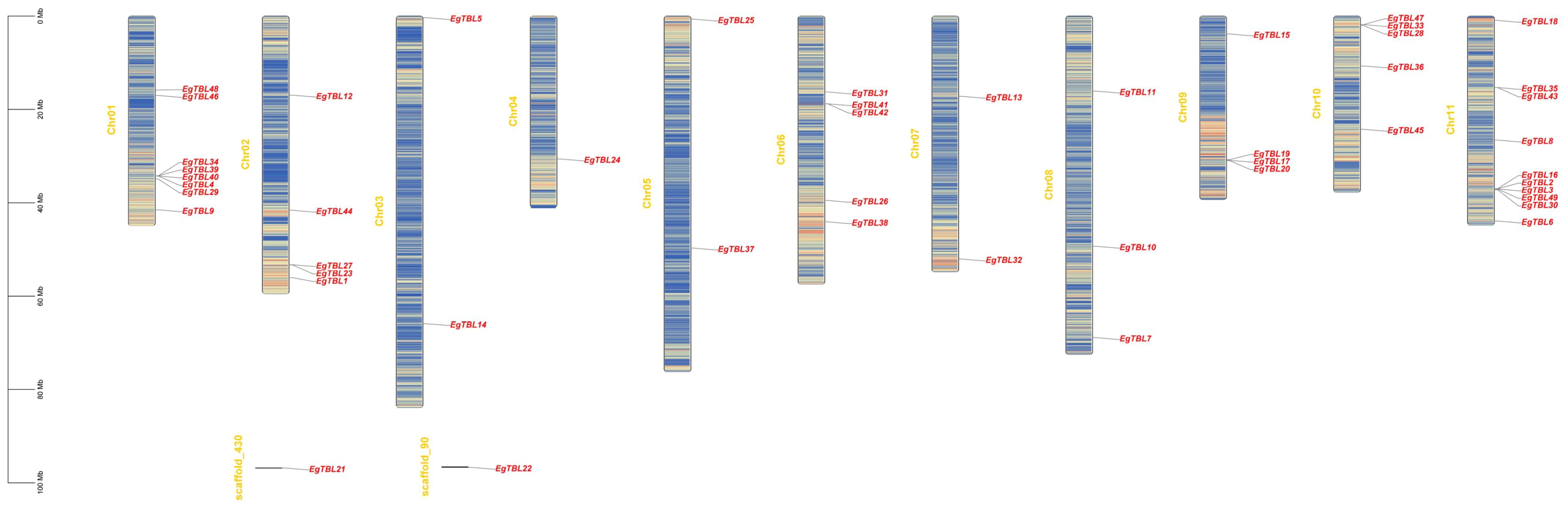

Figure 3 Localization map of TBL gene on chromosome. Baguettes are chromosomes, and short lines are sequences of unknown position not assembled to the chromosome; red font size markers are gene names; heatmap in the chromosome is gene content per 100,000-bp sequence.
3.4 TBL gene of E. grandis collinearity analysis
Collinearity analysis among A. thaliana, E. grandis, and P. alba was performed. The TBL gene members were highlighted with red lines. The results showed that the TBL genes between E. grandis and A. thaliana had 44 gene pairs of collinearity (Figure 4A), while the TBL genes between E. grandis and P. alba had 53 pairs of collinearity (Figure 4A). Intraspecific collinearity analysis revealed the presence of 10 collinearity pairs within the species.

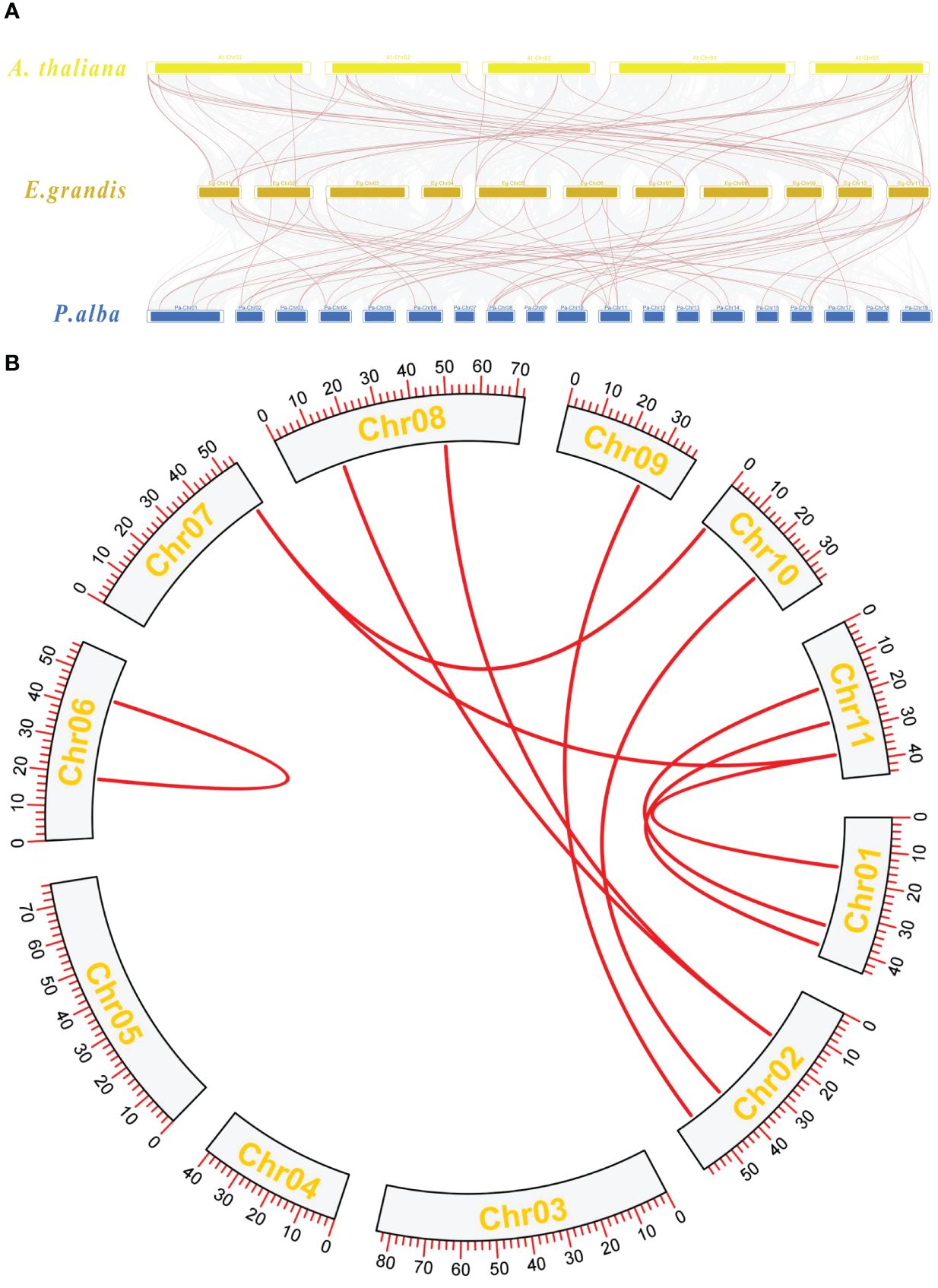

Figure 4 (A) Collinearity analysis plot. A thaliana chromosomes at the top, E grandis chromosomes in the center, and P. alba chromosomes at the bottom. (B) Intraspecific collinearity analysis of Eucalyptus.
3.5 Analysis of cis-acting elements of the TBL gene of E. grandis
According to promoter analysis, cis-acting elements were associated with the plant stress tolerance and hormone responses (Figure 5). The most widely distributed hormone-related cis-acting elements were ABRE, CGTCA-motif, and TGACG-motif. ABRE was the cis-acting element related to abscisic acid response, and the latter two were the cis-acting elements related to MeJA. The remaining widely distributed cis-acting elements are LTRs and TC-rich repeats, the former being hypothermia-related and the latter being stress-responsive. Other cis-acting elements and the physiological processes are shown in Supplementary Table 1.

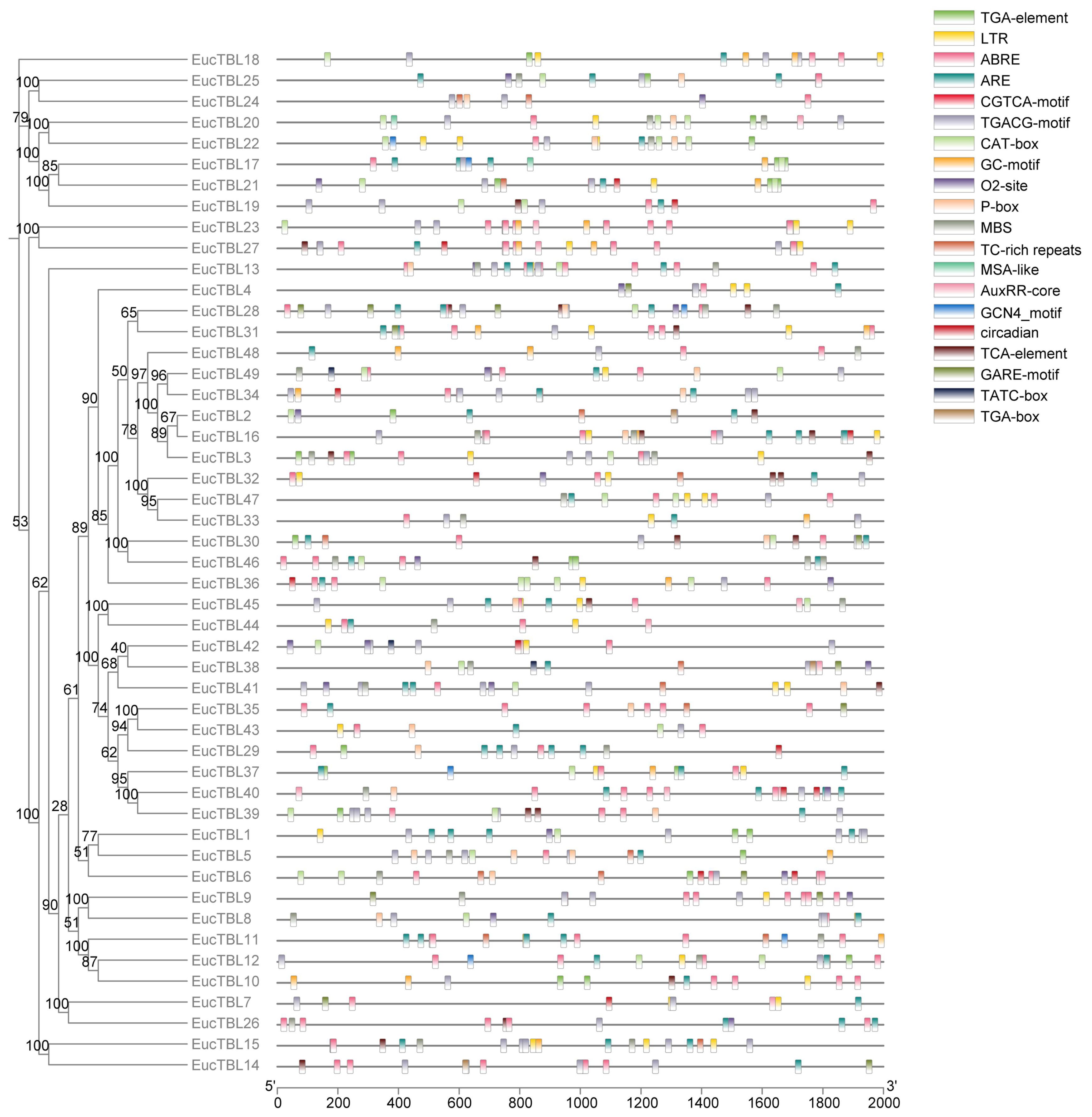

Figure 5 Cis-acting element prediction map. The horizontal axis of the figure is the 2,000-bp length upstream of the gene, the vertical axis of the figure is the gene ID, and the elements in the figure are detailed in the legend in the upper right corner.
3.6 Expression profiles of TBL genes among various tissues in E. grandis
TBL gene expression in different internodes of 6-month-old E. grandis is shown in Figure 6A. From the top to the bottom of the tree, the expression of EgTBL19, EgTBL20, EgTBL30, EgTBL36, EgTBL6, and EgTBL7 genes gradually increased, while the expression of EgTBL11, EgTBL22, EgTBL3, EgTBL35, and EgTBL39 gradually decreased. Figure 6B shows the expression of TBL genes in different parts of E. grandis at half a year of age, and in general, the highest expression was found in the xylem of E. grandis, while the expression in leaves and terminal buds was smaller. As far as the combined expression profile of different genes was analyzed, EgTBL6, EgTBL7, EgTBL36, and EgTBL47 had the highest expression. The most noteworthy gene was EgTBL6, whose expression in xylem was particularly prominent, nearly three times that of the next highest expressed gene.

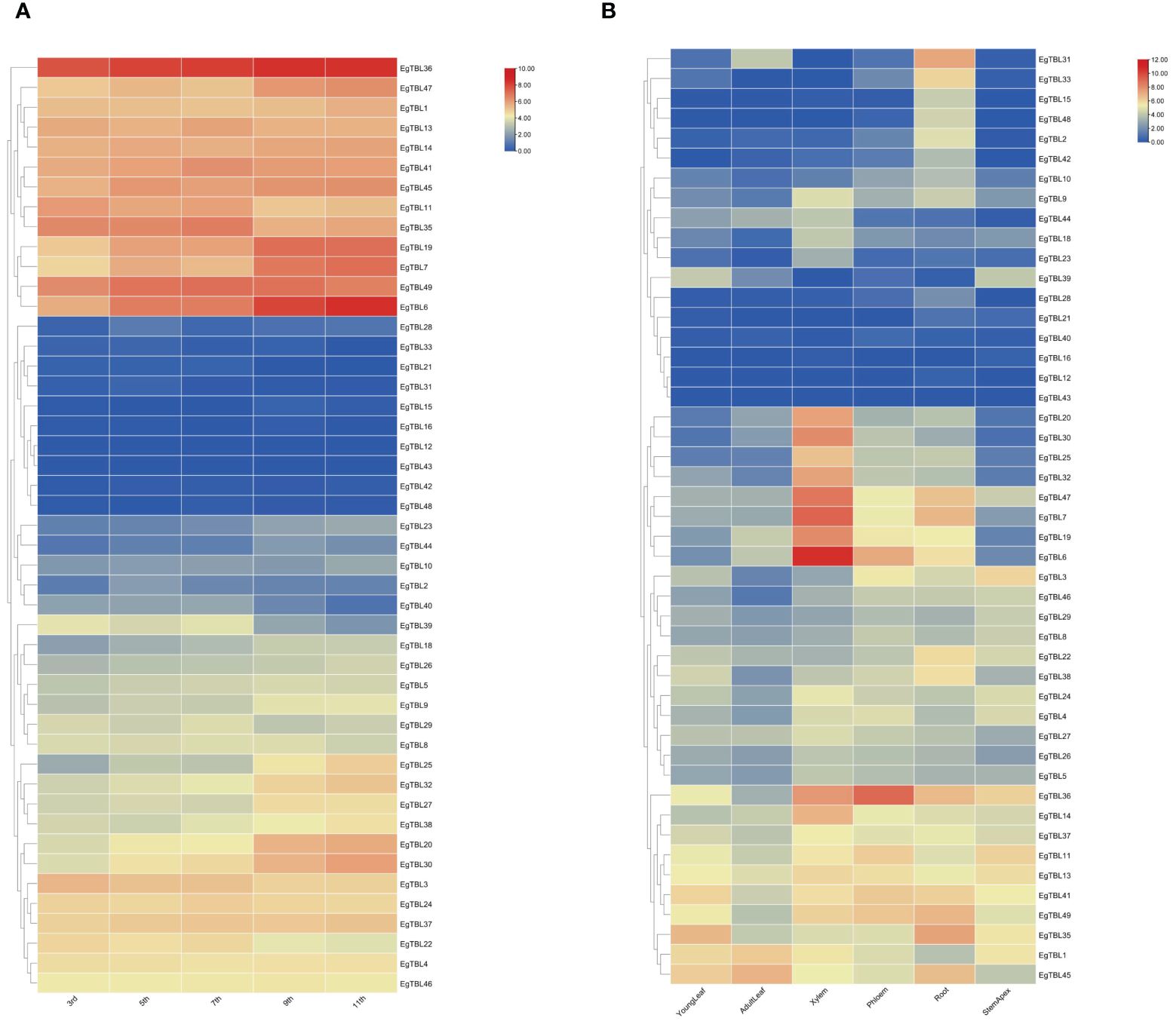

Figure 6 Expression profiles of TBL gene in various internodes of stem from the 3rd internode to the 11th internode (A) and in various tissues including adult leaves, young leaves, xylem, phloem, roots, and stem apex (B) in E grandis.
3.7 Expression profiles of TBL genes’ response to various treatments in E. grandis
The transcriptome results of stress treatments at different times and sites showed that external stresses significantly affected the expression of E. grandis TBL gene family members. The expression of TBL genes in E. grandis seedling leaves varied with time under JA, SA, and salt stress treatments. Under JA treatment (Figure 7A), the expression of EgTBL14, EgTBL18, EgTBL20, EgTBL23, EgTBL24, EgTBL26, EgTBL30, EgTBL32, EgTBL37, EgTBL39, EgTBL47, and EgTBL48 was not only higher but also significantly upregulated over time, while the expression of EgTBL12, EgTBL3, and EgTBL36 were downregulated with time. Under SA treatment (Figure 7B), the expressions of EgTBL20, EgTBL36, EgTBL44, and EgTBL3 were downregulated, whereas the expressions of no TBL gene were significantly upregulated. Under the salt stress treatments, the expression of EgTBL1, EgTBL12, EgTBL20, EgTBL22, EgTBL23, EgTBL24, EgTBL26, EgTBL3, EgTBL36, EgTBL37, EgTBL44, EgTBL45, and EgTBL5 was downregulated, while the expression of EgTBL11, EgTBL14, EgTBL18, and EgTBL48 was upregulated (Figure 7C). It is worth noting that the up- or downregulation of expression that we have illustrated is more of a short-term effect of treatment, and in terms of the negative feedback regulation that may be present in plants, it is normal for this short-term effect to be dialed back after a long period of treatment.

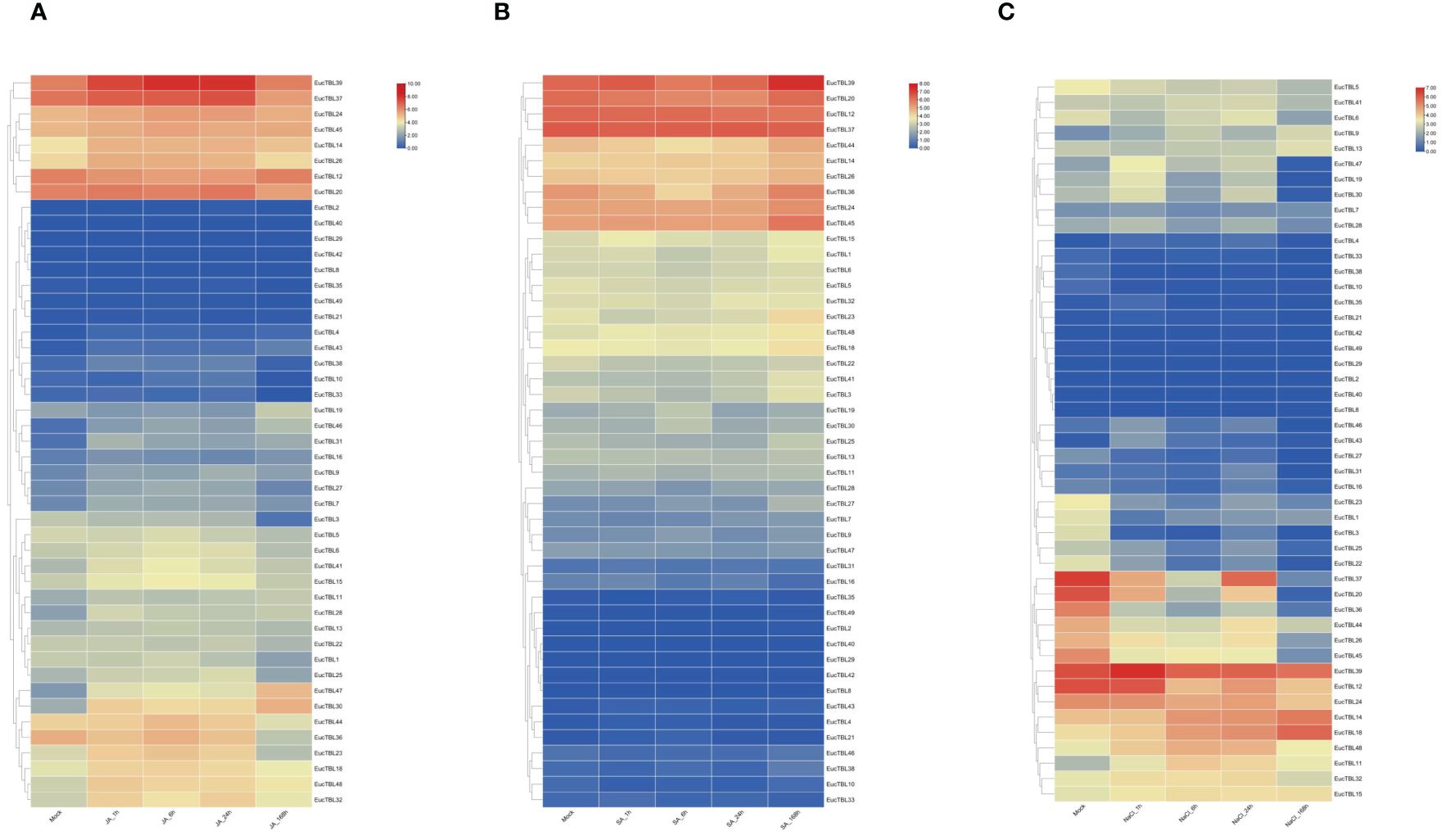

Figure 7 TBL gene expression at different times under jasmonic acid (A), salicylic acid (B), and salt stress treatment (C) in E grandis.
3.8 Expression profiles of TBL genes in adventitious root induced in E. grandis
Figure 8 shows the expression of TBL genes in adventitious roots induced at different growth stages when seedlings were grown in tissue culture. As E. grandis grew in tissue culture, the expression of EgTBL12 and EgTBL37 was downregulated and the expression of EgTBL19, EgTBL23, EgTBL28, EgTBL32, EgTBL33, EgTBL39, EgTBL44, EgTBL47, and EgTBL48 was upregulated in the roots. EgTBL19, EgTBL37, EgTBL39, and EgTBL45 had the highest expression overall at the base of the stem and in the roots during culture.

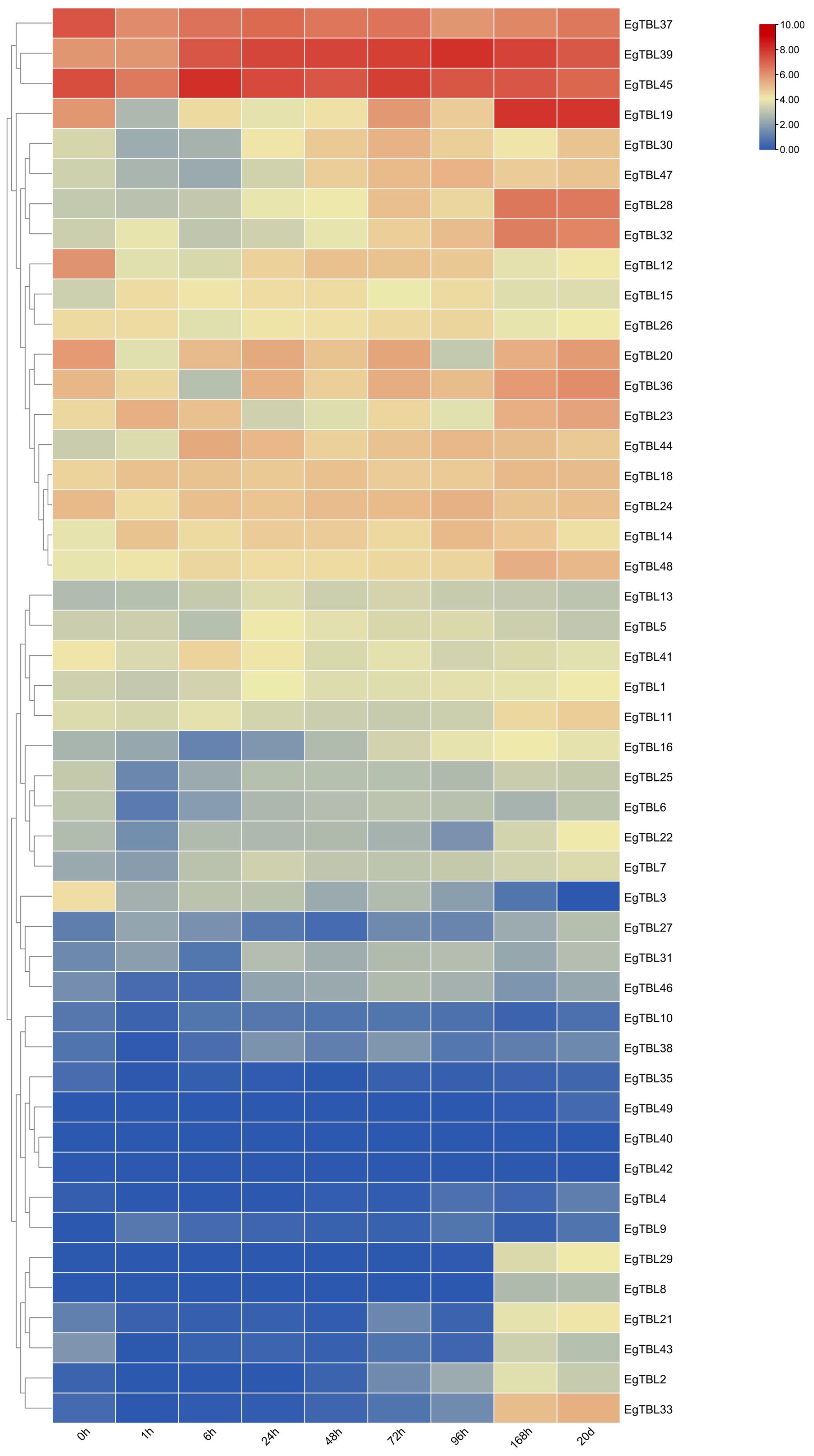

Figure 8 TBL gene expression in adventitious roots induced in tissue culture in E. grandis.
4 Discussion
E. grandis is an important timber species in the tropical and subtropical regions of the world, which meets the demand for wood and paper production in the development process of various countries. TBL genes are widely present in the genomes of higher plants, and studies have shown that they are essential for the acetylation of xylan in the plant cell wall, which is beneficial for the improvement of cell wall strength and timber properties, as well as improving the resilience of the trees. Thus, the study of the TBL gene family in Eucalyptus will contribute to forest improvement efforts.
The proteins of E. grandis TBL family members are hydrophilic, have a high instability index, and are mostly basic. Phylogenetic tree analysis reveals that the genome of the primitive eukaryote C. reinhardtii lacks TBL family members. In contrast, more complex organisms like S. moellendorffii and P. patens possess a few TBL gene family members, albeit distantly related to those in higher plants like E. grandis and A. thaliana. These results suggest that the TBL gene family evolved and expanded throughout plant evolution, playing a significant role in environmental adaptation. Overall, the protein sequences and structural domains within the E. grandis TBL family are highly conserved, indicating the gene’s pivotal role in plant biology and warranting further exploration of its functions. The study of conserved motifs (Figure 2) revealed that the unique Motif 10 structure in group IV members exhibits notable conservation. This conservation is instrumental in understanding TBL proteins’ functionality, particularly in distinguishing the functional nuances between group IV proteins and other TBL proteins, thereby aiding in a more thorough investigation and precise classification of the TBL family. The functional evolution and diversification of gene families often stem from gene fragment and tandem duplications, a phenomenon extensively observed in A. thaliana studies (Cannon et al., 2004; Levasseur and Pontarotti, 2011). The results of the intraspecific collinearity analysis further confirmed that the development of the TBL gene family in E. grandis is associated with this phenomenon. In group VII (Figure 1), the divergent branching of Arabidopsis and E. grandis TBL genes likely results from fragment duplication. Chromosomal localization data reveal a tendency for gene clustering within the E. grandis TBL family, suggesting segmental duplication leading to tandem repeats (De Smet et al., 2002; Figure 4B). Collinearity analysis further corroborates this, showing increased collinearity pairs among higher plants and significant homology, thereby underscoring the gene’s conservation.
Analysis of E. grandis seedlings’ expression data under various stress treatments (Figure 7) emphasizes the significance of jasmonic acid (JA), a crucial phytohormone. JA plays a pivotal role in maintaining ion homeostasis, as evidenced in maize seedling studies (Mir et al., 2018), and is instrumental in the cellular stress response (Piotrowska et al., 2009; Xia et al., 2018; Shri et al., 2019). qRT-PCR studies have demonstrated JA’s role in enhancing tomato plants’ resistance to the heavy metal salt Pb via diverse pathways and in producing heat shock proteins within plants (Kochian et al., 2015; Bali et al., 2019; Nadarajah, 2020). In E. grandis seedlings treated with JA, there was a general upregulation in TBL gene expression. This, coupled with cis-acting progenitor analysis results, strongly suggests a close regulatory relationship between this gene family and JA. In E. grandis seedlings, SA treatment notably upregulated the expression of the EgTBL37 gene in leaves. SA is known to be vital for developing systemic acquired resistance in tobacco and mitigating drought stress effects in winter wheat (Gaffney et al., 1993; Khalvandi et al., 2021). Therefore, the upregulated EgTBL37 gene post-SA treatment is likely crucial in plant resistance processes. Abiotic stress significantly influences forest tree breeding (Harfouche et al., 2014), with gene expression under salt stress serving as a critical aspect of forest tree genetic improvement. Thus, researching relevant TBL genes is imperative. The TBL gene’s expression predominantly decreased under salt stress, indicating its potential adverse effect on the plant’s salt stress resistance.
Analysis of the TBL gene family expression in adventitious roots of group-cultivated E. grandis seedlings over various time periods (Figure 8) reveals a general upregulation correlating with the development of adventitious roots. This trend underscores the TBL genes’ significant role in promoting adventitious rootogenesis. Expression data from various parts of 6-month-old E. grandis (Figure 6B) highlight a pronounced expression of TBLs in the xylem, with EgTBL6 being especially prominent. Analysis of different internodes (Figure 6A) shows increasing TBL gene expression and lignification towards the tree base. These findings further establish the crucial role of TBL genes in the lignification process of E. grandis.
The TBL family is prominently known for its O-acetyl polysaccharide transferase activity in cell wall acetylation (Yuan et al., 2016a; Zhong et al., 2017; Stranne et al., 2018), with xylan acetylation playing a vital role in augmenting plants’ stress tolerance (Vogel et al., 2004; Pogorelko et al., 2013; Jiang et al., 2014; Gao et al., 2018). The TBL28–TBL35 genes, crucial in the xylan acetylation process, were highlighted in Arabidopsis studies (Yuan et al., 2016b; Yuan et al., 2016c). In the phylogenetic tree encompassing various species, these genes belong to group VI (group IV in E. grandis), specifically EgTBL2 and EgTBL3, among others. Notably, group IV E. grandis TBL genes are characterized by Motif 10 with a conserved ESNXD sequence and additionally have a conserved arginine and a proline at positions 16 and 26, respectively. From the results of chromosomal localization, the gene members of group IV were not highly concentrated on individual chromosomes and were generally dispersed. The group IV Eucalyptus TBL gene that was significantly upregulated under JA treatment and downregulated under salt stress was EgTBL36, demonstrating that it may play an important role in response to stress (Figures 7, 9). The results of the significance analysis of the expression of this gene showed that the gene was prominently expressed in the xylem of E. grandis and that there was a significant short-term downregulation of its expression under salt stress, SA, and JA treatments, and these results reinforced the conjecture that it plays an important function in the resistance and development of E. grandis. From the expression data of different internodes of 6-month-old E. grandis, the expression of EgTBL36 gene was even more fault leading (Figure 6). These results suggest that EgTBL36 gene may be a key functional gene for xylan acetylation in E. grandis (Figure 9).
Figure 9 (A) Graph of the expression of the gene in different parts of eucalyptus in half a year. (B) Graph of the difference of the expression of the gene among different knots of eucalyptus. (C) Graph of the change of the expression of the gene in eucalyptus under salicylic acid treatment. (D) Graph of the change of the expression of the gene in eucalyptus under salt stress. (E) Graph of the change of the expression of the gene in eucalyptus under jasmonic acid treatment. (F) Graph of the change of the expression of the gene in eucalyptus in the root at different times in the process of tissue culture.
5 Conclusion
We analyzed the TBL gene of E. grandis in terms of phylogeny, gene structure, and proteome. While 49 gene members of the TBL family were identified, they were divided into nine subfamilies. A number of conserved protein structures were identified, and phylogenetic and kinship analyses among different species further ensured the accuracy of the family identification. The expression profiles of different treatments and sites revealed that the TBLs of E. grandis play an important role in the plant’s resistance to environmental stresses, and the process is related to its function of xylan acetylation. Based on the distribution of the family members that play important roles in A. thaliana and referring to the expression profiling data, we identified the key genes that may play roles in the TBL family of E. grandis, which will be helpful for the subsequent functional studies and will help breeders to carry out breeding for timber property improvement.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
JT: Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. TL: Data curation, Formal analysis, Investigation, Methodology, Writing – review & editing. HL: Data curation, Funding acquisition, Writing – review & editing. CF: Data curation, Investigation, Methodology, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This study was supported by Guangdong Key Laboratory for Innovative Development and Utilization of Forest Plant Germplasm, College of Forestry and Landscape Architectures, South China Agricultural University, Guangzhou 510642, China and State Key Laboratory of Tree Genetics and Breeding, Key Laboratory of State Forestry and Grassland Administration on Tropical Forestry, Research Institute of Tropical Forestry, Chinese Academy of Forestry, Guangzhou 510520, China.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer WH declared a past co-authorship with the author HL to the handling editor.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2024.1401298/full#supplementary-material
Supplementary Table 1 | Table describing promoters and their functions.
