Effects of nitrogen fertilization combined with subsurface irrigation on alfalfa yield, water and nitrogen use efficiency, quality, and economic benefits

Proper water and fertilizer management strategies are essential for alfalfa cultivation in arid areas. However, at present, the optimal amounts of subsurface irrigation and nitrogen (N) supply for alfalfa (Medicago sativa L.) cultivation are still unclear. Therefore, a field experiment was conducted in 2022 in Yinchuan, Ningxia, China, to explore the effects of different subsurface irrigation levels (W₁, 50% of ET_C (crop evapotranspiration); W₂, 75% of ET_C; W₃, 100% of ET_C) and N application rates (N₀, 0 kg/ha; N₁, 75 kg/ha; N₂, 150 kg/ha; N₃, 225 kg/ha; N₄, 300 kg/ha) on alfalfa yield, crop water productivity (CWP), N use efficiency (NUE), quality, and economic benefits. Besides, the least squares method and multiple regression analysis were used to explore the optimal water and N combination for alfalfa cultivation under subsurface irrigation. The results showed that the alfalfa yield, crude ash content, and partial factor productivity from applied N (PFPN) were the highest under W₂ level, but there was no difference in PFPN compared with that under W₃ level. The branch number (BN), leaf area index (LAI), yield, CWP, irrigation water productivity (IWP), crude protein content (CPC), and economic benefits increased and then decreased with the increase of N application rate, reaching a maximum at the N₂ or N₃ level, while the NUE and PFPN decreased with the increase of N application rate. Considering the yield, CWP, NUE, quality, and economic benefits, W₂N₂ treatment was the optimal for alfalfa cultivation under subsurface irrigation. Besides, when the irrigation volume and N application rate were 69.8 ~ 88.7% of ET_C and 145 ~ 190 kg/ha, respectively (confidence interval: 85%), the yield, CPC, and economic benefits reached more than 85% of the maximum. This study will provide technique reference for the water and N management in alfalfa cultivation in Northwest China.

1 Introduction

Currently, the demands for foods of animal origin rich in protein and nutrition (FAO, 2017) has increased like never before (National Research Council, 2015). Therefore, the cultivation of forage grasses is particularly important. Alfalfa, a homotetraploid perennial forage grass, is widely cultivated in the world due to its high yield, high protein content, and good palatability (Li and Brummer, 2012; Wagle et al., 2019). However, alfalfa growth requires large amounts of water, and frequent drought often leads to yield losses of alfalfa in arid areas (Lamm et al., 2012). Therefore, developing water-saving irrigation measures to improve alfalfa CWP and yield is very urgent (Oweis et al., 2004).

Subsurface drip irrigation provides water and nutrients directly to crop roots (Dukes and Schol berg, 2005). This technology saves water (about 20% ~ 30%) and fertilizer by reducing the loss of water and fertilizer, which is conducive to increasing crop yield and reducing cost in arid areas (Du et al., 2017). Previous studies have reported that subsurface drip irrigation can significantly enhance water production efficiency and alfalfa yield (Angold et al., 2015; Han et al., 2019). Besides, deep buried pipes does not affect mechanical harvesting operations, and there is no need to stop water and fertilizer supply one week before and after each cutting to suppress the mildew of alfalfa grass. This could prolong the growing period and increase yield.

Nitrogen fertilization is necessary for crop cultivation. Although alfalfa is a leguminous plant, the N fixed by rhizobia accounts for only 50% ~ 60% of alfalfa N requirement (De Oliveira et al., 2004). Therefore, it needs exogenous N supply. However, the optimal N application rate for alfalfa under subsurface irrigation remains unclear. Insufficient N supply cannot maintain the normal growth of alfalfa and affects CWP, yield formation, and quality, while excessive N supply may limit crop growth, reduce N utilization, and even cause environmental pollution (Liu et al., 2019). Therefore, the determination of optimal N application rate is very necessary (Delevatti et al., 2019; Sun et al., 2022). It should be noted that the N uptake in crops is also affected by soil moisture. Yin et al. (2012) reported that appropriate N application could improve alfalfa CWP and increase yield under deficit irrigation (80%). Xue et al. (2017) and Bu et al. (2014) pointed out that according to crop nutrient demand, the combination of irrigation and fertilization under subsurface irrigation can effectively inhibit vegetative growth. Therefore, it is necessary to consider the N application rate and the irrigation rate in an integrated manner.

At present, high irrigation and fertilization rates are widely used in local alfalfa cultivation, which increases production costs and groundwater contamination risk (Sha et al., 2021). Therefore, water and fertilizer reductions are very necessary. However, it is still unclear how to reduce subsurface drip irrigation rate and fertilization rate in alfalfa cultivation while maintaining high yield and economic benefits and what are the optimal ranges of irrigation and fertilization rates. This study hypothesized that moderately reducing irrigation and fertilization rates might yielded the optimal outcomes. To valid this hypothesis, in this study, in the arid region of Northwest China, the effects of different irrigation rates and N application rates on alfalfa growth, resource use efficiency, yield, quality, and economic benefits were explored. The objectives of this study were: (1) to compare the effects of different irrigation rates and N application rates on alfalfa growth, resource use efficiency, yield, quality, and economic benefits under subsurface drip irrigation; and (2) to determine the optimal irrigation and N application ranges that simultaneously maximize alfalfa growth parameters, resource use efficiency, yield, quality, and economic benefits under the premise of water and N reduction. This study will provide a technical reference for the water and fertilizer management for alfalfa cultivation in arid and semi-arid areas.

2 Materials and methods

2.1 Experimental site

The experiment was conducted in the Botanical Garden in Liangtian Town, Yinchuan, Ningxia, China (106°18′E, 38°40′N, a.s.l. 1100 m). The region has a temperate continental climate. The average annual temperature was 8.7°C, the average annual sunshine hour was 3032 hours, the frost-free period lasted 185 days, the average annual precipitation was 200 mm, and the average annual evaporation was 1694 mm (Figure S1). The soil type was sandy soil, with sand, silt, and clay accounting for 91.76%, 7.04%, and 1.20%, respectively. The soil bulk density was 1.47 g/cm³, the field capacity was 18.8% (g/g), and the wilting point was 8.9% (g/g). The soil organic matter content was 4.67 g/kg, the total N content was 0.31 g/kg, the available potassium content was 81.42 mg/kg, the available phosphorus content was 2.44 mg/kg, and the pH was 8.62.

2.2 Experimental design

Subsurface irrigation system was used in this study. The inner diameter of the pipes was 13 mm, and the wall thickness was 1.5 mm. Under the pressure of 0.06 MPa, the flow rate was 60-100 mL/(m·min). The pipe spacing was 80 cm, and the buried depth was 20 cm (Latorre et al., 2018).

The experiment employed a split-plot design, with irrigation volume (W₁ (50% of ET_C (crop evapotranspiration)), W₂ (75% of ET_C), and W₃ (100% of ET_C)) as the main plot, and N application rate (N₀ (0 kg/ha), N₁ (75 kg/ha), N₂ (150 kg/ha), N₃ (225 kg/ha), and N₄ (300 kg/ha)) as the subplot. Each group had three replicates/plots. The area of each plot was 12.5 m² (2.5 m × 5 m). To prevent interference between treatments, a plastic film was vertically buried between plots (60 cm in depth).

Before sowing, 10% of urea (N, 46%), 150 kg/ha of monoammonium phosphate (P₂O₅, 61%), and 120 kg/ha of potassium sulfate (K₂O, 52%) were applied to the soil. After that (June 5, 2022), alfalfa seeds (variety “Magna Graze 401” (Canada)) were sown (15 kg/ha), with a sowing depth of 1 ~ 2 cm and a row spacing of 20 cm. Irrigation began on the day of alfalfa planting (June 5), with a volume of 45 mm. Then, irrigation was conducted every 10 days (12 times in total). The remaining urea was divided into six parts, and applied to the field through the irrigation system on June 25, July 15, August 4, August 24, September 13, and October 3 after completely dissolving in water (Figure 1). Other managements were the same as local practice. Alfalfa was cut two times in 2022 (August 10 and October 5).

Figure 1

Figure 1 Details of irrigation and fertilization.

2.3 Measurement methods

2.3.1 Measurement of plant height, branch number, and leaf area index

At the initial flowering stage, 20 plants were randomly selected in each plot, and the vertical height after straightening was measured. Finally, the average value for each plot was calculated. Besides, the number of primary branches and leaves was counted (Wu et al., 2011). The length and width of the fully expanded top third leaf were measured with a vernier caliper, and the leaf area and LAI were calculated according to the methods of Hu et al. (2018).

2.3.2 Measurement of CWP and IWP

The crop water productivity (CWP) and irrigation water productivity (IWP) was calculated using Equation (1) and Equation (2):

$\begin{array}{ll}\text{CWP}(\text{kg}/\text{ha}/\text{mm})=\text{Y}/\text{ET}& (1)\end{array}$

where Y is the annual hay yield of alfalfa (kg/ha), and ET is the water consumption of alfalfa during the growing season (mm). The ET was calculated using the method of Allen et al. (1998). Due to the flat terrain and deep groundwater level in this area, groundwater recharge, surface runoff, and water infiltration are ignored.

$\begin{array}{ll}\text{IWP}(\text{kg}/{\text{m}}^3)=\text{Y}/\text{I}& (2)\end{array}$

where I is the total irrigation volume (mm).

Crop evapotranspiration (ET_C) was calculated using Equation (3):

$\begin{array}{ll}{\text{ET}}_{\text{C}}={\text{KcET}}_0& (3)\end{array}$

Where Kc is the crop coefficient based on FAO-56. The average crop coefficient of alfalfa was 0.87 in the first cut and 0.85 in the second cut (Zhang et al., 2016). ET₀ is the evapotranspiration of reference crop (mm/d), calculated using Equation (4):

$\begin{array}{ll}{\text{ET}}_0=\frac{0.408\Delta (R_n-G)+\gamma \frac{900}{T+273}{U}_2(e_s-e_a)}{\Delta +\gamma (1+0.34U_2)}& (4)\end{array}$

Δ is the actual vapor pressure (kPa), Rn is the net surface radiation (MJ/m² d), G is the soil heat flux (MJ/m² d), γ is the hygrometer constant (0.067kPa/°C), T is the average temperature (°C) at an altitude of 2 m, U₂ is the daily average wind speed at an altitude of 2 m, e_s is the saturated vapor pressure (kPa), and e_a is the actual vapor pressure (kPa). The meteorological data was obtained from the National Meteorological Science Data Center (http://data.cma.cn/).

2.3.3 Measurement of NUE and PFPN

The nitrogen content in plants was determined by Kjeldahl method (Ferreira et al., 2015).

Plant nitrogen uptake (NU, kg/ha) was calculated using Equation (5):

$\begin{array}{ll}\text{NU}=\text{TN}\times \text{Y}& (5)\end{array}$

where TN is the total nitrogen content of each organ of the plant.

The NUE (kg/kg) and PFPN (kg/kg) were calculated using Equation (6) and Equation (7):

$\begin{array}{ll}\text{NUE}=\text{Y}/\text{NU}& (6)\end{array}$

$\begin{array}{ll}\text{PFPN}=\text{Y}/\text{FN}& (7)\end{array}$

Where FN is the nitrogen application rate (kg/ha) during alfalfa growth period.

2.3.4 Measurement of alfalfa yield and quality

At the initial flowering stage, 1 m² (1 m×1 m) subplot was selected from each plot for cutting and weighed to obtain the fresh weight. Then, three fresh samples (about 300 g per sample) were collected, air-dried to the constant weight, and weighed. The fresh weight/dry weight ratio was calculated, to obtain the hay yield (Liu et al., 2015). After that, the alfalfa grass samples were crushed with a pulverizer (JFSO-480, Zhejiang Topunnong Technology Co) and passed through a 0.42 mm sieve. The crude ash content (ASH) was determined by high-temperature ignition, and the crude protein content (CPC) was determined by Kjeldahl method (Wen et al., 2018).

2.3.5 Measurement of economic benefit (Eb)

The Eb (USD/ha) was calculated using Equation (8) (Zou et al., 2020):

$\begin{array}{ll}\text{Eb}=\text{Gp}-\text{Wc}-\text{Fc}-\text{C}& (8)\end{array}$

Where Eb is the economic benefit, Gp is the gross profit (USD/ha), Wc is the irrigation cost (USD/ha), Fc is the fertilizer cost (USD/ha), and C is the other costs (USD/ha).

2.3.6 Comprehensive evaluation

To achieve the goals of high yield and high quality, the coupling effect of water and N on alfalfa was comprehensively evaluated based on yield, CWP, PFPN, CPC, and economic benefits. Based on the principle of least squares, the binary quadratic regression equation was established, with irrigation volume and N application rate as the independent variables, and yield, CWP, PFPN, CPC, and economic benefits as the dependent variables. The test data was analyzed using Mathematica 9.0 software to calculate the optimal irrigation and fertilization ranges when the indicators reached the maximum value.

2.4 Data analysis

Each measurement was repeated 3 times, and the average value was used for analysis. Analysis of variance was conducted using Excel 2007and SPSS 18.0. The ANOVA analysis was performed with the irrigation amount and fertilizer application rate as the main effects, and the interaction was also considered. Duncan’s new multiple range test method was used for multiple comparisons. Figures were drawn with Mathematica 9.0 and Origin 8.0.

3 Results

3.1 Plant height, branch number, leaf area index, and their relationships with yield

At the W₁ and W₃ levels, the plant height first increased and then decreased with the increase of N application rate. There was no difference in plant height between N₁, N₂, and N₃ treatments, but the plant height in the N₁, N₂, and N₃ treatments were significantly higher than that in the N₀ and N₄ treatments. At the W₂ level, there was no difference in plant height between the five N treatments. Under the same N application rate, the plant height at the W₂ level was 11.96 ~ 13.31% (first cut) and 5.60 ~ 5.87% (second cut) higher than that at the W₁ and W₃ levels, respectively. The W₂N₃ treatment had the maximum plant height for both cuts (Table 1).

Table 1

Table 1 Plant height, branch number, leaf area index, and yield of alfalfa at different water and nitrogen supply conditions.

At the same irrigation level, the branch number first increased and then decreased with the increase of N application rate, and reached a maximum in the N₂ or N₃ treatments. The branch number in the N₂ and N₃ treatments were 6.91 ~ 8.23% (first cut) and 4.93% ~ 9.37% (second cut) higher than that in the N₀, N₁, and N₄ treatments. At the same N application rate, there was no difference in the branch number in the two cuts between different irrigation levels. The W₂N₂ treatment had the highest number of branches (12.17 in the first cut and 12.50 in the second cut), and there was no significant difference between W₂N₂ and W₂N₃ treatments.

At the same irrigation level, the LAI first increased and then decreased with the increase of N application rate. The mean LAI in the N₁, N₂, and N₃ treatments were 7.23 ~ 23.36% (first cut) and 15.11% ~ 25.50% (second cut) higher than that in the N₀ and N₄ treatments. At the same N application rate, the LAI at the W₂ and W₃ levels were significantly higher than that at the W₁ level in the two cuts. The LAI in the W₂N₂ treatment reached a maximum of 7.57 and 8.16 in the first and second cuts, respectively (Table 1).

Under high irrigation volume and high N application rate conditions, alfalfa yield did not reach the maximum. However, the maximum occurred in the W₂N₂ (first cut) and W₃N₃ (second cut) treatment. At the same irrigation level, the yield first increased, reached a maximum in the N₂ or N₃ treatment, and then decreased, with the increase of N application rate. The maximal yield was 9.87-28.13% (first cut) and 9.06%-23.42% (second cut) higher than that in the N0, N1, and N4 treatments. At the same N application rate, the yield at the W₁ level was lower than that at the W₂ and W₃ levels (Table 1).

The yield was positively correlated with plant height, branch number, and LAI. Especially, the correlation with LAI was the highest, with the R²_adj (adjusted coefficient of determination) of the first and second cut being 0.74 and 0.82, respectively (Figure 2).

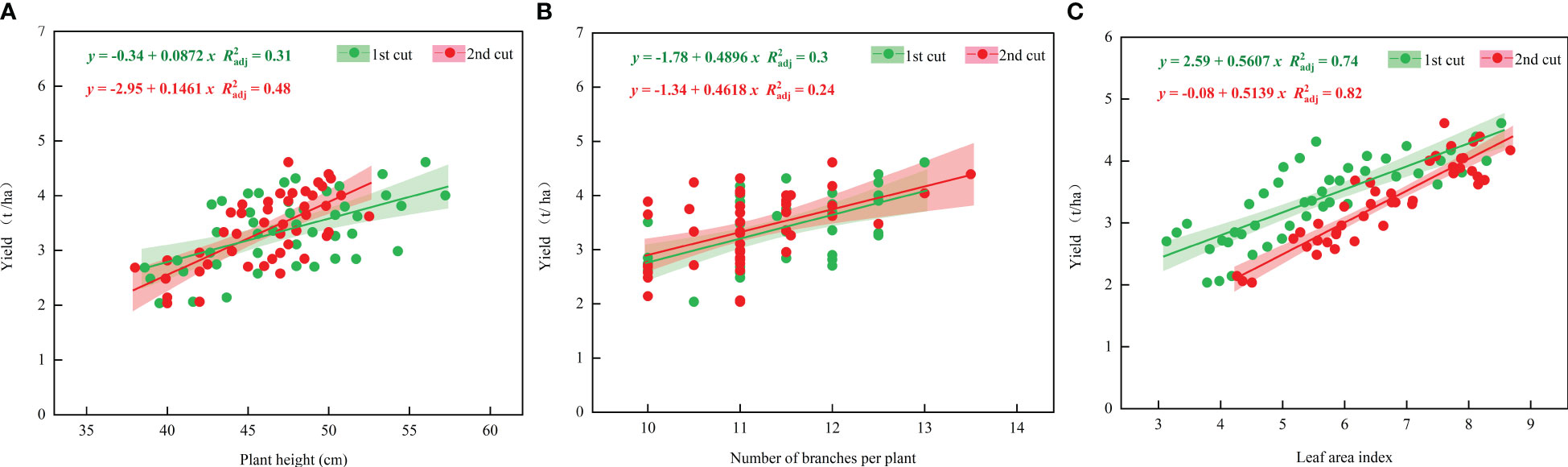

Figure 2

Figure 2 Relationship between alfalfa yield (Y) and growth indices (A, plant height; B, branch number; C, leaf area index).

3.2 The CWP and IWP of alfalfa under different water and nitrogen supply conditions

The experimental results of the two cuts showed that the CWP increased first and then decreased with the increase of N application rate at the same irrigation level. At the W₁ level, the CWP in the N₃ treatment was 5.77 ~ 33.39% (first cut) and 11.17% ~ 25.42% (second cut) higher than that in the other N treatments. At the W₂ level, the CWP in the N₁, N₂, N₃, and N₄ treatment was 23.12 ~ 50.17% (first cut) and 9.17% ~ 17.86% (second cut) higher than that in the N₀ treatment. At the W₃ level, there was no difference between N treatments, except for a significant decrease in CWP in the N₄ treatment in the first cut compared with other N treatments. Under the same N application rate, except for the W₃N₀ treatment in the first cut, the yield at the W₃ level was lower than that at the W₁ and W₂ level, and the CWP at the W₂ level was 19.62% (first cut) and 20.55% (second cut) higher than that at the W₃ level. The W₂N₂ treatment had the highest average CWP of the two cuts (21.35 kg/m³), and the W₃N₄ treatment had the lowest (11.02 kg/m³) (Figures 3A, C).

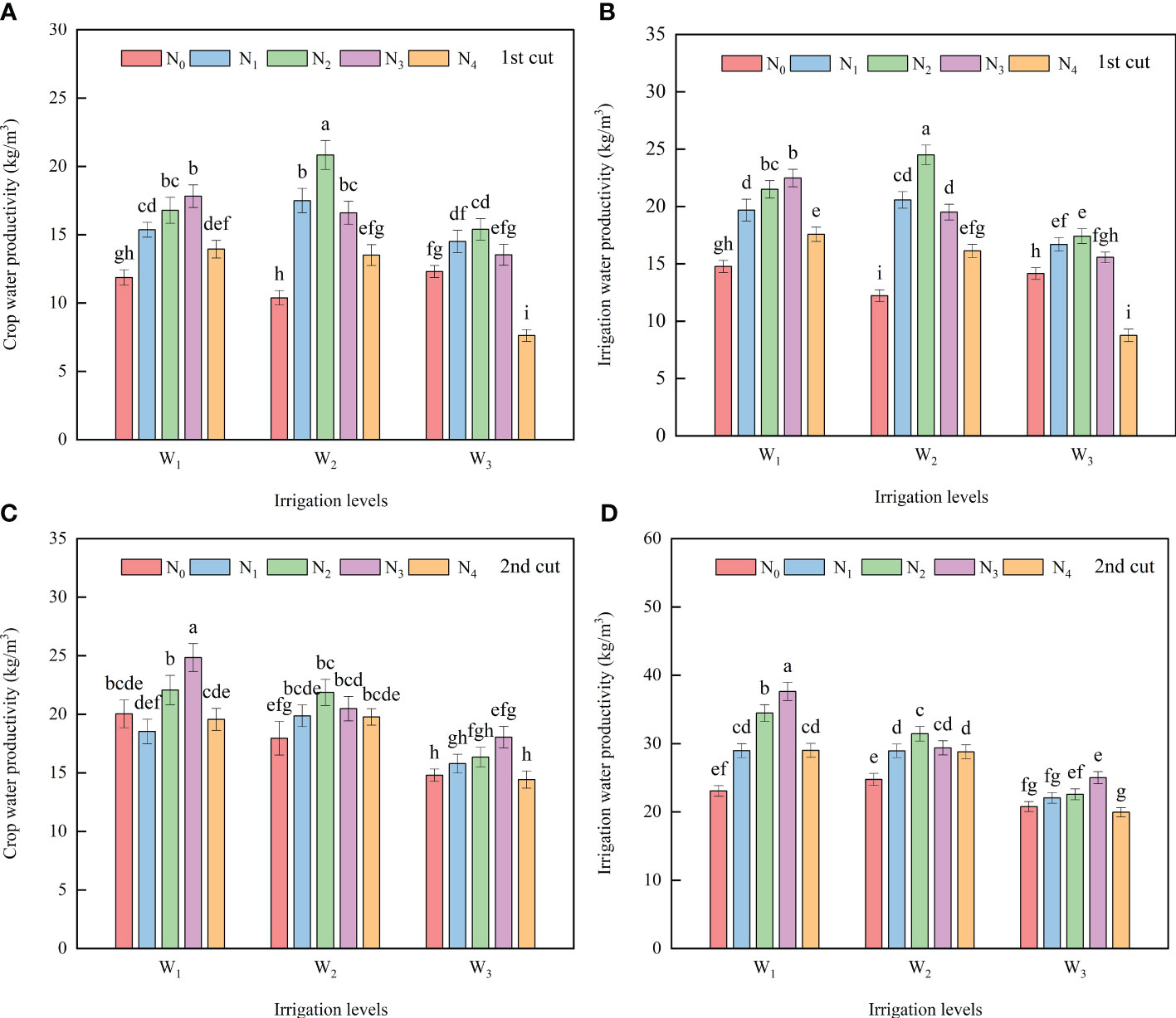

Figure 3

Figure 3 Effects of different irrigation volumes and nitrogen application rates on crop water productivity (CWP) (A, C) and irrigation water productivity (IWP) (B, D) of alfalfa. Different letters on top of the bar denote significant differences at p < 0.05 according to the LSD test. W1, 50% of ETC (crop evapotranspiration)); W2, 75% of ETC; W3, 100% of ETC; N0, 0 kg N ha; N1, 75 kg N ha; N2, 150 kg N ha; N3, 225 kg N ha; N4, 300 kg N ha.

At the same irrigation level, the IWP first increased and then decreased with the increase of N application rate. At the W₁ level, the IWP in the N₃ treatment was 4.66 ~ 34.50% (first cut) and 5.95% ~ 29.59% (second cut) higher than that in the other N treatments. At the W₂ level, the IWP in the N₁, N₂, N₃, and N₄ treatment were 23.82 ~ 49.88% (first cut) and 15.71% ~ 29.87% (second cut) higher than that in the N₀ treatment. At the W₃ level, there were no differences between N treatments, except for a decrease in IWP in the N₄ treatment in the first cut compared with other N treatments. Under the same nitrogen application rate, except for N₀, the IWP at the W₃ level was lower than that at the W₁ and W₂ levels, and the IWP at the W₂ level was 21.60% (first cut) and 20.66% (second cut) higher than that at the W₃ level. The W₁N₃ treatment had the highest average IWP of the two cuts (26.69 kg/m³), followed by the W₂N₂ treatment (26.04 kg/m³), and the W₃N₄ treatment had the lowest (13.25 kg/m³) (Figures 3B, D).

3.3 The NUE and PFPN of alfalfa under different water and nitrogen supply conditions

At the same irrigation level, the NUE gradually decreased with the increase of the N application rate, and the N₁ treatment had the largest NUE, which was 11.22% - 35.02% (first cut) and 11.87% - 23.98% (second cut) higher than that in the N₄ treatment. There were no differences between the three irrigation levels under the same N application rate. The W₁N₁ treatment had the maximum average NUE (2.57 kg/kg) of the two cuts, and the W₃N₄ treatment had the minimum value (1.77 kg/kg) (Figures 4A, C).

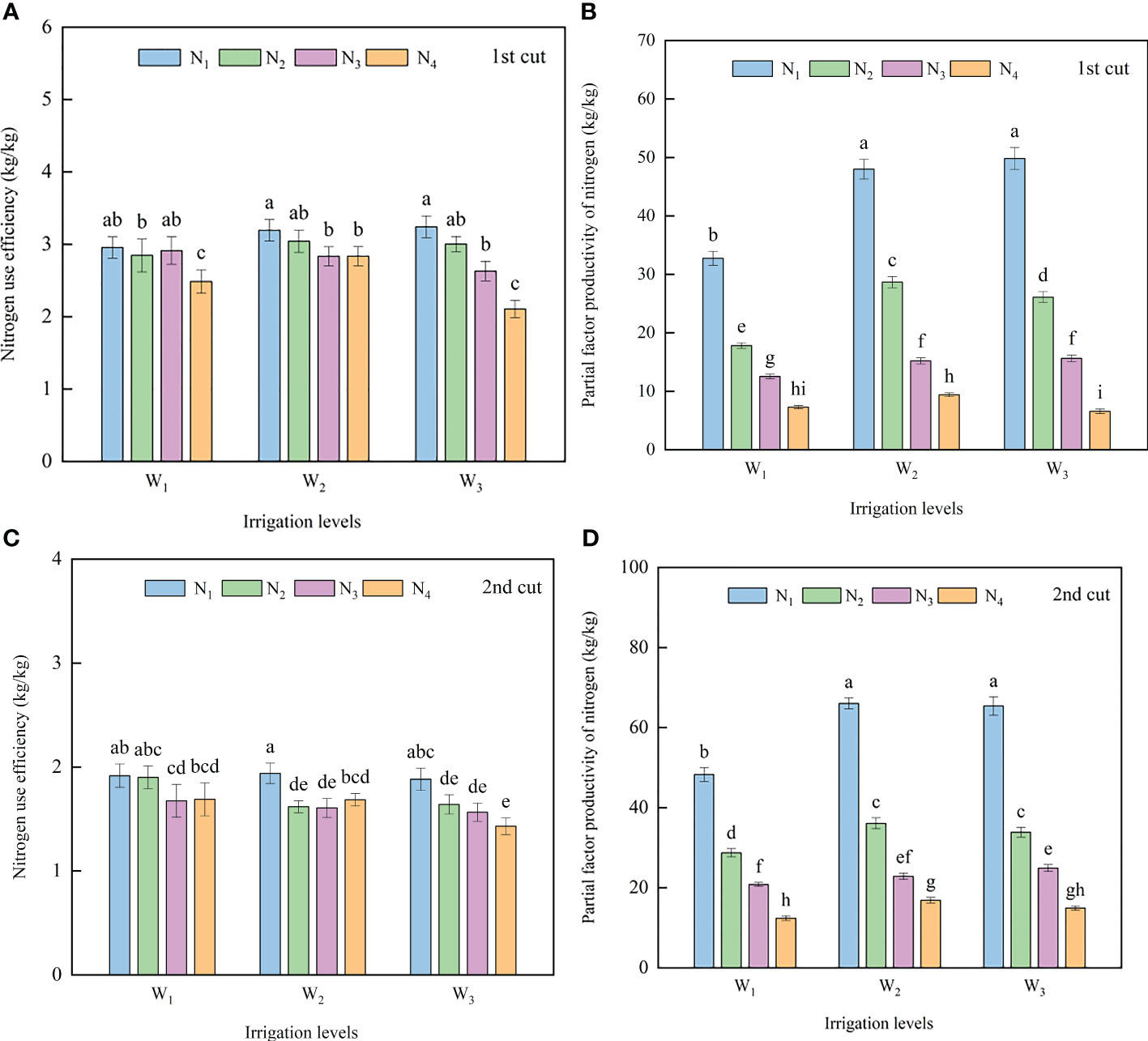

Figure 4

Figure 4 Effects of different irrigation volumes and nitrogen application rates on nitrogen use efficiency (NUE) (A, C) and partial factor productivity from applied N (PFPN) (B, D) of alfalfa. Different letters on top of the bar denote significant difference at p < 0.05 (LSD test). Different lowercase letters indicate significant differences between treatments at p < 0.05 (Tukey test). The processing abbreviations are the same as those described in Figure 3.

Under the same irrigation level, there were difference in the PFPN between the N treatments, and the PFPN decreased with the increase of N application rate. The PFPN in the N₂, N₃, and N₄ treatment were 40.29 - 86.80% (first cut) and 38.06% - 73.85% (first cut) lower than that in the N₁ treatment. Under the same nitrogen application rate, the PFPN first increased with the increase of irrigation volume and then stabilized. The W₁N₁ treatment had the maximum average PFPN (53.11 kg/kg) for the two cuts (Figures 4B, D).

3.4 The crude ash and crude protein content of alfalfa under different water and nitrogen supply conditions

At the W₁ and W₂ levels, the ASH in the N₁, N₂, N₃, and N₄ treatments had no difference, but were 11.96 - 22.50% (first cut) and 12.58% - 23.66% (second cut) higher than that in the N₀ treatment. At the W₃ level, the ASH first increased and then decreased with the increase of N application rate, and there was no difference between N₁, N₂, and N₃ treatment. Under the same N application rate, the ASH at the W₂ level was higher than that at the W₁ and W₃ levels. The W₂N₁, W₂N₂, and W₂N₃ treatments had a higher average ASH of the two cuts, and there was no difference in ASH between the three (Figures 5A, C).

Figure 5

Figure 5 Effects of different irrigation volumes and nitrogen application rates on crude ash (A, C) and crude protein content (B, D) in alfalfa. Different letters on top of the bar denote significant difference at p < 0.05 (LSD test). Different lowercase letters indicate significant differences between treatments at p < 0.05 (Tukey test). The processing abbreviations are the same as those described in Figure 3.

At the same irrigation level, the CPC first increased and then decreased with the increase of N application rate. The CPC in the N₁, N₂, and N₃ treatments had no difference, but were 10.31% - 22.31% (first cut) and 11.44% - 18.40% (second cut) higher than that in the N₀ treatment. Under the same N application rate, except for the W₃N₄ treatment, the CPC in other N treatments was not affected by the irrigation volume. At each irrigation level, the N₁, N₂, and N₃ treatments had a higher average CPC of the two cuts than other N treatments. Besides, there was no difference in the CPC between the three irrigation levels (Figures 5B, D).

3.5 Economic benefits under different water and nitrogen supply conditions

The annual gross profit ranged from 1450 to 3064 USD/ha, and the maximum value was 52.68% higher than the lowest value. At the same irrigation level, the net income first increased and then decreased with the increase of N application rate. The net income in the W₂N₂ treatment was the highest (1737 USD/ha), and that in the W1N0 treatment was the lowest (212 USD/ha) (Table 2).

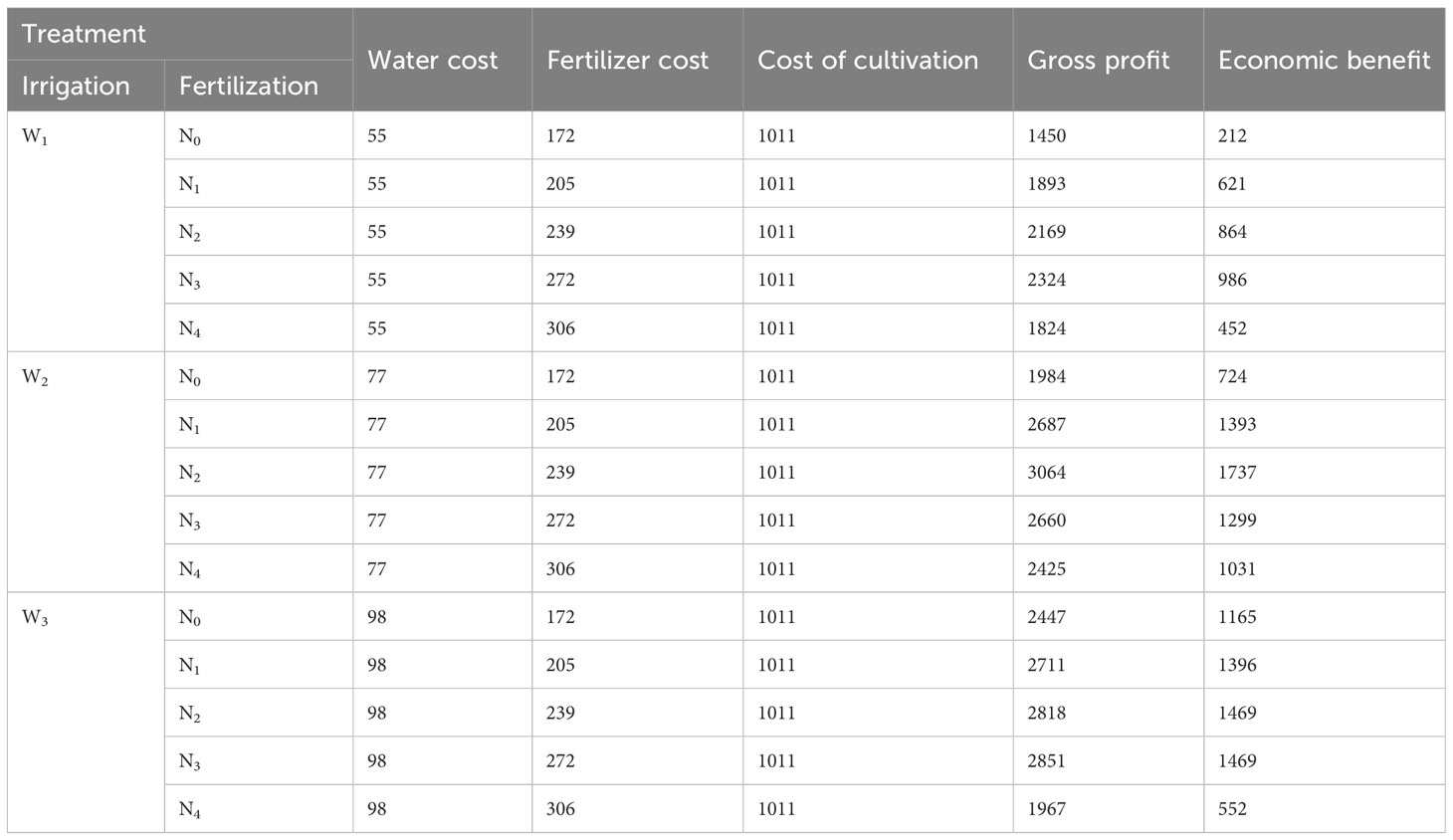

Table 2

Table 2 Economic benefits of alfalfa cultivation under different irrigation volumes and nitrogen application rates (USD/ha).

3.6 Coupling effects of water and N fertilizer on alfalfa yield, CWP, PFPN, quality, and economic benefits

The irrigation volumes had a significant impact on the yield, CWP, IWP, PFPN, ASH, NUE, and CPC of alfalfa. The N application rates had a significant impact on the yield, CWP, IWP, NUE, PFPN, and CPC, but had no impact on ASH. The water-N interaction had a significant impact on the IWP, PFPN, ASH, CPC, and CWP of alfalfa, but had no impact on NUE (Tables 1, 3).

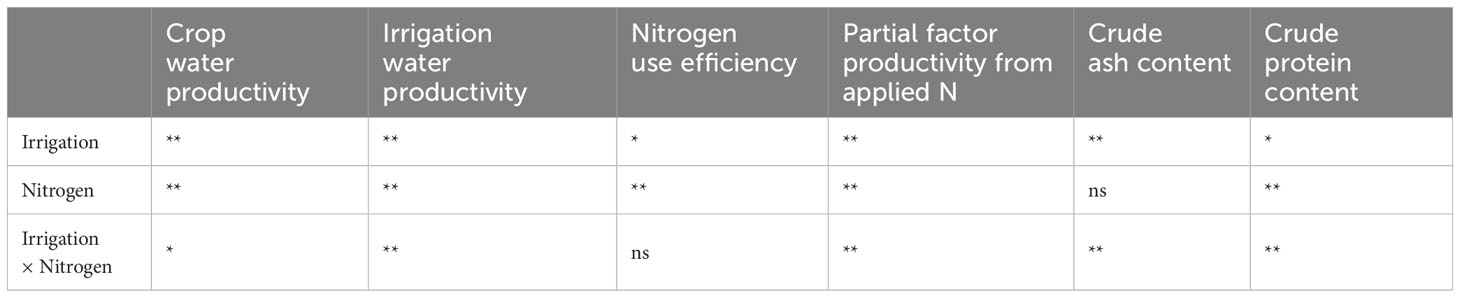

Table 3

Table 3 Effects of different irrigation volumes and nitrogen application rates on the crop water productivity, irrigation water productivity, nitrogen use efficiency (NUE), partial factor productivity from applied N, crude ash content, crude protein content, and yield of alfalfa.

It was difficult to maximize yield, CWP, PFPN, CPC, and economic benefits simultaneously (Table 4). Therefore, it is necessary to further explore the optimal combination of water and nitrogen.

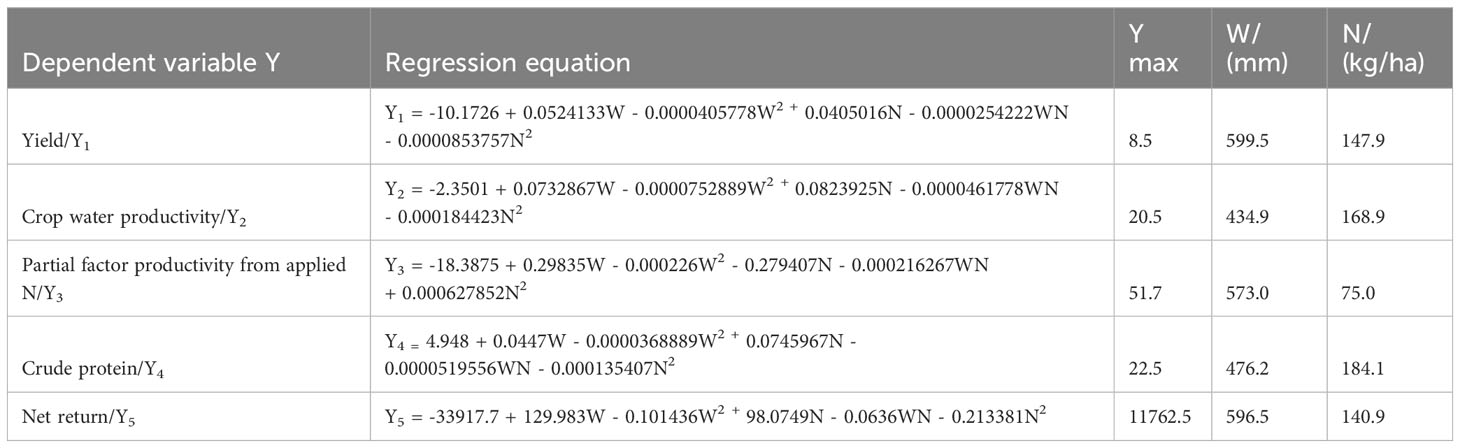

Table 4

Table 4 The corresponding irrigation volumes and nitrogen application rates for maximum yield, crop water productivity, partial factor productivity from applied N, crude protein, and economic benefits.

The coupling effects of water and nitrogen on alfalfa yield, CWP, CPC, and economic benefits were convex, and the effect on PEPN was concave (Figure 6). Irrigation rates for maximum yield, CPC and economic benefits were similar, as were nitrogen application rates, but obviously different from those for CWP and PFPN. Further analysis at the 95%, 90%, 85%, 80%, and 75% confidence intervals showed that the overlap between maximum yield, CPC, and economic benefits was small at both 95% and 90% confidence intervals. There was a certain overlap between maximum yield, CPC, and economic benefits at both 80% and 75% confidence intervals, but the deviations of the indicators from the extreme value were large. Finally, it was found that it was acceptable to have a confidence interval greater than or equal to 85%, and the optimal solution was obtained. When the annual irrigation volume and N application rate were 473 ~ 601 mm (69.8 ~ 88.7% of ET_C) and 145 ~ 190 kg/ha, respectively, the yield, CPC, and economic benefits could reach the optimal values (≥ 85%) (Figure 6).

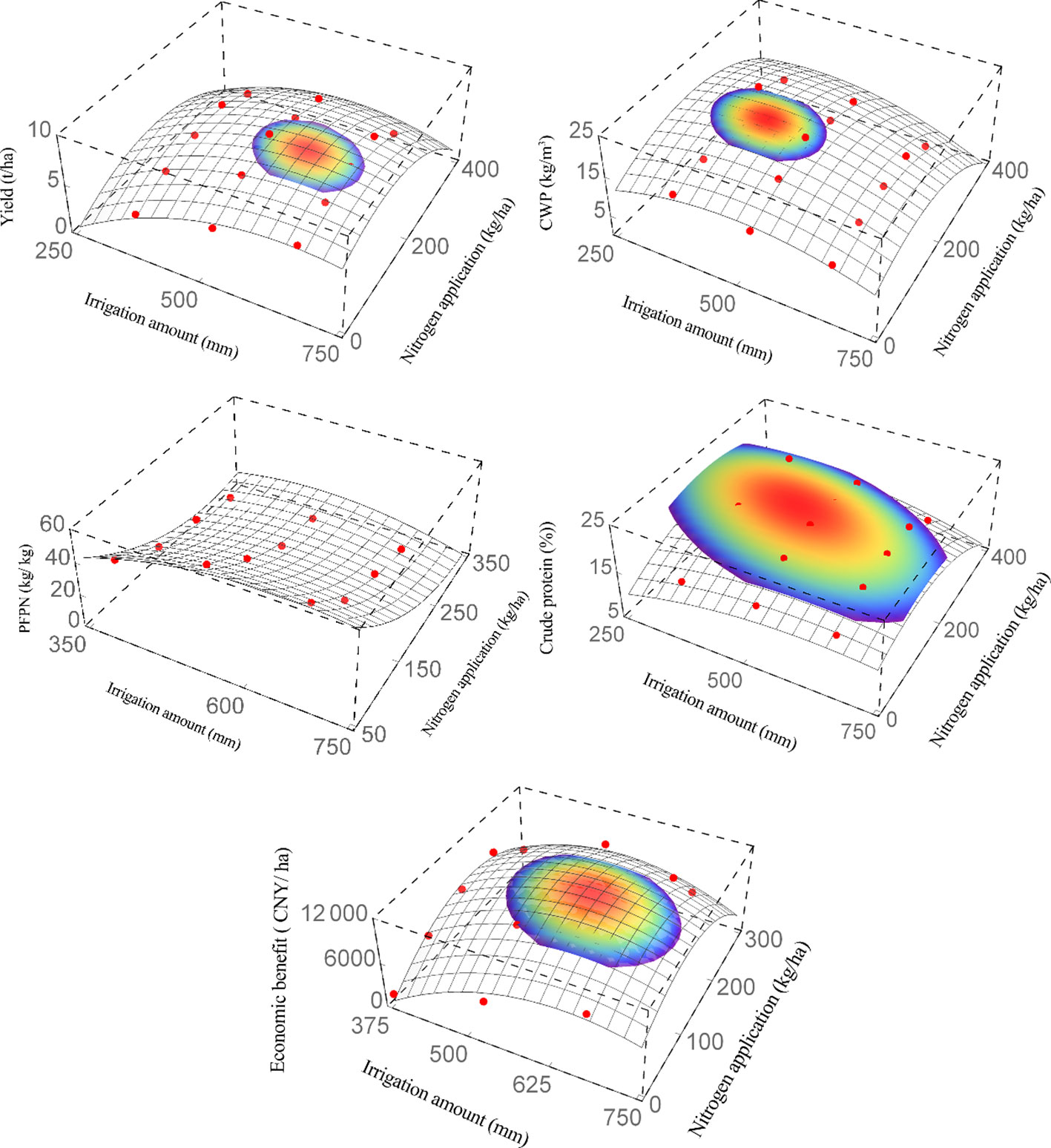

Figure 6

Figure 6 Relationship between alfalfa yield, crop water productivity (CWP), partial factor productivity from applied N (PFPN), crude protein content (CPC), economic benefits and water/nitrogen inputs.

4 Discussion

Plant height, branch number, and LAI play a crucial role in alfalfa yield formation, and these growth traits vary depending on cultivar, growth environment, and field management (Du et al., 2015; Ibrahim and Majid, 2018). In this study, alfalfa yield did not reach the maximum at the highest irrigation and N rates, and similar results were found in plant height, branch number, and LAI. Besides, the moderate irrigation and N application rates yielded the highest values (Table 1). This may be due to that too little or too much soil moisture can induce nutrient competition between vegetative and reproductive organs, affecting crop yields (Lodhi et al., 2014). Besides, improper N application may inhibit root growth and development, affect crop moisture and nutrient uptake, and therefore reduce yield (Liu et al., 2018). It was also found that alfalfa yield had a positive correlation with plant height, branch number, and especially LAI (Figure 2). This indicates that the increase in alfalfa yield is mainly due to the increase of LAI, and the increase in the number of leaves per unit area improves the efficiency of alfalfa photosynthesis, which in turn increases the yield of alfalfa.

Soil moisture and nutrient availability directly determines the nutrient absorption of plants, affects the nutrient content in different parts of plants, and ultimately affects crop yield and quality (Lv et al., 2023). In this study, when the irrigation volume was 75% of ET_C and the N application rate was 150 kg/ha, the CWP reached the maximum (21.35 kg/m³). This may be due to the fact that appropriate deficit irrigation and N supply is conducive to improving plant water and fertilizer use efficiency, promoting root development and canopy growth, and thus increasing alfalfa CWP and yield (Al-Gaadi et al., 2017; May et al., 2022). However, too low and too high N application rate affect the water uptake and utilization, and then reduce the water use efficiency (Xu et al., 2023). This study results showed that under the same irrigation level, there was a negative correlation between NUE, PEPN, and N rate, and the PEPN value under moderate irrigation level (W2) was significantly higher than that under low irrigation level (W1). This indicates that proper irrigation can not only increase yield, but also promote N absorption by alfalfa. It was also found that too little irrigation reduced the PEPN of alfalfa. This may be due to the weakening of nitrogen mineralization under insufficient water supply, as well as the detriment of N transport to the root system, thus affecting plant N uptake and utilization (Saini, 2017). In addition, it was found that PEPN was significantly affected by irrigation and N application, and fertilization had a greater effect on NUE than irrigation. This further suggests that optimizing water and N supply can improve alfalfa N use efficiency, thereby increasing productivity (Kang et al., 2023).

The quality of alfalfa is affected by both soil water and nutrients (Filho et al., 2018). Previous studies have shown that proper water and N supply can improve crop quality while maintaining yield (Kaplan et al., 2019; Kamran et al., 2023). This study found that at the same irrigation level, the ASH was not significantly affected by N application rate, but too low and too high N application rates reduced the CPC. The ASH was higher under moderate irrigation level (W2), and the CPC was not significantly affected by the irrigation volume. This indicates that N application rate has a greater effect on CPC than irrigation volume, and appropriate deficit irrigation is beneficial to increase the ASH of alfalfa by increasing the use of soil nutrients (Wu et al., 2010).

Appropriate amount of water and fertilizer input can improve crop water and fertilizer use efficiency to a certain extent, save costs, and obtain the optimal yield and economic benefits (Guo et al., 2022). In this study, the net income was the largest under the W₂N₂ treatment, increasing by 87.80% compared with the lowest value obtained under the W₁N₀ treatment. This increase in the net income in the W₂N₂ treatment is mainly due to that yield increase leads to lower average fixed cost. In summary, although the yield in the W₃N₃ treatment was highest, the plant height, branch number, LAI, CWP, NUE, CPC, and economic benefits were lower than those in the W₂N₃ treatment. Therefore, the W₂N₂ treatment (irrigation volume: 75% of ET_C; N application rate: 150 kg/ha) is the optimal water and N fertilizer combination for alfalfa cultivation under subsurface drip irrigation in northwest China. Compared with the commonly adopted irrigation and N application rate (W₃N₃), the W₂N₂ treatment can save 25% water and reduce N input by 33%.

Yan et al. (2021) used multiple regression analysis to comprehensively evaluate the yield, N accumulation, and economic benefits of drip-irrigated spring maize. Wang et al. (2018) used multiple regression analysis and spatial analysis methods to analyze the effects of water and N input on cucumber yield, CWP, vitamin C content, soluble sugar content, NUE, and PFPN, and found that the maximum value of each index at the 90% confidence interval was acceptable, corresponding to an irrigation amount range of 124 ~ 151 mm and a nitrogen application rate range of 318 ~ 504 kg/ha. In this study, a multi-objective optimization model was established to analyze the relationship between alfalfa growth, yield, quality, economic benefits, and water/N fertilizer input. It was found that the yield, CPC, and economic benefits reached more than 85% of the maximum values when the irrigation volume was in the range of 473 ~ 601 mm and the N application rate was in the range of 145 ~ 190 kg/ha. Therefore, this can be used as the optimal water and fertilizer management strategy for the sustainable production of alfalfa under subsurface drip irrigation in the study area.

5 Conclusion

Alfalfa yield, crude ash content, and partial factor productivity from applied N increased significantly at the irrigation level 75% of ET_C compared with those at other irrigation levels. Alfalfa plant height, branch number, leaf area index, yield, crop water productivity, irrigation water productivity, crude protein content, and economic benefits reached a maximum when the N application rate was 150 kg/ha or 225 kg/ha. Therefore, the appropriate amount of water and fertilizer input can increase alfalfa resource use efficiency, yield, quality, and economic benefits, and the W₂N₂ treatment is the best water and N fertilizer combination for alfalfa cultivation under subsurface drip irrigation, which can save 25% water and reduce N input by 33% compared with the commonly adopted irrigation and N application rate (W₃N₃). Besides, this study determined that when the irrigation volume was 69.8 ~ 88.7% of ET_C and the N application rate was 145 ~ 190 kg/ha, the yield, crude protein content, and economic benefits of alfalfa reached the highest values at the confidence interval ≥ 85%. This study is of great significance for the water and nitrogen management in alfalfa cultivation under subsurface drip irrigation in northwest China and other arid and semi-arid areas.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Files, further inquiries can be directed to the corresponding author/s.

Author contributions

HM: Writing – original draft. PJ: Writing – review & editing. XZ: Writing – review & editing. WM: Writing – review & editing. ZC: Writing – review & editing. QS: Writing – review & editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was supported by the Ningxia Hui Autonomous Region Key R&D Program (2022BEG02004).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2024.1339417/full#supplementary-material
