Xiaojian Qin1,2*
Xiaowei Li1Cuiping Li1Yuntong Li1Qian Wu1Huan Wen1
Dan Jiang1Tingting Tang1Wenbin Nan1,2Yongshu Liang1,2
Hanma Zhang1,2- 1College of Life Sciences, Chongqing Normal University, Chongqing, China
- 2Key Laboratory of Molecular Biology of Plants Environmental Adaptations, Chongqing Normal University, Chongqing, China
Rice productivity relies heavily on nitrogen fertilization, and improving nitrogen use efficiency (NUE) is important for hybrid rice breeding. Reducing nitrogen inputs is the key to achieving sustainable rice production and reducing environmental problems. Here, we analyzed the genome-wide transcriptomic changes in microRNAs (miRNAs) in the indica rice restorer cultivar Nanhui 511 (NH511) under high (HN) and low nitrogen (LN) conditions. The results showed that NH511 is sensitive to nitrogen supplies and HN conditions promoted the growth its lateral roots at the seedling stage. Furthermore, we identified 483 known miRNAs and 128 novel miRNAs by small RNA sequencing in response to nitrogen in NH511. We also detected 100 differentially expressed genes (DEGs), including 75 upregulated and 25 downregulated DEGs, under HN conditions. Among these DEGs, 43 miRNAs that exhibited a 2-fold change in their expression were identified in response to HN conditions, including 28 upregulated and 15 downregulated genes. Additionally, some differentially expressed miRNAs were further validated by qPCR analysis, which showed that miR443, miR1861b, and miR166k-3p were upregulated, whereas miR395v and miR444b.1 were downregulated under HN conditions. Moreover, the degradomes of possible target genes for miR166k-3p and miR444b.1 and expression variations were analyzed by qPCR at different time points under HN conditions. Our findings revealed comprehensive expression profiles of miRNAs responsive to HN treatments in an indica rice restorer cultivar, which advances our understanding of the regulation of nitrogen signaling mediated by miRNAs and provides novel data for high-NUE hybrid rice cultivation.
1 Introduction
Rice (Oryza sativa L.) is a major crop worldwide and provides food to more than half of the global population. Hybrid breeding is an effective way to deal with the global food crisis, which is predicted to worsen with the increasing global population over the next 20 years (Zhao et al., 2015; Beukert et al., 2017). However, modern breeding strategies have focused on obtaining high yields under high nitrogen application rates, resulting in the development of cultivars with low nitrogen-use efficiency and heavy dependency on intensive nitrogen application (Pan et al., 2019; Liu et al., 2021). Consequently, overutilization of nitrogen has several negative ecological impacts, such as soil acidification (Guo et al., 2010; Yan et al., 2022), increased greenhouse gas emissions (Liu et al., 2016), and increased nitrogen leaching (Liang et al., 2014; Yang et al., 2018). Therefore, improving crop nitrogen use efficiency (NUE) and developing excellent restorer cultivars are crucial factors for hybrid seed production and would be beneficial for the environment as well as for farmers (Dobermann and Cassman, 2005; Zhang, 2007; Ahrens et al., 2010; Hakeem et al., 2011; Xu et al., 2012; Chen et al., 2014; Guo et al., 2017). Moreover, guaranteeing food security and sustainable agricultural development using resource-saving and environmentally friendly methods has become a strategic concern over the past decades (Zhang, 2007; Hakeem et al., 2011; Yu et al., 2022). Importantly, elite restorers are beneficial for the F1 generation in hybrid breeding, and the identification and development of high NUE restorer cultivars play important roles in hybrid seed production, which is directly related to final grain yield and sustainable agricultural development (Zhang, 2007; Gong et al., 2020; Hussain et al., 2022; Ouyang et al., 2022; Wang et al., 2022).
In recent years, several small regulatory RNAs have been uncovered and draw a lot of attention because of their important roles in post-transcriptional or translational gene regulation in animals and plants (Hamilton and Baulcombe, 1999; Carrington and Ambros, 2003; Brodersen et al., 2008; Piriyapongsa and Jordan, 2008; Wang et al., 2016). Moreover, microRNAs (miRNAs) are crucial epigenetic regulators of the expression of protein-coding target genes via post-transcriptional gene silencing (Bartel, 2004; Allen et al., 2005; Mallory et al., 2005; Jones-Rhoades et al., 2006; Budak and Akpinar, 2015). In plants, the functional validation of miRNAs showed their indispensability in response to various environmental stress influencing plant growth and development, such as drought (Covarrubias and Reyes, 2010; Ferdous et al., 2015; Islam et al., 2022a), heavy metal stress (Aalami et al., 2022; Nguyen and Kim, 2022), high temperature (Li M. Y. et al., 2014; Pan et al., 2017; Wang et al., 2018; Campos et al., 2023), cold (Zhang et al., 2014), and salinity in rice (Covarrubias and Reyes, 2010; Chiang et al., 2016). Furthermore, several miRNAs have been identified and characterized in plants, including miR167 and miR174 involved in signaling during root development (Meng et al., 2011; Liang et al., 2015). More importantly, miR156, miR159, miR160, miR166, miR169, miR171, miR172, miR319, miR396, miR397, miR398, miR399, and miR408, which are involved in plant growth and development, have been shown to regulate N absorption and assimilation (Xu et al., 2011; Liang et al., 2012; Nguyen et al., 2015; Li et al., 2016; Tiwari et al., 2020; Lin et al., 2022; Lu et al., 2022). Previous studies have summarized the miRNAs involved in plant sensory functions, nutrient uptake, long-distance root transport, and physiological functions related to nutrients (Chiou, 2007; Islam et al., 2022b). However, these studies were mostly limited to transgenic lines with key genes identified in previous studies and focused on ordinary rice materials, while they did not provide a description of the transcriptome-wide miRNA responses to nitrogen availability in rice restorer cultivars. Based on screening a large number of rice cultivars under hydroponic condition supplied with high nitrogen and low nitrogen respectively, our previous study showed that Nanhui511 (NH511) is an excellent sensitive restorer line responding to nitrogen and also exhibits remarkable phenotype and high NUE under nitrogen supplies by measuring N-related enzymes and metabolites (Xiao et al., 2016). In the present study, we investigated the morphological changes in an indica rice restorer cultivar NH511 under different nitrogen supply conditions (namely high nitrogen (HN) and low nitrogen (LN) conditions), and we combined small RNA-seq analyses to assess the genome-wide miRNA variations in response to these conditions. Our combined morphological and transcriptomic analyses of the rice restorer cultivar revealed its nitrogen-responsive characteristics. Our findings improved our understanding of the miRNAs involved in the nitrogen response, and provided new insights into high NUE breeding using elite rice restorers.
2 Materials and methods
2.1 Rice materials and growth conditions
Seeds of the rice cultivar (Oryza sativa cv. Nanhui 511 (NH511)) were germinated in Murashige and Skoog (MS) media for 3 d and then transferred to tap water for 3 d before being transferred into a hydroponic solution containing KNO3 as the only N source. The seedlings were then divided into two groups and transferred to HN or LN conditions for six days of cultivation. The seedlings were cultivated in a growth chamber under a photoperiod of 12 h/12 h (light/dark) (~230 μmol m-2 s-1) at 28°C/25°C, and the solution was renewed every 3 d. For the different nitrogen treatment assays and RNA-seq, the seedlings under normal nitrogen (1 mM KNO3) were transferred to LN (0.2 mM KNO3) and HN solutions (5 mM KNO3) for 3 hours, respectively. Seedlings from different N treatments were collected and frozen in liquid nitrogen for RNA extraction. For time-course expression analysis under HN treatment, the seedlings were transferred to HN solutions (5 mM KNO3) and RNA samples were collected at different time points under high nitrogen conditions (5 mM nitrate) by TRIzol reagent (Invitrogen, America) according to standard procedures.
2.2 RNA isolation and small RNA-seq analysis
Total small RNA was isolated from the samples treated for 3 h and grown under HN and LN conditions using the mirVana™ RNA Isolation Kits (Thermo Fisher, Vilnius, Lithuania), with three biological replications used for this assay. Subsequently, the RNA samples from these replicates were delivered to Biomarker Technologies (Beijing, China) for library construction and small RNA sequencing, after which transcriptome data were obtained and analyzed. The data content has been submitted to GEO database on 2023.4.18, and been publicly released on 2023.4.21. To review GEO accession GSE230023, the following links allow you to view the uploaded data: https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE230023.
2.3 Quantitative RT-PCR
A total of 2 μg of RNA was used for reverse transcription according to standard procedures. The Vazyme miRNA 1st Strand cDNA Synthesis Kit (by stem-loop) (Vazyme, Nanjing, China) was used to synthesize miRNA cDNA. qPCR analysis and experimental data were obtained using a Roche Light Cycler 480 (Roche, Switzerland), after which the expression variation in the N-related genes was calculated. The primers used in this study are listed in Supplementary Table S5.
2.4 Identification and characterization of differentially expressed genes
Differential expression analyses of the two conditions were performed using the DESeq R package (version 1.10.1) (Love et al., 2014). DESeq provides statistical routines for determining differential expression in digital miRNA expression data, using a model based on a negative binomial distribution. The resulting P values were adjusted using Benjamini and Hochberg’s approach to control for the false discovery rate. miRNAs with an adjusted p<0.05 found by DESeq were assigned as differentially expressed.
2.5 miRNA identification and targets prediction
Known and novel miRNAs were identified using the miRDeep2 software (Friedlander et al., 2012), which is a comprehensive software package for miRNA identification that matches reads to the genome based on the distribution information of reads on the precursor sequence. Target genes of the total miRNAs were predicted using the TargetFinder software (Allen et al., 2005). Possible targets of miR166k-3p and miR444b.1 were predicted using psRNATarget (https://www.zhaolab.org/psRNATarget/) under the condition of an expectation value of less than 3.5, respectively.
2.6 Gene ontology enrichment, miRNA structure prediction and targets degradome analysis
Gene Ontology (GO) enrichment analysis of the differentially expressed genes (DEGs) was performed using the GOseq R package based on the Wallenius non-central hyper-geometric distribution. The structure of miRNAs were predicted by RNAfold WebServer (http://rna.tbi.univie.ac.at//cgi-bin/RNAWebSuite/RNAfold.cgi) and the targets degradome data were collected and analyzed from TarDB (http://www.biosequencing.cn/TarDB/).
3 Results
3.1 Morphological variations and small RNA sequencing of the rice restorer cultivar NH511 under different nitrogen supplies
Our previous study showed that rice cultivars exhibit different morphological and physiological variations when grown under different nitrogen conditions. In the present study, a typical indica rice restorer cultivar, namely NH511, was selected for further analysis. To fully understand its different growth responses to different nitrogen supplies, the plants were first germinated and cultivated under normal nitrogen conditions for five days. The seedlings were then divided into two groups and transferred to HN or LN conditions for six days of cultivation. We found that NH511 was sensitive to HN supply conditions, exhibiting promoted growth and increased lateral root numbers and lengths under HN conditions than under LN conditions (Figures 1A, B). Moreover, the lateral root tips of NH511 grown under HN and LN conditions were stained with KI-I2 and observed under an optical microscope, and our observations further suggested that lateral root development was impaired by influencing root tip maturation under LN conditions (Figures S1A, B). Subsequently, transcriptomic read data were obtained from seedlings under HN and LN conditions by small RNA sequencing (Table S1), and the statistical data of total reads and unique reads were analyzed. The results showed that the mutually unique reads accounted for 10.28% of unique reads under HN and LN conditions, 54.92% under HN, and 34.26% under LN (Figure 1C). For the total reads, the mutual reads accounted for 62.62% of total reads under HN and LN conditions, 23.04% under HN, and 14.34% under LN (Figure 1D). Taken together, these transcriptomic data demonstrated that NH511 exhibits favorable variations in miRNA profiles in response to different nitrogen supplies.
Figure 1 Morphological variations and small RNA sequencing data of Nanhui511 under HN and LN conditions. (A) Phenotype of NH511seedlings under HN and LN conditions; Scale bar: 2cm. (B) Performance of NH511roots under HN and LN conditions; Scale bar: 1.5cm. (C) The proportion of unique reads in different nitrogen conditions; (D) The proportion of total reads in different nitrogen conditions.
3.2 Transcriptomic identification and characterization of NH511 miRNA profile in response to different nitrogen supplies
Furthermore, we investigated the miRNA profile and characteristics of NH511 in response to different nitrogen conditions. First, the RNA samples extracted from seedlings grown under different nitrogen conditions were sequenced, and the raw sequencing data were processed to obtain unique reads. Furthermore, the filtered data were further processed to facilitate miRNA alignment, identification, and prediction based on the rice genome. A total of 586 miRNAs were identified under HN conditions, including 458 known and 128 novel miRNAs, whereas 572 miRNAs were identified under LN conditions, including 444 known and 128 novel miRNAs (Figure 2A). Statistical analysis of the length distribution of clean data was performed based on the analysis and statistics of the original sequencing data. The results showed that in response to nitrogen, most of the miRNAs were distributed within 20–24 nt, with miRNAs with the length of 21 nt and 24 nt occupying a large proportion, which is consistent with the typical length range of miRNAs in plants (Figure 2B). Moreover, owing to post-transcriptional base editing of miRNAs, which leads to seed sequence changes and thus changes of target genes, the sequence variations of miRNA were analyzed using isomiRID software (Data sheet2). The target genes of the total miRNAs were predicted and analyzed using the TargetFinder software (Table S2). Finally, the miRNA nucleotide bias at each position and the first nucleotide bias for all miRNAs were analyzed, and the results showed that most miRNAs started with A or U at the first nucleotide; A and U also occupied a large proportion of nucleotides at each position (Figures S2A, B).

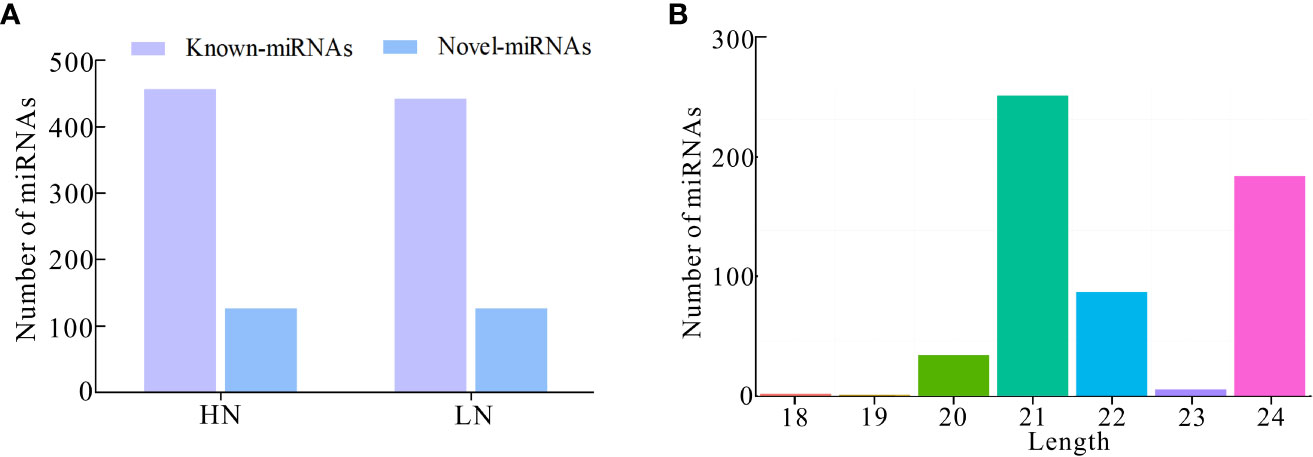

Figure 2 Identification and characterization of miRNAs based on RNA-seq. (A) Number of known-miRNAs and novel-miRNAs under HN and LN conditions respectively; (B) Number of miRNAs distributed within 18–24 nt in transcriptomic total miRNAs.
3.3 Differential expression analysis of NH511 miRNAs under different nitrogen supplies
The observed differences in the performance of NH511 under HN and LN conditions prompted us to identify differentially expressed miRNAs under different nitrogen conditions. Therefore, the miRNA differential expression profiles were obtained from the transcriptome data based on DESeq, which provides statistical routines for determining differential expression in digital miRNA expression data using a model based on negative binomial distribution. Our results showed that a total of 100 miRNAs were differentially expressed between HN and LN conditions, including 75 upregulated and 25 downregulated miRNAs (Figure 3A). Hierarchical cluster analysis was also performed for the selected differentially expressed miRNAs under HN and LN conditions (Figure S3). Moreover, the Volcano Plot also showed differences in miRNA expression levels and showed that the difference in miRNA expression between the HN and LN conditions was statistically significant (Figure 3B). Additionally, small RNA sequencing was used to accurately quantify miRNA abundance in the rice restorer cultivar NH511, and the differentially expressed miRNAs with a relative change greater than 2-fold were identified and defined as N-responsive miRNAs (Figures 3C and S4).
Figure 3 Differentially expressed miRNAs under HN and LN conditions. (A) Statistical analysis of miRNAs differentially expressed between HN and LN conditions; (B) the Volcano Plot analysis of differentially expressed miRNAs under different nitrogen conditions; (C) The over 2-fold differentially expressed miRNAs were identified under HN and LN conditions.
3.4 Gene ontology enrichment and Kyoto Encyclopedia of Genes and Genomes annotation of target genes
Based on the above results, a gene ontology (GO) enrichment analysis was performed to further characterize the main biological functions of target genes of differentially expressed miRNAs under high nitrogen supply. All differentially expressed miRNAs were divided into three categories: biological processes, cellular components, and molecular functions. These three categories were further divided into 42 enriched subcategories (Figure 4A). To fully understand the cellular pathways of target genes differentially expressed miRNAs under HN and LN conditions, an enrichment analysis based on KEGG was performed. Three KEGG pathway categories were identified: cellular processes, metabolism, and genetic information processing (Figure 4B). Specifically, ‘protein processing in endoplasmatic reticulum’ was the most enriched in cellular processes, which could be a consequence of different nitrogen supplies. Regarding metabolism, ‘phenylpropanoid biosynthesis’ was the most overrepresented because phenylpropanoids include a variety of organic compounds synthesized from amino acids such as phenylalanine and tyrosine, which are related to nitrogen metabolism. For genetic information processing, spliceosome, ribosome, and ribosome biogenesis are the top three pathways, which probably influences the gene expression and protein coding involved in nitrogen uptake and assimilation.

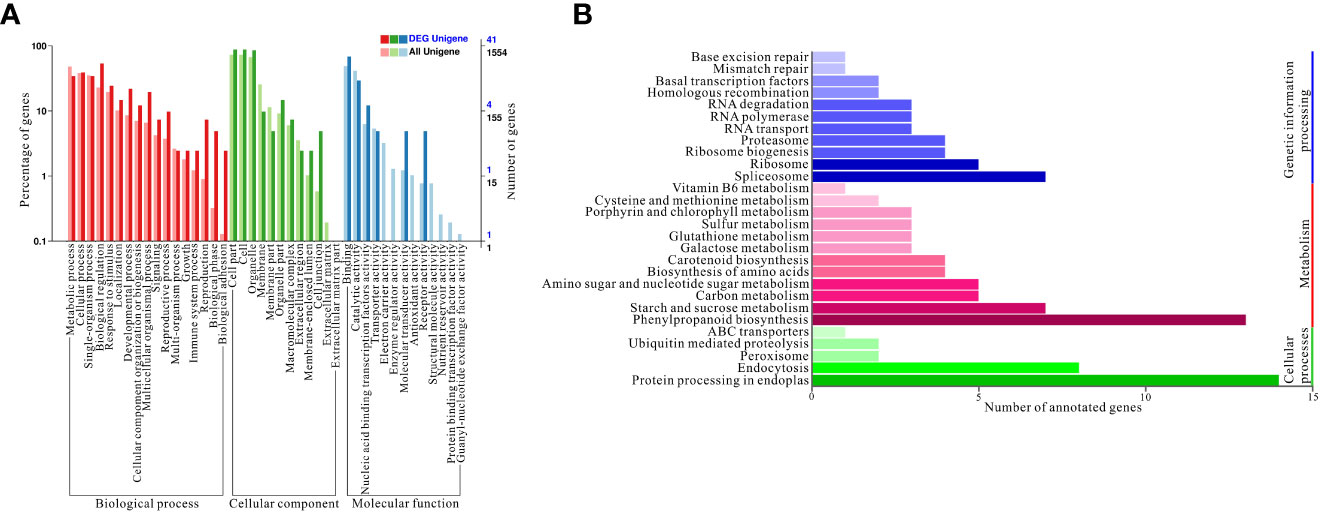

Figure 4 Gene ontology (GO) enrichment and Kyoto Encyclopedia of Genes and Genomes (KEGG) annotations. (A) GO enrichment of targets genes of differentially expressed miRNAs; (B) KEGG annotation of targets genes of differentially expressed miRNAs under HN and LN conditions.
3.5 Quantitative RT-PCR validation for differentially expressed miRNAs
To further validate the differential miRNA expression under HN and LN conditions, a qPCR expression analysis was performed, and the nine selected typical miRNAs (miR1441, miR443, miR812q, miR5801, miR1861b, miR166k-3p, miR530-5p, miR444b.1, and miR395v) were validated using qPCR primers under HN and LN conditions (Table S5). The results showed that most miRNAs had an expression pattern similar to that of their small RNA sequencing profiles (Figures 5A–I). Furthermore, three miRNAs (miR443, miR1861b, and miR166k-3p) exhibited a significant upregulation pattern in response to HN treatment, but were downregulated expressed in the LN treatment (Figures 5B, E, F). The expression of miR444b.1 and miR395v was downregulated under HN conditions but upregulated under LN conditions (Figure 5H, I). These data provide a foundation for the functional elucidation of candidate miRNAs and the possibility of selecting elite rice restorers for high-NUE rice breeding.

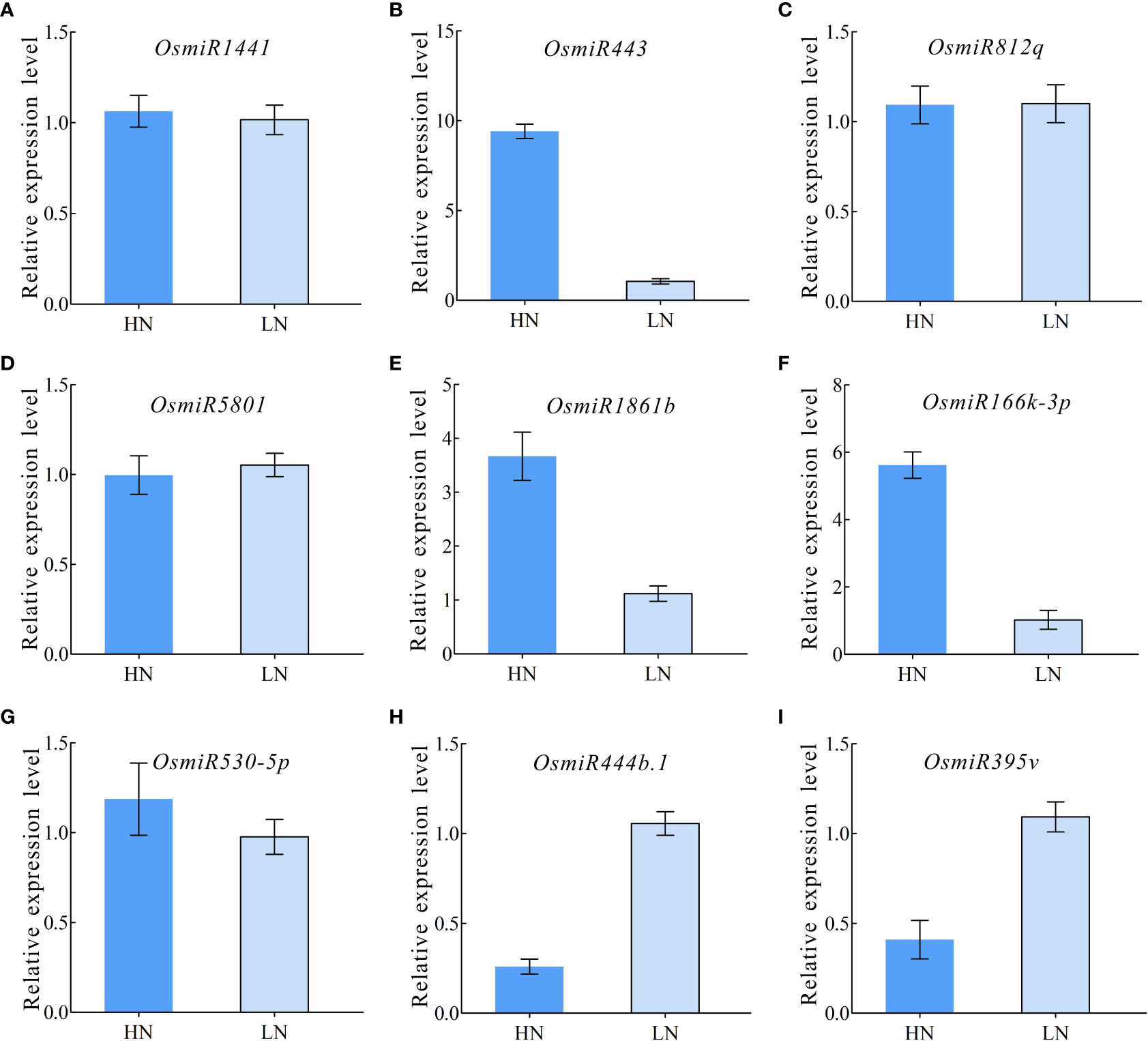

Figure 5 qRT-PCR validation for differentially expressed miRNAs. (A) OsmiRNA1441; (B) OsmiRNA443; (C) OsmiRNA812q; (D) OsmiRNA5801; (E) OsmiRNA1861b; (F) OsmiRNA166k-3p; (G) OsmiRNA530-5p; (H) OsmiRNA444b.1; (I) OsmiRNA395v.
3.6 Target prediction and degradome analysis of Osa-miR166k-3p and Osa-miR444b.1
In the present study, differentially expressed miRNAs were identified from transcriptomic data under HN and LN conditions, and partially representative miRNAs were validated by qRT-PCR analysis. Based on qRT-PCR results and previous studies on identification and characterization of targets genes of these validated miRNAs, we selected miR166k-3p and miR444b.1 for the further investigation. The two candidates, miR166k-3p and miR444b.1, were characterized and shown to be upregulated and downregulated under HN conditions, respectively. First, possible targets of miR166k-3p and miR444b.1 were predicted using psRNATarget (https://www.zhaolab.org/psRNATarget/) under the condition of an expectation value of less than 3.5, respectively (Tables S3 and S4). As shown by the results, miR166k-3p mainly regulated homeodomain containing proteins and other unknown expressed proteins. Homeodomain containing proteins are a large family of transcription factors (TFs) that contain a highly conserved DNA-binding domain of 60 amino acids known as the homeodomain. They mediate protein-protein or protein-DNA interactions during plant growth and development. Furthermore miR444b.1 regulated MADS-box family proteins, which have been reported to be involved in many important pathways of environmental adaptation in plants. Furthermore, the secondary structures of miR166k-3p and miR444b.1 were predicted and analyzed for the first time by RNAfold WebServer (http://rna.tbi.univie.ac.at//cgi-bin/RNAWebSuite/RNAfold.cgi) (Figure S5), and the degradomes of crucial targets were predicted and identified suing the TarDB database (http://www.biosequencing.cn/TarDB/) for miR166k-3p (Figure 6) and miR444b.1 (Figure 7) respectively. These results provided detailed information on the target gene processing by the two candidate miRNAs as well as a foundation for further studies.

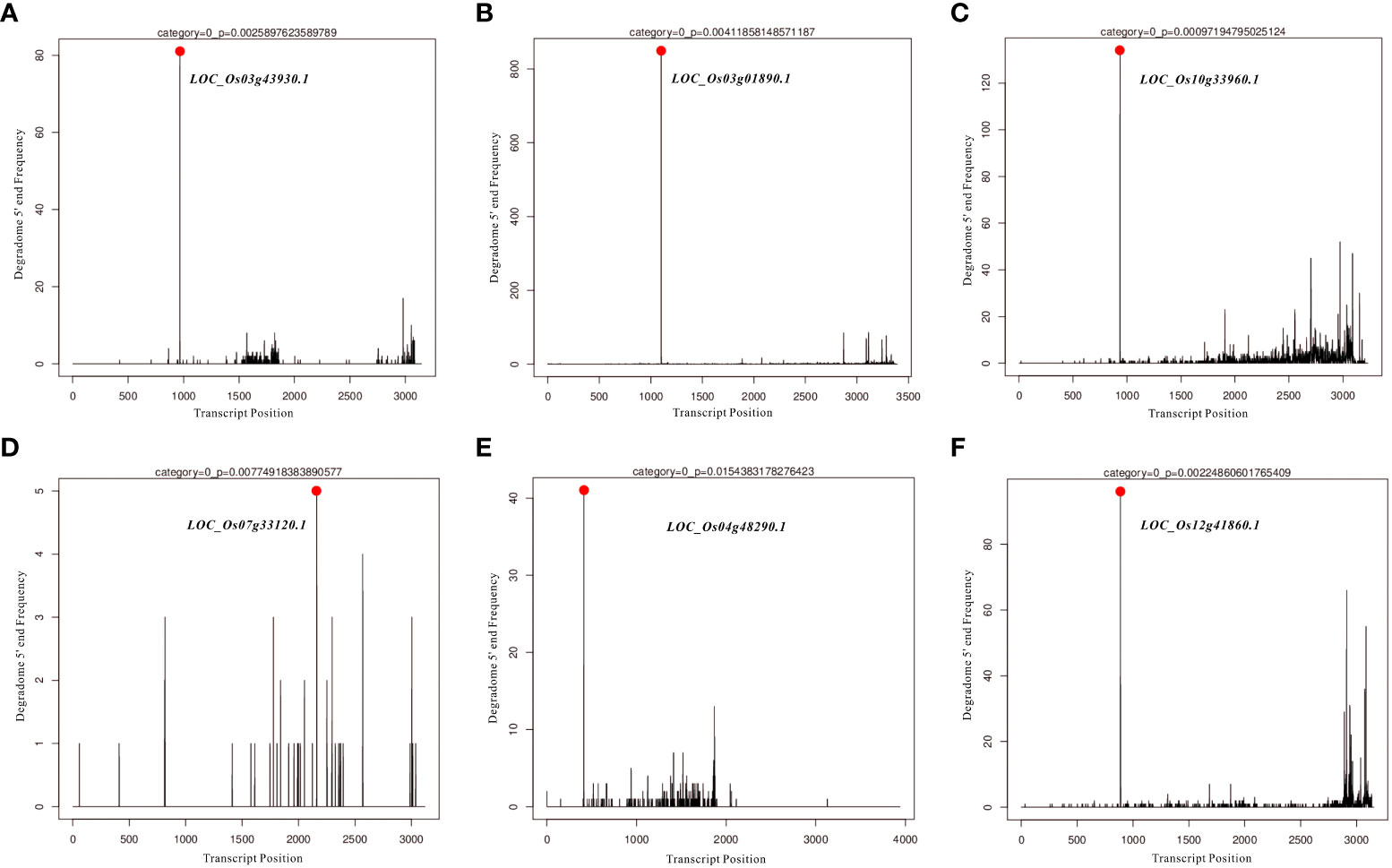

Figure 6 The degradome analysis of target genes for OsamiR166k-3p. (A) Os03g43930; (B) Os03g01890; (C) Os10g33960; (D) Os07g33120; (E) Os04g48290; (F) Os12g41860.

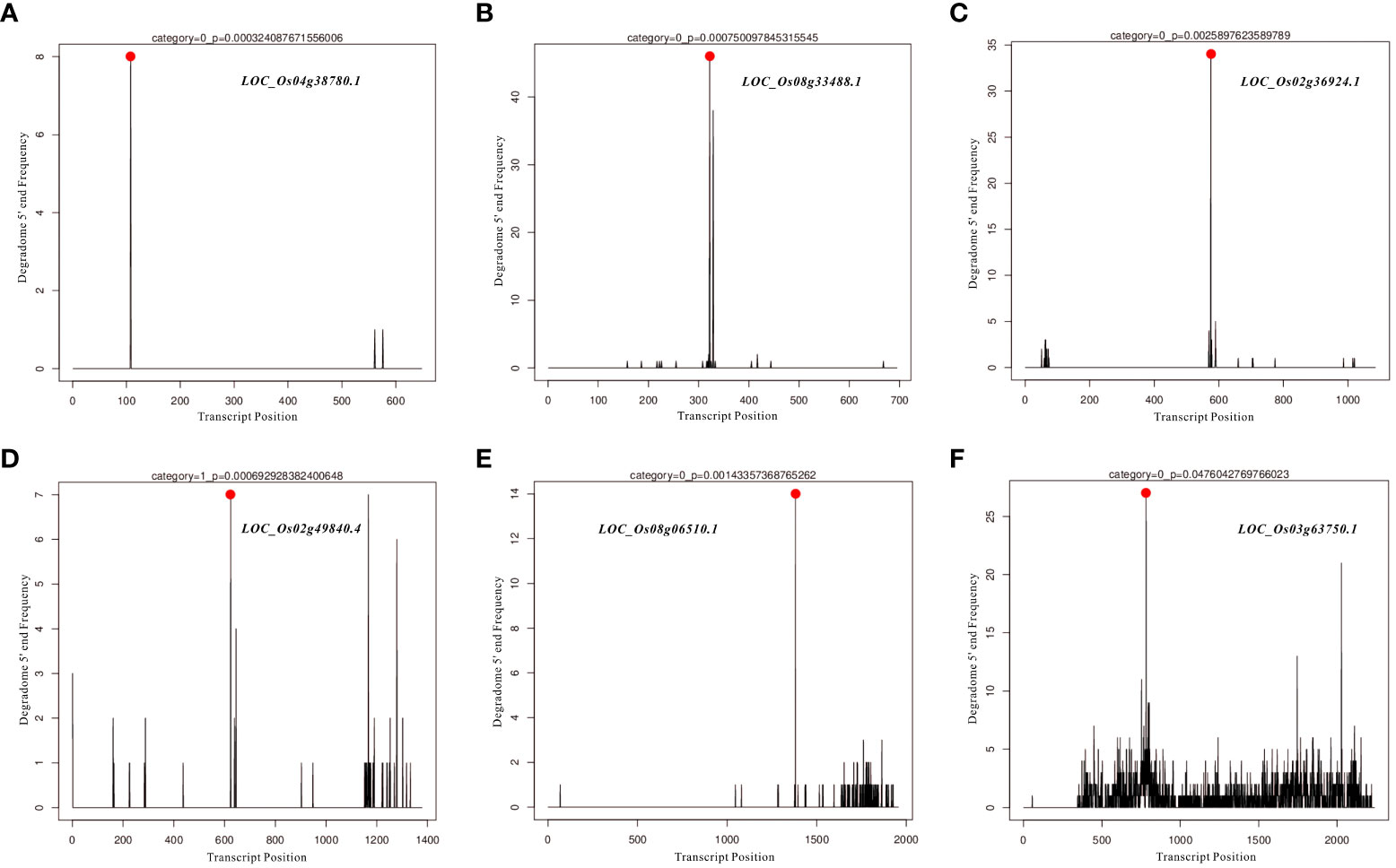

Figure 7 The degradome analysis of target genes for OsamiR444b.1. (A) Os04g38780; (B) Os08g33488; (C) Os02g36924; (D) Os02g49840; (E) Os08g06510; (F) Os03g63750.
3.7 Time-course expression analysis of Osa-miR166k-3p and Osa-miR444b.1 under high nitrogen conditions
To further investigate the expression variations in miR166k-3p and miR444b.1 under high nitrogen supply, a qRT-PCR assay was carried out. The expression levels of miR166k-3p with its target gene OsHOX10 (LOC_03g01890) and miR444b.1 (LOC_02g36924) with its target gene OsMADS27 under the HN treatment were validated using qPCR primers at different time points. The results showed that miR166k-3p expression was upregulated in response to HN condition, which was reversed in the expression pattern of the target gene OsHOX10 (Figure 8A). Similarly, the expression of miR444b.1 was suppressed, and the expression of its target gene OsMADS27 was induced under the HN treatment (Figure 8B). Taken together, these results further elucidated the response of the two candidate miRNAs (miR166k-3p and miR444b.1) to nitrogen supplies as well as their different expression patterns, which provides possibilities for further studies of these two candidate miRNAs and new insights for high-NUE rice breeding using elite restorer cultivars.

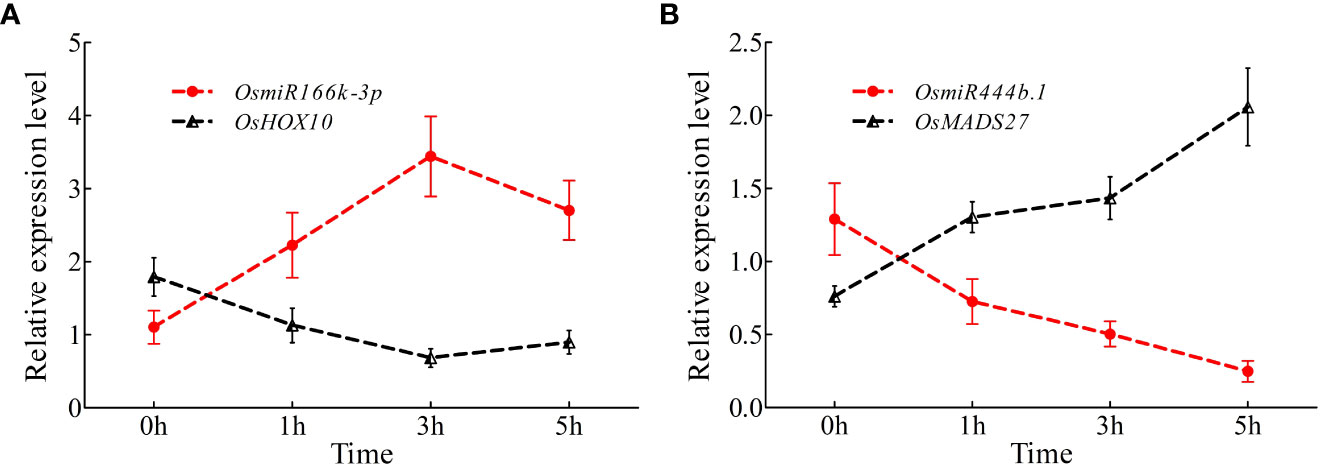

Figure 8 Time-course expression analysis of OsamiR166k-3p and OsamiR444b.1 under high nitrogen conditions. (A) Expression analysis of OsamiR166k-3p and its target gene OsHOX10; (B) Expression analysis of OsamiR444b.1 and its target gene OsMADS27.
4 Discussion
Rice is one of the most important cereal crops and provides food for half of the world’s population (Liang et al., 2014; Beukert et al., 2017; Liu et al., 2021). Hybrid rice has been successfully developed using a two- or three-line system based on a male sterile line, maintainer line, and restorer line, which has greatly contributed to world food production in the past decades (Chen et al., 2022; Hussain et al., 2022; Jiang et al., 2022; Li et al., 2022). Nanhui 511 (NH511), a typical indica rice restorer cultivar, was developed by hybridizing two heavy panicle-type restorer lines, namely Shuhui 881 and Shuhui 527. NH511 has been widely used in hybrid seed production as a restorer line because of its good combining ability and grain quality in hybrid rice breeding, and has been used to breed many hybrid rice cultivars in the past (Wang et al., 2019; Ren et al., 2021).
Nitrogen is a crucial nutrient required for plant growth and development, particularly in crops (Hakeem et al., 2011; Sultana et al., 2020). Nitrogen deficiency and low nitrogen utilization impair crop growth and development, which influences crop yield and food security (Ahrens et al., 2010; Xu et al., 2012; Kabange et al., 2021; Liu et al., 2021). In crop production, excess nitrogen is inevitably leached into water systems and lost to the atmosphere, resulting in severe agricultural environmental problems (Zhang, 2007; Ahrens et al., 2010; Cai et al., 2012). Reducing the amounts of nitrogen fertilizers used in agriculture and cultivating cultivars with high NUE are efficient ways of solving environmental problems and ensuring sustainable crop production. In the present study, NH511 was selected to identify its miRNAs in response to nitrogen. First, morphological variations and nitrogen-responsive miRNAs were first identified and investigated under HN and LN conditions. The results showed that NH511 is a nitrogen-responsive restorer line whose seedling growth was promoted by the regulation of lateral root development and plant height (Figures 1A, B). Subsequently, the RNA samples extracted from seedlings grown under different nitrogen conditions were sequenced, and the filtered data were processed to facilitate miRNA alignment, identification, and prediction based on the rice genome. Additionally, miRNA differential expression profiles were obtained from the transcriptome data based on DESeq (Figures 3A–C), and most miRNAs showed a similar expression pattern to that of their small RNA sequencing profile according to qPCR assay results (Figures 5A–I), implying that we obtained high-quality transcriptomic data and successfully identified the candidate miRNAs in response to different nitrogen supplies. Furthermore, two candidate miRNAs, namely miR166k-3p and miR444b.1, were chosen for further investigation, and their possible targets were identified and analyzed, and also time-course expression were validated using qPCR primers at different time points under the HN treatment (Figures 6, 7, and 8). In plants, the miR166 family comprises multiple members and is a highly conserved family of miRNAs with conserved target genes, the Class III homeodomain-leucine zipper (HD-ZIP III) transcription factors. Some studies showed miR166 family plays a role in environmental adaptations and plant development, such as drought resistance in rice (Zhang et al., 2018) and diverse developmental pathways (Itoh et al., 2008). Moreover, miR166 was also reported in adapting to infection by the rice blast fungus M. oryzae or to differentially accumulate in blast-resistant and blast-susceptible rice varieties (Li Y. et al., 2014; Salvador et al., 2018). The miR444 gene family was first discovered in rice and consists of six gene loci (Osa-MIR444a to Osa-MIR444f), and miR444 has multiple abundant isoforms and iso-miRs (Jiao et al., 2020). Multiple mature forms of miR444 are involved in nitrogen stress, and miR444 gene family might have evolved by sharing stress response elements in both miR444 isoforms and its targets, such as miR444-OsMADS27 regulatory module involved in nitrate-dependent root development in rice (Pachamuthu et al., 2022).Taken together, our results further elucidated the response of the two candidate miRNAs, miR166k-3p and miR444b.1, to different nitrogen supplies, along with a description of their different expression patterns, which provides possibilities for further studies of the two candidate miRNAs involved in nitrogen utilization pathways and high-NUE hybrid rice cultivars cultivation. In summary, this study revealed a comprehensive expression profile of miRNAs responsive to high-nitrogen treatments in the indica rice restorer cultivar NH511, which advanced our understanding of nitrogen signaling mediated by miRNAs and provided new insights for high-NUE rice breeding based on elite restorer cultivars.
5 Conclusions
We investigated the morphological changes and transcriptomic miRNA variations in the indica rice restorer line NH511 under high (HN) and low nitrogen (LN) conditions. Based on our findings, we discussed and compared their nitrogen-responsive characteristics and differentially expressed miRNAs under HN and LN conditions. We further validated the candidate miRNAs and elucidated their response to different nitrogen conditions. We believe that our study makes a significant contribution to rice breeding because we described and identified the N-responsive characteristics and differentially expressed miRNAs in an important rice restorer cultivar under different nitrogen supplies, thus providing novel data for the breeding of high-NUE rice cultivars in the future.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/geo/, GSE230023.
Author contributions
XQ and HZ designed the experiment. XQ wrote the paper and HZ revised the manuscript. YL, WN and HW validated the results. XL, QW, YL, CL, DJ, and TT contributed to experiments and the acquisition of data. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by the National Natural Science Foundation of China (31800238), the Natural Science Foundation of Chongqing (cstc2019jcyj-msxmX0224) and the Scientific and Technological Research Program of Chongqing Municipal Education Commission (KJQN201900509 and KJQN202100536).
Conflict of interest
The authors declare that they have no competing financial interests or personal relationships that may have influenced the work reported in this study.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2023.1198809/full#supplementary-material
