- 1Área de Genética, Facultad de Ciencias, Universidad de Málaga (UMA), Málaga, Spain
- 2Instituto de Hortofruticultura Subtropical y Mediterránea “La Mayora”, Consejo Superior de Investigaciones Científicas (IHSM-UMA-CSIC), Málaga, Spain
- 3Department of Biology, Biochemistry and Natural Sciences, Universitat Jaume I (UJI), Castelló de la Plana, Spain
- 4Department of Chemistry and Biochemistry, University of North Carolina Wilmington, Wilmington, NC, United States
- 5Department of Molecular and Cellular Biology, Kennesaw State University, Kennesaw, GA, United States
Indole-3-acetic acid (IAA) production is a pathogenicity/virulence factor in the Pseudomonas syringae complex, including Pseudomonas savastanoi. P. savastanoi pathovars (pvs.) genomes contain the iaaL gene, encoding an enzyme that catalyzes the biosynthesis of the less biologically active compound 3-indole-acetyl-ϵ-L–lysine (IAA–Lys). Previous studies have reported the identification of IAA–Lys in culture filtrates of P. savastanoi strains isolated from oleander (pv. nerii), but the conversion of IAA into a conjugate was not detectable in olive strains (pv. savastanoi). In this paper, we show the distribution of iaaL alleles in all available P. savastanoi genomes of strains isolated from woody hosts. Most strains encode two different paralogs, except for those isolated from broom (pv. retacarpa), which contain a single allele. In addition to the three previously reported iaaL alleles (iaaLPsv, iaaLPsn and iaaLPto), we identified iaaLPsf, an exclusive allele of strains isolated from ash (pv. fraxini). We also found that the production of IAA–Lys in P. savastanoi pv. savastanoi and pv. nerii depends on a functional iaaLPsn allele, whereas in pv. fraxini depends on iaaLPsf. The production of IAA–Lys was detected in cultures of an olive strain heterologously expressing IaaLPsn-1, IaaLPsf-1 and IaaLPsf-3, but not when expressing IaaLPsv-1. In addition, Arabidopsis seedlings treated with the strains overproducing the conjugate, and thus reducing the free IAA content, alleviated the root elongation inhibitory effect of IAA. IAA–Lys synthase activity assays with purified allozymes confirmed the functionality and specificity of lysine as a substrate of IaaLPsn-1 and IaaLPsf-3, with IaaLPsf-3 showing the highest catalytic efficiency for both substrates. The IAA–Lys synthase activity of IaaLPsn-1 was abolished by the insertion of two additional tyrosine residues encoded in the inactive allozyme IaaLPsv-1. These results highlight the relevance of allelic variation in a phytohormone-related gene for the modulation of auxin production in a bacterial phytopathogen.
1 Introduction
Auxin balance is essential for the regulation of plant growth, development, and defense (Naseem et al., 2015). In plants, indole-3-acetic acid (IAA) is the most abundant natural auxin, and its homeostasis is regulated by a network of processes related to its biosynthesis, catabolism, signalling and transport. IAA is produced in plants through interlinked pathways sharing L-tryptophan (L-Trp) as a precursor. IAA levels can be regulated via conjugation to amino acids and sugars or via degradation, with only a small amount of free IAA remaining available (Normanly, 2010; Rosquete et al., 2012; Ljung, 2013). Various studies have identified the existence of IAA–amino acid conjugates in a wide variety of plants, such as IAA–aspartate (IAA–Asp), IAA–glutamate (IAA–Glu), IAA–alanine (IAA–Ala), IAA–glycine (IAA–Gly), IAA–valine (IAA–Val), IAA–leucine (IAA–Leu) and IAA–tryptophan (IAA–Trp). Only a few of these compounds, known as storage conjugates (IAA–Ala, IAA–Leu, IAA–Phe, and IAA–Val), are hydrolyzed back to free IAA by plant extracts or purified enzymes, modulating the concentration of free IAA and their distribution in plant organs (LeClere et al., 2002; Rampey et al., 2004; Ludwig-Müller, 2011). However, catabolism conjugates (IAA–Asp and IAA–Glu) are suggested to be involved in degradation pathways (Ludwig-Müller, 2011). In addition, IAA–Trp has been shown to be an inhibitor of IAA-dependent growth (Staswick et al., 2005).
Many plant-associated bacteria are also able to synthetize IAA using L-Trp as a precursor, modifying auxin balance and interfering with plant growth, organ development and defense responses. Thus, the production of IAA in phytopathogenic bacteria has been recognized as a pathogenicity or virulence factor (Spaepen and Vanderleyden, 2011; Patten et al., 2013). The indole-3-acetamide (IAM) pathway is the best-studied IAA biosynthetic pathway in bacteria. In this pathway, the enzymes tryptophan-2-monooxygenase and IAM hydrolase (which are encoded by the iaaM and iaaH genes, respectively) sequentially convert L-Trp to IAA (Magie et al., 1963; Kosuge et al., 1966). Other bacterial IAA pathways involve the intermediates indole-3-pyruvate, indole-3-acetonitrile, indole-3-acetaldehyde and tryptamine (Spaepen and Vanderleyden, 2011; Kunkel and Harper, 2017).
In bacteria, IAA can be metabolized to the less biologically active amino acid conjugate 3-indole-acetyl-ϵ-L–lysine (IAA–Lys) through the action of the IAA–Lys synthase enzyme, encoded by the iaaL gene (Hutzinger and Kosuge, 1968; Glass and Kosuge, 1986; Roberto et al., 1990). The natural production of IAA–Lys has only been shown in phytopathogenic bacteria of the Pseudomonas syringae species complex (Hutzinger and Kosuge, 1968; Evidente et al., 1986; Glass and Kosuge, 1986; Glass and Kosuge, 1988; Roberto et al., 1990; Castillo-Lizardo et al., 2015; Cerboneschi et al., 2016; Tegli et al., 2020). In fact, the codification of the iaaL gene is a common feature of most pathovars (pv.) of this bacterial complex (Glickmann et al., 1998; Xin et al., 2018). Although production of IAA–Lys has not been reported in plants, the bacterial iaaL gene constitutively expressed from a plant promoter can act as an anti-auxin gene in tobacco plants by reducing free-IAA levels (Romano et al., 1991).
The P. syringae complex, encompassing 15 different Pseudomonas species associated with plants and the water cycle, is divided into 13 phylogroups (Berge et al., 2014; Gomila et al., 2017). The species Pseudomonas savastanoi belongs to phylogroup 3, the only one including bacteria that cause tumorous overgrowths (knots) in woody hosts (Caballo-Ponce et al., 2017). The number of iaaL paralogs and their locations in the chromosome and/or native plasmids of P. savastanoi vary among pathovars and strains. The knot-forming P. savastanoi pathovars are P. savastanoi pv. mandevillae (Psm), P. savastanoi pv. nerii (Psn), P. savastanoi pv. retacarpa (Psr) and P. savastanoi pv. savastanoi (Psv), which include isolates from dipladenia (Mandevilla spp.), oleander (Nerium oleander), broom (Retama sphaerocarpa) and olive (Olea europaea), respectively (Gardan et al., 1992; Bull et al., 2010; Caballo-Ponce et al., 2017; Caballo-Ponce et al., 2021). Psv strains generally encode two chromosomal iaaL paralogs, whereas Psn strains usually contain the iaaL gene in plasmids (Comai et al., 1982; Glass and Kosuge, 1986; Caponero et al., 1995; Matas et al., 2009). Comparative nucleotide sequence analysis and restriction fragment length polymorphism (RFLP) showed that Psv strains encode two iaaL paralogs, iaaLPsn, identical to that encoded in plasmid pIAA1 from Psn strain EW 2009 (Roberto et al., 1990) and, iaaLPsv, exhibiting 93% identity to the ortholog gene (iaaLPto) from P. syingae pv. tomato (Pto) (Matas et al., 2009). The iaaL gene is also found in the genomes of the Psm, Psr, and P. savastanoi pv. fraxini (Psf) strains (Moreno-Pérez et al., 2020; Caballo-Ponce et al., 2021), with the latter causing cankers accompanied by excrescences in ash (Fraxinus excelsior) (Janse, 1981; Gardan et al., 1992; Caballo-Ponce et al., 2017). However, the iaaL allelic variants encoded in Psf, Psm, Psr and most Psn strains have not yet been reported.
Production of IAA–Lys has only been detected in culture filtrates of Psn but not of Psv strains (Evidente et al., 1986; Glass and Kosuge, 1986). In agreement with these results, natural variations of the iaaLPsv and iaaLPsn sequences encoded by certain Psv strains have been reported and suggested to inactivate IAA–Lys synthase function (Matas et al., 2009; Rodríguez-Palenzuela et al., 2010). However, the functionality of the IAA–Lys synthases encoded by these iaaL alleles has not yet been reported. In contrast, iaaLPsn knockout mutants of the PB213 and Psn23 Psn strains are unable to produce IAA–Lys and show increased IAA levels (Glass and Kosuge, 1988; Cerboneschi et al., 2016; Tegli et al., 2020), demonstrating that IAA–Lys production in these two strains is dependent on their specific iaaL allelic variants. However, the impact of the iaaL gene and IAA–Lys production in virulence seems to be strain-dependent. While the iaaLPsn mutant of Psn PB213 was found to cause virulence attenuation in oleander (Glass and Kosuge, 1988), the Psn23 iaaLPsn mutant showed a hypervirulent phenotype (Glass and Kosuge, 1988; Cerboneschi et al., 2016). On the other hand, the replacement of iaaLPto by a kanamycin resistance cassette in Pto DC3000 was shown to cause virulence reductions in tomato plants (Castillo-Lizardo et al., 2015). The functionality and role in virulence of other iaaL allelic variants have not been reported so far.
Here, we show the distribution and number of iaaL alleles encoded in all publicly available genome sequences of P. savastanoi strains isolated from woody hosts. A comparison of iaaL nucleotide sequences and phylogenetic analyses of their encoded proteins revealed the existence of a fourth allele, iaaLPsf, exclusive to Psf strains. IAA and IAA–Lys production was tested in a selection of P. savastanoi strains belonging to all pathovars and encoding diverse combinations of iaaL alleles. The functionality of all four iaaL alleles from P. savastanoi strains and Pto DC3000, iaaLPto, was assessed by heterologous expression in an olive strain not producing IAA–Lys, as well as with IAA–Lys synthase activity assays with purified IaaL allozymes. Finally, we demonstrate the inactivation of IaaLPsn from a Psn strain by insertion of additional amino acid residues encoded in an inactive IaaLPsv allozyme.
2 Experimental procedures
2.1 Phylogenetic analysis
Amino acid sequences of the IaaL proteins encoded in all 22 publicly available P. savastanoi genomes were identified with blastp and downloaded from the National Centre for Biotechnology Information (NCBI). Phylogenetic relationships were predicted using MEGAX (Kumar et al., 2018) with the maximum likelihood method and 100 bootstrap replicates to evaluate the tree topology. The sequence of IaaLPto from P. syringae pv. tomato DC3000 was used as an external group.
2.2 Bacterial strains and growth conditions
Bacterial strains were grown at 28°C (P. savastanoi strains) or 37 °C (Escherichia coli strains) in a lysogenic culture medium (LB) (Bertani, 1951) or a super optimal culture medium (SOB) (Hanahan, 1983). In addition, P. savastanoi strains were grown in a minimal mannitol–glutamate (MG) medium supplemented with ferric citrate (10 g/L of mannitol, 2 g/L of L-glutamic acid, 0.5 g/L of KH2PO4, 0.2 g/L of NaCl, and 0.2 g/L of MgSO4, pH 7) (Keane et al., 1970). The bacterial strains used in this study are indicated in Table S1. When necessary, culture media were supplemented with 10 µg/mL and 50 µg/mL of kanamycin (Km) for the E. coli and Pseudomonas strains, respectively.
2.3 Quantification of IAA and IAA–Lys and other conjugates
The production of IAA and IAA–Lys by P. savastanoi strains was quantified in exponentially growing MG medium cultures (optical density at 600 nm (OD600) of 0.5). Quantification was performed using an Acquity ultra-performance liquid chromatography system (UPLC; Waters, Mildford, MA, USA) coupled to a triple quadrupole mass spectrometer detector (TQD; Waters, Manchester, UK). Chromatographic separation was performed using a Kinetex C18 analytical column, with a particle size of 1.7 µm, 50 mm × 2.1 mm (Phenomenex, California, United States). A MeOH gradient in water with 0.01% HCOOH and a flow of 0.3 mL/min was applied for sample elution, following the parameters described in (Gamir et al., 2014). We mixed 1 mL of culture supernatants with MeOH/H2O (10:90 v/v), and indole acetic acid-d5 (IAA-d5) (WuXi LabNetwork, Massachusetts, USA) was used as internal standard to a final concentration of 100 ng/mL. IAA–Lys, used as a standard, was synthesized by WuXi App Tec, co., LTD (Wuhan, China). The concentration of IAA and IAA–Lys is expressed as μg per g of dry weight of the bacterial culture.
2.4 Construction of bacterial strains and plasmids
The plasmids and oligonucleotides used in this work are indicated in Tables S2, S3, respectively. For the heterologous expression of iaaL alleles in Psv NCPPB 3335, the open reading frames (ORF) of the different alleles were PCR-amplified using genomic DNA from their corresponding strains as templates, Q5 high-fidelity DNA polymerase (New England Biolabs, Hitchin, UK), and oligonucleotides iaaL–RBS-F and iaaL–RBS-R (Table S3). The resulting products were cloned into the constitutive expression vector pAMEX using the restriction enzyme sites included in the oligonucleotides (Table S3). The resulting plasmids were transferred to Psv NCPPB 3335 via electroporation, and transformants were selected in an LB–Km medium (Pérez-Martínez et al., 2007).
His-tagged constructs of IaaL allozymes were generated via the PCR amplification of wild-type iaaL templates using Q5 high-fidelity DNA polymerase and appropriate oligonucleotides (Table S3). The resulting fragments were subcloned into plasmid pET28a (Table S2) for C-terminal His-tagging. For the expression of His6-tagged IaaL proteins, each pET28a-IaaL construct was transformed into E. coli BL21 (Table S1).
The site-directed mutagenesis of iaaLPsn-1 on the pET28a::iaaLPsn-1 construct was generated using oligonucleotides Mut_YY_F and Mut_YY_R (Table S3) and the QuickChange II Site-Directed Mutagenesis Kit (Stratagene, USA) following the supplier’s instructions. The resulting vector, pET28a::iaaLPsnYY (Table S2), encodes a His6-tagged IaaLPsn-1 protein containing an insertion of two tyrosine residues (Y81Y82) at the same positions as IaaLPsv-1.
2.5 Arabidopsis root elongation test
Arabidopsis thaliana Col-0 seeds were surface-sterilized with 1% bleach and rinsed three times in sterile distilled water. Subsequently, the seeds were stratified on Murashige–Skoog (MS) plates (Murashige and Skoog, 1962) with 10 g/L of agar (pH 5.7-5.8) and incubated at 4°C for 2 days to obtain uniform germination. Bacterial suspensions were obtained from LB overnight cultures, washed three times with 10 mM of MgSO4 and adjusted to an OD600 of 0.5, corresponding to approximately 108 CFUs/mL. Then, A. thaliana seedlings were exposed to 20 µL of the bacterial suspensions located at 4 cm from the root tips (Qin et al., 2005; Cerboneschi et al., 2016). The plates were grown upright in a growth chamber at 22°C with a short-day photoperiod of 8 h of light and 16 h of darkness. Photographs were obtained after an additional 15 days of vertical growth, and root length and area was measured using ImageJ software. The mean root length and root area ± standard deviation was calculated for 10 to 15 seedlings.
2.6 Protein expression and purification
Transformed E. coli BL21 cells with the different pET28a plasmids expressing IaaL allozymes were incubated in LB medium overnight at 37 °C. Subsequently, a 1/50 dilution of this culture was made in fresh LB medium and incubated at 37 °C to an OD600 of 0.5. To optimize the production of the IaaL protein, different induction conditions were tested, and incubation for 4 h at 28 °C in the presence of 1 mM of isopropyl-β-D-1-thiogalactopyranoside (IPTG) was selected after verification via Western blot analysis (data not shown). After induction, E. coli BL21 cells were harvested by centrifugation, resuspended in lysis buffer (50 mM Tris, pH 8.0, 500 mM NaCl, 25 mM imidazole, 10% glycerol, and 1% Tween-20) and lysed by sonication (100W, 30kHz, 80% amplitude, three times for 1 min). The supernatant with the soluble protein obtained after 45 min of centrifugation at 16000g at 4°C was filtered through a Ni2+ chromatography column. The column was washed using washing buffer (lysis buffer without Tween-20) and subsequently eluted in elution buffer (washing buffer with 250 mM of imidazole). The eluted proteins were dialyzed using a dialysis membrane and a solution composed of 25 mM HEPES, 100 mM NaCl and 10% glycerol at pH 7.5. The concentration of extracted proteins were quantified using Bradford’s reagent and bovine serum albumin as a standard (Bradford, 1976).
2.7 Enzymes assays to determine kinetic parameters
The enzymatic activity of each IaaL allozyme (i.e., IaaLPsn-1, IaaLPsf-3, IaaLPsv-1, IaaLPto and IaaLPsnYY) was spectrophotometrically measured with an enzyme-coupled continuous spectrophotometric assay (i.e., the myokinase, pyruvate kinase, and lactate dehydrogenase system) by detecting the formation of AMP (Chen et al., 2010). The spectrophotometric signal, which was NADH reduction (ϵ340 nm = 6220 M−1cm−1), was monitored at A340nm using an EPOCH2 microplate spectrophotometer (BioTek, Vermont, USA). The standard assay conditions for IaaL allozymes were 50 mM Tris·HCl (pH 8.0), 100 mM KCl, 3 mM MgCl2, 1 mM ATP, 1 mM phosphoenolpyruvate, 0.2 mM NADH, 1 mM IAA, 5 mM lysine, 2 units of rabbit muscle myokinase, 4 units of rabbit muscle pyruvate kinase, and 4 units of rabbit muscle lactate dehydrogenase in a total volume of 200 μL at 25 °C. For the determination of steady-state kinetic parameters, reactions were performed in standard assay conditions with either fixed IAA (1.0 mM) and varied lysine (0.01–10 mM) or with fixed lysine (5.0 mM) and varied IAA (0.05–10 mM). The rate of IAA–Lys (product) formation was calculated based on the product/NADH conversion rate at which 1 molecule of IAA–Lys per 2 molecules of NADH formed. All resulting data were fit to the Michaelis–Menten equation, v = (kcat[S])/(Km + [S]), using Prism (GraphPad).
3 Results
3.1 Distribution of IaaL allozymes in P. savastanoi

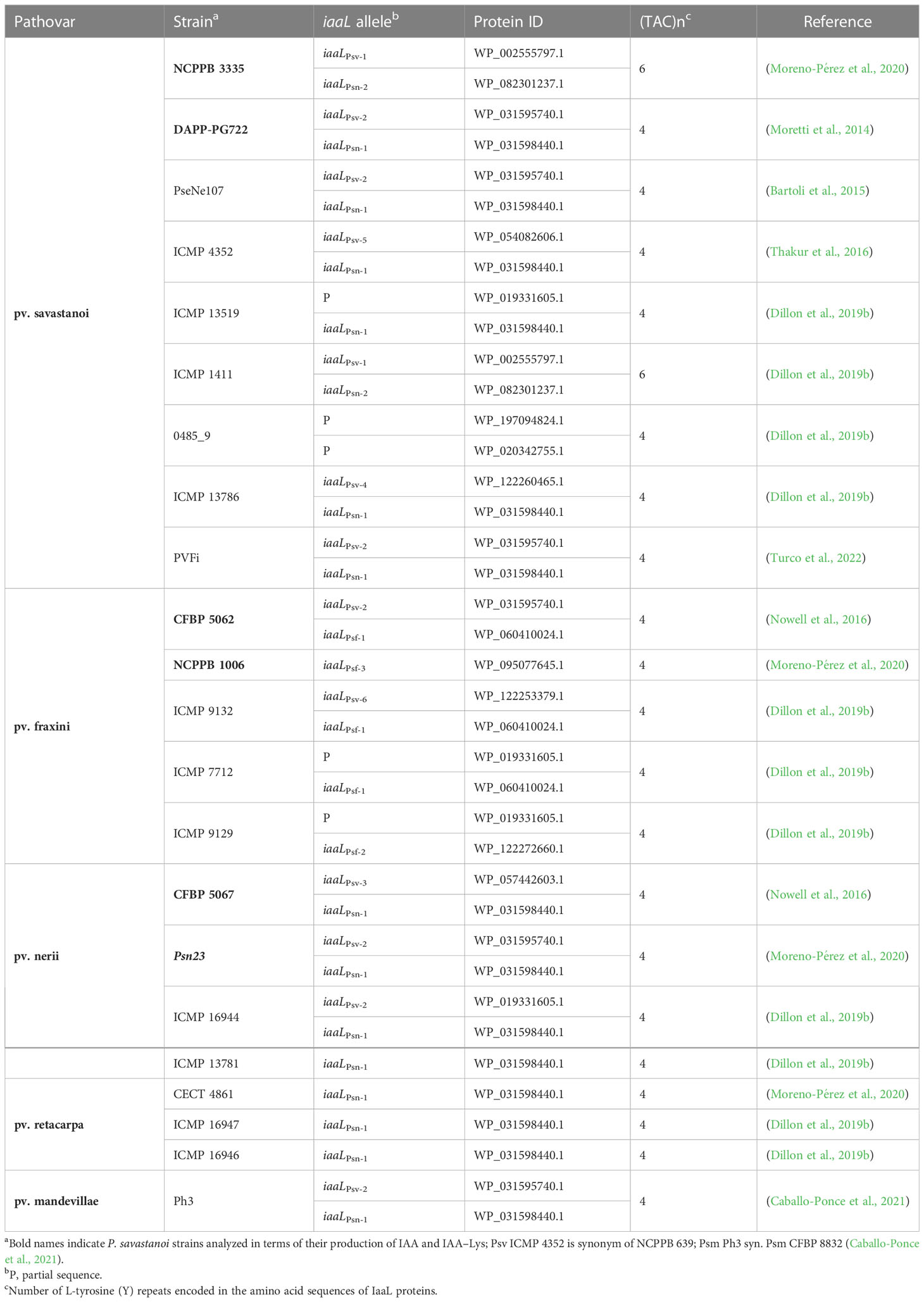

Bioinformatic analyses were performed to identify the IaaL variants encoded in the genomes of strains from all pathovars of P. savastanoi. blastp searches with the sequence of IaaLPsn from Psn23 against all 22 P. savastanoi genomes available at the NCBI identified 39 IaaL homologs, 34 of which shared 100% coverage and >90% identity with the query. In addition, five partial sequences were also found. Psv strain 0485, whose draft genome includes two incomplete iaaL sequences, was not included in these analyses (Table 1). While most Psm, Psn, Psv, and Psf strains encode two different IaaL allozymes, Psr strains encode a single IaaL protein. In silico analyses of the nucleotide sequences encoding all these proteins revealed that Psr strains encode an iaaLPsn allele, here named iaaLPsn-1, identical to that also found in all four Psn strains, Psm Ph3, and seven of the nine Psv genomes. In addition, all Psn and Psv strains (except for Psn ICMP 13781), as well as Psm Ph3, encode an iaaLPsv allele. Four out of the five analyzed Psf genomes encode two different iaaL alleles. However, in silico and electrophoresis analyses of an internal fragment of the iaaL gene revealed that these alleles cannot be differentiated from iaaLPsn and iaaLPsv using the PCR-RFLP procedure described by Matas et al. (2009) (Figure S1).
To analyze the phylogenetic relationships of IaaL allozymes encoded in the P. savastanoi strains, all 34 complete sequences were used (Table 1), and the phylogenetic tree was rooted using the sequence of IaaLPto from Pto DC3000. The tree showed five well-differentiated clades, two of which corresponded to IaaLPsn and IaaLPsv and included all allozymes encoded by Psn, Psv, Psr and Psm strains, as well as two IaaLPsv proteins encoded by the CFBP 5062 and ICMP 9132 Psf strains. However, the remaining five IaaL sequences found in the Psf strains, here named IaaLPsf, clustered in a monophyletic branch together with the IaaLPsn clade but separated into three additional clades (Figure 1).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1176705/fpls-14-1176705-HTML-r1/image_m/fpls-14-1176705-g001.jpg)
Figure 1 Phylogenetic distribution of IaaL allozymes encoded in the genomes of P. savastanoi strains isolated from woody hosts. The maximum likelihood tree was rooted with IaaLPto from P. syringae pv. tomato (Pto) DC3000. Values in nodes are bootstrap percentages from 100 replicates; the scale represents substitutions per site. Psv (red), Psn (green), Psf (purple), Psr (blue) and Psm (yellow) refer to the P. savastanoi pathovars savastanoi, nerii, fraxini, retacarpa and mandevillae, respectively.
A detailed analysis of the amino acid sequences of these 34 IaaL proteins identified a total of 12 different allozymes according to the codification of unique amino acid residues. Two IaaLPsn variants encoding six exclusive residues were found: IaaLPsn-1, present in Psm Ph3 and most Psn, Psv and Psr strains, and IaaLPsn-2, which contains a 9-amino-acid N-terminal deletion and was only found in two olive isolates (Psv NCPPB 3335 and Psv ICMP 1411). Six IaaLPsv variants sharing three exclusive residues and distributed among all pathovars, except for Psr, were also identified. In addition, IaaLPsf sequences showed two unique residues (Lys16 and Met51) and were separated into three variants (IaaLPsf-1, IaaLPsf-2 and IaaLPsf-3) (Table 1 and Figure S2), which corresponded with the three IaaLPsf clades included in the phylogenetic tree (Figure 1).
In summary, P. savastanoi strains isolated from the same host share the same array of IaaL allozymes. While Psv, Psn and Psm strains encode two allozymes of the IAALPsn and IAALPsv groups, Psf strains harbor IAALPsv and are the only ones encoding an IAALPsf allozyme. In contrast, Psr strains encode a single IaaLPsn variant.
3.2 Production of IAA and IAA–Lys by P. savastanoi strains
The ability to produce IAA–Lys by P. savastanoi strains has been only reported for Psn strains (Evidente et al., 1986). Here, we analyzed the production of IAA and IAA–Lys in a selection of P. savastanoi strains encoding different combinations of iaaL alleles. The selected strains (Figure 2 and Table 1) were found to encode three diverse iaaLPsv alleles (iaaLPsv-1, iaaLPsv-2 and iaaLPsv-3), two iaaLPsn alleles (iaaLPsn-1 and iaaLPsn-2) and two different iaaLPsf alleles (iaaLPsf-1 and iaaLPsf-3). Pto DC3000 (iaaLPto allele) was also included in these analyses.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1176705/fpls-14-1176705-HTML-r1/image_m/fpls-14-1176705-g002.jpg)
Figure 2 IAA (A) and IAA–lysine (B) concentrations in culture supernatants of representative P. savastanoi strains and P. syringae pv. tomato (Pto) DC3000 grown in MG medium. Each bar corresponds to the mean of three biological replicates, and the error bars represent the standard deviation. Different letters indicate means that are significantly different using ANOVA test followed by the Bonferroni t-test (p < 0.05).
In agreement with previous reports (Smidt and Kosuge, 1978; Comai and Kosuge, 1980; Surico et al., 1985; Glickmann et al., 1998; Aragón et al., 2014), Psv and Psn strains grown in MG medium produced high amounts of IAA, reaching concentrations in the supernatant ranging from approximately 4193 to 7668 µg IAA/g of dry weight (dw). However, the concentration of IAA in spent supernatants of Pto DC3000 and Psf strains, which lack the iaaM and iaaH genes (Glickmann et al., 1998; Iacobellis et al., 1998; Moreno-Pérez et al., 2020), was about three orders of magnitude lower, from approximately 4.13 to 1.64 µg IAA/g dw (Figure 2A). In addition, except for Psv NCPPB 3335 (iaaLPsn-2 and iaaLPsv-1) and Pto DC3000 (iaaLPto), all other strains produced detectable amounts of IAA–Lys under the conditions tested. The production of IAA–Lys was positively correlated with the amount of IAA produced by the Psn and Psf strains, as well as by strain Psv DAPPG772 (iaaLPsn-1 and iaaLPsv-2). However, the concentrations of IAA–Lys found in the supernatant of the Psf strains was approximately 1,000 times lower than that of the Psn strains (Figure 2B). Thus, the IaaL allozymes produced by iaaLPsn-2, iaaLPsv-1 and iaaLPto appear to be functionally compromised under the conditions tested. This is likely due to their sequence variations with respect to the fully functional enzymes (Figure 2), including a 9-amino-acid N-terminal deletion in iaaLPsn-2 and an insertion of two tyrosine residues at position 81 in iaaLPsv-1. These results, together with the functional inactivation of iaaLPsv-2 in Psn23 suggested by Cerboneschi et al. (2016), indicate that the production of IAA–Lys in the strains tested is mainly dependent on the codification of an iaaLPsn-1 allele in Psv DAPP-PG722 and Psn Psn23 (iaaLPsn-1, iaaLPsv-2), an iaaLPsf-1 allele in Psf CFBP 5062 (iaaLPsv-2, iaaLPsf-1) or an iaaLPsf-3 allele in Psf NCPPB 1006 (iaaLPsf-3). In addition, the IAA–Lys production in Psn CFBP 5067 (iaaLPsn-1 and iaaLPsv-3) could be dependent on iaaLPsn-1 and iaaLPsv-3 or iaaLPsn-1 alone.
3.3 Functional evaluation of IaaL allozymes
Nine different iaaL alleles were selected for further functional analyses regarding their possible contribution to IAA–Lys production (iaaLPsn-1, iaaLPsf-1 and iaaLPsf-3) or their low or unknown ability to produce the conjugate (iaaLPsv-1, iaaLPsv-2, iaaLPsv-3, iaaLPsv-4, iaaLPsv-5 and iaaLPto). All nine alleles were cloned in plasmid pAMEX under the control of the constitutive nptII promoter (Table S2) and were heterologously expressed in Psv NCPPB 3335, a strain that does not produce IAA–Lys (Figure 2B). The effect of the overexpression on the pool of IAA and IAA–Lys produced by these strains was first analyzed using an Arabidopsis root elongation assay based on the inhibitory effect of exogenous IAA on primary root and hypocotyl elongation (Qin et al., 2005). After 15 days, the mean length of the main root of the wild-type-treated (Psv NCPPB 3335) seedlings was 13.2 ± 1.92 cm, approximately 5-fold lower than that obtained for untreated seedlings, suggesting an inhibitory effect of the IAA produced by the strain on root development. In contrast, Arabidopsis seedlings treated with Psv ΔiaaMH1-2, a knockout mutant derived from Psv NCPPB 3335 producing concentrations of IAA 40 times lower than the wild-type strain (Aragón et al., 2014), showed root mean lengths similar to those of the untreated control (66.7 ± 8.4 cm). In addition, seedlings treated with the strains overexpressing iaaLPsn-1, iaaLPsf-1, and iaaLPsf-3 showed lower root mean lengths (45.34 ± 5.55 cm, 51.49 ± 12.33 cm, and 35.85 ± 3.24, respectively) than the wild-type control. However, the root mean lengths of seedlings exposed to Psv NCPPB 3335 overexpressing iaaLPsv-1, iaaLPsv-2, iaaLPto (Figure 3A), iaaLPsv-4, or iaaLPsv-5 (Figure S3) were similar to the wild-type control. These results suggest than iaaLPto and none of these iaaLPsv alleles had a significant effect on the concentration of free IAA and IAA–Lys.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1176705/fpls-14-1176705-HTML-r1/image_m/fpls-14-1176705-g003.jpg)
Figure 3 Root elongation (A), root area (B), and root hair formation (C) in A. thaliana Col-0 seedlings grown on vertical plates in the presence of Psv NCPPB 3335 strains overexpressing diverse iaaL alleles from the constitutive promoter nptII. The Psv NCPPB 3335 (Psv WT) and Psv ΔiaaMH1-2 (ΔiaaMH1-2) strains were used as controls for the high and low production of free IAA, respectively. The bars represent the mean ± standard deviation for 9 to 15 seedlings. Different letters indicate means that are significantly different using ANOVA test followed by the Bonferroni t-test (p < 0.05).
In addition to the observed inhibition of Arabidopsis root length following exposure to the IAA-producing P. savastanoi strains, the massive development of lateral roots was also observed in seedlings treated with either wild-type Psv NCPPB 3335 or the strains expressing iaaLPsv-1, iaaLPsv-2, or iaaLPto. These results further support the inability or low ability of these three alleles to transform IAA into IAA–Lys. In fact, the mean root areas of seedlings treated with any of these strains were approximately 6 times that of the untreated control (0.58 ± 0.11 cm). Conversely, seedlings treated with strains accumulating lower concentrations of IAA than the wild-type control (Psv ΔiaaMH1-2 and those overexpressing iaaLPsn-1, iaaLPsf-1 and iaaLPsf-3) showed smaller mean root areas (Figures 3B, C).
To establish a correlation between root elongation and the IAA–Lys synthase activity of the diverse alleles expressed in Psv NCPPB 3335, the levels of IAA and IAA–Lys produced by a selection of these strains were quantified using UPLC–TQD. Overexpression of the three most active IaaL allozymes in strain NCPPB 3335 reduced the concentrations of free IAA in culture supernatants by approximately 1.8-fold (iaaLPsf-3) to 40-fold (iaaLPsn-1, iaaLPsf-1) (Figure 4A). This reduction was equivalent to the observed increase in the pool of IAA–Lys accumulated by the overexpressing derivative strains, further supporting the functionality of these three allozymes as IAA–Lys synthases (Figure 4B). Conversely, the overexpression of iaaLPsv-1, iaaLPsv-2, and iaaLPto did not have a significant effect on the concentration of the IAA or IAA–Lys produced by Psv NCPPB 3335 (Figure 4), further supporting the low activity or dysfunctionality of these allozymes. In summary, iaaLPsn-1, iaaLPsf-1 and iaaLPsf-3 encode functional IAA–Lys synthases that are able to synthesize IAA–Lys, thus withdrawing IAA from the medium. However, the allozymes encoded by iaaLPsv-1, iaaLPsv-2, and iaaLPto, as well as iaaLPsv-3, iaaLPsv-4, and iaaLPsv-5, are likely inactive or have very low activity under the conditions tested.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1176705/fpls-14-1176705-HTML-r1/image_m/fpls-14-1176705-g004.jpg)
Figure 4 Quantification of IAA (A) and IAA–lysine (B) levels produced in culture supernatants of Psv NCPPB 3335 strains overexpressing different iaaL alleles under the control of the constitutive promoter nptII. Alleles were amplified from Psv NCPPB 3335 (iaaLPsv-1), Psn Psn23 (iaaLPsn-1, iaaLPsv-2), Psf CFBP 5062 (iaaLPsf-1), Psf NCPPB 1006 (iaaLPsf-3) and Pto DC3000 (iaaLPto). WT, wild-type Psv NCPPB 3335. Bars represent the mean ± standard deviation of three biological replicates analyzed in duplicate. Different letters indicate means that are significantly different using ANOVA test followed by the Bonferroni t-test (p < 0.05).
3.4 Biochemical analysis of IaaL allozymes
IaaL allozymes are classified as members of the adenylating firefly luciferase (ANL) enzyme superfamily, containing a large N-terminal ANL domain with a smaller C-terminal domain (Sundlov et al., 2012). To further understand the molecular basis of IaaL enzymes, a biochemical analysis of four IaaL allozymes (IaaLPsn-1, IaaLPsf-3, IaaLPsv-1 and IaaLPto), was performed. N-terminal hexahistidine-tagged IaaL allozymes were expressed in E. coli and purified with nickel-affinity and size-exclusion chromatography. Initial in vitro assays of purified IaaLPsn-1, IaaLPsf-3, IaaLPsv-1 and IaaLPto were performed with known substrates, IAA and lysine, to verify their IAA–amino synthetase activity, particularly IAA–Lys synthetase activity (Figure 5). IaaLPsf-3 showed the highest specific activity (12.26 mOD/min), which was 5-fold higher than IaaLPsn-1 (2.77 mOD/min) when IAA and lysine were provided as substrates. Compared with the other two IaaL enzymes, IaaLPsv-1 (0.13 mOD/min) and IaaLPto (0.03 mOD/min) showed 100- and 400-fold lower activity values, respectively (Figure 5). However, none of the IaaL enzymes showed detectable activity in the presence of 1 mM of IAA–Lys, indicating a clear preference for IAA–Lys formation without reverse reactions (data not shown). Additionally, the amino acid substrate specificities of three of these four allozymes (IaaLPsn-1, IaaLPsf-3 and IaaLPsv-1) were examined under standard enzyme assay conditions using all 20 amino acids, including lysine (Figure S4). Similar to the in vivo analysis (Figure 4), spectrophotometric assays of IaaL allozymes identified the highest enzymatic activity with lysine as a substrate while the other amino acids showed either significantly low or no detectable signal levels (Figure S4).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1176705/fpls-14-1176705-HTML-r1/image_m/fpls-14-1176705-g005.jpg)
Figure 5 Specific activity of IaaL proteins encoded by the iaaLPsn-1, iaaLPsf-3, iaaLPsv-1, iaaLPto and iaaLPsnYY alleles in the presence of 1 mM IAA and 5 mM lysine. Bars represent the mean ± standard deviation of three independent experiments.

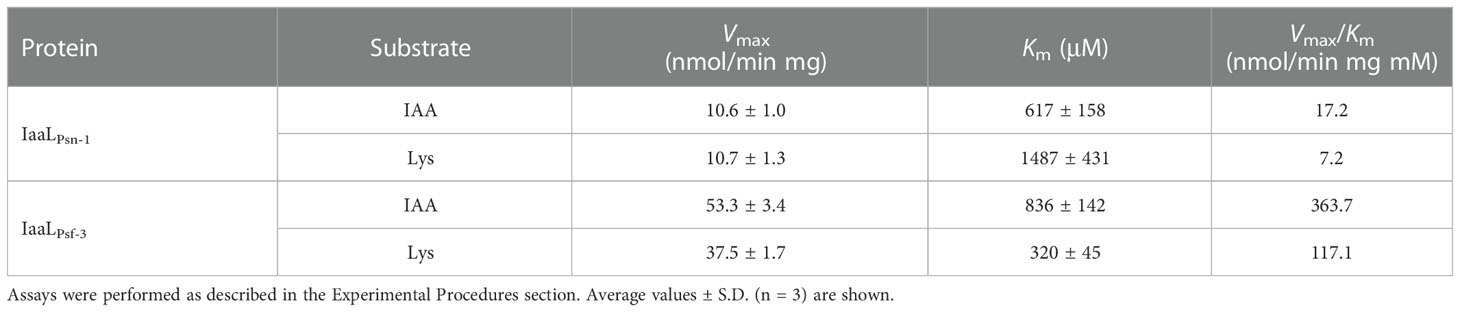

The steady-state kinetic analysis of IaaL with IAA and lysine confirmed differences in the enzymatic activity of the four IaaL allozymes. In the presence of variable concentrations of IAA, IaaLPsf-3 and IaaLPsn-1 followed the Michaelis–Menten kinetics, obtaining Vmax of 53.3 ± 3.4 nmol/min mg and 10.6 ± 1.0 nmol/min mg, respectively. However, the kinetic parameters of IaaLPsv-1 and IaaLPto were not determined due to their low enzymatic activities. Although IaaLPsn-1 showed higher affinity for IAA than IaaLPsf-3 (Km values of 617 ± 158 μM and 836 ± 142 μM, respectively), IaaLPsf-3 had the highest catalytic efficiencies (Vmax/Km), being 20- (for IAA) and 16-fold (for lysine) higher than those of IaaLPsn-1 (Table 2).
Overall, a series of in vitro biochemical analyses suggested that, of the four iaaL alleles containing typical ANL domains and predicted to function as IAA–amido synthetases, only IaaLPsn-1 and IaaLPsf-3 are capable of producing IAA–Lys at physiologically relevant concentrations under the conditions tested.
3.5 Inactivation of IaaLPsn-1 by insertion of two tandem tyrosine residues
Psv strains isolated in diverse geographical locations contain an iaaLPsv allele exhibiting a variable number (3 to 15) of trinucleotide TAC tandem repeats that are in frame and located immediately after four TAC tyrosine codons (Y77 to Y80). This motif, which remains stable after bacterial propagation in olive plants, was suggested to be a mechanism for the inactivation of IAA–Lys synthetase activity in Psv (Matas et al., 2009). In agreement with these hypotheses, IaaLPsv-1, encoding two additional tyrosine residues (Y81 and Y82 (Figure S2)), showed a very low specific activity (Figure 5). To test this hypothesis, we performed site-directed mutagenesis of the active IAA–Lys synthase IaaLPsn-1 to introduce Y81 and Y82 into its amino acid sequence, generating IaaLPsnYY. The specific activity of IaaLPsnYY (0.2 mOD/min), calculated as described above, was 0.07 times that of IaaLPsn-1 (Figure 5). Thus, the insertion of two additional tyrosine residues into IaaLPsn-1, at the same position as in IaaLPsv-1, caused the inactivation of the IAA–Lys synthase function of this allozyme.
4 Discussion
Functional studies of the allelic variants of virulence genes in the P. syringae complex include type III secretion system effectors (Lindeberg et al., 2006; Lindeberg et al., 2009; Baltrus et al., 2011; Lee et al., 2012; Lindeberg et al., 2012; Monteil et al., 2016; Dillon et al., 2019a; Moreno-Pérez et al., 2020), and the allelic diversity of two distinct P. syringae flagellin epitopes (Clarke et al., 2013). However, the allelic diversity of phytohormone-related genes has not been functionally analyzed in P. syringae or other bacterial phytopathogens.
4.1 P. savastanoi strains isolated from the same host share the same array of IaaL allozymes
In agreement with previous reports (Matas et al., 2009; Moreno-Pérez et al., 2020), we found that P. savastanoi strains isolated from woody hosts contain one or two iaaL alleles (Figure 1 and Table 1), a gene exclusive to the P. syringae complex present in most of its pathovars regardless of whether they contain the iaaMH operon or not (Glickmann et al., 1998; Xin et al., 2018). In addition to the three previously described variants of this gene, iaaLPsn, iaaLPsv, and iaaLPto (Matas et al., 2009; Castillo-Lizardo et al., 2015; Moreno-Pérez et al., 2020), we showed here that Psf strains encode iaaLPsf, an allele restricted to this pathovar (Table 1 and Figure 1). Psf strains, which are non-tumorigenic but induce cankers in ash, produce low concentrations of IAA (Figure 2A) using an unknown pathway independent of the iaaMH operon (IAM pathway). Conversely, strains of the tumorigenic P. savastanoi pathovars—Psn, Psm, Psv and Psr—produce high concentrations of IAA using the IAM pathway (Gardan et al., 1992; Glickmann et al., 1998; Moreno-Pérez et al., 2020) and encode a functional iaaLPsn-1 allele. Psv strains NCPPB 3335 and ICMP 1411 are an exception, as they contain iaaLPsn-2, likely encoding a low-activity or non-functional IAA–Lys synthase (Figure 4). Psv genomes are phylogenetically distributed into two different clades: Psv NCPPB 3335 and ICMP 1411 clustered with Psr whereas the remaining Psv strains analyzed here clustered with Psn (Moreno-Pérez et al., 2020). In addition, these two Psv strains are likely to be the only ones among all analyzed strains that are not able to produce IAA–Lys, as they also encode iaaLPsv-1 (Table 1), a low-activity or inactive IAA–Lys synthase (Table 2).
4.2 P. savastanoi strains from olive and ash can also produce IAA-Lys
Although previous studies reported that Psv strains do not produce IAA–Lys (Evidente et al., 1986; Glass and Kosuge, 1986), our results demonstrate that certain Psv strains, e.g. DAPP-PG722 (Figure 2), can synthesize this IAA conjugate. Therefore, our results suggest that other Psv strains encoding iaaLPsn-1 (Table 1) might also produce IAA–Lys. Nevertheless, strain ICMP 4352 (Table 1) was reported as not producing IAA–Lys (Evidente et al., 1986) although we identified an iaaLPsn-1 allele in its genome, suggesting the occurrence of other factors preventing synthesis of IAA-Lys. Thus, the Psv strains previously analyzed by other authors could all encode inactive IaaL allozymes or, for different reasons, produce concentrations of IAA–Lys that were undetectable in comparison with the amounts produced by Psn strains. In fact, a higher expression of iaaL is expected for Psn strains, since they carry this gene on plasmids, while all analyzed Psv strains encode iaaL in the chromosome (Glass and Kosuge, 1986).
Our data indicate that the genomic location of the iaaL gene might be correlated with its functionality. Thus, iaaL is encoded on the chromosome of strains Psv NCPPB 3335 and Pto DC3000 (Buell et al., 2003; Matas et al., 2009) and we did not detect production of IAA-Lys. The plasmid or chromosomal localization of iaaL has not been reported in the other five strains shown here to produce IAA-Lys. However, bioinformatic analyses of the draft genome sequences of these strains showed that their iaaLPsv alleles are located in the proximity of chromosomally-encoded genes. In contrast, their functional iaaLPsn-1 (Psv DAPP-PG722, Psn CFBP 5067 and Psn Psn23), iaaLPsf-1 (Psf CBBP 5067) or iaaLPsf-3 (Psf NCPPB 1006) alleles were found near the matE gene and transposase-coding sequences (data not shown), a genomic context resembling that of the plasmid-encoded iaaL gene from Psn strain EW 2009 (Roberto et al., 1990). The product of matE (orf-1 identified by Roberto et al., 1990), is a multidrug and toxic compound extrusion (MATE) family transporter involved in the efflux of IAA and IAA–Lys in Psn23. Thus, it has been suggested that matE, in combination with iaaL, contributes to maintain IAA homeostasis by both regulating IAA efflux and generating the less biologically active compound IAA-Lys (Tegli et al., 2020).
4.3 Production of IAA-Lys depends on the alloenzymes IaaLPsn-1 or IaaLPsf and the concentration of pathogen-produced IAA
The production of IAA–Lys was found to be correlated with the amounts of IAA produced by the Psv and Psn strains encoding IaaLPsn-1 and the Psf strains carrying IaaLPsf-1 or IaaLPsf-3, but not with Psv NCPPB 3335 (Figure 2). However, all derivatives of Psv NCPPB 3335 constitutively expressing IaaLPsn-1, IaaLPsf-1 or IaaLPsf-3 produced high concentrations of IAA–Lys (Figure 4). These results suggest that the low levels of IAA–Lys detected in Psf might have been due to the small concentration of the IAA produced by the strains rather than to the low activity of the allozymes IaaLPsf-1 and IaaLPsf-3. In fact, these three allozymes alleviated the inhibitory effect of IAA on the elongation of Arabidopsis roots by two to three times (Figure 3). Moreover, IaaLPsf-3 showed a catalytic efficiency for IAA about 20 times higher than that of IaaLPsn-1 (Table 2).
According to our results, IaaLPsv-1, IaaLPsv-2 and IaaLPto are likely inactive or have very low activity under the conditions tested, since i) the strains carrying these allozymes did not produce IAA–Lys (Figure 1 and Table 1), ii) their heterologous expression in Psv NCPPB 3335 cultures did not result in an increased production of IAA or IAA–Lys (Figure 3) or in the elongation of Arabidopsis roots (Figure 4), and iii) purified IaaLPsv-1 and IaaLPto were not able to produce IAA–Lys at physiologically relevant concentrations (Figure 5 and not tested for IaaLPsv-2). Although strains Psf and Pto DC3300 produced similar IAA amounts under the conditions tested (Figure 2), the purified IaaLPsf-3 allozyme had a higher enzymatic activity than IaaLPto, which is likely due to the variability in their amino acid sequences (Figure S2). Nevertheless, considering that tryptophan is the precursor of IAA biosynthesis in both P. savastanoi and Pto DC3000, it could be possible that exogenous addition of tryptophan to the culture medium would result in the production of detectable amounts of IAA–Lys by the tested strains.
4.4 Inactivation of IaaLPsn from a Psn strain by site-directed mutagenesis
Allozymes of the IaaLPsv group had a similar enzymatic activity to those of the IaaLPto allozyme, including the nonsignificant IAA–Lys synthase activity shown by purified IaaLPsv-1 (Figure 5). These results were expected, considering the inactivation of IaaLPsn-1 after the insertion of the two IaaLPsv-1-specific tyrosine residues (Figure 5). Expansion and contraction of the number of short tandem repeat sequences in protein-coding regions due to slipped-strand mispairing during DNA synthesis has been related to bacterial adjustment to environmental changes (Bichara et al., 2006), and was reported to also occur in bacterial phytopathogens (Jock et al., 2003). Other IaaLPsv allozymes analyzed in this study, e.g. IaaLPsv-2, IaaLPsv-3, IaaLPsv-4, and IaaLPsv-5, are also non-functional (Figures 4, S3) despite conserving the canonical four tyrosine motif, suggesting that additional amino acid changes must be responsible for their inactivity (Figure S2). All these enzymes, encoded in the strains of all P. savastanoi pathovars except for Psr, form a monophyletic branch in the IaaL phylogeny that is well-separated from all other allozymes (Figure 1). Thus, genes coding for inactive or low-activity IaaLPsv allozymes might have been transmitted via horizontal transfer. In fact, although the iaaL gene is ancestral to the P. syringae complex (Ramos et al., 2012), the IaaL phylogeny reported here (Figure 1) strongly suggests that the iaaL gene has been horizontally exchanged among P. savastanoi strains. Since iaaL was shown to be carried by plasmids in certain P. savastanoi strains (Comai and Kosuge, 1980; Caponero et al., 1995; Pérez-Martínez et al., 2007), and because diverse virulence plasmids of P. savastanoi pv. savastanoi were shown to be readily transferred by conjugation to other P. savastanoi and P. syringae strains (Añorga et al., 2022), it is likely that this horizontal transfer of iaaL has been mediated by plasmids.
4.5 Role of the iaaL gene in the virulence of P. syringae complex strains
Previous studies have reported on the role of iaaL in the virulence of Pto DC3000 and Psn strains. However, the impact of this gene in virulence is strain-dependent, even among strains of the same pathovar, as iaaL mutants can be both hypovirulent and hypervirulent (Glass and Kosuge, 1988; Castillo-Lizardo et al., 2015; Cerboneschi et al., 2016). With this in mind, we tested whether the expression of the active allozymes IaaLPsn-1 and IaaLPsf-3 influenced the virulence of Psv NCPPB 3335 in olive plants or its ability to infect oleander plants. However, significant changes in the virulence and host range were not observed (data not shown). Psv NCPPB 3335 encodes a large suite of virulence and host-specificity factors that act collectively (Caballo-Ponce et al., 2017; Moreno-Pérez et al., 2020), it is therefore not surprising that the modification of just one of these factors in a strain not producing IAA–Lys induces significant changes in these phenotypes.
5 Conclusions
In conclusion, our analysis of allelic variation in the auxin-related iaaL gene of P. savastanoi identified a novel allele (iaaLPsf) exclusive of ash strains and showed that strains isolated from the same host share the same array of iaaL alleles, including Psr strains, which encode a single iaaLPsn allele. We also show that olive and ash P. savastanoi strains can produce IAA–Lys, and that its production depends on both the concentration of pathogen-produced IAA and the codification of the alloenzymes IaaLPsn-1 or IaaLPsf. Our biochemical analyses confirm the functionality and specificity of lysine as a substrate of several IaaL allozymes. Additionally, an ash-specific IaaL variant exhibited a higher catalytic efficiency for both substrates (IAA and lysine) than its ortholog (IaaLPsn-1) encoded in tumorigenic strains. Finally, we show that the IAA–Lys synthase activity of IaaLPsn-1 was abolished by the insertion of two additional tyrosine residues, mirroring the corresponding insertion in the inactive allozyme IaaLPsv-1. Our results highlight the relevance of the allelic variation in the modulation of the functionality of a virulence gene related with the production of a bacterial phytohormone.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Author contributions
AP, VP, SL, VF, and CR planned and designed the research and analyzed the data. AP, HD-C, VP, and MV performed the experiments. AP, HD-C, SL, and CR designed and prepared the figures and tables. AP and CR wrote the manuscript with the help of SL. HD-C, VP, VF, and SL contributed to the revision of the manuscript. All authors contributed to the article and approved the submitted version.
Funding
AP and HD-C were supported by the FPU14/05551 and PRE2021-099113 predoctoral grants, respectively. CR was supported by the AGL2017-82492-C2-1-R and PID2020-115177RB-C21 project grants from the Spanish Ministry of Science, Innovation and Universities (Spain), co-financed by the European Regional Development Fund (ERDF). VP and VF were supported by the GV/2018/115 and CIACO/2021/092 grant projects from Generalitat Valenciana and the RTI2018-094350-B-C33 grant from the Spanish Ministry of Science, Innovation and Universities. MV and SL were supported by project grant A20-0079 from The North Carolina Biotechnology Center (NCBC).
Acknowledgments
B. Kunkel (Washington University in St. Louis) is thanked for facilitating 3-indole-acetyl-ϵ-L–lysine synthesis and shipping. We are grateful to P. García-Vallejo and I. Imbroda for their excellent technical assistance. We thank the Serveis Centrals (SCIC) of Universitat Jaume I for the technical support. J. Murillo (Universidad Pública de Navarra, Spain) and T.H. Osinga are thanked for critical reading of the manuscript and for advice on English usage.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2023.1176705/full#supplementary-material
References
Añorga, M., Urriza, M., Ramos, C., Murillo, J. (2022). Multiple relaxases contribute to the horizontal transfer of the virulence plasmids from the tumorigenic bacterium Pseudomonas syringae pv. savastanoi NCPPB 3335. Front. Microbiol. 13. doi: 10.3389/fmicb.2022.1076710
Aragón, I. M., Pérez-Martínez, I., Moreno-Pérez, A., Cerezo, M., Ramos, C. (2014). New insights into the role of indole-3-acetic acid in the virulence of Pseudomonas savastanoi pv. savastanoi. FEMS Microbiol. Lett. 356, 184–192. doi: 10.1111/1574-6968.12413
Baltrus, D. A., Nishimura, M. T., Romanchuk, A., Chang, J. H., Mukhtar, M. S., Cherkis, K., et al. (2011). Dynamic evolution of pathogenicity revealed by sequencing and comparative genomics of 19 Pseudomonas syringae isolates. PloS Pathog. 7, e1002132–22. doi: 10.1371/journal.ppat.1002132
Bartoli, C., Carrere, S., Lamichhane, J. R., Varvaro, L., Morris, C. E. (2015). Whole-genome sequencing of 10 Pseudomonas syringae strains representing different host range spectra. Genome Announcements. 3, e00379-15. doi: 10.1128/genomea.00379-15
Berge, O., Monteil, C. L., Bartoli, C., Chandeysson, C., Guilbaud, C., Sands, D. C., et al. (2014). A user’s guide to a data base of the diversity of Pseudomonas syringae and its application to classifying strains in this phylogenetic complex. PloS One 9, e105547–15. doi: 10.1371/journal.pone.0105547
Bertani, G. (1951). Studies on lysogenesis. i. the mode of phage liberation by lysogenic escherichia coli. J. Bacteriol. 62, 293–300. doi: 10.1128/jb.62.3.293-300.1951
Bichara, M., Wagner, J., Lambert, I. B. (2006). Mechanisms of tandem repeat instability in bacteria. Mutat. Research/Fundamental. Mol. Mech. Mutagene. 598, 144–163. doi: 10.1016/j.mrfmmm.2006.01.020
Bradford, M. (1976). A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Analytical. Biochem. 72, 248–254. doi: 10.1006/abio.1976.9999
Buell, C. R., Joardar, V., Lindeberg, M., Selengut, J., Paulsen, I. T., Gwinn, M. L., et al. (2003). The complete genome sequence of the Arabidopsis and tomato pathogen Pseudomonas syringae pv. tomato DC3000. Proc. Natl. Acad. Sci. 100, 10181–10186. doi: 10.1073/pnas.1731982100
Bull, C. T., Boer, S. H. D., Denny, T. P. (2010). Comprehensive list of names of plant pathogenic bacteria 1980-2007. J. Plant Pathol. 92, 551–592 doi: 10.2307/41998846
Caballo-Ponce, E., Murillo, J., Martínez-Gil, M., Moreno-Pérez, A., Pintado, A., Ramos, C. (2017). Knots untie: molecular determinants involved in knot formation induced by Pseudomonas savastanoi in woody hosts. Front. Plant Sci. 8. doi: 10.3389/fpls.2017.01089
Caballo-Ponce, E., Pintado, A., Moreno-Pérez, A., Murillo, J., Smalla, K., Ramos, C. (2021). Pseudomonas savastanoi pv. mandevillae pv. nov., a clonal pathogen causing an emerging, devastating disease of the ornamental plant Mandevilla spp. Phytopathology® 111, 1277–1288. doi: 10.1094/PHYTO-11-20-0526-R
Caponero, A., Contesini, A. M., Iacobellis, N. S. (1995). Population diversity of Pseudomonas syringae subsp. savastanoi on olive and oleander. Plant Pathol. 44, 848–855. doi: 10.1111/j.1365-3059.1995.tb02744.x
Castillo-Lizardo, M. G., Aragón, I. M., Carvajal, V., Matas, I. M., Pérez-Bueno, M. L., Gallegos, M.-T., et al. (2015). Contribution of the non-effector members of the HrpL regulon, iaaL and matE, to the virulence of Pseudomonas syringae pv. tomato DC3000 in tomato plants. BMC Microbiol. 15, 165. doi: 10.1186/s12866-015-0503-8
Cerboneschi, M., Decorosi, F., Biancalani, C., Ortenzi, M. V., Macconi, S., Giovannetti, L., et al. (2016). Indole-3-acetic acid in plant-pathogen interactions: a key molecule for in planta bacterial virulence and fitness. Res. Microbiol. 167, 774–787. doi: 10.1016/j.resmic.2016.09.002
Chen, Q., Westfall, C. S., Hicks, L. M., Wang, S., Jez, J. M. (2010). Kinetic basis for the conjugation of auxin by a GH3 family indole-acetic acid-amido synthetase. J. Biol. Chem. 285, 29780–29786. doi: 10.1074/jbc.M110.146431
Clarke, C. R., Chinchilla, D., Hind, S. R., Taguchi, F., Miki, R., Ichinose, Y., et al. (2013). Allelic variation in two distinct Pseudomonas syringae flagellin epitopes modulates the strength of plant immune responses but not bacterial motility. New Phytol. 200, 847–860. doi: 10.1111/nph.12408
Comai, L., Kosuge, T. (1980). Involvement of plasmid deoxyribonucleic acid in indoleacetic acid synthesis in Pseudomonas savastanoi. J. Bacteriol. 143, 950–957. doi: 10.1128/jb.143.2.950-957.1980
Comai, L., Surico, G., Kosuge, T. (1982). Relation of plasmid DNA to indoleacetic acid production in different strains of Pseudomonas syringae pv. savastanoi. Microbiol. (Reading. England). 128, 2157–2163. doi: 10.1099/00221287-128-9-2157
Dillon, M. M., Almeida, R. N. D., Laflamme, B., Martel, A., Weir, B. S., Desveaux, D., et al. (2019a). Molecular evolution of Pseudomonas syringae type III secreted effector proteins. Front. Plant Sci. 10. doi: 10.3389/fpls.2019.00418
Dillon, M. M., Thakur, S., Almeida, R. N. D., Wang, P. W., Weir, B. S., Guttman, D. S. (2019b). Recombination of ecologically and evolutionarily significant loci maintains genetic cohesion in the pseudomonas syringae species complex. Genome Biol. 20, 1–28. doi: 10.1186/s13059-018-1606-y
Evidente, A., Surico, G., Iacobellis, N. S., Randazzo, G. (1986). α-N-Acetyl-indole-3-acetyl–l-lysine: a metabolite of indole-3-acetic acid from Pseudomonas syringae pv. savastanoi. Phytochemistry 24, 1499–1502. doi: 10.1016/s0031-9422(00)94515-1
Gamir, J., Pastor, V., Kaever, A., Cerezo, M., Flors, V. (2014). Targeting novel chemical and constitutive primed metabolites against Plectosphaerella cucumerina. Plant J. 78, 227–240. doi: 10.1111/tpj.12465
Gardan, L., Bollet, C., Ghorrah, M. A. (1992). DNA Relatedness among the pathovar strains of Pseudomonas syringae subsp. savastanoi Janse, (1982) and proposal of Pseudomonas savastanoi sp. nov. Int. J. Syst. Evol. Microbiol. 42, 606–612. doi: 10.1099/00207713-42-4-606
Glass, N. L., Kosuge, T. (1986). Cloning of the gene for indoleacetic acid-lysine synthetase from Pseudomonas syringae subsp. savastanoi. J. Bacteriol. 166, 598–603. doi: 10.1128/jb.166.2.598-603.1986
Glass, N. L., Kosuge, T. (1988). Role of indoleacetic acid-lysine synthetase in regulation of indoleacetic acid pool size and virulence of Pseudomonas syringae subsp. savastanoi. J. Bacteriol. 170, 2367–2373. doi: 10.1128/jb.170.5.2367-2373.1988
Glickmann, E., Gardan, L., Jacquet, S., Hussain, S., Elasri, M., Petit, A., et al. (1998). Auxin production is a common feature of most pathovars of Pseudomonas syringae. Mol. Plant-Microbe Interact. 11, 156–162. doi: 10.1094/mpmi.1998.11.2.156
Gomila, M., Busquets, A., Mulet, M., Valdés, E. G., Lalucat, J. (2017). Clarification of taxonomic status within the Pseudomonas syringae species group based on a phylogenomic analysis. Front. Microbiol. 8. doi: 10.3389/fmicb.2017.02422
Hanahan, D. (1983). Studies on transformation of Escherichia coli with plasmids. J. Mol. Biol. 166, 557–580. doi: 10.1016/s0022-2836(83)80284-8
Hutzinger, O., Kosuge, T. (1968). Microbial synthesis and degradation of indole-3-acetic acid. 3. the isolation and characterization of indole-3-acetyl-epsilon-L-lysine. Biochemistry 7, 601–605. doi: 10.1021/bi00842a013
Iacobellis, N. S., Caponero, A., Evidente, A. (1998). Characterization of Pseudomonas syringae subsp. savastanoi strains isolated from ash. Plant Pathol. 47, 73–83. doi: 10.1046/j.1365-3059.1998.00202.x
Janse, J. D. (1981). The bacterial disease of ash (Fraxinus excelsior), caused by Pseudomonas syringae subsp. savastanoi pv. fraxini II. etiology and taxonomic considerations. Eur. J. For. Pathol. 11, 425–438. doi: 10.1111/j.1439-0329.1981.tb00115.x
Jock, S., Jacob, T., Kim, W. S., Hildebrand, M., Vosberg, H. P., Geider, K. (2003). Instability of short-sequence DNA repeats of pear pathogenic Erwinia strains from Japan and Erwinia amylovora fruit tree and raspberry strains. Mol. Genet. Genomics 268, 739–749. doi: 10.1007/s00438-003-0814-6
Keane, P. J., Kerr, A., New., P. B. (1970). Crown gall of stone fruit. II. identification and nomenclature of Agrobacterium isolates. Aust. J. Biol. Sci. 23, 585–595. doi: 10.1071/BI9700585
Kosuge, T., Heskett, M. G., Wilson, E. E. (1966). Microbial synthesis and degradation of indole-3-acetic acid. i. the conversion of l-tryptophan to indole-3-acetamide by an enzyme system from Pseudomonas savastanoi. J. Biol. Chem. 241, 3738–3744. doi: 10.1016/S0021-9258(18)99834-0
Kumar, S., Stecher, G., Li, M., Knyaz, C., Tamura, K. (2018). MEGA X: molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 35, 1547–1549. doi: 10.1093/molbev/msy096
Kunkel, B. N., Harper, C. P. (2017). The roles of auxin during interactions between bacterial plant pathogens and their hosts. J. Exp. Bot. 69, 245–254. doi: 10.1093/jxb/erx447
LeClere, S., Tellez, R., Rampey, R. A., Matsuda, S. P. T., Bartel, B. (2002). Characterization of a family of IAA-amino acid conjugate hydrolases from Arabidopsis. J. Biol. Chem. 277, 20446–20452. doi: 10.1074/jbc.m111955200
Lee, J., Teitzel, G. M., Munkvold, K., del Pozo, O., Martin, G. B., Michelmore, R. W., et al. (2012). Type III secretion and effectors shape the survival and growth pattern of Pseudomonas syringae on leaf surfaces. Plant Physiol. 158, 1803–1818. doi: 10.1104/pp.111.190686
Lindeberg, M., Cartinhour, S., Myers, C. R., Schechter, L. M., Schneider, D. J., Collmer, A. (2006). Closing the circle on the discovery of genes encoding hrp regulon members and type III secretion system effectors in the genomes of three model Pseudomonas syringae strains. Mol. Plant-Microbe Interact. 19, 1151–1158. doi: 10.1094/MPMI-19-1151
Lindeberg, M., Cunnac, S., Collmer, A. (2009). The evolution of Pseudomonas syringae host specificity and type III effector repertoires. Mol. Plant Pathol. 10, 767–775. doi: 10.1111/j.1364-3703.2009.00587.x
Lindeberg, M., Cunnac, S., Collmer, A. (2012). Pseudomonas syringae type III effector repertoires: last words in endless arguments. Trends Microbiol. 20, 199–208. doi: 10.1016/j.tim.2012.01.003
Ljung, K. (2013). Auxin metabolism and homeostasis during plant development. Development 140, 943–950. doi: 10.1242/dev.086363
Ludwig-Müller, J. (2011). Auxin conjugates: their role for plant development and in the evolution of land plants. J. Exp. Bot. 62, 1757–1773. doi: 10.1093/jxb/erq412
Magie, A. R., Wilson, E. E., Kosuge, T. (1963). Indoleacetamide as an intermediate in the synthesis of indolacetic acid in Pseudomonas savastanoi. Sci. (New. York. N.Y.). 141, 1281–1282. doi: 10.1126/science.141.3587.1281
Matas, I. M., Pérez-Martínez, I., Quesada, J. M., Rodríguez-Herva, J. J., Penyalver, R., Ramos, C. (2009). Pseudomonas savastanoi pv. savastanoi contains two iaaL paralogs, one of which exhibits a variable number of a trinucleotide (TAC) tandem repeat. Appl. Environ. Microbiol. 75, 1030–1035. doi: 10.1128/aem.01572-08
Monteil, C. L., Yahara, K., Studholme, D. J., Mageiros, L., Méric, G., Swingle, B., et al. (2016). Population-genomic insights into emergence, crop adaptation and dissemination of Pseudomonas syringae pathogens. Microbial. Genomics 2, 385–316. doi: 10.1099/mgen.0.000089
Moreno-Pérez, A., Pintado, A., Murillo, J., Caballo-Ponce, E., Tegli, S., Moretti, C., et al. (2020). Host range determinants of Pseudomonas savastanoi pathovars of woody hosts revealed by comparative genomics and cross-pathogenicity tests. Front. Plant Sci. 11. doi: 10.3389/fpls.2020.00973
Moretti, C., Cortese, C., Silva, D. P., Venturi, V., Ramos, C., Firrao, G., et al. (2014). Draft genome sequence of Pseudomonas savastanoi pv. savastanoi strain DAPP-PG 722, isolated in Italy from an olive plant affected by knot disease. Genome Announcements. 2, e00864-14. doi: 10.1128/genomea.00864-14
Murashige, T., Skoog, F. (1962). A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant. 15, 473–497. doi: 10.1111/j.1399-3054.1962.tb08052.x
Naseem, M., Kaltdorf, M., Dandekar, T. (2015). The nexus between growth and defence signalling: auxin and cytokinin modulate plant immune response pathways. J. Exp. Bot. 66, 4885–4896. doi: 10.1093/jxb/erv297
Normanly, J. (2010). Approaching cellular and molecular resolution of auxin biosynthesis and metabolism. Cold Spring Harbor Perspect. Biol. 2, a001594–a001594. doi: 10.1101/cshperspect.a001594
Nowell, R. W., Laue, B. E., Sharp, P. M., Green, S. (2016). Comparative genomics reveals genes significantly associated with woody hosts in the plant pathogen Pseudomonas syringae. Mol. Plant Pathol. 17, 1409–1424. doi: 10.1111/mpp.12423
Patten, C. L., Blakney, A. J. C., Coulson, T. J. D. (2013). Activity, distribution and function of indole-3-acetic acid biosynthetic pathways in bacteria. Crit. Rev. Microbiol. 39, 395–415. doi: 10.3109/1040841x.2012.716819
Pérez-Martínez, I., Rodríguez-Moreno, L., Matas, I. M., Ramos, C. (2007). Strain selection and improvement of gene transfer for genetic manipulation of Pseudomonas savastanoi isolated from olive knots. Res. Microbiol. 158, 60–69. doi: 10.1016/j.resmic.2006.09.008
Qin, G., Gu, H., Zhao, Y., Ma, Z., Shi, G., Yang, Y., et al. (2005). An indole-3-acetic acid carboxyl methyltransferase regulates arabidopsis leaf development. Plant Cell Online 17, 2693–2704. doi: 10.1105/tpc.105.034959
Ramos, C., Matas, I. M., Bardaji, L., Aragón, I. M., Murillo, J. (2012). Pseudomonas savastanoi pv. savastanoi: some like it knot. Mol. Plant Pathol. 13, 998–1009. doi: 10.1111/j.1364-3703.2012.00816.x
Rampey, R. A., LeClere, S., Kowalczyk, M., Ljung, K., Sandberg, G., Bartel, B. (2004). A family of auxin-conjugate hydrolases that contributes to free indole-3-acetic acid levels during Arabidopsis germination. Plant Physiol. 135, 978–988. doi: 10.1104/pp.104.039677
Roberto, F. F., Klee, H., White, F., Nordeen, R., Kosuge, T. (1990). Expression and fine structure of the gene encoding n epsilon-(indole-3-acetyl)-L-lysine synthetase from Pseudomonas savastanoi. Proc. Natl. Acad. Sci. 87, 5797–5801. doi: 10.1073/pnas.87.15.5797
Rodríguez-Palenzuela, P., Matas, I. M., Murillo, J., López-Solanilla, E., Bardaji, L., Pérez-Martínez, I., et al. (2010). Annotation and overview of the Pseudomonas savastanoi pv. savastanoi NCPPB 3335 draft genome reveals the virulence gene complement of a tumour-inducing pathogen of woody hosts. Environ. Microbiol. 12, 1604–1620. doi: 10.1111/j.1462-2920.2010.02207.x
Romano, C. P., Hein, M. B., Klee, H. J. (1991). Inactivation of auxin in tobacco transformed with the indoleacetic acid-lysine synthetase gene of Pseudomonas savastanoi. Genes Dev. 5, 438–446. doi: 10.1101/gad.5.3.438
Rosquete, M. R., Barbez, E., Kleine-Vehn, J. (2012). Cellular auxin homeostasis: gatekeeping is housekeeping. Mol. Plant 5, 772–786. doi: 10.1093/mp/ssr109
Smidt, M., Kosuge, T. (1978). The role of indole-3-acetic acid accumulation by alpha methyl tryptophan-resistant mutants of Pseudomonas savastanoi in gall formation on oleanders. Physiol. Plant Pathol. 13, 203–213. doi: 10.1016/0048-4059(78)90035-8
Spaepen, S., Vanderleyden, J. (2011). Auxin and plant-microbe interactions. Cold Spring Harbor Perspect. Biol. 3, a001438. doi: 10.1101/cshperspect.a001438
Staswick, P. E., Serban, B., Rowe, M., Tiryaki, I., Maldonado, M. T., Maldonado, M. C., et al. (2005). Characterization of an Arabidopsis enzyme family that conjugates amino acids to indole-3-acetic acid. Plant Cell Online 17, 616–627. doi: 10.1105/tpc.104.026690
Sundlov, J. A., Fontaine, D. M., Southworth, T. L., Branchini, B. R., Gulick, A. M. (2012). Crystal structure of firefly luciferase in a second catalytic conformation supports a domain alternation mechanism. Biochemistry 51, 6493–6495. doi: 10.1021/bi300934s
Surico, G., Iacobellis, N. S., Sisto, A. (1985). Studies on the role of indole-3-acetic acid and cytokinins in the formation of knots on olive and oleander plants by Pseudomonas syringae pv. savastanoi. Physiol. Plant Pathol. 26, 309–320. doi: 10.1016/0048-4059(85)90006-2
Tegli, Bini, Calamai, Cerboneschi, Biancalani (2020). A MATE transporter is involved in pathogenicity and IAA homeostasis in the hyperplastic plant pathogen pseudomonas savastanoi pv. nerii. Microorganisms 8, 117–156. doi: 10.3390/microorganisms8020156
Thakur, S., Weir, B. S., Guttman, D. S. (2016). Phytopathogen genome announcement: draft genome sequences of 62 Pseudomonas syringae type and pathotype strains. Mol. Plant-Microbe Interact. 29, 243–246. doi: 10.1094/mpmi-01-16-0013-ta
Turco, S., Drais, M. I., Rossini, L., Chaboteaux, E., Rahi, Y. J., Balestra, G. M., et al. (2022). Complete genome assembly of the levan-positive strain PVFi1 of Pseudomonas savastanoi pv. savastanoi isolated from olive knots in central Italy. Environ. Microbiol. Rep. 14, 274–285. doi: 10.1111/1758-2229.13048
