Xinghao Yao
Bowen Peng
Yaojie Zhang
Ling Li
Xueqing Fu
Kexuan Tang- Joint International Research Laboratory of Metabolic and Developmental Sciences, Frontiers Science Center for Transformative Molecules, Plant Biotechnology Research Center, Fudan-SJTU-Nottingham Plant Biotechnology R&D Center, School of Agriculture and Biology, Shanghai Jiao Tong University, Shanghai, China
Plant natural products (PNPs) are active substances indispensable to human health with a wide range of medical and commercial applications. However, excessive population growth, overexploitation of natural resources, and expensive total chemical synthesis have led to recurrent supply shortages. Despite the fact that the microbial production platform solved these challenges, the platform still has drawbacks such as environmental pollution, high costs, and non-green production. In this study, an efficient platform for the production of PNPs based on the transient expression system of Nicotiana benthamiana L. combined with synthetic biology strategies was developed. Subsequently, the feasibility of the platform was verified by a simple “test unit.” This platform was used to synthesize two high-value PNPs: genistein (5.51 nmol g–1 FW) and scutellarin (11.35 nmol g–1 FW). Importantly, this is the first report on the synthesis of scutellarin in heterologous plants. The platform presented here will possibly be adopted for the heterologous production of genistein and scutellarin in tobacco plants as a novel and sustainable production strategy.
Introduction
Plant natural products (PNPs) are plant secondary metabolites that have a wide range of bioactive properties, many of which are vital to humanity. To date, PNPs have been widely used in fragrances, natural dyes, dietary supplements, foods, cosmetics, and pharmaceutical industries (Birchfield and McIntosh, 2020). Based on their biosynthetic pathways, PNPs can be classified into three main groups: flavonoids, alkaloids, and terpenoids (Saxena et al., 2013). Genistein is one of the most abundant pharmacologically active flavonoids in soybean, and its biosynthesis pathway is well elucidated. In recent years, genistein has received a lot of attention for its potential to prevent osteoporosis (Marini et al., 2007), lower the risk and incidence of cancer and cardiovascular diseases, and ease menopausal symptoms (Nestel et al., 1999; Cotterchio et al., 2007; Marco et al., 2007). However, the content of genistein in soybean varies depending on the variety and growing conditions and/or environment (Eldridge and Kwolek, 1983). Like genistein, scutellarin is another major bioactive constituent of flavonoids extracted from Erigeron breviscapus (Asteraceae family) (Wang and Ma, 2018). Similarly, scutellarin has a number of pharmacological effects, including suppressing tumor growth and metastasis (Zeng et al., 2022), treating cardiovascular diseases (Prince et al., 2015), promoting blood circulation and dissolving stasis (Liu et al., 2010). Scutellarin’s efficacy and necessity for human health are undeniable, but its manufacture still predominantly depends on limited plant resources. Resources for E. breviscapus are currently scarce, and the pharmaceutical sector uses more than a million kilograms of the plant annually, drastically depleting its wild resources (Li et al., 2011). Additionally, more than 10 million people in China utilize scutellarin and associated medications each year, and the available supply of scutellarin can no longer keep up with the country’s expanding demand market (Zhang et al., 2013). Based on the health-promoting effects of these two types of PNPs, researchers have tried different production methods.
However, the use of total chemical synthesis is not economical due to its complex structure. Furthermore, although the microbial platform has successfully produced genistein and scutellarin (Horinouchi, 2009; Liu et al., 2018), the chassis still has several disadvantages (e.g., labor-intensive production, high costs, pollution of the environment, and poor tolerance of the products) (Reed et al., 2017; Shao et al., 2017). Therefore, the use of plant chassis to produce genistein and scutellarin is a promising approach, which will reduce the production cost of genistein and scutellarin, reduce the exploitation of plant resources, alleviate the supply pressure caused by rapid population growth, etc. In addition, it is also important to note that heterologous production of scutellarin in plants has not been reported previously.
Nicotiana benthamiana (Nicotiana benthamiana L.), a wild relative of tobacco originally from Australia, is peerless in its susceptibility to agroinfiltration and its amenability to transiently expressing transgenes (Horsch et al., 1985). As a common tool, the transient expression system of tobacco has been applied to produce a variety of PNPs (especially for the treatment of serious diseases). Examples include artemisinin (used for malaria treatment) and cannabinoids (used to prevent SARS-CoV-2 coronavirus from entering human cells) (Wang et al., 2016; Gülck et al., 2020; Van Breemen et al., 2022). Although the above cases demonstrated the feasibility of the traditional transient expression system of tobacco, it could not be applied to large-scale production. Therefore, it is urgent to develop a novel transient production platform. Up to now, little research in this area has been conducted.
As an interdisciplinary field, synthetic biology offers a strategy for the development of PNPs. First of all, fast and efficient methods for multigene assembly are essential for plant synthetic biology. The Golden Gate cloning (GGC), based on type IIS restriction endonuclease, is efficient and results in “scarless” assemblies (Engler et al., 2009). Secondly, the effect of untranslated regions (UTR) on protein expression has been widely demonstrated (Sainsbury and Lomonossoff, 2008). Combining these strategies with improved agroinfiltration techniques, Stephenson et al. (2018) produced gram-scale quantities of purified triterpene in just a few weeks. Thirdly, the production level of various PNPs is considerably increased by the use of transcriptional regulation by activating secondary metabolic pathway genes. Butelli et al. (2008) introduced Delila and Rosea1 genes from Antirrhinum majus into tomato (Solanum lycopersicum L.), resulting in a deep purple fruit. This indicates that large amounts of anthocyanins were produced in the fruit, and at concentrations comparable to those found in blackberries and blueberries. Overexpression of maize Lc or Arabidopsis PAP1 resulted in enhanced total flavonoid content in Scutellaria baicalensis hairy roots (up to 80.5 ± 6.15 mg g–1 DW and 133 ± 7.66 mg g–1 DW, respectively) (Chang et al., 2021). Unlike other transcription factors (TFs), AtMYB12 not only activates genes involved in flavonoid biosynthetic pathways, but also enhances primary metabolism, thereby increasing the supply of secondary metabolic precursors (Zhang et al., 2015). The application of the above technologies ensures the optimal yield of the target products, and the development of a vacuum infiltration device could also significantly increase the conversion efficiency of the leaves. Taken together, the combination of these synthetic biology strategies and the vacuum infiltration device constituted the efficient transient production platform (E-platform). However, the assembly of multi-gene pathways and heterologous synthesis (extraction, isolation, and identification) of the PNPs in plants are lengthy and complex processes. In order to reduce the time wasted due to failed experiments, it is essential to check the compatibility of the platform through testing sessions. The expression or non-expression of the two reporters in the “test unit” directly determines the applicability of the platform. One is enhanced green fluorescent protein (EGFP), which has been widely used as an indispensable imaging and tracking tool for various biological studies (Enterina et al., 2015). The other is SlAN2-Like, a key TF determining the intense purple skin of tomato, which has been shown to promote anthocyanidin accumulation (Sun et al., 2020). To determine whether the SlAN2-Like was functioning, the change in leaf color was examined.
Herein, we achieved the production of genistein and scutellarin in N. benthamiana by using synthetic biology strategies and developed a novel E-platform, which will provide theoretical support for the rapid and large-scale production of high-value PNPs and can be used as an alternative route for the extraction of PNPs from plants.
Materials and methods
Plant material and cultivation
Nicotiana benthamiana (GenBank: PRJNA170566) seeds were sown in the soil with a 1:1 ratio of peat (Pindstrup Horticulture Co., Ltd., Denmark) and vermiculite, and covered with a transparent plastic cover. After 1 week, the seedlings were transferred to an independent flowerpot (specifications: diameter 10 cm, height 8.5 cm), and agroinfiltration was carried out after 4 weeks. All growth periods of N. benthamiana were in the greenhouse with conditions as follows: temperature 25 ± 1°C, humidity 60%, light intensity 109 μmol photons m–2 s–1, and photoperiod of 16 h light/8 h dark.
Acquisition of gene elements and assembly of expression cassette
The sequences of the Cauliflower mosaic virus 35S promoter (CaMV35S-P) and the modified 5′-UTR of CPMV RNA2 were cloned with special primers (containing BsaI restriction sites and 4-nt overhangs) from pGREENII0800-LUC and pEAQ-HT-DEST vectors, respectively. Similarly, the “3′-UTR + nopaline synthase terminator (NOS-T)” sequence was also derived from the pEAQ-HT-DEST vector, which was kindly provided by Liu et al. (2020). Genes encoding AtMYB12 (At2g47460), GmIFS (AF195798), GmHID (AB154415), EbFNSII (KC521362), EbF6H (KU237240), and EbF7GAT (KU237242) were all codon-optimized toward N. benthamiana by Shenggong Bioengineering Co., Ltd., (Shanghai, China). In addition, Thosea asigna virus 2A (2A) was also synthesized in the aforementioned company.
GGC was used for expression cassette assembly, and the recognition sites and cleavage patterns of the two enzymes (BsaI and BpiI) involved in this process are shown in Figure 1A. All vectors and components used in this process were divided into three modules: Level-0 (Promoter/5′-UTR/ORF/2A/3′-UTR/Terminator), Level-1 (pICH47732/pICH47741/pICH47751/pICH47761/pICH41780), and Level-2 (pAGM4723) (Figures 1B–D). The aforementioned plasmids were gifted by Sylvestre Marillonnet (Weber et al., 2011). Except for the ORF (synthesized into the pUC57 vector), enzyme cleavage sites and specific fusion sites at both ends of each Level-0 module were introduced by primers, and the PCR products were linked into the pLB vector (TIANGEN Biotech, Beijing, China) (Figure 1B). It is worth noting that CaMV35S-P and 5′-UTR are two separate parts, and they need to be spliced before the assembly process starts. As shown in Supplementary Figure 1, CaMV35S-P and 5′-UTR were constructed into the pICH47751 vector. Subsequently, they were amplified with special primers to form the standard Level-0 module (Figure 1B). The construction process of multigene pathways is roughly divided into 2 steps (Figures 1C,D), and more details of the process and the PCR conditions are provided in Supplementary Table 1. Supplementary Table 3 shows all the primers used in this study.
Figure 1. A schematic illustrating the assembly of multigene constructs based on the GGC. (A) Recognition sequence, cleavage site, and post-cleavage overhangs of two type IIS restriction enzymes (BsaI and BpiI). (B) The BsaI recognition sites (GGTCTC) and specific fusion sites (e.g., GGAG and ACAA) on both sides of each Level-0 module (e.g., promoter, UTR, ORF, 2A, and terminator) were introduced by primers. (C) Level-1 module digestion-ligation process. Each expression cassette was assembled into Level-1 destination vectors. (D) The final Level-2 modules construction process. Multiple Level-1 modules formed the final vector via a one-step digestion-ligation reaction of BpiI and T4 ligase. (E) Schematic diagram of T-DNA regions containing pathway genes involved in the synthesis of genistein and scutellarin. Part A, genistein; Part B, scutellarin; NPTII, aminoglycoside phosphotransferase from Tn5; Ω, tobacco mosaic virus 5′-leader sequence. 2A, Thosea asigna virus 2A.
Preparation of agroinfiltration
Agroinfiltration of leaf tissue with binary vectors is also a rapid method of producing metabolites in plants. Agrobacterium tumefaciens strain GV3101 (pSoup-p19, encodes a viral suppressor of RNA silencing) was used for transient expression analysis of N. benthamiana. The agroinfiltration procedure was based on the method of Wood et al. (2009) with minor modifications. A. tumefaciens was grown overnight in LB medium (supplemented with 10 mM 2-(N-morpholino)ethanesulphonic acid (pH 5.6), 40 μM acetosyringone, 50 μg mL–1 kanamycin and 25 μg mL–1 rifampicin). The A. tumefaciens cells were centrifuged at 4,000 rpm for 10 min until they attained an optical density at 600 nm (OD600) between 1 and 1.5. The supernatant was discarded, and A. tumefaciens cultures were resuspended in the infiltration buffer (10 mM MgCl2, 200 μM acetosyringone) to OD600 = 0.8 and incubated for 3 h at room temperature. Additionally, it’s crucial to make a suitable bacterial suspension in accordance with production requirements.
The operation mode of the novel E-platform
Transient expression by agroinfiltration has been a very mature secondary metabolite production platform. The N. benthamiana plants used for infiltration experiments were grown for 5 weeks in the soil. As shown in Figure 2-1, a special transparent cube-mold was used to wrap and fix the flowerpot. The mold consists of a removable plastic plate and a shelf. The opening and closing states of the mold can be adjusted while the plastic plate is sliding on the track, and the closed state of the mold will have a hole with a diameter of 0.8 cm. The whole operation process was mainly divided into four parts. First, we placed a single N. benthamiana into the shelf and pushed the plastic plate to keep the mold closed (Figure 2-2A). Next, we formed a group of three plants and strung them together by threading a flat metal strip across the bottom of the mold (Figure 2-2B). In this case, the fixed flowerpots were inverted into a stainless steel-tank, so that all of the N. benthamiana leaves could be immersed in a suspension of A. tumefaciens (Figure 2-2C). Then, agroinfiltration was carried out in the vacuum infiltration device (Model: DZF-50, Figure 2-2C; Supplementary Figure 2), which was developed by our laboratory (see authors affiliation section) and the Shanghai Wonbio Biotechnology Co., Ltd., Upon starting the device, the vacuum chamber’s pressure dropped to 80 mbar in about 30 s, drawing out the air in the intercellular spaces and allowing the suspension to enter the leaf cells. Finally, the plants were cultured in a dark chamber for 24 h before being brought back to the greenhouse for another 5 days until they were ready to be harvested. The infiltrated leaves were then subjected to the next step of extraction, purification and analysis.

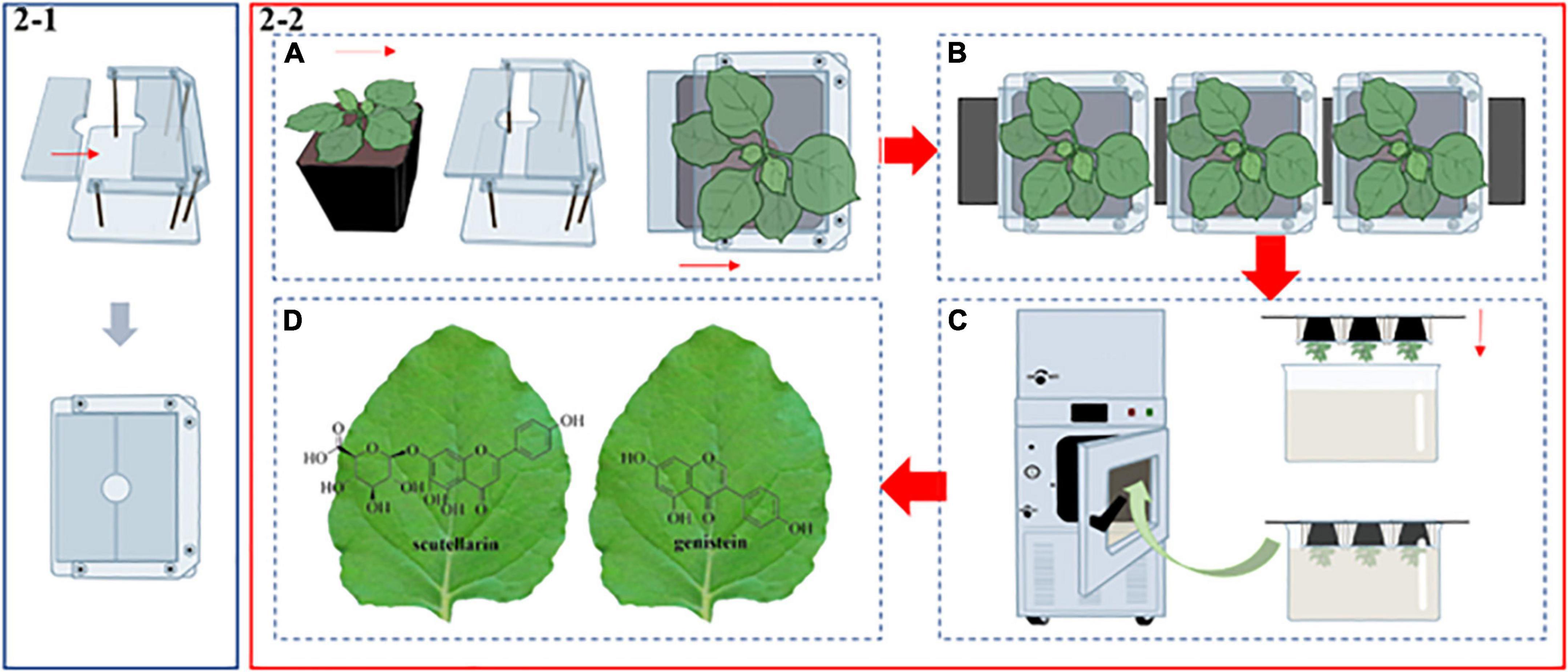

Figure 2. A schematic diagram of the novel E-platform. (2–1) The structure of the transparent cube-mold. (2–2) Vacuum infiltration process. (A) The fabrication process of N. benthamiana. (B) The union of several N. benthamiana. (C) The leaves were inverted into a stainless steel-tank filled with A. tumefaciens suspension. Then, the tank was transferred to the vacuum infiltration device. (D) The infiltrated leaves contain two high-value PNPs.
Color reaction and content determination of flavonoids
The total flavonoids were extracted as described previously, with some modifications (Zhang et al., 2014). Briefly, leaves of N. benthamiana were pulverized after being placed in a freeze-dryer for 48 h. Further, 0.02 g of lyophilized powder were incubated in 60% ethanol (20 mL) for 2 h at 60°C with shaking before being centrifuged at 10,000 g for 10 min at 4°C. The aforementioned procedures were repeated again and the supernatants were combined for color reaction and content determination. In this study, flavonoid content was measured using aluminum nitrate in a colorimetric method. In sodium nitrite solution (alkaline conditions), flavonoids react with aluminum salts to form red-orange chelates (Figure 3C), which exhibit a maximum absorption peak of 510 nm. Rutin was used as the standard in this study, and the results were calculated according to the calibration curve (y = 7.6029X-0.0011, R2 = 0.9998). See Supplementary Table 2 for detailed operation processes. All measurements were performed in triplicate.
Figure 3. Pre-test of the novel E-platform. (A) Schematic diagram of the simple “test unit.” (B) GFP fluorescence of the leaves under blue excitation light (approx. 470 nm). (C) Phenotypes of WT and infiltrated N. benthamiana. (D,E) Color reaction and total flavonoid content determination in WT and infiltrated N. benthamiana. “Transient” represents infiltrated N. benthamiana. The error bars represent the standard deviations from three independent experiments. The asterisks indicate significant differences (*P < 0.05).
Liquid chromatograph-mass spectrometer analysis of flavonoids
The total flavonoid content was extracted according to Liu et al. (2019), with a minor modification. Sample powder (0.05 g FW) was sonicated in 1 mL of 100% methanol for 30 min at room temperature. After centrifugation at 12,000 rpm for 10 min, the sample supernatant was filtered through a 0.22 μm syringe filter (Sartorius, Gottingen, Germany) into an UPLC vial. Target flavonoids were detected using an Acquity UPLC I-class/VION IMS QTOF (Waters Corp., Milford, MA, United States) instrument, equipped with a photodiode array detector (PDA). The separation of the target flavonoids was achieved on a C18 BEH (1.7 μm, 2.1 × 100 mm) column equipped with a C18 BEH (1.7 μm) precolumn (Waters) at 45°C, and the mobile phases consisted of eluent A (0.1% formic acid in Milli-Q water) and eluent B (0.1% formic acid in MeCN, Dingguo Corp., Beijing, China) with a flow rate of 0.4 mL min–1. The procedures were as follows: 5–20% B (0–3 min), 20–100% B (3–10 min), 100% B (10–12 min), 100–95% B (12–15 min), 95% B (15–19 min). Finally, 1 μL of the sample was injected into the liquid chromatograph-mass spectrometer (LC-MS) system and the UV wavelength was set at 254 and 335 nm for the detection of genistein and scutellarin. The mass spectrometric analysis and construction of the standard curve were performed according to Xia et al. (2014).
Results and discussion
Reconstitution of the genistein and scutellarin synthetic pathways in Nicotiana benthamiana
In order to achieve the production of genistein and scutellarin in N. benthamiana, we analyzed the flavonoid metabolic pathway of N. benthamiana through the KEGG database (Kyoto Encyclopedia of Genes and Genomes)1 and designed the biosynthetic modules as shown in Figure 4. Enzymes and intermediates involved in the flavonoid metabolic pathway of N. benthamiana were shown in red and black colors, respectively (Figure 4). Based on our understanding of the genistein biosynthetic pathway in leguminous plants such as soybean and kudzu, we screened two crucial genes (IFS and HID), which have been well identified, characterized and applied (Jung et al., 2000; He et al., 2011; Chu et al., 2014). By overexpressing IFS gene, Zhang et al. (2015) and Shih et al. (2008) obtained tomatoes rich in genistein. However, there were also some contrary results for heterologous expression of IFS. Suntichaikamolkul et al. (2019) cloned IFS from Pueraria mirifica and introduced it into N. benthamiana, which did not produce any isoflavones. Similarly, Shimamura et al. (2007) demonstrated that no isoflavone compounds were accumulated in Lotus Japonicus expressing IFS alone; what’s interesting was that genistein and daidzein accumulated in large amounts when HID was co-expressed. Taken together, the necessity of the HID gene for genistein synthesis is controversial. Nevertheless, our previous study also showed that IFS expression alone did not lead to the production of genistein. The essential role of 2-hydroxyisoflavanone dehydratase (HID) as a determinant of isoflavone productivity was clearly demonstrated by the result that isoflavones were produced only in the presence of HID. One explanation is that 2-hydroxyisoflavanones (produced by IFS catalysis) trigger negative feedback inhibition of IFS, and that inhibition of IFS is removed by the HID rapidly hydrolyzing 2-hydroxyisoflavanones (Shimamura et al., 2007). Therefore, IFS (GmIFS) and HID (GmHID) were added to the isoflavones biosynthetic module (Figure 4, pink box). Scutellarin (breviscapine) is an important flavonoid extracted from Erigeron breviscapus, and the synthetic pathway has been deciphered. Liu et al. (2018) identified two key enzymes (F7GAT and F6H) from E. breviscapus by genomic analysis and completed biological total synthesis of scutellarin for the first time. As shown in Figure 4, although the biosynthetic pathway from L-phenylalanine to naringenin in N. benthamiana has been well characterized, it does not produce scutellarin due to the lack of FNSII, F6H, and F7GAT. As a consequence, we constructed the flavones synthesis pathway in N. benthamiana by introducing these three genes (Figure 4, blue box). Among them, FNSII catalyzes the first step of scutellarin biosynthesis. Subsequently, F7GAT functions together with F6H to produce scutellarin from apigenin. In addition to the introduction of genes necessary for the biosynthesis pathway, recent research has underlined the importance of optimizing precursor supply for the production of secondary metabolites in heterologous hosts. AtMYB12 was found to activate multiple genes of the flavonoid metabolic pathway (Figure 4, red arrow represents partial genes), which provided fluxes for the production of genistein and scutellarin. Besides, Zhang et al. (2015) demonstrated that the key genes (ENO and DAHPS, enolase and 3-deoxy-D-arabinoheptulosonate 7-phosphate synthase) of primary metabolism were significantly activated in AtMYB12-overexpressed tomatoes. Moreover, combined expression of AtMYB12 and stilbene synthase (StSy) in tomato increased the concentration of resveratrol and its derivatives to 5–6 mg g–1 DW, while in tomatoes expressing StSy alone, only small amounts of resveratrol (0.5 mg g–1 DW) were found (Zhang et al., 2015). Similarly, Luo et al. (2008) found a 46-fold and an 83-fold increase in endogenous rutin and kaempferol rutinoside levels, respectively, after introducing AtMYB12 into tobacco. Accordingly, AtMYB12 was also appended to the biosynthetic modules due to its dual role (Figures 1E, 4).

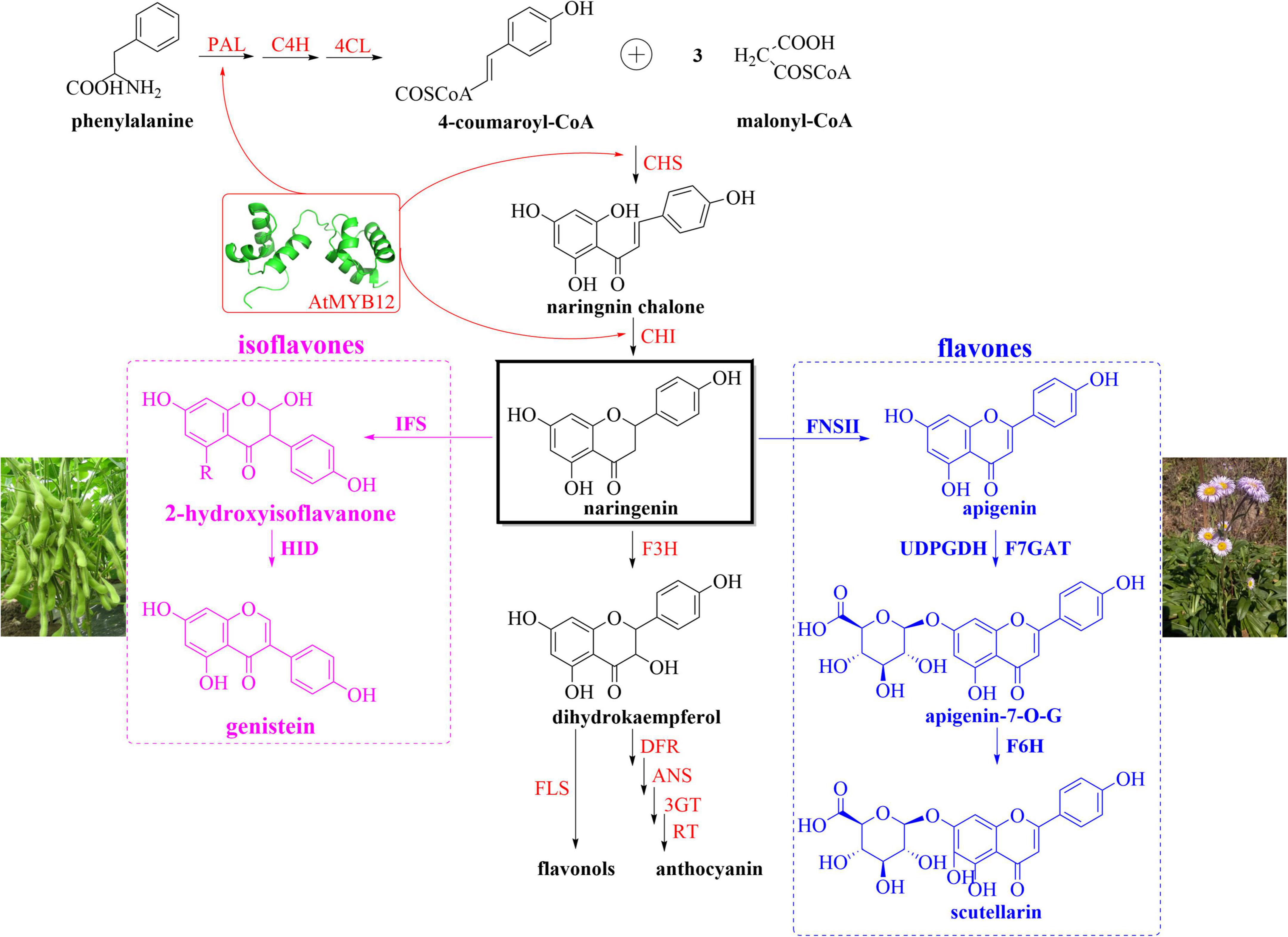

Figure 4. Schematic overview of the genistein and scutellarin biosynthetic pathways in N. benthamiana. A simplified representation of flavonoids biosynthesis in N. benthamiana shows key intermediates (black) and enzymes (red). Naringenin (black box), as a crucial node, enters different metabolic pathways catalyzed by different heterologous enzymes. The enzymes in pink box (isoflavones) and blue box (flavones) are derived from soybean and E. breviscapus, respectively. The red arrow represents partial genes that can be activated by AtMYB12. PAL, phenylalanine ammonia lyase; CoA, coenzyme A; C4H, cinnamate 4-hydroxylase; 4CL, 4-hydroxycinnamoyl CoA ligase; CHS, chalcone synthase; CHI, chalcone isomerase; IFS, isoflavone synthase; HID, hydroxyisoflavanone dehydratase; F3H, flavanone-3-hydroxylase; DFR, dihydroflavonol reductase; ANS, anthocyanidin synthase; RT, rhamnosyl transferase; 3GT, flavonol-3-glucosyltransferase; FLS, flavonol synthase; apigenin-7-O-G, apigenin-7-O-glucuronide; FNSII, flavone synthase II; UDPGDH, UDP-glucose dehydrogenase; F7GAT, flavonoid-7-O-glucuronosyltransferase; F6H, flavone-6-hydroxylase.
General overview of the assembly based on golden gate cloning
GGC provides a precision module-based cloning technique that allows the creation at will and with high efficiency of any eukaryotic multigene construct. In this study, we designed special overhangs to achieve directional assembly of multiple fragments. BsaI recognition sites and specific fusion sites were introduced by primers on both sides of each Level-0 module (Figure 1B and Supplementary Table 3). Additionally, in addition to the use of constitutive CaMV35S-P and NOS-T, we also added the modified 5′-UTR and the 3′-UTR from CPMV RNA2, which dramatically increase protein expression levels (Sainsbury and Lomonossoff, 2008; Liu et al., 2020). In the presence of T4 DNA ligase and BsaI, multiple Level-0 modules were directionally cloned into the destination vectors (Level-1 vectors) (Figure 1C). Furthermore, as shown in Figure 1D, all Level-1 modules contain BpiI recognition sites and special overhangs so that multiple Level-1 vectors containing pathway genes can be directionally integrated into the Level-2 module (pAGM4723). The restriction-ligation was efficient. Engler et al. (2009) achieved 95–100% positive monoclonal results when assembling up to 10 fragments. Based on the GGC, we constructed two independent pathways to produce genistein (Figure 1E, part A) or scutellarin (Figure 1E, part B) in N. benthamiana. Through the assembly of multi-gene pathways, successful heterologous synthesis of PNPs has been accomplished in recent years thanks to the advancement of synthetic biology. Examples include cannabinoids (N. benthamiana) (Gülck et al., 2020), CoQ10 (Solanum lycopersicum) (Fan et al., 2021), nootkatone (Artemisia annua) (Gou et al., 2021), taxa-4(5),11(12)-diene (Physcomitrella patens) (Anterola et al., 2009), etc. These successful studies further strengthened our confidence in the application of the assembly of multi-gene pathways.
Production of plant natural products in the Nicotiana benthamiana E-platform
Over the past decades, tremendous progress has been made in the production of medicinal proteins and PNPs based on green plants. Unlike the microbial chassis, plant-based production systems are attractive, having a number of advantages such as cost-effectiveness, membrane protein expression, coenzyme and precursor supply, product tolerance, metabolic compartmentalization, and sustainable production (Stephenson et al., 2018), providing a unique model system for the synthesis of medicinal proteins and PNPs. Stable and transient expression systems of host plants are the main production modes. However, the stable expression system has a long cycle and low yield. In recent years, as a rapid and efficient production method, the transient expression system has attracted more and more attention of the scholars. Furthermore, transient expression systems of different plant species have been gradually established. For instance, Primula vulgaris (Hayta et al., 2018), Panicum virgatum (Chen et al., 2010), Artemisia annua (Li et al., 2021), and Citrus reticulata (Gong et al., 2021). Compared with these plants, N. benthamiana is one of the most popular hosts and has been recognized by the scientific community as a green and efficient production chassis. N. benthamiana is especially well-suited for the synthesis of plant-based PNPs due to its versatile and effective gene transformation system, high quantities of soluble protein, and substantial biomass (up to 100 t ha–1) (Tremblay et al., 2010). Although the traditional transient expression systems are widely used, some shortcomings of the system are worth discussing. First, the majority of agroinfiltration procedures are artificially injected with syringes, which damage the leaves and prevent normal growth. In severe cases, foreign genes won’t be expressed normally (Supplementary Figures 3B,E). Moreover, manual injection leads to uneven distribution of agrobacterium, which makes it hard to spread to the whole leaf (Supplementary Figure 3D). Furthermore, when handling numerous plant materials, manual injection might waste a lot of time and supplies. Last but not least, some leaves are difficult to inject manually due to their structural properties (e.g., the leaf surface is rich in wax). To address these problems, Osbourn and her team developed a simple vacuum infiltration system (Reed and Osbourn, 2018). On the basis of that system, we improved certain parts. As shown in Figure 2, more leaves can be infiltrated simultaneously by connecting different shelves in tandem in a bigger vacuum chamber. In our study, the device is equipped with two vacuum pumps, which can make the air pressure reach a preset value in a short time. In addition, all parts are controlled by touching the LED “one-touch control” function. We produced two high-value PNPs by combining synthetic biology techniques with this rapid and effective agroinfiltration device (Figure 2-2D). Different from traditional manual injections, the device can automatically complete a large amount of leaf infiltration in a short time, and the post-infiltration leaves are undamaged and filled with agrobacterium. However, automated technologies must be incorporated into the system in order to achieve large-scale industrial production.
The “test unit” verifies the feasibility of the novel E-platform
The synthesis of the target products requires the combination of the multi-gene expression systems and the transformation systems. In order to reduce the time cost caused by the lack of collaboration between the two systems, we designed a simple “test unit” to analyze the feasibility of the novel E-platform from both qualitative and quantitative aspects (Figure 3A). As shown in Figure 3B, N. benthamiana leaves with transient expression of “test unit” showed strong green fluorescence under blue light irradiation, which was not detected in the WT, suggesting that the novel E-platform can produce the functional enzymes for the synthesis of target metabolites. Moreover, several TFs have been shown to promote anthocyanidin (flavonoids) accumulation (e.g., Rosea 1 and Delila, SlMYB75, SlAN2-Like, etc.) (Butelli et al., 2008; Jian et al., 2019). In order to further check whether the two expression cassettes were expressed simultaneously in the E-platform, SlAN2-Like was designed into the “test unit.” Phenotypically, “transient” leaves exhibited an intense purple color compared to WT (Figure 3C). Subsequently, the content of flavonoids was further measured. The results showed a 2.41-fold increase in flavonoids content in the “transient” leaves compared to the WT, which was consistent with the results presented in the color reactions (Figures 3D,E). Taken together, the above results indicate that the two target proteins can function simultaneously, revealing the feasibility of the E-platform. Trial-and-error experiments based on this unit will lay the foundation for subsequent experiments and improve the overall work efficiency. Furthermore, the complexity of synthetic biology research dictates the need to engineer trial-and-error experiments, which is also an integral part of the “design-construct-test-learn” closed-loop system advocated by synthetic biology (Clarke and Kitney, 2016).
Detection of genistein in infiltrated Nicotiana benthamiana plants
Metabolic engineering and synthetic biology offer the technical support for the production of genistein on different platforms. Currently, although the microbial platform is still the predominant route for genistein production owing to its high yield (Liu et al., 2022), microbial fermentation requires a constant supply of nutrients, which significantly increases the economic cost. In order to evaluate the production of genistein in N. benthamiana, infiltrated and wild type (WT) leaves from N. benthamiana were analyzed by UPLC-MS to determine their flavonoid profiles. An authentic genistein standard was detected at a retention time of 6.12 min (Figure 5A). The results of the extracted ion chromatogram (EIC) showed the presence of a characteristic peak in the infiltrated leaf samples when compared to WT leaves (Figures 5B,C), which was consistent with that of the authentic genistein standard. Subsequently, we confirmed that the molecular weight of the compound in the new peak was the same as that of genistein by LC-MS (Figures 5D,E; details of the ionic fragments are shown in Supplementary Figure 5). Taken together, these data supported the production of genistein in N. benthamiana, and the production of genistein via a transient production platform has not been reported previously. Furthermore, the quantitative analysis showed that the approximate content of genistein in infiltrated N. benthamiana was 5.51 nmol g–1 fresh weight (FW), which was higher than that in transgenic petunia leaves (3.4 nmol g–1 FW) and transgenic Arabidopsis leaves (5.4 nmol g–1 FW) (Liu et al., 2007). Even so, the current level of genistein is still unsatisfactory. Shih et al. (2008) obtained significant content of genistein (90 nmol g–1 FW) in leaves by introducing an isoflavone synthesis pathway into S. lycopersicum. And beyond that, researchers also synthesized higher levels of genistein in various plant chassis by blocking competitive metabolic branches and/or transferring additional TFs (e.g., AtMYB12). Liu et al. (2002) introduced GmIFS into Arabidopsis tt6/tt3 double mutants, leading to the accumulation of much greater amounts of genistein (31–169 nmol g–1 FW). Pandey et al. (2014) obtained transgenic tobacco lines by co-expressing AtMYB12 and GmIFS, producing large amounts of genistein in leaves (~219.2 nmol g–1 FW). Notably, the use of AtMYB12 in our study did not enhance the yield of the genistein. Based on the principle of transient protein expression, we speculate that there are two possible reasons for the results. First, the duration of AtMYB12’s presence in tobacco cells is unknown, and even some of the proteins are degraded in just a few days, which greatly reduces the effectiveness of AtMYB12. Therefore, the difference in sampling time may lead to different results. Second, unlike stable expression systems, transient expression systems have difficulty in ensuring that the target protein (AtMYB12) is expressed in all cells, which results in lower protein expression levels than the former. Nevertheless, the stable expression system still has many drawbacks, such as time-consuming, laborious, and inefficient. In the future, we will continue to optimize and improve the E-platform. Industrial-scale plant factories built on this concept have been used for commercial production of vaccines or natural products. The Medicago plant factory has the capacity to produce 10 million doses of pandemic H5N1 vaccine per month (Lomonossoff and D’Aoust, 2016). Based on this, we can manipulate higher production of PNPs in a short time.

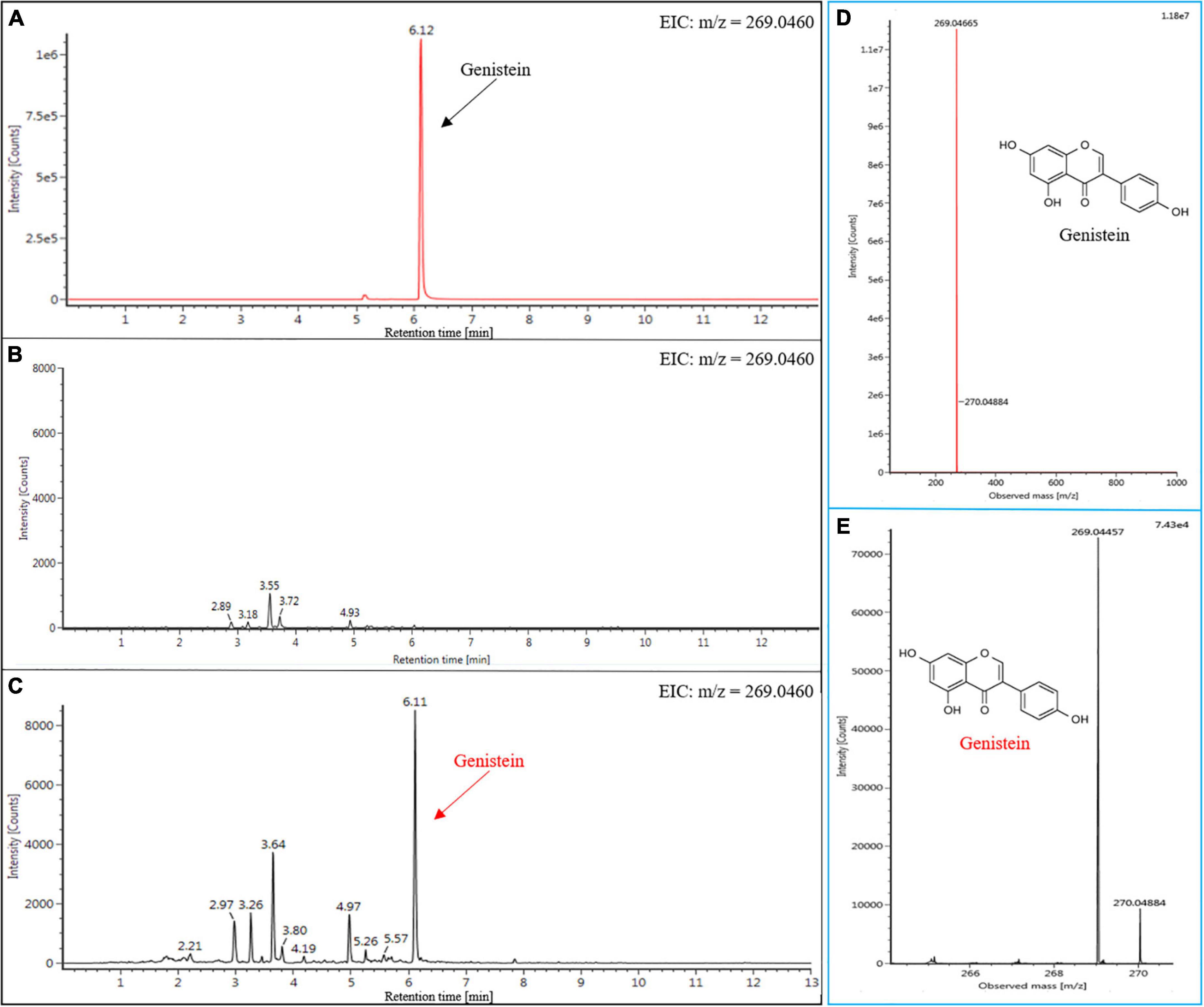

Figure 5. UPLC-MS analysis of genistein in the leaf extracts from infiltrated N. benthamiana (Detection wavelength, 254 nm). The EIC (m/z = 269.0460) of the genistein in the standard sample (A), WT (B), and infiltrated N. benthamiana (C). MS fragmentation patterns of (-)-genistein in the leaves of infiltrated N. benthamiana (E), and it was identical to the genistein standard (D).
Scutellarin production in Nicotiana benthamiana plants
To date, the synthesis of scutellarin has only been reported in yeast (Liu et al., 2018; Wang et al., 2022). Cost-wise, the production of scutellarin through the E-Platform is necessary. In order to assess the scutellarin production in engineered plants of N. benthamiana, we used the same extraction and detection approach as for genistein. As expected, scutellarin was detected in N. benthamiana leaves after infiltration (Figure 6). The EIC profile of the authentic scutellarin sample shows the presence of a distinct peak (4.66 min) (Figure 6A), which was not found in the leaf extracts from the WT (Figure 6B). However, the result of EIC showed that the characteristic peak (4.66 min) of the extracts from the infiltrated leaves was similar to the authentic scutellarin standard (Figure 6C). The identity of scutellarin was also confirmed by comparing the parent ions and daughter ions of the authentic standards with that of the experimental group (Figures 6D,E and Supplementary Figure 5). Subsequently, we established the standard curve to determine the content of scutellarin (Supplementary Figure 4). The yield of scutellarin in the leaves of infiltrated N. benthamiana was 11.35 nmol g–1 FW. Besides this, apigenin-7-O-glucuronide (intermediates) was also detected (data not shown), which is also a kind of bioactive compound that possesses remarkable antioxidant, anti-inflammatory, anticarcinogenic, and antispasmodic properties (Wang et al., 2018). To the best of our knowledge, this is the first report on the heterologous biosynthesis of scutellarin in plants. Only Liu et al. (2018) had previously reported synthesizing scutellarin (108 mg L–1) in engineering yeast using methods from genomic analysis and synthetic biology. Although scutellarin was successfully synthesized in N. benthamiana, its yield was still lower than that of microbial production platforms. The possible reasons for this disparity could be: Firstly, some exogenous proteins may be degraded by the defense system in plant cells, which is also one of the possible reasons why satisfactory yield was not obtained in this study despite the use of AtMYB12. Secondly, the synthesis of target products by plant platforms usually requires substrates present in the plant, which are catalyzed by multiple downstream enzymes at the same time. That’s why the yield of the target products is reduced. In contrast, substrates can be additionally provided in microbial platforms, which is also one of the reasons for the high cost of these platforms. Thirdly, the design route of the target product is relatively independent of the microbial platform, so that the entire metabolic flux can be efficiently utilized. In contrast, the presence of branching enzymes in the plant may break down the metabolic flow and weaken the ability of the plant platform to synthesize the products.

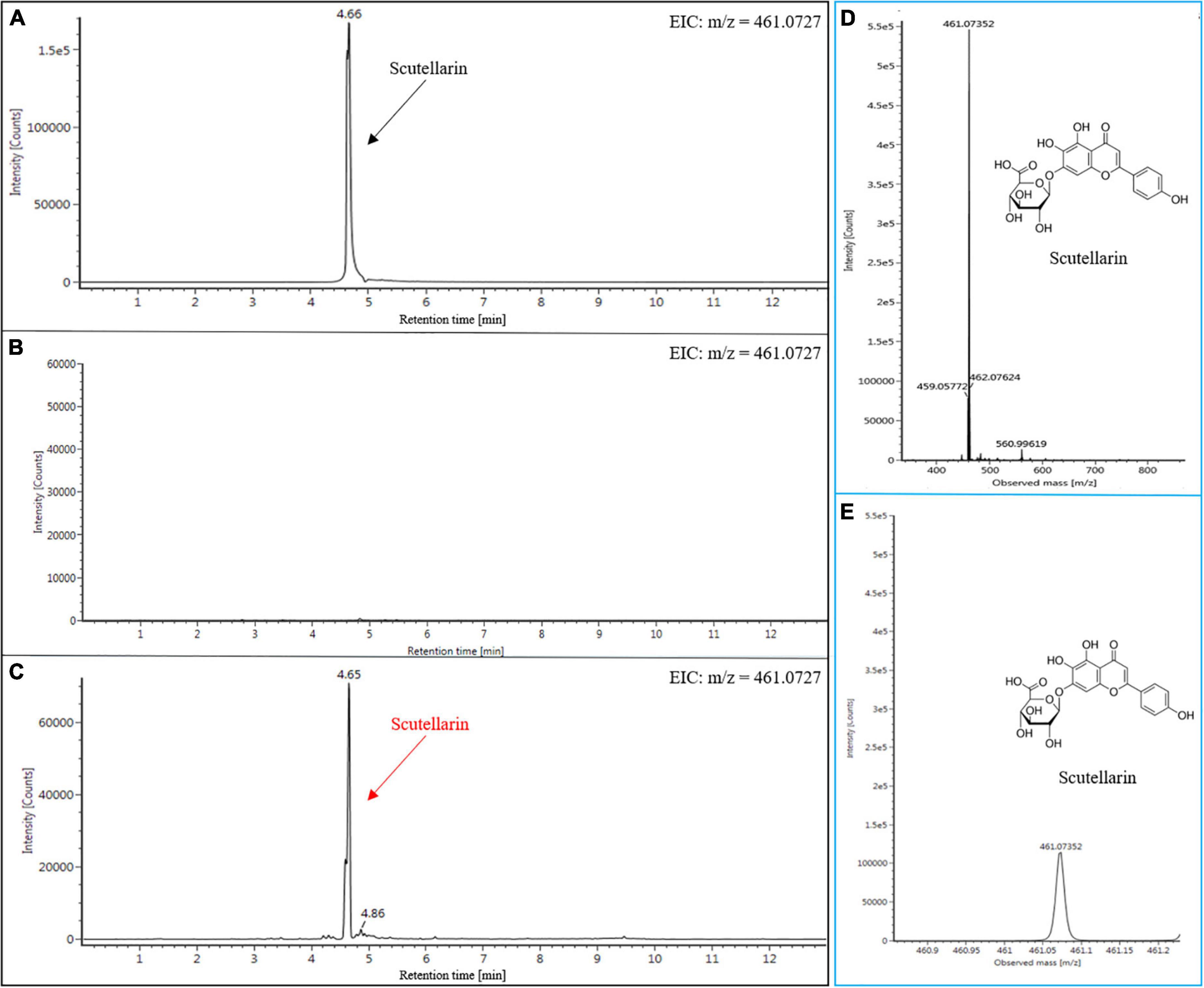

Figure 6. Heterologous production of scutellarin in N. benthamiana tissues. EIC (m/z = 461.0727) of scutellarin in standard (A), WT (B), and infiltrated N. benthamiana tissues (C). MS fragmentation patterns of (-)-scutellarin standard (D). MS fragmentation patterns of (-)-scutellarin in N. benthamiana infiltrated tissues (E).
Our work provided a rapid, efficient, and alternative production platform for scutellarin, which can also be applied to the “green production” of other PNPs with high value and low abundance (especially in plants). Furthermore, based on the concept of “smart agriculture” and combined with AI technology, the whole production process will be fully automated. In the future, large-scale transient production platforms will exert greater advantages to contribute to sustainable agricultural development.
Conclusion
In this study, genistein and scutellarin were produced rapidly and efficiently using the E-platform. Unlike microbial production systems, this novel E-platform requires only sunlight, H2O, and CO2 to produce the desired products without additional nutrient feeding. Uniquely, this is the first report on the synthesis of scutellarin in a heterologous plant. This work not only demonstrates the power and potential of this novel E-platform, but also provides a reference for the large-scale industrial production of high-value PNPs.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.
Author contributions
KT conceived and supervised the project. KT and XY generated the ideas and performed the experiments. BP designed the device. LL and XY wrote the manuscript. TC, KW, YZ, HL, and XF analyzed the results. All authors revised the results and approved the final manuscript.
Funding
This work was supported by grants from the National Key R&D Program of China (2018YFA0900600), the Bill & Melinda Gates Foundation (OPP1199872 and INV-027291), and the SJTU Trans-med Awards Research (20190104).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.994792/full#supplementary-material
Abbreviations
PNPs, plant natural products; CPMV, Cowpea mosaic virus; TFs, transcription factors; UTR, untranslated region; ORF, open reading frame; WT, wild type; LB, Luria-Bertani; KEGG, Kyoto Encyclopedia of Genes and Genomes; LC-MS/MS, liquid chromatography with tandem mass spectrometry; GGC, Golden Gate cloning; AI, artificial intelligence; RS, remote sensing; MeCN, methyl cyanide; DW, dry weight; FW, fresh weight; EIC, extracted ion chromatogram; RPM, revolutions per minute; NOS-T, nopaline synthase terminator; CaMV35S-P, Cauliflower mosaic virus 35S promoter.
Footnotes
References
Anterola, A., Shanle, E., Perroud, P. F., and Quatrano, R. (2009). Production of taxa-4(5),11(12)-diene by transgenic Physcomitrella patens. Trans. Res. 18, 655–660. doi: 10.1007/s11248-009-9252-5
Birchfield, A. S., and McIntosh, C. A. (2020). Metabolic engineering and synthetic biology of plant natural products - A minireview. Curr. Plant Biol. 24:100163. doi: 10.1016/j.cpb.2020.100163
Butelli, E., Titta, L., Giorgio, M., Mock, H. P., Matros, A., Peterek, S., et al. (2008). Enrichment of tomato fruit with health-promoting anthocyanins by expression of select transcription factors. Nat. Biotechnol. 26, 1301–1308. doi: 10.1038/nbt.1506
Chang, H. P., Hui, X., Yeo, H. J., Ye, E. P., and Sang, U. P. (2021). Enhancement of the flavone contents of Scutellaria baicalensis hairy roots via metabolic engineering using maize Lc and Arabidopsis PAP1 transcription factors. Metab. Eng. 64, 64–73. doi: 10.1016/j.ymben.2021.01.003
Chen, X., Equi, R., Baxter, H., Berk, K., and Zale, J. (2010). A high-throughput transient gene expression system for switchgrass (Panicum virgatum L.) seedlings. Biotechnol. Biofuels 3:9. doi: 10.1186/1754-6834-3-9
Chu, S., Wang, J., Cheng, H., Yang, Q., and Yu, D. Y. (2014). Evolutionary study of the isoflavonoid pathway based on multiple copies analysis in soybean. BMC Genet. 15:76. doi: 10.1186/1471-2156-15-76
Clarke, L. J., and Kitney, R. I. (2016). Synthetic biology in the UK - An outline of plans and progress. Syn. Syst. Biotechnol. 1, 243–257. doi: 10.1016/j.synbio.2016.09.003
Cotterchio, M., Boucher, B., Manno, M., and Gallinger, S. (2007). Dietary phytoestrogen intake is associated with reduced colorectal cancer risk. J. Nutr. 136, 3046–3053. doi: 10.1093/jn/136.12.3046
Eldridge, A. C., and Kwolek, W. F. (1983). Soybean isoflavones: effect of environment and variety on composition. J. Agric. Food Chem. 31, 394–396. doi: 10.1021/jf00116a052
Engler, C., Gruetzner, R., Kandzia, R., and Marillonnet, S. (2009). Golden gate shuffling: a one-pot DNA shuffling method based on type IIs restriction enzymes. PLoS One 4:e5553. doi: 10.1371/journal.pone.0005553
Enterina, J. R., Wu, L., and Campbell, R. E. (2015). Emerging fluorescent protein technologies. Curr. Opin. Chem. Biol. 27, 10–17. doi: 10.1016/j.cbpa.2015.05.001
Fan, H., Liu, Y., Li, C. Y., Jiang, Y., Song, J. J., Yang, L., et al. (2021). Engineering high coenzyme Q10 tomato. Metab. Eng. 68, 86–93. doi: 10.1016/j.ymben.2021.09.007
Gong, J. L., Tian, Z., Qu, X. L., Meng, Q. N., Guan, Y. J., Liu, P., et al. (2021). Illuminating the cells: transient transformation of citrus to study gene functions and organelle activities related to fruit quality. Hortic. Res. 8:175. doi: 10.1038/s41438-021-00611-1
Gou, Y., Zhang, F., Tang, Y., Jiang, C., Bai, G., Xie, H., et al. (2021). Engineering nootkatone biosynthesis in Artemisia annua. ACS Synth. Biol. 10, 957–963. doi: 10.1021/acssynbio.1c00016
Gülck, T., Booth, J. K., Carvalho, Â, Khakimov, B., Crocoll, C., Motawia, M. S., et al. (2020). Synthetic biology of cannabinoids and cannabinoid glucosides in Nicotiana benthamiana and Saccharomyces cerevisiae. J. Nat. Prod. 83, 2877–2893. doi: 10.1021/acs.jnatprod.0c00241
Hayta, S., Smedley, M. A., Li, J., Harwood, W. A., and Gilmartin, P. M. (2018). Agrobacterium-mediated transformation systems of Primula vulgaris. Plant Methods 14:93. doi: 10.1186/s13007-018-0360-1
He, X. Z., Blount, J. W., Ge, S., Tang, Y. H., and Dixon, R. A. (2011). A genomic approach to isoflavone biosynthesis in kudzu (Pueraria lobata). Planta 233, 843–855. doi: 10.1007/s00425-010-1344-1
Horinouchi, S. (2009). Combinatorial biosynthesis of plant medicinal polyketides by microorganisms. Curr. Opin. Chem. Biol. 13, 197–204. doi: 10.1016/j.cbpa.2009.02.004
Horsch, R. B., Fry, J. E., Hoffmann, N. L., Wallroth, M., Eichholtz, D., Rogers, S. G., et al. (1985). A simple and general method for transferring genes into plants. Science 227, 1229–1231. doi: 10.1126/science.227.4691.1229
Jian, W., Cao, H., Yuan, S., Liu, Y., Lu, J., Lu, W., et al. (2019). SlMYB75, an MYB-type transcription factor, promotes anthocyanin accumulation and enhances volatile aroma production in tomato fruits. Hortic. Res. 6:22. doi: 10.1038/s41438-018-0098-y
Jung, W., Yu, O., Lau, S. M. C., O’Keefe, D. P., Odell, J., Fader, G., et al. (2000). Identification and expression of isoflavone synthase, the key enzyme for biosynthesis of isoflavones in legumes. Nat. Biotechnol. 18, 208–212. doi: 10.1038/72671
Li, X., Song, K., Yang, J., and Yi, T. (2011). Isolation and characterization of 11 new microsatellite loci in Erigeron breviscapus (Asteraceae), an important Chinese traditional herb. Int. J. Mol. Sci. 12, 7265–7270. doi: 10.3390/ijms12107265
Li, Y. P., Chen, T. T., Wang, W., Liu, H., Yan, X., Wu-Zhang, K. Y., et al. (2021). A high-efficiency Agrobacterium-mediated transient expression system in the leaves of Artemisia annua L. Plant Methods 17:106. doi: 10.1186/s13007-021-00807-5
Liu, C. J., Blount, J. W., Steele, C. L., and Dixon, R. A. (2002). Bottlenecks for metabolic engineering of isoflavone glycoconjugates in Arabidopsis. Proc. Natl. Acad. Sci. U.S.A. 99, 14578–14583. doi: 10.1073/pnas.212522099
Liu, H., Tang, X. Q., Wang, Y., Tang, R., Yang, X. L., Fu, X. D., et al. (2010). Effects of scutellarin on rat cerebral blood flow determined by laser speckle imagine system. Chin. J. Hosp. Pharm. 30, 719–722.
Liu, R., Hu, Y., Li, J., and Lin, Z. (2007). Production of soybean isoflavone genistein in non-legume plants via genetically modified secondary metabolism pathway. Metab. Eng. 9, 1–7. doi: 10.1016/j.ymben.2006.08.003
Liu, W., Wang, Y., Yu, L., Jiang, H., Guo, Z., Xu, H., et al. (2019). MdWRKY11 participates in anthocyanin accumulation in red-fleshed apples by affecting MYB transcription factors and the photoresponse factor MdHY5. J. Agric. Food. Chem. 67, 8783–8793. doi: 10.1021/acs.jafc.9b02920
Liu, X., Li, L., and Zhao, G. R. (2022). Systems metabolic engineering of Escherichia coli coculture for de novo production of genistein. ACS Synth. Biol. 11, 1746–1757. doi: 10.1021/acssynbio.1c00590
Liu, X. N., Cheng, J., Zhang, G. H., Ding, W. T., Duan, L. J., Yang, J., et al. (2018). Engineering yeast for the production of breviscapine by genomic analysis and synthetic biology approaches. Nat. Commun. 9:448. doi: 10.1038/s41467-018-02883-z
Liu, Z., Cheema, J., Vigouroux, M., Hill, L., Reed, J., Paajanen, P., et al. (2020). Formation and diversification of a paradigm biosynthetic gene cluster in plants. Nat. Commun. 11:5354. doi: 10.1038/s41467-020-19153-6
Lomonossoff, G. P., and D’Aoust, M. A. (2016). Plant-produced biopharmaceuticals: a case of technical developments driving clinical deployment. Science 353, 1237–1240. doi: 10.1126/science.aaf6638
Luo, J., Butelli, E., Hill, L., Parr, A., Niggeweg, R., Bailey, P., et al. (2008). AtMYB12 regulates caffeoyl quinic acid and flavonol synthesis in tomato: expression in fruit results in very high levels of both types of polyphenol. Plant J. 56, 316–326. doi: 10.1111/j.1365-313X.2008.03597.x
Marco, A., Herbert, M., Letteria, M., Francesca, P., Alessandra, B., Domenica, A., et al. (2007). Effects of the phytoestrogen genistein on some predictors of cardiovascular risk in osteopenic, postmenopausal women: a two-year randomized, double-blind, placebo-controlled study. J. Clin. Endocrinol. Metab. 92, 3068–3075. doi: 10.1210/jc.2006-2295
Marini, H., Minutoli, L., Polito, F., Bitto, A., Altavilla, D., Atteritano, M., et al. (2007). Effects of the phytoestrogen genistein on bone metabolism in osteopenic postmenopausal women: a randomized trial. Ann. Intern. Med. 146, 839–847. doi: 10.7326/0003-4819-146-12-200706190-00005
Nestel, P. J., Pomeroy, S., Kay, S., Komesaroff, P., Behrsing, J., Cameron, J. D., et al. (1999). Isoflavones from red clover improve systemic arterial compliance but not plasma lipids in menopausal women. J. Clin. Endocrinol. Metab. 84, 895–898. doi: 10.1210/jcem.84.3.5561
Pandey, A., Misra, P., Khan, M. P., Swarnkar, G., Tewari, M. C., Bhambhani, S., et al. (2014). Co-expression of Arabidopsis transcription factor, AtMYB12, and soybean isoflavone synthase, GmIFS1, genes in tobacco leads to enhanced biosynthesis of isoflavones and flavonols resulting in osteoprotective activity. Plant Biotechnol. J. 12, 69–80. doi: 10.1111/pbi.12118
Prince, M. J., Wu, F., Guo, Y., Robledo, L. M. G., O’Donnell, M., Sullivan, R., et al. (2015). The burden of disease in older people and implications for health policy and practice. Lancet 385, 549–562. doi: 10.1016/S0140-6736(14)61347-7
Reed, J., and Osbourn, A. (2018). Engineering terpenoid production through transient expression in Nicotiana benthamiana. Plant Cell Rep. 37, 1431–1441. doi: 10.1007/s00299-018-2296-3
Reed, J., Stephenson, M. J., Miettinen, K., Brouwer, B., Leveau, A., Brett, P., et al. (2017). A translational synthetic biology platform for rapid access to gram-scale quantities of novel drug-like molecules. Metab. Eng. 42, 185–193. doi: 10.1016/j.ymben.2017.06.012
Sainsbury, F., and Lomonossoff, G. P. (2008). Extremely high-level and rapid transient protein production in plants without the use of viral replication. Plant Physiol. 148, 1212–1218. doi: 10.1104/pp.108.126284
Saxena, M., Saxena, J., Nema, R., Singh, D., and Gupta, A. (2013). Phytochemistry of medicinal plants. J. Pharmacogn. Phytochem. 1, 168–182.
Shao, J., Li, J., Wang, K., and Wang, Y. (2017). Plant chassis: new hotspots of natural product synthetic biology. Chin. J. Bioproc. Eng. 15, 24–31. doi: 10.3969/j.issn.1672-3678.2017.05.003
Shih, C. H., Chen, Y., Wang, M., Chu, I. K., and Lo, C. (2008). Accumulation of isoflavone genistin in transgenic tomato plants overexpressing a soybean isoflavone synthase gene. J. Agric. Food Chem. 56, 5655–5661. doi: 10.1021/jf800423u
Shimamura, M., Akashi, T., Sakurai, N., Suzuki, H., Saito, K., Shibata, D., et al. (2007). 2-Hydroxyisoflavanone dehydratase is a critical determinant of isoflavone productivity in hairy root cultures of Lotus japonicus. Plant Cell Physiol. 48, 1652–1657. doi: 10.1093/pcp/pcm125
Stephenson, M. J., James, R., Bastiaan, B., and Anne, O. (2018). Transient expression in Nicotiana benthamiana leaves for triterpene production at a preparative scale. J. Vis. Exp. 138:e58169. doi: 10.3791/58169
Sun, C., Deng, L., Du, M., Zhao, J., Chen, Q., Huang, T., et al. (2020). A transcriptional network promotes anthocyanin biosynthesis in tomato flesh. Mol. Plant 13, 42–58. doi: 10.1016/j.molp.2019.10.010
Suntichaikamolkul, N., Tantisuwanichkul, K., Prombutara, P., Kobtrakul, K., and Sirikantaramas, S. (2019). Transcriptome analysis of Pueraria candollei var. mirifica for gene discovery in the biosyntheses of isoflavones and miroestrol. BMC Plant Biol. 19:581. doi: 10.1186/s12870-019-2205-0
Tremblay, R., Wang, D., Jevnikar, A. M., and Ma, S. (2010). Tobacco, a highly efficient green bioreactor for production of therapeutic proteins. Biotechnol. Adv. 28, 214–221. doi: 10.1016/j.biotechadv.2009.11.008
Van Breemen, R. B., Muchiri, R. N., Bates, T. A., Weinstein, J. B., Leier, H. C., Farley, S., et al. (2022). Cannabinoids block cellular entry of SARS-CoV-2 and the emerging variants. J. Nat. Prod. 85, 176–184. doi: 10.1021/acs.jnatprod.1c00946
Wang, B., Kashkooli, A. B., Sallets, A., Ting, H. M., de Ruijter, N. C., Olofsson, L., et al. (2016). Transient production of artemisinin in Nicotiana benthamiana is boosted by a specific lipid transfer protein from A. annua. Metab. Eng. 38, 159–169. doi: 10.1016/j.ymben.2016.07.004
Wang, L., and Ma, Q. (2018). Clinical benefits and pharmacology of scutellarin: a comprehensive review. Pharmacol. Ther. 190, 105–127. doi: 10.1016/j.pharmthera.2018.05.006
Wang, Y., Liu, X., Chen, B., Liu, W., Guo, Z., Liu, X., et al. (2022). Metabolic engineering of Yarrowia lipolytica for scutellarin production. Syn. Syst. Biotechnol. 7, 958–964. doi: 10.1016/j.synbio.2022.05.009
Wang, Y., Xu, Z., Huang, Y., Wen, X., Wu, Y., Zhao, Y., et al. (2018). Extraction, purification, and hydrolysis behavior of apigenin-7-O-Glucoside from Chrysanthemum morifolium tea. Molecules 23:2933. doi: 10.3390/molecules23112933
Weber, E., Engler, C., Gruetzner, R., Werner, S., and Marillonnet, S. (2011). A modular cloning system for standardized assembly of multigene constructs. PLoS One 6:e16765. doi: 10.1371/journal.pone.0016765
Wood, C. C., Petrie, J. R., Shrestha, P., Mansour, M. P., Nichols, P. D., Green, A. G., et al. (2009). A leaf-based assay using interchangeable design principles to rapidly assemble multistep recombinant pathways. Plant Biotechnol. J. 7, 914–924. doi: 10.1111/j.1467-7652.2009.00453.x
Xia, B., Feng, M., Xu, G., Xu, J., Li, S., Chen, X., et al. (2014). Investigation of the chemical compositions in tobacco of different origins and maturities at harvest by GC-MS and HPLC-PDA-QTOF-MS. J. Agric. Food Chem. 62, 4979–4987. doi: 10.1021/jf5009204
Zeng, S., Tan, L., Sun, Q., Chen, L., Zhao, H., Liu, M., et al. (2022). Suppression of colitis-associated colorectal cancer by scutellarin through inhibiting Hedgehog signaling pathway activity. Phytomedicine 98:153972. doi: 10.1016/j.phymed.2022.153972
Zhang, W., Yang, S. C., Zhang, G. H., and Su, B. (2013). Research on situation and countermeasure of Erigeron breviscapus plant production. Chin. J. Chin. Herbal. Med. 38, 2227–2230. doi: 10.4268/cjcmm20131401
Zhang, Y., Butelli, E., Alseekh, S., Tohge, T., Rallapalli, G., Luo, J., et al. (2015). Multi-level engineering facilitates the production of phenylpropanoid compounds in tomato. Nat. Commun. 6:8635. doi: 10.1038/ncomms9635
