Beibei Qi1,2
Chao Wu2*- 1College of Agriculture, Guangxi University, Nanning, China
- 2Guangxi Key Laboratory of Functional Phytochemicals Research and Utilization, Guangxi Institute of Botany, Guangxi Zhuang Autonomous Region and Chinese Academy of Sciences, Guilin, China
Heat stress during the flowering stage induces declining spikelet fertility in rice plants, which is primarily attributed to poor pollination manifesting as insufficient pollen deposited on the stigma. Plant pollination is associated with anther dehiscence, pollen dispersal characteristics, and stigma morphology. The mechanisms underlying the responses of spikelet fertility to heat stress have been clarified in depth in terms of the morphological and behavioral characteristics of the male reproductive organs in rice. However, the roles of female reproductive organs, especially the stigma, on spikelet fertility under heat conditions are unclear. The present study reviews the superiority of stigma exsertion on pollen receptivity under heat during the flowering stage and discusses the variations in the effects of exserted stigma on alleviating injury under asymmetric heat (high daytime and high nighttime temperatures). The pollination advantages of exserted stigmas seem to be realized more under high nighttime temperatures than under high daytime temperatures. It is speculated that high stigma exsertion is beneficial to spikelet fertility under high nighttime temperatures but detrimental under high daytime temperatures. To cope with global warming, more attention should be given to rice stigma exsertion, which can be manipulated through QTL pyramiding and exogenous hormone application and has application potential to develop heat-tolerant rice varieties or innovate rice heat-resistant cultivation techniques, especially under high nighttime temperatures.
Introduction
Global warming has caused rising surface temperatures and frequent extreme heat events. In the past 50 years, six large-scale extreme heat events have occurred in the middle and lower Yangtze River region (the main rice production area in China) during the midsummer season (Shi and Ye, 2021). Taking 2013 as an example, a heat event recorded a maximum temperature of >35°C for over 10 consecutive days that occurred in parts of Central China from July to August (Li et al., 2015), during which the flowering of midseason rice in the paddy occurs, and the extreme heat caused large-scale spikelet sterility and yield reduction (by 30 to 50% in some areas) (Guo et al., 2018). Notably, global warming shows the characteristics of asymmetric warming, with a higher temperature increase during the nighttime than during the daytime (Jiang et al., 2020). An analysis of historical data showed that rice grain yields have decreased by 10% for every 1°C increase in the minimum temperature at night (Peng et al., 2004). High nighttime temperature is thus regarded as an invisible natural disaster and has attracted great attention. Heat events have become the main agrometeorological disaster affecting rice production worldwide (Impa et al., 2021; Xu J. et al., 2021).
Previously, the effects of high temperatures on rice have mainly focused on high daytime temperatures during the reproductive stage (Fahad et al., 2017; Wu et al., 2019a). Unless otherwise specified, the “heat stress/treatment” mentioned in the present paper includes high daytime temperatures. Heat-induced reductions in spikelet fertility are attributed to the disturbance of the processes involved in pollination and fertilization (Matsui et al., 2021; Wang et al., 2021). Poor pollination manifests as insufficient pollen grains deposited on the stigma due to inhibited anther dehiscence and is the primary obstacle for reduced spikelet fertility induced by asymmetric heat (high daytime and high nighttime temperatures) (Song and Wu, 2020; Wu et al., 2020). Plant pollination refers to the process in which pollen is released from the anther and deposited on the stigmas. The mechanisms of heat effects on rice pollination and spikelet fertility have been investigated in terms of the response characteristics of male reproductive organs such as anthers and pollen (Fahad et al., 2018; Matsui et al., 2021). Even though the stigma is the receiver of pollen grains and the pollen germination site, the roles of female reproductive organs on pollination and spikelet fertility under heat have rarely been studied (Wu et al., 2019b; Xu Y. et al., 2021).
Stigma exsertion, which is a key determinant of the rice mating system among the stigma morphological indices, greatly contributes to pollination and has been widely utilized in hybrid rice seed production due to its pollination advantages (Tien et al., 2013). However, the effect of stigma exsertion on the pollination and spikelet fertility of rice under heat remains poorly understood (Wu et al., 2019a). The causes of the differences in rice varieties in response to high daytime and nighttime temperatures and the underlying mechanisms have long attracted the attention of investigators worldwide (Impa et al., 2021; Xu Y. et al., 2021); however, despite a focus on the detrimental effects of heat stress on rice, little progress has been made in this regard (Wu et al., 2019b). It is unclear (i) whether the advantages of pollination in exserted stigmas can compensate for an insufficient stigma pollen count induced by heat and mitigate heat injury on rice spikelet fertility during the flowering stage and (ii) whether the effects of stigma exsertion on spikelet fertility are different between high daytime temperature and high nighttime temperature given the possibility that the pollination advantages of exserted stigmas may be different during these exposures.
In the present review, the benefits of exserted stigma on pollen receptivity under heat stress during the flowering stage are analyzed, the different effects of exserted stigma on the alleviation of heat injury under asymmetric heat are discussed, and the possible underpinning mechanisms are also explored. Based on previous findings, some further thoughts on the future direction of rice cultivation and breeding for heat resistance/tolerance in terms of stigma exsertion are proposed, which will help provide new clues for overcoming pollination barriers and exploring the mechanisms of reduced spikelet fertility induced by asymmetric heat during the flowering stage in rice.
The pollination barrier is the key issue in reduced spikelet fertility under heat stress
Spikelet fertility of rice is associated with pollination and fertilization, which include four main stages: (i) anther dehiscence, which proceeds through the sequential processes of thickening of the inner wall of the locule, swelling of pollen grains by water absorption, rupturing of the septum, and dehydration and cracking of the stomium (Hong et al., 2022); (ii) pollen dispersal, through which pollen grains are released from the anther pores (Fahad et al., 2015), with the amount of pollen grains released depending on the size and shape of the anther pores and the viscosity of the pollen grains (Santiago and Sharkey, 2019); (iii) pollen transport, in which pollen grains are dispersed and deposited onto the stigmas, and the pollen counts on the stigma depend on the distance and the relative positions between anther pores and the stigma (Liu S. J. et al., 2015), as well as the microclimate of the canopy (Yoshimoto et al., 2020); and (iv) pollen germination, pollen tube elongation, and embryo sac fertilization (Matsui et al., 2021).
To varying degrees, heat stress during the flowering stage inhibits anther dehiscence, hinders the timely dispersal of pollen grains, decreases the number of pollen grains deposited on stigmas, inhibits pollen germination (Wu et al., 2019a), impedes pollen tube elongation on the stigma, and reduces embryo sac fertilization (Shi et al., 2018), ultimately leading to reduced spikelet fertility. Notably, the insufficient pollen grains deposited on the stigma caused by unsmooth pollen shedding is the primary reason why heat stress reduces spikelet fertility in rice during the flowering stage (Matsui et al., 1997). To ensure successful pollination and fertilization under natural conditions, there should be more than 10 germinated pollen grains on a stigma, requiring the deposition of more than 20 pollen grains on the stigma (Sawada, 1974; Matsui, 2005). However, pollen germination is reduced by heat, so even greater pollen counts are required on the stigma to ensure the necessary number of germinated pollen grains under heat conditions. Therefore, increasing the number of pollen grains deposited on stigmas is essential for coping with the reduced spikelet fertility induced by heat during the flowering stage.
As the initial step of pollination, anther dehiscence is highly susceptible to heat stress and thus was suggested to be a selective marker for screening heat tolerance (Kobayashi et al., 2011). The well-known heat-tolerant rice genotype Nagina 22 exhibits good anther dehiscence characteristics (Wu et al., 2019a), which is the main reason for its ability to maintain stable spikelet fertility under heat stress during the flowering stage (Cheabu et al., 2018). The physiological mechanisms underlying the heat effects on anther dehiscence during the flowering stage have been extensively investigated, and the main findings have been that (i) heat stress induces abnormalities in the inner wall of the theca, septum, and stomium tissue (Matsui and Omasa, 2002); (ii) heat stress affects osmotic adjustment substances, such as sucrose, silicon, potassium, and calcium ions, which disrupt water metabolism and finally disturb the water absorption and dehydration of anthers (Yan et al., 2002; Firon et al., 2006); and (iii) heat stress affects anther dehiscence through phytohormonal regulation (Sakata et al., 2010). In practice, the screened heat tolerance indices involving anthers, i.e., a high percentage of dehisced thecae, long dehiscence at the base of the thecae, and uniform anther dehiscence (Matsui, 2005), are used to develop and screen ideal rice genotypes of heat tolerance. The proposed cultivation techniques, such as the application of silicon (Wu et al., 2014), exogenous indoleacetic acid (Sakata et al., 2010), and plant growth regulators (Fahad et al., 2016a), and intensified pollination and fertilization measures (Wu et al., 2020), which aim at relieving the heat injury on anther dehiscence and pollen shedding, help mitigate the heat injury on spikelet fertility during the flowering stage.
To summarize, the pollination barrier due to insufficient pollen shedding onto the stigma is the key issue underlying low spikelet fertility under heat stress during the flowering stage. Previously, the causes of heat effects on pollination and spikelet fertility in rice and the underlying mechanisms have been explored in depth in terms of anther dehiscence, based on which countermeasures have been proposed. However, given that the stigma serves as the receiver of pollen and the site of pollen germination, the effect of the morphological characteristics of the stigma on pollination and spikelet fertility under heat stress during the flowering stage is less considered.
The pollination advantages of exserted stigmas
Among the morphological and physiological characteristics of the stigma, stigma exsertion and stigma receptivity (vitality) play the most important roles in rice pollination and fertilization (Yu et al., 2006; Shivrain et al., 2007). Stigma exsertion refers to the phenomenon in which the stigma is exserted outside the palea and the lemma of the spikelet after floret opening in rice plants (Figure 1). It can be categorized into single-stigma exsertion, dual-stigma exsertion, and non-stigma exsertion (hidden stigma), depending on the number of stigmas exserted outside the spikelet (Akhilesh Singh et al., 2015). Spikelets with more exserted stigmas have the advantage of receiving more pollen grains, with the following ranking: spikelet with dual-stigma exsertion > spikelet with single-stigma exsertion > spikelet without exserted stigma (Longkumer and Deka, 2015). In hybrid rice seed production, cytoplasmic male-sterile rice lines with a high percentage of stigma exsertion are preferred to increase seed production by increasing the outcrossing rate due to the superiority of pollen receptivity of the exserted stigmas (Yan et al., 2009).
Figure 1. Illustration of stigma exsertion in rice [adapted from Yan et al. (2009) and Zhou et al. (2017) with some modifications].
The pollination advantages of the exserted stigmas are manifested as follows. (i) Stigma exsertion enlarges the spatial basis of pollination. The exserted stigmas show a high degree of expansion (Figure 2) and a larger area for pollen receipt (Farrell et al., 2006; Molano-Flores and Faivre, 2014). (ii) Stigma exsertion prolongs the pollination period. The exserted stigma breaks through the physical barrier of the lemma and palea because it can capture pollen grains released at any time after flowering regardless of the non-synchronous flowering induced by heat during the flowering stage (Figure 2). (iii) Stigma exsertion may facilitate pollen germination by benefitting from the pollen population effect, which could be induced by increasing pollen density on the exserted stigma (Boavida and Mccormick, 2007; Zhang et al., 2010). In summary, stigma exsertion has the advantage of increasing the pollen counts on the stigma and improving the percentage of pollen germination.
Figure 2. Illustration of the pollination advantage of the exserted stigma.
Stigma receptivity influences the success of pollination in rice under heat conditions. The duration of stigma receptivity can last for 4–7 days in rice; the vitality of the exserted stigma remains normal during the 1–2 days after flowering, and the receptivity begins to decline on the third day and is completely lost on the seventh day after flowering (Xiao et al., 2015). In rice plants, the stigmas are more tolerant of heat than the male reproductive organs (Wu et al., 2019a). Generally, the threshold temperatures for pollen fertility, anther dehiscence, and stigma vitality of the rice variety were 35, 37.5, and 41°C, respectively (Figure 3). Similarly, Dupuis and Dumas (1990) observed completely aborted pollen, but receptivity of stigmas was still detected in maize when exposed to high temperature at 40°C. In cowpea, heat stress has relatively little effect on stigma vitality (Warrag and Hall, 1984). We previously observed that the receptivity of exserted stigmas was not significantly affected by heat treatments at 09:30 or 11:30 and did not significantly decrease until 16:00. It should be noted that the receptivity of exserted stigmas was still as high as 78.1% (73.3–82.5%) at 16:00 under heat conditions (Wu et al., 2019a). Evidently, the exserted stigmas of rice plants showed relatively stable vitality, which could give them a pollination advantage under heat stress when temperatures are below 41°C, the threshold temperature for stigma vitality (Figure 3), in either japonica or indica rice.

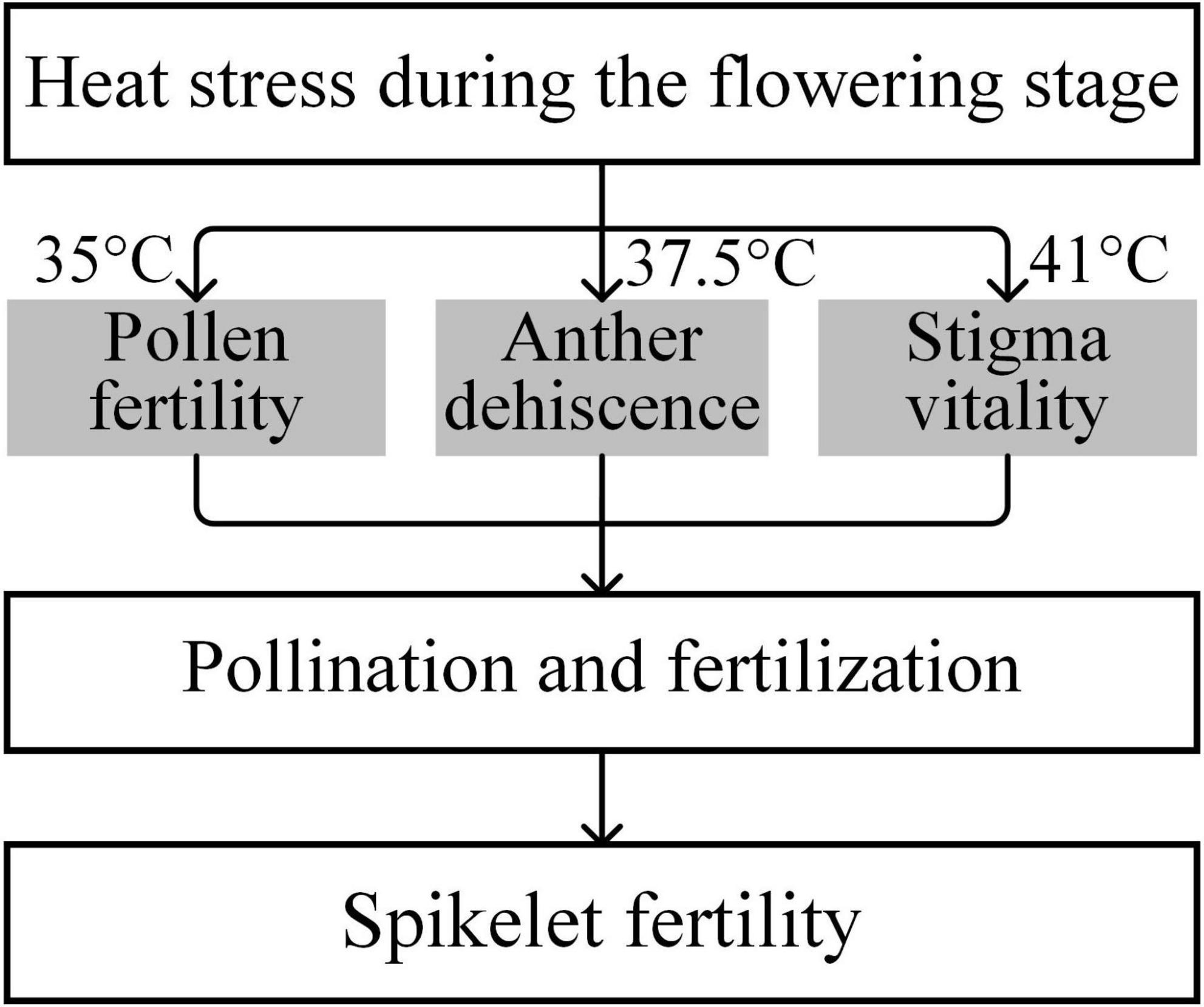

Figure 3. Critical temperatures of heat injury on pollen fertility, anther dehiscence, and stigma vitality (adapted from Wu, 2016).
Potential roles of stigma exsertion on pollination and spikelet fertility under high daytime temperature
High daytime temperature during the flowering stage delayed the dehiscence of anthers; thus, asynchronous anther dehiscence misses the flowering time, resulting in insufficient pollen grains deposited on the stigma. However, we observed that the uncracked anthers induced by heat treatment at flowering time could eventually dehisce and release pollen grains over time. After the lemma and palea have closed, the anthers usually remain outside the lemma and palea, while the stigmas are either exserted outside of or enclosed within the lemma and palea (Figures 1, 2). Under heat conditions, anther dehiscence and pollen dispersal are delayed so that they miss flowering time, the hidden stigmas cannot be pollinated at flowering, and there will never be another pollination opportunity due to the physical separation of the lemma and palea, finally resulting in reduced spikelet fertility in spikelets with hidden stigmas.
However, the exserted stigmas are not restricted to being pollinated by flowering time and can receive pollen grains at any time after flowering (Figure 2), and the delayed pollen dispersal induced by heat stress is no longer a challenge but, on the contrary, provides an opportunity for demonstrating the pollination advantages of exserted stigmas under heat conditions. Thus, the exserted stigma can (i) withstand heat stress and (ii) facilitate pollen germination induced by the pollen population effect under heat conditions during the flowering stage. Therefore, the exserted stigmas have a greater success of pollination than the hidden stigmas under heat conditions (Wu et al., 2019a). It is thought that the pollination advantage of the exserted stigma may help mitigate the adverse effects of heat stress on spikelet fertility at flowering.
The stigma exsertion and heat tolerance vary among rice subspecies (Table 1). The stigma exsertion of indica rice (20%) is higher than that of japonica rice (5.9%), and indica rice varieties are generally more heat-tolerant than japonica rice varieties (Matsui et al., 1997). However, the stigma exsertion of hybrid rice is generally higher than that of conventional rice, but hybrid rice varieties are usually more sensitive to heat stress than conventional rice varieties (Prasad et al., 2006). Therefore, the relationship between stigma exsertion and the heat tolerance of rice varieties is unclear. Previously, the low degree of stigma exsertion was assumed to be associated with high spikelet fertility in rice plants under heat conditions (Wassmann et al., 2008). Recently, a negative correlation between the percentage of stigma exsertion and spikelet fertility in rice genotypes was observed under high daytime temperature treatment (Wu et al., 2019a). In tomato cultivars, stigma exsertion was demonstrated to be unhelpful for screening high fruit set under heat stress (Lohar and Peat, 1998). Heat-induced stigma exsertion led to dyssynchrony of stamen-pistil, thus hindering pollination and resulting in lower fruit set in tomatoes (Pan et al., 2018). Previously, flowering time were reported to be partly associated with heat injury in rice varieties (Ishimaru et al., 2010), however, the dyssynchrony of stamen-pistil due to stigma exsertion under heat condition is independent of flowering time because it can be induced by heat whenever flowering occurs during the day. Taken together, these results suggest that high stigma exsertion may have a negative effect on spikelet fertility under high daytime temperatures, regardless of flowering time. The mechanisms of the effects of stigma exsertion on spikelet fertility in rice under heat stress merit in-depth investigation.

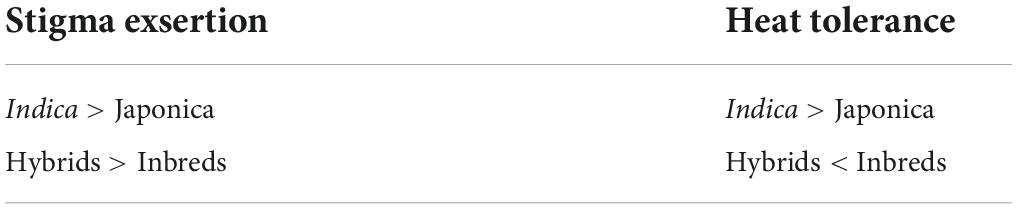

Table 1. The stigma exsertion and heat tolerance of rice subspecies.
Potential roles of stigma exsertion on spikelet fertility under high nighttime temperatures
Global warming has exhibited profound asymmetries, manifesting as a higher temperature increase during the nighttime than during the daytime (Peng et al., 2004). The optimum nighttime temperature for rice growth is 20–25°C (Owen, 1972), and serious spikelet sterility is induced when the nighttime temperature exceeds 30°C during the flowering stage (Jagadish et al., 2015). Although the spikelet fertility of rice responds differently to high daytime and nighttime temperatures (Coast et al., 2015; Song et al., 2021), high nighttime temperatures share the same mechanisms that induce lower spikelet fertility as high daytime temperatures, both of which hinder pollination by inhibiting anther dehiscence and impairing pollen germination (Mohammed and Tarpley, 2009; Fahad et al., 2016b). Therefore, the key issue to alleviating the injury to spikelet fertility caused by high nighttime temperature is still to increase the pollen counts deposited and germinated on the stigmas during the flowering stage.
The temperature during the daytime is the normal control under a high nighttime temperature treatment (Song et al., 2021; Wu et al., 2021), during which the receptivity of exserted stigmas and the pollination and fertilization of rice are almost unaffected by the nighttime temperature (Song, 2020). In cowpea (Vigna unguiculata), high nighttime temperature treatment negligibly impacted stigma receptivity (Warrag and Hall, 1984). Therefore, high nighttime temperature has less of an effect on the pollination advantages of the exserted stigma than high daytime temperature, and the pollination advantages of the exserted stigma can be more readily realized under high nighttime temperature. According to a recent observation, (i) rice genotypes with a higher degree of stigma exsertion couple with relatively higher spikelet fertility under high nighttime temperatures; (ii) increasing stigma exsertion by gibberellin A3 application augments spikelet fertility, and depressing stigma exsertion by paclobutrazol application reduces spikelet fertility, irrespective of the tolerance to heat of rice genotypes (Song, 2020). These observations indicate that high stigma exsertion may be beneficial for obtaining higher spikelet fertility under high nighttime temperatures.
Conclusion and perspectives
An insufficient pollen count on the stigma is the primary factor underlying reduced spikelet fertility caused by heat stress during the flowering stage. Exserted stigmas have certain pollination advantages and can continuously receive pollen released by delayed dehiscent anthers caused by heat stress, thus having the potential to mitigate the injurious effect of heat stress on spikelet fertility. However, the roles of the exserted stigma on spikelet fertility are quite different under asymmetric heat. High stigma exsertion may be positive for obtaining higher spikelet fertility under high nighttime temperatures but may be negative for spikelet fertility under high daytime temperatures. Under heat conditions, particularly high nighttime temperatures, it is more feasible to develop heat-tolerant rice varieties or innovate rice heat-resistant cultivation techniques by modifying stigma exsertion than by restoring anther dehiscence. The great application potential of stigma exsertion is thus emphasized and deserves more attention during the course of combating heat stress under global warming.
Floral organ development can be manipulated by genetic modification (Gong and He, 2014). Stigma exsertion in the rice genotype is controlled by polygenes. To date, many closely linked QTLs controlling stigma exsertion have been identified (Table 2), parts of which have been used in QTL pyramiding for increasing seed production in hybrid rice. Interestingly, overexpression of OsPID can lead to the formation of extra stigmas in rice (He et al., 2019), and the pollination advantage would be amplified with three exogenous stigmas in rice varieties carrying OsPID. In addition, phytohormones significantly regulate stigma exsertion. It has been reported that OsPID regulates stigma exsertion through auxin signaling in rice plants (Xu M. et al., 2019). Gibberellins are required for development of floral organs in high plants (Li et al., 2021). It is common to increase the stigma exsertion of the female parent through gibberellin application to promote seed formation during the course of hybrid rice production (Du and Qi, 2015). Under heat conditions, the percentage of stigma exsertion can be increased by gibberellin A3 and jasmonate application and decreased by paclobutrazol application in rice and tomato plants (Wang et al., 2015; Pan et al., 2018; Wu et al., 2019a; Song, 2020).

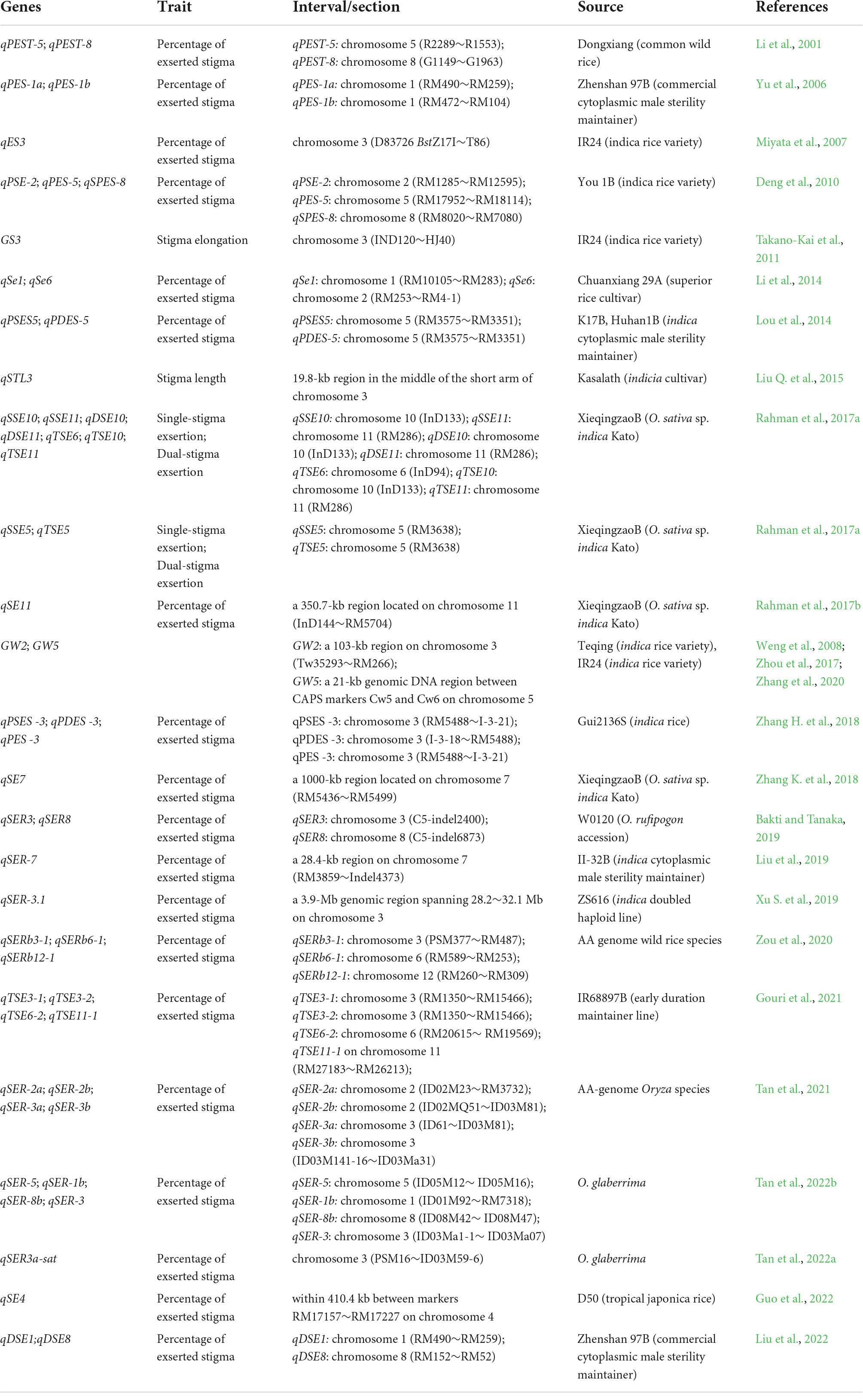

Table 2. Genes controlling stigma exsertion in rice.
Thus, stigma exsertion can be manipulated through molecular engineering approaches and/or the application of exogenous hormones, which have great potential to create heat-tolerant rice varieties. However, the degree of stigma exsertion should be manipulated appropriately to obtain full potential of spikelet fertility under the situation of high temperatures during the whole day because trade-off effects should be considered between high daytime temperature and high nighttime temperature in terms of the pollination advantage of exserted stigmas in rice.
Author contributions
CW performed the experiments. BQ analyzed the data and compiled the figures. BQ and CW wrote the manuscript. CW edited the final manuscript. Both authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Guangxi Natural Science Foundation (Grant No. 2020GXNSFAA297027), the Guilin Innovation Platform and Talent Plan (20210102-3), and the Central Guidance on Local Science and Technology Development Fund (Grant No. ZY21195035).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Akhilesh Singh, K., Kemparaju, K. B., Patil, V., Priyadarshi, R., Koradi, P., Khandekar, D., et al. (2015). Stigma exsertion trait in rice (Oryza Sativa L.) and comparison of two phenotyping methods. Int. J. Curr. Res. 7, 13123–13135.
Bakti, C., and Tanaka, J. (2019). Detection of dominant QTLs for stigma exsertion ratio in rice derived from Oryza rufipogon accession ‘W0120’. Breeding Sci. 69, 143–150. doi: 10.1270/jsbbs.18139
Boavida, L. C., and Mccormick, S. (2007). Temperature as a determinant factor for increased and reproducible in vitro pollen germination in Arabidopsis thaliana. Plant J. 52, 570–582. doi: 10.1111/j.1365-313X.2007.03248.x
Cheabu, S., Moung-Ngam, P., Arikit, S., Vanavichit, A., and Malumpong, C. (2018). Effects of heat stress at vegetative and reproductive stages on spikelet fertility. Rice Sci. 25, 218–226. doi: 10.1016/j.rsci.2018.06.005
Coast, O., Ellis, R. H., Murdoch, A. J., Quinones, C., and Jagadish, K. S. V. (2015). High night temperature induces contrasting responses for spikelet fertility, spikelet tissue temperature, flowering characteristics and grain quality in rice. Funct. Plant Biol. 42, 149–161. doi: 10.1071/FP14104
Deng, Y. D., Ying, J. Z., Shi, Y. Y., Xiao, C. L., and Zhang, H. Q. (2010). Mapping of QTLs for percentage of exserted stigma in rice. J. Hunan Agr. Univ. 36, 373–376. doi: 10.3724/SP.J.1238.2010.00373
Du, X. S., and Qi, H. X. (2015). Progress on the stigma exsertion in rice. Hubei Agr. Sci. 54, 3841–3843. doi: 10.14088/j.cnki.issn0439-8114.2015.16.001
Dupuis, I., and Dumas, C. (1990). Influence of temperature stress on in vitro fertilization and heat shock protein synthesis in maize (Zea mays L.) reproductive tissues. Plant Physiol. 94, 665–670. doi: 10.1104/pp.94.2.665
Fahad, S., Bajwa, A. A., Nazir, U., Anjum, S. A., Farooq, A., Zohaib, A., et al. (2017). Crop production under drought and heat stress: plant responses and management options. Front. Plant Sci. 8:1147. doi: 10.3389/fpls.2017.01147
Fahad, S., Hussain, S., Saud, S., Hassan, S., Ihsan, Z., Shah, A. N., et al. (2016a). Exogenously applied plant growth regulators enhance the morpho-physiological growth and yield of rice under high temperature. Front. Plant Sci. 7:1250. doi: 10.3389/fpls.2016.01250
Fahad, S., Hussain, S., Saud, S., Khan, F., Hassan, S., Amanullah, A., et al. (2016b). Exogenously applied plant growth regulators affect heat-stressed rice pollens. J. Agrono. Crop Sci. 202, 139–150. doi: 10.1111/jac.12148
Fahad, S., Ihsan, M. Z., Khaliq, A., Daur, I., Saud, S., Alzamanan, S., et al. (2018). Consequences of high temperature under changing climate optima for rice pollen characteristics-concepts and perspectives. Arch. Agron. Soil Sci. 64, 1473–1488. doi: 10.1080/03650340.2018.1443213
Fahad, S., Saddam, H., Shah, S., Mohsin, T., Bajwa, A. A., Shah, H., et al. (2015). A biochar application protects rice pollen from high-temperature stress. Plant Physiol. Bioc. 96, 281–287. doi: 10.1016/j.plaphy.2015.08.009
Farrell, T. C., Fox, K. M., Williams, R. L., and Fukai, S. (2006). Genotypic variation for cold tolerance during reproductive development in rice: Screening with cold air and cold water. Field Crops Res. 98, 178–194. doi: 10.1016/j.fcr.2006.01.003
Firon, N., Shaked, R., Peet, M., Pharr, D., Zamski, E., Rosenfeld, K., et al. (2006). Pollen grains of heat tolerant tomato cultivars retain higher carbohydrate concentration under heat stress conditions. Sci. Hortic. 109, 212–217. doi: 10.1016/j.scienta.2006.03.007
Gong, P., and He, C. (2014). Uncovering divergence of rice exon junction complex core heterodimer gene duplication reveals their essential role in growth, development, and reproduction. Plant Physiol. 165, 1047–1061. doi: 10.1104/pp.114.237958
Gouri, S. J., Kemparaju, K., Jayaramulu, K., Sheshu, M. M., Sruthi, K., Suresh, J., et al. (2021). Molecular mapping of quantitative trait loci for stigma exsertion trait in rice (Oryza sativa L.). J. Rice Res. 14, 27–37.
Guo, J., Wang, J., Wu, Y., Xie, X., Shen, S., and Yu, G. (2018). Improvement of model on rice heat injury monitor and assessment by MODIS and meteorology station data. J. Nat. Disasters 27, 163–174. doi: 10.13577/j.jnd.2018.0120
Guo, N., Wang, Y., Chen, W., Tang, S., An, R., Wei, X., et al. (2022). Fine mapping and target gene identification of qSE4, a QTL for stigma exsertion rate in rice (Oryza sativa L.). Front. Plant Sci. 13:959859. doi: 10.3389/fpls.2022.959859
He, Y., Yan, L., Ge, C., Yao, X.-F., Han, X., Wang, R., et al. (2019). PINOID is required for formation of the stigma and style in rice. Plant Physiol. 180, 926–936. doi: 10.1104/pp.18.01389
Hong, W.-J., Lee, S. K., Kim, S.-H., Kim, Y.-J., Moon, S., Kim, E.-J., et al. (2022). Comparative transcriptome analysis of pollen and anther wall reveals novel insights into the regulatory mechanisms underlying anther wall development and its dehiscence in rice. Plant Cell Rep. 41, 1229–1242. doi: 10.1007/s00299-022-02852-3
Impa, S. M., Raju, B., Hein, N. T., Sandhu, J., Prasad, P. V. V., Walia, H., et al. (2021). High night temperature effects on wheat and rice: Current status and way forward. Plant Cell Environ. 44, 2049–2065. doi: 10.1111/pce.14028
Ishimaru, T., Hirabayashi, H., Ida, M., Takai, T., San-Oh, Y. A., Yoshinaga, S., et al. (2010). A genetic resource for early-morning flowering trait of wild rice Oryza officinalis to mitigate high temperature-induced spikelet sterility at anthesis. Ann. Bot. 106, 515–520. doi: 10.1093/aob/mcq124
Jagadish, S. V. K., Murty, M. V. R., and Quick, W. P. (2015). Rice responses to rising temperatures-challenges, perspectives and future directions. Plant Cell Environ. 38, 1686–1698. doi: 10.1111/pce.12430
Jiang, S., Wang, K., and Mao, Y. (2020). Rapid local urbanization around most meteorological stations explain the observed daily asymmetric warming rates across China from 1985 to 2017. J. Climate 33, 9045–9061. doi: 10.1175/JCLI-D-20-0118.1
Kobayashi, K., Matsui, T., Murata, Y., and Yamamoto, M. (2011). Percentage of dehisced thecae and length of dehiscence control pollination stability of rice cultivarsat high temperatures. Plant Prod. Sci. 14, 89–95. doi: 10.1626/pps.14.89
Li, C., Sun, C. Q., Mu, P., Chen, L., and Wang, X. K. (2001). QTL analysis of anther length and ratio of stigma exsertion, two key traits of classification for cultivated rice (Oryza sativa L.) and common wild rice (O. rufipogon Griff.). Acta Genet. Sin. 28, 746–751.
Li, J., Ding, T., Jia, X., and Zhao, X. (2015). Analysis on the extreme heat wave over China around Yangtze River Region in the summer of 2013 and its main contributing factors. Adv. Meteorol. 2015, 706713. doi: 10.1155/2015/706713
Li, P., Feng, F., Zhang, Q., Chao, Y., Gao, G., and He, Y. (2014). Genetic mapping and validation of quantitative trait loci for stigma exsertion rate in rice. Mol. Breed. 34, 2131–2138. doi: 10.1007/s11032-014-0168-2
Li, Q., Li, J., Zhang, L., Pan, C., Yang, N., Sun, K., et al. (2021). Gibberellins are required for dimorphic flower development in Viola philippica. Plant Sci. 303:110749. doi: 10.1016/j.plantsci.2020.110749
Liu, Q., Qin, J., Li, T., Liu, E., Fan, D., Edzesi, W. M., et al. (2015). Fine mapping and candidate gene analysis of qSTL3, a stigma length-conditioning locus in rice (Oryza sativa L.). PLoS One 10:e0127938. doi: 10.1371/journal.pone.0127938
Liu, S. J., Wu, L. Y., and Huang, S. Q. (2015). Shortened anther-stigma distance reduces compatible pollination in two distylous Primula species. J. Plant Ecol. 9, 224–232. doi: 10.1093/jpe/rtv049
Liu, Y., Fu, D., Kong, D., Ma, X., Zhang, A., Wang, F., et al. (2022). Linkage mapping and association analysis to identify a reliable QTL for stigma exsertion rate in rice. Front. Plant Sci. 13:982240. doi: 10.3389/fpls.2022.982240
Liu, Y., Zhang, A., Wang, F., Kong, D., Li, M., Bi, J., et al. (2019). Fine mapping a quantitative trait locus, qSER-7, that controls stigma exsertion rate in rice (Oryza sativa L.). Rice 12:46. doi: 10.1186/s12284-019-0304-z
Lohar, D., and Peat, W. (1998). Floral characteristics of heat-tolerant and heat-sensitive tomato (Lycopersicon esculentum Mill.) cultivars at high temperature. Sci. Hortic. 73, 53–60. doi: 10.1016/S0304-4238(97)00056-3
Longkumer, Y., and Deka, S. D. (2015). The significance of pollen viability and stigma receptivity on seed setting. J. Agroecol. Nat. Resour. Manage. 2, 51–56.
Lou, J., Yue, G. H., Yang, W. Q., Mei, H. W., Luo, L. J., and Lu, H. J. (2014). Mapping QTLs influencing stigma exertion in rice. Bulg. J. Agr. Sci. 20, 1450–1456.
Matsui, T. (2005). Function of long basal dehiscence of the theca in rice (Oryza sativa L.) pollination under hot and humid condition. Phyton 45, 401–407.
Matsui, T., and Omasa, K. (2002). Rice (Oryza sativa L.) cultivars tolerant to high temperature at flowering: anther characteristics. Ann. Bot. 89, 683–687. doi: 10.1093/aob/mcf112
Matsui, T., Kobayasi, K., Yoshimoto, M., Hasegawa, T., Tanaka, T. S., and Tian, X. (2021). Factors determining the occurrence of floret sterility in rice in a hot and low-wind paddy field in Jianghan Basin. China. Field Crops Res. 267:108161. doi: 10.1016/j.fcr.2021.108161
Matsui, T., Omasa, K., and Horie, T. (1997). High temperature-induced spikelet sterility of Japonica rice at flowering in relation to air temperature, humidity and wind velocity conditions. Jpn. J. Crop Sci. 66, 449–455. doi: 10.1626/jcs.66.449
Miyata, M., Yamamoto, T., Komori, T., and Nitta, N. (2007). Marker-assisted selection and evaluation of the QTL for stigma exsertion under japonica rice genetic background. Theor. Appl. Genet. 114, 539–548. doi: 10.1007/s00122-006-0454-4
Mohammed, A. R., and Tarpley, L. (2009). High nighttime temperatures affect rice productivity through altered pollen germination and spikelet fertility. Agr. For. Meteorol. 149, 999–1008. doi: 10.1016/j.agrformet.2008.12.003
Molano-Flores, B., and Faivre, A. E. (2014). Sexual differences in Lobelia spicata populations: floral morphometrics, stigma pollen loads, and pollen tube growth. Plant Spec. Biol. 30, 202–211. doi: 10.1111/1442-1984.12050
Owen, P. C. (1972). Effects of night temperature on growth, development of IR8 rice. Exp. Agr. 8, 213–218. doi: 10.1017/S0014479700005275
Pan, C., Yang, D., Zhao, X., Chen, J., Yan, Y., Tumbeh, L., et al. (2018). Tomato stigma exsertion induced by high temperature is associated with the jasmonate signaling pathway: tomato stigma exsertion, heat stress, jasmonate. Plant Cell Environ. 42, 1205–1221. doi: 10.1111/pce.13444
Peng, S. B., Huang, J. L., Sheehy, J. E., Laza, R. C., Visperas, R. M., Zhong, X. H., et al. (2004). Rice yields decline with higher night temperature from global warming. Proc. Natl. Acad. Sci. U.S.A. 101, 9971–9975. doi: 10.1073/pnas.0403720101
Prasad, P. V. V., Boote, K. J., Allen, L. H., Sheehy, J. E., and Thomas, J. M. G. (2006). Species, ecotype and cultivar differences in spikelet fertility and harvest index of rice in response to high temperature stress. Field Crops Res. 95, 398–411. doi: 10.1016/j.fcr.2005.04.008
Rahman, M. H., Zhang, Y.-X., Sun, L.-P., Zhang, K.-Q., Rahman, M. S., Wu, W.-X., et al. (2017a). Genetic mapping of quantitative trait loci for the stigma exsertion rate in rice (Oryza sativa L.). J. Integr. Agr. 16, 1423–1431. doi: 10.1016/S2095-3119(16)61540-X
Rahman, M. H., Zhang, Y., Zhang, K., Rahman, M. S., Barman, H. N., Riaz, A., et al. (2017b). Genetic dissection of the major quantitative trait locus (qSE11), and its validation as the major influence on the rate of stigma exsertion in rice (Oryza sativa L.). Front. Plant Sci. 8:1818. doi: 10.3389/fpls.2017.01818
Sakata, T., Oshino, T., Miura, S., Tomabechi, M., Tsunaga, Y., Higashitani, N., et al. (2010). Auxins reverse plant male sterility caused by high temperatures. Proc. Natl. Acad. Sci. U.S.A. 107, 8569–8574. doi: 10.1073/pnas.1000869107
Santiago, J. P., and Sharkey, T. D. (2019). Pollen development at high temperature and role of carbon and nitrogen metabolites. Plant Cell Environ. 42, 2759–2775. doi: 10.1111/pce.13576
Sawada, S. (1974). Minimal number of dehiscent anthers and pollen grains on the stigma required for fertilization in rice plants. Res. Bull. Obihiro Univ. 9, 165–171.
Shi, G., and Ye, P. (2021). Assessment on temporal and spatial variation analysis of extreme temperature indices: a case study of the Yangtze River basin. Int. J. Env. Res. Pub. He. 18:10936. doi: 10.3390/ijerph182010936
Shi, W., Li, X., Schmidt, R. C., Struik, P. C., Yin, X., and Jagadish, S. V. K. (2018). Pollen germination and in vivo fertilization in response to high temperature during flowering in hybrid and inbred rice. Plant Cell Environ. 41, 1287–1297. doi: 10.1111/pce.13146
Shivrain, V. K., Burgos, N. R., Anders, M. M., Rajguru, S. N., Moore, J., and Sales, M. A. (2007). Gene flow between Clearfield™ rice and red rice. Crop Prot. 26, 349–356. doi: 10.1016/j.cropro.2005.09.019
Song, Y. (2020). Response of rice yield and spikelet fertility to high temperature in different periods. Master’s thesis. Nanjing: Nanjing Agricultural University.
Song, Y., and Wu, C. (2020). Physiological mechanism of high temperature affecting fertility of rice spikelets: a review. Jiangsu Agr. Sci. 48, 41–48. doi: 10.15889/j.issn.1002-1302.2020.16.007
Song, Y., Wu, C., Li, Z., Tang, S., Li, G., Wang, S., et al. (2021). Differential responses of grain yields to high temperature in different stages of reproductive growth in rice. Chin. J. Rice Sci. 35, 177–186. doi: 10.16819/j.1001-7216.2021.0203
Takano-Kai, N., Doi, K., and Yoshimura, A. (2011). GS3 participates in stigma exsertion as well as seed length in rice. Breeding Sci. 61, 244–250. doi: 10.1270/jsbbs.61.244
Tan, Q., Wang, C., Luan, X., Zheng, L., Ni, Y., Yang, W., et al. (2021). Dissection of closely linked QTLs controlling stigma exsertion rate in rice by substitution mapping. Theor. Appl. Genet. 134, 1253–1262. doi: 10.1007/s00122-021-03771-9
Tan, Q., Zhu, H., Liu, H., Ni, Y., Wu, S., Luan, X., et al. (2022b). Fine mapping of QTLs for stigma exsertion rate from Oryza glaberrima by chromosome segment substitution. Rice Sci. 29, 55–66. doi: 10.1016/j.rsci.2021.12.005
Tan, Q., Bu, S., Chen, G., Yan, Z., Chang, Z., Zhu, H., et al. (2022a). Reconstruction of the high stigma exsertion rate trait in rice by pyramiding multiple QTLs. Front. Plant Sci. 13:921700. doi: 10.3389/fpls.2022.921700
Tien, D. N., Oo, M. M., Soh, M. S., and Park, S. K. (2013). Bioengineering of male sterility in rice (Oryza sativa L.). Plant Breed. Biotechnol. 1, 218–235. doi: 10.9787/PBB.2013.1.3.218
Wang, W., Cui, K., Hu, Q., Wu, C., Li, G., Huang, J., et al. (2021). Response of spikelet water status to high temperature and its relationship with heat tolerance in rice. Crop J. 9, 1344–1356. doi: 10.1016/j.cj.2020.11.010
Wang, Y., Pan, C., Wang, J., Qin, L., Zou, T., Lu, G., et al. (2015). Effects of gibberellin on tomato stigma exsertion and hormone-related gene expression under moderate heat stress. J. Zhejiang Univ. (Agric. & Life Sci.) 41, 449–457. doi: 10.3785/j.issn.1008-9209.2014.12.292
Warrag, M., and Hall, A. (1984). Reproductive responses of cowpea (Vigna unguiculata L. Walp.) to heat stress. II. Responses to night air temperature. Field Crops Res. 8, 17–33. doi: 10.1016/0378-4290(84)90049-2
Wassmann, R., Jagadish, S. V. K., Peng, S. B., Sumfleth, K., Hosen, Y., and Sander, B. O. (2008). “Rice production and global climate change: scope for adaptation and mitigation activities,” in Advanced technologies of rice production for coping with climate change: ‘No regret’ options for adaptation and mitigation and their potential uptake, ed. R. Wassmann (Los Baños, PH: International Rice Research Institute), 67–76.
Weng, J., Gu, S., Wan, X., Gao, H., Guo, T., Su, N., et al. (2008). Isolation and initial characterization of GW5, a major QTL associated with rice grain width and weight. Cell Res. 18, 1199–1209. doi: 10.1038/cr.2008.307
Wu, C. (2016). Effects of high temperature during the reproductive stages on rice yield formation and its phytohormonal basis. Dissertation. Wuhan: Huazhong Agricultural University.
Wu, C. Y., Yao, Y. M., Shao, P., Wang, Y., Wang, Z. W., and Tian, X. H. (2014). Exogenous silicon alleviates spikelet fertility reduction of hybrid rice induced by high temperature under field conditions. Chin. J. Rice Sci. 28, 71–77. doi: 10.3969/j.issn.1001-7216.2014.01.010
Wu, C., Cui, K., Hu, Q., Wang, W., Nie, L., Huang, J., et al. (2019a). Enclosed stigma contributes to higher spikelet fertility for rice (Oryza sativa L.) subjected to heat stress. Crop J. 7, 335–349. doi: 10.1016/j.cj.2018.11.011
Wu, C., Cui, K., Li, Q., Li, L., Wang, W., Hu, Q., et al. (2021). Estimating the yield stability of heat-tolerant rice genotypes under various heat conditions across reproductive stages: a 5-year case study. Sci. Rep. 11, 13604. doi: 10.1038/s41598-021-93079-x
Wu, C., Cui, K., Tang, S., Li, G., Wang, S., Fahad, S., et al. (2020). Intensified pollination and fertilization ameliorate heat injury in rice (Oryza sativa L.) during the flowering stage. Field Crops Res. 252, 107795. doi: 10.1016/j.fcr.2020.107795
Wu, C., Tang, S., Li, G., Wang, S., Fahad, S., and Ding, Y. (2019b). Roles of phytohormone changes in the grain yield of rice plants exposed to heat: a review. PeerJ 7:e7792. doi: 10.7717/peerj.7792
Xiao, R. P., Li, J. Y., Yao, X., Zhang, X. W., Wen, M., and Tang, Y. Q. (2015). Flowering characteristics of Japonica rice male sterile lines adaptive to high temperature and summer drought. Agr. Sci. Technol. 16, 1621–1627. doi: 10.16175/j.cnki.1009-4229.2015.08.014
Xu, J., Misra, G., Sreenivasulu, N., and Henry, A. (2021). What happens at night? Physiological mechanisms related to maintaining grain yield under high night temperature in rice. Plant Cell Environ. 44, 2245–2261. doi: 10.1111/pce.14046
Xu, M., Tang, D., Cheng, X., Zhang, J., Tang, Y., Tao, Q., et al. (2019). OsPINOID regulates stigma and ovule initiation through maintenance of the floral meristem by auxin signaling. Plant Physiol. 180, 952–965. doi: 10.1104/pp.18.01385
Xu, S., Zheng, Y., Liu, Y., Guo, X., Tan, Y., Qian, Q., et al. (2019). Identification of a major quantitative trait locus and its candidate underlying genetic variation for rice stigma exsertion rate. Crop J. 7, 350–359. doi: 10.1016/j.cj.2018.11.006
Xu, Y., Chu, C., and Yao, S. (2021). The impact of high-temperature stress on rice: Challenges and solutions. Crop J. 9, 963–976. doi: 10.1016/j.cj.2021.02.011
Yan, C. L., Wang, J. B., and Li, R. Q. (2002). Effect of heat stress on calcium ultrastructural distribution in pepper anther. Environ. Exp. Bot. 48, 161–168. doi: 10.1016/S0098-8472(02)00021-7
Yan, W. G., Li, Y., Agrama, H. A., Luo, D., Gao, F., Lu, X., et al. (2009). Association mapping of stigma and spikelet characteristics in rice (Oryza sativa L.). Mol. Breed. 24, 277–292. doi: 10.1007/s11032-009-9290-y
Yoshimoto, M., Fukuoka, M., Tsujimoto, Y., Matsui, T., Kobayasi, K., Saito, K., et al. (2020). Canopy micrometeorology monitoring in diverse climates innovatively improves the evaluation heat-induced sterility of rice under climate change. Agr. Forest Meteorol. 318:108911. doi: 10.1016/j.agrformet.2022.108860
Yu, X., Mei, H., Luo, L., Liu, G., Liu, H., Zou, G., et al. (2006). Dissection of additive, epistatic effect and Q×E interaction of quantitative trait loci influencing stigma exsertion under water stress in rice. Acta Genet. Sin. 33, 542–550. doi: 10.1016/S0379-4172(06)60083-8
Zhang, C., Tateishi, N., and Tanabe, K. (2010). Pollen density on the stigma affects endogenous gibberellin metabolism, seed and fruit set, and fruit quality in Pyrus pyrifolia. J. Exp. Bot. 61, 4291–4302. doi: 10.1093/jxb/erq232
Zhang, H., Zhu, Q., Li, G., Zhou, X., and Yuan, S. (2018). QTL analysis of exsertion rate and color of stigma in rice (Oryza sative L.). Shandong Agr. Sci. 50, 19–24. doi: 10.14083/j.issn.1001-4942.2018.10.004
Zhang, H., Zhu, Y. J., Zhu, A. D., Fan, Y. Y., Huang, T. X., Zhang, J. F., et al. (2020). Fine-mapping of qTGW2, a quantitative trait locus for grain weight in rice (Oryza sativa L.). PeerJ 8:e8679. doi: 10.7717/peerj.8679
Zhang, K., Zhang, Y., Wu, W., Zhan, X., Anis, G. B., Rahman, M. H., et al. (2018). qSE7 is a major quantitative trait locus (QTL) influencing stigma exsertion rate in rice (Oryza sativa L.). Sci. Rep. 8:14523. doi: 10.1038/s41598-018-32629-2
Zhou, H., Li, P., Xie, W., Hussain, S., Li, Y., Xia, D., et al. (2017). Genome-wide association analyses reveal the genetic basis of stigma exsertion in rice. Mol. Plant 10, 634–644. doi: 10.1016/j.molp.2017.01.001
Keywords: rice, heat stress, spikelet fertility, flowering, stigma exsertion
Citation: Qi B and Wu C (2022) Potential roles of stigma exsertion on spikelet fertility in rice (Oryza sativa L.) under heat stress. Front. Plant Sci. 13:983070. doi: 10.3389/fpls.2022.983070
