Qing-Yang Zhu1
Yun Wang2Xing-Xing Liu1
Jia-Yuan Ye1Miao Zhou1Xiang-Ting Jing1
Wen-Xin Du1Wei-Jie Hu1
Chao He1Ya-Xin Zhu1*
Chong-Wei Jin1*- 1College of Natural Resources and Environmental Science, Zhejiang University, Hangzhou, China
- 2Planting Technology Extension Center of Dongyang, Jinhua, China
The long-distance transport of iron (Fe) in the xylem is critical for maintaining systemic Fe homeostasis in plants. The loading form of Fe(II) into the xylem and the long-distance translocation form of Fe(III)–citrate have been identified, but how Fe(II) is oxidized to Fe(III) in the xylem remains unknown. Here, we showed that the cell wall-resided ferroxidases LPR1 and LPR2 (LPRs) were both specifically expressed in the vascular tissues of Arabidopsis thaliana, while disruption of both of them increased Fe(II) in the xylem sap and caused excessive Fe deposition in the xylem vessel wall under Fe-sufficient conditions. As a result, a large amount of Fe accumulated in both roots and shoots, hindering plant growth. Moreover, under low-Fe conditions, LPRs were preferentially induced in old leaves, but the loss of LPRs increased Fe deposition in the vasculature of older leaves and impeded Fe allocation to younger leaves. Therefore, disruption of both LPRs resulted in severer chlorosis in young leaves under Fe-deficient conditions. Taken together, the oxidation of Fe(II) to Fe(III) by LPRs in the cell wall of vasculature plays an important role in xylem Fe allocation, ensuring healthy Fe homeostasis for normal plant growth.
Introduction
Iron (Fe) is an essential trace element for plant growth. Due to its redox-active nature under biological conditions, Fe plays a crucial role in metabolic processes such as photosynthesis, respiration, nitrogen fixation, and assimilation (Tagawa and Arnon, 1962; Evans and Russell, 1971; Rotaru and Sinclair, 2009; Balk and Schaedler, 2014). Although total Fe in soil is generally high, the availability of it is greatly affected by environmental factors, such as pH and redox potential (Colombo et al., 2014). Leaf chlorosis of plants due to Fe deficiency is common in alkaline soils where Fe is mostly oxidized and precipitated with low availability for plants (Anderson, 1982). On the contrary, Fe toxicity often occurs in poorly drained soils (under anaerobic conditions) and paddy with low pH, in which Fe(III) is dramatically reduced to Fe(II) (Aung and Masuda, 2020).
Sessile plants have evolved sophisticated regulatory mechanisms to maintain Fe homeostasis under different environmental factors that affect Fe availability (Ravet and Pilon, 2013). So far, many genes involved in Fe uptake and regulation have been identified in the model plant Arabidopsis thaliana, such as ferric reduction oxidase 2 (FRO2) (Robinson et al., 1999), Fe2+ transporter iron-regulated transporter 1 (IRT1) (Vert et al., 2002), and several basic helix–loop–helix (bHLH) transcriptional regulators (Yuan et al., 2005; Wang et al., 2013; Gao et al., 2020). After being absorbed by roots from growth media, the long-distance transport of Fe in the xylem plays important roles in determining shoot Fe nutrition and the systemic signaling of Fe status (White, 2012). As the xylem vessels are composed of dead cells, Fe loading into the xylem is a process from symplast to apoplast (Morris et al., 2018). In A. thaliana, Ferroportin 1 (FPN1) (also known as IREG1) is localized on the plasma membrane of pericycle, proposing a possible transporter for Fe(II) loading into the xylem (Morrissey et al., 2009). Unlike Fe(II) loaded into the xylem, Fe(III)–citrate complex was proved to be the main form of the long-distance transport (Rellán-Alvarez et al., 2010; Terzano et al., 2013; Ariga et al., 2014). The citrate for the formation of Fe(III)–citrate in the xylem is secreted by the transporter ferric reductase defective 3 (FRD3) (Green and Rogers, 2004; Durrett et al., 2007; Roschzttardtz et al., 2011). However, to date, little information is available for Fe(II) oxidation in the xylem for the formation of Fe(III)–citrate chelate.
Previous studies in A. thaliana have found that an enzyme encoded by low phosphate root 1 (LPR1) catalyzes the oxidation of Fe(II) to Fe(III) (Svistoonoff et al., 2007; Muller et al., 2015; Naumann et al., 2022). The LPR1 protein is mainly located in the cell wall matrix (Muller et al., 2015), and it involves in regulating the inhibition of primary root growth in a Fe dose-dependent manner under low phosphate conditions (Ziegler et al., 2016; Heisters, 2019; Wang et al., 2019). However, whether the LPR1 is involved in the other biological processes remains unknown. Low phosphate root 2 (LPR2) is the only homologous gene of LPR1 in A. thaliana. Our recent study found that the LPR2 protein is also resided in the cell wall matrix and has ferroxidase activity to catalyze the oxidation of Fe(II) to Fe(III), both of which are very similar to LPR1 (Liu et al., 2022). In view of the Fe(II) oxidation activity of LPR1 and LPR2 (LPRs), these two ferroxidases are likely to play a vital role in plant Fe nutrition, but related studies have not yet reported.
In this study, we highlight the importance of ferroxidases LPR1 and LPR2 in maintaining Fe homeostasis. We found that these two LPRs are mainly expressed in vascular tissues and participate in the oxidation of Fe(II) to Fe(III), thereby promoting the formation of xylem Fe(III)–citrate complexes to avoid excessive Fe sequestration by the vascular cell wall. This process ensures healthy Fe homeostasis for normal growth of plants under either Fe-sufficient or Fe-insufficient conditions. Our finding may provide a basis for improving iron-enriched food crops by biofortification.
Results
LPRs are required for normal growth under Fe-sufficient conditions
To examine whether the ferroxidases LPR1 and LPR2 are involved in the regulation of Fe nutrition, two T-DNA insertion lines of LPR1 and LPR2 (lpr1-1 and lpr2-1) and the double mutant lpr1lpr2 (generated by crossing lpr1-1 and lpr2-1) were analyzed. When 3-week-old seedlings were transferred to the nutrient solution with sufficient Fe [50 μM Fe(III)–EDTA] supply for 7 days, we found that the single mutants lpr1-1 and lpr2-1 did not differ from the wild type; however, the lpr1lpr2 double mutant exhibited strong stunted and higher chlorophyll levels, with less fresh biomass in shoots and roots (Figures 1A–C and Supplementary Figure 2). We also generated pLPR1:LPR1-YFP and pLPR2:LPR2-YFP transformants in the background of lpr1lpr2 double mutant for genetic complementation test. These complementation lines had a higher LPR1 and LPR2 expression than wild type did and were able to restore the defects of lpr1lpr2 double mutant in phenotypes (Figure 1A and Supplementary Figure 1). The above results indicate that LPR1 and LPR2 redundantly involve in maintaining normal growth under our growth conditions.

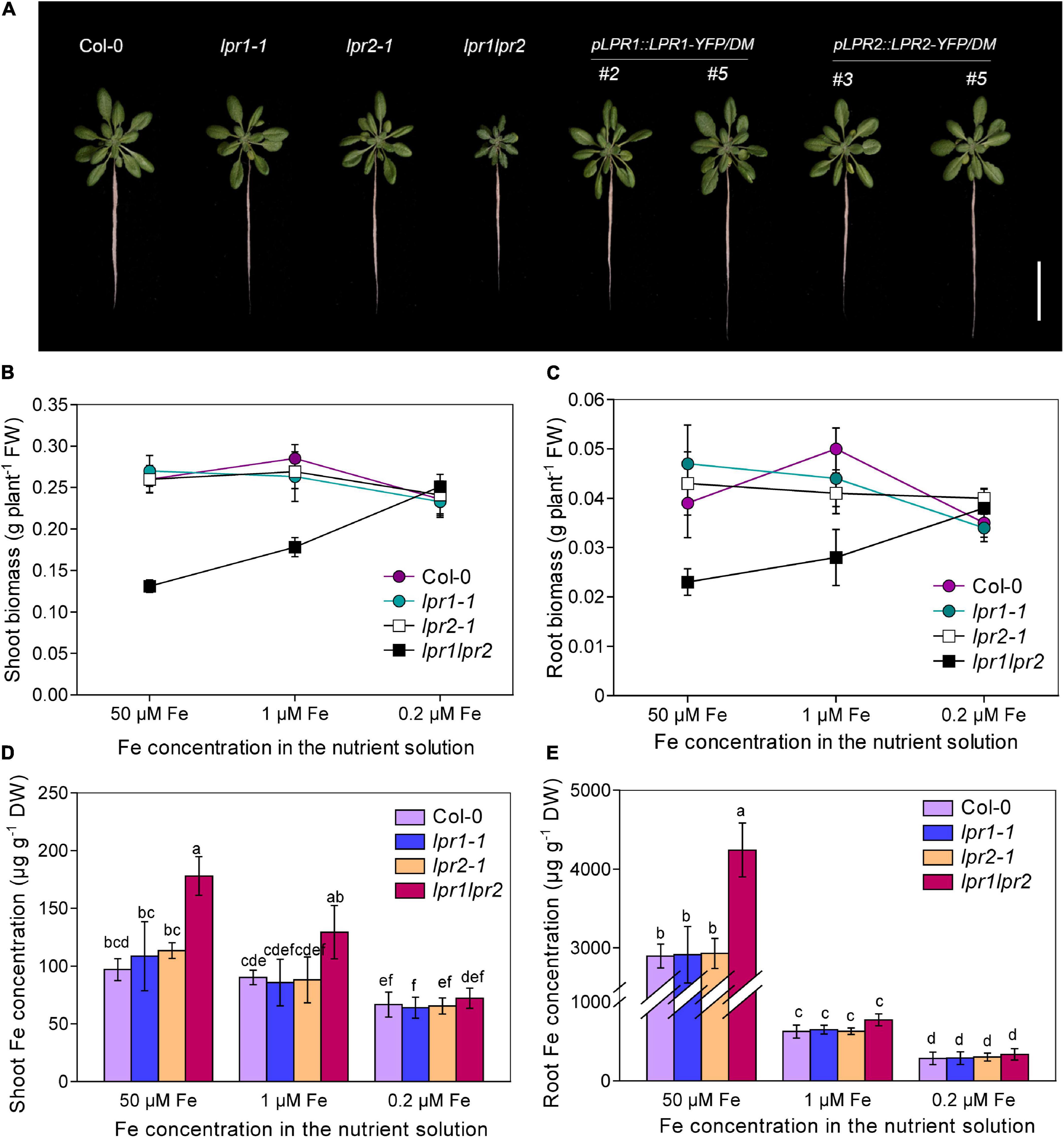

Figure 1. LPRs are required for maintaining healthy Fe status. (A) Growth of Col-0, lpr1-1, lpr2-1, lpr1lpr2, and complementation lines (pLPR1:LPR1-YFP/DM #2 and #5; pLPR2:LPR2-YFP/DM #3 and #5) in Fe-sufficient (50 μM) nutrient solution. DM, lpr1lpr2 double mutant. (B,C) Comparison of shoot fresh biomass and root fresh biomass between Col-0 and lpr1lpr2 grown under different doses of Fe. (D,E) The shoot and root Fe concentrations of the plants grown with different doses of Fe. The plants were precultured in low-Fe (0.2 μM) nutrient solution for 3 weeks and transferred to the nutrient solution with different doses of Fe. Plants were photographed and harvested after treating for 7 days. Values are means ± SD of five replicates. Different letters represent a significant difference at P < 0.05 by Tukey’s test. Scale bars 4 cm.
As both LPR1 and LPR2 have been identified as ferroxidases, we determined the concentrations of Fe and other elements in plants. Surprisingly, the Fe concentrations in the shoots and roots were both greatly higher in the lpr1lpr2 double mutant than in the wild type and single mutants. The Fe concentrations in the shoots and roots of the lpr1lpr2 were 1.8 and 1.5 times that of the wild type, respectively (Figures 1D,E). We also checked the levels of other nutrients (Supplementary Figure 3); although Zn, Mn, and Cu concentrations also increased significantly, they were not as high as Fe, suggesting that LPRs may be mainly involved in Fe nutrition. Accordingly, the seedlings were subsequently grown with two lower doses of Fe (1 μM and 0.2 μM Fe) to investigate whether the stunted growth of lpr1lpr2 double mutant is associated with the over-accumulation of Fe. As expected, both lower-Fe-dose treatments improved the growth of lpr1lpr2 (Figures 1B–E and Supplementary Figure 4). Particularly, the lpr1lpr2 displayed a similar growth and ionomic phenotypes to that of the wild type under 0.2 μM Fe condition. These results infer that LPR1 and LPR2 are functionally redundant and play an important role in maintaining Fe homeostasis for normal growth.
Given that soil pH has a great influence on the availability of Fe (Sarkar and Wynjones, 1982), we also compared the growth of wild type and lpr1lpr2 in the soils with different pH values. In the moderately acidified soil (pH 5.3), the shoots of lpr1lpr2 had significantly reduced biomass, but the Fe concentration of lpr1lpr2 is 4.72 times that of wild type. These differences were greatly minimized when the plants were grown in the soil with pH 6.2 (Supplementary Figure 5). These results provide a further support for that LPR1 and LPR2 are required for maintaining Fe homeostasis in plants.
LPRs control the behavior of Fe in vascular tissues
To identify in which tissues LPR1 and LPR2 involve in maintaining Fe homeostasis, we used β-glucuronidase (GUS) as a reporter gene to investigate the expression patterns of LPR1 and LPR2. Histochemical staining of the plants expressing pLPR1:GUS and pLPR2:GUS revealed that both LPR1 and LPR2 were mainly expressed in the vascular tissues of roots, hypocotyls, leaves, lateral roots, stems, sepals, as well as repla to a lesser extent (Figures 2A,B and Supplementary Figure 6). To analyze the vascular tissues in more detail, we examined the expression patterns in the cross sections of roots, hypocotyls, and leaf veins. As shown in the insets of Figures 2A,B, LPR1 and LPR2 were mainly expressed in the parenchyma cells surrounding the xylem and phloem, indicating that LPRs may function in the vascular tissues.
Figure 2. LPRs are expressed in vascular and involved in Fe(II) oxidation in xylem. (A,B) Histochemical β-glucuronidase (GUS) staining of transformants pLPR1:GUS/Col-0 and pLPR2:GUS/Col-0. Cross sections of leaf major veins (LS, leaf section), hypocotyls (HS, hypocotyl section), and roots (RS, root section) are in the right inset. The 7-day-old seedlings grown in Fe-sufficient nutrient solution were used for analysis. The total Fe (C), Fe(II) (D), and Fe(III) (E) concentration in the xylem saps of Col-0 and lpr1lpr2. (F) Percentage of Fe(II) in total Fe of xylem saps of Col-0 and lpr1lpr2. (G) Fe concentration in the phloem saps of Col-0 and lpr1lpr2. Plants were precultured in low-Fe (0.2 μM) nutrient solution for 3 weeks and transferred to Fe-sufficient (50 μM) nutrient solution for another 2 weeks, and then, the xylem saps and phloem saps were collected. Values are means ± SD of three replicates. Asterisks indicate a significant difference at *P < 0.05, **P < 0.01, by Tukey’s test. n.s., no significance. Scale bars 1,000 μm.
The above expression patterns of LPRs in vascular tissues promoted us to test LPRs’ roles in Fe long-distance transport in A. thaliana. Under our growth condition with sufficient Fe [50 μM Fe(III)–EDTA], the total Fe concentration in the xylem and phloem saps was much higher in lpr1lpr2 than in wild type (Figures 2C,G), which was consistent with the Fe concentration of shoots (Figures 1D,E). Given that LPRs could oxidize Fe(II) to Fe(III) in vitro (Muller et al., 2015; Liu et al., 2022), we subsequently investigated the Fe valence states in the xylem sap based on the ferrozine method (Verschoor and Molot, 2013). Both Fe(II) and Fe(III) concentrations in the xylem saps were markedly increased in lpr1lpr2 compared with wild type (Figures 2D,E), and the proportion of Fe(II) in the total Fe of xylem sap of lpr1lpr2 was 2.2-fold the wild type (Figure 2F). These findings suggest that LPRs affect the transport of Fe in the vascular tissues via their Fe(II) oxidation activity.
Shoots and roots of LPRs involve in Fe homeostasis in their corresponding tissues
Considering LPR1 and LPR2 were expressed in both roots and shoots (Figure 2A), we decided to explore the relative contribution of LPRs in roots versus shoots. We first quantified the LPR1 and LPR2 transcripts of wild type. Quantitative real-time PCR (RT-qPCR) assay showed that the expression of LPR1 was overall lower than that of LPR2, and no significant difference was observed between roots and shoots. Nonetheless, a higher LPR2 expression was identified in shoots (Figure 3A), which prompted us to verify whether LPRs were involved in a shoot-based mechanism; hence, a reciprocal graft experiment under normal Fe growth conditions was employed. As the results shown, grafting wild type shoot scions onto lpr1lpr2 double mutant rootstocks (i.e., Col-0/lpr1lpr2-grafted plants) had normal growth in both shoots and roots (Figures 3B–D). However, the grafted plants with lpr1lpr2 scions (i.e., lpr1lpr2/Col-0- and lpr1lpr2/lpr1lpr2-grafted plants) grew smaller than the plants with that of wild type. The results indicate that LPRs in shoots rather than in roots are required for ensuring the normal growth phenotype of shoots.
Figure 3. Shoot and root LPRs, respectively, involve in affecting Fe nutrition and growth in their corresponding tissues. (A) Gene expression of low phosphate root 1 (LPR1) and low phosphate root 2 (LPR2) in shoots and roots. EF1α and UBQ10 were used as the internal control. (B) The phenotypes of different grafted plants. Col-0/Col-0 and lpr1lpr2/lpr1lpr2 were self-grafted plants; Col-0/lpr1lpr2 was grafted plants with Col-0 as shoot scion and lpr1lpr2 as rootstock; lpr1lpr2/Col-0 was grafted plants with lpr1lpr2 as shoot scion and Col-0 as rootstock. (C,D) Comparison of shoot fresh biomass and root fresh biomass between different grafted plants. (E,F) Fe concentration in shoots and roots between different grafted plants. (G) Translocation factor (TF) of different grafted plants. The grafted plants were photographed and harvested after treating in Fe-sufficient (50 μM) nutrient solution for 7 days. Translocation factor was calculated as shoot Fe/root Fe. Values are means ± SD of four replicates in panel (A) and five in panels (C–G). Different letters represent a significant difference at P < 0.05 by Tukey’s test. Scale bars 4 cm.
We further measured the Fe level in the grafted plants. The Fe concentration in shoot scions of lpr1lpr2 double mutant, as expected, was significantly higher than that in wild type (Figure 3E). However, unlike the above growth phenotypes, the Fe concentration of rootstocks was consistent with their genotypes, which was in a shoot-independent manner (Figure 3F). As the translocation factor (TF) can be used to indicate the ability of substance transferred from roots to shoots (Takarina and Pin, 2017), we then calculated the TFs in the grafted plants. An increased TF was found in lpr1lpr2/Col-0-grafted plants (Figure 3G), while Col-0/lpr1lpr2-grafted plant showed a lower TF than that in other grafted plants. The above results suggest that LPRs in shoots and roots involve in Fe sequestration by their corresponding tissues.
LPRs are required for Fe deficiency tolerance by preventing Fe allocation to older leaves
The action of LPRs in maintaining Fe homeostasis under normal Fe growth conditions raises a question that how LPRs act under Fe-deficient conditions. When seedlings were grown in Fe-free nutrient solution, there was no noticeable difference in chlorosis between wild type and lpr1lpr2 double mutant (Supplementary Figure 7A). Leaf chlorosis was absent in wild type after 0.2 μM Fe resupply, while lpr1lpr2 still exhibited obvious yellowish color in the newly expanded leaves (Figure 4A). This appearance was also observed when plants were grown in a soil with alkalization treatment which lowered Fe availability (Supplementary Figure 7B). By comparing the alignment of leaves, we were surprised to find that the color of old leaves of lpr1lpr2 double mutant was greener than that of wild type (Figure 4B).
Figure 4. LPRs alleviate Fe deficiency by preventing Fe allocation to old leaves. (A,B) Phenotypes of Fe-free pre-grown plants resupplied with 0.2 μM Fe. The Fe concentrations in different leaf positions of Fe-free pre-grown plants resupplied with 0.2 μM Fe (C) and 50 μM Fe (D). (E) Relative Fe concentration in different leaf positions calculated as lpr1lpr2 versus Col-0. OL, old leaf; ML, middle leaf; YL, young leaf. (F,G) Expression of low phosphate root 1 (LPR1) and low phosphate root 2 (LPR2) in different leaf positions of the Col-0 plants. EF1α and UBQ10 were used as the internal control. (H) Relative expression rates of LPR1 and LPR2 in Col-0 calculated as 0.2 μM Fe versus 50 μM Fe treatment. The plants were grown in 0 μM Fe for 7 days and then resupplied with 0.2 or 50 μM Fe for another 5 days. Values are means ± SD of five replicates in (C,D) and four in panels (F,G). Asterisks indicate a significant difference at *P < 0.05, **P < 0.01, ***P < 0.001 by Tukey’s test. Scale bars 2 cm.
The above phenotype was consistent with the results of Fe concentration measured in different ages of leaves: The lpr1lpr2 had a lower Fe level in young leaf but a higher Fe level in old leaf compared with wild type plants (Figure 4C). We also measured the Fe concentration in different ages of leaves from the plants grown in Fe-free pre-grown plants resupplied with sufficient Fe (50 μM Fe). Under this Fe condition, although the Fe concentration in all leaves of lpr1lpr2 was higher than wild type, the difference was much greater in old leaves (Figure 4D). The calculation of relative Fe concentration (lpr1lpr2 vs. wild type) indicated that Fe accumulated preferentially in older leaves of the lpr1lpr2 double mutant compared with wild type, which was independent of Fe supplementation dose (Figure 4E).
The response of LPRs in the wild type to different Fe supplementation doses was then examined. Regardless of the Fe dose, the expression of LPRs in old leaves was higher than that in young leaves. It is also worth noting that Fe deficiency upregulated the expression of LPR1 and LPR2, especially in older leaves (Figures 4F–H). The calculation of relative expression of LRP1 and LPR2 (0.2 μM Fe vs. 50 μM Fe) showed that Fe deficiency preferentially stimulated these two genes in older leaves. Histochemical GUS staining further confirmed that the expression of LPRs in older vascular tissues was preferentially induced under low-Fe conditions (Supplementary Figures 8A,B). Taken together, these data indicate that LPRs may function mainly in older leaves to prevent Fe over-accumulation, which favors the Fe allocation to younger leaves under Fe-deficient conditions.
LPRs are required for the prevention of abnormal Fe sequestration in vascular tissues
The above findings led us to investigate the mechanism by which LPRs affect Fe homeostasis in plants. The Perls/DAB (diaminobenzidine) staining was first used to decipher the localization of Fe under normal growth conditions (50 μM Fe). Perls/DAB displayed heavy Fe accumulation in the root stele of lpr1lpr2 double mutant, whereas such a distribution was not observed in wild type (Figure 5A). In shoots, the vast majority of Fe was located within the vascular bundles of lpr1lpr2 in old leaves (Figure 5B), which was coincided with the LPRs expression. We also compared Fe staining in young and middle leaves, and a slight enhancement of staining color was found in lpr1lpr2 double mutant versus wild type.
Figure 5. Iron accumulation in the vascular tissues of lpr1lpr2 double mutant. (A–C) Perls/DAB staining of Col-0 and lpr1lpr2. (A) Close-up views of roots. (B) Leaves from different positions. OL, old leaf; ML, middle leaf; YL, young leaf. (C) Cross sections of old leaves (left) and close-up views of vascular vessels (right). X, xylem; P, phloem; S, sclerenchyma. (D–F) Turnbull staining of Col-0 and lpr1lpr2. (D) Close-up views of roots. (E) Leaves from different positions. (F) Cross sections of old leaves and close-up views of vascular vessels. Col-0 and lpr1lpr2 were precultured in low-Fe (0.2 μM) nutrient solution for 3 weeks and transferred to Fe-sufficient (50 μM) nutrient solution for another 7 days. Scale bars 200 μm in panels (A,C, left), (D,F, left); 50 μm in panels (C, right), (F, right); 1,000 μm in panels (B,E).
To have a close-up view of Fe accumulation in the vascular bundles, the cross section of old leaves was examined. As shown in Figure 5C, we were surprised to find that Fe was mainly deposited at the periphery of xylem vessel, which is a cell wall matrix and thus coincides with the cell wall localization feature of either LPR1 or LPR2 (Muller et al., 2015; Liu et al., 2022). However, the cells adjacent to the xylem vessel of lpr1lpr2 also had deeper Fe staining than that of wild type. These data suggest more Fe unloading from the xylem vessel due to LPRs disruption, possibly because the available Fe in the xylem sap of lpr1lpr2 is higher (Figure 2B). The above notion was also supported by a higher Fe concentration in the phloem of lpr1lpr2 under sufficient Fe conditions (Figure 2F).
We also performed Perls/DAB staining under 0.2 μM Fe conditions. The Fe deposition in old leaves of lpr1lpr2 could still be observed in this low-Fe treatment (Supplementary Figure 9A). The greater Fe deposition in the cell wall matrix of xylem vessel could be expected to decrease Fe unloading from the xylem vessel under low-Fe condition. This assumption was confirmed by the observation that the Fe concentration in the phloem of lpr1lpr2 was less than that of wild type under low-Fe conditions (Supplementary Figure 10).
Given the Fe(II) oxidation by LPRs, we further tested the distribution characteristics of Fe(II) by Turnbull staining. As expected, Fe(II) was also found to be mainly located in the vascular tissues, particularly in the xylem vessels (Figures 5D–F and Supplementary Figure 9B). This was similar to the Perls/DAB staining above. Then, we asked why the disruption of LPRs results in abnormal Fe sequestration in the cell wall of xylem vessel? We therefore extracted the cell wall of A. thaliana to simulate the migration of Fe–citrate in this matrix. The adsorption kinetics analysis reveals that the cell wall had a stronger adsorption capacity for Fe(II)–citrate rather than that for Fe(III)–citrate (Figure 6), providing a reasonable explanation for the above question.
Figure 6. The Fe adsorption kinetics of cell wall for Fe(II)–citrate and Fe(III)–citrate. Ten milligrams of cell wall powder was placed in a 2-ml column. The composition of adsorption solution consisted of 0.1 M sodium acetate (pH 5.0) solution with 50 μM Fe(II)–citrate or Fe(III)–citrate. Then, the residual iron concentration in the collected solution was measured with 2,2-bipyridyl as described in “Materials and methods” section.
Disruption of LPRs disturbed the expression of iron-responsive genes
As Fe concentration in the xylem sap was increased due to the disruption of LPRs, we further investigated the gene expression related to Fe homeostasis by RT-qPCR assay. The results showed that under Fe-sufficient conditions, Fe uptake genes IRT1 and FRO2, as well as iron-loading into xylem genes FRD3 and FPN1, were induced to be significantly higher in the roots of lpr1lpr2 double mutant, but displayed a lower expression in the wild type (Figure 7). Under low-Fe conditions, the above genes were upregulated in wild type compared with that observed under normal Fe growth conditions, but were still expressed at higher levels in lpr1lpr2 except FRD3. These data exhibited the constitutive expression of Fe deficiency responses in lpr1lpr2 double mutant, independent of the Fe dose, which is consistent with the higher Fe concentration in lpr1lpr2 roots and shoots under normal Fe growth conditions (Figures 1D,E). The above results infer that LPRs are also required to maintain the appropriate expression of the genes related to Fe homeostasis in plants, which may be indirectly associated with the role of LPRs in preventing abnormal Fe sequestration in the vascular tissues.
Figure 7. Altered expression of Fe homeostasis-related genes in roots of lpr1lpr2 double mutant. The expression of IRT1, FRO2, FRD3, and FPN1 in roots of Col-0 and lpr1lpr2. The plants were precultured in low-Fe (0.2 μM) nutrient solution for 3 weeks and then treated with sufficient Fe (50 μM) or low-Fe (0.2 μM) for 4 days. EF1α and UBQ10 were used as the internal control. Values are means ± SD of four replicates. Asterisks indicate a significant difference at *P < 0.05, **P < 0.01, ***P < 0.001 by Tukey’s test.
Discussion
Either Fe deficiency or overload can trigger oxidative damage in plants due to disordered electron transfer. As such, the amount of Fe in plants should be tightly controlled to maintain a healthy Fe status. The apoplastic space accounts for 5% or less plant tissue volume (Loìpez-Millaìn et al., 2000), while such a small apoplastic volume is the main route of Fe transport. Thus, Fe ionic conditions in the apoplast, especially via xylem, are of great importance for the Fe deficiency and Fe toxicity (Sattelmacher, 2001). In this study, we revealed that the Fe(II) oxidation by LPRs in the vascular tissue plays an important role in controlling Fe long-distance transport in the xylem, as well as maintaining systemic Fe homeostasis in plants.
As aforementioned, after being absorbed by roots, Fe is loaded into the xylem in the form of Fe(II) (Morrissey et al., 2009). However, unlike Fe(II) loaded into the xylem, Fe(III) was proved to be the main form complexed with citrate (Rellán-Alvarez et al., 2010; Terzano et al., 2013; Ariga et al., 2014). This is probably because Fe(III)–citrate rather than Fe(II)–citrate is able to prevent Fe from precipitation under slightly acidic condition (pH 5.5–6.0) of xylem sap (Curie and Briat, 2003). In addition, the form of Fe(III)–citrate is more beneficial to resist Fenton-mediated oxidative stress than that of Fe(II)–citrate under acidic conditions (Bellapadrona et al., 2010). Therefore, Fe(II) oxidation process is essential after Fe(II) is loaded into the xylem. Previously, cell wall-localized LPR1 and LPR2 were identified as multicopper oxidases (MCO) with Fe(II) oxidation activity (Muller et al., 2015; Liu et al., 2022; Naumann et al., 2022). In this study, GUS staining of transgenic pLPR1:GUS and pLPR2:GUS plants showed that both LPR1 and LPR2 were specifically expressed in the vascular tissues (Figures 2A,B). Furthermore, disruption of LPRs resulted in a higher level of Fe(II) in the xylem sap (Figures 2C–F). These findings clearly suggest that LPRs are responsible for, or at least involved in, the Fe(II) oxidation process in the xylem vessels.
Given that Fe(III)–citrate form helps to prevent Fe precipitation in the acidic xylem environment, Fe(II) oxidation by LPRs in the cell wall is expected to affect the movement efficiency of Fe in the xylem. Indeed, grafting experiment revealed that LPRs in shoots and roots involve in Fe homeostasis in their corresponding tissues (Figures 3B–F). Thus, both shoots and roots of LPRs have a significant effect on Fe translocation factor (Figure 3G), which is used to characterize the transport capacity of substances from roots to shoots (Takarina and Pin, 2017). Histological analysis with Fe-specific staining also revealed that disruption of both LPRs resulted in greater Fe deposition in the vascular bundles, particularly in the periphery of xylem vessel (Figure 5). This is probably because the cell wall has a stronger binding capacity for Fe(II)–citrate than Fe(III)–citrate (Figure 6). This can also be explained from a chemical point of view, and citrate has a higher affinity constant for Fe(III) compared with Fe(III) at pH 5.5–6.0 (Sági-Kazár et al., 2022). Besides, Fe(II)–citrate is prone to reoxidize over time and form stable polynuclear complexes of Fe(III)–citrate under moderately acidic conditions (Silva et al., 2009). Taken together, the above findings suggest that disruption of LPRs would be unfavorable for Fe long-distance transport. Previous studies have shown that the loss of FRD3, which impaired long-distance transport of Fe in the xylem, resulted in the disturbance of gene expression of Fe response (Green and Rogers, 2004; Durrett et al., 2007; Roschzttardtz et al., 2011, 2013). Here, we found that disruption of LPRs also disturbed the expression of iron-responsive genes, being similar to that of frd3 mutant, which provides further support for previous notion. In addition, lpr1lpr2 double mutant accumulated less Fe as well as exhibited severer chlorosis in young leaves under low-Fe conditions (Figure 4), suggesting a profound effect of the loss of LPRs on Fe long-distance transport.
Given that disruption of LPRs is unfavorable for Fe movement in vasculature, we then analyzed the accumulation of Fe in different leaf positions. The lpr1lpr2 double mutant accumulated excessive Fe in all leaves, which resulted in a stunted plant growth. One explanation for this is that the loss of LPRs leads to a constitutive Fe deficiency response under Fe-sufficient conditions, including upregulation of IRT1 and FRO2. Thus, lpr1lpr2 conducted an excessive Fe uptake from the growth medium (Figure 7). Moreover, in the case of excessive Fe uptake, Fe bound to the cell wall may be easily saturated, and the rest of mobile Fe in the xylem still keep a higher level in long-distance transport and subsequent unloading. This assumption was supported by the fact that a higher Fe level was found in the xylem sap, the phloem sap, and the cells adjacent to the xylem of lpr1lpr2 than wild type under Fe-sufficient conditions (Figures 2C–G, 5C). It is worth noting that LPRs mainly functioned in the vascular tissues of old leaves so as to prevent Fe accumulation under both Fe-sufficient and Fe-insufficient conditions (Figures 4C–E). The spatial features of Fe accumulation coincide with LPRs expression patterns, namely that the expression of both LPR1 and LPR2 in old leaves was higher than that in young leaves regardless of the Fe dose (Figures 4F–H). Therefore, the increased induction of LPRs in old leaves than in young leaves under low-Fe condition may be favorable to prevent Fe distribution to older leaves but to younger leaves, which constitutes a tolerance mechanism to Fe deficiency.
Overall, we fill a long-sought blank regarding how Fe(II) is oxidized to Fe(III) in the xylem and highlight the importance of LPRs in maintaining systemic Fe homeostasis (Figure 8). Vascular-located LPRs oxidize Fe(II) to Fe(III), which then binds to citrate to form a stable Fe(III)–citrate complex. This complex helps to prevent Fe from being retained by cell wall, as well as avoid the disturbed gene expression related to Fe nutrition. Furthermore, under low-Fe conditions, the increased expression of LPRs, especially in older leaves, avoids Fe deposition in the vascular vessels of old leaves that facilitates Fe migration to younger leaves. Our findings may provide a strategy for improving the efficiency of Fe long-distance transport in plants via biotechnological pathways to manipulate the LPRs expression in the vascular tissues.
Figure 8. Proposed model for LPRs-mediated Fe(II) oxidation in affecting Fe behavior in xylem. The vascular-located LPRs oxidize Fe(II) to Fe(III) in the cell wall matrix, which facilitates the formation of stable Fe(III)–citrate complex. This process prevents Fe(II) from being bound by the cell wall of xylem. In addition, low-Fe conditions preferentially induced the expression of LPRs in the old leaves, which avoids Fe deposition in the xylem cell wall of old leaves and thus favors the allocation of more Fe to younger leaves. LPR1/2 LPR1 and/or LPR2.
Materials and methods
Plant material and growth condition
All plant lines used in this study were in A. thaliana ecotype Col-0 background. The mutant seeds of lpr1-1, lpr2-1, and lpr1-1lpr2-1 were previously described (Dong et al., 2017; Liu et al., 2022). The pLPR1:GUS/Col-0 transgenic line was a kind gift from Jian-Li Yang (Xu et al., 2020). The seeds were surface-sterilized with 25% NaClO and vernalized at 4°C for 3 days. Then, the seeds were germinated on a nylon mesh and then transferred to the nutrient solution as previously described (Fang et al., 2016). The seedlings were grown under the controlled environment with a 12-h light/12-h dark photoperiod and 100 μmol m–2s–1 light intensity at 22°C. Considering the lpr1lpr2 double mutant had developmental defects in Fe-sufficient media, the seedlings were precultured in the nutrient solution with 0.2 μM Fe(III)–EDTA. The other nutrients in the solution were KNO3 (1.5 mM), CaCl2 (1 mM), NaH2PO4 (0.5 mM), MgSO4 (0.25 mM), (NH4)2SO4 (0.25 mM), H3BO3 (10 μM), MnSO4 (0.5 μM), ZnSO4 (0.5 μM), CuSO4 (0.1 μM), and (NH4)6Mo7O24 (0.1 μM) at pH 5.8. The nutrient solution was refreshed every 4 days. After 21-day preculture, the seedlings were transferred to different doses of Fe(III)–EDTA for further experiments.
For pot experiment, seedlings were germinated on nylon net and then transferred to the peat soil with pH 5.3 (moderately acidified soil) or 6.2 (normal soil) or 7.3 (alkaline soil). The pH of peat soils was adjusted by adding different amounts of CaO. The seedlings were watered weekly with iron-free nutrient solution and harvested after 4 weeks.
Construction of vectors and generation of transgenic plants
To construct genetic complementation lines, a 5.9-kb genomic DNA fragment of LPR1 and a 4.3-kb genomic DNA fragment of LPR2 (each fragment includes 2.9- and 2.2-kb promoters, respectively) were designed and cloned into the pEarleyGate 101 vector containing a YFP reporter as previously described (Liu et al., 2022). The constructs were transformed into the Agrobacterium tumefaciens strain GV3101 and then introduced into lpr1lpr2 double mutant by the floral dip method. For the construction of the pLPR2:GUS/Col-0 transgenic line, a 2.8-kb promoter of LPR2 was cloned into the pCAMBIA 1,301 vector. The resulting construct was transformed into Col-0. All primers used in this study are listed in Supplementary Table 1. Homozygous T3 transgenic plants were used in subsequent studies.
Quantitative real-time polymerase chain reaction
Total RNA in various parts of plant was extracted using RNAiso Plus regent (code no. 9109, TaKaRa, China) following the instruction (MacRae, 2007), and the RNA was quantified and assessed for degradation using a micro-spectrophotometer (Nano-400A, Allsheng, China). For real-time PCR (RT-PCR), 800 ng RNA was used to synthesize the first-strand cDNA by HiScript II Q Select RT SuperMix for qPCR (+gDNA wiper) (code no. R223-01, Vazyme, China). For RT-qPCR, the reaction mixture contained 1 μl cDNA template, 0.5 μl forward primer, 0.5 μl reverse primer, 8 μl ddH2O, and 10 μl Taq Pro Universal SYBR qPCR Master Mix (code no. Q712-02, Vazyme, China). We performed RT-qPCR analysis on a StepOnePlus Real-Time PCR System (code no. 4376600, Thermo Fisher Scientific, Carlsbad, CA, United States). The specificity of primers was confirmed by melting curve analysis. EF1α and UBQ10 were used as the internal control. The primers used for RT-qPCR are listed in Supplementary Table 1.
Histochemical β-glucuronidase staining
To analyze GUS activity, the plant materials were stained as described in the study of Ge et al. (2022). In brief, pLPR1:GUS/Col-0 and pLPR2:GUS/Col-0 plants were incubated in staining buffer (50 mM PBS at pH 7.0, 0.1% Triton X-100, 2 mM K3Fe[CN]6, 2 mM K4[Fe(CN)6]⋅3H2O, 10 mM Na2EDTA⋅2H2O, 2 mM X-Gluc) at 37°C overnight. Then, the plants were incubated in 70% ethanol at 37°C for decolorization and optically cleared with chloral hydrate. The stained samples were observed using a microscope (Nikon, Tokyo, Japan).
Grafting experiment
Grafting experiment was performed as previously described with some modifications (Marsch-Martinez et al., 2013; Ye et al., 2021). The seeds were surface-sterilized and sown on 1/2 MS medium (Coolaber) containing 1% agar and 0.5% sucrose at pH 5.8. After 6 days of germination, seedlings were transversely cut in the middle of the hypocotyl. Afterward, shoot scions and rootstocks were joined on the new plate with the same medium. Ten days later, the adventitious roots were removed, and plants were transferred to hydroponic culture with low-Fe (0.2 μM Fe) nutrient solution for another 7 days of preculture. Finally, the grafted plants were harvested 7 days after transferring to Fe-sufficient (50 μM Fe) nutrient solution.
Xylem sap collection and detection
To collect the xylem sap, the plants were grown in hydroponic culture with low-Fe nutrient solution for 3 weeks and transferred to Fe-sufficient nutrient solution for another 2 weeks. After rinsing the hypocotyl with ultrapure water, the hypocotyl was transversely cut, and four plants were used as a sample. The xylem sap was collected within 0.5 h with some modifications (Schuler et al., 2012; Chao et al., 2021). The first drop of the xylem sap was discarded, and the subsequent sap was collected in a 1.5-ml tube with 100 μl 1 M sodium acetate (pH 5.0). After collection, the total volume of each sample was recorded, and they were then divided into two equal parts for subsequent determination of ferrous iron and total iron as described (Verschoor and Molot, 2013).
Collection of phloem exudates and detection
The plants were grown in hydroponic culture for 5 weeks. After rinsing with ultrapure water, eight leaves of each two plants were detached at the petiole. Phloem exudates were collected within 1 h by using EDTA-facilitated method as described (Zhai et al., 2014; Chao et al., 2021). After collection, the fresh weight of leaves was recorded, and the phloem collections were diluted with 1.5 ml of 5% HNO3 for subsequent detection by inductively coupled plasma MS (ICP-MS, Thermo Fisher Scientific, United States).
Elemental analysis
Harvested plants were first rinsed with 5 mM CaCl2 for 5 min and then rinsed three times with ultrapure water. Afterward, the samples were dried in an oven at 65°C for 72 h, and the dried weight was recorded. The plant samples were then digested using HNO3 at 140°C until the mixture became clear. After dilution with ultrapure water and filtering with a 0.22-μm filter, the Fe and other element concentrations were analyzed by a microwave plasma-atomic emission spectroscope (MP-AES, Agilent Technologies, Santa Clara, CA, United States).
Histochemical Fe staining
Both Fe(II) and Fe(III) were detected by the Perls/DAB (3,3′-diaminobenzidine tetrahydrochloride) method as described in the study of Roschzttardtz et al. (2013). In brief, plant tissues were rinsed with 2 mM CaSO4 and 10 mM EDTA for 5 min and washed three times with ultrapure water. Then, they were fixed in fixation solution [methanol/chloroform/glacial acetic acid (6:3:1)] for 1 h. After rinsing, the materials were incubated in staining solution [2% K4Fe(Cn)6 and 2% HCl] for 1 h. These samples were then incubated in the prepared solution (0.01 M NaN3 and 0.3% H2O2 in methanol) for 1 h. Finally, the samples were incubated in intensification solution (0.025% DAB, 0.005% H2O2 in 0.1 M phosphate buffer, pH 7.0) for 5–15 min. For Turnbull staining, the plant samples were incubated for 1 h in 2% K3Fe(CN)6 and 2% HCl as described (Sperotto et al., 2010). After staining, the samples were imbedded in 4% agarose. Approximately 150-μm cross sections were cut with a vibratome (ZQP-86, Shanghai Zhixin Instrument, Shanghai, China). The stained samples were observed using a microscope (Nikon, Tokyo, Japan).
Adsorption kinetics analysis
The cell wall was extracted as described (Zhu et al., 2020). Then, the Fe adsorption kinetics of cell wall were analyzed as described earlier (Jin et al., 2007). In brief, 10 mg dried cell wall powder was loaded into a 2-ml column with a filter at both ends. The composition of adsorption solution consisted of 0.1 m sodium acetate (pH 5.0) solution with 50 μM Fe(II)–citrate [prepared from Fe(NH4)2⋅(SO4)2⋅6H2O and citrate in equimolar proportions] or 50 μM Fe(III)–citrate (prepared from FeCl3 and citrate in equimolar proportions). The solution was pumped by a peristaltic pump at a speed of 4.4 ml min–1 passing through the column. Then, the collected solution was reduced with 2% ascorbic acid and determined by 0.2% 2,2-bipyridyl at 520 nm (Heaney and Davison, 1977).
Statistical analysis
The data were analyzed by one-way and two-way analysis of variance (ANOVA) with Tukey’s test using SPSS Statistics version 20.0. A p-value <0.05 was considered statistically significant.
Data availability statement
The original contributions presented in this study are included in the article/Supplementary material, further inquiries can be directed to the corresponding authors.
Author contributions
Q-YZ and C-WJ conceived the project, interpreted the data, generated the figures, and wrote the manuscript. C-WJ and Y-XZ supervised the experiments. Q-YZ performed the majority of the experiments. YW, X-XL, J-YY, MZ, X-TJ, W-JH, W-XD, and CH assisted in performing the experiments. All authors contributed to the article and approved the submitted version.
Funding
This research was supported by the Zhejiang Province Natural Science Foundation (grant no. LZ21D010001) and the Natural Science Foundation of China (grant nos. 31670258 and 32100232).
Acknowledgments
We thank Dong Liu for providing the lpr1-1, lpr2-1, and lpr1-1lpr2-1 mutants, Prof Jian-Li Yang for providing the pLPR1:GUS/Col-0 transgenic line, and Senior Engineer Feng-Ping Wang for help in ICP-MS operation.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.958984/full#supplementary-material
