Root parasitic plants such as Striga and Orobanche cause significant damage on crop production, particularly in sub-Saharan Africa. Their seeds germinate by sensing host root-derived signaling molecules called strigolactones (SLs). SL mimics can be used as suicidal germination inducers for root parasitic plants. Previous attempts to develop such chemicals have revealed that the methylbutenolide ring (D-ring), a common substructure in all the naturally occurring SLs, is critical for SL agonistic activity, suggesting that it should be possible to generate new SL mimics simply by coupling a D-ring with another molecule. Because structural information regarding SLs and their receptor interaction is still limited, such an approach might be an effective strategy to develop new potent SL agonists. Here, we report development of a series of new SL analogs derived from cinnamic acid (CA), the basis of a class of phenylpropanoid natural products that occur widely in plants. CA has an aromatic ring and a double-bond side-chain structure, which are advantageous for preparing structurally diverse derivatives. We prepared SL analogs from cis and trans configuration CA, and found that all the cis-CA-derived SL analogs had stronger activities as seed germination inducers for the root parasitic plants, Orobanche minor and Striga hermonthica, compared with the corresponding trans-CA-derived analogs. Moreover, introduction of a substitution at the C-4 position increased the germination-stimulating activity. We also found that the SL analogs derived from cis-CA were able to interact directly with SL receptor proteins more effectively than the analogs derived from trans-CA. The cis isomer of CA was previously reported to have a growth promoting effect on non-parasitic plants such as Arabidopsis. We found that SL analogs derived from cis-CA also showed growth promoting activity toward Arabidopsis, suggesting that these new SL agonists might be useful not only as suicidal germination inducers for root parasitic weeds, but also as plant growth promoters for the host plants.
Introduction
Root parasitic plants such as Striga and Orobanche parasitize the root of their host plants, which include some important crops such as rice, sorghum, and maize. After invasion into the host, parasitic plants connect their xylem tissue to the vascular tissue of the host plant, and obtain water and nutrients from the host plant via this xylem bridge. They produce numerous tiny seeds, which are spread onto the field. The seeds can stay dormant for decades, but once the host plant is planted nearby, they germinate by sensing strigolactone (SL) molecules that are released from the host root (Cook et al., 1966). If the germinated seeds cannot attach to the host, they die within 4–5 days. On the basis of this germination process, suicidal germination induction has been proposed as an effective way to eliminate parasitic plant seeds from infested fields. However, because quantitative production of the SL molecules has become a bottleneck, this method has not been put into practical use.
After the initial discovery of SLs as germination inducers for root parasitic plants, SLs were further shown to be the symbiotic signals for arbuscular mycorrhizal fungi (Akiyama et al., 2005). Moreover, SLs were identified as a new class of plant hormones that regulate shoot branching (Gomez-Roldan et al., 2008; Umehara et al., 2008). After the discovery of SLs as plant hormones, progress in this research field has included uncovering the SL signaling mechanism mediated by an α/β-hydrolase type receptor. In non-parasitic plants, DWARF14 (D14), a member of this protein family, was identified as the SL receptor (Arite et al., 2009; Hamiaux et al., 2012; de Saint Germain et al., 2016; Yao et al., 2016; Seto et al., 2019; Mashiguchi et al., 2021). In addition, a paralogous family of D14, which is called HYPOSENSITIVE TO LIGHT/KARRIKIN INSENSITIVE2 (hereafter denoted HTL), was characterized as a receptor for the smoke-derived germination inducer, karrikin (KAR; Waters et al., 2012). In a root parasitic plant, Striga hermonthica, 11 HTL genes were found, some of which were characterized as receptors for SL molecules, but KAR was not (Conn et al., 2015; Toh et al., 2015; Tsuchiya et al., 2015). Moreover, one of those HTLs, ShHTL7, was identified as an extremely sensitive receptor for SLs with pM sensitivity when expressed in Arabidopsis (Toh et al., 2015).
Many synthetic SL agonists have been reported, among which GR24 is now commonly used in basic research as a positive control (Figure 1). Such attempts have revealed that the methylbutenolide (D-ring) part, a common component in all the reported naturally occurring SLs, has a critical role for SL agonistic activity. Although the enol ether bridge connecting the ABC tricyclic ring, a typical part in the canonical SL molecules, and the D-ring has been proposed to be an essential structural feature for SL analogs, debranones, in which the D-ring is connected to a phenolic group via a simple ether bridge, have been also reported as SL agonists (Figure 1; Fukui et al., 2011). Moreover, yoshimulactone green (YLG), in which the ABC-ring part is replaced with fluorescein, was reported to be a pro-fluorescence SL agonist (Figure 1). YLG retains SL agonistic activity both for shoot branching inhibition and for inducing germination in parasitic plants, and it can be hydrolytically cleaved by the D14 and the Striga HTL receptors (Tsuchiya et al., 2015). YLG hydrolysis emits fluorescence and it enables high-throughput detection of the receptor function. The discovery of the above-mentioned Striga receptors was accomplished using this unique analog (Tsuchiya et al., 2015). Moreover, the receptor identification, combined with YLG, enabled a rapid screening of chemicals that can directly interact with HTL7. By this approach, sphynolactone-7 (SPL7) was discovered as an extremely strong SL agonist that can induce S. hermonthica germination at fM concentrations (Uraguchi et al., 2018).
Because the detailed mechanism of receptor-ligand interactions in SL perception has not yet been uncovered, an effective strategy to obtain new potential agonist molecules would be to screen chemicals containing the D-ring structure. Using this approach, here we report development of a new type of SL analog, in which a cinnamic acid (CA) moiety is simply coupled with the D-ring through the carboxylic acid part via an ester bond. CA is widely distributed in plant species, and is a precursor of many important plant molecules such as lignin, flavonoids, isoflavonoids, and coumarins. CA exists as both trans and cis isomers, of which the former is more stable and common in nature. This structural feature enabled us to prepare two types of conformationally distinct analogs. In addition, many different analogs with substitutions on the benzene ring are commercially available. Thus, we were able to prepare a variety of structurally diverse analogs with a common core skeleton. A further feature of interest was that the cis isomer of CA was recently reported to act as an auxin efflux inhibitor, which leads to growth-promoting activity at low concentration (Steenackers et al., 2017, 2019). However, at a high concentration, cis-CA showed growth-inhibiting activity, and cis-CA was identified as an allelopathic compound that suppresses the growth of neighboring plants (Hiradate et al., 2005). Building on these observations, we chose CA as the starting material for synthesizing new SL analogs. These new synthetic analogs showed germination-inducing activity towards two root parasitic plants, Orobanche minor and Striga hermonthica, at moderately low concentration. Moreover, the cis-CA-derived SL analog showed a growth promoting effect on Arabidopsis, possibly as a result of degradation to cis-CA in the growth medium and in planta. Thus, we expect that these new SL agonists might provide lead chemicals for developing a new type of suicidal germination inducers with an additional function as growth promoters in the host plant.
Materials and Methods
Preparation of cis-Isomers of CA
cis-isomers of CA derivatives were individually prepared by isomerization from the corresponding trans-isomer. Each trans-CA (300–500 mg) was dissolved in MeOH or CH3CN (50 ml). The solution was placed under UV lamp (254 nm). After the irradiation for 16 h, the solvent was evaporated in vacuo, and the mixture of trans/cis CA was suspended with 5–10 ml of distilled water. The sample was sonicated for 5 min and then centrifuged with 18,000 g for 30 min. The supernatant was filtered and diluted with distilled water up to 30 ml. The pH was adjusted to 1 using 1 N HCl and the sample was extracted with ethyl acetate (3 × 30 ml). The organic layer was dried over Na2SO4 and concentrated in vacuo, and the obtained each cis-CA was further subjected to the D-ring coupling reaction.
Chemical Synthesis of CASLs
5-Bromo-3-methyl-2(5H)-franone; 3-methyl-2(5H)-furanone (5 g, 51 mmol) was added to the solution of N-bromosuccinimide (9.05 g, 51 mmol) and azobis(isobutyronitrile) (170 mg, 1.02 mmol) in CCl4 (51 ml). The mixture was refluxed at 90°C for 4 h. After the reaction, the mixture was cooled to room temperature and filtered. The filtrate was concentrated in vacuo and purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford 5-bromo-3-methyl-2(5H)-franone (8.6 g, 95%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.24 (t, J = 1.8, 1 H), 6.85 (q, J = 1.5 Hz, 1 H), 2.07 (m, 3 H).
t-CASL (t-CASL1); K2CO3 (1.0 mmol) was added to the solution of trans-CA (0.50 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water. The sample was extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml), dried over Na2SO4, and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford t-CASL (99.8 mg, 0.41 mmol, 82%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.79 (d, J = 16 Hz, 1 H), 7.56–7.52 (m, 2 H), 7.43–7.39 (m, 2 H), 7.03 (t, J = 1.5 Hz, 1 H), 6.99 (t, J = 1.5 Hz, 1 H), 6.43 (d, J = 16 Hz, 1 H), 2.02 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.54, 92.52, 115.82, 128.26, 128.91, 130.92, 133.64, 134.27, 142.19, 147.42, 164.76, 171.12; HRMS [ESI+ (m/z)] calculated for (C14H12O4 + H)+ 245.0808, found 245.0818.
c-CASL (c-CASL1); K2CO3 (1.34 mmol) was added to the solution of cis-CA (0.67 mmol) in N-methyl-2-pyrrolidone (6.7 ml). 5-Bromo-3-methyl-2(5H)-franone (1.31 mmol) diluted in N-methyl-2-pyrrolidone (6.7 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford c-CASL (96.0 mg, 0.39 mmol, 59%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.64–7.61 (m, 2 H), 7.38–7.36 (m, 3 H), 7.12 (d, J = 13 Hz, 1 H), 6.92 (t, J = 1.2 Hz, 1 H), 6.86 (t, J = 1.8 Hz, 1 H), 5.94 (d, J = 13 Hz, 1 H), 1.97 (t, J = 1.2 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.55, 92.26, 117.11, 128.00, 128.92, 129.63, 129.96, 134.16, 142.18, 146.99, 163.68, 171.09; HRMS [ESI+ (m/z)] calculated for (C14H12O4 + H)+ 245.0808, found 245.0815.
PPASL; K2CO3 (1.0 mmol) was added to the solution of PPA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford PPASL (113.0 mg, 0.46 mmol, 92%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.33–7.18 (m, 5 H), 6.87–6.83 (m, 2 H), 2.98 (t, J = 1.8 Hz, 2 H), 2.74–2.68 (m, 2 H), 1.98 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.50, 30.36, 35.41, 92.24, 126.38, 128.18, 128.48, 134.21, 139.67, 141.95, 170.96, 170.99; HRMS [ESI+ (m/z)] calculated for (C14H14O4 + H)+ 247.0965, found 247.0965.
trans-Me-CASL (t-CASL2); K2CO3 (1.0 mmol) was added to the solution of trans-Me-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-Me-CASL (50.8 mg, 0.20 mmol, 39%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.76 (d, J = 17 Hz, 1 H), 7.43 (d, J = 8.1 Hz, 2 H), 7.20 (d, J = 8.1 Hz, 2 H), 7.02 (t, J = 1.5 Hz, 1 H), 6.98 (t, J = 1.5 Hz, 1 H), 6.37 (d, J = 16 Hz, 1 H), 2.38 (s, 3 H), 2.01 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.51, 21.39, 92.47, 114.64, 128.12, 128.26, 128.31, 129.62, 130.94, 134.18, 141.50, 142.23, 147.42, 164.90, 171.11; HRMS [ESI+ (m/z)] calculated for (C15H14O4 + H)+ 259.0965, found 259.0978.
cis-Me-CASL (c-CASL2); K2CO3 (1.2 mmol) was added to the solution of cis-Me-CA (0.6 mmol) in N-methyl-2-pyrrolidone (6 ml). 5-Bromo-3-methyl-2(5H)-franone (1.18 mmol) diluted in N-methyl-2-pyrrolidone (6 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford cis-Me-CASL (70.4 mg, 0.27 mmol, 45%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.58 (d, J = 8.1 Hz, 2 H), 7.18 (d, J = 8.1 Hz, 7.08–7.04 (m, 1H), 6.93 (t, J = 1.5 Hz, 1 H), 6.89 (t, J = 1.5 Hz, 1 H), 5.87 (d, J = 12 Hz, 1 H), 2.37 (d, 3.9 Hz, 3 H), 1.97 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.52, 21.37, 92.25, 115.92, 128.76, 128.79, 130.29, 130.34, 131.20, 134.15, 140.20, 142.11, 147.28, 163.79, 171.12; HRMS [ESI+ (m/z)] calculated for (C15H14O4 + H)+ 259.0965, found 259.0976.
trans-OH-CASL (t-CASL3); K2CO3 (1.0 mmol) was added to the solution of trans-OH-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by a silica gel column chromatography (n-hexane/EtOAc:6/4) to afford trans-OH-CASL (41.8 mg, 0.16 mmol, 32%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.72 (d, J = 16 Hz, 1 H), 7.43 (d, J = 8.4 Hz, 2 H), 7.03–6.99 (m, 2 H), 6.87 (d, J = 8.7 Hz, 2 H), 6.26 (d, J = 16 Hz, 1 H), 6.16 (brs, 1 H), 2.02 (d, J = 1.2 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.49, 93.34, 113.41, 116.75, 126.50, 131.42, 134.28, 144.22, 147.97, 161.13, 165.72, 171.91; HRMS [ESI+ (m/z)] calculated for (C14H12O5 + H)+ 261.0757, found 261.0771.
cis-OH-CASL (c-CASL3); K2CO3 (0.89 mmol) was added to the solution of cis-OH-CA (0.44 mmol) in N-methyl-2-pyrrolidone (4.5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.87 mmol) diluted in N-methyl-2-pyrrolidone (4.5 ml) was added to the mixture, and the mixture was stirred for 3.5 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:6/4) and reverse phase HPLC (ODS SP-100, CH3CN/H2O:4/6). The HPLC purification was conducted for a part of the sample to afford c-CASL3 (5.2 mg, 0.02 mmol, 5%). 1H-NMR (300 MHz, acetone-D6) 𝛿 9.02 (s, 1 H), 7.82 (d, J = 9 Hz, 2 H), 7.23 (s, 1 H), 7.07 (d, J = 13 Hz, 1 H), 7.00 (s, 1 H), 6.87 (d, J = 8.4 Hz, 2 H), 5.81 (d, J = 13 Hz, 1 H), 1.94 (s, 3 H); 13C-NMR (75 MHz, acetone-D6), 𝛿 10.48, 93.28, 114.10, 115.81, 126.85, 134.17, 134.28, 144.14, 147.76, 160.29, 164.92, 171.90; HRMS [ESI+ (m/z)] calculated for (C14H12O5 + H)+ 261.0757, found 261.0772.
trans-OMe-CASL (t-CASL4); K2CO3 (1.0 mmol) was added to the solution of trans-OMe-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by a silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-OMe-CASL (83.9 mg, 0.31 mmol, 61%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.73 (d, J = 16 Hz, 1 H), 7.49 (d, J = 8.7 Hz, 2 H), 7.02 (t, J = 1.5 Hz, 1 H), 6.98 (d, J = 1.5 Hz, 1 H), 6.92 (d, J = 9.0 Hz, 2 H), 6.28 (m, 1 H), 3.84 (s, 3 H), 2.02 (d, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.59, 55.36, 92.51, 113.15, 114.40, 126.46, 130.11, 134.24, 142.31, 147.18, 161.92, 165.11, 171.20; HRMS [ESI+ (m/z)] calculated for (C15H14O5 + H)+ 275.0914, found 275.0927.
cis-OMe-CASL (c-CASL4); K2CO3 (1.9 mmol) was added to the solution of cis-OMe-CA (0.94 mmol) in N-methyl-2-pyrrolidone (9.4 ml). 5-Bromo-3-methyl-2(5H)-franone (1.84 mmol) diluted in N-methyl-2-pyrrolidone (9.4 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-OMe-CASL (154.5 mg, 0.56 mmol, 60%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.76 (d, J = 8.7 Hz, 2 H), 7.00 (d, J = 13 Hz, 1 H), 6.95–6.86 (m, 4 H), 5.80 (d, J = 13 Hz, 1 H), 3.84 (d, J = 6.0 Hz, 3 H), 1.98 (t, J = 1.2 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.54, 55.25, 92.26, 113.44, 114.08, 126.63, 132.73, 134.15, 142.20, 147.21, 160.99, 163.97, 171.17; HRMS [ESI+ (m/z)] calculated for (C15H14O5 + H)+ 275.0914, found 275.0926.
trans-OEt-CASL (t-CASL5); K2CO3 (1.0 mmol) was added to the solution of trans-OEt-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-OEt-CASL (83.9 mg, 0.29 mmol, 58%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.73 (d, J = 16 Hz, 1 H), 7.47 (d, J = 8.7 Hz, 2 H), 7.02 (d, J = 1.5 Hz, 1 H), 6.98 (t, J = 1.5 Hz, 1 H), 6.90 (d, J = 8.7 Hz, 2 H), 6.27 (m, 1 H), 4.07 (q, J = 6.9 Hz, 2 H), 2.01 (t, J = 1.4 Hz, 3 H), 1.45–1.41 (m, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.60, 14.63, 63.63, 92.52, 112.98, 114.56, 126.28, 130.12, 134.24, 142.31, 147.28, 161.35, 165.15, 171.21; HRMS [ESI+ (m/z)] calculated for (C16H16O5 + H)+ 289.1071, found 289.1082.
cis-OEt-CASL (c-CASL5); K2CO3 (0.76 mmol) was added to the solution of cis-OEt-CA (0.38 mmol) in N-methyl-2-pyrrolidone (3.8 ml). 5-Bromo-3-methyl-2(5H)-franone (0.75 mmol) diluted in N-methyl-2-pyrrolidone (3.8 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by a silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-OEt-CASL (74.5 mg, 0.26 mmol, 68%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.77–7.74 (m, 2 H), 7.08–6.87 (m, 5 H), 5.78 (d, J = 13 Hz, 1 H), 4.07 (q, J = 6.9 Hz, 2 H), 1.99 (t, J = 1.4 Hz, 3 H), 1.45–1.41 (m, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.59, 14.67, 63.51, 92.29, 113.91, 113.97, 126.50, 132.83, 134.22, 142.21, 147.34, 160.47, 164.04, 171.20; HRMS [ESI+ (m/z)] calculated for (C16H16O5 + H)+ 289.1071, found 289.1083.
trans-NO2-CASL (t-CASL6); K2CO3 (1.0 mmol) was added to the solution of trans-NO2-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-NO2-CASL (72.6 mg, 0.25 mmol, 50%). 1H-NMR (300 MHz, CDCl3) 𝛿 8.27 (d, J = 8.7 Hz, 2 H), 7.81 (d, J = 16 Hz, 1 H), 7.70 (d, J = 8.7 Hz, 2 H), 7.03 (t, J = 1.5 Hz, 1 H), 6.99 (t, J = 1.5 Hz, 1 H), 6.55 (d, J = 16 Hz, 1 H), 2.03 (t, J = 1.2 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.73, 92.79, 120.32, 124.30, 128.97, 134.75, 139.74, 141.82, 144.39, 148.89, 164.04, 170.97; HRMS [ESI+ (m/z)] calculated for (C14H11NO6 + H)+ 290.0659, found 290.0671.
cis-NO2-CASL (c-CASL6); K2CO3 (0.58 mmol) was added to the solution of cis-NO2-CA (0.29 mmol) in N-methyl-2-pyrrolidone (2.9 ml). 5-Bromo-3-methyl-2(5H)-franone (0.57 mmol) diluted in N-methyl-2-pyrrolidone (2.9 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:6/4) to afford cis-NO2-CASL (20.7 mg, 0.07 mol, 25%). 1H-NMR (300 MHz, CDCl3) 𝛿 8.23 (d, J = 8.7 Hz, 2 H), 7.71 (d, J = 8.7 Hz, 2 H), 7.18 (d, J = 12 Hz, 1 H), 6.89–6.88 (m, 2 H), 6.13 (d, J = 12 Hz, 1 H), 1.98 (s, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.66, 92.42, 120.84, 123.29, 130.45, 134.70, 140.52, 141.63, 144.39, 147.93, 163.09, 170.89; HRMS [ESI+ (m/z)] calculated for (C14H11NO6 + H)+ 290.0659, found 290.0671.
trans-F-CASL (t-CASL7); K2CO3 (1.1 mmol) was added to the solution of trans-F-CA (0.57 mmol) in N-methyl-2-pyrrolidone (5.7 ml). 5-Bromo-3-methyl-2(5H)-franone (1.12 mmol) diluted in N-methyl-2-pyrrolidone (5.7 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-F-CASL (39.0 mg, 0.15 mol, 26%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.75 (d, J = 16 Hz, 1 H), 7.56–7.51 (m, 2 H), 7.13–7.07 (m, 2 H), 7.02–6.98 (m, 2 H), 6.35 (d, J = 16 Hz, 1 H), 2.02 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.59, 92.58, 115.65 (d, JC-F = 2.5 Hz), 116.15 (d, JC-F = 22 Hz), 129.99, 130.29 (d, JC-F = 8.6 Hz), 134.39, 142.12, 146.11, 164.23 (d, JC-F = 251 Hz), 164.69, 171.09; HRMS [ESI+ (m/z)] calculated for (C14H11FO4 + H)+ 263.0714, found 263.0744.
cis-F-CASL (c-CASL7); K2CO3 (1.26 mmol) was added to the solution of cis-F-CA (0.63 mmol) in N-methyl-2-pyrrolidone (6.3 ml). 5-Bromo-3-methyl-2(5H)-franone (1.23 mmol) diluted in N-methyl-2-pyrrolidone (6.3 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-F-CASL (94.2 mg, 0.36 mmol, 57%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.72–7.67 (m, 2 H), 7.10–7.03 (m, 3 H), 6.92 (t, J = 1.5 Hz, 1 H), 6.89 (t, J = 1.5 Hz, 1H), 5.91 (d, J = 13 Hz, 1 H), 1.98 (t, J = 1.8 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.56, 92.27, 115.14 (d, JC-F = 22 Hz), 116.73 (d, JC-F = 2.2 Hz), 130.11, 132.45 (d, JC-F = 8.7 Hz), 134.34, 141.97, 146.07, 163.34 (d, JC-F = 249 Hz), 163.65, 171.06; HRMS [ESI+ (m/z)] calculated for (C14H11FO4 + H)+ 263.0714, found 263.0734.
trans-Cl-CASL (t-CASL8); K2CO3 (1.0 mmol) was added to the solution of trans-Cl-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-Cl-CASL (128 mg, 0.46 mmol, 92%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.73 (d, J = 16 Hz, 1 H), 7.48–7.27 (m, 4 H), 7.02 (t, J = 1.5 Hz, 1 H), 6.99 (t, J = 1.5 Hz, 1 H), 6.40 (d, J = 16 Hz, 1H), 2.02 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.55, 92.55, 116.21, 129.42, 132.15, 134.34, 136.85, 142.08, 145.89, 164.53, 171.06; HRMS [ESI+ (m/z)] calculated for (C14H11ClO4 + H)+ 279.0419, found 279.0433.
cis-Cl-CASL (c-CASL8); K2CO3 (1.0 mmol) was added to the solution of trans-Cl-CA (0.52 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-Cl-CASL (80.6 mg, 0.29 mmol, 56%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.60 (d, J = 8.4 Hz, 2 H), 7.37–7.33 (m, 2 H), 7.05 (d, J = 13 Hz, 1 H), 6.92–6.88 (m, 2 H), 5.95 (d, J = 13 Hz, 1 H), 1.98 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.55, 92.27, 117.64, 128.27, 131.45, 132.42, 134.34, 135.66, 141.91, 145.82, 163.52, 171.04; HRMS [ESI+ (m/z)] calculated for (C14H11ClO4 + H)+ 279.0419, found 279.0440.
trans-Br-CASL (t-CASL9); K2CO3 (1.0 mmol) was added to the solution of trans-Br-CA (0.5 mmol) in N-methyl-2-pyrrolidone (5 ml). 5-Bromo-3-methyl-2(5H)-franone (0.98 mmol) diluted in N-methyl-2-pyrrolidone (5 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-Br-CASL (157 mg, 0.49 mmol, 98%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.71 (d, J = 16 Hz, 1 H), 7.54 (d, J = 8.4 Hz, 2 H), 7.39 (d, J = 8.4 Hz, 2 H), 7.01 (t, J = 1.5 Hz, 1 H), 6.98 (t, J = 1.5 Hz, 1H), 6.41 (d, J = 16 Hz, 1 H), 2.02 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.59, 92.60, 116.59, 125.32, 129.63, 132.22, 132.61, 134.41, 142.05, 146.00, 164.55, 171.04; HRMS [ESI+ (m/z)] calculated for (C14H11BrO4 + H)+ 322.9913, found 322.9930.
cis-Br-CASL (c-CASL9); K2CO3 (0.56 mmol) was added to the solution of cis-Br-CA (0.28 mmol) in N-methyl-2-pyrrolidone (2.8 ml). 5-Bromo-3-methyl-2(5H)-franone (0.27 mmol) diluted in N-methyl-2-pyrrolidone (2.8 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-Br-CASL (34.8 mg, 0.11 mmol, 39%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.56–7.48 (m, 4 H), 7.03 (d, J = 13 Hz, 1 H), 6.91 (t, J = 1.5 Hz, 1H), 6.88 (t, J = 1.5 Hz, 1 H), 5.96 (d, J = 13 Hz, 1 H), 1.98 (m, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.60, 92.31, 117.86, 124.10, 131.30, 131.61, 132.93, 134.22, 141.87, 145.87, 163.53, 171.01; HRMS [ESI+ (m/z)] calculated for (C14H11BrO4 + H)+ 322.9913, found 322.9935.
trans-CF3-CASL (t-CASL10); K2CO3 (1.1 mmol) was added to the solution of trans-CF3-CA (0.56 mmol) in N-methyl-2-pyrrolidone (5.6 ml). 5-Bromo-3-methyl-2(5H)-franone (1.10 mmol) diluted in N-methyl-2-pyrrolidone (5.6 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford trans-CF3-CASL (164 mg, 0.53 mmol, 94%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.80 (d, J = 16 Hz, 1 H), 7.69–7.62 (m, 4 H), 7.03 (t, J = 1.5 Hz, 1 H), 6.99 (t, J = 1.5 Hz, 1 H), 6.50 (d, J = 16 Hz, 1 H), 2.03 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.57, 92.65, 118.56, 123.63 (q, JC-F = 271 Hz), 125.90 (q, JC-F = 3.8 Hz), 128.41, 132.26 (q, JC-F = 33 Hz), 134.50, 137.05 (d, JC-F = 1.2 Hz), 141.96, 145.42, 164.28, 170.10; HRMS [ESI+ (m/z)] calculated for (C15H12F3O4 + H)+ 313.0682, found 313.0698.
cis-CF3-CASL (c-CASL10); K2CO3 (1.1 mmol) was added to the solution of cis-CF3-CA (0.54 mmol) in N-methyl-2-pyrrolidone (5.4 ml). 5-Bromo-3-methyl-2(5H)-franone (1.06 mmol) diluted in N-methyl-2-pyrrolidone 5.4 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:7/3) to afford cis-CF3-CASL (45.7 mg, 0.15 mmol, 27%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.68–7.26 (m, 4 H), 8.16 (d, J = 12 Hz, 1 H), 6.89 (t, J = 1.4 Hz, 1 H), 6.85 (t, J = 1.4 Hz, 1 H), 6.06 (d, J = 13 Hz, 1 H), 1.97 (t, J = 1.4 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.51, 92.28, 119.62, 123.83 (q, JC-F = 271 Hz) 124.95 (q, JC-F = 3.7 Hz), 129.84, 130.99 (q, JC-F = 32 Hz), 134.45, 137.69 (d, JC-F = 1.2 Hz), 141.73, 145.27, 163.29, 170.94; HRMS [ESI+ (m/z)] calculated for (C15H12F3O4 + H)+ 313.0682, found 313.0697.
cis and trans isomer mixture of the ethyl ester of indanone derived-CA analogs; Ethyl 2-(diethoxyphosphoryl) acetate (12.1 mmol) was added to a solution of NaH (60% oil, 15.2 mmol) in dry THF (12 ml) at −78°C under Ar. The mixture was stirred for 15 min, and then 1-indanone (10.1 mmol) in THF (6 ml) was added. After the stirring for 30 min, the mixture was placed on ice for 2 h and then stirred for 20 h at room temperature. The reaction was quenched with saturated aqueous NH4Cl and diluted with distilled water up to 100 ml. The mixture was extracted with ethyl acetate (3 × 100 ml) and the organic layer was washed with distilled water (2 × 300 ml). The organic layer was dried with Na2SO4, filtered, and concentrated in vacuo. The crude product was purified by silica gel column chromatography (n-hexane/EtOAc:9.5/0.5) to afford the ethyl ester of trans-indanone-CA (154.8 mg, 0.78 mmol, 8%) and cis-indanone-CA (58.4 mg, 0.29 mmol, 3%). ethyl ester of trans-indanone-CA: 1H-NMR (300 MHz, CDCl3) 𝛿 7.60 (d, J = 7.5 Hz, 1 H), 7.35 (d, J = 3.9 Hz, 2 H), (d, J = 7.8, 1 H), 7.23–7.28 (m, 1 H), 6.31 (t, J = 2.6 Hz, 1H), 4.23 (q, J = 7.2, 2 H), 3.28–3.33 (m, 2 H), 3.08 (t, J = 7.7 Hz, 1 H), 1.33 (t, J = 7.1 Hz, 3 H); ethyl ester of cis-indanone-CA: 1H-NMR (300 MHz, CDCl3) 𝛿 8.82 (d, J = 7.8 Hz, 1 H), 7.25–7.37 (m, 3 H), 5.97 (d, J = 2.0 Hz, 1 H), 4.22 (q, J = 7.2 Hz, 2 H), 2.97–3.01 (m, 2H), 2.89–2.94 (m, 2 H), 1.32 (t, J = 7.1 Hz, 2 H).
trans-indanone-CA; Ethanol (1.91 ml) and 5 M NaOHaq (1.93 ml) was added to the round flask containing trans-indanone-CA ethyl ester (0.77 mmol). The mixture was stirred for 15 h at room temperature. Distilled water was added to the solution up to 30 ml and extracted with ethyl acetate (3 × 30 ml). The pH of the water layer was adjusted to 1 using 6 N-HCl and, then extracted with ethyl acetate (3 × 30 ml). The organic layer was dried with Na2SO4, filtered, and concentrated in vacuo. The hydrolysis product was checked by TLC and used for the next coupling reaction without purification.
trans-indanone-CASL (t-indCASL); K2CO3 (0.91 mmol) was added to the crude trans-indanone-CA (0.45 mmol) in N-methyl-2-pyrrolidone (4.6 ml). 5-Bromo-3-methyl-2(5H)-franone (0.89 mmol) diluted in N-methyl-2-pyrrolidone (4.6 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N-HCl, and the solution was diluted to 50 ml with water, extracted with EtOAc (3 × 50 ml). The organic layer was washed with distilled water (3 × 150 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by a silica gel column chromatography (n-hexane/EtOAc:8/2) and PTLC (n-hexane/EtOAc:7/3) to afford trans-indanone-CASL (21.4 mg, 0.08 mmol, 18%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.60 (d, J = 7.8 Hz, 1 H), 7.38–7.43 (m, 2 H), 7.25–7.30 (m, 1 H), 7.01 (quin, J = 1.5 Hz, 1 H), 6.97 (quin, J = 1.5 Hz, 2 H), 6.29 (t, J = 2.4 Hz, 1 H), 3.30–3.35 (m, 2 H), 3.11 (t, J = 5.9 Hz, 2 H), 2.01 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.65, 30.57, 31.65, 92.24, 105.16, 121.90, 125.77, 126.93, 131.68, 134.18, 139.39, 142.49, 150.28, 165.12, 167.34, 171.36; HRMS [ESI+ (m/z)] calculated for (C16H14O4 + H)+ 271.0965, found 271.0978.
cis-indanone-CA; Ethanol (0.73 ml) and 5 M NaOHaq (0.73 ml) was added to the round flask containing cis-indanone-CA-Et (0.29 mmol). The mixture was stirred for 15 h at room temperature. Distilled water was added to the solution up to 30 ml and extracted with ethyl acetate (3 × 30 ml). The pH of the water layer was adjusted to 1 using 6 N-HCl and, then extracted with ethyl acetate (3 × 30 ml). The organic layer was dried with Na2SO4, filtered, and concentrated in vacuo. The hydrolysis product was checked by TLC and used for the next coupling reaction without purification.
cis-indanone-CASL (c-indCASL); K2CO3 (0.22 mmol) was added to the crude cis-indanone-CA (0.11 mmol) in N-methyl-2-pyrrolidone (1.1 ml). 5-Bromo-3-methyl-2(5H)-franone (0.22 mmol) diluted in N-methyl-2-pyrrolidone (1.1 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N-HCl, and the solution was diluted to 30 ml with water, extracted with EtOAc (3 × 30 ml). The organic layer was washed with distilled water (3 × 90 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford cis-indanone-CASL (17.7 mg, 0.07 mmol, 60%). 1H-NMR (300 MHz, CDCl3) 𝛿 8.86 (d, J = 7.8 Hz, 1 H), 7.29–7.43 (m, 3 H), 6.98–6.99 (m, 1 H), 6.95 (quin, J = 1.7 Hz, 1 H), 5.94 (t, J = 1.8 Hz, 1 H), 6.29 (t, J = 2.4 Hz, 1 H), 2.93–3.0 (m, 4 H), 3.11 (t, J = 5.9 Hz, 2 H), 2.00 (t, J = 1.5 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.68, 29.57, 36.03, 92.35, 108.14, 125.17, 126.79, 129.05, 131.65, 134.20, 137.15, 142.49, 151.78, 163.75, 165.45, 171.39; HRMS [ESI+ (m/z)] calculated for (C16H14O4 + H)+ 271.0965, found 271.097.
cis and trans isomer mixture of the ethyl ester of tetralone derived-CA analogs; Ethyl 2-(diethoxyphosphoryl) acetate (12.08 mmol) was added to a solution of NaH (60% oil, 15.15 mmol) in dry THF (12 ml) at −78°C under Ar. The mixture was stirred for 15 min, and then 1-tetralone (10 mmol) in THF (6 ml) was added. After the stirring for 30 min, the mixture was placed on ice for 16 h and then stirred for 2 h at room temperature. The reaction was quenched with saturated aqueous NH4Cl and diluted with distilled water up to 50 ml. The mixture was extracted with dichloromethane (3 × 50 ml). The Organic layer was dried with Na2SO4, filtered, and concentrated in vacuo. The crude product was purified by silica gel column chromatography (n-hexane/EtOAc:9/1) to afford the mixture of trans-tetralone-CA-Et and cis-tetralone-CA-Et. The mixture was used for the next hydrolysis reaction without purification.
cis and trans isomer mixture of tetralone derived-CA analogs; Ethanol (0.74 ml) and 5 M NaOHaq (0.75 ml) was added to the round flask containing the mixture of trans-tetralone-CA-Et and cis-tetralone-CA-Et (0.30 mmol). The mixture was stirred for 17 h at room temperature. Distilled water was added to the solution up to 30 ml and extracted with ethyl acetate (3 × 30 ml). Water phase pH was adjusted to 1 using 6 N-HCl and then extracted with ethyl acetate (3 × 30 ml). The organic layer was dried with Na2SO4, filtered, and concentrated in vacuo. These hydrolysis products were checked by TLC and used for the next coupling reaction without purification.
trans-tetralone-CASL (t-tetCASL) and cis-tetralone-CASL (c-tetCASL); K2CO3 (0.39 mmol) was added to the mixture of trans-tetralone-CA and cis-tetralone-CA (0.19 mmol) in N-methyl-2-pyrrolidone (1.9 ml). 5-Bromo-3-methyl-2(5H)-franone (0.38 mmol) diluted in N-methyl-2-pyrrolidone (1.9 ml) was added to the mixture, and the mixture was stirred for 12 h at room temperature. The reaction was quenched by adding 1 N-HCl, and the solution was diluted to 30 ml with water, extracted with EtOAc (3 × 30 ml). The organic layer was washed with distilled water (3 × 90 ml) and dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:8/2) to afford trans-tetralone-CASL (21.4 mg, 0.08 mmol, 40%) and cis-tetralone-CASL. cis-tetralone-CASL was purified again by reverse phase HPLC (ODS-SP100, CH3CN/H2O:7/3; 8.6 mg, 0.03 mmol, 16%). trans-tetralone-CASL: 1H-NMR (300 MHz, CDCl3) 𝛿 7.64 (d, J = 7.8 Hz, 1 H), 7.16–7.34 (m, 3 H), 6.99 (s, 1 H), 6.96 (s, 1 H), 6.31 (s, 1 H), 3.20–3.22 (m, 2 H), 2.81 (t, J = 6.0 Hz, 2 H), 2.01 (t, J = 1.5 Hz, 3 H), 1.87 (t, J = 6.0 Hz, 3 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.69, 22.47, 28.57, 30.10, 92.18, 109.52, 124.93, 126.51, 129.29, 130.56, 133.59, 134.24, 140.85, 142.48, 159.19, 164.53, 171.37; HRMS [ESI+ (m/z)] calculated for (C17H16O4 + H)+ 285.1121, found 285.1134; cis-tetralone-CASL: 1H-NMR (300 MHz, CDCl3) 𝛿 7.65 (d, J = 7.8 Hz, 1 H), 7.27–7.32 (m, 1 H), 7.13–7.18 (m, 2 H), 6.93 (t, J = 1.5 Hz, 1 H), 6.89 (t, J = 1.5 Hz, 1 H), 5.78 (s, 1 H), 2.87 (t, J = 6.6 Hz, 2 H), 2.52–2.56 (m, 2 H), 1.96–2.02 (m, 5 H); 13C-NMR (75 MHz, CDCl3), 𝛿 10.66, 22.99, 29.09, 35.42, 92.29, 111.88, 124.85, 128.42, 129.75, 130.21, 132.61, 134.20, 139.42, 142.28, 158.45, 164.41, 171.34; HRMS [ESI+ (m/z)] calculated for (C17H16O4 + H)+ 285.1121, found 285.1132.
GR5; γ-butyrolactone (2.0 mmol) and methyl formate (10 mmol) was added to the solution of potassium tert -butoxide in dry tetrahydrofuran at 4°C under Ar. The mixture was transferred to the room temperature and stirred for 6 h. 5-Bromo-3-methyl-2(5H)-franone (2.0 mmol) was added and stirred for 15 h at room temperature. The reaction was quenched by adding 1 N HCl, and the solution was diluted to 100 ml with distilled water, extracted with EtOAc (3 × 100 ml). The organic layer was dried over Na2SO4 and concentrated in vacuo. The crude sample was purified by silica gel column chromatography (n-hexane/EtOAc:5/5). Fractions containing the GR5 were purified again by silica gel column chromatography (Toluene/EtOAc:6/4; 46.2 mg, 0.22 mmol, 11%). 1H-NMR (300 MHz, CDCl3) 𝛿 7.48 (t, J = 2.7 Hz, 1 H), 6.94 (quin, J = 1.5 Hz, 1 H), 6.17(t, J = 1.5 Hz, 1 H), 4.39 (t, J = 7.2 Hz, 2 H), 2.93–2.87 (m, 2 H), 2.03 (t, J = 1.5 Hz, 3 H).
Germination Assay (Orobanche minor and Striga hermonthica)
Orobanche minor seeds were washed with 70% EtOH, and then sonicated for 4 min in 1% sodium hypochlorite solution containing 0.2% Tween-20. The seeds were then washed 10 times with sterile water and suspended in 0.1% agar solution. The seeds were loaded onto 5-mm glass fiber filter disks (20–70 seeds/disk) and were conditioned at 23°C for 15 days. Each disk was transferred into a 96-well plate. A 30 μl aliquot of test chemical solution was added to the well. For the germination assay, the chemical solutions were prepared by 1,000 times dilution from each acetone stock solution with water (final acetone concentration was 0.1%). GR24 solution (0.1% acetone) and sterile water (0.1% acetone) was used as positive and negative control, respectively. The 96 well plates were incubated for 5 days at 23°C and the number of total seeds and germinated seeds was counted.
Striga hermonthica seeds were washed with 70% EtOH, and then sonicated for 4 min in 1% sodium hypochlorite solution containing 0.2% Tween-20. The seeds were then washed 10 times with sterile water and suspended in 0.1% agar solution. The seeds were loaded onto 5-mm glass fiber filter disks (20–70 seeds/disk) and were conditioned at 30°C for 7 days. Each disk was transferred into a 96-well plate. A 30 μl aliquot of test chemical solution was added to the well. For the germination assay, the chemical solutions were prepared by 1,000 times dilution from each acetone stock solution with water (final acetone concentration was 0.1%). GR24 solution (0.1% acetone) and sterile water (0.1% acetone) was used as positive and negative control, respectively. The 96 well plates were incubated for 1 day at 30°C and total seeds and germinated seeds were counted.
Protein Expression (ShHTL6, ShHTL7, and AtD14)
The ORF fragment of ShHTL6 and ShHTL7 was synthesized using IDT gBlock service. The PCR amplified ShHTL6 and ShHTL7 fragment was digested with Nco I and EcoR I, and the digested product was introduced into a modified pET28 vector with an N-terminal His8 tag. Escherichia coli BL21(DE3) was used for protein expression. The overnight culture (12 ml) was added to a fresh LB medium (1.2 L) containing kanamycin (50 mg/L) at 37°C. After OD600 reached 0.8, 0.1 mM IPTG was added and the cell was further incubated at 16°C for 21 h. The culture medium was centrifuged at 3700 g and the pellet was stored at −20°C until use. The pellet was resuspended and sonicated in a lysis buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl, 10 mM 2-mercaptoethanol, and 10% glycerol). The supernatant was purified by Ni Sepharose TM 6 Fast Flow (500 μl, Cytiva). After washing with the washing buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl and 20 mM imidazole), The bound protein was eluted with elution buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl and 200 mM imidazole). The eluate was concentrated using VIVASPIN Turbo 15 (Sartorius), and the concentration was adjusted to 5 mg/ml. The purified protein was aliquoted to the appropriate volume, immediately frozen in liquid nitrogen, and stored at −80°C until use.
The cDNA of AtD14 was introduced into pMALHis vector that has both MBP-tag and His6-tag. The vector was transformed in to E. coli BL21 (DE3) and the cell was precultured in LB medium containing 50 μg/ml ampicillin. Overnight cultures (10 ml) were added to fresh LB medium (1 L) containing 50 μg/ml ampicillin and it was cultured at 37°C. After OD600 reached to 0.8, the cultures were cooled at 16°C for 1 h, and then 0.1 mM IPTG was added. The culture was further incubated at 16°C for 20 h. The culture medium was centrifuged at 3,700 g and the pellet was stored at −20°C until use. The pellet was resuspended and sonicated in lysis buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl, 10 mM 2-mercaptoethanol, and 10% glycerol). The supernatant was purified by Ni Sepharose TM 6 Fast Flow (500 μl, Cytiva) After washing with the washing buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl and 20 mM imidazole), The bound protein was eluted with elution buffer (50 mM Tris buffer (pH 8.0) containing 500 mM NaCl and 200 mM imidazole). The eluate was concentrated using VIVASPIN Turbo 15 (Sartorius), and the concentration was adjusted to 5 mg/ml. The purified protein was aliquoted to the appropriate volume, immediately frozen in liquid nitrogen, and stored at −80°C until use.
YLG Assay
In vitro YLG assays were conducted using 1 μg of recombinant ShHTL6 or ShHTL7 in 100 μl of reaction buffer (100 mM HEPES, 150 mM NaCl, pH 7.0) with 0.2% DMSO on a 96-well black plate (Greiner). After YLG was incubated with recombinant ShHTL6 or ShHTL7 for 1 h, the fluorescence was measured by spectraMax i5 (Molecular Devices) at excitation by 480 nm and detection by 520 nm. IC50 values were calculated using the online tool Quest GraphTM IC50 Calculator (AAT Bioquest, Inc., United States; https://www.aatbio.com/tools/ ic50-calculator).
Branching Assay
Sterilized seeds of the Arabidopsis max4-8 mutant were put on the rockwool which was soaked in Noren’s hydroponic solution (Noren et al., 2004) and cultured at 22°C for 14 days under LED light (105 μmol/m2/s) with a 16 h light/8 h dark photoperiod. Seedlings were transferred to a plastic pot containing 800 ml of hydroponic culture and grown under the same conditions for additional 15 or 16 days. Test compounds were dissolved in acetone and added to hydroponic culture. The final concentration of test compounds was 1 or 5 μM and acetone was adjusted to 0.01% (v/v). The hydroponic culture was renewed after 7 days. The number of rosette branches (>5 mm) was counted. In the experience at 5 μM concentration, fresh weight of shoot was also measured to evaluate the side effects of tested compounds.
Differential Scanning Fluorometry Experiments
DSF was conducted using 10 μg of the recombinant AtD14 protein in 20 μl of PBS buffer containing the 0.02 μl of Sypro Orange (Ex/Em: 490/610 nm; Invitrogen) and each compound with 5% (v/v) acetone on 96-well plate. These mixtures were heated from 20°C to 95°C, and the fluorescence (Ex/Em; 483/568) was constantly scanned by using LightCycler480 (Roche). The denaturation curve was calculated by using the LightCycler480 Software.
Hydrolysis Assay
Hydrolysis assays were carried out at 30°C for 60 min in 100 μl of a reaction buffer containing 0.13 pmol recombinant ShHTL7 or AtD14, 10 μM of substrate in 50 mM Phosphate-Na buffer (pH 7.0) containing 2% acetone. The enzyme reaction was stopped by addition of 100 μl of acetonitrile containing 1-naphtaleneacetic acid (NAA; 0.5 ng/μl) as an internal standard. After centrifuged at 13,000 rpm for 5 min, each sample was subjected to LC–MS/MS analysis equipped with reverse-phase column (CORTECS UPLC Phenyl 1.6 μm, ϕ2.1 × 75 mm; Waters). The concentration of remaining substrate and reaction product was calculated by using NAA as an internal standard. Detailed information about the analytical condition is described in Supplementary Table 1.
Time Course Monitoring of CASLs Degradation in Hydroponic Culture
t-CASL1, c-CASL1, PPASL, and GR5 were separately added to 15 ml tubes containing hydroponic culture. The final concentration of the test compounds is 1 μM and acetone was adjusted to 0.01% (v/v). These solutions were incubated under the same conditions as branching assay. After incubation for 0, 5, 24 72, or 168 h, 495 μl of hydroponic culture containing test compounds was collected and 5 μl of NAA solution (10 μM) was added as an internal standard. The solution was extracted with ethyl acetate. The ethyl acetate phase was dried up under the nitrogen gas and dissolved in acetonitrile. These samples were subjected to LC–MS/MS analysis equipped with reverse-phase column (CORTECS UPLC Phenyl 1.6 μm, ϕ2.1 × 75 mm; Waters). Each peak area of test chemicals and internal standard was calculated, and the remaining percentage of teste chemicals was calculated. At the same time, the degradation products of test compounds (CA or PPA) were also analyzed. Detailed information about the analytical condition was described in Supplementary Table 1.
Growth Promoting Assay and Root Phenotypic Analysis
Sterilized seeds of the Arabidopsis wild type Col-0 were put on the plate containing 1% (w/v) agar-solidified 0.5× Murashige and Skoog (MS) medium, 1% sucrose. Test compounds were dissolved in the medium at 1 μM by 10,000 times dilution from each acetone stock (final concentration of acetone was 0.01% (v/v)). To evaluate the growth promoting effect, these seedlings were cultured horizontally at 22°C for 20 days under LED light (105 μmol/m2/s) with a 16 h light/8 h dark photoperiod. After the cultivation, flesh weight of shoot was measured. For root phenotypic analysis, these seedlings were cultured verticaly at 22°C for 11 days under LED light (105 μmol/m2/s) with a 16 h light/8 h dark photoperiod. After the cultivation, root length was measured by using ImageJ software and number of lateral roots was counted by using a microscope.
Results
Synthesis of SL Analogs Derived From CAs
To develop new SL analogs derived from cinnamic acid, we simply coupled the methylbutenolide (D-ring) to the carboxylic acid part of CA. To obtain structurally diverse analogs, we used as the starting materials both trans and cis CA isomers, and also 3-phenylpropionic acid (3-PPA), in which the double bond in the side chain is reduced to a single bond (Figure 2). It was previously reported that the isomerization of trans-CA to cis-CA is promoted by UV irradiation (254 nm; Yang et al., 1999). Accordingly, we prepared cis-CA according to this reported method. UV irradiation of the commercial trans-CA in MeOH solution promoted isomerization to the cis-isomer. Only the cis-isomer could be dissolved with water. Therefore, we could easily collect the cis-isomer after the isomerization, and it was then subjected to the D-ring coupling reaction. Hereafter, these new SL analogs derived from the isomers pair are referred to as c-CASL for cis isomer and t-CASL for trans isomer, respectively. The 3-PPA-derived SL analog is referred to as PPASL (Figure 2). Using these three analogs (c-CASL1, t-CASL1, and PPASL), we tested their germination-inducing activity for seeds of a root parasitic plant, Orobanche minor. We found that c-CASL1 showed approximately 10 times stronger germination-inducing activity than t-CASL1. Moreover, PPASL showed much weaker activity compared with c-CASL1 or t-CASL1, suggesting that the presence of the double bond in the side-chain structure has an important role for the biological activity as germination inducer for O. minor.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g002.jpg)
Figure 2. Orobanche minor germination inducing activity of cinnamic acid (CA) derived SL analogs. (A) Synthetic scheme for the CA derived SL analogs. (B) Germination inducing activity of CASLs toward O. minor seeds. Data are the means ± SD (n = 3). cont. means control with only acetone at 0.1%.
Synthesis of C-4 Substituted CASLs and Conformationally Fixed Analogs
To obtain more potent analogs derived from CA, we further synthesized structurally diverse CASLs using 4-substituted CA derivatives as the starting materials. Each cis-isomer of CA was obtained by the above-mentioned method, and in total we synthesized 18 analogs (c-CASL2 to c-CASL10, t-CASL2 to t-CASL10, Figure 3A). Among these SL analogs, interestingly, c-CASL type isomers showed stronger activity compared with the corresponding trans isomer, with the approximately 10 times activity difference. Moreover, we found that introduction of an electron withdrawing group, such as NO2, CF3, Br, Cl, increased the germination-inducing activity with almost 10 times strength compared with the non-substituted compounds. These compounds induced O. minor germination at 1 nM concentration, which was almost equal activity to the positive control, GR24 (Figure 3B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g003.jpg)

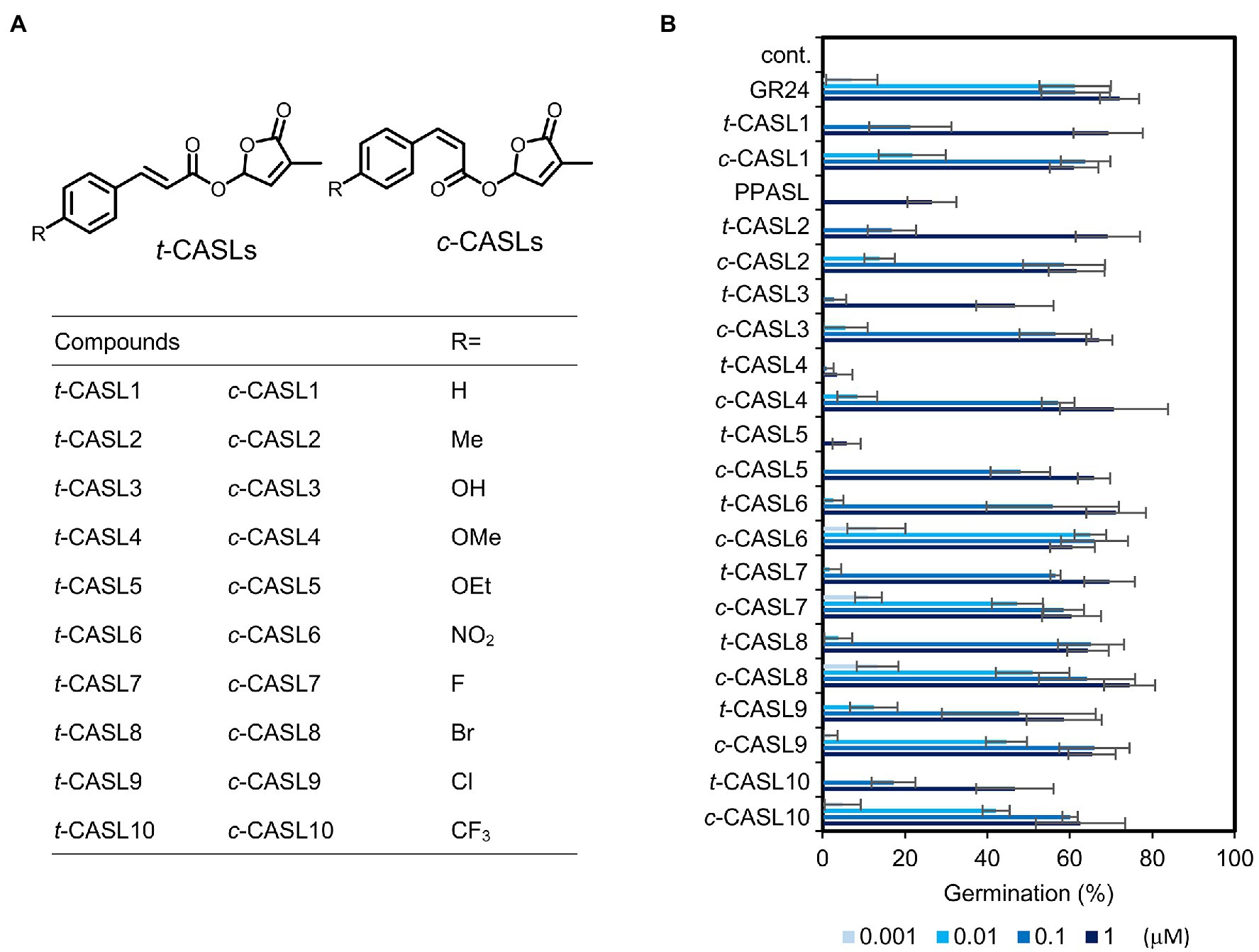

Figure 3. Orobanche minor germination inducing activity of C-4 substituted CA derived SL analogs. (A) Chemical structures of C-4 substituted type CASLs. (B) Germination inducing activity of tested compounds toward O. minor seeds. Data are the means ± SD (n = 3). cont. means control with only acetone at 0.1%.
We found that c-CASLs showed stronger activity for inducing O. minor germination than t-CASLs. In these synthetic analogs, the side-chain structure has flexible conformation because of its free rotation. In a previous study, this rotation of the CA side-chain was fixed by introducing a ring structure to connect the benzene ring to the side-chain double bond. Such conformationally restricted cis-CA analogs were found to have stronger activity as allelochemicals than non-fixed analogs (Nishikawa et al., 2013). Thus, we also prepared conformationally-fixed CASL analogs. Starting from indanone or tetralone, we introduced an olefin part by the Horner–Wadsworth–Emmons reaction, which produced a mixture of both cis and trans isomers of conformationally-fixed CA analogs. After hydrolysis of the ethyl ester, they were further subjected to the D-ring coupling reaction, which yielded conformationally restricted c-CASL and t-CASL (Figure 4A; indCASL or tetCASL). We found that both c-indCASL and c-tetCASL showed slightly stronger activity for inducing O. minor germination, compared with the corresponding unfixed analog (Figure 4B). In contrast, both t-indCASL and t-tetCASL showed much stronger activity, compared with the non-fixed analog, t-CASL1 (Figure 4B). These trans analogs showed activity almost equal to the corresponding cis isomer, showing that the activity difference between cis and trans isomer decreased by fixing the side chain rotation.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g004.jpg)
Figure 4. Orobanche minor germination inducing activity of conformationally fixed CA derived SL analogs. (A) Chemical structures of the conformationally fixed CASLs. (B) Germination inducing activity of tested compounds toward O. minor seeds. Data are means ± SD (n = 3). cont. means control with only acetone at 0.1%.
Interaction of CA-Derived SLs and the SL Receptor Protein

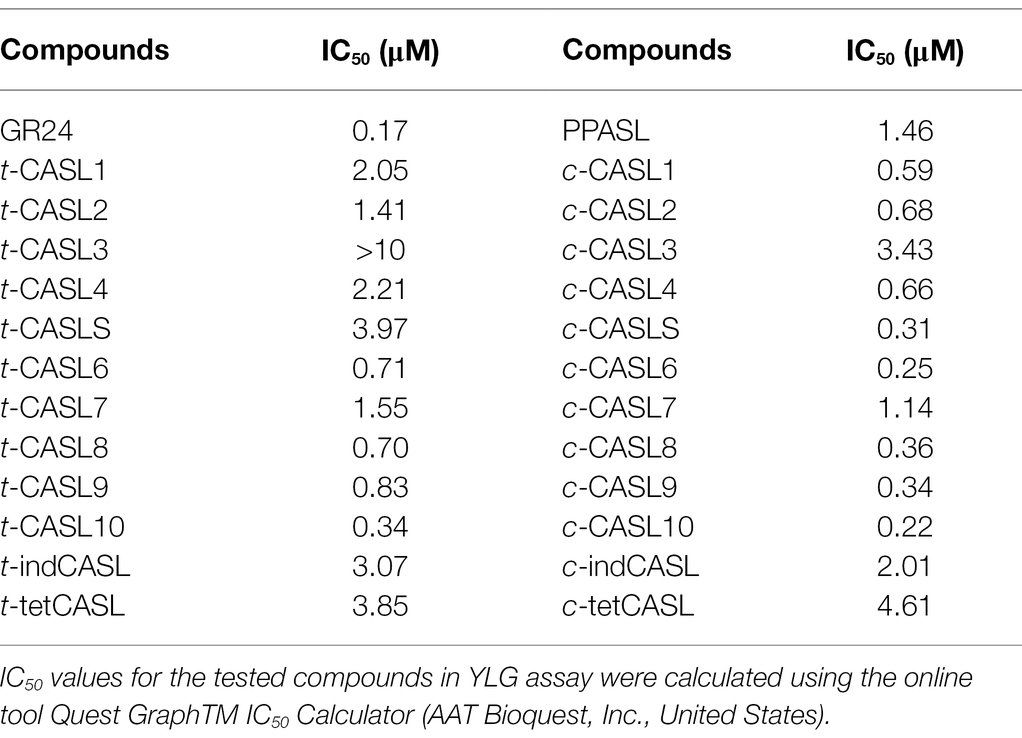

As mentioned above, we found that cis-CA-derived SL analogs showed stronger activity for inducing O. minor germination. To understand the molecular basis of the difference in activity between cis and trans isomers, we examined the interaction of each analog with the SL receptor protein. Because the SL receptors in O. minor have not yet been identified, we used the S. hermonthica sensitive receptor, HTL7 (Toh et al., 2015). We tested the interaction between HTL7 and each SL analog using yoshimulactone green (YLG), a pro-fluorescence-type SL analog. As mentioned earlier, HTL7 is a member of α/β-fold hydrolase family, and it was reported that YLG is hydrolysable by HTL7. YLG hydrolysis releases the fluorescein molecule, which can be easily monitored by fluorescence detector (Tsuchiya et al., 2018). As was reported previously, the SL analog, GR24, effectively inhibited the fluorescence emission with IC50 value 0.17 μM (Table 1; Supplementary Figure 1). Similarly, we found that the CASLs also inhibited YLG hydrolysis by HTL7 with moderately low IC50 values. Interestingly, c-CASLs showed lower IC50 values, compared with the corresponding t-CASLs (Table 1; Supplementary Figure 1). We also tested the interaction of these analogs with another SL receptor, HTL6, which is close to HTL7 but is not so sensitive compared with HTL7. Even in the case of HTL6, c-CASL showed lower IC50 value compared with t-CASL or PPASL (Supplementary Figure 2). These results strongly suggested that the activity difference between the cis and trans isomers of CASLs was because of the affinity difference for the receptor protein. As mentioned above, PPASL showed weaker activity for inducing O. minor germination, but this analog also inhibited YLG hydrolysis by HTL7 or HTL6, with a moderate IC50 value. Because we were able to detect the direct interaction of CASLs with the Striga SL receptor, we tested the germination-inducing activity of these compounds toward S. hermonthica seeds. We found that CASLs induced the germination of S. hermonthica seeds at moderately low concentration, and the activity of c-CASLs was stronger than that of the corresponding t-CASL, as was the case with O. minor (Figure 5).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g005.jpg)
Figure 5. Germination inducing activity of CASLs toward Striga hermonthica seeds. Data are the means ± SD (n = 3). cont. means control with only acetone at 0.01%.
Shoot-Branching Inhibition Activity by CASLs
We next evaluated the activity of CASLs as plant hormones using a shoot-branching inhibition assay. The Arabidopsis SL biosynthetic mutant, max4, was hydroponically grown in the presence of each synthetic CASL analog. As was reported previously, 1 μM GR5, a simplified SL analog, clearly inhibited shoot branching of the max4 mutant (Umehara et al., 2015), but we did not see shoot-branching inhibition by any of these CASLs at the same concentration (Figure 6). At a higher concentration, 5 μM, we found slight decrease of the branching number by treatment with some of synthetic analogs. However, we also found that such chemicals also showed growth inhibiting activity with significant decrease of shoot weight, which might be the reason for the branching reduction (Supplementary Figure 3). Next, we examined the direct interaction of the Arabidopsis SL receptor, AtD14, with CASLs, using differential scanning fluorimetry (DSF), which is widely used for SL receptor biochemical analyses (Hamiaux et al., 2012; Seto et al., 2019). This method can evaluate the receptor–ligand interaction by measuring the ligand-inducible melting temperature shift of the receptor protein. Using this method, we found that both cis- and trans-CASLs induced a melting temperature shift of AtD14, suggesting that these CASLs were able to interact directly with the Arabidopsis SL receptor protein, at least in vitro (Supplementary Figure 4). To further address the weak activity of CASLs in the shoot branching inhibition assay, we examined the chemical stability of CASLs in the hydroponic culture conditions. We speculated that these analogs might be unstable because the D-ring is connected to the CA part by an ester bond. We simply incubated c-CASL1, t-CASL1, or PPASL in the hydroponic culture medium, which was used for the shoot-branching inhibition assay, and the non-enzymatic degradation of each chemical was monitored by LC–MS/MS analysis. As we expected, both c-CASL1 and t-CASL1 degraded more rapidly than did GR5, with almost 40% loss within 1 week (Supplementary Figure 5A). In addition, we detected the release of the CA part, which gradually increased over time (Supplementary Figure 5B). Thus, instability of these analogs could be one reason for the inactivity of CASLs in the shoot-branching inhibition assay. We also found that SL receptors, AtD14 and HTL7, can hydrolyze c-CASL, t-CASL, or PPASL (Supplementary Figure 6). Thus, receptor-dependent degradation of these compounds might be also the reason for weak activity in shoot branching inhibition. However, we cannot rule out some other possibilities, for instance that the uptake of these analogs by Arabidopsis might be quite poor for some reason, or that CASLs might be metabolized rapidly in planta. Moreover, as mentioned above, CASLs exhibited growth inhibiting activity toward Arabidopsis at a high concentration. Thus, this would be another possible reason for apparent weak activity of CASLs as plant hormones.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g006.jpg)

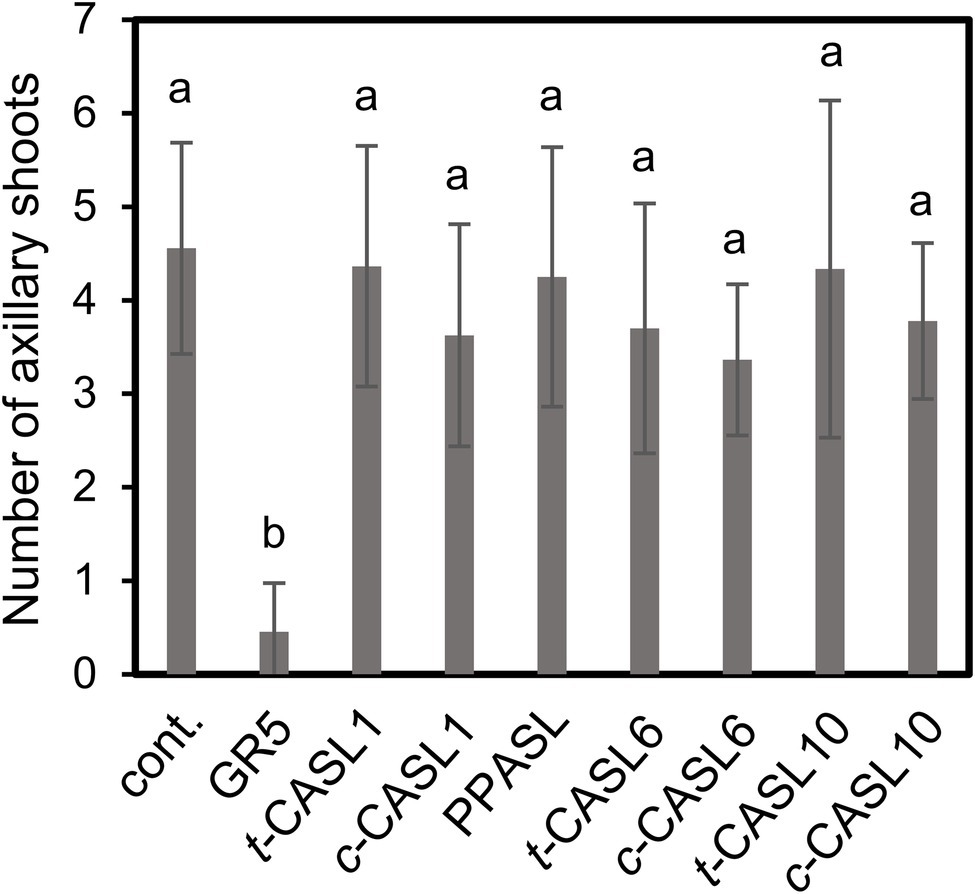

Figure 6. Shoot branching inhibiting activity of CASLs using the Arabidosis max4 mutant. Number of axillary shoots (Over 5 mm) of max4 which were grown in hydroponic culture containing test compounds at 1 μM concentration was counted. Data are means ± SD (n = 8–11). Different letters indicate significant differences at p < 0.05 with Tukey multiple comparison test. cont. means control with only acetone at 0.1%.
Plant Growth Promoting Activity of CASLs
As mentioned earlier, cis-CA, but not trans-CA, was reported to have plant growth-promoting activity at relatively low concentration by inhibiting the auxin efflux (Steenackers et al., 2017, 2019). Because c-CASL1 was found to be non-enzymatically degraded to some extent, we expected that c-CASL1 treatment might bring the same effect as treatment with cis-CA alone. To test this hypothesis, we grew Arabidopsis WT plants on the agar plates containing c-CASL1, t-CASL1, cis-CA, or trans-CA. cis-CA was reported to promote lateral root growth and thus to increase leaf size. We found that root growth phenotype was affected by not only cis-CA but also c-CASL1 (Supplementary Figure 7A). These two compounds almost equally inhibited the primary root length as well as increased the lateral root density (Supplementary Figure 7B). The root growth direction was also affected by c-CASL as was the case with cis-CA (Supplementary Figure 7A). Moreover, we observed an increase in shoot fresh weight after treatment with cis-CA or c-CASL (Figure 7). Thus, we conclude that c-CASL1 treatment produced the same effect as cis-CA treatment with growth promotion in Arabidopsis.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/843362/fpls-13-843362-HTML/image_m/fpls-13-843362-g007.jpg)
Figure 7. Effects of the CAs and CASLs on the Arabidosis seedling growth. (A) Fresh weight of the shoot parts after growing for 20 days on agar plate containing 1 μM test compounds. Data are the means ± SD (n = 13–25). Asterisk indicate the significant differences between the control using t-test (*p < 0.05). (B) Shoot phenotype of 20-days old seedling which were grown on the agar medium containing the indicated compounds (Scale bar = 1 cm). cont. means control with only acetone at 0.1%.
Discussion
In this paper, we report successful development of a series of new SL analogs derived from CA, which is the basis of a class of phenylpropanoid compounds widely distributed in the plant kingdom. We synthesized 25 analogs, all of which showed moderate activity as suicidal germination inducers for the root parasitic plants, O. minor and S. hermonthica. The most active compounds, in which an electron withdrawing group was introduced at the C-4 position, showed almost equal activity to GR24. Interestingly, cis-CA-derived SL analogs showed stronger activity than the corresponding trans isomer-derived analogs. We also found that cis-CASLs interacted with the S. hermonthica receptor, HTL7 or HTL6, more strongly than the corresponding trans-CASLs. We also synthesized an analog from 3-PPA (denoted PPASL), in which the side-chain double bond was reduced to a single bond, and this analog showed very weak activity compared with the CA-derived analogs. However, in vitro YLG assay results showed that PPASL interacted directly with HTL7 with a relatively low IC50 value, as did other analogs. We still do not know the reason for the weak activity of this analog, but it might be possible that the uptake of this analog by the parasitic plant seeds is less effective than the CA derivatives, for some reason, or that this analog might be quickly metabolized in planta.
Because cis-CASL showed stronger activity inducing germination of the parasitic plants, we synthesized conformationally-fixed analogs by introducing a 5-member or 6-member ring structure. However, the activity of the conformationally-fixed cis isomer analogs (c-indCASL, or c-tetCASL) was not increased compared with the non-fixed analog, c-CASL1. In contrast, in the case of the trans isomer analogs, the fixed conformation analogs (t-indCASL, or t-tetCASL) showed much stronger activity compared with the non-fixed analog, t-CASL1. Therefore, introducing a fixed conformation decreased the activity difference between cis and trans isomers; however, this strategy would not be suitable as a method to obtain more potent analogs.
We also found that CA-derived SL analogs did not inhibit shoot branching in Arabidopsis when applied to the SL biosynthetic mutant, max4, at 1 μM. At a high concentration, 5 μM, some of these analogs slightly inhibited shoot branching. However, it was likely that the branching reduction was due to the growth inhibiting activity by a side effect of the tested compounds. If considering that these analogs were active as the germination inducers for root parasitic plants at concentrations well below 1 μM, these new analogs might provide new lead chemicals as suicidal germination inducers that do not affect the host plant architecture. Because cis-CA was reported to promote plant growth at relatively low concentration, we evaluated c-CASL1 for such activity. As a result, we found that not only cis-CA but also c-CASL1 showed growth-promoting activity toward the Arabidopsis WT plant. As CA-derived SLs were found to be degraded to some extent in the hydroponic culture medium, it is likely that the growth-promoting activity of c-CASL1 was simply a result of its degradation in the culture medium, leading to release of free c-CA. It would be also possible that CASLs are hydrolyzed to cis-CA in a manner dependent on the SL receptor, D14. In fact, CASLs were hydrolyzed by AtD14 or HTL7. Although we have not tested for activity toward other plants, including crop species, these new SL analogs might provide lead chemicals with two activities, as suicidal germination inducers for root parasitic plants as well as plant growth-promoting reagents for the host plants. This feature could be one of advantages compared with the previously reported SL analogs.
In conclusion, we successfully prepared new SL analogs derived from CA with useful biological activities. Many structural analogs of CA are commercially available, therefore it would be possible to prepare more diverse analogs to obtain further potent agonists.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.
Author Contributions
TS performed the majority of the experiments. MK performed a part of the YLG assay experiment. YS designed the research. TS, MK, and YS wrote the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by MEXT KAKENHI grant number 19K05852, Mitsubishi Foundation, and Kato Memorial Bioscience Foundation.
Conflict of Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank Xie Xiaonan and Steven Runo for kindly providing seeds of Orobanche minor and Striga hermonthica, respectively. We thank Huw Tyson, from Edanz (https://jp.edanz.com/ac) for editing a draft of this manuscript.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.843362/full#supplementary-material
