Regulatory mechanism of a heat-activated retrotransposon by DDR complex in Arabidopsis thaliana

The RNA-directed DNA methylation (RdDM) pathway plays an essential role in the transposon silencing mechanism; the DDR complex, consisting of DRD1, DMS3, and RDM1, is an essential component of the RdDM pathway. ONSEN, identified in Arabidopsis, is a retrotransposon activated by heat stress at 37°C; however, studies on the regulation of ONSEN are limited. In this study, we analyzed the regulation of ONSEN activity by the DDR complex in Arabidopsis. We elucidated that loss of any component of the DDR complex increased ONSEN transcript levels. Transgenerational transposition of ONSEN was observed in the DDR-complex mutants treated with heat stress for 48 h. Furthermore, the DDR complex components DRD1, DMS3, and RDM1 played independent roles in suppressing ONSEN transcription and transposition. Moreover, we found that the duration of heat stress affects ONSEN activity. Therefore, the results of this study provide new insights into the retrotransposon regulatory mechanisms of the DDR complex in the RdDM pathway.

1 Introduction

Transposable elements (TEs) are DNA sequences that move around in the host genome; they are widely found in most eukaryotic genomes. TEs are found in 60–80%, 29%, and 17% of maize, rice, and Arabidopsis genomes, respectively (Le et al., 2000; Bennetzen, 2005). TEs are classified into two major groups based on their transposition mechanism: type I transposons (retrotransposons) and type II transposons (DNA transposons) (Wessler, 2006). Retrotransposons are the most common type of TEs and are a major component of plant genomes. Retrotransposons use the “copy-and-paste” mechanism for transposition. They can be divided into two main groups: the long terminal repeat (LTR) group and the non-LTR group, based on whether the end of the element has an LTR sequence (Wicker et al., 2007).

When plants are exposed to the external environment, especially to adverse conditions such as high temperature, salt stress, low temperature, etc., the retrotransposons are activated; they insert into the target genes and simultaneously affect the expression of the surrounding genes (Lisch, 2013; Ito, 2022; Thieme et al., 2022). Since the transcription of retrotransposons affects the stability of plant genomes, almost all transposons are silenced by epigenetic modifications, such as DNA methylation and histone modifications (Zilberman et al., 2007; Zhang et al., 2010). DNA methylation can affect gene expression; the changes can be passed on to the next generations via cell division without any changes in the DNA sequence (Bird, 2007; Heard and Martienssen, 2014). DNA methylation patterns are regulated by the small interfering RNA (siRNA) pathway (Pontes et al., 2006). The siRNA pathway-directed DNA methylation pattern leads to transcriptional gene silencing (TGS) at the transcriptional level (Wakasa et al., 2018). The RNA-directed DNA methylation (RdDM) pathway is broadly classified into canonical and non-canonical RdDM pathways. The most studied canonical RdDM depends on two plant-specific RNA polymerases, RNA polymerase IV (Pol IV) and RNA polymerase V (Pol V) (Zhong et al., 2012; Matzke and Mosher, 2014; Xue et al., 2021).

In Arabidopsis, Pol IV is involved in the production of siRNA, while Pol V is required to recruit DRM2 methyltransferase to establish the methylation pattern in the siRNA-complementary genome sequences. (Matzke et al., 2009). The DDR (DRD1-DMS3-RDM1) complex is required for Pol V-dependent transcription, acting upstream of Pol V to regulate Pol V activity and stabilize Pol V binding to chromatin (Law et al., 2010). The DDR complex consists of the following proteins: DEFECTIVE IN RNA-DIRECTED DNA METHYLATION 1 (DRD1), DEFECTIVE IN MERISTEM SILENCING 3 (DMS3), and RNA-DIRECTED DNA METHYLATION 1 (RDM1); impaired function of any of these proteins results in impaired RdDM activity (Haag and Pikaard, 2011; Zhong et al., 2012; Zhong et al., 2018). DRD1 is a plant-specific SNF2-like putative chromatin remodeling protein (Kanno et al., 2004; Kanno et al., 2005), which assists in the physical association of Pol V with intergenic loci and generates transcripts that repress adjacent transposons by establishing repressive heterochromatin (Wierzbicki et al., 2008). DMS3 structure is similar to the hinge domain region maintained by chromosomal (SMC) protein, which may be involved in secondary siRNA production. RDM1 binds to single-stranded methyl DNA, which may attach to single-stranded DNA at the site of Pol V transcription, and thus, contribute to the recruitment of Pol V to RdDM targets in the perinuclear processing centers (Gao et al., 2010). DMS3 and RDM1 form a structurally stable DR complex. Moreover, the interaction between DMS3 and RDM1 is a prerequisite for forming a stable complex between DR and DRD1 (Wongpalee et al., 2019).

Many recent reports have demonstrated that environmental stress can activate TEs (Ito, 2022; Steward et al., 2002). ONSEN is a heat-activated retrotransposon identified in Arabidopsis (Ito et al., 2011). After heat-stress (HS) at 37°C, ONSEN is transcriptionally active and synthesizes extrachromosomal DNA. The transgenerational transposition of ONSEN has not yet been confirmed in the wild-type plant. ONSEN exhibits high transcript levels in nrpd1 mutant plants (a loss-of-function mutant of POL IV), and the new transposition occurs in the next generation. However, little information is available regarding the transpositional regulation of ONSEN (Ito et al., 2011; Matsunaga et al., 2015).

This study investigated ONSEN transcription and transposition in single and multiple mutants associated with the DDR complex. We found that HS activates the transcription of ONSEN in DDR complex-associated mutants. The transposition of ONSEN occurred in ddr mutant after HS (37°C) for 48 h. Moreover, we found that the duration of HS influences the effect of RdDM pathway factors on ONSEN silencing. This study reveals the repression of ONSEN by the DDR complex in the RdDM pathway. It also elucidates the independent role of RdDM factors in the mechanism behind the repression of transcriptional and transpositional activity of retrotransposons.

2 Materials and methods

2.1 Plant material

Arabidopsis thaliana accession Columbia (Col-0) was used to develop all mutants. The drd1 (CS69758), dms3 (CS69174), rdm1 (CS69759), and nrpd1 (C366150) mutants were obtained from Ohio State University, Columbus, OH, USA; drd1 mutant was crossed with dms3 or rdm1 mutant to generate drd1/dms3 and drd1/rdm1 mutants, and drd1/dms3 mutant was crossed with drd1/rdm1 mutant to generate the drd1/dms3/rdm1 (ddr) mutant.

2.2 Growth conditions

The plants were grown on 0.5× Murashige and Skoog (MS) basal medium or potting medium (soil: vermiculite = 1:7) in continuous light at 21°C after 2 d of cold treatment at 4°C (dark condition). The seeds were sterilized in a 1:1 solution of sodium hypochlorite solution and 0.04% Triton X-100 before being sowed in the MS medium.

2.3 Heat-stress treatment

Seven-day-old seedlings grown under non-stress condition (continuous light at 21°C) were subjected to HS treatment at 37°C for 24 or 48 h. After the HS treatment, the seedlings were directly sampled for further analysis. For Southern blotting, the treated seedlings were grown under 21°C, and after a few days of recovery, the seedlings were potted in potting media.

2.4 DNA methylation analysis

The bisulfite whole genome sequencing data (GSE39901) for drd1, dms3, rdm1, nrpd1, and wild type were obtained from NCBI GEO. The data were imported into IGV (2.12.3) for data visualization after format conversion.

For Chop-PCR analysis, DNA from 7-day-old seedlings was extracted using the Nucleon PhytoPure DNA extraction kit (Cytiva Tokyo, Japan). We used 500 ng DNA for methylation-sensitive restriction enzyme (Alu I) digestion for 12 h at 37°C. PCR amplification (30 cycles of 94°C for 30 s, 55°C for 30 s, and 72°C for 1 min) was performed with the appropriate primers (Supplementary Table 1). The PCR products were separated into 0.8% agarose gels.

For Bisulfite Sanger sequencing, genomic DNA was isolated from 7-day-old seedlings using the Nucleon PhytoPure DNA extraction kit (Cytiva Tokyo, Japan). MethylCode bisulfite conversion kit (Invitrogen, Waltham, MA, USA; MECOV-50) was used for bisulfite conversion and desulfurization. After PCR amplification (40 cycles of 98°C for 10 s, 55°C for 30 s, and 72°C for 1.5 min) with the corresponding primers, the PCR products were transformed into Escherichia coli and then were cloned. Twenty-four clones of each corresponding region were sequenced. The sequencing results were compared to the original sequences using MEGA-X software. The comparison files were then uploaded to the Cymate website to analyze different background DNA methylation levels at each locus.

2.5 Quantitative analysis

For quantitative analysis, quantitative PCR (qPCR) was performed. DNA was extracted using the Nucleon phytoPure DNA extraction kit (Cytiva Tokyo, Japan). For quantitative reverse transcription PCR (RT-qPCR), RNA was extracted by TRI Reagent (Sigma-Aldrich, St. Louis, MI, USA; T9424). The extracted total RNA was treated with RQ1 RNase-Free DNase (Promega, Madison, WI, USA; M6101), and complementary DNA (cDNA) was synthesized from the treated RNA by reverse transcription using the ReverTra Ace^® qPCR RT Kit (TOYOBO, Osaka, Japan).

qPCR was performed on an Applied Biosystems 7300 Real-Time PCR System using Luna Universal qPCR Master Mix (New England BioLabs, Ipswich, MA, USA). The expression was determined by the Ct method, and the expression of the 18S rRNA gene was used as the internal control.

2.6 Southern blotting

DNA from 21-day-old whole plant tissue was extracted using the Nucleon PhytoPure DNA extraction kit (Cytiva Tokyo, Japan). The extracted DNA was treated overnight with the restriction enzyme EcoRV at 37°C. Next, the DNA was purified by ethanol-precipitation, and electrophoresis was performed on a 1% agarose gel at 20 V for 24 h; the DNA was transferred onto a membrane overnight. Hybridization signals were detected by the Megaprime DNA Labeling System (Cytiva Tokyo, Japan) using probes labeled with radioisotopes.

2.7 Cytology

Seven-day-old leaves were fixed with ethanol:acetic acid (3:1). The leaves were incubated at 37°C with cellulase (Yakult Pharmaceutical Industry Co., Ltd, Japan; Cellulase Onozuka R-10), pectinase (Kyowa Chemical Products, Tokyo, Japan; YAKPECT23-5), and cytohelicase (Sigma-Aldrich, St. Louis, MI, USA; C8274) at 1% (w/v) in citrate buffer for 2.5–3 h. Next, 45% acetic acid was added to the leaves, and they were placed on slides, which were placed on a heating plate at 45°C as the leaves were being choped with a needle; this was followed by the addition of a fixative. After drying the slides at 24°C, 4′,6-diamidino-2-phenylindole (DAPI) (Vector Laboratories, Inc. Newark, CA, USA; H-1200-10) was added to stain the leaf cells. Three hundred images were taken of each mutant grown under different conditions. The cells in the images captured by a fluorescence microscope were then automatically classified into three states: condensed, half dispersed, and dispersed, using machine learning that includes Create ML, RectLabel, and CutSort.

3 Results

3.1 Defective DDR complexes reduce DNA methylation of ONSEN

We investigated the genome-wide DNA methylation levels of drd1, dms3, rdm1, nrpd1, and the wild type using publicly available bs-seq data (Supplementary Figure 1). We found that the methylation levels of non-CG (CHG and CHH) were reduced in the drd1, rdm1, and nrpd1 compared to those in the wild type, whereas the non-CG methylation levels were only slightly reduced in the dms3 mutant. Moreover, there was no difference in CG methylation levels among all mutants.

Previous studies have shown that eight copies of ONSEN are present in Arabidopsis, but the activity of each copy is different. Among them, three copies, i.e., At1g11265, At3g61330, and At5g61305, are the most active (Cavrak et al., 2014). Therefore, to investigate whether the methylation levels of ONSEN are different among ONSEN copies, we investigated the three copies At1g11265, At3g61330, and At5g61305 in drd1, dms3, rdm1, nrpd1, and the wild type using a Chop-PCR (Figures 1A–C). The result showed that the methylation levels of all three copies were differentially reduced in the drd1, dms3, rdm1, and nrpd1 mutants compared to those in the wild type (Figure 1B). This suggests that the deletion of drd1, dms3, and rdm1 impairs ONSEN methylation. Next, to investigate the methylation levels of compound DDR mutants, we investigated the methylation levels of ONSEN in the drd1/dms3, drd1/rdm1, and ddr triple mutants by the Chop-PCR. The results revealed that simultaneous deletion of drd1, dms3, and rdm1 reduced DNA methylation in ONSEN (Figure 1C). These data suggest that the DDR complex is required to maintain methylation on the ONSEN sequence.

FIGURE 1

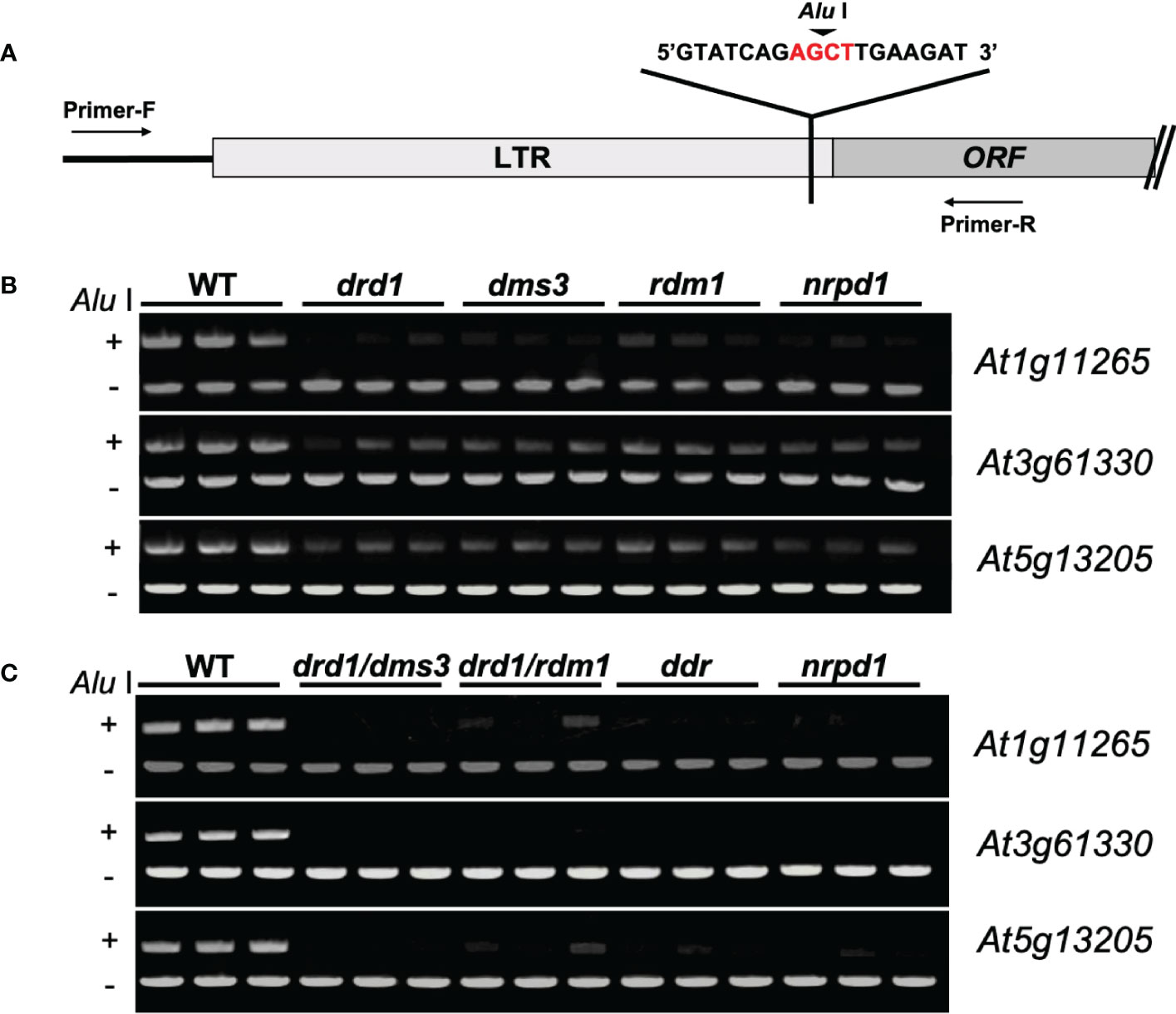

Figure 1 ddr deletion disrupts DNA methylation. (A) Primer sites for Chop-PCR amplification. Primers were designed to increase sequences in and around the ONSEN LTR region. AGCT is a sequence recognized by Alu I, which cuts the connection between G and C when C is not methylated. (B) ONSEN (At1g11265, At3g61330, and At5g13205) methylation levels in the wild type and drd1, dms3, rdm1, and nrpd1 mutants. (C) ONSEN (At1g11265, A3g61330, and At5g13205) methylation levels in WT, drd1/dms3, drd1/rdm1, ddr and nrpd1 mutants.

3.2 Duration of heat stress affects the activity of ONSEN

ONSEN was expressed under HS conditions at 37°C. To investigate whether the duration of heat affects ONSEN activity, we examined the transcript levels of ONSEN in the wild type and nrpd1 mutant under 24 and 48 h of HS by RT-qPCR. We found that ONSEN transcript levels were higher in plants subjected to 48 h of HS than in those subjected to 24 h of HS; the levels were significantly (P < 0.05) different in the nrpd1 mutant compared to those in the wild type (Figure 2A). The transposition of retrotransposons requires three steps: transcription, cDNA synthesis, and insertion into other locations on the chromosome. To determine whether the copy number of ONSEN changes, we examined the copy number of ONSEN in the wild type and nrpd1 mutants after 24 and 48 h of HS by qPCR. The results revealed that the copy number of ONSEN in the wild type and nrpd1 mutant increased under 48 h of HS (Figure 2B). Next, we investigated the transposition of ONSEN under 24 and 48 h of HS using Southern blotting. The results showed that ONSEN transposition occurred in the nrpd1 mutant after both 24 and 48 h of HS (Figures 2C, D). Moreover, ONSEN exhibited a higher transposition frequency in the nrpd1 mutant after 48 h of HS (Figure 2D). However, the wild type did not exhibit transposition of ONSEN under the same conditions (Supplementary Figure 2). These results suggest that the duration of HS affects the activity of ONSEN, including the transcript level, copy number, and transposition frequency.

FIGURE 2

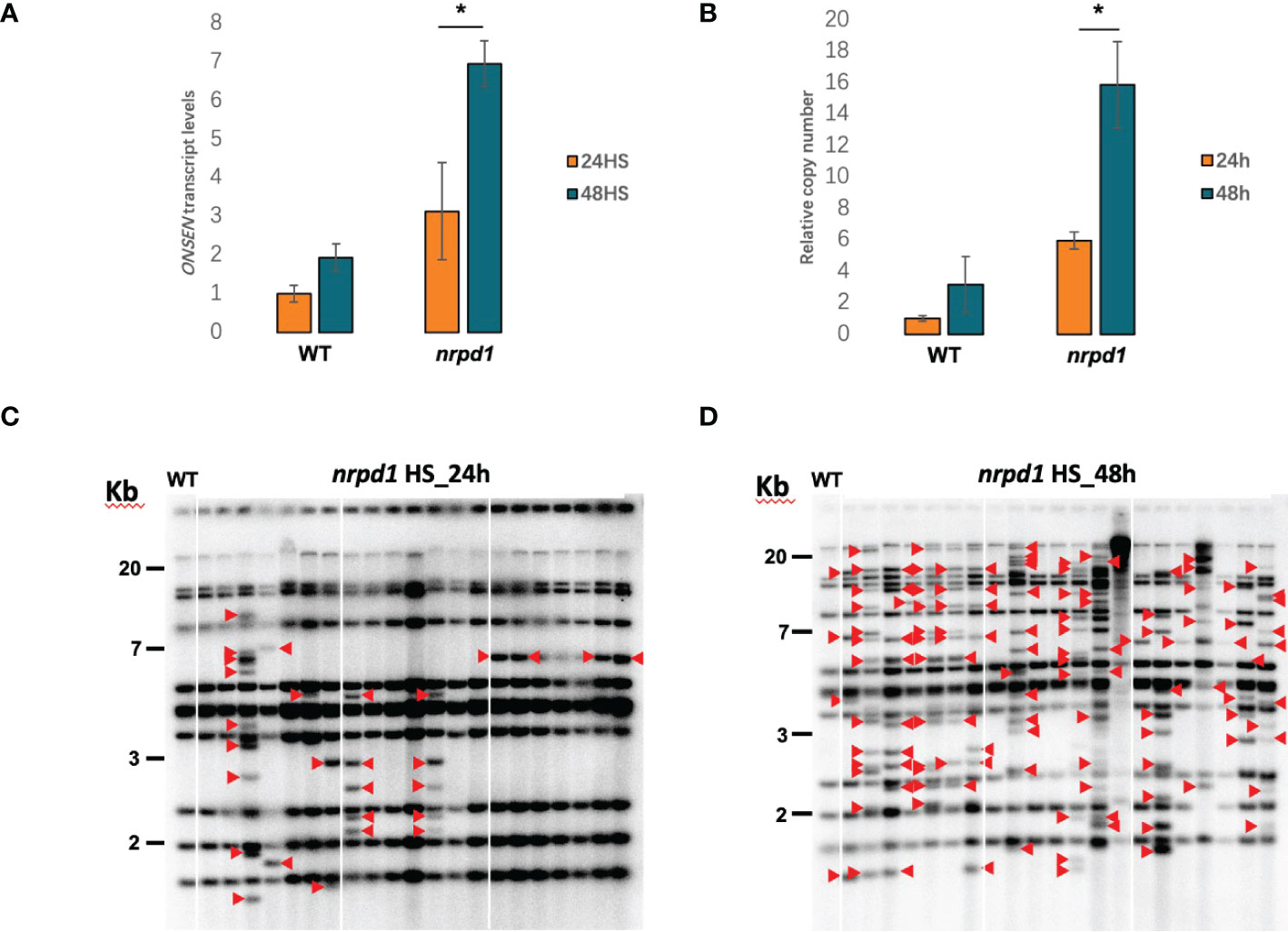

Figure 2 ONSEN activation affected by heat stress duration. (A, B) The relative expression levels (A) and relative copy numbers (B) of wild type and nrpd1 mutant detected by RT-qPCR and qPCR under heat-stress (HS) conditions at 24 and 48 h for ONSEN. Asterisks indicate significant differences between the 24 and 48 h HS conditions (Student’s t-test, P < 0.05). (C, D) Southern blotting analysis of ONSEN in the next-generation nrpd1 mutant under HS [24 h (C) and 48 h (D)]. Seven individuals of the next generation from each of the three parent plants subjected to heat stress were analyzed. The leftmost panel in each figure shows the wild-type pattern under non-stress (NS) condition. Red arrows indicate new ONSEN insertions.

3.3 ONSEN was upregulated in DDR mutants under HS

To investigate the role of the DDR complex in ONSEN transcription, we examined the transcript level of ONSEN in single and compound mutants of the DDR complex under HS conditions. We observed a significant increase in the ONSEN transcript levels in the drd1/dms3, drd1/dms3/rdm1, and nrpd1 mutants under 24 h of HS compared to those of the wild type (Figure 3A). In addition, ONSEN expression levels were higher in the drd1, dms3, rdm1, drd1/rdm1, and nrpd1 mutants after 48 h of HS than those after 24 h (Figure 3A). Thus, ONSEN transcription is activated in the DDR complex mutants under HS, suggesting that the DDR complex contributes to the transcriptional repression of ONSEN in the RdDM pathway. Moreover, the expression level of ONSEN increased with the duration of heat administration in each mutant. A significant difference in the transcription level was observed only in the drd1 mutant compared to that in the nrpd1 mutant after 48 h of HS (Figure 3A). ONSEN was not activated in the DDR complex-related mutants without heat stress (Supplementary Figure 3A).

FIGURE 3

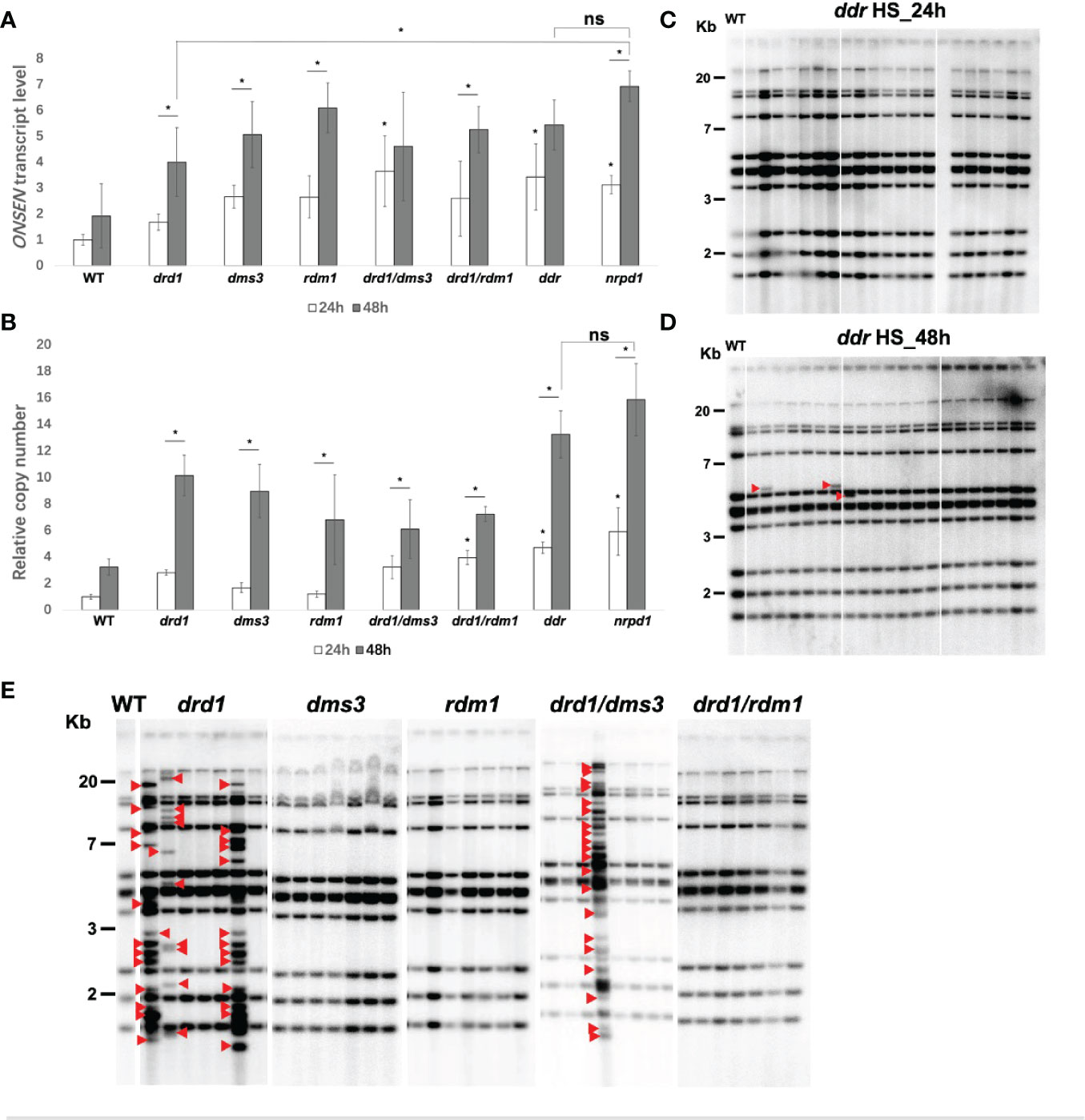

Figure 3 ONSEN activation in DDR complex-associated mutants subjected to heat stress (HS). (A, B) Comparative analysis of the expression level (A) and copy number (B) of ONSEN after 24 and 48 h of HS in wild type, nrpd1, and the DDR complex-associated mutants (Student’s t-test, P < 0.05). Asterisks indicate significant differences between the 24 and 48 h HS conditions (Student’s t-test, P < 0.05). ns indicates not significant. (C, D) Detection of transposition of ONSEN in the next generation (F2) plants of the ddr mutant after 24 h (C) and 48 h (D) HS. Seven individuals of the next generation from each of the three parent plants subjected to heat stress were analyzed by Southern blotting. Red arrows indicate new ONSEN insertions. (E) Southern blot analysis of ONSEN in the next generation plants of drd1, dms3, rdm1, drd1/dms3, and drd1/rdm1 mutants after 48 h of HS. Seven individuals of the next generation from each of the parent plants subjected to heat stress were analyzed. Red arrows indicate new ONSEN insertions.

Next, we investigated the copy number of ONSEN in single and compound DDR complex mutants after 24 and 48 h of HS. After 24 h of HS, ONSEN copy number was significantly increased in the drd1/rdm1, drd1/dms3/rdm1, and nrpd1 mutants compared to that of the wild type (Figure 3B). Similar to the results obtained for transcript levels, ONSEN copy number increased in each mutant after 48 h of HS compared to 24 h (Figure 3B). These results indicate that the copy number of ONSEN increases in the DDR mutant plants under HS conditions, and the copy number is directly correlated with the duration of HS. In contrast, no change was observed in the copy number of ONSEN in each mutant under NS conditions (Supplementary Figure 3B).

3.4 DDR complex suppresses ONSEN transposition via DRD1

To investigate the role of the DDR complex in the inhibition of ONSEN transposition, the ddr triple mutants were subjected to HS for 24 and 48 h. Southern blotting was used to determine whether ONSEN transposition occurred in the progeny of the mutants. Although no ONSEN transposition was observed after 24 h of HS (Figure 3C), ONSEN transposition was observed after 48 h of HS (Figure 3D). The results suggest that the loss of function of the DDR complex leads to a release of ONSEN transposition under an extended period of HS. Next, we analyzed the transposition of ONSEN in the drd1, dms3, rdm1, drd1/dms3, and drd1/rdm1 mutants subjected to 24 and 48 h of HS. The result showed that new insertions of ONSEN were observed in the drd1 and drd1/dms3 mutants after HS of 48 h (Figure 3E). However, ONSEN transposition was not observed in any of the mutants subjected to 24 h of HS (Supplementary Figure 4). Thus, the DDR complex suppresses ONSEN transposition, mainly through the role of DRD1.

3.5 Relaxation of heterochromatin by HS affects ONSEN transcriptional activity, but it does not correlate with the transposition frequency

To test if heat-stress duration may cause changes in the chromatin decondensation, which result in the transposition frequency of ONSEN subjected to HS, we investigated the heterochromatin condensation status of drd1, ddr, nrpd1, and the wild type under NS and HS conditions by staining the nuclei with DAPI. We classified heterochromatin into the following three states: condensed, half dispersed, and dispersed (Figure 4A). The condensed state of heterochromatin accounted for about 66–82% of the total heterochromatin in all plants (Figure 4B), and the nuclei of all plants exhibited different degrees of condensation by HS, but the degree of condensation in the nuclei did not differ significantly after 24 and 48 h of HS (Figure 4C). After 24 and 48 h of HS, approximately 56% and 73% of the nuclei in WT were decondensed, respectively, whereas, in the drd1, ddr, and nrpd1 mutants, the degree of decondensation was not higher than that exhibited by the wild type. HS leads to chromatin decondensation, but the degree of decondensation does not positively correlate with the number of ONSEN transpositions. Our results suggest that the decondensation of heterochromatin may facilitate the transcriptional activation of ONSEN, but it does not directly affect ONSEN transposition.

FIGURE 4

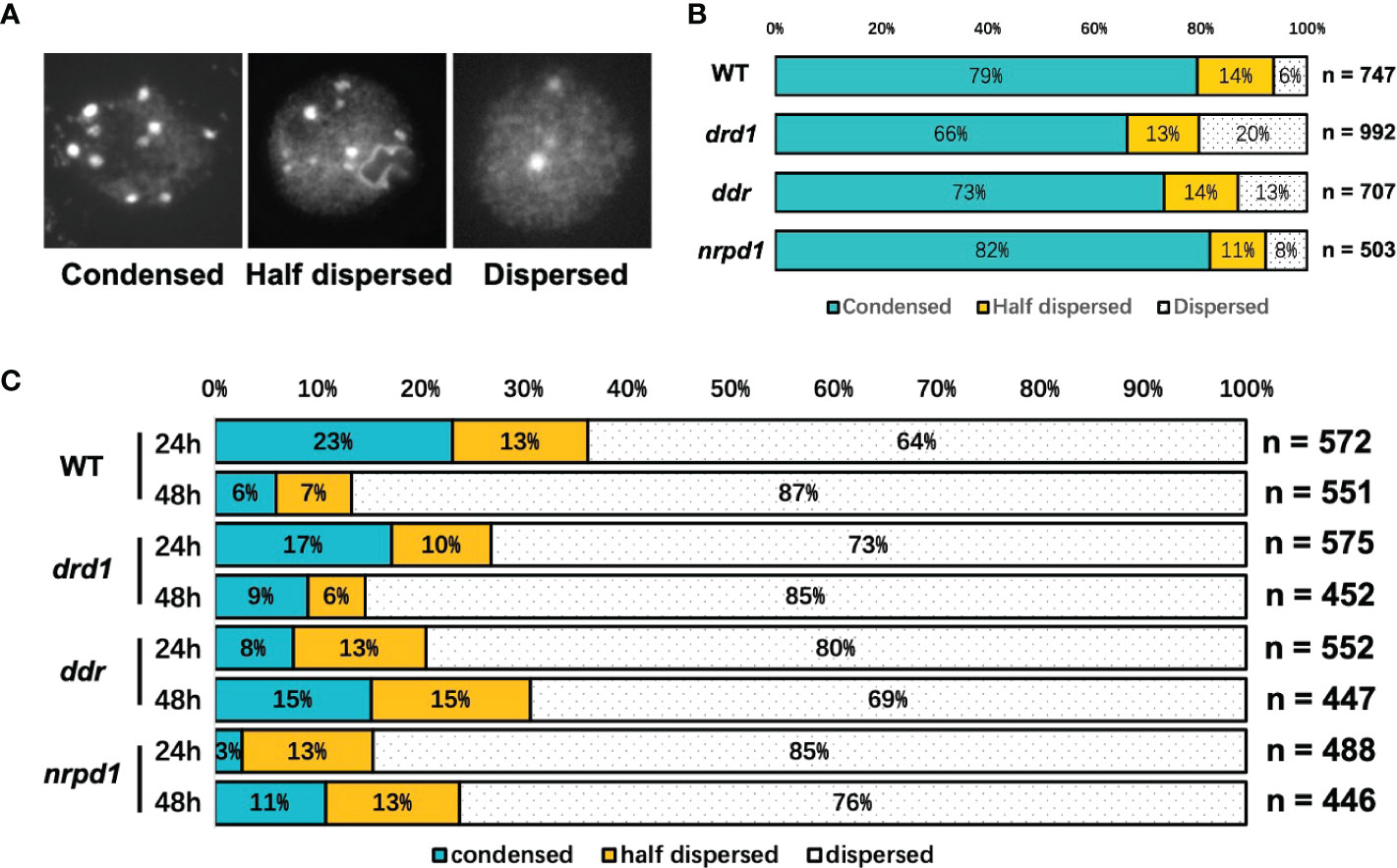

Figure 4 Heterochromatic condensation levels in DDR complex-associated mutants as per nuclear staining analysis. (A) Representative images of three heterochromatin states in the DAPI-stained nucleus include: condensed, half dispersed, and dispersed. (B) The bars show the percentage of the nuclei in the three states (A) in wild type and drd1, ddr, and nrpd1 mutants as a percentage of the total count under no-stress (NS) condition. (C) Percentage of nuclei in the three states after 24 and 48 h of HS. (n is the total number of analyzed nuclei).

3.6 DNA hypomethylation affects ONSEN transcript levels but is not directly related to the transposition

To understand whether silencing of ONSEN transposition in the DDR mutants is associated with DNA methylation, we investigated DNA methylation levels in plants exhibiting ONSEN transposition under NS and HS (48 h) conditions. The methylation levels of the three copies of ONSEN in the drd1, drd1/dms3, ddr, and nrpd1 mutants, i.e., At1g11265, At3g6133, and At5g61305, were analyzed by Chop-PCR. drd1, drd1/dms3, and ddr mutants exhibited the same DNA methylation levels as that of the nrpd1 mutant (Supplementary Figure 5). However, DNA methylation levels of ONSEN in all mutants after 48 h of HS were higher than those under NS condition (Supplementary Figure 5). Next, we analyzed the DNA methylation levels of At1g11265 in the nrpd1 mutant and the wild type under NS and HS conditions (24 and 48 h) using bs-seq. After HS, the CG methylation level in the At1g11265 region was slightly decreased in the nrpd1 mutant and the wild type compared to that under NS condition (Figure 5A). Interestingly, except for the CHG methylation level in WT, the methylation of CHG and CHH increased significantly after 24 h of HS and gradually decreased to the same level as under NS conditions after 48 h (Figure 5A). This implies that the methylation levels of ONSEN may be in dynamic equilibrium during HS. A significant decrease was observed in the level of CHH methylation in the LTR region of ONSEN in the nrpd1 mutant compared to that in the wild type (Figure 5B). However, in both wild type and nrpd1 mutant, the level of CHH methylation of ONSEN was independent of heat treatment (Figure 5B).

FIGURE 5

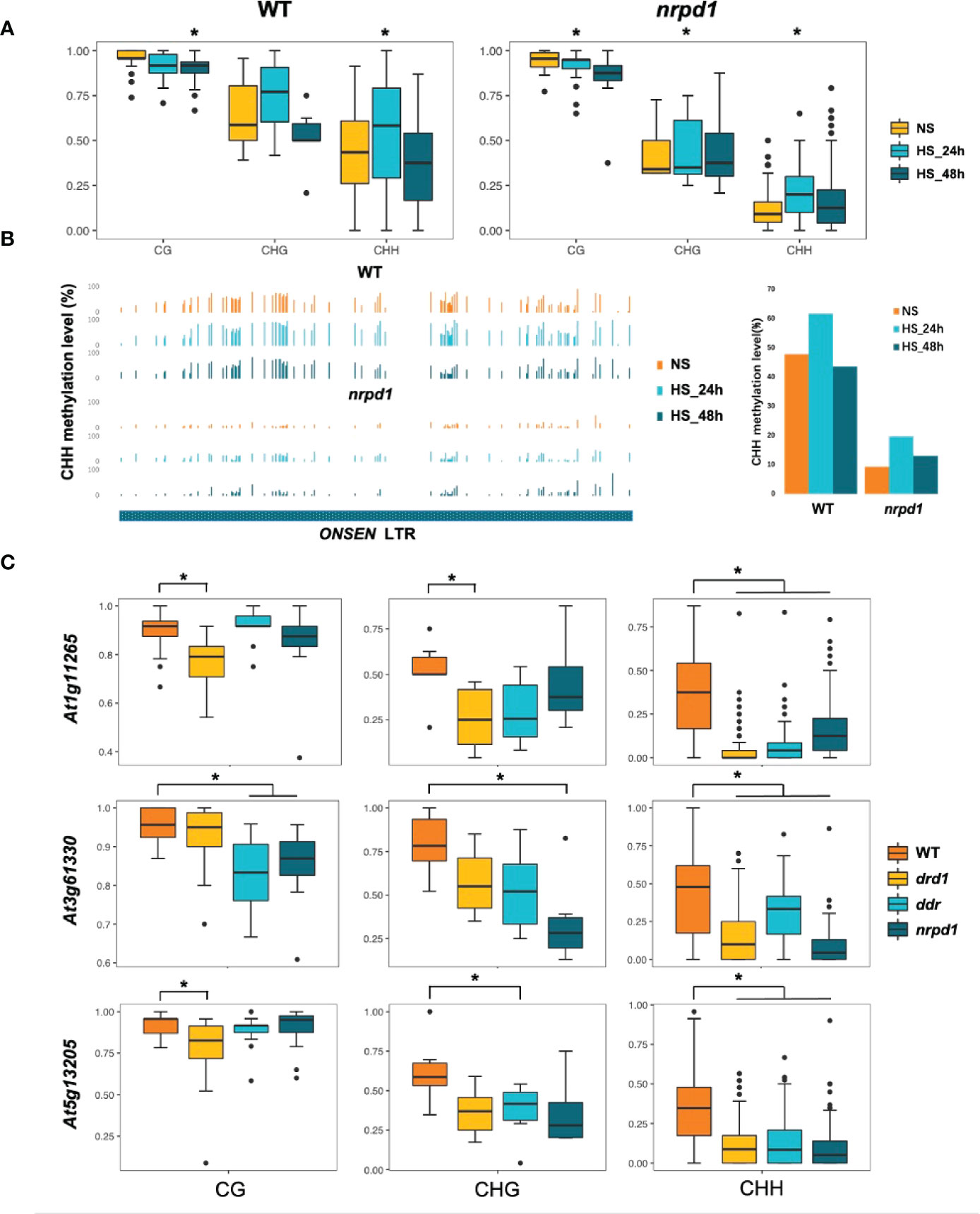

Figure 5 Relationship between duration of high-temperature treatment and ONSEN DNA methylation levels. (A) Boxplots show the CG, CHG, and CHH (H = A, T, C) methylation levels of ONSEN (At1g11265) in wild type and nrpd1 mutant. Asterisks indicate significant differences compared to NS (Student’s t-test, P < 0.05). (B) CHH methylation levels of the LTR region of ONSEN (At1g11265) in wild type and nrpd1 mutant under non-stress (NS) and heat-stress (24 and 48 h). (C) DNA methylation levels (CG, CHG, and CHH (H = A, T, C)) of ONSEN (At1g11265, At3g61330, and At5g13205) in wild type and drd1, ddr, and nrpd1 mutants after 48 h of heat stress. Asterisks indicate significant differences compared to WT (Student’s t-test, P < 0.05).

The Chop-PCR method can only approximate the degree of methylation (Supplementary Figure 5). Therefore, to accurately determine the difference in the CG, CHG, and CHH methylation levels of the ONSEN region in the wild type and the drd1, ddr, and nrpd1 mutants, we investigated the DNA methylation levels of At1g11265, At3g6133, and At5g13205 after 48 h of HS using bs-seq. The CHH methylation levels of three copies of ONSEN were significantly reduced in drd1, ddr, and nrpd1 compared to the wild type (Figure 5C). the CG methylation levels of At1g11265 and At5g13205 were strongly lost in the DRD1 deletion mutation, but the CG methylation levels of At3g6133 were significantly reduced in ddr and nrpd1 (Figure 5C). The rate of loss of CHG methylation levels also differed across mutants in different ONSEN copies compared to WT, but all showed a slight trend of loss (Figure 5C). Previous studies have shown that the activity of each copy is different (Cavrak et al., 2014). The difference in methylation levels across copies may be responsible for the different activities. In conclusion, the results suggest that the deletion of drd1 and ddr results in impaired methylation of the ONSEN region, which may be one of the reasons for the extensive upregulation of ONSEN in the drd1 and ddr mutants. However, the frequency of ONSEN transpositions in the drd1 and ddr mutants is lesser than that in the nrpd1 mutant, implying that the impairment of DNA methylation of ONSEN does not directly lead to ONSEN transposition.

4 Discussion

Our results indicate that the level of DNA methylation in the ONSEN region is reduced in DDR mutants, which is consistent with the overall DNA methylation level. This result implies that the absence of the DDR complex may result in impaired function of Pol V, resulting in lower DNA methylation levels. These results are consistent with those of previous reports (Kanno et al., 2004; Kanno et al., 2008; Sasaki et al., 2014). Since the DNA methylation levels of HS plants subjected to 48 h did not change significantly compared to NS levels (Figure 5A, B), and ONSEN transposition occurred after 48 h of HS, we investigated the methylation levels of mutants in which ONSEN underwent transposition after 48 h of HS. The deletion of drd1 and ddr resulted in the loss of DNA methylation in the ONSEN region, particularly the methylation of CHH (Figure 5). These data suggest that the DDR complex is essential in mediating the DNA methylation pathway for the ONSEN. Previous studies have shown that ONSEN transcript levels increase in non-CG methylation-impaired mutants (cmt2, cmt2/3, and drm1/2) under HS condition (Nozawa et al., 2021). This is consistent with our findings that ONSEN transcript levels increase in DDR mutants that impaired non-CG methylation.

Our results elucidated that the copy number of ONSEN was significantly increased under HS condition in the DDR complex-deficient plants (Figures 3A, B). However, a higher copy number does not imply more transposition, as we observed ONSEN transposition only in the ddr mutants after 48 h of HS (Figures 3C, D). The number of ONSEN transposition in ddr mutants was significantly lower than that in nrpd1 mutants, although no differences were observed in the transcript levels and copy number of ONSEN (Figures 2, 3). This result implies that RdDM-related factors may play different roles in the transcriptional and transpositional repression of ONSEN. The loss of the DDR complex releases ONSEN transposition silencing (Figure 3D). However, among the mutants of DRD1, DMS3, and RDM1, ONSEN transposition was observed only in the drd1 after 48 h of HS (Figure 3E). As Wongpalee et al. (2019) reported that DMS3 and RDM1 do not induce the RdDM pathway in DRD1 and PolV mutants (nrpe1), it is likely that deletion of DMS3 and RDM1 alone in the present study would only result in reduced repression of ONSEN transcription and not transposition (Figure 3A). These results suggest that DRD1 may play a key role in the DDR complex-dependent repression of ONSEN transposition. ONSEN transposition frequencies between DRD1 single mutants and multiple mutants containing DRD1 need to be analyzed in a large number of samples to allow for statistical analysis.

In the RdDM pathway, DRD1 not only forms DDR complexes with DR complexes but also interacts with Pol V (Wierzbicki et al., 2008; Law et al., 2010; Wongpalee et al., 2019). However, interactions of DMS3 and RDM1 with Pol V have not been reported (Gao et al., 2010; Law et al., 2010). This suggests that DRD1 may be a bridge between the DR complex and Pol V (Wongpalee et al., 2019). Hayashi et al. (2020) reported that the transposition of ONSEN was observed in the nrpe1 mutant, a loss-of-function mutant of Pol V. Law et al. (2010) suggested that DRD1 could help initiate or elongate intergenic noncoding (IGN) by remodeling chromatin. This suggests that deletion of drd1 may result in a partial loss of function of Pol V, resulting in the release of ONSEN transposition. Among the components of DDR, ONSEN transposition was observed only in mutants deficient in DRD1. The observation supports the function of DRD1that interact with Pol V. However, the exact mechanism behind how the deletion of drd1 impairs Pol V function is unclear.

The frequency of ONSEN transposition is related to the duration of HS (Figure 2). The transgenerational ONSEN transposition was detected after 48 h of HS in ddr mutant (Figures 3C–E). Consistent with what we reported previously (Takehira et al., 2021), ONSEN transposition in drd1 did not occur after 24 h of HS (Supplementary Figure 4). These results suggest that HS for a sufficient duration is required for the release of ONSEN transposition via DRD1-mediated pathway. Wierzbicki et al. (2008) suggested that transposon silencing requires a combination of Pol V transcription and siRNA production. DRD1 affects the localization of NRPD1b (NRPE1), which may indirectly affect siRNA abundance (Pontes et al., 2006). However, siRNA abundance is reduced in the nrpd1b (nrpe1) mutant, but it is not entirely eliminated (Pontes et al., 2006). Therefore, we propose a hypothesis that the deletion of drd1 may impair the function of both Pol V and Pol IV, indirectly leading to a decrease in lncRNA and siRNA abundance, thus impairing the completion of the RdDM process (Figure 6). However, since lncRNA and siRNA are not completely eliminated, extended periods of environmental stress are required to activate ONSEN. Future research on the role of lncRNAs and siRNAs in the silencing mechanism of ONSEN is required.

FIGURE 6

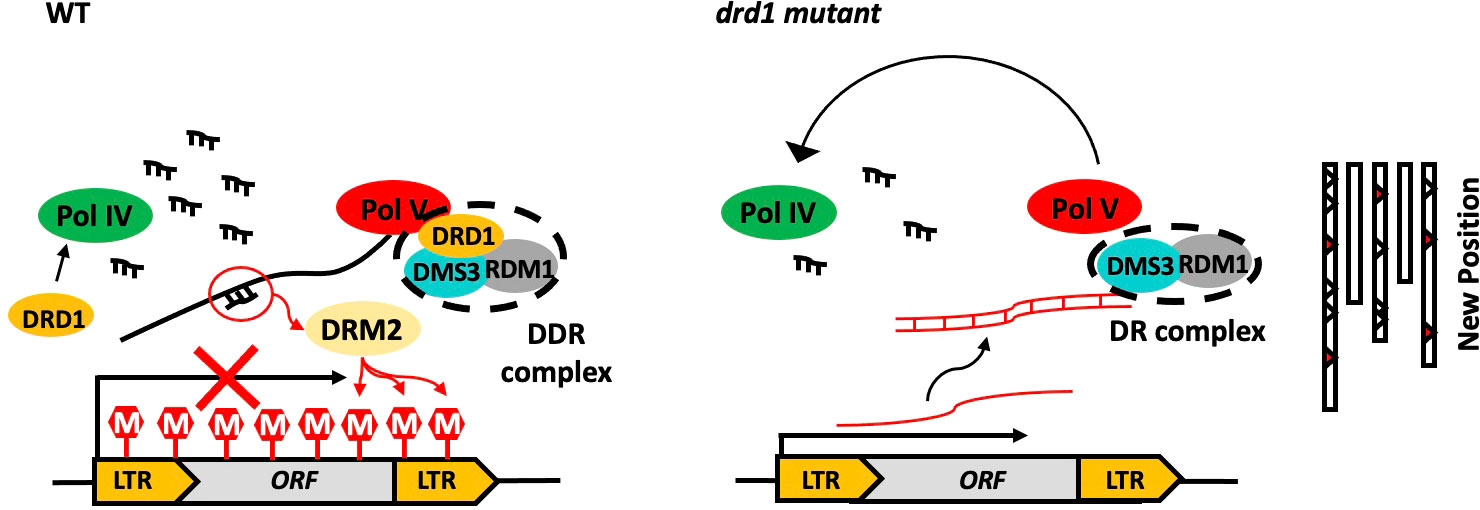

Figure 6 Hypothetical model of silencing of ONSEN by DDR complexes. In the wild type, Pol IV and PolV produce siRNA and lncRNA, respectively, resulting in high methylation levels of the ONSEN. High DNA methylation levels result in the silencing of ONSEN transcription. In addition, no ONSEN transposition occurred in WT. In drd1, the deletion of DRD1 prevents the DR complex from binding to Pol V. It may also affect the localization of NRPD1b. This leads to a partial loss of function of Pol IV and Pol V, which indirectly affects the amount of siRNA and lncRNA accumulation in vivo, leading to the deregulation of ONSEN transcription and transposition silencing pathway.

DAPI can deeply stain the centromere portion of heterochromatic regions. Since the centromeric heterochromatin was already relaxed after 24 hours of heat treatment, we could not see any difference in the degree of relaxation between this treatment and 48 hours of heat treatment. However, we cannot rule out the possibility that ONSEN insertion occurred since the chromatin state may be more relaxed at 48 hours than at 24 hours, a degree that cannot be detected in the DAPI staining experiments. It has been previously reported that in the heat-treated progeny of nrpd1 mutants, more than 80% of the new insertion sites for ONSEN are in the gene (Ito et al., 2016). It has been reported that ONSEN tends to transpose specific chromatin states, especially regions rich in H2A.Z histones and H3K27me3 histone marks (Roquis et al., 2021). This suggests that mutants of the DDR complex may alter particular chromatin states. Future analysis of ONSEN transposition target preference will be of interest for studying the transpositional regulation pathways. In conclusion, the DDR complex contributes to silencing ONSEN. These results highlight the role of RdDM factors in regulating ONSEN activity. Thus, it is essential to discuss each regulatory mechanism separately when the transcriptional and transpositional regulatory mechanisms of retrotransposons are being discussed. We also provide evidence that the intensity of environmental stress leads to the loss of the transposon silencing mechanism.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Author contributions

XN and LC coordinated this work. XN performed cytological experiments. XN, AK and HI wrote the paper. All authors have read and agreed to the submission of the manuscript. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by Grant-in-Aid for Scientific Research C (JP21K06008).

Acknowledgments

We would like to thank Dr. Kiyotaka Nagaki for his assistance in cytological analyses.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.1048957/full#supplementary-material

Abbreviations

HS, heat-stress; NS, no-stress
