Corrigendum: Phylogeny and Taxonomy on Cryptic Species of Forked Ferns of Asia
Zuoying Wei1,2,3
Zengqiang Xia1,2,4Jiangping Shu1,5Hui Shang2
Stephen J. Maxwell6Lijun Chen1Xile Zhou7Wang Xi2
Bayu Adjie8Quan Yuan2,3Jianguo Cao3*
Yuehong Yan1,2*
- 1Key Laboratory of National Forestry and Grassland Administration for Orchid Conservation and Utilization, The National Orchid Conservation Center of China and The Orchid Conservation and Research Center of Shenzhen, Shenzhen, China
- 2Eastern China Conservation Centre for Wild Endangered Plant Resources, Shanghai Chenshan Botanical Garden, Shanghai, China
- 3College of Life Sciences, Shanghai Normal University, Shanghai, China
- 4CAS Center for Excellence in Molecular Plant Sciences, Shanghai Institute of Plant Physiology and Ecology, Chinese Academy of Sciences, Shanghai, China
- 5Key Laboratory of Plant Resources Conservation and Sustainable Utilization, South China Botanical Garden, Chinese Academy of Sciences, Guangzhou, China
- 6College of Science and Engineering, James Cook University, Cairns, QLD, Australia
- 7Xiangxi Tujia and Miao Autonomous Prefecture Forest Resources Monitoring Center, Jishou, China
- 8Research Center for Plants Conservation and Botanic Gardens, National Research and Innovation Agency of Indonesia, Bali, Indonesia
Cryptic species comprise two or more taxa that are grounded under a single name because they are more-or-less indistinguishable morphologically. These species are potentially important for detailed assessments of biodiversity, but there now appear to be many more cryptic species than previously estimated. One taxonomic group likely to contain many cryptic species is Dicranopteris, a genus of forked ferns that occurs commonly along roadsides in Asia. The genus has a complex taxonomical history, and D. linearis has been particularly challenging with many intra-specific taxa dubiously erected to accommodate morphological variation that lacks clear discontinuities. To resolve species boundaries within Dicranopteris, we applied a molecular phylogenetic approach as complementary to morphology. Specifically, we used five chloroplast gene regions (rbcL, atpB, rps4, matK, and trnL-trnF) to generate a well-resolved phylogeny based on 37 samples representing 13 taxa of Dicranopteris, spanning the major distributional area in Asia. The results showed that Dicranopteris consists of ten highly supported clades, and D. linearis is polyphyletic, suggesting cryptic diversity within the species. Further through morphological comparison, we certainly erected Dicranopteris austrosinensis Y.H. Yan & Z.Y. Wei sp. nov. and Dicranopteris baliensis Y.H. Yan & Z.Y. Wei sp. nov. as distinct species and proposed five new combinations. We also inferred that the extant diversity of the genus Dicranopteris may result from relatively recent diversification in the Miocene based on divergence time dating. Overall, our study not only provided additional insights on the Gleicheniaceae tree of life, but also served as a case of integrating molecular and morphological approaches to elucidate cryptic diversity in taxonomically difficult groups.
Introduction
Cryptic species, a common and increasingly used term, refers to taxa that are erroneously classified as a single species due to the paucity of conspicuous morphological differences (Trontelj and Fišer, 2009; Detwiler et al., 2010; Struck et al., 2018). Cryptic species represent a potentially important influence on the accuracy of detailed assessments of biodiversity (Witt et al., 2006; Trontelj and Fišer, 2009) and can lead to novel insights regarding patterns and processes of biodiversity, including geographic variation in species distributions and species coexistence (Fiser et al., 2018). However, cryptic species are seldom considered in biodiversity assessments owing to the lack of affordable and efficient diagnostic methods (Witt et al., 2006). This is compounded by the fact the high rate at which cryptic species are discovered in molecular studies suggests that number of cryptic species is far greater than prior estimates.
Studies on cryptic species throughout the whole tree of life have increased exponentially over the past two decades, fueled in large part by the increasing availability of DNA sequences, which facilitate various genetic approaches to the resolution of cryptic diversity (Sites and Marshall, 2003; Bickford et al., 2007). The prevalence of considerable cryptic diversity has been uncovered in a diverse range of groups, including in plants (Okuyama and Kato, 2009; Carstens and Satler, 2013; Ji et al., 2020; Kinosian et al., 2020; Li et al., 2020) and many animals (Hebert et al., 2004; Oliver et al., 2009; Manthey et al., 2011; Nadler and DE León, 2011; Phiri and Daniels, 2016), suggesting that cryptic species probably represent a significant portion of undiscovered biodiversity (Jörger and Schrödl, 2013; Pante et al., 2015; Loxdale et al., 2016). The ever-increasing cryptic diversity that genetics has resolved poses a taxonomic challenge in terms of what taxonomic ranks should be assigned to cryptic species that can be recognized on a genetic, but not necessarily morphological, basis. One practical proposal has been that the taxonomic ranks of species should be reserved for organisms showing observable morphological variation, while resolved cryptic species should be designated as intraspecific ranks (Maxwell and Dekkers, 2019; Maxwell et al., 2021).
Cryptic species may also be concealed in cases where there is considerable morphological variation but without clear boundaries supporting species delimitation, such as in the fern genus Dicranopteris Bernh. Dicranopteris is one of six genera in Gleicheniaceae (PPG I, 2016), an early-diverging leptosporangiate fern (Schuettpelz and Pryer, 2007; Choo and Escapa, 2018). The genus is unique on the part of its branching and leaf morphology as characterized by a pseudo-dichotomously branched fronds that produces a forking architecture, resulting from abortion or dormancy of the apical bud (Perrie et al., 2007). The unique morphology is attractive by which some species were used as ornamental plants (Marpaung and Susandarini, 2021). Dicranopteris is composed of about 20 species (Schuettpelz et al., 2016) that occur widely in tropical and subtropical areas (Ding et al., 2013). Across its range, Dicranopteris displays an extraordinarily high level of morphological diversity (Figure 1) that is not easily translated into species boundaries. In fact, due to these difficulties, no comprehensive species classification has been proposed for the genus, despite several prior studies based on morphology, sometimes with only regional sampling (Supplementary Table 1).
FIGURE 1
Figure 1. A selection of species of Dicranopteris. (A) D. pedata. (B) D. linearis. (C) D. ampla. (D) D. tetraphylla. (E) D. inaequalis. (F) D. latiloba. (G) D. subpectinata. (H) D. alternans. (I) D. subspeciosa.
Within Dicranopteris, D. linearis (Burm.f.) Underw. has been particularly taxonomically challenging. D. linearis was divided into 13 varieties in Southeast Asia by Holttum (1959), who admitted that some varieties were more distinct than others and should probably be recognized as species. For example, the four varieties D. linearis var. demota, D. linearis var. tetraphylla, D. linearis var. montana, and D. linearis var. altissima, always possess accessory branches at the bases of their ultimate branches, whereas other varieties are not always present. In addition, these four varieties can be also separated based on other characteristics, such as branches at successive forks alternately being equal or unequal, lower pinnae surfaces bearing some hairs or not, angles of secondary and later forks, and dimensions of the pinnae (Underwood, 1907; Nakai, 1950; Ching et al., 1959; Holttum, 1959; Huang, 1994; Piggott, 1996; Ding et al., 2013). Following Holttum, Ding et al. (2013) recognized D. linearis and its varieties as a single species and placed them under the D. pedata, which likely obscured its real complexity. With these regards, taxonomic revisions on the placement of D. linearis and its varieties into the genus are very dynamic. Nonetheless, several varieties have been reinstated the status of species. A study by Ding et al. (2013) on the genus treated D. linearis var. montana under D. taiwanensis. Similarly, Kuo et al. (2019) in their phylogenetic study of updating Taiwanese pteridophyte checklist provided support for separating Dicranopteris subpectinata (Christ) C.M. Kuo and Dicranopteris tetraphylla (Rosenst.) C.M. Kuo of Taiwan from D. linearis.
Due to the diverse morphology and complex taxonomic history of Dicranopteris (Supplementary Table 1), we suspected that there may be a large number of cryptic species in this genus. Therefore, we sought to apply molecular phylogeny as a complement to morphology to resolve its species boundaries. To accomplish this, we incorporated 13 taxa, representing well over half of the known diversity in Dicranopteris, and five plastid DNA regions (rbcL, atpB, matK, rps4, and trnL-trnF). Specifically, our aims were to: (1) resolve phylogenetic relationships in Dicranopteris, especially among the varieties of D. linearis, (2) provide a preliminary revised taxonomy of Dicranopteris on the basis of molecular phylogeny and morphological characters, and (3) uncover cryptic diversity in the genus if present.
Materials and Methods
Taxon Sampling
We sampled 37 accessions representing 13 taxa of Dicranopteris, spanning the major centers of geographic distribution in Asia (Supplementary Table 2): China (23 accessions), Malaysia (7 accessions), Thailand (3 accessions), and Indonesia (4 accessions). Our sampling followed taxonomic treatments in Holttum (1959); Ding et al. (2013), and Schuettpelz et al. (2016). We also sampled close relatives for the outgroup: Dipteris chinensis, Matonia pectinata, Sticherus truncatus, and Diplopterygium glaucum. Notably, all samples were approved by for collection in China or provided by the collaborators in Malaysia, Indonesia, or Thailand. We deposited duplicates of all voucher specimens at the Shanghai Chenshan Herbarium (CSH) and the National Orchid Conservation Center of China and the Orchid Conservation and Research Center of Shenzhen (NOCC).
DNA Extraction and Sequencing
We first extracted total genomic DNA from silica-gel dried leaves using a Plant Genomic DNA Kit (Tiangen Biotech, Beijing, China) following the manufacturer’s protocol. From the total DNA, we amplified five chloroplast DNA (cpDNA) regions including four coding regions (rbcL, atpB, matK, rps4) and one intergenic spacer (trnL-trnF). We performed polymerase chain reaction (PCR) amplification and sequencing for these gene regions using the primers shown in Table 1. The amplification procedure for all regions consisted of a 25-μl reaction volume containing 1–2 μl of template DNA, 1 μl each of 10 μM primers, 2.5 μl of 10× Taq Buffer with MgCl2, 0.2 μl of Taq polymerase, and ddH2O to volume. The amplification profiles comprised initial enzyme activation at 95°C for 5 min followed by 38 cycles of denaturation, primer binding, and extension at 94°C for 30 s, 58°C for 30 s, and 72°C for 1 min, respectively. The final extension was at 72°C for 10 min. The resulting PCR products were purified and sequenced in Sangon Biotech. All DNA sequences new to this study are available from GenBank (accession numbers in Supplementary Table 2).
TABLE 1

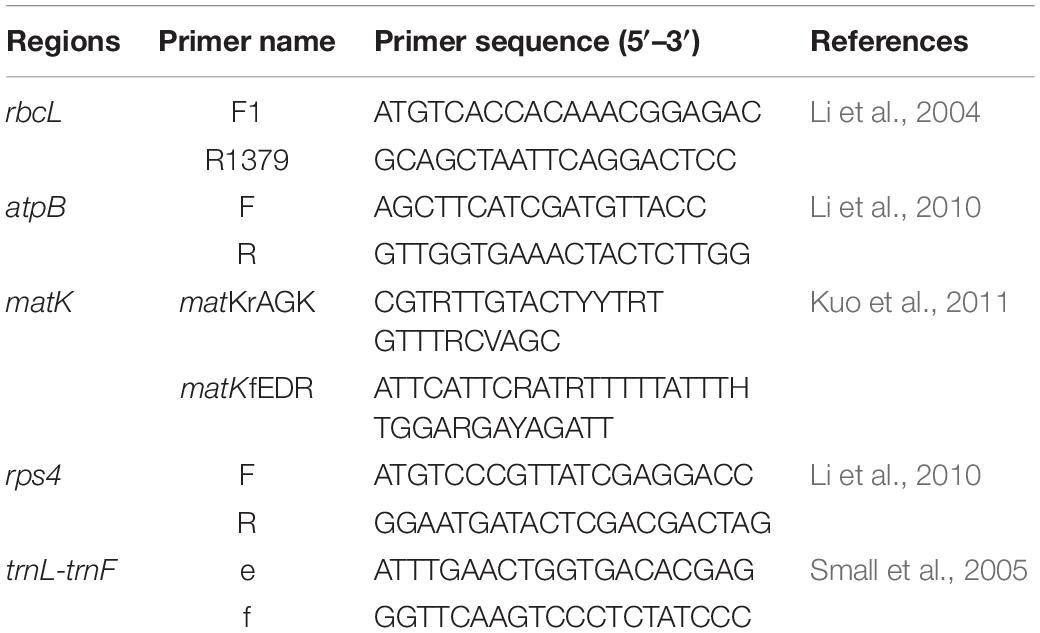

Table 1. List of PCR amplification and sequencing primers used in the study.
Phylogenetic Analyses
We edited and assembled the resulting sequences using SeqMan v7.1.0 (DNASTAR, United States) and aligned them using MUSCLE (Edgar, 2004) with default parameters followed by manual adjustment. Then, the alignments of the five cpDNA regions were concatenated into a single combined dataset using PhyloSuite (Zhang et al., 2020). Prior to performing phylogenetic analyses, we selected optimal partitioning strategies and best substitution models using PartitionFinder 2 (Lanfear et al., 2017) integrated into PhyloSuite, with three codon positions for each protein-coding gene provided as input partitions. The optimized partitioning schemes, and associated models are provided in Supplementary Table 1. We further utilized these optimized partitioning schemes and models to perform Bayesian inference (BI) and maximum likelihood (ML) analysis, respectively.
Maximum likelihood phylogeny was inferred using IQ-TREE (Nguyen et al., 2015) integrated into PhyloSuite under each edge-linked partition model with 5,000 ultrafast bootstrap replicates (Minh et al., 2013). For Bayesian inference, we performed the analyses in MrBayes v3.2.6 (Ronquist et al., 2012) with the optimized partitioning schemes and models. The BI analysis comprised two parallel runs of four Markov chain Monte Carlo (MCMC) each for 1,000,000 generations with every 1,000 generations sampled. The standard deviation of split frequencies was set to less than 0.01 to achieve the convergence of the independent runs. Following the analysis, we removed the first 25% of sampled generations as burn-in. Additionally, we carried out a maximum parsimony (MP) analysis on the concatenated dataset using MPBoot (Hoang et al., 2018) with 1,000 bootstrap replicates (-bb 1,000).
Molecular Dating Analysis
The divergence time estimations were conducted using the concatenated cpDNA dataset in BEAST2 v2.6.3 (Bouckaert et al., 2019). We calibrated the BEAST analysis based on two fossils following Schuettpelz and Pryer (2009) suggesting ≥228 million years ago (Mya) as the divergence between Matoniaceae and Dipteridaceae along with ≥99.6 Mya for divergence of the clade consisting of Sticherus and Diplopterygium. We also used the results from Schuettpelz and Pryer (2009) to constrain the root of Gleicheniales (= 262.2 Mya) as a secondary calibration point with a normal distribution.
The Bayesian Evolutionary Analysis Utility (BEAUTi) (BEAST package) was utilized to generate an XML file for the analysis in BEAST, in which we applied a GTR model of nucleotide substitution with four gamma rate categories and an uncorrelated lognormally distributed relaxed (UCLD) model for the molecular clock. We ran the MCMC chain for 30 million generations with 25% burn-in and a sampling frequency of 30,000 generations. The tree branching process was inferred using the Yule model with other default settings. We used Tracer v1.7.1 (Rambaut et al., 2018) to check the effective sample size (ESS) of each parameter and found that all ESS exceeded 200, which is considered as recommended threshold to indicate stationarity (Drummond et al., 2012). We determined the maximum clade credibility tree using TreeAnnotator v2.6.3 (BEAST package) with median node heights and visualized it in FigTree v1.4.3 (Rambaut, 2016).
Results
Phylogenetic Relationships Within Dicranopteris
In order to reveal the phylogenetic relationships between nine species of Dicranopteris along with its four varieties, a molecular phylogenetic analysis was performed based on five DNA regions. The concatenated cpDNA sequences yielded an aligned data matrix 3,430 bp long. Phylogenetic analyses using BI, ML, and MP showed that Dicranopteris comprises 10 highly supported clades (Figure 2 and Supplementary Figures 1, 2). Accessions of widely accepted species of Dicranopteris, D. ampla, and D. pedata, formed well-resolved clades (BIPP = 0.99, MLBS = 96%, and MPBS = 96%; BIPP = 0.99, MLBS = 98%, and MPBS = 96%; respectively). Moreover, D. gigantea and D. curranii, collected from Hainan Island of China (HNS065 and HNS082) as well as Thailand (ZXL09776) and Malaysia (SG1685) formed a clade (BIPP = 1.0, MLBS = 98%, and MPBS = 98%) (Figure 2 and Supplementary Figures 1, 2). The analyses revealed that D. linearis was polyphyletic with several varieties clustered with other species of forked ferns (Figure 2 and Supplementary Figures 1, 2). Notably, accessions of D. linearis from southern China formed a clade that was strongly supported as a sister to D. linearis from Malaysia and D. taiwanensis (BIPP = 0.99, MLBS = 79%, and MPBS = 77%). Additionally, a species similar to that of D. curranii formed a highly supported (BIPP = 1.0, MLBS = 92%, and MPBS = 99%), which has a range within the Indochina Peninsula (Figure 2 and Supplementary Figures 1, 2).
FIGURE 2

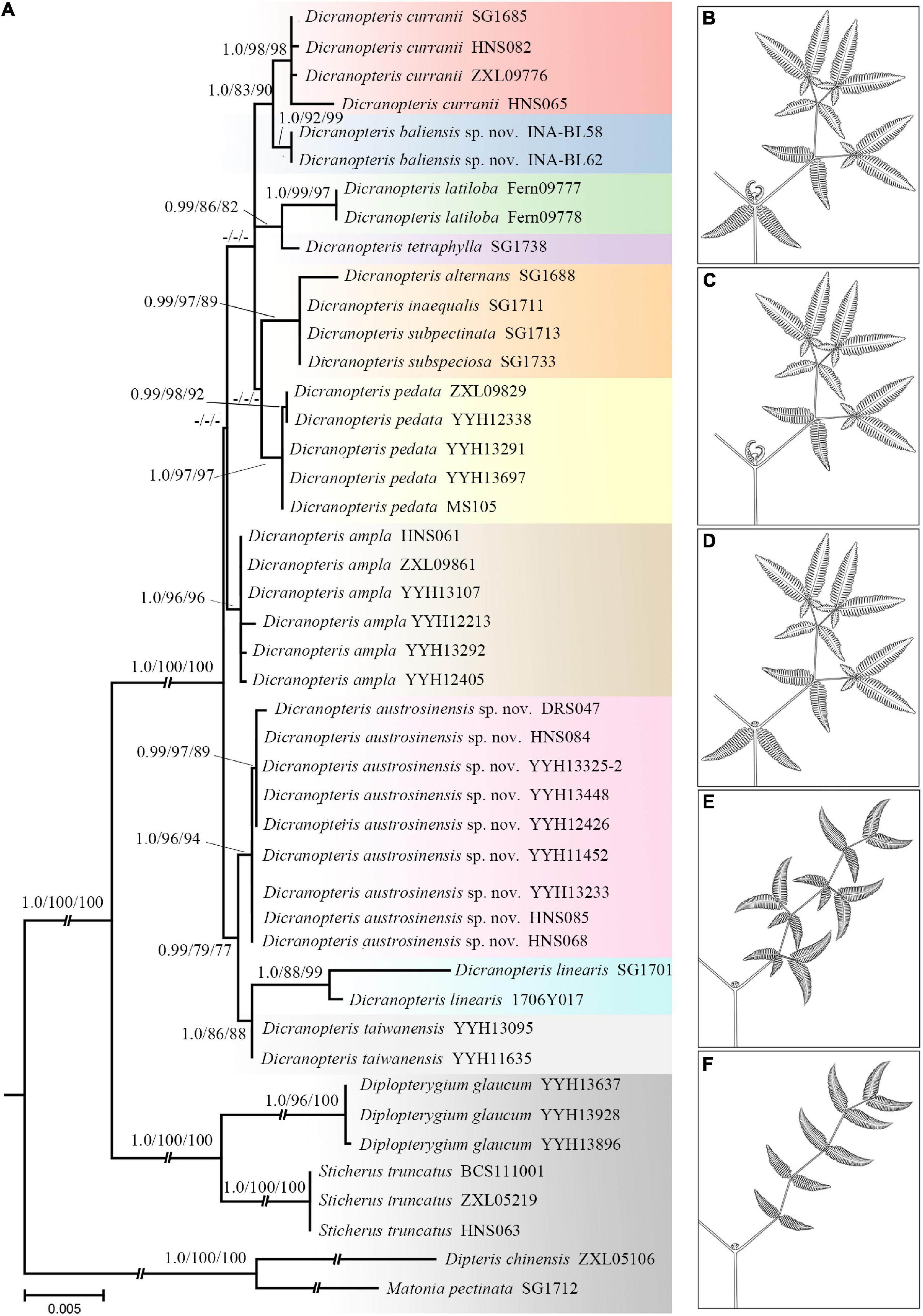

Figure 2. It showing phylogeny and the main morphological diagnostic features of Dicranopteris (drawn by LJC). (A) ML tree of Dicranopteris based on the concatenation of rbcL, atpB, rps4, matK, and trnL-trnF. Numbers above each branch are support values in the order of posterior probability from Bayesian analysis (BIPP), bootstrap percentages of maximum likelihood analysis (MLBS), and bootstrap percentages of maximum parsimony (MPBS). The dash (-) indicates a node with BIPP < 0.9, MLBS < 70%, MPBS < 70%. (B) A latend bud with stipule-like pseudostipules always presents at the primary fork and ultimate fork. (C) The primary fork with terminal dormant buds and stipule-like pseudostipules. (D) The primary fork with a sterile bud. (E) Lateral branches forked more than three times and alternate unequal forking. (F) Lateral branches forked more than three times and without accessory branch.
Divergence Time Estimation
Our divergence time estimations indicated that Dicranopteris evolved ca. 213.04 Mya [95% highest posterior density (HPD): 154.65–264.09 Mya] (Figure 3). The stem age of Dicranopteris was estimated to be approximately 167.65 Mya (95% HPD: 104.25–238.95 Mya) (Figure 3). Dicranopteris diversified considerably from the Paleocene to Miocene (84.33–9.99 Mya) (Figure 3), and many varieties of D. linearis originated during that time.
FIGURE 3

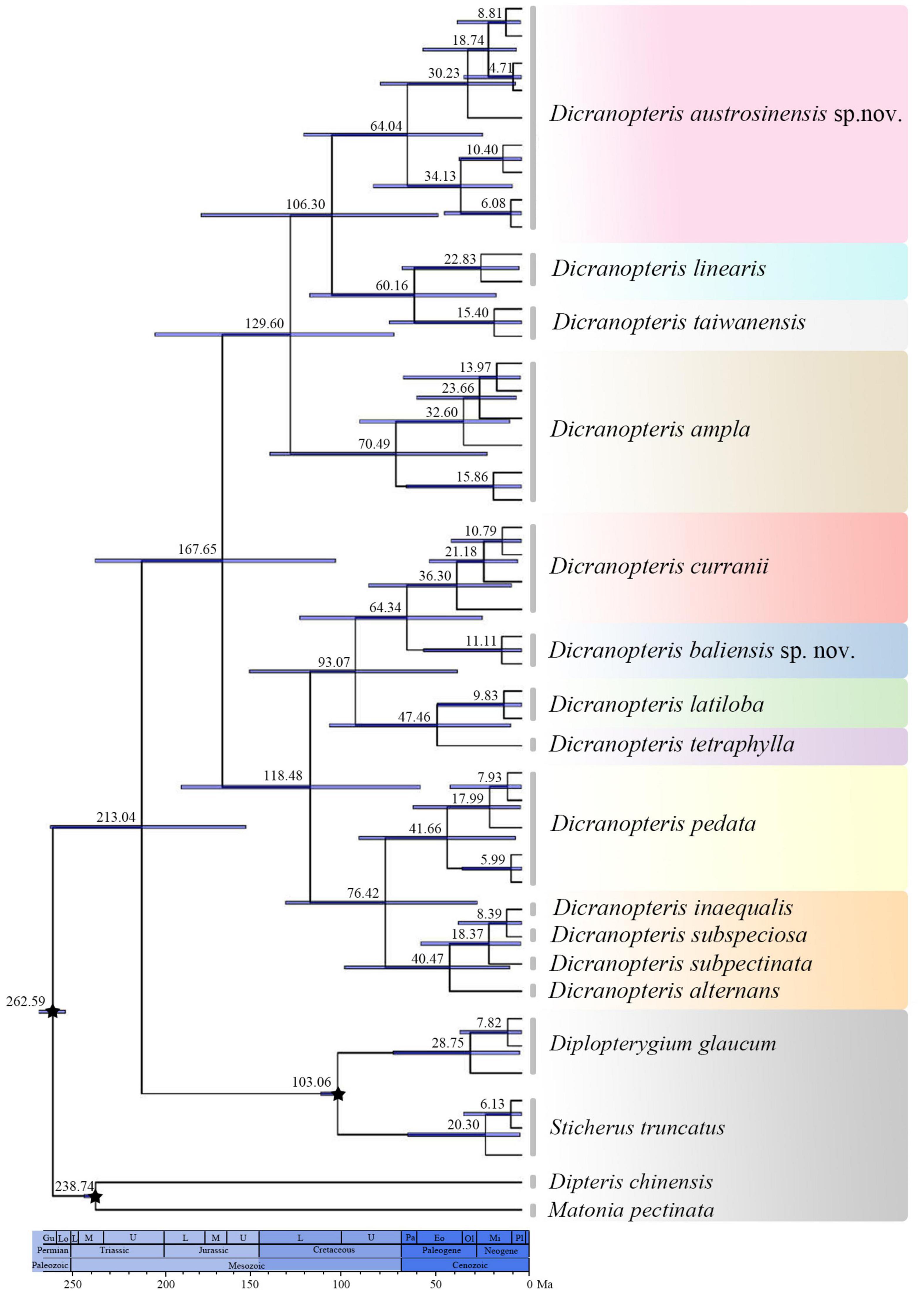

Figure 3. Chronogram presenting estimated divergence times using BEAST based on the concatenated rbcL, atpB, rps4, trnL-trnF, and matK dataset. Numbers above/under the tree branches represented median ages and 95% highest posterior density (HPD) intervals. Break stars indicated the calibrating points.
Discussion
Hidden Cryptic Biodiversity in Dicranopteris
Evolutionary stasis is common for ancient lineages (Bomfleur et al., 2014; Jin et al., 2020; Wei et al., 2021), such as ferns. Accordingly, cryptic species may be particularly prevalent among these lineages due to extensive phenotypic plasticity, often resulting in extreme difficulty in classifying old taxa (Li et al., 2020). In this study, we found that the main extant lineages of Dicranopteris were ancient (Figure 3), which is consistent with the cryptic diversity in the genus that we detected as well as ongoing taxonomic difficulties. Compounding the problem is that Dicranopteris may have experienced flourishing diversification during the Paleocene to the Micoene (Schneider et al., 2004; Schuettpelz and Pryer, 2007; Sundue et al., 2015; Figures 2, 3 and Supplementary Figure 1), and this can also lead to subsequent taxonomic confusion.
Recently, Marpaung and Susandarini (2021) investigated the variation on morphology and spore characters among two species and seven varieties of Dicranopteris. The result revealed that the genus has high morphological variations, as indicated by the presence of intraspecific categories. In the present study, we further used molecular data as complementary to morphology to explore cryptic biodiversity in Dicranopteris. We were able to phylogenetically and morphologically differentiate two new species (Figures 2, 4), D. austrosinensis sp. nov. and D. baliensis sp. nov., and resolve several previously unsettled aspects of species classification of Dicranopteris, including five new combinations. In addition, the species D. pedata recorded in Flora of China (Ding et al., 2013) was proved to hide cryptic species. Specifically, the current treatment of D. pedata in Flora of China consists of three species, D. linearis, D. austrosinensis sp. nov., and D. pedata s. str. Among the three species, only D. austrosinensis sp. nov. presents a pair of accessory branches at the ultimate branches. D. linearis differs from the similar D. pedata by having more basal inner segments of ultimate pinnules shortened. Overall, we have preliminarily revealed that Dicranopteris likely harbors a large constellation of cryptic diversity (Figure 2 and Supplementary Figures 1, 2).
FIGURE 4
Figure 4. It showing two new species and similar species. (A) D. austrosinensis sp. nov. (B) The main fork of D. austrosinensis sp. nov. showing a latend bud with stipule-like pseudostipules. (C) D. taiwanensis. (D) The main fork of D. taiwanensis showing sterile bud. (E) The type specimen of D. austrosinensis sp. nov. (F) D. baliensis sp. nov. (G) Crozier of D. baliensis sp. nov. with red–brown scales. (H) Lower surface of costae and costules of D. baliensis sp. nov. with rather persistent hairs. (I) D. curranii. (J) Crozier of D. curranii with atrocastaneous scales. (K) Lower surface of costae and costules of D. curranii with deciduous hairs. (L) The type specimen of D. baliensis sp. nov.
Preliminary Phylogenetic Analyses
The molecular phylogenetic relationships of Dicranopteris have never been comprehensively investigated in prior studies. Previous studies have included only several well-accepted species of the genus, such as D. pedata and D. linearis (Hasebe et al., 1995; Schuettpelz and Pryer, 2007), within studies of broader taxonomic groups. In this study, we included accessions representing well over half of the currently recognized diversity of Dicranopteris and utilized three methods of phylogenetic reconstruction (ML, BI, and MP).
The preliminary phylogenetic analyses showed a clear division of species in Dicranopteris, which was generally congruent with previous study based on morphology (Ching et al., 1959), except for varieties of D. linearis. D. linearis exhibited no close relationship with its varieties, while was typically well supported as monophyletic with D. taiwanensis (BIPP = 1.0, MLBS = 86%, and MPBS = 88%) (Figure 2 and Supplementary Figures 1, 2). In addition, D. linearis was proved to be a distinct species and not a synonym for D. pedata as previously thought (Ding et al., 2013; Figure 2 and Supplementary Figures 1, 2). For the four species (i.e., D. alternans, D. inaequalis, D. subspeciosa, and D. subpectinata), the species status and phylogenetic relationship were not well-documented and untangled up in the present study (Figure 2 and Supplementary Figures 1, 2) due to in the absence of adequate samples. Conversely, they can be identified by many morphological characters, such as angle of the forks, lower surface covering, etc. Nonetheless, we believe that classifying them would be premature, as we seek stable taxonomic solutions within the genus and for the D. linearis complex.
In a broad sense, the phylogenetic positions of several main clades of Dicranopteris had low support (i.e., BIPP < 0.90, MLBS < 70%, and MPBS < 70%). Consequently, in the future, more molecular markers and denser sampling of taxa should be included to better resolve taxonomic relationships. Also, a more comprehensive systematic investigation of Dicranopteris should accompany the ongoing work on the Flora of Asia to detect and account for cryptic diversity in the genus.
Conclusion
The present study represented the first comprehensive molecular phylogenetic analysis of Dicranopteris and, therefore, provided additional insights on the Gleicheniaceae tree of life. On the basis of our molecular phylogeny from cpDNA and morphological evidence, we showed that Dicranopteris hides considerable cryptic diversity, and we were able to disentangle two new cryptic species, D. austrosinensis sp. nov. and D. baliensis sp. nov., from the diverse species complex, D. linearis. We also clarified the previously unsettled status of five taxa in Dicranopteris and, thus, proposed new combinations. We found that Dicranopteris evolved 213.04 Mya and underwent a flourishing diversification during the Miocene leading to much of its extant diversity. Our study highlighted the importance of applying morphology and molecular data to resolve relationships within taxonomically recalcitrant genera and seek out cryptic diversity. Within Dicranopteris, our results probably represented only the “tip of the iceberg” in terms of cryptic diversity, and much more intensive sampling is critical in future studies.
Taxonomic Treatment
(1) Dicranopteris austrosinensis Y.H.Yan & Z.Y.Wei, sp. nov.
Type: —CHINA, Hong Kong, Mt. Parker, October 26, 2010, Hong Kong Fern Survey Team E016 (holotype, CSH).
Diagnosis: —The new species is similar to Dicranopteris taiwanensis in having a pair of accessory branches at ultimate branches, while it differs in the main forks presenting a latent bud with two lobed pseudostipules.
Description: —Plants terrestrial, about 1.5 m tall. Rhizome creeping, (2–)3–5 mm thick, covered with dense ferrugineous hairs. Rachis dark brown, glabrous, 0.7–1 m long, 2–6 mm thick, 4–5 times dichotomously branched, forking in lateral branch–systems alternately unequal, fractiflex, with a pair of lateral stipule-like pinnules at each dichotomy except for the primary branch, basal internode 7–10 cm, second internode slightly shorter, 6–7 cm long, ultimate internode shortest, usually 4–5 cm long. Dormant buds ovate, ca. 4–8 × 5–10 mm, covered with brown hairs, subtending pseudostipules small, lanceolate with rounded bases, margin irregularly triangular. Pinnae 4–5 forked, lanceolate or broadly lanceolate, a pair of lateral pinnae at each dichotomy lanceolate shorter, 8–12 cm long and 4–6 cm wide, rest pair of pinnae large, 3–4 × 13–16 cm, base and apex attenuate, abaxially glabrous and pale, yellowish green or green adaxially, 2–3 pairs of basal segments decrescent. Segments 2–3 cm, 20–35 pairs, oblong to cylindrical, apex truncate, adaxially glabrous, the veins 2–3 forked. Sori inframedial, 1 line on each side of costule, 8–10 sporangia per sorus.
Additional Specimens Examined: —China. Guangdong Province. Shenzhen City, Dapeng New District, Yangmeikeng, 16 August 2020, Yan Y.H. et al. YYH15634 (NOCC); Gaoyao City, 1 August 1932, Lau S.Y. 20333 (PE); Zhaoqing City, Deqing District, 16 July 1958, Liu H.G. 00904 (PE). Hainan Province. Changjiang Li Autonomous County, Bawangling, 4 April 2002, Chen Z.C. 010796 (SZG). Hong Kong. 27 September 2002, Yan Y.H. 665 (IBSC). Guangxi Province. Guangxi Zhuang Autonomous Region, Fangkonggang City, Fangcheng District, Nawan mountain, 14 August 2010, Xie Y.J. & Liang S.Z. B0822 (IBK). Guizhou Province. Qiannan Buyi and Miao Autonomous Prefecture, Libo District, 27 April 2015, Zhang X.C., Guo Z.Y. & Xiang Q.P. 7297 (PE). Vietnam. Mount Tai Hoang Mao, 30 July 1939, Tseng H.T. 29363 (HITBC, photo!).
Distribution and ecology: —It forms dense colonies in open habitats in montane forests, thickets and forest margins, at ca. 50–500 m. Mainly occurring in South China (Guangxi, Guangdong, Hainan, Hong Kong, Guizhou) and Vietnam.
(2) Dicranopteris baliensis Y.H.Yan & Z.Y.Wei sp. nov.
Type: —Indonesia, Bali Island, September 29, 2014, Yan Y.H. & Shang H. INA-BL58 (holotype, CSH).
Diagnosis: —The new species is similar to Dicranopteris curranii with large fronds, rachis 2 or 3 times dichotomously branched, and sori in 1 line on each side of costule, but differs in lower surface of costae and costules densely hairy, red–brown, and persistently.
Description: —Plants terrestrial, 1–1.5 m tall. Rhizome creeping. Rachis stamineous, moderately brown scales, ca. 30–50 cm long between pinnae, 2 or 3 times dichotomously branched, primary rachis-branches almost equally forked, first branch 2.5–3.8 cm long and 1.0–1.8 mm wide, second branch shorter, 1.8–2.2 cm long and 0.8–1.0 mm wide, opposite branches of equal length, accessory branches at each dichotomy except for the ultimate branch, distal branches with overlapping segments. Rachis buds covered with short and usually concolorous red–brown scales. Dormant buds ovate, ca. 3–5 × 8–10 mm, covered with dense red–brown hairs, pseudostipules lanceolate. Pinnae lanceolate, generally large, ultimate pinnae longest, 25–30 cm long, 8–10 cm wide, basal pairs of segments slightly narrowed, apex acuminate, 7–8 pairs of distal segments decussate, with red–brown hairs abaxially. Segments 50–52 pairs, 2.2–3 cm long, 4.1–6.8 mm wide, distal and medial pairs of segments largest, the veins 2–3 forked. Sori inframedial, 1 line on each side of costule, 12–14 sporangia per sorus.
Additional Specimens Examined: —Indonesia. Bali Island, September 29, 2014, Yan Y.H. & Shang H. INA-BL62 (CSH).
Distribution and ecology: —Terrestrial in thickets, forest, forest margins. Endemic to montane forests in Indonesia (Bali Island).
Further Taxonomic Novelties
(1) Dicranopteris inaequalis (Rosenst.) Y.H.Yan & Z.Y.Wei, comb. & stat. nov.
≡ Gleichenia linearis var. inaequalis Rosenst., Fedde, Rep. 13 (1915) 212.
≡ Dicranopteris linearis var. inaequalis (Rosenst.) Holtt., Reinwardtia 4 (1957) 278.
Type: —Indonesia. Sumatra, Batakerland, January 1, 1911, Winkler, K.J.M. 114 (S, S-P-4212, photo!).
Notes: —Dicranopteris inaequalis is closely related and similar to D. subspeciosa, but is recognized by having very unequal lateral branch-systems. D. inaequalis often dichotomously forks 4 or 5 times and angle of the secondary and later rachis forking more than a right angle. The smaller branches at once forked occasionally lack an accessory branch. Pinnae are lanceolate or broadly lanceolate and have 2–4 pairs of basal decrescent segments. Segments are 1.5–2 mm wide, 1.5–2 cm long, and covered with pale hairs.
Distribution and ecology: —Dicranopteris inaequalis is mainly distributed in Malay Peninsula. It is locally common along roadsides, slopes and forest edges at ca. 1200–1400 m.
Specimen examined: —Malaysia. Johor Mount Ophir, May 20, 2017, Yan Y.H. & Shang H. SG1711 (CSH). Indonesia. Sumatra, Batakerlande, January 1, 1911, Winkler, K.J.M. 114 (UC, UC391814, photo!). Papua New Guinea. September 26, 1964, TREVOR G. WALKER, T. F820 (UC, photo!).
(2) Dicranopteris alternans (Mett.) Y.H.Yan & Z.Y.Wei, comb. & stat. nov.
≡ Gleichenia dichotoma var. alternans Mett., Miq. Ann. Mus. Bot. Lugd. Bat. 1 (1863) 51.
≡ Gleichenia linearis var. alternans Alderw., Malayan Ferns Fern Allies. (1917) 84.
≡ Dicranopteris linearis var. alternans (Mett.) Holtt., Reinwardtia 4 (1957) 278.
Lectotype: —Indonesia. Sumatra, Korthals (L, L0051519, photo!).
Isolectotypes: —Indonesia. Sumatra, Korthals (S, S-P-4210, photo!); Sumatra, Korthals (S, S-P-4209, photo!).
Notes: —Dicranopteris alternans is a relatively little common species. It is similar to D. subpectinata, and the most important difference between them is the indument on the lower surface of lamina. In D. alternans the lower surface of lamina bears copious red–brown hairs, whereas quite glabrous in D. subpectinata. D. alternans has rather firm lamina as well as broad–lanceolate and large pinnae with attenuate apex. Ultimate pinnae are 20–30 cm long and 4–5 mm wide. Lateral branches usually fork more than three times, and the branches at successive forks are alternately unequal.
Distribution and ecology: —Rare in open habitats in the lowlands and on the edge of forest in the hills at 300–500 m in Malaysia, Indonesia, Sumatera, Singapore, Borneo, and Banka.
Specimen examined: —Malaysia. January 28, 1959, Hassan, N. & Kadim, H. 102 (L, photo!); Indonesia. January 26, 1958, Holttum, R.E. s.n. (L, photo!); February 11, 1920, Bünnemeijer, HAB 8165 (L, photo!); October 22, 1917, Bünnemeijer, HAB 1657 (L, photo!); Korthals, P.W. s.n. (K, photo!); Korthals, P.W. 113 (L); April 13, 1923, Lörzing, JA 9620 (L, photo!); Sumatra, Harau-canyon near Pajakumbuh, January 25, 1958, W. Meijer 7527 (K, photo!); Sumatra, Korthals, P.W., # [115] s.n. Singapore. November 12, 1956, Bels, L 271 (B, photo!). Samoa. October 1, 1893, Reinecke, F 82 (L, photo!). UK. Royal Botanic Garden Kew, s. coll. K000377055 (K).
(3) Dicranopteris subspeciosa (Holtt.) Y.H.Yan & Z.Y.Wei, comb. & stat. nov.
≡ Dicranopteris linearis var. subspeciosa Holtt., Reinwardtia 4 (1957) 278.
Type: —Malaysia. Borneo, Sabah, Kiau, Mt Kinabalu, October 31, 1915, Topping, D.L. 1516 (US, US00134664, photo!).
Notes: —Dicranopteris subspeciosa is also an uncommon species. It is characterized by having alternately unequal branches with the angle of the ultimate fork being 90° or less than 90°. The basal two branches are of roughly similar length that may be up to twice of the same length as the ultimate branches. The species has the smallest pinnae, 13–15 cm long, 4–5 cm wide. The pinnae are long–lanceolate with caudate apex. Typically, D. subspeciosa has pale, slender and entangled hairs covering the lower surface of lamina.
Distribution and ecology: —Best known in Malaysia, where it grows along roadsides and on the edge of forest, but also known from scattered specimens from Philippines.
Specimen examined: —Malaysia. Borneo, Sabah, Kiau, Mt Kinabalu, October 31, 1915, Topping, D.L. 1516 (isotype, MICH, photo!); October 28, 1915, Clemens, MS 9789 (MICH, photo!); May 1910, Brooks, CJ 152 (MICH, photo!); Borneo, Sabah, Kiau, Mt Kinabalu, November 2, 1980, Parris, B.S. & Croxall, J.P. 8980 (K); Kota Kinabalu, Signal Hill, September 17, 1975, Shim, P.S. s.n. (K). Philippines. June 10, 1953, Edaño, GE 6366 (MICH, photo!); October 1912, Elmer, ADE 14142 (MICH, photo!); March 22, 1953, Edaño, GE 6104 (MICH, photo!). May 21, 1946, Alcasid, GL 286 (MICH, photo!); July 1917, Elmer, ADE 7875 (MICH, photo!).
(4) Dicranopteris latiloba (Holtt.) Y.H.Yan & Z.Y.Wei, comb. & stat. nov.
≡ Dicranopteris linearis var. latiloba Holtt., Reinwardtia 4 (1957) 277.
Type: —Philippines. Luzon, Benguet, May 1911, Merrill, E.D. 975 (US, US00134663, photo!).
Notes: —Dicranopteris latiloba is one of the species with the widest segments (ca. 5–6 mm) in the genus. It is charactered by lacking a pair of accessory branches at ultimate forks, by having deeply and broadly lobed segments and quite glabrous lower surface of lamina. Usually, D. latiloba is dwarf, lateral branches forked about 1–3 times. Branches at all forks are subequal with somewhat irregularly placed segments. Segments are oblong or emarginate, firm but not very thick, reflexed when dry. Typically, the angle of ultimate fork with no accessory branches is approximately a right angle.
Distribution and ecology: —It is locally common in Malaysia and Philippines. Growing in montane forests at 1000–1500 m.
Specimen examined: —Philippines. Luzon, Benguet, May 1911, Merrill, E.D. 975 (isotype, MICH, MICH1190343, photo!); May 16, 1948, Edaño, GE PNH 5231 (L, photo!); June 1, 1917, Elmer, ADE 17873 (L, photo!); May 1911, Phil. Plts. 975 (L, photo!); June 1, 1908, Elmer, ADE 10351 (L, photo!); May 1, 1907, Elmer, ADE 9031 (L, photo!). India. November 29, 1945, Hou H.Y. 5113 (PE, photo!).
(5) Dicranopteris curranii Copel, Philip. J. Sc. 81 (1952) 4.
Type: —Philippines. Luzon, Laguna, February 1910, Curran, H.M. BS19265 (K, K000399480, photo!).
= Dicranopteris gigantea Ching Fl. Reipubl. Popularis Sin. 2 (1959) 346. syn. nov.
Notes: —This name was coined by Copel based on a collection from Curran. Our study has convinced us that D. curranii is conspecific with D. gigantea named by Ching et al. (1959). Because D. curranii was published before D. gigantea, we therefore consider that D. gigantea should be treated as a synonym of D. curranii. D. curranii is larger as compared to any other species in the genus. Rachis dichotomously fork 2 or 3 times, with a pair of lateral pinnules at each dichotomy. It has the longest and widest pinnae. Ultimate pinnae are commonly 40–60 cm long and 13–15 cm wide, lanceolate, long caudate apex. Segments are 5–8 cm long, 3.5–4.5 mm wide, linear, reflexed when dry. Lower surface of costae and costules present sparse, brown, and deciduous hairs. Fiddleheads are covered with dense brown scales.
Distribution and ecology: —Southern China, Malaysia, Philippines, Indonesia, Thailand, and Vietnam. It grows in thickets, along roadsides and in other open habitats in montane forests at below 1500 m.
Specimen examined: —Philippines. February 1910, Curran, H.M. BS19265 (US, photo!). Malaysia. August 17, 1983, Zogg, E. 7045 (L, photo!); October 14, 1967, Shimizu, T & Iwatsuki, K & Fukuoka, N & Hutoh, MM 13048 (L, photo!); September 2, 1971, Iwatsuki, K & Murata, G & Dransfield, J & Saerudin, DS 1433 (L, photo!). Indonesia. August 17, 1973, Murata, G & Fukuoka, N & Sukasdi J- 620 (L, photo!); September 5, 1919, Bünnemeijer, HAB 7769 (L, photo!); March 24, 1894, Schiffner, VF P 87 (L, photo!). China. Yunnan Province. Hekou Yao Autonomous County, October 30, 1989, Zhu W.M. 23468-24 (HGAS), Zhu W.M. 23468- c-1 (HGAS); Hekou Yao Autonomous County, September 11, 1962, Wu, S.G. 4082 (PE). Hainan Province. Lingshui Li Autonomous County, December 20, 2006, Yan Y.H. 3489 (HUST); Yingge Ling National Nature Reserve, March 28, 2015, Shang, H., Wei, H.J., Shu, J.P. & Huang, K.R. SG2761 (CSH); July 19, 2018, Wu, L. 6667 (CSFI). Thailand. Phangnga Province, July 21, 1999, Watthana, S. et al., 457 (QBG); Pheaburi Province, December 19, 2014, Zhou, X.L., Yan, Y.H. & Du, C. ZXL09776 (CSH). Vietnam. June 1, 2002, Wu, S.G., Peng, H. et al., T-V467 (KUN); Lào Cai Province, Van Bàn County, June 1, 2006, Wu, S.G., Peng, H. et al., T-V467 (KUN, KUN 1212243, photo!); Lào Cai Province, Van Bàn County, June 1, 2006, Wu, S.G., Peng, H. et al., T-V467 (KUN, KUN 1212242, photo!).
Key to Dicranopteris Species of Asia
1a. Ultimate forks with a pair of accessory branches …………..2
1b. Ultimate forks without a pair of accessory branches………4
2a. Main fork presenting a sterile bud without pseudostipules………………………………………….. D. taiwanensis
2b. Main fork showing a latent bud with two pseudostipules…………………………………………………………………3
3a. Leaves leathery, latent bud with two pinnatifid pseudostipules at mainforks ………………………. D. tetraphylla
3b. Leaves papery, latent bud with two lobed pseudostipules at main forks …………………………………………….. D. austrosinensis
4a. Lateral branches at each fork approximately equal; ultimate pinnae 10-15 cm wide …………………………………………………… 5
4b. Lateral branches at each fork alternately unequal; ultimate pinnule 3-6 cm wide ……………………………………………………… 7
5a. Lower surface of costae and costules glabrous……….. D. ampla
5b. Lower surface of costae and costules hairy……………………..6
6a. Lower surface of costae and costules sparsely hairy, brown, deciduously…………………………………………………….D. curranii
6b. Lower surface of costae and costules densely hairy, red-brown, persistently…………………………………………D. baliensis
7a. Lateral branches forked 1-3 times…………………………………8
7b. Lateral branches forked more than 3 times………………….10
8a. Angle of ultimate fork approximately a right angle………………………………………………………………D. latiloba
8b. Angle of ultimate fork usually less than 60°……………………9
9a. Ultimate branches with only 3-4 basal internal segments gradually reduced………………………………………….D. pedata
9b. Ultimate branches with approximately 10 basal internal segments gradually reduced………………………………D. linearis
10a. Lower surface glabrous…………………………….D. subpectinata
10b. Lower surface covered with hairs…………………………………11
11a. Lower surface of lamina segments with red-brown hairs…………………………………………………………….D. alternans
11b. Lower surface of lamina segments with pale hairs………….12
12a. Angle of the secondary and later rachis forking not more than a right angle…………………………………………D. subspeciosa
12b. Angle of the secondary and later rachis forking more than a right angle…………………………………………………..D. inaequalis
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author Contributions
ZYW and YHY designed the experiments. ZYW, ZQX, and JPS performed the research. HS, XLZ, WX, BA, and YHY collected the materials. ZYW and ZQX analyzed the data. ZYW and LJC drew the figures and wrote the draft. QY processed the figures. YHY, SM, and JGC revised the draft. All authors contributed to the article and approved the submitted version.
Funding
This research was supported by the National Natural Science Foundation of China (Grant Nos. 31370234 and 32170216) and the China Ministry of Science and Technology (Grant No. 2013FY112100).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank NSII, GBIF, and Shanghai Chenshan Herbarium (CSH) for providing specimen images, Yonghe Xia and Yazhou Zhang for their help in analyzing data, and Tuo Yang for help in revising the manuscript. We are grateful for Hui Shen, Rui Zhang, Dongmei Jin, Yufeng Gu, Junhao Yu, and Yunong Mu for helping to perform experiments. We are also grateful to Fengchun Yang and Xiaoyang Yang for their assistance in our field investigations. We also thank the reviewers MK and AE for valuable comments on the manuscript. We appreciate the linguistic assistance provided by TopEdit (www.topeditsci.com) during preparation of this manuscript.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2021.748562/full#supplementary-material
