The Major Peanut Allergen Ara h 2 Produced in Nicotiana benthamiana Contains Hydroxyprolines and Is a Viable Alternative to the E. Coli Product in Allergy Diagnosis

Peanut allergy is a potentially life-threatening disease that is mediated by allergen-specific immunoglobulin E (IgE) antibodies. The major peanut allergen Ara h 2, a 2S albumin seed storage protein, is one of the most dangerous and potent plant allergens. Ara h 2 is posttranslationally modified to harbor four disulfide bridges and three hydroxyprolines. These hydroxyproline residues are required for optimal IgE-binding to the DPYSP^OHS motifs representing an immunodominant IgE epitope. So far, recombinant Ara h 2 has been produced in Escherichia coli, Lactococcus lactis, Trichoplusia ni insect cell, and Chlamydomonas reinhardtii chloroplast expression systems, which were all incapable of proline hydroxylation. However, molecular diagnosis of peanut allergy is performed using either natural or E. coli-produced major peanut allergens. As IgE from the majority of patients is directed to Ara h 2, it is of great importance that the recombinant Ara h 2 harbors all of its eukaryotic posttranslational modifications. We produced hydroxyproline-containing and correctly folded Ara h 2 in the endoplasmic reticulum of leaf cells of Nicotiana benthamiana plants, using the plant virus-based magnICON^® transient expression system with a yield of 200 mg/kg fresh biomass. To compare prokaryotic with eukaryotic expression methods, Ara h 2 was expressed in E. coli together with the disulfide-bond isomerase DsbC and thus harbored disulfide bridges but no hydroxyprolines. The recombinant allergens from N. benthamiana and E. coli were characterized and compared to the natural Ara h 2 isolated from roasted peanuts. Natural Ara h 2 outperformed both recombinant proteins in IgE-binding and activation of basophils via IgE cross-linking, the latter indicating the potency of the allergen. Interestingly, significantly more efficient IgE cross-linking by the N. benthamiana-produced allergen was observed in comparison to the one induced by the E. coli product. Ara h 2 from N. benthamiana plants displayed a higher similarity to the natural allergen in terms of basophil activation due to the presence of hydroxyproline residues, supporting so far published data on their contribution to the immunodominant IgE epitope. Our study advocates the use of N. benthamiana plants instead of prokaryotic expression hosts for the production of the major peanut allergen Ara h 2.

Introduction

Type 1 allergy, an immune disorder mediated by immunoglobulin E (IgE) antibodies, affects up to 30% of the world population (Valenta et al., 2018a). Allergy to peanut is particularly important as it is one of the most persistent types of allergies, is rarely outgrown, and may lead to life-threatening reactions such as anaphylaxis (Chinthrajah et al., 2020). In developed countries, the incidence of peanut allergy has been increasing due to the enhanced exposure to and consumption of peanuts (Platts-Mills, 2015; Reynolds and Finlay, 2017). The seeds of the peanut plant (Arachis hypogaea) harbor 18 different allergenic proteins (http://www.allergen.org/), including the highly potent 2S albumin Ara h 2, which makes up 6–9% (1.6–2.3 g/kg) of the total seed protein (Koppelman et al., 2001). Besides their biological role as defensive proteins to protect the seeds (Ozias-Akins and Breiteneder, 2019), seed storage proteins are crucial sources of nutrients for the growing seedling (Kang et al., 2007). Ara h 2 has a 21 amino acid residue N-terminal signal peptide, which directs the protein to the seed storage vacuoles and is then cleaved off, yielding the mature protein (Li et al., 2010). 2S albumins are a member family of the prolamin superfamily, which contains the highest number of allergens of any protein superfamily (Radauer et al., 2008). Peanuts express three allergenic 2S albumins, namely Ara h 2, Ara h 6, and Ara h 7 (http://www.allergen.org/search.php?Species=Arachis%hypogaea). Ara h 7 has been recently described to have partial cross-reactivity with Ara h 2 (Apostolovic et al., 2021). Co-sensitization to Ara h 2 and Ara h 6 is common for peanut allergic patients, as these allergens share 60% sequence identity (Hemmings et al., 2020). Yet, Ara h 2 demonstrates a superior accuracy for the diagnosis of peanut allergy, since over 90% of peanut-sensitized patients develop IgE antibodies to it (Zhuang and Dreskin, 2013). Ara h 2 occurs in four isoforms of 16–18 kDa. The longer isoforms Ara h 2.0201 and Ara h 2.0202 vary by one residue. They differ from the shorter isoforms Ara h 2.0101 and Ara h 2.0102 by an additional repetition of the DPYSPS motif, which is an immunodominant IgE epitope (Stanley et al., 1997; Li et al., 2010). Ara h 2 harbors two posttranslational modifications (PTMs), namely, four disulfide bonds and three hydroxyprolines, the latter being located within the repeated DPYSPS immunodominant epitopes (Li et al., 2010). Although natural Ara h 2 has a canonical N-glycosylation site (NQS), it is not glycosylated (Li et al., 2010).

Current in vivo diagnosis of allergies is mainly performed with natural extracts of allergen sources, employing skin tests or oral/nasal challenges (Üzülmez et al., 2020). However, it is notable that the allergen contents in extracts vary by manufacturer and that most extracts are not standardized (Curin et al., 2017). Most importantly, some natural allergens cannot be administered in vivo due to their high potency to induce symptoms. Hence, in vitro tests with purified natural (n) or recombinant (r) allergens are preferable for at-risk patients. Isolated natural allergens have been largely replaced by recombinant allergens produced in prokaryotic hosts, mainly in Escherichia coli (Larsen et al., 2020) due to easier production, simpler characterization and standardization of the products, and the absence of cross-contamination with other allergens from the same source, which could influence the test results (Lowenstein and Larsen, 2001; Sancho et al., 2010; Curin et al., 2017). Escherichia coli and Lactococcus lactis have been utilized to produce rAra h 2 with low-to-moderate IgE-binding capacities (Astier et al., 2006; Lew and Lim, 2016; Chan et al., 2020). IgE from all peanut allergic patients involved in the study recognized the E. coli-made rAra h 2; thus, authors reported this recombinant allergen as a promising candidate for its use in allergy diagnosis (Astier et al., 2006). Although tested with sera from peanut allergic mice, IgE-binding of natural Ara h 2 did not differ from those made in E. coli or L. lactis (Chan et al., 2020). Another study reported significantly weaker recognition of the E. coli-made rAra h 2 by IgE of allergic patients in comparison to the natural protein (Lew and Lim, 2016). To our knowledge, no plant-produced recombinant allergen is used in any of the commercially available singleplex or multiplex diagnostic assays. Molecular allergy diagnosis of peanut allergy is performed with either natural or E. coli-produced rAra h 2 in the singleplex ImmunoCAP (r) assay (Park et al., 2018) and in multiplex assays, such as the ImmunoCAP ISAC (r) (Gadisseur et al., 2011), the experimental MeDALL-chip (n) (Lupinek et al., 2014), or the ALEX allergy explorer (r) (Hoang et al., 2020).

Eukaryotic recombinant expression systems are favorable for producing recombinant allergens with their natural PTMs to be used in allergy diagnosis and for providing templates for designing hypoallergens for allergen immunotherapy. Obtaining naturally occurring PTMs during recombinant protein expression is of great importance as they are critical contributors to the IgE-binding of allergens (Petersen et al., 1998; Bernard et al., 2000, 2015; Bublin et al., 2003; Schmid-Grendelmeier et al., 2003; Barral et al., 2005; Leonard et al., 2005; Halim et al., 2015). Eukaryotic systems, such as chloroplasts of the unicellular alga Chlamydomonas reinhardtii and Trichoplusia ni insect cells, have been used for the recombinant production of Ara h 2 (Gregory et al., 2016; Tscheppe et al., 2020). Although, from eukaryotic hosts, both the green alga- and the insect cell-made rAra h 2 fell short of the performance of the natural allergen in IgE-binding assays (Gregory et al., 2016; Tscheppe et al., 2020). Gregory et al. suggested that distorted conformational epitopes and possible acetylation in chloroplasts were the reasons for weaker IgE-binding of algal-produced peanut allergens in comparison to their native counterparts (Gregory et al., 2016). When produced in insect cells, the disulfide bond formation was achieved (Tscheppe et al., 2020), yet there has been no report of rAra h 2 production with hydroxyprolines until now. The importance of both of its PTMs, namely the disulfide bonds and the hydroxyprolines, for the IgE-reactivity of Ara h 2 has been reported (Bernard et al., 2015; Tscheppe et al., 2020). When the cysteine residues were reduced and alkylated to permanently destroy the natural fold of the protein, the IgE-binding and anaphylaxis-inducing capacity of Ara h 2 decreased notably (Tscheppe et al., 2020). Moreover, hydroxyproline-containing Ara h 2 peptides had a 1,000-fold higher affinity to IgE in comparison to the peptides without this modification (Bernard et al., 2015).

Recombinant expression of allergens in plant systems offers the advantages of utilizing the eukaryotic translation machinery to add PTMs, human pathogen-free production, safe in vivo application, and safe use for oral tolerance induction by bioencapsulation (Schmidt et al., 2008; Daniell et al., 2019). Plant virus genomes have been engineered for the production of proteins-of-interest by taking advantage of the compromised viral defense mechanisms of Nicotiana benthamiana plants (Yang et al., 2004). The application of plant virus-based vectors has resulted in the production of several plant-made pharmaceuticals that are either in clinical trials or already approved (Gleba et al., 2014; Giritch et al., 2017). While it takes several months to generate a fully transgenic offspring via stable transformation (Slater et al., 2008), transient systems offer scalable, quick, systemic/local infection, utilizing RNA virus-based vector systems such as magnICON® (Marillonnet et al., 2005), TRBO (Lindbo, 2007), and pEAQ (Lomonossoff and D'Aoust, 2016) or DNA virus-based one, such as geminivirus (Yamamoto et al., 2018), allowing high-yield production of recombinant proteins within 1–2 weeks. Moreover, typical yields for stably transformed plants are below 100 mg/kg (Schillberg et al., 2019), whereas transient expression yields can be scaled up to 5 g/kg (Marillonnet et al., 2004).

N. benthamiana has been utilized for the transient cytosolic expression of allergens from birch pollen (Bet v 1) and latex (Hev b 1, Hev b 3) by inoculating plant leaves with in vitro transcribed viral RNA, which were all shown to bind IgE from allergic patients (Krebitz et al., 2000; Breiteneder et al., 2001). Later, viral vectors were utilized for the transient expression of several plant allergens such as Mal d 2 (apple), Bet v 1 (birch), and Gly m 8 (soybean), which were able to bind allergen-specific IgE (sIgE) from the sera of allergic patients or monoclonal antibodies (Krebitz et al., 2003; Santoni et al., 2019; Ueberham et al., 2019; Yamada et al., 2020). Yamada et al. reported the highest yield ever achieved for a recombinant allergen produced in plants for Bet v 1 (1.2 g/kg fresh biomass), using a deconstructed geminivirus vector system. Yet an undesired glycosylation of the allergen was observed due to the canonical N-glycosylation site within the Bet v 1 sequence (Yamada et al., 2020). Santoni et al. (2019) reported that sIgE from sera of allergic patients directed to plant-produced Bet v 1 was significantly lower than the one directed to the recombinant protein from E. coli, which was attributed to the misfolding of the N. benthamiana-produced allergen.

Our study describes the detailed characterization of Agrobacterium-driven transient expression of rAra h 2 in the leaves of N. benthamiana. We employed the tobacco mosaic virus (TMV)-based magnICON^® expression vectors (Klimyuk et al., 2014) for the production of hydroxyproline-containing and correctly folded Ara h 2. We performed a detailed biochemical and immunological characterization of plant-produced rAra h 2 and investigated the impact of hydroxyproline residues on allergenicity by comparing recombinants from N. benthamiana and E. coli with natural Ara h 2.

Materials and Methods

Construction of the Tobacco Mosaic Virus (TMV)-Based Expression Provectors

The TMV-based expression provectors pICH31070, pICH20155, and pICH14011 were supplied by Dr. Victor Klimyuk of ICON Genetics (Halle, Germany; since 2017, fully owned by Denka Co. Ltd., Tokyo, Japan). A combination of plasmids encoding transgenes framed by left and right T-DNA borders (LB and RB, respectively) was used for Agrobacterium-mediated heterologous protein expression in N. benthamiana plants. This modular system comprises (i) a 5′-provector (pICH20155) encoding viral genes necessary for plant transformation, (ii) a 3′-provector encoding the gene-of-interest (pICH31070), (iii) a separate plasmid encoding the PhiC31 integrase (pICH14011) that enables in planta recombination of both modules (Marillonnet et al., 2004).

The 5′-provector pICH20155, as described before (Kalthoff et al., 2010), encodes the viral movement protein (MP), the viral RNA-dependent RNA polymerase (RdRP) and the rice α-amylase endoplasmic reticulum (ER)-targeting peptide (SP). The 3′-provector pICH31070, which was described by Engler et al. (2008), encodes the gene-of-interest. The third TMV-based plasmid pICH14011, described elsewhere (Kalthoff et al., 2010), encodes the PhiC31 integrase, which then fused the ER-targeting peptide in-frame with the gene-of-interest as a result of the ligation of the 5′- and 3′-modules. The 5′ ER-targeting peptide present in the pre-protein is then cleaved off during protein maturation in the ER (Chen et al., 2004). The sequence of mature Ara h 2.0201 (Uniprot Q6PSU2, aa 22-172), including a single amino acid substitution at N106 to Q and a C-terminal hexa-histidine tag, followed by an ER-retention signal (SEKDEL), was codon-optimized for N. benthamiana and synthesized and ligated into the pEX-A128 cloning vector (Eurofins Genomics, Austria). The subcloning was performed via BsaI restriction sites, following the Golden Gate cloning protocol (Engler et al., 2008). The resulting plasmid was referred to as pICH31070_Ara h 2 N106Q SEKDEL.

Agroinfiltration of N. benthamiana Plants and Protein Expression

Electrocompetent Agrobacterium tumefaciens (GV3101) cells (recently renamed to Rhizobium radiobacter) were transformed with either pICH14011, pICH20155, or pICH31070. The transformed bacteria were grown in YEB medium (0.1% yeast extract, 0.5% beef extract, 0.5% peptone, 0.5% sucrose, 0.05% MgSO₄.7H₂O, pH 7.0) with the antibiotics kanamycin (50 mg/L) and rifampicin (25 mg/L) to an OD₆₀₀ of 1.5–2 at 28°C. The cultures were then centrifuged at 8,500 × g for 1 h at 4°C. The pellets were resuspended in infiltration buffer (10 mM MES, 10 mM MgSO₄, 2% sucrose, 100 μM acetosyringone, pH 5.5), and the OD₆₀₀ was adjusted to 1.0 by mixing three transformants in a 1:1:1 ratio. The leaves of 7-week-old N. benthamiana plants (grown at 24°C with 16 h light, 8 h dark) were infiltrated using a syringe without a needle with the mixture of agrobacteria suspensions, carrying either of the three plasmids.

Protein Extraction From N. benthamiana Leaves

Infected leaves were collected 10 days post-infiltration, snap frozen in liquid nitrogen and ground using a mortar and a pestle. One gram of ground-up leaves was resuspended in 3 mL of the extraction buffer (50 mM Tris, 150 mM NaCl, 1 mM DTT, 0.1% Triton X-100, pH 7.5), containing a cocktail of protease inhibitors (Cat. No. 11873580001, Roche, Basel, Switzerland). Proteins were extracted by vigorously vortexing the ground-leaf suspensions at 4°C. Additional incubation of the total leaf suspensions overnight at −20°C helped with cell lysis. Thawed suspensions were cleared by centrifugation at 14,000 × g for 30 min at 4°C. Total soluble and insoluble fractions containing rAra h 2 were prepared as follows. An aliquot from the homogenized leaf suspension was taken for mixing with the reducing sample buffer (200 mM Tris, 300 mM DTT, 4% SDS, 40% glycerine, bromphenol blue), heated at 95°C and loaded as the total fraction. The rest of the homogenized leaf suspension was centrifuged at 14,000 × g for 15 min. An aliquot from the supernatant was mixed with the reducing sample buffer, heated at 95°C and loaded as the soluble fraction. The pellet was mixed with the reducing sample buffer, and an aliquot was taken for heating at 95°C prior to loading.

Protein Purification and Analysis by SDS-PAGE and Western Blotting

All chromatographic steps were performed using an FPLC system. The supernatant of the crude extract was dialyzed against the loading buffer (25 mM Tris, 3 M NaCl, 10 mM imidazole, pH 8.0). Filtered samples were applied to a Ni-NTA-agarose column (Cat. No. 1018244, Qiagen, Netherlands), and rAra h 2 was eluted by adding 25 mM to 100 mM imidazole. As a second purification step, anion exchange chromatography was performed using a MonoQ column (Cat. No. 17-5166-01, GE Healthcare, Illinois, USA). rAra h 2 was loaded onto the column in buffer A (20 mM Tris, pH 8.0) and eluted with increasing NaCl concentrations, recovering the protein at around 220 mM. Pure proteins were concentrated and dialyzed against phosphate-buffered saline (PBS) (10 mM Na₂HPO₄, 136 mM NaCl, 2.7 mM KCl, 1.8 mM KH₂PO₄, pH 7.4) before measuring the concentration using the bicinchoninic acid assay (BCA) (Cat. No. 23225, Thermo Fisher Scientific, Massachusetts, USA).

Two micrograms of purified protein per lane were run on an SDS-PAGE. Samples were mixed with the 4× sample buffer either with or without DTT for reducing and non-reducing conditions, respectively. Protein samples were heated at 95°C for 10 min prior to loading onto the gel. Gels were run at 120 V for 40 min and stained with Coomassie Brilliant Blue R-250 (CBB). For Western blot analysis, unstained gels were blotted onto nitrocellulose membranes (Cat. No. 10600007, GE Healthcare, Illinois, USA) at 400 mA constant for 1 h at room temperature. Membranes were incubated with the anti-Ara h 2 monoclonal antibody 1C4 (Cat. No. EL-AH2, Indoor Biotechnologies, Charlottesville, Virginia, USA) (1:1,000) or with sera from patients (1:10). An anti-mouse IgG + IgM conjugated to alkaline phosphatase (AP) (Cat. No. 315-055-048, Dianova GmbH, Hamburg, Germany) (1:5,000) or anti-human IgE conjugated to AP (Cat. No. 555859, BD Pharmingen, California, USA) were used as secondary antibodies, respectively. 5-Bromo-4-chloro-3-indoyl phosphate (BCIP) and nitro blue tetrazolium chloride (NBT) were used for developing the signals. For percentage of soluble protein analysis, the immunoblot was analyzed using ImageJ 1.8.0 (Schneider et al., 2012).

Purification of nAra h 2 From Peanut Kernels

nAra h 2 was extracted from roasted peanuts, bought from a local supermarket. Desalted peanuts were ground to a fine powder. Following defatting with hexane, proteins were extracted with H₂O, and the particulate matter was removed via centrifugation at 18,900 × g for 2 h at 4°C. nAra h 2 was isolated by anion exchange and hydrophobic interaction chromatography as previously described (Palladino et al., 2018).

rAra h 2 Expression in E. coli SHuffle T7 Express lysY Cells

The wild-type sequence of Ara h 2.0201 was subcloned into the pMWHisN expression vector, an in-house designed T7 expression vector based on pMW172 (Way et al., 1990) that encoded an eight amino acid-long extension, including a hexa-histidine tag fused to the N-terminus of the inserted sequence. The expression was performed in 2 × TY medium (1.6% peptone, 1% yeast extract, 0.5% NaCl, pH 7.4), supplemented with ampicillin (100 μg/mL) at 30°C for 10 h. The expression was induced using 0.4 mM IPTG. Bacterial pellets were resuspended in the sodium phosphate buffer (9.7 mM NaH₂PO₄, 40.3 mM Na₂HPO₄, pH 7.5) with 5 mM imidazole and an EDTA-free protease inhibitor cocktail (Cat. No. 04693132001, Roche, Switzerland) and lysed three times by high-pressure cell disruption. Lysed pellets were centrifuged at 18,000 × g for 1 h at 4°C. To remove the bacterial DNA, the supernatant was treated with 1:1,000 Biocryl BPA-1,000 (Tosoh Bioscience, Griesheim, Germany). Histidine-affinity chromatography purification was performed as explained before, and rAra h 2 was recovered at around 50 mM imidazole. Anion-exchange chromatography was performed as explained before, recovering the protein at around 170 mM NaCl. Pure proteins were concentrated and dialyzed against PBS before assessing the concentration using the BCA (Cat. No. 23225, Thermo Fisher Scientific, Waltham, Massachusetts, USA).

Mass Spectrometry

For confirming the sequence and PTMs, rAra h 2 expressed in N. benthamiana was run under reducing conditions on an SDS-PAGE, visualized by CBB staining, and the corresponding band was excised from the gel. Mass spectrometry analyses were then performed by the Mass Spectrometry Facility at Max Perutz Labs using the instrument pool of the Vienna BioCenter Core Facilities. The gel samples were processed as previously described (Mair et al., 2015). Briefly, gel pieces were cut and washed in an ammonium bicarbonate buffer. Disulfide bridges were reduced with dithiothreitol and alkylated with iodoacetamide. Following tryptic digestion, peptides were extracted from the gel by sonication. Peptide samples were separated on an Ultimate 3000 RSLC nano-flow chromatography system and analyzed on a Q Exactive HF Orbitrap mass spectrometer (both Thermo Fisher Scientific, Waltham, Massachusetts, USA), running a data-dependent acquisition method (Frohner et al., 2020). Raw data were interpreted with MaxQuant 1.6.0.16 (Cox and Mann, 2008), searching against the databases of N. benthamiana, TMV, contaminants, and rAra h 2 sequences with tryptic specificity. Hydroxylation of prolines and oxidation of methionine, HexNAc attachments on serine or threonine, and N-terminal protein acetylation were set as variable modifications, and carbamidomethylation of cysteines as fixed modification. The data were filtered at a 1% false discovery rate at the level of peptide-spectrum matches and at a protein level. The spectra were manually searched for oxonium ions. Hydroxyproline-containing peptides were manually inspected.

Characteristics of Peanut-Allergic Patients

Twenty adults (aged 18–54 years) with a medical history of peanut allergy were recruited at the Department of Dermatology, University Hospital St. Pölten (Supplementarey Table 1). Sera from patients were separated via centrifugation at 1,800 × g for 10 min and stored at −20°C until use. Total IgE, sIgE to peanut extract, and to individual peanut allergens (Ara h 1, Ara h 2, Ara h 3, Ara h 8, and Ara h 9) were measured by ImmunoCAP (Thermo Fisher Scientific, Waltham, Massachusetts, USA). A value higher than 0.35 kUA/L indicated a positive result. Skin-prick tests were performed with commercial peanut extracts, and results were considered positive when the wheal diameter was ≥3 mm compared with the saline control. Three non-atopic controls (P21, P22, and P23) without a history of type 1 allergy, and three atopic patients (P24, P25, and P26) with allergies other than peanut were recruited as controls (Supplementary Table 1). Power calculations of sample size for comparing IgE-reactivities of the three Ara h 2 proteins were done using the G^*Power 3.1.9.4 software. The sample size was found sufficient to detect differences between groups of about 0.6 standard deviation with a power of 90%.

Determination of IgE-Binding Activity of Ara h 2 Proteins by ELISA and RBL Assay

For ELISA, pure proteins were coated onto microtiter plates overnight at 4°C at 2 μg/mL protein in sodium carbonate buffer (50 mM NaHCO₃, pH 9.5). After blocking with 3% skimmed milk powder in Tris-buffered saline (TBS) (50 mM Tris, 150 mM NaCl at pH 7.4) with 0.5% Tween-20, wells were incubated overnight at 4°C with sera from 20 patients with peanut allergy, three non-atopic patients, or two atopic patients without peanut allergy (diluted 1:10). An anti-human IgE conjugated to AP (Cat. No. 555859, BD Biosciences, San Jose, California, USA) was used for detection, and the reaction was developed using p-nitrophenyl phosphate tablets (Cat. No. N2770, Sigma-Aldrich Merck, Germany). The plates were measured after 20 min at OD₄₀₅ (Tecan microplate reader, Tecan, Männedorf, Switzerland), using the SparkControl Magellan 2.2 software. The plotted values were calculated by subtracting the mean value obtained from all negative controls plus three times the standard deviation from the raw data.

Basophil activation test (BAT) using human IgE-receptor expressing rat basophil leukemia cells (RBL) were performed following a published protocol (Nakamura et al., 2010). All sera were diluted 1:20, and cells were sensitized overnight. After 17 h, allergen stimulation was performed at various concentrations. Luciferase substrate was added, and the resulting luminescence was measured (Tecan microplate reader). Data were converted to stimulation indices (SI) by dividing the triplicate mean value of treated cells by the value of non-stimulated cells. The threshold for positive values was set to two.

Statistical Analysis

The Friedman test with the Dunn posttest was performed to compare IgE-binding and basophil activating performance of different proteins. The results from the ELISA and RBL assays were correlated with the Ara h 2-ImmunoCAP values of the patients by computing Spearman's rank correlation coefficients (r) and two-tailored P-values. All analyses were done using GraphPad Prism 9.0.0 (GraphPad Software, California, USA).

Results

Production and Purification of Recombinant and Natural Ara h 2 Proteins

An undesired glycosylation due to the presence of a canonical N-glycosylation site was reported for Bet v 1 when expressed in N. benthamiana leaves (Yamada et al., 2020). Ara h 2 also contains a canonical N-glycosylation site within its sequence (Figure 1A). Hence, for the expression of rAra h 2 in N. benthamiana leaves, we designed a construct based on the longer isoform, Ara h 2.0201, with a single amino acid substitution (N106Q) to alter the canonical N-glycosylation site (Figure 1B). The rice α-amylase ER-targeting peptide encoded by the 5′-pICH20155 plasmid is ligated in-frame to the N-terminal part of Ara h 2 encoded by the 3′-provector, yet after translocation into the ER, the signal peptide is cleaved off and thus is not present in the mature protein (Chen et al., 2004). Moreover, a C-terminal hexa-histidine tag was added followed by an ER retention signal (SEKDEL), which prevented Golgi-mediated O-linked glycosylation (Schoberer et al., 2018) (PRIDE repository dataset identifier: PXD027015). The tobacco codon-optimized sequence encoding Ara h 2 N106Q SEKDEL was amplified and subcloned within the left and right T-DNA borders of the 3'-pICH31070 plasmid (Supplementary Figure 1A). A successful infection of N. benthamiana leaves was achieved by in planta recombination of the 5'-provector pICH20155 carrying viral genes with the 3'-provector pICH31070 encoding the Ara h 2 sequence.

FIGURE 1

Figure 1. Amino acid sequences of the Ara h 2 proteins used in this study. (A) Mature nAra h 2.0201. Naturally occurring hydroxyproline residues within the immunodominant IgE epitopes (underlined) are highlighted in gray. The canonical N-glycosylation site (NQS) is boxed. (B) rAra h 2.0201 used for expression in N. benthamiana, including a C-terminal hexa-histidine tag and an ER retention signal (SEKDEL, boxed). The canonical N-glycosylation site NQS was mutated to QQS (boxed), and the single amino acid substitution is marked with an asterisk. Mass spectrometry-detected and manually confirmed hydroxyproline residues are highlighted in gray. (C) rAra h 2.0201expressed in E. coli, including an N-terminal hexa-histidine tag (boxed). The canonical N-glycosylation site is boxed.

Crude extracts from infiltrated and sham-treated N. benthamiana leaves were harvested 10 days post-infiltration and prepared by dissolving ground-up leaves in the extraction buffer and analyzed for Ara h 2 expression by SDS-PAGE (Supplementary Figure 1B). The concentration of rAra h 2 was measured by the BCA, following the purification via immobilized metal affinity chromatography. The magnICON^® system yielded 200 mg of rAra h 2 per kg fresh biomass (Table 1). Homogenized leaf suspensions of N. benthamiana were analyzed by immunoblotting using a monoclonal anti-Ara h 2 antibody (Supplementary Figure 1C). The soluble fraction of the homogenized leaf suspensions contained approximately 40% of the total expressed Ara h 2 (Supplementary Figure 1D).

TABLE 1

Table 1. Protein characteristics of the Ara h 2 proteins used in this study.

The longer isoform Ara h 2.0201, including an N-terminal hexa-histidine tag, was expressed in the Shuffle^® Express LysY strain of E. coli, which provided disulfide bridge formation due to the constitutive expression of the disulfide-bond isomerase DsbC (Figure 1C, Table 1). rAra h 2 from E. coli was purified using metal affinity chromatography, and the concentration was measured by the BCA. To compare the bioequivalence of rAra h 2 proteins produced in N. benthamiana and E. coli with the natural allergen, isoforms Ara h 2.0101/2 and Ara h 2.0201/2 were extracted from roasted peanuts (Table 1).

Comparison of the Biochemical Properties of rAra h 2 Expressed in N. benthamiana With nAra h 2 and rAra h 2 Expressed in E. coli

All three proteins had similar alpha-helical secondary structures as measured by circular dichroism spectroscopy (Figure 2A). Dynamic light scattering analysis revealed monomeric states for all three proteins (Figure 2B). The rAra h 2 from E. coli contained 1% aggregates. To assess their purity, all proteins were run under reducing and non-reducing conditions on SDS-PAGE (Figure 3A). All non-reduced proteins migrated at their correct sizes on SDS-PAGE (Table 1, Figure 3A). Detection of all proteins by an anti-Ara h 2 monoclonal antibody revealed additional faint bands at sizes corresponding to dimeric and trimeric forms of N. benthamiana-expressed rAra h 2 (Figure 3B). nAra h 2 could not be detected by this monoclonal antibody when separated under non-reducing conditions, possibly due to the altered net charge of the non-reduced protein. When a pool of sera from peanut-allergic patients was used, all proteins were detected strongly by visualizing bound IgE under both reducing and non-reducing conditions as a result of the polyclonal antibody responses of the patients (Figure 3C).

FIGURE 2

Figure 2. Biochemical characterization of nAra h 2, rAra h 2 (N. benthamiana), and rAra h 2 (E. coli). (A) Circular dichroism spectra showing double minima at 208 and 222 nm indicated exclusively alpha helical content for all three proteins. (B) Dynamic light scattering measured monomeric states for all three proteins, except for rAra h 2 from E. coli, which contained 1% aggregates.

FIGURE 3

Figure 3. Characterization of nAra h 2, rAra h 2 (N. benthamiana), and rAra h 2 (E. coli). (A) The purity of nAra h 2, rAra h 2 (N. benthamiana), and rAra h 2 (E. coli) was visualized by CBB-stain after running 2 μg protein per lane on SDS-PAGE under reducing (red) and non-reducing (non-red) conditions. (B) All three proteins were detected using a monoclonal anti-Ara h 2 antibody, loaded as in (A). (C) A pool of sera of peanut-allergic patients (n = 5) was used to detect all Ara h 2 proteins, loaded as in (A).

rAra h 2 Expressed in N. benthamiana Leaves Harbors Hydroxyprolines

Mass spectrometry analysis of rAra h 2 (N. benthamiana) was performed to identify contaminants and to detect PTMs. rAra h 2 was detected with 89.6% sequence coverage and with the highest score among all detected proteins, indicating high confidence of the match (Table 2). Besides, contaminants from Homo sapiens due to sample handling and from N. benthamiana were detected with lower score values in comparison to the one of Ara h 2. N. benthamiana-made rAra h 2 harbored more hydroxyprolines (P23, P43. P46, P50, P53, P65, and P67) than the nAra h 2 (P46, P53, and P65). Six out of seven hydroxyproline residues passed the manual confirmation (Table 3). Posterior error probability (PEP) values indicated low possibilities of a false positive discovery for all hydroxyprolines. The ratio of modified peptide over baseline (mod/base) indicated a mix of modified and non-modified peptides. Accordingly, only two proline residues were hydroxylated substantially (P46, P53), since minimum 50% of the found peptides carried this modification (Table 3). Interestingly, there were three additional hydroxyprolines present in the plant-made recombinant (P43, P50, and P67) in comparison to nAra h 2 (Table 4). The search for HexNAc attachments on serine/threonine residues did not reveal any modified sites, indicating the absence of potential O-glycosylation of the rAra h 2 from N. benthamiana (PRIDE repository dataset identifier: PXD027015).

TABLE 2

Table 2. Relevant proteins found in the rAra h 2 sample expressed in N. benthamiana leaves, as detected by mass spectrometry.

TABLE 3

Table 3. Hydroxyproline residues found in N. benthamiana-made rAra h 2.

TABLE 4

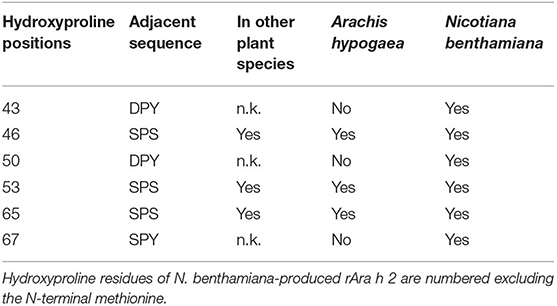

Table 4. Comparison of manually confirmed site-specific hydroxylations of proline residues in rAra h 2 from N. benthamiana and in the natural allergen.

rAra h 2 Produced in N. benthamiana Is a Viable Alternative to the E. coli-Made Product in ELISA

The IgE-binding capacities of rAra h 2 from N. benthamiana and E. coli, as well as the natural allergen, were investigated by IgE ELISA (Figure 4). In a cohort of 20 peanut-allergic patients (demonstrated by case history, skin prick test, and ImmunoCAP; see Supplementary Table 1), IgE of 19 patients recognized nAra h 2 in ELISA. For Patient 11 (Ara h 2 ImmunoCAP = 1.1 kU/L), the results were below the detection limit; hence, data obtained from this patient were excluded from Figure 4. nAra h 2 showed the highest IgE-binding capacity (median OD₄₀₅ = 1.41), which was significantly higher than both N. benthamiana-produced (median OD₄₀₅ = 1.33, P < 0.0001) and E. coli-produced allergens (median OD₄₀₅ = 1.24, P = 0.002; Figure 4A). Interestingly, the median-bound IgE value of the plant-made rAra h 2 did not differ significantly from the recombinant from E. coli (P = 0.99).

FIGURE 4

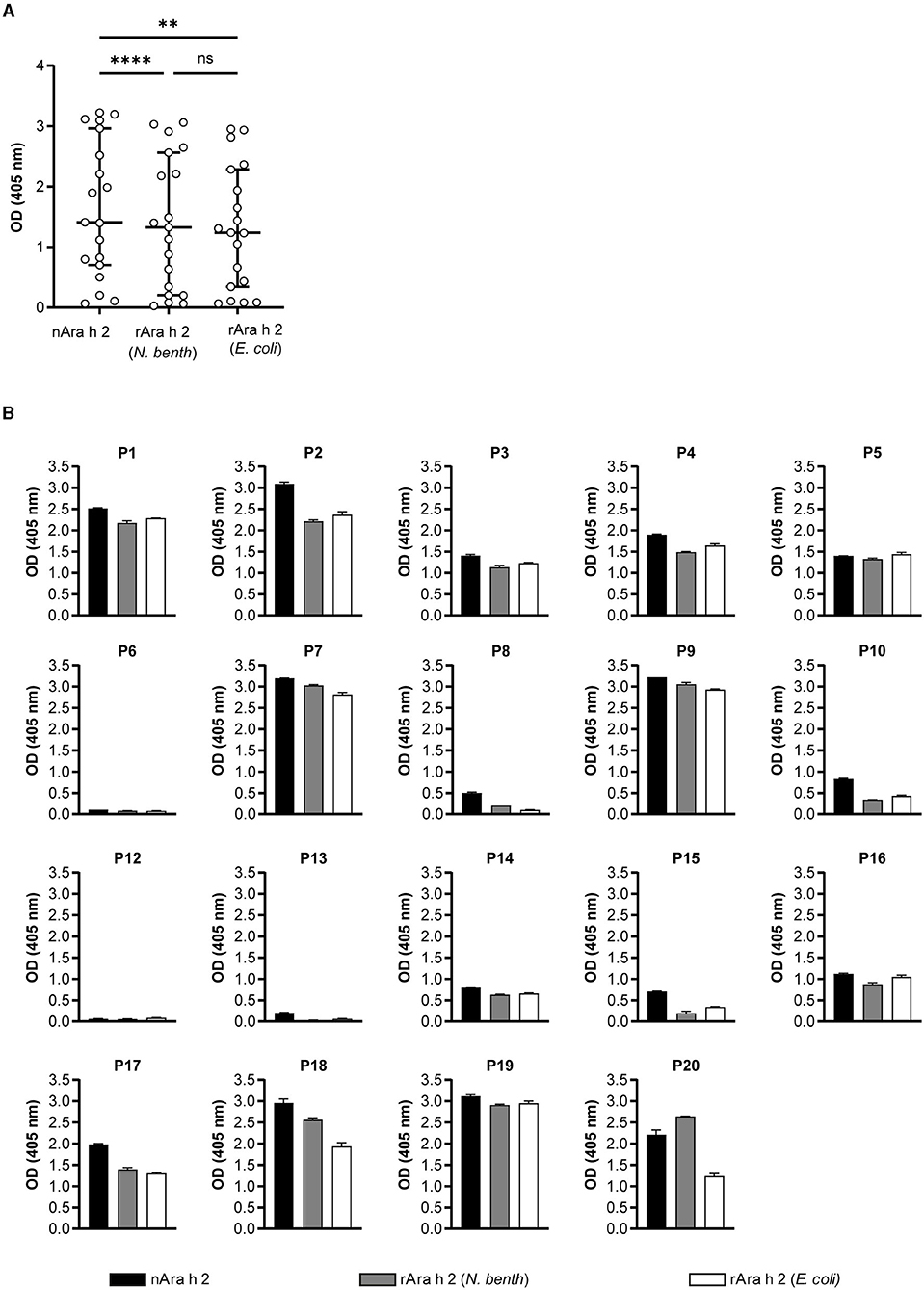

Figure 4. IgE-binding of Ara h 2 proteins compared by ELISA. (A) IgE-binding to rAra h 2 from N. benthamiana was measured and compared with the nAra h 2 and the rAra h 2 from E. coli, using sera from 19 peanut-allergic patients. Data are the means of technical duplicates (n = 2). ^****P ≤ 0.0001, ^**P ≤ 0.01, ns: P > 0.05. (B) IgE-binding to all three Ara h 2 proteins was determined for each patient. Error bars represent the standard deviation from technical duplicates (n = 2).

Patient-specific IgE recognition of all Ara h 2 proteins is shown in Figure 4B. Four out of 19 patients (P6, P8, P12, and P13) had very low mean OD₄₀₅ values for the recombinant Ara h 2 proteins. Notably, patients P7, P9, P17, P18, and P20 had mean OD₄₀₅ values for IgE-binding to plant-made rAra h 2 that were higher than the values obtained for the E. coli recombinant protein (Figure 4B). In contrast, rAra h 2 from E. coli demonstrated stronger IgE-binding than the one from N. benthamiana for eight patients (P1, P2, P3, P4, P5, P10, P15, and P16). Additionally, we investigated the correlation between ELISA results for all three proteins and sIgE values of patients measured to Ara h 2 by ImmunoCAP (Supplementary Figure 2). Significantly positive correlations (measured by Spearman's r) were observed for each protein (r = 0.92–0.95, P < 0.0001).

The ratios of IgE-binding values between all three pairs of proteins were calculated and plotted against ImmunoCAP values representing the sIgE concentrations of the patients (Supplementary Figure 3). The ratio of IgE-binding to rAra h 2 (N. benthamiana) and to nAra h 2 correlated significantly with the ImmunoCAP values (Supplementary Figure 3A, r = 0.55, P = 0.0139). On the other hand, there was no significant correlation between sIgE concentrations of patients and the ratio of IgE-binding to rAra h 2 (E. coli) and to nAra h 2 (Supplementary Figure 3B, r = 0.39, P = 0.0975). IgE from patients with lower sIgE concentrations (ImmunoCAP <50 kU_A/L) bound to nAra h 2 better than to either of the recombinants (Supplementary Figures 3A,B). Although there was no significant correlation with ImmunoCAP values (r = 0.42, P = 0.0765), the ratio of IgE-binding to rAra h 2 (N. benthamiana) and to rAra h 2 (E. coli) was >1 for three patients, who had lower sIgE levels (P8, P18, and P20, Supplementary Figure 3C).

Hydroxyproline Residues Are Involved in Efficient Cross-Linking of IgE

The IgE-cross-linking capacities of both rAra h 2 products were compared with nAra h 2 by BAT using humanized RBL cells (Figure 5). The results are presented as SI in comparison to the activation of untreated cells. To assess the optimal concentration for all allergens, RBL cells were passively sensitized with IgE from sera of three allergic patients (P9, P18, and P20) and stimulated with all proteins separately in concentrations from 0.01 to 1,000 ng/mL (Figure 5A). The two most efficient concentrations, namely 0.1 and 1 ng/mL, were chosen for testing all 20 sera.

FIGURE 5

Figure 5. RBL assays were performed to investigate the IgE cross-linking capacity of rAra h 2 from N. benthamiana in comparison with the nAra h 2 and the rAra h 2 from E. coli. (A) Three patients (P9, P18, and P20) were selected to perform the allergen titrations. Data are the means of technical triplicates (n = 3). Data are represented as stimulation indices (SI) calculated by dividing the luminescence values from antigen-treated cells with the ones from non-stimulated cells. A value above 2 was considered positive (indicated by dotted lines). (B) Data obtained from 17 peanut-allergic patients were used to compare the IgE-cross-linking performances of all Ara h 2 proteins at 0.1 ng/mL allergen concentration. Median values and interquartile range are indicated. ^****P ≤ 0.0001, ^*P ≤ 0.05. (C) As in (B) at 1 ng/mL concentration. ns: P > 0.05.

Three serum samples (P3, P4, and P7) of 20 failed to efficiently sensitize the cells (shown by an SI <2 upon stimulation with anti-IgE as positive control). Data obtained from these patients are not included in Figure 5. nAra h 2 did not activate basophils sensitized with sera from five patients (Supplementary Figure 4A), while both recombinant allergens were not capable of activating basophils sensitized with sera from six patients (Supplementary Figures 4B,C). When stimulated with 0.1 ng/mL of allergen, basophil activation was significantly more efficient with nAra h 2 (median SI = 4.4) than with the rAra h 2 from N. benthamiana (median SI = 3.4, P = 0.018) or the rAra h 2 from E. coli (median SI = 2.0, P < 0.0001; Figure 5B). On the other hand, rAra h 2 from N. benthamiana crosslinked receptor-bound IgE (median SI = 3.4) almost twice as much as the one from E. coli (median SI = 2.0, P = 0.039; Figure 5B). The stimulation index almost doubled for most patients when the allergen concentration was increased from 0.1 to 1 ng/mL for all Ara h 2 proteins (Supplementary Figure 4). At 1 ng/mL, the IgE cross-linking capacities of neither rAra h 2 (N. benthamiana) (median SI = 4.0) nor rAra h 2 (E. coli) (median SI = 3.5) were significantly different from the nAra h 2 (median SI = 4.6) (Figure 5C). Interestingly, the median SI induced by 1 ng/mL of rAra h 2 from E. coli was close to the one induced by 0.1 ng/mL of N. benthamiana-produced allergen, indicating the potency of plant-made rAra h 2 to activate the cells at a lower concentration (Figure 5C).

To investigate these observations together with sIgE values of patients, we plotted ratios of SI for each allergen (at 0.1 ng/mL) against the ImmunoCAP values (Supplementary Figure 5). There was no significant correlation between the ratio of the SIs of rAra h 2 (N. benthamiana) and nAra h 2 and the sIgE values of the patients (Supplementary Figure 5A, r = 0.04, P = 0.87). However, the ratio of the SIs of rAra h 2 (E. coli) and nAra h 2 decreased significantly when the sIgE levels of patients increased (Supplementary Figure 5B, r = – 0.80, P = 0.0002). In contrast, a strong positive correlation was observed when the ratio of SI for rAra h 2 (N. benthamiana) and for rAra h 2 (E. coli) was plotted against the sIgE levels of patients (Supplementary Figure 5C, r = 0.85, P < 0.0001).

Discussion

We produced the major peanut allergen Ara h 2, a 2S albumin seed storage protein, in the ER of N. benthamiana leaf cells by employing a plant virus-based transient expression system and studied its biochemical and immunological characteristics. Agrobacterium tumefaciens-mediated expression in N. benthamiana plants yielded 200 mg rAra h 2 per kg biomass within 10 days. Site-specific proline hydroxylation was observed within the DPYSPS repeats of rAra h 2 expressed in N. benthamiana. Unlike the natural protein, which has three hydroxyprolines at the SPS sequences, N. benthamiana-made rAra h 2 was modified at six proline residues within the SPS, DPY, and SPY sequences. The involvement of these PTMs in IgE-binding and cross-linking was investigated using immunological assays. For this purpose, N. benthamiana-produced Ara h 2 was compared with the hydroxyproline-free recombinant expressed in E. coli and with the natural allergen isolated from peanuts. Natural Ara h 2 outcompeted both of the recombinant proteins in all immunological assays used. Although neither of the recombinant proteins outperformed the other in ELISA, IgE-cross-linking results obtained from BAT revealed a remarkable superiority of the N. benthamiana-produced allergen over the E. coli product. Thus, a higher similarity of the plant-made rAra h 2 to the natural protein was shown. The E. coli-produced protein was co-expressed with the disulfide-bond isomerase DsbC, therefore, harbored disulfide bridges (Lobstein et al., 2012) but no hydroxyprolines. Thus, it is highly likely that the observed differences in IgE-binding and cross-linking ability between the two recombinant proteins resulted from this modification.

We expressed rAra h 2 using the magnICON^® system (Supplementary Figure 1), which enables easier handling during infection of the leaves by omitting in vitro transcription steps as employed previously (Krebitz et al., 2000). The highest yield ever achieved for transient protein expression in N. benthamiana was reported for the cytosolic production of GFP at 5 g/kg fresh biomass (Marillonnet et al., 2004). In the case of allergen production, deconstructed geminiviral vectors were utilized for cytosolic transient expression of rBet v 1 at 1.2 g/kg fresh biomass (Yamada et al., 2020). This is six-fold higher than our yield of the rAra h 2 expression in the ER (Table 1). Expression yields in N. benthamiana leaves vary greatly, depending on the protein of interest as well as subcellular targeting. The highest yield achieved for the porcine circovirus 2 capsid protein was obtained for the expression in chloroplasts (102 mg/kg fresh biomass), followed by expression in the cytosol (6.5 mg/kg) and the ER (0.65 mg/kg) (Park et al., 2021). Furthermore, endogenous proteases of N. benthamiana, which may be located in the cytosol or post-ER compartments (Castilho et al., 2014), have a negative impact on recombinant protein production in plant cells, which can be dampened by depleting proteases via the CRISPR/Cas9-mediated knockout (Jutras et al., 2020). The insulin analog SCI-57 was transiently expressed in the ER with a yield reaching up to 150 mg/kg fresh biomass (Munoz-Talavera et al., 2019), which is in the range of our yield obtained with rAra h 2 production in the ER (200 mg/kg). Finally, efficient cell lysis is decisive for extracting all the expressed protein into the soluble fraction, as 60% of the rAra h 2 remained in the insoluble fraction which affected our yield (Supplementary Figure 1D). Our results represent a lab-scale production. By utilizing large-scale manufacturing techniques, infiltration of magnICON^® vectors into kilograms of plants per hour is feasible (Klimyuk et al., 2014). Based on the capacity of a commercial-scale manufacturing facility with infiltration of 180–360 tons of biomass per year, 35–70 kg of rAra h 2 could be produced (Holtz et al., 2015). According to calculations done with SuperPro Designer modeling software, which were based on the manufacturing cost of butyrylcholinesterase produced in N. benthamiana, one gram of rAra h 2 transiently produced with a yield of 200 mg/kg would cost around US$ 1,000 (Tusé et al., 2014). By optimizing the yield to 500 mg/kg, costs could be reduced to ~US$ 600 per gram of protein (Tusé et al., 2014).

N-glycosylation is initiated in the ER membrane, whereas O-glycosylation mainly occurs later in the Golgi apparatus (Strasser, 2016). Interestingly, when expressed in the cytosol, a partial glycosylation was observed for rBet v 1, which harbors a canonical N-glycosylation site (Yamada et al., 2020). By terminating the secretion in the ER and mutating the canonical site, we could avoid any O- or N-linked glycosylation of the rAra h 2, respectively (PRIDE repository dataset identifier: PXD027015).

We report the hydroxylation of the proline residue in the repeating SPS sequences for rAra h 2 expressed in N. benthamiana leaves. The natural allergen harbors only three hydroxyproline residues, which are all located in the SPS motifs (Figure 1A and Table 1; Li et al., 2010). The recognition sequences for site-specific hydroxylation of proline residues have not been completely identified. Yet, a review summarized the observed sequence motifs for proline hydroxylation in several plant species (Canut et al., 2016). Membrane-anchored prolyl-4-hydroxylases (P4H) are responsible for modifying proline residues into trans-4-L-proline in N. tabacum (Yuasa et al., 2005), which is likely similar to the mechanism in N. benthamiana. Recently, four paralogs of P4H of N. benthamiana have been studied for their substrate specificity and subcellular localization (Mócsai et al., 2021). All paralogs were found to localize to the Golgi apparatus with the exception of P4H4, which was also found in the ER. Most probably, this paralog was responsible for the proline hydroxylation in our case, as we terminated the rAra h 2 expression in the ER. For Nicotiana alata and N. tabacum, the SPS sequence was reported to be favored for proline hydroxylation (Du et al., 1994; Youl et al., 1998; Shpak et al., 1999). Although detected with low-modification ratios, the additional hydroxyproline residues at the DPY and SPY sequences (P50 and P67, respectively) observed for N. benthamiana-produced rAra h 2 have not been reported for any plant species before (Table 4). Importantly, only two prolines out of six were hydroxylated substantially, as at least 50% of all found peptides were modified at these locations (Table 3). Our results contribute to the knowledge of site-specific proline hydroxylation motifs and to their modification frequencies observed in N. benthamiana. As hydroxylation of proline residues can be subjected to O-glycosylation for certain proteins (Petersen et al., 2021), understanding site-specific modifications in various species plays a crucial role when expressing recombinant proteins with pharmaceutical value. PTMs, such as hydroxylation, glycosylation, and methylation, are often used for enhancing the bioactivity, stability, and immunogenicity of the products (Mathieu-Rivet et al., 2020). For drug designs, it is of great interest to decipher site-specific O-glycosylation since their presence on peptide hormones regulates vital biological activities (Madsen et al., 2020).

Producing properly folded rAra h 2 is important, as conformational epitopes are major contributors to its binding of IgE from sera of peanut-allergic patients (Tscheppe et al., 2020). So far, there have been only two reports of properly folded rAra h 2; (i) in the Trichoplusia ni BTI-TN5B1-4 “high five” insect cells (Tscheppe et al., 2020), (ii) in the Origami (DE3) E. coli strain (Lehmann et al., 2003). We report correctly folded rAra h 2 protein from N. benthamiana plants and from SHuffle^® T7 Express lysY E. coli strain (Figure 2A). After confirming natural-like structures for both recombinant proteins, we investigated their reactivity to monoclonal and polyclonal antibodies in comparison to the natural allergen (Figures 3B,C, 4). When allergens are coated onto a surface for direct binding by polyclonal IgE, a single epitope suffices for generating a positive signal. Hence, we did not observe major differences between the two recombinants from N. benthamiana and E. coli in ELISA (Figure 4A). In line with the data published so far (Gregory et al., 2016; Tscheppe et al., 2020), the natural allergen outcompeted the recombinant proteins expressed in N. benthamiana and E. coli (Figure 4A).

Interestingly, only four (P5, P14, P16, and P19) out of 19 patients (21%) reacted to the recombinantly produced Ara h 2 proteins almost as well as the natural protein (Figure 4B). The IgE-binding was especially low for the natural and recombinant Ara h 2 proteins for patients P6, P8, P12, and P13, possibly due to their low sIgE levels (Figure 4B, Supplementary Table 1). Based on the ratios of IgE-binding to N. benthamiana-made rAra h 2 and to E. coli-made rAra h 2, we concluded that patients with lower sIgE values favored the plant-made recombinant allergen over the E. coli product (Supplementary Figure 3C). Lower-serum levels of sIgE may result in lesser polyclonality, highlighting the importance of each specific epitope for that patient. We hypothesize that hydroxyprolines at P43, P46, P50, P53, and P65, which are located within the immunodominant IgE epitope DPYSPS (Figure 1B), are more crucial for IgE-binding of patients with lower sIgE levels. A recent study has compared IgE-binding to 33 overlapping peptides of Ara h 2 in peanut-allergic and peanut-sensitized tolerant groups (Santos et al., 2020). Interestingly, trends of IgE-binding to all peptides by two patient groups were similar for all sIgE levels, yet IgG4/IgE ratios to the peptides-harboring DPYSPS motif were lower for peanut-allergic patients in comparison to the sensitized but tolerant group. When testing the N. benthamiana-produced rAra h 2, sera of peanut-tolerant patients could provide further information on the role of hydroxyprolines in IgE and IgG4 responses.

Next, we used the well-established RBL cell line RS-ATL8 (Nakamura et al., 2010; Kalic et al., 2020) to measure the IgE-cross-linking capacity of the Ara h 2 proteins. In this assay, strong cell activation depends on the number of accessible epitopes, their proximity and the affinity of IgE to these epitopes. The most immunogenic linear epitope combination for Ara h 2 has been reported in a liposomal nanoallergen display (Deak et al., 2017). The authors showed the importance of the hydroxyproline-containing linear epitope for degranulating RBL cells in combination with the epitopes at residues 1–6 and 108–116. Ara h 2 is a highly potent allergen able to stimulate basophils at ng/mL concentrations (Palmer et al., 2005; Anzengruber et al., 2017; Chapuis et al., 2018). We tested concentrations from 0.01 to 1,000 ng/mL (Figure 5A). The optimal allergen concentrations were 0.1 and 1 ng/mL. Although to a significantly lesser extent than nAra h 2, rAra h 2 from N. benthamiana activated basophils more efficiently than the E. coli recombinant already at the lowest concentration (Figure 5B, Supplementary Figures 5B,C), and this trend continued at 1 ng/mL (Figure 5C). The hydroxyproline-containing rAra h 2 may have a higher affinity for IgE, which could increase the lifetime of IgE-allergen complexes, hence enhancing the basophil activation by N. benthamiana-made rAra h 2.

Notably, nAra h 2 outcompeted both recombinant proteins in all immunological assays used (Figures 4A, 5B,C), which may be due to the presence of several isoforms and the combination of all structural variations among them. Unless nAra h 2.0201 is isolated individually from the naturally occurring isoform mixture, it is not possible to objectively compare the recombinant allergens with their natural counterpart. Moreover, heat processing of peanut results in advanced glycation end products via Maillard reactions, and those modifications are major contributors to the IgE reactivity of Ara h 2 (Vissers et al., 2011). These thermal processing reactions were even shown to enhance the IgE reactivity of E. coli-produced rAra h 2 (Gruber et al., 2005). Thermal processing of the N. benthamiana-made rAra h 2 shall be investigated in comparison to the natural allergen as a future perspective of this study. In addition, both recombinant allergens carried hexa-histidine tags for easy purification (Figures 1B,C). A single amino acid mutation at N106Q and a C-terminal ER-retention signal was present in the N. benthamiana-made Ara h 2 (Figure 1B), whereas an N-terminal eight residue-long extension was present in the E. coli-made protein (Figure 1C). Such alterations and mutations in the amino acid sequence might interfere with the natural fold of proteins or with their antibody-binding capacity, which has to be considered when comparing rAra h 2 proteins to the natural allergen.

To date, both natural and rAra h 2 have been used in routine singleplex and multiplex diagnostic tests to detect sIgE in sera from patients, which is regarded as an indicator of a high risk for developing strong allergic symptoms to peanut (Breiteneder et al., 2020). As peanut allergy is a life-threatening disease, accurate diagnosis is vital. Recombinant allergens and mixtures thereof have become more preferable than natural extracts due to the ease of standardization (Valenta et al., 2018b). The quality of BAT, still under development for routine testing, relies on the presence of all naturally occurring epitopes (Krogulska and Wood, 2020). Our study has shown that the peanut major allergen Ara h 2 expressed in N. benthamiana plants displayed an equal or superior performance in immunological assays in comparison to Ara h 2 produced in a prokaryotic system. Future perspectives include testing the N. benthamiana-made rAra h 2 with peanut-sensitized but tolerant patients in comparison to a peanut-allergic patient cohort and investigating the involvement of PTMs in allergen-binding affinities to IgG4 and IgE (Santos et al., 2020). Finally, our data present future perspectives for eukaryotic expression of hypoallergenic Ara h 2 variants for use in allergen-specific immunotherapy.

Data Availability Statement

The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via PRIDE partner repository (Perez-Riverol et al., 2019) with the dataset identifier PXD027015 (https://www.ebi.ac.uk/pride/archive/projects/PXD027015).

Ethics Statement

The studies involving human participants were reviewed and approved by Ethics Committee of Lower Austria (GS4-EK-4/503-2017) and conducted in accordance with the Declaration of Helsinki. The patients/participants provided their written informed consent to participate in this study.

Author Contributions

ÖÜ and TK designed and performed experiments. ÖÜ, TK, CR, and HB analyzed the data. VM and NL assisted in the experiments. AT produced reagents and performed experiments. CH and WH provided sera from patients. HB provided input and supervised experiments. ÖÜ and HB interpreted the data and wrote the manuscript. All the authors read the manuscript.

Funding

This study was supported by the Austrian Science Fund (FWF) grants MCCA W1248-B30 and P 30936-B30 and the Danube Allergy Research Cluster project P06 funded by the Country of Lower Austria.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors acknowledge the technical support from Prof. Herta Steinkellner (University of Natural Resources and Life Sciences, Vienna, Austria) that made possible the use of the magnICON^® system. Dr. Victor Klimyuk (ICON Genetics, Halle, Germany) is thankfully acknowledged for providing the magnICON^®-deconstructed viral vector expression system. The authors also would like to thank Prof. Eva Stöger and Stanislav Melnik (University of Natural Resources and Life Sciences, Vienna, Austria) for valuable technical discussions. Proteomics analyses were performed by the Mass Spectrometry Facility at Max Perutz Labs using the instrument pool of Vienna BioCenter Core Facilities.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2021.723363/full#supplementary-material

Abbreviations

AP, alkaline phosphatase; BAT, basophil activation test; BCA, bicinchoninic acid assay; CBB, Coomassie Brilliant Blue R-250; ELISA, enzyme-linked immunosorbent assay; ER, endoplasmic reticulum; IgE, immunoglobulin E; LB, left T-DNA border; MP, movement protein; OD, optical density; PEP, posterior error probability; PTM, posttranslational modifications; RBL, rat basophil leukemia; RB, right T-DNA border; RdRP, RNA-dependent RNA polymerase; SI, stimulation index; sIgE, allergen-specific IgE; SP, signal peptide; T-DNA, transfer DNA; TMV, tobacco mosaic virus.
