In this work, we sequenced and annotated the genome of Streptochaeta angustifolia, one of two genera in the grass subfamily Anomochlooideae, a lineage sister to all other grasses. The final assembly size is over 99% of the estimated genome size. We find good collinearity with the rice genome and have captured most of the gene space. Streptochaeta is similar to other grasses in the structure of its fruit (a caryopsis or grain) but has peculiar flowers and inflorescences that are distinct from those in the outgroups and in other grasses. To provide tools for investigations of floral structure, we analyzed two large families of transcription factors, AP2-like and R2R3 MYBs, that are known to control floral and spikelet development in rice and maize among other grasses. Many of these are also regulated by small RNAs. Structure of the gene trees showed that the well documented whole genome duplication at the origin of the grasses (ρ) occurred before the divergence of the Anomochlooideae lineage from the lineage leading to the rest of the grasses (the spikelet clade) and thus that the common ancestor of all grasses probably had two copies of the developmental genes. However, Streptochaeta (and by inference other members of Anomochlooideae) has lost one copy of many genes. The peculiar floral morphology of Streptochaeta may thus have derived from an ancestral plant that was morphologically similar to the spikelet-bearing grasses. We further identify 114 loci producing microRNAs and 89 loci generating phased, secondary siRNAs, classes of small RNAs known to be influential in transcriptional and post-transcriptional regulation of several plant functions.
Introduction
The grasses (Poaceae) are arguably the most important plant family to humankind due to their agricultural and ecological significance. The diversity of grasses may not be immediately evident given their apparent morphological simplicity. However, the total number of described species in the family is 11,500+ (Soreng et al., 2017), and more continue to be discovered and described. Grasses are cosmopolitan in distribution, occurring on every continent. Estimates vary based on the definition of grassland, but, conservatively, grasses cover 30% of the Earth’s land surface (White et al., 2000; Gibson, 2009). Grasses are obviously the major component of grasslands, but grass species also occur in deserts, savannas, forests (both temperate and tropical), sand dunes, salt marshes and freshwater systems, where they are often ecologically dominant (Lehmann et al., 2019). The traits that have contributed to the long-term ecological success of the grasses have also allowed them to be opportunistic colonizers in disturbed areas and agricultural systems (Linder et al., 2018), where grasses are often the main crops, providing humanity with greater than 50% of its daily caloric intake (Sarwar, 2013). The adaptations and morphologies of the grasses that have led to ecological and agronomic dominance represent major innovations relative to ancestral species.
Monophyly of the grass family is unequivocally supported by molecular evidence, but grasses also exhibit several uniquely derived morphological or anatomical traits (Grass Phylogeny Working Group [GPWG], 2001; Kellogg, 2015; Leandro et al., 2018). These include the presence of arm cells and fusoid cells (or cavities) in the leaf mesophyll; the pollen wall with channels in the outer wall (intraexinous channels); the caryopsis fruit type; and a laterally positioned, highly differentiated embryo. The 30 or so species of the grass lineages represented by subfamilies Anomochlooideae, Pharoideae and Puelioideae, which are successive sisters to the remainder of the family, all inhabit tropical forest understories, and also share a combination of ancestral features including a herbaceous, perennial, rhizomatous habit; leaves with relatively broad, pseudopetiolate leaf blades; a highly bracteate inflorescence; six stamens in two whorls; pollen with a single pore surrounded by an annulus; a uniovulate gynoecium with three stigmas; compound starch granules in the endosperm; and the C3 photosynthetic pathway (Grass Phylogeny Working Group [GPWG], 2001). The BOP (Bambusoideae, Oryzoideae, Pooideae) + PACMAD (Panicoideae, Aristidoideae, Chloridoideae, Micrairoideae, Arundinoideae, Danthonioideae) clade encompasses the remaining diversity of the family (Kellogg, 2015; Figure 1A). The majority of these lineages adapted to and diversified in open habitats, evolving relatively narrow leaves lacking both pseudopetioles and fusoid cells in the mesophyll, spikelets with an array of adaptations for dispersal, and flowers with three stamens and two stigmas. The annual habit evolved repeatedly in both the BOP and PACMAD clades, and the 24+ origins of C4 photosynthesis occurred exclusively within the PACMAD clade (Grass Phylogeny Working Group II [GPWG II], 2012; Spriggs et al., 2014).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g001.jpg)
Figure 1. Phylogenetic placement of Streptochaeta. (A) Phylogenetic tree depicting the BOP (Bambusoideae, Oryzoideae, Pooideae) + PACMAD (Panicoideae, Aristidoideae, Chloridoideae, Micrairoideae, Arundinoideae, Danthonioideae) clade and placement of focal organism Streptochaeta sister to the spikelet clade of grasses. Tree topology is well supported in most recent grass phylogenies (e.g., Saarela et al., 2018) except that in some analyses the relative positions of Aristidoideae and Panicoideae are switched. S, stem node of Poaceae; C, crown node. Black bars, stepwise model, in which spikelet equivalents (se) originate before the crown node and true spikelets (sp) originate afterward on the branch leading to the spikelet clade. Gray bars, loss model, in which spikelets (sp) originate before the crown node and then are modified to spikelet equivalents (se) afterward on the branch leading to Anomochlooideae. (B,C) Possible patterns of whole genome duplication (WGD) and gene loss. (B) WGD before the divergence of Streptochaeta assuming (i) no gene loss; (ii) loss of one clade of non-Streptochaeta grass paralogs soon after WGD; (iii) loss of all grass paralogs soon after WGD; (iv) loss of one Streptochaeta paralog soon after WGD. (C) WGD after divergence of Streptochaeta. (i) no gene loss; (ii) loss of one clade of non-Streptochaeta grass paralogs soon after WGD. Note that patterns (Biii,Cii) are indistinguishable.
Anomochlooideae, a tiny clade of four species classified in two genera (Anomochloa and Streptochaeta), is sister to all other grasses (Figure 1A; Kellogg, 2015). Its phylogenetic position makes it of particular interest for studies of grass evolution and biology, particularly genome evolution. All grasses studied to date share a whole genome duplication (WGD), sometimes referred to as ρ, which is inferred to have occurred just before the origin of the grasses (Paterson et al., 2004; Wang et al., 2005; McKain et al., 2016). Not only are ancient duplicated regions found in the grass genomes studied to date, but the phylogenies of individual gene families often exhibit a doubly labeled pattern consistent with WGD (Rothfels, 2021). In this pattern we see, for example, a tree with the topology shown in Figure 1B, which points to a WGD before the divergence of all sequenced grasses, whereas a WGD after divergence of Streptochaeta, would result in the topology shown in Figure 1C. While there is some evidence from individual gene trees that the duplication precedes the divergence of Streptochaeta + Anomochloa (Preston and Kellogg, 2006; Preston et al., 2009; Christensen and Malcomber, 2012; Bartlett et al., 2016; McKain et al., 2016), data are sparse. Thus, defining the position of the grass WGD requires a whole genome sequence of a species of Anomochlooideae.
Anomochlooideae is also in a key position for understanding the origins of the morphological innovations of the grass family and in particular the evolution of the spikelet. Poaceae is sister to the clade of Ecdeiocoleaceae plus Joinvilleaceae and the three families in turn sister to Flagellariaceae (Magallón et al., 2015; Bouchenak-Khelladi et al., 2015; Figure 1A). The latter three families all have conventional 3-merous monocot flowers. In contrast, all grasses except Anomochlooideae bear their flowers in tiny clusters known as spikelets (little spikes) (Judziewicz et al., 1999; Grass Phylogeny Working Group [GPWG], 2001; Kellogg, 2015). Because the number, position, and structure of spikelets affect the total number of seeds produced by a plant, the genes controlling their development are a subject of continual research (e.g., Whipple, 2017; Huang et al., 2018; Li C. et al., 2019; Li Y. et al., 2019, to cite just a few). Unlike the rest of the Poaceae, the flowers in Anomochlooideae are borne in complex bracteate structures sometimes called “spikelet equivalents” (Soderstrom and Ellis, 1987; Judziewicz and Soderstrom, 1989; Judziewicz et al., 1999; Figures 2, 3). These differ from both the conventional monocot flowers of the outgroups and the spikelets of the remainder of the grasses (i.e., the “spikelet clade,” Sajo et al., 2008, 2012; Preston et al., 2009; Kellogg et al., 2013). In addition, the spikelet equivalents of Anomochloa and Streptochaeta also differ from each other such that it is difficult to establish unequivocal positional homologies among their parts. It is thus simplest to infer that the common ancestor of Ecdeiocoleaceae + Joinvilleaceae on the one hand and all grasses including Anomochlooideae on the other (i.e., the stem node of the grasses, S in Figure 1A) likely had standard 3-merous flowers but that sometime between the stem node and the crown node (C in Figure 1A) of Poaceae, floral or inflorescence development changed.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g002.jpg)

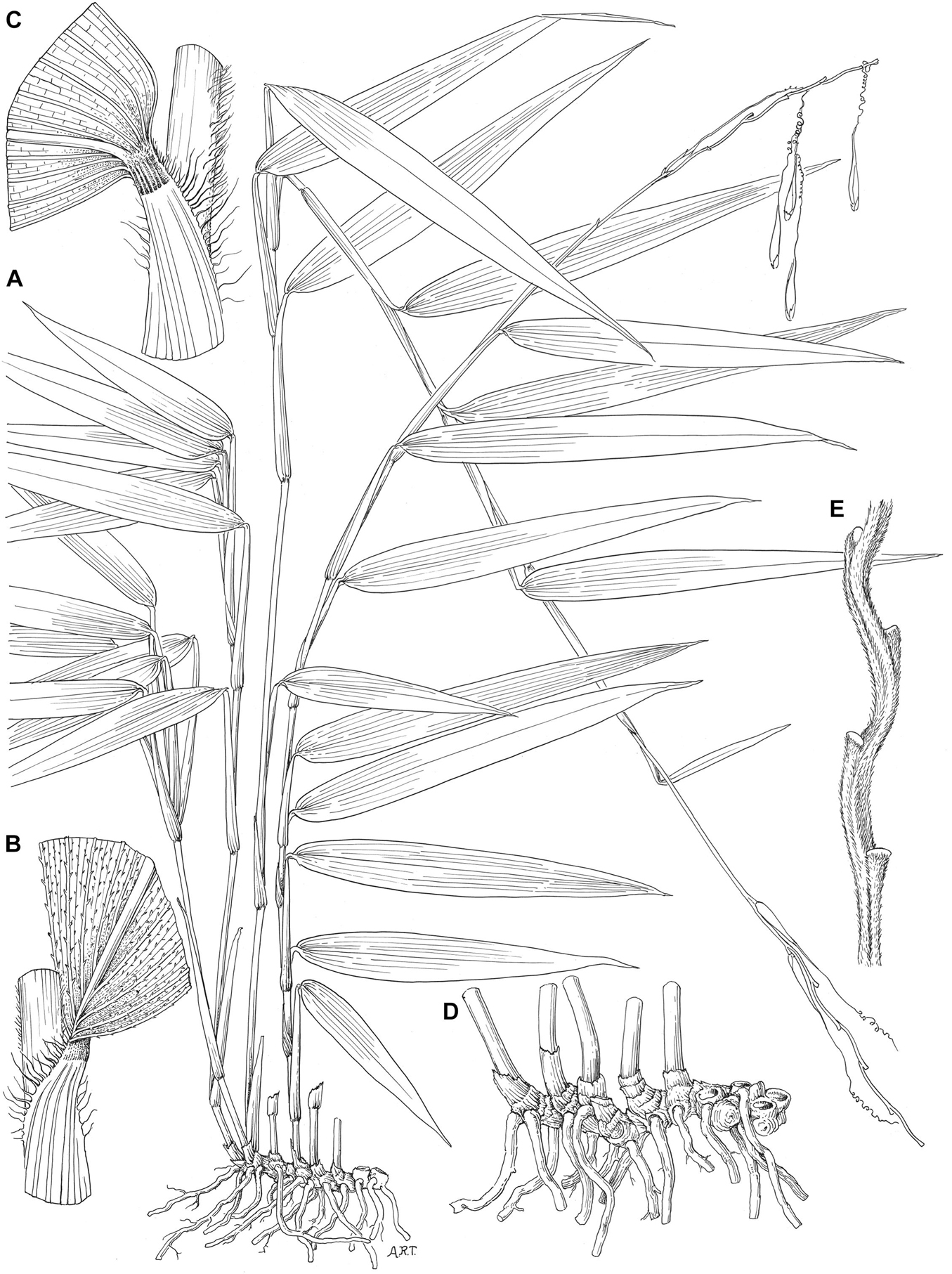

Figure 2. Streptochaeta angustifolia. (A) Habit (×0.5). (B) Mid-region of leaf showing summit of sheath and upper surface of blade (×4.5). (C) Mid-region of leaf showing summit of sheath and lower surface of blade (×5). (D) Rhizome system with culm base (×1). (E) Portion of rachis enlarged (×1.5). All drawings based on Soderstrom and Sucre 1969 (US). Illustration by Alice R. Tangerini. Reprinted from Soderstrom (1981), originally Figure 5, p. 31, with permission from the Missouri Botanical Garden Press.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g003.jpg)

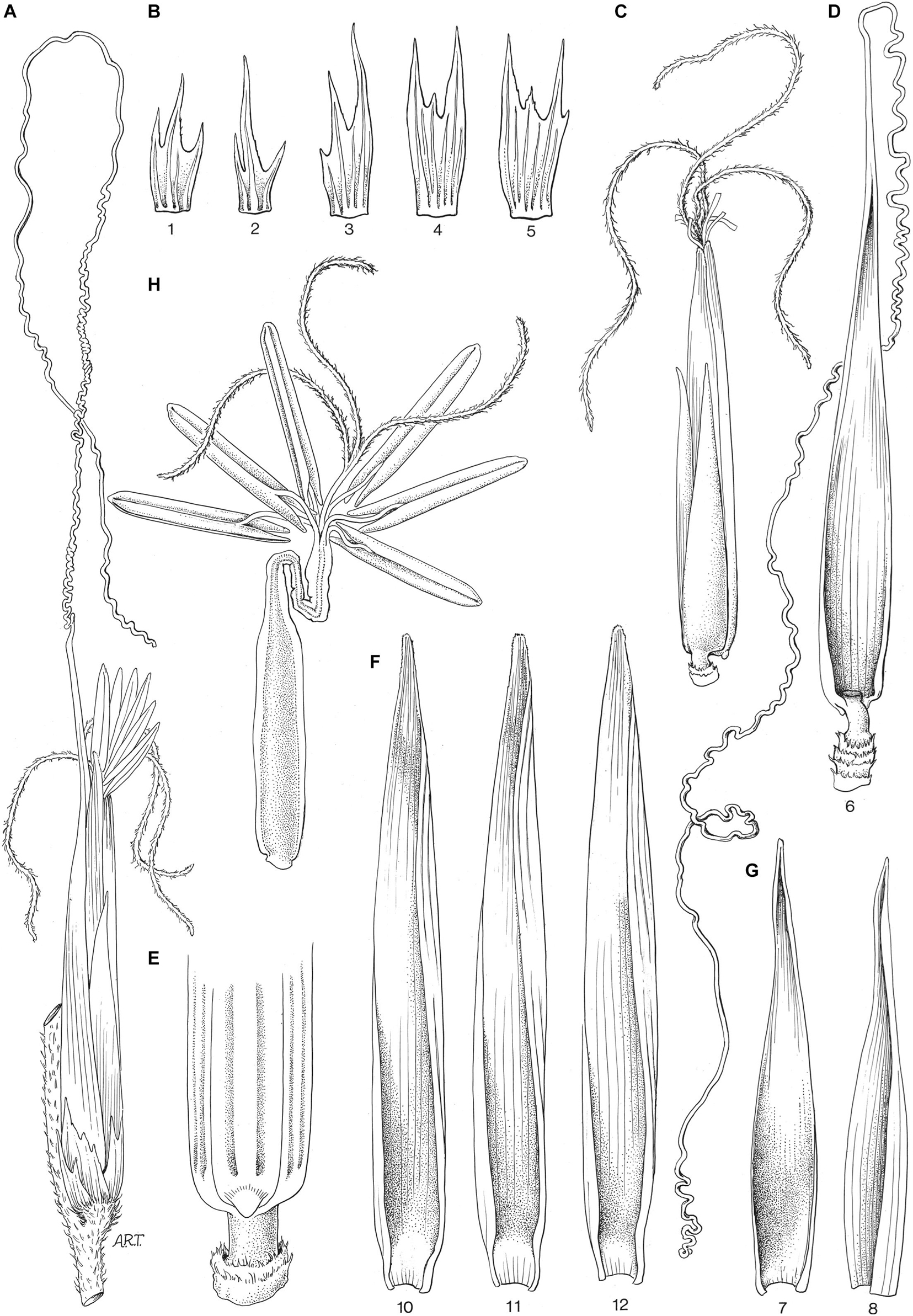

Figure 3. Streptochaeta angustifolia. (A) Pseudospikelet (×4.5). (B) Series of bracts 1–5 from the base of the pseudospikelet (×6). (C) Pseudospikelet with basal bracts 1–5 removed and showing bracts 7 and 8, whose bases are overlapping (× 4.5). (D) Bract 6 with long coiled awn (×4.5). (E) Back portion of the base of bract 6 showing region where embryo exits at germination. (F) Bracts 10–12 (×6). (G) Bracts 7 and 8 (×6). Bract 9, which exists in other species, has not been found here. (H) Ovary with long style and three stigmas, surrounded by the thin, fused filaments of the 6 stamens (°4.5). All drawings based on Soderstrom and Sucre 1969 (US). Illustration by Alice R. Tangerini. Reprinted from Soderstrom (1981), originally Figure 6, p. 33, with permission from the Missouri Botanical Garden Press.
The phylogeny suggests at least two models for the inferred changes before and after the crown node of Poaceae. One possibility is a “stepwise” model (black bars in Figure 1A), in which a set of genetic changes before the crown node of the grasses led to floral units that were substantially different from those in other monocots and were similar to the spikelet equivalents of Streptochaeta and Anomochloa. After the crown node, floral development was further modified by a second set of changes that led to formation of true spikelets in the common ancestor of the spikelet clade. The alternative model (gray bars in Figure 1A), which is also consistent with the phylogeny, is a “loss model,” in which all the genes and regulatory architecture needed for making spikelets originated before the crown node of Poaceae, but portions of that architecture were subsequently lost during the evolution of Anomochlooideae. Thus, the stepwise model implies that two successive sets of changes (one before and one after the crown node) were required for the origin of the grass spikelet, whereas the loss model implies a gain of spikelets followed by a loss; in this model the spikelet equivalents are highly modified or rearranged spikelets. Resolving these hypothetical models will help reveal both how the unique spikelet structure and the overall floral bauplan in grasses evolved.
Of the handful of species in the Anomochlooideae, Streptochaeta angustifolia (Figures 2, 3) is the most easily grown from seed and an obvious candidate for ongoing functional genomic investigation. Hereafter in this paper, we will refer to S. angustifolia simply as Streptochaeta, and use it as a placeholder for the rest of the subfamily. We present a draft genome sequence for Streptochaeta that captures the gene-space of this species at high contiguity, and we use this genome to assess the position of the grass WGD. Genes and small RNAs (sRNAs) are annotated. Because of the distinct floral morphology of Streptochaeta, we also investigate the molecular evolution of two major transcription factor families, APETALA2 (AP2)-like and R2R3 MYB, which are known to control floral and spikelet structure in other grasses and are regulated by sRNAs.
Materials and Methods
Input Data
Streptochaeta angustifolia is native and restricted to the Atlantic Forest of Brazil, although other species of Streptochaeta can be found as far north as southern Mexico. The reference plant for this project was collected in Brazil by Thomas Soderstrom of the Smithsonian Institution in 1980 of the Smithsonian Institution, though the precise collection location is unknown. The plant has been propagated by division and single seed descent, first at the Smithsonian and more recently at Iowa State University and at the Donald Danforth Plant Science Center in St. Louis, MO. The voucher Clark 1304 (deposited at Ada Hayden Herbarium, ISC) represents the plant from which DNA was extracted for the initial molecular phylogenetic studies of this genus. Either this plant or one of its descendants was used for this project, based on the same voucher.
Streptochaeta leaf tissue was harvested and used to estimate genome size at the Flow Cytometry Facility at Iowa State University. DNA was then isolated using Qiagen DNeasy plant kits. Three Illumina libraries (paired end and 9- and 11-kb mate pair) were generated from these isolations at the Iowa State University (ISU) DNA Facility. One lane of 150 bp paired-end HiSeq sequencing (insert size of 180 bp) and one lane of 150 bp mate-pair HiSeq sequencing (9- and 11-kb libraries pooled) were generated, also at the ISU DNA Facility (Supplementary Table 1). Additionally, for the purpose of contig scaffolding, Bionano libraries were prepared by first isolating high molecular weight DNA using the Bionano PrepTM Plant DNA Isolation Kit followed by sequencing using the Irys system.
Genome Assembly
We used MaSuRCA v2.21 (Zimin et al., 2013) to generate a draft genome of Streptochaeta. The MaSuRCA assembler includes error correction and quality filtering, generation of super reads, super read assembly, and gap closing to generate more complete and larger scaffolds. Briefly, the config file was edited to include both paired-end and mate-pair library data for Streptochaeta. The JF_SIZE parameter was adjusted to 20,000,000,000 to accommodate the large input file size, and NUM_THREADS was set to 128. All other parameters in the config file were left as default. The assembly was executed by first generating the assemble.sh script using the config file and submitting to a high-memory node using the PBS job scheduler. For generating the Bionano-optical-map-based hybrid assembly, we used Bionano Hybrid Scaffold (v1.0). This program uses the alignment of in silico-generated maps (from input contigs) to the consensus optical map (Bionano) to output genome maps. The genome maps are then aligned back to the original in silico maps to output fasta-formatted hybrid scaffolds (called Super Scaffolds). The full list of options used for running the alignment and to generate the hybrid scaffolds are provided in the associated GitHub repository (files: optArguments_medium.xml and hybridScaffold_config_aggressive.xml, respectively). All scripts for assembly and downstream analysis are available at: https://github.com/HuffordLab/streptochaeta.
Assembly Evaluation and Post-processing
The Bionano assembly was screened for haplotigs, and additional gaps were filled using Redundans v0.13a (Pryszcz and Gabaldón, 2016). Briefly, the scaffolds were mapped to themselves using the LAST v719 alignment program (Kielbasa et al., 2011) and any scaffold that completely overlapped a longer scaffold with more than 80% identity was considered redundant and excluded from the final assembly. Additionally, short read data were aligned back to the hybrid assembly and GapCloser v1.12 from SOAPdenovo2 (Luo et al., 2012) and SSPACE v3.0 (Boetzer et al., 2011) were run in multiple iterations to fill gaps. The final reduced, gap-filled assembly was screened for contamination, using Blobtools v0.9.19 (Laetsch and Blaxter, 2017), and any scaffolds that matched bacterial genomes were removed. The assembly completeness was then evaluated using BUSCO v3.0.2 (Simão et al., 2015) with the liliopsida_odb10 profile and standard assemblathon metrics. We used Merqury (v1.3; Rhie et al., 2020) to estimate the frequency of consensus errors (consensus quality or QV) and k-mer completeness.
To annotate the repeats in the genome, we used EDTA v1.8.3 (Ou et al., 2019) with default options except for –species, which was set to “others.” The obtained TE library was then used for masking the genome for synteny analyses. Assembly quality of the repeat space was assessed based on the LTR Assembly Index (LAI; Ou et al., 2018), which was computed using ltr_retriever v2.9.0 (Ou and Jiang, 2018) and the EDTA-generated LTR list.
Gene Prediction and Annotation
Gene prediction was carried out using a comprehensive method combining ab initio predictions (from BRAKER; Hoff et al., 2019) with direct evidence (inferred from transcript assemblies) using the BIND strategy (Seetharam et al., 2019 and citations therein). Briefly, RNA-Seq data were mapped to the genome using a STAR (v2.5.3a)-indexed genome and an iterative two-pass approach under default options in order to generate BAM files. BAM files were used as input for multiple transcript assembly programs (Class2 v2.1.7, Cufflinks v2.2.1, Stringtie v2.1.4 and Strawberry v1.1.2) to assemble transcripts. Redundant assemblies were collapsed and the best transcript for each locus was picked using Mikado (2.0rc2) by filling in the missing portions of the ORF using TransDecoder (v5.5.0) and homology as informed by the BLASTX (v2.10.1+) results to the SwissProtDB. Splice junctions were also refined using Portcullis (v1.2.1) in order to identify isoforms and to correct misassembled transcripts. Both ab initio and the direct evidence predictions were analyzed with TESorter (Zhang et al., 2019) to identify and remove any TE-containing genes and with phylostratr (v0.20; Arendsee et al., 2019) to identify orphan genes (i.e., species-specific genes). As ab initio predictions of young genes can be unreliable (Seetharam et al., 2019), these were excluded. Finally, redundant copies of genes between direct evidence and ab initio predictions were identified and removed using Mikado compare (2.0rc2; Venturini et al., 2018) and merging was performed locus by locus, incorporating additional isoforms when necessary. The complete decision table for merging is provided in Supplementary Table 2. After the final merge, phylostratr was run again on the annotations to classify genes based on their age.
Functional annotation was performed based on homology of the predicted peptides to the curated SwissProt/UniProt set (UniProt Consortium, 2021) as determined by BLAST v2.10.1+ (Edgar, 2010). InterProScan v5.48-83.0 was further used to find sequence matches against multiple protein signature databases.
Synteny
Synteny of CDS sequences for Streptochaeta was determined using CoGe (Lyons and Freeling, 2008), against the genomes Brachypodium (International Brachypodium Initiative [IBI], 2010), Oryza sativa (Ouyang et al., 2007), and Setaria viridis (Mamidi et al., 2020). SynMap2 (Haug-Baltzell et al., 2017) was employed to identify syntenic regions across these genomes. Dot plots and chain files generated by SynMap2 under default options were used for presence–absence analysis. We also performed repeat-masked whole genome alignments using minimap2 (Li, 2018) following the Bioinformatics Workbook methods1.
Identification of APETALA2-Like and R2R3 MYB Proteins in Selected Monocots
A BLAST database was built using seven grass species including Streptochaeta and two outgroup monocots. Protein and CDS sequences of the following species were retrieved from Phytozome 13.0: Ananas comosus (Acomosus_321_v3), Brachypodium distachyon (Bdistachyon_556_v3.2), Oryza sativa (Osativa_323_v7.0), Spirodela polyrhiza (Spolyrhiza_290_v2), Setaria viridis (Sviridis_500_v2.1), and Zea mays (Zmays_493_APGv4). Sequences of Eragrostis tef were retrieved from CoGe (id50954) (VanBuren et al., 2020). Sequences of Triticum aestivum were retrieved from Ensembl Plant r46 (Triticum_aestivum.IWGSCv1) (Supplementary Table 3).
AP2 and MYB proteins were identified using BLASTP and hmmscan (HMMER 3.1b22) in an iterative manner. Specifically, 18 Arabidopsis AP2-like proteins (Kim et al., 2006) were used as an initial query in a blastp search with an E-value threshold of 1e-10. The resulting protein sequences were filtered based on the presence of an AP2 domain using hmmscan with an E-value threshold of 1e-3 and domain E-value threshold of 0.1. The filtered sequences were used as the query for the next round of blastp and hmmscan until the maximal number of sequences was retrieved. For MYB proteins, Interpro MYB domain (IPR017930) was used to retrieve rice MYBs using Oryza sativa Japonica Group genes (IRGSP-1.0) as the database on Gramene Biomart3. The number of MYB domains was counted by searching for “Myb_DNA-bind” in the output of hmmscan, and 82 proteins with two MYB domains were used as the initial query. Iterative blastp and hmmscan were performed in the same manner as for AP2 except using a domain E-value threshold of 1e-3.
The number of AP2 or MYB domains was again counted in the final set of sequences in the hmmscan output, and proteins with more than one AP2 domain or two MYB domains were treated as AP2-like or R2R3 MYB, respectively. To ensure that no orthologous proteins were missed due to poor annotation in the AP2 or MYB domain, we performed another round of BLASTP searches, and kept only the best hits. These sequences were also included in the construction of the phylogenetic trees.
Construction and Rooting of Phylogenetic Trees
Protein sequences were aligned using MAFFT v7.245 (Katoh and Standley, 2013) with default parameters. The corresponding coding sequence alignment was converted using PAL2NAL v14 (Suyama et al., 2006) and used for subsequent tree construction. For AP2-like genes, the full-length coding sequence alignment was used. For MYB, due to poor alignment outside of the MYB domain, trimAl v1.2 (Capella-Gutiérrez et al., 2009) was used to remove gaps and non-conserved nucleotides with a gap threshold (–gt) of 0.75 and percentage alignment conservation threshold (-con) of 30. A maximum likelihood (ML) tree was constructed using IQ-TREE v1.6.12 (Minh et al., 2020) with default settings. Sequences that resulted in long branches in the tree were manually removed, and the remaining sequences were used for the final tree construction. Visual formatting of the tree was performed using Interactive Tree Of Life (iTOL) v4 (Letunic and Bork, 2019).
The ML tree for AP2-like genes was rooted at the branch between the euAP2 and AINTEGUMENTA (ANT) genes, following (Kim et al., 2006). The tree of R2R3 MYBs was rooted with the CDC5 clade (Jiang and Rao, 2020). Only subclades with bootstrap values larger than 80 at the node of Streptochaeta were considered for subsequent analysis.
To facilitate discussion, we named each subclade either by a previously assigned gene name within the subclade, or the gene sub-family name with a specific number.
RNA Isolation, Library Construction, and Sequencing
To annotate microRNAs (miRNAs) present in the Streptochaeta genome, we (i) sequenced sRNAs from leaf, anther and pistil tissues, (ii) compared miRNAs present in anthers to those of three other representative monocots (rice, maize, and asparagus), and (iii) validated gene targets of these miRNAs.
We collected tissues from leaf and pistil as well as 1.5, 3, and 4 mm anthers. Samples were immediately frozen in liquid nitrogen and kept at –80°C prior to RNA isolation. Total RNA was isolated using the PureLink Plant RNA Reagent (Thermo Fisher Scientific, Waltham, MA, United States). sRNA libraries were published previously (Patel et al., 2021). RNA sequencing libraries were prepared from the same material using the Illumina TruSeq stranded RNA-seq preparation kit (Illumina Inc., United States) following manufacturer’s instructions. Parallel analysis of RNA ends (PARE) libraries were prepared from a total of 20 μg of total RNA following the method described by Zhai et al. (2014). For all types of libraries, single-end sequencing was performed on an Illumina HiSeq 2000 instrument (Illumina Inc., United States) at the University of Delaware DNA Sequencing and Genotyping Center.
Bioinformatic Analysis of Small RNA Data
Using cutadapt v2.9 (Martin, 2011), sRNA-seq reads were pre-processed to remove adapters (Supplementary Table 4), and we discarded reads shorter than 15 nt. The resulting ‘clean’ reads were mapped to the Streptochaeta genome using ShortStack v3.8.5 (Johnson et al., 2016) with the following parameters: -mismatches 0, -bowtie m 50, -mmap u, -dicermin 19, -dicermax 25, and -mincov 0.5 transcripts per million (TPM). Results generated by ShortStack were filtered to keep only clusters having a predominant RNA size between 20 and 24 nucleotides, inclusively. We then annotated categories of miRNAs and phased small interfering RNAs (phasiRNAs).
First, sRNA reads representative of each cluster were aligned to the monocot-related miRNAs listed in miRBase release 22 (Kozomara and Griffiths-Jones, 2014; Kozomara et al., 2019) using NCBI BLASTN v2.9.0+ (Camacho et al., 2009) with the following parameters: -strand both, -task blastn-short, -perc identity 75, -no greedy and -ungapped. Homology hits were filtered and sRNA reads were considered as known miRNA based on the following criteria: (i) no more than four mismatches and (ii) no more than 2-nt extension or reduction at the 5′ end or 3′ end. Known miRNAs were summarized by family. Small RNA reads with no homology to known miRNAs were annotated as novel miRNAs using the de novo miRNA annotation performed by ShortStack. The secondary structure of new miRNA precursor sequences was drawn using the RNAfold v2.1.9 program (Lorenz et al., 2011). Candidate novel miRNAs were manually inspected, and only those meeting published criteria for plant miRNA annotations (Axtell and Meyers, 2018) were retained for subsequent analyses. Then, the remaining sRNA clusters were analyzed to identify phasiRNAs based on ShortStack analysis reports. sRNA clusters having a “Phase Score” >30 were considered as true positive phasiRNAs. Genomic regions corresponding to these phasiRNAs were considered as PHAS loci and grouped in categories of 21- and 24-PHAS loci referring to the length of phasiRNAs derived from these loci. Other sRNA without miRNA or phasiRNA signatures were not considered for analysis or interpretation in this study.
To compare sRNAs accumulating in Streptochaeta anthers with other monocots, we analyzed sRNA samples of Asparagus officinalis, Oryza sativa and Zea mays anthers. The GEO accession numbers for those datasets are detailed in Supplementary Table 3. We analyzed these data as described for the Streptochaeta sRNA-seq data.
We used the upSetR package (Lex et al., 2014; Conway et al., 2017; UpSetR, 2021) to visualize the overlap of miRNA loci annotated in Streptochaeta, compared to other species.
Bioinformatic Analysis of Parallel Analysis of RNA Ends Data
We analyzed the PARE data to identify and validate miRNA-target pairs in anther, pistil, and leaf of Streptochaeta tissues. Using cutadapt v2.9, PARE reads were pre-processed to remove adapters (Supplementary Table 4) and reads shorter than 15 nt were discarded. Then, we used PAREsnip2 (Thody et al., 2018) to predict all miRNA-target pairs and to validate the effective miRNA-guided cleavage site using PARE reads. We ran PAREsnip2 with default parameters using Fahlgren and Carrington targeting rules (Fahlgren and Carrington, 2010). We considered only targets in categories 0, 1, and 2 for downstream analysis. We used the EMBL-EBI HMMER program v3.3 (Potter et al., 2018) to annotate the function of miRNA target genes using the phmmer function with the SwissProt database.
Prediction of MicroRNA Binding Sites
Mature miR172 and miR159 sequences from all available monocots were obtained from miRBase (Kozomara et al., 2019). miRNA target sites in AP2-like and R2R3 MYB transcripts were predicted on the web server TAPIR (Bonnet et al., 2010) with their default settings (score = 4 and free energy ratio = 0.7).
Results
Genome Assembly
Flow cytometry estimated the 1C DNA content for Streptochaeta to be 1.80 and 1.83 pg, which, when converted to base pairs, yields a genome size of approximately 1.77 Gb. Paired-end reads with a fragment size of 250 bp were generated at approximately 25.7x genomic coverage, while the mate-pair libraries with 9- and 11-kb insert size collectively provided 22.6x coverage. Based on k-mer analysis with the program Jellyfish (Marçais and Kingsford, 2011), we estimated the repeat content for the Streptochaeta genome to be approximately 51%. The MaSuRCA assembly algorithm generated an assembly size at 99.8% of the estimated genome size, suggesting that much of the genome, including repetitive regions was successfully assembled. The assembler generated a total of 22,591 scaffolds, with an N50 of 2.4 Mb and an L50 of 170.
The Bionano data produced an optical map near the expected genome size (1.74 Gb) with an N50 of 824 kb. Through scaffolding with the optical map and collapsing with Redundans software, the total number of scaffolds dropped to 17,040, improving the N50 to 2.6 Mb and the L50 to 161. A total of 79,165 contigs were provided as input for Redundans for scaffold reduction (total size 1,898 Mbp). With eight iterations of haplotype collapsing, the total size reduced to 1,796 Mbp. Additional rounds of gap-filling using GapCloser reduced the total size of gaps (Ns) from 210.13 to 76.33 Mbp. The improvement in the N50/N90 values with each iteration is provided in Supplementary Table 5.
The final assembly included a total of 3,010 out of 3,278 possible complete Liliopsida BUSCOs (91.8%). Of these 2,767 (84.4% of the total) were present as a complete single copy. Only 158 BUSCOs were missing entirely with another 110 present as fragmented genes. The LAI (LTR Assembly Index) score, which assesses the contiguity of the assembled LTR retrotransposons, was 9.02, which is somewhat higher than most short-read-based assemblies (Ou et al., 2018), perhaps due to the relatively low repeat content of the Streptochaeta genome and the use of mate-pair sequencing libraries. Merqury’s log-scaled probability of error in the consensus base calls indicated a high QV of 47.2146 (or probability of finding an incorrect base in this assembly was 1.89908e-05). The K-mer completeness measured by Merqury indicated 95.96% of reliable k-mers that occurred in the raw reads were also in the genome assembly, suggesting most of the reads were incorporated in the genome assembly. Dot plots of Streptochaeta contigs aligned to rice revealed substantial colinearity (Supplementary Figure 1).
BlobTools (v0.9.19) (Laetsch and Blaxter, 2017) detected over 95% of the scaffolds (1742 Mbp) belonging to the Streptophyta clade out of the 1,797 Mbp of assigned scaffolds (GC mean: 0.54). Approximately 2% of the scaffolds mapped to the Actinobacteria (36.3 Mbp, GC mean: 0.72) and ∼0.5% of scaffolds to Chordata (9 Mbp, GC mean: 0.48). Scaffolds assigned to additional clades by BlobTools collectively comprise ∼1.46 Mbp and the remaining 8.47 Mbp of scaffolds lacked any hits to the database. All bacterial, fungal and vertebrate scaffolds were purged from the assembly.
Gene Prediction and Annotation
Direct Evidence Predictions
More than 79% of the total RNAseq reads mapped uniquely to the Streptochaeta genome with < 7% multi-mapped reads. Paired-end reads mapped (uniquely) at a higher rate (88.59%) than the single-end RNAseq (70.38%) reads. Genome-guided transcript assemblers produced varying numbers of transcripts across single-end (SE) and paired-end (PE) data as well as various assemblers. Cufflinks produced the highest number of transcripts (SE: 65,552; PE:66,069), followed by StringTie (SE: 65,495, PE: 48,111), and Strawberry (SE:68,812; PE:43,882). Class2 generated fewer transcripts overall (PE: 43,966; SE: 13,173). The best transcript for each locus was picked by Mikado from the transcript assemblies based on its completeness, homology, and accuracy of splice sites. Non-coding (due to lack of ORFs) or redundant transcripts were removed to generate 28,063 gene models (41,857 transcripts). Mikado also identified 19,135 non-coding genes within the transcript assemblies. Further filtering for transposable-element-containing genes and genes with low expression reduced the total number of evidence-based predictions to 27,082 genes (40,865 transcripts).
Ab initio Predictions
BRAKER, with inputs including predicted proteins from the direct evidence method (as a gff3 file produced by aligning proteins to a hard-masked Streptochaeta genome) and the mapped RNA-Seq reads (as a hints file using the bam file), produced a total of 611,013 transcripts on a soft-masked genome. This was then subjected to filtering to remove TE containing genes (244,706 gene models) as well as genes only found in Streptochaeta (466,839 gene models). After removing both of these classes of genes, which overlapped to an extent, the total number of ab initio predictions dropped to 40,921 genes (44,013 transcripts).
BIND (Merging BRAKER Predictions With Directly Inferred Genes)
After comparing BRAKER and direct evidence predictions with Mikado compare: 9,617 transcripts were exactly identical and direct evidence predictions were retained; 3,263 transcripts from Mikado were considered incomplete and were replaced with BRAKER models; 13,360 BRAKER models were considered incomplete and replaced with direct evidence transcripts; 1,884 predictions were adjacent but non-overlapping, and 17,894 predictions were BRAKER-specific and were retained in the final merged predictions. The final gene set included a total of 44,980 genes (58,917 transcripts).
Functional Annotation
Functional annotation was informed by homology to the curated proteins in SwissProt and resulted in the assignment of putative functions for 38,955 transcripts (10,556 BRAKER predictions, and 28,399 direct evidence predictions). Of the unassigned transcripts, 41 predictions had pfam domain matches, and 16,918 transcripts had an interproscan hit. Only 3,068 transcripts contained no additional information in the final GFF3 file.
Phylostrata
All gene models were classified based on their presumed age. More than 8% of the total genes (3,742) were specific to the Streptochaeta genus and more than 15% (6,930) were Poaceae specific. Nineteen percent (8,494) of genes’ origins could be traced back to cellular organisms and 15% (6,708) to Eukaryotic genes. The distribution of genes based on strata and annotation method is provided in Supplementary Table 6.
Transposable Element Annotation
The repeat annotation performed by the EDTA package comprised 66.82% of the genome, the bulk of which was LTR class elements (42.9% in total; Gypsy: 28.16%, Copia: 8.9%, rest: 5.84%), followed by DNA repeats (23.39% in total; DTC-type: 13.65, DTM-type: 5.78%, rest: 3.96%), and MITE class repeats (all types 0.54%).
Molecular Evolution of APETALA2-Like and R2R3 MYB Transcription Factors
APETALA2-Like
The AP2-like genes were divided into euAP2 and ANT clades, as expected from previous work (Kim et al., 2006). The euAP2 lineage has conserved microRNA172 binding sequences except for a few genes in outgroups, one gene in Eragrostis tef and one in Zea mays (Figure 4 and Supplementary Figure 2).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g004.jpg)
Figure 4. Maximum likelihood tree of AP2-like genes. Numbers on branches indicate maximum likelihood bootstrap values. A single gene is denoted by a rectangle, and collapsed branches are denoted by triangles. Each subclade is shaded in two gray colors and named either by known genes within the subclade or subfamily name with a number. Subclades with syntenic genes in Brachypodium, Oryza or Setaria are shaded in two colors of yellow, and syntenic pairs are connected by an arc. Outgroup, Streptochaeta and other grasses are shown in black, red, and blue colors.
Streptochaeta orthologs are present in most of the subclades, except IDS1/Q, ANT5, BBM4, WRI3 and basalANT1, in which the Streptochaeta copy is lost (Figure 4 and Supplementary Figure 2). The two most common patterns within each subclade are [O,(S,G)] (O, outgroup; S, Streptochaeta; G, other grasses) including SHAT1, ANT1, ANT3, ANT4, BBM1, ANT7, ANT8, and ANT9, and (S,G) (implying that the outgroup sequence is lost or was not retrieved by our search) including BBM3, WRI2 and WRI4 (Supplementary Table 7). These patterns imply that most grass-duplicated AP2-like genes were lost (i.e., the individual subclades were returned to single copy) soon after the grass duplication. Some subclades contain two Streptochaeta sequences and one copy in other grasses. These Streptochaeta sequences are either sisters to each other with the Streptochaeta clade sister to the other grasses [O,((S1,S2),G)] (RSR1) (Figure 4, Supplementary Figure 2, and Supplementary Table 7), or successive sisters to a clade of grass sequences [O,(S1,(S2,G))] (WRI1) (Figure 4, Supplementary Figure 2, and Supplementary Table 7).
In the paired subclades of IDS1/Q-SNB/SID1, ANT5–ANT6, BBM4–BBM2 and basalANT1-basalANT2, the grass-duplicated gene pairs were retained, and were also in syntenic regions based on a syntelog search of the Brachypodium distachyon, Oryza sativa or Setaria viridis genomes (Figure 5). Interestingly, in these subclade pairs, the Streptochaeta orthologs are always sister to one member of the syntenic gene pair but not the other. Two subclade pairs support a ρ position before the divergence of Streptochaeta, including BBM4-BBM2 with a pattern of [G1,(S,G2)] (Figure 5B) and ANT5-ANT6 with a pattern of [G1,((S1,S2),G2)] (Figure 5E). In subclade pairs of IDS1/Q-SNB/SID1 and basalANT1-basalANT2, two Streptochaeta sequences are successive sisters to one of the grass subclade pairs, forming tree topologies of [G1,(S1,(S2,G2))] and [O,(G1,(S1,(S2,G2)))], respectively (Figure 4, Supplementary Figure 2, and Supplementary Table 7). These two cases do not fit with a simple history involving ρ either before or after the divergence of Streptochaeta, and thus indicate a more complex evolutionary history.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g005.jpg)

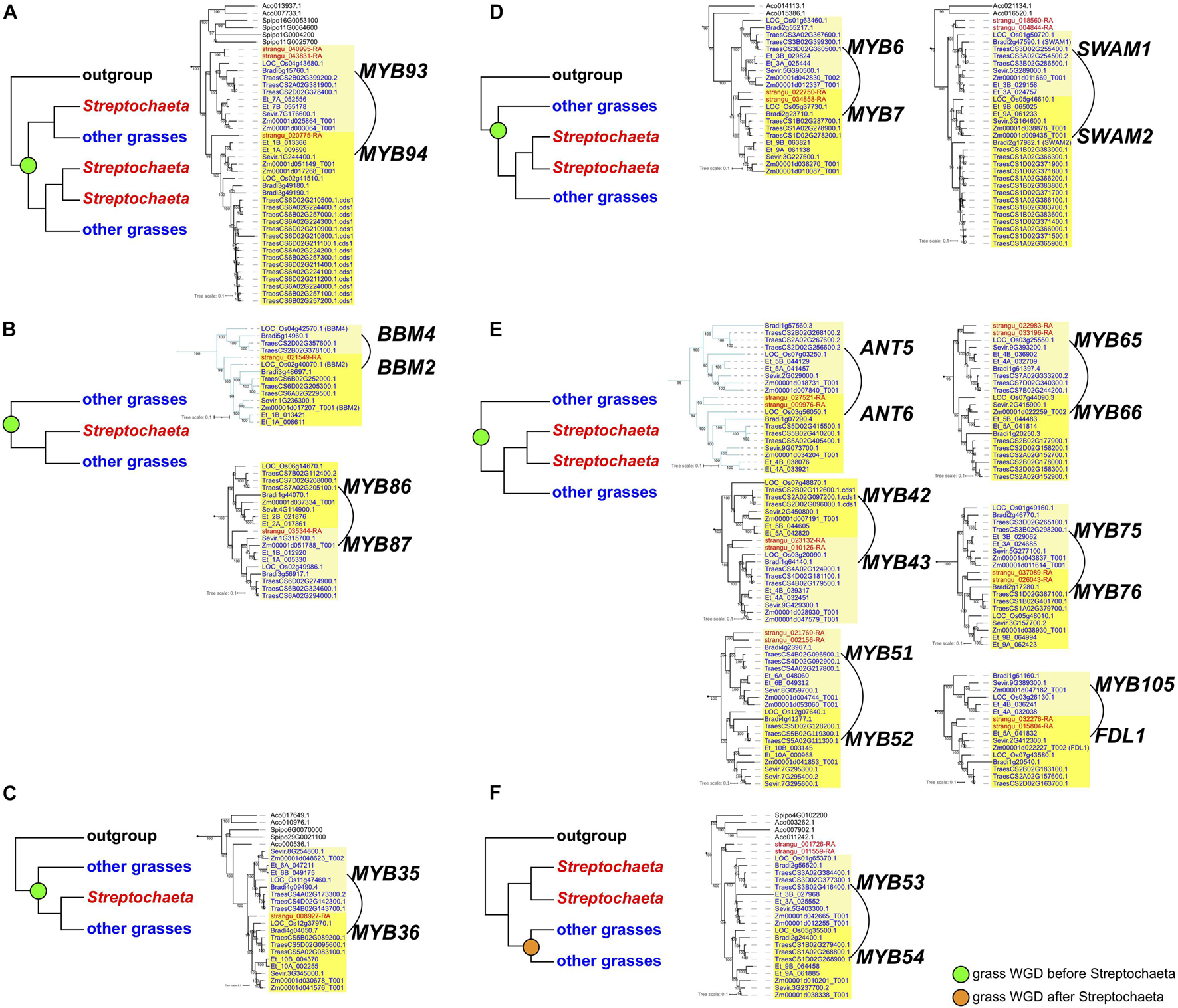

Figure 5. Tree topologies of paired syntenic subclades that support grass whole genome duplication (WGD) before or after the divergence of Streptochaeta. (A–E) Grass WGD before the divergence of Streptochaeta. Tree topologies: (A) [O,(S1,G1),((S2,S3),G2)]. (B) [G1,(S2,G2)]. (C) [O,(G1,(S2,G2))]. (D) [O,(G1,((S1,S2),G2))]. (E) [G1,((S1,S2),G2)]. (F) Grass WGD after the divergence of Streptochaeta with tree pattern of [O,(S1,S2),(G1,G2)].
R2R3 MYB
As in the AP2-like tree, the most common tree topology within each subclade is [O,(S,G)], found in 16 individual subclades, followed by (S,G) in 10 subclades. We also found 16 subclades with other tree topologies either without or with one or two Streptochaeta sequences and one copy of the other grass sequences, including (O,G) (MYB48), [O,((S1,S2),G)] (MYB17, MYB21, GAMYBL2, MYB29 and GAMYBL1), [(S1,S2),G] (MYB78 and MYB92), [O,(S1,(S2, G))], [S1,(S2,G)] (MYB56) and [(O,S),G] (MYB47 and MYB83) (Supplementary Table 7). Conversely, we also found that 20 subclade pairs retained the grass duplicated gene pairs, although their tree topologies vary based on the position of Streptochaeta and outgroups. Among these, 15 subclade pairs are also found to be syntenic, including MYB1–MYB2, MYB6–MYB7, MYB35–MYB36, MYB42–MYB43, MYB49–MYB50, MYB51–MYB52, MYB53–MYB54, MYB62–MYB63, MYB65–MYB66, SWAM1–SWAM2, MYB75–MYB76, MYB86–MYB87, MYB93–MYB94, MYB103–MYB104, and MYB105-FDL1 (Figures 5, 6, Supplementary Figure 3, and Supplementary Table 7). Together, these results indicate that a subset of grass MYB clades have expanded due to the grass WGD.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g006.jpg)

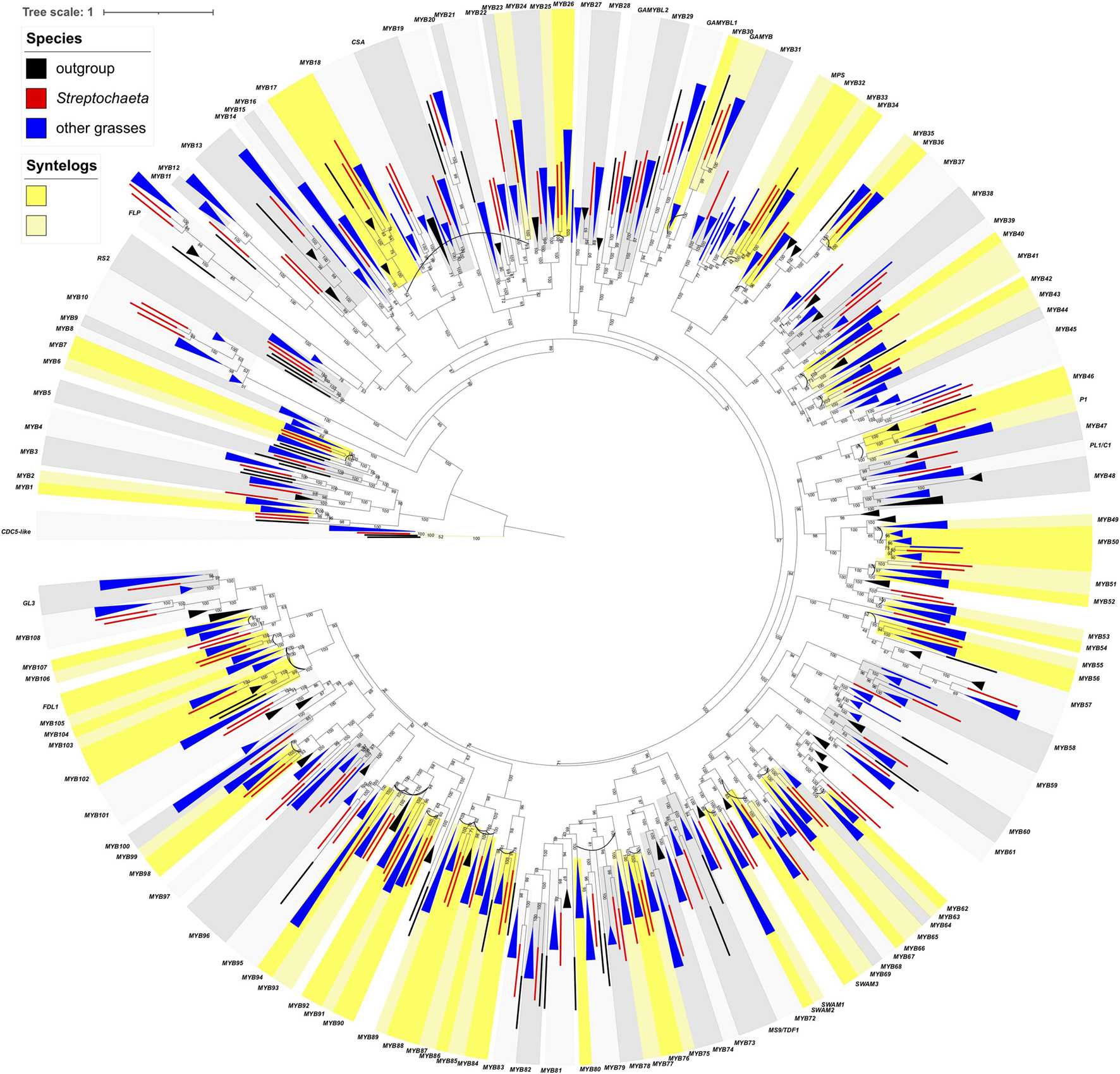

Figure 6. Maximum likelihood tree of R2R3 genes. Numbers on branches indicate maximum likelihood bootstrap values. A single gene is denoted by a rectangle, and collapsed branches are denoted in triangles. Each subclade is shaded in two gray colors and named either by known genes within the subclade or subfamily name with a number. Subclades with syntenic genes in Brachypodium, Oryza, or Setaria are shaded in two colors of yellow, and syntenic pairs are connected by an arc. Outgroup, Streptochaeta and other grasses are shown in black, red, and blue colors.
Among the subclade pairs that retain both grass sequences, we found one subclade pair, MYB53-MYB54 with tree topology of [O,(S1,S2),(G1,G2)], that supports ρ having occurred after the divergence of Streptochaeta (Figure 5F). Conversely, we found 10 subclades supporting a ρ position before the divergence of Streptochaeta. The subclade MYB93–MYB94 includes three Streptochaeta sequences, one sister to one of the grass clades and the other two sister to each other and sister to the other grass clade, forming a tree topology of [O,((S1,G1),((S2,S3),G2))] (Figure 5A). In the other nine subclade pairs, one or two Streptochaeta sequences are sister to one of the grass syntenic gene pairs but not the other (Figures 5B–E). In subclade pairs MYB86–MYB87 and MYB34–MYB36, one Streptochaeta sequence is sister to one of the grass clades, showing [G1,(S,G2)] and [O,(G1,(S,G2))], respectively (Figures 5B,C). We observed more subclades with two sequences of Streptochaeta, either showing [O,(G1,((S1,S2),G2))] in MYB6–MYB7 and SWAM1 and SWAM2, or [G1,((S1,S2),G2)] in MYB42–MYB43, MYB51–MYB52, MYB65–MYB66, MYB75–MYB76, and MYB105-FDL1.
A few subclade pairs have tree topologies that do not support a ρ position either before or after the divergence of Streptochaeta, including [O,(S1,(S2,(G1,G2)))] (MYB1–MYB2 and MYB62–MYB63), [S1,(G1,(S2,G2))] (MYB22–MYB23) and [(O,S),(G1,G2)] (MYB11–MYB12) (Supplementary Table 7). In other cases, the Streptochaeta ortholog is either lost, or positioned within the grass clades (Supplementary Table 7). This may either indicate a complex evolutionary history within the Streptochaeta lineage, or may be an artifact due to the distant outgroups used here and/or poor annotation of some sequences.
Taken together, both the AP2-like and R2R3 MYB trees support the inference of ρ before the divergence of Streptochaeta (12 subclades) over ρ after the divergence of Streptochaeta (1 subclade) (Figure 5), consistent with previous findings (McKain et al., 2016). In addition, our study suggests that Streptochaeta has often lost one of the syntenic paralogs and sometimes has its own duplicated gene pairs.
Annotation of MicroRNAs and Validation of Their Targets
In total, 185.3 million (M) sRNA reads were generated (115.6 M, 33.0 M, and 36.7 M reads for anther, pistil, and leaf tissues, respectively) from five sRNA libraries. We annotated 114 miRNA loci, of which 98 were homologous to 32 known miRNA families and 16 met strict annotation criteria for novel miRNAs (Supplementary Tables 8–10). Most miRNAs from these loci (85; 90.4%) accumulated in all three tissues (Figure 7). However, a sub-group (8 miRNAs; 7.0%) of miRNAs was abundant in anthers but not in the pistil or leaf tissues. Among these miRNAs, we found one copy each of miR2118 and miR2275, miRNAs known to function in the biogenesis of reproductive phasiRNAs (Johnson et al., 2009; Zhai et al., 2015). Among known miRNA families expressed in anthers, only 25.4% of families overlapped between Streptochaeta and three other monocots. The large number of miRNA families detected exclusively in anthers of asparagus (29.9%) and rice (17.9%) perhaps explains the small overlap between species.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/710383/fpls-12-710383-HTML-r1/image_m/fpls-12-710383-g007.jpg)
Figure 7. Overlap of miRNA loci annotated in Streptochaeta tissues (A) and miRNA families annotated in Streptochaeta anthers compared to three other monocots (B).
We generated parallel analysis of RNA ends (PARE) libraries to identify and validate the cleavage of miRNA-target pairs in anther, pistil and leaf of Streptochaeta (Supplementary Tables 11, 12). Overall, we validated 58, 55, and 66 gene targets in anther, pistil and leaf, respectively. Half of these targets were detected in all tissues (51.9%), while 7 (8.6%), 4 (4.9%), and 14 (17.3%) were validated exclusively in anther, pistil, and leaf tissues, respectively; the remaining targets were found in combinations of two tissues. Among the validated targets, we found targets for three novel miRNAs, supporting their annotation. As an example, 184 reads validated the cleavage site of one novel miRNA target gene (strangu_031733), which is homologous to the GPX6 gene (At4g11600), known to function in the protection of cells from oxidative damage in Arabidopsis (Rodriguez Milla et al., 2003). Among targets of known miRNAs, we validated the cleavage site of six and four genes encoding members of AP2 and MYB transcription factor families, respectively (Supplementary Figures 2, 3). miR172 triggered the cleavage of AP2 genes in all tissues, consistent with the well-described function of this miRNA (Aukerman and Sakai, 2003; Lauter et al., 2005; Chuck et al., 2007, 2008). Also, miR159 triggered the cleavage of transcripts of four MYB genes homologous to rice GAMYB genes, in leaf and pistil tissues but not in anther.
Expression of PhasiRNAs Is Not Limited to Male Reproductive Tissues
phasiRNAs from the same sRNA libraries were annotated and the abundance of these loci compared to that in asparagus, maize, and rice. Overall, we detected a total of 89 phasiRNA loci (called PHAS loci) including 71 21-PHAS and 18 24-PHAS loci (Supplementary Table 8). We made three observations of note: First, we observed a switch in the ratio of 21-PHAS to 24-PHAS locus number comparing asparagus (<1), a member of Asparagaceae, to grass species (>1; Poaceae). Second, among Poaceae species, the number of genomic PHAS loci was lower in Streptochaeta than in both maize and rice. Third, several PHAS loci were also expressed in the pistil and leaves. Overall, 23 (32%) 21-PHAS loci and 11 (61%) 24-PHAS loci were expressed in the pistil with a median abundance of 32.9 and 12.3%, respectively, compared to phasiRNAs detected in anther tissue. Similarly, 22 (31%) 21-PHAS loci and 10 (56%) 24-PHAS loci were detected in leaf tissue with a median abundance of 53.3 and 13.2%, respectively, compared to phasiRNAs detected in anthers. The expression of 24-nt phasiRNAs in vegetative tissues is unusual.
Discussion
Genome Assembly and Annotation
The Streptochaeta genome presented here provides a resource for comparative genomics, genetics, and phylogenetics of the grass family. It represents the subfamily Anomochlooideae, which is sister to all other grasses and thus is equally phylogenetically distant to the better-known species rice, Brachypodium, sorghum, and maize (Clark et al., 1995; Grass Phylogeny Working Group [GPWG], 2001; Saarela et al., 2018). The genome assembly captures nearly all of the predicted gene space at high contiguity (complete BUSCOs 91.8%, liliopsida_odb10 profile, n = 3278), with the genome size matching predictions based on flow cytometry. The genome-wide LTR Assembly Index (LAI) for measuring the completeness of intact LTR elements, was 9.02, classifying the current genome as “draft” in quality, and is on par with other assemblies using similar sequencing technology [Apple (v1.0) (Velasco et al., 2010), Cacao (v1.0) (Argout et al., 2011)].
Our comprehensive annotation strategy identified a high proportion of genes specific to the genus Streptochaeta, also known as orphan genes (3,742). Many previous studies have indicated that orphan genes may comprise 3–10% of the total genes in plants and can, in certain species, range up to 30% of the total (Arendsee et al., 2014). Overall the average gene length (3,956 bp), average mRNA length (3,931 bp) and average CDS length (1,060 bp) are similar to other grass species queried in Ensembl (Howe et al., 2021).
Complex Evolutionary History of Streptochaeta May Contribute to Its Unique Characteristics
Our highly contiguous assembly in genic regions combined with gene model and functional annotations allowed: (1) evaluation of patterns of orthology between genes in Streptochaeta and BOP/PACMAD grasses to clarify the timing of the ρ WGD; (2) an investigation of gene families known to play a role in floral development that have potential relevance to the origin of the grass spikelet. Previous phylogenetic work based on transcriptomes (McKain et al., 2016) or individual gene tree analyses (Preston and Kellogg, 2006; Whipple et al., 2007; Christensen and Malcomber, 2012; McKain et al., 2016) suggested that Streptochaeta shared the same WGD (ρ) as the rest of the grasses but that it might also have its own duplication. Among the large sample (200) of clades in the transcriptome gene trees from McKain et al. (2016), 44% of these showed topologies consistent with ρ before the divergence of Streptochaeta (e.g., topologies shown in Figures 1Ai,ii,iv), with 39% being ambiguous (Figures 1Aiii,Bii). Fewer than 20% of the clades identified by McKain et al. (2016) had topologies consistent with the ρ duplication occurring after the divergence of Streptochaeta (Figure 1Bi). Additionally, Streptochaeta contigs show good collinearity with the rice genome, a finding that is consistent with ρ preceding the divergence of Streptochaeta. Mapping the Streptochaeta contigs against themselves also hints at another Streptochaeta-specific duplication, although the timing of this duplication cannot be inferred purely from the dot plot. Analyses of individual clades within large gene families (see below) support the same conclusion.
Analyzing the AP2-like and MYB subclades through the lens of grass WGD events, we found 12 and one cases supporting ρ before and after the divergence of Streptochaeta, thus confirming previous transcriptomic data (Preston and Kellogg, 2006; Whipple et al., 2007; Christensen and Malcomber, 2012; McKain et al., 2016). We also found that Streptochaeta often lost one copy of the syntenic paralogs, not only in MADS-box genes (Preston and Kellogg, 2006; Christensen and Malcomber, 2012) but also in AP2-like and R2R3 MYB families. In addition, two Streptochaeta sequences are often sister to a grass clade (Figure 5 and Supplementary Table 7), indicating that additional complexity in the evolution of Anomochlooideae may remain to be uncovered, although sequences of additional representatives of S. angustifolia as well as of the other three species in the subfamily will ultimately be needed.
Genome structure and phylogenetic trees of Streptochaeta genes and their orthologs support the “loss model” shown in Figure 1Biv, in which many of the genes known to control the structure of the grass spikelet were found in an ancestor of both Streptochaeta and the spikelet clade, but have then been lost in Streptochaeta. This provides circumstantial evidence that the common ancestor of all grasses – including Streptochaeta (and Anomochloa) – might have borne its flowers in spikelets, and the truly peculiar “spikelet equivalents” of Anomochlooideae are indeed highly modified.
Many transcription factor families are known to regulate spikelet development in the grasses (Hirano et al., 2014; Whipple, 2017). Of these, APETALA2 (AP2)-like proteins control meristem identity and floral morphology, including the number of florets per spikelet (Chuck et al., 1998; Lee and An, 2012; Zhou et al., 2012; Debernardi et al., 2020). Several R2R3 MYB proteins are also known to function in floral organ development, especially in anthers (Zhu et al., 2008; Aya et al., 2009; Zhang et al., 2010; Schmidt et al., 2013). We explored patterns of duplication and loss in these gene families between the stem node origin of the grasses and the origin of the spikelet clade, i.e., before and after the divergence of Streptochaeta.
Previous studies have focused on the evolution of MADS-box genes in shaping grass spikelet development. For example, the A-class gene in flower development FRUITFULL (FUL) duplicated at the base of Poaceae before the divergence of Streptochaeta, but FUL1/VRN1 in Streptochaeta was subsequently lost (Preston and Kellogg, 2006). Similarly, paralogous LEAFY HULL STERILE1 (LHS1) and Oryza sativa MADS5 are duplicated at the base of Poaceae, but Streptochaeta has only one gene sister to the LHS1 clade (Christensen and Malcomber, 2012). However, in another study on the B-class MADS-box gene PISTILLATA (PI), Streptochaeta has orthologs in both the PI1 and PI2 clades (Whipple et al., 2007).
Here, we focused on AP2-like and R2R3 MYB transcription factor families, both of which include members regulating inflorescence and spikelet development. The euAP2 lineage of the AP2-like genes determines the transition from spikelet meristem to floral meristem (Hirano et al., 2014). In the maize mutant indeterminate spikelet1 (ids1), extra florets are formed within the spikelets in both male and female flowers (Chuck et al., 1998). The double mutant of ids1 and its syntenic paralog sister of indeterminate spikelet1 (sid1) produce repetitive glumes (Chuck et al., 2008). Consistently, the rice mutants of SUPERNUMERARY BRACT (SNB), which is an ortholog of SID1, also exhibit multiple rudimentary glumes, due to the delay of transition from spikelet meristem to floral meristem. Such mutant phenotypes are somewhat analogous to the Streptochaeta “spikelet equivalents,” which possess 11 or 12 bracts. In situ hybridization studies on FUL and LHS1 showed that the outer bracts 1–5 resemble the expression pattern of glumes in other grass spikelets, while inner bracts 6–8 resemble the expression pattern of lemma and palea (Preston et al., 2009). Our phylogenetic analysis suggests that the ortholog of IDS1 in Streptochaeta is lost (Figure 4 and Supplementary Figure 2). Instead, Streptochaeta has two sequences orthologous to SID1/SNB, and these two sequences are successively sister to each other with a tree pattern of [G1,(S1,(S2,G2)] in IDS1/Q-SID1/SNB subclade pairs, leaving the evolutionary history of Streptochaeta ambiguous (Figure 4, Supplementary Figure 2, and Supplementary Table 7). Both IDS1 and SID1 are targets of miRNA172 in maize (Chuck et al., 2007, 2008). Our PARE analyses did validate the cleavage of all six Streptochaeta euAP2 by miRNA172 (Supplementary Table 12), demonstrating that the miRNA172 post-transcriptional regulation of euAP2 is functional in Streptochaeta. Detailed spatial gene expression analysis may further reveal whether and how these euAP2 genes contribute to floral structure in Streptochaeta.
BABY BOOM genes (BBMs) belong to the euANT lineage of the AP2-like genes, and are well known for their function in induction of somatic embryogenesis (Boutilier et al., 2002) and application for in vitro tissue culture (Lowe et al., 2016). Ectopic expression of BBM in Arabidopsis and Brassica results in pleiotropic defects in plant development including changes in floral morphology (Boutilier et al., 2002). The grasses have four annotated BBMs, although it is not known whether other ANT members share similar functions. BBM4 and BBM2 subclades appeared to be duplicated paralog pairs due to the grass WGD. Similar to the cases in previous studies (Preston and Kellogg, 2006; Christensen and Malcomber, 2012), Streptochaeta has apparently lost its BBM4 copy and contains one copy in the BBM2 subclade (Figures 4, 5 and Supplementary Figure 2).
R2R3 MYB is a large transcription factor family, of which some members are crucial for anther development. The rice carbon starved anther (csa) mutants show decreased sugar content in floral organs including anthers, resulting in a male sterile phenotype (Zhang et al., 2010). DEFECTIVE in TAPETAL DEVELOPMENT and FUNCTION1 (TDF1) is required for tapetum programmed cell death (Zhu et al., 2008; Cai et al., 2015). GAMYB positively regulates GA signaling by directly binding to the promoter of GA-responsive genes in both Arabidopsis and grasses (Tsuji et al., 2006; Aya et al., 2009; Alonso-Peral et al., 2010). OsGAMYB is highly expressed in stamen primordia, tapetum cells of the anther and aleurone cells, and its expression is regulated by miR159. Non-functional mutants of OsGAMYB are defective in tapetum development and are male sterile (Kaneko et al., 2004; Tsuji et al., 2006). We found conserved miRNA159 binding sites in GAMYBs and its closely related subclades, including MYB27, MYB28, GAMYBL2, MYB29, GAMYBL1, MYB30, and GAMYB (Figure 4). Our PARE analyses also validated the cleavage of Streptochaeta GAMYB and GAMYBL1 in leaf and pistil tissues but not in anthers, suggesting the expression of Streptochaeta GAMYB and GAMYBL1 may be suppressed by miR159 in tissues other than anthers, at least at the developmental stages we investigated (Supplementary Table 12). Streptochaeta has two sequences in each of the GAMYBL2, MYB29, GAMYBL1 and GAMYB clades, either with a tree topology of [O,(S1,S2),G] in GAMYBL2, MYB29, and GAMYBL1, or a tree topology of [O,(S1,(S2,G)] in GAMYB (Figures 4, 6 and Supplementary Table 7). This again indicates that Streptochaeta has a complex duplication history.
A Survey of Small RNAs in the Streptochaeta Genome
sRNAs are important transcriptional and post-transcriptional regulators that play a role in plant development, reproduction, stress tolerance, etc. Identification of the complement of these molecules in Streptochaeta can inform our understanding of distinguishing features of grass and monocot genomes. miRNAs are major regulators of mRNA levels, active in pathways important to plant developmental transitions, biotic and abiotic stresses, and others. miRNAs generally act as post-transcriptional regulators by homology-dependent cleavage of target gene transcripts, when loaded to the RNA-induced silencing complex (RISC). Plant genomes encode a variety of sRNA types that can act in a transcriptional or post-transcriptional regulation mode. In this paper, we focused on miRNA and phasiRNA. The list of miRNA annotated in this study is likely incomplete because the Streptochaeta sRNA-seq data were limited to anther, pistil and leaf tissues, and would miss miRNAs expressed specifically in other tissues/cell types or at growth conditions not sampled. Thus, miRNAs missed in our data may well be encoded in the Streptochaeta genome. That being said, our miRNA characterization provides a starting point with which to describe Streptochaeta miRNAs, and our sequencing depth and tissue diversity was likely sufficient to identify many if not the majority of miRNAs encoded in the genome.
Phased short interfering RNAs (phasiRNAs) are 21-nt or 24-nt sRNAs generated from the recursive cleavage of a double-stranded RNA from a well-defined terminus; these transcripts define their precursor PHAS loci (Axtell and Meyers, 2018). Reproductive phasiRNAs are a subset abundant in anthers and in some cases essential to male fertility. Genomes of grass species are particularly rich in reproductive PHAS loci (Patel et al., 2021), expressed in anthers but not in female reproductive tissues or vegetative tissues. Previous species studies identified hundreds of PHAS loci in anthers of maize (Zhai et al., 2015) to thousands of PHAS loci in rice (Fei et al., 2016), barley (Bélanger et al., 2020), and bread wheat (Bélanger et al., 2020; Zhang et al., 2020). Additionally, work in maize (Teng et al., 2020) and rice (Fan et al., 2016) showed that 21-nt and 24-nt phasiRNAs are essential to ensure proper development of meiocytes and to guarantee male fertility under normal growth conditions. However, Streptochaeta has a different internal anatomy than the rest of the grasses. Specifically, anthers in Streptochaeta are missing the “middle layer” between the endothecium and the tapetum (Sajo et al., 2009, 2012) such that the microsporangium has only three cell layers.
Given that most of our data (>100 M reads) were collected from anthers, we have good resolution for annotation of phasiRNAs in this tissue. We characterized their absence/presence in the three-layer anthers of Streptochaeta. We annotated tens of PHAS loci in Streptochaeta showing that anthers express phasiRNAs even in the absence of the middle layer. Likewise, in maize, Zhai et al. (2015) showed that the miRNA and phasiRNA precursors are dependent on the epidermis, endothecium, and tapetum, and the phasiRNAs accumulate in the tapetum and meiocytes, so the middle layer is apparently not involved. We observed a shift in the ratio of 21-PHAS to 24-PHAS loci from asparagus (<1), an Asparagaceae, to grass species (>1), although the implications of this shift are as yet unclear.
We also observed that several 21-nt and 24-nt phasiRNAs accumulate in either pistil or leaf tissues, inconsistent with prior results. A small number of 21-nt PHAS loci are likely trans-acting-siRNA-generating (TAS) loci, important in vegetative tissues, but typically there are only a few TAS loci per genome (Xia et al., 2017), not the 20 loci that we observed. Additionally, we found no previous reports of 24-nt phasiRNAs accumulating in vegetative tissues or female reproductive tissues.
Utility of Streptochaeta for Understanding Grass Evolution and Genetics
The four species of Anomochlooideae contribute to understanding the evolution of the grasses and the many traits that make them unique. We have highlighted the unusual floral and inflorescence morphology of Streptochaeta and have compared it to grass spikelets, but Streptochaeta can also illuminate the evolution and genetic basis of other important traits. It is common to compare traits between members of the BOP clade (e.g., Oryza, Brachypodium, or Triticum) and the PACMAD clade (e.g., Zea, Sorghum, Panicum, Eragrostis), but, because these comparisons involve two sister clades, it is impossible to determine whether the BOP or the PACMAD clade character state is ancestral. Streptochaeta functions as an outgroup in such comparisons and can help establish the direction of change. Here, we highlight just a few of the traits whose analysis may be helped in future studies by reference to Streptochaeta and its genome sequence.
Drought Intolerance, Shade Tolerance
The grasses, including not only Anomochlooideae, but also Pharoideae and Puelioideae, the three subfamilies that are successive sister groups of the rest of the family, appear to have originated in environments with low light and high humidity (Edwards and Smith, 2010; Gallaher et al., 2019). The shift from shady, moist habitats to open, dry habitats where most grass species are now found promises insights into photosynthesis and water use efficiency, among other physiological traits.
Streptochaeta, like other forest grasses, has broad, spreading leaf blades and a pseudopetiole that results in higher leaf angle and increased light interception (Gallaher et al., 2019). Leaf angle is an important agronomic trait, with selection during modern breeding often favoring reduced leaf angle to maximize plant density and yield (Liu et al., 2019; Mantilla-Perez et al., 2020). A close examination of Streptochaeta may provide insight into how leaf angle is controlled in diverse grasses. Leaf width in maize is controlled particularly by the WOX3-like homeodomain proteins NARROWSHEATH1 (NS1) and NS2, which function in cells at the margins of leaves (Scanlon et al., 1996; Conklin et al., 2020). Duplication patterns and expression of NS1 and NS2 genes in the Streptochaeta genome could test whether the models developed for maize were present in the earliest of grasses.
Leaf Anatomy
The grass outgroup Joinvillea develops colorless cells in the mesophyll (Leandro et al., 2018). These appear to form from the same ground tissue that is responsible for the cavity-like “fusoid” cells in Anomochlooideae, Pharoideae, and Puelioideae as well as the bambusoid grasses. These cells, which appear to be a shared derived character for the grasses, form from the collapse of mesophyll cells and may play a role in the synthesis and storage of starch granules early in plant development (Leandro et al., 2018). While the genetic basis of leaf anatomy is, at the moment, poorly understood, Streptochaeta will be a useful system for understanding the development of fusoid cells in early diverging and other grasses.
Grass leaves also contain silica bodies in the epidermis; the vacuoles of these cells are filled with amorphous silica (SiO2). In Streptochaeta the silica bodies are a distinctive shape, being elongated transverse to the long axis of the blade (Judziewicz and Soderstrom, 1989). The genetic basis of silica deposition has been studied in rice (Yu et al., 2020) and the availability of the Streptochaeta genome now permits examination of the evolution of these genes in the grasses.
Anther and Pollen Development
Streptochaeta differs from most other grasses (and indeed some Poales as well) in details of its anthers and pollen development, and the current genome provides tools for comparative analyses. The sRNAs described above are produced in the epidermis, endothecium and tapetum of most grasses and we presume they are also produced in those tissues in Streptochaeta. In all grasses except Anomochlooideae and Pharoideae, the microsporangium has four concentric layers of cells – the epidermis, the endothecium, the middle layer, and the tapetum – which surround the archesporial cells (Walbot and Egger, 2016). Cells in the middle layer and the tapetum are sisters, derived from division of a secondary parietal cell. The inner walls of the endothecial cells also mature to become fibrous (Artschwager and McGuire, 1949; Furness and Rudall, 1998). In Streptochaeta and Pharus, however, the middle layer is absent (Sajo et al., 2007, 2009, 2012) and the endothecial cells lack fibrous thickenings. It is tempting to speculate that the middle layer may have a role in coordinating maturation of the endothecium. Lack of the middle layer is apparently derived within Streptochaeta and Pharus. In known mutants of maize and rice, loss of the middle layer leads to male sterility (Walbot and Egger, 2016) so the functional implications of its absence in Streptochaeta are unclear.
Development of microsporangium layers may also be related to the position of microspores inside the locule. In most grasses, the microspores and mature pollen grains form a single layer adjacent to the tapetum, with the pore of the pollen grain facing the tapetum, unlike many non-grasses in which the microsporocytes fill the locule and have a haphazard arrangement. The condition in Streptochaeta is unclear, with contradictory reports in the literature (Kirpes et al., 1996; Sajo et al., 2009, 2012).
The exine, or outer layer, of grass pollen is distinct from that of its close relatives due to the presence of channels that pass through the exine. While controls of this particular aspect of the pollen wall are unknown in the grasses, we find that Streptochaeta and its grass sisters have several GAMYB genes, which are known to be involved in exine formation in rice (Aya et al., 2009) and to have played a role more broadly in reproductive processes, including microspore development in early vascular plants (Aya et al., 2011).
Chromosome Number in the Early Grasses
Estimates of the chromosome number and karyotype in the common ancestor of grasses have reached different conclusions (e.g., Salse et al., 2008; Murat et al., 2010; Wang et al., 2016), in part because of limited taxon sampling particularly for early diverging lineages, which heavily affect optimization of any characters. Genomes of Streptochaeta and other early diverging grasses will be useful for resolving this open question, but will require pseudomolecule-quality assemblies. Two other species of Streptochaeta have been reported to have n =11 chromosomes (Valencia, 1962; Pohl and Davidse, 1971; Hunziker et al., 1982), well below the number reported for the sister species Anomochloa marantoidea, n = 18 (Judziewicz and Soderstrom, 1989). The outgroups Joinvillea plicata and Ecdeiocolea monostachya have n = 18 (Newell, 1969) and n = 19 (Hanson et al., 2005), respectively. However, without high quality genomes and good cytogenetic data for these species, the ancestral chromosome number and structure of the genomes of ancestral grasses remains a matter of speculation.
Finally, these are but a few of the opportunities for understanding trait evolution in the grasses based on investigation of Streptochaeta, with additional insights possible in, for example, the study of embryo development, caryopsis modifications, endosperm/starch evolution and branching/tillering. We have demonstrated that genomes of targeted, non-model species, particularly those that are sister to large, better-studied groups, can provide out-sized insight about the nature of evolutionary transitions and should be an increased focus now that genome assembly is a broadly accessible component of the biologist’s toolkit.
Data Availability Statement
The sRNA-seq data were reported in a previous study (Patel et al., 2021). Also, one library of RNA-Seq (SRR3233339) used for annotation was previously published (Givnish et al., 2010). Otherwise, all data utilized in this study are original. The complete set of raw WGS, RNA-seq, sRNA-seq, PARE-seq reads and the genome assembly were deposited in NCBI under BioProject ID PRJNA343128. The final genome assembly, annotation and Bionano optical maps are also available in CyVerse data commons at: https://datacommons.cyverse.org/browse/iplant/home/aseetharam/Streptochaeta_v1_publication_release_2021-05-13. The scripts and commands used for generating assembly, annotations, small RNA analyses and phylogenetic analyses are documented in the GitHub repository: https://github.com/HuffordLab/streptochaeta.
Author Contributions
MH, AS, EK, and LC designed the project. LC and EK provided the plant material. MH and AS generated the sequence data and assembled the genome. SB and BM analyzed the data on small RNAs. YY analyzed the AP2 and MYB sequence data. All authors drafted and edited the manuscript, and produced figures and tables.
Funding
YY was supported by NSF grant IOS-1938086 to EK and by an Enterprise-Rent-a-Car Foundation award through the Donald Danforth Plant Science Center, also to EK. SB was supported by USDA | National Institute of Food and Agriculture “BTT EAGER” award no. 2018–09058 to BM, as well as resources from the Donald Danforth Plant Science Center and the University of Missouri–Columbia. AS was supported by NSF grant IOS-1822330 to MH. This work used (1) Extreme Science and Engineering Discovery Environment (XSEDE) (National Science Foundation Grant No. ACI-1548562) via Blacklight HPC environment allocation TG-MCB140103 and (2) HPC equipment at Iowa State University, some of which has been purchased through funding provided by NSF under MRI grant number 1726447.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank Sandra Mathioni for construction of the RNA-seq and PARE libraries. We also thank Philip Blood for his assistance with MaSuRCA optimization, which was made possible through the XSEDE Extended Collaborative Support Service (ECSS) program.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2021.710383/full#supplementary-material
Supplementary Figure 1 | Dot plots depicting whole genome alignments of Streptochaeta scaffolds with rice chromosomes. Dots aligned diagonally shows conserved synteny between these genomes.
Supplementary Figure 2 | Maximum likelihood tree of AP2-like genes with gene names. Bootstrap values are shown on the branches. Each subclade is shaded in two gray colors and named either by known genes within the subclade or subfamily name with a number. Subclades with syntenic genes in Brachypodium, Oryza, or Setaria are shaded in two colors of yellow, and syntenic pairs are connected by an arc. Predicted and experimentally validated miR172 binding sites are denoted by red and green stars, respectively.
Supplementary Figure 3 | Maximum likelihood tree of R2R3 genes with gene names. Bootstrap values are shown on the branches. Each subclade is shaded in two gray colors and named either by known genes within the subclade or subfamily name with a number. Subclades with syntenic genes in Brachypodium, Oryza, or Setaria are shaded in two colors of yellow, and syntenic pairs are connected by an arc. Predicted and experimental validated miR159 binding sites are denoted by red and green stars, respectively.
