PoRal2 Is Involved in Appressorium Formation and Virulence via Pmk1 MAPK Pathways in the Rice Blast Fungus Pyricularia oryzae

Pyricularia oryzae is an important plant pathogenic fungus that can severely damage rice and wheat crops, leading to significant reductions in crop productivity. To penetrate into and invade tissues of its plant host, this fungus relies on an invasive structure known as an appressorium. Appressorium formation is rigorously regulated by the cAMP-PKA and Pmk1 MAPK pathways. Here, we identified PoRal2, a homologous protein of Schizosaccharomyces pombe Ral2, and characterized its roles in fungal development and virulence in P. oryzae. PoRal2 contains N-terminal kelch repeats and C-terminal BTB domains. PoRal2 is involved in sporulation, aerial hypha and conidiophore differentiation, appressorium formation, plant penetration, and virulence. During appressorium formation, ∆Poral2 mutants generate appressoria with long germ tubes on hydrophobic surfaces. ∆Poral2 mutants exhibited a defective response to exogenous cAMP and the activated RAS2^G18V on a hydrophilic surface, indicating impairment in the cAMP-PKA or Pmk1 MAPK signaling pathways. Deletion of PoRAL2 leads to lowered Pmk1 phosphorylation level in the mutant. Moreover, PoRal2 is found to interact with Scd1, Smo1, and Mst50, which are involved in activation of Pmk1. In addition, the expression levels of MPG1, WISH, and PDEH in the cAMP-PKA pathway, RAS2 in both the cAMP-PKA and Pmk1 MAPK pathways, and melanin biosynthesis genes (ALB1, BUF1, and RSY1) were significantly down-regulated in the ∆Poral2. Therefore, PoRal2 is involved in fungal development and virulence by its crosstalk in the cAMP-PKA and Pmk1 MAPK signaling pathways.

Introduction

Pyricularia oryzae (synonym Magnaporthe oryzae) is a plant pathogenic fungus that causes rice blast disease, leading to destructive production losses in rice and wheat crops worldwide. After a conidium (asexual spore) lands on a leaf, under favorable conditions, the conidium will tightly bind to the hydrophobic leaf surface, after which a germ tube develops from the pyriform conidium base. Subsequently, the germ tube hooks, swells at the tip, and finally differentiates into a dome-shaped appressorium (Talbot, 2003; Ryder and Talbot, 2015). During appressorium maturation, glycogen and lipids gradually translocate from the conidium to the appressorium, and glycerol accumulates in the appressorial cell which generates turgor pressure as high as 8.0MPa (de Jong et al., 1997; Thines et al., 2000). The immense turgor pressure allows a structure referred to as the penetration peg, produced by the appressorium, to penetrate into the leaf cuticle. Subsequently, an invasive hypha differentiates into bulbous and branched secondary hyphae which spread intercellularly and intracellularly through host tissues (Kankanala et al., 2007). Finally, necrotic blast lesions, producing abundant conidiophores and conidia, emerge on the infected rice surface.

Ral2, identified from the fungus Schizosaccharomyces pombe, is a Ras-like protein in the Ras1-Scd pathway that has three kelch repeats at N-terminal end and has roles in controlling cell morphology, cell conjugation, sporulation, and interactions with Gef1 and the SCF ubiquitin ligase complex subunit Skp1 proteins (Fukui et al., 1989; Tafforeau et al., 2006; Vo et al., 2016). In S. pombe, Ral2 is supposed to function closely (in proximity) with Ras1 and is involved in Ras1 activation. It was found that expression of the activated form of the RAS1 allele, RAS1^Val-17, restored the rod-like cell morphology and mating factor response defects found in the ral2 mutant (Fukui et al., 1989). RAS proteins are small GTP-binding proteins which respond to external stimuli and activate various downstream signaling pathways by the transition of RAS protein conformations between the inactive GDP-bound and active GTP-bound forms (Milburn et al., 1990). The two RAS proteins in Saccharomyces cerevisiae, Ras1 and Ras2, regulate the cAMP-PKA signaling pathway by affecting the activity of adenylate cyclase (Toda et al., 1985; Belotti et al., 2012). In P. oryzae, Ras1 merely regulates conidiation while Ras2 is essential for its survival. Moreover, Ras2 was found to function upstream of the cAMP-PKA and Pmk1 MAPK signaling pathways (Zhou et al., 2014). During appressorium formation, G protein-coupled receptors (GPCRs) recognize hydrophobic surface signals and then activate the G protein signaling pathway, which controls the crosstalk of the cAMP-PKA and Pmk1 MAPK signaling pathways in P. oryzae (Ebbole, 2007; Li et al., 2012a; McDonough and Rodriguez, 2012; Kou and Naqvi, 2016). Deleting the upstream components of cAMP pathway, such as MPG1, PTH11, MAGB, and CPKA, led to appressorium formation defects that could be recovered by exogenous application of cAMP (Talbot et al., 1996; Liu and Dean, 1997; Xu et al., 1997; DeZwaan et al., 1999). However, mutants with defects in the Pmk1 MAPK pathway like ∆mst11, ∆mst7, and ∆pmk1 cannot form appressoria and could not be recovered by exogenous cAMP (Xu and Hamer, 1996; Zhao et al., 2005). These results confirmed that both the cAMP-PKA and Pmk1 MAPK signaling pathways are essential for appressorium formation.

In this study, we characterized in P. oryzae, the biological role of PoRal2, a kelch and BTB domain protein, for which functions have not yet been revealed in filamentous fungi. PoRal2 is involved in aerial hyphal differentiation, spore production, appressorium formation, and fungal virulence. Deletion of PoRAL2 led to increased germ tube extension during appressorium formation, attenuated sensitivity to exogenous cAMP and the activated Ras2^G18V, and reduced Pmk1 phosphorylation. PoRal2 plays roles in cAMP-PKA and Pmk1 MAPK signaling pathways by interacting with Mst50, Scd1, Smo1, and Gef1 in P. oryzae.

Materials and Methods

Gene Deletion, Complementation, and Expression of Fluorescent Fusion Proteins

The 1.0–1.2kb upstream and downstream DNA fragments of PoRAL2 (GenBank: XP_003715831.1), amplified from the wild-type P. oryzae 70–15 strain genome, using two primer sets (Up-F/Up-R and Dn-F/Dn-R) and a hygromycin B phosphotransferase gene (HPH) fragment (cloned using primers HPH-F and HPH-R) were fused into a knockout cassette in a HindIII and SalI-linearized pKO3A vector (Yan et al., 2019) with a fusion enzyme (Vazyme Biotech, China). The knockout cassette was transformed into P. oryzae conidia of the wild-type strain 70–15 via Agrobacterium tumefaciens-mediated transformation (ATMT) method as previously described (Lu et al., 2014; Yan et al., 2019). Transformants were firstly screened on selective complete medium (CM) containing 0.5μM 5-fluoro-2'-deoxyuridine (F2dU) and 200μg/ml hygromycin B. Random insertion transformants containing an HSVtk gene from pKO3A cannot grow on the F2dU medium. Null mutants were then identified using a double-negative PCR for PoRAL2 with primer set S-F/S-R, using β-TUBULIN as a positive control with primer set Tbl-gF/Tbl-gR. Successful recombination of HPH into the deleted-PoRAL2 site was confirmed by another PCR reaction using primer set L-F/HPH-CKR. Finally, the inserted copies of HPH in the genomic DNA of null mutants were determined by quantitative Real Time PCR (qPCR), using β-TUBULIN as a control (primer sets qHPH-F/qHPH-R and qtubF/qtubR; Lu et al., 2014; Cao et al., 2016). The primers used in this study are listed in Supplementary Table S1.

For complementation experiments, a 6.3kb DNA fragment of PoRAL2 with native promoter, coding sequence (CDS), and native terminator was PCR amplified from wild-type P. oryzae genomic DNA using primer set PoRAL2c-F/PoRAL2c-R and inserted into an EcoRI and SaII-linearized vector pKD5, containing a sulfonylurea resistance gene (SUR; Li et al., 2012b). The PoRAL2 DNA fragment was transformed into ∆PoRal2 via ATMT to create the complemented Poral2c strain, and the transformants were screened on selection medium containing 100μg/ml sulfonylurea. The mRNA expression level of PoRAL2 in the complementation strain was confirmed by RT-PCR.

For active RAS2^G18V allele overexpression (GFP-Ras2^G18V), the CDS of RAS2^G18V was fused to the C-terminus of GFP by cloning into XbaI digested pKD3-GFP which was built by replacing SUR with BAR in pKD5-GFP (Li et al., 2012b) and expressed under the control of the H3 promoter. For effector secretion observation (Bas4-mCherry and Pwl2-mCherry-NLS), the native promotor sequence along with the CDSs of BAS4 and PWL2 was cloned and fused, respectively, into pKD3-mCherry, constructed by replacing GFP with mCherry in pKD3-GFP, and pKD5-mCherry, constructed by replacing GFP with mCherry in pKD5-GFP containing a nuclear localization signal (NLS) signal at the C-terminus of mCherry. Each of the three cassettes (GFP-Ras2^G18V, Bas4-mCherry, and Pwl2-mCherry-NLS built in pKD3-GFP-Ras2^G18V, pKD3-Bas4-mCherry, and pKD5-Pwl2-mCherry-NLS, respectively) was separately transformed into the wild-type and ∆Poral2 mutant strains. Positive transformants GFP-Ras2^G18V were visually confirmed by GFP fluorescence, and those of Bas4-mCherry (Wei et al., 2020) and Pwl2-mCherry-NLS (Khang et al., 2010) by mCherry fluorescence under a fluorescence microscope.

Mutant Phenotypic Assays

Wild-type, ∆Poral2, and Poral2c P. oryzae strains were cultured on 7cm plates with 17.5ml CM at 25°C for 10days. For sporulation, conidia were scraped from culture plates, suspended in 3ml of double distilled water (ddH₂O), and counted with a counting chamber. For conidiophore development, media containing vegetative hyphae were sliced into slender pieces and re-cultured under continuous light, at 25°C for 24h (Cao et al., 2016).

For stress tests, each of the strains was cultured on minimal medium [MM, 10g/L D-Glucose, 6g/L NaNO₃, 1.52g/L KH₂PO₄, 0.52g/L KCl, 0.52g/L MgSO₄∙7H₂O, 0.1% (v/v) trace elements, 0.1% (v/v) vitamin solution] with 0.8M sucrose, 0.8M sorbitol, 0.5M NaCl, 20μg/ml Congo red, or 50μg/ml Calcofluor white (CFW) at 25°C (Qu et al., 2020). To assay conidial germination and appressorium formation, 20μl spore suspensions (5×10⁴conidia/ml) were dropped onto hydrophobic coverslips and incubated at 22°C for 4h post-inoculation (hpi; conidial germination) and for 8 and 24hpi (appressorium formation; Shi et al., 2018). To observe cAMP’s role on appressorium formation, 10mM 8-bromoadenosine 3',5'-cyclic monophosphate sodium salt (8-Br-cAMP; Sigma, Japan) was added to spore suspensions which were dropped on hydrophobic or hydrophilic surfaces (GelBond) for 8 and 24hpi. In cytorrhysis (cell collapse) assays (Howard et al., 1991), collapsed cells of 24hpi appressoria were counted after exposure to 1.0, 2.0, 3.0, 5.0, or 6.0M glycerol solutions for 5min. To visualize glycogen production, cells were stained with an iodine solution containing 60mg/ml KI and 10mg/ml I₂ for 1min (Thines et al., 2000). To stain lipid droplets, conidia were co-cultured with 10μg/ml tricyclazole during appressorium formation, and the fluorescent dye Boron dipyrromethene (BODIPY; Thermo Fisher, United States) was applied to appressoria for 3min (Wang et al., 2018).

Virulence Test and Infection Process Observation

To detect the influence of PoRAL2 deletion on virulence, 5×10⁴conidia/ml in 0.2% (w/v) gelatin was sprayed onto 14-day-old rice seedlings (Oryza sativa cultivar CO39) and cultured for 2days in darkness at 22°C and 4days under a 16:8-h light/dark cycle at 25°C. Disease lesion severity (disease score) was assessed in a 5-cm-length section of the leaf exhibiting the most serious disease lesions in each seedling (Cao et al., 2016). For penetration assays, 20μl of spore suspensions (5×10⁴conidia/ml) of wild-type, ∆Poral2, and PoRal2c strains was dropped onto 7-day-old barley leaves (Hordeum vulgare) kept at 25°C. Leaves were then collected at 24, 48, 72, or 96hpi, then decolored by methanol, fixed in alcoholic lactophenol, and observed under a microscope (Lu et al., 2007).

Glycerol Concentration Assay

Conidia scraped from 14-day-old fungal cultures were diluted to 9 ×10⁵conidia/ml in 320μl of conidium solution and dropped onto a hydrophobic surface for 24h. The conidia were scraped via eraser and dissolved into 1ml of ddH₂O, after which the glycerol concentration was tested using the glycerin content GPO-POD enzymatic assay kit (Applygene, China).

Quantitative Real-Time PCR

For RNA isolation, 200μl of a 5×10⁴conidia/ml spore suspension was spread onto cellophane membranes over CM plates and cultured for 3days. Total RNA was extracted with Trizol, following the manufacturer’s procedure (TaKaRa, Japan), and transcribed into cDNA using the PrimeScriptTM RT reagent kit with gDNA Eraser (TaKaRa, Japan). The qPCR assay was performed on the Real-Time PCR Detection System MasterCycler (Eppendorf, Germany) with the TB Green® Premix Ex Taq™ (Tli RNaseH Plus) kit (TaKaRa, Japan) following the manufacturer’s protocol. Relative abundance of transcripts was assessed by the 2^−∆CT method, where ∆CT=CT_gene−(CT_40S+CT_ACTIN)/2. 2^−∆∆CT was used as the standard for calculating fold changes between two strains, where ∆∆CT=∆CT_{strain_1}−∆CT_{strain_2} (Livak and Schmittgen, 2001). Tukey’s HSD test was used to assess significance for all experimental data between samples (Tang and Zhang, 2013).

Yeast Two-Hybrid Assay

The Matchmaker Gal4 Two-Hybrid System 3 (Clontech, United States) was used to assay protein–protein interactions. The cDNA of PoRAL2, GEF1 SCD1 (MGG_09697), SMO1 (MGG_03846), RAS1 (MGG_09499), RAS2 (MGG_06154), dominant active RAS2^G18V allele, CDC42 (MGG_00466), MST50 (MGG_05199), (MGG_00466), MST7 (MGG_00800), PMK1 (MGG_09565), MST11 (MGG_14847), the half N-terminal fragment (1–1,605bp, PoRAL2N), the half C-terminal fragment (1,606–3,210bp, PoRAL2C) and the kelch domain (754–1,353bp, PoRAL2K) of PoRAL2 cDNA, and three truncated segments of Gef1 cDNA [GEF1a (1–2,433bp), GEF1b (2434–4,395bp), and GEF1c (4,366–6,018bp)], were cloned from a 70–15 strain cDNA library with primers listed in Supplementary Table S1 and ligated into a prey vector, pGADT7, or a bait vector, pGBKT7, with a one-step cloning kit (Vazyme Biotech Co. China). Pairwise combinations of prey and bait constructs, following verification by sequencing, were co-transformed into the yeast strain Y2HGold. The resulting yeast cells, grown on the auxotrophic medium SD-Leu-Trp, were diluted to 1 × 10⁶cells/ml and dropped on SD-Leu-Trp-Ade-His medium for growth. One hundred microliters of X-α-Gal (4mg/ml) was spread onto 9-cm-diameter SD-Leu-Trp-Ade-His plates when testing the interactions between PoRal2 and Mst50, Scd1, Smo1, and Gef1.

Determination of Non-phosphorylated and Phosphorylated Pmk1 Levels

Total proteins were isolated from 2-day-old vegetative hyphae grown in 5 x YEG culture (5g yeast extract, 10g glucose, 1L ddH₂O) using TCA-acetone precipitation methods, and total protein concentrations were determined using the Enhanced BCA Protein Assay Kit (Beyotime, China). Protein extracts (50μg) were subjected to 12% SDS-PAGE (EpiZyme, China) and transferred to a PVDF membrane as described in previous research (Zhang et al., 2018). Primary antibodies, including anti-Phospho-p44/42 MAPK antibody #4370 (Cell Signaling Technology, Inc.), anti-ERK1/2 MAPK antibody (C-9): sc-514,302 (Santa Cruz Biotechnology, Inc.), and anti-GAPDH R1208-3 antibody (HUABIO, China), along with peroxidase (HRP)-conjugated goat anti-rabbit and goat anti-mouse secondary antibodies (Beyotime, China), were used in this study. An ECL chemiluminescent kit (Bio-Rad, United States) was used for Western blot detection.

Co-immunoprecipitation and Pull-Down Assays

For co-immunoprecipitation (CoIP), the N-terminal half DNA fragment of PoRAL2 (PoRAL2N) was cloned and fused to pKD3-GFP, and DNA fragments of SCD1, SMO1, MST50 and GEF1 were cloned into pKD7-3×Flag. The resulting fragments 3×Flag-Scd1, Smo1-3×Flag, Mst50-3×Flag, and 3×Flag-Gef1 were co-transformed together with PoRal2N-GFP into ∆Poral2 via ATMT. PoRal2N-GFP and Mst50-3×Flag were precipitated with Anti-GFP Affinity Beads 4FF SA070005 (SMART LIFESCIENCES, China). Proteins were detected by an anti-Flag antibody M1403-2 (HUABIO, China) or an anti-GFP antibody G1544-100UG (Sigma, Japan), respectively.

For pull-down assays, the cDNA fragment of PoRAL2 was inserted into pET21 with 3×Flag tag, and cDNA of SCD1, SMO1, MST50, GEF1, and PMK1 was inserted into pGEX-4T with GST tag and co-transformed into Escherichia coli BL21. Flag-PoRal2 (115.05kDa), GST-Scd1 (141.82kDa), GST-Smo1 (141.82kDa), GST-Mst50 (80.34kDa), GST-Gef1 (246.87kDa), and GST-Pmk1 (68.28kDa) were expressed by induction using 0.2M IPTG for 16h and pulled down by GST beads C600913 (BBI, China). Proteins were detected by an anti-GST antibody EM80701 (HUABIO, China) and an anti-Flag antibody M1403-2 (HUABIO, China), respectively.

Results

PoRal2 Is a Kelch Domain Protein

Six kelch domain-containing proteins in P. oryzae, including MGG_00126, MGG_01206, MGG_01237, MGG_02875, MGG_08255, and MGG_10605, were identified after BLASTing the P. oryzae genome database against Kel1 protein sequences from S. cerevisiae (Philips and Herskowitz, 1998). Protein sequence analysis via the profile-HMM database¹ showed that MGG_08255 (named PoRal2) has three kelch domains close to the N-terminal end (Figure 1A). Pfam² and SMART³ analysis also showed that PoRal2 has a BTB domain at its C-terminal end. PoRal2 is 1,069 amino acid residues long and shares 29.14% identity with the S. pombe Ral2 protein in amino acid sequence. Ral2 is a Ras1-Scd pathway protein and contains three kelch repeats at its N-terminal end in S. pombe (Fukui et al., 1989). Among six kelch-domain-containing proteins in P. oryzae, PoRal2 showed highest homology to the Ral2 proteins in S. pombe, Verticillium dahlia (XP_009657748), and Madurella mycetomatis (KXX79671; Figure 1B). Until now, except for S. pombe, the roles of Ral2 in fungi, including pathogenic filamentous fungi, have not been revealed. Here, we reported the roles of PoRal2 in fungal development and pathogenicity in P. oryzae.

FIGURE 1

Figure 1. Identification of PoRal2 in Pyricularia oryzae. (A) Protein sequence analysis via the profile-HMM database showed that both P. oryzae PoRal2 and Schizosaccharomyces pombe Ral2 proteins contain three kelch repeats. (B) Alignment tree of PoRal2 and Ral2 proteins from S. pombe, Verticillium dahlia (XP_009657748), Madurella mycetomatis (KXX79671), Saccharomyces cerevisiae (Kel1), human (LZTR1), and six kelch domain containing proteins (PoRal2, MGG_00126, MGG_01206, MGG_01237, MGG_02875, and MGG_10605) in P. oryzae were constructed using the CLC Main Workbench.

PoRal2 Is Involved in Sporulation and Appressorium Formation in P. oryzae

PoRAL2 was knocked out in the wild-type P. oryzae strain 70–15 (Supplementary Figure S1; Supplementary Table S2) and subsequently complemented with an inserted copy of the native gene (Supplementary Figure S1; Supplementary Table S3). Mycelial growth of the ∆Poral2 strain was similar to that of the wild type; however, its aerial hyphal differentiation from substrate mycelia was delayed (Figures 2A,B). ∆Poral2 produced 1.54±0.32×10⁴conidia/cm², significantly less than the wild type (4.78±0.61×10⁴conidia/cm²; Figure 2C). Relative to the wild type, ∆Poral2 produced fewer conidiophores which produced fewer conidia (Figure 2D), indicating decreased sporulation was due to reduced conidiophore differentiation and reduced differentiation of conidia on conidiophores. Spore germination was not affected by PoRAL2 deletion; however, the appressorial formation rate in ∆Poral2 was slower than in the wild type at 8hpi, but comparable to the wild type by 24hpi, indicating delayed appressorial formation in the mutant (Figures 3A–C). Noticeably, the germ tubes of ∆Poral2 mutants were significantly longer than the wild type when germinated on a hydrophobic plastic membrane (Figures 3A,D). The wild-type conidia generated germ tubes about 8.90±0.80μm long, while ∆Poral2 conidia generated germ tubes about 35.56±3.92μm long. Therefore, we propose that delayed appressorium formation in the mutant is due to more time spent on germ tube elongation.

FIGURE 2

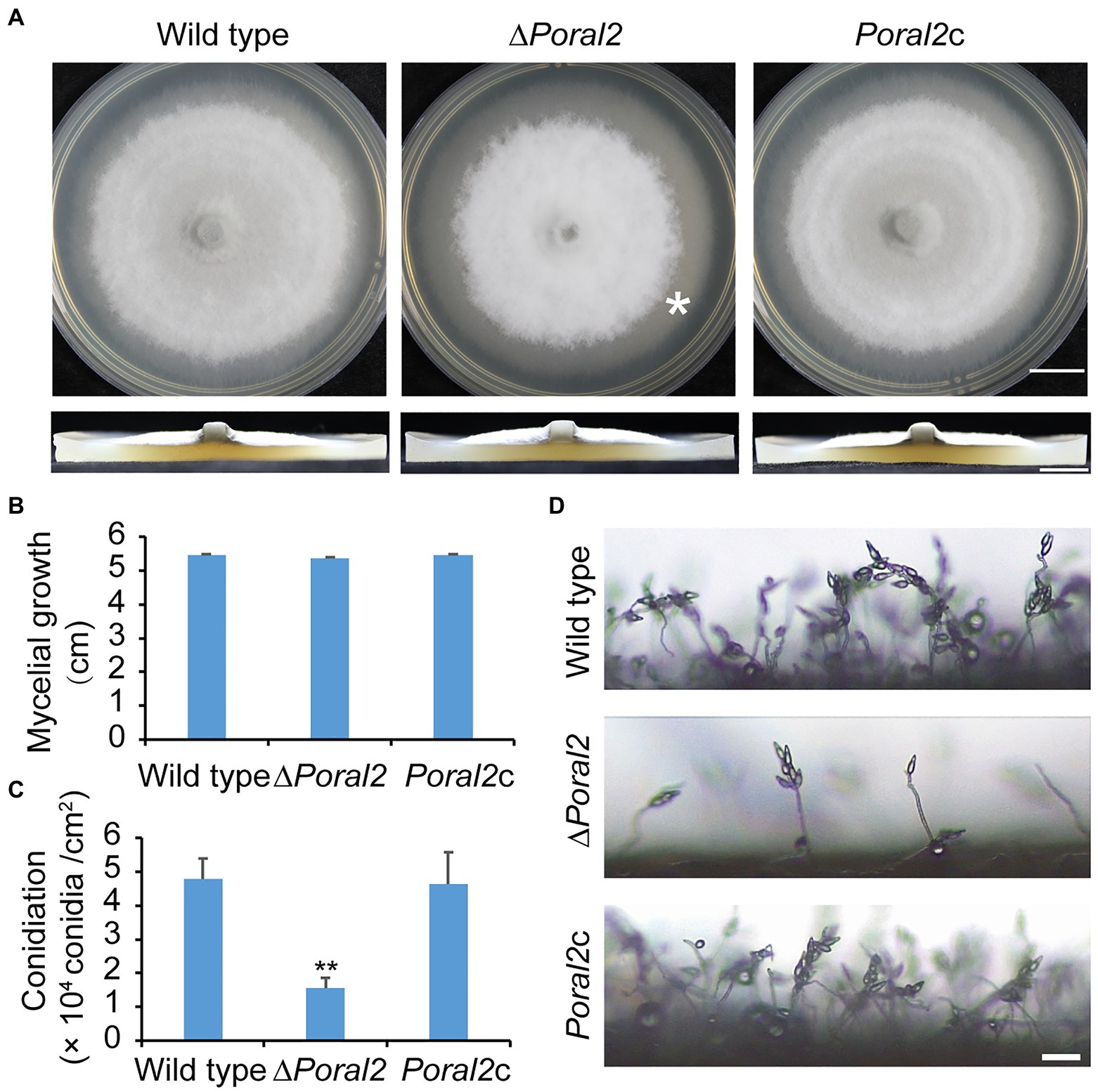

Figure 2. Mycelial growth and sporulation in ∆Poral2. (A) Colonies of wild type, ∆Poral2, and PoRAL2-complemented ∆Poral2 (Poral2c) P. oryzae strains. Asterisks refer to delays in differentiation of aerial hyphae. The strains were cultured on complete medium (CM) at 25°C for 10days. Bar=1cm. (B) Mycelial diameters (cm) of wild-type, ∆Poral2, and Poral2c colonies. (C) Conidiation of wild-type, ∆Poral2, and Poral2c strains. (D) Conidiophore development of P. oryzae strains. Bar=20μm. (B,C) Error bars represent standard deviations. Significant differences compared with the wild type were estimated by Tukey’s HSD test: ^**p<0.01.

FIGURE 3

Figure 3. Conidial germination and appressorium formation of wild-type, ∆Poral2, and Poral2c P. oryzae strains. (A) Appressorium formation of wild-type, ∆Poral2, and Poral2c strains on a hydrophobic surface at 8 and 24hpi. Bar=20μm. (B) Conidial germination rate (%) of P. oryzae strains at 4hpi. (C) Appressorium formation rate (%) of P. oryzae strains at 8 and 24hpi. (D) Germ tube length (μm) of wild-type, ∆Poral2, and Poral2c strains. About 100 appressoria were photographed and measured using the software NIS-Elements D 3.2, in triplicate. The ∆Poral2 strain experienced a 4-fold increase in germ tube length compared to the wild type. (E) Collapsed appressoria rates (%) of three P. oryzae strains under 1.0, 2.0, 3.0, 5.0, and 6.0M glycerol solutions. The ∆Poral2 strain showed lower collapse rates under applications of exogenous glycerol solutions compared to the wild type. Error bars represent standard deviations. Significant differences compared with the wild type were estimated by Tukey’s HSD test: ^**p<0.01.

Appressorium turgor was evaluated according to previous reports (Howard et al., 1991; Lu et al., 2007) by counting the collapse rates of appressoria exposed to 1.0–6.0M glycerol solutions. The collapse rates of ∆Poral2 appressoria were significantly lower than those of the wild-type and Poral2c strains (Figure 3E). At a 3.0M glycerol concentration, 75.2% of the wild-type appressoria had collapsed while only 35.9% of ∆Poral2 appressoria had collapsed. Lipids and glycogen are two primary nutrient stocks in conidia used to produce intracellular glycerol, which assures the generation of the huge appressorium turgor (de Jong et al., 1997; Foster et al., 2003; Wilson and Talbot, 2009). We examined the translocation and degradation of lipid droplets and glycogen from spores to appressoria at 0, 8, 16, or 24hpi. The wild-type, ∆Poral2, and Poral2c strains showed similar patterns of lipid droplet and glycogen translocation and degradation during appressorium formation (Supplementary Figure S2), suggesting that lipid and glycogen catabolism were normal in the ∆Poral2 mutant. We also determined the glycerol concentration in appressoria at 24hpi, and no significant difference was detected between the ∆Poral2 mutant and the wild type (Supplementary Figure S2).

As the osmotic pathway and cell wall integrity are both involved in maintaining appressorium turgor (Ryder et al., 2019), we tested the growth of the wild-type, ∆Poral2, and Poral2c strains on MM media supplemented with 0.8M sucrose, 0.8M sorbitol, 0.5M NaCl, 20μg/ml Congo red, or 50μg/ml CFW. Relative growth rates of the ∆Poral2 strain on the above-mentioned media were comparable to those of the wild-type and Poral2c strains (Supplementary Figure S3), and no significant growth defects in the ∆Poral2 strain was identified under osmotic and cell wall stresses.

PoRal2 Is Required for Fungal Response to cAMP Signaling and Involved in the Pmk1 MAPK Pathway

Exogenous cAMP stimulates appressorium formation in wild-type and mutant P. oryzae strains harboring defects in the cAMP-PKA (cAMP-dependent protein kinase A) signaling pathway, such as ∆mgb1 and ∆mac1 (Choi and Dean, 1997; Nishimura et al., 2003), but not in mutants which displayed defects in the MST11-MST7-PMK1 MAPK (mitogen-activated protein kinase) signaling pathway, such as ∆mst7, ∆mst11, and ∆pmk1 (Xu and Hamer, 1996; Zhao et al., 2005). Adenosine 3',5'-cyclic monophosphate sodium salt (8-Br-cAMP), a cell-permeable cAMP analog, is a naturally-occurring activator of PKA that contributes to appressorium formation (Li et al., 2019). Appressorium formation of the ∆Poral2 strain exposed to 10mM 8-Br-cAMP was tested on hydrophobic and hydrophilic surfaces (GelBond, United States). As shown in Figure 4A, the ∆Poral2 mutant produced long germ tubes on hydrophobic surfaces with or without 8-Br-cAMP. After addition of 8-Br-cAMP, most conidia of both the wild-type and Poral2c strains (83.80 and 81.79%, respectively) produced appressoria on hydrophilic surfaces (Figures 4A,B). On the contrary, 82% of the ∆Poral2 mutant conidia did not produce appressoria and merely generated long and straight germ tubes at 24hpi, whether or not 8-Br-cAMP was present (Figures 4A,B).

FIGURE 4

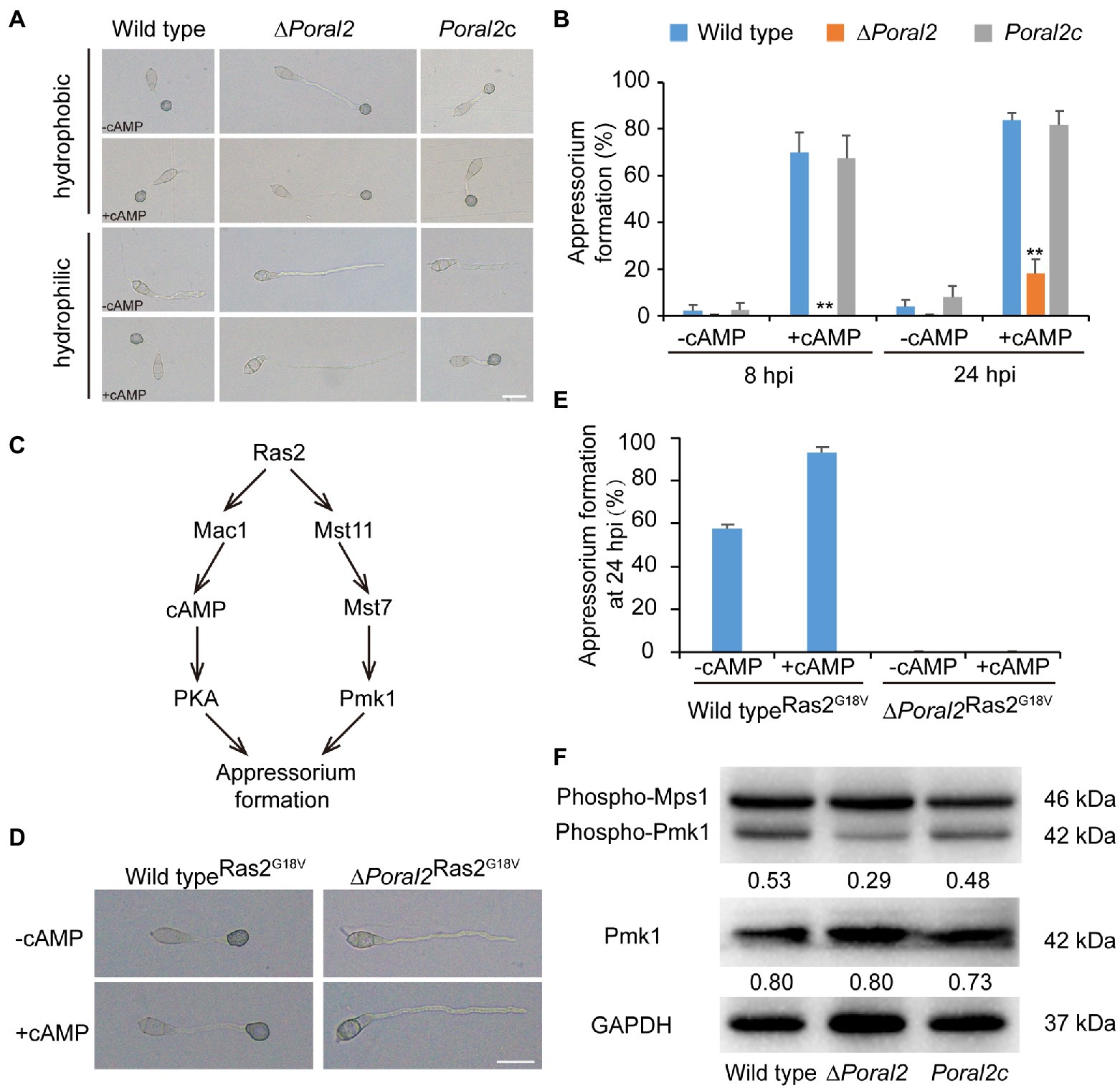

Figure 4. Defects of ∆Poral2 in the cAMP-PKA and Pmk1 MAPK signaling pathways. (A) Appressorium formation of P. oryzae strains on hydrophobic or hydrophilic surfaces with or without supplemented 10mM 8-Br-cAMP at 24hpi. Bar=20μm. (B) Appressorium formation rate (%) of P. oryzae strains on hydrophobic and hydrophilic surfaces with or without supplemented 10mM 8-Br-cAMP at 8 and 24hpi. Conidial suspensions were dropped onto GelBond film and incubated at 22°C. Significant differences compared with the wild type were estimated by Tukey’s HSD test: ^**p<0.01. (C) Regulatory relations between Ras2 and the cAMP-PKA pathway and Pmk1 MAPK pathway. (D,E) Appressorium formation of P. oryzae strains on hydrophilic surfaces with or without supplemented 8-Br-cAMP when RAS2^G18V was overexpressed in both the wild-type and ∆Poral2 strains. Bar=20μm. (F) Expression levels of Mps1 and Pmk1 kinases was detected by Western blot using anti-Phospho-p44/42 MAPK antibody (top panel), anti-ERK1/ERK2 MAPK antibody (middle panel), and anti-GAPDH antibody (lower panel). Numbers under the pictures represent the protein contents of phospho-Pmk1 or total Pmk1 relative to that of GAPDH (mean, n =3 independent experiments). The protein contents were determined according to gray values of Western blot bands measured by Image J. The phosphorylation level of Pmk1 in the ∆Poral2 mutant was reduced compared to the wild type.

The dominant expression of the activated RAS2^G18V allele causes the wild-type strain to form appressoria on a hydrophilic surface by activating cAMP-PKA and Pmk1 MAPK pathways (Zhou et al., 2014; Figure 4C). We overexpressed the activated RAS2^G18V allele C-terminally fused to GFP under the control of the H3 promoter in wild-type and ∆Poral2 strains. Overexpression of RAS2^G18V in the wild type permitted appressorium formation on a hydrophilic surface (Figures 4D,E). However, overexpression of RAS2^G18V in the ∆Poral2 mutant strain did not permit appressorium formation on a hydrophilic surface, even in the presence of 8-Br-cAMP (Figures 4D,E). The Pmk1 MAPK cascade is another signaling pathway that controls appressorium formation, and deletion of PMK1 results in the inability to form appressorium (Xu and Hamer, 1996). We determined the levels of non-phosphorylated and phosphorylated Pmk1 proteins via Western blot, using anti-ERK1/ERK2 MAPK and anti-Phospho-p44/42 MAPK antibodies, respectively. As shown in Figure 4F, the protein levels of non-phosphorylated Pmk1 in the ∆Poral2 strain were comparable to the wild type, whereas phosphorylated Pmk1 levels were reduced. In contrast, the Mps1 phosphorylation level of the ∆Poral2 strain was comparable to the wild type (Figure 4F), implying that Pmk1 phosphorylation, but not Mps1 phosphorylation, is specifically reduced in the ∆Poral2 strain. The imperfect responses to exogenous cAMP and activated Ras2^G18V on a non-inducing surface, and the reduced phosphorylated Pmk1 levels displayed by the ∆Poral2 strain implied that PoRal2 is involved in both the cAMP-PKA and Pmk1 MAPK signaling pathways.

Deletion of PoRAL2 Leads to Down-Regulation of Genes Involved in Signaling Pathways Required for Appressorium Formation

As the ∆Poral2 strain did not respond to exogenous cAMP on hydrophilic surfaces in the same manner as the wild type, we measured the relative expression levels of MPG1, PTH11, WISH, RGS1, and RGS7 involved in surface recognition and signal transition (Talbot et al., 1996; Liu and Dean, 1997; DeZwaan et al., 1999; Liu et al., 2007; Kou et al., 2017; Sabnam and Barman, 2017), MAC1 and PDEH in the cAMP-PKA pathway (Choi and Dean, 1997; Ramanujam and Naqvi, 2010), as well as RAS1, RAS2, and PMK1 in the Pmk1 MAPK pathway (Zhou et al., 2014) during appressorium formation. At 3.5 and 8hpi, MPG1, WISH, PDEH, and RAS2 were significantly down-regulated, while PTH11 was significantly up-regulated. RGS1 was significantly down-regulated at 8 hpi, while RGS7 at 8hpi and PDEH at 18hpi were significantly up-regulated (Figure 5A). In aerial hyphae, PKC1 and OSM1 involved in cell wall integrity and osmotic signaling pathways (Ryder et al., 2019), and PIG1, ALB1, RSY1, and BUF1 involved in the melanin synthesis pathway (Tsuji et al., 2000; Zhu et al., 2020), and MPG1, PTH11, RGS1, PDEH, and RAS2 were all significantly down-regulated in the ∆Poral2 mutant (Figure 5B). Down-regulation of PIG1, ALB1, RSY1, and BUF1 was correlated with the less melanized aerial mycelium of the ∆Poral2 mutant (Figure 2A). These results suggest that the expression of several pivotal genes in the cAMP-PKA, Pmk1 MAPK, and melanin synthesis was altered by deletion of PoRAL2 in P. oryzae.

FIGURE 5

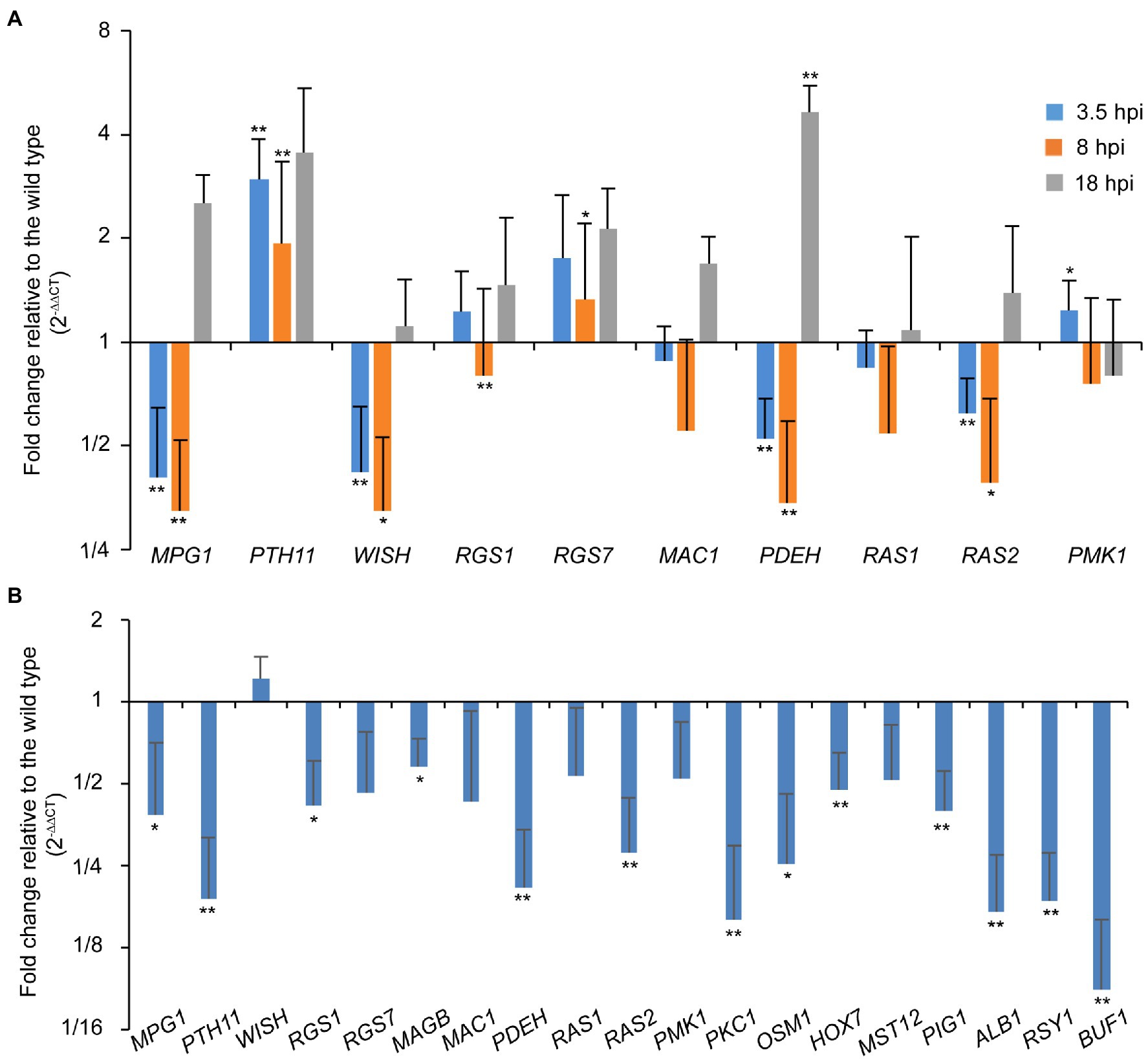

Figure 5. PoRal2 is required for the expression of genes involved in appressorium formation in P. oryzae. (A) Relative mRNA expression levels in germinating spores at 3.5, 8, and 18hpi of the ∆Poral2 strain. (B) Relative mRNA expression levels in the aerial hyphae in the ∆Poral2 strain. Transcript levels of MPG1, PTH11, WISH, RGS1, RGS7, MAGB, MAC1, PDEH, RAS1, RAS2, PMK1, PKC1, and OSM1 genes involved in cAMP signaling and MAP kinase cascade pathways, and PIG1, ALB1, BUF1, and RSY1 genes involved in melanin synthesis were determined in the wild-type and ∆Poral2 strains by RT-qPCR. The reference genes used were ACTIN and 40S. Significant differences compared with the wild type were estimated by Tukey’s HSD test: ^*p<0.05 and ^**p<0.01.

PoRal2 Is Involved in Plant Penetration and Virulence of P. oryzae

After spraying spore suspensions (5×10⁴conidia/ml) on rice seedlings, which were then cultured in the dark at 22°C for 2days and under a 16:8h light/dark cycle at 25°C for 4days, the disease incidence of the ∆Poral2 strain was only 12.12%, whereas that of the wild type reached 39.02%, suggesting that the virulence of the ∆Poral2 strain was significantly reduced (Figures 6A,B). To test appressorium penetration ability, conidia were dropped onto 7-day-old barley leaves and cultured at 25°C, and the status of appressorium penetration was checked at 24 and 48hpi. At 24hpi, the ∆Poral2 mutant had only formed appressoria on barley leaves, while appressoria of the wild-type and Poral2c strains had already produced short penetration pegs inside leaf cells (Figure 6C). At 48hpi, while the ∆Poral2 strain had just begun producing differentiated bulbous hyphae in the first infected cell, hyphae of the wild-type strain had already invaded into neighboring cells. The percentage of appressoria that had penetrated into barley cells was 70.6% for the wild type and 0.9% for ∆Poral2 at 24hpi, and 98.93 and 69.7% at 48hpi, respectively (Figure 6D). Therefore, penetration into the plant host by the ∆Poral2 mutant was significantly delayed, suggesting PoRAL2 is a virulence gene for P. oryzae.

FIGURE 6

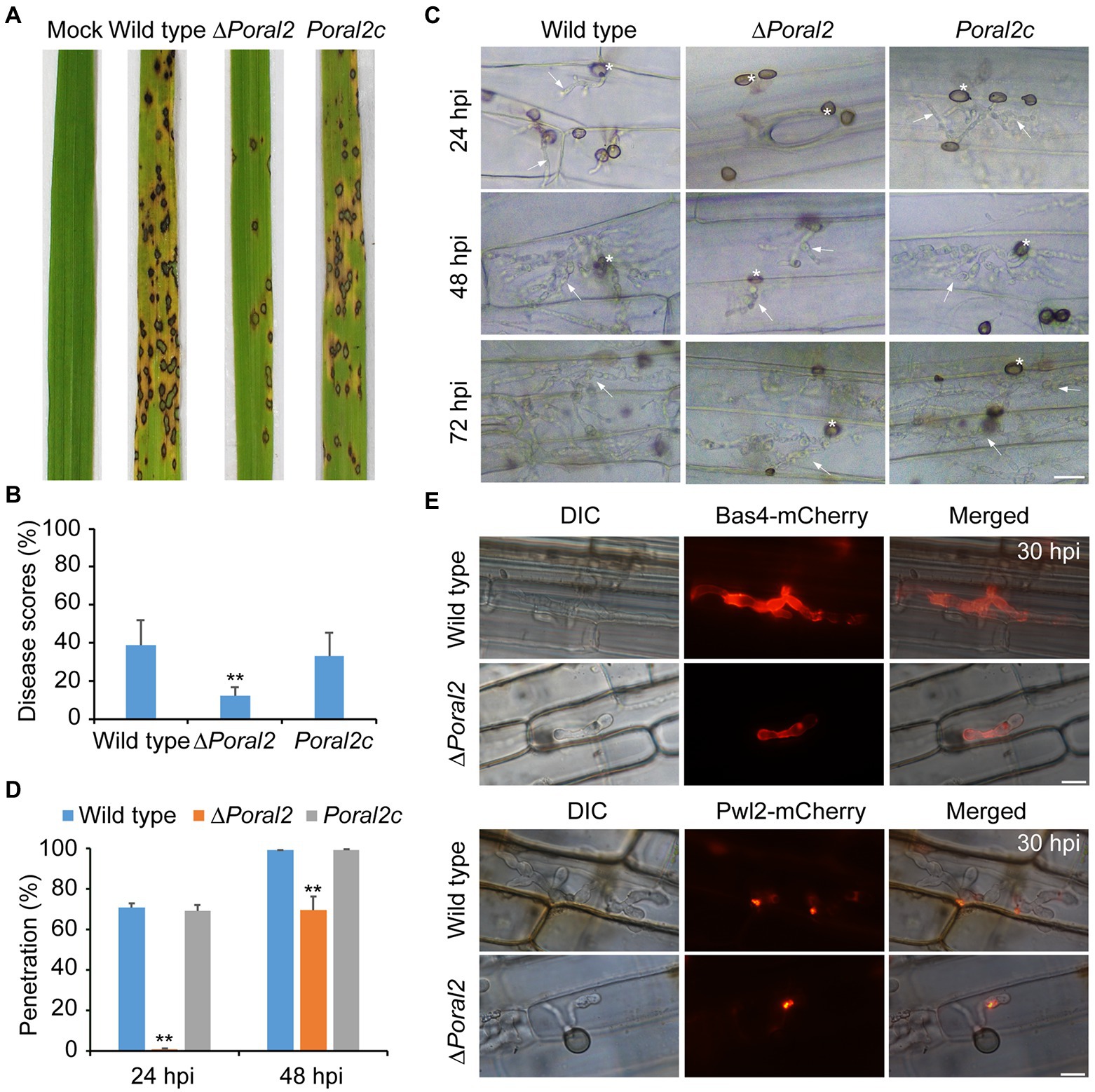

Figure 6. Virulence and plant penetration assays. (A) Conidial suspensions (5×10⁴conidia/ml) were sprayed onto 14-day-old rice seedlings and cultured for 2days in darkness at 22°C and 4days under a 16:8-h light/dark cycle at 25°C. (B) Disease scores for the wild-type, ∆Poral2, and Poral2c strains were measured with 5-cm leaf length by Photoshop CS6. (C) Penetration and invasive growth in barley leaves at 24, 48, and 72hpi. Bar=20μm. Asterisks indicate appressoria, and arrows indicate invasive hyphae. (D) Penetration rate (%) of P. oryzae appressoria at 24 and 48hpi. 20μl of conidial suspensions (5×10⁴conidia/ml) was inoculated onto intact barley leaves at 25°C. (E) Location of Bas4-mCherry and Pwl2-mCherry-NLS in wild-type and ∆Poral2 strains in leaf sheaths at 30hpi. Bar=10μm. (B,D) Error bars represent standard deviations. Significant differences compared with the wild type were estimated by Tukey’s HSD test: ^*p<0.05 and ^**p<0.01.

During infection, P. oryzae secretes effectors at the pathogen–host cell membrane interface to promote biotrophic invasion and overcome host plant defenses (Khang et al., 2010). Pwl2 is a cytoplasmic effector, located in the BIC (biotrophic interfacial complex) at primary invasive hyphal tips, which is translocated into the rice cytoplasm, while Bas4 is an apoplastic effector located in plant-derived EIHMs (extrainvasive hyphal membranes) covering the invasive hyphae (Khang et al., 2010). Given that penetration and invasive growth were delayed in the ∆Poral2 mutant, we observed the location of Bas4-mCherry and Pwl2-mCherry-NLS after inoculation of the wild-type and ∆Poral2 strains onto rice sheaths for 30h. Secretion of neither Bas4 nor Pwl2 by ∆Poral2 showed apparent differences from secretion of these proteins by the wild-type strain, although infection by the ∆Poral2 strain was delayed in rice sheath cells (Figure 6E).

PoRal2 Protein-Interaction Assays

In S. pombe, Ral2 is a Ras1-Scd pathway protein which physically interacts with Gef1 (Fukui et al., 1989; Tafforeau et al., 2006). We found that overexpression of SCD1 in ∆Poral2 led to generation of longer germ tube in the mutant (Supplementary Figure S4). In P. oryzae, Ras1 and Ras2 interact with Gef1, Smo1, Mst11, and Mst50 (Park et al., 2006; Kershaw et al., 2019). We identified the interactions between PoRal2 and several proteins in the Pmk1 MAPK signaling pathway using the yeast two hybrid systems (Y2H). PoRal2 interacted with Mst50, Scd1, Smo1, Gef1, and Pmk1 in Y2H (Figure 7A). Mst50 interacted with Cdc42, Gef1, and Smo1 in Y2H (Supplementary Figure S5). Furthermore, PoRal2N or PoRal2K, but not PoRal2C strongly interacted with Scd1, Mst50, and Gef1; none of PoRal2N, PoRal2K, or PoRal2C interacted with Smo1 in Y2H (Supplementary Figure S6). Whether Gef1 was used as the prey or a bait protein, it always interacted with PoRal2 in Y2H; and Gef1a and Gef1c interacted with PoRal2N in Y2H (Figure 7A; Supplementary Figure S6). To confirm the PoRal2-interacted proteins revealed by Y2H, CoIP, and/or pull-down assays were conducted. In CoIP experiments, Mst50 could be precipitated by PoRal2N (Figure 7B). In pull-down experiments, Scd1, Smo1, and Mst50 were pulled down by PoRal2 (Figure 7C). Thus, PoRal2 physically interacted with Mst50, Scd1, and Smo1 in P. oryzae.

FIGURE 7

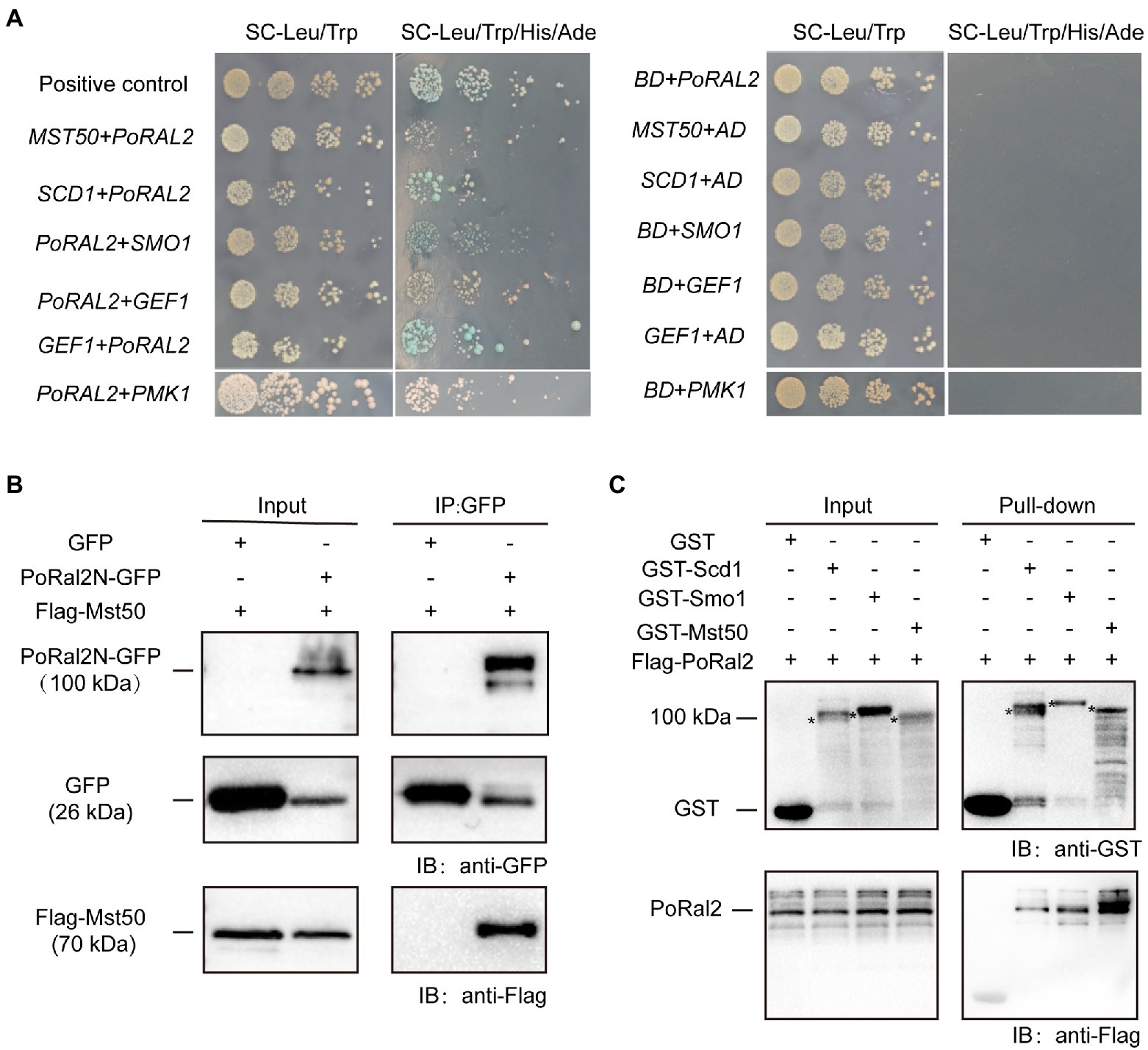

Figure 7. Protein interactions assays. (A) Yeast Two-Hybrid Assays. PoRal2 and Smo1, Pmk1, Gef1, Scd1 or Mst50 cloned in pGADT7 or pGBKT7 were co-transformed into yeast and cultured on selection media. (B) Co-immunoprecipitation results of PoRal2N-GFP and Mst50-3×Flag in P. oryzae. PoRal2N-GFP and Mst50-3×Flag was detected in PoRal2N-GFP elution buffer, while only GFP was detected in GFP elution buffer. (C) Pull-down results of 3×Flag-PoRal2 between GST, GST-Scd1, GST-Smo1, and GST-Mst50 in E. coli BL21. 3×Flag-PoRal2 was detected in GST-Scd1, GST-Smo1 and GST-Mst50, but not in GST alone elution buffer. Asterisks represented the band of Scd1 (141.82kDa), Smo1 (141.82kDa), or Mst50 (80.34kDa), respectively.

Discussion

The kelch superfamily is one of the largest evolutionarily conserved protein families in metazoan organisms, which are classified by the types and numbers of kelch-repeat, BTB/POZ, and BACK domains (Prag and Adams, 2003). Kelch-repeat proteins are known to control multiple cellular processes, such as actin dynamics, cell morphology maintenance, the cell cycle, oxidative stress responses, and gene expression regulation (Adams et al., 2000). In this study, we identified and characterized the N-terminal kelch repeat and C-terminal BTB domain containing protein, PoRal2, in P. oryzae (Figure 1A), and found that PoRal2 plays vital roles in aerial hyphal differentiation, conidiophore and spore development, appressorium formation, plant penetration, and fungal virulence (Figures 2–6).

∆Poral2 displayed longer germ tubes, delayed appressorium formation, and decreased infection growth and virulence (Figures 4A,B, 6). These mutant phenotypic characteristics might be caused by its defects in the cAMP-PKA and Pmk1 MAPK pathways (Figure 4). Similar phenotypes were observed in the mutants that were defective in the cAMP-PKA or Pmk1 MAPK pathways. ∆cpka in which one of the two PKA catalytic subunit genes was deleted showed longer germ tubes, delayed appressorium formation, as well as loss of virulence (Mitchell and Dean, 1995; Selvaraj et al., 2017). ∆magB, ∆mgb1, and ∆mac1 that were defective in the cAMP-PKA pathway showed longer germ tubes and reduced virulence (Choi and Dean, 1997; Liu and Dean, 1997; Nishimura et al., 2003). Blocking the Pmk1 MAPK pathway, such as in ∆mst11, ∆mst7, and ∆pmk1, led to longer germ tubes that formed subapical swollen bodies but failed to differentiate into appressoria and lose virulence (Zhao et al., 2005; Zhao and Xu, 2007; Qi et al., 2015). Addition of exogenous cAMP or expression of activated RAS2^G18V could not help ∆pmk1 develop appressoria (Xu and Hamer, 1996; Zhou et al., 2014). In this study, ∆Poral2 also failed to respond to exogenous cAMP or expression of activated RAS2^G18V on hydrophilic surface and showed decreased Pmk1 phosphorylation levels (Figures 4D–F). In addition to appressorium formation, Pmk1 is involved in plant penetration. Strain pmk1^AS, a complemented strain of ∆pmk1 by an analog-sensitive (AS) allele of PMK1, formed appressoria normally in the presence of 5μM 1NA-PP1 (an ATP analog 1-naphthyl-PP1) but displayed reduced penetration ability and invasive growth (Sakulkoo et al., 2018). Furthermore, Pmk1 regulated the transcriptional factor MST12 which particularly controlled plant penetration (Park et al., 2002). Therefore, we postulated that the deletion of PoRAL2 led to reduced Pmk1 activation that is responsible for reduced plant penetration. In S. pombe, Ral2 is a Ras1-Scd pathway protein found to physically interact with Gef1 (Tafforeau et al., 2006; Vo et al., 2016). Gef1 is a GMP exchange factor (GEF) of Cdc42 (Vo et al., 2016). In P. oryzae, Ras1 and Ras2 have been reported to physically interact with the GEF, Gef1, the GTPase-activating protein, Smo1, the MEK kinase, Mst11, and the scaffold protein, Mst50, which interacts with Mst11, Mst7 and Cdc42 (Park et al., 2006; Kershaw et al., 2019). In this study, PoRal2 was found to physically interact with Mst50, Scd1, and Smo1. The interaction between PoRal2 and Gef1 was also confirmed by Y2H. It was found that the N-terminal half fragment (PoRal2N) or kelch domain (PoRal2K) of PoRal2 was enough for its interaction with Scd1, Gef1 and Mst50; Gef1a and Gef1c were enough for Gef1 to interact with PoRal2N in Y2H (Supplementary Figure S6). Considering that Ral2 possibly functions as a Ras-like protein which works closely to Ras1 in S. pombe (Philips and Herskowitz, 1998), and PoRal2 from P. oryzae interacted with most of the components reported to interact with Ras1 and Ras2 in the upstream of the Pmk1 MAPK pathway, like Mst50, Smo1, Gef1, and Scd1 (Figure 7; Supplementary Figure S5), we proposed that PoRal2 may connect with Mst50, Scd1, Gef1, and Smo1 and function upstream of the Pmk1 MAPK pathway (Figure 8). Mst50 is an adapter protein involved in the Pmk1 MAPK, Mps1 MAPK, and Osm1 MAPK pathways (Li et al., 2017), suggesting that PoRal2 possibly plays its physiological functions in appressorium formation and infection via the Mps1 MAPK and Osm1 MAPK pathways.

FIGURE 8

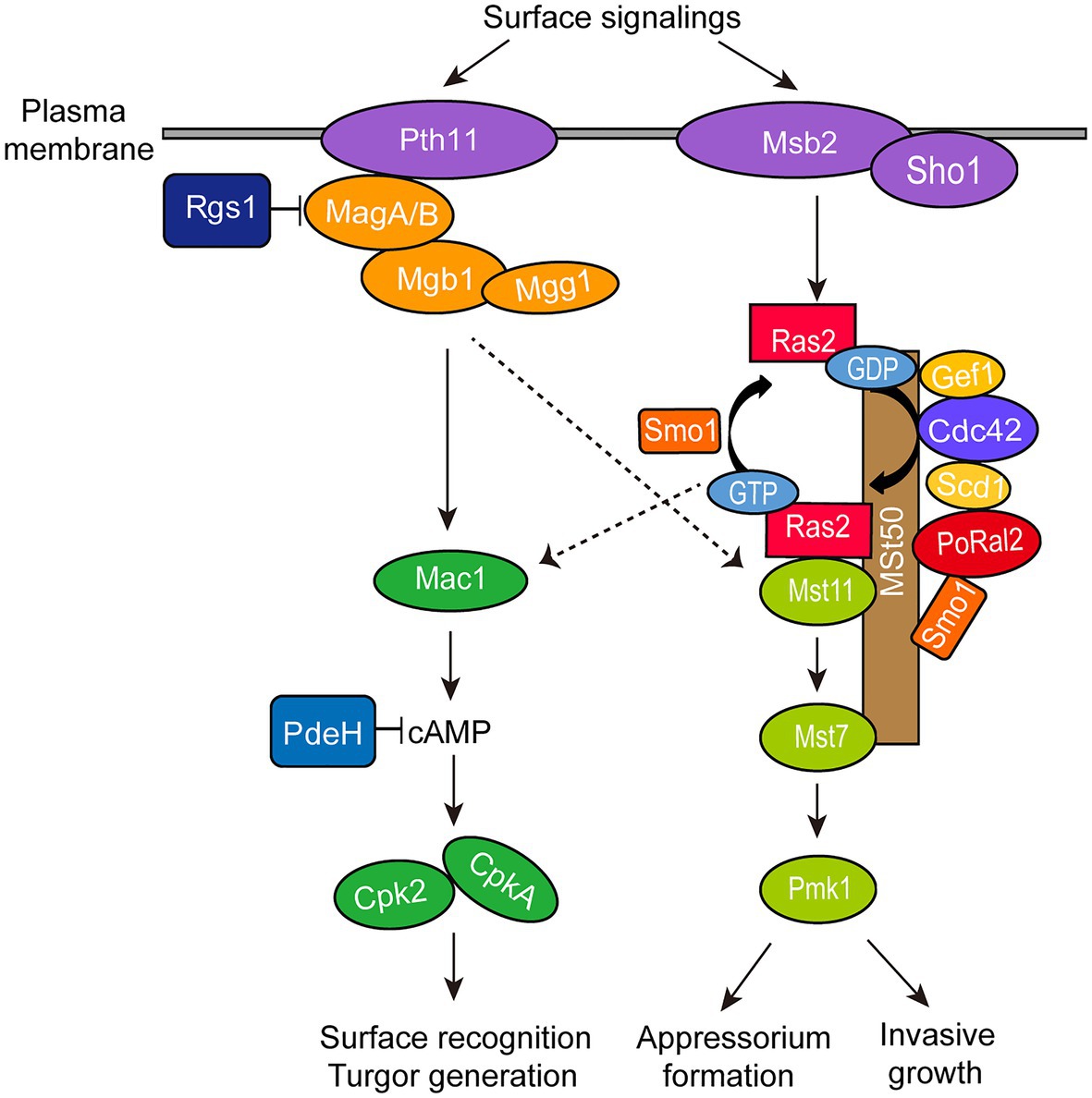

Figure 8. Model for PoRal2 roles during surface signaling transduction and appressorium formation in P. oryzae. PoRal2 interacts with Smo1, Scd1, and Mst50 to regulate the activation of the Mst11-Mst7-Pmk1 MAPK pathway by Ras2, thereby controlling the appressorium formation and invasive growth process.

In summary, we characterized the biological functions of P. oryzae PoRal2, a kelch and BTB domain protein homologous to the S. pombe Ral2 protein. PoRal2 is involved in aerial hypha and spore differentiation, germ tube extension, appressorium turgor generation, plant penetration, invasive growth, and virulence in P. oryzae. PoRal2 plays roles in the cAMP-PKA signaling pathway and functions upstream of the Pmk1 MAPK pathway through interaction with Scd1, Smo1, and Mst50 proteins.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

YQ and JL contributed to the experimental design. YQ, JW, and PH contributed to the experiments. YQ, JW, and JL contributed to the data analysis and scripts. FL, XL, and JL supplied experimental conditions. YQ, JL, FL, and XL wrote the manuscript. All authors contributed to the article and approved the submitted version.

Funding

This research was supported by the National Natural Science Foundation of China (Grant Nos: 31871908 and 31671975) and Key R&D projects of Zhejiang Province (Grand No: 2021C02010).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2021.702368/full#supplementary-material
