Does a Large Ear Type Wheat Variety Benefit More From Elevated CO2 Than That From Small Multiple Ear-Type in the Quantum Efficiency of PSII Photochemistry?

Recently, several reports have suggested that the growth and grain yield of wheat are significantly influenced by high atmospheric carbon dioxide concentration (CO₂) because of it photosynthesis enhancing effects. Moreover, it has been proposed that plants with large carbon sink size will benefit more from CO₂ enrichment than those with small carbon sink size. However, this hypothesis is yet to be test in winter wheat plant. Therefore, the aim of this study was to examine the effect of elevated CO₂ (eCO₂) conditions on the quantum efficiency of photosystem II (PSII) photochemistry in large ear-type (cv. Shanhan 8675; greater ear C sink strength) and small multiple ear-type (cv. Early premium; greater vegetative C source strength) winter wheat varieties. The experiment was conducted in a free air CO₂ enrichment (FACE) facility, and three de-excitation pathways of the primary reaction of PSII of flag leaf at the anthesis stage were evaluated under two CO₂ concentrations (ambient [CO₂], ∼415 μmol⋅mol^–1, elevated [CO₂], ∼550 μmol⋅mol^–1) using a non-destructive technique of modulated chlorophyll fluorescence. Additionally, the grain yield of the two varieties was determined at maturity. Although elevated CO₂ increased the quantum efficiency of PSII photochemistry (Φ_PSII) of Shanhan 8675 (SH8675) flag leaves at the anthesis stage, the grain number per ear and 1,000-kernel weight were not significantly affected. In contrast, the Φ_PSII of early premium (ZYM) flag leaves was significantly lower than that of SH8675 flag leaves at the anthesis stage, which was caused by an increase in the regulatory non-photochemical energy dissipation quantum (Φ_NPQ) of PSII, suggesting that light energy absorbed by PSII in ZYM flag leaf was largely dissipated as thermal energy. The findings of our study showed that although SH8675 flag leaves exhibited higher C sink strength and quantum efficiency of PSII photochemistry at the anthesis stage, these factors alone do not ensure improved grain yield under eCO₂ conditions.

Introduction

According to the IPCC (The Intergovernmental Panel on Climate Change) report, atmospheric CO₂ concentration has been on an increase since the industrial revolution and is predicted to increase to 550 μmol⋅mol^–1 in 2,050 and 1,020 μmol⋅mol^–1 (RCP8.5) by the end of the century (Stocker et al., 2013; Dier et al., 2019). Atmospheric CO₂ is an essential environmental factor necessary for photosynthesis, and it is commonly believed that photosynthesis is stimulated by elevated CO₂ (eCO₂) in C3 crops, because the ribulose-1,5-bisphosphate carboxylase-oxygenase (RuBisCO) is not substrate-saturated under the current ambient CO₂ (aCO₂) concentrations (Long et al., 2006; Aranjuelo et al., 2013). As one of the most important C₃ food crop, wheat (Triticum aestivum L.) has been demonstrated to be highly sensitive to climatic and environmental variations (Misra and Chen, 2015; Pandey et al., 2018; Urban et al., 2018). Several studies have examined the effects of eCO₂ on wheat photosynthesis; however, most of the studies focus on the dark phase of photosynthesis. Moreover, the effect of eCO₂ on the primary reaction of photosystem II (PSII) in wheat is not fully understood. Primary reactions of photosystems mainly involve converting light energy into a primary form of chemical energy (Mathis and Rutherford, 1987). Effective photosynthesis involves optimum light absorption by the photosystem and the use of absorbed light quanta in subsequent oxygen-evolving reactions (Barber, 2016). Therefore, there is a need to examine the primary reaction of PSII in wheat photosynthetic organs under future eCO₂ environments for sustainable wheat production.

Earlier studies on crop responses to elevated CO₂ suggested significant genotypic variability in growth and yield (Ziska et al., 2012; Tausz et al., 2013; Tausz-Posch et al., 2015; Erice et al., 2019). The differences in light energy dissipative mechanisms between varieties in response to eCO₂ might offer opportunities for the selection and breeding of high grain yield varieties for future production conditions. In cereals, it has been suggested that the source-sink relationship is a key factor for photosynthetic efficiency response to elevated CO₂ (Uddling et al., 2008; Tausz et al., 2013). It has been proposed that plants are capable of avoiding photosynthetic downregulation because of their ability to increase C sink strength (Aranjuelo et al., 2009). It is of great interest to know how elevated CO₂ will influence photosynthetic CO₂ fixation, photoassimilates metabolism, and source-sink relationships in different varieties.

In wheat plants, photoassimilates accumulate mainly in the form of starch in the steams and in the form of sucrose in the flag-leaf before heading. After heading, the stored sugar is remobilized and transported to the ears, the new sink organs. The contribution of carbohydrate assimilated before anthesis to grain yield is in the range of 20∼40% of grain yield (Cock and Yoshida, 1972). However, little information has been reported on the carbon metabolism and allocation of photoassimilates in wheat varieties with different ear types and sizes under elevated CO₂. Identifying wheat varieties that can permit full utilization of photosynthetic capacity is crucial for breeding high-photosynthesis potential varieties that are suitable for growth under elevated CO₂ environments. Hence, the main objective of this study was to analyze the responses of large ear type and small multiple ear-type winter wheat varieties to elevated CO₂ concentrations using modulated chlorophyll fluorescence detection technology.

The modulated chlorophyll fluorescence detection technology can rapidly capture fluorescence signals originating only from the plants and highly sensitive physiological responses to plant physiological status, particularly the responses of PSII activity to environmental changes (Feng et al., 2015; Goltsev et al., 2016; Banks, 2018; Osipova et al., 2019). Moreover, it can also identify the physiological conditions of plants at larger spatial and temporal scales (Zarco-Tejada et al., 2002). Additionally, chlorophyll fluorescence detection can explain the stepwise flow of energy through PSII from light absorption, dissipation, and electron transport for photochemical reactions (Kalaji et al., 2014). Therefore, in the present study, we adopted chlorophyll fluorescence detection technology to explore the effects of eCO₂ on the quantum efficiency of PSII photochemistry in large ear and small multiple ear-type wheat varieties. The objectives of the study were: (i) to analyze the effect of eCO₂ on chlorophyll fluorescence, photochemistry, and thermal dissipation in large ear and small multiple ear-type wheat varieties; (ii) to determine whether large ear type winter wheat variety with greater ear C sink strength (var. Shanhan 8675) possess higher quantum efficiency of PSII than that does the small multiple ear-type variety (cv. Early premium) under eCO₂ environment; and (iii) to analyze the correlation between yield parameters and photosynthetic parameters, and to explore their responses to eCO₂. The main hypothesis of this study is that the PSII primary photochemistry reaction of large-ear wheat variety responds positively (higher quantum efficiency of PSII photochemistry and lower non-photochemical energy dissipation quantum) to elevated CO₂.

Materials and Methods

Experimental Site and Mini-FACE System

The experiment was conducted in a wheat-maize rotation mini-free air carbon dioxide enrichment system of Chinese Academy of Agricultural Sciences (CAAS-FACE system) in Changping (40°10′N, 116°14′E), Beijing, China, from 2016 to 2017. The soil (0–0.20 m) used for the study was a clay loam with pH (soil:water ratio of 1:5) of 8.4, organic C content of 14.10 g⋅kg^–1, total N of 0.82 g⋅kg^–1, available phosphorus of 19.97 mg⋅kg^–1, and ammonium acetate extractable potassium of 79.77 mg⋅kg^–1. The mean rainfall and temperature during the wheat growth period were 203 mm and 8.0°C, respectively (Figure 1). The Mini-FACE system consisted of 12 experimental plots, including six eCO₂ rings (550 ± 17 μmol⋅mol^–1) and six ambient CO₂ (aCO₂) rings (415 ± 16 μmol⋅mol^–1), each with a diameter of 4 m. The experimental plots were at least 14 m apart to minimize cross-contamination of CO₂ between the experimental treatments (Han et al., 2015). The CO₂ enrichment treatment was accomplished using eight steel release pipes arranged like octagon corners, which released CO₂ gas (Figure 2). In the case of eCO₂ treatment, CO₂ enrichment commenced 1 week after sowing and terminated at maturity. The CO₂ concentration was maintained at 550 ± 17 μmol⋅mol^–1 throughout the study period.

FIGURE 1

Figure 1. Rainfall (mm) and daily temperature (°C) at the wheat-maize rotation CAAS-FACE system in Changping, Beijing, China, from sowing of winter wheat until maturity during 2016–2017 experiment years.

FIGURE 2

Figure 2. Mini-free air carbon dioxide enrichment system of Chinese Academy of Agricultural Sciences (CAAS-FACE system) in Changping, Beijing, China.

Plant Material and Fertilization

Two winter wheat (Triticum aestivum L.) varieties, SH8675 and ZYM, were selected for this study. According to the ear traits and harvest index (HI), SH8675 is regarded as a large-ear variety, while ZYM is regarded as a small-ear variety (Table 1). The winter wheat varieties were sown in each of the CO₂ treatment plots at the same time, with a plot area of 3.75 m². The planting density of SH8675 and ZYM wheat was 333 plants per square meter and rows interval was 20 cm in elevated CO₂ rings (∼550 μmol⋅mol^–1) and ambient CO₂ rings (∼415 μmol⋅mol^–1), with three replicates per treatment. The varieties were planted randomly in each plot to minimize the effects of soil variation. Granular urea (N, 46%), diammonium phosphate (N:P₂O₅ 13:44%), and potassium chloride (K₂O, 60%) were applied as basal fertilizers at the rates of 100 kg⋅hm^–2, 165 kg⋅hm^–2, and 90 kg⋅hm^–2, respectively. At the jointing stage, granular urea was applied as side dressing at a rate of 100 kg⋅hm^–2 on April 28, 2017. Irrigation was applied twice during the entire growing season of the winter wheat: the wintering irrigation at a rate of 750 m³⋅hm^–2 on November 23, 2016, and spring irrigation at a rate of 750 m³⋅hm^–2 was applied at the jointing stage after side dressing fertilization.

TABLE 1

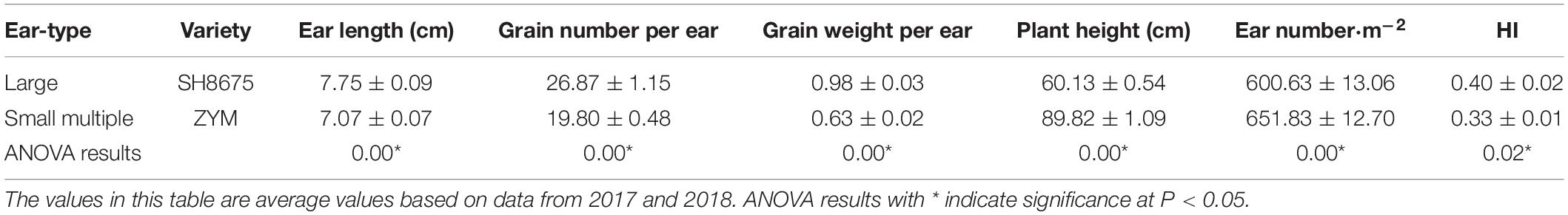

Table 1. Ear traits and the ratio of harvest index of SH8675 and ZYM wheat varieties.

Chlorophyll Fluorescence Measurements

Chlorophyll fluorescence parameters were measured using a pulse amplitude modulation fluorometer (MINI-PAM, Heinz Walz, Germany). Chlorophyll fluorescence measurements were performed using intact flag leaves (three plants from each CO₂ treatment) at 9:00–11:30 at half-way anthesis stage (DC 65) (Zadoks et al., 1974). Generally, SH8675 reaches anthesis (213 d) earlier than ZYM (216 d). However, in the present study, both varieties reached anthesis on the same day under CO₂ and eCO₂ conditions. The leaves were dark-adapted for 20 min with leaf clips to determine the ambient temperature fluorescence of dark-adapted leaf when all reaction centers are open and closed (Fo and Fm, respectively). Fo was measured under a weakly modulated measuring light (< 1μmol photons m^–2s^–1), and the leaves were immediately illuminated with an intense saturating pulse light (8,000 μmol photons m^–2s^–1, pulse time, 1s) to obtain Fm. The leaves were then light-adapted for 20 min, then turn on the actinic irradiation until the fluorescence reaches a steady state, the steady-state chlorophyll fluorescence (Fs) was measured, and Fm′ in the light-adapted state was estimated under saturated pulse light. According to previous studies, other parameters were calculated using the formulae given in Table 2.

TABLE 2

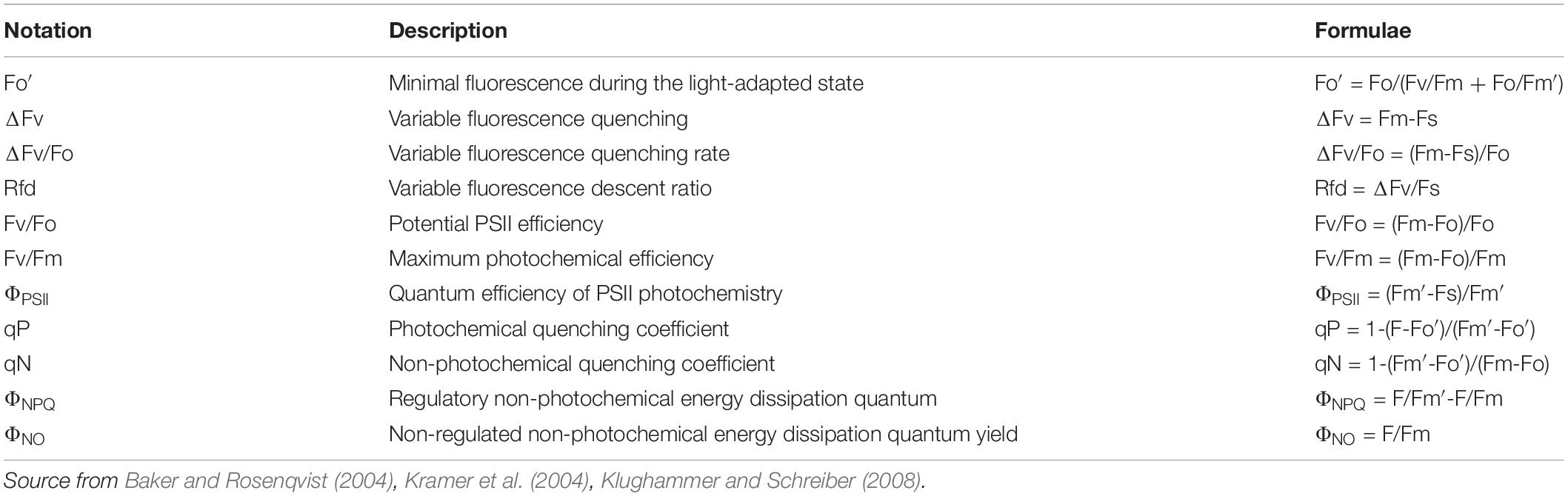

Table 2. Legends and formulae for the calculation of chlorophyll fluorescence parameters.

NSC Measurement and Calculation

Non-structural carbohydrates (NSC) were extracted from plants at the anthesis stage. Leaf samples were placed in paper bags, deactivated at 150°C, and then dried at 80°C to a constant weight. The samples were ground and sieved through a 0.5 mm sieve. Sucrose and starch contents were measured using a resorcinol reagent and 3,5-dinitrosalicylic acid colorimetry reagent according to the procedures described by Wang et al. (2019). The sucrose and starch contents of the samples were determined spectrophotometrically using a multimode microplate reader (Infinite 200 PRO Nano Quant, Tecan, Switzerland). In this study, sugar and starch concentrations were estimated for NSC (Pan et al., 2011).

Statistical Analysis

Statistical analysis of the data generated in this study was performed using SPSS 18.0 and EXCEL 2016. The experiment was arranged in a split-plot design with the plots arranged in randomized complete blocks; and the CO₂ concentrations (ambient or elevated CO₂) were the whole-plot treatment and the winter wheat varieties with different ear-types were the split-plot treatment. A general linear model was used to estimate the main effects of CO₂ and variety, as well as their interactions. Analysis of variance (ANOVA) was used to test for statistical significance to determine the differences between treatment means. Mean values were compared using the least significant difference (LSD) test and the means were considered significant at p < 0.05.

Results

Chlorophyll Fluorescence Yield and Attenuation

There was a 24.7% decrease (p < 0.05) in the Fm′ of ZYM and a 14.0% decrease (p < 0.05) in the Fs of SH8675 under eCO₂ condition (Table 3). However, there were no significant differences in the Fm′ and Fs of the two varieties under eCO₂ condition (Table 3). There was a 14.8 and 15.4% decrease (p < 0.05) in the ΔFv and ΔFv/Fo ratio of ZYM, respectively, under eCO₂ condition; moreover, the ΔFv/Fo ratio of ZYM was significantly lower (p < 0.05) than that of SH8675 under eCO₂ condition (Table 3). There was a 10.9% increase (p < 0.05) in the Rfd of SH8675 under eCO₂ condition (Table 3); however, there was no significant difference in the Rfd of the two varieties under eCO₂ condition (Table 3).

TABLE 3

Table 3. Effects of elevated CO₂ on chlorophyll fluorescence emission and attenuation of two winter wheat varieties.

Chlorophyll Fluorescence Quenching Coefficients

Elevated CO₂ had no significant effect on the qP of the two winter wheat varieties; moreover, the effect of the varieties on qP was not significant (Figure 3A). However, eCO₂ increased (p < 0.05) the qN of ZYM and SH8675 by 130.3 and 64.8%, respectively. Moreover, the qN of ZYM was significantly higher (p < 0.05) than that of SH8675 (Figures 3B,C), indicating that eCO₂ significantly increased the thermal dissipation potential (more light energy absorbed by PSII was dissipated thermally) of ZYM compared with that of SH8675.

FIGURE 3

Figure 3. Effects of eCO₂ on the qP and qN of two winter wheat varieties (A–C). Measurements were carried out on intact flag leaves. Data represent the mean of three plants from each plot ± SD (standard error) bars. ANOVA results with * indicate significance at p < 0.05. Vertical bar in Figure 3B indicates LSD (p < 0.05) for qN. Differences in the qN of the varieties in response to eCO₂ is showed in Figure 3C.

Non-photochemical Excitation Energy Dissipation

Φ_NPQ and Φ_NO are positively related to light energy utilization in photochemical reactions. Elevated CO₂ increased (p < 0.05) the Φ_NPQ of ZYM and SH8675 by 106.4 and 50.9%, respectively (Figure 4A). However, the Φ_NPQ of ZYM was significantly higher than that of SH8675 (Figure 4C), indicating that eCO₂ significantly increased the thermal dissipation of ZYM, which resulted in lower quantum efficiency of PSII photochemistry. While elevated CO₂ had no significant effect on the ΦNO of ZYM and SH8675 (Figures 4B,D).

FIGURE 4

Figure 4. Effects of elevated CO₂ on non-photochemical dissipation of two winter wheat varieties. Measurements were carried out on intact flag leaves. Data represent the mean of three plants from each variety plot ± SD (standard error) bars. ANOVA results with * indicate significance at p < 0.05. Vertical bars in (A,B) indicate LSD (p < 0.05) for Φ_NPQ and Φ_NO, respectively. Differences of Φ_NPQ and Φ_NO between varieties in responses to eCO₂ are shown in (C,D), respectively.

Photosynthetic Activity of PSII

Elevated CO₂ did not significantly affect the Fv/Fm ratio of the two varieties (Figure 5A). However, elevated CO₂ increased the Φ_PSII of SH8675 by 16.3% (p < 0.05), but decreased that of ZYM by 9.9%.

FIGURE 5

Figure 5. Effects of elevated CO₂ on the Φ_PSII and Fv/Fm ratios of two winter wheat varieties (A–C). Measurements were carried out on intact flag leaves. Data represent the mean of three plants from each plot ± SD (standard error) bars. ANOVA results with * indicate significance at p < 0.05. Vertical bars in (B,C) indicate LSD (P < 0.05) for Φ_PSII and Fv/Fo ratio, respectively. Differences of Φ_PSII between varieties in responses to eCO₂ are shown in (C).

Carbohydrate Contents of Flag Leaves and Biomass at Anthesis Stage

For the large-ear variety, the levels of sucrose increased by 15.9% and the levels of starch in the flag leaves declined by 18.6% under elevated CO₂ for SH8675. Contrast with the small multiple ear variety-ZYM, a larger amount of starch accumulated in the high-CO₂ grown leaves than in the controls, while the sucrose contents were decreased by CO₂ enrichment (Table 4). Additionally, there was a significant increase in the ear weight per unit area of the two varieties under eCO₂ condition. However, the ear weight per unit area of SH8675 was 30.2% higher (p < 0.05) than that of ZYM (Table 4).

TABLE 4

Table 4. Effects of elevated CO₂ on agronomic characters of two wheat varieties at anthesis stage.

Grain Number per Ear and 1,000-Kernel Weight

There were no significant differences in the grain number per ear and 1,000-kernel weight between the varieties under eCO₂ condition (Figure 6A). However, the grain number per ear of SH8675 was 31.1% higher (p < 0.05) than that of ZYM (increased by 16.3%) under eCO₂ condition (Figure 6A). Although, aCO₂ did not significantly affect grain numbers per ear and 1,000-kernel weight of the two varieties, SH8675 had a greater 1,000-kernel weight than that did ZYM under the two CO₂ treatments (Figure 6B).

FIGURE 6

Figure 6. Effects of elevated CO₂ on grain number per ear and 1,000-kernel weight of two winter wheat varieties (A,B). Measurements were carried out at maturity stage. Data represent the mean of three plants from each plot ± SD (standard error) bars. ANOVA results with * indicate significance at p < 0.05.

Discussion

In the present study, we examined the effect of elevated CO₂ on the primary reaction of PSII and carbon allocation in two winter wheat varieties with different ear C sink strengths. The results of the study showed that the greater ear C sink strength of SH8675 was beneficial for improved quantum efficiency of PSII photochemistry (Φ_PSII) and the carbon allocation of the flag leaf under eCO₂ at the anthesis stage. The carbohydrate content response to elevated CO₂ varied in different ear type wheat varieties. For the high CO₂ grown leaves, the starch content of SH8675 was significantly lower than that of the control, while that of ZYM was opposite. These results suggest that the high-CO₂ grown leaves may function as stronger sinks for small multiple ear variety than the control leaves. It seems that excess carbohydrates produced by ZYM exposed to elevated CO₂ and originally destined for storage in the stems and ears might be accumulated in the flag leaves, which are normally weak sinks.

However, the grain number per ear and 1,000-kernel weight of the wheat plants were not significantly affected by CO₂ concentrations or varieties (Figure 6). In contrast, a lower Φ_PSII was observed in the flag leaf of ZYM at the anthesis stage, which was caused by an increase in the Φ_NPQ of PSII, suggesting that light energy absorbed by PSII in ZYM flag leaf was largely dissipated as thermal energy compared to that utilized for photochemical reaction. Furthermore, the results of correlation analysis showed that although eCO₂ induced significant changes in the quantum efficiency of PSII photochemistry, these changes were not significantly correlated with grain number per ear and 1,000-kernel weight at the maturity stage in both wheat varieties (Figure 7). This result indicates that large ear type with high ear C sink strength alone does not necessary ensure effective utilization of eCO₂ for grain yield. However, at the anthesis stage, ear C sink strength improved the quantum efficiency of PSII photochemistry of flag leaf in response to eCO₂ condition (Figures 7, 8).

FIGURE 7

Figure 7. Correlations between grain number per ear (GNE), 1,000-kernel weight (GW), Φ_PSII, Fv/Fm, Φ_NO, Φ_NPQ, Fo, Fm, Fo′, Fm′, Fs, ΔFv, Rfd, and ΔFv/Fo in SH8675. Spearman’s rank correlation coefficient-based correlograms of the measured parameters on plants grown under elevated CO₂. The color of each square indicates the value of the correlation coefficient for each pair of traits following the color scale of the vertical color bar. The red and blue circles indicate negative or positive correlations between parameters, respectively.

FIGURE 8

Figure 8. Correlations between grain number per ear (GNE), 1,000-kernel weight (GW), Φ_PSII, Fv/Fm, Φ_NO, Φ_NPQ, Fo, Fm, Fo′, Fm′, Fs, ΔFv, Rfd, and ΔFv/Fo in ZYM. Spearman’s rank correlation coefficient-based correlograms of the measured parameters on plants grown under elevated CO₂. The color of each square indicates the value of the correlation coefficient for each pair of traits following the color scale of the vertical color bar. The red and blue circles indicate negative or positive correlations between parameters, respectively.

Light absorption by PSII is converted into energy, and most of the excitation energy is used for photosynthesis, a portion of the excitation energy is dissipated as heat, and a small percentage is emitted in the form of fluorescence (Maxwell and Johnson, 2000). Previous research has reported that elevated CO₂ significantly increases PSII photochemical activity in cereal crops (Wang et al., 2015). Besides that, eCO₂ led to decreases in both photorespiration rates and oxidative pressure was reported frequently (Leakey et al., 2009; Marçal et al., 2021). In the present study, the PSII photochemical activities of the two varieties in response to elevated CO₂ were different (Figure 4C). There was a significant decrease in the Φ_PSII of ZYM under eCO₂ condition (Figure 5B), which was caused by an increase in the qN of ZYM (Figure 3B), as indicated by the high Φ_NPQ of the flag leaves of ZYM (Figure 4A). Increased thermal dissipation in light-harvesting complexes competes with photochemistry for absorbed excitation energy, resulting in a decreased Φ_PSII (Yamamoto, 2016; Chen et al., 2018; Li et al., 2019). Therefore, it can be speculated that a large proportion of absorbed excitation energy of PSII in ZYM was dissipated as thermal energy, with lesser amount of energy used in photochemical processes. In contrast, eCO₂ caused a 11.9 and 10.3% decrease in Φ_NPQ and Φ_NO of SH8675, respectively (Figures 4A,B); the Φ_PSII of SH8675 increased with increase in CO₂ concentration from 415 μmol⋅mol^–1 to 550 μmol⋅mol^–1 (Figure 5B). Additionally, the Rfd value of SH8675 was significantly increased by eCO₂, indicating that the potential photosynthetic activity of SH8675 was higher under eCO₂ than that under CO₂. Rfd is a vital indicator of the photosynthetic activity of plant leaf (Tuba et al., 1994), with a higher Rfd value indicating a higher photosynthetic rate (Lichtenthaler et al., 2005). Previous research has shown that plants increase non-photochemical quenching, with a down-regulation of PSII activity that causes a decrease in the photosynthetic carbon metabolism (Aljazairi et al., 2014; Mathobo et al., 2017). However, in this study, although eCO₂ reduced the Φ_PSII of the flag leaf of ZYM at the anthesis stage, the grain number per ear and 1,000-kernel weight did not change significantly. Similarly, although eCO₂ increased the Φ_PSII of the flag leaf of SH8675 at anthesis stage, the number per ear and 1,000-kernel weight were not significantly affected. These results lead us to ask if the responses of three de-excitation pathways to elevated CO₂ differ due to different ear types in winter wheat varieties. The quantum efficiency of PSII photochemistry (Φ_PSII) can be used to estimate the photosynthetic performance of the two varieties under both CO₂ concentrations. In the present study, the wheat varieties were sensitive to eCO₂. The Φ_PSII of SH8675 and ZYM were positively and negatively affected by elevated CO₂, respectively. Hence, when CO₂ increased to 550 μmol⋅mol^–1, the PSII of SH8675 had a higher energy conversion efficiency than that did ZYM (Figures 5B,C). By analyzing the agronomic characteristics of these two winter wheat varieties, we found that the ear and leaf weights of SH8675 had the same response trend to elevated CO₂ as that of Φ_PSII (Table 4). Additionally, eCO₂ increased the sucrose ratio of the NSC of SH8675 flag leaf, but reduced the starch ratio (Table 4). Sucrose is the primary product of the source and substrate sink, and plays an important role in NSC metabolism and transfer into the ear (Griffiths et al., 2016; Weichert et al., 2017). Therefore, the above results indicated that under elevated CO₂ condition, the flag leaf of the large-ear variety exhibited enhanced capacity for light energy utilization and an efficient translation of carbohydrates into the ear at the anthesis stage. Thus, efficient carbohydrate transport is important for the efficient utilization of light energy by winter wheat flag leaves, which is necessary for sustainable wheat farming under future climate change scenario. This is confirmed by the results of previous studies, which showed that sink-source imbalance can cause an accumulation of total non-structural carbohydrates (soluble sugar and starch) in source leaves, leading to a decrease in the photosynthetic capacity of leaves (Kasai, 2008; Daisuke et al., 2019). However, for the small multiple-ear variety, ZYM, a large quantity of energy absorbed by the flag leaves was largely dissipated as thermal energy, with limited amount being utilized for photochemical reaction under eCO₂ condition. This could also be explained by the carbohydrate transfer theory, in which we analyzed NSC data and found that eCO₂ increased the starch ratio of the NSC content of ZYM flag leaf, which can cause a decrease in the translocation of carbohydrates and subsequently, a decrease in ear weight (Table 4).

Furthermore, the effect of eCO₂ on the ear weight of the two varieties at anthesis did not reflect in the grain number per ear and 1,000-kernel weight of the varieties at maturity stage. The reasons for this will be subject to further research. The methods need to be improved to explore the enzymatic activities of carbon metabolism and metabolites produced in photorespiration pathway, this is the limitations of the approach used in this study.

Conclusion

In summary, the findings of the present study suggest that the high ear C sink strength of SH8675 improved the quantum efficiency of PSII photochemistry of the flag leaf in response to elevated CO₂ and the translation of carbohydrates into the ear at the anthesis stage. In contrast, light energy absorbed by PSII in the ZYM flag leaf was largely dissipated as thermal energy, with relatively lesser amount being utilized for photochemical reaction; this resulted in a decrease in the translocation of carbohydrate to the ear and consequently a decrease in ear weight at the anthesis stage. However, the improvement in the quantum efficiency of PSII photochemistry of SH8675 flag leaf was not significantly correlated with grain number per ear and 1,000-kernel weight at maturity stage. Overall, the findings of our study indicate that high light utilization and high C sink strength alone does not necessarily ensure increased grain yield in wheat under eCO₂ conditions.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

YTL designed the study, performed the research and statistical analysis, and wrote the manuscript. SZ and YJL performed the experimental studies, data acquisition, and data analysis. XH conceived the idea and approved the final version of the manuscript. XL and EL contributed to conception and design of the study. YF provided intellectual content for this manuscript. All authors contributed to manuscript revision, read, and approved the submitted version.

Funding

This work was supported by the National Key Research and Development Project (2016YFD0300401 and 2019YFA0607403).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We would like to thank Dr. Golam Jalal Ahammed for his review and constructive suggestions.
