Root Adaptation via Common Genetic Factors Conditioning Tolerance to Multiple Stresses for Crops Cultivated on Acidic Tropical Soils

Crop tolerance to multiple abiotic stresses has long been pursued as a Holy Grail in plant breeding efforts that target crop adaptation to tropical soils. On tropical, acidic soils, aluminum (Al) toxicity, low phosphorus (P) availability and drought stress are the major limitations to yield stability. Molecular breeding based on a small suite of pleiotropic genes, particularly those with moderate to major phenotypic effects, could help circumvent the need for complex breeding designs and large population sizes aimed at selecting transgressive progeny accumulating favorable alleles controlling polygenic traits. The underlying question is twofold: do common tolerance mechanisms to Al toxicity, P deficiency and drought exist? And if they do, will they be useful in a plant breeding program that targets stress-prone environments. The selective environments in tropical regions are such that multiple, co-existing regulatory networks may drive the fixation of either distinctly different or a smaller number of pleiotropic abiotic stress tolerance genes. Recent studies suggest that genes contributing to crop adaptation to acidic soils, such as the major Arabidopsis Al tolerance protein, AtALMT1, which encodes an aluminum-activated root malate transporter, may influence both Al tolerance and P acquisition via changes in root system morphology and architecture. However, trans-acting elements such as transcription factors (TFs) may be the best option for pleiotropic control of multiple abiotic stress genes, due to their small and often multiple binding sequences in the genome. One such example is the C2H2-type zinc finger, AtSTOP1, which is a transcriptional regulator of a number of Arabidopsis Al tolerance genes, including AtMATE and AtALMT1, and has been shown to activate AtALMT1, not only in response to Al but also low soil P. The large WRKY family of transcription factors are also known to affect a broad spectrum of phenotypes, some of which are related to acidic soil abiotic stress responses. Hence, we focus here on signaling proteins such as TFs and protein kinases to identify, from the literature, evidence for unifying regulatory networks controlling Al tolerance, P efficiency and, also possibly drought tolerance. Particular emphasis will be given to modification of root system morphology and architecture, which could be an important physiological “hub” leading to crop adaptation to multiple soil-based abiotic stress factors.

Introduction

Acidic soils (soils pH < 5.5) are quite extensive worldwide, comprising up to 50% of the world’s potentially arable lands (Von Uexküll and Mutert, 1995). As the acidic weathered soils are particularly prominent in the humid tropics and subtropics where many developing countries in sub-Saharan Africa and Asia are located, and food production must keep pace with population growth (Godfray et al., 2010), acidic soils are a major constraint for developing world agriculture The two most significant limitations to crop production on acid soils from the plant nutrition perspective are aluminum (Al) toxicity and phosphorus (P) deficiency (Kochian et al., 2015). Both arise from the unique chemical properties of highly weathered acid soils. Aluminum is the most abundant metal in the earth’s crust as it is a major component of clays, as aluminosilicates. At soil pH values of pH 5.5 and below, Al³⁺ ions are solubilized into the soil solution. Al³⁺ is quite toxic to roots, inhibiting both root elongation and root meristem cell division (see, for example, Kochian, 1995; Ma et al., 2001, and references therein). This results in major reductions in yields due to insufficient water and mineral nutrient uptake by the root systems. Low-P soil levels and availability also arise from the chemical properties of acidic soils as soil weathering exposes Al and Fe oxides/hydroxides on the surface of clay minerals, which bind soil P (as the phosphate anion) tightly, reducing its bioavailability (Marschner, 1995). Soils with low P availability will be designated henceforth as low-P soils for brevity. The third related stress we address in this review is drought stress, which is found on all soil types, including acidic soils. The unique aspect to acidic soils is that crop adaptation to drought on those soils requires that the plants be both Al tolerant to maintain a healthy root system to facilitate water absorption, along with specific adaptations to drought which are ubiquitously found in crop species on all soil types. Because crops acidic soils have had to adapt to all three stresses simultaneously, it is not surprising that especially in recent literature common features in adaptation to these three abiotic stresses are being uncovered. This is the theme we address in this review.

In searching for classes of genes involved in mediating resistance concurrently to these three stresses, it is more likely that “upstream” genes that control regulatory and signaling networks such as transcription factors (TFs), kinases and phosphatases would be more likely candidates than structural genes such as root plasma membrane transporters that mediate efflux of Al-binding organic acid anions that have been shown to be involved in crop Al tolerance (Ma et al., 2001; Ryan et al., 2001; Kochian et al., 2004, 2015). Regulatory genes, such as transcription factors, bind to very small cis elements in the promoter region. Depending also on more complex aspects such as chromatin structure, this gives TFs potential for promiscuous binding to many targets, giving rise to complex regulatory circuits. A good example of how the promiscuity of TF binding sites can impact evolutionary adaptation is presented in Pougach et al. (2014), where they show that duplication of a transcription factor gene allowed the emergence of two independent regulatory circuits in yeast. Since TFs are often regulators of response to multiple stresses, they are excellent candidates for breeding programs searching for pleiotropic control of co-existing stresses in acidic soils such as Al toxicity, low P availability, and drought (Baillo et al., 2019).

In this review, we have focused on signaling/regulatory proteins such as TFs and protein kinases to identify, from the literature, evidence for unifying regulatory networks controlling Al tolerance, P efficiency and also possibly drought tolerance. Particular emphasis will be given to modification of root system morphology and architecture, which could be an important physiological “hub” leading to crop adaptation to multiple soil-based abiotic stress factors.

Aluminum Toxicity and Tolerance

Transcriptional Regulation Involved in Al Tolerance

Aluminum (Al) on acidic soils intoxicates root regions involved in root growth (meristem and elongation zone). Cells in these regions are subject to rapid alterations in Al-induced transcription, resulting in the induction of expression of several Al tolerance genes associated with root tip Al exclusion and detoxification mechanisms (Kochian et al., 2015).

Several TFs (TFs) have been reported to be involved in crop Al tolerance, and the majority of these TFs belong to zinc finger and WRKY transcription factor families. Among them, STOP1 in Arabidopsis and ART1 in rice are the best characterized TFs regulating Al tolerance. STOP1, a C2H2-type zinc finger transcription factor, was identified via positional cloning of a low-pH-sensitive Arabidopsis mutant. Although AtSTOP1 expression is not induced by Al, the stop1-mutant is also Al hypersensitive (Iuchi et al., 2007). AtSTOP1 has four functional zinc finger domains that bind to a 15-bp long sequence in the AtALMT1 promoter. AtALMT1 is the major Arabidopsis Al tolerance gene (Hoekenga et al., 2006), closely related to the primary wheat Al tolerance gene, TaALMT1 (Sasaki et al., 2004). These two ALMT genes and similar ones in other plant species encode root cell plasma membrane Al-activated malate efflux transporters that are one of the key genes involved in root Al exclusion via release of Al-binding organic acid anions. Mutations in the STOP1 binding sites and in AtSTOP1 zinc finger domains critically suppress AtALMT1 expression, indicating that STOP1 binding is essential for AtALMT1 expression and Al tolerance in Arabidopsis (Tokizawa et al., 2015). Furthermore, AtSTOP1 also regulates the expression of other transporters required for Al tolerance in Arabidopsis, including AtMATE (Al-activated citrate transporter) and AtALS3 (ABC transporter-like protein) (Liu et al., 2009; Sawaki et al., 2009).

AtSTOP1 is ubiquitously expressed in the root with higher expression in the root tip, and its expression is not affected by Al stress. In turn, AtSTOP1 downstream genes (AtALMT1, AtMATE, and AtALS3) are induced by Al (Liu et al., 2009; Sawaki et al., 2009). These findings suggest that Al might induce AtSTOP1 regulation at the post-transcriptional/-translational level. Recently, an F-box protein that regulates the level of AtSTOP1 protein, RAE1, was identified in Arabidopsis (Zhang Y. et al., 2019). The authors showed that RAE1 interacts with SKP1, a protein involved in ubiquitination and subsequent proteasomal degradation of target proteins. These two proteins interact to form a functional SCF-type E3 ligase complex, physically binding to STOP1 and driving its degradation via the ubiquitin 26S proteasome. As such, AtALMT1 and other STOP1 regulated genes, including AtMATE and AtALS3, are overexpressed in the rae1 mutant. Interestingly, AtSTOP1 binds to the RAE1 promoter and positively regulates its expression, indicating that there is a negative feedback loop between AtSTOP1 and RAE1. Finally, the authors suggest that the feedback loop might be important in controlling AtSTOP1 homeostasis, enabling the degradation of accumulated AtSTOP1 after Al stress.

The transcriptional regulation of AtALMT1 expression by STOP1 is fairly well characterized. However, as stated in Tokizawa et al. (2015), the structure of the AtALMT1 promoter indicates that other factors may be acting on its expression. The authors identified several cis-elements in the ALMT1 promoter related to: (1) Al-induced early and late expression; (2) root tip-specific expression; and (3) repression of ALMT1 expression. In addition, it was reported that the transcription factor, CAMTA2 (Calmodulin binding trans-activator 2), binds to the AtALMT1 promoter at a cis-element in a different binding region than STOP1, and appears to be involved in induction of AtALMT1 expression only in late Al stress. Previously, it was also demonstrated that AtWRKY46 binds to W-box sequences in the AtALMT1 promoter, repressing its expression in the absence of Al (Ding et al., 2013), indicating that regulation of AtALMT1 is not restricted to STOP1.

Sharing 41.2% sequence identity with AtSTOP1, the rice homolog, OsART1, was identified by map-based cloning of an Al-sensitive rice mutant. ART1 is also a C2H2-type zinc finger transcription factor involved in the regulation of a number of rice Al responsive genes, but, unlike AtSTOP1, it is not responsive to low pH. Microarray analyses showed that OsART1 regulates at least 31 downstream genes in response to Al (Yamaji et al., 2009). This transcription factor directly binds to a GGNVS core sequence in the OsSTAR1 promoter, which is present in 29 of the 31 ART1-regulated genes (Tsutsui et al., 2011). Some of the ART1-regulated genes have been functionally characterized as being involved in Al tolerance, including a number of transporters mediating Al uptake into the root and the vacuole, a Mg uptake transporter, and an ABC transporter that helps mediate the release of UDP-glucose into the cell wall to possibly minimize Al binding (Huang et al., 2009, 2012; Xia et al., 2010, 2013; Yokosho et al., 2011; Chen et al., 2012). Interestingly, the GGNVS core promoter sequence is also found in the promoter of genes regulated by AtSTOP1, suggesting that STOP1 and ART1 recognize similar DNA sequences (Tokizawa et al., 2015).

STOP1/ART1-like proteins, and their function in the regulation of Al tolerance genes, are broadly conserved among land plant species, including dicots, monocots, woody plants, and even bryophytes (Chen et al., 2013; Sawaki et al., 2014; Fan et al., 2015; Daspute et al., 2018; Huang et al., 2018; Wu et al., 2018; Ito et al., 2019; Kundu et al., 2019). The genome of the moss, Physcomitrella patens has a functional STOP1-like protein, and knock out of PpSTOP1 results in an Al sensitive phenotype, suggesting that plants acquired STOP1 at a very early time during land adaptation of plants, protecting roots from toxic environments including Al and low pH (Ohyama et al., 2013).

In addition to OsART1, OsWRKY22 also regulates the Al-induced expression of OsFRDL4, which encodes the rice root plasma membrane citrate efflux transporter. OsWRKY22 is rapidly induced by Al and works as a transcriptional activator of the OsFRDL4 expression via binding to W-box cis-elements in the FRDL4 promoter. OsWRKY22 has not been shown to regulate other ART1-regulated genes, however, OsWRKY22 and OsART1 are essential for the full activation of Al-induced FRDL4 expression and root citrate secretion in rice (Li et al., 2018).

Recently, through QTL mapping, GWAS, and functional analyses, two novel TFs in sorghum were identified, SbWRKY1 and SbZNF1, which positively regulate SbMATE expression (Melo et al., 2019). Previously, it was reported that miniature inverted-repeat transposable elements (MITE) in the SbMATE promoter play a critical role in its expression, and the number of MITE repeats is strongly correlated with SbMATE expression level and Al tolerance in sorghum (Magalhaes et al., 2007), which is consistent with the findings of (Salvi et al., 2007) showing that allelic polymorphisms due to MITE insertions can affect the transcription of regulated genes. These two TFs directly bind to sequences flanking the transposable element and, according to the proposed model, the expanded number of MITE repeats found in Al-tolerant genotypes provides an increased number of binding sites for SbWRKY1 and SbZNF1, resulting in higher sorghum SbMATE expression and Al tolerance (Melo et al., 2019). Similar to SbMATE, other studies have shown that the diversity of the promoter structures contributes to differences in Al tolerance between tolerant and sensitive genotypes in several crops. Al responsive genes of tolerant accessions of wheat (TaALMT1), Holcus lanatus (HlALMT1) and rice (OsFRDL4) carry more STOP1/ART1 binding sites in their promoters and exhibit higher expression levels than the same genes in the respective sensitive accessions (Chen et al., 2013; Tokizawa et al., 2015; Yokosho et al., 2016). These findings indicate that the enrichment of transcription factor binding sites in Al-tolerance gene promoters leads to enhanced transcription factor recruitment, which might explain, at least partially, Al tolerance in several crop species.

In addition to zinc-finger and WRKY TFs, ASR1 and ASR5 (Abscisic acid, Stress and Ripening protein 1 and 5) are involved in Al tolerance in rice (Arenhart et al., 2013, 2014, 2016). ASR5 is induced by Al and binds to the OsSTAR1 promoter and functions together with OsART1 as transcriptional activators of the OsSTAR1 expression. This study also demonstrated that ASR5-silenced plants impair the expression of two other rice Al tolerance genes, OsNrat1 and OsFRDL4, suggesting that ASR5 is also involved in their transcriptional regulation (Arenhart et al., 2014). Subsequently, it was reported that ASR5-silenced plants exhibited a similar Al tolerance phenotype as wild type plants. This was attributed to the transcription factor ASR1, which, under the silencing of ASR5, is highly induced and regulates ASR5-target genes, including STAR1, in a non-preferential manner.

Recently, studies searching for novel regulators of Al resistance have identified TFs related to the modification of the cell wall properties (Li C.X. et al., 2019; Lou et al., 2020). In Arabidopsis, it was found that the wrky47 mutant has reduced Al tolerance and altered subcellular Al distribution, i.e., increased Al accumulation in symplast, and decreased Al content in the root apoplast. According to the authors (Li C.X. et al., 2019), these effects occur due to the reduction of cell wall Al-binding capacity, conferred by decreased hemicellulose-I cell wall content in the mutant. It was demonstrated that AtWRKY47 directly binds to and activates the expression of genes encoding EXTENSIN-LIKE PROTEIN (ELP) and XYLOGLUCAN ENDOTRANSGLUCOSYLASE-HYDROLASES17 (XTH17), that are involved in cell wall modification. Within those, XTH17 works in modifying hemicellulosic polymers during cell expansion (Zhu et al., 2014), and ELP is involved in cell wall extension (Li C.X. et al., 2019). These findings indicate that WRKY47 is involved in Al resistance by increasing cell wall bind of the rhizotoxic Al³⁺ ion, minimizing its effect on the cell wall and also reducing uptake into the root cytoplasm (Li C.X. et al., 2019). Another study showed that VuNAR1 (Vigna umbellata NAC-type Al Responsive1), a rice bean NAC transcription factor, is up-regulated by Al in the root apex (Lou et al., 2020). In this paper, it was demonstrated that VuNAR1 binds to the AtWAK1 (Arabidopsis wall-associated receptor kinase 1) and VuWAKL1 (Vigna umbellata WAK1-like) promoters, positively regulating their expression (Lou et al., 2020). In Arabidopsis, WAK1 is rapidly induced by Al, and the AtWAK1 overexpression increases Al tolerance (Sivaguru et al., 2003). Lou et al. (2020) showed that the phenotype of the Atwak1 mutant is higher root cell wall pectin content under Al stress, and it is believed that the binding of Al ions to the negatively charged carboxylic acid residues in pectin is involved in one of the components of Al rhizotoxicity, with methylation of the pectin carboxyl groups correlating with reduced Al toxicity (Yang et al., 2008).

Other Signaling Molecules

We still don’t know how plants sense Al ions to trigger Al-dependent gene regulation. However, several signaling molecules have been identified that appear to be involved in initiating Al-induced transcriptional regulation. For example, Al-induced changes in cytosolic Ca²⁺ and pH (H⁺), have been implicated as sensing/signaling molecules in Al signaling [see review by Kochian et al. (2015) and references therein]. In addition to these ions, several other endogenous species, reactive oxygen species (ROS), phytohormones, and the phosphatidylinositol pathway, appear to be involved in Al signal transduction.

Reactive Oxygen Species

Reactive oxygen species including peroxides, superoxide, hydroxyl radical, singlet oxygen are produced in response to a range of stress responses (Banti et al., 2010; Miller et al., 2010; Shahid et al., 2014; Hieno et al., 2019). Biomolecules including lipids, proteins, and DNA/RNA are oxidized by ROS, and this oxidative damage leads to organelle disfunction and programmed cell death (PCD) (Van Breusegem and Dat, 2006; Mittler, 2017). To protect the oxidative stress, plants activate antioxidant systems (i.e., ROS scavenging pathways) and also induce/activate a series of heat shock proteins (HSPs, e.g., molecular chaperon) (Sharma et al., 2012; Driedonks et al., 2015; Mishra et al., 2018; Waszczak et al., 2018). Al toxicity has been shown to trigger ROS, including hydrogen peroxides (H₂O₂), and Al/H₂O₂-mediated PCD was reported in various plant species (Yamamoto et al., 2002; Sivaguru et al., 2013; Huang et al., 2014). To protect against this, Al induces multiple genes associated with antioxidant production, such as peroxidase and superoxide dismutase, and they play a likely secondary role in Al tolerance (Ezaki et al., 2000; Basu et al., 2001). On the other hand, ROS also can act as signal molecules with the best characterized of these involved in plant defenses against pathogens and pests (see review by Bhattacharjee, 2012, and references therein). With regards to plant Al toxicity and tolerance, Sivaguru et al. (2013) showed there is a strong correlation between Al-induced ROS production and SbMATE expression, both temporally and spatially in the sorghum root tip. Subsequently, Kobayashi et al. (2013b) showed that AtALMT1 and AtMATE expression are induced by H₂O₂ without Al. However, H₂O₂ cannot activate malate release from the roots, suggesting that protein activation of ALMT1 is regulated by a H₂O₂-independent pathway. In addition, several proteome analyses of Al stress revealed that several heat shock proteins (HSPs) are induced by Al stress (Zhen et al., 2007; Jiang et al., 2015), and the ER resident chaperon, AtBIP3, was identified as a possible Al-tolerance gene which is highly expressed in Al tolerant Arabidopsis accessions (Kusunoki et al., 2017). Interestingly, Enomoto et al. (2019) recently reported that AtSTOP1 directly regulates AtHSF2A, which is a master regulator of a series of HSPs, under hypoxic conditions. It is known that hypoxia stress involves ROS-mediated oxidative stress (Blokhina et al., 2003; Schmidt et al., 2018). These results suggest that activation of chaperon proteins including HSPs might be involved in signaling leading to tolerance of Al-induced oxidative stress in plants.

Nitric oxide (NO) is also induced by Al and has been suggested to be involved as a signaling molecule in Al signal transduction. There are several reports describing that Al-induced root growth inhibition is alleviated by application of the NO donor, sodium nitroprusside (Wang and Yang, 2005; Zhang et al., 2011; He et al., 2012). More detailed research into the mechanistic basis for NO-regulated Al stress alleviation is still needed, but it may involve Al tolerance based on the following findings: (1) NO enhancement of antioxidant systems to prevent Al-induced oxidative stress (Wang and Yang, 2005; He et al., 2019), (2) NO modulation of OA metabolism and secretion under Al stress (Yang et al., 2012a,b), and (3) Al induction of endogenous ABA that may be a positive regulator of Al resistance (see phytohormone section below) (He et al., 2012).

Phytohormones

The root apex is the primary site of Al toxicity, and one of most active sites in the plant for phytohormone signaling (Ryan et al., 1993; Jung and McCouch, 2013). Auxin (i.e., Indole-3-acetic acid [IAA]) is a key regulator for plant root growth and development (Overvoorde et al., 2010). An appropriate auxin gradient with a maximal auxin gradient in the root apex are essential for continuous root growth (Petersson et al., 2009). Several membrane-localized PIN-FORMED (PIN) proteins, which are auxin-efflux transport proteins, play a major role in the regulation of the formation and maintenance of this gradient (Wiśniewska et al., 2006; Grieneisen et al., 2007). Al toxicity disturbs this auxin gradient in the root apex (Kollmeier et al., 2000; Shen et al., 2008); moreover, Al interferes with the appropriate membrane localization of PIN2 in Arabidopsis root tip cells (Shen et al., 2008). In addition, Al sensitivity was altered by knock-out or over-expression PIN genes in rice and Arabidopsis (Sun et al., 2010; Wu et al., 2014, 2015). These results suggest that abnormal PIN-mediated auxin flux in the root apex under Al stress is one of reasons for Al-induced root growth inhibition. Additionally, several Al-inducible IAA synthesizing genes, AtTAA1 and AtYUCCA, encode proteins that regulate IAA accumulation in the root transition zone (TZ) which is located between the root meristem and zone of elongation (Yang et al., 2014; Liu et al., 2016). These genes are specifically induced in the TZ in response to Al, and activate IAA biosynthesis, resulting in root growth inhibition. Lastly, a recent study showed that the multidrug and toxic compound extrusion transporter, DETOXIFICATION 30 (DEX30), regulates auxin homeostasis in the TZ under Al stress, and contributes to Arabidopsis Al tolerance (Upadhyay et al., 2020).

Abscisic acid (ABA) also appears to be involved in Al signaling. Similar to several other phytohormones, endogenous ABA levels are upregulated under Al stress (see, for example, Kasai et al., 1995). However, unlike auxin and ethylene, ABA positively regulates Al tolerance. Al-induced root growth inhibition is alleviated by exogenous ABA application in barley, soybean, and buckwheat (Kasai et al., 1993; Shen et al., 2004; Hou et al., 2010; Reyna-Llorens et al., 2015). Additionally, co-treatment of ABA and Al induce greater root tip organic acid release than Al alone in soybean (Shen et al., 2004). In addition, ABA induces AtALMT1 and AtMATE expression and malate release without Al in Arabidopsis (Kobayashi et al., 2013b). Therefore, Al-induced ABA production may contribute to the activation of OA transporter expression and increased OA release, which leads to Al resistance. Interestingly, IAA also induces AtALMT1 expression, but it cannot activate malate release from roots without Al. This result is consistent with the finding that IAA treatment does not enhance Arabidopsis Al resistance.

Phosphatidylinositol

Recently, Wu et al. (2019) reported that blockade of phosphatidylinositol (PI) signaling, especially the Phosphatidylinositol 4-kinase (PI4K) and phospholipase C (PLC) pathways, leads to down-regulation of a number of Al-inducible genes, including ALMT1. PI and its derivatives are membrane lipids and conserved as signaling molecules among eukaryotes, and are involved in various important biological process such as membrane trafficking, root hair and pollen tube tip growth, and stress responses in plants (Meijer and Munnik, 2003; Thole and Nielsen, 2008; Ischebeck et al., 2010; Hou et al., 2016). In the screening, PIK-75 (Inhibitor for phosphatidylinositol 3-kinase [PI3K] in human) was identified that inhibits Al-induced malate secretion due to reduction of ALMT1 expression. In silico docking analysis suggested that PIK-75 can interact with PI3K and PI4K in Arabidopsis. They confirmed that the PI4K and the subsequent PLC pathways play critical roles in Al-inducible ALMT1 expression. Additionally, the blocking of the PI4K/PLC pathways significantly suppresses several Al-inducible genes, including STOP1-dependent target genes. The PI3K inhibitor does not affect Al-induced gene expression, suggesting that the PI4K/PLC pathways uniquely regulate signaling pathways associated with Al-inducible gene expression. However, PI3K is involved in plant Al signal transduction, because the PI3K inhibitor reduces root malate exudation via activation of the ALMT1 protein. More than 20 years ago, (Jones and Kochian, 1995) already speculated that the relationship between Al toxicity and membrane lipids included phosphatidylinositol. They found that Al directly and strongly binds to several plasma membrane lipids. PI(4,5)P2, the intermediate product between the PI4K and PLC pathways, has highest binding affinity with Al³⁺. In addition, inositol trisphosphate, which is one of final products in the PI4K/PLC pathways, is transiently accumulated in culture coffee cells under Al stress (Poot-Poot and Teresa Hernandez-Sotomayor, 2011). These findings suggest that Al alters PI signaling/metabolism, and this could be a possible sensing mechanism for Al stress in plants.

P Deficiency Stress and Responses

Root system architecture (RSA) alterations leading to longer and thinner ageotropic lateral roots in the topsoil (where P levels are highest) is essential for the plants to more effectively forage for P in the soil, increasing P acquisition under low soil P availability (Lynch, 2011). The main processes that affect RSA and increase root exploration capacity stem from cell division in the root pericycle ahead of generation of lateral root meristems, which allows for indeterminate growth, and the formation of seminal and lateral roots arising from lateral meristem initials in the pericycle of the root stele (López-Bucio et al., 2003).

Root remodeling in soils with low-P availability is related to two types of signaling pathways. Local signaling is associated with RSA modifications regulated by changes in the rhizosphere P concentration in the soil, with the root apical meristem (RAM) being the site sensing the P changes in the soil (Chien et al., 2018). Under low-P conditions, the differentiation of meristematic and stem cells especially in the pericycle, where lateral roots arise, are triggered (Sánchez-Calderón et al., 2005; López-Bucio et al., 2019; Wang et al., 2019). The second P signaling pathway is systemic signaling, where low soil P availability results in lower shoot P availability, triggering systemic responses transmitted to the root to reprogram root processes enhancing P acquisition. The primary conduit for these systemic responses is the phloem, which in addition to sugars produced by photosynthesis in mature leaves, also contains hundreds or thousands of different RNA species and proteins that can serve as signaling molecules for plant responses.

The best example of this is plant response to P deficiency, which triggers massive changes in the phloem transcriptome and proteome (Zhang et al., 2016; Zhang Z. et al., 2019). The first example of P deficiency systemic signaling involves the microRNA 399 (mirR399), which is induced early in the low-P response in leaves and moves to the root in the phloem to interact with its target, the PHO2 gene (Fujii et al., 2005; Chiou et al., 2006; Hu et al., 2015). The transcription factor AtMYB2 acts as a direct transcriptional activator of miR399 (Baek et al., 2013), and miR399 then can directly cleave PHOSPHATE 2 (PHO2) mRNA in some species (Bari et al., 2006; Ramírez et al., 2013; Ouyang et al., 2016). PHO2 is a ubiquitin-conjugating E2 enzyme (UBC24) that negatively regulates P transporters, inhibiting P uptake and root-to-shoot translocation under sufficient P conditions (Aung et al., 2006; Bari et al., 2006). Subsequent studies showed that PHO2 targets proteins that are involved in expression of the root high affinity uptake transport genes, Pht1;8 and Pht1;9. miR399 is strongly induced by P deficiency in source leaves and then loaded into the phloem, where it is translocated to the root and silences PHO2, which in turn allows high expression of Pht1;8/Pht1;9 and increased root P uptake (Fujii et al., 2005; Bari et al., 2006; Chiou et al., 2006; Hsieh et al., 2009). In the Zhang et al. (2016) paper cited above, the authors directly identified and quantified mRNAs that move from the shoot toward the root in the phloem, and whose abundance are altered by P deficiency. They used the appearance of miR399 in the phloem as a bioassay for the plant perceiving P deficiency in the shoot and found it appeared in the lower source leaf phloem rapidly, within 12 h after withholding P from the roots. In this study they found that imposition of Pi stress induced large and rapid changes in the mRNA population in the phloem, and grafting studies demonstrated that many hundreds of phloem-mobile mRNAs are delivered to specific sink tissues, including the root. From these findings the authors proposed that the shoot vascular system acts as the site of perception for root-derived Pi stress signals, and the phloem delivers a cascade of signals to the different plant sinks, in order to coordinate P status throughout the plant. The molecular mechanisms for both local and systemic signaling that orchestrate P sensing and activation of pathways induced by low-P availability are not fully understood. The cross-talk between regulatory networks certainly occurs, but the information available is still fragmented, so this topic will focus on the transcriptional networks and molecules involved in P response and root remodeling.

MicroRNA 399 plays this key role in Pi-starvation signaling network in many plant species other than Arabidopsis. Its rice homolog, LEAF TIP NECROSIS1 (LTN1), is associated with root morphology changes under low-P, and the lack of function ltn1 mutant exhibits elongation of primary and adventitious roots under P starvation. In rice, LTN1 is a key component downstream of miR399 in the P starvation response (Hu et al., 2011). In maize, miR399 transcripts are strongly induced in maize by P deficiency. Moreover, lines overexpressing MIR399b accumulated more P in their shoots, showing P-toxicity phenotypes and presented significantly lower abundance of the long-noncoding RNA1 (PILNCR1) in P-efficient lines, indicating that the interaction between PILNCR1 and miR399 is important for tolerance to low-P (Du et al., 2018). Finally, the overexpression of the transcription factor, WRKY74, in rice led to a larger root system phenotype, enhanced P acquisition and grain yield (Dai et al., 2016). These authors also showed that OsWRKY74 likely is a positive regulator of miR399.

PHOSPHORUS-STARVATION TOLERANCE 1 (PSTOL1) genes

To date, there are not many genes that directly link root morphology and P acquisition, particularly in crop species cultivated in soils with low-P availability. A receptor-like cytoplasmic kinase gene named PHOSPHORUS-STARVATION TOLERANCE 1 (PSTOL1) described by Gamuyao et al. (2012), is the first candidate P efficiency (tolerance to low soil P) gene identified. This gene encodes a receptor-like kinase and is responsible for a major quantitative trait locus for rice root P uptake (Wissuwa et al., 2002). Rice lines overexpressing PSTOL1 showed greater root total length and root surface area (Gamuyao et al., 2012), and enhanced phosphorus uptake and grain yield under low-P conditions compared to the control. PSTOL1 is expressed in the crown root primordial and parenchymatic cells located outside of the peripheral vascular cylinder, where crown roots are formed in rice (Gamuyao et al., 2012). Although P-starvation induced (PSI) genes were not differentially regulated by PSTOL1, constitutive genes with regards to P supply, such as HOX1 (Scarpella et al., 2005), a transcription factor that is a positive regulator of root cell differentiation, was up regulated in lines overexpressing PSTOL1 in the Gamuyao et al. (2012) study, which is consistent with the proposed role of PSTOL1 in regulating early crown root development and root growth in rice.

In sorghum, multiple homologs of OsPSTOL1 were shown by candidate gene association mapping to be associated with P efficiency in the field (grain yield and P uptake on low-P soil) and/or in the lab (changes in root topology and growth, and P uptake; Hufnagel et al., 2014). In this study, these sorghum SbPSTOL1 genes appear to modify root system morphology and architecture, leading to increases in grain yield in field studies on a low-P Brazilian soil, and also exhibited enhanced biomass accumulation and P content in sorghum landraces from West Africa using native soils. These data suggest a stable effect of the target alleles across environments and sorghum genetic backgrounds (Hufnagel et al., 2014; Bernardino et al., 2019). In maize, homologs of OsPSTOL1 that were preferentially expressed in roots and co-localized with QTLs associated with root morphology and P acquisition traits (Azevedo et al., 2015), mapped in the same region as QTLs for grain yield on a low-P soil (Mendes et al., 2014).

TFs Involved in Plant Low-P Response/P Efficiency

The maize transcription factor (TF) ROOTLESS CONCERNING CROWN AND SEMINAL ROOTS (RTCS) has been shown to be involved in altering root development and architecture (Hetz et al., 1996; Taramino et al., 2007). More recently, Salvi et al. (2016) also reported co-mapping of a quantitative trait loci controlling the number of seminal roots in maize, with the RTCS gene. RTCS contains a Lateral Organ Boundaries (LOB) domain, LBD, that is induced by auxin. RTCS acts downstream of ARF34 (and is responsible for the initiation of embryonic seminal and postembryonic shoot-borne roots (Xu et al., 2015). Other RTCS LBD proteins are involved in several developmental processes; for example, Arabidopsis LBD16/ASYMMETRIC LEAVES18 (ASL18) is involved in the regulation of lateral root formation, downstream of ARF7 and ARF19 TF’s (Lee et al., 2009). RTCS was highly expressed in a P efficient maize genotype under low-P conditions when compared to a P inefficient genotype (De Sousa et al., 2012), indicating that is modulated by maize P status.

The TF PTF1 (phosphorus starvation transcription factor) is a member of the BASIC HELIX-LOOP-HELIX (bHLH) family of TF’s and plays a role in low-Pi tolerance response in rice, maize and soybean (Yi et al., 2005; Li et al., 2011; Li Z. et al., 2019). In maize, ZmPTF1 is involved in the promotion of lateral root development and also binds to the promoter and positively regulates the transcription of a number of other TF’s including 9-cis-epoxycarotenoid dioxygenase (NCED), C-repeat-binding factor (CBF4), ATAF2/NAC081, and NAC30. RNA-seq data showed that genes related to the auxin signaling pathway are also up-regulated in ZmPTF1 overexpression lines (Li Z. et al., 2019). These authors suggested that ZmPTF1 acts upstream of signaling pathways related to biosynthesis and activation of phytohormones such as ABA and auxin, which are associated with root system development and the Pi starvation and drought tolerance responses.

There are a number of other WRKY TFs involved in P deficiency stress. One of these is WRKY6, which negatively regulates PHO1 expression under normal, sufficient P conditions. PHO1 is the phosphate efflux transporter that mediates xylem loading of Pi in the roots. When the plant experiences P deficiency, WRKY6 is degraded via 26S proteasome-mediated proteolysis (Chen et al., 2009). Its homolog in Arabidopsis, WRKY42, also negatively regulates PHO1 transcription under P sufficiency, but under the same plant P status, it positively regulates expression of the gene encoding the root Pi uptake transporter, PHT1;1 (Chen et al., 2009; Su et al., 2015). Under P deficiency, like WRKY6, WRKY42 is also degraded by the 26S proteasome. Another related TF, WRKY45, whose expression is root-specific, binds to two W box elements in the promoter of PHT1 and regulates its transcription (Wang et al., 2014). WRKY75 appears to play dual roles in P deficiency responses. It is an activator of expression of a number of P deficiency induced genes, including phosphatases and P transporters (Devaiah et al., 2007). But it also is a negative regulator of root development associated with P deficiency. That is, when it is knocked out, lateral root length and number, and root hair density, were significantly increased. Hence, WRKY75 is the first WRKY transcription factor to be shown to regulate both a nutrient deficiency response and root development and architecture.

Major Al Tolerance Genes That Are Also Involved in P Deficiency Stress Pathways

As plants that have adapted to highly acidic soils have had to deal with the dual stresses of Al toxicity and low soil P availability/high P fixation (Kochian et al., 2015), it is not surprising researchers have recently begun to discover that what were believed to solely be Al tolerance genes also can be involved in P deficiency responses and possibly P efficiency. These findings come from research on Arabidopsis, and the three key players in this scenario are STOP1, the TF that regulates Al-induced expression of a number of Al tolerance genes (Iuchi et al., 2007), and two of the genes regulated by STOP. These are ALMT1, the root tip PM malate anion channel that is activated by Al and releases Al chelating malate into the acid soil rhizosphere (Hoekenga et al., 2006), and ALS3, whose function is more varied and puzzling. ALS3 was first shown by Larsen et al. (2005) to be an Al tolerance gene that encodes an ABC transporter that in the shoots, is localized to the vasculature and hydathodes. The authors showed in the shoot it was PM-localized and speculated it could confer Al tolerance by loading Al into the phloem, thus moving it away from the site of toxicity in the root tip.

More recently, Dong et al. (2017) found that in Arabidopsis roots, knockout of ALS3 results in hypersensitivity to low-P. In this study, ALS3 was found to be part of a root tonoplast ABC transporter complex with AtSTAR1, which is the counterpart of rice OsSTAR1, which in rice pairs with OsSTAR2 (the rice counterpart of ALS3) to form a cytoplasmic vesicle ABC transporter involved in rice Al tolerance (Huang et al., 2009). The Arabidopsis ALS3/AtSTAR1 transporter complex was shown to mediate electrogenic transport in oocytes (transports net charge across the membrane), but it is not clear what solute AtSTAR1/ALS3 transports across the root-cell tonoplast. This study is one of several (the others being; Müller et al., 2015; Balzergue et al., 2017; Mora-Macías et al., 2017) that together explain the primary Arabidopsis P deficiency response, which is inhibition of primary root growth and continued lateral root growth under low-P growth conditions. This response involves the genes initially shown to be involved in Al tolerance, ALS3, ALMT1 and STOP1. The low-P inhibition of primary root growth requires Fe to occur, and under low-P conditions, Fe accumulation both into the root symplasm and the cell wall is increased. The path of events that start with P deficiency under sufficient/high Fe growth conditions and end with inhibition of Arabidopsis primary root growth are both elegant and relatively complex. These events are summarized here:

(1) P deficiency inhibition of Arabidopsis primary root growth requires available Fe in order to occur.

(2) Under P deficiency, STOP1 induces ALMT1 gene expression; subsequently the ALMT1 protein releases malate into the root tip apoplast and rhizosphere where it increases Fe availability in the apoplast via chelation of Fe³⁺ from the rhizosphere.

(3) At the same time, P deficiency induces the release of the multicopper ferroxidase, LPR1, from the ER to the cell wall of RAM cells surrounding stem cells in the RAM. LPR1-mediated reduction/oxidation of ferric/ferrous ions in this cell wall region generates peroxide, which catalyzes lignification and cell wall stiffening, accounting for the initial rapid inhibition of root growth.

(4) Concurrently, the ROS generation from LPR1-mediated ferroxidase activity triggers callose formation in this region of the RAM, which blocks plasmodesmata between the stem cells and cells surrounding the stem cell niche.

(5) This prevents for cell-to-cell transport of the TF, SHORT-ROOT, which is essential for stem cell division. This inhibition of stem cell division exhausts the meristem, resulting in the slower inhibition and termination of primary root growth.

The way that cells in the RAM perceive P deficiency is not understood, however, it is known that the accumulation of AtSTOP1 in the nucleus is the on-off switch for the regulatory mechanisms involved in the inhibition of primary root growth associated with P deficiency and Fe accumulation. Wang et al. (2019), building upon the research presented in Dong et al. (2017), showed that STOP1, ALMT1, and LPR1 act downstream of ALS3/STAR1 in controlling Arabidopsis primary root growth in response to P deficiency. Furthermore, they found that the tonoplast ABC transporter, ALS3/STAR1, represses STOP1 protein accumulation in the nucleus, thus inhibiting ALMT1 transcriptional activation. They suggested that an unknown metabolite or ion is sequestered in the vacuole by ALS3/AtSTAR1, and this metabolite or ion is necessary for STOP1 accumulation in the nucleus. Subsequently, Godon et al. (2019) found that the stability of AtSTOP1 in the nucleus is triggered by Fe³⁺ accumulated in root cells under P deficiency, and not the decrease in P itself. They also found that Al³⁺ had the same effect as Fe on stimulating STOP1 accumulation in the nucleus, which is consistent with the abundance of toxic Al³⁺ ions in acidic soils. The authors suggested that the AtALS3/AtSTAR1 transporter may be mediating the accumulation of either ionic Fe or Al, or Fe/Al chelates in the vacuole, and in the case of P deficiency, this transporter controls cytoplasmic Fe homeostasis via the stability of AtSTOP1 in the nucleus under low-P conditions.

Involvement of Posttranslational Modification in P Deficiency Responses

SUMO E3 LIGASE (SIZ1) is responsible for post-translational modifications based on the addition of small Ubiquitin-like Modifier (or SUMO) proteins, which can affect protein function (Gareau and Lima, 2010). The MYB-like transcription factor, PHOSPHATE STARVATION RESPONSE1 (PHR1), which modulates RSA under P starvation, is one example of a protein modified by sumoylation (Miura et al., 2011). In rice, OsMYB2P-1 positively regulates P starvation signaling and lines overexpressing this gene have a longer primary root and more lateral roots compared to the wild type under low-P conditions (Dai et al., 2012). PHR1 and its homolog PHL1 (PHR1-Like1) directly bind to the cis-element, P1BS (Rubio et al., 2001), which is prevalent in the promoters of many P starvation induced genes, including PHO1, miR399, IPS1 (INDUCED BY PHOSPHATE STARVATION1), and RNS1 (RIBONUCLEASE1) (Poirier et al., 1991; Bariola et al., 1994; Martín et al., 2000; Bari et al., 2006). PHR1 has also been found to be sequestered from the nucleus in a P-dependent manner by SPX1, a nucleus-localized SYG/PHO81/XPR1 domain protein, inhibiting PHR1 activity (Puga et al., 2014). In rice, SPX4 negatively regulates PHR2; under low-P, SPX4 degradation is accelerated through the 26S proteasome pathway, releasing PHR2 into the nucleus and activating the expression of PSI genes (Lv et al., 2014). Getting back to sumoylation, a loss-of-function siz1 mutant exhibited reduced primary root growth and increased lateral root and root hair length and density, which is apparently independent from the PHR1/SIZ1 signaling pathway (Miura et al., 2011). SIZ1 is also involved in the negative regulation of auxin patterning to modulate RSA in response to low-P (Miura et al., 2011).

This siz1 mutation also revealed a dual role of the SIZ1 E3 ligase in the regulation of P homeostasis in rice. In siz1 rice plants grown under P deficiency, two root high-affinity P transporter genes, OsPT1 and OsPT8, were more highly expressed compared to the WT, whereas OsPT2 and OsPT6 (which are expressed in both roots and shoots) were down-regulated (Wang et al., 2015). OsPT2 and OsPT8 are phosphorylated by CASEIN KINASE2 (CK2), which inhibits their interaction with PHOSPHATE TRANSPORTER TRAFFIC FACILITATOR1 (OsPHF1) under normal conditions. OsPHF1 is a SEC protein that facilitates the trafficking of Pi transporters from the ER to the PM (González et al., 2005). The retained phosphorylated phosphate transporters in the endoplasmic reticulum lead to a reduced P absorption from the rhizosphere (Chen et al., 2015). Also, rice PROTEIN PHOSPHATASE95 (OsPP95), a PP2C protein phosphatase negatively regulated by OsPHO2, positively regulates P homeostasis and remobilization, through the interaction with OsPT2 and OsPT8. OsPP95 acts antagonistically with CK2 to regulate the reversible phosphorylation of phosphate transporters (Yang et al., 2020b).

Another transcriptional factor with a role in P homeostasis is WRKY6, which was shown to negatively regulate the expression of PHO1 (Chen et al., 2009), which is a phosphate efflux transporter localized to the Arabidopsis root vasculature and is key in loading Pi absorbed by roots from the soil into the xylem for translocation to the shoot (Hamburger et al., 2002). Its closest Arabidopsis homolog, WRKY42, also negatively regulates PHO1 transcription under P starvation, (Chen et al., 2009; Su et al., 2015). Interestingly, under Pi-sufficient conditions, WRKY42 positively regulates PHT1;1 expression, which is a root high and low affinity Pi uptake transporter in Arabidopsis (Shin et al., 2004). WRKY42 accomplishes this by binding directly to the PHT1;1 promoter, and this binding is abolished by low-Pi stress. During Pi starvation, the WRKY42 protein is degraded through the 26S proteasome pathway. These results show that AtWRKY42 modulates Pi homeostasis by regulating the expression of PHO1 and PHT1;1 to adapt to environmental changes in Pi availability.

Members of the Proteaceae Family Have Evolved Unique Adaptations to Acquire P From Low-P Soils

Some plant species of the Proteaceae family develop cluster or proteoid roots in response to growth on low-P soils. Cluster roots are specialized primary lateral roots that develop one or more clusters of rootlets along their axes. Cluster roots synthesize large amounts of organic acid, such as citrate and malate, which are subsequently released into the rhizosphere to increase P availability by chelating metals such as Fe, Al, and Ca that are fixing the phosphate anions in the soil (Keerthisinghe et al., 1998; Neumann et al., 2000; Peñaloza et al., 2002). A number of genes are involved in the developmental and biochemical responses in cluster roots. These include upregulation of the root high-affinity phosphate transporters, LaPT1, and phosphoenolpyruvate carboxylase 3 (LaPEPC3) under P deficiency. Also, it was found that white lupine homologs of the Arabidopsis SCARECROW (AtSCR), LaSCR and LaSCR1 are localized to the root endodermis and presumably help drive the developmental processes that result in these impressive clusters of laterals, which play such an important role in lupine adaptation to low-P soils (Peñaloza et al., 2005; Sbabou et al., 2010).

Recently, a cultivated accession of white lupin was sequenced and de novo assemblies of a landrace and a wild relative were also performed (Hufnagel et al., 2020). The modern accession displays an increased soil exploration capacity through early establishment of lateral and cluster roots (Hufnagel et al., 2020). The authors identified the presence of AP2/EREBP, a large multigene family that is key to control of lateral root development. They also identified several mature microRNAs expressed in cluster root sections and related to P deficiency responses, such as miRNA156, miRNA166, miRNA211139, and members of miRNA399 family, that were not detected previously in white lupin. Moreover, Hufnagel et al. (2020) identified five genes that are targets of the detected miRNAs, including the TFs LaWRKY (Lalb_Chr07g0182001) and LaPUCHI-3 (Lalb_Chr18g0055601). Activation of key regulatory genes may trigger the early establishment of the root system, and consequently P-uptake and P efficiency (increased grain yield on low-P soils).

Drought Stress and Tolerance

Drought stress is the most widespread abiotic stress affecting crop yield and quality. Due to the sessile nature of plants, evolutionary adaptations have enabled plants to develop sophisticated mechanisms to tolerate or avoid drought. When plants sense water deficit in the surrounding environment, it leads to the generation of drought stress signals (Blackman and Davies, 1985; Kuromori et al., 2014; Batool et al., 2019). These primary and secondary drought response signals are perceived by receptor molecules which leads to direct changes in the expression of genes or expression of TFs that regulate expression drought-responsive genes, which ultimately leads to drought adaptation (Kuromori et al., 2014). Drought signaling networks are presumably complex and to date poorly understood, but it is clear they involve both intercellular and intracellular signaling (Kuromori et al., 2014). Because this review focuses on root adaption to multiple stresses, here we will focus on the role of drought-related communication between the roots and shoots involving intercellular signaling networks and TFs responsive to drought.

Drought Signaling Molecules

Hormones

Several studies have shown that phytohormones act as signaling molecules in response to drought. ABA is one of the most widely studied phytohormones in part because of its role in regulating stomatal conductance in response to different related abiotic stresses that impact plant water status including drought, salinity, high and low temperatures. Jones and Mansfield (1970) showed that external application of ABA to roots led to a reduction in stomatal aperture suggesting that ABA was involved in regulation of stomatal conductance. This led a number of researchers to conduct plant water stress studies investigating the hypothesis that root-derived ABA is a primary candidate for root to shoot drought signaling. It had been generally accepted that stomatal closure in response to drought was triggered by reductions in leaf water potential due to the drought conditions. A key finding in changing thinking about drought signaling came from the work of Blackman and Davies (1985), which showed that reduced water content in roots in response to drought led to stomatal closing or reduction in stomatal aperture without changes in leaf water potential. This indicated that a signal was likely traveling from the root to leaves to help induce stomatal closure. As described above regarding the earlier work of Jones and Mansfield (1970), ABA was already known to decrease stomatal opening and thus it became a logical candidate for a drought-induced root signal transmitted to leaves. Subsequently, it was shown that upon soil drying, the ABA concentration was increased in maize roots and xylem sap (Zhang and Davies, 1989, 1990a), and these findings further strengthened the idea of ABA as a key drought induced signal in root to shoot signaling. Subsequent work with a number of plant species, including maize, sycamore, lupin, wheat, castor bean and grapevine (Loveys and Kriedemann, 1974; Zhang et al., 1987; Henson et al., 1989; Zhang and Davies, 1990b) all showed that soil water deficit induced ABA synthesis in roots, and the newly synthesized ABA was then translocated to leaves via the xylem to induce stomatal closure.

Drought stress can cause arrested shoot growth; however, it has been shown that under those conditions root elongation can continue due to ABA-mediated plant adaptations (Sharp and Davies, 1989; Saab et al., 1990; Sharp et al., 1994) observed that primary root elongation was maintained under water limited conditions, and in subsequent work it was suggested that increased ABA accumulation in the root under drought conditions (water potential [ψ_w] of −1.6 MPa) might play a key role in the prevention of root growth elongation inhibition under drought stress (Saab et al., 1990). In the Saab et al. (1990) study, two treatments were employed. These involved both the root application of fluridone, an inhibitor of carotenoid biosynthesis that provides the precursors for ABA biosynthesis, and the use of the vp5 mutant that is deficient in carotenoids that leads to reduced ABA synthesis. They showed that in both of these treatments, the roots did not maintain continued root elongation at a lower water potential compared to wild type maize plants. They also conducted these experiments in a dark environment with saturated humidity to rule out the indirect effects of ABA deficiency on photosynthesis and/or alterations in stomatal control. Subsequently, Sharp et al. (1994) confirmed the role of ABA in maintenance of tap root growth under water limited conditions by applying exogenous ABA, which recovered the wild type root growth phenotype in both the vp5 mutant and fluridone-treated plants under drought. Based on an earlier report by Wright (1980) on the interaction between ABA and ethylene, researchers from the Sharp lab also investigated whether ABA-dependent inhibition of ethylene synthesis was involved in the maintenance of root elongation under water limited conditions (Spollen et al., 2000). In this study, wild type root growth elongation was recovered by applying ethylene synthesis and action inhibitors in the vp5 mutant and in fluridone-treated maize plants, suggesting that the ability of root growth to better tolerate drought compared to shoot growth does involve interactions between ABA and ethylene.

Despite this body of work supporting the hypothesis of root to shoot translocation of ABA in response to drought, other studies suggesting the importance of leaf ABA synthesis have been carried out in a number of labs using reciprocal grafting between wild type and ABA deficient mutants in tomato, Arabidopsis, and sunflower. In these studies, drought stress was imposed on the wild type shoot/mutant roots and mutant shoots/wild type roots grafting combinations. When these different grafted “genotypes” were water stressed, the shoot genotype was shown to control stomatal behavior, suggesting that shoot-derived ABA was also important drought response (Jones et al., 1987; Fambrini et al., 1995; Holbrook et al., 2002; Christmann et al., 2007; Dodd et al., 2009). In summary, despite the general acceptance in the plant water relations that the primary mode of ABA signaling occurs via root ABA synthesis, followed by translocation via xylem to the leaves, it is clear that the field of plant ABA signaling is not unified behind this hypothesis. As supported by the findings reported in the publications summarized in this section of the review, ABA signaling may involve both roots and leaves, with a systemic response involving ABA that is made in roots under drought and transported to leaves, and a more local response within the drought-stressed leaf.

The ABA signaling pathway has been studied extensively in the model plant, Arabidopsis thaliana. ABA receptors have been identified in Arabidopsis, and during ABA signaling, ABA has been shown to bind to intracellular ABA receptors from the PYR/PYL/RCAR family, triggering a signal cascade that results in ABA-mediated stomatal closure (Fujii et al., 2009; Nishimura et al., 2009; Santiago et al., 2009; Cutler et al., 2010; Gonzalez-Guzman et al., 2012). The binding of ABA to its receptor leads to interactions with a Type 2C protein phosphatase (PP2C), which inhibits PP2C-mediated activation of an OST (Open stomata) 1 kinase. This kinase is responsible for stomatal opening by controlling anion channels in the guard cell plasma membrane, and blocking its activation results in stomatal closure (Ma et al., 2009; Park et al., 2009; Hauser et al., 2017). Hence, PP2C is a negative regulator of the ABA signaling pathway, resulting in stomatal closure. Interesting recent findings from Belda-Palazon et al. (2018) showed that the PYL8 ABA receptor is responsible for root perception of ABA though a non-cell-autonomous mechanism. In this study the PYL8 transcript was localized to the root meristem epidermis and stele, while the PYL8 protein was also found in adjacent tissues. The authors go on to show that both inter- and intracellular trafficking of PYL8 appears to occur in the RAM. This study shows that ABA receptors can interact with ABA in the root. It doesn’t appear that this interaction plays a role in drought signaling to the shoot. Instead the authors hypothesize that the binding of ABA to the PYL8 receptor in the root may be involved in well documented roles of ABA in root function including root growth associated with hydrotropism and salt stress, and root plasticity in response to variation in nutrient availability (Barberon et al., 2016; Feng et al., 2016; Dietrich et al., 2017).

There are a number of published papers indicating that ABA biosynthesis occurs in both shoots and roots, and this occurs first via biosynthetic processes in plastids, and then the ABA precursors made in the plastid are transported to the cytosol, where they are converted to ABA (Thompson et al., 2007; Fujii et al., 2009; Nishimura et al., 2009; Santiago et al., 2009; Cutler et al., 2010). With regards to drought signaling regulation of stomatal function, cytosolic ABA has been found to bind to PYR1-type ABA receptors also located in the cytoplasm (Fujii et al., 2009; Nishimura et al., 2009; Santiago et al., 2009; Cutler et al., 2010). Based on the findings presented above for (Belda-Palazon et al., 2018), it is clear that ABA receptors are both functioning in the root and the leaf. In the studies showing that ABA binds to PYR1-type ABA receptors in leaf tissue, although not directly stated, the clear implication is that this ABA interaction with its receptor occurs in the guard cell cytoplasm, although that has not yet been shown.

Components of the ABA signaling pathway that are involved in moving ABA either into guard cells or from roots to leaves have been found. Kuromori et al. (2010) identified an ABC (ATP binding cassette) efflux transporter gene AtABCG25 that encodes an ABC transport protein localized in the root vascular parenchyma plasma membrane. This transporter exports ABA accumulated in root xylem parenchyma cells into xylem vessels in response to drought stress. Studies also showed that transgenic Arabidopsis plants overexpressing AtABCG25 had higher leaf temperatures and lower transpirational loss of water from detached leaves, compared to wild type plants. This is consistent with more ABA being provided to guard cells from the root, leading to stomatal closure. Furthermore, Kang et al. (2010) has identified an ABA uptake transporter, AtABCG40 (also known as Pleiotropic drug resistance transporter PDR12). This ABC transporter is localized to the plasma membrane and predominantly expressed in leaf guard cells, where it acts to transport ABA that is delivered via the xylem, into guard cells. In summary, many of the structural components of the root to shoot ABA signaling network are being identified, including root-localized ABA biosynthetic pathways, transporters involved in xylem translocation of ABA to the shoot, and transporters in the leaf moving ABA into guard cells.

Another hormone that appears to be involved in drought signaling is cytokinin. Reduced maize stomatal aperture due to exposure to dry soil was reversed by the application of cytokinin to the roots (Blackman and Davies, 1985). Whereas xylem levels of ABA are increased in response to drought treatment of rice seedlings, cytokinin levels are decreased under the same drought conditions (Bano et al., 1993). These findings suggest that both hormones are involved in drought signaling, acting antagonistically to more finely regulate stomatal aperture related to plant water status (Blackman and Davies, 1985; Bano et al., 1993).

Peptide Hormones

The CLE (CLAVATA3/EMBRYO-SURROUNDING REGION) family of peptides are small peptides that function as plant hormones via release from cells into the extracellular space, where they function as intercellular signaling molecules. They have been shown to bind to receptor-like proteins at the outer surface of the plant cell plasma membrane to help mediate signal transmission. CLE peptides have been shown to regulate a range of physiological and developmental processes, including drought responses. CLE proteins have recently been shown to be a mobile signal transmitted from roots to shoots and involved in increased ABA biosynthesis after dehydration stress (Takahashi et al., 2018). In this study, synthetic isotope-labeled CLE25 was externally applied to roots and its accumulation was detected in leaves of treated plants using nanoscale nLC-MS/MS. The CLE25 peptide has been shown to be involved in regulation of ABA biosynthesis in leaves after the roots sense drought conditions in the soil (Takahashi et al., 2018). CLE25 is expressed in vascular tissues and its expression is induced in response to drought. Subsequently, the CLE25 peptide moves from the roots to leaves, where it enhances ABA synthesis and accumulation, helping trigger stomatal closure. It does this by binding to BARELY ANY MERISTEM (BAM) receptors in leaves. It is possible that CLE25 plays a role in the leaf-mediated regulation of stomatal function described above from the earlier publications reporting on the physiology of drought induced stomatal closure. If this is the case, then CLE2 could be a second root-to-shoot drought signal (the other being ABA itself) that triggers leaf-localized ABA regulation of stomatal responses to drought.

Other Signals

Plant cellular and apoplastic pH has been proposed to be another signaling factor that could play a role in stomatal aperture regulation (Hartung et al., 1998; Wilkinson, 1999). Drought stress has been shown to trigger an increase in xylem sap pH (Gollan et al., 1992; Wilkinson and Davies, 1997; Hartung et al., 1998). Under these conditions, Wilkinson and Davies (1997) found that this led to an increase in apoplastic ABA in the leaves. They hypothesized that as drought increases ABA concentrations in the xylem sap, and are then transported to the leaves, the higher apoplastic (xylem) pH will deprotonate acid groups in the ABA molecules and the increased charge of the ABA anion will reduce passive ABA flux through the lipid bilayer of the leaf cell plasma membrane. Hence, they speculated that extracellular ABA may be important in triggering stomatal closure. This is a topic that will require more research to more clearly define both the role of xylem pH in drought signaling and the role of apoplastic ABA in directly regulating stomatal response to drought.

Recent studies have identified specific microRNAs that are responsive to drought stress (Bakshi and Oelmüller, 2014; Bakhshi et al., 2016; Aravind et al., 2017) and this could be part of another drought signaling mechanism, as microRNAs can regulate genes post-transcriptionally (Aukerman and Sakai, 2003). Bakhshi et al. (2016) identified 61 known and 11 novel microRNAs involved in drought signaling in rice by performing experiments with a divided root system where half of the root system was water stressed and the other half kept well-watered. They identified miRNAs that exhibited differential expression when the entire root system is exposed to drought stress, along with miRNAs whose expression was altered in response to divided root system drought versus well-watered signaling. The results for differential expression of many of the miRNAs were validated via qRT-PCR. Furthermore, in silico target analysis led to the identification of two to three hundred novel target genes for the drought stress response of the entire root system, along with responses of the divided root system to drought and well-watered conditions. From the target analysis, the authors proposed these miRNAs could be involved in a number of drought response pathways, including ABA and calcium signaling, detoxification of free radicals induced by drought, and stimulation of lateral root initiation and growth, which could lead to bigger and deeper root systems that could more effectively acquire water located deeper in the soil profile under drought.

TFs Responsive to Drought

It is well known that transcription factor (TF) proteins can play major roles in regulatory and signaling networks, and plant drought response is no exception. A number of recent studies have been conducted to identify TFs responsive to drought and in some these studies, the function of the identified TFs has been elucidated (He et al., 2016; Lee et al., 2016, 2017; Chen Y. et al., 2018; Kumar et al., 2019). TFs responsive to drought are members of several different TF families including: (1) the AREB/ABF (ABA responsive binding or ABRE binding factor) family; (2) the AP2/ERF (ethylene response element binding factor) family; (3) the bZIP (the basic leucine zipper) family; (4) the NAC (NAM, ATAF1,2, CUC2) family; and (5) the WRKY transcription factor family (Joshi et al., 2016).

With regards to a TF in the AREB/ABF family involved in drought signaling, Marinho et al. (2016) showed that soybean transgenic lines overexpressing AtAREB1 exhibited enhanced performance under drought without any penalty on yield. From changes in expression profiles for phosphatases (PP2C) and kinases (SnRK2) in the AtAREB1-overexpressing transgenic plants, the authors noted that the observed lower expression of phosphatases and higher expression of kinases are known to be linked to ABA-dependent stomatal closure, and the resulting reduced stomatal conductance to water in the OE lines could explain the observed drought resistance. This overexpression line also had a higher leaf area index and elevated intrinsic water use in subsequent research by Fuganti-Pagliarini et al. (2017). In rice, overexpression of OsERF71 altered expression of genes that regulate lignin biosynthesis and cell wall loosening enzymes, leading to increased root radial growth, more cell layers in the vasculature, and increased root aerenchyma, and these root structural changes were associated with reduced water transpiration and increased drought tolerance (Lee et al., 2016). OsERF71 belongs to the AP2/ERF TF family and is mainly expressed in the root endodermis, meristem and pericycle tissues. It was not clear how these root structural changes confer drought resistance, but the authors noted that increased radial growth has been observed in other studies in response to drought. The authors pointed out that in these previous studies, it has been suggested that observed increases in aerenchyma could reduce the carbon cost required to produce bigger root systems (Zhu et al., 2010). In the OsERF71 overexpressing lines, the putative lignin biosynthesis genes, cinnamoyl-coenzyme was expressed ten-fold higher than in wild type plants. This was associated with quantification of higher lignin accumulation in roots tissues by phloroglucinol staining in the transgenic plants. Increased lignin biosynthesis might be required for additional root layer formation for wider radial root growth to accommodate larger aerenchyma.

NAC TFs have been characterized in transgenic wheat and it was reported that TaRNAC1-overexpressing lines exhibited changes in root growth and structure, which resulted in larger and deeper root systems and increased performance under drought, presumably due to enhanced water acquisition (Chen D. et al., 2018). Finally, He et al. (2016) evaluated Arabidopsis transgenic lines overexpressing the wheat TaWRKY33 transcription factor for drought tolerance. They observed that TaWRKY33 overexpression was associated with increased expression of ABI5, which encodes a basic leucine zipper transcription factor that in involved in the regulation of seed germination and early seedling growth under abiotic stress conditions that involve ABA. It has been shown that ABI5 is involved in the receptor-mediated ABA signaling described above (PYR/PYL/RCAR ABA receptors, PP2C phosphatases and SnRK2 kinases), through its interaction with ABSCISIC ACID RESPONSE ELEMENT (ABRE) motifs in target gene promoters. Hence, ABI5 has been shown or proposed to be involved in many ABA-related activities, including seed germination, seedling stress tolerance, integration of hormone interactions, and ABA biosynthesis (for a review, Skubacz et al., 2016).

In the He et al. (2016) publication, the authors suggested that the TaWRKY-mediated increase in ABI5 expression was likely central to the observed improved performance under drought, possibly due to increased ABA synthesis under drought conditions. In the OE lines they also observed reduced transpirational loss of water from excised leaves, which would correlate with increased ABA accumulation resulting in greater stomatal closure.

ERECTA- A Leucine Rich Repeat Receptor-Like Kinase

The ERECTA gene has been shown to be involved in the regulation of leaf transpirational water loss through stomata by altering leaf anatomy (Masle et al., 2005). Leaf carbon isotope discrimination, which is due to the discrimination against the naturally occurring carbon isotope, ¹³C, in favor of the more abundant ¹²C isotope during photosynthetic CO₂ fixation by the rate-limiting enzyme, Rubisco, is negatively related to leaf transpiration efficiency (ratio between transpirational water loss and photosynthetic CO₂ assimilation). Hence, leaf isotope C discrimination can be used as a proxy phenotype for transpirational efficiency. Using this approach, leaf isotope C discrimination was used to phenotype an Arabidopsis Col-4 x Ler RIL population. Genetic analysis of the data yielded a significant QTL for transpirational efficiency for leaf isotope C discrimination that was then fine mapped on chromosome 2 (48.96–51.02 cM) and explained up to 64% of the phenotypic variation for this trait in the RIL population. The population parents, Col and Ler, contain ERECTA (ER) and er1 alleles, respectively. Upon screening of candidate genes residing in that region, they found that the ERECTA gene was located in the center of the QTL interval. They also observed contrasting values of leaf isotope C discrimination for individuals with the ER or er1 alleles. For functional validation of the candidate gene for transpirational efficiency, multiple ERECTA mutants were compared with near-isogenic lines containing ERECTA allele homozygotes. They observed that all of the er mutants exhibited higher leaf isotope C discrimination and therefore lower transpirational efficiency than lines homozygous for ERECTA allele. Further, in transgenic lines which complemented the mutation with the ERECTA allele, they confirmed the identity of ERECTA as a transpirational efficiency gene. By dissecting leaf anatomical features, lower stomatal conductance because of lower stomatal density caused by epidermal cell expansion, was observed as the anatomical effect of the ERECTA gene. Loosely packed fewer and smaller mesophyll cells were also observed, and it was concluded that all of these phenotypes collectively are affecting transpirational efficiency. These anatomical phenotypic traits were maintained under drought stress which suggests that the ERECTA gene could be an important genetic tool to increase transpirational efficiency in crops in drought stress environments.

Zheng et al. (2015) also showed that the expression of two wheat TaER genes were positively correlated with transpiration efficiency and yield traits. Gene sequences for ERECTA orthologs in wheat were identified by Linzhou et al. (2013) using a homology-based cloning approach. Zheng et al. (2015) subsequently found the physical chromosomal location of these genes on chromosomes 6 and 7 by using in silico approaches to compare TaER cDNA sequences to a wheat genome sequence database. The authors also observed significant variation in expression of these genes among 48 wheat varieties in the flag leaves at grain filling and at the heading growth stages. There was a significant positive correlation in TaER expression with water use efficiency, flag leaf area and yield traits (biomass and gain yield), whereas the rate of transpiration, stomatal density and rate of photosynthesis were negatively correlated. These results were consistent with Masle et al. (2005) and further strengthened the role of ER genes in regulation of transpiration efficiency. In addition to the above studies, Li H. et al. (2019) also showed increased drought resistance in Arabidopsis and maize plants by overexpressing the sorghum ER (SbER2-1) gene and the transgenic overexpression lines exhibited increased rates of photosynthesis and water use efficiency.

Possible Common Determinants of Al Tolerance, P Efficiency and Drought Tolerance

C2H2 TFs

Water deficit may disrupt the lipid bilayer in cell membranes, triggering protein denaturation and accumulation of cellular electrolytes, which may lead to osmotic imbalance in plant cells (Fernando and Schroeder, 2016). Hence, osmotic adjustments play a role in plant adaptation to dehydration via turgor maintenance and by the production of osmoprotectants that maintain proper cellular function (Blum, 2017). Cys2/His2-type (C2H2), zinc fingers are known to play a role in plant abiotic stresses tolerance and emerge as a possible hub controlling tolerance to Al toxicity, low-P and also drought stress. Possible mechanisms whereby C2H2 zinc fingers influence drought tolerance have been recently reviewed by Han et al. (2020). Those mechanisms involve the biosynthesis of solutes in the cell leading to osmotic adjustments, reactive oxygen species scavenging via enhanced antioxidant enzyme activity and ABA-dependent signaling pathways.

As previously described, there is evidence linking the C2H2 transcription factor, STOP1, to both Al tolerance and P deficiency tolerance (see section “Major Al Tolerance Genes That Are Also Involved in P Deficiency Stress Pathways”). This emerging pleiotropic role of STOP1 in abiotic stress tolerance has been further supported by the recent finding that stop1 knockout lines showed enhanced drought tolerance in Arabidopsis (Sadhukhan et al., 2019). Among the genes suppressed in the stop1 mutant was the CBL-interacting protein kinase 23 (CIPK23), which may be involved in K⁺/Na⁺ homeostasis via regulation of K⁺ transporters. In agreement with K⁺ involvement in stomatal opening (Munemasa et al., 2015), further complementation experiments suggested that the STOP1 function in drought tolerance occurs via ABA-mediated stomatal closure elicited by CIPK23. A protein phosphatase 2C-family protein, PP2C61, was also repressed in the stop1 mutant, which provides further indication of ABA-dependency for STOP1. This scenario points toward a highly pleiotropic nature of the transcription factor STOP1. In this context, STOP1 enhances AtMATE- and AtALMT1-mediated Al tolerance (see section “Transcriptional Regulation Involved in Al Tolerance”), inhibits primary root growth and enhances lateral root proliferation under P deficiency, possibly favoring P acquisition via Fe-mediated RAM exhaustion (see section “Major Al Tolerance Genes That Are Also Involved in P Deficiency Stress Pathways”). In addition, STOP1 may also influence both salt and drought tolerance (Sadhukhan et al., 2019). However, STOP1 was suggested to negatively impact drought tolerance in Arabidopsis (Sadhukhan et al., 2019), which may conflict with a possible general role of STOP1 in crop adaptation to acidic, tropical soils, where Al toxicity, P deficiency and drought stress usually co-exist.

NAC and bHLH Transcription Factors

There are many reports linking NAC TFs including NAM, ATAF, and CUC TFs with drought tolerance (Nakashima et al., 2012), which largely involves ABA-dependent pathways. However, some NAC TFs show very early responses to ABA treatment, probably before endogenous ABA accumulates (Tran et al., 2004). Hence, some NACs are also thought to function through ABA-independent pathways (Singh and Laxmi, 2015), at least to some extent. Mutant analysis targeting class III SnRK2 protein kinase genes resulted in repression of the NAC gene, RD26, indicating that the expression of stress-inducible NACs is under control of the central ABA perception and signaling module (Nakashima et al., 2012; Fernando and Schroeder, 2016). Overexpression of the stress responsive, NAC gene, SNAC1, has been reported to lead to salt and drought tolerance in rice without a penalty in yield (Hu et al., 2006). SNAC1 was shown to bind to the promoter of the stress-induced gene, early responsive to drought 1 (OsERD1), and many stress-related genes were up-regulated in the SNAC1-overexpressing rice plants. The transgenic lines were also more sensitive to ABA and showed reduced water loss due to enhanced stomatal closing (with apparent no effect in photosynthesis), possibly by drought induction of SNAC1 in guard cells (Hu et al., 2006). Also, OsNAC5 has been found to improve drought tolerance in rice via up-regulation of stress-inducible genes, and both OsNAC6 and OsNAC10 may also improve rice drought tolerance (reviewed by Nakashima et al., 2014; Singh and Laxmi, 2015).

Basic helix-loop-helix (bHLH) TFs have been implicated in drought regulation of stress-related genes via a wide-range of possible tolerance mechanisms, including stomatal development, ABA signaling, trichome and root hair development, osmoregulation, photosynthesis and growth regulation, in addition to ROS scavenging (reviewed by Castilhos et al., 2015; Sun et al., 2018). For example, AtMYC2 (bHLH) and AtMYB2 (MYB) TFs interact with cis elements in the promoter of the dehydration-responsive gene, rd22, to function as transcriptional activators in ABA-inducible gene expression under drought stress in Arabidopsis (Abe et al., 2003). However, strong alterations of stomatal development elicited by some bHLH TFs may hinder their practical application in cultivar development (Castilhos et al., 2015).

The bHLH family member, PTF1, has been found to play a role in low-Pi tolerance in rice, maize and soybean (see section “TFs Involved in Plant Low-P response/P Efficiency”). In maize, ZmPTF1 was also shown to enhance lateral root development and confer drought tolerance (Li Z. et al., 2019). Enhanced drought tolerance in the ZmPTF1-overexpression lines might be a result of activation of ABA and auxin signaling pathways and enhanced lateral root growth, which may be at least in part caused by up-regulation of NAC TFs. In fact, ZmPTF1 was shown to bind to the promoter of NAC30 and other TFs, acting as a positive regulator of those genes (Li Z. et al., 2019). Thus, a possible connection between NAC-mediated tolerance to both drought and low-P conditions may be mediated at some extent via bHLH-dependent regulation of NAC TFs.

Interestingly, NAC TFs may also connect with Al tolerance based on up-regulation of VuNAR1 in the Vigna umbellata root apex (Lou et al., 2020) and Al inducibility of other NACs (Escobar-Sepúlveda et al., 2017; Jin et al., 2020). Since VuNAR1 was shown to bind to the promoters of wall-associated receptor kinase genes, this NAC gene may confer Al tolerance through regulation of cell wall pectin metabolism (Lou et al., 2020). Interestingly, this mechanism could possibly feedback on P acquisition, since wall-associated kinases have been shown to affect root growth (Kanneganti and Gupta, 2008, 2011; Kaur et al., 2013).

MYB TFs

Transcription factors possessing a conserved MYB domain involved with DNA binding are important players in abiotic stress tolerance and are intimately involved in cross-talk between different types of abiotic stresses. MYB TFs may influence drought tolerance via regulation of root growth and development, leaf development, stomatal movement in response to drought, cell wall biosynthesis, cuticle and suberin biosynthesis, and antioxidant activity via accumulation of flavonoids (reviewed by Baldoni et al., 2015). MYB TFs are also closely associated with changes in root morphology, which involves rather complex responses to different hormones. MYB77 has been implicated in auxin signaling via interaction with auxin response factors (ARFs), changing lateral root growth (Shin et al., 2007). MYB involvement with ABA signaling stems from the interaction between the ABA sensing gene, PLY8, and MYB77 (Zhao et al., 2014). By increasing auxin signaling, this interaction leads to a recovery of lateral root growth following inhibition by ABA. An important role for MYB TFs in abiotic stress cross-talk is also suggested by the joint role of AtMYB60 (Oh et al., 2011) and AtMYB96 in both stomatal movement and lateral root growth, with an integrative role in ABA and auxin signaling being proposed for AtMYB96 (Baldoni et al., 2015). Another MYB transcription factor working in a similar way is SiMYB75, which function in an ABA-dependent manner to promote root growth and drought tolerance, which results from enhanced stomatal closure to reduce water loss (Dossa et al., 2020).

By far the most compelling case of a MYB transcription factor jointly modulating drought stress and P deficiency tolerance arises from AtMYB2 regulation of miR399 (Baek et al., 2016, 2017). As previously described (Section 3), miR399 is a key component in P homeostasis (Fujii et al., 2005; Baek et al., 2013). Baek et al. (2016) have shown that AtMYB2 regulation of miR399 is involved in drought responses, with transgenic Arabidopsis plants overexpressing miR399f exhibiting ABA resistance and drought hypersensitivity. This response is thought to be a consequence of ABA-signaling, with miR399 targeting CSP41B and ABF3 (Baek et al., 2016).

WRKY TFs

WRKY TFs can act both as activators or repressors of gene expression and are involved both with abiotic and biotic stress responses (Bakshi and Oelmüller, 2014). The function of WRKY genes in drought tolerance is closely related to ABA signaling, which gives rise to a multi-pronged mode of action on plant performance under drought including stomatal closure and changes in RSA. Studies with a promoter::reporter gene construct for the sorghum member of the WRKY family, SbWRKY30, indicated that the SbWRKY30 promoter responds to different phytohormones such as ABA, GA and Me-JA (Yang et al., 2020a). Expressed both in the tap root and leaf, SbWKRY30 was induced by drought stress and conferred drought tolerance both in Arabidopsis and rice by affecting RSA. This drought tolerance response may also be a result of enhanced ROS scavenging elicited by SbWRKY30. This transcription factor was also found to influence the transcription of a number of stress-responsive genes, including SbRD29 (Yang et al., 2020a).

Among other WRKY proteins, AtWRKY40 has been shown to interact with the C-terminal of the ABA receptor ABAR, with ABA acting to remobilize AtWRKY40 from the nucleus to the cytoplasm (reviewed by Rushton et al., 2012). Since AtWRKY40, AtWRKY18 and AtWRKY60 are negative regulators of ABA signaling, this mechanism leads to de-repression of ABA-dependent pathways and, hence, induction of ABA-responsive genes (Shang et al., 2010). With ABA sensing by its receptors, ABI5 is de-repressed and activates AtWRKY63, which activates stress-inducible genes such as RD29 and COR47 (Ren et al., 2010; Rushton et al., 2012).

Although there are many reports of WRKY TFs influencing drought responses (Rushton et al., 2012; Rabara et al., 2014; Singh and Laxmi, 2015), examples of common WRKY proteins also acting on Al tolerance and P deficiency tolerance are rather scarce, which might merely reflect less research focus on the involvement of WRKY TFs in abiotic stresses other than drought. Transgenic Arabidopsis with constitutive expression of the stress-response transcriptional coactivator, multiprotein bridging factor 1c (MBF1c), were more tolerant to bacterial infection, heat, and osmotic stress (Suzuki et al., 2005). AtWRKY46 expression was found to be elevated in the transgenic lines, albeit only slightly, suggesting that AtWRKY46 could possibly be involved with stress tolerance in the MBF1c lines. Somewhat more compelling is the observation that AtWRKY46 was induced by drought, salt and oxidative stress (Ding et al., 2014). AtWRKY46 was expressed in guard cells and may regulate stomatal opening and drought stress. Additionally, AtWRKY46 was found to regulate lateral root development in osmotic and salt stress conditions, possibly via ABA-signaling (in part via ABI4 regulation) and auxin homeostasis (Ding et al., 2015).

This suggests that AtWRKY46 could act on stress tolerance beyond its repressor role on the expression of the Al tolerance gene, AtALMT1 (Ding et al., 2013), possibly influencing P acquisition and tolerance to drought stress. While enhanced lateral roots by AtWRKY46 might be expected to lead to enhanced P acquisition on low-P conditions, the nature of the impact of AtWRKY46 on drought tolerance, whether negative or positive, is yet to be unraveled in detail. Another possible case of cross-talk between drought stress tolerance and tolerance to low-P conditions involves WRKY45. Arabidopsis lines overexpressing OsWRKY45 showed enhanced disease resistance and drought tolerance, possibly via ABA-mediated stomatal closure and induction of stress-related genes (Qiu and Yu, 2009). In Arabidopsis, AtWRKY45 is induced by low-P, regulates PSI genes and is involved with changes in RSA that are apparently P-independent (see section “TFs Involved in Plant Low-P response/P Efficiency”; Devaiah et al., 2007). Also, AtWRKY45 participates in P responses by binding to the PHT1;1 promoter and regulating its transcription, thereby enhancing P uptake (see section “TFs Involved in Plant Low-P response/P Efficiency”; Wang et al., 2014). These reports suggest that WRKY45 could have a pleiotropic effect, enhancing both drought tolerance and P acquisition in low-P conditions.

Ethylene Response Factors (ERFs)

Ethylene response factors are TFs in the AP2/ERF superfamily, which are involved in tolerance to multiple abiotic stresses (Debbarma et al., 2019). Well-known members of this family include the Dehydration Responsive Element Binding (DREB) factors, which are frequently involved in the ABA-independent regulation of drought responsive genes (Singh and Laxmi, 2015), possibly involving ethylene signaling (Leng and Zhao, 2019). However, in some cases, DRE elements on some promoters are involved in both ABA-dependent and ABA-independent abiotic stresses (Agarwal et al., 2017). Overexpression of DREB TFs has resulted in increased drought tolerance, but with occasional deleterious side-effects (Agarwal et al., 2017). Chen Y. et al. (2018) identified in Jatropha curcas a P starvation responsive AP2/ERF transcription factor, JcERF035, which was downregulated under -P conditions. Overexpression of this P-starvation responsive AP2/ERF in Arabidopsis resulted in enhanced root hairs but reduced number and length of lateral roots, which was apparently independent from P supply. Recently, overexpression of ERF74 in Arabidopsis was shown to enhance tolerance to a variety of stress factors, including drought, high light, heat and Al toxicity, whereas the erf74 mutant displayed higher sensitivity to these stresses. Like many other abiotic stresses, Al toxicity, generates ROS (see Section 2.2a), which may both be a toxic product and also can be a signal. Yao et al. (2017) showed that the erf74 mutant lacked the reactive oxygen species burst often seen in the early stages of various stresses, which was due to lower expression level of RESPIRATORY BURST OXIDASE HOMOLOG D (RbohD) in the erf74 mutant. Possibly this is part of a ROS signaling pathway conditioning tolerance to stresses such as Al toxicity, drought and temperature extremes, which may be related to ROS signals (Yao et al., 2017). While these studies with JcERF35 and AtERF74 suggest that some ERF transfactors might be involved in plant responses to P, Al and drought stress, this area awaits considerable further investigation. Also, given the involvement of ABA as a positive regulator of Al tolerance, including induction of AtALMT1 and AtMATE expression (see Section 2.2b), other, yet unidentified factors may connect drought and Al tolerance via ABA-dependent pathways.

Conclusion

In this review, we examined the literature for common elements shared between the three major stresses that often co-occur on acidic soils: Al toxicity, low P availability and drought, with a focus on genes/proteins involved in signaling and/or regulatory pathways and networks controlling plant responses and adaptations to these three abiotic stresses. In general, research on crop adaptation to acidic soils has focused on one of the two primary stresses resulting from the unique chemistry of acidic soils, Al toxicity or P deficiency. But as this field has advanced and matured, we showed here that quite recently, a number of genes have been identified that are involved both in Al resistance and adaptation to P deficiency. The very broad field of research on crop adaptations to drought, on the other hand, has not focused much on the possible role of drought resistance mechanisms in adaptations to acidic soils. This is primarily because drought, by its very nature, occurs on all types of soils in many different eco-agricultural systems. Nonetheless, in this review we did identify several genes and the proteins they encode that could play a role in adaptation to all three of these abiotic stresses. At the beginning of this review, we speculated that genes involved in signaling/regulatory networks might be the best source for candidates involved in crop adaptation to all three stresses. This turned out to be the case as we identified transcription factors from several TF families that could play this pleiotropic role. These TF’s are summarized here and a model of the function of the best candidate TF’s in the three abiotic stresses is presented in Figure 1.

FIGURE 1

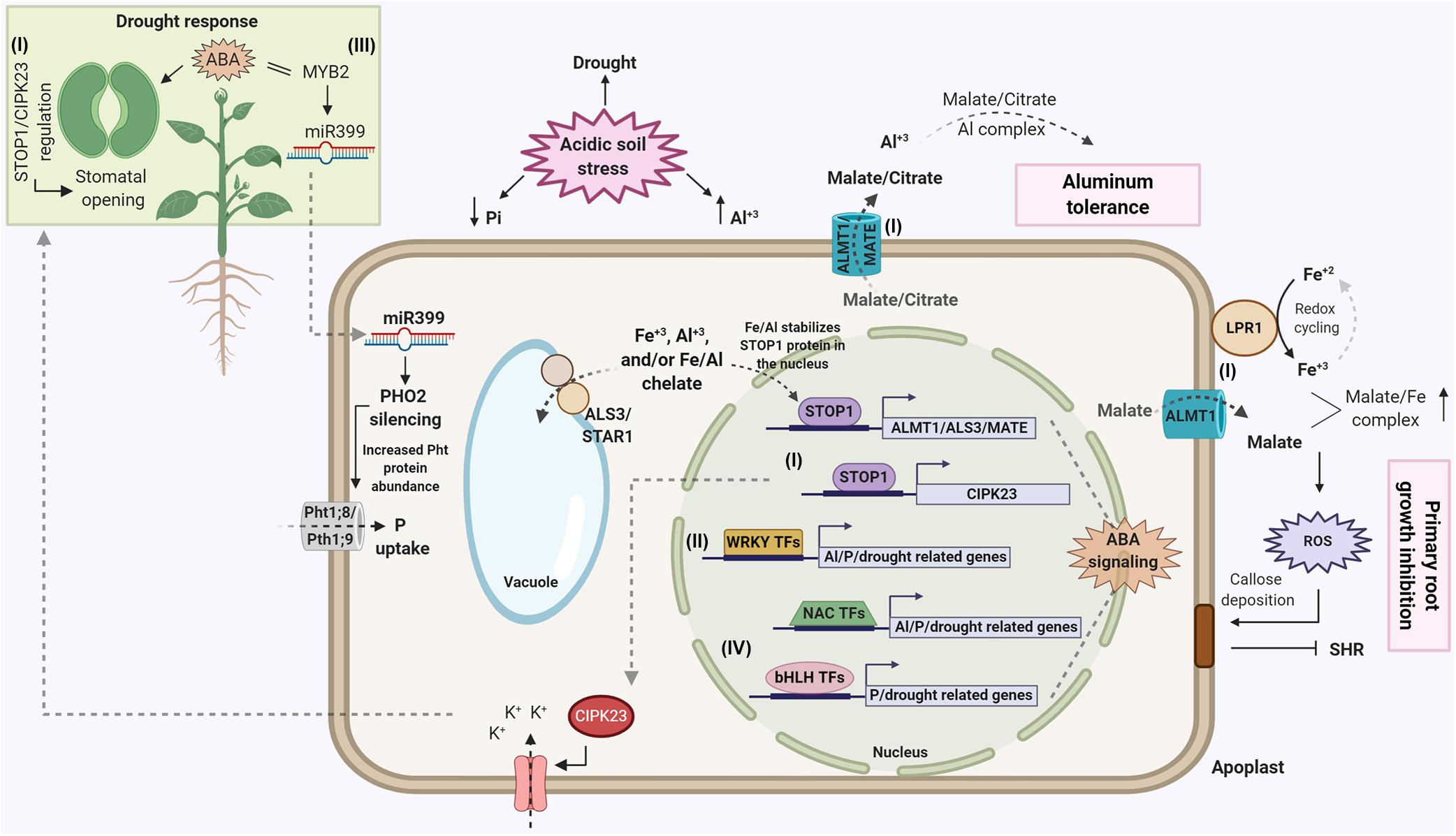

Figure 1. Model for cross-talk between Al toxicity, low-P availability and drought stress. Four transcriptional regulatory networks are highlighted that we identified in this review that may be involved with plant responses to these three abiotic stresses. (I) The SENSITIVE TO PROTON RHIZOTOXICITY 1 (STOP1) transcription factor is involved in Al tolerance, P deficiency and drought stress. In addition to AtMATE, STOP1 transcriptionally activates the ALUMINUM ACTIVATED MALATE TRANSPORTER1 (ALMT1) which encodes the root PM anion channel that mediates Al activated malate release from roots, detoxifying Al in the rhizosphere. P deficiency induces the release of the multicopper ferroxidase (LPR1) that reduces/oxidizes Fe. P deficiency also induces expression of ALMT1, and the malate released via the ALMT1 protein chelates and facilitates accumulation of Fe in the cell wall where its oxidoreduction is catalyzed by LPR1, generating peroxides, which triggers lignification and cell wall stiffening, and rapid inhibition of root growth. At the same time, ROS generated from oxidoreduction of Fe triggers callose formation, which blocks plasmodesmata between stem cell initials and cells of the RAM outside the stem cell niche. This blockage of the plasmodesmata prevents cell-to-cell transport of the transcription factor, SHORT-ROOT, which is needed to drive stem cell division. This exhausts the RAM and terminates primary root growth. The Fe accumulated in the cell wall also drives increased Fe influx into the cytoplasm of RAM and the increased Fe helps stabilize and enhance STOP1 accumulation in the nucleus. Under P sufficient conditions, the tonoplast ABC transporter, ALS3/STAR1, is hypothesized to transport the Fe or Al (depending on soil conditions) or possibly Fe/Al-chelates into the vacuole and the reduction of Fe/Al levels in the cytoplasm and nucleus represses STOP1 protein accumulation in the nucleus, inhibiting ALMT1, transcriptional activation. With regards to STOP1’s involvement in drought response, STOP1 also transcriptionally activates CBL-INTERACTING PROTEIN KINASE 23 (CIPK23) expression, and the CIPK23 protein is an activator of high affinity K⁺ transporters in the root and possibly the shoot, which could result in enhanced stomatal opening and a reduction in drought tolerance due to increased transpirational water loss. (II) A second family of candidate TFs are the large WRKY family. There are several WRKY transcription factor family members involved in responses to drought and Al toxicity. For example, AtWRKY46 represses ALMT1 expression in the absence of Al and also is expressed in guard cells in response to drought stress; although its role in drought response remains to be elucidated (III) The AtMYB2 transcription factor co-regulates P efficiency and is involved in drought response via regulation of miR399. AtMYB2 induces miR399 in response to ABA and salt stress, and overexpression of miR399 results in salt and ABA tolerance but interestingly, is associated with drought sensitivity. miR399 plays a well-documented role in long distance P deficiency signaling in the phloem as it is synthesized in response to P deficiency in mature source leaves and is translocated in the phloem to the root, where it silences PHOSPHATE 2 (PHO2), which encodes a ubiquitin-conjugating E2 enzyme that negatively regulates P transporters under P sufficiency. (IV) NAC and Basic helix-loop-helix (bHLH) transcriptional factors have been implicated in drought regulation of stress-related genes via a wide-range of possible tolerance mechanisms, which involves ABA-dependent and independent pathways. The bHLH family member, PTF1, plays a role in low P tolerance, enhancing lateral root development. ZmPTF1 bind to the promoter of NAC30 and other TFs, acting as a positive regulator of those genes. Thus, a possible connection between NAC-mediated tolerance to both drought and low-P conditions may be mediated at some extent via bHLH-dependent regulation of NAC TFs. NAC TFs may also connect with Al tolerance based on up-regulation of VuNAR1 root apex and Al inducibility of other NACs. VuNAR1 also binds to the promoters of wall-associated receptor kinase genes, conferring Al tolerance through regulation of cell wall pectin metabolism. Although there is no evidence for direct interaction of STOP1, AtMATE1 and AtALS3 promoters, it is clear that STOP1 is crucial for induction of these genes. Not shown here is a possible link between Al tolerance and drought tolerance via ERF transcription factors, whose supporting evidence is more limited and preliminary. The figure was created with BioRender.com.

(1) STOP1, a C2H2 Zinc Finger Transcription Factor: This is probably the most interesting candidate as it has been shown to clearly be a key Al tolerance gene, regulating the Al-induced transcriptional activation of a number of Al tolerance genes in Arabidopsis, including the major Al tolerance gene, ALMT1 (Iuchi et al., 2007). STOP1 also plays a key role in Arabidopsis root response to P deficiency, as under low P STOP1 again activates ALMT1 expression, enhancing the production of the ALMT1 anion channel that facilitates root malate release, which is central to the root apex Fe accumulation needed to exhaust the primary root RAM and root growth (Müller et al., 2015; Balzergue et al., 2017; Mora-Macías et al., 2017). The loss of primary root apical dominance then appears to lead to enhanced lateral root growth which could confer enhanced P acquisition in low P soil. Additionally, there is a reasonable amount of circumstantial evidence implicating STOP1 in several drought responses. This includes the recent finding that stop1 knockout lines showed enhanced drought tolerance in Arabidopsis (Sadhukhan et al., 2019), suggesting that STOP1 is a negative regulator of drought tolerance. These authors also found that the STOP1 regulated the expression of the gene encoding the CBL-interacting protein kinase 23 (CIPK23), and complementation of the stop1 mutant with CIPK23 reversed the drought phenotype (back to drought sensitivity). Furthermore, in a heterologous system, Xenopus oocytes, CIPK23 can activate via phosphorylation the guard cell PM anion channel, SLAC1 (SLOW ANION CHANNEL-ASSOCIATED 1) (Maierhofer et al., 2014), the direct link between this process and drought physiology involving stomatal closure is still unclear. Nevertheless, these findings all point toward the highly pleiotropic nature of the transcription factor, STOP1.

(2) WRKY Transcription factors: We found different members of the WRKY TF family that were involved in all three stresses, but did not identify a single WRKY member clearly influencing all stresses. One possibility is AtWRKY46, which is involved in Al tolerance where it represses ALMT1 expression in the absence of Al (Ding et al., 2013). Additionally, it was shown to be involved in drought response, as it is expressed in guard cells and this expression is induced by drought, salt and oxidative stress (Ding et al., 2014). Additionally, AtWRKY46 was found to enhance lateral root development in response to osmotic and salt stress conditions, possibly via ABA-signaling and auxin homeostasis (Ding et al., 2015). It would be interesting to find out if this increased lateral root development and growth could also play a role in improved P efficiency.

(3) AtMYB2 Regulation of miR399: There is good evidence for this MYB transcription factor co-regulating P efficiency and drought tolerance via regulation of miR399 (Baek et al., 2016, 2017). As detailed above, miR399 is an important player in P homeostasis via a long distance systemic signaling system in the phloem translocating miR399 from mature source leaves to the root, where it silences PHO2, the ubiquitin-conjugating E2 enzyme that negatively regulates P transporters under P sufficiency (Fujii et al., 2005; Baek et al., 2013). It was also shown that AtMYB2 regulation of miR399 is also involved in plant responses to abscisic acid (ABA), and to salt and drought (Baek et al., 2016). Salt and ABA treatment induced the expression of miR399, and overexpression of miR399 resulted in enhanced salt tolerance and interestingly, hypersensitivity to drought. Hence the pleiotropic nature of AtMYB regulation of miR399 spanning low P and drought stress is apparent, although the functional basis of its impact on drought responses remains to be elucidated.

In conclusion, there are tantalizing links in the literature between the regulation of plant adaptation and responses to Al toxicity, P deficiency and drought stress. To provide the readers with a summary of the work reviewed in this paper, we have included Supplementary Table 1 (Gene families possibly involved in pleiotropic mechanisms) resulting in multiple stress tolerances (tolerance to Al toxicity, P deficiency and drought) which contains lists of members of five gene families (WRKY, STOP1, MYB, bHLH, and NAC) involved in Al toxicity, drought stress and P deficiency. However more research is needed to say with certainty that the same factors can regulate tolerance to all three stresses. If that is the case, it will be quite intriguing to determine if these genes would be useful in a plant breeding program for multiple environmental stresses. Within a scenario where the same genes in some way influence tolerance to multiple stresses, instances of conflicting effects may be foreseen, as previously discussed. If the same gene acts simultaneously as positive and negative regulators of tolerance to different stresses, this may cancel its final effect in phenotypic expression or even be detrimental to crop performance on acidic soils. Within the context of molecular breeding strategies targeting quantitative traits such as genomic selection, these and other negative effects may be filtered out along the selection process via genomic estimation of breeding values. However, transgenic approaches may be more sensitive to this problem. In that regard, gene editing has emerged as a powerful approach to fine tune gene expression, which could help circumvent negative effects coming from pleiotropy or epistasis. This approach has proven useful in bypassing negative epistasis effects on yield in tomato (Soyk et al., 2017) and to tackle quantitative trait variation (Rodríguez-Leal et al., 2017). Particularly to deal with possible hurdles when exploring pleiotropy in crop adaption to acidic soils, it is more than certain that in-depth knowledge of the physiological and genetic underpinnings of multiple stress tolerance will be required.
