High Resolution Mapping of a Hordeum bulbosum-Derived Powdery Mildew Resistance Locus in Barley Using Distinct Homologous Introgression Lines

Powdery mildew caused by Blumeria graminis f. sp. hordei (Bgh) is one of the main foliar diseases in barley (Hordeum vulgare L.; Hv). Naturally occurring resistance genes used in barley breeding are a cost effective and environmentally sustainable strategy to minimize the impact of pathogens, however, the primary gene pool of H. vulgare contains limited diversity owing to recent domestication bottlenecks. To ensure durable resistance against this pathogen, more genes are required that could be unraveled by investigation of secondary barley gene-pool. A large set of Hordeum bulbosum (Hb) introgression lines (ILs) harboring a diverse set of desirable resistance traits have been developed and are being routinely used as source of novel diversity in gene mapping studies. Nevertheless, this strategy is often compromised by a lack of recombination between the introgressed fragment and the orthologous chromosome of the barley genome. In this study, we fine-mapped a Hb gene conferring resistance to barley powdery mildew. The initial genotyping of two Hb ILs mapping populations with differently sized 2HS introgressions revealed severely reduced interspecific recombination in the region of the introgressed segment, preventing precise localization of the gene. To overcome this difficulty, we developed an alternative strategy, exploiting intraspecific recombination by crossing two Hv/Hb ILs with collinear Hb introgressions, one of which carries a powdery mildew resistance gene, while the other doesn’t. The intraspecific recombination rate in the Hb-introgressed fragment of 2HS was approximately 20 times higher than it was in the initial simple ILs mapping populations. Using high-throughput genotyping-by-sequencing (GBS), we allocated the resistance gene to a 1.4 Mb interval, based on an estimate using the Hv genome as reference, in populations of only 103 and 146 individuals, respectively, similar to what is expected at this locus in barley. The most likely candidate resistance gene within this interval is part of the coiled-coil nucleotide-binding-site leucine-rich-repeat (CC-NBS-LLR) gene family, which is over-represented among genes conferring strong dominant resistance to pathogens. The reported strategy can be applied as a general strategic approach for identifying genes underlying traits of interest in crop wild relatives.

Introduction

The increased genetic uniformity of cultivated crops, makes them highly vulnerable to various biotic and abiotic stresses, leading to crop yield losses and serious food security issues (Hoisington et al., 1999). Disease resistance breeding is a cost effective and environmentally sustainable strategy for minimizing the damage caused by plant pathogens. Hence, plant breeders are continuously working to discover novel sources of genetic resistance. Crop wild relatives (CWRs) are a reservoir of genetic variation providing an important source of novel alleles for the genetic improvement of cultivated species. Crosses between cultivars and CWRs have been carried out in several crop species to unlock this favorable genetic diversity (Tanksley and McCouch, 1997; Feuillet et al., 2008). Some prominent examples of the introgression of favorable disease resistance alleles from CWRs are the introductions of late blight resistance into potato from the wild potato Solanum demissum (Rao, 1979; Prescott-Allen and Prescott-Allen, 1986), and of stem rust resistance genes Sr21 (Chen et al., 2015) and Sr39 (Kerber and Dyck, 1990), both effective against the race Ug99, into bread wheat from Triticum monococcum and Aegilops speltoides, respectively.

Barley (Hordeum vulgare L.), the fourth most important cereal crop in the world, is affected each year by up to 30% potential yield loss due to pests and diseases (Savary et al., 2012). Limitations in the availability of novel resistance genes or alleles in the primary gene pool of barley, comprising the cultivated barley H. vulgare spp. vulgare and its wild progenitor H. vulgare spp. spontaneum, has directed the focus of research toward other barley gene pools. Bulbous barley, Hordeum bulbosum (Hb), a wild self-incompatible species and the only member of the secondary gene pool of cultivated barley (von Bothmer et al., 1995) is resistant to many barley pathogens (Xu and Kasha, 1992; Walther et al., 2000). A large panel of Hb introgression lines (ILs) harboring a diverse spectrum of resistance traits has been developed during recent years (Pickering et al., 1995; Johnston et al., 2009). This resource comprises ILs carrying, among others, the barley leaf rust resistance gene Rph26 on chromosome 1H^bL (Yu et al., 2018); barley leaf rust gene Rph22 (Johnston et al., 2013) and barley mild mosaic virus gene Rym16^Hb (Ruge-Wehling et al., 2006) both located on chromosome 2H^bL; barley yellow dwarf virus resistance gene Ryd4^Hb on chromosome 3H^bL (Scholz et al., 2009) as well as loci conferring powdery mildew resistance located on chromosome 2H^bS, 2H^bL and 7H^bL in barley/Hb introgression lines (Xu and Kasha, 1992; Pickering et al., 1995; Shtaya et al., 2007). These ILs represent a unique genetic resource for improving barley resistance to pathogens and for scientific investigation of resistance mechanisms as they provide access to further genetic diversity out of the primary gene pool of barley (Tanksley and Nelson, 1996; Zamir, 2001; Johnston et al., 2009). Genotyping-by-sequencing (GBS) of 145 Hv/Hb introgression lines (Wendler et al., 2014, 2015) has provided an extensive pool of molecular markers, sequence resources and single-nucleotide polymorphisms (SNPs) information, greatly improving the efficiency of mapping Hb loci.

Since the identification and the extensive use of the durable and complete mlo resistance gene in European germplasm (Jørgensen, 1992), the threat of powdery mildew to barley has been largely mitigated. However, mlo is associated with yield penalties (Kjær et al., 1990) and increased susceptibility to some hemibiothrophic and necrotrophic fungi (Jarosch et al., 1999; Kumar et al., 2001; McGrann et al., 2014). Thus, the search for alternative sources of resistance to powdery mildew remains important for barley breeding (Czembor, 2002; Corrion and Day, 2015). The wild progenitor H. vulgare spp. spontaneum proved to be a great source of diversity of resistance genes (Fischbeck et al., 1976; Dreiseitl and Bockelman, 2003). However, these genes are mostly race-specific, major resistance genes. They are particularly effective, but prone to be rapidly overcome by emerging new pathotypes. Therefore, the search for non-host resistance, from plant species to which the pathogen is not coevolutionary adapted, represent a great hope to achieve a complete and durable resistance. Several Hv/Hb introgression lines carrying a locus conferring powdery mildew resistance have been described (Xu and Kasha, 1992; Pickering et al., 1995, 1998; Shtaya et al., 2007). The Hb accession A42 displays a dominant high resistance to powdery mildew that has been localized on the short arm of chromosome 2H^b in preliminary studies (Szigat and Szigat, 1991; Michel, 1996). Interestingly, several significant QTLs and major genes associated with powdery mildew resistance have repeatedly been reported in this region in cultivated barley (Backes et al., 2003; von Korff et al., 2005; Řepková et al., 2009). Moreover, a resistance gene to powdery mildew has been reported in this region in various Hb accessions (Pickering et al., 1995; Zhang et al., 2001; Shtaya et al., 2007).

While the potential value of untapped genetic diversity of CWR is immense, their application in breeding programs through the use of ILs is hampered by negative linkage drag, mainly caused by severely repressed genetic recombination (Wijnker and de Jong, 2008; Prohens et al., 2017), which can confer yield penalties or other unfavorable characteristics (Hospital, 2001). The degree of drag is correlated with the size of introgressed CWR chromatin segments, and thus can be mitigated by reducing the size of respective introgressions through recombination (Frisch and Melchinger, 2001). However, the efficient utilization of Hb germplasm in barley crop improvement and the genetic mapping of loci contributed by Hb suffers from highly reduced frequency of recombination in introgressed intervals up to 14-fold compared to intraspecific barley crosses (Ruge et al., 2003; Ruge-Wehling et al., 2006; Kakeda et al., 2008; Johnston et al., 2013). Possible explanations for this phenomenon include excessive sequence diversity, structural variation among Hordeum genomes, and probably other unknown mechanisms (Pickering, 1991; Hoffmann et al., 2004; Wendler et al., 2017). To reduce the negative linkage drag, precise delimitation of the causal gene is required, which usually demands intensive screening of large segregating Hv/Hb ILs populations.

Canady et al. (2006) compared the recombination rate in crosses between cultivated tomato (Solanum lycopersicum) and ILs with Solanum lycopersicoides fragments in S. lycopersicum backgrounds with the recombination in crosses between ILs with S. lycopersicoides fragments and ILs with Solanum pennellii fragments in the same region. They showed that tomato ILs with overlapping fragments from closely related species exhibited increased recombination rates in those fragments. Similarly, in barley, Johnston et al. (2015) demonstrated the usefulness of intraspecific recombination between Hb ILs to overcome the negative linkage between genes conferring pathogen resistance and reduced yield. They crossed two recombinant ILs containing an Hb locus on chromosome 2HL comprising the genes Rph22 and Rym16^Hb, together with the proximal region of the original introgression for one of them, and the distal region for the other. They obtained four lines with reduced introgressions around the locus of interest for which the yield was close to the one of the recurrent Hv genotype.

The current study aimed to map a dominant powdery mildew resistance locus on chromosome 2H^bS introgressed from the tetraploid A42 powdery mildew resistant Hb accession into a susceptible barley cultivar “Borwina.” Mapping in populations of over 200 F7 and BC1F6 from crosses between a susceptible barley cultivar and an Hb IL showed severely repressed recombination between the introgressed segment and the Hv genome. To overcome this difficulty, we exploited intraspecific recombination instead of interspecific recombination by crossing the IL carrying the resistance locus with another Hv/Hb IL carrying a homologous Hb introgression without resistance loci.

Materials and Methods

Fungal Isolate and Phenotyping Test

The swiss powdery mildew field isolate CH4.8 was chosen based on its hypersensitive response it triggers on resistant plants and its capacity to overcome the resistance gene MlRu2 present in Borwina, allowing a clear discrimination between resistant and susceptible plants. The resistance test was carried out in two technical replicates by detached leaf assay on the second seedling leaf sampled 14 days after sowing, as described in Hoseinzadeh et al. (2019). The inoculated detached leaves were kept for 7 days in a growth cabinet (MLR-352H, Panasonic, Japan) with LED light sources (S2 20W matt nw, ARTEKO-LED, Germany) at 20°C with 60% humidity and a 16:8 h photoperiod. Powdery mildew resistance phenotype was scored macroscopically based on percentage infection area as described by Mains and Dietz (1930). Plants without mycelial growth and sporulation but presenting necrotic flecks (infection type 1)were classified as resistant, while those having infection types similar to the susceptible parent “Borwina,” with sporulation of well-developed colonies (infection types 3 and 4) were classified as susceptible.

Plant Material and Population Development

Initial genetic mapping was performed on the F7 and BC1F6 populations “5216” and “4176,” respectively, both derived from crossing a tetraploid derivative of the colchicine treated German winter barley cultivar “Borwina” and the tetraploid Hb accession A42, which is resistant to several European barley powdery mildew isolates. Both “5216” and “4176” populations were derived from selfing of a single plant from the previous generation established as both resistant and heterozygous at the resistance locus. The crossing scheme used to generate those populations is described in Figure 1.

FIGURE 1

Figure 1. Schematic outline of the mapping population design. The tetraploid Hb accession A42, resistant to the isolate CH4.8, was crossed to the tetraploid derivative of the susceptible barley cultivar “Borwina.” From tetraploid F1 hybrids, two different introgression mapping populations were developed: the “4176” population was developed by backcrossing the F1 hybrid once to the parent “Borwina,” followed by five generations of selfing. A gray arrow indicates a selfing generation. The “5216” population was derived from six generations of selfing from the F1 hybrid. In the course of development of populations “4176” and “5216,” the generations were diploid from BC1F2 and F2, respectively. Through the population development, each new selfing generation was obtained by selecting and selfing a single resistant heterozygous plant identified by resistance test with the powdery mildew isolate CH4.8 and marker data analysis, in order to promote recombination.

We hypothesized that differences in the sequence or organization between Hv and Hb orthologous genome regions would severely reduce meiotic recombination. To test this hypothesis, we analyzed intraspecific Hb/Hb recombination in a Hv background. We generated two F2 populations by crossing two independent Hv/Hb ILs carrying independent but overlapping Hb introgressions at the terminal 2HS chromosome, thus representing different Hb genotypes at the resistance locus. Three introgression lines “IL 88,” “IL 99,” and “IL 116,” developed in New Zealand Institute for Crop and Food Research, were selected that carry independent Hb introgressions at end of the short arm of barley chromosome 2H (Wendler et al., 2015; Table 1). These three ILs were phenotyped for resistance against isolate CH4.8 (Figure 2). Only “IL 88” displayed full susceptibility to CH4.8 and was used for further population development.

TABLE 1

Table 1. Hb introgression lines containing segments overlapping with IL “4176” and IL “5216” and their observed resistance phenotype to the Bgh isolate CH4.8.

FIGURE 2

Figure 2. Powdery mildew infection (isolate CH4.8) on the second leaf of seedling from the three independent Hv/Hb parental ILs, 7 days after inoculation. (A) Phenotype of the susceptible parental introgression line “IL 88” population “dIL_5216” and “dIL_4176.” (B) Phenotype of the resistant parental introgression line 5216/4_40 from population “dIL_5216.” (C) Phenotype of the resistant parental introgression line 4176/26_33 from population “dIL_4176.”

The homozygous resistant ILs 5216/4_40 and 4176/26_33 from the populations “5216” and “4176” were crossed to the susceptible “IL 88.” From each cross, a single F1 plant was selfed, resulting in 103 and 146 F2 seeds, respectively. These two F2 populations were named “dIL_5216” and “dIL_4176,” respectively.

Genomic DNA Extraction

Genomic DNA was extracted from third leaves of barley seedlings using a guanidine isothiocyanate-based DNA isolation method in 96-well plate format as described earlier (Milner et al., 2018). dsDNA concentration was measured by Qubit^® 2.0 Fluorometer using the Qubit^TM dsDNA BR (Broad Range) Assay Kit (Invitrogen, Carlsbad, CA, United States) following the manufacturer’s protocol.

Marker Development

To screen the initial IL mapping populations “4176” and “5216” for recombinants, nine CAPS markers (Supplementary Table 1) were designed to be evenly distributed over the distal 20 cM of barley chromosome 2HS, based on the conserved interspecific SNPs identified by targeted enrichment re-sequencing of 145 Hb ILs (Wendler et al., 2015). This set of ILs included the F4 homozygous 2HS IL (3026) from the mapping population “5216” and its associated donor lines, plus four additional Hv cultivars and four Hb accessions (Wendler et al., 2015). Only conserved Hv/Hb SNPs with a minimum of six-fold read coverage and located in the target region on the barley draft genome (International Barley Genome Sequencing Consortium., 2012) were selected and converted into CAPS markers using SNP2CAPS software (Thiel et al., 2004). Primer design was carried out using the default settings of Primer3 v.0.4.01 (Koressaar and Remm, 2007; O’Halloran, 2015) with minor modifications: The primer length was set between 19–21 bp. Primer melting temperature (Tm) was set to minimum Tm = 58°C, optimum Tm = 59°C and maximum Tm = 60°C. The product size was defined to be between 700 and 1,000 bp and Guanine-Cytosine content (GC-content) was set within the range of 50–55%.

CAPS Genotyping

Genotyping of populations “4176” and “5216” with the described CAPS markers was performed in a 20 μl PCR reaction volume including 20 ng genomic DNA, 0.1 U of HotStarTaq DNA Polymerase (Qiagen, Hilden, Germany), 1x PCR reaction buffer containing 15 mM MgCl₂ (Qiagen, Hilden, Germany), 0.2 mM of each dNTP (Fermentas, Fermentas, St. Leon-Rot, Germany), and 0.5 mM of each primer. All fragments were amplified using the following touchdown PCR profile: an initial denaturing step of 15 min at 95°C was followed by four cycles with denaturation at 95°C for 30 s, annealing at 62°C for 30 s (decreasing by 1°C per cycle), and extension at 72°C for 30 s. A final extension step was performed at 72°C for 7 min. The enzymatic digestion of the amplicons was performed in a 10 μl volume containing 5 μl of PCR product, 1× of appropriate buffer (New England Biolabs, Hitchin, United Kingdom), 1 U of enzyme (New England Biolabs, Hitchin, United Kingdom) and adjusted to final volume by adding molecular biology grade pure water. The reaction mix was incubated for 1 h at recommended incubation temperature. The digested PCR products were resolved by 1.5–2.5% gel-electrophoresis depending on amplicon size.

Genotyping-by-Sequencing and Data Analysis

GBS was used, following published procedures (Mascher et al., 2013b), to check the genetic purity and state of heterozygosity of F1 hybrid seeds derived from crosses between overlapping 2HS introgression lines as well as to genotype the whole F2 populations derived from these crosses. DNA of the progeny and parental lines were pooled per Illumina HiSeq2500 lane in an equimolar manner and sequenced for 107 cycles, single read, using a custom sequencing primer as previously described (Hoseinzadeh et al., 2019). The reads were aligned to the TRITEX genome assembly of barley cultivar Morex (Monat et al., 2019) with BWA-MEM version 0.7.12a (Li and Durbin, 2009). Variants were filtered following the protocol of Milner et al. (2018) for a minimum depth of sequencing of four to accept a genotype call, a minimum mapping quality score of the SNPs (based on read depth ratios calculated from the total read depth and depth of the alternative allele) of six, a maximum fraction of heterozygous call of 70% and a maximum fraction of 25% of missing data. The resulting tables of polymorphisms are provided in Supplementary Tables 2, 3.

Results

Inheritance of the Resistance Contributed by Hb

The susceptible parental Hv genotype “Borwina” consistently displayed a leaf infection area of ≥80% in all experiments. The scoring rates of all susceptible individuals of both populations “4176” and “5216” was similar to the susceptible parent and did not significantly vary between phenotyping experiments, indicating high infection efficiency and reproducibility in all phenotyping experiments. The resistance phenotype to the CH4.8 powdery mildew isolate of plants carrying the Hb introgressed segment in a heterozygous state was identical to that of plants homozygous for the Hb fragment (Figure 3). The resistance phenotype was invariably accompanied with a hypersensitive response (HR) forming a necrotic lesion.

FIGURE 3

Figure 3. Powdery mildew infection (isolate CH4.8) on the second leaf of seedling from two BC2F6 ILs from population “4176,” 7 days after inoculation. 4176/16_97 is homozygous at the resistance locus whereas 4176/16_51 is heterozygous. Their resistance phenotype is identical and present necrotic lesions characteristic of HR.

Phenotypic segregation for powdery mildew resistance against CH4.8 isolate was consistent with a 3:1 ratio (resistant/susceptible, R/S, P < 0.05) in all mapping populations, indicating the control of resistance by a single dominant resistance gene (Table 2). We propose the temporary name Mlhb.A42 for this locus, based on previous naming of Hb powdery mildew resistance genes (Pickering et al., 1995; Steffenson, 1998).

TABLE 2

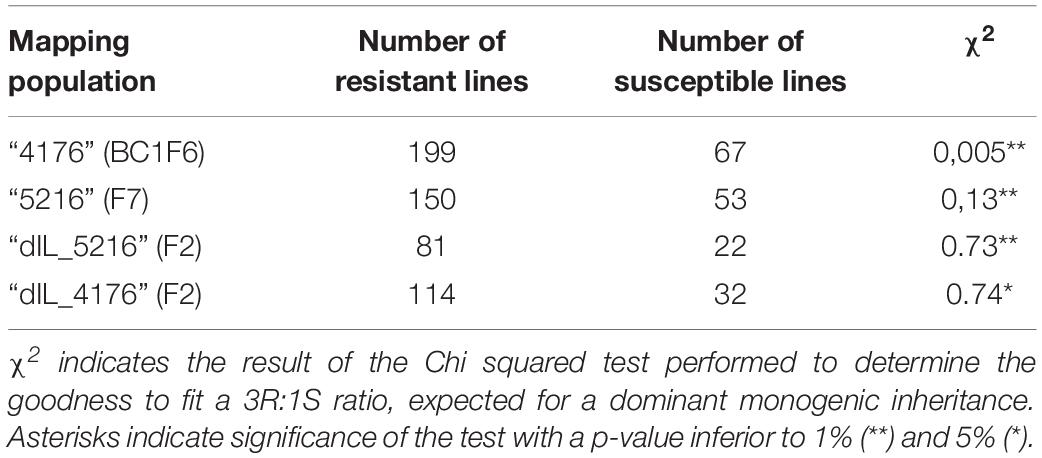

Table 2. Phenotypic segregation of powdery mildew resistance in each of 2HS IL mapping populations.

Recombination Frequency and Mapping of Mlhb.A42 in Single-Introgression Line Mapping Populations

Genotyping of the mapping populations employed nine CAPS markers designed based on existing exome capture re-sequencing data (Supplementary Table 1). This showed that the BC1F6 population “4176” carried a longer introgressed segment compared to the F7 population “5612” (Figure 4). The genotyping results for population “5612” confirmed the extent of the introgressed segment, previously detected by exome capture in the F6 generation (Wendler et al., 2015).

FIGURE 4

Figure 4. Graphical genotypes and phenotypes of the recombinant Hv/Hb ILs from the two IL mapping populations. “Borwina” and “A42” are the original susceptible and resistant parents of the populations. “F6 IL” and “BC1F5 IL” represent the plant that was selfed in the previous generation to obtain populations “4176” and “5216,” respectively. “Rec. IL” 1 to 3 are the identified recombinant plants. Nine CAPS markers named C-CAPS02 to C-CAPS019, were developed based on conserved Hv/Hb SNP loci described in Wendler et al. (2014), spanning the terminal 23 Mbp of barley chromosome 2HS. The black horizontal bars represent schematically the barley reference genome. The physical position of each selected SNPs on the barley reference genome is written below the black line. The homozygous state of the alleles from susceptible and resistant parents is shown as orange and gray colors, respectively, whereas heterozygous state is shown in green. The phenotype of each recombinant is indicated on the right of their genotype (R = resistant; S = susceptible). The number of recombinants identified through screening with the developed markers was only three and two in IL mapping population “4176” and “5216,” respectively.

Genotyping of 266 and 203 individuals in the initial IL mapping populations “4176” and “5612,” uncovered only three and two recombinants within the introgressed segments, respectively (Figure 4). The introgressed segment therefore has a genetic length of approximately 1 centiMorgan (cM). Yet, the segment of population “5612” represents 10 cM on the barley POPSEQ map (Mascher et al., 2013a; Wendler et al., 2015). This confirms the anticipated reduced recombination between the Hv genome and the introgressed Hb segment. The resulting genetic interval for Mlhb.A42 is flanked by markers CAPS02 and CAPS11, corresponding to a 9.5 Mbp interval between bp positions 2,269,761 and 11,819,688 on chromosome 2HS.

Recombination and Mapping of Mlhb.A42 in Double Introgression Lines

The 103 and 146 F2 plants from the two double introgression populations “dIL_5216” and “dIL_4176,” respectively, were genotyped by GBS and phenotyped for resistance against CH4.8 isolate. Based on obtained SNP variants across candidate interval for Mlhb.A42 defined in the initial mapping populations, 14 and 36 recombinants were obtained in “dIL_5216” and “dIL_4176,” respectively (Figure 5). The phenotypes of all non-recombinant plants corresponded to their genotype in this interval. Association between the phenotypes and genotypes of the recombinants defined overlapping 1.7 Mbp (between 7,943,409 and 9,595,691 bp) and 1.4 Mbp (between 8,193,151 and 9,595,691 bp) intervals on barley chromosome 2HS (Monat et al., 2019) in “dIL_5216” and “dIL_4176,” respectively (Figure 5).

FIGURE 5

Figure 5. Intraspecific mapping of the powdery mildew resistance locus Mlhb.A42 in F2 populations derived from two different 2HS Hv/Hb introgression lines. The horizontal black bar schematically represents barley chromosome 2HS. The physical coordinates of each GBS marker are indicated below it. The genomic region containing the Mlhb.A42 locus on barley chromosome 2HS is shown in purple. The graphical genotypes of recombinants are indicated as horizontal bars. The genotype of the susceptible parent “IL88” is represented in orange, the one of the resistant parents 4176/26_33 and 5216/4_40 is represented in gray, and heterozygous state is shown in olive green. The phenotype of each recombinant plant is indicated on the right of its genotype (R = resistant; S = susceptible). The recombination rates in “dIL_4176” and “dIL_5216” are 24.7 and 13.6%, respectively, corresponding to a 20-fold increase compared to single introgression lines. The Mlhb.A42 gene was allocated to a 1.4 Mb interval, based on an estimate using the Hv genome as reference.

Candidate Genes Within the Target Interval

Based on the annotated barley reference genome sequence (Monat et al., 2019), 46 high confidence (HC) genes (Table 3) are located within the 1.4 Mbp Mlhb.A42 interval as delimited in the “dIL_4176” population. Those genes with a putative functional annotation included a nucleotide-binding-site leucine-rich-repeat class of gene (NBS-LLR), an HR-like lesion-inducing protein-coding gene, a lectin receptor kinase (LecRK) and a Heat shock protein 90, all gene functions that could be directly or indirectly implied with plant resistance to biotic and/or abiotic stresses and therefore, qualify as candidate genes for Mlhb.A42. HORVU.MOREX.r2.2HG0082250 is annotated as a LecRK. However, analysis of its protein sequence with InterPro (Mitchell et al., 2018), showed that, like LecRKs, it is composed of an extracellular legume (L-type) lectin domain and a transmembrane domain. However, its cytoplasmic domain is only 23 amino-acid long and does not bear a kinase domain, making this gene a probable lectin receptor-like protein (LecRLP).

TABLE 3

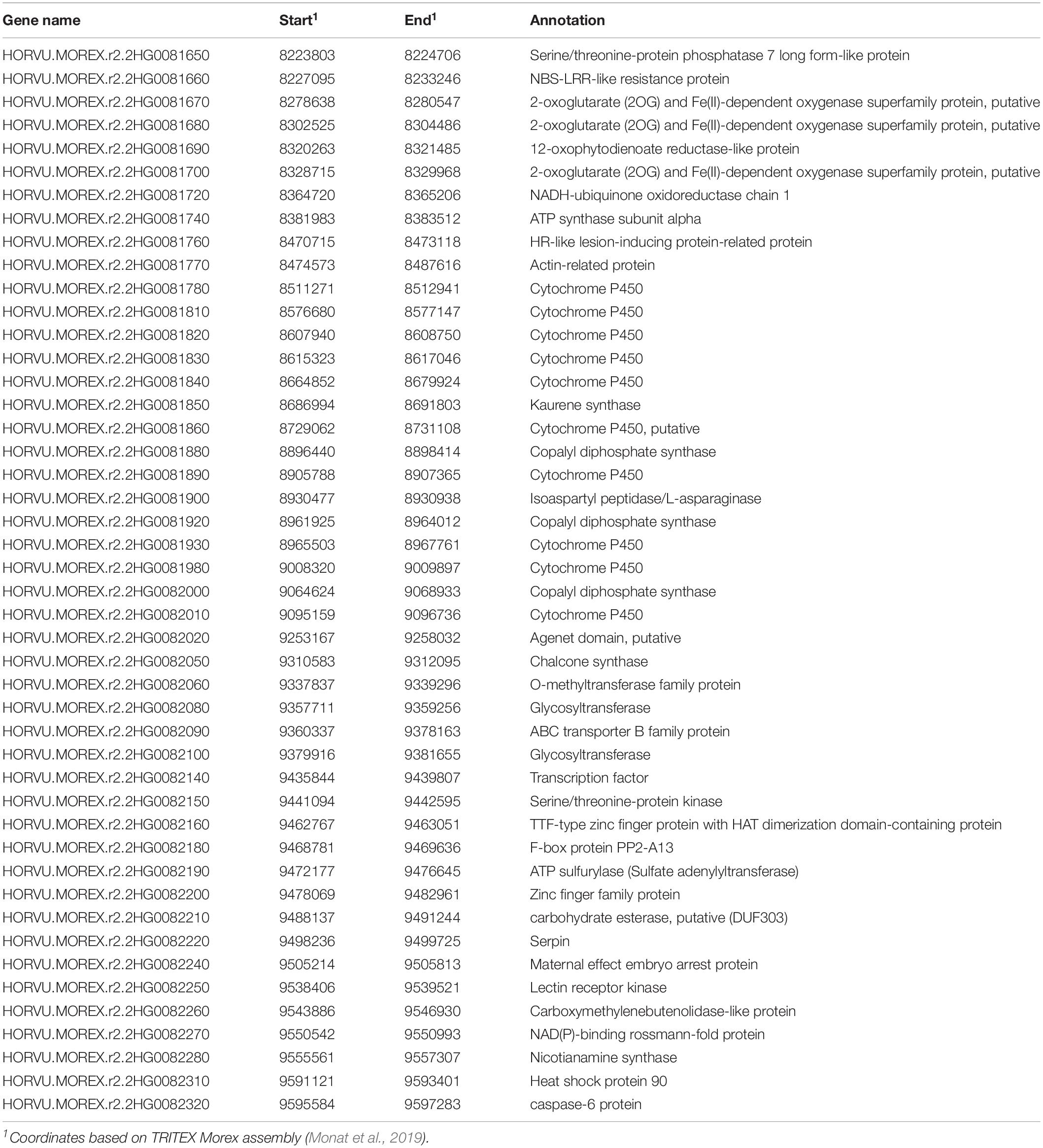

Table 3. High confidence (HC) genes based on automated annotation of barley reference genome.

Discussion

We report the fine mapping of Mlhb.A42, a dominant powdery mildew resistance locus originating from Hb, using mapping populations derived by crossing two independent, resistant and susceptible, Hv/Hb ILs. The strong suppression of recombination between homeologous genomic segments in Hv/Hb introgression lines, which typically results in severe linkage drag, previously represented a barrier to the efficient utilization of Hb germplasm in barley crop improvement, and to the isolation of disease resistance genes introgressed from Hb.

The genomic resource created by the GBS study of Wendler et al. (2015) on 145 Hv/Hb ILs proved to be a useful tool to identify suitable partners for the development of double ILs populations. The exploitation of intraspecific recombination allowed us to overcome the barrier to recombination usually observed in IL populations. Recombination rates in the region carrying the introgressed fragment were estimated to be 24.7% (“dIL_4176”) and 13.6% (“dIL_5216”), comparable to the corresponding 10% rate observed in pure Hv/Hv mapping populations [e.g. POPSEQ map (Mascher et al., 2013a)]. The rate of recombination was exceeded by a factor of 20-fold as compared to the F7 and BC1F6 single IL populations “5216” and “4176” (approximately 1%). The polymorphisms and markers identified in this study can be converted into KASP assays which would enable for rapid and high-throughput screening of large breeding population for the purpose of introgression of Mlhb.A42 into barley cultivars.

The 1.4 Mbp identified target interval is containing 46 annotated HC genes on the most recent chromosome-scale genome assembly of cultivar “Morex” (Monat et al., 2019). The powdery mildew resistance conferred by this Hb locus is dominantly inherited, displaying chlorotic/necrotic flecks of HR with collapsed hyphae at inoculation sites, suggesting a salicylic acid (SA)-independent resistance pathway. Genes from the NBS-LLR or the receptor-like-kinase (RLK) families are over-represented among genes conferring this type of strong dominant resistance to pathogens (Kourelis and van der Hoorn, 2018), making genes from these families likely candidates in the context of this study. HORVU.MOREX.r2.2HG0081660, one of the annotated genes in the interval, is a coiled-coil (CC)-NBS-LRR gene and therefore the most likely candidate gene. However, HORVU.MOREX.r2.2HG0082250 is annotated as a LecRK and could also be a good candidate. LecRKs are a type of RLK characterized by an extracellular lectin motif (Wu and Zhou, 2013). They have been described as implicated in biotic stress resistance, mostly to bacteria and fungi (Singh and Zimmerli, 2013). This type of gene has been identified in resistance to oomycetes (Wang et al., 2015a, b; Balagué et al., 2017) and fungi (Huang et al., 2013; Wang et al., 2014a) in Arabidopsis thaliana and to wheat powdery mildew in Haynaldia villosa (Wang et al., 2018). According to InterPro (Mitchell et al., 2018), HORVU.MOREX.r2.2HG0082250 does not bear a kinase domain and is likely to be a L-type LecRLP. So far, the only LecRLPs described have a lectin-like Lysin-motif (LysM)-type lectin domain. Two LysM-LecRLPs from A. thaliana and three from rice have been identified reported in context of disease resistance through interaction with the LysM-LecRK CERK1. The rice LysM-LecRLP CEBiP recognizes chitin and, through a direct interaction with CERK1, confers pattern-triggered immunity against fungi (Shimizu et al., 2010). Similarly, LYP4 and LYP6 both perceive peptidoglycan and chitin and interact with CERK1 (Liu et al., 2012). In A. thaliana, LYM1 and LYM3 sense pectidoglycan and trigger immunity, through CERK1, to bacterial infection (Willmann et al., 2011). A. thaliana contains only four L-type LecRLPs (Bellande et al., 2017) but, so far, no L-type LecRLPs have been functionally described. However, a mode of action of HORVU.MOREX.r2.2HG0082250 similar to the one of LysM-LecRLPs is a possibility for further investigation.

Almost all the genes annotated in the delimited target interval might be directly or indirectly involved in resistance to biotic and abiotic stresses and should be considered tentative candidates. NADH-ubiquinone oxidoreductase is involved in intracellular ROS production that can prevent pathogen infection (van der Merwe and Dubery, 2006). Cytochrome P450 and O-methyltransferase proteins are responsible for production of several molecules that can play a role in resistance to pathogens or pests (He and Dixon, 2000; Dixon, 2001; Noordermeer et al., 2001). Some glycosyl-transferase genes have been identified as necessary for the HR (Langlois-Meurinne et al., 2005). The rice gene OsHRL encodes for a HR-like lesion inducing protein and has been shown to be associated with resistance to bacterial blight (Park et al., 2010). Copalyl-diphosphate synthases are implicated in the biosynthesis of phytohormones including gibberellic acid or phytoalexins, which contribute to defensive secondary metabolism (Prisic et al., 2004; Harris et al., 2005). Finally, HORVU.MOREX.r2.2HG0082310 is annotated as a Heat shock protein 90 (Hsp90), which are involved in stress resistance, in particular disease resistance, mediating signal transduction for HR (Xu et al., 2012). Notably, it has been shown by virus-induced gene silencing that an Hsp90 gene is required for Mla13 resistance of barley to powdery mildew (Hein et al., 2005).

In addition to the annotated genes, other genes, e.g. members of NBS-LRR and RLK families, might be present in the interval of the resistant Hb parent but missing in the respective interval of the “Morex” reference sequence. Indeed, Hv and Hb diverged 6 million years ago, accumulating structural variations since then (Jakob and Blattner, 2006). Therefore, this Hb resistance to powdery mildew could be due to a gene absent from the barley reference genome. In particular, NBS-LRR genes are subject to frequent duplication (Flagel and Wendel, 2009), and resistances conferred by NBS-LRRs genes are frequently due to presence/absence variation of such genes (Grant et al., 1998; Griffiths et al., 1999; Henk et al., 1999; Stahl et al., 1999; Tian et al., 2002). The wheat powdery mildew-resistance gene Pm21 (Xing et al., 2018) originates from the wheat/Dasypyrum villosum translocation line T6AL.6VS and is localized in a region presenting a high level of synteny with the Mlhb.A42 locus. This gene confers broad spectrum dominant resistance against wheat powdery mildew isolates and encodes a RPP13-like NBS-LRR gene (He et al., 2017; Xing et al., 2018). The protein sequence of Pm21 only shares 34% identity with the translated nucleotide sequence of HORVU.MOREX.r2.2HG0081660. However, its localization in a syntenic region to the resistance conferring Mlhb.A42 locus provides a tempting working hypothesis that Pm21 and Mlhb.A42 could represent orthologous genes or members of the same locally evolved gene family.

A resequencing strategy of the Mlhb.A42 locus in both resistant and susceptible Hb will be necessary to ascertain the structure of the locus and the number and nature of the candidate genes. With the development of new sequencing methods this could be achieved by Cas9-guided enrichment of the locus (Wang et al., 2014b) or sorting and sequencing for assembly of the chromosome 2H in one of the two introgression lines (Thind et al., 2017). Moreover, a locus of resistance to powdery mildew has been identified on chromosome 2HS in the Hb accessions S1 – where it was named Mlhb1.a – (Pickering et al., 1995; Shtaya et al., 2007), 2032 (Zhang et al., 2001; Shtaya et al., 2007), and A17 (Shtaya et al., 2007). Allelism tests are required to check whether the same locus is involved in the resistance from those four accessions or not. Xu and Kasha (1992) identified another Hb powdery mildew resistance gene in the accession GBC141. However, the causal dominant gene, designated as Mlhb2.b, was located by Kasha et al. (1996) on chromosome 2HL and therefore not allelic to Mlhb1.a or Mlhb.A42.

Durability and spectrum of a resistance gene are two major criteria to assess its application potential (Mundt, 2014). Durability of resistance genes can become a major concern as deployed resistance genes are experiencing a boom-and-bust phenomenon (Gladieux et al., 2015). The spectrum of Mlhb.A42 was not evaluated in this study and should be tested in order to ascertain its potential for field resistance. Durability is difficult to estimate under laboratory scenarios. The durability of orthologs genes can be used as a proxy, yet quite imperfect. As discussed earlier, the wheat resistance gene Pm21could be orthologous to Mlhb.A42. Varieties carrying Pm21 have increasingly been cultivated in China in the recent years (Bie et al., 2015) and its durability can therefore be evaluated in real conditions. Unfortunately, in some wheat fields, new Bgt isolates, virulent against Pm21 have been identified (Shi et al., 2009; Yang et al., 2009). However, resistance based on this gene persisted close to 40 years (Tang et al., 2018) and is still effective against more than a thousand of field isolates in China (Zeng et al., 2014) and Poland (Czembor et al., 2014). To counteract the risk of isolates breaking the resistance provided by a single locus it is of ongoing importance to identify new resistance genes and to pyramid new loci with existing sources of resistance to increase the durability of resistance in the system (Wu et al., 2019). Moreover, exploiting CWR resistances could be a way to unravel even more effective resistance genes. Indeed, Wang et al. (2019) showed that the Hb LecRLK gene of resistance to leaf rust Rph22 confers a stronger resistance to leaf rust adapted to Hv than its Hv ortholog Rphq2. The hypothesis is that crop receptors have a lower recognition of crop-adapted pathogens than the CWR receptors because of adaptation of the pathogens during centuries of coevolution with their host plant.

In the current study we report genetic mapping of Mlhb.A42, a dominant resistance locus introgressed to cultivated barley from Hb. This work is a proof-of-concept study for establishing the basic steps of map-based cloning of genes present in Hv/Hb IL collections by exploiting double ILs mapping populations. Using this strategy, we circumvented the limitation of repressed meiotic recombination which was frequently observed in attempts of genetic mapping employing populations derived between Hv/Hb introgression lines and pure barley cultivars. Here, we observed similar or even higher recombination rates as expected in Hv and thus providing a major step toward facilitated exploitation of secondary gene pool-derived resistance genes in barley crop improvement.

Data Availability Statement

The GBS datasets generated and analyzed in this study are deposited at e!DAL PGP repository (Arend et al., 2016) under the https://doi.org/10.5447/IPK/2020/2.

Author Contributions

PH performed the experimental work. PH and HP performed the data analysis and wrote the manuscript. BR-W provided seed material and sample information for two IL mapping populations “4176” and “5216.” PS supervised the phenotyping. NS designed the study, supervised the experimental work, and contributed to the writing of the manuscript. All authors read, corrected, and approved the manuscript.

Funding

This manuscript is part of a Ph.D. study of PH, which was financially supported by a grant from the German Research Foundation (DFG) to PS and NS (“DURESTrit,” STE 1102/5-1/608699) in frame of the ERACAPS initiative. This study was further supported by German Ministry of Food and Agriculture (BMEL, FKZ:2818201615) by reason to the decision of the German Bundestag.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We gratefully appreciate the excellent technical support by Mary Ziems in performing crossings and Susanne Koenig in GBS library preparation. We kindly acknowledge Dr. Axel Himmelbach for his valuable support in the sequencing, Dr. Martin Mascher for his invaluable guidance in data processing and analysis, Dr. Dimitar Douchkov for his input on the phenotyping test and fungal material, and Dr. Timothy Rabanus-Wallace for language editing. We are grateful to Dr. Neele Wendler for her support in the employment of the previously developed GBS and exome capture data presented in the current study.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2020.00225/full#supplementary-material
