Xinxin Zuo1,2*
Houyuan Lu3,4,5- 1State Key Laboratory for Subtropical Mountain Ecology of the Ministry of Science and Technology and Fujian Province, Fujian Normal University, Fuzhou, China
- 2School of Geographical Sciences, Fujian Normal University, Fuzhou, China
- 3Key Laboratory of Cenozoic Geology and Environment, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China
- 4Center for Excellence in Tibetan Plateau Earth Science, Chinese Academy of Sciences, Beijing, China
- 5College of Earth and Planetary Sciences, University of Chinese Academy of Sciences, Beijing, China
Phytolith radiocarbon dating can be traced back to the 1960s. However, its reliability has recently been called into question. Piperno summarized recent dating evidence, but most phytolith dating results from China were not included in the review because they are written in Chinese. Herein, we summarize and evaluate previous phytolith dating results from China. We also review recent debates on the nature and origin of phytolith-occluded carbon (abbreviated as PhytOC), as well as the older age of phytoliths retrieved from modern plants. We conclude that although PhytOC includes a small amount of old carbon absorbed from the soil, this carbon fraction has not always biased phytolith ages, indicating that in certain situations, phytoliths can be tried as an alternative dating tool in archaeological and paleoecological research when other datable materials are not available.
Introduction
Phytoliths are noncrystalline SiO2 · nH2O that are deposited within the cells and cell walls in different parts of plants (Piperno, 2006). The morphology of a phytolith often resembles the shape of the cell in which it is formed and can be used in plant taxonomy. Phytoliths occlude a small amount of carbon during their deposition [phytolith-occluded carbon (PhytOC)] (Smith and Anderson, 2001; Parr and Sullivan, 2005). When a plant dies and decays, phytoliths and their occluded carbon can persist in the soil for a long time owing to the high resistance of phytoliths against decomposition. Phytolith analysis has been applied to environmental, anthropological, and geological research. Radiocarbon dating of phytoliths is a long-established technique that can be traced back to the 1960s (Wilding et al., 1967; Kelly et al., 1991; Piperno and Becker, 1996; Piperno and Jones, 2003). During the past decades, several researchers have attempted to date phytoliths, and some of them have achieved reasonable results. However, some of them have failed, because they found that phytolith carbon comes from multiple sources (either photosynthetic or soil carbon) (Reyerson et al., 2016). Moreover, the carbon in phytoliths that is taken up from the soil is variable and generally unknowable, which limits phytoliths carbon as a reliable dating material (Alexandre et al., 2015; Alexandre et al., 2016; Santos et al., 2018). Consequently, along with organic matter in pottery, phytoliths are considered as problematic samples for radiocarbon dating (Taylor and Bar-Yosef, 2014).
Recent debates in phytolith carbon dating research include the following topics: Is phytolith dating reliable? Is all phytolith carbon encapsulated via photosynthesis from atmospheric CO2 during plant growth, or is some absorbed from soil, which might distort phytolith dating? These questions are relatively new and were widely discussed recently (Hodson, 2018). Researchers have so far failed to reach an agreement on the reliability of phytolith carbon dating, largely because the scientific study of the nature, content, and status of PhytOC is still in its infancy.
In a review article, Piperno (2016a) summarized and evaluated almost all previous phytolith dating results of studies from different regions of the world. However, the results of several phytolith dating studies from China were not included, possibly because they are written in Chinese. Herein, we briefly review the history of phytolith carbon dating research. We then introduce and summarize the history of phytolith carbon dating research in China. Finally, we will discuss the main focus of current debate and the issues associated with phytolith carbon dating.
A Brief History of Phytolith Carbon Dating Research
Jones and Beavers (1964) were the earliest researchers to discover that phytoliths can occlude carbon during their formation in plants (Wilding et al., 1967). The earliest attempt to date carbon in phytoliths was published in 1967 by Wilding (1967), who extracted approximately 75 g of phytoliths from 45 kg of a prairie surface soil horizon, isolated the occluded carbon, and obtained a date of 13,300 ± 450 a BP. Since Wilding’s pioneering research on phytolith carbon dating, three stages of phytolith carbon dating research can been identified according to the total annual citations of Wilding’ s 1967 article (Figure 1).

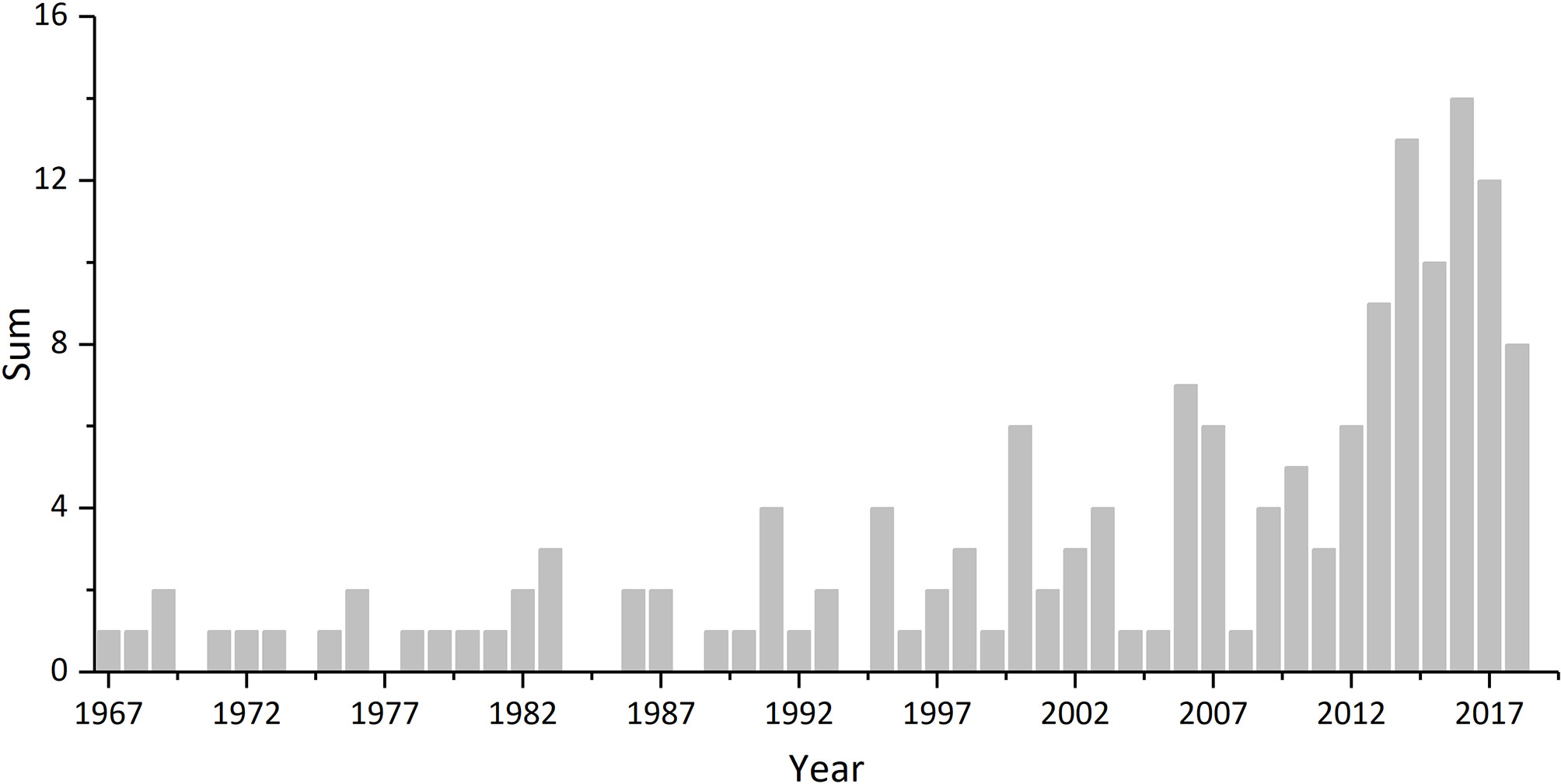

Figure 1 Number of articles that cited the study of Wilding per year after 1967. All references were collected from Google Scholar (https://scholar.google.com).
First is the early research period, from around 1970 to 1990. As shown in Figure 1, although Wilding’s phytolith dating results received some attention sporadically, only a few studies used phytolith dating to construct chronological sequences, mainly because of the time-consuming phytolith extraction process and the large sample size required for conventional radiocarbon dating.
Second is the revived period of research, from 1990 to 2010. The development of accelerator mass spectrometry (AMS) technology has enabled the measurement of very small samples containing trace amounts of carbon. Utilizing this technique, a much smaller amount of phytoliths would yield sufficient carbon for dating, greatly reducing the amount of phytolith extraction required. Mulholland and Prior (1993) summarized the process of AMS-based radiocarbon dating of phytoliths by presenting details of extracting and dating phytoliths. The initial application of phytolith carbon dating during this period was performed by Kelly et al. (1991). They applied phytolith carbon dating into three soil profiles from the northern Great Plains. The results showed that there may be some serious problems with dating phytoliths because two of the three soils they examined showed the phytoliths were younger at deeper horizons in the soil profile, contrary to expectations. Piperno and Stothert (2003) used phytolith carbon to date Cucurbita domestication through phytolith carbon-14 study during the early Holocene in Southwest Ecuador (Piperno and Becker, 1996; Piperno and Jones, 2003).
Third is the period of controversy in phytolith carbon dating research after 2010. Recent studies on phytolith dating of modern plants have argued that old carbon absorbed by plants from soils distorts the accuracy of phytolith carbon dating, with modern plants producing phytoliths radiocarbon dates up to several thousand years (Santos et al., 2010; Santos et al., 2012; Yin et al., 2014; Reyerson et al., 2016). Because the age of the phytoliths is overestimated compared with that of other dating materials, phytolith carbon is considered problematic for dating by several researchers (Taylor and Bar-Yosef, 2014; Santos et al., 2018). Other researchers argue that some reasonable phytolith dates have been measured from both modern plants and paleo-soils (Sullivan and Parr, 2013; Piperno, 2016a; Asscher et al., 2017; Zuo et al., 2017). Meanwhile, the soil phytolith ages extracted from different cultural layers of several archaeological sites have shown good consistency with their paired dating samples collected from the same depth (Asscher et al., 2017; Zuo et al., 2017) (Table 1).
Table 1 Researchers involved in phytolith carbon dating studies.
Phytolith Carbon Dating Research in China
Phytolith research began in the late 1980s in China (Wang and Lu, 1989; Lu and Wang, 1990; Wang and Lu, 1992), which is over 150 years after the first report of phytoliths in living plants by Struve in 1835. The first report of phytolith carbon dating in a Chinese journal was published by Wang and Lu (1997), two pioneer phytolith researchers, in 1997 (Wang, 1998). They introduced the idea of radiocarbon dating of PhytOC to China, as summarized in the review of Mulholland and Prior (1993). Wang aimed to determine the chemical composition of phytoliths extracted from 16 species using an electron microprobe. Although the method used could not accurately measure the chemical composition of phytoliths, Wang was the first scholar in China who realized the importance of chemical aspects of phytoliths. However, both Wang and Lu did not actually date phytoliths.
It was only after 2010 that PhytOC and phytolith radiocarbon dating were studied again in China. To test the importance of carbon sequestration in phytoliths (Parr and Sullivan, 2005; Parr et al., 2009; Parr et al., 2010), we used the wet oxidation method to extract phytoliths from eight species of millet and showed a significant variation in PhytOC in different millet species (Zuo and Lü, 2011). Song et al. (2014; Song et al., 2017a) evaluated PhytOC and estimated the PhytOC accumulative rate in different ecosystems in China and even at the global scale. Zuo et al. (2014) then focused on soil phytoliths in the Chinese Loess Plateau, developing a wet oxidation method, modified from previous phytolith extraction processes, which can extract pure phytoliths from the soil (Piperno, 2006; Carter, 2009; Santos et al., 2010).
In 2013, Wu, an expert in archeometry from Peking University, cooperated with us in phytolith carbon dating by providing secure cultural layers rich in phytoliths. We then used the modified wet oxidation method to extract phytoliths, and the recovered phytoliths were sent to the Peking University Radiocarbon Laboratory for radiocarbon measurement. Wu also sent her students to our laboratory to learn how to extract pure phytoliths from soil. One of them, Jin, extracted phytoliths from the early cultural layers of Tianluoshan site. The results showed that the phytolith date (4,550 ± 35 a BP) was marginally older than their paired seeds age (4,400 ± 40 a BP). They speculated that the organic material with carboxyl groups that were not completely removed during the extraction processes might cause phytolith dates older than its paired seed date (Jin et al., 2014). Another student, Yan (2013), further compared different dating substances, such as charcoal, phytoliths, fatty acids, and total organic carbon, collected from the same depth of storage pits in Cishan site and paleo rice fields in Shanlonggang site. Among the five paired dating samples, two phytolith dates overlapped with their paired charcoal ages within ±2σ uncertainty; one was almost 5,000 years older than its paired charcoal age, and the remaining two were approximately 100 years older than the charcoal ages (Table 2). She concluded that the phytolith age is usually older than the charcoal age, while the fatty acid age was closer to the charcoal age, as it is relatively stable among all the dating substances (Yan, 2013).

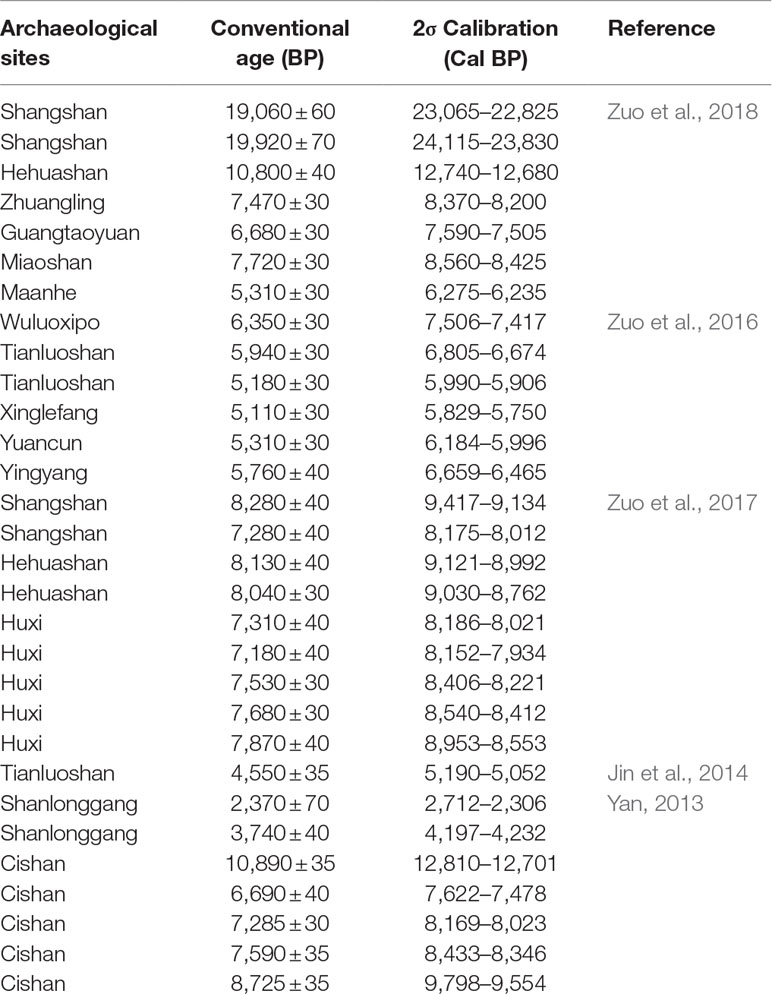

Table 2 Phytolith radiocarbon dating results from China with uncertainty ±2σ.
Furthermore, Yin, an expert in quaternary geochronology from the Institute of Geology, Chinese Earthquake Administration, joined us in phytolith carbon dating. He and his colleague developed a new AMS graphite target preparation line in their 14C laboratory. They dated phytoliths extracted from paleo-loess with an OSL date of 71 ka. The results showed that the phytolith date (42,380 ± 180 a BP) was close to the background date of the graphite system (42,750 ± 190 a BP), suggesting that not only was soil PhytOC not contaminated by exogenous organic materials, but also very limited modern carbon was introduced during phytolith extraction, AMS graphite sample preparation, and radiocarbon measurement (Yang, 2013). They then combusted phytoliths extracted from modern rice and millet at different temperatures and the results showed that phytoliths combusted at lower temperatures (≤900°C) yielded more reasonable ages than at higher temperatures (≥1,100°C) (Yin et al., 2014). Given older phytolith ages at higher combustion temperatures, they speculated that there are probably two fractions of organic carbon in phytoliths, namely, labile and recalcitrant carbon.
As mentioned above, several Chinese research groups have shown great interest in phytolith carbon dating; however, only a few have provided images of phytoliths extracted from the soil to validate the efficiency of their extraction methods in completely eliminating all exogenous organic materials and other minerals. In this regard, we used our modified oxidation method to extract phytoliths from the cultural layers of several archaeological sites in China. Before sending the phytolith samples to Beta Analytic for radiocarbon measurement, we used scanning electron microscopy, energy-dispersive X-ray spectroscopy, and X-ray refraction to check the purity of phytoliths. The preliminary results showed that most of the phytolith ages were generally consistent with that of other dating materials collected from the same depth as phytolith samples, except for one outlier (Zuo et al., 2016). We attributed the inconsistency to the postdepositional processes of soil phytoliths. This suggests that each step of phytolith dating, including sampling, extracting, and measurement, should be carefully carried out to ensure that phytolith carbon dating is based on a secure archaeological context (without postdepositional processes) and appropriate chemical preparation (without exogenous organic materials). Our results showed that, for these sites, phytolith ages were consistent with those of other dated materials at the same level or context, suggesting that phytolith radiocarbon dating can be reliable and accurate at some sites (Zuo et al., 2017).
The reliability of phytolith dating will be discussed with respect to the following three aspects: 1) Is old carbon from the soil occluded into the phytoliths? 2) If so, how much will the old carbon skew the phytolith age determination? 3) Do the different methods (both for phytolith extraction and radiocarbon measurement) affect the phytolith dating results?
The Nature and Source of Phytoc: Older Carbon or Photosynthetic Carbon?
Although there has been considerable discussion, researchers began to pay attention to the nature of PhytOC in the early stage of phytolith carbon dating research in the 1960s. Infrared spectral data of phytoliths suggested that PhytOC is composed of a variety of cell-derived substances, such as humic acid, amino acids, and amines (Wilding et al., 1967). The significantly depleted δ13C in phytoliths relative to that in the host plant tissue indicated that PhytOC might include lipids and lignin, which might have a depleted carbon isotope (Kelly et al., 1991). Smith and Anderson (2001) also found lipids in phytoliths, but no lignin. Masion et al. (2017) detected several carbohydrate components in phytoliths, such as sugars, adenosine triphosphate, and sodium pyrogluconate, using a new technique of dynamic nuclear polarization nuclear magnetic resonance. Raman spectrum analysis of single dumbbell phytoliths from sorghum also revealed that phytoliths contain carbohydrates, lipids, and other organic substances (Gallagher et al., 2015). Although there are differences in the understanding of the nature of PhytOC, previous studies assumed organic matter from plant tissue is the only source of PhytOC.
Santos, an expert in isotopic analysis, was the first to question the reliability of phytolith carbon dating. Initially, Santos et al. (2010) performed radiocarbon AMS measurement of carbon occluded in phytoliths from living plants and unexpectedly obtained dates that were several thousand years old. They suggested that there are some possible sources of carbon contamination, which needed further investigation (Santos et al., 2010). In 2012, they further suggested that soil-derived carbon (older carbon) absorbed by plant roots is a possible reason for the old phytolith ages obtained for living plants (Santos et al., 2012), although they lacked direct evidence showing that phytoliths can occlude older carbon from the soil. If older carbon is occluded in phytoliths, not only is the use of phytolith carbon for dating called into question, but it also reduces the importance of PhytOC in global carbon sequestration (Santos and Alexandre, 2017), and phytolith carbon sequestration might not be as significant as that reported by Song et al. (2016). While the contribution of old soil carbon to PhytOC was debated by several researchers interested in PhytOC (Piperno, 2016b; Santos et al., 2016; Santos and Alexandre, 2017; Song et al., 2017b; Zuo et al., 2017; Santos et al., 2018), Santos and her group were seeking direct evidence of soil-derived C in phytoliths. Using the comparative isotopic analysis of PhytOC, host tissues, atmospheric CO2, and soil organic matter, they found that PhytOC is partially obtained from soil carbon (Reyerson et al., 2016).
It is now clear that small amounts of soil carbon are occluded in phytoliths, as well as in plant tissues, as some hydroponic experiments have indicated that plants can absorb a small amount of sucrose or glucose from the source medium (Wu et al., 2015; Zhang and He, 2015; Chen et al., 2016). Because it is not possible to estimate the percentage of PhytOC that is of soil origin and the age of the soil carbon occluded by phytoliths is unknown, Santos et al. (2018) suggest that radiocarbon dating of phytoliths is highly problematic and not trustworthy.
Contribution of Older Soil Carbon to Phytolith Ages
With further understanding of the nature of phytoliths and PhytOC, we now realize that although most of the PhytOC is from atmospheric CO2 fixed by photosynthesis, a small amount of carbon is not photosynthetic, likely derived from soil organic carbon. Because plants absorb old soil carbon through the roots, this carbon should be homogenously distributed in different tissues (Gallagher et al., 2015), and the roots, stems, leaves, and other parts will contain old carbon from the soil. If the phytolith ages are skewed by older carbon from the soil, one would expect the same effect when dating plant tissue, but this is clearly not the case, because plant debris is one of the best dating materials in sediment. Santos et al. (2018) noted that compared to PhytOC 14C results, plant-C 14C results were not biased by old soil carbon, suggesting the asymmetric 14C effects of soil carbon contribution to plant debris and PhytOC. They speculated that there must be some unknown processes that allow most of the soil carbon absorbed by the roots to accumulate in phytoliths (Alexandre et al., 2016; Santos et al., 2018). However, due to the limited knowledge about the relocation of soil carbon in plants, further studies are needed to investigate whether asymmetric relocation of soil carbon exists in plants. However, Hodson (2012; 2015)has stated that no mechanism can explain why soil carbon preferentially accumulates in phytoliths, while large amounts of photosynthetic carbon in plant tissues are excluded during the deposition of silica.
It is unreasonable to attribute all questionable phytolith-dating results to distortion by soil carbon. Other possible factors influencing the process of sampling, phytolith extraction, and radiocarbon measurement cannot be ignored when evaluating phytolith ages. Studies on contamination effects on 14C dating showed that the introduction of 1% dead carbon can only result in an increase in the age by approximately 80 years (Taylor and Bar-Yosef, 2014). With the isotopic-labeled analysis of the silicon-rich hydroponic solution of grass, it was revealed that soil-derived carbon in phytoliths might constitute 0.15% of the PhytOC (Alexandre et al., 2016). Even though the actual percentage is likely considerably higher in natural soil conditions, such a small amount of older carbon will not yield phytolith ages thousands of years older than expected if assuming a 1.5% soil carbon contribution to PhytOC (10 times higher than under hydroponic conditions).
Influence of Different Extraction and Radiocarbon Measurement Methods on Phytolith Carbon Dating
The wet oxidation method is the main phytolith extraction method in phytolith carbon dating research, and the difference among different extraction methods is mainly in the oxidation stage before heavy-liquid flotation of phytoliths. One method uses H2SO4 + H2O2, known as rapid oxidation or over oxidation, and the other uses HNO3 or HNO3 + KClO3. Researchers who used the latter method suggested that the oxidation process should remove as much exogenous organic matter as possible; however, rapid oxidation is so harsh that it not only can remove the exogenous organic matter, but also might change the nature of phytoliths, thus skewing the phytoliths ages (Sullivan and Parr, 2013; Song et al., 2016; Zuo et al., 2016). Whether the rapid oxidation method will change the nature of PhytOC remains unclear, but the PhytOC content will decrease significantly after rapid oxidation (Table 3) (Santos et al., 2010; Zuo and Lü, 2011; Santos et al., 2012; Corbineau et al., 2013), indicating that the carbon occluded in cavities of phytoliths is likely to be removed and that the integrity of PhytOC is destroyed (Sullivan and Parr, 2013; Parr and Sullivan, 2014).

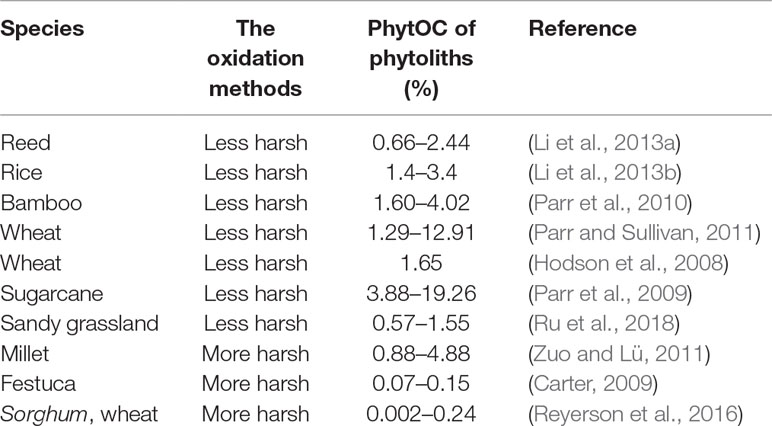

Table 3 Several species of PhytOC content in phytoliths processed by different oxidation methods.
The overoxidation method is so strong that it might cause phytolith ages older than the expected ages because of changes in the nature and structure of PhytOC, while the underoxidation method and incomplete removal of organic material could cause older phytolith ages (Zuo et al., 2018). We compared the influence of two different phytolith extraction methods on radiocarbon dating of phytoliths. The results showed that phytolith ages acquired using the conventional extraction method that does not exclude all exogenous organic materials were substantially older than those obtained using improved extraction methods.
Nondestructive phytolith extraction methods to extract phytoliths without using a strong acid not only can yield pure phytoliths, but also can maintain the integrity of PhytOC. Asscher et al. (2017) only used HCl (1N) to exclude calcium carbonate in the phytolith extraction process. Before acid treatment, they used a heavy liquid (2.4 and 1.6 g/ml) to remove quartz, calcite, and carbonized organic matter. There was no heating in any step of the phytolith extraction process. The results showed that several phytolith ages were consistent with the age of carbonized seeds within the ±1σ correction interval at the same level; the others have slightly older ages (Asscher et al., 2017). These phytolith dates were challenged by Santos et al. because they were obtained from phytoliths whose purity was not assessed by scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDX) (Santos et al., 2018). The non-heating method used by Asscher et al. (2017) is not likely to produce a pure phytolith extract and thus the remaining exogenous organic matter might cause phytolith ages older than the paired seeds ages. This method was also used to extract phytoliths in the analysis of DNA in phytoliths, in order to avoid the influence of strong acids and high temperatures on DNA information that might be preserved in phytoliths (Elbaum et al., 2009).
Possible Reasons for Older Phytolith Ages in Soil Profiles and Living Plants
After carefully reviewing previous phytolith dating reports and other studies where older carbon may have biased PhytOC dates (Kelly et al., 1991; Piperno and Becker, 1996; Kelly et al., 1998; Krull et al., 2003; Piperno and Jones, 2003; Piperno and Stothert, 2003; Mcmichael et al., 2012; Sullivan and Parr, 2013; Madella et al., 2014), we speculate that older phytolith ages in soil profiles could be explained by the following two aspects. First, if the extracted phytoliths are pure after checking with SEM and EDX, then the postdepositional processes of phytoliths should be considered. Second, if the phytolith dating results are older than expected (even ten thousand years older), one should repeat the experiment and revaluate if the protocols used could exclude all carbonate and other minerals from the samples. Incompletely excluding sources of dead carbon can lead to phytolith ages hundreds to thousands of years older than expected. The introduction of 5% old carbon would make the dating sample (true age is 10,000 a BP) approximately 400 years older, and adding 50% very old carbon would make the age only about 5,000 years older. Thus, if no more than 1% PhytOC is taken up from the soil, one would not expect phytolith dates to differ from expected ages by thousands of years.
The unexpectedly older ages dated for extracted phytoliths from modern plants (Reyerson et al., 2016) may be caused by phytolith extraction procedures such as overaggressive digestion protocols that alter the structure, nature, and yield of PhytOC (Sullivan and Parr, 2013; Parr and Sullivan, 2014). Recently, some detection techniques, such as Raman spectroscopy and nanoscale secondary ion mass spectrometry, have been used to determine the location, distribution, and chemical structure of PhytOC (Alexandre et al., 2015; Gallagher et al., 2015), showing a continuous but nonhomogeneous distribution. The amount and nature of PhytOC might vary considerably depending on phytolith morphology and different allocations within phytoliths. Using harsh protocols to extract phytoliths from modern plants (Santos et al., 2010; Santos et al., 2012; Corbineau et al., 2013; Yin et al., 2014; Reyerson et al., 2016) might damage the integrity of PhytOC. Moreover, the carbon in cavate or surface of phytoliths might be consumed by the harsh digestion protocols, which would lead to underestimation of the total amount of PhytOC (Parr and Sullivan, 2014). The consumed carbon might be isotopically rich in 14C; however, the residual carbon fraction might be highly depleted in 14C (Figure 2). Given that the lipids within phytoliths are depleted in 13C (Smith and Anderson, 2001), this is also probably true for 14C (Hodson, 2016).
Figure 2 Influence of harsh digestion protocols on phytolith carbon from different kinds of phytoliths. The red and black dots represent 14C and 13C, respectively.
Reconciling or Rebutting?
As mentioned above, it is difficult for researchers to reconcile on the reliability of phytolith carbon dating. The focus of discussion is mainly on the nature of PhytOC, the actual contribution of soil carbon to phytolith dates, and influences of different extraction and measurement processes on phytolith dates. Santos et al. based their older carbon theory on the following four aspects: 1) the age of phytoliths from modern living plants are decades to thousands of years older than their sampling time (Santos et al., 2010; Santos et al., 2012); 2) over 200 comparative isotopic measurements of PhytOC and isotopic-labeled experiment provide evidence of soil carbon in PhytOC (Reyerson et al., 2016); 3) although soil carbon can be absorbed by the roots, it does not skew plant-C 14C results, but only the PhytOC 14C results; and 4) no matter how soil phytolith dates match their expected ages, they are all questionable due to the variability of soil carbon contribution to PhytOC (Santos et al., 2018).
As discussed in the beginning of the review, not all phytolith dating results are older than the expected results. Several phytoliths extracted from modern plants, dated by Piperno (2016a) and Sullivan and Parr (2013), have either returned postbomb 14C ages or are very close to the modern dates. Most of the older modern phytoliths were dated by Santos et al. (2010). Phytolith dates from modern plants processed with the harsh techniques (Santos et al., 2012; Reyerson et al., 2016) are often considerably older than on plants processed with less harsh methods (Piperno, 2016a; Asscher et al., 2017; Zuo et al., 2017). Moreover, the harsh techniques typically leave much less carbon for dating than less harsh methods, partially due to leakage and the dual source of carbon—one labile and the other resistant (Hodson, 2019). Although researchers have stated that they have carefully dated PhytOC, Santos et al. (2012) might have only dated the carbon in lumen phytoliths, while Piperno et al. (2016a) might have dated not only the carbon in lumen phytoliths but also a part of carbon in cell wall phytoliths. A high amount of carbon processed by less harsh methods might preserve the integrity of PhytOC, but a less amount of carbon processed by harsher methods should not be preferred for dating.
Another key point that must be considered is that phytoliths differ in several aspects from other datable materials such as charcoal and seeds. Dating phytoliths and charcoal from the same stratigraphic/sedimentary level does not mean that they should have exactly the same dates, since phytolith age is the average age of all phytoliths in that level, whereas macro-plant/charcoal dates from a single sample represent a single moment in time. It is unreasonable to expect that a piece of charcoal or seed deposited at a single moment can completely fall within the age of a collection of phytoliths (Piperno, 2016a). A difference of hundreds of years between the dating results of soil phytoliths and other datable materials when sampling a thick soil layer of 5 to 10 cm is generally acceptable and reasonable (Zuo et al., 2016). Considering the depositional processes of phytoliths in soil, PhytOC should not be used for answering high-resolution chronological questions. However, it can be tried as an alternative dating method when other datable materials are absent.
Conclusions and Remarks
As an unconventional 14C dating material, phytoliths have been widely used during the past half century. Radiocarbon dating PhytOC has played an important role in constructing the chronological sequence of some key scientific issues, such as when pumpkin and rice domestication began (Piperno and Stothert, 2003; Zuo et al., 2017), but at the same time, the technique has also been criticized (Santos et al., 2016; Santos and Alexandre, 2017; Santos et al., 2018). A review of the phytolith dating literature revealed that not all phytolith dating results are inconsistent with expected ages. The poor results cannot be entirely attributed to the influence of older carbon absorbed from the soil, because most of the PhytOC is obtained from the atmospheric CO2 synthesized by photosynthesis. Phytolith ages thousands of years older than expected are probably due to impure phytolith extracts not completely cleaned of extraneous carbon rather than phytolith occluded carbon obtained from the soil.
Compared with other conventional dating materials, research on the mechanisms, methods, and results of phytolith dating is limited. There are considerable empirical data showing that at many sites, PhytOC dating provides reasonable dates. However, concerns about extract purity, as well as the variable nature of the PhytOC carbon pool, suggest that the reliability of phytolith dates is questionable in many cases. Whether different phytolith extraction methods will inevitably lead to differences in the dating results remains an open question. Whether the difference in the PhytOC content obtained using the rapid oxidation method and the conventional oxidation methods is due to PhytOC being destroyed or the organic matter in plants being incompletely removed is important for evaluating the phytolith dating results and key to reconcile the conflicting opinions. Phytolith researchers working with PhytOC urgently need to agree on a standardized extraction procedure that produces a phytolith extract verified by SEM and EDX to be free of extraneous carbon while using the least harsh chemicals possible. We expect that more data on phytolith dating in other regions and laboratories will be published in the future and will further clarify issues relating to 14C dating and will allow the expansion of the application of phytolith dating to the construction of chronological sequences.
Author Contributions
XZ designed and wrote the manuscript. HL contributed to discussion and approved the final manuscript.
Funding
This work is jointly supported by the National Natural Science Foundation of China (41771241 and 41830322) and the Innovation Research Team Fund of Fujian Normal University (IRTL1705).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Prof. Dolores R. Piperno for her encouragement and guidance during the study of phytolith carbon dating; two reviewers for their valuable comments on the manuscript; Prof. Martin Hodson for his invitation to join the topic of Frontiers in Phytolith Research. We thank the Editage (www.editage.cn) for the English improvement.
References
Alexandre, A., Balesdent, J., Cazevieille, P., Chevassus-Rosset, C., Signoret, P., Mazur, J. C., et al. (2016). Direct uptake of organic carbon by grass roots and allocation in leaves and phytoliths: 13C labeling evidence. Biogeosciences 15, 1693–1703. doi: 10.5194/bg-13-1693-2016
Alexandre, A., Basile-Doelsch, I., Delhaye, T., Borshneck, D., Mazur, J. C., Reyerson, P., et al. (2015). New highlights of phytolith structure and occluded carbon location: 3-D X-ray microscopy and NanoSIMS results. Biogeosciences 12, 863–873. doi: 10.5194/bg-12-863-2015
Asscher, Y., Weiner, S., Boaretto, E. (2017). A new method for extracting the insoluble occluded carbon in archaeological and modern phytoliths: Detection of 14C depleted carbon fraction and implications for radiocarbon dating. J. Archaeolog. Sci. 78, 57–65. doi: 10.1016/j.jas.2016.11.005
Carter, J. A. (2009). Atmospheric carbon isotope signatures in phytolith-occluded carbon. Quat. Int. 193, 20–29. doi: 10.1016/j.quaint.2007.11.013
Chen, X., Yao, Q., Gao, X., Jiang, C., Harberd, N. P., Fu, X. (2016). Shoot-to-root mobile transcription factor HY5 coordinates plant carbon and nitrogen acquisition. Curr. Biol. 26, 640–646. doi: 10.1016/j.cub.2015.12.066
Corbineau, R., Reyerson, P. E., Alexandre, A., Santos, G. M. (2013). Towards producing pure phytolith concentrates from plants that are suitable for carbon isotopic analysis. Rev. Palaeobot. Palynol. 197, 179–185. doi: 10.1016/j.revpalbo.2013.06.001
Elbaum, R., Melamed-Bessudo, C., Tuross, N., Levy, A., Weiner, S. (2009). New methods to isolate organic materials from silicified phytoliths reveal fragmented glycoproteins but no DNA. Quat. Int. 193, 11–19. doi: 10.1016/j.quaint.2007.07.006
Gallagher, K. L., Alfonso-Garcia, A., Sanchez, J., Potma, E. O., Santos, G. M. (2015). Plant growth conditions alter phytolith carbon. Front. Plant Sci. 6, 9. doi: 10.3389/fpls.2015.00753
Hodson, M. J., Parker, A. G., Leng, M. J., Sloane, H. J. (2008). Silicon, oxygen and carbon isotope composition of wheat (Triticum aestivum L.) phytoliths: implications for palaeoecology and archaeology. J. Quat. Sci. 23, 331–339. doi: 10.1002/jqs.1176
Hodson, M. (2012). Interactive comment on “Comment on: ‘Possible source of ancient carbon in phytolith concentrates from harvested grasses’ by G. M. Santos et al. (2012)” by L. A. Sullivan, and J. F. Parr. Biogeosci. Discuss., C5612–C5615. doi: 10.5194/bg-10-977-2013
Hodson, M. (2015). Interactive comment on “Evidence of old soil carbon in grass biosilica particles” by P. E.Reyerson et al. Biogeosci. Discuss. 12, C7593–C7594. doi: 10.5194/bgd-12-15369-2015
Hodson, M. J. (2016). The development of phytoliths in plants and its influence on their chemistry and isotopic composition. Implications for palaeoecology and archaeology. J. Archaeolog. Sci. 68, 62–69. doi: 10.1016/j.jas.2015.09.002
Hodson, M. J. (2018). “Phytoliths in archaeology: chemical aspects,” in Encyclopedia of global archaeology (Cham: Springer International Publishing), 1–8. doi: 10.1007/978-3-319-51726-1_3250-1
Hodson, M. J. (2019). The relative importance of cell wall and lumen phytoliths in carbon sequestration in soil: a hypothesis. Front. Earth Sci. 7: 167. doi: 10.3389/feart.2019.00167
Jin, H., Pan, Y., Yang, Y., Qin, L., Sun, G., Zheng, Y., et al. (2014). A primary study on AMS 14C dating of phytolith at Tianluoshan site, Zhejiang Province. Quat. Sci 34, 1–7. doi: 10.3969/j.issn.1001-7410.2014.01.01
Jones, R. L., Beavers, A. H. (1964). Aspects of catenary and depth distribution of opal phytoliths in Illinois soils. Soil Sci. Soc. Am. J. 28, 413–416. doi: 10.2136/sssaj1964.03615995002800030033x
Kelly, E. F., Amundson, R. G., Marino, B. D., Deniro, M. J. (1991). Stable isotope ratios of carbon in phytoliths as a quantitative method of monitoring vegetation and climate change. Quat. Res. 35, 222–233. doi: 10.1016/0033-5894(91)90069-H
Kelly, E. F., Blecker, S. W., Yonker, C. M., Olson, C. G., Wohl, E. E., Todd, L. C. (1998). Stable isotope composition of soil organic matter and phytoliths as paleoenvironmental indicators. Geoderma 82, 59–81. doi: 10.1016/S0016-7061(97)00097-9
Krull, E. S., Skjemstad, J. O., Graetz, D., Grice, K., Dunning, W., Cook, G., et al. (2003). 13C-depleted charcoal from C4 grasses and the role of occluded carbon in phytoliths. Org. Geochem. 34, 1337–1352. doi: 10.1016/S0146-6380(03)00100-1
Li, Z., Song, Z., Jiang, P. (2013a). Biogeochemical sequestration of carbon within phytoliths of wetland plants: a case study of Xixi wetland, China. Chin. Sci. Bull. 58, 2480–2487. doi: 10.1007/s11434-013-5785-3
Li, Z., Song, Z., Parr, J., Wang, H. (2013b). Occluded C in rice phytoliths: implications to biogeochemical carbon sequestration. Plant Soil 370, 615–623. doi: 10.1007/s11104-013-1661-9
Lu, H., Wang, Y. (1990). A study on plant opals and its application in the explanation of paleoenvironment of Qingdao in the past 3000 years. Chin. Sci. Bull. 35, 498–503. doi: 10.1360/sb1990-35-6-498
Madella, M., García-Granero, J. J., Out, W. A., Ryan, P., Usai, D. (2014). Microbotanical evidence of domestic cereals in Africa 7000 years ago. PLoS ONE 9, e110177. doi: 10.1371/journal.pone.0110177
Masion, A., Alexandre, A., Ziarelli, F., Viel, S., Santos, G. M. (2017). Dynamic nuclear polarization NMR as a new tool to investigate the nature of organic compounds occluded in plant silica particles. Sci. Rep. 7, 3430. doi: 10.1038/s41598-017-03659-z
Mcmichael, C. H., Bush, M. B., Piperno, D. R., Silman, M. R., Zimmerman, A. R., Anderson, C. (2012). Spatial and temporal scales of pre-Columbian disturbance associated with western Amazonian lakes. Holocene 22, 131–141. doi: 10.1177/0959683611414932
Mulholland, S. C., Prior, C. (1993). “AMS radiocarbon dating of phytoliths,” in Current research in phytolith analysis: applications in archaeology and paleoecology. Eds. Pearsall, D. M., Piperno, D. R. (Philadelphia: MASCA: The University Museum of Archaeology and Anthropology, University of Pennsylvania), 21–23.
Parr, J. F., Sullivan, L. A. (2005). Soil carbon sequestration in phytoliths. Soil Biol. Biochem. 37, 117–124. doi: 10.1016/j.soilbio.2004.06.013
Parr, J., Sullivan, L., Quirk, R. (2009). Sugarcane phytoliths: encapsulation and sequestration of a long-lived carbon fraction. Sugar Tech. 11, 17–21. doi: 10.1007/s12355-009-0003-y
Parr, J., Sullivan, L., Chen, B., Ye, G., Zheng, W. (2010). Carbon bio-sequestration within the phytoliths of economic bamboo species. Global Change Biol. 16, 2661–2667. doi: 10.1111/j.1365-2486.2009.02118.x
Parr, J., Sullivan, L. (2011). Phytolith occluded carbon and silica variability in wheat cultivars. Plant Soil 342, 165–171. doi: 10.1007/s11104-010-0680-z
Parr, J. F., Sullivan, L. A. (2014). Comparison of two methods for the isolation of phytolith occluded carbon from plant material. Plant Soil 374, 45–53. doi: 10.1007/s11104-013-1847-1
Piperno, D. R. (2006). Phytoliths: a comprehensive guide for archaeologists and paleoecologists. Lanham MD: Altamira Press.
Piperno, D. R. (2016a). Phytolith radiocarbon dating in archaeological and paleoecological research: a case study of phytoliths from modern neotropical plants and a review of the previous dating evidence. J. Archaeolog. Sci. 68, 54–61. doi: 10.1016/j.jas.2015.06.002
Piperno, D. R. (2016b). Standard evaluations of bomb curves and age calibrations along with consideration of environmental and biological variability show the rigor of phytolith dates on modern neotropical plants: review of comment by Santos, Alexandre, and Prior. J. Archaeolog. Sci. 71, 59–67. doi: 10.1016/j.jas.2016.01.013
Piperno, D. R., Becker, P. (1996). Vegetational history of a site in the central Amazon basin derived from phytolith and charcoal records from natural soils. Quat. Res. 45, 202–209. doi: 10.1006/qres.1996.0020
Piperno, D. R., Jones, J. G. (2003). Paleoecological and archaeological implications of a late Pleistocene/early Holocene record of vegetation and climate from the pacific coastal plain of panama. Quat. Res. 59, 79–87. doi: 10.1016/S0033-5894(02)00021-2
Piperno, D. R., Stothert, K. E. (2003). Phytolith evidence for early Holocene Cucurbita Domestication in Southwest Ecuador. Science 299, 1054–1057. doi: 10.1126/science.1080365
Reyerson, P. E., Alexandre, A., Harutyunyan, A., Corbineau, R., Martinez De La Torre, H. A., Badeck, F., et al. (2016). Unambiguous evidence of old soil carbon in grass biosilica particles. Biogeosciences 13, 1269–1286. doi: 10.5194/bg-13-1269-2016
Rieser, U., Prior, C., Carter, J. A. (2007). Phytoliths: a new chronometer for the Late Quaternary in INQUA 2007 abstracts. Quat. Int. 167–168, Supplement, 343–344. doi: 10.1016/j.quaint.2007.04.001
Ru, N., Yang, X., Song, Z., Liu, H., Hao, Q., Liu, X., et al. (2018). Phytoliths and phytolith carbon occlusion in aboveground vegetation of sandy grasslands in eastern Inner Mongolia, China. Sci. Total Environ. 625, 1283–1289. doi: 10.1016/j.scitotenv.2018.01.055
Santos, G.M., Alexandre, A. (2017). The phytolith carbon sequestration concept: Fact or fiction? A comment on “Occurrence, turnover and carbon sequestration potential of phytoliths in terrestrial ecosystems by Song et al. doi: 10.1016/j.earscirev.2016.04.007”. Earth Sci. Rev. 164, 251-255.doi: 10.1016/j.earscirev.2016.11.005
Santos, G. M., Alexandre, A., Coe, H. H. G., Reyerson, P. E., Southon, J. R., Carvalho, C. N. D. (2010). The phytolith 14C puzzle: a tale of background determinations and accuracy tests. Radiocarbon 52, 113–128. doi: 10.1017/S0033822200045070
Santos, G. M., Alexandre, A., Prior, C. A. (2016). From radiocarbon analysis to interpretation: a comment on “Phytolith radiocarbon dating in archaeological and paleoecological research: a case study of phytoliths from modern neotropical plants and a review of the previous dating evidence”, Journal of Archaeological Science (2015), doi: 10.1016/j.jas.2016.04.015
Santos, G. M., Alexandre, A., Southon, J. R., Treseder, K. K., Corbineau, R., Reyerson, P. E. (2012). Possible source of ancient carbon in phytolith concentrates from harvested grasses. Biogeosciences 9, 1873–1884. doi: 10.5194/bg-9-1873-2012
Santos, G. M., Masion, A., Alexandre, A. (2018). When the carbon being dated is not what you think it is: insights from phytolith carbon research. Quat. Sci. Reviews 197, 162–174. doi: 10.1016/j.quascirev.2018.08.007
Smith, F. A., Anderson, K. B. (2001). Characterization of organic compounds in phytoliths: Improving the resolving power of phytolith delta C-13 as a tool for paleoecological reconstruction of C3 and C4 grasses. Leiden: A a Balkema Publishers. doi: 10.1201/NOE9058093455.ch25
Song, Z., Liu, H., Strömberg, C. A. E., Yang, X., Zhang, X. (2017a). Phytolith carbon sequestration in global terrestrial biomes. Sci. Total Environ. 603–604, 502-509. doi: 10.1016/j.scitotenv.2017.06.107
Song, Z., Mcgrouther, K., Wang, H. (2016). Occurrence, turnover and carbon sequestration potential of phytoliths in terrestrial ecosystems. Earth Sci. Rev. 158, 19–30. doi: 10.1016/j.earscirev.2016.04.007
Song, Z., Mcgrouther, K., Wang, H. (2017b). High potential of phytoliths in terrestrial carbon sequestration at a centennial–millennial scale: reply to comments by Santos and Alexandre. Earth Sci. Rev. 164, 256. doi: 10.1016/j.earscirev.2016.11.001
Song, Z., Müller, K., Wang, H. (2014). Biogeochemical silicon cycle and carbon sequestration in agricultural ecosystems. Earth Sci. Rev. 139, 268–278. doi: 10.1016/j.earscirev.2014.09.009
Sullivan, L. A., Parr, J. F. (2013). Comment on “Possible source of ancient carbon in phytolith concentrates from harvested grasses” by G. M. Santos et al. (2012). Biogeosciences 10, 977–980. doi: 10.5194/bg-10-977-2013
Taylor, R. E., Bar-Yosef, O. (2014). Radiocarbon dating: an archaeological perspective. Walnut Creek, California: Left Coast Press.
Wang, Y. (1998). A study on the chemical composition of phytoliths. J. Oceanogr. Huanghai Bohai Seas. 16, 33–38
Wang, Y., Lu, H. (1989). An introduction of study on plant opal and its uses. J. Oceanogr. Huanghai Bohai Seas 7, 66–68.
Wang, Y., Lu, H. (1997). AMS 14C dating and isotopic analysis of phytoliths. Mar. Sci. Bull. 16, 49–56.
Wilding, L. P. (1967). Radiocarbon dating of biogenetic opal. Science 156, 66–67. doi: 10.1126/science.156.3771.66
Wilding, L. P., Brown, R. E., Holowaychuk, N. (1967). Accessibility and properties of occluded carbon in biogenetic opal. Soil Science 103, 56–61. doi: 10.1097/00010694-196701000-00009
Wu, Q.-S., Lou, Y. G., Li, Y. (2015). Plant growth and tissue sucrose metabolism in the system of trifoliate orange and arbuscular mycorrhizal fungi. Scientia Hortic. 181, 189–193. doi: 10.1016/j.scienta.2014.11.006
Yan, X. (2013). Radiocarbon chronology of soil samples from archaeological sites of early agriculture. Peking University: Master.
Yang, X. (2013). A preliminary study of radiocarbon dating (14C) on phytoliths. Institute of Geology, China Earthquake Administration: Master.
Yin, J., Yang, X., Zheng, Y. (2014). Influence of increasing combustion temperature on the AMS 14C dating of modern crop phytoliths. Sci. Rep. 4, 6511. doi: 10.1038/srep06511
Zhang, Y., He, J. (2015). Sugar-induced plant growth is dependent on brassinosteroids. Plant Signaling Behav. 10, e1082700. doi: 10.1080/15592324.2015.1082700
Zuo, X., Lu, H., Gu, Z. (2014). Distribution of soil phytolith-occluded carbon in the Chinese Loess Plateau and its implications for silica–carbon cycles. Plant Soil 374, 223–232. doi: 10.1007/s11104-013-1850-6
Zuo, X., Lu, H., Huan, X., Jiang, L., Wang, C. (2018). Influence of different extraction methods on prehistoric phytolith radiocarbon dating. Quat. Int. doi: 10.1016/j.quaint.2018.12.002
Zuo, X., Lu, H., Jiang, L., Zhang, J., Yang, X., Huan, X., et al. (2017). Dating rice remains through phytolith carbon-14 study reveals domestication at the beginning of the Holocene. PNAS 114, 6486–6491. doi: 10.1073/pnas.1704304114
Zuo, X., Lu, H., Zhang, J., Wang, C., Sun, G., Zheng, Y. (2016). Radiocarbon dating of prehistoric phytoliths: a preliminary study of archaeological sites in China. Sci. Rep. 6, 26769. doi: 10.1038/srep26769
