Shan-Li Wang
Kotapati Kasi Viswanath
Chii-Gong Tong
Hye Ryun An3
Seonghoe Jang
Fure-Chyi Chen- 1Biotechnology Center in Southern Taiwan (BCST) of the Agricultural Biotechnology Research Center (ABRC), Academia Sinica, Tainan, Taiwan
- 2Department of Plant Industry, National Pingtung University of Science and Technology, Pingtung, Taiwan
- 3National Institute of Horticultural and Herbal Science (NIHHS), Rural Development Administration (RDA), Wanju-gun, South Korea
- 4World Vegetable Center Korea Office (WKO), Wanju-gun, South Korea
Orchids comprise one of the largest, most highly evolved angiosperm families, and form an extremely peculiar group of plants. Various orchids are available through traditional breeding and micro-propagation since they are valuable as potted plants and/or cut flowers in horticultural markets. The flowering of orchids is generally influenced by environmental signals such as temperature and endogenous developmental programs controlled by genetic factors as is usual in many flowering plant species. The process of floral transition is connected to the flower developmental programs that include floral meristem maintenance and floral organ specification. Thanks to advances in molecular and genetic technologies, the understanding of the molecular mechanisms underlying orchid floral transition and flower developmental processes have been widened, especially in several commercially important orchids such as Phalaenopsis, Dendrobium and Oncidium. In this review, we consolidate recent progress in research on the floral transition and flower development of orchids emphasizing representative genes and genetic networks, and also introduce a few successful cases of manipulation of orchid flowering/flower development through the application of molecular breeding or biotechnology tools.
Introduction
The orchid family is one of the largest families of angiosperms. The flowers of Orchidaceae exhibit a high degree of speciation, with wide variations in floral features such as morphology, color, size and fragrance for attraction of pollinators (Peakall, 2007). Orchids are traded worldwide as cut flowers and potted flowering plants. The flowering of orchids can generally be divided into two steps: floral transition and flower development. In floral transition, juvenility, ambient to cool temperature and/or photoperiod are crucial in determining the time that orchids initiate flowering with respect to ontogeny and season. Although molecular and genetic approaches have made it possible to shed some light on the mechanisms underlying floral transition in model plants such as Arabidopsis (Arabidopsis thaliana) and rice (Oryza sativa) (He, 2009; Sun et al., 2014), orchid flowering is still not well-understood. Flower formation is initiated by activities of genes known as flowering time genes which regulate the conversion of the vegetative meristem to the floral meristem. Then, floral meristem identity genes regulate the formation of the flower. Once flowering initiates, cadastral genes which govern the whorl formation in flowers are expressed, and the structures of the whorls and their occurrence at the right position are regulated by homeotic genes. Although extreme variation in flower morphology is found across the angiosperms, four types of relatively simple floral organs can be distinguished, namely sepals, petals, stamens and carpels (Theissen and Melzer, 2007; Heijmans et al., 2012). Based mainly on studies with Arabidopsis, the ABCDE model explains the establishment and maintenance of floral organ specification through an interactive network of MADS-box transcription factors. Herein, we review recent research on floral transition and flower development of a few representative orchid species from the perspective of molecular genetics. Some successful cases of the use of biotechnological tools to modulate orchid floral traits are also highlighted.
Floral Transition of Orchids
Effect of Ambient Temperature
The Orchidaceae plants are widely distributed across the globe, thus the mechanisms of flowering control among different genera may have developed according to their natural habitats. Apostasioideae, Cypripedioideae, Vanilloideae, Epidendroideae and Orchidoideae are the subfamilies of Orchidaceae. Among these five subfamilies, the Epidendroideae is the largest containing more than 500 genera with around 20,000 species (Freudenstein and Chase, 2015). Different orchids of the Epidendroideae require different conditions of ambient temperature and photoperiod to induce flowering (Hsiao et al., 2011).
Most orchids take several years to finish the juvenile stage. Phalaenopsis usually reach maturity after three to five leaves. Usually, the floral spike (inflorescence) emerges from the axillary buds of the fourth node below the apical leaf whereas other axillary buds are maintained in a dormant state during the flowering season (Sakanishi et al., 1980). The mechanism of differential commitment of distinct axillary buds for flowering is unknown. At the beginning of flowering, the axillary buds are enlarged and then protrude from the base of a leaf, which takes about 3–4 weeks. After that, the bud is elongated to become a floral spike.
The flowering of several orchids is influenced by change in ambient temperature. The flowering of Phalaenopsis is promoted by low ambient temperature, usually less than 26 °C (Blanchard and Runkle, 2006); and can be reversed if the ambient temperature is elevated. The flowering activity of Dendrobium is also promoted by low ambient temperature (Campos and Kerbauy, 2004); however, flowering of some hybrid cultivars of Dendrobium– such as Dendrobium Chao Praya Smile and Dendrobium Madame Thong-In, are promoted by high ambient temperature. The flowering of Miltoniopsis and Zygopetalum are promoted by cool temperature 11–14 °C (Lopez et al., 2003; Lopez and Runkle, 2006). For the Oncidium, another popular orchid, change in ambient temperature enhances or is neutral to their flowering activity. For Cypripedium species, vernalization below 5 °C or subzero temperature is required for flowering (Zhang et al., 2014).
In the model plant Arabidopsis, flowering activity is delayed by low ambient temperature (16 °C) but promoted by vernalization. In low ambient temperature, an alternatively spliced form of FLOWERING LOCUS M (FLM), FLM-β associates with SUPPRESSOR OF VEGETATIVE PHASE (SVP) to suppress the floral integrator gene FLOWERING LOCUS T (FT) (Lee et al., 2013). The expression of FLM is down-regulated via alternative splicing coupled with nonsense-mediated decay (AS-NMD) in response to elevated temperatures (Sureshkumar et al., 2016), indicating that FLM plays an important role in flowering initiation by modulating thermo-sensitivity. The FT expression is also suppressed by a MADS-box gene FLOWERING LOCUS C (FLC). Constant expression of FLC prevents the winter-annual Arabidopsis from floral transition before winter and this repression is released by the vernalization pathway signaling (He, 2009). The vernalization pathway suppresses the FLC activity via the trimethylation of histone 3 lysine 27 (H3K9me3) of FLC chromatin. Vernalization is an obligatory requirement for the flowering of lily (Lilium longiflorum). In high ambient temperature, a fully developed floral bud is present inside the bulb. A period of prolonged cold temperature in winter is required for the switch of shoot apical meristem (SAM) to inflorescence meristem (IM). The candidate genes involved in vernalization response in lily have been elucidated using transcriptome analysis (Villacorta-Martin et al., 2015; Li et al., 2016) and several orthologs of Arabidopsis flowering genes were identified. Among them, SVP and VERNALIZATION 1 (VRN1) were down- and up-regulated respectively in floral buds when the bulbs were treated with low ambient temperature. Furthermore, ectopic expression of lily SVP or VRN1 in Arabidopsis resulted in delayed or earlier flowering, respectively.
Understanding how ambient temperature regulates the floral transition of orchids is valuable not only for the horticultural market but also for the comprehension of flowering regulation in different plant species. Using molecular genomics tools to investigate flowering in popular ornamental orchids has made it possible to identify many flowering-related genes; however, how such genes regulate flowering in an ambient temperature-dependent manner is still not clear.
Effect of Photoperiod
In Arabidopsis and rice, photoperiod is crucial for flowering control (He, 2009; Sun et al., 2014; Song, 2016). Under long-day conditions, Arabidopsis FT expression is activated in vascular tissues of leaves in a circadian rhythmic manner by the transcriptional regulator CONSTANS (CO) whose expression and activity are controlled by light signaling pathways and the circadian clock (Song, 2016). In rice, two orthologs of FT, Heading date 3a (Hd3a) and RICE FLOWERING LOCUS T (RFT) are mainly responsible for floral induction under short-days (SD) and LD conditions, respectively (Sun et al., 2014).
Floral initiation has been shown to be regulated by photoperiod in a few orchids. In Doritis pulcherrima (now Phalaenopsis pulcherrima), under the 30 °C/20 °C (day/night) condition, floral spikes are initiated more efficiently by 9-h light than 12-h light treatment (Wang et al., 2003). In Miltoniopsis orchids, SD incubation at 23 °C before shifting to cool temperature (11–14 °C) facilitates flowering (Lopez and Runkle, 2006). However, during cool temperature treatment, different photoperiods have no significant effect on flowering suggesting that ambient temperature may play a major role in flowering of Miltoniopsis. On the other hand, the formation of floral spikes in Psygmorchis pusilla is positively correlated with the increase in day length implying that P. pusilla is a quantitative LD plant (Vaz et al., 2004). The effect of photoperiod on flowering seems to be various among different orchid species which have great diversity in adaptation. Furthermore, most orchids are native to tropical areas where day length does not change dramatically throughout the year. Thus, it is reasonable to anticipate that photoperiod has limited effects on flowering of orchids.
Effect of Phytohormones
The effects of phytohormones on orchid flowering have been studied (Goh and Yang, 1978). A synthetic cytokinin, 6-benzylaminopurine (BA), stimulated the flowering of monopodial (e.g., Phalaenopsis) and sympodial (e.g., Dendrobium) orchids whereas auxin suppressed the BA effect. The positive effect of BA on flowering is likely to be enhanced when combined with gibberellic acid (GA3) although GA3 applied alone does not have an influence on floral induction (Hew and Clifford, 1993). In Phalaenopsis and Doritaenopsis, plants sprayed with BA produced visible inflorescences 3 to 9 days earlier than those without BA treatment although the application of BA could not replace the inductive low temperature in Phalaenopsis (Blanchard and Runkle, 2008). Interestingly, even though GAs do not induce flowering, optimum levels of endogenous GAs in the flowering shoot tips are required for flower development in Phalaenopsis. Indeed, injection of GAs can rescue the blockage of flower development under high temperature (Su et al., 2001). The existence of abscisic acid (ABA) in different tissues of Phalaenopsis has been examined. Relatively higher level of free ABA has been detected in dormant axillary buds whereas free or bound forms of ABA were not found in floral shoots (Wang et al., 2002). In addition, exogenous application of ABA to the stem of Phalaenopsis inhibited the formation of floral spikes even under inductive low ambient temperature conditions implying that ABA plays an inhibitory role in orchid floral transition.
Taken together, developmental maturity and ambient temperature are likely the main endogenous and environmental factors, respectively, controlling orchid flowering together with the combined action of phytohormones. Many orchids are epiphytic plants, meaning they are adapted to face frequent periods of nutrient and water scarcity. Although this kind of orchid uses the crassulacean acid metabolism (CAM) as the strategy for carbon fixation like other CAM plants such as succulents and pineapples to adapt themselves to arid conditions (Silvera et al., 2009), flowering consumes a lot of energy. Therefore, the right timing of bud commitment for floral induction with the best physiological situation is crucial for the maintenance of the species through successful sexual propagation. In addition, most orchids have particular pollinators in the wild environment; the timing of floral transition should be consistent with the appearance of their pollinators. Thus, sensing ambient temperature seems to be a good strategy to achieve this aim if their pollinators only appear in a particular season.
Genes Involved in Flowering in Phalaenopsis
Based on expression analyses and functional studies with heterologous expression systems, candidate genes for flowering regulatory networks in orchids have been reported. Recently, genome-wide analyses have also been taken into consideration for the identification of Orchidaceae-specific and/or species-specific key genes controlling flowering/flower development of orchids (Huang et al., 2016; Lin et al., 2016; Wen et al., 2017).
P. aphrodite FT1 (PaFT1) has been isolated and functionally characterized (Jang et al., 2015). Flowering of P. aphrodite is induced by low ambient temperature (≤25 °C) but prohibited by high ambient temperature (≥28 °C). Moreover, photoperiod has no significant influence on flowering of P. aphrodite. Expression patterns of PaFT1 reflect the flowering behavior of the orchid; its flowering is induced by low ambient temperature but not by different light regimes. Reduced expression level of PaFT1 by virus-induced gene silencing (VIGS) methods resulted in delayed flowering under inductive low ambient temperature, while ectopic expression of PaFT1 suppressed the late flowering phenotype caused by the induced expression of SVP and active FRIGIDA (FRI), a FLC activator, in Arabidopsis. Moreover, PaFT1 is able to physically interact with PaFD reminiscent of the Arabidopsis FT-FD module (He, 2009). LEAFY (LFY) is another floral integrator in Arabidopsis (He, 2009). The LFY gene of P. aphrodite (PhapLFY) has also been characterized (Jang, 2015). Expression of PhapLFY under the control of Arabidopsis LFY promoter rescued the abnormal floral structure of Arabidopsis lfy mutant and caused early heading by overexpression in rice. Recently, a CO-like gene, PhalCOL has been identified in P. hybrida (Wedding Promenade) (Zhang et al., 2011). PhalCOL has significant sequence similarity to CO of Arabidopsis. Overexpression of PhalCOL in tobacco caused an early-flowering phenotype suggesting the functional convergence of CO genes in flowering among different plant species. To discover candidate genes responsible for the flowering control of P. aphrodite, transcription profiles in axillary buds of plants treated with low and high ambient temperature were analyzed and compared to each other (Huang et al., 2016). The result showed that, in addition to FT, LFY, APETALA1 (AP1) and OVEREXPRESSION OF CONSTANS 1 (SOC1) homologs, genes involved in GA biosynthesis were also up-regulated by low ambient temperature. Another expression analysis using Phalaenopsis Fortune Saltzman found that transcripts of KNOX1, R2R3-like MYB, adenosine kinase 2, S-adenosylmethionine synthetase, dihydroflavonol 4-reductase, and naringenin 3-dioxygenase were accumulated at a higher level in spikes grown under warm day/cool night (28 °C/21 °C) compared with those grown at daily warm temperature (28 °C/26 °C) under natural light conditions (Li et al., 2014).
Genes Involved in Flowering in Dendrobium
Flowering of D. nobile is promoted by low ambient temperature (Campos and Kerbauy, 2004). Orthologs of FT and MOTHER OF FT AND TFL1 (MFT), a homolog of FT, have been identified in D. nobile Lindl. (Li et al., 2012). Expression of DnFT is up-regulated in leaves but down-regulated in axillary buds under low temperature treatment (12 °C/9 °C, day/night) whereas DnMFT expression is not affected by the low temperature treatment. Transgenic Arabidopsis ectopically expressing DnFT exhibited early flowering. In addition, an ortholog of SOC1, DOSOC1 has been identified from Dendrobium Chao Praya Smile (Ding et al., 2013). Increased expression of DOSOC1 was detected during floral transition. Moreover, overexpression of DOSOC1 in both Arabidopsis and Dendrobium resulted in early-flowering phenotypes. DOAP1, an ortholog of AP1 has also been identified and characterized from the orchid (Sawettalake et al., 2017). The role of DOAP1 is similar to that of AP1 in Arabidopsis. Overexpression of DOAP1 rescued the floral defect of ap1 mutant and resulted in early flowering in wild-type Arabidopsis. Differential gene expression in the SAM during in vitro transition from vegetative to reproductive growth has been investigated in Dendrobium Madame Thong-In (Yu and Goh, 2000a). Several transcription factors, including a MADS-box gene of the AP1/AGL2 family, a class I KNOX gene and a homolog of the DrosophilaSEVEN-UP gene were differentially expressed in vegetative and transitional SAM. The KNOX gene plays an important role in the function of SAM, and encodes a KNOTTED1-like homeobox (Knox) protein later designated as DOH1 (Dendrobium Orchid Homeobox 1) (Yu et al., 2000). In tissue culture conditions, the expression of DOH1 was gradually increased in the apical meristem during vegetative growth whereas it was decreased during the progress of reproductive growth. Overexpression of antisense DOH1 resulted in early flowering in Dendrobium. On the other hand, DOMADS1, a MADS-box gene of the AP1/AGL9 superfamily, was identified from the cDNA library of transitional SAM (Yu and Goh, 2000b). Expression of DOMADS1 was up-regulated in transgenic plants harboring p35S: antisense DOH1 suggesting that DOH1 is a possible upstream repressor of DOMADS1 in the flowering control of Dendrobium orchids. Recently, transcriptomes of D. nobile were analyzed under cold (4 °C) or exogenous cytokinin (thidiazuron) treatment (Wen et al., 2017). The results showed that SOC1, LFY and AP1 genes were induced by both low temperature and thidiazuron treatment whereas DnVRN1 and FT were induced only by cold treatment. Also, some marker genes for the GA signaling pathway were up-regulated under both low temperature and thidiazuron treatments. Further investigation is needed to uncover the cytokinin-GA signaling network in the inductive temperature condition underlying the floral transition in Dendrobium.
Genes Involved in Flowering in Oncidium
High ambient temperature (30 °C) accelerates the flowering of Oncidium. The flowering response to changes in ambient temperature in Oncidium is opposite to that of Phalaenopsis. The flowering promoter FT and repressor TERMINAL FLOWER 1 (TFL1) both encode proteins belonging to phosphatidylethanolamine-binding protein (PEBP) family and have also been identified in Oncidium Gower Ramsey (Hou and Yang, 2009). OnFT was expressed in axillary buds, leaves, pseudo-bulb and flowers while OnTFL1 was only expressed in axillary buds and pseudo-bulb. The expression of OnFT was regulated by photoperiod, with highest expression from the 8th to 12th hour of the light period and lowest expression at dawn. However, expression of OnTFL1 is not influenced by photoperiod. Ectopic expression of OnFT resulted in an early-flowering phenotype in Arabidopsis, and late-flowering of Arabidopsis ft-1 mutant was rescued by OnFT overexpression (Hou and Yang, 2009). On the contrary, ectopic expression of OnTFL1 in Arabidopsis displayed late flowering. OMADS1, a homolog of ArabidopsisAGL6 has also been identified in Oncidium Gower Ramsey (Hsu et al., 2003). OMADS1 transcripts were detectable in the apical meristem and floral organs, and ectopic expression of OMADS1 in Arabidopsis caused early flowering with up-regulation of FT, SOC1, LFY and AP1. Overexpression of OMADS1 in Oncidium also resulted in precocious flowering (Hsu et al., 2003). Recently, ascorbate (AsA) content has been shown to play an important role in floral transition in response to thermal stress (30 °C over a 14-day period) in Oncidium Gower Ramsey (Chin et al., 2014). Under thermal stress conditions, the level of reactive oxygen species (ROS; e.g., H2O2) was significantly increased and the AsA redox ratio [AsA to dehydroascorbate (DHA, the oxidized form of AsA)] was decreased with prominent up-regulation of cytosolic ascorbate peroxidase (cytAPX1) expression. The oxidation of AsA to DHA by ascorbate peroxidase is the key reaction to remove H2O2. The report by Chin and colleagues suggests that the AsA/DHA redox ratio may act as one of the endogenous signals that induce the flowering of Oncidium in response to high ambient temperature. Furthermore, it has been shown that reduced GSH redox ratio caused by down-regulation of GSH metabolism-related genes such as glutathione reductase (GR1), γ-glutamylcysteine synthase (GSH1) and glutathione synthase (GSH2) was linked to the decrease in the AsA redox ratio for flowering of Oncidium orchid (Chin et al., 2016).
Genes Involved in Flowering in Dortiaenopsis and Other Orchids
DhFVE, a Dortiaenopsis ortholog of Arabidopsis FVE, which is a component of the autonomous flowering pathway, has been identified (Sun et al., 2012). Flowering of Dortiaenopsis (now Phalaenopsis) is promoted by low ambient temperature (22 °C/18 °C, day/night) (Luo et al., 2011) and the expression of DhFVE is increased in the stem during floral transition. In addition, EARLY FLOWERING 4 (EFL4) family genes, DhEFL2, DhEFL3 and DhEFL4 have been identified in Dortiaenopsis (Chen et al., 2015). Arabidopsis EFL4 is known to affect flowering through photoperiod perception and circadian regulation (Doyle et al., 2002). Ectopic expression of DhEFL2, DhEFL3 or DhEFL4 delayed flowering of Arabidopsis. Moreover, GIGANTEA (GI), an upstream activator of CO (Sawa et al., 2007), has been identified as DhGI1 in Dortiaenopsis hybrid (Luo et al., 2011). Expression of DhGI1 is up-regulated by low temperature and may play a role in flowering initiation in Dortiaenopsis hybrid. Recently, many putative flowering genes have been identified in Cymbidium and Erycina through transcriptome analyses. However, their functions still remain to be examined (Li et al., 2013; Lin et al., 2016).
A Hypothetical Model of Flowering Regulation in P. aphrodite
The regulatory networks of floral transition in different orchids may be divergent since the required inductive conditions are not all the same. In addition, the genetic tools for orchid research are still limited; therefore, it is time-consuming and also difficult to reveal the molecular mechanisms of flowering control in orchids. The popular ornamental orchid P. aphrodite has a particular requirement for floral transition, i.e., low ambient temperature, which makes this orchid an interesting target for a case-study of flowering regulation in orchids. Furthermore, a transformation system has been established in orchids including P. aphrodite (Hsing et al., 2016). Thus, the molecular mechanism of flowering regulation could be investigated more thoroughly.
The hypothetical gene regulatory network in flowering of P. aphrodite is illustrated in Figure 1 based on the published results (data adapted from research on orchids). The expression of PaFT1 is induced by low ambient temperature, and PaFT1 interacts with PaFD to possibly activate the downstream genes required for floral induction. Reflecting the Arabidopsis model, PaFT1 protein is likely transported from leaves to axillary buds to induce spiking in Phalaenopsis orchid. If the PaFT1 moves to dormant/juvenile buds, there must be a repressive mechanism against PaFT1 action or other unknown floral co-activators are still absent in dormant/juvenile buds. However, we cannot exclude the possibility that the pavement for the PaFT1 movement to the dormant/juvenile buds is not available. Based on the transcriptomic analyses of Phalaenopsis orchids, KNOX1, SOC1 and FVE genes are induced by low ambient temperature (Sun et al., 2012; Li et al., 2014; Huang et al., 2016) although Dendrobium KNOX1 gene is down-regulated by low ambient temperature (Yu and Goh, 2000a; Yu et al., 2000). Thus, the role of KNOX1 in floral transition of Phalaenopsis needs to be further examined. In Phalaenopsis, SOC1 may activate LFY and AP1 during floral transition as is the case in Arabidopsis. Recently, FVE has been suggested to be an upstream activator of SOC1 in P. aphrodite (Koh et al., 2018). The CO in Phalaenopsis may also activate FT irrespective of photoperiod (Zhang et al., 2011; Kaewphalug et al., 2017). In addition, ELF genes in Phalaenopsis may repress the CO activity (Doyle et al., 2002; Chen et al., 2015). Moreover, the GI-FLAVIN-BINDING, KELCH REPEAT, F BOX 1 (FKF1) and CYCLING DOF FACTOR (CDF) may also regulate the CO activity in Phalaenopsis as is also the case in Arabidopsis (Song, 2016). Since SVP and FLM are critical flowering regulators responding to changes in ambient temperature in Arabidopsis, it is also possible to anticipate that the two orthologs of SVP and FLM also act in floral induction of Phalaenopsis in various ways. Actually, SVP and FLM repress the expression of FT at low ambient temperature in Arabidopsis (Lee et al., 2013). Thus, the working mechanism of those orthologs in Phalaenopsis might be distinct from that of Arabidopsis. In addition, further studies are required to reveal the mechanisms underlying phytohormone-dependent flowering pathways linked to changes in ambient temperature in orchids. Even taking these findings together, it can be seen that there is a long way to go to achieve a better understanding of the flowering regulatory network in P. aphrodite. As one of the shortcuts to reach this goal, high throughput analyses can be applied to identify candidates involved in the floral transition of Phalaenopsis. Also, collection of information on flowering networks in various plant species would be very useful in the interpretation of large-scale experimental results such as omics data. Most importantly, forward or reverse genetic studies are required for the functional confirmation of candidate genes in orchid flowering. The homologs of flowering genes in a few orchid species are listed in Table S1.

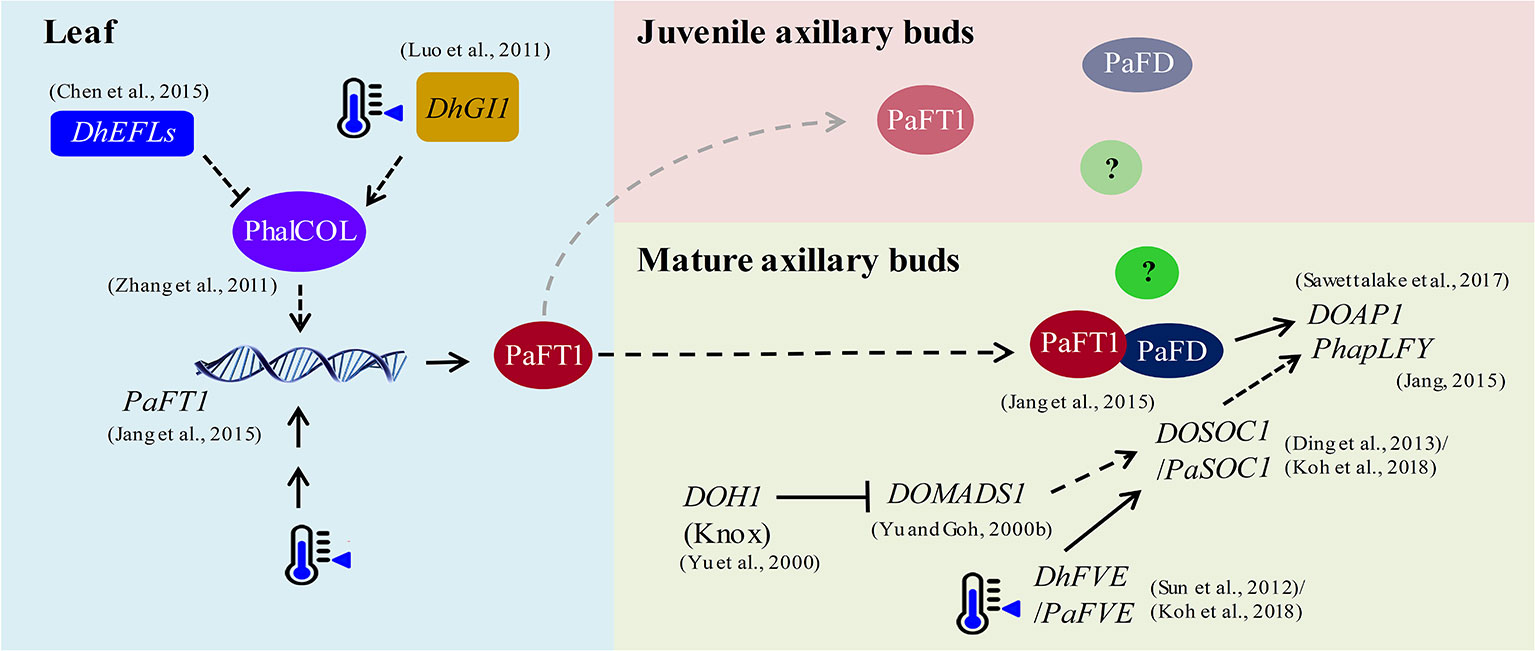

Figure 1 The hypothetical flowering regulation in P. aphrodite under low ambient temperature. Low ambient temperature drives PaFT1 activity in leaves and then PaFT1 protein is transported selectively to mature axillary buds or both mature and juvenile axillary buds. A complex formed by the interaction between PaFT1 and PaFD may activate downstream genes such as AP1 required for floral meristem identity. An example of unknown factors for flowering in the meristem is presented by a green circle with a question mark inside. In juvenile axillary buds, some flowering activators required for floral induction may be absent. PaFT1 can also be activated by CO pathway and the CO activity—PhalCOL (Phalaenopsis CO Like), here—which is likely to be regulated by EFL and GI genes. This regulation should not be dependent on photoperiod. Low ambient temperature also activates PaFVE. Consequently, PaSOC1 is activated by the PaFVE. Moreover, the reduced expression of a KNOTTED1-like homeobox (Knox) gene may lead to the activation of SOC1 through other MADS box genes such as DOMADS1. The orchid LFY genes such as PhapLFY can also be induced by PaSOC1. The solid lines represent pathways that have been reported in orchids and the dotted lines indicate hypothetical regulations based on studies using other plant species. References for each regulation are presented in the figure.
Flower Development of Orchids
Floral Development of Arabidopsis and Monocot Plants
Floral pattern formation is one of the significant features of angiosperms, the mechanisms of which can be explained using the ABC or ABCDE model (Figure 2A). The identity of various floral organs is determined by MADS-box transcription factors or their complexes during flower development. According to the ABC model, in Arabidopsis, sepals in the first whorl are characterized by the expression of A-class genes; petals in whorl 2 are characterized by co-expression of A- and B-class genes, stamens in whorl 3 are characterized by co-expression of B- and C-class genes, and carpels in whorl 4 are determined when C-class genes are solely expressed (Jack, 2001; Theissen, 2001). The ABC model has been extended to the ABCDE model with additional functions of D- and E-class genes in floral organ identity determination (Theissen and Melzer, 2007; Heijmans et al., 2012). D-class genes are involved in ovule development while E-class genes are involved in the identity of all floral verticils. Most genes in the ABCDE model are MADS-box genes. AP1 and AP2 (the only non-MADS-box genes) are A-class genes; AP3 and PISTILLATA (PI) are B-class genes. AGAMOUS (AG) is a C-class gene; SEEDSTICK (STK) is a D-class gene. The D-class genes were first identified in Petunia, namely FLORAL BINDING PROTEIN 7 (FBP7) and FBP11. Finally, SEPALLATA 1 (SEP1), SEP2, SEP3 and SEP4 formally known as AGAMOUS-LIKE 2 (AGL2), AGL4, AGL9 and AGL3, respectively, are characterized as E-class genes. According to the floral quartet model, MADS-box proteins form whorl-specific tetrameric complexes during floral organ determination. The tetrameric transcriptional factor complexes recognize specific cis-regulatory elements termed CArG-boxes (CC-AT rich-GG), and different complexes are postulated to function in controlling expression of different target genes (Jetha et al., 2014). Recently, a reliable and efficient two-stage approach has been developed for angiosperms MADS-Box genes classification using machine learning methods to overcome errors in phylogenetic tree construction (Chen et al., 2019).

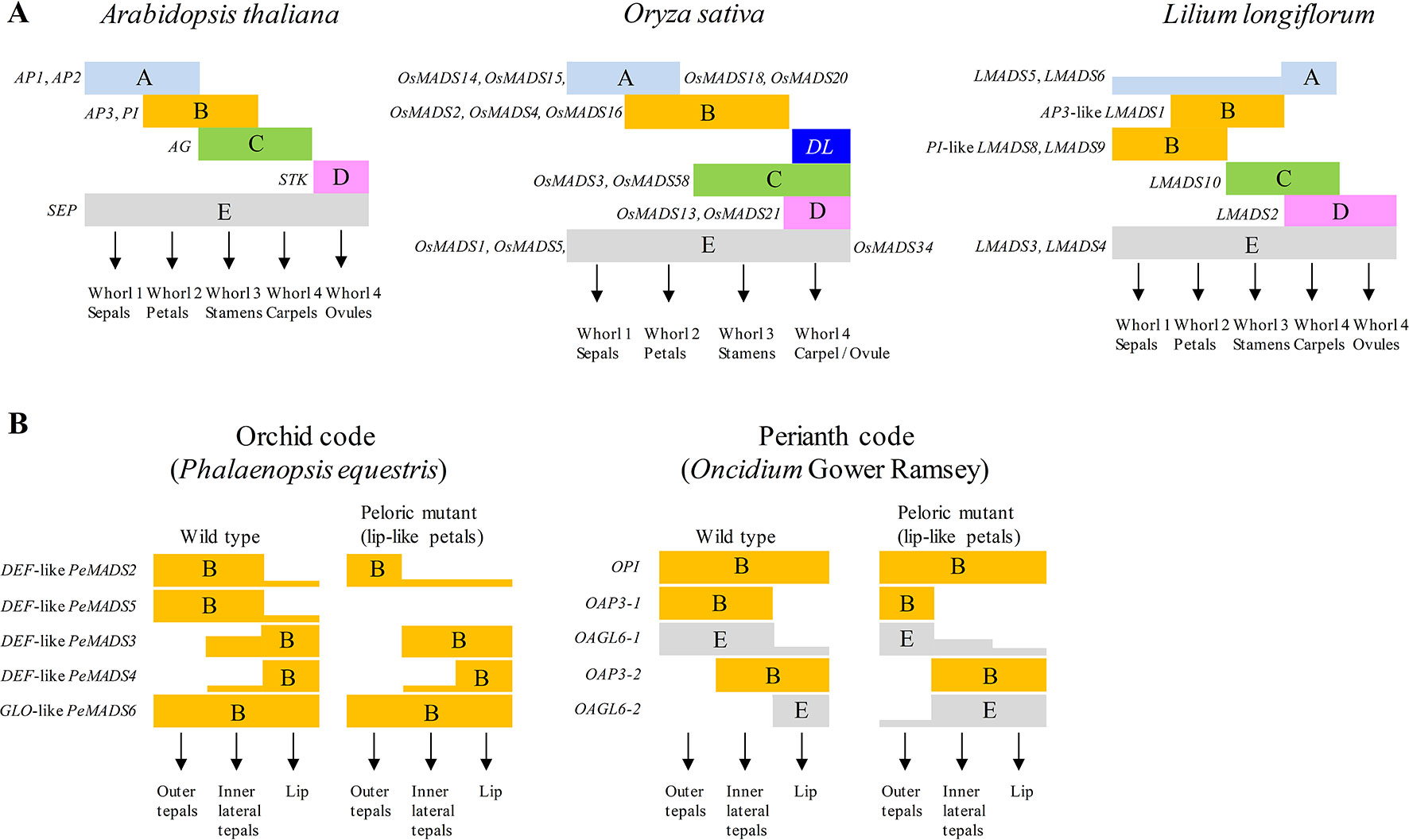

Figure 2 The models of floral development in Arabidopsis, rice, lily and orchids. (A) The ABCDE model explains the floral organ identity in Arabidopsis, rice and lily. The floral development genes are grouped into different classes from A to E. Combinational expressions of different classes of genes determine the formation of different floral organs. Representative genes of different classes are indicated in the figures. DL, DROOPING LEAF. (B) The orchid code and perianth code (P code) explain the formation of perianth of orchids. In the orchid code, combinational expressions of B-class genes from different phylogenetic clades determine the morphology of orchid perianth. The expression patterns of B-class genes changed in peloric mutant are compared with that of wild type. In the P code model, combinational expressions of different B and E-class genes determine the formation sepal/petal or lip of Oncidium orchids.
The MADS-box genes involved in the floral development in monocot plants such as rice, maize (Zea mays), wheat (Triticum aestivum), barley (Hordeum vulgare) and lily have also been elucidated (Callens et al., 2018). MADS-box protein structure is conserved between diverse plants. Comparing the expressions and functions of the ABCDE MADS-box genes among different monocot plants provides the opportunity to elucidate their roles in determining the floral development during evolution. In rice, the A-class gene, the FUL-like (FRUITFULL locus of Arabidopsis) OsMADS14, OsMADS15, OsMADS18 and OsMADS20, are expressed to determine the whorl 1 structures of lemma and palea; co-expression of A and B-class genes, DEF-like (DEFICIENS: an Antirrhinum B-class gene) SUPERWOMEN1 (SPW1 or OsMADS16) and GLO-like (GLOBOSA: another Antirrhinum B-class gene) OsMADS2 and OsMADS4, determines the whorl 2 structure of lodicules (Yoshida and Nagato, 2011); co-expression of B and C-class genes, OsMADS3 and OsMADS58, determines the whorl 3 structure of stamens. Another C function gene DROOPING LEAF (DL) have been identified in carpel specification and floral meristem determinacy (Shige-Hiro et al., 2019). C and D-class genes, OsMADS13 and OsMADS21, are expressed to determine the whorl 4 structure of the carpel and ovule, respectively. In addition, the E-class genes, OsMADS1, OsMADS5 and OsMADS34, are involved in the development of all four whorl structures (Figure 2A).
The lily has a floral character most similar to orchids, with almost identical sepals and petals. Flowers from the lily family Liliaceae have three sepals in whorl 1, three petals in whorl 2, six stamens in whorl 3 and three fused carpels in whorl 4. Three A-class genes from lily, LMADS5, LMADS6 and LMADS7 have been analyzed (Figure 2A) (Chen et al., 2008). They were all expressed in the vegetative stem and inflorescence meristem. With regard to the floral organs, LMADS5 and LMADS6 are mainly expressed in the carpel, whereas LMADS7 is only expressed in the vegetative stem and inflorescence meristem. Early flowering phenotype and homeotic conversions of sepals to carpel-like and of petals to stamen-like structure were observed when they were ectopically expressed in Arabidopsis. For the B-class gene, mRNA of AP3-like LMADS1 could be detected in all four whorls but the protein was detected only in the petal and stamen (Tzeng and Yang, 2001). The PI-like LMADS8 and LMADS9 are expressed in whorl 1 and 2 during all stages of development and are expressed in the stamen only in young flower buds (Chen et al., 2012a). The ectopic expression of LMADS8 and LMADS9 partially converted the sepals into petaloid structures in Arabidopsis. The PI-like gene LFGLOA and LFGLOB identified from L. x formolongi are also expressed in the first, second and third whorl of lily (Akita et al., 2008). Several C-class genes have been identified from different lilies including LMADS10, LFAG1 and LLAG1 (Benedito et al., 2004; Akita et al., 2008; Hsu et al., 2010). They are expressed in whorl 3 and 4, and ectopic expression of C-class genes in Arabidopsis resulted in carpel-like septal and stamen-like petal phenotypes. In addition, a double-flowered cultivar “Aphrodite” of L. x formolongi with petal-like stamen may be caused by reduction in the expression of LFAG1 in whorl 3 (Akita et al., 2008). The lily D-class gene, LMADS2 completely accumulated in the carpel and more specifically in the ovules (Tzeng et al., 2002). Ectopic expression of LMADS2 in Arabidopsis converted the sepals into a stamen-like structure in whorl 2. LMADS3 and LMADS4 have been identified as E-class genes in lily (Tzeng et al., 2003). Both LMADS3 and LMADS4 expression are expressed in the inflorescence meristem, floral buds and all four whorls of the flower organ. Ectopic expression of LMADS3 in Arabidopsis showed extremely early flowering, which was associated with up-regulation of FT, SOC1, LUMINIDEPENDENS and flower meristem identity gene LFY and AP1. Taken together, the different expression patterns of A- and B-class genes from that of the dicot plants such as Arabidopsis suggest a modified ABCDE model for flower development in lily.
Floral Organ Identity Genes in Orchids
The structure of the orchid flower has a zygomorphic nature in contrast to most plant groups leading to precise interaction with the pollinator (Cubas, 2004). Orchid flowers generally contain an outer whorl with three sepals, an inner whorl with three petals, and a single column in the center. The sepals in most orchids are enlarged and look like petals. Two of the petals are displayed in a normal shape and one becomes a highly specialized structure called the lip or labellum. The sepals and petals are usually called tepals since they are very similar in appearance. The column, also called the gynostemium, is the reproductive organ of orchids, which combines the gynoecium (female organ) and androecium (male organ). On the top of the column is the male anther which contains packets of pollen called pollinia. Many floral MADS-box genes have been identified from different orchids. According to their expression patterns and putative roles in determining the different floral organs, advanced models of flower development for orchids have been proposed. Also, these studies offer an opportunity to understand the relationships between the diverse array of floral MADS-box genes and flower development.
A-Class Genes
A- and E-class genes belong to the same AP1/AGL9 superfamily group. A-function genes come from the SQUA-like (SQUAMOSA: an Antirrhinum A-class gene) subgroup, which can be divided into FUL/AGL8-like and euAP1-like clades. E-function genes come from the SEP-like subgroup containing AGL9-like and AGL2/3/4-like clades. AGL6 is a member of the AP1/AGL9 group between the SQUA-like and SEP-like subgroups (Purugganan et al., 1995; Chang et al., 2009). Two AP1-like genes, ORAP11 and ORAP13, were isolated and characterized in Phalaenopsis Formosa Rose. Both genes are highly expressed during the early stages of floral buds and vegetative organs (Chen et al., 2007). At later stages of flower development, ORAP11 is expressed only in the column and ORAP13 expression is absent from all of the floral organs. PaAP1-1 identified from P. aphrodite is expressed in the inner whorls of the pollinia and pedicel whereas PaAP1-2 is expressed in the pedicel only (Su et al., 2013). This expression pattern suggests that PaAP1-1 and PaAP1-2 play a role in the development of the pollinia and gynoecium rather than being involved in the perianth formation like that in Arabidopsis. Furthermore, PaAP2-5 is mainly expressed in whorl 1 and 2, PaAP2-7 is specifically expressed in pollinia, and PaAP2-11 is expressed at a low level among all floral organs. Novel functions of homeotic genes may be acquired based on the diversified expression in Phalaenopsis through evolutionary processes. Two AP1/FUL-like genes in Phalaenopsis hybrid “Athens,” PhaMADS1 and PhaMADS2 are highly expressed in the ovary before pollination, but a low level of expression is detected in the perianth and gynostemium (Acri-Nunes-Miranda and Mondragon-Palomino, 2014). DOMADS2 identified from Dendrobium Madam Thong-in, and DthyrFL1, DthyrFL2 and DthyrFL3 from D. thyrsiflorum have been characterized as SQUA-like and FUL-like genes, respectively (Yu and Goh, 2000b; Skipper et al., 2005). The expression of DOMADS2 could be detected in the SAM during floral transition but it was limited to the column at the later stages of flower development. Low level expression of DthyrFL1, DthyrFL2 and DthyrFL3 was observed in the vegetative tissues, but higher levels were detected in the inflorescences and ovules. The AP1 homolog of Oncidium Gower Ramsey, OMADS10 is expressed in vegetative leaves, lip and carpel of mature flowers (Chang et al., 2009). An AP2-like gene of D. crumenatum, DcOAP2 is expressed in all floral organs (Xu et al., 2010). Weak expression of three AP1-like genes, EpMADS10, EpMADS11 and EpMADS12 from Erycina pusilla has also been observed in all floral organs (Dirks-Mulder et al., 2017). An AP2-like gene of C. ensifolium, CeAP2, is expressed mainly in sepals and petals with negative regulation by miR172 (Yang et al., 2015).
B-Class Genes
B-class genes in Orchidaceae have been surveyed and have 11 species characterized into four AP3- and two PI-duplicated homologs (Pan et al., 2011). PI homologs are uniformly expressed in all floral whorls whereas different clades of AP3 homologs may have different expression patterns within floral organs. In P. equestris, four DEF-like genes, PeMADS2, PeMADS3, PeMADS4 and PeMADS5 have been identified. (Tsai et al., 2004). They are expressed in floral organs with distinct patterns. PeMADS2 and PeMADS5 are expressed in sepals, petals, lip and column; PeMADS3 is expressed in petals, lip and column, whereas PeMADS4 is expressed in lip and column only. In peloric (lip-like petal) mutant, expression of PeMADS5 is absent from all floral organs, and expression of PeMADS4 is extended to the lip-like petal. This indicates that, among the four DEF-like genes, PeMADS4 may determine the lip formation in Phalaenopsis. In addition, these four DEF-like MADS genes are able to interact with a GLO-like gene PeMADS6 (Tsai et al., 2005; Tsai et al., 2008). Ectopic expression of PeMADS6 caused petaloid sepals in Arabidopsis flowers. Furthermore, these heterodimers could bind the CArG cis-element. A single copy of PI-like gene of Phalaenopsis hybrid, PhPI10 has been also characterized (Guo et al., 2008). Expression of PhPI10 is restricted to the lip of flowers. Several AP3-like genes PaAP3-1, PaAP3-2, PaAP3-3 and PaAP3-4 were identified in P. aphrodite and their expression was preferentially detected in sepals, petals and the lip/column (Su et al., 2013). Another PI-like gene, PaPI, has also been identified but its transcripts are detectable in all floral organs. In Dendrobium crumenatum, DcOAP3A/B and DcOPI were identified as AP3-like and PI-like genes, respectively (Xu et al., 2006). Transcripts of DcOAP3A and DcOPI are accumulated in all floral organs and their proteins form heterodimers. Abnormal flowers containing petaloid sepals were produced when DcOPI was overexpressed in Arabidopsis. In addition, the phenotypic alteration of B-function mutants has also been observed by overexpressing DcOAP3-SRDX repressor fusion construct implying a dominant negative effect on the B-function via the hetero-dimerization with its interacting partners. The Oncidium Gower Ramsey AP3-like gene, OMADS3 is also expressed in all floral organs (Hsu and Yang, 2002). Another study characterized the B-class MADS-box genes of Oncidium including the AP3-like OMADS3, OMADS5 and OMADS9, and PI-like OMADS8 (Chang et al., 2010). OMADS5 is expressed in sepals and petals; OMADS9 is expressed in petals and lip; OMADS8 is expressed in all four floral organs like OMADS3. In lip-like petals and lip-like sepals of peloric mutant flowers, expression of OMADS5 is down-regulated suggesting that OMADS5 negatively regulates the lip formation. Recently, the perianth formation in Cymbidium goeringii was determined through the complete analysis of expression levels of B-class genes along with co-expression of A-class and E-class genes (Xiang et al., 2018). CgDEF1 is expressed in sepals and petals but not lip; CgDEF3 and CgDEF4 are highly expressed in lip and lip-like petals whereas CgDEF2 is expressed in all floral organs. Several B-class genes have been isolated from Habenaria (Kim et al., 2007), Orchis (Salemme et al., 2011) and Erycina (Dirks-Mulder et al., 2017). HrDEF expression is exhibited in the petals and column whereas that of HrGLO1 and HrGLO2 is detected in all floral organs. In the petaloid-sepal mutant, expression of HrDEF was extended to the petaloid sepals suggesting that distinctive expression of HrDEF determines the differentiation of sepals and petals of H. radiata flowers. In Orchis italica, the PI/GLO-like genes OrcPI and OrcPI2 are expressed in all floral organs of immature floral buds but their expression is restricted to the lip in the mature flower. In E. pusilla, EpMADS13, EpMADS14 and EpMADS15 are AP3-like genes while EpMADS16 is a PI-like gene. Their expression is detectable in almost all floral organs but has diverse patterns. In Rhynchostylis gigantea, RgAP3 an AP3-like and RgPI a PI-like genes were cloned and expression levels of RgAP3 were noticed only in the petal and sepal, and RgPI was expressed in every part of the floral organs (Zhang et al., 2013).
C- and D-Class Genes
The reproductive organ, the gynostemium, is another unique floral structure in orchids in addition to the labellum. In the ABCDE model, C-class genes are important for the development of stamens and carpels, and D-class genes are required for ovule development. Both C- and D-class genes belong to the AG subfamily of MADS-box genes (Theissen et al., 2000; Kramer et al., 2004). In orchids, C- and D-class genes involved in the development of the gynostemium and ovule have been also identified. In P. equestris, PeMADS1 and PeMADS7 were characterized as C- and D-class genes, respectively (Chen et al., 2012b). Spatial expression analyses of PeMADS1 and PeMADS7 demonstrated that they are specifically expressed in the gynostemium of the flower. Development of ovules is initiated after pollination in orchids and PeMADS1 and PeMADS7 transcripts are accumulated in the ovules after pollination. Moreover, expression of PeMADS1 could be detected in petals of gynostemium-like petal (gylp) mutant suggesting that PeMADS1 functions in gynostemium development. PeMADS1 and PeMADS7 could form a homodimer or heterodimer via the PeMADS8, an E-class protein. Ectopic expression analyses showed that PeMADS1 could rescue the phenotype of AG mutant, and PeMADS7 in Arabidopsis produced characteristic phenotypes of the D-class gene family without homeotic conversions. Another two studies also characterized C- and D-class genes in Phalaenopsis Hatsuyuki and Phalaenopsis Athens including AG-like PhlAG1, PhaMADS8, PhaMADS10 and STK-like PhlAG2, PhaMADS9 (Song et al., 2006; Acri-Nunes-Miranda and Mondragon-Palomino, 2014). Expressions of PhlAG1 and PhlAG2 could be detected in the lip, column and ovule, and PhaMADS8, PhaMADS9 and PhaMADS10 were specifically expressed in the gynostemium and ovary. Expression of PhaMADS9 but not PhaMADS8 and PhaMADS10 is increased in the gynostemium of peloric mutants suggesting that the expression level of STK-like gene is crucial for gynostemium development. The C- and D-class genes in D. crumenatum and D. thyrsiflorum were also characterized; DcOAG1 and DthyrAG1 are C-class genes; DcOAG2 and DthyrAG2 are D-class genes (Skipper et al., 2006; Xu et al., 2006). DcOAG1 is expressed in all floral organs while DcOAG2 is mainly expressed in the ovary and in the envelope cells of pollinia. Overexpression of DcOAG1 in Arabidopsis transformed the sepals and petals into carpel-like and stamen-like structures, respectively. DthyrAG1 and DthyrAG2 are expressed in the inflorescences and ovules after pollination, and DthyrAG2 is believed to play more important roles in later stages of ovule development in D. thyrsiflorum since its expression was higher than that of DthyrAG1 in ovules. The C- and D-class genes in Oncidium Gower Ramsey, namely OMADS4 and OMADS2 respectively, were also characterized (Hsu et al., 2010). OMADS4 is expressed in the stamens and carpels whereas expression of OMADS2 is restricted to the stigmatic cavity and ovary of carpels. In addition, yeast two-hybrid analyses showed that OMADS4 and OMADS2 are able to form homodimers by themselves or form heterodimers with each other. Ectopic expression of OMADS4 and OMADS2 caused only early or moderately early flowering in Arabidopsis without homeotic conversion of floral organs. C- and D-class genes characterized in Cymbidium (Wang et al., 2011b), Orchis (Salemme et al., 2013) and Erycina (Dirks-Mulder et al., 2017), include C-class genes CeMADS1, CeMADS2, OitaAG, EpMADS20, EpMADS21 and EpMADS22, and D-class genes OitaSTK and EpMADS23. CeMADS1 is only expressed in the column but CeMADS2 is expressed in all floral organs. In the multitepal mutant whose male and female reproductive organs are replaced by a newly emerged flower, expression of CeMADS1 is lost, suggesting that CeMADS1 is associated with the development of the gynostemium. O. italica OitaAG and OitaSTK are also expressed in the reproductive organs in both the early and late stages. Among the E. pusilla MADS-box genes, EpMADS20 is expressed in all floral organs while others, such as EpMADS21, EpMADS22 and EpMADS23 are mainly expressed in the gynostemium.
E-Class Genes
E-class genes show unique interaction with other floral organ identity genes to determine all floral organs. Arabidopsis has four SEP genes: SEP1, SEP2, SEP3, and SEP4. The flowers of a triple mutant of sep1 sep2 sep3 consist entirely of sepal-like organs (Pelaz et al., 2000) while the quadruple mutant of sep1 sep2 sep3 sep4 produces leaf-like organs instead of floral organs (Ditta et al., 2004). Moreover, simultaneously reduced expression of four rice SEP-like genes (OsMADS1, OsMADS5, OsMADS7 and OsMADS8) caused the conversion of all floral organs except the lemma into leaf-like structures (Cui et al., 2010). In orchids, a number of genes belonging to the E-class have been characterized at the molecular level. A SEP3-like gene, OM1 was the first E-class gene identified, from the mature flower of Aranda Deborah, and its expression was identified in sepals and petals (Lu et al., 1993). In Phalaenopsis hybrid Athens, three SEP-like genes PhaMADS4, PhaMADS5 and PhaMADS7 have been identified and these are expressed in the sepal, petal and labellum (Acri-Nunes-Miranda and Mondragon-Palomino, 2014). In P. aphrodite, PaAGL6-1 is expressed in the lip, whereas the PaAGL6-2 is expressed throughout all floral organs (Su et al., 2013). Four SEP-like genes PeSEP1, PeSEP2, PeSEP3 and PeSEP4 were characterized from P. equestris (Pan et al., 2014). These PeSEP genes are expressed in all floral organs and VIGS of PeSEP3 resulted in production of leaf-like tapels. Down-regulation of PeSEP2 expression alone by VIGS has minor effects, but silencing of both PeSEP2 and PeSEP3 expression caused reduced expression of B-class genes such as PeMADS2, PeMADS3, PeMADS4, PeMADS5 and PeMADS6 suggesting an association between PeSEP functions and B-class gene expression. DOMADS1 and DOMADS3 from Dendrobium Madame Thong-In are homologous genes of SEP3 and SEP4, respectively, and DcOSEP1 from D. crumenatum is a homolog of SEP3 (Yu and Goh, 2000b; Xu et al., 2006). Expressions of these genes are constantly activated during floral transition and continue into the mature floral stage. Four E-class genes belonging to the AP1/AGL9 superfamily, OMADS6, OMADS7, OMADS10 and OMADS11 have been identified from Oncidium Gower Ramsey (Chang et al., 2009). OMADS6 is expressed in all floral organs except the stamen, and expression patterns of OMADS7 and OMADS11 are similar to that of OMADS6. Unlike OMADS6, OMADS10 is expressed in vegetative leaves although its transcripts are specifically accumulated in the lip and carpels of mature flowers. Moreover, overexpression of OMADS6, OMADS7 and OMADS11 resulted in extremely early flowering but OMADS10 overexpression caused moderately early flowering in Arabidopsis. Several AGL6-like genes including EpMADS3, EpMADS4 and EpMADS5 have been identified in E. pusilla. They are expressed in floral organs with various expression levels in distinct floral organs suggesting that multiple AGL6-like genes may also contribute to the development of floral organs (Dirks-Mulder et al., 2017). Seven E-class genes CgSEP1, 2, 3, 4 and CgAGL6-1, -2, -3 were characterized in C. goeringii (Xiang et al., 2018). The expression level of CgSEP1 was increased in the peloric mutant lips and decreased in the peloric mutant sepals. High expression levels of CgSEP2 and CgAGL6-1 could be detected in the sepals, but rarely in the lips and columns of the wild-type and the peloric mutant. An increased expression level of CgSEP3 was noticed in peloric mutant lip-like petals and lips, but expression level of CgSEP4 was decreased in the peloric mutant lip-like petals and lips. The expression level of CgAGL6-2 is increased in all floral organs of the wild-type and peloric mutant, but increased level of CgAGL6-3 could only be detected the in lip and lip-like petals of wild-type and peloric mutant. Based on expression patterns and phenotypic alterations caused by the E-class genes, it is likely that E-class genes are required for petal, stamen, and carpel formation in both dicot and monocot plants. Of note, a recent report has shown that the greenish flower phenotype of a mutant orchid cultivar in Habenaria radiata is due to the absence of SEP (HrSEP-1) function (Mitoma and Kanno, 2018). The characterized genes of flower development in orchids are listed in Table S2 (Aceto and Gaudio, 2011; Mondragon-Palomino, 2013; Teixeira da Silva et al., 2014).
Connective Codes for Perianth Formation
Genetic models related to the regulatory patterning formation of actinomorphic flowers in Arabidopsis and Antirrhinum are well characterized. However, orchid flowers usually have zygomorphic symmetry with a prominent, well-differentiated labellum in the inner tepals, and it is morphologically distinct from tepals of other angiosperms (Salemme et al., 2011). The perianth formation in orchids cannot be solely explained by the ABCDE model. Many divergent genes with novel functions are responsible for the regulation of perianth formation in orchids. The model “Orchid Code” has been proposed to explain how the various expression levels of duplicated AP3/DEF-like genes regulate the perianth morphogenesis in orchids (Figure 2B) (Mondragon-Palomino and Theissen, 2008; Mondragon-Palomino and Theissen, 2009). In this model, duplicated DEF-like paralogous are grouped into four clades phylogenetically and their expression patterns determine the formation of different flower organs. The development of outer tepals (sepal) is regulated by the co-expression of clade 1 (PeMADS2-like) and clade 2 (PeMADS5-like or OMADS3-like) genes whereas the two lateral petals are regulated by the co-expression of clade 1, clade 2 and clade 3 (PeMADS3-like) genes. The lip structure is regulated by the co-expression of clade 1, clade 2, clade 3 and clade 4 (PeMADS4-like) genes. In contrast, GLO-like genes form a single clade and express in all four floral whorls. In other words, the divergent DEF-like gene is the key that leads to the morphological diversity of the flowers in orchids. Later, the orchid code model was refined by extensive analysis of DEF-like genes in different subfamilies of orchids (Mondragon-Palomino and Theissen, 2011). According to this refined orchid code, four clades of DEF-like genes are all expressed in lateral petal and lip. However, lower expression level of clade 3 and clade 4 is displayed in lateral petal whereas lower expression level of clade 1 and clade 2 genes is displayed in the lip. Moreover, a combination of four clade genes with differential expression level may also contribute to the developments of gynostemium and ovary.
Development of different floral organs of orchids has also been proposed by a homeotic orchid tepal (HOT) model (Pan et al., 2011). Twenty-four AP3-like genes were identified from 11 species of orchids and grouped into four clades (PeMADS3-like, PeMADS4-like, PeMADS2-like and PeMADS5-like). Similar to the orchid code model, the sepal organ expresses PeMADS2-like and PeMADS5-like genes whereas the lateral petal expresses PeMADS2-like, PeMADS5-like and PeMADS3-like genes. In the lip organ, all four clade genes are expressed. In addition, the HOT model also addresses the temporal change of PeMADS3-like and PeMADS4-like expressions in different stages of inflorescence development. In the early floral organ primordial stage, they are expressed in all whorl organs. In the late floral organ primordial and floral bud stages, PeMADS3-like genes are restricted in petal, lip and column whereas the PeMADS4-like genes are restricted in the lip and column. Combinations of PI-like genes and other MADS-box genes also determine the identity of lip and column.
Another study also based on the expression analysis proposed a “Perianth code” (P code) hypothesis to explain the floral identity of orchids (Figure 2B) (Hsu et al., 2015). Two clades of AP3-like genes (OAP3-1 and AP3-2) in Oncidium associate with OPI and different clades of OAGL6-like genes (E-class). Different heterotetradmers determine different organs. The SP (sepal/petal) complex (OAP3-1/OAGL6-1/OAGL6-1/OPI) specifies the sepal/petal formation whereas the L (lip) complex (OAP3-2/OAGL6-2/OAGL6-2/OPI) is exclusively required for lip formation. The P code model suggests that the diverse E-class genes are also important for development of lip structure of orchids. Diverse roles of E-class genes in floral identity have also been suggested in lily (Tzeng et al., 2003). Two AGL2-like genes, LMADS3 and LMADS4, were identified in lily, and they were expressed in all four whorls of floral organs. Ectopic expression of LMADS3 but bot LMADS4 in Arabidopsis resulted in reduced plant size, early flowering and loss of floral determinacy. In H. radiata, two E-class genes (HrSEP-1 and HeSEP-2) were characterized recently (Mitoma and Kanno, 2018). The expression of HrSEP-1 is lost in a mutant cultivar “Ryokusei” that has greenish petals and a smaller lip in whorl 2, and several septaloid organs and a ventral column in whorls 3 and 4. Moreover, the expression of HrSEP-2 is up-regulated in Ryokusei. Alternative expressions of B-class genes by silencing of E-class genes have also been revealed in Phalaenopsis (Pan et al., 2014). This indicates a feedback regulation between the floral identity genes may also play an important role in the development of floral organs.
All these models specify that the diverse roles of duplicated AP3/DEF-like and other floral identify genes are important for specialized flower morphogenesis, especially for the lip development of orchid flowers. This idea is supported by the recent study of whole-genome sequencing of Apostasia shenzhenica, a genus of Apostasioideae, which is regarded as being phylogenetically plesiomorphic in the orchid family (Zhang et al., 2017). The Apostasia has a radially symmetrical (actinomorphic) flower without lip and complex column structures. Comparing A. shenzhenica to other subfamilies of Orchidaceae, A. shenzhenica seems to have fewer B-class AP3 genes.
Orchid Biotechnology
Conventional breeding efforts were initiated more than one century ago and helped propel the growth of the ornamental orchid market. In order to obtain profitable horticultural traits, successful breeding usually proceeds by preserving or selecting advantageous parents or progenies. Application of a well-controlled cultivation management system is another important factor for successful commercial orchid farming. In the worldwide market, hundreds and thousands of successful cultivars have been generated using the conventional methods through enthusiastic professional and amateur breeders. The discovery of native tetraploid Phalaenopsis orchids that have better flower shapes and color intensities initiated the creation of numerous significant commercial hybrids through polyploidy breeding. Over the last two decades, a successful program to convert 20 diploid Phalaenopsis species to tetraploid has been developed by Chen et al. (2011). This program facilitated a breeding process that feeds the needs of the nursery business. Polyploidization can typically be achieved by introduction of colchicine in many agricultural or horticultural crops including orchids (Griesbach, 1981; Caperta et al., 2006; Azmi et al., 2016; Tuwo and Indrianto, 2016). One of the most successful product series, “Big White Flower,” is comprised of tetraploid Phalaenopsis hybrids developed through polyploidization with the parents Phalaenopsis Doris. Among them, P. Sogo Yukidian ‘V3’ has been very popular in the market. At present, it is still one of the most profitable hybrids in this group. Chen et al. concluded that the importance of polyploidy to the improvement of orchid cultivars may rely on the increase in the number of sets of genes (Chen et al., 2011). The accumulation of additive genetic and heterotic effects of these genes could potentially improve the varieties possible. Currently, polyploidy is still a major technique that drives orchid breeding programs to commercial success. An alternative strategy for polyploid breeding is the phenomenon of unreduced gametes. By analyzing sporad types, Bolaños-Villegas et al. observed a certain percentage of dyads (2n gametes) and suggested the pollination from individual of these dyad may produce polyploid progeny as revealed in other plants (Bolaños-Villegas et al., 2008).
In the 1970s, the creation of recombination DNA molecules brought about revolutionary genetic engineering, also called genetic transformation, which constitutes the direct manipulation of an organism’s genome using biotechnology. It is a set of technologies that is used to change genetic makeup, including the transfer of genes within and across species boundaries to produce improved or novel traits. In 2013, the blue Phalaenopsis orchids created by the research team of Professor Mii at Chiba University, Japan were exhibited at the 11th Asian Pacific Orchid Conference. These true-blue orchids were genetically transformed using a flavonoid 3’,5’-hydroxylase gene derived from Commelina communis which was incorporated into the Phalaenopsis genome and expressed in the flowers to produce delphinidin, a blue anthocyanin pigment that is also in the flowers of delphinium (larkspur). In 2016, the white Oncidium orchids created by a research group from the National Taiwan University, Taiwan were exhibited at the Taiwan International Orchid Show. The genetically engineered white orchids were transformed by a flower specific promotor driving the carotenoid cleavage dioxygenase gene that degrades carotenoids, which led to white petals.
Similar to many other crops, two major transformation systems were successfully used to transport foreign genes into orchid genomes: particle bombardment and Agrobacterium-mediated transformation systems. The early genetic transformation studies in orchids were confined to the biolistic-mediated transformation which needed a so-called gene gun to deliver the target genes (Kuehnle and Sugii, 1992; Chia et al., 1994). The first successful genetic transformation reported using the Agrobacterium-mediated method was the transfer of gus gene into Phalaenopsis orchid (Belarmino and Mii, 2000). Many years later, this system also successfully transformed other genera of orchids such as Dendrobium, Cymbidium and Oncidium (Yu et al., 2001; Liau et al., 2003; Chin et al., 2007). Target explants for transformation using protocorms, protocorm-like bodies (PLB) and calluses have been reported so far (Belarmino and Mii, 2000; Mishiba et al., 2005; Chin et al., 2007). Usually, the genetic transformation efficiency has been low for orchid plants and the transformation process is also time-consuming. The general slow growth rate could mean the entire transformation process could take up to 2 or 3 years to reach the stage of two-leaf young plantlets. Recently, a protocol using protocorms that could shorten the transformation process to 8 months was reported for Phalaenopsis orchids (Hsing et al., 2016). It will be worth investigating whether a similar time frame can be achieved in other orchid genera. Genome editing, a new and revolutionary genetic engineering technology, is an approach in which a specific target DNA sequence of the genome is altered by adding, removing, or replacing DNA bases in a highly precise manner (Gaj et al., 2013). One particular tool, the CRISPR/Cas system has been developed at an accelerated pace. The application of the CRISPR/Cas system to create engineered crops or plants has yielded fruitful results for further investigation. The technology development and application have been widely reviewed (Bortesi and Fischer, 2015; Yin et al., 2017). One crucial criterion to precisely edit orchid genomes is to rely heavily on the availability of the whole genome sequence information. We predict that the combination of the genome editing technology with bioinformatics analyses will create revolutionary breeding programs for orchid research and development in the future.
Perspectives
For annual plants such as Arabidopsis, rice and wheat, precise control of flowering time in response to environmental cues is necessary for successful reproduction. For perennial plants like orchids, the flowering network may not be so complicated since vernalization is not required and the effect of photoperiod is limited. The changes in ambient temperature may play a more important role in the regulation of floral transition in orchids. Recently, regulations of microRNAs and anti-florigens such as TFL1 have been shown to be involved in the flowering control of A. alpina, a perennial relative of A. thaliana (Wang et al., 2011a; Bergonzi et al., 2013). Although further investigation is required to discover whether orchid TFL1 also plays a negative role in flowering in orchids, it is no exaggeration to say that TFL1 may regulate the dormancy of juvenile axillary buds in the flowering season of orchids. Furthermore, regulation of PHYTOCHROME INTERACTING FACTOR 4 (PIF4) via phytohormone pathways and sugar metabolism may also be involved (Kumar et al., 2012; Bolouri Moghaddam and Van den Ende, 2013). Flower development studies revealed that multiplicated floral homeotic genes (Table S2) are the basis of the specific morphology of orchids (Figure 2). However, how the high order complex of these proteins regulates floral organ identity needs to be further investigated. In addition, the feedback regulation between different floral homeotic genes needs further investigation to explain the floral development of orchids in detail. The A and E-class genes are involved in both floral initiation and flower development. It will be interesting to investigate whether A and E-class genes regulate the expressions of other MADS-box genes. Finally, further advances in functional studies on key genes for flowering/flower development may rely on a breakthrough in orchid transformation technology which leads to more efficient results. Recently, the genome sequences of several orchids have been determined. Understanding of the flowering control and flower development of the CAM-using plants may provide an insightful view into plant evolution.
Author Contributions
All the authors wrote and reviewed the manuscript.
Funding
This work was supported in part by grants from World Vegetable Center Korea Office (WKO #10000379) and core donors to the World Vegetable Center: Republic of China (ROC), UK aid from the UK government, United States Agency for International Development (USAID), Australian Center for International Agricultural Research (ACIAR), Germany, Thailand, Philippines, Korea and Japan and, a grant from the Ministry of Science and Technology, Taiwan (MOST 106-2321-B-020-002-) to F-C. C. and a grant from Council of Agriculture, Taiwan (COA 106AS-8.6.3-FD-Z1(1)) to F-C. C.
Acknowledgments
The authors are grateful to Miranda Loney for English editing.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2019.01258/full#supplementary-material
