Xue Q. Zhao
Ren F. Shen- 1State Key Laboratory of Soil and Sustainable Agriculture, Institute of Soil Science, Chinese Academy of Sciences, Nanjing, China
- 2University of Chinese Academy of Sciences, Beijing, China
Aluminum (Al) is the most abundant metal in the Earth’s crust and is not an essential element for plant growth. In contrast, nitrogen (N) is the most important mineral element for plant growth, but this non-metal is often present at low levels in soils, and plants are often N deficient. Aluminum toxicity is dominant in acid soils, and so plants growing in acid soils have to overcome both Al toxicity and N limitation. Because of low N-use efficiency, large amounts of N fertilizers are applied to crop fields to achieve high yields, leading to soil acidification and potential Al toxicity. Aluminum lowers plant N uptake and N-use efficiency because Al inhibits root growth. Although numerous studies have investigated the interactions between Al and N, a complete review of these studies was lacking. This review describes: (1) the link between plant Al tolerance and ammonium/nitrate (NH4+/NO3-) preference; (2) the effects of NH4+/NO3- and pH on Al toxicity; (3) the effects of Al on soil N transformations; and (4) the effects of Al on NH4+/NO3- uptake and assimilation by plants. Acid soils are characterized chemically by a relatively high ratio of NH4+ to NO3- and high concentrations of toxic Al. Aluminum-tolerant plants generally prefer NH4+ as an N source, while Al-sensitive plants prefer NO3-. Compared with NO3-, NH4+ increases the solubilization of toxic Al into soil solutions, but NH4+ generally alleviates Al phytotoxicity under solution culture because the protons from NH4+ compete with Al3+ for adsorption sites on the root surface. Plant NO3- uptake and nitrate reductase activity are both inhibited by Al, while plant NH4+ uptake is inhibited to a smaller degree than NO3-. Together, the results of numerous studies indicate that there is a synergistic interaction between plant Al tolerance and NH4+ nutrition. This has important implications for the adaptation of plants to acid soils that are dominated chemically by toxic Al as well as NH4+. Finally, we discuss how this knowledge can be used to increase plant Al tolerance and N-use efficiency in acid soils.
Introduction
Acid soils cover approximately 30% of the ice-free land and up to 70% of potentially arable soils worldwide (von Uexküll and Mutert, 1995). Acid soils occur mainly in humid tropical and temperate areas (von Uexküll and Mutert, 1995), where water and heat are generally abundant for plant growth, implying that acid soils have huge productive potential. However, plant productivity in acid soils is limited primarily by aluminum (Al) toxicity accompanied by deficiencies of some nutrients (Zhao et al., 2014). The improvement of crop productivity in acid soils depends on the dual enhancement of plant Al tolerance and nutrient-use efficiency.
Nitrogen (N) is the most abundant mineral nutrient required by plants. Soil N availability greatly affects the growth and development of crops worldwide (Gutiérrez, 2012). Nitrogen deficiency is a widespread problem for plants grown in terrestrial ecosystems (Vitousek and Howarth, 1991), and it is also a major factor limiting plant growth in acid soils (Fageria and Baligar, 2001). Large amounts of N fertilizers are used in agriculture to grow crops that feed an increasing global population every year. Erisman et al. (2008) estimated that N fertilizer has supported around 4 billion people born since 1908, accounting for approximately 27% of the world’s population over the past century. At the same time, excess N fertilization is causing environmental problems such as water eutrophication, greenhouse gas emissions, nitrate (NO3-) loss, acid rain, and soil acidification due to low N-use efficiency (Ju et al., 2009). High yields and high nutrient-use efficiency are essential for contemporary agriculture. Therefore, there is an urgent need to increase plant N-use efficiency by understanding the responses to N (Kant et al., 2011).
Aluminum is the most abundant metal in the Earth’s crust. It is not an essential element for plants, and excess Al is toxic to most plants. The primary symptom of Al phytotoxicity is the inhibition of root elongation, which can occur after exposure to Al3+ at concentrations as low as μM levels within 1 h (Matsumoto, 2000; Kochian et al., 2005; Ma, 2007). This inhibition can be caused by reductions in cell elongation and cell division, which are attributed to Al interference with the cell wall, plasma membrane, the cytoskeleton, oxidative stress, signal transduction pathways, cytoplasm calcium homeostasis, magnesium uptake, and auxin polar transport (Ma, 2007). Plants have two strategies to detoxify Al (Ma, 2007). One is to exclude Al from the root tips (exclusion mechanism) and the other is to tolerate Al that enters the plant body (internal tolerance mechanism). Roots are the main organ for plants to take up nutrients from the growth medium, so Al toxicity inevitably affects the ability of plants to acquire nutrients from acid soils. On one hand, the inhibitory effects of Al on root growth can reduce the amounts of nutrients taken up by plants because of the small root volume. On the other hand, Al may directly affect the transport and metabolism of nutrients within plants. Interactions between Al and many nutrients often occur within soils and plants (Zhao et al., 2014). Most reports have focused on the effects of various externally added nutrients on Al phytotoxicity (Zhao et al., 2014), but the effects of Al on the uptake of these nutrients by plants and their corresponding mechanisms have received relatively little attention.
Aluminum is beneficial and even potentially essential for some plant species (Bojórquez-Quintal et al., 2017), because of the Al-induced stimulation of nutrient uptake (Watanabe and Osaki, 2002). Aluminum supply was shown to stimulate N uptake by several plant species adapted to acid soils (Osaki et al., 1997), and Al treatments increased shoot N contents in wheat and rye (Dinev and Stancheva, 1993). In contrast, Al reduced root N uptake and its upward translocation to shoots in sorghum and corn (Gomes et al., 1985; Pintro et al., 1996). Aluminum promoted the growth of plants supplied with ammonium (NH4+) but inhibited that of plants supplied with NO3- (Zhao et al., 2014). Nitrogen is a metabolic element involved in the synthesis of amino acids and proteins within plants. Knowledge about Al–N interactions may supply new information to explain instances where Al benefits plant growth.
Several reviews have focused on the interactions between Al and phosphorus (Chen et al., 2012), calcium (Rengel and Zhang, 2003; Meriño-Gergichevich et al., 2010), magnesium (Bose et al., 2011; Chen and Ma, 2013), boron, and silicon (Hodson and Evans, 1995; Horst et al., 2010). Aluminum is a metal and a toxic element to many plants, while N is a non-metal and is an essential element for all plants. More than 100 papers have reported on Al–N interactions so far, highlighting the importance of this topic. Despite the large amount of literature on Al–N interactions, there has been no systematic review of this topic so far. Here, we provide a detailed description and analysis of studies on the interactions between Al and N, including the link between plant Al tolerance and NH4+/NO3- preference, the effects of NH4+/NO3- and pH on Al toxicity, the effects of Al on soil N transformations, and the effects of Al on NH4+/NO3- uptake and assimilation. We also propose a strategy for improving plant Al tolerance and N-use efficiency in acid soils.
Link Between Plant Al Tolerance and Inorganic N Preference
Acid soils are characterized by poor nitrification and high levels of soluble Al, while neutral to calcareous soils show high nitrification and lower levels of Al toxicity (Zhao et al., 2014; Che et al., 2015). The two main inorganic N sources available for plant growth are NH4+ and NO3-. Therefore, on the basis of the environment driving evolution, plants originating from acid soils are Al tolerant and prefer NH4+ to NO3-, while those originating from neutral to calcareous soils are Al sensitive and prefer NO3- to NH4+ (Gigon and Rorison, 1972; Foy and Fleming, 1978; Rorison, 1985; Falkengren-Grerup, 1995; Marschner, 1995; Maathuis, 2009; Zhao et al., 2013b) (Table 1). For instance, the growth of lowbush blueberry, which is adapted to strongly acid soils, was shown to be greatly promoted by NH4+ but strongly inhibited by NO3- (Townsend, 1966; Townsend and Blatt, 1966). Wheat and barley are Al-sensitive and prefer NO3- (Malhi et al., 1988; Cramer and Lewis, 1993; Famoso et al., 2010), while tea and rice are Al-tolerant and prefer NH4+ (Ruan et al., 2007; Famoso et al., 2010; Zhao et al., 2013b). The activity of NO3- reductase could not be detected in some calcifuge species, suggesting that they have a restricted ability to utilize NO3- (Havill et al., 1974). Rice (Oryza sativa) has two subspecies, indica and japonica. Indica rice cultivars generally prefer NO3-, while japonica cultivars prefer NH4+ (Zhao et al., 2013b; Hu et al., 2015). Correspondingly, indica rice cultivars are generally Al sensitive, while japonica cultivars are Al tolerant (Zhao et al., 2013b). Among different rice cultivars, Al tolerance is closely related to NH4+ and NO3- preference (Zhao et al., 2013b).

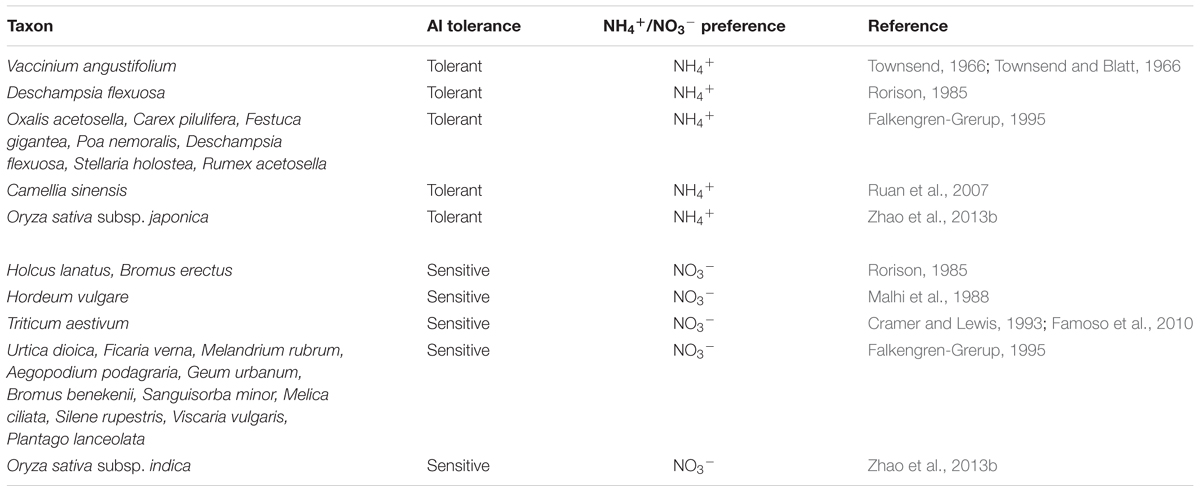

TABLE 1. Aluminum tolerance and NH4+/NO3- preference of plant species.
The above analyses collectively suggest that Al-tolerant plant species and genotypes utilize NH4+ more efficiently than NO3- (Table 1). This knowledge is helpful for the selection of crop genotypes with both high Al tolerance and N-use efficiency via breeding or genetic modification. The selection of such genotypes should reduce the amount of N fertilizer required and improve plant growth in acid soils. However, the molecular mechanism underlying the link between plant Al tolerance and inorganic N preference is unclear. The two characteristics of grain protein content and acidity tolerance were found to be positively correlated among different wheat lines (Mesdag et al., 1970). In addition, a quantitative trait locus genetic analysis revealed that loci associated with Al tolerance and NH4+ utilization were located in similar regions of rice genome (Ogawa et al., 2014). An important goal for future research is to uncover the mechanism of the link between plant Al tolerance and inorganic N preference at the molecular and genetic levels.
Effects of NH4+, NO3-, and pH on Al Tolerance
In recent decades, various anthropogenic activities have greatly accelerated soil acidification in Chinese crop fields (Guo et al., 2010; Liang et al., 2013). Among these activities is the excess use of NH4+ fertilizer (Barak et al., 1997; Fang et al., 2014). Atmospheric NH4+ deposition is also an important factor resulting in soil acidification (van Breemen et al., 1982). Nitrification is the mechanism by which NH4+ acidifies soils. During the nitrification of NH4+ to NO3-, H+ are released into soils, which increase the concentration of soluble Al (van Breemen et al., 1982; Mulder et al., 1989; Mulder and Stein, 1994; Che et al., 2015) (Figure 1). Thus, NH4+ facilitates the occurrence of Al toxicity much more than NO3- does. However, increased soluble Al content in soils caused by low pH does not always increase Al phytotoxicity, because lower pH can result in the desorption of Al from plant roots into the rhizosphere solution (Figure 1).

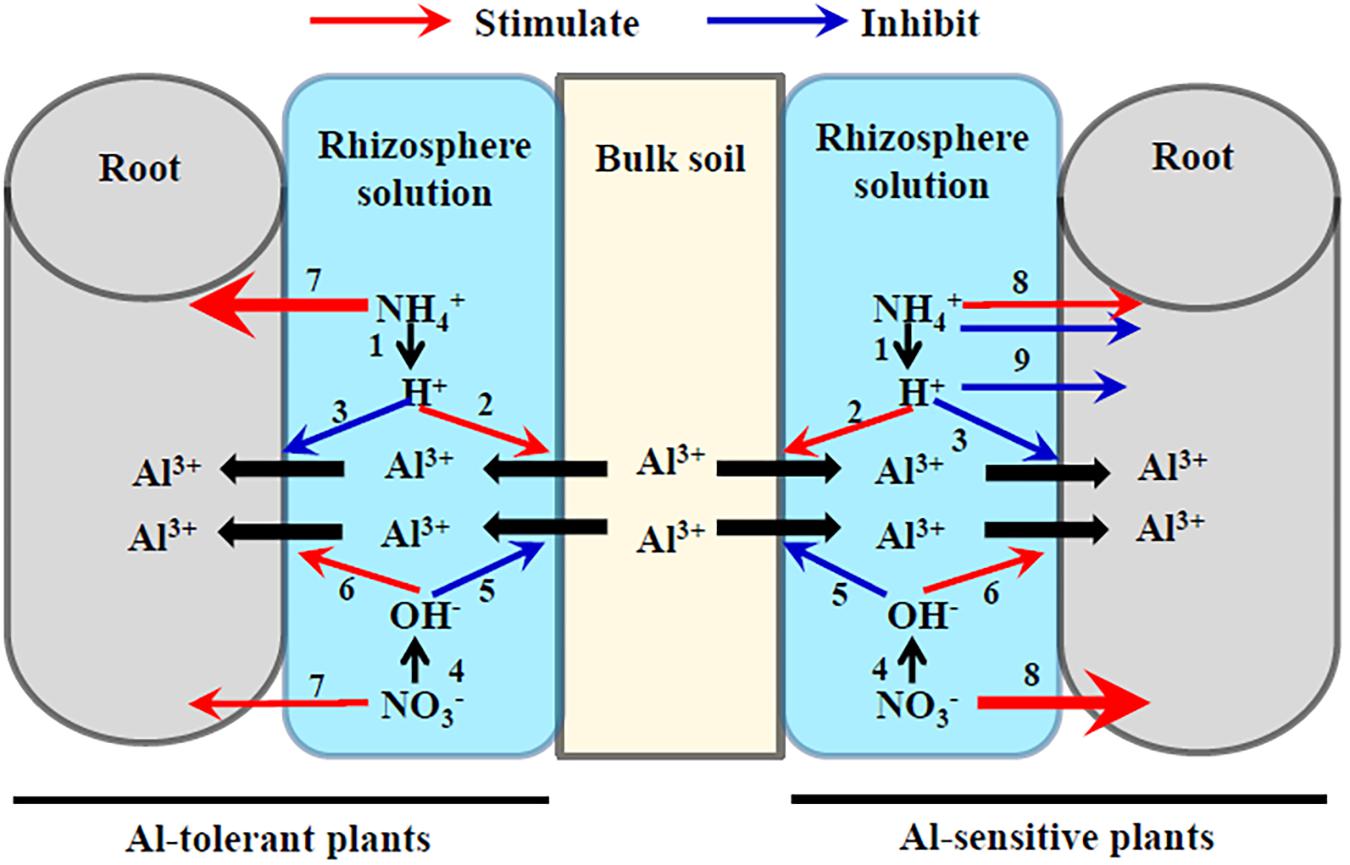

FIGURE 1. Schematic diagram of possible effects of NH4+ and NO3- on the adsorption and desorption of Al on the root–soil interface. NH4+ acidifies rhizosphere solution (1), which stimulates the desorption of Al from bulk soils into rhizosphere solution (2) but inhibits the adsorption of Al from rhizosphere solutions to plant roots (3) both because of the competition between Al3+ and H+. In contrast, NO3- alkalizes rhizosphere solution (4), which inhibits the desorption of Al from soils into rhizosphere solution (5) but stimulates the adsorption of Al from rhizosphere solutions to plant roots (6) because NO3--increased negative electrical charge of root surface. Al-tolerant plant species prefer NH4+ to NO3- (7), while Al-sensitive plant species prefer NO3- to NH4+ (8). Excess NH4+ and H+ are both toxic to the growth of Al-sensitive plant species (9). Consequently, NH4+ alleviates Al toxicity to Al-tolerant plant species while aggravates Al toxicity to Al-sensitive plant species compared with NO3-.
Early studies showed that changes in root zone pH due to ion uptake imbalances were related to Al tolerance in triticale, wheat, and rye under certain solution and soil conditions (Mugwira and Patel, 1977). The plant growth medium can be acidified due to NH4+ uptake by plant roots and the nitrification of NH4+ to NO3-. Alternatively, the growth medium can be alkalinized due to the uptake of NO3- by plant roots. Because Al toxicity occurs in acid soils, one could speculate that the preferential utilization of NO3- relative to NH4+ can enhance plant Al tolerance through increasing the pH of the growth medium via NO3- uptake. The Al tolerance of some wheat varieties was attributable to their abilities to preferentially utilize NO3- relative to NH4+ through rhizosphere alkalization (Foy et al., 1965, 1967; Foy and Fleming, 1978, 1982; Fleming, 1983; Taylor and Foy, 1985a,b,c). The results of subsequent studies, however, indicated that genotypic differences in wheat Al tolerance were not caused by differences in rhizosphere pH induced by the differential uptake of NH4+ and NO3- (Taylor, 1988a,b; Miyasaka et al., 1989). Instead, the differences in the uptake of NH4+ and NO3- among different wheat genotypes were suggested to be the result of, rather than the cause of, differences in A1 tolerance among genotypes (Taylor, 1988a,b; Miyasaka et al., 1989). Another research demonstrated that the decrease in the growth medium pH under Al stress was greater for an Al-tolerant wheat genotype than an Al-sensitive one (Ikeda and Yamanishi, 1999). Therefore, genotypic differences in the relative Al tolerance of wheat could not be explained by root-induced pH changes due to the uptake of NH4+ and NO3-.
Three reports on rice plants drew different conclusions. In two studies, an Al-tolerant rice genotype had a stronger ability than an Al-sensitive genotype to increase nutrient solution pH through efficient NO3- uptake and metabolism (Ganesan et al., 1993; Justino et al., 2006). However, another study (van Hai et al., 1989) obtained the opposite result, in that an Al-resistant genotype took up more NH4+ and acidified the nutrient solution to a greater degree than did an Al-sensitive one. In barley, Al tolerance of different cultivars was not related to the root-induced pH change by the uptake of inorganic N sources from the growth medium (Wagatsuma and Yamasaku, 1985). Similarly, differences in pH changes in the growth medium were not related to differences in A1 tolerance between two sorghum genotypes (Galvez and Clark, 1991). In fact, the NO3- uptake rate was found to be higher in an Al-sensitive sorghum genotype than in an Al-tolerant one (Cambraia et al., 1989). Genotypic differences in the Al tolerance of soybean plants were not associated with the difference in NH4+ uptake vs. NO3- uptake and root-induced pH changes (Klotz and Horst, 1988b). Changes in the medium pH were also not related to Al tolerance in triticale (Antunes and Antonieta Nunes, 1997). These analyses further demonstrated that genotypic differences in the Al tolerance of diverse plant species cannot be explained only by root-induced pH changes due to NH4+ and NO3- uptake.
Since low pH increases the concentrations of soluble Al in soils, the alkalization of the rhizosphere was proposed to be an important mechanism of plant Al tolerance (Matsumoto, 2000; Kochian et al., 2004; Ma, 2007). However, several studies demonstrated that H+ could alleviate Al toxicity because H+ competed with Al3+ for adsorption to the root surface (Kinraide et al., 1992; Godbold et al., 1995; Zhao et al., 2009; Zhao et al., 2014). A supply of H+ also alleviated Al toxicity in bacteria (Kinraide and Sweeney, 2003) and yeast (Zhao et al., 2017). These results implied that Al toxicity is much lower at low pH than at high pH under a certain acid pH range (pH < 5.0) because of the H+ alleviation of Al phytotoxicity. The uptake of NH4+ and NO3- decreases and increases the pH of the medium, respectively. Many reports have indicated that NH4+ supply can enhance plant Al tolerance, while NO3- supply aggravates Al toxicity (Table 2). In some studies, Al was found to stimulate the growth of some grasses (Rorison, 1985), tropical trees (Watanabe et al., 1998), Lespedeza bicolor (Chen et al., 2010), and rice (Zhao et al., 2013b) when supplied with NH4+, but not when supplied with NO3-. The stimulatory effects of Al on plant growth may be related to the effects of Al to alleviate H+ toxicity (Kinraide et al., 1992). Thus, NH4+ alleviates Al toxicity, and Al enhances NH4+ utilization.

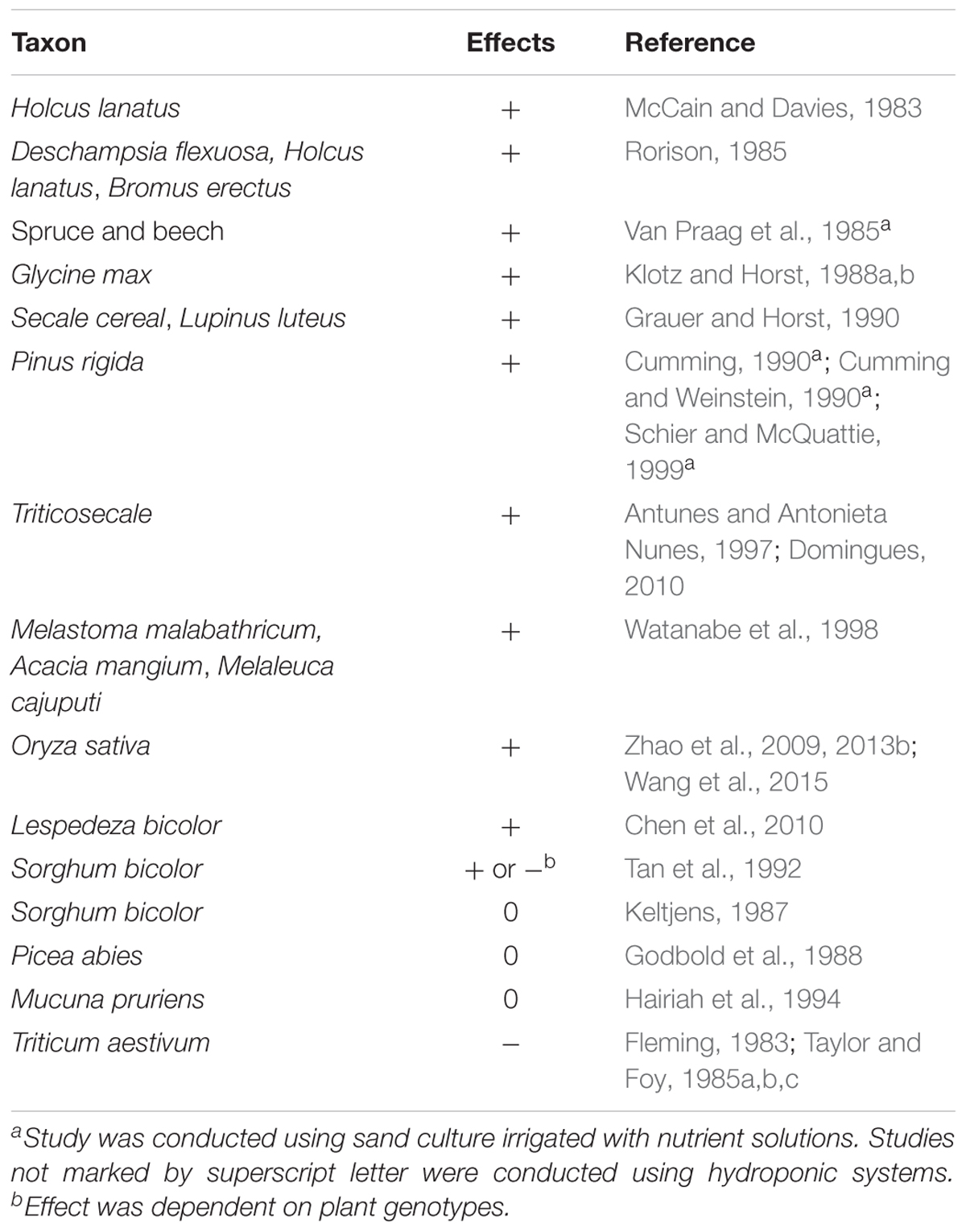

TABLE 2. Summary of NH4+ effects on plant Al tolerance relative to NO3-: (+) enhancement, (-) decrease, and (0) no change.
It is now accepted that the NH4+-induced rhizosphere acidification is the primary mechanism underlying the NH4+ enhancement of Al tolerance in plants (Zhao et al., 2009; Wang et al., 2015) (Figure 1). Relative to NO3-, NH4+ uptake by rice roots reduces the pH of the nutrient solution. Lower pH further decreases the number of Al-binding functional groups and enhances the positive electrical potential of the root surface (Wang et al., 2015; Liu et al., 2016). Consequently, NH4+-fed roots adsorb less Al than do NO3--fed roots, thereby alleviating Al toxicity. The ability of NH4+ to alleviate Al toxicity was also observed under constant pH conditions (Rorison, 1985; Klotz and Horst, 1988a,b; Grauer and Horst, 1990), indicating that factors other than pH may be involved. It is possible that intermediate products of N metabolism such as nitric oxide (NO) play a role in the alleviation of Al toxicity by NH4+ (Zhao and Shen, 2013).
Several studies found that NH4+ aggravated Al toxicity, relative to NO3- (Table 2), which may reflect differences in plants’ sensitivity to NH4+. Some studies on the aggravating effects of NH4+ on Al toxicity used wheat as the experimental material (Fleming, 1983; Taylor and Foy, 1985a,b,c). Wheat plants prefer NO3- to NH4+ and are sensitive to both Al and NH4+ (Table 1). If wheat plants are supplied only with NH4+, then NH4+ toxicity may occur and may be more serious than Al toxicity. Thus, NH4+ may aggravate rather than alleviate Al toxicity in wheat plants. Some sorghum genotypes showed lower Al toxicity and some showed higher Al toxicity with NH4+ relative to NO3- N (Tan et al., 1992). Because an Al-sensitive sorghum genotype was more NH4+-sensitive than an Al-tolerant one, NH4+ toxicity probably masked Al toxicity in sorghum (Keltjens, 1987). Consequently, it is difficult to observe the NH4+ alleviation of Al toxicity in NH4+-sensitive plant species (Keltjens, 1987). Thus, plants grown in acid soils may suffer from Al toxicity accompanied by NH4+ toxicity due to poor soil nitrification.
Most studies on the effects of NH4+ and NO3- on Al tolerance have been conducted using hydroponic experiments (Table 2), which might not reflect the real effects of NH4+ and NO3- on Al tolerance. In soils, lower root rhizosphere pH will result in greater solubilization of Al ions from the soil into the rhizosphere solution, potentially increasing Al toxicity to plants. However, under nutrient solution culture, lower rhizosphere pH will only affect Al speciation (Keltjens and van Loenen, 1989). Lower pH due to NH4+ uptake by plants increases the solubilization of Al3+ from bulk soils into the rhizosphere solution (Figure 1). Nevertheless, for plant roots, more H+ in the rhizosphere solution can decrease Al3+ adsorption by roots through cation competition and increasing the positive electrical potential of the root surface. Thus, whether Al toxicity is exacerbated or alleviated by NH4+ or NO3- may depend on the relative dominance of the effects of pH on Al desorption from soils into the rhizosphere solution and Al adsorption from the rhizosphere solution into the roots. Further studies on this topic should be conducted on soil-grown plants.
Effects of Al on N Transformations in Soils
Although the effects of nitrification on soil pH and Al solubility are well known, less is known about the effects of Al on soil N transformations such as nitrification and ammonification. The nitrification rate is lower in acid soils than in neutral to calcareous soils (Che et al., 2015), although the reasons for this are still unclear. It is generally considered that low pH inhibits the activity of nitrifying microbes. Higher levels of soluble Al are often concomitant with lower soil pH. Soil N transformations are controlled by microbes. Most microbes are very sensitive to Al (Piña and Cervantes, 1996), while fungi are relatively more tolerant than bacteria to Al and acids (Zhao et al., 2013a, 2017). Low pH does not always result in high concentrations of active Al in soils, because Al ions can form complexes with various organic and inorganic ligands. Future research should explore the role of Al in regulating soil N transformations and in N cycle as a whole.
In a paper published almost 100 years ago (Denison, 1922), Al salts stimulated ammonifying microbes but adversely affected nitrifying bacteria. However, more recent reports showed that Al did not affect the nitrification potential and abundance of ammonia-oxidizing amoA gene of archaea and bacteria (Kasuga et al., 2010; Lin et al., 2017). Bacterial growth was shown to gradually decrease as the pH decreased from 6.5 to 4.0 (Rousk et al., 2010), while soil exchangeable Al linearly increased as the pH decreased from 5.4 to 3.7 (Aciego Pietri and Brookes, 2008). In addition, the OTU richness and Shannon’s diversity index of both ammonia-oxidizing archaea and bacteria showed significantly negative correlation with soil pH ranging from 3.77 to 8.46 (Hu et al., 2013). Therefore, microbial growth was found to be limited at soil pHs lower than 5.4 when Al became soluble, but was limited by low pH rather than Al toxicity at pHs ranging from 6.5 to 5.4. These analyses suggested that the inhibition of soil nitrification that transformed NH4+ to NO3- was due to acid stress rather than Al toxicity, when soil pH decreased from 6.5 to 5.4. There are several soil N transformation processes such as nitrification, denitrification, and ammonification, and different types of microbes control the different pathways of transformations. To clarify the effects of Al on soil N transformation, further studies should evaluate N transformation-related microbial populations and Al solubility under controlled conditions with variable soil pH and NH4+/NO3- supply.
Effects of Al on NO3- Uptake by Plant Roots
Approximately 30 published studies have focused on the effects of Al toxicity on NO3- uptake, and most of them found that Al inhibited NO3- uptake (Table 3). Jerzykiewicz (2001) observed that an extremely high concentration of Al (5 mM) even resulted in NO3- efflux from cucumber roots. The mechanism by which Al inhibits NO3- uptake is still unclear, but some possible mechanisms have been proposed. In one study, a high Al concentration resulted in large amounts of Al entering the symplast of soybean roots, leading to symplastic Al concentrations that were high enough to inhibit NO3- transport across the membrane (Lazof et al., 1994). Thus, one proposed mechanism by which Al inhibits NO3- uptake is that intracellular Al may bind to NO3- transporters, NO3- metabolic enzymes, and other components of systems related to NO3- uptake. Plant NO3- transport involves at least three systems; the constitutive high-affinity transport system (cHATS), the inducible high-affinity transport system (iHATS), and the constitutive low-affinity transport system (cLATS) (Crawford and Glass, 1998; Miller et al., 2007). The constitutive systems function without NO3- pretreatment, but the inducible system is stimulated by external NO3-. The cHATS has low values of both Km (6–20 μM) and Vmax (0.3–0.82 μmol g-1h-1), while the iHATS is characterized by higher Km (20–100 μM) and Vmax (3–8 μmol g-1h-1) values and is induced by exposure to NO3- for hours to days. The cLATS functions at NO3- concentrations above 250 μM and does not become saturated even when NO3- concentrations are as high as 50 mM. Durieux et al. (1993) reported that Al exerted stronger effects on the inducible system than on the constitutive systems. Their results also suggested that high concentrations of Al inhibited the activity of NO3- transporters in the inducible system rather than affected the number of NO3- transporters (Durieux et al., 1993). Pretreatment with Al had little effect on NO3- uptake by plants (Jarvis and Hatch, 1986; Durieux et al., 1993), and NO3- transport quickly recovered when Al was removed from the external growth medium (Durieux et al., 1993). These results suggested that Al directly interacts with NO3- transporters but that this interaction is reversible, leading to the inhibition of NO3- uptake by Al.

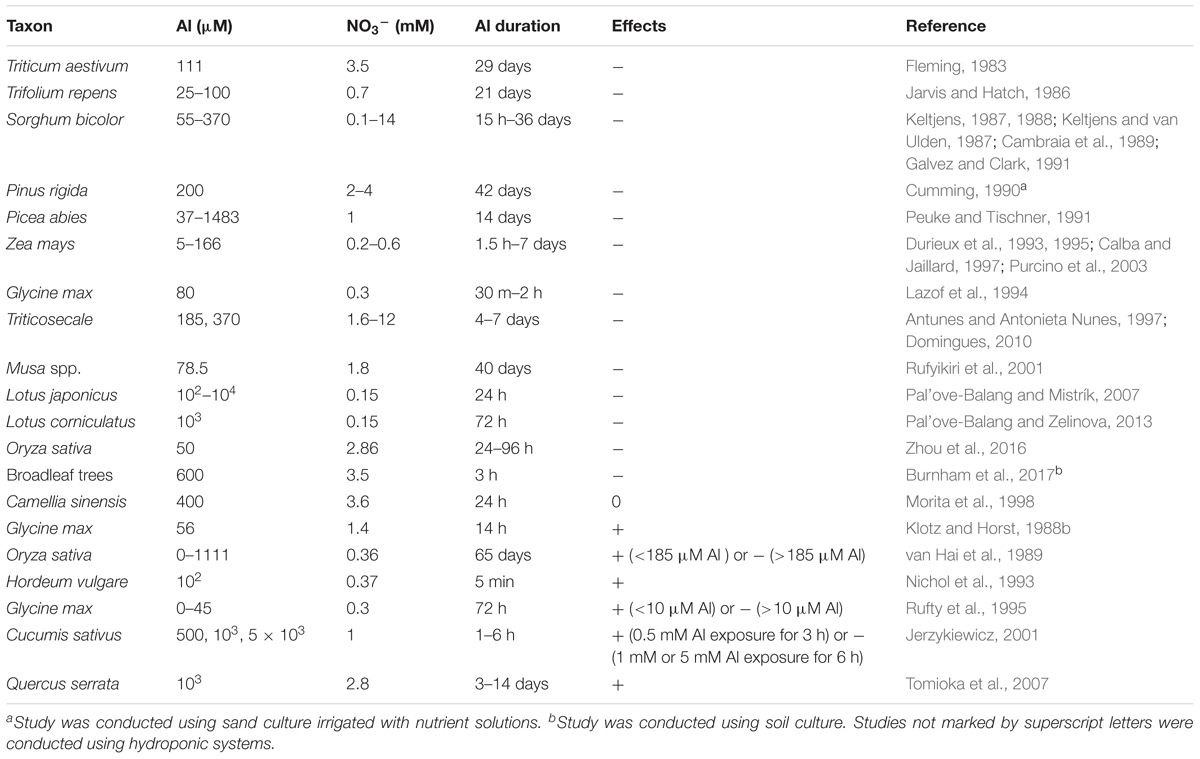

TABLE 3. Summary of effects of aluminum on NO3- uptake: (-) inhibition, (+) stimulation, and (0) no change.
The inhibition of root elongation is the main symptom of Al phytotoxicity. Root elongation was inhibited much more than NO3- uptake in the presence of high Al concentrations in soybean (Rufty et al., 1995). The Al-inhibition of NO3- uptake was found to be similar across different Al-tolerant soybean genotypes and different root regions (Lazof et al., 1994). The root apex is the primary target of Al toxicity to plants (Ryan et al., 1993). However, NO3- uptake rates by corn root tips only accounted for a low percentage of NO3- taken up by the total root system, and N in root tips was mainly derived from N adsorbed through other root regions (Lazof et al., 1992). The mechanism by which Al inhibits root elongation was suggested to differ from the mechanism of Al inhibition of NO3- uptake in maize (Durieux et al., 1995). The results of these studies indicated that the mechanism of Al inhibition of NO3- uptake might differ from the mechanism(s) of plant Al sensitivity and Al-inhibited root elongation, at least in maize and soybean. This should be further tested using more plant species.
The effects of Al on NO3- uptake may depend on Al concentrations, Al exposure time, plant species, and plant genotype. Aluminum does not always affect NO3- uptake, for example, in Al-tolerant tea trees (Morita et al., 1998) (Table 3). A stimulatory effect of Al on root NO3- uptake has been observed in studies where Al was supplied at low concentrations (van Hai et al., 1989; Rufty et al., 1995; Jerzykiewicz, 2001), or for a short-term (Nichol et al., 1993; Jerzykiewicz, 2001), and/or in studies on wild plant species that prefer Al (Tomioka et al., 2007) (Table 3). Similar to the observed stimulatory effects of Al on NO3- uptake, N uptake and partitioning were found to be enhanced by lower Al concentrations (20–200 μM Al) but inhibited by high Al concentrations (1000 μM Al) in defoliated grasses (Thornton, 1998). In wheat, N uptake by root tips was inhibited by Al in an Al-sensitive genotype, but stimulated in an Al-tolerant genotype (Ikeda and Yamanishi, 1999). These results suggested that low Al accumulation in plants could stimulate NO3- uptake.
Several possible mechanisms were suggested to be responsible for the stimulation of NO3- uptake by low concentrations of Al (Rufty et al., 1995; Jerzykiewicz, 2001) (Figure 2). First, the increase in the positive electrical potential of the cell surface by Al3+ could facilitate the access of negatively charged NO3- to the root cell surface. Second, Al-induced H+ extrusion under acid stress could increase NO3- transport across the membrane via H+/NO3- co-transport. Finally, NO3- efflux from cells could be diminished by the binding of extracellular Al to the cell membrane if Al impairs the structural integrity of plasma membranes and alters their permeability (Cakmak and Horst, 1991). However, direct and specific evidence for each of these mechanisms is still lacking.

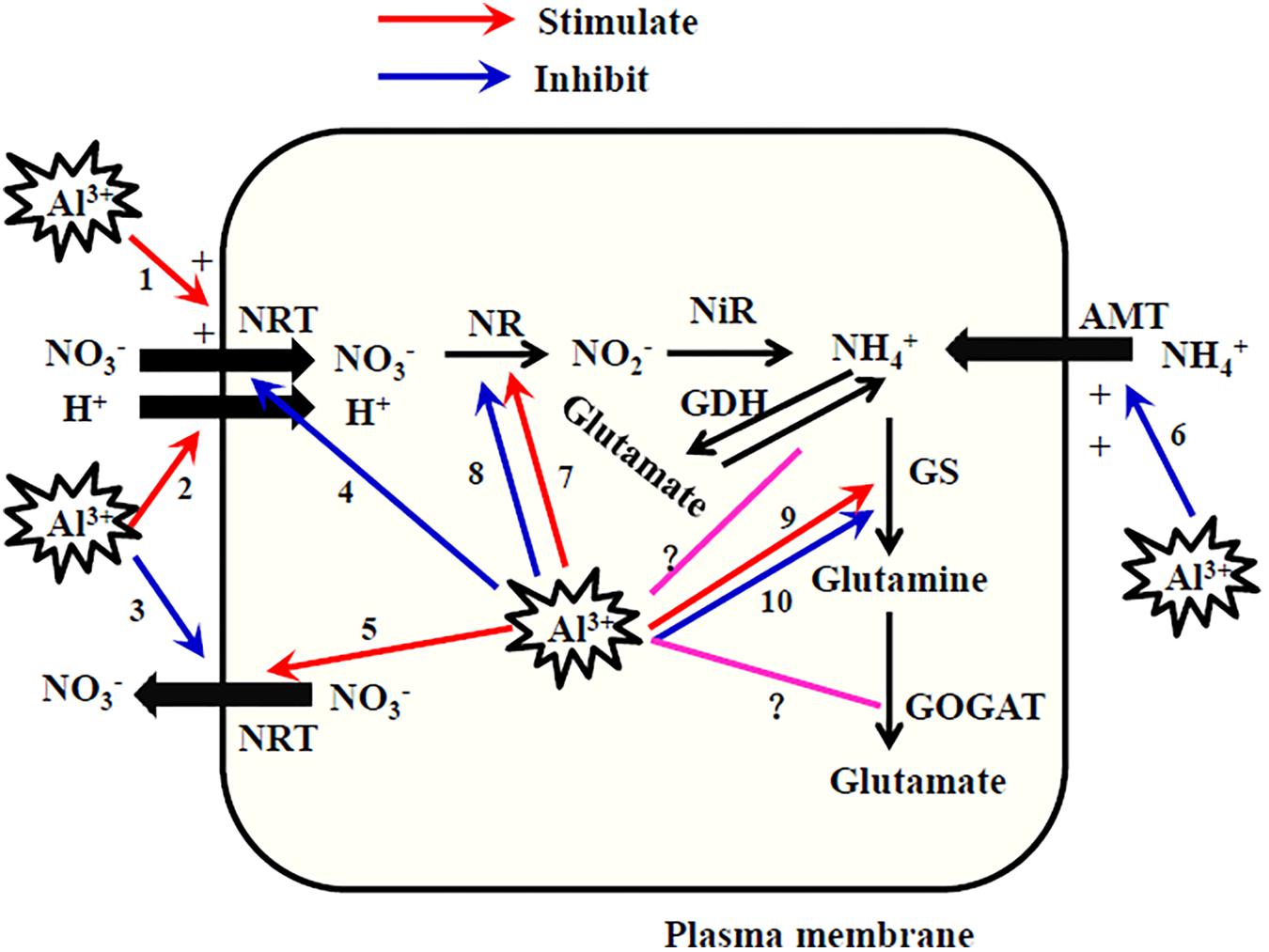

FIGURE 2. Schematic diagram of possible effects of Al on uptake and assimilation of NH4+ and NO3- by plants. NRT, nitrate transporter; AMT, ammonium transporter; NR, nitrate reductase; NiR, nitrite reductase; GS, glutamine synthetase; GOGAT, glutamate synthase; GDH, Glutamate dehydrogenase. When plant roots accumulate low concentrations of Al in the apoplastic space, root NO3- uptake is stimulated by apoplastic Al because of Al3+-increased positive electrical charge of cell surface (1), enhanced H+-NO3- cotransport (2), and diminished NO3- efflux (3). When plant roots accumulate large amounts of Al that enters the symplasm of roots, intracellular Al inhibits NO3- uptake as Al binds to NO3- transporter (4) and induces enhanced efflux of NO3- (5). Al3+-increased positive electrical charge of cell surface results in the Al inhibition of NH4+ uptake (6). Low concentrations of Al stimulates NRA (7) because of Al-stimulated NO3- uptake by the three ways (1, 2, and 3), while high concentrations of Al inhibits NRA (8) because of Al-inhibited NO3- uptake by the two ways (4 and 5). Al stimulates GS activity (9) due to the binding of Al with GS while inhibits that (10) due to the inhibition of NH4+ uptake (6). The effects of Al on GOGAT and GDH are still uncertain (?).
Rufty et al. (1995) compared experimental conditions including the Al concentration, medium pH, and calcium concentration among several papers reporting different effects of Al on NO3- uptake. This comparative analysis suggested that pH and calcium levels, rather than Al concentrations, explained the differences in results among studies (Rufty et al., 1995). Under acid stress and low calcium levels, Al ameliorated acid stress to roots, thereby enhancing NO3- influx into cells (Rufty et al., 1995). Further studies using carefully designed experiments should explore how pH and calcium affect the ability of Al to alter NO3- uptake.
Based on the analyses summarized above, we present a schematic diagram to explain the mechanisms of the effects of Al on NO3- uptake (Figure 2). When plant roots accumulate low concentrations of Al in the apoplastic space of roots, extracellular Al may stimulate NO3- uptake because of an Al3+-induced increase in the positive electrical charge of the cell surface, enhanced H+-NO3- cotransport, and diminished NO3- efflux. When large amounts of Al enter the symplasm of roots, root NO3- uptake is inhibited by Al because Al binds to the NO3- transporter and enhances NO3- efflux. We emphasize that this schematic diagram is based only on the published reports. There is still no direct evidence for these proposed mechanisms. Just as the molecular basis for N uptake has been discovered in recent years, the molecular basis of both the Al-stimulation and Al-inhibition of NO3- transport can be explored in molecular studies on plant mutants defective in NO3- transport.
Effects of Al on NH4+ Uptake by Plant Roots
Various studies have reported that root NH4+ uptake was either inhibited, stimulated, or unaffected by Al (Table 4). However, most studies have reported inhibitory effects of Al on NH4+ uptake by plants. Nichol et al. (1993) indicated that Al treatment for 5 min suppressed the movement of cations (NH4+, Ca2+, and K+) across the plasma membrane but facilitated the movement of anions (NO3- and phosphate). Aluminum ions may bind to the cell surface and form a positively charged layer, thereby inhibiting the adsorption of positively charged cations to the cell surface but stimulating the adsorption of negatively charged anions. Thus, similar to the mechanisms responsible for the Al stimulation of NO3- uptake described above, the Al3+-induced increase in the positive electrical charge of the cell surface is responsible for the inhibition of NH4+ uptake by Al (Figure 2).

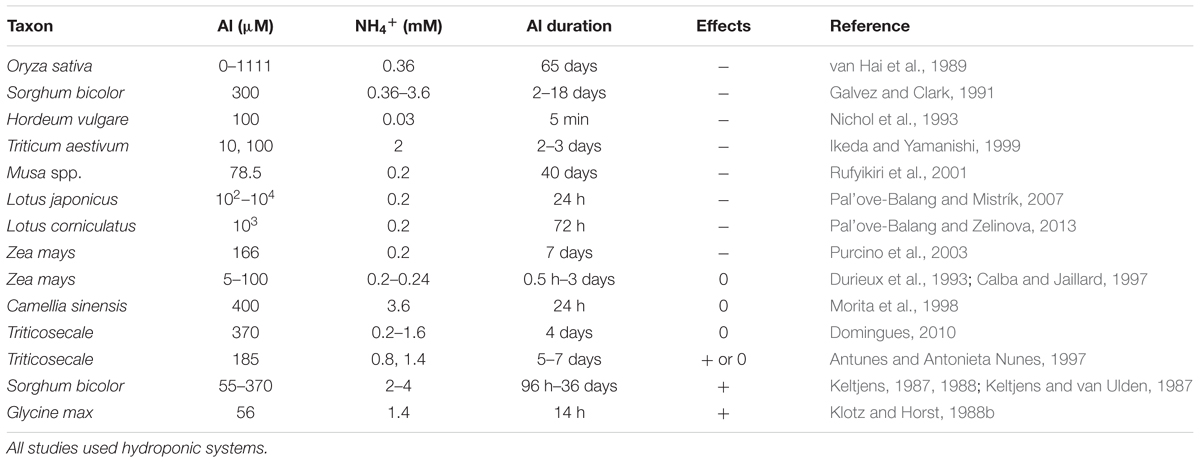

TABLE 4. Summary of effects of aluminum on NH4+ uptake: (-) inhibition, (+) stimulation, and (0) no change.
In general, Al exerts a smaller negative effect on NH4+ uptake than on NO3- uptake. In maize roots, Al reduced the uptake of both NH4+ and NO3- but increased the uptake ratio NH4+/NO3-, indicating that NH4+ uptake was inhibited much less than NO3- uptake by Al (Purcino et al., 2003). An Al treatment reduced NO3- uptake but not NH4+ uptake in maize and triticale (Durieux et al., 1993; Calba and Jaillard, 1997; Domingues, 2010), while Al inhibited NO3- uptake but stimulated NH4+ uptake in sorghum and triticale (Keltjens and van Ulden, 1987; Antunes and Antonieta Nunes, 1997). Leaf N content was increased by A1 when NH4+ was supplied but reduced by Al when NO3- was supplied (Van Praag et al., 1985). An Al treatment reduced the NO3- concentration but increased the free NH4+ concentration in the leaves of corn plants (Souza et al., 2016).
The studies reporting that Al stimulated root NH4+ uptake generally used N sources comprising a mixture of NH4+ and NO3- (Keltjens, 1987, 1988; Keltjens and van Ulden, 1987; Antunes and Antonieta Nunes, 1997). Since Al inhibited NO3- uptake in those studies, we may infer that N deficiency caused by the inhibition of NO3- uptake might explain the stimulation of NH4+ uptake by Al. When NO3- cannot meet the N demands of plants under Al stress, plants may take up more NH4+ in place of NO3- to alleviate N deficiency.
Effects of Al on NO3- Reduction
Nitrate reductase (NR) represents the first enzymatic and rate-limiting step of NO3- assimilation in plants. It catalyzes the reduction of nitrate to nitrite and is a substrate-inducible enzyme (Tischner, 2000). A large body of research has indicated that Al inhibits NR activity (NRA) in roots, shoots, or both (Table 5). Several studies reported that Al toxicity reduced NRA much more in Al-sensitive plant genotypes than in Al-tolerant ones (Foy and Fleming, 1982; Keltjens and van Ulden, 1987; Justino et al., 2006). In wheat and sorghum, Al significantly inhibited NRA in shoots rather than roots (Foy and Fleming, 1982; Keltjens and van Ulden, 1987). In contrast, Al inhibited NRA in roots rather than shoots in red spruce (Cumming and Brown, 1994). The inhibitory effect of Al on NRA may result from Al-inhibition of NO3- uptake, as the decreased level of the substrate, NO3-, would lead to decreased NRA (Gomes et al., 1985; Keltjens and van Ulden, 1987; Keltjens, 1988; Justino et al., 2006; Pal’ove-Balang and Mistrík, 2007; Souza et al., 2016). The Al-induced decrease in NO3- content in plants was proposed to be the main mechanism by which Al inhibits NRA, so the interaction between Al and NR may be indirect. Roots generally accumulate more Al than do shoots. However, Al significantly inhibited NRA in the shoots but not in roots of wheat and sorghum (Foy and Fleming, 1982; Keltjens and van Ulden, 1987), suggesting that a direct interaction between NR and Al is unlikely. The ratio of absorbed 15NO3- to reduced ammonia-containing N remained constant with increasing Al, also suggesting an indirect effect of Al on NR (Rufty et al., 1995). However, in another study, Al inhibited the shoot NRA of sorghum, and this could not be reversed by increased NO3- concentrations (Cambraia et al., 1989). Aluminum decreased NO3- accumulation in cucumber roots and maize leaves but enhanced their NRA (Lidon et al., 1998; Jerzykiewicz, 2001).

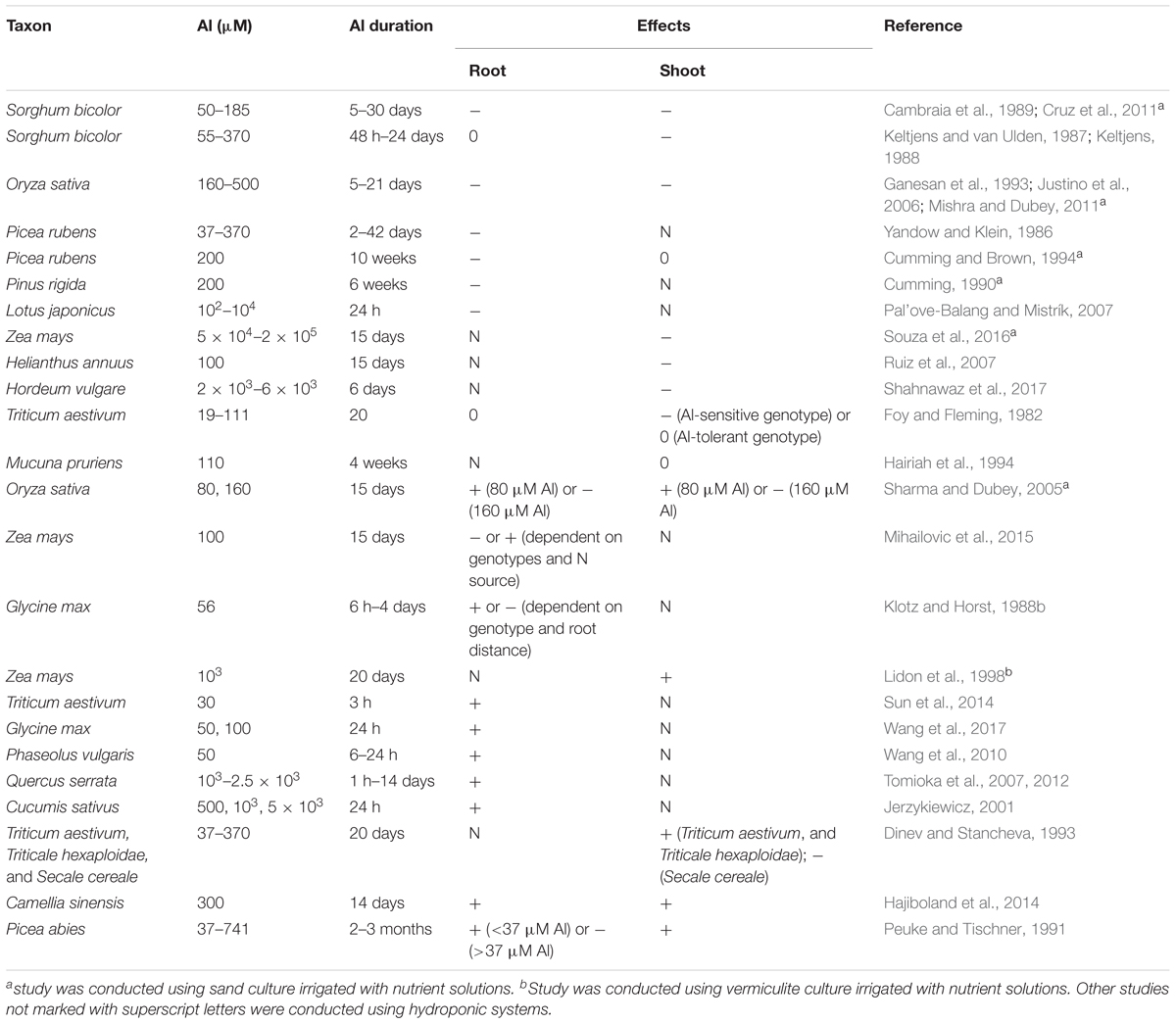

TABLE 5. Summary of effects of aluminum on nitrate reductase activity: (-) inhibition, (+) stimulation, (0) no change and (N) not studied.
In some studies, Al was found to increase NRA (Table 5). At low concentrations, Al stimulated NRA in spruce (<37 μM Al; Peuke and Tischner, 1991) and rice (80 μM Al; Sharma and Dubey, 2005). Aluminum stimulated NRA in the Al-preferring species Quercus serrata (Tomioka et al., 2007, 2012) and tea (Hajiboland et al., 2014). The production of NO mediated by NR alleviated Al toxicity in red kidney bean, wheat, and soybean by alleviating oxidative stress, where Al significantly enhanced NRA in root tips (Wang et al., 2010, 2017; Sun et al., 2014). In another study, Al more strongly promoted NRA in Al-tolerant wheat than in Al-sensitive wheat (Sun et al., 2014).
The interaction between Al and NR appears to be complex, and can be positive or negative, direct or indirect. Many environmental factors are known to modulate NRA (Tischner, 2000). In various studies, the effects of A1 on NRA depended on the plant genotype (Foy and Fleming, 1982; Keltjens and van Ulden, 1987; Justino et al., 2006; Sun et al., 2014; Mihailovic et al., 2015), plant species (Dinev and Stancheva, 1993), plant part (Foy and Fleming, 1982; Keltjens and van Ulden, 1987), medium pH (Yandow and Klein, 1986), Al levels (Peuke and Tischner, 1991; Sharma and Dubey, 2005), N source and levels (Cumming, 1990; Mihailovic et al., 2015; Gupta et al., 2016), and inoculation treatments (Cumming, 1990). Although the Al–NR interaction is complex, we can conclude that NRA is generally inhibited by high Al concentrations, and stimulated by low Al concentrations (Figure 2). This overall trend is similar to the effects of Al on NO3- uptake, because NO3- is the primary factor regulating NRA.
Further research with detailed and well-designed experiments using different plant materials is necessary to clarify the details of the interaction between NR and Al. Recently, several genes encoding NR in maize (Zea mays) were found to be differently modulated at the transcriptional level by Al toxicity (Cantú et al., 2016). Molecular biology techniques could be helpful to clarify the detailed mechanisms of the interaction between Al and NR as well as NO3- uptake.
Effects of Al on NH4+ Assimilation
In plants, NH4+ is mainly assimilated by the GS/GOGAT (glutamine synthetase/glutamate synthase) cycle, where GS catalyzes the reaction between NH4+ and glutamate to form glutamine. Glutamine subsequently combines with 2-oxoglutarate in a reaction catalyzed by GOGAT to form two molecules of glutamate (Masclaux-Daubresse et al., 2010). Glutamate dehydrogenase (GDH) is considered to be an alternative pathway to incorporate NH4+ into glutamate when plants are exposed to high NH4+ concentrations under stress. However, there is more evidence that GDH functions mainly in glutamate deamination (Masclaux-Daubresse et al., 2010). The presence of Al was shown to decrease the concentrations of NO3--N and asparagine but increase the concentrations of amino acid-N and glutamine in the xylem sap of sorghum plants, potentially indicating that Al interferes with the synthesis and/or interconversion of N in plants (Gomes et al., 1985).
Pécsváradi’s research group reported the activating effect of the Al(III)-tartrate 1:3 complex and the Al(III)–nitrilotriacetic acid complex on the activity of GS extracted from roots and leaves of wheat (Kertész et al., 2002; Pécsváradi et al., 2009). This activating effect was attributable to the specific binding of Al to the protein chain of GS, similar to the role of Mg in activating GS activity (Pécsváradi et al., 2009). Except for those two reports (Kertész et al., 2002; Pécsváradi et al., 2009), all of the other studies summarized here reported Al inhibition of GS activity in both roots and shoots (Table 6). However, Al either activated, suppressed, or did not affect the activities of GOGAT and GDH (Table 6). The effects of Al on the activities of N-assimilating enzymes were found to vary between Al-tolerant and Al-sensitive maize varieties and depend on the N form supplied. In maize, NH4+ facilitated the Al stimulation of N assimilation in the roots of an Al-tolerant maize genotype (Mihailovic et al., 2015). Here, we suggest that Al might stimulate GS activity by binding to it, or inhibit it by limiting NH4+ uptake (Figure 2). However, it is difficult to draw clear conclusions about the interaction between Al and NH4+ assimilation on the basis of studies published to date. Therefore, more research is required to explore the effects of Al on these enzymes involved in NH4+ assimilation.

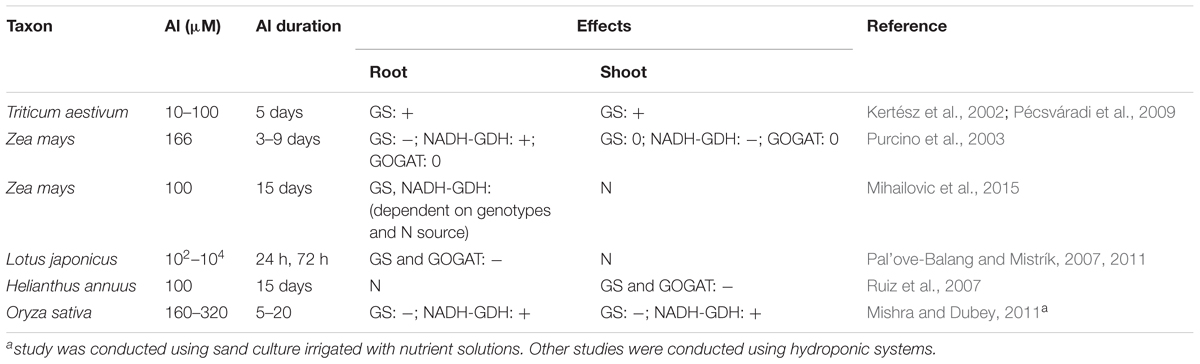

TABLE 6. Summary of effects of aluminum on the activities of glutamine synthetase (GS), glutamate synthase (GOGAT), and glutamate dehydrogenase (GDH): (-) inhibition, (+) stimulation, (0) no change, and (N) not studied.
Concluding Remarks
A complex interaction between Al and N occurs in the soil–plant system. Relative to NO3-, NH4+ uptake by roots generally alleviates Al phytotoxicity under solution culture conditions, while NH4+ aggravates the solubilization of toxic Al from soils into rhizosphere solutions. Both the alleviation and aggravation effects mainly result from NH4+-induced H+ excretion due to NH4+ uptake by plant roots and/or soil nitrification.
Compared with the effects of N on Al, the effects of Al on N are much more complicated because N is involved in multiple physiological processes within plants. Many reports have demonstrated that Al toxicity inhibits NO3- uptake by plant roots because Al binds to the NO3- transporter and stimulates NO3- efflux. In some cases, such as low Al concentrations, short-term Al exposure, and Al-preferring plants, the Al stimulation of NO3- uptake is probably because of an increase in the positive electrical charge at the root-surface, enhanced H+-NO3- cotransport, and diminished NO3- efflux. The inhibitory effect of Al is generally smaller for root NH4+ uptake than for NO3- uptake. Similar to the Al inhibition of NO3- uptake, the activity of NR can be inhibited by Al treatment because of decreased internal NO3- accumulation. Low concentrations of Al can stimulate NR activity as a result of stimulating NO3- uptake. The effects of Al on the activities of GS, GOGAT, and GDH are still uncertain.
Despite the diverse interactions between Al and N in many studies as described above, it is clear that Al-tolerant plants generally prefer NH4+, while Al-sensitive plants prefer NO3-. This relationship between plant Al tolerance and NH4+/NO3- preference may be the result of ecological evolution and natural selection because acid soils are characterized by a relatively higher ratio of NH4+ to NO3- and higher concentrations of toxic Al than are neutral to calcareous soils.
Together, the results of numerous studies have suggested that the synergistic interaction between plant Al tolerance and NH4+-N nutrition may be an important strategy of plants to thrive in acid soils dominated by both toxic Al and NH4+. In addition, the Al stimulation of N uptake and assimilation can help to explain why Al stimulates plant growth in some cases.
Many studies have focused on the interactions between Al and N in plants, but the exact mechanisms underlying these interactions are still unclear. The Al–N interactions have been studied mainly at the physiological level rather than the molecular level. Physiological effects are indirectly affected by many factors and are not specific. Many genes that function in N uptake, N assimilation, and Al tolerance/toxicity have been identified (Masclaux-Daubresse et al., 2010; Ryan et al., 2011; Schroeder et al., 2013; Ma et al., 2014). The use of mutants with knocked-out or knocked-down expression of these genes could be helpful to explore the detailed mechanisms of Al–N interactions. In addition, we emphasize the importance of soil experiments for researching Al–N interactions, because the ultimate goal of understanding Al–N interactions is to improve the growth of plants in soils. Unfortunately, most studies on Al–N interactions have been conducted under solution culture conditions. As discussed above, the Al–N interactions in solutions may differ from those in soils.
How can the existing knowledge of Al–N interactions be used to improve the productivity of plants grown in acid soils? Plants need to overcome the dual limitation of Al toxicity and N deficiency in acid soils. Due to poor nitrification, acid soils have a higher NH4+ to NO3- ratio than do neutral to calcareous soils. Large-area forest decline has been linked to both NH4+ toxicity and soil acidification, and NH4+ toxicity has become an important issue in global agriculture and ecology (Britto and Kronzucker, 2002). Symptoms of NH4+ toxicity, such as leaf chlorosis, growth suppression, and even death generally appear when the external NH4+ concentrations exceed 0.1 to 0.5 mM, depending on the plant (Britto and Kronzucker, 2002). Thus, any enhancements in plant Al tolerance in acid soils should be accompanied by improvements in plant NH4+ utilization or reduced plant NH4+ sensitivity. Although NH4+ supply generally enhances plant Al tolerance, it also increases the concentrations of toxic Al in soils and leads to potentially toxic NH4+ concentrations. How can we solve this contradiction? Which type of N fertilizer should be applied in acid soils, NH4+ or NO3-? The NO3- fertilizers are much more expensive than NH4+ fertilizers. In addition, NO3- is lost to water more readily than is NH4+ because NO3- binds weakly to soil particles, which are generally negatively charged. Therefore, applying NO3- fertilizers to acid soils appears to be impractical at the moment.
Fortunately, plants originating from acid soils are generally both Al-tolerant and NH4+-preferring. Thus, one way to increase productivity from acid soils is to breed and develop genotypes that are both Al-tolerant and NH4+-preferring. This strategy may synergistically enhance plant Al tolerance and N-use efficiency, and reduce NH4+ sensitivity and NO3- loss. The improvement of N-use efficiency could reduce the amounts of N fertilizers applied to soils, thereby alleviating soil acidification and Al toxicity. Recently, an in situ 15N-labeling experiment showed that soluble soil Al inhibited the relative uptake of NO3- by six tree species, potentially increasing NO3- loss from acid soils into the surrounding water environment (Burnham et al., 2017). Thus, knowledge about Al–N interactions is important for agriculture, ecology, and the environment.
Author Contributions
XZ wrote the manuscript. RS checked and revised the manuscript.
Funding
This work was supported financially by the National Natural Science Foundation of China (No. 31672229), the Strategic Priority Research Program of the Chinese Academy of Sciences (Nos. XDB15030202 and XDB15030302), and the National Key Basic Research Program of China (No. 2014CB441000).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We are grateful to the National Natural Science Foundation of China, the Chinese Academy of Sciences, and the Ministry of Science and Technology of the People’s Republic of China. We thank the Editor and two reviewers for their nice and detailed comments. We also thank Jennifer Smith, Ph.D., from Liwen Bianji, Edanz Group China (www.liwenbianji.cn/ac), for editing the English text of a draft of this manuscript.
