- 1State Key Laboratory of Biocontrol and Guangdong Provincial Key Laboratory of Plant Resources, School of Life Sciences, Sun Yat-sen University, Guangzhou, China
- 2College of Life Sciences, South China Agricultural University, Guangzhou, China
Autophagy is a highly conserved system in eukaryotes for the bulk degradation and recycling of intracellular components. Autophagy is involved in many physiological processes including development, senescence, and responses to abiotic and biotic stress. The adenosine 5’-monophosphate (AMP)-activated protein kinase AMPK positively regulates autophagy in mammals; however, the potential function of AMPK in plant autophagy remains largely unknown. Here, we identified KIN10, a plant ortholog of the mammalian AMPK, as a positive regulator of plant autophagy and showed that it acts by affecting the phosphorylation of ATG1 (AUTOPHAGY-RELATED GENE 1) proteins in Arabidopsis. Transgenic Arabidopsis lines overexpressing KIN10 (KIN10-OE) showed delays in leaf senescence, and increased tolerance to nutrient starvation, these phenotypes required a functional autophagy pathway. Consistent with KIN10 having a potential role in autophagy, the nutrient starvation-induced formation of autophagosomes and cleavage of GFP-ATG8e were accelerated in the KIN10-OE lines compared to the wild type. Moreover, the KIN10-OE lines were less sensitive to drought and hypoxia treatments, compared with wild type. Carbon starvation enhanced the level of phosphorylated YFP-ATG1a in the KIN10-OE lines compared to that of wild type. Together, these findings suggest that KIN10 is involved in positive regulation of autophagy, possibly by affecting the phosphorylation of ATG1s in Arabidopsis.
Introduction
Autophagy is the process of degradation and recycling of cytoplasmic organelles, proteins, and macromolecules, and is highly conserved among eukaryotes. Autophagy is activated by a variety of stress factors, such as nutrient deprivation, hypoxia, reactive oxygen species, and infection by pathogen (Kroemer et al., 2010; Han et al., 2011). Autophagy plays an essential role in the maintenance of cellular homeostasis under changing nutrient conditions. Among the three types of autophagy, macroautophagy (hereafter referred to as autophagy) is the predominant form (Klionsky, 2007). During autophagy, double-membrane vesicles, called autophagosomes, are formed from the expanding membranes of preautophagosomal structures; these autophagosomes sequester the enclosed components and deliver them to the lysosome/vacuole for degradation.
The serine/threonine protein kinase ULK1(Unc-51-like kinases 1, mammalian homologs of ATG1) activates autophagy in response to developmental cues or stress signals by initiating autophagosome formation (Mizushima, 2010; Wirth et al., 2013; Wong et al., 2013). In mammalian cells, ULK1 activity is directly controlled by the target of rapamycin (TOR) and the AMP-dependent protein kinase (AMPK) (Kim et al., 2011; Shang and Wang, 2011; Alers et al., 2012). Under nutrient-rich conditions, the activated TOR kinase disrupts the ULK1-ATG13 complex by phosphorylating the ATG13 subunit, and thereby inhibits autophagy. However, under nutrient starvation conditions, AMPK directly phosphorylates ULK1 at the Ser 317 and Ser 777 residues, subsequently activating autophagy (Kim et al., 2011). Alternatively, AMPK may activate autophagy by inhibiting TORC1 (TOR complex 1) activity (Gwinn et al., 2008; Lee et al., 2010). ULK1 may also be involved in the termination of autophagy. Specifically, ULK1 represses AMPK activity through a negative regulatory feedback loop (Löffler et al., 2011). Similarly, another study suggests that the KLHL20-mediated ubiquitination and degradation of ULK1 contributes to the termination of autophagy (Liu et al., 2016).
In plants, the Snf1-related kinase 1 (SnRK1), a homolog of the yeast Snf1 and mammalian AMPK, is a highly conserved energy sensor and is activated under energy deprivation (Polge and Thomas, 2007; Baena-González and Sheen, 2008; Emanuelle et al., 2015). SnRK1 is composed of one catalytic α subunit (KIN10 and 11 in Arabidopsis) and two regulatory subunits, β and γ (Polge and Thomas, 2007; Emanuelle et al., 2015). Overexpression of KIN10 delays flowering and leaf senescence in Arabidopsis, suggesting that KIN10 play a positive role in the regulation of growth and development as well as energy signaling (Baena-González et al., 2007). Although Snf1/AMPK likely promotes autophagy by directly activating ATG1/ULK1 in yeast and animals, the role of SnRK1 in plant autophagy is not well characterized.
Our study demonstrated that Arabidopsis KIN10 is a positive regulator of autophagy. Under nutrient starvation, transgenic plants overexpressing KIN10 (KIN10-OE) showed enhanced autophagosome formation and increased tolerance to nutrient deprivations. Furthermore, the level of starvation-induced phosphorylation of ATG1 increased in the KIN10-OE lines, suggesting that KIN10 is likely involved in positive regulation of autophagy, possibly by affecting the phosphorylation of ATG1 proteins.
Materials and Methods
Plant Materials, Growth Conditions, and Treatments
The KIN10 overexpression lines (OE-1 and OE-2) and KIN10 RNAi lines (RNAi-1 and RNAi-7) used in this study were in the Arabidopsis Landsberg erecta (Ler) background (Baena-González et al., 2007). The autophagy-related mutants atg5-1 and atg7-3 (Thompson et al., 2005; Lai et al., 2011; Chen et al., 2015; Col-0 ecotype) were backcrossed twice to the Ler wild-type plants to obtain atg5-L and atg7-L plants. The atg5-L and atg7-L mutants were further crossed to the OE-1 line to generate OE-1 atg5-L and OE-1 atg7-L lines. Transgenic lines expressing GFP-ATG8e and YFP-ATG1a, driven by the CaMV 35S promoter, have been previously described (Xiao et al., 2010; Suttangkakul et al., 2011). All Arabidopsis seeds were surface-sterilized with 20% bleach containing 0.1% Tween-20 for 20 min, and then washed 5 times with sterile water. Seeds were sown on Murashige and Skoog (MS) medium, followed by cold treatment in the dark for 3 days. Seven days after germination, seedlings were transplanted into soil and grown in a plant growth room with a16-h-light/8-h-dark cycle at 22°C.
For the carbon starvation treatment, 7-day-old MS-grown seedlings or 4-week-old soil-grown plants were transferred to continuous darkness for the indicated duration followed by recovery under normal growth conditions for 7 days. Samples were collected or photographed at the indicated time points. To calculate the survival rate after darkness, at least 18 plants per genotype were dark-treated followed by a 7-day recovery. The number of surviving plants, where survival if defined as the capability to produce new leaves, was recorded. For the nitrogen starvation treatment, 7-day-old seedlings grown on MS medium were transferred to solid MS or nitrogen-deficient solid MS medium and grown for 5 days. Chlorophyll contents were measured and calculated after the recovery.
RNA Extraction and Quantitative Reverse-Transcription PCR Analysis
Total RNA extraction and quantitative reverse-transcription PCR (qRT-PCR) analysis were performed as previously described (Chen et al., 2015). Briefly, the isolated RNA was reverse transcribed using the PrimeScript RT Reagent Kit with gDNA Eraser (Takara, RR047A) following the manufacturer’s instructions. The qPCR was carried out using SYBR Green master mix (Takara, RR420A) on a StepOne Plus real-time PCR system (Applied Biosystems). The conditions for the qPCR were: initial denaturation at 95°C for 5 min followed by 40 cycles of PCR (denaturing at 95°C for 10 s, annealing at 55°C for 15 s, and extension at 72°C for 30 s). Three experimental replicates were used for each reaction. ACTIN2 was used as the reference gene. Gene-specific primers used for the qPCR analysis are listed in Supplementary Table S1.
Laser Scanning Confocal Microscopy
The stable transgenic lines expressing a GFP-ATG8e fusion protein were used to monitor autophagosome formation (Xiao et al., 2010). Seven-day-old GFP-ATG8e seedlings grown in MS solid medium were transferred to MS medium or MS medium lacking sugars (MS-C) under darkness for the indicated times. After treatment, the primary root cells were observed using an LSM 780 NLO laser scanning confocal microscope (Carl Zeiss).
Western Blot Analysis
Total protein extraction was performed as previously described (Chen et al., 2015). Briefly, 4-week-old plant leaves or 7-day-old whole seedling were ground in liquid nitrogen and homogenized in ice-cold extraction buffer (50 mM sodium phosphate, pH 7.0, 200 mM NaCl, 10 mM MgCl2, 0.2% β-mercaptoethanol and 10% glycerol) supplemented with protease inhibitor cocktail (Roche, 04693132001). Total homogenates were placed on ice for 30 min, and then centrifuged for 30 min at 11,000 g. The supernatant was transferred to a new microfuge tube for SDS-PAGE electrophoresis.
For immunoblot analysis, total proteins were subjected to SDS-PAGE and electrophoretically transferred to a Hybond-C membrane (Amersham, 10600016). Anti-GFP antibodies were used to detect GFP as previously described (Chen et al., 2015). YFP was detected with rabbit anti-GFP polyclonal antibodies (Abcam, ab290).
Phosphatase Treatment
Phosphatase treatment was performed according to Suttangkakul et al. (2011) with minor modification. Seven-day-old YFP-ATG1a and YFP-ATG1a/KIN10-OE seedling were homogenized in ice-cold protein extraction buffer supplemented with 1 mM phenylmethylsulfonyl fluoride and protease inhibitor cocktail (Roche). Samples were placed on ice for 30 min, and then centrifuged for 30 min at 11,000 g. The supernatant was incubated with λ protein phosphatase (New England Biolabs) with or without addition of phosphatase inhibitor PhosSTOP (Roche) for 30 min at 30°C. 2 × SDS-PAGE sample buffer was added to the total sample and heated to 95°C for 5 min.
Statistical Analysis
Data are reported as means ± SD of three independent experiments unless otherwise indicated. The significance of the differences between groups was determined by a two-tailed Student’s t-test. P-values < 0.05 or < 0.01 were considered significant.
Accession Numbers
Sequence data from this article can be found in the Arabidopsis Genome Initiative or GenBank databases under the following accession numbers: KIN10 (At3g01090), ATG1a (At3g61960), ATG1b (At3g53930), ATG1c (At2g37840), ATG2 (At3g19190), ATG5 (At5g17290), ATG6 (At3g61710), ATG7 (At5g45900), ATG8a (At4g21980), ATG8e (At2g45170), ATG9 (At2g31260), ATG10 (At3g07525), ATG13a (At3g49590), ATG13b (At3g18770), ATG18a (At3g62770), and PI3K (At1g60490).
Results
Transgenic Plants Overexpressing KIN10 Showed Delayed Leaf Senescence and Enhanced Tolerance to Nutrient Starvations
The KIN10 overexpression lines (OE-1 and OE-2) showed delayed leaf senescence (Baena-González et al., 2007). To examine the potential role of Arabidopsis KIN10 in autophagy, we further examined the response of the KIN10-OE lines and KIN10 RNA interference lines (RNAi-1 and RNAi-7) to naturally induced senescence and nutrient deficiency. The RNA and protein level of KIN10 in the KIN10-OE and KIN10-RNAi lines were first confirmed by qRT-PCR and western blot analyses (Supplementary Figure S1). Under normal growth conditions, both KIN10-OE lines displayed slower growth and delayed natural senescence compared to the wild type, while the KIN10-RNAi lines showed similar phenotypes to the wild-type plants (Figure 1A). The level of chlorophyll in the leaves of 6-week-old KIN10-OE lines was much higher than that of the wild type (Figure 1B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/251543/fpls-08-01201-HTML/image_m/fpls-08-01201-g001.jpg)

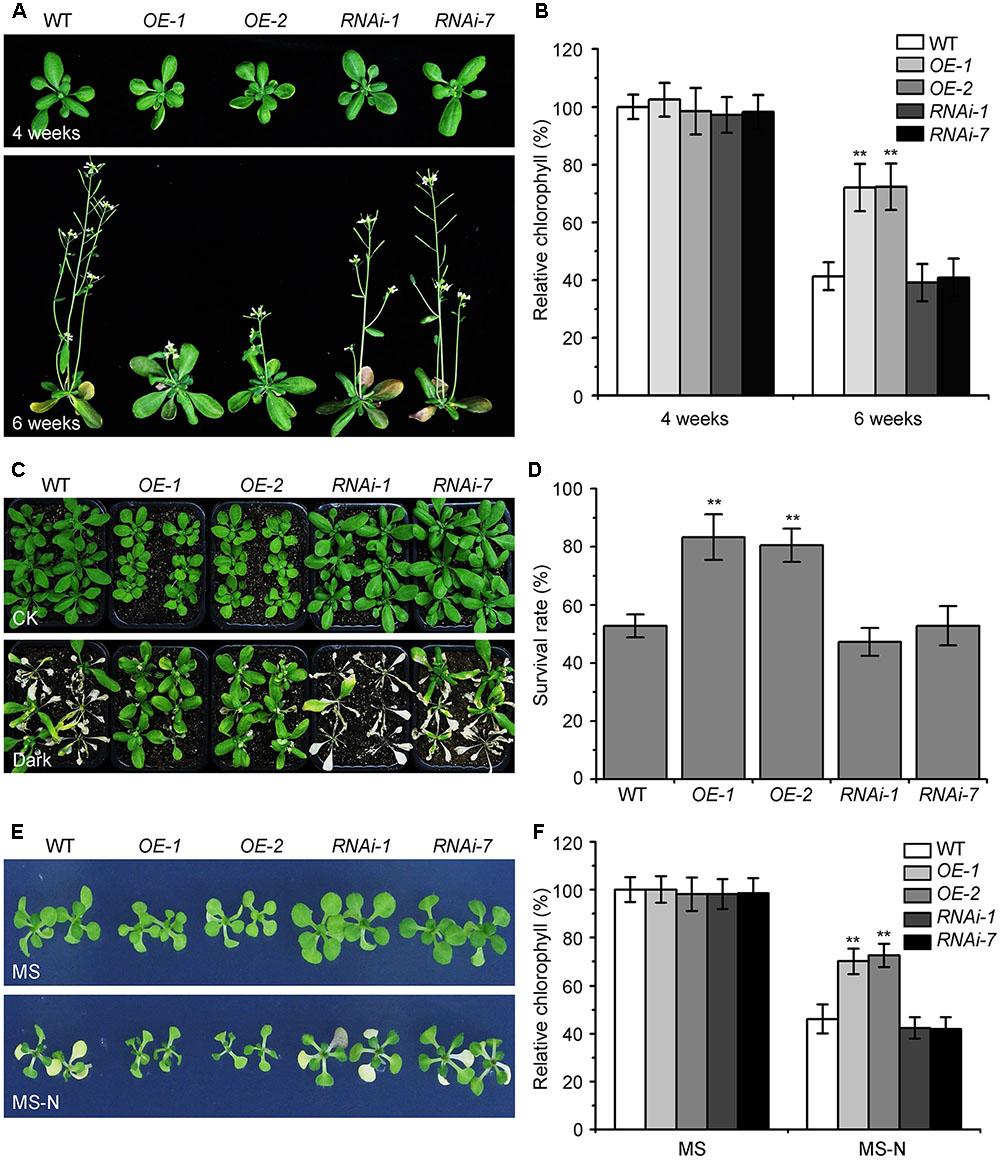

FIGURE 1. Overexpression of KIN10 delays senescence and enhances tolerance to nutrient starvation in Arabidopsis. (A) Naturally induced senescence of the wild type (WT) and the KIN10-OE (OE-1 and OE-2) and KIN10-RNAi lines (RNAi-1 and RNAi-7). Photos were taken at 4 and 6 weeks after germination. (B) Relative chlorophyll contents in the leaves of 4- and 6-week-old WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants. The data are means ± SD (n = 3) calculated from three biological replicates. For each experiment, a population of 14 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test. (C) Phenotypes of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants after carbon starvation. Four-week-old WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants grown under normal growth conditions were transferred to constant darkness for 7 days and photos were taken after a 7-day recovery. (D) Survival rates of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants described in (C). The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, a population of 18 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test. (E) Phenotypes of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants after nitrogen starvation. One-week-old WT, OE-1, OE-2, RNAi-1, RNAi-7 seedlings grown on MS solid medium were transferred to MS or MS-N solid medium and photos were taken after 5 days of treatment. (F) Relative chlorophyll contents of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 seedlings described in (E). The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, a population of 20 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test.
The KIN10-OE lines showed enhanced tolerance to carbon starvation induced by constant darkness for 7 days followed by a 7-day recovery, while the KIN10-RNAi lines appeared similar to the wild-type plants after this treatment (Figures 1C,D). For the nitrogen deficiency treatment, 7-day-old MS-grown seedlings were transferred to MS or MS-N solid medium for 5 days. The cotyledons of the wild-type plants and KIN10-RNAi lines were significantly yellowed as indicated by the reduced chlorophyll contents (Figures 1E,F). In contrast, the KIN10-OE lines were more resistant to nitrogen deficiency and had significantly higher chlorophyll levels compared to that of the wild type (Figures 1E,F). These findings suggest that overexpression of KIN10 can delay natural senescence and improves tolerance to carbon and nitrogen starvation.
The Enhanced Tolerance of the KIN10-OE Lines to Nutrient Starvation Is Dependent on a Functional Autophagy Pathway
Given that the KIN10-overexpression lines showed delayed leaf senescence and enhanced tolerance to nutrient starvation (Figures 1, 2), and that the autophagy-deficient mutants had the opposite phenotype (Baena-González et al., 2007; Li and Vierstra, 2012), we used these plants to further assess the genetic connection between KIN10 and the autophagy pathway. The atg5-L and atg7-L mutants (atg5 and atg7 mutants in the Ler background) were crossed to KIN10-OE-1 (OE-1) to generate OE-1 atg5-L and OE-1 atg7-L lines. We then tested the tolerance of the 4-week-old wild-type, OE-1, OE-1 atg5-L, OE-1 atg7-L, atg5-L, and atg7-L plants to carbon starvation. Compared to the wild-type plants, the OE-1 plants showed enhanced tolerance and the atg5-L and atg7-L plants showed decreased tolerance to carbon starvation. Interestingly, the OE-1 atg5-L and OE-1 atg7-L lines displayed similar sensitivities to carbon starvation to that of the atg5-L and atg7-L mutants (Figure 2A). In addition, the enhanced resistance of the OE-1 line to nitrogen deficiency was attenuated by the loss-of-function of ATG5 and ATG7 (Figure 2B). The enhanced tolerance to starvation in the OE-1 line was further supported by the higher survival rates (Figure 2C) and higher relative chlorophyll contents (Figure 2D) in this line. Together, these results indicate that the enhanced tolerance to nutrient starvation in the KIN10-OE lines is dependent on a functional autophagy pathway. The evidence that the autophagy-associated phenotypes in the KIN10-OEs were primarily recovered by the autophagy deficient mutants, suggesting that autophagy acts downstream of KIN10 to affect plant growth and stress responses. Given that KIN10 is a well-known master regulator in energy signaling in Arabidopsis, we therefore proposed that it governs a cellular switch between plant growth and stress responses by modulating various downstream signaling pathways, including autophagy.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/251543/fpls-08-01201-HTML/image_m/fpls-08-01201-g002.jpg)

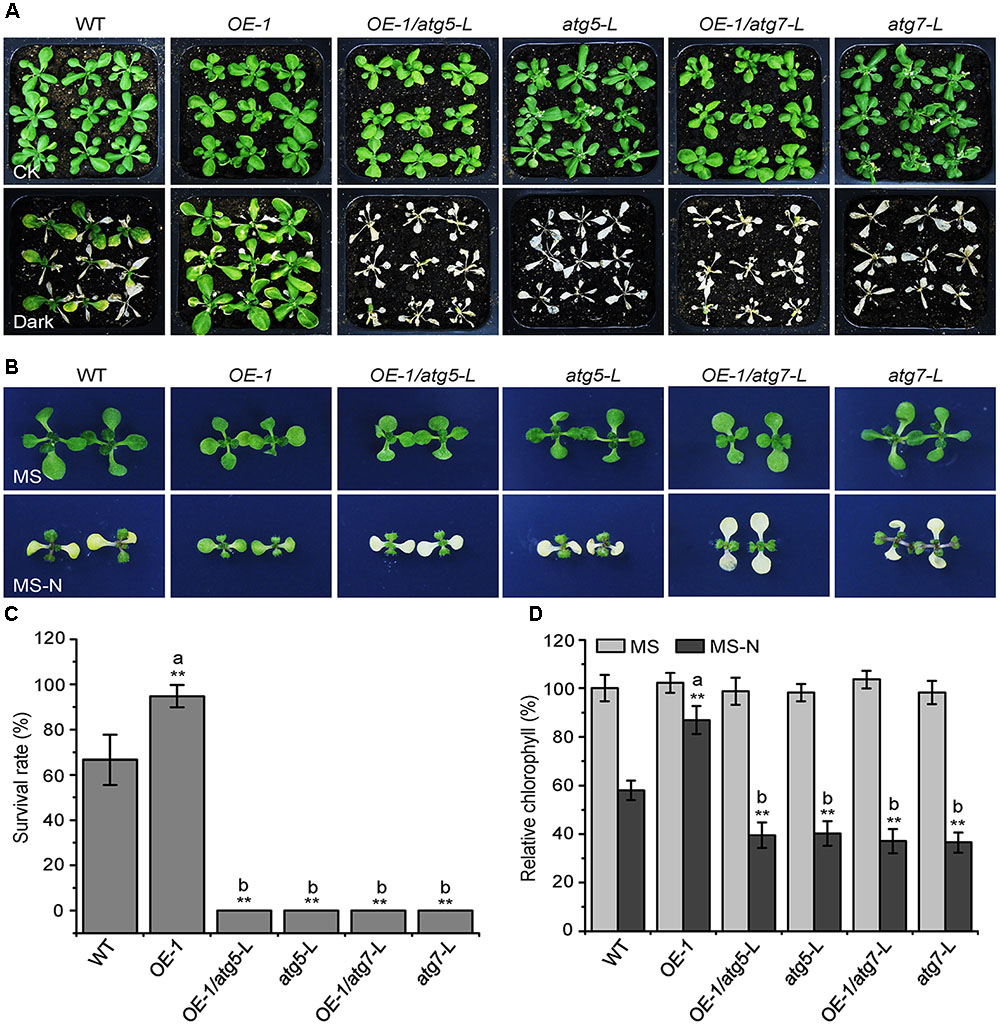

FIGURE 2. The enhanced tolerance of the KIN10-OE lines to nutrient starvation is dependent on a functional autophagy pathway. (A) Phenotypes of the wild type (WT), OE-1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L plants after carbon starvation. Four-week-old WT, OE1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L plants grown under normal conditions were transferred to constant darkness for 7 days and photographs were taken after 7 days of dark treatment. (B) Phenotypes of the WT, OE-1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L plants after nitrogen starvation. One-week-old WT, OE-1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L seedlings grown on solid MS medium were transferred to MS or MS-N solid medium and photos were taken after 5 days of treatment. (C) Survival rate of the WT, OE-1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L plants described in (A). The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, a population of 18 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test. (D) Relative chlorophyll levels in the leaves of the WT, OE-1, OE-1/atg5-L, atg5-L, OE-1/atg7-L, and atg7-L seedlings described in (B). The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, five technical replicates (each replicate was pooled with 20 seedlings) were measured per genotype. ∗∗P < 0.01 by Student’s t-test. “a” indicates values that are significantly higher than that of the WT; “b” indicates values that are significantly lower than that of the WT.
The KIN10-OE Lines Are Tolerant to Drought and Submergence
The autophagy-defective mutants are hypersensitive to abiotic stresses such as drought and submergence (Liu et al., 2009; Chen et al., 2015). To further assess the role of KIN10 in autophagy-related stress responses, the wild-type (Ler), the KIN10-OE lines (OE-1 and OE-2), and the KIN10-RNAi lines (RNAi-1 and RNAi-7) were subjected to drought and submergence treatments. As shown in Figure 3, no significant differences were observed between the wild type and the KIN10-OE or KIN10-RNAi lines under normal growth conditions. However, after a 14-day drought treatment, the leaves of the wild type and the KIN10-RNAi lines turned yellow and wilted, while the leaves of the KIN10-OE lines remained green and turgid (Figure 3A). After a 4-day recovery by rehydration, the survival rates of the KIN10-OE lines were significantly higher than those of the wild type and the KIN10-RNAi lines (Figure 3B). In addition, the KIN10-OE lines were much more tolerant than the wild type and the KIN10-RNAi plants to a 6-day submergence in water (under light conditions) followed by a 6-day recovery (Figure 3C), which was supported by the improved survival rates of the KIN10-OE lines compared to the wild-type plants after submergence (Figure 3D).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/251543/fpls-08-01201-HTML/image_m/fpls-08-01201-g003.jpg)

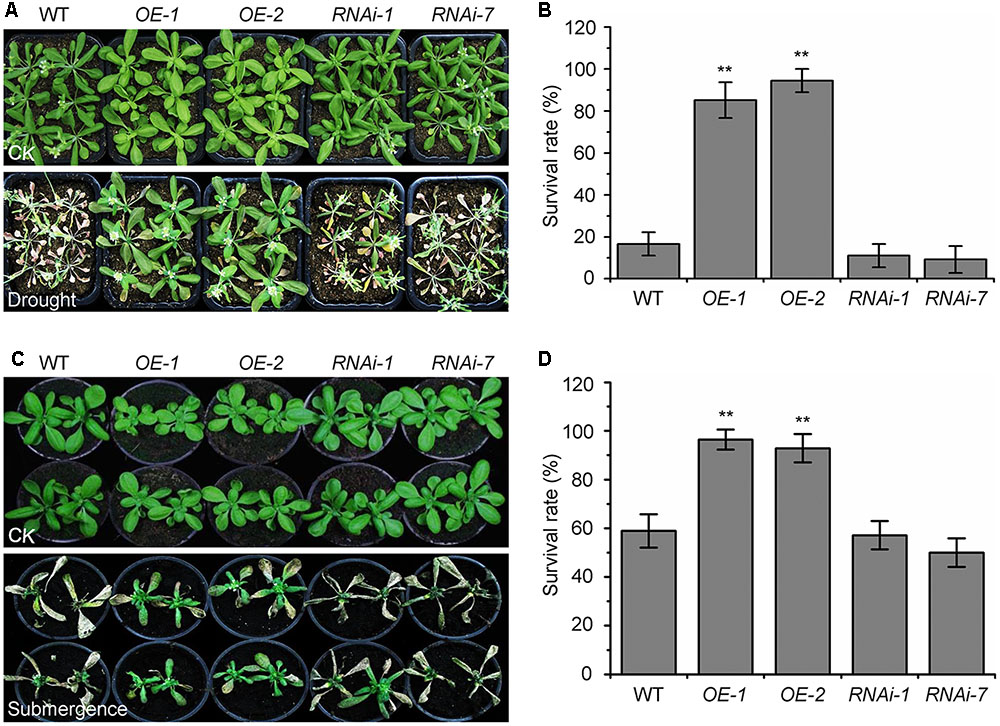

FIGURE 3. Overexpression of KIN10 enhances tolerance to drought and submergence. (A) Phenotypes of the wild type (WT), OE-1, OE-2, RNAi-1, and RNAi-7 plants after drought stress. WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants were grown under normal growth conditions for 3 weeks and then water was withheld for a 14-day drought treatment. Photos were taken after a 4-day recovery. (B) Survival rates of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants described in (A) after re-watering for 4 days. The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, a population of 18 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test. (C) Phenotypes of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants after the submergence treatment. Four-week-old WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants were submerged for 6 days and photos were taken after a 6-day recovery. (D) Survival rates of the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants described in (C) after the 6-day recovery. The data are means ± SD (n = 3) calculated from three biological replicates. For each biological replicate, a population of 18 plants was recorded per genotype. ∗∗P < 0.01 by Student’s t-test.
Overexpression of KIN10 Activates the Formation of Autophagosomes
To examine the potential involvement of KIN10 in regulating autophagosome formation, we first tested the abundance of ATG transcripts (ATG2, ATG5, ATG7, ATG8a, ATG10, and ATG18a) in the wild type, KIN10-OE lines (OE-1 and OE-2), and the KIN10-RNAi lines (RNAi-1 and RNAi-7). qRT-PCR analyses showed no significant changes in the expression levels of ATG7, ATG10, and ATG18a among the wild type, KIN10-OE lines, or the KIN10-RNAi lines, while the expression of ATG2, ATG5, and ATG8a was slightly upregulated in the KIN10-OE lines in comparison to the wild type (Supplementary Figure S2).
To further investigate the role of KIN10 in the induction of autophagy, we examined autophagosome formation in the wild type, KIN10-OE and KIN10-RNAi lines using green fluorescent protein (GFP)-tagged ATG8e (Xiao et al., 2010). Seven-day-old GFP-ATG8e (wild-type background), GFP-ATG8e/KIN10-OE and GFP-ATG8e/KIN10-RNAi seedlings were transferred to solid MS medium (MS) or MS-C under darkness for 6 h, and the GFP fluorescence of root cells was subsequently observed using confocal microscopy. As shown in Figure 4, under both MS and MS-C conditions, the numbers of GFP-ATG8e labeled punctate structures significantly increased in the KIN10-OE lines in comparison to the wild type and the KIN10-RNAi lines (Figures 4A,B). Upon nutrient starvation, the GFP-ATG8e fusion protein is degraded to release a free, relatively stable GFP, and the accumulation of GFP signals reflects the level of induction of autophagy (Li et al., 2014; Klionsky et al., 2016). As shown in Figure 4C, the degradation of the GFP-ATG8e fusion protein in the GFP-ATG8e/KIN10-OE line was faster than in the GFP-ATG8e or GFP-ATG8e/KIN10-RNAi line. Consistent with this, the ratio of free GFP to GFP-ATG8e in the GFP-ATG8e/KIN10-OE line was higher than that of in the GFP-ATG8e or GFP-ATG8e/KIN10-RNAi line (Figure 4D), suggesting that overexpression of KIN10 enhances autophagic activity.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/251543/fpls-08-01201-HTML/image_m/fpls-08-01201-g004.jpg)

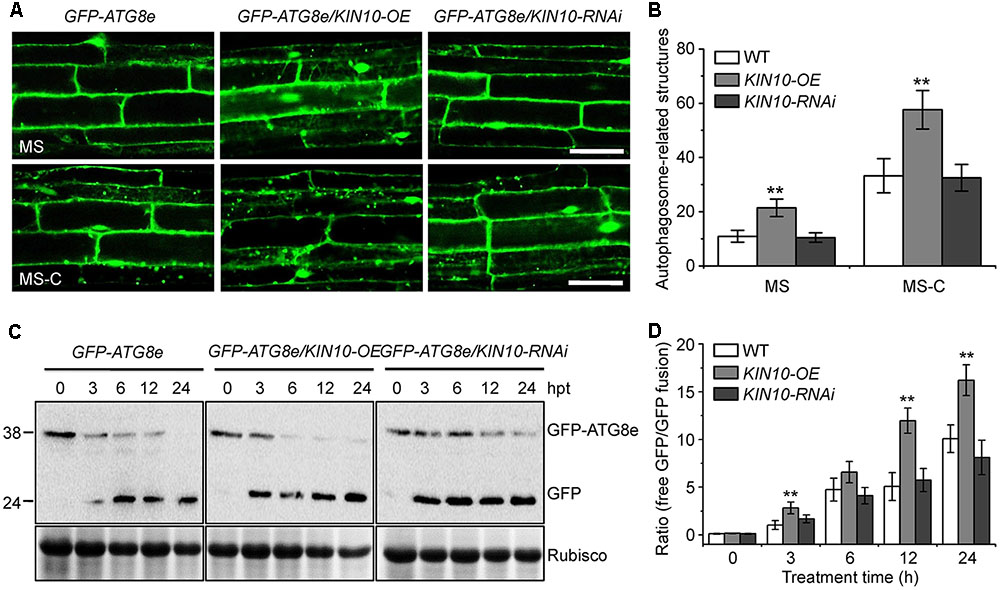

FIGURE 4. Overexpression of KIN10 enhances the formation of autophagosomes. (A) Microscopic analyses of autophagosome-related structures in the GFP-ATG8e, GFP-ATG8e/KIN10-OE, and GFP-8e/KIN10-RNAi lines. Seven-day-old GFP-ATG8, GFP-ATG8e/KIN10-OE, and GFP-8e/KIN10-RNAi seedlings were grown on MS medium or MS-C medium for 6 h and then visualized by fluorescence confocal microscopy. The punctate structures labeled by green fluorescence from the cleavage of GFP-ATG8e indicate the autophagosome-related structures. Bar = 50 μm. (B) Quantification of autophagosome-related structures. Numbers of autophagosome-related structures described in (A) were counted using ImageJ software. The data are means ± SD (n = 30) calculated from three independent trials. For each trial, 10 independent seedlings were observed per genotype. ∗∗P < 0.01 by Student’s t-test. (C) Immunoblot analysis showing the processing of GFP-ATG8e fusion proteins in the GFP-ATG8e, GFP-ATG8e/KIN10-OE, and GFP-8e/KIN10-RNAi lines after the carbon starvation treatment. Seven-day-old GFP-ATG8e, GFP-ATG8e/KIN10-OE, and GFP-8e/KIN10-RNAi seedlings were grown on MS-C medium for 0, 3, 6, 12, and 24 h. Crude protein extracts were subjected to SDS-PAGE and immunoblot analysis with anti-GFP antibodies. GFP-ATG8e and free GFP bands are indicated on the right. Coomassie blue-stained total proteins (Rubisco) are shown below the blots to indicate the amount of protein loaded per lane. (D) Quantification of the free GFP/GFP-ATG8e ratio during carbon starvation by densitometric scans of the immunoblots shown in (C). The data are means ± SD (n = 3) calculated from three biological replicates. ∗∗P < 0.01 by Student’s t-test.
Overexpression of KIN10 Enhances the Phosphorylation of ATG1 Proteins
Given that AMPK phosphorylates ULK1 to activate autophagy in mammalian cells (Egan et al., 2011; Kim et al., 2011), we hypothesized that KIN10 may be involved in autophagy by directly or indirectly phosphorylating ATG1. To confirm this, ATG1 phosphorylation was first tested using λ protein phosphatase and phosphatase inhibitor PhosSTOP in a yellow fluorescent protein (YFP)-tagged ATG1a transgenic plant (YFP-ATG1a) (Suttangkakul et al., 2011). As shown in Figure 5A, two species of YFP-ATG1a were detected using anti-GFP antibodies by western blot. Consistent with a previous study (Suttangkakul et al., 2011), the λ phosphatase treatment of total protein extracted from the YFP-ATG1a transgenic plant reduced the levels of the higher molecular weight species, while PhosSTOP blocked this shift (Figure 5A), To demonstrate the role of KIN10 in the regulation of ATG1, we crossed the YFP-ATG1a line to the OE-1 line to generate the YFP-ATG1a/KIN10-OE lines. Immunoblot analysis showed that the level of YFP-ATG1a fusion protein was significantly higher in the YFP-ATG1a KIN10-OE line than in the YFP-ATG1a line (Figure 5B). Upon carbon starvation, the phosphorylation status of ATG1 was enhanced in the YFP-ATG1a KIN10-OE line in comparison to the YFP-ATG1a line (Figures 5B,C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/251543/fpls-08-01201-HTML/image_m/fpls-08-01201-g005.jpg)

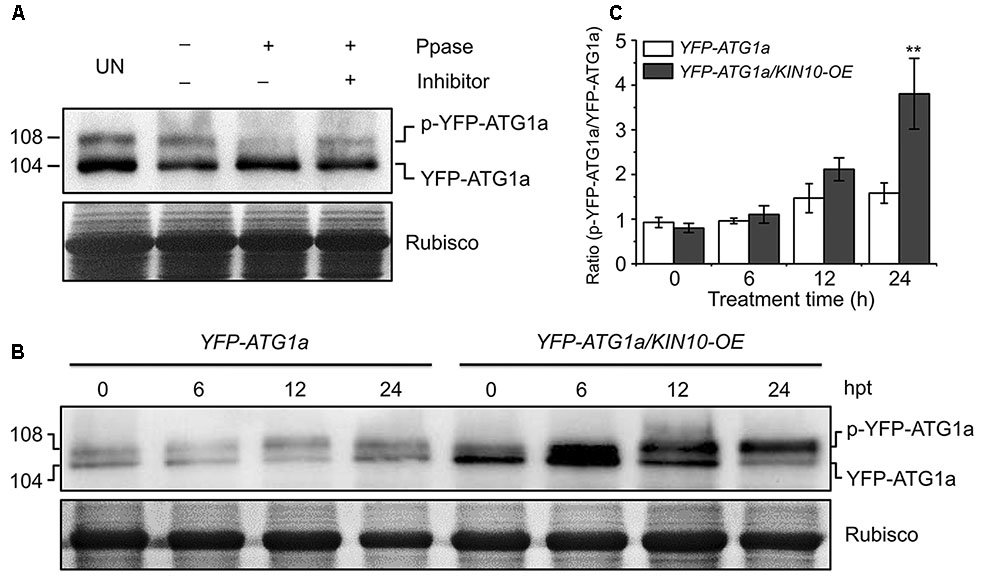

FIGURE 5. Overexpression of KIN10 increased the level of ATG1 phosphorylation. (A) Effect of λ protein phosphatase on the SDS-PAGE mobility of YFP-ATG1a. Proteins were extracted form 7-day-old YFP-ATG1a transgenic plants grown on MS medium. Extracts were treated for 1 h with λ phosphatase (Ppase) with or without the phosphatase inhibitor PhosSTOP and then subjected to immunoblot analysis with anti-GFP antibodies. UN, untreated extracts. (B) Immunoblot analysis of ATG1 phosphorylation in the YFP-ATG1a and YFP-ATG1a/KIN10-OE transgenic plants. Seven-day-old YFP-ATG1a and YFP-ATG1a/KIN10-OE transgenic plants were grown on MS-C medium for the indicated times prior to protein extraction. Crude extracts were subjected to SDS-PAGE and immunoblot analysis with anti-GFP antibodies. The p-YFP-ATG1a and YFP-ATG1a bands are indicated on the right. Coomassie blue-stained total proteins (Rubisco) are shown below the blots to indicate the amount of protein loaded per lane. (C) Quantification of the p-YFP-ATG1a/YFP-ATG1a ratio during carbon starvation by densitometric scans of the immunoblots shown in (B). The data are means ± SD (n = 3) calculated from three biological replicates. ∗∗P < 0.01 by Student’s t-test.
To determine whether the accumulation of YFP-ATG1a was caused by the higher transcription of YFP-ATG1a in the YFP-ATG1a KIN10-OE line, we analyzed the total transcript level of ATG1a and YFP-ATG1a during carbon starvation by qRT-PCR. As shown in Supplementary Figure S3, The total transcript level of ATG1a was enhanced in the YFP-ATG1a KIN10-OE line but not in the YFP-ATG1a line, while the YFP-ATG1a transcript level did not change much in either line. Interestingly, the total expression of both ATG1a and YFP-ATG1a was slightly higher in the YFP-ATG1a KIN10-OE line than in the YFP-ATG1a line.
Discussion
As a mammalian ortholog of yeast ATG1, ULK1 is phosphorylated by AMPK to activate autophagy or phosphorylated by TOR to repress autophagy (Kim et al., 2011; Shang and Wang, 2011). It has been proposed that AMPK can activate autophagy by directly phosphorylating ULK1 or by suppressing the activity of mTORC1, which thereby inhibits ULK1 activity by phosphorylation (Kim et al., 2011). In this study, we present several lines of evidence to support the hypothesis that KIN10 is involved in the regulation of autophagy in Arabidopsis. First, the overexpression of KIN10 (KIN10-OE) resulted in delayed leaf senescence and enhanced tolerance to nutrient deficiencies and abiotic stresses in Arabidopsis (Figures 1, 3). Second, the enhanced tolerance to nutrient starvation in the KIN10-OE lines is dependent on a functional autophagy pathway (Figure 2). Third, the expression of ATGs and autophagosome formation and degradation were enhanced in the KIN10-OE lines (Figure 4). Last, the phosphorylation of ATG1a was enhanced in the KIN10-OE lines in comparison to that of the wild type (Figure 5). Taken together, these results demonstrate that KIN10 is a positive regulator of autophagy activation, possibly by enhancing the phosphorylation of ATG1, a mechanism that seems to be conserved in plants and animals.
KIN10 is an energy sensor in plants that has diverse functions in the regulation of plant metabolism, development, and stress responses (Polge and Thomas, 2007; Baena-González and Sheen, 2008; Jossier et al., 2009). KIN10 may be essential for maintaining the cell’s energy balance during nutrient starvations (Baena-González et al., 2007). For example, the overexpression of KIN10 delays natural and nitrogen starvation-induced senescence, and the plants where KIN10 and KIN11 have been targeted by virus-induced gene silencing (KIN11 is a functionally redundant homolog of KIN10 in Arabidopsis) have an early senescence phenotype (Baena-González et al., 2007). Here, we investigated the autophagy-associated senescence phenotypes of the KIN10-OE and KIN10-RNAi lines and suggested that the phenotypes observed in the KIN10-OE lines were genetically linked to the autophagy pathway. Though we observed significant phenotypic differences in the KIN10-OE lines compared to the wild type in response to the treatments, we did not observe significant differences in the autophagy-associated phenotypes, gene expression and autophagosome formation in the KIN10-RNAi lines after the treatments. It is not feasible to use the kin10 kin11 virus-induced gene silencing lines in autophagy-related phenotypic analyses due to the severe growth inhibition of these silenced lines (Baena-González et al., 2007). It is still unknown whether KIN11 plays a redundant role in the regulation of autophagy, and generation of transgenic lines with double knockdown of KIN10 and KIN11 expression will be useful for future investigation of the functions of KIN10 and KIN11 in autophagy induction.
Autophagy plays an important role in the plant’s response to various stress conditions, such as oxidative stress (Xiong et al., 2007a,b), nutrient deficiency (Doelling et al., 2002), hypoxia (Chen et al., 2015), and pathogen infection (Liu et al., 2005; Wang et al., 2011). The autophagy-defective (atg) mutants, such as atg2-1, atg5-1, atg7-1, and atg10-1, are frequently used to study the role of autophagy in stress responses in plants. In contrast to the situation in animal systems, little is known about the effects of constitutive activation of autophagy in plants. TOR has been suggested to be a negative regulator of plant autophagy (Liu and Bassham, 2010). To circumvent the embryo lethal phenotype of TOR loss-of-function mutant, RNA interference (RNAi) was used to reduce TOR transcript levels in the RNAi-AtTOR plants, which show constitutive autophagy (Liu and Bassham, 2010). Given the fundamental roles of TOR in plant growth and metabolism (Xiong and Sheen, 2014), it is difficult to distinguish whether the phenotype of the RNAi-AtTOR line is caused by increased autophagy or is due to the reduced expression of TOR. In comparison, we suggested that overexpression of KIN10 enhances tolerance to nutrient deficiencies in Arabidopsis (Figure 1), and this enhanced tolerance was blocked by a deficiency in autophagy (Figure 2), which demonstrates that KIN10 improves tolerance to nutrient starvations by directly activating the autophagy pathway. Moreover, we showed that the KIN10-OE lines were more tolerant to drought and submergence (Figure 3), indicating that KIN10 is a potential candidate for genetic improvement of plant responses to nutrient deficiencies and water-related stresses. However, we cannot exclude the possibility that KIN10 may indirectly regulate autophagy by inhibiting TOR, since the mammalian AMPK has been reported to regulate autophagy by negative modulation of mTORC1 (Kimura et al., 2003). Further investigations of the coordinated functions of KIN10 and TOR will deepen our understanding of the upstream energy signals that regulate autophagy initiation in Arabidopsis.
The roles of AMPK in the regulation of autophagy have been extensively studied in animals (Gwinn et al., 2008; Lee et al., 2010; Kim et al., 2011; Alers et al., 2012; Mack et al., 2012), but the relationship between the plant AMPK and autophagy is still unknown. In our study, KIN10 overexpression activate autophagy pathway (Figure 4). Y2H assays suggested that KIN10 interacts with ATG1a and ATG13a in vitro (Supplementary Figure S4). However, we were unable to obtain further evidence of this interaction with BiFC and CoIP assays in planta (Supplementary Figure S5). We conclude that KIN10 positively regulates autophagy pathway through a possible unknown mechanism bypass ATG1/ATG13 protein complex. Alternatively, the activation of autophagy pathway by KIN10 overexpression may also be caused by inhibiting TOR activity, which is well-known to function as a negative regulator in autophagosome formation (Liu and Bassham, 2010). As suggested by Suttangkakul et al. (2011), the extent of ATG1a phosphorylation was highly regulated by the nutritional state through the action of upstream kinases and/or ATG1 autophosphorylation. Our results showed that, in response to starvation, overexpression of KIN10 enhanced the phosphorylation of ATG1a (Figure 5) which supports the idea that autophagy may function downstream of the KIN10 kinase by directly or indirectly targeting ATG1 proteins for phosphorylation. In conclusion, our findings demonstrated that KIN10 is a positive regulator of autophagy in Arabidopsis.
Author Contributions
SX and Q-FC designed the study. LC, Z-ZS, LH, F-NX, HQ, and L-JX carried out the experiments. SX, Q-FC, and LC analyzed the data. SX and LC wrote the manuscript.
Funding
This work was supported by the National Natural Science Foundation of China (Projects 31370298 and 31461143001), Program for New Century Excellent Talents in University (Project NCET-13-0614), the Foundation of Guangzhou Science and Technology Project (201504010021), and Sun Yat-sen University (Start-up fund to SX).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank the ABRC for providing the T-DNA seed pools, J. Sheen (Harvard Medical School) for the KIN10-OEs and KIN10-RNAi lines, F.Q. Li (South China Agricultural University) for the YFP-ATG1a line, and M. L. Chye (University of Hong Kong) for the GFP-ATG8e line.
Supplementary Material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fpls.2017.01201/full#supplementary-material
FIGURE S1 | Molecular identification of the KIN10-OE and KIN10-RNAi transgenic plants. (A) qRT-PCR analysis of KIN10 transcript levels in 4-week-old wild type (WT), OE-1, OE-2, RNAi-1, and RNAi-7 plants. Transcript levels relative to the wild type were normalized to the levels of ACTIN2. The data are means ± SD (n = 3) calculated from three biological replicates. ∗∗P < 0.01 by Student’s t-test. (B) Immunoblot analysis of KIN10 in 4-week-old WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants. Anti-KIN10 antibodies were used for immunoblotting. Coomassie blue-stained total proteins (Rubisco) are shown below the blot to indicate the amount of protein loaded per lane.
FIGURE S2 | Overexpression of KIN10 activates autophagy-related gene expression. Expression patterns of ATGs in the WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants. Total RNA was isolated from 4-week-old WT, OE-1, OE-2, RNAi-1, and RNAi-7 plants under normal growth conditions. Transcript levels relative to the WT were normalized to that of ACTIN2. The data are means ± SD (n = 3) calculated from three biological replicates. ∗∗P < 0.01 by Student’s t-test.
FIGURE S3 |ATG1a transcript levels in the YFP-ATG1a and YFP-ATG1a/KIN10-OE plants in response to carbon starvation. Total RNA was isolated from 7-day-old YFP-ATG1a and YFP-ATG1a/KIN10-OE transgenic plants grown on MS medium followed by carbon starvation for 0, 3, 6, 12, and 24 h. Transcript levels relative to YFP-ATG1a at 0 h were normalized to that of ACTIN2. The data are means ± SD (n = 3) calculated from three biological replicates. ∗∗P < 0.01 by Student’s t-test. Light gray bars indicate gene expression in the YFP-ATG1a, dark gray bars indicate gene expression in the YFP-ATG1a/KIN10-OE.
FIGURE S4 | Yeast two-hybrid assays showing the physical interactions of KIN10 with autophagy-related proteins (ATGs). (A) Y2H assay of the interaction between KIN10 and ATG proteins (ATG1a, ATG1b, ATG1c, ATG6, ATG8e, ATG9, PI3K, ATG13a, and ATG13b). ATG1a, ATG1b, ATG1c, ATG6, ATG8e, ATG9, PI3K, ATG13a, and ATG13b bait constructs were fused to the DNA-binding domain (BD), and full-length KIN10 was fused to the activation domain (AD). Vectors containing the AD and BD were co-expressed in yeast strain YH109. Protein interactions were determined by a growth assay in a medium lacking Trp, Leu, His, and Ade, with 30 mM 3-amino-1,2,4-triazole which was added to repress self-activation. The vector containing the AD or BD alone served as the negative control. (B) Y2H assay of the interaction between the functional domains of KIN10 and ATG1a and ATG13a. ATG1a and ATG13a bait constructs were fused to the BD, and prey constructs were fused to the AD. The vector containing the BD alone served as the negative control. Full-length KIN10 contained a protein kinase domain (CD), a ubiquitin-associated domain (UBA) and a kinase associated domain 1 (KA1). Protein interaction was determined by a growth assay in a medium lacking Trp, Leu, His, and Ade (SD-Trp-Leu-His-Ade) supplemented with 30 mM 3-amino-1,2,4-triazole.
FIGURE S5 |In vivo assays showing no interaction of KIN10 with ATG1a and ATG13a. (A) CoIP assay of the association between KIN10 and ATG1a/ATG13a. FLAG-tagged ATG1a/ATG13a and HA-tagged KIN10 (KIN10-HA) was transiently expressed in protoplasts from wild-type Arabidopsis and immunoprecipitated by FLAG affinity agarose beads. (B) BiFC assay of KIN10 interaction with ATG1a and ATG13a in Arabidopsis protoplast cells. (C) BiFC assay of the interaction between functional domains of KIN10 and ATG1a/ATG13a in Arabidopsis protoplast cells. The split nYFP and cYFP fused to KIN10 and ATG1a/ATG13 were coexpressed in leaf protoplasts. nYFP/cYFP and ATG6-nYFP/TRAF1a-cYFP vectors were similarly co-expressed as negative and positive controls. Confocal images obtained from YFP, auto-fluorescent chlorophyll, and bright-field are shown. Bars = 20 μm.
References
Alers, S., Löffler, A. S., Wesselborg, S., and Stork, B. (2012). Role of AMPK-mTOR-Ulk1/2 in the regulation of autophagy: cross talk, shortcuts, and feedbacks. Mol. Cell Biol. 32, 2–11. doi: 10.1128/MCB.06159-11
Baena-González, E., Rolland, F., Thevelein, J. M., and Sheen, J. (2007). A central integrator of transcription networks in plant stress and energy signalling. Nature 448, 938–942. doi: 10.1038/nature06069
Baena-González, E., and Sheen, J. (2008). Convergent energy and stress signaling. Trends Plant Sci. 13, 474–482. doi: 10.1016/j.tplants.2008.06.006
Chen, L., Liao, B., Qi, H., Xie, L. J., Huang, L., Tan, W. J., et al. (2015). Autophagy contributes to regulation of the hypoxia response during submergence in Arabidopsis thaliana. Autophagy 11, 2233–2246. doi: 10.1080/15548627.2015.1112483
Doelling, J. H., Walker, J. M., Friedman, E. M., Thompson, A. R., and Vierstra, R. D. (2002). The APG8/12-activating enzyme APG7 is required for proper nutrient recycling and senescence in Arabidopsis thaliana. J. Biol. Chem. 277, 33105–33114. doi: 10.1074/jbc.M204630200
Egan, D. F., Shackelford, D. B., Mihaylova, M. M., Gelino, S., Kohnz, R. A., Mair, W., et al. (2011). Phosphorylation of ULK1 (hATG1) by AMP-activated protein kinase connects energy sensing to mitophagy. Science 331, 456–461. doi: 10.1126/science.1196371
Emanuelle, S., Hossain, M. I., Moller, I. E., Pedersen, H. L., van de Meene, A. M., Doblin, M. S., et al. (2015). SnRK1 from Arabidopsis thaliana is an atypical AMPK. Plant J. 82, 183–192. doi: 10.1111/tpj.12813
Gwinn, D. M., Shackelford, D. B., Egan, D. F., Mihaylova, M. M., Mery, A., Vasquez, D. S., et al. (2008). AMPK phosphorylation of raptor mediates a metabolic checkpoint. Mol. Cell 30, 214–226. doi: 10.1016/j.molcel.2008.03.003
Han, S., Yu, B., Wang, Y., and Liu, Y. (2011). Role of plant autophagy in stress response. Protein Cell 2, 784–791. doi: 10.1007/s13238-011-1104-4
Jossier, M., Bouly, J. P., Meimoun, P., Arjmand, A., Lessard, P., Hawley, S., et al. (2009). SnRK1 (SNF1-related kinase 1) has a central role in sugar and ABA signalling in Arabidopsis thaliana. Plant J. 59, 316–328. doi: 10.1111/j.1365-313X.2009.03871.x
Kim, J., Kundu, M., Viollet, B., and Guan, K. L. (2011). AMPK and mTOR regulate autophagy through direct phosphorylation of Ulk1. Nat. Cell Biol. 13, 132–141. doi: 10.1038/ncb2152
Kimura, N., Tokunaga, C., Dalal, S., Richardson, C., Yoshino, K., Hara, K., et al. (2003). A possible linkage between AMP-activated protein kinase (AMPK) and mammalian target of rapamycin (mTOR) signalling pathway. Genes Cells 8, 65–79. doi: 10.1046/j.1365-2443.2003.00615.x
Klionsky, D. J. (2007). Autophagy: from phenomenology to molecular understanding in less than a decade. Nat. Rev. Mol. Cell Biol. 8, 931–937. doi: 10.1038/nrm2245
Klionsky, D. J., Abdelmohsen, K., Abe, A., Abedin, M. J., Abeliovich, H., Acevedo Arozena, A., et al. (2016). Guidelines for the use and interpretation of assays for monitoring autophagy (3rd edition). Autophagy 12, 1–222. doi: 10.1080/15548627.2015.1100356
Kroemer, G., Mariño, G., and Levine, B. (2010). Autophagy and the integrated stress response. Mol. Cell 40, 280–293. doi: 10.1016/j.molcel.2010.09.023
Lai, Z., Wang, F., Zheng, Z., Fan, B., and Chen, Z. (2011). A critical role of autophagy in plant resistance to necrotrophic fungal pathogens. Plant J. 66, 953–968. doi: 10.1111/j.1365-313X.2011.04553.x
Lee, J. W., Park, S., Takahashi, Y., and Wang, H. G. (2010). The association of AMPK with ULK1 regulates autophagy. PLoS ONE 5:e15394. doi: 10.1371/journal.pone.0015394
Li, F., Chung, T., and Vierstra, R. D. (2014). AUTOPHAGY-RELATED11 plays a critical role in general autophagy- and senescence-induced mitophagy in Arabidopsis. Plant Cell 26, 788–807. doi: 10.1105/tpc.113.120014
Li, F., and Vierstra, R. D. (2012). Autophagy: a multifaceted intracellular system for bulk and selective recycling. Trends Plant Sci. 17, 526–537. doi: 10.1016/j.tplants.2012.05.006
Liu, C. C., Lin, Y. C., Chen, Y. H., Chen, C. M., Pang, L. Y., Chen, H. A., et al. (2016). Cul3-KLHL20 ubiquitin ligase governs the turnover of ULK1 and VPS34 complexes to control autophagy termination. Mol. Cell 61, 84–97. doi: 10.1016/j.molcel.2015.11.001
Liu, Y., and Bassham, D. C. (2010). TOR is a negative regulator of autophagy in Arabidopsis thaliana. PLoS ONE 5:e11883. doi: 10.1371/journal.pone.0011883
Liu, Y., Schiff, M., Czymmek, K., Tallóczy, Z., Levine, B., and Dinesh-Kumar, S. P. (2005). Autophagy regulates programmed cell death during the plant innate immune response. Cell 121, 567–577. doi: 10.1016/j.cell.2005.03.007
Liu, Y., Xiong, Y., and Bassham, D. C. (2009). Autophagy is required for tolerance of drought and salt stress in plants. Autophagy 5, 954–963. doi: 10.4161/auto.5.7.9290
Löffler, A. S., Alers, S., Dieterle, A. M., Keppeler, H., Franz-Wachtel, M., Kundu, M., et al. (2011). Ulk1-mediated phosphorylation of AMPK constitutes a negative regulatory feedback loop. Autophagy 7, 696–706. doi: 10.4161/auto.7.7.15451
Mack, H. I., Zheng, B., Asara, J. M., and Thomas, S. M. (2012). AMPK-dependent phosphorylation of ULK1 regulates ATG9 localization. Autophagy 8, 1197–1214. doi: 10.4161/auto.20586
Mizushima, N. (2010). The role of the Atg1/ULK1 complex in autophagy regulation. Curr. Opin. Cell Biol. 22, 132–139. doi: 10.1016/j.ceb.2009.12.004
Polge, C., and Thomas, M. (2007). SNF1/AMPK/SnRK1 kinases, global regulators at the heart of energy control? Trends Plant Sci. 12, 20–28. doi: 10.1016/j.tplants.2006.11.005
Shang, L., and Wang, X. (2011). AMPK and mTOR coordinate the regulation of Ulk1 and mammalian autophagy initiation. Autophagy 7, 924–926. doi: 10.4161/auto.7.8.15860
Suttangkakul, A., Li, F., Chung, T., and Vierstra, R. D. (2011). The ATG1/ATG13 protein kinase complex is both a regulator and a target of autophagic recycling in Arabidopsis. Plant Cell 23, 3761–3779. doi: 10.1105/tpc.111.090993
Thompson, A. R., Doelling, J. H., Suttangkakul, A., and Vierstra, R. D. (2005). Autophagic nutrient recycling in Arabidopsis directed by the ATG8 and ATG12 conjugation pathways. Plant Physiol. 138, 2097–2110. doi: 10.1104/pp.105.060673
Wang, Y., Nishimura, M. T., Zhao, T., and Tang, D. (2011). ATG2, an autophagy-related protein, negatively affects powdery mildew resistance and mildew-induced cell death in Arabidopsis. Plant J. 68, 74–87. doi: 10.1111/j.1365-313X.2011.04669.x
Wirth, M., Joachim, J., and Tooze, S. A. (2013). Autophagosome formation–the role of ULK1 and Beclin1-PI3KC3 complexes in setting the stage. Semin. Cancer Biol. 23, 301–309. doi: 10.1016/j.semcancer.2013.05.007
Wong, P. M., Puente, C., Ganley, I. G., and Jiang, X. (2013). The ULK1 complex: sensing nutrient signals for autophagy activation. Autophagy 9, 124–137. doi: 10.4161/auto.23323
Xiao, S., Gao, W., Chen, Q. F., Chan, S. W., Zheng, S. X., Ma, J., et al. (2010). Overexpression of Arabidopsis acyl-CoA binding protein ACBP3 promotes starvation-induced and age-dependent leaf senescence. Plant Cell 22, 1463–1482. doi: 10.1105/tpc.110.075333
Xiong, Y., Contento, A. L., and Bassham, D. C. (2007a). Disruption of autophagy results in constitutive oxidative stress in Arabidopsis. Autophagy 3, 257–258. doi: 10.4161/auto.3847
Xiong, Y., Contento, A. L., Nguyen, P. Q., and Bassham, D. C. (2007b). Degradation of oxidized proteins by autophagy during oxidative stress in Arabidopsis. Plant Physiol. 143, 291–299. doi: 10.1104/pp.106.092106
