Calcium (Ca2+) is a second messenger involved in many plant signaling processes. Biotic and abiotic stimuli induce Ca2+ signals within plant cells, which, when decoded, enable these cells to adapt in response to environmental stresses. Multiple examples of Ca2+ signals from plants containing the fluorescent yellow cameleon sensor (YC) have contributed to the definition of the Ca2+ signature in some cell types such as root hairs, pollen tubes and guard cells. YC is, however, of limited use in highly autofluorescent plant tissues, in particular mesophyll cells. Alternatively, the bioluminescent reporter aequorin enables Ca2+ imaging in the whole plant, including mesophyll cells, but this requires specific devices capable of detecting the low amounts of emitted light. Another type of Ca2+ sensor, referred to as GFP-aequorin (G5A), has been engineered as a chimeric protein, which combines the two photoactive proteins from the jellyfish Aequorea victoria, the green fluorescent protein (GFP) and the bioluminescent protein aequorin. The Ca2+-dependent light-emitting property of G5A is based on a bioluminescence resonance energy transfer (BRET) between aequorin and GFP. G5A has been used for over 10 years for enhanced in vivo detection of Ca2+ signals in animal tissues. Here, we apply G5A in Arabidopsis and show that G5A greatly improves the imaging of Ca2+ dynamics in intact plants. We describe a simple method to image Ca2+ signals in autofluorescent leaves of plants with a cooled charge-coupled device (cooled CCD) camera. We present data demonstrating how plants expressing the G5A probe can be powerful tools for imaging of Ca2+ signals. It is shown that Ca2+ signals propagating over long distances can be visualized in intact plant leaves and are visible mainly in the veins.
Introduction
Calcium (Ca2+) has long been established as a second messenger. Transgenic expression of fluorescence resonance energy transfer (FRET)-based fluorescent Ca2+ reporters such as the popular yellow cameleon (YC) or of the bioluminescent aequorin has permitted non-invasive monitoring of free Ca2+ levels and enabled real-time imaging of Ca2+ levels in different cell-types and organisms, including plants (Knight et al., 1991; Perez Koldenkova and Nagai, 2013). The YC has been used extensively for imaging Ca2+ signals in specific plant cell types such as guard cells (Allen et al., 1999), germinating pollen tubes (Iwano et al., 2012), and root hairs (Miwa et al., 2006; Monshausen et al., 2008). YC is also well suitable for Ca2+ sensing in subcellular compartments (Krebs et al., 2012; Bonza et al., 2013). However, YC requires excitation by exogenous light, which limits its relevance in plant photosynthetic tissues due to high background emission from auto-fluorescent cell walls, chlorophyll, and secondary metabolites. Indeed, wide autofluorescent spectrum of plant leaf pigments that overlap YC emission limits visualization of changes in intensity of YC fluorescence emission upon Ca2+ elevation. Moreover, Ca2+ imaging at plant tissue level requires strong and long excitation to detect fluorescence signals. Long term Ca2+ measurements would result in some YC photo-bleaching and/or tissue damage, this limiting long term Ca2+ measurements, over 24 h for example. On the other hand, the bioluminescent Ca2+ reporter aequorin does not require exogenous excitation light and very little background signal is produced resulting in a high signal-to-noise ratio throughout long acquisition periods. Aequorin has the largest dynamic range among Ca2+ reporters, allowing the monitoring of Ca2+ signals over several days and over a wide range of Ca2+ concentrations (Alonso and Garcia-Sancho, 2011). Aequorin has been introduced into several plant species (Knight et al., 1991; Webb et al., 2010) and has enabled photon counting based monitoring of Ca2+ in intact plant leaves. Many reports of aequorin application in plants have been published, where photon counting with luminometers was used to describe Ca2+ signaling under several stress conditions. However, to image photons emitted by aequorin with good resolution in both space and time requires sophisticated detection devices such as image photon detectors (IPDs) (Webb et al., 2010) or cameras fitted with an Intensified Charge-Coupled Device (ICCD) (Webb et al., 2010) or Electron Multiplying Charge-Coupled Device (EMCCD) (Rogers et al., 2008; Webb et al., 2010). This is a significant limitation to in planta Ca2+ imaging which could be overcome by using the G5A probe, an engineered fusion between the green fluorescent protein (GFP) and aequorin (Figures 1A,C) initially developed for Ca2+ imaging in animal cells (Baubet et al., 2000; Rogers et al., 2005). Through a bioluminescence resonance energy transfer (BRET) from aequorin to GFP, the wavelength of the emitted photon is 510 nm, instead of 470 nm and detection yield by CCD is found optimized, compared to aequorin, with a better signal/noise ratio (Baubet et al., 2000; Rogers et al., 2005, 2008).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g001.jpg)
Figure 1. Construction and operating principle of the G5A Ca2+ reporter. (A) Structure of the chimeric gene encoding the G5A sensor. The open-reading frame (ORF) encoding the green fluorescent protein (GFP) is linked to the ORF encoding the apo-aequorin by five repeats of a short sequence encoding a SGGSGSGGQ oligopeptide. The structure and length of this linker ensures efficient bioluminescence resonance energy transfer (BRET) between the aequorin and the GFP (Baubet et al., 2000). Using the pGWB502Ω vector, constitutive G5A expression is driven by a 35S promoter. (B) Principle of the aequorin bioluminescence emission upon binding of Ca2+. In the presence of the coelenterazine cofactor (“C”), the apo-aequorin is reconstituted as a functional aequorin. Upon binding of three Ca2+ ions, the cofactor is released with emission of light at ~470 nm. (C) Principle of G5A fluorescence emission upon binding of Ca2+. Thanks to the tight molecular coupling between the aequorin and GFP moieties of G5A, a BRET phenomenon between aequorin and GFP leads to excitation of and fluorescence emission at 510 nm by the latter.
Here, (i) we applied G5A in Arabidopsis, (ii) we show that, in comparison to aequorin, G5A enhances in vitro and in vivo detection of weak Ca2+ events in intact plants, including in photosynthetic tissues and (iii) we describe a simple method that only requires a cooled-CCD camera to visualize Ca2+ signals in plant leaves as, for example, Ca2+ waves propagating along leaf veins of intact plants after imposing a salt stress to roots of these plants. It is concluded that G5A reporter is an interesting alternative to aequorin.
Materials and Methods
Cloning G5A and Engineering G5A-Expressing Plants
The original vector harboring the G5A construct (Baubet et al., 2000) was kindly provided by Dr. Philippe Brûlet's group (CNRS, Gif-sur-Yvette, France). The G5A coding sequence was cloned into the Gateway® entry vector pDONR™ by two sequential PCRs amplification using a G5A forward primer 5′-GGAGATAGAACCATGAGCAAGGGCGAGGAGCTGTTCA-3′ and a G5A reverse primer 5′-TCCACCTCCGGATCAGGGGACAGCTCCACCGTAG-3′, followed by a second PCR using a U5 forward primer 5′-GGGGACAAGTTTGTACAAAAAAGCAGGCTTCGAAGGAGAT-AGAACCATG-3′ and a U3 reverse primer 5′-AGATTGGGGACCACTTTGTACAAGAAAGC-TGGGTCTCCACCTCCGGATC-3′. Next step was a transfer, by LR Gateway® recombination, of the G5A construct into the expression vector pGWB502Ω (Nakagawa et al., 2007).
The pGWB502Ω-G5A construct was introduced in Agrobacterium tumefaciens (GV3101), for transformation of Arabidopsis thaliana ecotype Col-0 by the floral dip method (Clough and Bent, 1998). G5A expressing transgenic plants were selected using hygromycin selective media and checked for GFP fluorescence emission under direct excitation of GFP at 488 nm (see Figure 2). Homozygous G5A expressing T3 and T4 plants (here below denoted G5A plants) were used and compared to transgenic plants expressing aequorin in the cytoplasm (Col-0 ecotype, denoted below Aeq plants) obtained from Prof. Marc Knight (Durham, UK).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g002.jpg)

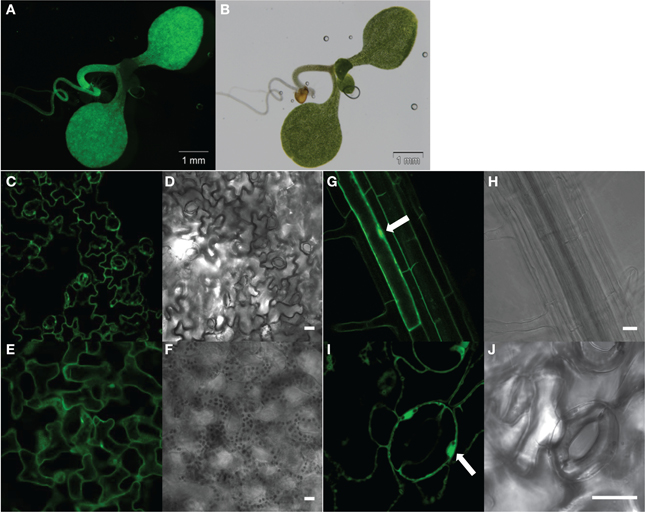

Figure 2. Constitutive expression of the G5A fusion protein in all tissues of Arabidopsis thaliana seedlings. Seven (A–F) or 21 day-old (G–J) plants of the G5A line were checked for reporter expression by excitation of GFP (at λex = 488 nm) under a stereo microscope (A,B) or a confocal microscope (C–J). Fluorescence emission by GFP is shown in (A,C,E,G,I) and corresponding bright field images are shown respectively in (B,D,F,H,J). Fluorescent stereo microscope observation of intact seedlings allowed detection of GFP signals in cotyledons and the primary root (A,B). Confocal microscopy observation of leaf epidermal cells (C,D) and mesophyll cells (E,F) showed good expression of G5A in leaf tissues. G5A fluorescence was observed in both the cytosol and the nucleus (arrows) of root cells (G,H) and of stomatal guard cells (I,J). Scale bar = 20 μm.
Plant Material and Growth Conditions
Seeds from Aeq and G5A plants were surface-sterilized and placed on half-strength Murashige and Skoog plate medium supplemented with sucrose 1% (w/v) and with hygromycin (15 μg/mL)(G5A) or kanamycin (50 μg/mL)(Aeq), and stratified at 4°C for 2 days in the dark. Seedlings were subsequently grown in a growth chamber at 22°C with a 70% relative humidity, in long-day conditions (150 μE/m2/s light for 16 h a day) for 7 days. These 7-day old seedlings were either used directly or further grown in soil under short day conditions (200 μE/m2/s light for 8 h a day) for 3–7 weeks, as indicated.
Luminescence Measurement and Imaging
Seedlings
In vivo reconstitution of functional aequorin was performed by incubating 7 day-old seedlings for 4 h at 22°C in the dark with a 2.5 μM aqueous solution of coelenterazine HCP (Interchim). For imaging, coelenterazine-treated seedlings were placed within a dark chamber over a gelosed layer (water with 1% agar) in large Petri dishes. A cooled-CCD camera (Hamamatsu 4880-30), fitted at the top of the chamber, collected photons. Sequential image acquisition was carried out using the Hipic 5.1.0 software with an exposure time per image in the 15–60 s range (as indicated in the Figure legends). Images were analyzed in ImageJ (Schneider et al., 2012). The first 5 min in each sequence were discarded because of chlorophyll autofluorescence decay.
Older soil-grown plants
At the end of the day, the soil was gently removed from the roots and the whole plants were incubated for 4 h at 22°C in the dark in a 2.5 μM aqueous solution of coelenterazine HCP. Plants were then placed with the roots in Qualibact® (CEB) tubes filled with water through a hole in the cap of the tube to separate leaves from roots. Plants were left for 1 h in the dark at room temperature for recovery. Images of the rosette were acquired as described above for seedlings, with a 30 s integration time. NaCl at a final concentration of 200 mM was injected with a remotely controlled syringe at the root level after 25 min of acquisition.
Excised mature leaves
Mature leaves were excised from 6–7-week old plants grown as described above and incubated at 22°C in the dark for 4 h in a 2.5 μM aqueous solution of coelenterazine HCP. The treated excised leaf was then transferred to a dark chamber under the cooled-CCD camera for G5A imaging as described above with 15 s exposure time by frame. For salt stress, 100 μL of 200 mM NaCl was pipetted onto the excised leaf petiole (see Figure 8A arrow) and subsequent light emission was acquired.
Image Analysis
All images were analyzed in ImageJ. Shading correction of all images was performed by subtraction of a dark field image (acquisition without sample) acquired with the same exposure time. Backgrounds of each image were normalized by subtraction of ROIs of non-plant pixels. ROIs of plant pixels were then quantified and the average values are plotted over the time. Background noise after chlorophyll fluorescence decay was determined by imaging light emission from wild-type plant leaves and then subtracted for data obtained from G5A or Aeq plants. Ca2+ signal velocity was determined with the MtrackJ plugin of ImageJ and the localization (x,y) of each velocity value was plotted with Matlab® software (R2006a).
Aequorin Immunoblotting
Soluble protein was extracted from 50 pooled seedlings (Mithofer and Mazars, 2002) and separated by SDS-PAGE. Immunoblotting was carried out using an anti-aequorin rabbit polyclonal antibody (Novus Biological, NB100-1877) as described by the manufacturer. Signals of immunodetection were acquired with LAS-3000 imager (Fujifilm) and quantified with Multi-Gauge v3.2 (Fujifilm).
Calibration of the Two Probes G5A and Aequorin
Soluble proteins were extracted from G5A and Aeq plants as described by Mithofer and Mazars (2002) and were diluted in a buffer (Tris-HCl 200 mM, pH 7.4, EGTA 5 mM, NaCl 0.5 M, β-mercaptoethanol 5 mM) containing the coelenterazine HCP cofactor for 2 h in the dark at 4°C. Relative amounts of G5A and aequorin reporters in these crude extracts were estimated by immunoblotting (Figure 3A). So-called G5A and Aeq buffers were prepared by diluting soluble protein crude extracts from G5A and Aeq plants in Tris-HCl 200 mM, pH 7.0, EGTA 5 mM at a protein content of 0.1 μg/μL and 0.15 μg/μL respectively (to ensure that subsequent in vitro comparison of both reporters was made with equal quantities of them). Wells of 96-well plates were filled with 50 μL of different Ca2+ solutions, of which the free Ca2+ concentration was estimated by MaxChelator Software (http://www.stanford.edu/~cpatton/downloads.htm). To start probe calibration, 50 μL of either G5A or Aeq buffer was dispensed into each well and maximum light emitted per second (L) was measured. In a second step, 100 μL of a 2 M CaCl2 solution was dispensed into each well for discharging the remaining reconstituted G5A or aequorin reporters. Light emitted at this time (Ltotal) allowed the total amount of functional Ca2+ reporter to be estimated. All light measurements were made with a plate-spectrophotometer Victor2 (Perkin Elmer). Collected photons were integrated over 1 s lapses during 180 s. Results are expressed as the ratio ±SE of maximum light over total light (L/Ltotal).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g003.jpg)
Figure 3. In vitro calibration of G5A and aequorin as Ca2+ reporters. (A) Immunoblotting of soluble protein fractions from fifty 14 day-old plants of the G5A and Aeq lines with an anti-aequorin polyclonal antibody. Signals of immunoblotting were quantified and indicated as a G5A/aequorin ratio of protein accumulation of 1.48 ± 0.14 (average of one hundred seedlings obtained in two independent experiments ± SE, n = 2). (B) In vitro calibration curves of G5A and aequorin in soluble protein extracts from G5A and Aeq plants. Equivalent amounts of Ca2+ reporters were used for the comparison (based on assay reported in A) and incubated in a buffer containing 2.5 μM coelenterazine HCP cofactor for 2 h in the dark at 4°C prior light emission assay in the presence of various free Ca2+ amounts (see Materials and Methods). Results are expressed as the ratio ± SE (n = 6 in two independent experiments) of maximum light over total light (L/Ltotal). The linear range of L/Ltotal ratio as a function of free Ca2+ concentration is shown for G5A (full line) and aequorin (dashed line).
Results
Effective transformation using the pGWB502Ω-G5A construct was expected to yield a broad constitutive expression pattern of the G5A probe. This was checked in a Ca2+-independent manner by direct excitation, at 488 nm, of the GFP moiety of the chimera probe (Figure 2).
A strong ubiquitous GFP signal was observed in 7 day-old seedlings. The subcellular pattern of the GFP signal suggested cytosolic and nuclear localization (arrows in Figures 2G,I).
An anti-aequorin polyclonal antibody (Novus Biological, USA) was used to evaluate the amount of G5A and aequorin proteins in the soluble protein fraction (Figure 3A). This antibody revealed strong bands at 22 kDa and 52 kDa in both protein extracts from Aeq and G5A plants. The G5A/aequorin ratio (protein level) was estimated at 1.48 ± 0.14.
Calibration curves were performed with soluble protein extracts from G5A or Aeq plants. Equal amounts of G5A and aequorin reporters were used for in vitro calibration curves. Data are expressed as maximum light emitted per second (denoted “L”) (Fricker et al., 1999) over total light (denoted “Ltotal”) ratio (Figure 3B see “Methods” section). G5A and aequorin showed similar responses to free Ca2+ concentration and calibration curves in Figure 3B do not differ significantly over the 10−8 to 10−6 M free Ca2+ range. Linear regression between 10−8 to 10−6 M free Ca2+ reveals a straight line with a slope of 1.065 ± 0.016 (R2 = 0.988) and 0.888 ± 0.015 (R2 = 0.987) for G5A and aequorin respectively (Figure 3B). The reciprocal relationship, i.e., between free Ca2+ concentration and the rate of consumption of G5A or aequorin, can be represented by the equation:
Coefficients a and b in the above equation are 0.93919 and 5.61289 for G5A, and 1.13646 and 5.26608 for aequorin.
The bioluminescent reporter aequorin has very low noise and high signal/noise ratio (Brini, 2008; Webb et al., 2010). No signal from G5A and aequorin was detected under in vitro conditions, in the absence of coelenterazine HCP. In the presence of coelenterazine HCP and without Ca2+, G5A and aequorin noise levels were respectively 271.16 ± 10.76 and 198.67 ± 11.52 RLU (Relative Light Unit). This difference is, however, negligible compared to signal after injection of free Ca2+. At the basal level of cytosolic free Ca2+ (0.1 μM), maximum light level was increased to 6.61 × 103 ± 0.32 × 103 and 1.72 × 103 ± 0.29 × 103 RLU for G5A and aequorin respectively. At 1 μM free Ca2+, light levels increased up to 90.14 × 103 ± 7.44 × 103 and 20.25 × 103 ± 1.65 × 103 RLU for G5A and aequorin respectively. Data expressed as signal/noise ratio for the two reporters (Figure 4A) show that G5A is approximately 3–5 times better than aequorin. For instance, the signal/noise ratio of aequorin with 1 μM free Ca2+ is reached with only 300 nM free Ca2+ with G5A reporter.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g004.jpg)

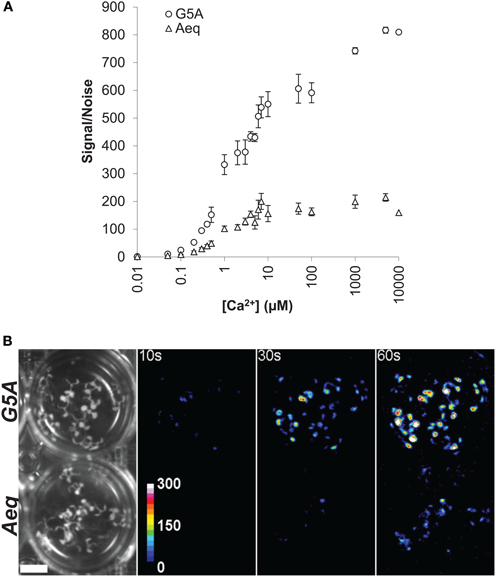

Figure 4. In vitro and in vivo comparison of light emission by G5A and aequorin (A) In vitro assay of light emission from equal amounts of Ca2+ reporters G5A and aequorin is plotted against buffer free Ca2+ concentration. Results (mean ± SE, n = 6) are expressed as the ratio of signal (maximum emitted light) over noise. (B) Representative in vivo Ca2+ signals emitted from 7 day-old G5A (top) and Aeq (bottom) plants over different exposition time lapses (10, 30, and 60 s). Left panel shows bright field view (scale bar = 1 cm) of the imaged plants. The other panels display cumulative Ca2+ responses in false colors (color scale in the 10 s-labeled panel).
In parallel, comparison of the two Ca2+ reporters was performed in planta. Different time lapses were tested for collecting photons emitted by G5A and Aeq plants (Figure 4B). The threshold for signal detection for basal level of free Ca2+ was approximately 10 s and 30 s with G5A and aequorin respectively. A 30 s time lapse allowed sufficient light to be collected from G5A plants while 1 min was hardly sufficient in the case of Aeq plants.
Sudden light-dark transition has been reported to induce weak Ca2+ signals in photosynthetic tissues (Johnson et al., 1995; Sai and Johnson, 2002; Dodd et al., 2006). To assess the capability of G5A to detect weak Ca2+ events in intact plant tissues, we challenged Arabidopsis plants with darkness: the reactions of G5A plants upon light-dark transition were compared to those of Aeq plants (Figure 5). Significantly more photons could be collected from G5A plants than from the Aeq plants over this period (Figure 5B). Successive integrations of photons over 1 min time lapses provided an overview of the Ca2+ signal kinetics (Figure 5C). Dark-induced Ca2+ signals displayed by G5A and aequorin had parallel kinetics (Figure 5C and inset), with a maximal light emission between 40 and 60 min. However, approximately five times more photons were detected from plants of the G5A line.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g005.jpg)

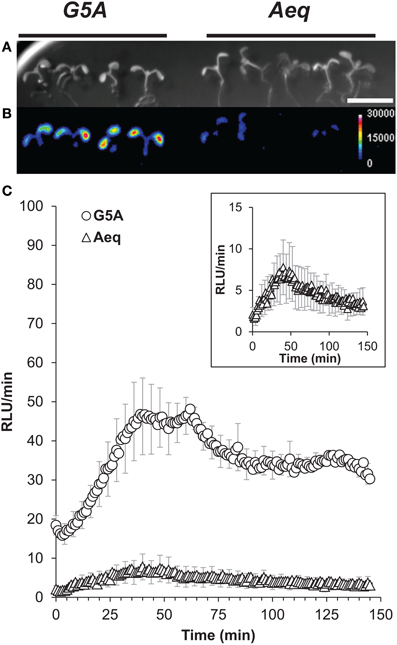

Figure 5. Ca2+ dynamics detected in response to dark onset from plants expressing G5A or aequorin. (A) Bright field view of batches of 7 day-old G5A (left) and Aeq (right) Arabidopsis reporter lines. Scale bar = 1 cm. (B) Cumulative amount of light emitted from these plants after dark onset, over 150 min, expressed in false colors (scale shown at right, in device-dependent arbitrary unit or “RLU,” standing for “relative light unit”). Representative results of 10 independent measurements of dark-induced Ca2+ released. (C) 150 min time course of the cumulative light emission over 60 s time lapses from plants in (A,B) (data are means ± SE of 10 independent experiments with four G5A and five Aeq plants). Ca2+ dynamics from the Aeq plants show kinetics (inset) similar to G5A plants but with approximately five times less light emission.
This interesting G5A feature allowed us to follow the dynamics of free Ca2+ in leaves triggered by a salt stress applied to roots of intact plants (Figure 6 and Supplementary videos S1, S2). The stress was sensed by roots and propagated to leaves, suggesting that Ca2+ waves might contribute to plant adaptation to salt stress. A time series of representative results (from video S1) is presented in Figure 6A. It shows that a 30 s delay after the application of NaCl (at time = 0) was required before Ca2+ levels increased in the petioles. Elevated calcium levels then propagated to the rest of the leaves. It is interesting to note that the Ca2+ responses of mature and young leaves differed in terms of kinetics. Mature leaves responded by an initial rapid, transient, Ca2+ peak (Figure 6A, time = 1–2 min) followed by a second very slow, wave-like, increase and subsequent decrease of free Ca2+ level lasting more than 50 min (from 6 to 60 min) with a maximum at 12–13 min. The young leaves displayed a single rapid Ca2+ transient peak (Figure 6A red arrows), similar to that observed in mature leaves although slightly later (3.5–4.5 min after salt stress application). Defining the whole plant as an ROI and plotting the time course of the signal summed over each 30 s lapse (in RLU/30 s) for 60 min after salt stress application yielded a dynamic view of these Ca2+ events at leaf level (Figure 6B). It was found that both the Ca2+ peaks (observed for mature and young leaves) and the Ca2+ wave had a maximum at 19–20 RLU/30 s (Figure 6B). Despite inevitable variations from a plant to another one, an analogous pattern of distribution in space and time of Ca2+ events was observed when challenging a plant with a salt stress at the root level (Supplementary video S2).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g006.jpg)

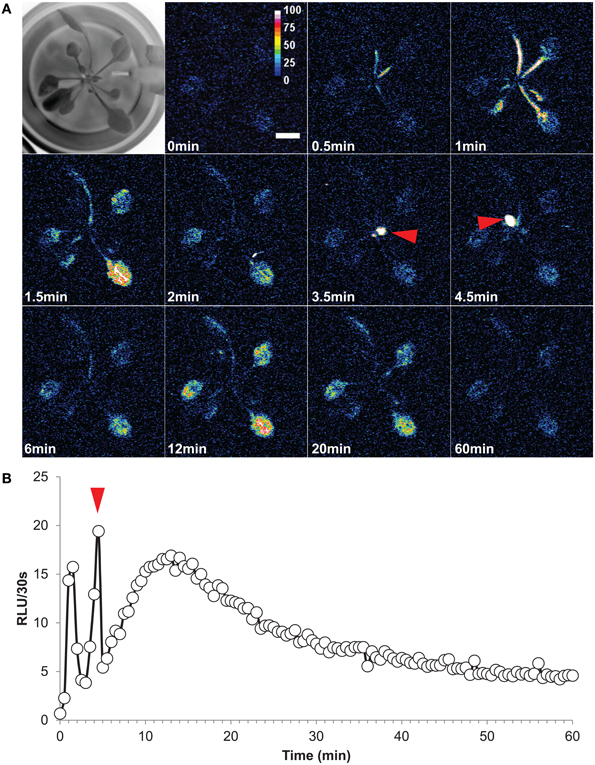

Figure 6. High salt exposition of roots elicits long distance Ca2+ dynamics in leaves. (A) Time series of images (time of capture indicated in the left bottom corner of each image) showing propagation of Ca2+ elevation in aerial part of an intact plant (Representative result of five independent plants). First image of the series is a bright-field view of the plant. At time = 0, a solution of NaCl (200 mM final concentration) was applied to roots and light subsequently emitted from leaves was accumulated over 60 min (each image shows cumulative light intensity over a 30 s time lapse). After 0.5 min, Ca2+ elevations were detected on petioles and propagation of Ca2+ responses to the end of each mature leaf were observed. Young leaves responded only at 3.5–4.5 min after NaCl stress (red arrows) (B) Quantification of light signals from the whole plant over 60 min. As in (A) the red arrow indicates the short Ca2+ response in young leaves.
Light emitted by G5A in intact plants facing a salt stress therefore appeared to be sufficiently intense to image the propagation of Ca2+ signals in leaves with good time resolution. We performed a simple analysis of Ca2+ waves on each leaf of plants subjected to a salt stress applied to roots. Ca2+ signal velocities were then calculated for each leaf of the plant shown in Figure 6 (red dashed arrows, Figure 7). This shows that velocity was not constant within a given leaf (it decreased at leaf tip) and differed depending on the leaf. Detailed numerical values are given (Table 1): maximum and minimum of velocities were 0.52 and 0.03 mm/s respectively.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g007.jpg)

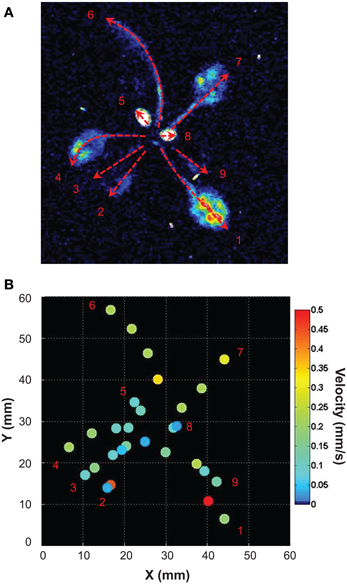

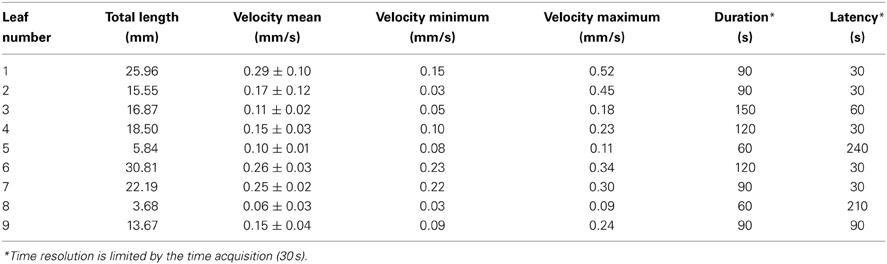

Figure 7. Analysis of the propagation of Ca2+ elevations induced by high salt stimulus applied to roots. (A) Free Ca2+ elevations on each leaf were analyzed with ImageJ. Velocities (mm/s) of Ca2+ responses were determined for each leaf along paths figured by red dashed arrows (values of Ca2+ response velocity are presented on Table 1). (B) Propagation speeds along the main leaf vain are indicated for selected points (same space scale as in A). False color scale is in mm/s.
Further applications of G5A were investigated by imposing similar salt stress on mature leaves excised from 7–8 week-old plants (Figure 8). Application of 100 μL of 200 mM NaCl onto the petiole end of an excised leaf (Figure 8A, white arrow) was enough to generate detectable elevations in free calcium after 1 min. They started immediately after the exposure to the NaCl solution at the site of application before they spread throughout the rest of the leaf (Figure 8A and Supplementary videos S3, S4). The propagation of free calcium elevation seems to be different in the basal third part of the leaf (denoted by * in Figure 8C) as compared to the rest of the leaf (denoted by ** in Figure 8C). In the early phase of response to the applied stress, increase in free Ca2+ were observed in the peripheral regions of the basal third part of the leaf and not in the middle vein. Subsequently, Ca2+ responses seem to propagate throughout the leaf, firstly, along the vascular tissues (primary and secondary veins) and later in the mesophyll tissue. Quantification of increase in free Ca2+ from the entire leaf shows that salt stress induced two different peaks of Ca2+, which correspond to these two successive episodes of Ca2+ increase, firstly in the basal part of the leaf, subsequently in the rest of the leaf (as indicated by asterisks in Figure 8B as described for Figure 8C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g008.jpg)
Figure 8. Salt application on detached leaf elicits Ca2+ waves along the vascular tissue. (A) Time series of images (time of capture indicated in the right top corner of each image in min:s) showing propagation of Ca2+ responses in a detached leaf. First image of the series is a bright-field view of the plant. At time = 1 min, 100 μL of a solution of NaCl (200 mM) was dispensed onto the petiole (white arrow) and light subsequently emitted from leaves was integrated over 7 min (each image shows cumulative light over a 15 s time lapse). Ca2+ responses were immediately detected on petioles and propagation of Ca2+ responses to the end of leaf was observed. Scale bar = 1 cm. Calibration bar in gray scale is shown in the last image (RLU). Representative result of five independent experiments. (B) Quantification of light signals from ROI for the whole leaf (see C) over 8 min (in RLU per 15 s). At time = 1 min, NaCl was applied onto the petiole (black arrow). The two peaks denoted by * and ** correspond to a Ca2+ increase in the basal third and the rest of the leaf respectively. (C) Localization of Ca2+ responses is represented by a z-stack of standard deviation of Ca2+ signals over the 8 min of measurement. Ca2+ signals seem to take place in leaf veins. The basal third of the leaf is indicated by * and the rest of the leaf by **. Line scan of primary vein (red dashed line X–Y) is analyzed in (D). (D) Kymographic representation of Ca2+ signals in the primary vein (X–Y from C). Three different velocities of Ca2+ signals could be measured and are indicated.
In this example (representative of five independent leaves), elevation of free Ca2+ induced by NaCl needed 315 s (image at 1:00 to 6:15) to travel through a 57 mm-long leaf. Thus, in this example the average velocity was 0.181 mm/s. A further analysis was performed on the primary vein of this leaf (Figure 8C, red dashed line X–Y), a kymographic representation of velocity value on the axis X–Y shows that there were three different Ca2+ response velocities (Figure 8D). Two of them (red dashed and orange dashed arrows) spread acropetally (from X to Y) whereas one propagated the opposite way (Y–X, cyan dashed arrow). Interestingly, between the first third and the second third of the leaf, was observed a region where no Ca2+ signals were detected with G5A. Despite this gap, Ca2+ signal propagation was observed all along the XY axis (Figure 8C and Supplementary video S3). Analyses of Ca2+ waves on this excised leaf (representative of five leaves) show that Ca2+ signal velocities along different veins (Figure 9A dashed arrows) were different. Local velocity values were plotted on the image (as spots in false-color scale, Figure 9B). Higher velocities in the center of the leaf and slower velocities at leaf borders were found (Figure 9B). Details of velocities of Ca2+ signals in leaf veins, including on X–Y axis (#1, #8, and #16) are presented in Table 2 below. Despite inevitable variation from a leaf excised from a plant to another leaf excised from another plant, the nature and pattern (both in space and time) was essentially reproducible (see Supplemental video S4).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/78506/fpls-05-00043-HTML-r2/image_m/fpls-05-00043-g009.jpg)

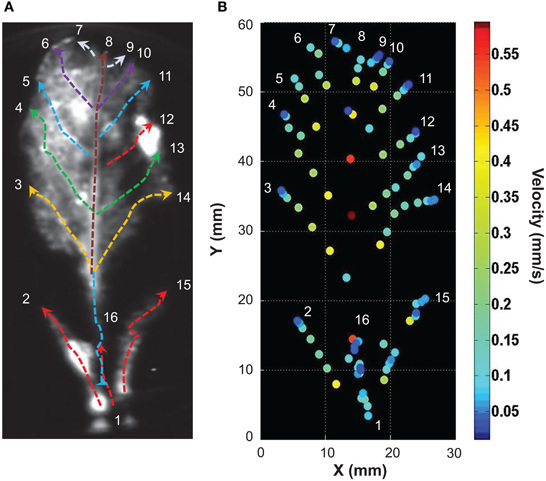

Figure 9. Analysis of the propagation of calcium elevation in detached leaves induced by high salt exposure. (A) Ca2+ responses on each vein were analyzed in ImageJ. Velocities (mm/s) of Ca2+ signals were determined along paths represented by dashed arrows (details of Ca2+ signal velocity, duration and latency are presented on Table 2; colors of dashed arrows refer to the latency values so that Ca2+ waves that started at similar times are in the same color). (B) Propagation speeds along the main leaf vein are indicated for selected points (same space scale as in A). False color scale is in mm/s.
Discussion
Since the successful use of aequorin as a Ca2+-signaling reporter in plant tissues (Knight et al., 1991), examples of aequorin imaging in plants have relied on the use of ultra-sensitive camera devices (intensified-CCD or electron-multiplying-CCD) to detect the few photons emitted by aequorin. They have revealed, for example, that Ca2+ oscillations occur during diurnal rhythms in plant leaves (Johnson et al., 1995; Sai and Johnson, 2002; Dodd et al., 2006). Optimized imaging of aequorin signals in plants has been reported recently that, with integration time down to 40 s, showed stimulus- and tissue-specific Ca2+ signatures in seedlings (Zhu et al., 2013). In these examples of aequorin imaging in plants, however, low light detection relied upon sophisticated and costly equipment. Another interesting development of aequorin-based approach to in planta Ca2+ signaling has recently been reported: expression of aequorin in specific cell types of Arabidopsis was used to determine which cell types release calcium into the cytosol in response to a given stimulus (Marti et al., 2013). Photometry (with high time resolution) of aequorin emission from plants expressing the Ca2+-sensor in specific leaf cell–types (mesophyll cells, guard cells, [peri-]vascular cells, epidermal cells, and trichomes) may be used to follow various stresses. These experimental conditions allowed the collected information to be ascribed to a given cell-type, without spatial localization of the measured signals.
The G5A-based method we report here provides an interesting complement to these recent improvements of aequorin-based methods. In the Aequoria victoria jellyfish, a naturally evolved BRET phenomenon between aequorin and GFP occurs. Several artificial proteins assembling aequorin with GFP-derived proteins have been engineered to mimic the natural BRET observed in Aequoria victoria. Performance of these artificial Ca2+ reporters depends on the linker motif placed in between the BRET partner proteins (Baubet et al., 2000; Gorokhovatsky et al., 2004). Comparison of different linkers in GFP-aequorin protein fusions has demonstrated that the five repeat motifs used here in the so-called G5A artificial reporter (see Figure 1) allows a high BRET efficiency (Baubet et al., 2000). Subsequently, the G5A reporter has been successfully used to monitor Ca2+ elevation at cellular and organ levels in animals (Baubet et al., 2000; Chiesa et al., 2001; Cassidy and Radda, 2005; Rogers et al., 2005, 2008; Martin et al., 2007; Naumann et al., 2010). To date, however, no G5A application in plants has been reported.
Although our in vitro assays show similar calibration curves for both reporters (Figure 3B), there was a significantly better signal/noise ratio for G5A than for aequorin (Figure 4A) corresponding to a 3–5 fold increase in light collected from the former compared to the latter. Such an amplification is consistent with the data obtained in planta (Figures 4B, 5) where small changes of free Ca2+ concentration were more easily detected with G5A than with aequorin. The (up to) 5-fold amplification of light in plants expressing G5A is similar to the 5.7-fold increase in the light signal resulting from BRET between luciferin and GFP in Renilla reniformis (Ward and Cormier, 1976). It is interesting to note however that the improved detection of light emission from aequorin through BRET is still not completely understood (Webb et al., 2010). In the jellyfish Aequorea victoria, aequorin is associated with the GFP that allows the amplification of light by BRET phenomena. In vitro, the binding between aequorin and GFP does not occur, even at high concentration and no BRET events was observed (Baubet et al., 2000). Fusion of aequorin and GFP is a prerequisite to observe such natural light amplification seen in jellyfish. Baubet et al. have designed an optimized linker that results in sufficient high quantum yield to visualize Ca2+ induced light emission from G5A (Baubet et al., 2000).
An issue for plant cell physiologists is the autofluorescence of chlorophyll and other organic pigments which hinders the use of fluorescent probes with overlapping spectroscopic properties. For instance chlorophyll b and carotenoids (lutein, neoxanthin, and violaxanthin) have major absorption peaks between 469 and 490 nm (Rivadossi et al., 2004; Taylor et al., 2006) and may absorb photons emitted at ~470 nm by aequorin in leaf cells. As a consequence of the efficient BRET between its aequorin and GFP moieties, G5A emits photons at~510 nm (Baubet et al., 2000; Rogers et al., 2005, 2008), thus reducing absorbance by plant tissues and resulting in better detection by cameras or luminometers. This also could contribute to the better performance of G5A compared to aequorin in the present in planta experiments (Figure 5C).
In addition to these considerations, the G5A-based results that we report here exemplify the possibilities that this Ca2+ reporter holds for plant biologists. Comparison of Aeq and G5A plants subjected to darkness shows that similar responses could be visualized with both Ca2+ reporters, but five times more light was emitted from G5A plants (Figure 5). This suggests that G5A is an alternative tool to aequorin for Ca2+ imaging when signals are either too low or if ultra-sensitive camera is not available. Moreover, further examples of potential application of G5A are introduced here, showing the analysis of long-distance Ca2+ signaling (potentially involved in the coordination of the integrative responses of plant to stresses, here salt stress, Figures 6–9).
Long distance propagation of Ca2+ signals (“Ca2+ waves”) is attracting increasing interest in the plant biology community (Steinhorst and Kudla, 2013) and in this context, G5A seems to be a complementary tool, along with fluorescent Ca2+ reporters, to investigate complex cell to cell communication within plants. Most of Ca2+ imaging experiments in intact tissue with a fluorescent reporter have been carried out in roots (Fasano et al., 2001; Monshausen et al., 2011; Gjetting et al., 2012), where auto-fluorescence is much less of an obstacle than in leaves. It is by using FRET-confocal laser scanning microscopy that Ca2+ imaging on leaves with YC has recently been reported (Benikhlef et al., 2013; Verrillo et al., 2014). Aequorin imaging requires ultra-sensitive cameras (intensified-CCD or electron-multiplied-CCD) while G5A imaging does not. The high dynamics and intensity of G5A light emission upon Ca2+ events open opportunities to detect low Ca2+ signals and to analyse their propagation with good time resolution, using a “regular” cooled CCD camera. In practical terms, time resolution is the time required to make an image (a frame) with an acceptably high signal/noise ratio. Under the present experimental conditions, integration time for a frame was well under 1 min: depending on amplitude of the Ca2+ signal this integration time ranged from 30 s (Figure 6) down to 15 s (Figure 8) for whole seedlings or mature leaves and even down to 5 s in the most favorable case (wounding stress, data not shown). Thus, values of Ca2+ wave propagation speed as fast as 0.5–0.6 mm/s can be resolved (Figure 9, Tables 1, 2).
We consider that G5A reporter opens exciting perspectives for the study of cell-to-cell communication in plants. The physiological meaning of Ca2+ waves observed within vascular tissues (but not solely there) is one of the interesting aspects which could be investigated. Velocity values observed for these Ca2+ signals are of the same order of magnitude than those of “fast” electrical signals (i.e., “action potentials”) reported to travel leaf tissues in Arabidopsis (Favre et al., 2011). This substantiates the hypothesis of an interplay between Ca2+ and electrical signaling (Król et al., 2011). Recently, glutamate receptor-like putative Ca2+ channels were reported to play a role in leaf to leaf signaling after wounding (Mousavi et al., 2013), together with electrical signals. In this context, combining G5A-based imaging of Ca2+ with electrophysiological recording of electrical signals might be a powerful method to decipher the molecular basis of electrical signaling in plants upon different types of stress, including wounding.
In conclusion, G5A allows to image free Ca2+ elevation in intact plant leaves, making this probe a promising addition in the toolbox of plant cell physiology. Ca2+ imaging in intact plant leaves with widely affordable imaging equipment has the potential to boost the investigation of Ca2+ signaling in plants.
