Mohamad Abbas
David Alabadí
Miguel A. Blázquez- Instituto de Biología Molecular y Celular de Plantas, Universitat Politècnica de València - Consejo Superior de Investigaciones Científicas, Valencia, Spain
The apical hook is a developmentally regulated structure that appears in dicotyledonous seedlings when seeds germinate buried in the soil. It protects the shoot apical meristem and cotyledons from damage while the seedling is pushing upwards seeking for light, and it is formed by differential cell expansion between both sides of the upper part of the hypocotyl. Its apparent simplicity and the fact that it is dispensable when seedlings are grown in vitro have converted the apical hook in one of the favorite experimental models to study the regulation of differential growth. The involvement of hormones –especially auxin—in this process was manifested already in the early studies. Remarkably, a gradient of this hormone across the hook curvature is instrumental to complete its development, similar to what has been proposed for other processes involving the bending of an organ, such as tropic responses. In agreement with this, other hormones—mainly gibberellins and ethylene—and the light, regulate in a timely and interconnected manner the auxin gradient to promote hook development and its opening, respectively. Here, we review the latest findings obtained mainly with the apical hook of Arabidopsis thaliana, paying special attention to the molecular mechanisms for the cross-regulation between the different hormone signaling pathways that underlie this developmental process.
Introduction
One of the developmental innovations during land plants evolution was the invention of skotomorphogenesis, most likely during the emergence of Angiosperms, forced by the need of seedlings to efficiently and safely grow toward the light when seed germination began to take place when buried in the soil (Wei et al., 1994). Seedlings that follow this developmental program show an etiolated appearance with a fast-growing and long embryonic stem (Fankhauser and Chory, 1997). The strategies followed by monocotyledonous and dicotyledonous seedlings to protect the shoot apical meristem while pushing through the soil are, however, different. While monocots have developed the coleoptile as a protective structure, the shoot apical meristem is protected by two small and folded cotyledons subtended at the tip of a hook-like structure in the upper part of the hypocotyl in most dicots. Remarkably, the presence of the apical hook has become key for successful emergence from the soil after seed germination, as seedlings lacking this structure have lost this vital ability (Harpham et al., 1991).
Time-lapsed imaging has allowed us to look at the dynamics of hook development in dark-grown Arabidopsis seedlings with an unprecedented precision, starting at seed germination (Vandenbussche et al., 2010; Zadnikova et al., 2010; Gallego-Bartolomé et al., 2011), supporting and extending previous studies (Raz and Ecker, 1999). When growing in vitro, apical hook development proceeds through three different phases (Figure 1; see the whole process of Arabidopsis hook development in Movie 1 available in Supplemental Material). The formation phase starts when the seedling emerges from the seed coat, and lasts about 24 h in which the hook reaches roughly 180°. This phase is followed by a maintenance phase, in which the seedling actively keeps its hook closed for another about 24 h while the hypocotyl rapidly elongates. Finally, seedlings enter the opening phase in which the hook starts to open, reaching angle zero 3 days later. As we will review in the following sections, this technique has served to precisely dissect the involvement of different hormone pathways in each phase of hook development, taking advantage of the fact that this structure is dispensable under conventional in vitro conditions.

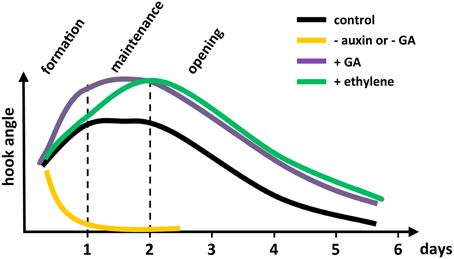

Figure 1. Schematic illustration showing the dynamics of hormone actions in apical hook development in Arabidopsis. The - auxin was produced by treating with the auxin transport inhibitor naphthylphthalamic acid (NPA); - GA, by GA biosynthesis inhibitor paclobutrazol; and + ethylene, by adding the immediate ethylene precursor, ACC. The + GA shows the GA action constitutively revealed by the use of a dellaKO mutant.
How is the hook curvature achieved? The growth of an organ is the consequence, in the simplest view, of coordinated cell division and cell expansion. Thus, in principle both processes might occur differentially at opposite sides of the hypocotyl and contribute to generate the curvature. Early studies, however, showed that hook curvature is mainly caused by differential cell expansion between both sides at the upper part of the hypocotyl, in such a way that the side with the higher growth rate becomes the outer side of the hook (Silk and Erickson, 1978). Nonetheless, a small but significant contribution of differential cell division also occurs, being higher at the inner side of the hook and consequently leaving less space for cells to enlarge (Raz and Koornneef, 2001).
An Auxin Gradient Drives Differential Cell Growth at the Apical Hook
Once established the cellular basis of the curvature, the next relevant question was about the driving force underlying the differential cell growth. It was known for many years that an organ, for example the stem or the root, can bend in response to tropic environmental stimuli, and that a differential cell elongation at opposite sides of the organ lays at the base of the response (Esmon et al., 2005). Importantly, this differential growth is driven by an asymmetrical distribution of the hormone auxin triggered by the tropic stimulus (Spalding, 2013), as the Cholodny-Went model proposed back in 1926 (Went, 1974). For instance, auxin accumulation is higher at the shaded than at the lit side of hypocotyls of etiolated Brassica oleracea seedlings exposed to unidirectional blue light, causing its elongation and thus bending toward light (Esmon et al., 2006).
Hence, does an auxin gradient drive the differential growth in the apical hook too? First hints came from physiological analyses in etiolated Phaseolus vulgaris seedlings, which showed preferred auxin accumulation at the inner side of the hook (Schwark and Schierle, 1992). Genetic confirmation for the involvement of auxin came later, when Arabidopsis mutants over-accumulating the active auxin indole-3-acetic acid (IAA) showed a hookless phenotype (Boerjan et al., 1995; Lehman et al., 1996; Zhao et al., 2001). The same was true for mutants with altered auxin response in the region where the hook should be (Lehman et al., 1996; Li et al., 2004). Indeed, staining of the auxin signaling marker DR5::GUS (see Glossary, Box 1), which usually stains the inner side of the hook in Arabidopsis, is lost in the latter mutants or after treatments with inhibitors of polar auxin transport that result also in hookless seedlings (Figure 1) (Friml et al., 2002; Li et al., 2004; Vandenbussche et al., 2010; Zadnikova et al., 2010; Gallego-Bartolomé et al., 2011; Willige et al., 2012). All these results pointed out that proper auxin distribution and response between both sides at the upper part of the hypocotyl are critical for the formation of the hook. It is important to remark that auxin signaling is enhanced at the side with restricted growth likely as a consequence of auxin accumulation, as occurs in the root after gravi-stimulation (Friml et al., 2002; Ottenschlager et al., 2003; Band et al., 2012), whereas the contrary occurs after gravi- and photo-stimulation in the shoot, as mentioned above. The preferential activation of specific ARF transcription factors that regulate growth negatively will cause the growth arrest in the inner side of the hook.

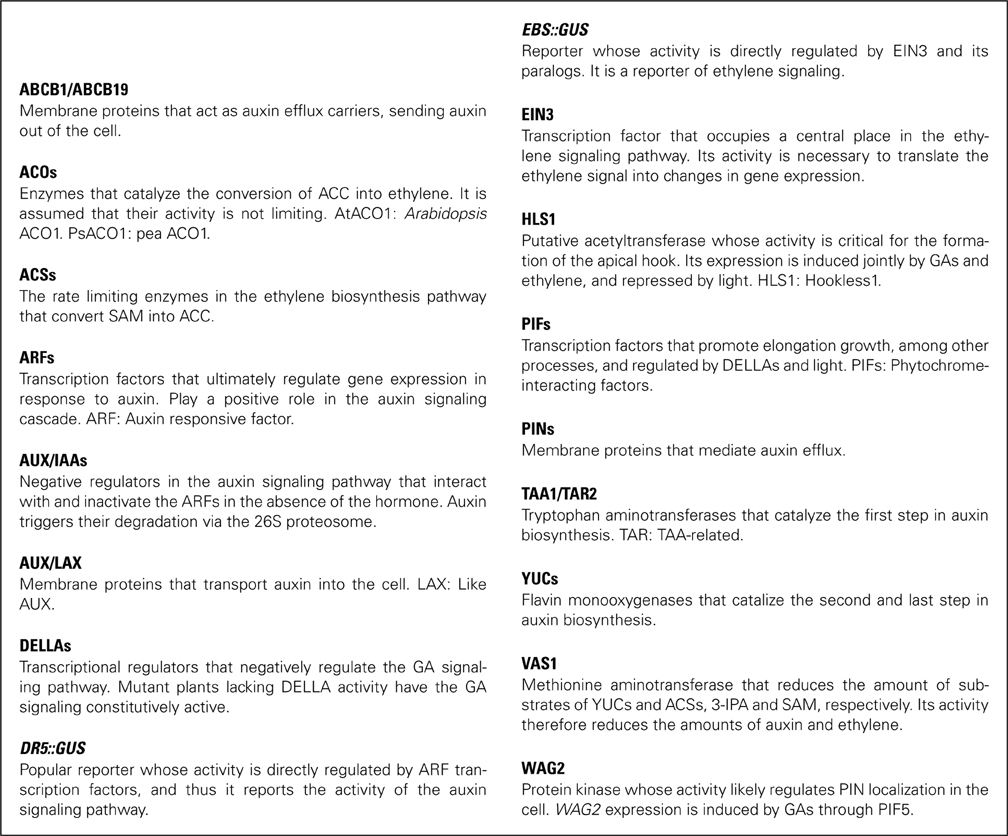

Box 1. Glossary
Nowadays we have quite a good view of how the auxin gradient is formed (Figure 2). As mentioned above, treatment with inhibitors that block polar auxin transport causes seedlings to be hookless and, remarkably, enhances the DR5::GUS activity in cotyledons, suggesting that these act as a source of the hormone (Li et al., 2004; Vandenbussche et al., 2010; Zadnikova et al., 2010; Gallego-Bartolomé et al., 2011). Nonetheless, at least two evidences suggest that local auxin biosynthesis at the apical hook region might also contribute. First, YUC1, and TAA1/WEI8 and TAR2 genes (see Glossary, Box 1), encoding key enzymes that sequentially catalyze the two steps of the main auxin biosynthesis pathway (Mashiguchi et al., 2011; Stepanova et al., 2011; Won et al., 2011), are expressed at the apical hook region (Stepanova et al., 2008; Vandenbussche et al., 2010). And second, wei8 tar2 and yuc1/2/4/6 mutant seedlings are not able to form properly the apical hook (Stepanova et al., 2008, 2011; Vandenbussche et al., 2010).
Figure 2. Scheme of the transport machinery involved in the generation of the auxin gradient in the apical hook. The auxin flow directed by influx and efflux carriers is represented by orange and purple arrows, respectively. The wide arrow representing PIN3 activity means that this carrier performs a major role driving auxin toward the outer side of the hook. The image represents a DR5::GUS seedling during the formation phase. Picture courtesy of Dr. Javier Gallego-Bartolomé.
In general, the expression of the auxin biosynthetic genes is not asymmetrical in the apical hook, and only during the opening phase YUC1 becomes differentially expressed in the outer side (Vandenbussche et al., 2010), whereas TAR2 expression is enhanced by ethylene specifically at the inner side during maintenance (Stepanova et al., 2008; Vandenbussche et al., 2010). This suggests that differential auxin biosynthesis is not a major determinant for the formation of the auxin gradient in the hook. Indeed, auxin transport is required not only to distribute in the hook the hormone coming down from cotyledons, but also the auxin synthesized at the hook itself. Despite some auxin may freely diffuse into the cells, most of it is transported actively by dedicated influx and efflux carriers, which are plasma membrane proteins that help auxin to move into and out of the cell, respectively (Spalding, 2013). The influx carriers in Arabidopsis are encoded by four genes (Peret et al., 2012), and among them AUX1 and LAX3 perform a major, additive role directing the auxin stream in the apical hook (see Glossary, Box 1) (Vandenbussche et al., 2010). In particular, AUX1 loads the cells of the apical part of the hook with auxin coming from cotyledons and shoot apical meristem and, together with LAX3, directs the auxin flow down the hypocotyl toward the root. AUX1 is localized mainly in epidermal cells at both sides of the hook and LAX3 in the vascular tissue, not showing in any case asymmetry. Therefore, the influx proteins participate in keeping the proper basipetal flow of auxin through the hook, whereas their contribution to the generation of the gradient is, if any, minor.
At least two types of membrane proteins act as auxin efflux carriers, the PIN gene family composed of eight members (Grunewald and Friml, 2010), and two members of the B-type ATP-binding cassette transporters, ABCB1 and ABCB19 (see Glossary, Box 1) (Noh et al., 2001). Genetic analysis has shown that both ABCB proteins are needed to proceed through hook development, since the double loss-of-function mutant b1-1 b19-1 shows defects in hook formation and opening (Wu et al., 2010). Interestingly, ABCB19 is localized at the plasma membrane of epidermal cells at the inner side of the hook, likely mediating basipetal auxin flow through this side (Noh et al., 2001; Wu et al., 2010). Indeed, DR5::GUS activity disappears in b1-1 b19-1 seedlings, whereas a strong signal is detected in plants over-expressing ectopically ABCB19 (Wu et al., 2010). The scenario is more complicated when we look at the PINs. Genetics, combined with detailed kinematic analysis of hook development and confocal microscopy have underscored a prominent role for PIN3, distributing auxin both from the vascular tissue into the cortex and epidermis and through these tissues down the hypocotyl, and acting mainly at the outer side of the hook (Zadnikova et al., 2010). Nonetheless, PIN3 is aided by other transporters to properly distribute the hormone, namely PIN1 in the vascular cylinder (Zadnikova et al., 2010) and the inner side epidermis (Willige et al., 2012), and PIN4 and PIN7 in the cortex and epidermis of both sides (Zadnikova et al., 2010). In summary, the uniform upload of auxin by AUX1 and LAX3 into the upper hypocotyl, combined with the joint activity of PINs and the ABCB transporters may finally result in a higher auxin draining from the outer side of the hook and, consequently, accumulation at the inner side, thus generating the hormone gradient.
The auxin gradient—measured as DR5::GUS activity—is established during the formation phase and disappears during hook opening (Vandenbussche et al., 2010; Zadnikova et al., 2010; Gallego-Bartolomé et al., 2011). The information contained in the gradient has to be interpreted by the signaling pathway to bring about the differential cell growth. As expected, several known elements of the auxin signaling pathway are involved in this response (Figure 3) (Chapman and Estelle, 2009). For instance, mutant seedlings defective in the four auxin F-box receptors lack an apical hook (Dharmasiri et al., 2005). The same phenotype is observed in plants expressing dominant, stable versions of the negative regulators in the signaling pathway, the Aux/IAA proteins SHY2/IAA3, BDL/IAA12 or IAA13 among others (see Glossary, Box 1) (Zadnikova et al., 2010), that are normally expressed at the inner side of the hook (De Grauwe et al., 2005; Zadnikova et al., 2010). The physiological importance of these local effects of auxin activity has been underscored by an elegant experiment in which the axr3-1 dominant allele of an Aux/IAA gene was able to impair hook formation simply when its expression was specifically directed to the inner side of the hook (Vandenbussche et al., 2010). In agreement with this, loss-of-function mutants in some positive elements, such as the transcriptional activators NPH4/ARF7 and ARF19 (see Glossary, Box 1), present defects in hook development similar to the dominant mutations in Aux/IAA genes (Stowe-Evans et al., 1998; Harper et al., 2000; Zadnikova et al., 2010). The final output of the auxin signaling pathway on the hook is not mediated exclusively by ARFs that promote transcription. Genetic analyses demonstrate that the transcriptional repressors ARF1 and ARF2 act as negative regulators of hook development, as the double mutant arf1 arf2 has a hook with an exaggerated curvature (Li et al., 2004). Interestingly, the transcriptional properties of the two types of ARFs, i.e., activation and repression, result in the promotion and repression of differential cell elongation, respectively (Stowe-Evans et al., 1998; Harper et al., 2000; Li et al., 2004; Okushima et al., 2005). Thus, the different auxin levels in both sides of the hook might simultaneously activate the two contrasting types of ARFs. Given that the ARFs seem to be expressed symmetrically in the hook (Li et al., 2004; Zadnikova et al., 2010), the ultimate effect on the elongation rate of both sides might respond to a different, spatially-driven sensitivity of each type of ARF to the activating properties of auxin, and/or to differences in the accumulation of the respective proteins (Figure 3).

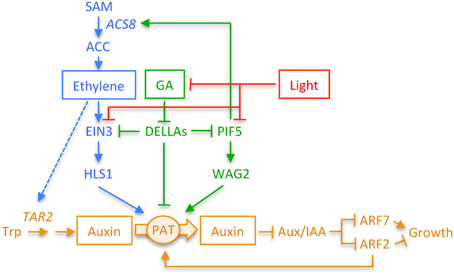

Figure 3. Diagram depicting the interactions between GAs, ethylene, and light signaling pathways in Arabidopsis and how they modulate the auxin response in the apical hook. Not all interactions take place simultaneously. The differential auxin response is required during the whole process of hook development, and it is modulated by GAs and/or ethylene depending on the phase. GAs are relevant during the formation phase, whereas the role of ethylene during this phase seems to be minor. The mechanism by which GAs control the auxin response during the formation phase is unknown, although it will likely involve HLS1 regulation. Both GAs and ethylene are, however, important to prevent opening, and thus the interactions between both hormones will take place during maintenance. The signaling elements involved in the regulation of TAR2 by ethylene are unknown (discontinuous blue line). Light may provoke hook opening at any stage of hook development. Bars and arrowheads indicate negative and positive effects, respectively. PAT, polar auxin transport.
As we have seen, auxin is instrumental for hook development. Nonetheless, it is not the only signal that contributes to this process (Alabadí et al., 2009). It has been known for many years that ethylene has a positive effect, since mutants affected in the ethylene biosynthetic or signaling pathways show alterations in hook development (Guzman and Ecker, 1990). Similarly, gibberellins (GAs) (Achard et al., 2003; Alabadí et al., 2004; Vriezen et al., 2004), and brassinosteroids (De Grauwe et al., 2005) also promote hook development. In the next two sections, we will review the latest results shedding light on how ethylene and GAs exert their action in hook development by modulating, at different levels, the auxin pathway.
Ethylene Regulates the Auxin Activity at Different Levels to Promote Hook Development
The involvement of ethylene in the correct development of the apical hook was first suspected in the late 60s, when it was found that low concentrations of exogenous ethylene could inhibit hook opening in bean (Kang et al., 1967). That this effect was physiologically relevant was supported by the observation that the promotion of hook opening by light correlated with a decrease in ethylene production in bean (Kang et al., 1967) and in pea seedlings (Goeschl et al., 1967). More recently, genetic confirmation of the control of hook curvature by ethylene has been found through the evaluation of Arabidopsis mutants affected in ethylene biosynthesis and signaling. For instance, eto1 and eto2 ethylene overproducers (Guzman and Ecker, 1990), or the constitutive ethylene signaling mutant ctr1 (Bleecker et al., 1988; Kieber et al., 1993) display an enhanced hook curvature, while etr1 mutants defective in ethylene perception (Bleecker et al., 1988) or ein2 mutants with a block in the ethylene signaling cascade are hookless (Guzman and Ecker, 1990). Real-time imaging of etiolated Arabidopsis seedlings has now showed that ethylene delays the transition between formation and maintenance phases, leading therefore to a hook with an exaggerated curvature (Figure 1) (Vandenbussche et al., 2010; Zadnikova et al., 2010; Gallego-Bartolomé et al., 2011).
An important aspect that has been intensively studied is the possibility that the differential cell growth rate in either side of the hook could be established by asymmetrical synthesis, perception, or signaling of ethylene in the top of the etiolated hypocotyl. Indeed, ethylene production is localized in the apical hook region of germinating seedlings (Goeschl et al., 1967), and it has been found to be unequally distributed in the apical hook cells of bean (Schwark and Bopp, 1993). However, there are contradictory results for the localization of ACC oxidases (see Glossary, Box 1) in hooks: while PsACO1 mRNA was found preferentially in the inner side (Peck et al., 1998), AtACO2 mRNA seems to accumulate in the outer, more rapidly elongating cells of the hook (Raz and Ecker, 1999). Despite this differential accumulation of ACO transcripts, it seems that the response to ethylene in the hook is not asymmetrical (Vandenbussche et al., 2010), as assessed using the primary ethylene response reporter EBS::GUS (see Glossary, Box 1) (Stepanova et al., 2007). In any case, ethylene application still shows a differential effect on either side of the hook, both in pea and in Arabidopsis, leading to the important question of how ethylene information is transformed into a differential growth effect.
Although ethylene has been proposed as an antagonist of auxin action for instance during lateral root formation and hypocotyl elongation (Muday et al., 2012), current evidences point in the direction of ethylene being a signal necessary for the establishment and maintenance of the auxin gradient that determines the differential growth rate between both sides of the hook (Figure 3) (Vandenbussche et al., 2010; Zadnikova et al., 2010). A genetic screen aimed at identifying regulatory elements for hook development induced by ethylene uncovered what seems to be a critical element that establishes asymmetry in the auxin across the hook. Loss-of-function mutations in HOOKLESS1 (HLS1; see Glossary, Box 1) lacked an apical hook and completely suppressed the exaggerated curvature caused by ethylene application to etiolated Arabidopsis seedlings (Guzman and Ecker, 1990). HLS1 encodes a putative N-acetyltransferase and its expression is positively regulated by ethylene, indicating that HLS1 mediates the ethylene-induced formation of the hook (Lehman et al., 1996). In fact, HLS1 is not only necessary, but also sufficient to promote hook formation, because its overexpression causes the formation of an enhanced hook curvature.
At least three pieces of evidence link HLS1 to the differential auxin response: (1) the lack of a proper gradient of auxin activity—measured as differential DR5::GUS expression—in the apical zone of the hls1 mutant where the hook should have formed (Li et al., 2004); (2) the observation that auxin transport inhibitors phenocopy the suppression by hls1 of the effects caused by exogenous ethylene (Lehman et al., 1996); and (3) the isolation of mutations in AUXIN RESPONSE FACTOR2 (ARF2) as suppressors of hls1 (Li et al., 2004). Moreover, sensitivity to ethylene is restricted to a time window of 2–3 days after germination (Raz and Ecker, 1999; Vandenbussche et al., 2010) strongly suggesting that the primary role of ethylene would be to help establish the auxin gradient and/or response after seedling emergence. The molecular mechanism by which ethylene performs this function is not completely clear yet. Given that ethylene still promotes hook formation in HLS1 overexpressing seedlings (An et al., 2012), it is reasonable to think that ethylene impinges on more than one level at the auxin pathway for the generation of the auxin asymmetrical response.
In fact, several cross-regulatory points have been identified between both hormone pathways (Figure 3) (Stepanova et al., 2008; Vandenbussche et al., 2010; Zadnikova et al., 2010). On the one hand, ethylene enhances the auxin biosynthetic pathway in the inner side of the hook through local up-regulation of TAR2 (see Glossary, Box 1), which is consistent with auxin acting downstream of ethylene, since IAA-treatments restore the hook in ethylene insensitive mutants (Vandenbussche et al., 2010). On the other hand, ethylene modulates to some degree the auxin transport in the hook, through the increase in both, the turnover of AUX1 in the inner side of the hook (Vandenbussche et al., 2010) and the preferential localization of PIN3 to the lateral side of cortex cells mainly at the outer side of the hook (Zadnikova et al., 2010). Moreover, it has been identified recently a protein, VAS1 (see Glossary, Box 1), that acts as a cross-regulatory point controlling the flow through the auxin and ethylene biosynthetic pathways in response to shade (Zheng et al., 2013). VAS1 prevents over accumulation of ethylene and auxin, thus preventing an exaggerated response to this environmental signal, and its expression overlaps with that of the DR5::GUS marker, at least at seedling stage and in flowers, suggesting that VAS1 activity contributes to the final outcome of auxin signaling. Thus, one can envision VAS1 acting in a similar way in the hook to control the proper accumulation of both hormones. In fact, it would be very interesting to study how hook development proceeds in vas1 mutants to test this possibility.
In summary, ethylene seems to ensure the differential accumulation of auxin in the cells on the inner side of the hook, although it is not fully understood yet how HLS1 regulates the differential auxin response (Figure 3).
Gibberellins Modulate the Auxin and Ethylene Action to Regulate Hook Development
Time-lapsed imaging showed that GAs perform a prominent role during the formation and opening phases of hook development (Figure 1) (Gallego-Bartolomé et al., 2011). In particular, GAs are limiting during the formation phase, since mutant seedlings defective for the five DELLA proteins of Arabidopsis (see Glossary, Box 1), which are the negative regulators in the signaling pathway (Locascio et al., 2013) develop a hook with exaggerated curvature, whereas seedlings proceed directly to the opening phase when DELLA proteins over-accumulate.
Having seen in the previous sections the instrumental role of auxin for hook development, and how ethylene regulates it by modulating the auxin action, how do GAs fit within this scenario? Recent results identify several cross-regulatory points between GAs and the other two hormones (Figure 3) (Gallego-Bartolomé et al., 2011; An et al., 2012; Willige et al., 2012). The differential auxin response in the hook—assessed by DR5::GUS staining—depends on an active GAs (Gallego-Bartolomé et al., 2011). For instance, the asymmetrical response disappears during the formation phase when DELLAs over-accumulate due to inhibition of GA biosynthesis, whereas a GA treatment enhances it. Interestingly, this enhancement occurs only during maintenance and opening, suggesting that the GA activity is limiting to control the auxin response during these two phases and therefore the magnitude of the GA requirement is regulated developmentally. Asymmetry in GA signaling and response would explain the GA effect on auxin asymmetry. However, visualization of the DELLA protein RGA, whose activity is important for hook development (Alabadí et al., 2004) showed that this protein is evenly distributed through the hook (Vriezen et al., 2004), suggesting that asymmetry in GA signaling at the hook is minor, if any.
How do GAs control the auxin action in the hook region? First, GAs regulate the expression of auxin efflux carriers. Sustained expression of PIN3 and PIN7 requires active GAs, and in agreement with this, the pin3 pin7 mutant does not show the enhanced curvature caused by exogenous GA (Gallego-Bartolomé et al., 2011). The molecular mechanism by which GAs regulate the expression of the transporters is currently unknown. Nonetheless, the requirement for GAs differs between both genes. Accumulation of DELLAs in the endodermis, but not in the epidermis, is enough to restrict PIN3 expression to the vascular cylinder, while accumulation at any of both tissues results in PIN7 repression. Given the prominent role of PIN3 in hook development, the effect on its expression seems to have consequences in the auxin transport, leading to the suppression of the differential response of DR5::GUS and very likely to hook opening.
Second, GAs control the expression of the WAG2 gene (see Glossary, Box 1) (Willige et al., 2012). WAG2 is an AGC-type kinase that phosphorylates, at least in vitro, several PINs. WAG2 is expressed preferentially at the inner side of the hook, where it prevents hook opening by helping to sustain proper asymmetry in the auxin response—likely through regulating PIN activity. Importantly, WAG2 is induced by GAs through the transcription factor PIF5 (see Glossary, Box 1) (Willige et al., 2012), which participates in hook development (Khanna et al., 2007; Gallego-Bartolomé et al., 2011), and whose activity is inhibited upon interaction with DELLA proteins (Gallego-Bartolomé et al., 2011). Thus, it is very likely that GAs help to maintain auxin asymmetry at the hook by promoting DELLA degradation, which in turn allows PIF5 to enhance the expression of WAG2 necessary to sustain proper PIN activity at the inner side of the hook. How WAG2 expression is confined to the inner side of the hook is currently unknown.
As mentioned above, the GA and ethylene pathways interact in the hook region. Physiological analyses demonstrate that both hormones likely act independently of each other during hook formation, whereas they cooperate preventing opening (Gallego-Bartolomé et al., 2011). GAs contribute to maintain the threshold level of ethylene needed to proceed through hook development, mainly through maintenance and opening. Indeed, ethylene levels are higher in dellaKO mutants than in the wild type during these two phases (Gallego-Bartolomé et al., 2011). Remarkably, the expression of ACS5/ETO2 and ACS8 genes (see Glossary, Box 1), which encode key ethylene biosynthetic enzymes, is sustained by GAs. In particular, GAs promote DELLA degradation allowing PIF5 to bind to the promoter of ACS8 and activating its expression (Gallego-Bartolomé et al., 2011), in a mechanism very similar to the regulation of WAG2 by GAs (Willige et al., 2012). The contribution of DELLA-regulated ethylene biosynthesis to hook development may be, however, minor given that dellaKO mutants are mostly resistant to ethylene biosynthesis inhibitors (An et al., 2012).
In addition to regulating ethylene biosynthesis, GAs directly upregulate the expression of the ethylene-inducible gene HLS1 (Gallego-Bartolomé et al., 2011; An et al., 2012). Time-lapsed imaging analyses show that there is a total coincidence in the timing of requirement of GAs and HLS1 activity for hook development (Gallego-Bartolomé et al., 2011), and that HLS1 is absolutely necessary for GAs to exert their role on this process (Gallego-Bartolomé et al., 2011; An et al., 2012). How do GAs regulate HLS1? The DELLA protein GAI directly downregulates the expression of HLS1 (Gallego-Bartolomé et al., 2011), whereas EIN3 (see Glossary, Box 1) binds in vivo to the HLS1 promoter in response to ethylene (An et al., 2012). Remarkably, An and colleagues (An et al., 2012) have shown that DELLAs are able to inactivate EIN3 upon physical interaction, thus providing a molecular mechanism for the interaction between both hormones to regulate, at least, the HLS1 gene. This regulation might be relevant during the formation phase. However, it is not clear how relevant this regulation may be in normal situations, given that although GAs are limiting during this phase to determine the extent of hook curvature, they do not appear to be essential for HLS1 expression or to establish the asymmetrical auxin response, assessed by DR5::GUS (Gallego-Bartolomé et al., 2011).
GAs and ethylene jointly prevent hook opening, and this is evident when both hormone pathways are fully active (Gallego-Bartolomé et al., 2011). This could be explained through the negative effect of DELLA on EIN3 activity. Nonetheless, genetic impairing of the activity of EIN3 and of its closest homologue EIL1 in a dellaKO background, does not result in hookless phenotype (An et al., 2012), indicating that GAs also act through additional transcription factors to prevent opening.
In summary, GA action on hook development is mediated by its effect on auxins, either directly or indirectly through their influence on ethylene (Figure 3). In this network, DELLA interaction with other transcription factors—PIF5 and EIN3—is crucial to bring about the GA control on ethylene and auxin. Nonetheless, further work is needed to fully understand the way GAs regulate hook development. For instance, our current knowledge does not explain the enhanced speed of hook formation of the dellaKO mutant.
Light Triggers Hook Opening
Once the seedling emerges from the soil, the apical hook becomes dispensable and light triggers its opening, which is noticeable in less than an hour (Figure 4) (Liscum and Hangarter, 1993a; Miller et al., 2007; Wang et al., 2009; Wu et al., 2010). Light of different qualities trigger photomorphogenic responses, and among them hook opening is most sensitive to far-red and blue irradiances, whereas it is less sensitive to red under continuous irradiation (Liscum and Hangarter, 1993a). In a pulse irradiation, red light is most effective, its action being reversed by a subsequent far-red pulse. These provide the evidence that hook opening involves phytochrome actions, although cryptochrome is possible to partially contribute to continuous blue action (Liscum and Hangarter, 1993b). Accordingly, the phytochrome-regulated transcription factors PIFs are relevant modulators of this process (Figure 3) (Khanna et al., 2007; Gallego-Bartolomé et al., 2011; Kim et al., 2011; Willige et al., 2012).
Figure 4. High-resolution images of a single Arabidopsis seedling undergoing hook opening during de-etiolation. From left to right: 2-day-old dark-grown seedling at the end of the maintenance phase; the same seedling 2, 4, and 8 h after illumination, respectively. The middle part of hypocotyls was removed—white oblique lines—to prepare the final images showing both the bottom and apical parts of hypocotyls. Pictures courtesy of Dr. Javier Gallego-Bartolomé.
It is reasonable to think that light impinges on the signaling network described in the previous sections to trigger opening of the hook. In fact, the auxin gradient, measured as DR5::GUS activity, disappears 4 h after the exposure of seedlings to light (Wu et al., 2010). The ABCB1 and ABCB19 auxin transporters might be targets of light signaling, since opening is delayed in seedlings that either lack both activities or express ectopically the ABCB19 protein (Wu et al., 2010). Nonetheless, it is still possible that these proteins' activity is not altered by light, and that the effect on the opening kinetics observed in the mutant lines is an indirect consequence of their defects in hook development, which are most apparent in the case of b1-1 b19-1 seedlings (Wu et al., 2010). In fact, hooks eventually open and DR5::GUS activity decreases in plants that over-express ectopically ABCB19, suggesting that light signaling is able to overcome the activity of this transporter through alternative pathways.
One of the proteins that likely represents a major target of light signaling to control hook opening is HLS1. As mentioned in the previous sections, HLS1 activity constitutes a bottleneck for hook development, affecting auxin signaling (Lehman et al., 1996; Li et al., 2004). The way light signaling controls HLS1 seems to be at the transcriptional level, since the protein rapidly decreases upon illumination of etiolated seedlings, whereas it is stable for several days in the light when the HLS1 gene is under a constitutive promoter (Li et al., 2004). As HLS1 decreases, there is a concomitant increase in ARF2 that will likely affect negatively the differential auxin response across the hook, causing its opening. HLS1 gene transcription is up-regulated by GAs and ethylene (Lehman et al., 1996; Gallego-Bartolomé et al., 2011; An et al., 2012), as mentioned in the previous sections, in an EIN3-dependent manner (An et al., 2012). Therefore, it would not be surprising that light signaling down-regulates HLS1 by impinging on ethylene and GAs (Figure 3). On the one side, EIN3 protein is destabilized by light (Zhong et al., 2009), and although the rate of EIN3 decrease is quite slow, it is reasonable to think that it might contribute to down-regulate HLS1. And on the other side, DELLA proteins accumulate in etiolated seedlings upon illumination (Achard et al., 2007), in parallel with the decrease in HLS1 (Li et al., 2004). Importantly, DELLAs might interact physically with EIN3 as they accumulate, and because of the interaction, EIN3's ability to bind to HLS1 promoter is most likely compromised (An et al., 2012). Therefore, light might trigger hook opening by down-regulating HLS1 through its dual, negative effect on EIN3. The extent to which the effect of light on HLS1 is EIN3-dependent needs further investigations. The accumulation of DELLA proteins during de-etiolation surely has additional consequences on the signaling network. For instance, DELLAs will join light to regulate PIF5 negatively (Shen et al., 2007; Gallego-Bartolomé et al., 2011). Impairing of PIF5 activity should down-regulate WAG2, impinging on the activity of the PIN proteins (Willige et al., 2012), therefore contributing to promote hook opening. Despite these are likely targets of light signaling to open the hook, it will also impinge on the auxin gradient through other, unknown elements, given that light is still able to open the hook of dellaKO or ACC-treated seedlings.
Perspectives
In summary, we have quite a fair understanding of the signaling network that regulates apical hook development. Nonetheless, new arising questions need to be answered in the next years to have a more complete and realistic view of this process. First, from a mechanistic point of view, we have to address the following issues: (i) determine how and when the polarity in the hypocotyl region where the hook will form is established. (ii) fill the gaps in the signaling network by identifying the transcription factors that mediate, for instance, GAs or ethylene effect on auxins. And (iii) identify the downstream, side-specific target genes of the network, in order to understand the actual processes that make the difference between both sides, as has been done in response to tropic stimulations (Esmon et al., 2006). For example, a transcriptional profiling of dissected hooks of etiolated soybean seedlings has rendered a few hook specific genes that are regulated by light during opening, and has permitted to assign a role in hook development to RPT2 (Li et al., 2011), a protein previously related to tropic responses (Sakai et al., 2000).
And second, from an ecological point of view, and besides having already shown that the apical hook confers a vital advantage to seedlings (Harpham et al., 1991), we have to try to understand how hook develops under natural conditions, ideally while seedlings are buried in the soil. All our knowledge has been built studying seedlings growing in vitro, owing to the dispensable nature of the apical hook under this condition. However, the relationships between the hormones identified and, more importantly, their relative importance might be very different in the wild, where other cues can take the lead directing hook development, for instance, soil type and compactness or oxygen availability.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This work was supported by grants from the Spanish Ministry of Science and Innovation (BIO2010-15071 and CSD2007-00057) and the Generalitat Valenciana (ACOMP/2011/288 and PROMETEO/2010/020).
Supplementary Material
The Supplementary Material for this article can be found online at: http://www.frontiersin.org/journal/10.3389/fpls.2013.00441/abstract
Movie 1. Shows the Arabidopsis apical hook development process. Apical hook development in Arabidopsis seedlings. Col-0 Arabidopsis wild type seeds were sown and germinated in regular medium in vertical plates. Images were taken every 45 min for 121 h with a camera Guppy F-146B (Allied Vision Technologies). Infra-red light was provided by an IR LED back-light emitting at 880 nm. Images were saved as a video in .avi format using the ImageJ software. One side of the squares in the background is 13 mm long.
References
Achard, P., Liao, L., Jiang, C., Desnos, T., Bartlett, J., Fu, X., et al. (2007). DELLAs contribute to plant photomorphogenesis. Plant Physiol. 143, 1163–1172. doi: 10.1104/pp.106.092254
Achard, P., Vriezen, W. H., Van Der Straeten, D., and Harberd, N. P. (2003). Ethylene regulates arabidopsis development via the modulation of DELLA protein growth repressor function. Plant Cell 15, 2816–2825. doi: 10.1105/tpc.015685
Alabadí, D., Blázquez, M. A., Carbonell, J., Ferrándiz, C., and Pérez-Amador, M. A. (2009). Instructive roles for hormones in plant development. Int. J. Dev. Biol. 53, 1597–1608. doi: 10.1387/ijdb.072423da
Alabadí, D., Gil, J., Blázquez, M. A., and García-Martínez, J. L. (2004). Gibberellins repress photomorphogenesis in darkness. Plant Physiol. 134, 1050–1057. doi: 10.1104/pp.103.035451
An, F., Zhang, X., Zhu, Z., Ji, Y., He, W., Jiang, Z., et al. (2012). Coordinated regulation of apical hook development by gibberellins and ethylene in etiolated Arabidopsis seedlings. Cell Res. 22, 915–927. doi: 10.1038/cr.2012.29
Band, L. R., Wells, D. M., Larrieu, A., Sun, J., Middleton, A. M., French, A. P., et al. (2012). Root gravitropism is regulated by a transient lateral auxin gradient controlled by a tipping-point mechanism. Proc. Natl. Acad. Sci. U.S.A. 109, 4668–4673. doi: 10.1073/pnas.1201498109
Bleecker, A. B., Estelle, M. A., Somerville, C., and Kende, H. (1988). Insensitivity to ethylene conferred by a dominant mutation in Arabidopsis thaliana. Science 241, 1086–1089. doi: 10.1126/science.241.4869.1086
Boerjan, W., Cervera, M. T., Delarue, M., Beeckman, T., Dewitte, W., Bellini, C., et al. (1995). Superroot, a recessive mutation in Arabidopsis, confers auxin overproduction. Plant Cell 7, 1405–1419. doi: 10.2307/3870131
Chapman, E. J., and Estelle, M. (2009). Mechanism of auxin-regulated gene expression in plants. Annu. Rev. Genet. 43, 265–285. doi: 10.1146/annurev-genet-102108-134148
De Grauwe, L., Vandenbussche, F., Tietz, O., Palme, K., and Van Der Straeten, D. (2005). Auxin, ethylene and brassinosteroids: tripartite control of growth in the Arabidopsis hypocotyl. Plant Cell Physiol. 46, 827–836. doi: 10.1093/pcp/pci111
Dharmasiri, N., Dharmasiri, S., Weijers, D., Lechner, E., Yamada, M., Hobbie, L., et al. (2005). Plant development is regulated by a family of auxin receptor F box proteins. Dev. Cell 9, 109–119. doi: 10.1016/j.devcel.2005.05.014
Esmon, C. A., Pedmale, U. V., and Liscum, E. (2005). Plant tropisms: providing the power of movement to a sessile organism. Int. J. Dev. Biol. 49, 665–674. doi: 10.1387/ijdb.052028ce
Esmon, C. A., Tinsley, A. G., Ljung, K., Sandberg, G., Hearne, L. B., and Liscum, E. (2006). A gradient of auxin and auxin-dependent transcription precedes tropic growth responses. Proc. Natl. Acad. Sci. U.S.A. 103, 236–241. doi: 10.1073/pnas.0507127103
Fankhauser, C., and Chory, J. (1997). Light control of plant development. Annu. Rev. Cell Dev. Biol. 13, 203–229. doi: 10.1146/annurev.cellbio.13.1.203
Friml, J., Wisniewska, J., Benkova, E., Mendgen, K., and Palme, K. (2002). Lateral relocation of auxin efflux regulator PIN3 mediates tropism in Arabidopsis. Nature 415, 806–809. doi: 10.1038/415806a
Gallego-Bartolomé, J., Arana, M. V., Vandenbussche, F., Zadnikova, P., Minguet, E. G., Guardiola, V., et al. (2011). Hierarchy of hormone action controlling apical hook development in Arabidopsis. Plant J. 67, 622–634. doi: 10.1111/j.1365-313X.2011.04621.x
Goeschl, J. D., Pratt, H. K., and Bonner, B. A. (1967). An effect of light on the production of ethylene and the growth of the plumular portion of etiolated pea seedlings. Plant Physiol. 42, 1077–1080. doi: 10.1104/pp.42.8.1077
Grunewald, W., and Friml, J. (2010). The march of the PINs: developmental plasticity by dynamic polar targeting in plant cells. EMBO J. 29, 2700–2714. doi: 10.1038/emboj.2010.181
Guzman, P., and Ecker, J. R. (1990). Exploiting the triple response of Arabidopsis to identify ethylene-related mutants. Plant Cell 2, 513–523. doi: 10.2307/3869113
Harper, R. M., Stowe-Evans, E. L., Luesse, D. R., Muto, H., Tatematsu, K., Watahiki, M. K., et al. (2000). The NPH4 locus encodes the auxin response factor ARF7, a conditional regulator of differential growth in aerial Arabidopsis tissue. Plant Cell 12, 757–770. doi: 10.2307/3870999
Harpham, N. V., Berry, A. W., Knee, E. M., Roveda-Hoyos, G., Raskin, I., Sanders, I. O., et al. (1991). The effect of ethylene on the growth and development of wild-type and mutant Arabidopsis thaliana (L.) Heynh. Ann. Bot. 68, 55–61.
Kang, B. G., Yocum, C. S., Burg, S. P., and Ray, P. M. (1967). Ethylene and carbon dioxide: mediation of hypocotyl hook-opening response. Science 156, 958–959. doi: 10.1126/science.156.3777.958
Khanna, R., Shen, Y., Marion, C. M., Tsuchisaka, A., Theologis, A., Schafer, E., et al. (2007). The basic helix-loop-helix transcription factor PIF5 acts on ethylene biosynthesis and phytochrome signaling by distinct mechanisms. Plant Cell 19, 3915–3929. doi: 10.1105/tpc.107.051508
Kieber, J. J., Rothenberg, M., Roman, G., Feldmann, K. A., and Ecker, J. R. (1993). CTR1, a negative regulator of the ethylene response pathway in Arabidopsis, encodes a member of the raf family of protein kinases. Cell 72, 427–441. doi: 10.1016/0092-8674(93)90119-B
Kim, K., Shin, J., Lee, S. H., Kweon, H. S., Maloof, J. N., and Choi, G. (2011). Phytochromes inhibit hypocotyl negative gravitropism by regulating the development of endodermal amyloplasts through phytochrome-interacting factors. Proc. Natl. Acad. Sci. U.S.A. 108, 1729–1734. doi: 10.1073/pnas.1011066108
Lehman, A., Black, R., and Ecker, J. R. (1996). HOOKLESS1, an ethylene response gene, is required for differential cell elongation in the Arabidopsis hypocotyl. Cell 85, 183–194. doi: 10.1016/S0092-8674(00)81095-8
Li, H., Johnson, P., Stepanova, A., Alonso, J. M., and Ecker, J. R. (2004). Convergence of signaling pathways in the control of differential cell growth in Arabidopsis. Dev. Cell 7, 193–204. doi: 10.1016/j.devcel.2004.07.002
Li, Y., Swaminathan, K., and Hudson, M. E. (2011). Rapid, organ-specific transcriptional responses to light regulate photomorphogenic development in dicot seedlings. Plant Physiol. 156, 2124–2140. doi: 10.1104/pp.111.179416
Liscum, E., and Hangarter, R. P. (1993a). Light-stimulated apical hook opening in wild-type Arabidopsis thaliana seedlings. Plant Physiol. 101, 567–572.
Liscum, E., and Hangarter, R. P. (1993b). Photomorphogenic mutants of Arabidopsis thaliana reveal activities of multiple photosensory systems during light-stimulated apical-hook opening. Planta 191, 214–221. doi: 10.1007/BF00199752
Locascio, A., Blázquez, M. A., and Alabadí, D. (2013). Genomic analysis of DELLA protein activity. Plant Cell Physiol. 54, 1229–1237. doi: 10.1093/pcp/pct082
Mashiguchi, K., Tanaka, K., Sakai, T., Sugawara, S., Kawaide, H., Natsume, M., et al. (2011). The main auxin biosynthesis pathway in Arabidopsis. Proc. Natl. Acad. Sci. U.S.A. 108, 18512–18517. doi: 10.1073/pnas.1108434108
Miller, N. D., Parks, B. M., and Spalding, E. P. (2007). Computer-vision analysis of seedling responses to light and gravity. Plant J. 52, 374–381. doi: 10.1111/j.1365-313X.2007.03237.x
Muday, G. K., Rahman, A., and Binder, B. M. (2012). Auxin and ethylene: collaborators or competitors. Trends Plant Sci. 17, 181–195. doi: 10.1016/j.tplants.2012.02.001
Noh, B., Murphy, A. S., and Spalding, E. P. (2001). Multidrug resistance-like genes of Arabidopsis required for auxin transport and auxin-mediated development. Plant Cell 13, 2441–2454. doi: 10.2307/3871586
Okushima, Y., Mitina, I., Quach, H. L., and Theologis, A. (2005). AUXIN RESPONSE FACTOR 2 (ARF2): a pleiotropic developmental regulator. Plant J. 43, 29–46. doi: 10.1111/j.1365-313X.2005.02426.x
Ottenschlager, I., Wolff, P., Wolverton, C., Bhalerao, R. P., Sandberg, G., Ishikawa, H., et al. (2003). Gravity-regulated differential auxin transport from columella to lateral root cap cells. Proc. Natl. Acad. Sci. U.S.A. 100, 2987–2991. doi: 10.1073/pnas.0437936100
Peck, S. C., Pawlowski, K., and Kende, H. (1998). Asymmetric responsiveness to ethylene mediates cell elongation in the apical hook of peas. Plant Cell 10, 713–720.
Peret, B., Swarup, K., Ferguson, A., Seth, M., Yang, Y., Dhondt, S., et al. (2012). AUX/LAX genes encode a family of auxin influx transporters that perform distinct functions during Arabidopsis development. Plant Cell 24, 2874–2885. doi: 10.1105/tpc.112.097766
Raz, V., and Ecker, J. R. (1999). Regulation of differential growth in the apical hook of Arabidopsis. Development 126, 3661–3668.
Raz, V., and Koornneef, M. (2001). Cell division activity during apical hook development. Plant Physiol. 125, 219–226. doi: 10.1104/pp.125.1.219
Sakai, T., Wada, T., Ishiguro, S., and Okada, K. (2000). RPT2. A signal transducer of the phototropic response in Arabidopsis. Plant Cell 12, 225–236. doi: 10.2307/3870924
Schwark, A., and Bopp, M. (1993). Interaction of ethylene and auxin in the regulation of hook growth. II. The role for ethylene in different growing regions of the hypocotyl hook of Phaseolus vulgaris. J. Plant Physiol. 142, 585–592. doi: 10.1016/S0176-1617(11)80403-7
Schwark, A., and Schierle, J. (1992). Interaction of ethylene and auxin in the regulation of hook growth. I. The role of auxin in different growing regions of the hypocotyl hook of Phaseolus vulgaris. J. Plant Physiol. 140, 562–570. doi: 10.1016/S0176-1617(11)80790-X
Shen, Y., Khanna, R., Carle, C. M., and Quail, P. H. (2007). Phytochrome induces rapid PIF5 phosphorylation and degradation in response to red-light activation. Plant Physiol. 145, 1043–1051. doi: 10.1104/pp.107.105601
Silk, W. K., and Erickson, R. O. (1978). Kinematics of hypocotyl curvature. Am. J. Bot. 65, 310–319. doi: 10.2307/2442271
Spalding, E. P. (2013). Diverting the downhill flow of auxin to steer growth during tropisms. Am. J. Bot. 100, 203–214. doi: 10.3732/ajb.1200420
Stepanova, A. N., Robertson-Hoyt, J., Yun, J., Benavente, L. M., Xie, D. Y., Dolezal, K., et al. (2008). TAA1-mediated auxin biosynthesis is essential for hormone crosstalk and plant development. Cell 133, 177–191. doi: 10.1016/j.cell.2008.01.047
Stepanova, A. N., Yun, J., Likhacheva, A. V., and Alonso, J. M. (2007). Multilevel interactions between ethylene and auxin in Arabidopsis roots. Plant Cell 19, 2169–2185. doi: 10.1105/tpc.107.052068
Stepanova, A. N., Yun, J., Robles, L. M., Novak, O., He, W., Guo, H., et al. (2011). The Arabidopsis YUCCA1 flavin monooxygenase functions in the indole-3-pyruvic acid branch of auxin biosynthesis. Plant Cell 23, 3961–3973. doi: 10.1105/tpc.111.088047
Stowe-Evans, E. L., Harper, R. M., Motchoulski, A. V., and Liscum, E. (1998). NPH4, a conditional modulator of auxin-dependent differential growth responses in Arabidopsis. Plant Physiol. 118, 1265–1275. doi: 10.1104/pp.118.4.1265
Vandenbussche, F., Petrasek, J., Zadnikova, P., Hoyerova, K., Pesek, B., Raz, V., et al. (2010). The auxin influx carriers AUX1 and LAX3 are involved in auxin-ethylene interactions during apical hook development in Arabidopsis thaliana seedlings. Development 137, 597–606. doi: 10.1242/dev.040790
Vriezen, W. H., Achard, P., Harberd, N. P., and Van Der Straeten, D. (2004). Ethylene-mediated enhancement of apical hook formation in etiolated Arabidopsis thaliana seedlings is gibberellin dependent. Plant J. 37, 505–516. doi: 10.1046/j.1365-313X.2003.01975.x
Wang, L., Uilecan, I. V., Assadi, A. H., Kozmik, C. A., and Spalding, E. P. (2009). HYPOTrace: image analysis software for measuring hypocotyl growth and shape demonstrated on Arabidopsis seedlings undergoing photomorphogenesis. Plant Physiol. 149, 1632–1637. doi: 10.1104/pp.108.134072
Wei, N., Kwok, S. F., Von Arnim, A. G., Lee, A., McNellis, T. W., Piekos, B., et al. (1994). Arabidopsis COP8, COP10, and COP11 genes are involved in repression of photomorphogenic development in darkness. Plant Cell 6, 629–643.
Went, F. W. (1974). Reflections and speculations. Annu. Rev. Plant Physiol. 25, 1–26. doi: 10.1146/annurev.pp.25.060174.000245
Willige, B. C., Ogiso-Tanaka, E., Zourelidou, M., and Schwechheimer, C. (2012). WAG2 represses apical hook opening downstream from gibberellin and PHYTOCHROME INTERACTING FACTOR 5. Development 139, 4020–4028. doi: 10.1242/dev.081240
Won, C., Shen, X., Mashiguchi, K., Zheng, Z., Dai, X., Cheng, Y., et al. (2011). Conversion of tryptophan to indole-3-acetic acid by TRYPTOPHAN AMINOTRANSFERASES OF ARABIDOPSIS and YUCCAs in Arabidopsis. Proc. Natl. Acad. Sci. U.S.A. 108, 18518–18523. doi: 10.1073/pnas.1108436108
Wu, G., Cameron, J. N., Ljung, K., and Spalding, E. P. (2010). A role for ABCB19-mediated polar auxin transport in seedling photomorphogenesis mediated by cryptochrome 1 and phytochrome B. Plant J. 62, 179–191. doi: 10.1111/j.1365-313X.2010.04137.x
Zadnikova, P., Petrasek, J., Marhavy, P., Raz, V., Vandenbussche, F., Ding, Z., et al. (2010). Role of PIN-mediated auxin efflux in apical hook development of Arabidopsis thaliana. Development 137, 607–617. doi: 10.1242/dev.041277
Zhao, Y., Christensen, S. K., Fankhauser, C., Cashman, J. R., Cohen, J. D., Weigel, D. ,et al (2001). A role for flavin monooxygenase-like enzymes in auxin biosynthesis. Science 291, 306–309. doi: 10.1126/science.291.5502.306
Zheng, Z., Guo, Y., Novak, O., Dai, X., Zhao, Y., Ljung, K., et al. (2013). Coordination of auxin and ethylene biosynthesis by the aminotransferase VAS1. Nat. Chem. Biol. 9, 244–246. doi: 10.1038/nchembio.1178
Keywords: apical hook, auxin, ethylene, gibberellin, hormone interaction, development
Citation: Abbas M, Alabadí D and Blázquez MA (2013) Differential growth at the apical hook: all roads lead to auxin. Front. Plant Sci. 4:441. doi: 10.3389/fpls.2013.00441
Received: 31 July 2013; Paper pending published: 06 September 2013;
Accepted: 15 October 2013; Published online: 05 November 2013.
Edited by:
Tohru Hashimoto, Uozaki Life Science Laboratory, JapanReviewed by:
Stephan Pollmann, Universidad Politécnica de Madrid, SpainRanjan Swarup, University of Nottingham, UK
Copyright © 2013 Abbas, Alabadí and Blázquez. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: David Alabadí, Instituto de Biología Molecular y Celular de Plantas, Universitat Politècnica de València - Consejo Superior de Investigaciones Científicas, Edificio E8, Ingeniero Fausto Elio s/n, Valencia, 46022, Spain e-mail: dalabadi@ibmcp.upv.es
