David J. Studholme1
Beverley Harris1
Kate Le Cocq1
Rebecca Winsbury1 Venura Perera1 Lauren Ryder1
Jane L. Ward2 Michael H. Beale2 Chris R. Thornton1
Murray Grant1*- 1Biosciences, Molecular Plant Pathology, College of Life and Environmental Sciences, University of Exeter, Exeter, UK
- 2Plant Biology and Crop Science, Rothamsted Research, Harpenden, UK
Trichoderma hamatum strain GD12 is unique in that it can promote plant growth, activate biocontrol against pre- and post-emergence soil pathogens and can induce systemic resistance to foliar pathogens. This study extends previous work in lettuce to demonstrate that GD12 can confer beneficial agronomic traits to other plants, providing examples of plant growth promotion in the model dicot, Arabidopsis thaliana and induced foliar resistance to Magnaporthe oryzae in the model monocot rice. We further characterize the lettuce-T. hamatum interaction to show that bran extracts from GD12 and an N-acetyl-β-D-glucosamindase-deficient mutant differentially promote growth in a concentration dependent manner, and these differences correlate with differences in the small molecule secretome. We show that GD12 mycoparasitises a range of isolates of the pre-emergence soil pathogen Sclerotinia sclerotiorum and that this interaction induces a further increase in plant growth promotion above that conferred by GD12. To understand the genetic potential encoded by T. hamatum GD12 and to facilitate its use as a model beneficial organism to study plant growth promotion, induced systemic resistance and mycoparasitism we present de novo genome sequence data. We compare GD12 with other published Trichoderma genomes and show that T. hamatum GD12 contains unique genomic regions with the potential to encode novel bioactive metabolites that may contribute to GD12's agrochemically important traits.
Introduction
With the global population estimated to reach 9 billion by 2050, current plant breeding approaches alone will not support the increased demand for food. There is an urgent need to investigate alternative, sustainable approaches to enhance agricultural production. Additional pressures on food production such as existing and emerging pathogens (Anderson et al., 2004; Fisher et al., 2012), soil erosion (Montgomery, 2007), reduced water and nutrient availability (Sauer et al., 2010; Powlson et al., 2011), climate change (Schmidhuber and Tubiello, 2007) and competition for available land from other sectors such as house building and biofuels (Harvey and Pilgrim, 2011), will add further pressure on agricultural systems to maximize crop productivity. Moreover, hazard-based criteria for assessing pesticides could lead to a range of agrochemicals being withdrawn from European markets, leading to the potential loss of the only effective fungicide groups against major crop diseases.
These challenges have lead to research into alternative sustainable agricultural strategies, with a strong focus on exploiting beneficial organisms. Members of the fungal genus Trichoderma have the potential for reducing existing dependence on the use of environmentally damaging and unsustainable chemicals required for disease control and fertilizers (Fantke et al., 2012), by providing an opportunity to sustainably improve crop productivity while reducing the likelihood of development of fungicide resistant pathogens.
Trichoderma is a member of the Ascomycota, the largest group of fungi. Asexual reproduction occurs through the production and germination of asexual conidia (Steyaert et al., 2010) and in some species of Trichoderma, sexual teleomorphic stages (Hypocrea spp.) have been identified (Seidl et al., 2009), although Trichoderma is now the accepted holomorph nomenclature (International Botanical Congress, 2011). Trichoderma has been exploited in many industries including paper, textile, biofuel and agriculture due to its prolific secretion of degrading enzymes and biocontrol activities (Pere et al., 2001; Miettinen-Oinonen and Suominen, 2002; Chaverri et al., 2003; Giraldo et al., 2007; Kuhad et al., 2011).
Biocontrol encompasses a variety of mechanisms working singularly or synergistically during the interaction between a biological control agent, plant pathogen and plant to achieve effective disease control (Howell, 2003). These mechanisms can be either indirect, via competition for nutrients and space, antibiosis and stimulation of plant-defense mechanisms or direct mycoparasitism, or they can be a combination of both. Mycoparasitism involves direct antagonism of soil-borne pathogens by a combination of enzymatic lysis through secretion of chitinases, glucanases, proteases, antibiotic production, and competition for space and substrates (Harman, 2006; Lorito et al., 2010). Since the 1930's, Trichoderma's mycoparasitic biocontrol activities have been extensively used in agriculture. Research has focussed predominately on Trichoderma virens, T. atroviride, T. asperelloides, T. asperellum and T. harzianum (Howell, 2003; Benitez et al., 2004). However, mycoparasitism is widespread. More than 1100 Trichoderma strains from 75 molecularly defined species displayed mycoparasitic potential against the pathogens Alternaria alternata, Botrytis cinerea and Sclerotinia sclerotiorum [reported in Druzhinina et al. (2011)]. Yet, despite its agronomic importance, our current knowledge about the mechanistic basis for mycoparasitism is rudimentary.
Certain Trichoderma strains have been shown to stimulate plant growth through the production of plant-growth-promoting (PGP) compounds (Chang et al., 1986; Ousley et al., 1994; Contreras-Cornejo et al., 2009; Vinale et al., 2009) although both biological control and PGP traits are rarely found together. Often, PGP is unpredictable and is influenced by environmental factors (Maplestone et al., 1991; Ousley et al., 1993). The mechanisms for PGP are thought to variously arise from direct effects on plants, decreased activity of microflora and inactivated toxic compounds in the root zone (Harman et al., 2004). Trichoderma species can also ameliorate a wide range of abiotic stresses such as salinity, temperature and drought; they can improve photosynthetic efficiency, enhance nutrient uptake and significantly increase nitrogen use efficiency in crops. These are all attributes that can contribute to enhanced PGP characteristics often evident upon inoculation (Harman et al., 2004; Djonovic et al., 2006; Bae et al., 2009; Shoresh et al., 2010). Strains stimulate PGP through the production of, yet to be defined, PG compounds (Contreras-Cornejo et al., 2009; Vinale et al., 2009; Ryder et al., 2012), most likely through a combination of one or more of the remarkably diverse array of secondary metabolites and proteins such as pyrones, peptaibols, and terpenes (Lorito et al., 2010) that Trichoderma produces.
In addition to mycoparasitism and PGP, some Trichoderma strains can induce broad spectrum systemic resistance (ISR) in leaves (Shoresh et al., 2010). Generally it is accepted that, in agricultural systems, the activation of defense responses generates a “trade-off” in terms of reduced growth or enhanced susceptibility to other stresses (Heidel et al., 2004; van Hulten et al., 2006). Remarkably, however, Trichoderma inoculation can ameliorate these traditionally perceived “costs” suggesting that it can locally suppress MAMP (Microbe Associated Molecular Pattern) triggered immunity (MTI) and systemically activate or prime induced plant immunity. Suppression of MTI has been recently demonstrated for the plant growth promoting rhizobacterium (PGPR) Pseudomonas fluorescens strain WCS417r, which grows endophytically or on root surfaces (Millet et al., 2010).
Modifications of hormonal balance by host or microbe are key drivers in determining the outcome of plant-pathogen interactions, including suppression of MTI (Grant and Jones, 2009). ISR induced by P. fluorescens WCS417r is mediated through jasmonic acid/ethylene (JA/ET) signaling (Ton et al., 2002; Santner and Estelle, 2007). Evidence for engagement of specific hormone signaling in Trichoderma ISR is often contradictory, with various Trichoderma strains activating ISR through different signaling modules. The ISR mediated by T. asperellum T34 appears to parallel the JA/ET-based “priming” events observed for P. fluorescens WCS417r, resulting in enhanced resistance to obligate biotrophs, hemi-biotrophs and necrotrophs (Segarra et al., 2009). By contrast, maize inoculated with T. harzianum T22 showed constitutive expression of some PR proteins in the absence of a pathogen. In melon, T. harzianum can control Fusarium wilt through induction of basal resistance and the attenuation of hormonal disruption of abscisic acid (ABA), salicylic acid (SA) and ET signaling that Fusarium oxysporum induces (Martinez-Medina et al., 2010, 2011). Recently, ISR, induced by T. hamatum T382 against Botrytis cinerea in A. thaliana was reported to involve both an initial priming and a post-infection response (Mathys et al., 2012). Thus, current knowledge suggests that induction of ISR depends upon the specific strain. Host genotype also contributes since genetic variability between tomato lines determines the outcome of PGP and biocontrol interactions with T. atroviride and T. harzianum (Tucci et al., 2011).
Trichoderma hamatum is a naturally occurring rhizosphere dwelling member of the genus which has attracted academic and industrial interest due to its ability to increase plant biomass and its potential as a biological control agent (Chet et al., 1981; Elad, 2000; Harman, 2006). A previously described strain of Trichoderma hamatum (GD12) isolated from soil in Devon, UK, promotes plant growth in low pH, nutrient poor peat and displays biological protection against pre- and post-emergence diseases of lettuce seedlings caused, respectively, by Sclerotinia sclerotiorum and Rhizoctonia solani, under the same conditions (Thornton, 2005, 2008; Ryder et al., 2012). While plant growth promotion and biocontrol by Trichoderma have been well-documented, both traits rarely occur together (Contreras-Cornejo et al., 2009; Vinale et al., 2009). Whole genome sequences are becoming increasingly available, with the industrial strain T. reesei, and biological control strains T. atroviride, T. harzianum, T. virens, T. longibrachiatum, T. citrinoviride, T. asperellum now accessible in public repositories (http://tinyurl.com/trichoderma). Genome comparisons between the mycoparasitic T. atroviride and T. virens species vs. the saprophytic T. reesei identified components predicted to contribute to a parasitic lifestyle and a genome reduction in T. reesei (Kubicek et al., 2011). Availability of the genome sequence of GD12 would provide a valuable insight into the genetic potential underlying these important agronomic traits.
Here we present further characterization of the dual PGP and biocontrol strain T. hamatum GD12. To demonstrate the broad utility of GD12 as an experimental system we extend previous work to show (i) GD12 induced PGP of Arabidopsis thaliana, (ii) GD12 mycoparasitized isolates of the pre-emergent soil pathogen, Sclerotinia sclerotiorum and this antagonistic interaction resulted in further enhanced lettuce PGP, (iii) PGP of lettuce by sterile bran extracts from GD12 which is further enhanced by extracts from the GD12 N-acetyl-β-D-glucosaminidase deficiency mutant, (iv) clear differences in GD12 and the N-acetyl-β-D-glucosaminidase deficient mutant secretome fingerprint which may account for the difference in biocontrol and PGP and (v) induction of induced systemic resistance in rice to rice blast by both GD12 and the N-acetyl-β-D-glucosaminidase deficiency. To provide genomic resource to predict important components involved in PGP and biological control fitness of T. hamatum GD12 we undertook whole genome sequencing of this strain and compared it to sequenced Trichoderma strains (T. atroviride. T. harzianum and T. virens). This work revealed substantial differences between strains which allowed us to identify genomic regions/clusters unique to GD12 that can be further studied to gain a more comprehensive understanding of genetic basis for PGP, biocontrol against pre- and post-emergence soil pathogens and induced systemic resistance to foliar pathogens. In sum, this study provides a foundation for further dissection of GD12's ability to promote beneficial attributes.
Materials and Methods
Plant Growth Promotion and Biological Control Assays
Peat microcosms
One litre of sieved sphagnum moss peat (Shamrock, Scotts Professional, UK) was mixed with 400 ml dH2O and sterilized by autoclaving. Twenty-five lettuce seeds (Lactuca sativa cultivar Webb's Wonderful) were sown into triplicate 120 mm × 120 mm × 12 mm square plastic culture dishes (Greiner, Bio-One, UK) each containing 100 g sterile peat. For plant growth promotion and biological control assays, microcosms 300 g of peat was supplemented with: 8 g T. hamatum bran inoculum, Sclerotinia poppy seed inoculum or both (Ryder et al., 2012). Microcosms were maintained at 24°C under a 16 h light 8 h dark cycle at 90% humidity. Following the removal of lids after 48 h, microcosms were watered daily with sterile dH2O. After 21 days, plants were harvested, washed and oven dried (75°C) to a constant weight. Shoot and root fresh and dry weights were determined and the data analysed by using ANOVA and t-tests.
Bran extracts
Bran inoculum was prepared by inoculating a sterile bran mixture (250 ml conical flask containing 10 g wheat bran (Badminton Horse Feeds, UK) and 30 ml sterile dH2O with five 4 mm plugs of agar from the leading edge of a 3-day-old T. hamatum culture, grown on Potato Dextrose Agar (Sigma-Aldrich). The inoculum was incubated for 5 days at 26°C under a 16 h light regime.
S. sclerotiorum poppy seed inoculum
A sterile poppy seed mixture (250 ml conical flask containing 10 g black poppy seeds with 10 ml sterile dH2O) was inoculated with ten 1 mm plugs of agar from the leading edge of a 3-day-old S. sclerotiorum culture grown on PDA. The inoculum was incubated for 10 days at 26°C under a 16 h light regime. The four S. sclerotiorum isolates used in this study, BFS, GFR1, GFR11 and M488 were obtained from Dr Jon West, Rothamsted Research, Harpenden, UK.
Rewatering Assay
One Hundred microliters dH2O was added to triplicate 5 day old Trichoderma hamatum bran inoculum flasks (prepared as above) for each strain to be tested. Samples were mixed for 1 h and filtered through miracloth (Calbiochem) into 2 × 50 ml aliquots. Samples were centrifuged at 10,000 g for 10 min. and vacuum filtered through 5 μm filter paper (Whatman) and autoclaved for 15 min. at 121°C. Seedlings were watered with filtrate on alternate days for 21 days.
Biocontrol Assay
Magnaporthe oryzae leaf infection assays were carried out using dwarf Indica rice (Oryza sativa cultivar CO-39, which is susceptible to rice blast. Eight seedlings of CO-39 were planted in 15 pots (7 cm) and grown for 14 days (2–3 leaf stage) in soil containing Trichoderma-bran inoculum prior to M. oryzae strain Guy-11 infection. Disease symptoms were scored after 5 days according to Valent et al. (1991).
Bioinformatics Methods
We used Velvet version 1.1.04 (Zerbino and Birney, 2008) for de novo assembly of genome sequence. For ab initio gene prediction we used FgenesH (http://linux1.softberry.com/berry.phtml?topic=fgenesh). SignalP 3.0 (Bendtsen et al., 2004) and Phobius (Kall et al., 2004) were used for prediction of signal peptides and transmembrane domains. Alignments were visualized using the Artemis Comparison Tool (Carver et al., 2005). To generate Venn diagrams we used the Venn Diagram Generator (http://bioinformatics.psb.ugent.be/webtools/Venn/). PfamScan (Punta et al., 2012) was used to search for conserved domains in protein sequences.
Linked 1H-NMR Fingerprinting and Direct Infusion Electrospray-Mass Spectrometry
Extracts from three replicate flasks of bran inoculum were prepared with equal 50 mL volumes of dH20:acetic acid:methanol (80:20 vol/vol) and left to mix for 1 h at room temperature, prior to centrifugation at 12,000 × g, and subsequent filtration through 0.2 μm membranes (Millipore). Samples were snap frozen in liquid nitrogen and then lyophilized. Triplicate samples (15 mg) of freeze-dried Trichoderma-bran extract were processed for 1H-NMR-MS using modified protocols described by Ward et al. (2010). For 1H-NMR fingerprinting samples were extracted (10 min, 50°C) with 1 mL of deuterated sodium phosphate buffer (300 mM pH6) containing 0.05% w/v TSP-d4 (sodium salt of trimethylsilylpropionic acid). After centrifugation the supernatant was heated to 90°C (2 min). After cooling and centrifugation, the supernatant (600 μL) was transferred to an NMR tube for analysis. Samples for direct infusion electrospray mass spectrometry (DI-ESI-MS) were prepared exactly as described in Ward et al. (2010) and accompanying supplementary material using a mixture (20:80) methanol:water.
1H-NMR spectra were acquired under automation at a temperature of 300 K on an Avance spectrometer (Bruker Biospin) operating at 600.0528 MHz using a 5 mm SEI probe. ESI spectra were acquired, in both positive and negative ionization modes, under automation using Esquire 3000 (Bruker Daltonics) ion trap mass spectrometer.
1H-NMR spectra were automatically reduced to CSV files using AMIX (v3.0, Bruker Biospin) and DI-ESI-MS data were processed using Data Analysis v3.2 (Bruker Daltonics). Spectral processing for both 1H-NMR and DI-ESI-MS was carried out using routines described previously in Ward et al. (2010). Unsupervised multivariate analyses by PCA and PLS-DA were performed using SIMCA-P 11.0 (Umetrics, http://www.umetrics.com), using mean-centered scaling throughout the modeling. The signals resulting from the NMR internal standard (trimethylsilylpropionic acid; TSP-d4) were removed prior to importing the data set into SIMCA-P 11.0 for multivariate analysis.
Results
Trichoderma Hamatum Plant Growth Promotion
T. hamatum promotes growth of lettuce (Ryder et al., 2012). Here we also demonstrate T. hamatum GD12 also promotes growth of Arabidopsis thaliana (Figure 1A) using acidic, nutrient-poor, organic peat soil microcosms (Thornton, 2005). In previous work, we hypothesized that the plant-growth-promotion (PGP) properties of GD12 might occur through the enzymatic release of nitrogen from chitin. Remarkably, however, rather than reduced or loss of PGP, disruption of the GD12 N-acetyl-b-D-glucosaminidase gene (ΔThnag1::hph strain) dramatically enhanced the growth of lettuce seedlings, indicating that increased production of stimulatory compound(s) was due to N-acetyl-β-D-glucosaminidase deficiency (Ryder et al., 2012). Here we further demonstrate that this PGP activity was found to be present in water-soluble extracts derived from both bran grown GD12 and ΔThnag1::hph. PGP activity, and that the PGP activity was heat stable, withstanding autoclaving to 121°C for 15 min (Figure 1B). ΔThnag1::hph bran extracts promoted enhanced lettuce growth compared to GD12, which is consistent with the predicted hyper-secretion capability of ΔThnag1::hph. These data were quantified by measurement of dry weights of treated material (Figures 1C,D). Application of either extract significantly increased PGP, even at the lowest addition (50 μL). The root dry weight of both GD12 and ΔThnag1::hph treated lettuce showed significant increases to 200 μL aliquots application whereas ΔThnag1::hph treatment root dry weight increased up to 300 μL aliquot applications (Figure 1C). Dry shoot weights followed a similar trend except PGP induced by GD12 extracts plateaued at 300 μL application and lettuce shoot dry weight continued to increase with 600 μL of extract (Figure 1D).

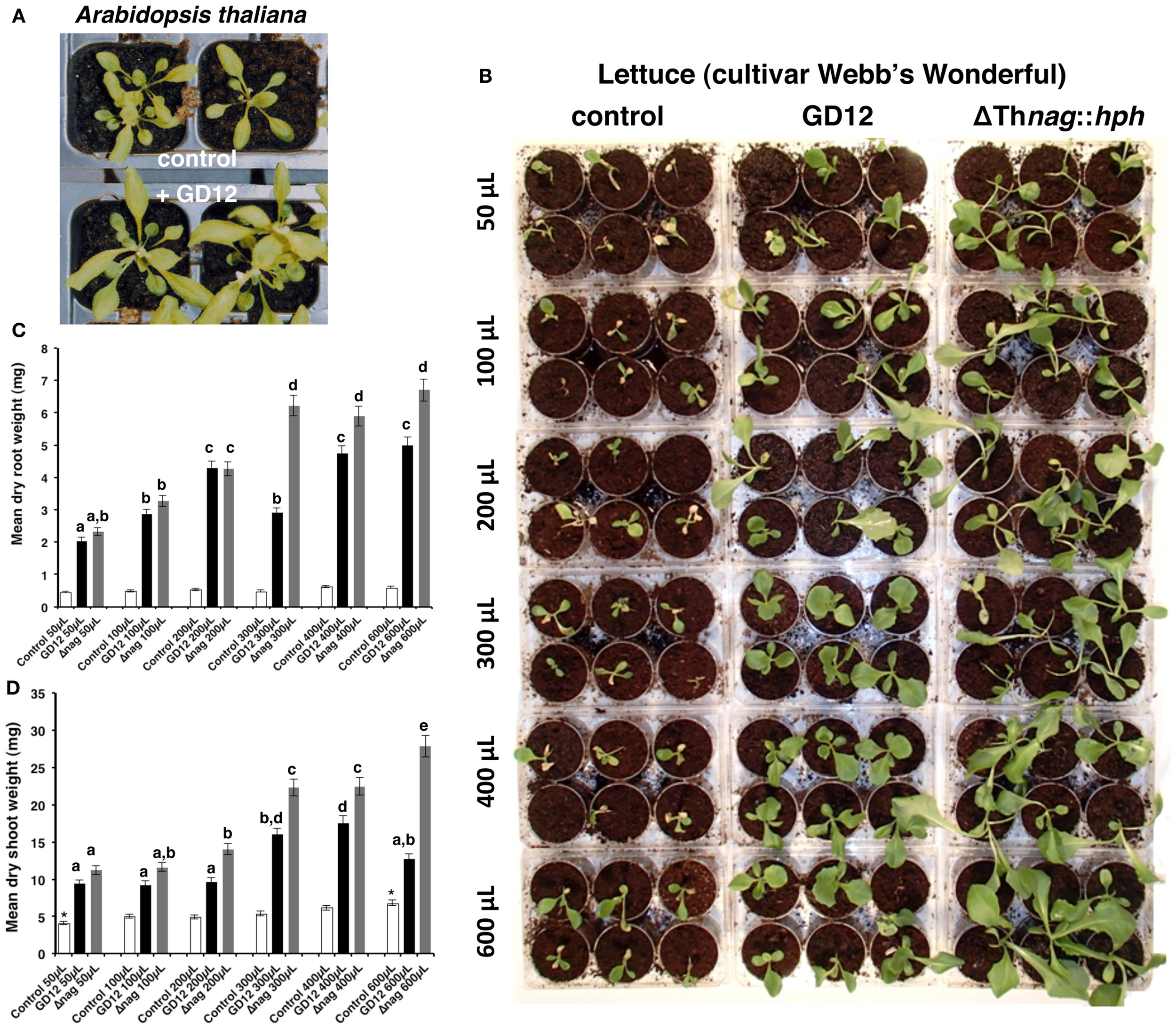

Figure 1. Plant growth promotion by Trichoderma hamatum GD12. (A) Amendment of peat compost with T. hamatum GD12 promotes growth of Arabidopsis thaliana accession Landsberg—erects. Photographed at 3 weeks. (B) Soluble, autoclaved bran extracts from GD12 or the N-acetyl-β-D-glucosaminidase knockout mutant (ΔThnag1::hph) promote growth of lettuce (Lactuca sativa cultivar Webb's Wonderful) in sterile peat. Lettuce were supplemented with the indicated amount of sterilized bran exudate on alternate days. Control plants were watered with a corresponding aliquot of dH2O. After 21 days growth plants were harvested to determine root and shoot weights. Each microcosm diameter is 15 mm. The photograph, taken 21 days after sowing is representative of a microcosm replicate. Histogram showing dry weights of lettuce root (C) or shoot (D) biomass 21 days after growth in peat microcosms supplemented by application of sterilized bran extracts. Each plant was treated with the indicated amount of metabolite extract from either T. hamatum strain GD12 (black bars) or ΔThnag::hph (Δnag; gray bars) on alternate days. Control plants (white bars) were watered with dH2O. Each bar represents the mean of 25 samples, each with 3 experimental replicates ± SE. Same letter denote no significant difference and *denote significant difference at 95% confidence level (t-test).
It has been previously shown that in contrast to enhanced PGP, loss of N-acetyl-β-D-glucosaminidase activity drastically impaired GD12's competitive saprotrophic ability and biocontrol against a strain of the pre-emergent pathogen S. sclerotiorum (Ryder et al., 2012). We extended this study to show that GD12, but not ΔThnag1::hph, effectively mycoparasitises four geographically distinct Sclerotinia sclerotiorum strains (Figure 2A). T. hamatum GD12 not only showed strong biocontrol of S. sclerotiorum, but strikingly PGP was also dramatically enhanced compared to GD12 amendment alone (Figure 2B). We interpret these data to suggest that cryptic metabolomic pathways, ordinarily silent in GD12 in axenic culture, are induced during antagonistic interactions in soil.
Figure 2. Active biocontrol of the pre-emergence pathogen, Sclerotinia sclerotiorum by T. hamatum, GD12 results in additional plant growth promotion. (A) T. hamatum, GD12 but not the N-acetyl-β-D-glucosaminidase mutant ΔThnag1::hph is able to suppress S. sclerotiorum and allow germination of lettuce seedlings. Photograph taken 7 days post sowing. (B) Mycoparasitism of Sclerotinia sclerotiorum by T. hamatum, GD12 results in enhanced plant growth promotion, compared to amendment with GD12 alone.
T. Hamatum Induces Resistance to Rice Blast
Production of plant-growth-promoting compounds and mycoparasitism by certain strains of Trichoderma are well-documented (Contreras-Cornejo et al., 2009; Vinale et al., 2009) although both traits are rarely found together. Some Trichoderma strains additionally possess the ability to activate ISR to a broad range of pathogens. To investigate the robustness of T. hamatum GD12 biocontrol properties we examined the ability of GD12 and the ΔThnag1::hph mutant to confer resistance to the rice blast pathogen Magnaporthae oryzae. GD12 and, to a greater extent, ΔThnag1::hph both reduced lesion formation compared to non-inoculated rice plants. Thus, although ΔThnag1::hph has lost the ability to mycoparasitize S. sclerotiorum it has the capacity to elicit a strong induced systemic resistance response in rice to M. oryzae (Figure 3). Unlike the lettuce response, we did not see any clear increase in foliar growth, but observed an increase in root development following Trichoderma amendment.

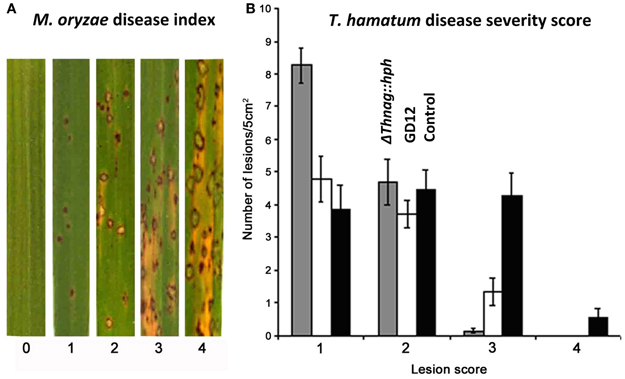

Figure 3. T. hamatum biocontrol and plant disease suppression. (A) Leaf segments of rice (cultivar CO-39) showing rice blast symptoms. (B) Suppression of rice blast disease by T. hamatum. Growth of rice cultivar CO-39 in soil amended with T. hamatum GD12 (white bars) and the N-acetyl-β-D-glucosaminidase deficient mutant ΔThnag1::hph (gray bars) reduced the size of the lesions caused by the rice blast Magnaporthe oryzae. Lesions were scored as previously documented (Valent et al., 1991) according to the following range. Type 1 (lesion 0.5 mm in length); type 2 (lesion ~1 mm in length); type 3 (lesions ~2 mm in length) and type 4 (lesions ~3–4 mm in length) lesions. Each bar represents the mean of 8 samples, each with 5 experimental replicates ± SE.
Draft Genome Sequence of T. Hamatum GD12
We hypothesized that the genome sequence of T. hamatum GD12 might provide valuable insight into the genetic potential underlying the unique PGP, mycoparasitism and ISR inducing properties of this saprotrophic fungus. A GD12 genome sequence could facilitate secondary metabolite pathway predictions, mapping of mRNA-seq data to genomic clusters and capture unique genes and gene families not coded by other Trichoderma genomes.
We therefore assembled a draft genome sequence of GD12 from 12 million pairs of Illumina GA2 paired-end 73-bp reads using Velvet 1.1.04. This yielded 2770 scaffolds with a N50 length of 41.6 Kb. The total length of the assembly was 38.2 Mb. The whole genome shotgun data have been deposited at DDBJ/EMBL/GenBank under the accession ANCB00000000. Using FgenesH (trained on Neurospora crassa) we predicted 12391 protein-coding genes in GD12.
Comparison with Other Trichoderma Genomes
The genome sequence of GD12 shares little similarity with previously sequenced Trichoderma genomes at the nucleotide sequence level. The three sequenced Trichoderma genomes analysed in detail, T. atroviride (~36.4 Mb), T. virens (~38.8 Mb) and T. reesei (~34 Mb) show remarkably conserved gene order (78–96%), with >50% of annotated genes having orthologues in the related ascomycetes Neurospora crassa and Gibberella zeae. (Kubicek et al., 2011). Strikingly, only 52% of the GD12 genome sequence aligned against that of T. atroviride and only 6% aligned against the more distantly related T. reesei (using the dnadiff tool from the Mummer package). To ensure this limited sequence similarity was not due to sample contamination, a geographically distinct T. hamatum isolate, strain 11, was sequenced. Strain 11 showed 98% sequence identify to GD12.
At the level of amino acid sequence, 62.4% of the GD12 predicted proteins (i.e. 7773 proteins; Figure 4A) had a close homologue in at least one of T. atroviride, T. harzianum, T. reesei or T. virens species compared (here, we define a close homologue as sharing at least 80% sequence identity over at least 90% of the length of the query sequence). Of the GD12 predicted proteins, only 5531 (59%) are highly conserved in T. atroviride (at least 80% amino acid sequence identity over at least 90% of the sequence length; Figure 4A). Thus, GD12 contains novel genomic regions with the potential to encode novel, agrochemically important gene products leading to unique bioactive metabolites that may contribute to GD12's PGP and biocontrol activities.

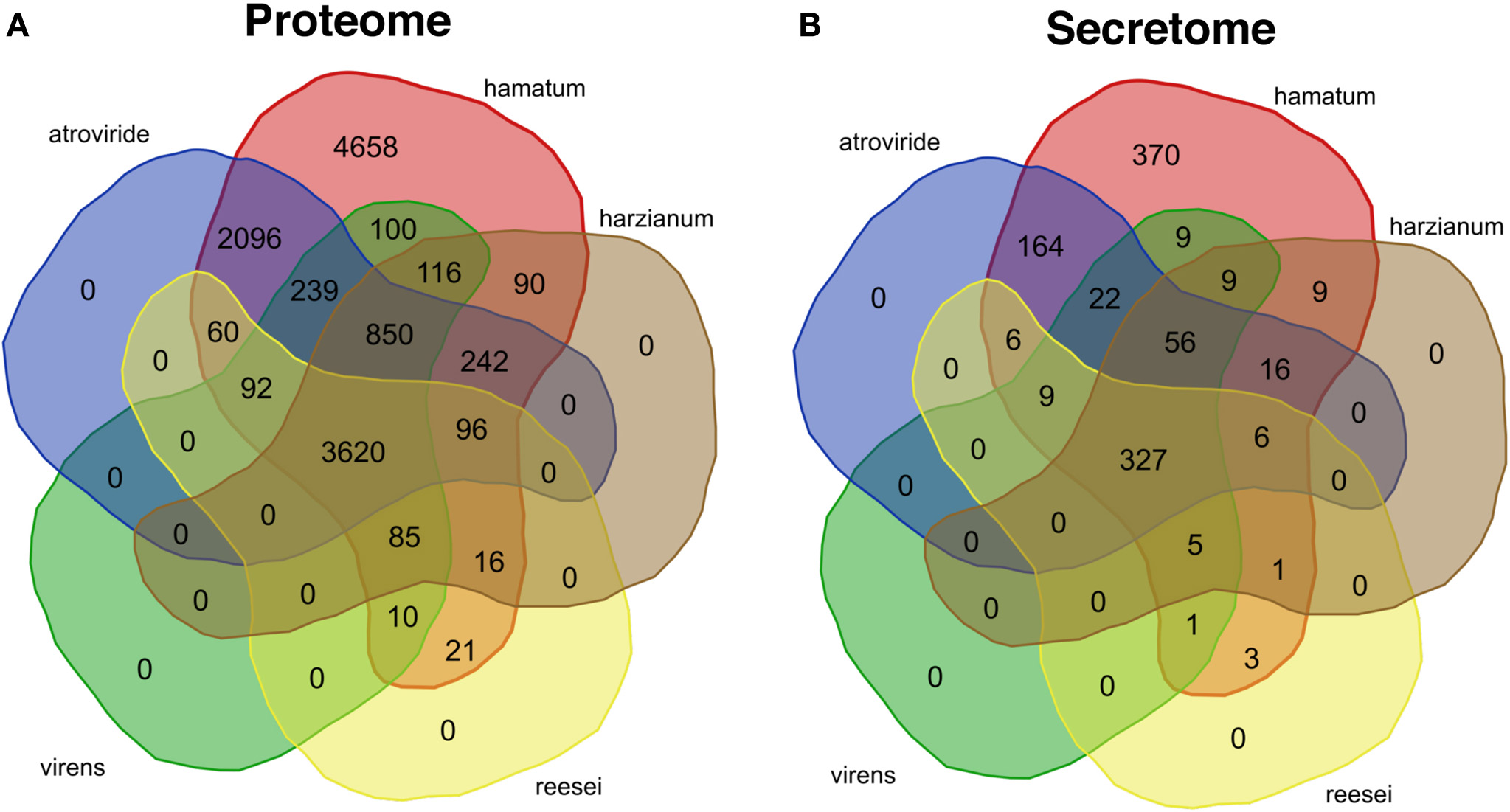

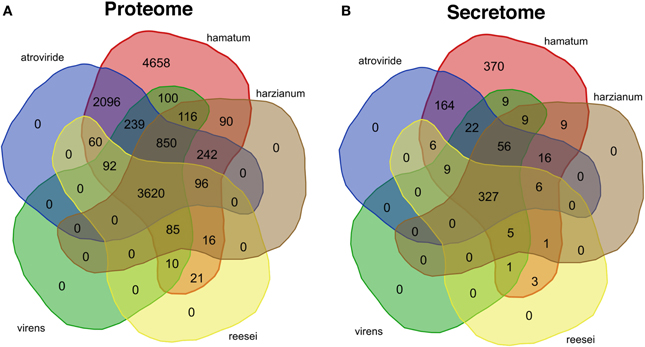

Figure 4. Venn diagrams showing the conservation of the Trichoderma hamatum GD12 predicted proteome and secretome in previously sequenced Trichoderma species. BLASTP was used to search for similar sequences to each of the 12,391 predicted GD12 proteins. We performed BLASTP searches against the previously published predicted proteomes of T. atroviride, T. virens, T. reesei, and T. harzianum as well as against the GD12 predicted proteome. A protein was counted as conserved in a species if there was a BLASTP hit with least 80% amino acid sequence identity covering at least 90% of the query sequence. The predicted proteins and a subset comprising the predicted secreted proteins were compared to other sequenced Trichoderma isolates. (A) T. hamatum GD12 shares a core proteome of 3620 predicted proteins, with T. hamatum with T. atroviride, T. harzianum, T. reesei and T. virens and has 4658 unique proteins. The GD12 proteome is most homologous to that of T. atroviride. (B) The 1,014 proteins predicted to encode secreted proteins based upon secretion signals (SignalP) and lack of a typical transmembrane domain (Phobius) were compared to similarly derived secretomes from T. atroviride, T. harzianum, T. reesei and T. virens. GD12 shares a core secretome of 327 proteins and has 370 predicted unique secreted proteins.
These T. hamatum-specific genomic regions likely hold the key to the unique biological interactions observed in this species. For example, we identified a 47-kbp T. hamatum-specific region described in Table 1 and illustrated in Figure 5, which appears to encode several enzymes (Genes 3, 5, 6, 7) and transporters (Genes 2, 4) that might contribute to novel secondary metabolism pathways. Predicted gene 3 encodes a protein containing an attachment site for phosphopantetheine, a prosthetic group that acts as a “swinging arm” for the attachment of activated fatty acid and amino-acid groups. It also contains a domain characteristic of AMP-binding enzymes. Gene 5 encodes a protein with an ATP-grasp domain, characteristic of enzymes that possess ATP-dependent carboxylate-amine ligase activity. Gene 6 encodes a putative aminotransferase while Gene 7 is predicted to encode a polyketide synthase, which provide important sources of naturally occurring small molecules such as antibiotics and other industrially important polyketides.

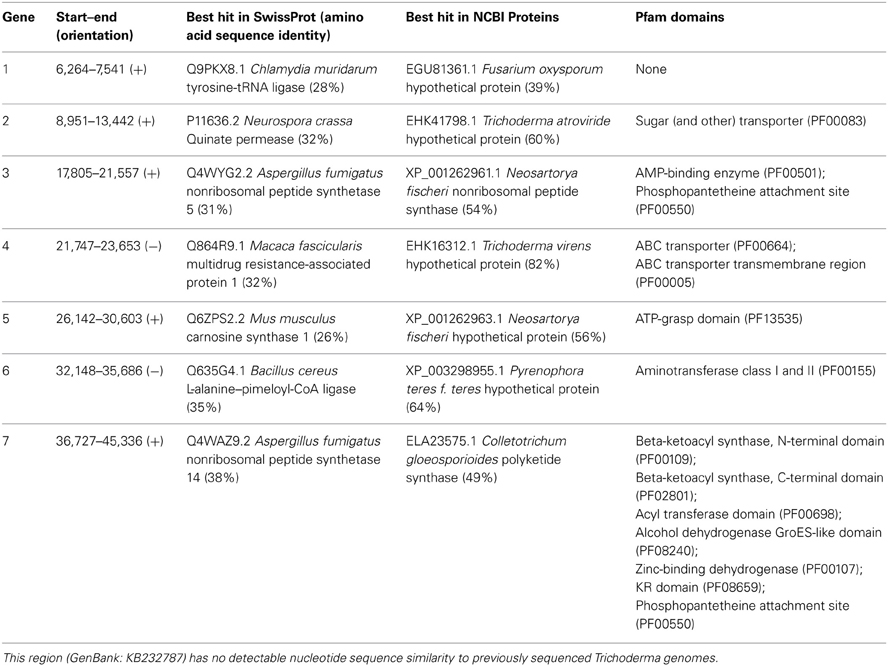

Table 1. Genes encoded in a 47-kbp genomic region unique to Trichoderma hamatum GD12.

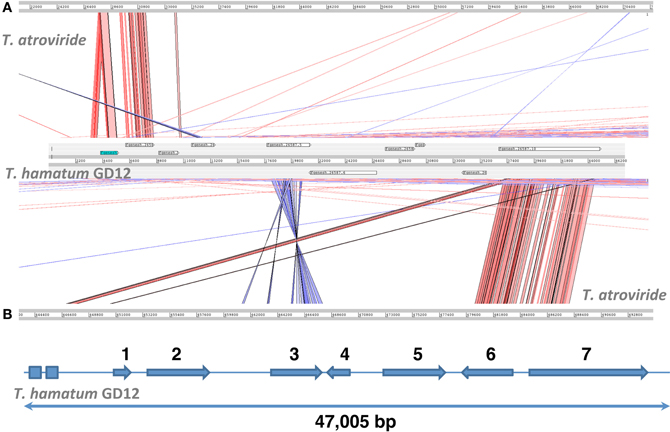

Figure 5. A genomic region unique to Trichoderma hamatum GD12 with the capacity to encode novel secondary metabolites. (A) This 47-kbp region (GenBank: KB232787) has no detectable nucleotide sequence similarity to previously sequenced Trichoderma genomes except for the two short regions indicated by rectangles, which share 85% and 78% nucleotide sequence identity with T. atroviride scaffold 19. (B) Arrows indicating predicted protein-coding genes, which are described in Table 1.
While the vast majority of the unique GD12 genes were of unknown function, there were some interesting candidate genes that might contribute to both PGP and biocontrol activities. These included enzymes with homology to benzene and benzoate oxidases and nicotinate (nicotinamidase) degradation; potential synthesis of the plant phytohormone zeatin (adenylate isopentenyltransferase) and the insect hormone biosynthetic hormone ecdysone oxidase. Most notable are the non-ribosomally synthesized cyclic lipopetide antibiotics such as surfactin and three of the five Bacillus subtilis fengycin synthetases that non-ribosomally synthesize fengycin, a lipopeptidic antibiotic (Wu et al., 2007). Thus, a rich reservoir of metabolic potential exists in the unique genomic regions of T. hamatum.
The Secretome
Given the dual plant growth promotion and biocontrol properties of T. hamatum, constituents of the “secretome” represent candidates in the molecular dialogue between soil pathogens and the plant rhizosphere. Of the 12391 hypothetical GD12 genes, 1014 (8.2%) were predicted to be encode secreted proteins based upon SignalP 3.0 (Bendtsen et al., 2004) and absence of a typical transmembrane domain as determined by Phobius (Kall et al., 2004) (Supplementary File S1). Of these, 370 were unique to T. hamatum, more than entire the “core” secretome shared by the 5 Trichoderma species (Figure 4B). Only 469 (55.5%) of T. hamatum secretome proteins are conserved in T. atroviride suggesting some divergence in the nature of the secreted bioactive proteins. The secretome of T. atroviride is, surprisingly, enriched for 26 proteins containing the fungal-specific Zn(2)Cys(6) transcription factor domain (Pfam: PF04082; http://genomebiology.com/2011/12/4/R40). The predicted secretome of GD12 is also similarly enriched, with 11 proteins containing this transcription-factor domain. One striking feature of the GD12 secretome is the enrichment for putative AMP-binding enzymes; 14 of the GD12 secreted proteins contain an AMP-binding domain (Pfam: PF00501; Supplementary File S2).
Small Secreted (Cysteine-Rich) Proteins (SSCRPs)
Fungi manipulate the immune systems of their plant hosts via effector proteins, many of which are small secreted cysteine-rich proteins (Stergiopoulos and de Wit, 2009). Furthermore, it was recently shown that SSCRPs are upregulated in Trichoderma species during mycoparasitic interaction (Atanasova et al., 2013). We identified potential SSCRPs in the predicted secretomes of T. hamatum and T. atroviride as proteins whose length was 300 amino acids or fewer and which contained at least four cysteine residues, as defined in (Kubicek et al., 2011). There were 153 proteins in T. hamatum satisfying these criteria (Supplementary File S3), of which 83 had no close homologue in T. harzianum, T. reesei, T. virens or T. atroviride (i.e., no BLASTP hit with at least 80% sequence identity over at least 90% of the protein's length). For comparison, in T. atroviride there were 170 proteins satisfying these criteria, of which 106 had no close homologue in T. harzianum, T. reesei, T. virens or T. hamatum. Thus, there is a complement of ~60–70 SSCRPs that may constitute a “core” effector complement. The T. hamatum SSCRP's contained a diverse range of Pfam domains (Supplementary Files S4, S5) suggesting a complex array of biological activities associated with these SSCRPs.
LysM Motifs
The LysM motif binds different peptidoglycans in bacteria and chitin-like compounds in eukaryotes (Buist et al., 2008; de Jonge and Thomma, 2009). Recent studies have shown that fungal LysM motifs can bind and suppress chitin oligomers that would be recognized by plant pattern recognition receptors, preventing the activation of an innate immune response (de Jonge et al., 2010). Seven hypothetical GD12 proteins contain a LysM domain (Pfam: PF01476) although none of these are predicted to be secreted. This is similar to the numbers reported previously for T. reesei (6), T. virens (7) and T. atroviride (9).
Metabolite Profiling of the GD12 and ΔThnag1::hph Mutant Secreted Metabolome
As a foundation to establish the underlying chemical differences that may collectively contribute to the PGP and biocontrol properties of T. hamatum we used two metabolite fingerprinting approaches, 1H-NMR and direct infusion electrospray ionization mass spectrometry (DI-ESI-MS). These methodologies sample a subset of overlapping, largely polar, chemistry which is ideally suited to analysis of the T. hamatum amended bran extracts showing PGP activity (Figure 2). Freeze dried, bran culture filtrates from uninoculated or GD12 and ΔThnag1::hph amended cultures were initially extracted in 20% deuterated methanol in deuterium oxide solvent which is selective for polar metabolites but also has the advantage of being suitable for direct 1H-NMR analysis (Ward et al., 2003) and which we have successfully used in fingerprinting Arabidopsis-Pseudomonas syringae interactions (Ward et al., 2010). However, due to some shifts in peaks, presumably due to differing pHs of the samples, the freeze-dried bran culture filtrates were re-extracted using deuterated sodium phosphate buffer which aligned all peaks in the spectrum.
Principal components analysis (PCA) of full unfiltered data at 95% confidence intervals was used to evaluate differences in chemistry between the bran extracts. Figure 6 show that both chemistries clearly showed statistically significant separation between the three treatments. Notably, the GD12 amended bran culture extract fingerprint is significantly different from ΔThnag1::hph confirming differences in the secreted metabolome between the two that may contribute to the PGP differences illustrated in Figure 2. As part of a large scale metabolite profiling study of GD12 secreted metabolites we undertook unbiased metabolite profiling on GD12 bran extracts. Bran extracts prepared as above were first tested for plant growth promotion activity then three independent experiments, each containing 4 replicates were analysed by liquid chromatography mass spectrometry on a C18 column as described in Supplementary File S6. Spectra were extracted and features aligned from biological replicates using a density maximisation approach as previously described (Perera et al., 2012). This study confirmed a large number of potentially novel metabolites were secreted by GD12. Supplementary File S7 reports the top 30 ranked features identified in both positive and negative ionisation mode from GD12 bran extract showing at least a 5-fold enrichment in a minimum of 10 out of 12 samples analysed.

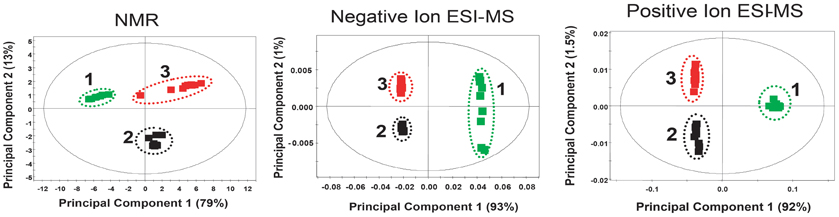

Figure 6. Metabolite fingerprinting of bran extracts using NMR and DI-ESI-MS datasets. Extracts from 5 day old T. hamatum bran inoculum were analysed by 1H-NMR and direct infusion electrospray ionization mass spectrometry. Principal components analysis (PCA) of full unfiltered data at 95% confidence intervals was used to evaluate differences in chemistry between the bran extracts. PCA data showed clear separation of GD12 (black) and ΔThnag1::hph (red) from control bran extract green indicating both chemistries captured differences in the secreted metabolome. This unsupervised multivariate PCA analysis was performed using SIMCA-P 11.0, using mean-centered scaling.
Discussion and Conclusions
Here we extend our initial characterization of T. hamatum strain GD12 (Ryder et al., 2012) to examine further beneficial agronomic traits of GD12. We show plant growth promotion in the model dicot, Arabidopsis thaliana and the ability to induce foliar biocontrol in rice, a model monocot. We further characterized the lettuce-T. hamatum interaction to show that bran extracts from GD12 and the N-acetyl-β-D-glucosamindase-deficient mutant ΔThnag1::hph differentially promote growth in a concentration dependent manner. Both 1H-NMR and direct infusion electrospray ionization mass spectrometry fingerprinting show that these differences in growth are also correlated with differences in the small molecule secretome extracted from bran cultures. This finding was extended by unbiased comparative metabolite profiling of GD12 amended and un-amended bran extracts. We also expanded our recent finding of GD12 mycoparasitism of a strain of the pre-emergence soil pathogen Sclerotinia sclerotiorum to show mycoparasitism across a range of S. sclerotiorum strains. This interaction induces a further increase in plant growth promotion above that conferred by GD12 suggesting that cryptic metabolomic pathways, ordinarily silent in GD12 in axenic culture, are induced during antagonistic interactions in soil.
Fossil evidence predicts that the mycoparasitic lifestyle evolved more than 400 million years ago (Taylor and Berbee, 2006). We sequenced the T. hamatum genome and demonstrate that like T. virens and T. atroviride, T. hamatum encodes a vast arsenal of cell wall degrading enzymes such as chitinases, glycoside hydrolases, β −1,3-glucanases and N-acetyl-β-D-glucosaminidases that are presumably deployed to degrade the carbohydrate defenses of its biocontrol targets. It also encodes a wealth of proteases, polyketide synthases and non-peptide synthases consistent with its mycoparasitic lifestyle. Strikingly, however, approximately half of the T. hamatum proteome and its constituent secretome is unique to GD12 and vice versa. To ensure these data were not the result of unexpected contamination we sequenced the related T. hamatum strain 11 and verified ~98% identity.
Recent comparative genomic experiments have revealed that the T. reesei genome contraction has occurred, with consequent loss of mycoparasitic ability. At 38.8 Mbp, the T. virens genome is nearly 5 Mbp larger than T. reesei and 2.7 Mbp larger than T. atroviride. Unique to T. virens and T. atroviride are secondary metabolite gene clusters localized on non-syntenic islands that are likely to contribute to mycoparasitism. Notable in the larger T. virens genome, are a repertoire of non-ribosomal peptide synthetases (NRPS) expanded to 28, twice that present in other fungi (Martinez et al., 2008; Kubicek et al., 2011).
T. hamatum is phylogenetically most closely related to T. atroviride (Kubicek et al., 2011) yet the incomplete GD12 assembly at ~38.1 Mbp is nearly as large as the T. virens genome. Despite the close phylogenetic relationship, there were striking differences between T. atroviride and T. hamatum homology, with approximately 40% of the GD12 proteome being unique. The extent of these differences are interesting and most likely reflect the strong evolutionarily genomic potential and additional beneficial traits of plant growth promotion and induced systemic resistance encoded by GD12, as well as components required for niche differentiation. A simple analysis of GD12 unique regions identified a range of components implicated in secondary metabolism including evidence for production of non-ribosomally synthesized lipopetide antibiotics such as surfactin and the antibiotic fengycin (Wu et al., 2007).
T. hamatum encoded over 4658 unique proteins and shared a core proteome of 3620 predicted proteins with the four other Trichoderma's (T. atroviride, T. virens, T. reesei, T. harzianum). An additional 2096 proteins were unique to GD12 and T. atroviride reflecting the closer evolutionarily relationship between these two species. Some of these genes may specify enzymes responsible for the breakdown of polymeric organic molecules into a form that can be absorbed, or in the secretion of fungal synthesized compounds that have roles in antibiosis or are signals molecules facilitating communication with mutualistic partners. How the unique component of the GD12 genome has been acquired and is deployed remains to be determined. Figure 5 highlights a 47-kbp T. hamatum-specific region that encodes several biosynthetic enzymes and transporters with potential to contribute to novel secondary chemistries, including two NRPS components. Moreover, like T. atroviride (Baker et al., 2012), the T. hamatum genome has a number gene clusters encoding polyketide synthases. PKSs play important roles in synthesis of secondary metabolites such as in the plant pathogen Ustilago maydis (Kamper et al., 2006) and a hybrid NRPS/PKS has recently been implicated in ISR in maize (Mukherjee et al., 2012).
We predicted 370 unique proteins in the secretome of T. hamatum and a core of 327 proteins shared across T. atroviride, T. virens, T. reesei and T. harzianum. GD12 and T. atroviride shared 164 unique putative secreted proteins, nearly 20 times as many as any of the other species (Figure 4). The distinct genomic potential is also reflected in the deployment of small secreted cysteine rich peptides which function as potential fungal effector proteins to suppress host immunity and modulate host signalling networks (Stergiopoulos and de Wit, 2009). Approximately 50% of the SSCRPs were shared between the two species.
A striking feature of the GD12 secretome was the enrichment for putative AMP-binding enzymes; 14 of the GD12 secreted proteins contain the AMP-binding domain (Pfam: PF00501; Supplementary File S1). Interestingly, many of these proteins are capable of acyl:adenyl ligase activities that can positively or negatively modulate bioactivity through the ligation of residues such as amino acids. Plant acyl:adenyl ligases include enzymes generating bioactive amide hormone conjugates such as JA-Ile and JA-Trp from JA and IAA-Trp from indole acetic acid (Staswick and Tiryaki, 2004; Staswick, 2009). Virulent phytopathogens such as Pseudomonas syringae synthesize IAA-lysine synthetase which can inactivate plant IAA to IAA-lysine (Romano et al., 1991). The AMP-binding domain containing Cochliobolus carbonum race 1 HC-toxin synthetase produces the HC-toxin cyclic tetrapeptide (Scott-Craig et al., 1992; Walton, 2006). Thus enrichment for putative secreted AMP-binding enzymes may highlight a possible role in plant-microbe communication in the rhizosphere.
Overall, it is an exciting and opportune time to exploit the remarkable genetic and chemical potential for beneficial for sustainable agriculture. Co-evolution with hosts has endowed Trichoderma spp. with a range of agronomically important traits. The genome of T. hamatum GD12 encodes the genetic potential to promote growth and induce ISR in a range of plants. The arsenal of genes in GD12 also enables it to effectively mycoparasitize S. sclerotiorum, a successful and persistent pathogen of agronomic crops. Strikingly, mycoparasitism of S. sclerotiorum results in additional PGP. Importantly, culture filtrates that promote plant growth (Figure 1B) are incapable of suppressing the pathogenic effects of Sclerotinia suggesting that, additional enhanced plant growth stimulation occurs during interactions with soil pathogens. We hypothesize that antagonism between GD12 and root pathogens in the plant rhizosphere leads to transcriptional activation of cryptic secondary metabolite pathways that are phenotypically silent in axenic culture. This is in agreement with recent reports of activation of silent gene clusters in Aspergillus nidulans following co-cultivation of the fungus with other microorganisms which has led to the identification of novel secondary metabolites (Schroeckh et al., 2009). However, it is also possible that mycoparasitism gives rise to new compounds from degrading tissue or releases pre-existing components with PGP activity. Thus, the genome sequence of GD12, and comparisons with other Trichoderma genomes will facilitate genetic dissection of these traits. Genome informed predictions will help to identify and experimentally validate novel secondary metabolism implicated in adaptation to specific ecological niches and promotion of beneficial traits.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
This work was supported by a Biotechnology and Biological Sciences Research Council grant BB/I014691/1 to Murray Grant and Chris R. Thornton.
Supplementary Materials
The Supplementary Material for this article can be found online at: http://www.frontiersin.org/Plant-Microbe_Interaction/10.3389/fpls.2013.00258/abstract
Supplementary File S1 | GD12.secretome.no-TMs.faa.pfamscan.html. Frequencies of Pfam domains in predicted secreted proteins encoded in the GD12 genome.
Supplementary File S2 | Supp2_AMP-binding_secreted.faa.txt. AMP-binding domain proteins are over-represented in the secretome.
Supplementary File S3 | Supp3_GD12.secretome.no-TMs.SSCRPs.faa.txt. Sequences of candidate small secreted cysteine-rich proteins (SSCRPs) encoded in the GD12 genome. Amino acid sequences are given in FastA format.
Supplementary File S4 | Supp4_GD12.secretome.no-TMs.SSCRPs.faa.pfamscan.txt. Pfam domains in each predicted small secreted cysteine-rich proteins (SSCRPs) encoded in the GD12 genome.
Supplementary File S5 | Supp5_GD12.secretome.noTMs.SSCRPs.faa.pfamscan.html. Frequencies of Pfam domains in predicted small secreted cysteine-rich proteins (SSCRPs) encoded in the GD12 genome.
Supplementary File S6 | Method for unbiased profiling of GD12 and bran extracts by HPLC-MS.
Supplementary File S7 | Table of top 30 putative metabolites identified in GD12 bran extracts showing at least a 5 fold change compared to unamended bran extract.
References
Anderson, P. K., Cunningham, A. A., Patel, N. G., Morales, F. J., Epstein, P. R., and Daszak, P. (2004). Emerging infectious diseases of plants: pathogen pollution, climate change and agrotechnology drivers. Trends Ecol. Evol. 19, 535–544. doi: 10.1016/j.tree.2004.07.021
Atanasova, L., Le Crom, S., Gruber, S., Coulpier, F., Seidl-Seiboth, V., Kubicek, C. P., et al. (2013). Comparative transcriptomics reveals different strategies of Trichoderma mycoparasitism. BMC Genomics 14:121. doi: 10.1186/1471-2164-14-121
Bae, H., Sicher, R. C., Kim, M. S., Kim, S. H., Strem, M. D., Melnick, R. L., et al. (2009). The beneficial endophyte Trichoderma hamatum isolate DIS 219b promotes growth and delays the onset of the drought response in Theobroma cacao. J. Exp. Bot. 60, 3279–3295. doi: 10.1093/jxb/erp165
Baker, S. E., Perrone, G., Richardson, N. M., Gallo, A., and Kubicek, C. P. (2012). Phylogenomic analysis of polyketide synthase-encoding genes in Trichoderma. Microbiology 158, 147–154. doi: 10.1099/mic.0.053462-0
Bendtsen, J. D., Nielsen, H., von Heijne, G., and Brunak, S. (2004). Improved prediction of signal peptides: SignalP 3.0. J. Mol. Biol. 340, 783–795. doi: 10.1016/j.jmb.2004.05.028
Benitez, T., Rincon, A. M., Limon, M. C., and Codon, A. C. (2004). Biocontrol mechanisms of Trichoderma strains. Int. Microbiol. 7, 249–260.
Buist, G., Steen, A., Kok, J., and Kuipers, O. P. (2008). LysM, a widely distributed protein motif for binding to (peptido)glycans. Mol. Microbiol. 68, 838–847. doi: 10.1111/j.1365-2958.2008.06211.x
Cartieaux, F., Thibaud, M. C., Zimmerli, L., Lessard, P., Sarrobert, C., David, P., et al. (2003). Transcriptome analysis of Arabidopsis colonized by a plant-growth promoting rhizobacterium reveals a general effect on disease resistance. Plant J. 36, 177–188. doi: 10.1046/j.1365-313X.2003.01867.x
Carver, T. J., Rutherford, K. M., Berriman, M., Rajandream, M. A., Barrell, B. G., and Parkhill, J. (2005). ACT: the Artemis Comparison Tool. Bioinformatics 21, 3422–3423. doi: 10.1093/bioinformatics/bti553
Chang, Y.-C., Baker, R., Kleifeld, O., and Chet, I. (1986). Increased growth of plants in the presence of the biological control agent Trichoderma harzianum. Plant Dis. 70, 145. doi: 10.1094/PD-70-145
Chaverri, P., and Gary J. S. (2003). Hypocrea/Trichoderma (Ascomycota, Hypocreales, Hypocreaceae): species with green ascospores. Centraalbureau voor Schimmelcultures.
Chet, I., Harman, G., and Baker, R. (1981). Trichoderma hamatum: its hyphal interactions with Rhizoctonia solani and Pythium spp. Microb. Ecol. 7, 29–38. doi: 10.1007/BF02010476
Contreras-Cornejo, H. A., Macias-Rodriguez, L., Cortes-Penagos, C., and Lopez-Bucio, J. (2009). Trichoderma virens, a plant beneficial fungus, enhances biomass production and promotes lateral root growth through an auxin-dependent mechanism in Arabidopsis. Plant Physiol. 149, 1579–1592. doi: 10.1104/pp.108.130369
de Jonge, R., and Thomma, B. P. (2009). Fungal LysM effectors: extinguishers of host immunity? Trends Microbiol. 17, 151–157. doi: 10.1016/j.tim.2009.01.002
de Jonge, R., van Esse, H. P., Kombrink, A., Shinya, T., Desaki, Y., Bours, R., et al. (2010). Conserved fungal LysM effector Ecp6 prevents chitin-triggered immunity in plants. Science 329, 953–955. doi: 10.1126/science.1190859
Djonovic, S., Pozo, M. J., Dangott, L. J., Howell, C. R., and Kenerley, C. M. (2006). Sm1, a proteinaceous elicitor secreted by the biocontrol fungus Trichoderma virens induces plant defense responses and systemic resistance. Mol. Plant Microbe Interact. 19, 838–853. doi: 10.1094/MPMI-19-0838
Druzhinina, I. S., Seidl-Seiboth, V., Herrera-Estrella, A., Horwitz, B. A., Kenerley, C. M., Monte, E., et al. (2011). Trichoderma: the genomics of opportunistic success. Nat. Rev. Microbiol. 9, 749–759. doi: 10.1038/nrmicro2637
Elad, Y. (2000). Biological control of foliar pathogens by means of Trichoderma harzianum and potential modes of action. Crop Prot. 19, 709–714. doi: 10.1016/S0261-2194(00)00094-6
Fantke, P., Wieland, P., Juraske, R., Shaddick, G., Itoiz, E. S., Friedrich, R., et al. (2012). Parameterization models for pesticide exposure via crop consumption. Environ. Sci. Technol. 46, 12864–12872. doi: 10.1021/es301509u
Fisher, M. C., Henk, D. A., Briggs, C. J., Brownstein, J. S., Madoff, L. C., McCraw, S. L., et al. (2012). Emerging fungal threats to animal, plant and ecosystem health. Nature 484, 186–194. doi: 10.1038/nature10947
Giraldo, L. A., Tejido, M. L., Ranilla, M. J., and Carro, M. D. (2007). Effects of exogenous cellulase supplementation on microbial growth and ruminal fermentation of a high-forage diet in Rusitec fermenters. J. Anim. Sci. 85, 1962–1970. doi: 10.2527/jas.2006-318
Grant, M. R., and Jones, J. D. (2009). Hormone (dis)harmony moulds plant health and disease. Science 324, 750–752. doi: 10.1126/science.1173771
Harman, G. E. (2006). Overview of Mechanisms and Uses of Trichoderma spp. Phytopathology 96, 190–194. doi: 10.1094/PHYTO-96-0190
Harman, G. E., Howell, C. R., Viterbo, A., Chet, I., and Lorito, M. (2004). Trichoderma species–opportunistic, avirulent plant symbionts. Nat. Rev. Microbiol. 2, 43–56. doi: 10.1038/nrmicro797
Harvey, M., and Pilgrim, S. (2011). The new competition for land: Food, energy, and climate change. Food Policy 36, S40–S51. doi: 10.1016/j.foodpol.2010.11.009
Heidel, A. J., Clarke, J. D., Antonovics, J., and Dong, X. (2004). Fitness costs of mutations affecting the systemic acquired resistance pathway in Arabidopsis thaliana. Genetics 168, 2197–2206. doi: 10.1534/genetics.104.032193
Howell, C. R. (2003). Mechanisms employed by trichoderma species in the biological control of plant diseases: the history and evolution of current concepts. Plant Dis. 87, 10. doi: 10.1094/PDIS.2003.87.1.4
Kall, L., Krogh, A., and Sonnhammer, E. L. (2004). A combined transmembrane topology and signal peptide prediction method. J. Mol. Biol. 338, 1027–1036. doi: 10.1016/j.jmb.2004.03.016
Kamper, J., Kahmann, R., Bolker, M., Ma, L. J., Brefort, T., Saville, B. J., et al. (2006). Insights from the genome of the biotrophic fungal plant pathogen Ustilago maydis. Nature 444, 97–101. doi: 10.1038/nature05248
Kubicek, C. P., Herrera-Estrella, A., Seidl-Seiboth, V., Martinez, D. A., Druzhinina, I. S., Thon, M., et al. (2011). Comparative genome sequence analysis underscores mycoparasitism as the ancestral life style of Trichoderma. Genome Biol. 12, R40. doi: 10.1186/gb-2011-12-4-r40
Kuhad, R. C., Gupta, R., and Singh, A. (2011). Microbial cellulases and their industrial applications. Enzyme Res. 2011:280696. doi: 10.4061/2011/280696
Lorito, M., Woo, S. L., Harman, Gary E., and Monte, E. (2010). Translational Research on Trichoderma: from 'Omics to the Field. Annu. Rev. Phytopathol. 48, 395–417. doi: 10.1146/annurev-phyto-073009-114314
Maplestone, P., Whipps, J., and Lynch, J. (1991). Effect of peat-bran inoculum of Trichoderma species on biological control of Rhizoctonia solani in lettuce. Plant Soil 136, 257–263. doi: 10.1007/BF02150057
Martinez, D., Berka, R. M., Henrissat, B., Saloheimo, M., Arvas, M., Baker, S. E., et al. (2008). Genome sequencing and analysis of the biomass-degrading fungus Trichoderma reesei (syn. Hypocrea jecorina). Nat. Biotechnol. 26, 553–560. doi: 10.1038/nbt1403
Martinez-Medina, A., Pascual, J. A., Perez-Alfocea, F., Albacete, A., and Roldan, A. (2010). Trichoderma harzianum and Glomus intraradices modify the hormone disruption induced by Fusarium oxysporum infection in melon plants. Phytopathology 100, 682–688. doi: 10.1094/PHYTO-100-7-0682
Martinez-Medina, A., Roldan, A., Albacete, A., and Pascual, J. A. (2011). The interaction with arbuscular mycorrhizal fungi or Trichoderma harzianum alters the shoot hormonal profile in melon plants. Phytochemistry 72, 223–229. doi: 10.1016/j.phytochem.2010.11.008
Mathys, J., De Cremer, K., Timmermans, P., Van Kerckhove, S., Lievens, B., Vanhaecke, M., et al. (2012). Genome-Wide Characterization of ISR Induced in Arabidopsis thaliana by Trichoderma hamatum T382 Against Botrytis cinerea Infection. Front. Plant Sci. 3:108. doi: 10.3389/fpls.2012.00108
Miettinen-Oinonen, A., and Suominen, P. (2002). Enhanced production of Trichoderma reesei endoglucanases and use of the new cellulase preparations in producing the stonewashed effect on denim fabric. Appl. Environ. Microbiol. 68, 3956–3964. doi: 10.1128/AEM.68.8.3956-3964.2002
Millet, Y. A., Danna, C. H., Clay, N. K., Songnuan, W., Simon, M. D., Werck-Reichhart, D., et al. (2010). Innate immune responses activated in Arabidopsis roots by microbe-associated molecular patterns. Plant Cell 22, 973–990. doi: 10.1105/tpc.109.069658
Montgomery, D. R. (2007). Soil erosion and agricultural sustainability. Proc. Natl. Acad. Sci. U.S.A. 104, 13268–13272. doi: 10.1073/pnas.0611508104
Mukherjee, P. K., Buensanteai, N., Moran-Diez, M. E., Druzhinina, I. S., and Kenerley, C. M. (2012). Functional analysis of non-ribosomal peptide synthetases (NRPSs) in Trichoderma virens reveals a polyketide synthase (PKS)/NRPS hybrid enzyme involved in the induced systemic resistance response in maize. Microbiology 158, 155–165. doi: 10.1099/mic.0.052159-0
Ousley, M. A., Lynch, J. M., and Whipps, J. M. (1994). Potential of Trichoderma spp. as consistent plant growth stimulators. Biol. Fertil. Soils 17, 85–90. doi: 10.1007/BF00337738
Ousley, M., Lynch, J., and Whipps, J. (1993). Effect of Trichoderma on plant growth: a balance between inhibition and growth promotion. Microb. Ecol. 26, 277–285. doi: 10.1007/BF00176959
Pere, J., Puolakka, A., Nousiainen, P., and Buchert, J. (2001). Action of purified Trichoderma reesei cellulases on cotton fibers and yarn. J. Biotechnol. 89, 247–255. doi: 10.1016/S0168-1656(01)00308-X
Perera, V., De Torres Zabala, M., Florance, H., Smirnoff, N., Grant, M., and Yang, Z.-R. (2012). Aligning extracted LC-MS peak lists via density maximization. Metabolomics doi: 10.1007/s11306-011-0389-x. [Epub ahead of print].
Powlson, D., Gregory, P., Whalley, W., Quinton, J., Hopkins, D., Whitmore, A., et al. (2011). Soil management in relation to sustainable agriculture and ecosystem services. Food Policy 36, S72–S87. doi: 10.1016/j.foodpol.2010.11.025
Punta, M., Coggill, P. C., Eberhardt, R. Y., Mistry, J., Tate, J., Boursnell, C., et al. (2012). The Pfam protein families database. Nucleic Acids Res. 40, D290–D301. doi: 10.1093/nar/gkr1065
Robert-Seilaniantz, A., Grant, M., and Jones, J. D. (2011). Hormone crosstalk in plant disease and defense: more than just jasmonate-salicylate antagonism. Annu. Rev. Phytopathol. 49, 317–343. doi: 10.1146/annurev-phyto-073009-114447
Romano, C. P., Hein, M. B., and Klee, H. J. (1991). Inactivation of auxin in tobacco transformed with the indoleacetic acid-lysine synthetase gene of Pseudomonas savastanoi. Genes Dev. 5, 438–446. doi: 10.1101/gad.5.3.438
Ryder, L. S., Harris, B. D., Soanes, D. M., Kershaw, M. J., Talbot, N. J., and Thornton, C. R. (2012). Saprotrophic competitiveness and biocontrol fitness of a genetically modified strain of the plant-growth-promoting fungus Trichoderma hamatum GD12. Microbiology 158, 84–97. doi: 10.1099/mic.0.051854-0
Santner, A., and Estelle, M. (2007). The JAZ proteins link jasmonate perception with transcriptional changes. Plant Cell 19, 3839–3842. doi: 10.1105/tpc.107.056960
Sauer, T., Havlík, P., Schneider, U. A., Schmid, E., Kindermann, G., and Obersteiner, M. (2010). Agriculture and resource availability in a changing world: the role of irrigation. Water Resour. Res. 46, W06503. doi: 10.1029/2009WR007729
Schmidhuber, J., and Tubiello, F. N. (2007). Global food security under climate change. Proc. Natl. Acad. Sci. U.S.A. 104, 19703–19708. doi: 10.1073/pnas.0701976104
Schroeckh, V., Scherlach, K., Nutzmann, H. W., Shelest, E., Schmidt-Heck, W., Schuemann, J., et al. (2009). Intimate bacterial-fungal interaction triggers biosynthesis of archetypal polyketides in Aspergillus nidulans. Proc. Natl. Acad. Sci. U.S.A. 106, 14558–14563. doi: 10.1073/pnas.0901870106
Scott-Craig, J. S., Panaccione, D. G., Pocard, J. A., and Walton, J. D. (1992). The cyclic peptide synthetase catalyzing HC-toxin production in the filamentous fungus Cochliobolus carbonum is encoded by a 15.7-kilobase open reading frame. J. Biol. Chem. 267, 26044–26049.
Segarra, G., Van der Ent, S., Trillas, I., and Pieterse, C. M. (2009). MYB72, a node of convergence in induced systemic resistance triggered by a fungal and a bacterial beneficial microbe. Plant Biol. 11, 90–96. doi: 10.1111/j.1438-8677.2008.00162.x
Seidl, V., Seibel, C., Kubicek, C. P., and Schmoll, M. (2009). Sexual development in the industrial workhorse Trichoderma reesei. Proc. Natl. Acad. Sci. U.S.A. 106, 13909–13914. doi: 10.1073/pnas.0904936106
Shoresh, M., Harman, G. E., and Mastouri, F. (2010). Induced systemic resistance and plant responses to fungal biocontrol agents. Annu. Rev. Phytopathol. 48, 21–43. doi: 10.1146/annurev-phyto-073009-114450
Staswick, P. (2009). Plant hormone conjugation: a signal decision. Plant Signal. Behav. 4, 757–759. doi: 10.4161/psb.4.8.9180
Staswick, P. E., and Tiryaki, I. (2004). The oxylipin signal jasmonic acid is activated by an enzyme that conjugates it to isoleucine in Arabidopsis. Plant Cell 16, 2117–2127. doi: 10.1105/tpc.104.023549
Stergiopoulos, I., and de Wit, P. J. (2009). Fungal effector proteins. Annu. Rev. Phytopathol. 47, 233–263. doi: 10.1146/annurev.phyto.112408.132637
Steyaert, J. M., Weld, R. J., Mendoza-Mendoza, A., and Stewart, A. (2010). Reproduction without sex: conidiation in the filamentous fungus Trichoderma. Microbiology 156, 2887–2900. doi: 10.1099/mic.0.041715-0
Taylor, J. W., and Berbee, M. L. (2006). Dating divergences in the Fungal Tree of Life: review and new analyses. Mycologia 98, 838–849. doi: 10.3852/mycologia.98.6.838
Thornton, C. R. (2005). Use of monoclonal antibodies to quantify the dynamics of alpha-galactosidase and endo-1,4-beta-glucanase production by Trichoderma hamatum during saprotrophic growth and sporulation in peat. Environ. Microbiol. 7, 737–749. doi: 10.1111/j.1462-2920.2005.00747.x
Thornton, C. R. (2008). Tracking fungi in soil with monoclonal antibodies. Eur. J. Plant Pathol. 121, 347–353. doi: 10.1007/s10658-007-9228-3
Ton, J., De Vos, M., Robben, C., Buchala, A., Metraux, J. P., Van Loon, L. C., et al. (2002). Characterization of Arabidopsis enhanced disease susceptibility mutants that are affected in systemically induced resistance. Plant J. 29, 11–21. doi: 10.1046/j.1365-313x.2002.01190.x
Tucci, M., Ruocco, M., De Masi, L., De Palma, M., Lorito, M. (2011). The beneficial effect of Trichoderma spp. on tomato is modulated by the plant genotype. Mol. Plant Pathol. 12, 341–354. doi: 10.1111/j.1364-3703.2010.00674.x
Valent, B., Farrall, L., and Chumley, F. G. (1991). Magnaporthe grisea genes for pathogenicity and virulence identified through a series of backcrosses. Genetics 127, 87–101.
van de Mortel, J. E., de Vos, R. C., Dekkers, E., Pineda, A., Guillod, L., Bouwmeester, K., et al. (2012). Metabolic and transcriptomic changes induced in Arabidopsis by the rhizobacterium Pseudomonas fluorescens SS101. Plant Physiol. 160, 2173–2188. doi: 10.1104/pp.112.207324
van Hulten, M., Pelser, M., van Loon, L. C., Pieterse, C. M., and Ton, J. (2006). Costs and benefits of priming for defense in Arabidopsis. Proc. Natl. Acad. Sci. U.S.A. 103, 5602–5607. doi: 10.1073/pnas.0510213103
Verhagen, B. W., Glazebrook, J., Zhu, T., Chang, H. S., van Loon, L. C., and Pieterse, C. M. (2004). The transcriptome of rhizobacteria-induced systemic resistance in arabidopsis. Mol. Plant Microbe Interact. 17, 895–908. doi: 10.1094/MPMI.2004.17.8.895
Vinale, F., Flematti, G., Sivasithamparam, K., Lorito, M., Marra, R., Skelton, B. W., et al. (2009). Harzianic acid, an antifungal and plant growth promoting metabolite from Trichoderma harzianum. J. Nat. Prod. 72, 2032–2035. doi: 10.1021/np900548p
Ward, J. L., Forcat, S., Beckmann, M., Bennett, M., Miller, S. J., Baker, J. M., et al. (2010). The metabolic transition during disease following infection of Arabidopsis thaliana by Pseudomonas syringaepv. tomato. Plant J. 63, 443–457. doi: 10.1111/j.1365-313X.2010.04254.x
Ward, J. L., Harris, C., Lewis, J., and Beale M. H. (2003). Assessment of 1H-NMR spectroscopy and multivariate analysis as a technique for metabolite fingerprinting of Arabidopsis thaliana. Phytochemistry 62, 949–957. doi: 10.1016/S0031-9422(02)00705-7
Wu, C. Y., Chen, C. L., Lee, Y. H., Cheng, Y. C., Wu, Y. C., Shu, H. Y., et al. (2007). Nonribosomal synthesis of fengycin on an enzyme complex formed by fengycin synthetases. J. Biol. Chem. 282, 5608–5616. doi: 10.1074/jbc.M609726200
Keywords: Trichoderma hamatum, comparative genomics, secretome, plant growth promotion, induced systemic resistance
Citation: Studholme DJ, Harris B, Le Cocq K, Winsbury R, Perera V, Ryder L, Ward JL, Beale MH, Thornton CR and Grant M (2013) Investigating the beneficial traits of Trichoderma hamatum GD12 for sustainable agriculture—insights from genomics. Front. Plant Sci. 4:258. doi: 10.3389/fpls.2013.00258
Received: 07 March 2013; Accepted: 25 June 2013;
Published online: 30 July 2013.
Edited by:
Corné M. J. Pieterse, Utrecht University, NetherlandsReviewed by:
Bruno Cammue, Katholieke Universiteit Leuven, BelgiumJuan A. Lopez Raez, Consejo Superior de Investigaciones Científicas, Spain
Copyright © 2013 Studholme, Harris, Le Cocq, Winsbury, Perera, Ryder, Ward, Beale, Thornton and Grant. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Murray Grant, Biosciences, College of Life and Environmental Sciences, University of Exeter, Geoffrey Pope Building, Stocker Road, Exeter EX4 4QD, UK e-mail: m.r.grant@exeter.ac.uk
