Pär R. Davidsson- Division of Genetics, Department of Biosciences, University of Helsinki, Helsinki, Finland
Soft rot pectobacteria are broad host range enterobacterial pathogens that cause disease on a variety of plant species including the major crop potato. Pectobacteria are aggressive necrotrophs that harbor a large arsenal of plant cell wall-degrading enzymes as their primary virulence determinants. These enzymes together with additional virulence factors are employed to macerate the host tissue and promote host cell death to provide nutrients for the pathogens. In contrast to (hemi)biotrophs such as Pseudomonas, type III secretion systems (T3SS) and T3 effectors do not appear central to pathogenesis of pectobacteria. Indeed, recent genomic analysis of several Pectobacterium species including the emerging pathogen Pectobacterium wasabiae has shown that many strains lack the entire T3SS as well as the T3 effectors. Instead, this analysis has indicated the presence of novel virulence determinants. Resistance to broad host range pectobacteria is complex and does not appear to involve single resistance genes. Instead, activation of plant innate immunity systems including both SA (salicylic acid) and JA (jasmonic acid)/ET (ethylene)-mediated defenses appears to play a central role in attenuation of Pectobacterium virulence. These defenses are triggered by detection of pathogen-associated molecular patterns (PAMPs) or recognition of modified-self such as damage-associated molecular patterns (DAMPs) and result in enhancement of basal immunity (PAMP/DAMP-triggered immunity or pattern-triggered immunity, PTI). In particular plant cell wall fragments released by the action of the degradative enzymes secreted by pectobacteria are major players in enhanced immunity toward these pathogens. Most notably bacterial pectin-degrading enzymes release oligogalacturonide (OG) fragments recognized as DAMPs activating innate immune responses. Recent progress in understanding OG recognition and signaling allows novel genetic screens for OG-insensitive mutants and will provide new insights into plant defense strategies against necrotrophs such as pectobacteria.
Introduction
Plant pathogens including pathogenic bacteria use a variety of strategies ranging from stealth to brute force to colonize plants and derive nutrients from their hosts. The stealth strategy is employed by biotrophs and hemibiotrophs such as Pseudomonas syringae and Xanthomonas spp. that rely on living plant cells for nutrient acquisition at least until later stages of infection. Their lifestyle is largely dependent on their ability to avoid and suppress plant defense responses most notably by secretion of effector proteins enabling them to obtain nutrients and multiply within living plant tissue (Göhre and Robatzek, 2008; Collmer et al., 2009; Kay and Bonas, 2009). Bacterial effectors are secreted mainly through the type III secretion system (T3SS) which is a multi-protein injection machinery capable of translocating proteins directly from the bacterial cytosol into the host cell (Alfano and Collmer, 2004). Different effector proteins target specific components of plant defense and are effective only against a particular plant species or cultivar. Therefore, strains of (hemi)biotrophic bacteria often show a high degree of host specificity (Niks and Marcel, 2009; Lindeberg et al., 2012). Although essential to pathogenicity of (hemi)biotrophs, T3SS and effectors play a much less central role in the virulent lifestyle of necrotrophs. Instead, necrotrophs use a brute force strategy employing plant cell wall-degrading enzymes (PCWDEs), necrosis-inducing proteins and toxins to actively kill plant tissue and feed on the nutrients released. For example, the broad host range necrotrophic fungus Botrytis cinerea uses enzymes to break down the host cell walls to access the host tissue and causes host cell death by production of non-specific fungal toxins and reactive oxygen species (ROS; van Kan, 2006; Choquer et al., 2007). Similarly, bacterial necrotrophs such as soft rot pectobacteria are broad host range pathogens that are particularly effective in macerating the host tissues and obtaining nutrients from the dead cells. Recent progress in genomic analysis of several species of pectobacteria has provided new insights into the necrotrophic lifestyle of these pathogens and has also made them excellent models for elucidating the strategies and immune responses plants employ to combat bacterial necrotrophs.
The invasion of a phytopathogen triggers immune responses in the host plant. While lacking the somatic, adaptive immune system as well as mobile defender cells present in animals, plants are still capable of defending themselves in various ways. The recognition of the invader usually occurs via pathogen-associated molecular patterns (PAMPs), conserved structures such as the bacterial flagellin essential for the microbial lifestyle (Gómez-Gómez and Boller, 2000; Boller and Felix, 2009). The resulting pattern-triggered immunity (PTI) response as the first line of defense is sufficient to fend off many but not all potential pathogens. Successful pathogens can bypass PTI for example by secreting the above mentioned effector proteins that interfere with the PTI responses and hence, benefit pathogen virulence by causing effector-triggered susceptibility (ETS). More severe defense responses triggered upon effector recognition including hypersensitive response (HR) and programmed cell death (PCD) result in effector-triggered immunity (ETI) particularly effective against strains of (hemi)biotrophs (Jones and Dangl, 2006). Plants can also sense danger via recognition of so called danger or damage-associated molecular patterns (DAMPs) that report of “damage to self” and induce a variety of host defense responses in many aspects similar to those triggered by PAMPs (Ridley et al., 2001; Galletti et al., 2009). These can be fragments of plant cell wall released by the action of chewing insects but also by PCWDEs secreted by necrotrophic pathogens as an essential part of their virulence strategy. Central in mediating the innate immunity responses are phytohormones such as salicylic acid (SA), jasmonic acid (JA), and ethylene (ET; Dodds and Rathjen, 2010). The focus of this review will be on the virulence strategies of pectobacteria and the corresponding immune responses of plants addressing both similarities and differences of immune responses of pectobacteria to those of biotrophs/hemibiotrophs such as Pseudomonas.
Soft Rot Pectobacteria
Soft rot enterobacteria of genera Pectobacterium and Dickeya are classical and well-studied examples of necrotrophic plant pathogenic bacteria. Their taxonomical classification has been revised several times in recent years. They were first characterized in the early 20th century (Jones, 1901) and for decades were known as members of the genus Erwinia (Winslow et al., 1920). In 1998, the genus was divided into three phylogenetic groups (Hauben et al., 1998). Soft rot pathogens were moved out of the genus Erwinia which now contains plant pathogens such as the hemibiotroph Erwinia amylovora. Two new genera were created: Brenneria and Pectobacterium, the latter of which harbors the soft rot species. Later on, subspecies of P. carotovorum were raised at species level giving rise to for example P. wasabiae and P. atrosepticum (Gardan et al., 2003). Further, P. aroidearum was described as a novel species consisting of soft rot pathogens mainly infecting monocotyledonous plants (Nabhan et al., 2012a). Finally, P. chrysanthemi was separated from Pectobacterium and the new genus Dickeya was formed (Samson et al., 2005).
Soft rot enterobacteria are the most important causative agents of the economically significant soft rot disease which results in significant crop losses during the growth season as well as during storage (Perombelon and Kelman, 1980; Pérombelon, 2002; Czajkowski et al., 2011). The most distinctive feature of soft rot pathogenesis is the co-ordinate production of a large arsenal of PCWDEs such as pectinases, cellulases, hemicellulases, and proteinases which makes pectobacteria very effective in decaying plant tissue. PCWDEs are secreted mainly through type II secretion system (T2SS; Pérombelon, 2002; Charkowski et al., 2012). In addition to PCWDEs, soft rot bacteria secrete proteins that promote plant cell death such as the necrosis-inducing protein (Nip) and the effector protein DspE (Mattinen et al., 2004; Kim et al., 2011). Typical for necrotrophs, soft rot bacteria generally display a broad host range. The disease affects several important crop and ornamental species across the world. Bacteria of the genus Dickeya cause disease especially in tropical and subtropical climates and the host plants include maize, banana, and increasingly potato among many other crop species (Pérombelon, 2002; Toth et al., 2003, Toth et al., 2011; Samson et al., 2005). The host range of P. carotovorum is considered to be the widest of all the soft rot bacteria, potato being the most important crop affected in temperate regions (Pérombelon, 2002; Toth et al., 2003). Common soft rot of potato tubers caused by P. carotovorum can result in extensive crop losses also post-harvest during storage (Perombelon and Kelman, 1980; Pérombelon, 2002). P. atrosepticum, unlike P. carotovorum, appears more host-specific. This pathogen causes a stem disease called blackleg on potato in temperate climates (Perombelon and Kelman, 1980; Pérombelon, 2002). The reason for the narrow host range remains to be elucidated. The third economically important Pectobacterium species, P. wasabiae, was originally characterized as a pathogen of Japanese horseradish (Wasabia japonica), i.e., wasabi (Goto and Matsumoto, 1987). However, recently P. wasabiae has received attention as a potato pathogen in several countries around the world (Ma et al., 2007; Pitman et al., 2008; Baghaee-Ravari et al., 2010). Also, strains previously characterized as P. carotovorum have recently been re-identified as P. wasabiae (Nabhan et al., 2012b) including a well-studied Finnish model strain SCC3193 (Nykyri et al., 2012). At this point, it is not known if P. wasabiae represents an emerging potato pathogen currently spreading around the world or if the species has long been present on potato fields but only recently sequence based methods have enabled the differentiation of P. wasabiae from P. carotovorum.
Although soft rot enterobacteria have been studied for decades, very little still is known of their survival strategies between growing seasons. Soft rot pathogens have been shown to be able to persist in soil only for weeks or months depending on environmental conditions and overwintering in soil is not considered likely. However, survival on decomposing plant material in soil is known to happen (Perombelon and Kelman, 1980; Czajkowski et al., 2011). Introduction of the soft rot pathogens via contaminated planting material such as seed tubers is considered to be the most common way for the disease to spread and considerable effort is taken to ensure disease free planting material. However, due to the ability of soft rot bacteria to colonize plants latently without symptoms, the level of control achieved varies and is highly dependent on environmental conditions (Czajkowski et al., 2011). Further, dispersal of the bacteria could also happen via usage of surface water for irrigation, via aerosols generated by rain, via movement of the bacteria in soil water or mechanically via contaminated agricultural equipment (Perombelon and Kelman, 1980; Czajkowski et al., 2011). Moreover, insects can act as vectors for many plant pathogenic bacteria (Nadarasah and Stavrinides, 2011). Soft rot enterobacteria have also been found associated with insects and transmission via insects has been suggested for decades (Perombelon and Kelman, 1980; Charkowski et al., 2012). Certain strains of P. carotovorum have indeed been shown to interact with Drosophila and activate an immune response in the fly (Basset et al., 2000). The interaction has been shown to be promoted by the bacterial gene evf which improves the persistence of the bacteria in the gut of the fly host (Basset et al., 2003). The existence of bacterial genes promoting interactions with insects suggests that adaptation to insects as vectors or as alternative hosts may have played an important role in the evolution of these plant pathogenic bacteria.
Genome Analysis and Virulence Factors of Pectobacteria
Genome sequencing has provided new insights into the lifestyle of Pectobacterium. P. atrosepticum SCRI1043 was sequenced in 2004 as the first soft rot pathogen (Bell et al., 2004, accession: BX950851). By December 2012, seven more Pectobacterium genome sequences have become publicly available: P. carotovorum WPP14 (Glasner et al., 2008, accession: PRJNA31123), P. brasiliensis PBR1692 (Glasner et al., 2008, accession: PRJNA31121), P. aroidearum PC1 (accession: CP001657.1), P. wasabiae WPP163 (accession: CP001790.1), P. wasabiae SCC3193 (Koskinen et al., 2012, accession: CP003415), P. wasabiae CFBP 3304T (Nykyri et al., 2012, accession: AKVS00000000), and P. carotovorum subsp. carotovorum PCC21 (Park et al., 2012, accession: CP003776).
The necrotrophic nature of the symptomatic stage of Pectobacterium infection and the role of PCWDEs has long been appreciated. Genomic approaches have indeed shown that different Pectobacterium species share a similar collection of PCWDEs instrumental for host tissue maceration (Glasner et al., 2008; Nykyri et al., 2012). The genes encoding PCWDEs are scattered around the Pectobacterium genomes and are mainly found from the core genome (Toth et al., 2006; Glasner et al., 2008; Nykyri et al., 2012). Apart from the similarities in the enzyme arsenal, limited strain specific differences exist for example in the composition of putative proteinases and in the lack of the pectate lyase HrpW and the polygalacturonase (PG) PehK in P. wasabiae strains (Nykyri et al., 2012). Consequently, differences in host specificity or disease type and severity between different Pectobacterium species and strains is not explained by the arsenal of PCWDEs but is likely to rely on other factors yet to be characterized.
Although the necrotrophic lifestyle of Pectobacterium is a hallmark of the symptomatic phase of infection, in recent years the view of Pectobacterium has shifted from a simple necrotroph toward a more sophisticated pathogen whose action at the early stages of infection can be better described as biotrophic (Toth and Birch, 2005; Liu et al., 2008). The initiation of soft rot disease is highly dependent on environmental conditions and the soft rot bacteria are indeed considered as opportunistic pathogens (Pérombelon, 2002; Toth and Birch, 2005). They are capable of living within the plant tissue without causing symptoms but this asymptomatic stage ends when high moisture and low oxygen concentration lower plant resistance favoring bacterial growth (Perombelon and Kelman, 1980; Pérombelon, 2002). PCWDEs are produced, and therefore the symptoms appear, only when the cell density of the bacteria is high (Perombelon and Kelman, 1980; Pérombelon, 2002; Toth et al., 2003). The production of PCWDEs is strictly controlled in a population density-dependent manner through quorum sensing (QS) regulation (Jones et al., 1993; Pirhonen et al., 1993; Liu et al., 2008). This is suggested to prevent premature activation of plant defenses as the action of PCWDEs releases cell wall fragments which trigger defense responses in the host plant (Palva et al., 1993; Salmond et al., 1995; Mäe et al., 2001). QS is proposed to function as the master switch controlling various virulence determinants to achieve a successful transition from the asymptomatic biotrophic phase to necrotrophy (Liu et al., 2008). In addition to QS, the production of PCWDEs and other virulence determinants is further controlled by a number of two component systems and other regulators which sense physiological or environmental cues such as plant derived organic acids and pectin derivatives indicative of presence of the host plant. The effect of different cellular and environmental signals is then integrated by global regulators to assure an appropriate response (reviewed in Toth et al., 2006; Charkowski et al., 2012).
The role of horizontal gene transfer in acquisition of determinants related to interaction with host plants has been highlighted in Pectobacterium genome studies (Bell et al., 2004; Toth et al., 2006; Glasner et al., 2008; Nykyri et al., 2012). Many of these traits could benefit the bacterium at the early stages of infection. Bell et al. (2004) identified putative virulence determinants within horizontally acquired islands in the genome of P. atrosepticum and experimentally verified the contribution of a putative virB-type type IV secretion system (T4SS) and a polyketide phytotoxin (encoded by the cfa cluster, see below) to virulence of the bacterium. T4SS machineries translocate DNA and/or proteins across the bacterial cell wall into bacterial or eukaryotic cells (Christie et al., 2005). virB-T4SS was first described in Agrobacterium tumefaciens where it is used to deliver the tumorigenic Ti-plasmid into the plant cell (Gelvin, 2009). The nature of the material translocated through the T4SS in P. atrosepticum remains unknown and the role of T4SS in other Pectobacterium species, where sporadically present, has not been characterized. P. wasabiae SCC3193 and CFBP 3304T as well as P. carotovorum subsp. brasiliensis PBR1692 harbor T4SS, whereas it is absent from P. wasabiae WPP163, P. carotovorum WPP14, and P. aroidearum PC1 (Glasner et al., 2008; Nykyri et al., 2012). The cfa cluster in P. atrosepticum encodes enzymes for the synthesis of coronafacic acid part of the coronatine phytotoxin characterized in P. syringae as an important virulence determinant which acts by mimicking JA (Bender et al., 1999; Bell et al., 2004). However, coronatine is not produced by P. atrosepticum as enzymes for synthesis of coronamic acid, which is also required for biosynthesis of coronatine, are missing (Bell et al., 2004). Bell et al. (2004) speculate that the effect of the cfa cluster on virulence of P. atrosepticum could be through the production of an alternative polyketide phytotoxin.
The collection of horizontally acquired islands differs between Pectobacterium species and strains (Glasner et al., 2008; Nykyri et al., 2012). Some islands are present in all genomes studied, whereas many islands can only be identified in one strain or species. It remains to be seen if the varying collection of horizontally acquired islands is responsible for the differences in virulence and host specificity between Pectobacterium species. For example, the cfa cluster present on an island in P. atrosepticum is missing from the genomes of other Pectobacterium (Glasner et al., 2008; Nykyri et al., 2012). Further, Nykyri et al. (2012) reported the finding of several P. wasabiae specific islands present in all three P. wasabiae strains (WPP163, SCC3193, and CFBP 3304T) but absent from genomes of other Pectobacterium species. These islands contain uncharacterized genes but also genes encoding for example a second type VI secretion (T6SS) machinery and a bacterial microcompartment of unknown function. T6SS is a common protein secretion system in Gram-negative bacteria and it has been reported to function in interactions with animals, plants and other bacteria (Schwarz et al., 2010; Records, 2011; Russell et al., 2011; Zheng et al., 2011). T6SS was first shown to contribute to virulence on potato in P. atrosepticum (Liu et al., 2008). P. atrosepticum and P. carotovorum genomes contain only one T6SS machinery whereas P. wasabiae harbors two machineries of which one is similar to the T6SS in other Pectobacterium species and the other rather resembles the machinery in Pantoae and Erwinia (Nykyri et al., 2012). In P. wasabiae SCC3193, the two T6SS machineries were experimentally shown to have at least partially overlapping functions during potato infection (Nykyri et al., 2012). Effectors secreted through the T6SS have not yet been identified in Pectobacterium and the exact role of T6SS during infection remains to be elucidated.
Modulation of Host Responses by Pectobacteria
Very little is known of the mechanisms used by Pectobacterium to avoid being destroyed by host defense responses during the asymptomatic phase. Most hemibiotrophic bacterial plant pathogens rely on T3SS and T3 effector proteins to manipulate their hosts in order to achieve suppression of plant defenses and mutants in T3SS are consequently non-pathogenic (Grant et al., 2006; Collmer et al., 2009). T3SS has been shown to contribute to virulence of P. atrosepticum and P. carotovorum (Rantakari et al., 2001; Holeva et al., 2004; Kim et al., 2011). Indeed, inactivation of T3SS in P. carotovorum resulted in delayed growth of the bacteria at the early stages of infection (Rantakari et al., 2001), suggesting that T3SS could be used to suppress plant defense responses also in Pectobacterium. However, the number of T3 effectors encoded by Pectobacterium genomes is apparently much smaller than that of hemibiotroph genomes (Glasner et al., 2008; Kim et al., 2009) and no T3 effectors suppressing plant defense responses have been described. In contrast, the only characterized T3 effector in Pectobacterium, DspE, elicits plant cell death which in turn promotes disease progression and maceration of plant tissue by Pectobacterium at the nectrotrophic stage of infection (Kim et al., 2011). It was concluded that P. carotovorum may not at all use T3SS to suppress plant defense responses as the gene expression profile of Nicotiana benthamiana after P. carotovorum infection is similar to that of P. syringae T3SS mutant rather than wild type P. syringae. Moreover, P. carotovorum was unable to suppress a typical basal defense response, callose deposition in leaves (Kim et al., 2011). This is contrary to P. syringae DC3000 where the corresponding T3 effector AvrE inactivates SA-dependent basal defenses (DebRoy et al., 2004). The limited role of T3SS in Pectobacterium virulence is further supported by studies showing that when the virulence of T3SS harboring and naturally T3SS-deficient P. carotovorum strains was compared, no obvious differences were observed (Kim et al., 2009). Furthermore, P. wasabiae seems to entirely lack T3SS (Ma et al., 2007; Kim et al., 2009; Pitman et al., 2009; Nykyri et al., 2012). Although the machinery and associated effectors may contribute to virulence, Pectobacterium clearly does not rely on T3SS to establish a successful infection. Other subtle mechanisms to manipulate the host at the early stages of infection must exist. For example, T6SS is hypothesized to manipulate host defense responses (Liu et al., 2008), but no T6 effectors with this ability have so far been described. It remains an open question, whether all Pectobacterium species use the same strategies or if each species or strain possesses its own collection of mechanisms enabling a successful interaction with the host.
One putative strategy for an effector protein or a virulence determinant to function early on in infection is to manipulate the hormonal balance of the host plant. Plant hormones are central mediators of plant growth, development, and responses to abiotic stress as well as plant defenses. Furthermore, hormonal crosstalk plays a key role in determining plant response priorities to environmental cues influencing the outcome of plant–pathogen interactions (Dong, 1998; Robert-Seilaniantz et al., 2011). Consequently, many plant pathogenic, as well as plant growth-promoting, bacteria have the ability to manipulate hormonal signaling in plants by producing plant hormones and hormone mimics or by influencing the crosstalk between hormonal pathways (Costacurta and Vanderleyden, 1995; Robert-Seilaniantz et al., 2011). Bacterial synthesis of auxin (indole-3-acetic acid), cytokinins, ET, and abscisic acid (ABA) has been reported (Robert-Seilaniantz et al., 2011). Among soft rot bacteria, only Dickeya dadantii 3937 has been shown to produce auxin (Yang et al., 2007). However, auxin was described to have a regulatory role in bacterial virulence gene expression and it remains to be shown whether the production also affects plant hormone signaling. The coronatine toxin produced by P. syringae has been shown to act as a JA mimic activating JA-dependent defenses and suppressing antagonistic SA-dependent defenses (Laurie-Berry et al., 2006; Uppalapati et al., 2007; Zheng et al., 2012). In the case of Pectobacterium, no direct evidence for virulence determinants affecting plant hormones exists. The P. atrosepticum polyketide phytotoxin encoded by the cfa cluster can be thought of as a potential candidate. Furthermore, Nykyri et al. (2012) reported the interesting finding of a gene encoding a putative S-adenosyl-L-methionine:benzoic acid/SA carboxyl methyltransferase on a horizontally acquired island in the genome of P. wasabiae SCC3193. This gene is also present in the genome of P. wasabiae WPP163 but it is absent from other Pectobacterium strains. In fact, the putative protein resembles plant enzymes and was concluded to be of probable eukaryotic origin. The corresponding methyltransferases in plants are involved in production of the mobile signal methyl salicylate by methylation of SA in response to pathogen attack (Ross et al., 1999; Chen et al., 2003; Park et al., 2007). The P. wasabiae benzoic acid/SA methyltransferase could represent a novel direct way to manipulate SA-mediated defenses instead of indirect effect through antagonistic hormonal pathways. However, this hypothesis still needs to be experimentally verified.
Plant Innate Immunity
Inducible plant innate immunity responses are comprised of two separate lines of defense that are distinguished by the type of pathogen-derived molecules (elicitors) recognized. The first has an equivalent in animals and is triggered after the perception of a group of conserved, or general, pathogen-derived molecules, called PAMPs/MAMPs that can be present in both pathogenic and non-pathogenic microorganisms (Parker, 2003; Jones and Dangl, 2006). Well-characterized PAMPs include bacterial flagellin, lipopolysaccharides (LPSs) and elongation factor Tu (EF-Tu) as well as chitin, a component of fungal cell walls (Boller, 1995; Gómez-Gómez and Boller, 2000; Robatzek et al., 2006) and are central for pathogen fitness (Parker, 2003; Chisholm et al., 2006; Dodds and Rathjen, 2010; Segonzac and Zipfel, 2011). Plants recognize PAMPs via specific pattern recognition receptors, PRRs. Of several known PRRs, best characterized are the Arabidopsis receptor kinase FLAGELLIN SENSING 2 FLS2) and EF-Tu receptor (EFR), that recognizes one of the most abundant and conserved proteins of bacteria, Ef-Tu (Gómez-Gómez and Boller, 2000; Zipfel et al., 2004; Boller and Felix, 2009). Recognition of PAMPs ultimately leads to PTI and hence, improved resistance. Independent of their lifestyle, different types of pathogens trigger plant defenses via PAMP recognition. For example both hemibiotrophic Pseudomonas and necrotrophic Pectobacterium trigger PTI responses through the recognition of flagellin (Desender et al., 2007; Dodds and Rathjen, 2010). Furthermore, similar to animals, plant immunity also relies on the ability to sense invading microbes by means of endogenous molecular patterns that are present only when plant tissue is infected or damaged (i.e., damage to self). The defense response elicited by recognition of these DAMPs, shares similar elements to that triggered by PAMPs (Boller and Felix, 2009; Zipfel and Robatzek, 2010).
The second line of inducible plant defense is activated in response to pathogen-secreted effectors that aim to suppress the PTI response triggered by PAMP/DAMP recognition (Jones and Dangl, 2006; Dodds and Rathjen, 2010). In contrast to PAMPs, effectors are characteristically variable and dispensable. The difference between effectors and PAMPs is the specificity of effector action to certain pathogen strains, mainly those with biotrophic and hemibiotrophic lifestyles (Tao et al., 2003; Dodds and Rathjen, 2010). For example individual strains of the hemibiotroph Pseudomonas syringae usually express 15–30 effectors depending on the strain (Lindeberg et al., 2012). Effectors target many processes in the plant cell. Examples of effector action in dampening the PTI are P. syringae effectors AvrPto and AvrPtoB that directly target PAMP receptors FLS2 and EFR (Lindeberg et al., 2012). Effectors can be recognized by corresponding resistance (R) proteins of the plant: either directly or through their action on host targets of the effectors (Jones and Dangl, 2006). The recognition events trigger defense responses, ETI including a local PCD, the HR that is efficient in limiting the infection of biotrophs that require living cells for nutrition (Glazebrook, 2005).
In contrast to biotrophs, necrotrophic pathogens have more aggressive and wide-ranging virulence strategies aiming for host cell death and hence, acquisition of nutrients from dead plant tissue. Some, like Pectobacterium secrete an extensive array of PCWDEs and others, like the fungal necrotroph B. cinerea rely on the secretion of toxins as main virulence factors (Mengiste, 2012). As a result of their lifestyle also plant immune response to necrotrophs is to some extent contrasting to that triggered by biotrophic pathogens. For example, HR resulting from effector-R-protein interaction would rather benefit than stop necrotrophic pathogens, since the success of their virulence relies on the capability to kill plant cells (Glazebrook, 2005; Mengiste, 2012). Thus, in contrast to biotrophs host cell death can actually be promoted by pathogens with necrotrophic lifestyle to facilitate their infection (Lai et al., 2011). Indeed, necrotrophic fungi such as B. cinerea has been shown to trigger dell death by producing ROS and non-specific toxins (Govrin and Levine, 2000) while other fungal necrotrophs employ host selective toxins to subvert ETI to ETS (Mengiste, 2012). Similarly, bacterial necrotrophs like Pectobacterium secrete necrosis-inducing proteins like Nip and putative effectors like HrpN proteins to promote cell death (Kariola et al., 2003; Mattinen et al., 2004). Consequently, PTI can be considered as the main plant defense strategy against necrotrophs like Pectobacterium.
Phytohormone Signaling in Plant Immunity
Interestingly, according to current knowledge, the perception of all the defense elicitors, PAMPs, DAMPs, and effectors appears to trigger similar immediate defense signaling. The difference between PTI and ETI is rather in strength and durability of the response than in quality and of these ETI is stronger and longer lasting (Tao et al., 2003; Espinosa and Alfano, 2004; Kim et al., 2005; Jones and Dangl, 2006). The defense responses are typically mediated by and dependent on the action of different phytohormones and indeed, depending on the lifestyle of the attacking pathogen, plant synthesizes one or more phytohormones to achieve the best possible defense response. The roles of SA, JA, and ET in orchestrating the main defense pathways triggered in response to different pathogens are well-established (Kunkel and Brooks, 2002; Glazebrook, 2005; Pieterse et al., 2009). SA has traditionally been thought to activate defense signaling targeted against biotrophic and hemibiotrophic pathogens while JA and ET defenses are associated with defense responses against necrotrophs (Kunkel and Brooks, 2002; Glazebrook, 2005). Although this remains broadly true, the signaling network triggered by many pathogens appears more complex; for example the combination of JA and ET signaling is efficient against the necrotroph B. cinerea, yet also SA appears to have a role in local immunity against this fungus (Ferrari et al., 2007). Interestingly, resistance against Pectobacterium can be enhanced by the induction of either JA/ET-mediated (Vidal et al., 1997; Norman-Setterblad et al., 2000) or SA-mediated (Palva et al., 1994; Li et al., 2004) defenses. This apparent controversy could be explained partly by the overlapping defenses triggered and partly by the different efficacies of the defenses induced by the two pathways at the different stages of the infection. Thus, SA-mediated defenses appear to be more efficient during the latent phase of infection, i.e., when PTI is triggered via PAMP recognition (Li et al., 2004, 2006; Kariola et al., 2005). During the necrotrophic phase of Pectobacterium infection secretion of massive amounts of PCWDEs results in prominent tissue maceration and release of DAMPs activating JA/ET-dependent defenses (Palva et al., 1993; Vidal et al., 1997; Norman-Setterblad et al., 2000; Brader et al., 2001).
Defense pathways influence each other through a network of regulatory interactions, and thus, plant responses to pathogens are a result of this complex hormonal crosstalk (Kunkel and Brooks, 2002; Bostock, 2005; Robert-Seilaniantz et al., 2011). Crosstalk (both synergistic and antagonistic) between the hormonal pathways is indeed central to defense signaling and in defining the response priorities. For example, SA and JA signaling interact on many levels, and this relationship is in many cases mutually antagonistic (Kunkel and Brooks, 2002; Spoel et al., 2003; Li et al., 2004; Glazebrook, 2005; Spoel and Loake, 2011). For example, synthesis of JA as well as accumulation of proteinase inhibitors in response to wounding and oligosaccharides can be inhibited by SA (Pena-Cortés et al., 1993; Doares et al., 1995). Conversely, overexpression of transcription factor WRKY70, a central component in SA signaling in Arabidopsis was followed by increased SA and decreased JA signaling resulting in enhanced resistance to the hemibiotroph Pseudomonas but susceptibility to the fungal necrotroph A. brassicicola suggesting that WRKY70 is a node of interaction between these hormonal pathways (Li et al., 2004, 2006).
While the roles of phytohormones SA, JA, and ET in orchestrating the main defense pathways are well-established, other phytohormones can modulate and influence the outcome of pathogen triggered defense signaling and there is even crosstalk between biotic and abiotic signaling (Fujita et al., 2006). ABA mediates adaptive responses to various abiotic stresses and is also central to many developmental processes (Finkelstein et al., 2002; Verslues and Zhu, 2005). The role of ABA in plant–pathogen interaction is multifaceted (Ton et al., 2009; Cao et al., 2011). Activation of ABA biosynthetic and signaling pathways promotes disease susceptibility to several plant pathogens. Many studies have demonstrated antagonism between ABA and SA signaling. Endogenous ABA accumulation induced by drought stress or ABA treatment prior to infection with a virulent P. syringae pv tomato resulted in necrosis and chlorosis in Arabidopsis, symptoms similar to susceptible infection (Mohr and Cahill, 2003). Moreover, overexpression of a negative regulator of ABA-responses, ERD15 resulted in enhanced SA signaling and improved tolerance to Pectobacterium (Kariola et al., 2006; Aalto et al., 2012).
Both synergistic and antagonistic effects have been described for the interaction of ABA with JA/ET signaling. (Anderson et al., 2004; Mauch-Mani and Mauch, 2005; Adie et al., 2007). For example, disruption of AtMYC2, a positive regulator of ABA signaling, resulted in up-regulation of JA/ET-dependent gene expression. Additionally, ABA-deficient mutants were shown to have improved resistance against necrotrophic fungal pathogen Fusarium oxysporum in Arabidopsis (Anderson et al., 2004). At the same time, disruption of BOS1 (Botrytis susceptible 1), that controls several ABA- and JA-regulated genes resulted in decreased tolerance to necrotrophic pathogens but also to water deficit and salt stress (Mengiste et al., 2003).
The control of stomatal aperture and hence plant water relations is one of the processes under strict hormonal control mainly by ABA. Interestingly, Arabidopsis stomata also close in response to bacteria or bacterial PAMPs such as Flg22 and LPS, altering their role from being plain passive pathogen entry portals into actual components of plant innate immunity (Melotto et al., 2006). PAMP-triggered stomatal closure requires SA and ABA, and thus, the response is impaired for example in ABA biosynthesis mutants (Melotto et al., 2006). Furthermore, Melotto and colleagues demonstrated that P. syringae strains producing the JA-Ile mimic coronatine were able to induce stomatal re-opening (Melotto et al., 2006; Zeng and He, 2010). Intriguingly, similarly to the hemibiotroph P. syringae, even the necrotroph Pectobacterium is capable of inducing stomatal re-opening after the initial, PAMP-triggered stomatal closure in Arabidopsis (Po-Wen et al., 2013). Furthermore, priming of PTI response with the non-protein amino acid BABA (β-aminobutyric acid) was shown to enhance SA-dependent defenses, inhibit stomatal re-opening and hence, increase the plant tolerance to Pectobacterium (Po-Wen et al., 2013).
Damage-Associated Molecular Patterns – Oligogalacturonides
Besides rapid recognition of PAMPS, both plants and animals need to sense endogenous molecular patterns that are released upon tissue damage. Such damage can result from wounding caused by chewing insects or herbivores, or degradation of plant cell walls by microbial enzymes (Boller and Felix, 2009). The released cell wall fragments act as DAMPs and trigger PTI. Secretion of PCWDEs is central to the virulence of many necrotrophic fungi and bacteria. The fragments of plant cell wall, cutin monomers and peptides released by the action of these enzymes act as DAMPs (Boller and Felix, 2009; Galletti et al., 2009). The released peptides include systemin found in the Solanaceae family that triggers a response similar to that induced by mechanical wounding (Hind et al., 2010). AtPeps of Arabidopsis resembles systemin and are believed to be released and bind their apoplastic receptors upon cell damage (Huffaker et al., 2006). Moreover, homologues of AtPeps have now been found in most higher plants (Huffaker et al., 2013) and have been shown to induce defense against necrotrophic pathogens (Liu et al., 2013). Similar to these peptides, oligogalacturonides (OGs) seem to act as DAMPs throughout the plant kingdom and hence, operate in an evolutionary old danger sensing system resulting in PTI even in monocots (Baker et al., 1990; Côté and Hahn, 1994; Randoux et al., 2009, 2010). OGs are biologically active carbohydrates (oligosaccharins) that are breakdown products of homogalacturonan, a major component of pectin (Côté and Hahn, 1994; Ridley et al., 2001). OGs of varying chain length with a degree of polymerization (DP) ranging from 2 to over 20 are released by PGs of both bacterial and fungal pathogens. These enzymes typically break down the non-methylated polygalacturonan component of pectin and play an important role in the infection by necrotrophs. In P. carotovorum the endo-polygalacturonase PehA is one of the major players carrying out this function, whereas Dickeya dadantii only has exo cleaving PGs (Kotoujansky, 1987; Saarilahti et al., 1990; Hugouvieux-Cotte-Pattat et al., 2001). The OGs released by the action of PCWDEs secreted by necrotrophs like Pectobacterium trigger typical PTI responses (OG-PTI) overlapping at least partly with those induced by PAMPs including oxidative burst, cell wall strengthening, production of phytoalexins and proteinase inhibitors as well as hormone biosynthesis (Ridley et al., 2001). PCWDs are not only secreted by necrotrophs, but also play a critical role during the colonization of plant roots by symbiotic rhizobia and it has recently been proposed that OGs play a role in Rhizobium-legume communications (Moscatiello et al., 2012).
Oligogalacturonide Perception
Although OGs were the first oligosaccharins characterized (Bishop et al., 1981; Hahn et al., 1981), the signaling pathways still largely remain to be elucidated. Indeed, it was not until quite recently that the first receptor for OGs was identified (Brutus et al., 2010). The elucidation of OG signaling has been hampered by the complexity of OG responses (Côté and Hahn, 1994): OGs are involved in control of plant growth and development as well as in plant response to pathogens. The interconnected nature of OG-PTI and plant growth and development through phytohormone regulation adds another layer of complexity to this analysis. Thus, when focusing on the role of OGs in plant–pathogen interactions it is not possible, nor even desirable, to ignore the developmental role of OGs. As an example, the first observed development-related effect of exogenously applied OGs was an inhibition of auxin-induced stem elongation in peas (Branca et al., 1988), and since then further studies have solidified the role of OGs as having an antagonistic effect on auxin signaling and enhancing cytokinin-induced vegetative shoot formation (Falasca et al., 2008). Clarifying the mechanistics behind this antagonistic role to auxin could provide a fruitful approach in elucidating the detailed role of OGs in plant–pathogen interactions (Savatin et al., 2011; Qi et al., 2012).
It has long been suspected that wall-associated kinases (WAKs) are involved in OG sensing. WAK1 and WAK2 have been shown to bind to pectin in vitro (Kohorn et al., 2009) and WAK1 has been shown to bind specifically to OGs (Morris et al., 1982; Decreux and Messiaen, 2005; Cabrera et al., 2008). The in vitro binding of OGs to WAK1 required OGs with a DP over nine subunits and more particularly it seems to require formation of a calcium-induced conformational state known as egg box dimers (Morris et al., 1982; Decreux and Messiaen, 2005; Cabrera et al., 2008). The egg box form progressively, and there seems to be two different forms of perception systems in which WAK1 can recognize these dimers (Cabrera et al., 2008). Even shorter chains OGs can form calcium-induced egg box dimers. However, unlike the dimers formed by longer chains, these are unstable and easily disrupted by competing monovalent ions.
Additional indication for the role of WAKs in OG signaling came from gene expression studies demonstrating that WAK1 is up-regulated by OGs (Denoux et al., 2008). However, silencing of the WAK gene family resulted in lethality, probably due to their involvement in regulation of growth and development. Furthermore, redundancy between different WAKs complicated the study of these potential receptors (Brutus et al., 2010). Following up on the leads, Brutus et al recently employed a domain swap approach to verify that WAK1 indeed does act as a receptor of OGs. They created chimeric receptors of EFR and WAK1 and showed that the WAK1 ectodomain could be triggered by long chain OGs to activate the EFR kinase domain, and vice versa the EFR ectodomain could be triggered by elf18 peptide to activate the WAK1 kinase domain, resulting in a defense response mimicking a normal OG response. Furthermore, WAK1 overexpressing plants were seen to be more resistant to B. cinerea (Brutus et al., 2010). These studies indeed suggest that WAKs could be PRRs that are involved in OG perception but do not rule out the presence of other receptor-like kinases (RLKs) involved in monitoring the cell wall integrity. Such potential candidates include for example the potato RLKs responsive to short OGs and Pectobacterium (Montesano et al., 2001).
Oligogalacturonide Signaling
Oligogalacturonides have been shown to rapidly stimulate an increase in cytosolic calcium (Messiaen et al., 1993; Hu et al., 2004) and production of ROS, in a wide array of different plant species (Ridley et al., 2001). Other OG-PTI responses include; expression of proteinase inhibitors, induction of phenylalanine ammonia-lyase (PAL) leading to production of phytoalexins, peroxidases, glucosinolates, lignin, production of chitinase and β-1,3-glucanase, as well as increased expression of PG-inhibiting proteins (PGIPs; reviewed in Côté and Hahn, 1994; Ridley et al., 2001). OGs induce a very strong AtRBOHD-dependent apoplastic ROS burst in Arabidopsis (Galletti et al., 2008). However, this oxidative burst appears not to be required for OG-induced resistance against B. cinerea nor expression of several OG marker genes; PAD3, AtPGIP1, RetOx, CYP 81F2, and AtWRKY40. Also it would seem that induced callose deposition does not play a major role in basal or elicitor-induced resistance to B. cinerea (Galletti et al., 2008).
Binding of OGs to WAK1 and most biological responses appear to require longer chain OGs (Brutus et al., 2010). However, there are a number of studies that indicate plant responses to short chain OGs. Such responses include induction of genes involved in JA biosynthesis (Norman et al., 1999) in Arabidopsis, induction of ET production (O’Donnell et al., 1996; Simpson et al., 1998) and production of proteinase inhibitors (Thain et al., 1990; Moloshok et al., 1992; O’Donnell et al., 1996) and depolarization of leaf mesophyll cells (Thain et al., 1990), induction of RLKs (Montesano et al., 2001) and induction of resistance against P. carotovorum (Weber et al., 1996; Wegener et al., 1996) in potato. Also short OGs have been seen to have a developmental effect by increasing the shoot and leaf number in strawberry plants (Miranda et al., 2007). In summary, although recent studies indicate a requirement of longer chain OGs, the specific role of shorter OGs as elicitors of PTI and developmental responses remains to be clarified. One could speculate that shorter OGs play a larger role in resistance against bacterial necrotrophs and herbivores whereas longer OGs play a more significant role against necrotrophic fungi.
Polygalacturonase-inhibiting proteins are among the OG-PTI-induced proteins produced in response to fungal necrotrophs and act directly as a defense protein by reducing the hydrolytic activity of fungal PGs, but also by delaying the breakdown by PGs they increase the formation of longer chain OGs thought to be more biologically active (De Lorenzo et al., 2001; Decreux and Messiaen, 2005).The role of PGIPs in defense against pathogens has mainly been studied using fungi, such as for example B. cinerea (De Lorenzo et al., 2001). However, recent studies have identified PGIP as a potentially important player also in plant defense against bacteria: PGIPs were seen to play a role in resistance of Chinese cabbage against P. carotovorum ssp. carotovorum (Hwang et al., 2010) and PGIPS from tomato where shown to inhibit PGs from Ralstonia solanacearum (Schacht et al., 2011).
Several studies have characterized the reprogramming of the transcriptome in response to OGs using microarrays of Arabidopsis exposed to exogenous long chain (DP 10–15) OGs and also compared the expression changes between OG-PTI and Flg22-PTI (Moscatiello et al., 2006; Ferrari et al., 2007; Denoux et al., 2008). The first genome wide transcriptome analysis OG responses employed mesophyll cell suspension cultures and focused on elucidating calcium-dependent and independent signaling pathways (Moscatiello et al., 2006). The study showed that OG-induced activation of genes involved in ET signaling required both pathways, whereas activation of JA-responsive genes appeared mainly calcium-dependent, in agreement with an earlier study (Hu et al., 2003). Further it would seem that protein kinase-dependent phosphorylation is involved in the early stages of OG signaling (Moscatiello et al., 2006). Taking a slightly different approach Ferrari et al. (2007) compared OG responses with responses to infection with B. cinerea. The results indicated that approximately 50% of all genes were similarly regulated upon both treatments. OG-induced resistance to B. cinerea was found to be independent of JA, ET, and SA signaling and dependent on PAD3. Further it was shown that both Flg22 and OGs induced resistance to B. cinerea. As seen previously for AtPGIP1 (Ferrari et al., 2003), PAD3 was induced independently of JA, ET, and SA. This approach was further expanded trying to elucidate the similarities and dissimilarities in response to exogenous OGs and Flg22 (Denoux et al., 2008). In general, the defense response triggered by the DAMP (OG) and the PAMP (Flg22) were quite similar. Both responses were seen to be fast and transient, with a high degree of overlap especially at shorter time points. Responses to Flg22 were generally stronger, both in number of genes and expression levels. Both Flg22 and OGs were found to activate multiple components of ET, JA, and SA pathways. Noticeably several SA-dependent genes in general, and PR1 in particular, were found to be significantly induced only by Flg22 but not with long chain OGs, even after extended exposure. This is in contrast to an earlier study characterizing Arabidopsis response to mixed length OGs and showing calcium and H2O2-dependent induction of several defense-related marker genes; CHS, GST, PAL, and noticeably PR1 (Hu et al., 2004). In conclusion the comparison of OG- and Flg22-triggered responses suggest that DAMP-PTI might rely more on the JA/ET-dependent signaling, in agreement with several studies of Pectobacterium (Palva et al., 1993; Doares et al., 1995; Vidal et al., 1997; Norman et al., 1999; Norman-Setterblad et al., 2000). This is logical, since jasmonates and other oxylipins have central role in defense responses following tissue damage and have been proposed to mediate the induction of defense in response to OG signals generated by pathogen or herbivore attacks (Farmer and Ryan, 1992).
Interestingly, recent studies indicate participation of NO in OG-PTI (Rasul et al., 2012). It was demonstrated that exogenous OGs trigger calcium and nitrate reductase-dependent NO production in Arabidopsis. Further, NO was found to adjust AtRBOHD-mediated ROS production, as well as regulation of OG responsive genes (PER4 and a β-1,3-glucanase). Furthermore, NO was found to contribute to OG-induced immunity against B. cinerea. Whether this applies to Pectobacterium remains to be demonstrated.
Summary
In summary, see Figure 1, PTI appears central to plant defense against broad host range bacterial necrotrophs like Pectobacterium. ETI, which is highly efficient against (hemi)biotrophs such as Pseudomonas is not an effective strategy to combat necrotroph infection, as ETI relies on localized cell death to trigger the downstream defense responses. Necrotrophs like Pectobacterium employ induction of cell death as part of their virulence strategy, thus ETI would rather enhance than prevent the infection. Indeed Pectobacterium species have a very limited arsenal of T3 effectors and those few that have been studied (e.g., DspE) appear to promote infection by causing cell death. Consequently, plant immune responses are triggered by recognition of conserved pathogen-associated molecular patterns (PAMPs) such as flagella or damage-associated molecular patterns (DAMPs) such as OGs released by the action of PCWDEs by respective pattern recognition receptors. While the PTI induced by PAMP recognition is a common response to both biotrophs and necrotrophs, DAMPs are more typical to necrotrophic interactions. Consequently, Pectobacterium strives to attenuate PTI particularly in the early phase of infection by tight control of PCWDE production minimizing DAMP generation. PAMP and DAMP recognition events trigger partly overlapping defense responses including induction of defense gene expression and synthesis of various defensive compounds such as phytoalexins, defensins, and PR-proteins – resulting in PTI. Indeed prior induction of either response will enhance plant resistance to Pectobacterium. Elucidating the molecular details of these two partially redundant signal networks is essential for our understanding of the plant-necrotroph interactions and can take advantage of the rapidly developing genomic techniques including transcriptional profiling and RNA sequencing combined with the powerful genetic screens available in Arabidopsis for mutants altered in their PTI responses. In particular elucidation of the less well-characterized OG-induced PTI deserves further studies including correlation of the chain length of the OG elicitor to a particular response at specific stages of infection and defining the downstream components that are most significant for bacterial resistance. Such studies would be crucial for providing new insights into plant defense strategies against necrotrophs. Further genome level analysis would also help to elucidate the interactions of Pectobacterium with other plant associated microbes, as well as their insect vectors.

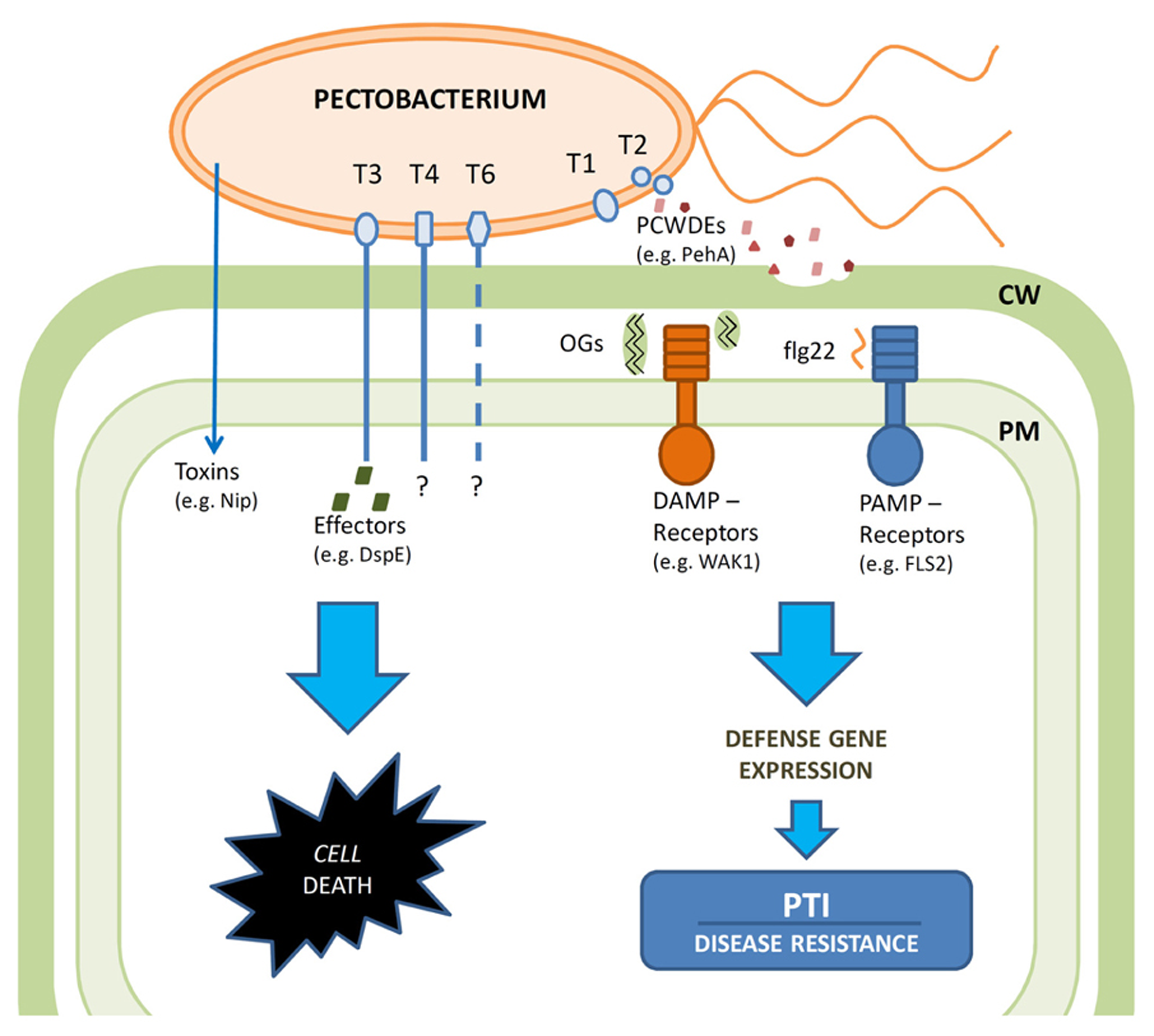

FIGURE 1. Schematic diagram of the interactions between the bacterial necrotroph Pectobacterium and its host plants. Pectobacterium virulence relies on macerating plant tissue through the action of PCWDEs secreted by the type I (T1) and type II (T2) secretion systems. Plant cell death is promoted by the action of toxins such as Nip and the effector DspE, which is secreted though the type III (T3) secretion system. Type IV (T4) secretion system and type VI (T6) secretion system may contribute to virulence. Plant immune responses are triggered by recognition of conserved pathogen-associated molecular patterns (PAMPs) such as flagella or damage-associated molecular patterns (DAMPs) such as OGs released by the action of PCWDEs by respective pattern recognition receptors. These recognition events in turn trigger partly overlapping defense responses including induction of defense gene expression and synthesis of various defensive compounds such as phytoalexins, defensins and PR-proteins – resulting in PTI. Bacteria can attenuate PTI particularly in the early phase of infection by tight control of PCWDE production minimizing DAMP generation. The defenses are overwhelmed at later stages by promotion of cell death and massive PCWDE production at high bacterial cell densities.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
