Hervé Vanderschuren1* Svetlana Boycheva2 Kuan-Te Li1 Nicolas Szydlowski2 Wilhelm Gruissem1 Teresa B. Fitzpatrick2*- 1Department of Biology, Plant Biotechnology, Eidgenössische Technische Hochschule Zurich, Zurich, Switzerland
- 2Department of Botany and Plant Biology, University of Geneva, Geneva, Switzerland
Vitamin B6 has an essential role in cells as a cofactor for several metabolic enzymes. It has also been shown to function as a potent antioxidant molecule. The recent elucidation of the vitamin B6 biosynthesis pathways in plants provides opportunities for characterizing their importance during developmental processes and exposure to stress. Humans and animals must acquire vitamin B6 with their diet, with plants being a major source, because they cannot biosynthesize it de novo. However, the abundance of the vitamin in the edible portions of the most commonly consumed plants is not sufficient to meet daily requirements. Genetic engineering has proven successful in increasing the vitamin B6 content in the model plant Arabidopsis. The added benefits associated with the enhanced vitamin B6 content, such as higher biomass and resistance to abiotic stress, suggest that increasing this essential micronutrient could be a valuable option to improve the nutritional quality and stress tolerance of crop plants. This review summarizes current achievements in vitamin B6 biofortification and considers strategies for increasing vitamin B6 levels in crop plants for human health and nutrition.
Introduction
The term vitamin B6 refers to a group of six water soluble vitamers (Figure 1), namely pyridoxal (PL), pyridoxine (PN), pyridoxamine (PM), and their phosphorylated derivatives. Pyridoxal-5′-phosphate (PLP) is the vitamer of central importance because it is required as a cofactor for over 140 chemical reactions in the cell (Hellmann and Mooney, 2010). In particular, it is involved in amino acid, sugar, and fatty acid metabolism (Percudani and Peracchi, 2003). Only plants, fungi, and bacteria can biosynthesize vitamin B6 de novo, therefore animals and humans must obtain it from their diet. Various factors such as inadequate food intake, limited dietary diversity, or diseases can cause vitamin B6 deficiency (Di Salvo et al., 2012). Based on the ability of plants to biosynthesize and accumulate vitamin B6 (Chen and Xiong, 2009; Raschke et al., 2011), increasing levels of the vitamin in crops can be a direct way to provide enriched food to the population and reduce the corresponding deficiencies (Martin et al., 2011; Fitzpatrick et al., 2012; Bhullar and Gruissem, 2013). During the last decade, the function and regulation of key genes involved in vitamin B6 biosynthesis have been characterized in the model plant Arabidopsis, revealing the importance of the vitamin in plant development, photosynthesis and responses to stress (reviewed in Mooney and Hellmann, 2010). Therefore, the current molecular understanding of vitamin B6 metabolism provides the opportunity of developing crop plants with an increased content of this vitamin beneficial for both human health and improved agronomic performance.

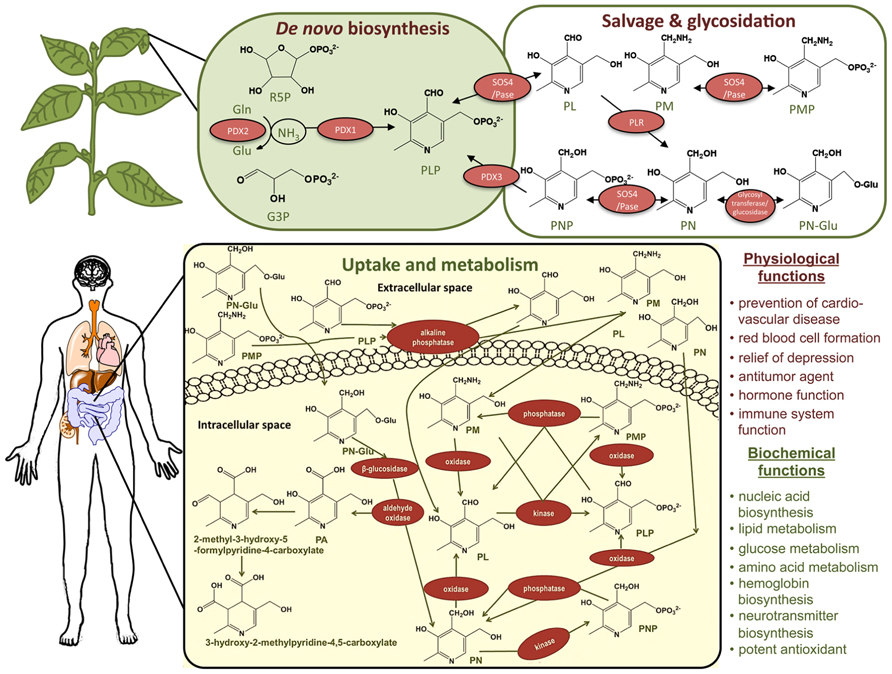

FIGURE 1. Plants as a source of vitamin B6 and its uptake by humans. Plants can biosynthesize vitamin B6 de novo. It is predominantly produced in the metabolically active parts of the plant like the leaves but can be found in all organs. The de novo pathway (upper left corner) is operating in the cytosol involving only two enzymes: a synthase, PDX1, and a glutaminase, PDX2. The abbreviations used are Glu (glutamate), Gln (glutamine), G3P (glyceraldehyde 3-phosphate), R5P (ribose 5-phosphate), PA (pyridoxic acid), PN (pyridoxine), PN-Glu (PN-glycoside), PL (pyridoxal), PM (pyridoxamine), PNP (pyridoxine 5′-phosphate), PLP (pyridoxal 5′-phosphate), PMP (pyridoxamine 5′-phosphate). The cofactor form of the vitamin, PLP, is produced directly from R5P, G3P, and Gln. A salvage pathway also operates in plants (upper right corner) through which the vitamers can be interconverted. PDX3 is a PNP/PMP oxidase (only the reaction for PNP is depicted), SOS4 is a PN/PL/PM kinase and PLR is a PL reductase. Plants can also convert PN to PN-Glu, a form that is only partially bioavailable to humans, using a glycosyl transferase. In the human body, vitamin B6 is taken up in the jejunum (the second part of the small intestine; lower panel) where the free forms PN, PL, and PM can be taken up directly. The phosphorylated vitamers are dephosphorylated prior to uptake by a membrane bound alkaline phosphatase. In both cases uptake is driven by diffusion, which necessitates the phosphorylation of the vitamers immediately after their internalization to keep a low concentration of the non-phosphorylated forms inside the cells. The PN-Glu is taken up in its glycosylated form and processed by a cytosolic β-glucosidase to release PN. Its low bioavailability is not determined by the uptake itself but by the limiting activity of a β-glucosidase. The uptake is followed by further conversion inside the cells (salvage pathway) yielding the active cofactor form PLP involved in numerous biochemical and physiological processes in the human body (right lower panel). The catabolism of the vitamin involves conversion to PA (as well as more oxidized derivatives as depicted). The latter are excreted in the urine.
Vitamin B6: Benefits for Humans
A vitamin is defined as an organic compound required in limited amounts by an organism that cannot produce it and thus needs to take it up with the diet. The importance of vitamin B6 for human health has been widely reported. Studies have shown that vitamin B6 intake reduces the incidence of important human diseases such as cardiovascular disease, hypertension, epilepsy, diabetes, kidney disease, neurological disorders, and pellagra (Hellmann and Mooney, 2010; Figure 1). Furthermore, the cofactor form of vitamin B6 (PLP) may have positive effects on various forms of cancer by strengthening the immune system and delaying tumor progression (Galluzzi et al., 2013). Other studies investigating the impact of vitamin B6 deficiency on health, using the concentration of PLP in the blood as a biomarker, suggest that a low plasma level correlates with multifactorial neurological pathologies such as depression, Alzheimer’s disease, autism, schizophrenia, epilepsy, and Parkinson’s disease (Di Salvo et al., 2012). On the other hand, the beneficial impact of the vitamin on human health is illustrated by reduced mortality and improved health of the elderly with an adequate PLP plasma concentration (O’Leary et al., 2011; Huang et al., 2012). More recently, vitamin B6 deficiency was suggested as the cause of “nodding syndrome,” a disease affecting a growing number of children in Uganda and Southern Sudan (Wadman, 2011; Vogel, 2012). Importantly, vitamin B6 is also a potent antioxidant (Ehrenshaft et al., 1999; Osmani et al., 1999; Bilski et al., 2000). Several studies focusing on the effect of PN on cell cultures indicate that vitamin B6 functions as a protectant against reactive oxygen species produced in the human body (Jain and Lim, 2001; Kannan and Jain, 2004; Mahfouz et al., 2009). Among other factors, malnutrition, pregnancy, diabetes, HIV, alcoholism, and the use of oral contraceptives increase the risk of vitamin B6 deficiency (Merrill and Henderson, 1987; Di Salvo et al., 2012; Fitzpatrick et al., 2012). Limited dietary diversity can accentuate micronutrient deficiencies (Acham et al., 2012) and is the major cause of a vitamin B6 deficit for inhabitants of developing countries. However, inadequate vitamin B6 status has recently been reported in the U.S.A. as well (Morris et al., 2008).
Main Sources
Vitamin B6 is present in many food products including meat and vegetables. The major sources of vitamin B6 in Western diets are cereals, poultry, beef, and potatoes (O’Neil et al., 2012). Among the five most important staple crops, potatoes have by far the highest vitamin B6 content (Fitzpatrick et al., 2012). The content is much lower in other staple crops and should be increased several fold (e.g., wheat 12.2-, rice 3.2-, maize 3.5-, and cassava 2.3-fold, respectively) in order to reach the recommended daily allowance (RDA) of vitamin B6 (Fitzpatrick et al., 2012). The bioavailability of vitamin B6 derived from plant food sources is also an important factor influencing adequate intake (Figure 1). Plants contain multiple B6 vitamers and a substantial fraction of vitamin B6 is present as pyridoxine-5′-β-D-glucoside (PN-glucoside; Gregory and Ink, 1987; Ollilainen, 1999; Figure 1). While PN, PL, and PM and their phosphorylated derivatives are fully bioavailable from plant food, PN-glucoside is only 50% bioavailable (Gregory, 2012; Figure 1). On the other hand, PN and its glycosylated form are more stable than PL and PLP (the main forms of the vitamin available in animal tissues; Mehansho et al., 1979) and are less susceptible to thermal degradation.
Vitamin B6: Benefits for Plants
Unlike animals, plants can biosynthesize their own vitamins with the exception of vitamin B12. In the plant context, therefore, the term vitamin does not correspond to its definition but has been widely used. In plants, as in animals, vitamin B6 is required as a cofactor. There are an estimated 177 PLP-dependent enzymes in Arabidopsis (Percudani and Peracchi, 2009; Mooney and Hellmann, 2010). These enzymes have a central role because they participate in universal (e.g., biosynthesis and catabolism of amino acids) as well as plant specific pathways (e.g., starch metabolism, glucosinolate biosynthesis, ethylene and auxin biosynthesis and degradation; Mooney and Hellmann, 2010). To date, the importance of the B6 vitamers in planta has mostly been demonstrated from the analysis of mutant plants deficient in vitamin B6 biosynthesis. For example, an Arabidopsis mutant, rsr4-1, with reduced de novo biosynthesis displays altered levels of metabolites such as amino acids and organic acids (Wagner et al., 2006). Moreover, Arabidopsis mutants that accumulate lower vitamin B6 levels, i.e., rsr4-1, pdx1.1, pdx1.3, are phenotypically distinct from wild-type plants because of impaired seed and seedling development, delayed flowering and reduced plant growth (Chen and Xiong, 2005; Tambasco-Studart et al., 2005, 2007; Titiz et al., 2006; Wagner et al., 2006). Complete biosynthesis knockout mutants (i.e., pdx2, pdx1.1, pdx1.3) are embryo lethal (Tambasco-Studart et al., 2005; Titiz et al., 2006). The increased sensitivity of the mutants with reduced levels of vitamin B6 to high concentrations of sucrose, salt, and mannose, as well as high light, UV-B and oxidative stress (Chen and Xiong, 2005; Titiz et al., 2006; Havaux et al., 2009; Ristilä et al., 2011) indicates that vitamin B6 has an important function in plant stress responses as well. Indeed, Arabidopsis plants accumulate vitamin B6 when exposed to UV-B (Ristilä et al., 2011) and increased levels of the vitamin in transgenic Arabidopsis confer tolerance to oxidative stress (Raschke et al., 2011). The potent in vitro antioxidant activities of some B6 vitamers also corroborate this particular function of the vitamin (Ehrenshaft et al., 1999; Bilski et al., 2000; Denslow et al., 2005). In addition, metabolite profiling has revealed increased lipid peroxidation in the Arabidopsis rsr4-1 mutant deficient in vitamin B6 biosynthesis de novo (Lytovchenko et al., 2009), consistent with its role as an antioxidant. Furthermore, the hypersensitive response triggered in tobacco upon incompatible bacterial infection is delayed following leaf infiltration with PN (Denslow et al., 2005). Supplementation of Arabidopsis growth medium with the same vitamer reduces singlet oxygen-mediated cell death in the conditional flu mutant (Danon et al., 2005). Notably, the phenotype of the latter mutant was also shown to be attenuated in plants with enhanced levels of vitamin B6 (Raschke et al., 2011). Similarly, PN supplementation was demonstrated to restore accumulation of the D1 protein in the pdx1.3 mutant of Arabidopsis (Titiz et al., 2006). As the degradation of this protein is known to be triggered by singlet oxygen generated in the reaction center of photosystem II, its steady state level reflects the oxidative state of the chloroplast. Application of exogenous vitamin B6 on leaf disks also reduces singlet oxygen accumulation caused by high light exposure in wild-type and pdx1.3 mutant plants (Havaux et al., 2009).
Although vitamin B6 in plants is biosynthesized de novo (Figure 1), the supplementation experiments discussed above and a similar study using PL, PM, and PN (Huang et al., 2011) suggest that plants can take up exogenously supplied non-phosphorylated B6 vitamers. This is corroborated by the rescue of the root and leaf developmental phenotypes associated with the Arabidopsis pdx1.1 and pdx1.3 mutants (Titiz et al., 2006; Wagner et al., 2006) and rescue of the arrest of embryo development at the globular stage in the pdx2 mutant of Arabidopsis by direct application of PN (Tambasco-Studart et al., 2007). The latter study indicates that some transfer of the vitamin occurs between the embryo and the maternal tissue. Very recently a purine permease (PUP1) has been shown to function in recycling of vitamin B6 during guttation (Szydlowski et al., 2013) but no other transporters for this vitamin have been described so far in plants. Since de novo vitamin B6 biosynthesis occurs in the cytosol (Tambasco-Studart et al., 2005), diffusion or active transport of vitamin B6 across organelle envelopes is required to support the activity of organellar enzymes dependent on the vitamin as a cofactor (Gerdes et al., 2012). The relatively high polarity of the phosphorylated derivatives of the vitamin does not favor a passive diffusion mechanism (Mooney and Hellmann, 2010) and would require the existence of transporters.
Genetic Engineering Strategies to Increase Vitamin B6 in Crops
From a genetic engineering perspective, it is attractive that de novo vitamin B6 biosynthesis in plants involves only two enzymes, PDX1 and PDX2 (Ehrenshaft et al., 1999; Ehrenshaft and Daub, 2001; Tambasco-Studart et al., 2005; Figure 1). This pathway is also referred to as deoxyxylulose 5-phosphate (DXP)-independent (Tambasco-Studart et al., 2005) to distinguish it from the seven enzyme DXP-dependent pathway first unraveled in E. coli (reviewed in Fitzpatrick et al., 2007) and only found in a small subset of bacteria (Ehrenshaft et al., 1999; Mittenhuber, 2001). Interestingly, Arabidopsis has three PDX1 homologs, only two of which catalyze vitamin B6 biosynthesis PDX1.1 and PDX1.3 with the function of the third homolog PDX1.2 remaining to be unraveled, and only one PDX2 homolog (Tambasco-Studart et al., 2005). Analyses of the rice and cassava genomes (Ouyang et al., 2007; Prochnik et al., 2012) have revealed an identical number of homologs for both genes.
Efforts to increase vitamin B6 accumulation in plants have so far been focused on genes from the DXP-independent pathway. In a first attempt, the PDX1 and PDX2 genes from Cercospora nicotianae were heterologously expressed in tobacco resulting in a 1.2-fold increase in total vitamin B6 content (Figure 2), with some of the transgenic lines displaying delayed seed germination and plant growth (Herrero and Daub, 2007). Moreover, the expression of the endogenous PDX genes was altered in these lines, and a tight regulation of vitamin B6 homeostasis in plants was suggested. In another approach, PDX1.3 and/or PDX2 were expressed in Arabidopsis under the control of the constitutive 35S cauliflower mosaic virus (CaMV) promoter (Chen and Xiong, 2009; Figure 2). A significant increase in total vitamin B6 content was observed only in seeds (1.2-fold) and the transgenic lines overexpressing PDX2 alone apparently had a higher total vitamin B6 content than the transgenic PDX1 lines. In this study, gene expression was only assessed at the transcript level. However, the protein level also needs to be analyzed to better understand the mechanism behind these observations. On the other hand, the employment of a seed-specific promoter for the expression of both PDX1.3 and PDX2 resulted in a threefold increase of total vitamin B6 in transgenic seeds (Chen and Xiong, 2009; Figure 2). In contrast to the work from Herrero and Daub performed with Cercospora genes in tobacco, the latter study reported that ectopic expression of the endogenous PDX genes in Arabidopsis did not affect plant growth and development. However, the choice of PDX1 gene appears to be particularly important considering a more recent report, which describes an at least fourfold increase in total vitamin B6 content in shoots and seeds, respectively using the 35S CaMV promoter (Raschke et al., 2011; Figure 2). In this study, it was shown that plants overexpressing PDX1.1 at the transcript level also had an increase of the corresponding protein, while PDX1.3 transcript overexpression did not result in an increase at the protein level, suggesting a tighter regulation of this paralog. Indeed, PDX1.3 is known to be an ubiquitination target for protein degradation by the proteasome (Manzano et al., 2008). Interestingly, the increase in PDX1.1 protein content was associated with an increased expression of PDX2 and accordingly the vitamin B6 level was increased (Raschke et al., 2011). However, in contrast to the study of Chen and Xiong (2009), overexpression of PDX2 alone did not lead to enhanced levels of vitamin B6 (Raschke et al., 2011). Overexpression of both PDX1.1 and PDX2 in Arabidopsis led to even further increases in the vitamin B6 content and therefore, appears to be the best strategy for vitamin B6 enrichment in crop plants. Intriguingly, vitamin hyper-accumulator lines also have larger aerial organs as well as increased seed size through embryo enlargement (Raschke et al., 2011). Consistent with the previously reported antioxidant properties of vitamin B6, its accumulation in Arabidopsis also correlated with improved tolerance to oxidative stress (Raschke et al., 2011). It is important to mention that the enzymatic activities of PDX1 and PDX2 lead directly to the production of the cofactor form, PLP (Raschle et al., 2005; Tambasco-Studart et al., 2005). However, the enhanced vitamin B6 content in the aforementioned Arabidopsis lines was distributed across PN, PM as well as PLP (Raschke et al., 2011). In this context, it should be noted that in addition to de novo biosynthesis, plants also have a so called “salvage pathway” that interconverts the different B6 vitamers. The salvage pathway is common to all living organisms (Tanaka et al., 2005; Figure 1). In plants, enzymes that are known to be involved include the oxidase PDX3, which transforms PNP or PMP to PLP (Sang et al., 2011); a kinase SOS4, which can phosphorylate PL, PN, or PM (Shi and Zhu, 2002; Shi et al., 2002; Leasure et al., 2011); a PL reductase (Herrero et al., 2011) and as yet unknown, perhaps unspecific phosphatases, which can dephosphorylate the phosphorylated vitamers (Figure 1). Therefore, it is likely that there is cross-talk between de novo and salvage pathways of biosynthesis, which should be taken into account in any biofortification strategy. Notwithstanding, the vitamin increase reported by Raschke et al. (2011) would be sufficient to meet the RDA in most staple crops (Fitzpatrick et al., 2012). Furthermore, the reduced bioavailability of glycosylated forms must be taken into account in genetic engineering strategies. Future work should also determine whether the fractions of free, phosphorylated and glycosylated B6 derivatives can be modulated. Such approaches will be instrumental in determining whether particular vitamers are associated with improved agronomic traits.

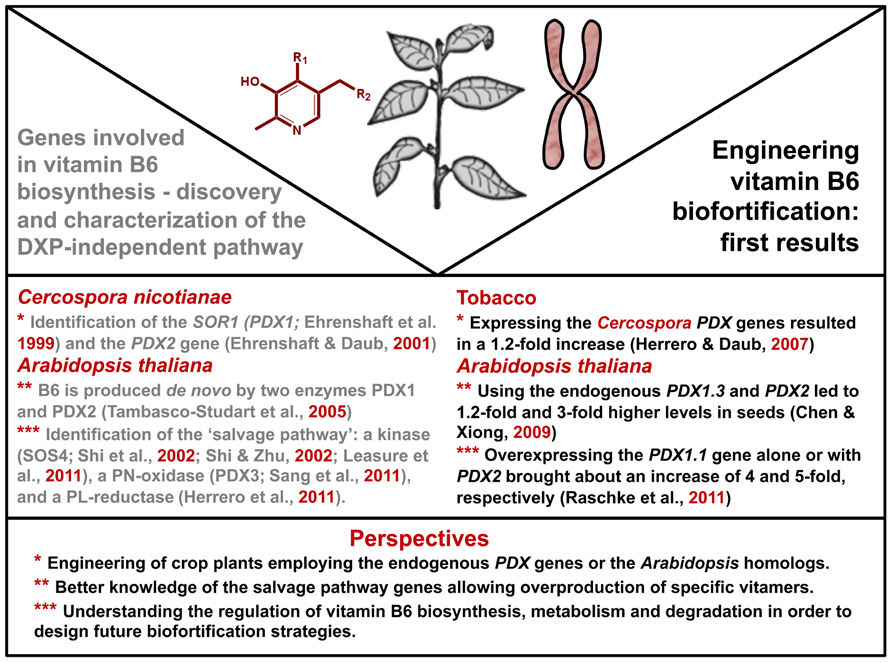

FIGURE 2. Summary of the genetic approaches used in unraveling the deoxyxylulose 5-phosphate (DXP)-independent pathway for vitamin B6 biosynthesis de novo and first proof-of-principle strategies for vitamin B6 biofortification in Arabidopsis thaliana and tobacco. The lower panel provides an overview of the possible new engineering strategies for vitamin B6 biofortification.
In order to exploit the benefits of an increased vitamin B6 content, the successful strategy used in Arabidopsis remains to be demonstrated in a crop plant. This also requires a good understanding of the regulatory mechanisms that control genes involved in vitamin B6 biosynthesis and metabolism, regardless of whether a biofortification strategy employs heterologous or homologous expression. A better knowledge of the natural diversity of vitamin B6 content and availability in crop species could also be instrumental in selecting the PDX orthologs providing the highest increase. Comprehensive studies of provitamin A biosynthesis have revealed intra-species genetic mutations linked to differential accumulation of vitamin A precursors that can be exploited to increase vitamin content in crops (Bang et al., 2007; Harjes et al., 2008; Welsch et al., 2010; Yan et al., 2010). Very limited data is currently available on the inter- and intra-species diversity of vitamin B6 accumulation. A recent survey of various wheat genotypes cultivated under different conditions has shown low variation in vitamin B6 content (Shewry et al., 2011) but additional genotypes and species should be investigated to assess vitamin B6 accumulation especially in crop plants. Such evaluation should be performed under controlled conditions given the regulation of vitamin B6 biosynthesis and accumulation by various factors (Denslow et al., 2007; Ristilä et al., 2011).
Alternative Crop Plants of Potential Interest
In order to select appropriate food crops for vitamin B6 biofortification strategies, two criteria should ideally be taken into account: (1) the crop has to be widely used and of economic importance; (2) vitamin B6 accumulation in the consumed part of the crop plant should not be constrained by physiological or developmental limitations. Genetic engineering using Arabidopsis suggests that a comparable increase of vitamin B6 can be reached in shoots and seeds (i.e., four to fivefold; Raschke et al., 2011). However, it remains to be demonstrated that similar increases can be reached in rice seeds or potato tubers for example. If successful, the combination of the existing nutritional qualities with a higher level of vitamin B6 would provide additional value to already important staple foods. Based on the findings of Raschke et al. (2011) using Arabidopsis, an improvement of plant growth and survival could also be expected but remains to be confirmed for other species. In developing countries, much of the population is highly dependent on mainly one staple crop and therefore particularly at risk of inadequate micronutrient intake (Ruel, 2003; Stupak et al., 2006). Nutritional quality improvement, including fortification of vitamin B6, of these crops could help diminish the occurrence of malnutrition and micronutrient deficiency (Welch and Graham, 2004; Stupak et al., 2006). The generation of crops combining enhanced levels of bioavailable B6 vitamers and better generic traits such as tolerance to oxidative stresses would represent a valuable tool to improve nutrition and food security.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
Hervé Vanderschuren and Wilhelm Gruissem gratefully acknowledge the support of the ETH Zurich. Hervé Vanderschuren, Teresa B. Fitzpatrick, and Wilhelm Gruissem also thank the Swiss National Science Foundation for support of the VITRICA project 31003A_140911. Teresa B. Fitzpatrick gratefully acknowledges the support of the Swiss National Science Foundation grant PP0033_119186 as well as that of the University of Geneva. Teresa B. Fitzpatrick also extends gratitude to the Ernst&Lucie Schmidheiny, Ernest Boninchi and Marc Birkigt Foundations for support.
References
Acham, H., Oldewage-Theron, W., and Egal, A. A. (2012). Dietary diversity, micronutrient intake and their variation among black women in informal settlements in South Africa: a cross-sectional study. Intern. J. Nutr. Metab. 4, 24–39.
Bang, H., Kim, S., Leskovar, D., and King, S. (2007). Development of a codominant CAPS marker for allelic selection between canary yellow and red watermelon based on SNP in lycopene beta-cyclase (LCYB) gene. Mol. Breed. 20, 63–72.
Bhullar, N., and Gruissem, W. (2013). Nutritional enhancement of rice for human health: the contribution of biotechnology. Biotechnol. Adv. 31, 50–57.
Bilski, P., Li, M. Y., Ehrenshaft, M., Daub, M. E., and Chignell, C. F. (2000). Vitamin B6 (pyridoxine) and its derivatives are efficient singlet oxygen quenchers and potential fungal antioxidants. Photochem. Photobiol. 71, 129–134.
Chen, H., and Xiong, L. (2005). Pyridoxine is required for post-embryonic root development and tolerance to osmotic and oxidative stresses. Plant J. 44, 396–408.
Chen, H., and Xiong, L. M. (2009). Enhancement of vitamin B6 levels in seeds through metabolic engineering. Plant Biotechnol. J. 7, 673–681.
Danon, A., Miersch, O., Felix, G., Camp, R. G., and Apel, K. (2005). Concurrent activation of cell death-regulating signaling pathways by singlet oxygen in Arabidopsis thaliana. Plant J. 41, 68–80.
Denslow, S. A., Rueschhoff, E. E., and Daub, M. E. (2007). Regulation of the Arabidopsis thaliana vitamin B6 biosynthesis genes by abiotic stress. Plant Physiol. Biochem. 45, 152–161.
Denslow, S. A., Walls, A. A., and Daub, M. E. (2005). Regulation of biosynthetic genes and antioxidant properties of vitamin B6 vitamers during plant defense responses. Physiol. Mol. Plant Pathol. 66, 244–255.
Di Salvo, M. L., Safo, M. K., and Contestabile, R. (2012). Biomedical aspects of pyridoxal 5′-phosphate availability. Front. Biosci. 4, 897–913.
Ehrenshaft, M., and Daub, M. E. (2001). Identification of PDX2, a second novel gene in the pyridoxine biosynthesis pathway of eukaryotes, archaebacteria, and a subset of eubacteria. J. Bacteriol. 183, 3383–3390.
Ehrenshaft, M., Bilski, P., Li, M., Chignell, C., and Daub, M. E. (1999). A highly conserved sequence is a novel gene involved in de novo vitamin B6 biosynthesis. Proc. Natl. Acad. Sci. U.S.A. 96, 9374 –9378.
Fitzpatrick, T. B., Amrhein, N., Kappes, B., Macheroux, P., Tews, I., and Raschle, T. (2007). Two independent routes of de novo vitamin B6 biosynthesis: not that different after all. Biochem. J. 407, 1–13.
Fitzpatrick, T. B., Basset, G. J., Borel, P., Carrari, F., Dellapenna, D., Fraser, P. D., et al. (2012). Vitamin deficiencies in humans: can plant science help? Plant Cell 24, 395–414.
Galluzzi, L., Vacchelli, E., Michels, J., Garcia, P., Kepp, O., Senovilla, L., et al. (2013). Effects of vitamin B6 metabolism on oncogenesis, tumor progression and therapeutic responses. Oncogene doi: 10.1038/onc.2012.623 [Epub ahead of print].
Gerdes, S., Lerma-Ortiz, C., Frelin, O., Seaver, S. M., Henry, C. S., De Crecy-Lagard, V., et al. (2012). Plant B vitamin pathways and their compartmentation: a guide for the perplexed. J. Exp. Bot. 63, 5379–5395.
Gregory, J. F. III (2012). Accounting for differences in the bioactivity and bioavailability of vitamers. Food Nutr. Res. 56:5809. doi: 10.3402/fnr.v56i0.5809
Gregory, J. F., and Ink, S. L. (1987). Identification and quantification of pyridoxine-β-glucoside as a major form of vitamin B6 in plant derived foods. J. Agric. Food Chem. 35, 76–82.
Harjes, C. E., Rocheford, T. R., Bai, L., Brutnell, T. P., Kandianis, C. B., Sowinski, S. G., et al. (2008). Natural genetic variation in lycopene-γ-cyclase tapped for maize biofortification. Science 319, 330–333.
Havaux, M., Ksas, B., Szewczyk, A., Rumeau, D., Franck, F., Caffarri, S., et al. (2009). Vitamin B6 deficient plants display increased sensitivity to high light and photo-oxidative stress. BMC Plant Biol. 9:130. doi: 10.1186/1471-2229-9-130
Hellmann, H., and Mooney, S. (2010). Vitamin B6: a molecule for human health? Molecules 15, 442–459.
Herrero, S., and Daub, M. E. (2007). Genetic manipulation of vitamin B6 biosynthesis in tobacco and fungi uncovers limitations to up-regulation of the pathway. Plant Sci. 172, 609–620.
Herrero, S., González, E., Gillikin, J. W., Vélëz, H., and Daub, M. E. (2011).Identification and characterization of a pyridoxal reductase involved in the vitamin B6 salvage pathway in Arabidopsis. Plant Mol. Biol. 76, 157–169.
Huang, S., Zeng, H., Zhang, J., Wei, S., and Huang, L. (2011). Interconversion of different forms of vitamin B6 in tobacco plants. Phytochemistry 72, 2124–2129.
Huang, Y. C., Lee, M. S., and Wahlqvist, M. L. (2012). Prediction of all-cause mortality by B group vitamin status in the elderly. Clin. Nutr. 31, 191–198.
Jain, S. K., and Lim, G. (2001). Pyridoxine and pyridoxamine inhibits superoxide radicals and prevents lipid peroxidation, protein glycosylation, and (Na++K+)-ATPase activity reduction in high glucose-treated human erythrocytes. Free Radic. Biol. Med. 30, 232–237.
Kannan, K., and Jain, S. K. (2004). Effect of vitamin B6 on oxygen radicals, mitochondrial membrane potential, and lipid peroxidation in H2O2-treated U937 monocytes. Free Radic. Biol. Med. 36, 423–428.
Leasure, C. D., Tong, H. Y., Hou, X. W., Shelton, A., Minton, M., Esquerra, R., et al. (2011). Root uv-b sensitive mutants are suppressed by specific mutations in ASPARTATE AMINOTRANSFERASE2 and by exogenous vitamin B6. Mol. Plant 4, 759–770.
Lytovchenko, A., Beleggia, R., Schauer, N., Isaacson, T., Leuendorf, J. E., Hellmann, H., et al. (2009). Application of GC-MS for the detection of lipophilic compounds in diverse plant tissues. Plant Methods 5, 4–14.
Mahfouz, M. M., Zhou, S. Q., and Kummerow, F. A. (2009). Vitamin B6 compounds are capable of reducing the superoxide radical and lipid peroxide levels induced by H2O2 in vascular endothelial cells in culture. Int. J. Vitam. Nutr. Res. 79, 218–229.
Manzano, C., Abraham, Z., López-Torrejón, G., and Del Pozo, J. (2008). Identification of ubiquitinated proteins in Arabidopsis. Plant Mol. Biol. 68, 145–158.
Martin, C., Butelli, E., Petroni, K., and Tonelli, C. (2011). How can research on plants contribute to promoting human health? Plant Cell 23, 1685–1699.
Mehansho, H., Hamm, M. W., and Henderson, L. M. (1979). Transport and metabolism of pyridoxal and pyridoxal phosphate in the small intestine of the rat. J. Nutr. 109, 1542–1551.
Merrill, A. H. Jr., and Henderson, J. M. (1987). Diseases associated with defects in vitamin B6 metabolism or utilization. Annu. Rev. Nutr. 7, 137–156.
Mittenhuber, G. (2001). Phylogenetic analyses and comparative genomics of vitamin B6 (pyridoxine) and pyridoxal phosphate biosynthesis pathways. J. Mol. Microbiol. Biotechnol. 3, 1–20
Mooney, S., and Hellmann, H. (2010). Vitamin B6: killing two birds with one stone? Phytochemistry 71, 495–501.
Morris, M. S., Picciano, M. F., Jacques, P. F., and Selhub, J. (2008). Plasma pyridoxal 5′-phosphate in the US population: the national health and nutrition examination survey, 2003–2004. Am. J. Clin. Nutr. 87, 1446–1454.
O’Leary, F., Flood, V. M., Petocz, P., Allman-Farinelli, M., and Samman, S. (2011). B vitamin status, dietary intake and length of stay in a sample of elderly rehabilitation patients. J. Nutr. Health Aging 15, 485–489.
O’Neil, C. E., Keast, D. R., Fulgoni, V. L., and Niklas, T. A. (2012). Food sources of energy and nutrients among adults in the US: NHANES 2003–2006. Nutrients 4, 2097–2120.
Osmani, A. H., May, G. S., and Osmani, S. A. (1999). The extremely conserved pyroA gene of Aspergillus nidulans is required for pyridoxine synthesis and is required indirectly for resistance to photosensitizers. J. Biol. Chem. 274, 23565–23569.
Ouyang, S., Zhu, W., Hamilton, J., Lin, H., Campbell, M., Childs, K., et al. (2007). The TIGR rice genome annotation resource: improvements and new features. Nucleic Acids Res. 35, 883–887.
Percudani, R., and Peracchi, A. (2003). A genomic overview of pyridoxal phosphate-dependent enzymes. EMBO Rep. 4, 850–854.
Percudani, R., and Peracchi, A. (2009). The B6 database: a tool for the description and classification of vitamin B6-dependent enzymatic activities and of the corresponding protein families. BMC Bioinformatics 10:273. doi: 10.1186/1471-2105-10-273
Prochnik, S., Marri, P. R., Desany, B., Rabinowicz, P. D., Kodira, C., Mohiuddin, M., et al. (2012). The cassava genome: current progress, future directions. Trop. Plant Biol. 5, 88–94.
Raschke, M., Boycheva, S., Crèvecoeur, M., Nunes-Nesi, A., Witt, S., Fernie, A. R., et al. (2011). Enhanced levels of vitamin B6 increase aerial organ size and positively affect stress tolerance in Arabidopsis. Plant J. 66, 414–432.
Raschle, T., Amrhein, N., and Fitzpatrick, T. B. (2005). On the two components of pyridoxal 5′-phosphate synthase from Bacillus subtilis. J. Biol. Chem. 280, 32291–32300.
Ristilä, M., Strid, H., Eriksson, L. A., Strid, A., and Savenstrand, H. (2011). The role of the pyridoxine (vitamin B6) biosynthesis enzyme PDX1 in ultraviolet-B radiation responses in plants. Plant Physiol. Biochem. 49, 284–292.
Ruel, M. T. (2003). Operationalizing dietary diversity: a review of measurement issues and research priorities. J. Nutr. 133, 3911S–3926S.
Sang, Y., Locy, R. D., Goertzen, L. R., Rashotte, A. M., Si, Y., Kang, K., et al. (2011). Expression, in vivo localization and phylogenetic analysis of a pyridoxine 5′-phosphate oxidase in Arabidopsis thaliana. Plant Physiol. Biochem. 49, 88–95.
Shewry, P. R., Van Schaik, F., Ravel, C., Charmet, G., Rakszegi, M., Bedo, Z., et al. (2011). Genotype and environment effects on the contents of vitamins B1, B2, B3, and B6 in wheat grain. J. Agric. Food Chem. 59, 10564–10571.
Shi, H., and Zhu, J. K. (2002). SOS4, a pyridoxal kinase gene, is required for root hair development in Arabidopsis. Plant Physiol. 129, 585–593.
Shi, H., Xiong, L., Stevenson, B., Lu, T., and Zhu, J. K. (2002). The Arabidopsis salt overly sensitive 4 mutants uncover a critical role for vitamin B6 in plant salt tolerance. Plant Cell 14, 575–588.
Stupak, M., Vanderschuren, H., Gruissem, W., and Zhang, P. (2006). Biotechnological approaches to cassava protein improvement. Trends Food Sci. Technol. 17, 634–641.
Szydlowski, N., Bürkle, L., Pourcel, L., Moulin, M., Stolz, J., and Fitzpatrick, T. B. (2013). Recycling of pyridoxine (vitamin B6) by PUP1 in Arabidopsis. Plant J. doi: 10.1111/tpj.12195
Tambasco-Studart, M., Tews, I., Amrhein, N., and Fitzpatrick, T. B. (2007). Functional analysis of PDX2 from Arabidopsis, a glutaminase involved in vitamin B6 biosynthesis. Plant Physiol. 144, 915–925.
Tambasco-Studart, M., Titiz, O., Raschle, T., Forster, G., Amrhein, N., and Fitzpatrick, T. B. (2005). Vitamin B6 biosynthesis in higher plants. Proc. Natl. Acad. Sci. U.S.A.102, 13687–13692.
Tanaka, T., Tateno, Y., and Gojobori, T. (2005). Evolution of vitamin B6 (pyridoxine) metabolism by gain and loss of genes. Mol. Biol. Evol. 22, 243–250.
Titiz, O., Tambasco-Studart, M., Warzych, E., Apel, K., Amrhein, N., Laloi, C., et al. (2006). PDX1 is essential for vitamin B6 biosynthesis, development and stress tolerance in Arabidopsis. Plant J. 48, 933–946.
Wagner, S., Bernhardt, A., Leuendorf, J. E., Drewke, C., Lytovchenko, A., Mujahed, N., et al. (2006). Analysis of the Arabidopsis rsr4-1/pdx1-3 mutant reveals the critical function of the PDX1 protein family in metabolism, development, and vitamin B6 biosynthesis. Plant Cell 18, 1722–1735.
Welch, R. M., and Graham, R. D. (2004). Breeding for micronutrients in staple food crops from a human nutrition perspective. J. Exp. Bot. 55, 353–364.
Welsch, R., Arango, J., Bar, C., Salazar, B., Al-Babili, S., Beltran, J., et al. (2010). Provitamin A accumulation in cassava (Manihot esculenta) roots driven by a single nucleotide polymorphism in a phytoene synthase gene. Plant Cell 22, 3348–3356.
Keywords: vitamin B6, oxidative stress, biofortification, genetic engineering, PDX genes, crop biotechnology
Citation: Vanderschuren H, Boycheva S, Li K-T, Szydlowski N, Gruissem W, Fitzpatrick TB (2013) Strategies for vitamin B6 biofortification of plants: a dual role as a micronutrient and a stress protectant. Front. Plant Sci. 4:143.doi: 10.3389/fpls.2013.00143
Received: 07 March 2013; Paper pending published: 15 April 2013;
Accepted: 26 April 2013; Published online: 21 May 2013.
Edited by:
Irene Murgia, Università degli Studi di Milano, ItalyReviewed by:
Suleyman I. Allakhverdiev, Russian Academy of Sciences, RussiaDaniel Hofius, Swedish University of Agricultural Sciences, Swede
Copyright: © 2013 Vanderschuren, Boycheva, Li, Szydlowski, Gruissem and Fitzpatrick. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in other forums, provided the original authors and source are credited and subject to any copyright notices concerning any third-party graphics etc.
*Correspondence: Hervé Vanderschuren, Department of Biology, Plant Biotechnology, Eidgenössische Technische Hochschule Zurich, Universitätstrasse 2, 8092 Zurich, Switzerland. e-mail: herve.vanderschuren@ethz.ch; Teresa B. Fitzpatrick, Department of Botany and Plant Biology, University of Geneva, Sciences III, 30 Quai E. Ansermet, 1211 Geneva, Switzerland. e-mail: theresa.fitzpatrick@unige.ch
