HYPOTHESIS AND THEORY article

Front. Physiol., 17 November 2023
Sec. Striated Muscle Physiology

Potential role of geranylgeraniol in managing statin-associated muscle symptoms: a COVID-19 related perspective

Barrie Tan
Barrie Tan1*Kok-Yong ChinKok-Yong Chin2
  • 1American River Nutrition, Hadley, MA, United States
  • 2Department of Pharmacology, Faculty of Medicine, Universiti Kebangsaan Malaysia, Kuala Lumpur, Malaysia

Myopathy is the most common side effect of statins, but it has not been addressed effectively. In anticipation of its wider use as a small molecule to complement the current COVID-19 management, a pharmacological solution to statin-associated muscle symptoms (SAMS) is warranted. Statins act by suppressing the mevalonate pathway, which in turn affects the downstream synthesis of isoprenoids required for normal physiological functions. CoQ10 and geranylgeraniol (GG) syntheses are reduced by statin use. However, CoQ10 supplementation has not been shown to reverse SAMS. GG is an obligatory substrate for CoQ10 synthesis, an endogenous nutrient critical for skeletal muscle protein synthesis. Multiple studies showed GG supplementation is effective in reversing SAMS. This opinion paper proposes employing GG to prevent SAMS in pleiotropic statin use, including usage in the post-COVID-19 pandemic era.

1 Introduction

Statins are classic drugs to treat hypercholesterolemia and dyslipidemia (Adhyaru and Jacobson, 2018; Shojaei et al., 2020). Statin’s success in controlling these conditions has gained a statutory body of support from the American Heart Association (AHA), American College of Cardiology, European Society of Cardiology and European Atherosclerosis Society. These societies have promulgated guidelines for atherosclerosis and cardiovascular disease (CVD) risk reduction through lipid management (Feldman et al., 2020). The United States targets LDL of 70–189 mg/dL to reduce CVD risk by 30%, and LDL of >190 mg/dL to reduce CVD risk by 50% (American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines, 2019). Europe has a more aggressive “lower-the-better” four-step management targets of “low risk” (LDL <116 mg/dL), “moderate risk” (LDL <100 mg/dL), “high risk” (LDL <70 mg/dL), and “very high risk” (LDL <55 mg/dL) (Mach et al., 2020). In addition, statins have been recommended to patients with diabetes since more than a decade ago in the United States (Eldor and Raz, 2009; American Diabetes Association Professional Practice Committee, 2021). A 10-year-long Veterans Association-Harvard study of >300,000 elderly (>75 years) on statins reported that CVD risk and all-cause mortality were reduced significantly for statin users. Statin consumption can potentially benefit 25 million elderly age >75 years or 45 million elderly age >65 years in the United States. Inflammation reduction by statin in the elderly was the suggested mechanism (Orkaby et al., 2020).

There has been a renewed interest in statins in the pandemic era of Coronavirus disease 2019 (COVID-19). Statins are among the small molecules repurposed to fortify our immune system, along with vaccines, to shield the public against the threat of COVID-19. Retrospective and observational studies have exhaustively demonstrated the benefits of statins among patients with COVID-19 (Table 1). Of note, a CVD/COVID-19 study derived from the AHA/CVD registry of >105,000 patients from >100 hospitals was conducted in 2020. The study reported that Covid-19-related severity for patients previously on statins was reduced by 25% and Covid-19-related death was reduced by 45%. Other researchers found statin use was associated with a reduced risk (by 30%–50%) of developing severe COVID-19 symptoms while speeding up recovery (Daniels et al., 2021; Gupta et al., 2021; Maric et al., 2021). A year later, numerous meta-analyses unequivocally supported that statins reduced the severity and mortality of patients with COVID-19 (Table 2). Nothing in recent history has had statin studies produced at such a rapid pace and in such a narrow time bandwidth. Much larger population groups continued to show statins improved clinical outcomes of patients with COVID-19 [Rivera et al. (2023) with >15,500; Crimi et al. (2023) with >38,800; Wang et al. (2023) with >800,000]. The pandemic threat has accelerated the speed of research. The conclusions and recommendations of the studies presented in Table 1, Table 2 were summarized in Table 3.

TABLE 1
www.frontiersin.org

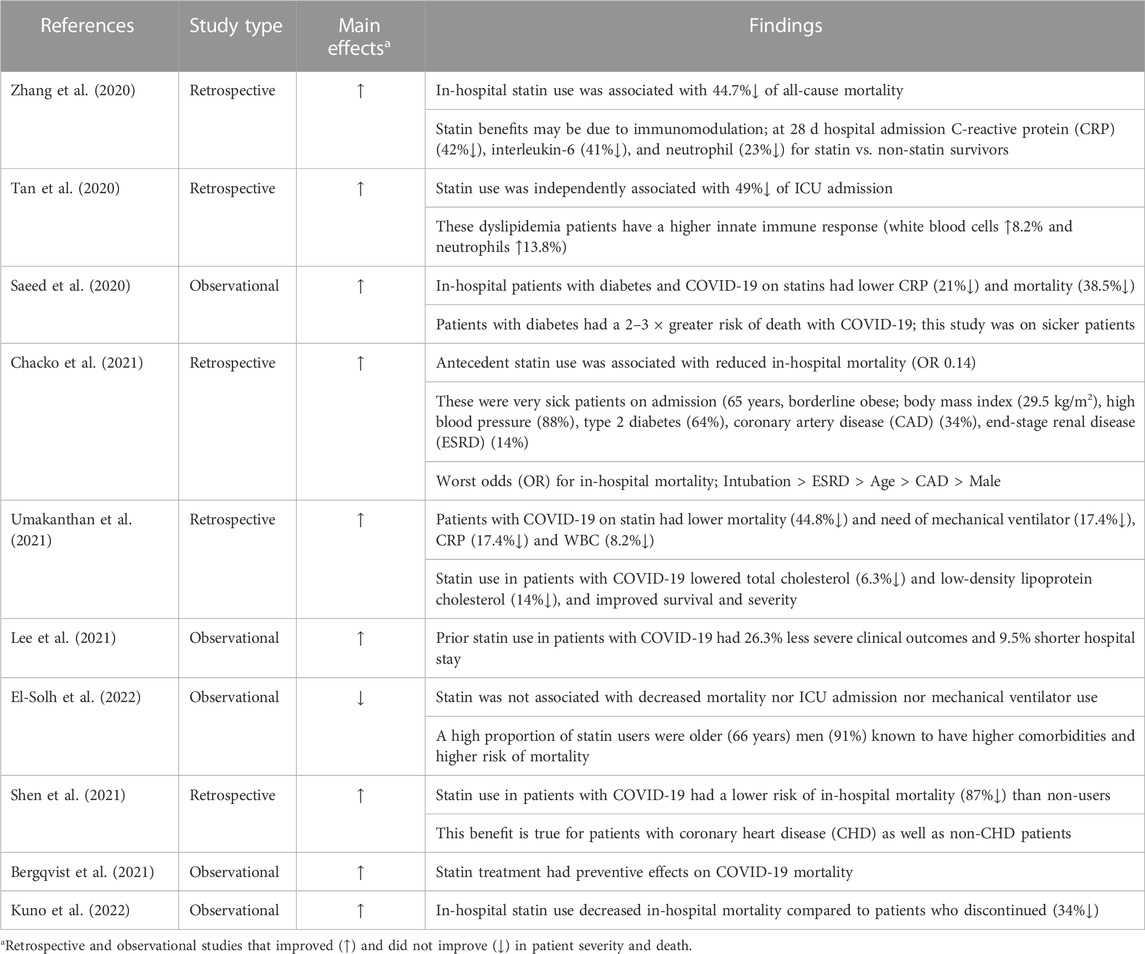

TABLE 1. Retrospective and observational studies of the effects of statin on COVID-19 outcomes.

TABLE 2
www.frontiersin.org

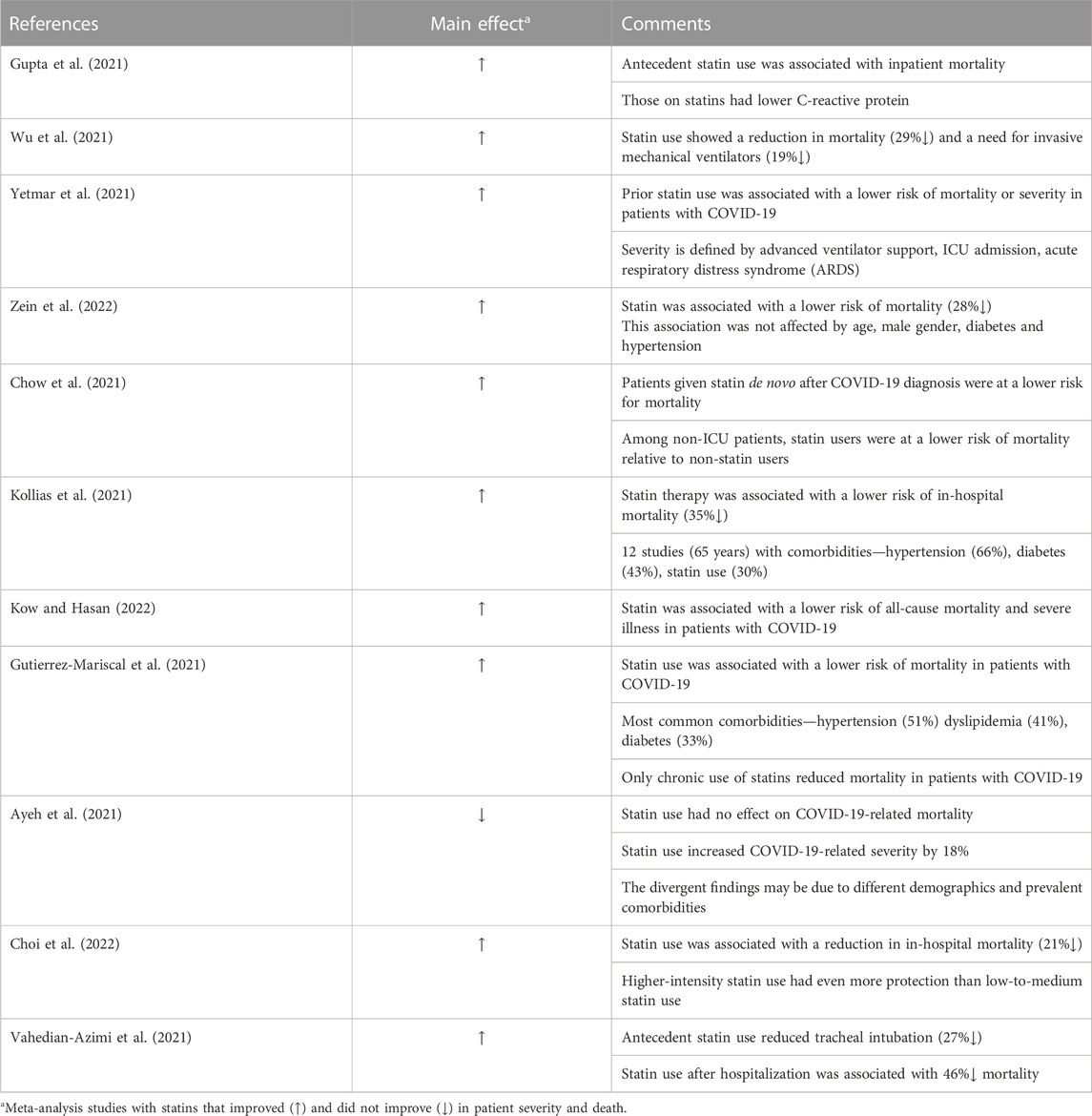

TABLE 2. Meta-analyses of statin benefits in COVID-19 cases.

TABLE 3
www.frontiersin.org

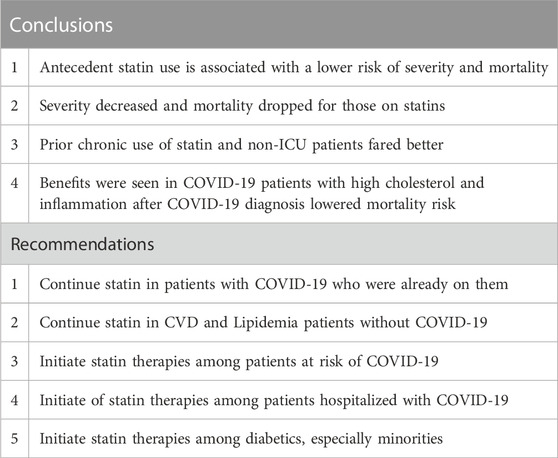

TABLE 3. Conclusions and recommendations for statin usage to mitigate COVID-19.

The therapeutic function of statin in inhibiting COVID-19 is compelling in two instances—the prior use of statin before COVID-19 infection and the statin treatment initiation after COVID-19 infection. In a recent interventional study by Memel et al. (2022), the risk of death was reduced by 43% for patients who initiated statin treatment recently. This association held up in patients with statin use (risk of death reduction by 73%) and without statin use (risk of death reduction by 51%) before hospitalization. Benefits were greater with longer exposure to statin before COVID-19, possibly because statin blunts inflammatory response. The authors proposed antecedent statin usage interfered with viral infection via inhibition of cholesterol-rich or lipid-rich cell membranes (Memel et al., 2022).

With such positive pleiotropic benefits of statins, it is easy to overlook their side effects. The first US commercial statin (lovastatin) was introduced in 1987, and rhabdomyolysis was reported among patients a year later (East et al., 1988; Norman et al., 1988) (Figure 1). This severe form of muscle damage has resurfaced in the current pandemic. Statin users with COVID-19 had more severe and intense muscle pain (≥5%) than non-statin users with COVID-19 (Schetz et al., 2022). In a case study, statin was singled out to cause toxic myopathy and liver damage among other medications (Sabljic and Basic-Juki, 2022). Patients developed proximal muscle weakness (arms and legs) with elevated liver enzymes, whereupon statin cessation normalized enzymes and regression of muscle symptoms. Furthermore, 30%–62% of patients prescribed statins discontinued therapy because of muscle fatigue, weakness and pain (Zaleski et al., 2018).

FIGURE 1
www.frontiersin.org

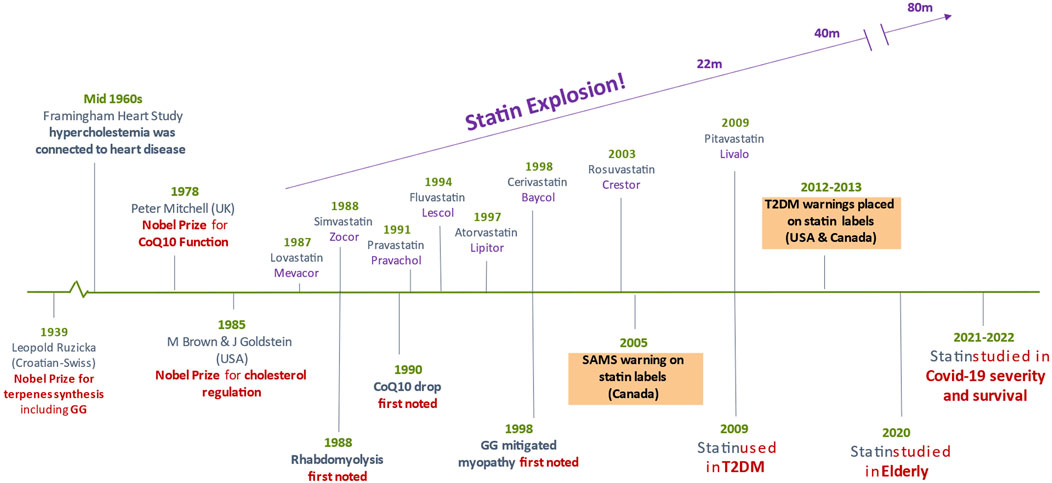

FIGURE 1. Statin history and landmarks.

As yet, statutory bodies have not approved statin use for COVID-19 management. If and when statin is approved for COVID-19, a dramatic rise in statin-associated muscle symptoms (SAMS) will occur. When SAMS are encountered, doctors often advise patients to discontinue statin temporarily until muscle symptoms stop, resume statin at the same or reduced dosage, change to another statin (often lipid-soluble to water-soluble one), use intermittent dosing (taking statin on alternate days) or prescribe non-statin cholesterol-reducers (Altmann et al., 2004; Julius, 2017). These are “bandage” solutions to an unmet problem. Not only is the rate of voluntary discontinuation of statin therapy high, patients often do not consult their doctors on discontinuance. Statin cessation may bring detrimental consequences to patients, including COVID-19 patients as complementary management (Toth et al., 2018; Fedson, 2021).

Given its significance, potential pharmacological agents to address SAMS should be investigated. We propose geranylgeraniol (GG) as a suitable candidate. To explain the rationale for proposing GG, this paper aims to summarise the basic mechanisms of how statins cause SAMS, and the specific role of GG in countering SAMS.

2 The molecular mechanism of statins in inducing SAMS

The effectiveness of statins in treating hyperlipidemia is well acknowledged, but the en route damage is unappreciated. Statin is an indiscriminate cholesterol reducer, by which it reduces endogenous essential isoprenoids besides cholesterol. These isoprenoids are obligatory for the synthesis of other molecules required for normal physiological processes and their decrease would have many downstream ramifications (Verdaguer et al., 2022). Reduction of isoprenoids and the subsequent decimation of skeletal muscle protein and CoQ10 synthesis could be responsible for statin’s side effects (Mollazadeh et al., 2021).

CoQ10 is biosynthesised as an essential nutrient within our body for energy production. The impact of statins on reducing CoQ10 production is well communicated. This CoQ10 reduction is caused by the inhibition of GG synthesis because GG is an intrinsic part of the chemical structure of CoQ10 (Paiva et al., 2005). The health benefits of CoQ10, particularly in cardiovascular health have been documented in many reviews (Martelli et al., 2020; Gutierrez-Mariscal et al., 2021; Rabanal-Ruiz et al., 2021). CoQ10 improves fatigue recovery of elite athletes (Mizuno et al., 2008), and exerts protective effects on the nervous system (Testai et al., 2021) and male fertility (Salvio et al., 2021). Importantly, CoQ10 prevents LDL oxidation (to the atherogenic oxLDL) because ubiquinol (reduced form of CoQ10) is uniquely situated inside LDL particles. All these studies amply underscore the importance of CoQ10 in cardiovascular health and non-cardiovascular health.

Mechanistic studies have variously hypothesised that CoQ10 helps to prevent statin myopathy. However, this CoQ10-SAMS narrative cannot be clinically substantiated as trials and meta-analyses nearly all failed to support the mitigating effects of CoQ10 on SAMS (Table 4). Supplemental CoQ10 that drives serum CoQ10 levels up after being lowered by statin implies CoQ10 could mitigate SAMS. A specific trial was designed to test this hypothesis. In this study, statin users with confirmed myalgia were supplemented with 600 mg CoQ10 per day for 8 weeks. Their serum CoQ10 rose from 1.3 μg/mL to 5.2 μg/mL, an impressive 400% increase above baseline (Taylor et al., 2015; Zaleski et al., 2018). There is no CoQ10 “bioavailability” issue in this trial. However, CoQ10 did not improve skeletal muscle symptoms or performance in patients with SAMS. Thus, statin-associated myopathy could not be effectively managed by CoQ10 supplementation.

TABLE 4
www.frontiersin.org

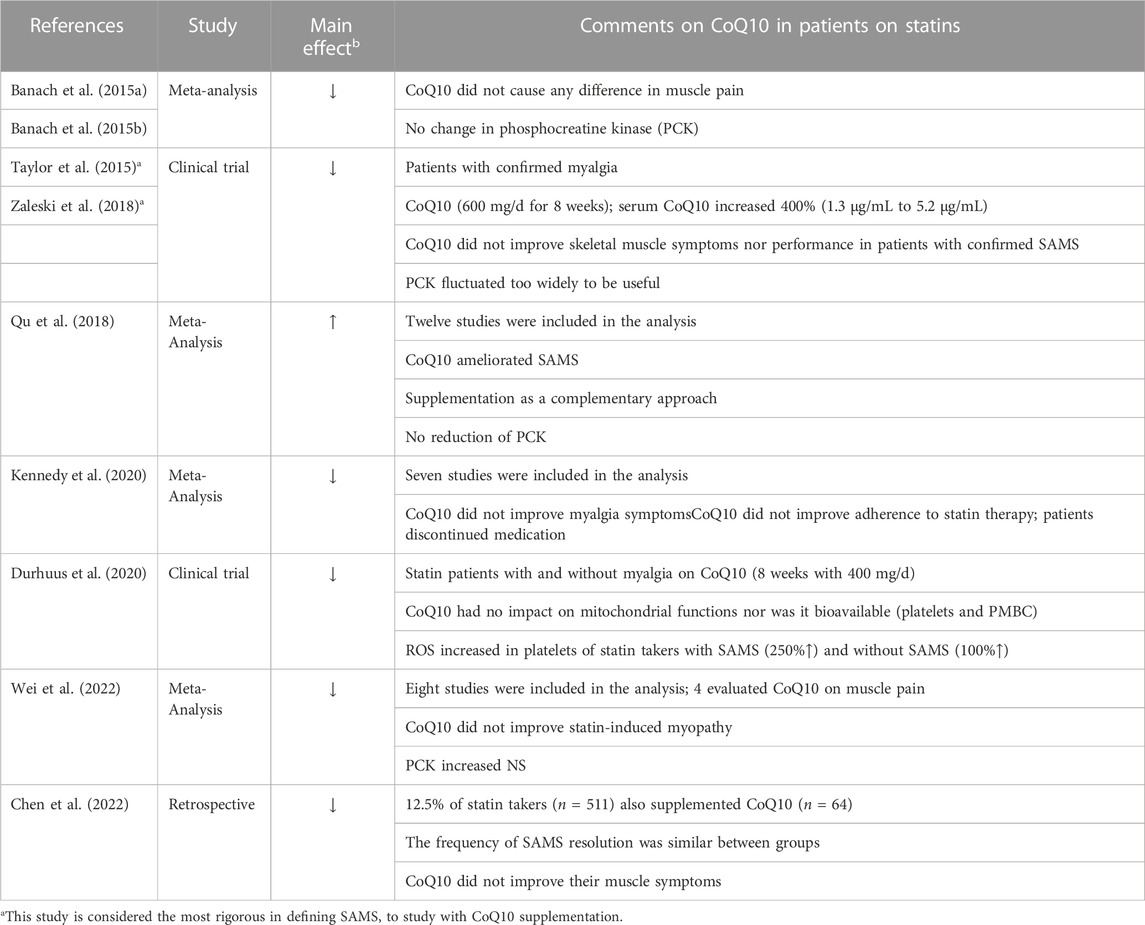

TABLE 4. The effects of CoQ10 supplementation on statin-associated muscle symptoms (SAMS).

3 Role of GG in managing SAMS

The biochemical and biological pathway of GG to mitigate muscle cell damage due to statins was elegantly studied >25 years ago (Raiteri et al., 1997) and confirmed >15 years ago (Johnson et al., 2004). Statin causes apoptosis of muscle cells with a concomitant loss of GG. Cholesterol, CoQ10 and menaquinone-4 (MK4) were all decreased by statin. GG is the “building block” isoprenoid for the synthesis of CoQ10 and MK4 in animals (Nakagawa et al., 2010; Hirota et al., 2015) and also for the synthesis of ubiquitous phytonutrients in plants (Figure 2). The adverse effects of statins on muscle are mainly through inhibition of protein geranylgeranylation, but not by ubiquinone suppression (Johnson et al., 2004). GG add-back studies showed increased CoQ10 production without blocking statin’s inhibition of cholesterol synthesis (Campia et al., 2009). Both farnesol (F) and geranylgeraniol (GG) are isoprenoids central to the mevalonic acid pathway. Cholesterol biosynthesis is derived from F. Statin’s inhibition of this pathway is much upstream at the C5 mevalonate site for which F (at C15) and GG (at C20) both undergo downstream obligate inhibition (Figure 3). This mevalonate-isoprenoid pathway is rendered more plausible because CoQ10, ezetimide, and statin—all related to cholesterol synthesis—were summarily associated with reduced COVID-19 hospitalization risk (Israel et al., 2021; Sumbalova et al., 2022). Since a higher CoQ10 level was associated with reduced hospitalization, the authors suggested that isoprenoid GG reduction is responsible for hospitalisation. GGPP (activated form of GG) is required for the synthesis of CoQ10. Interestingly, Health Canada has required myopathy warnings on statin labels for more than 15 years (Health Canada, 2005) (Figure 2).

FIGURE 2
www.frontiersin.org

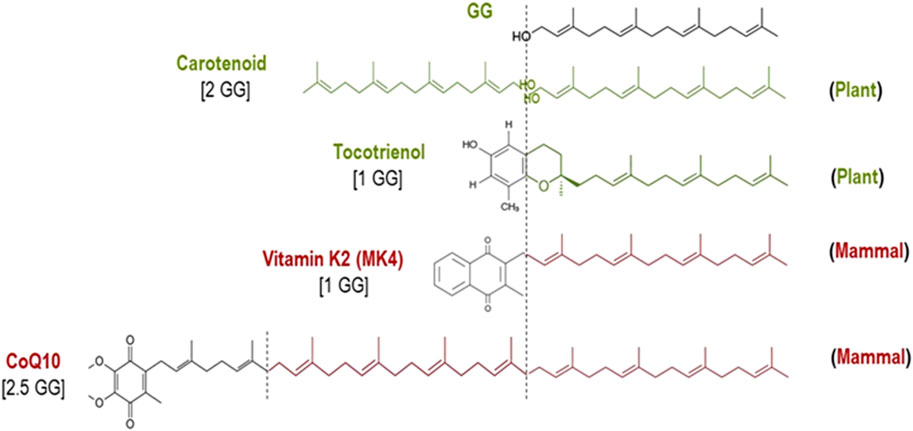

FIGURE 2. GG as a building block of biomolecules in plants (green) and mammals (red).

FIGURE 3
www.frontiersin.org

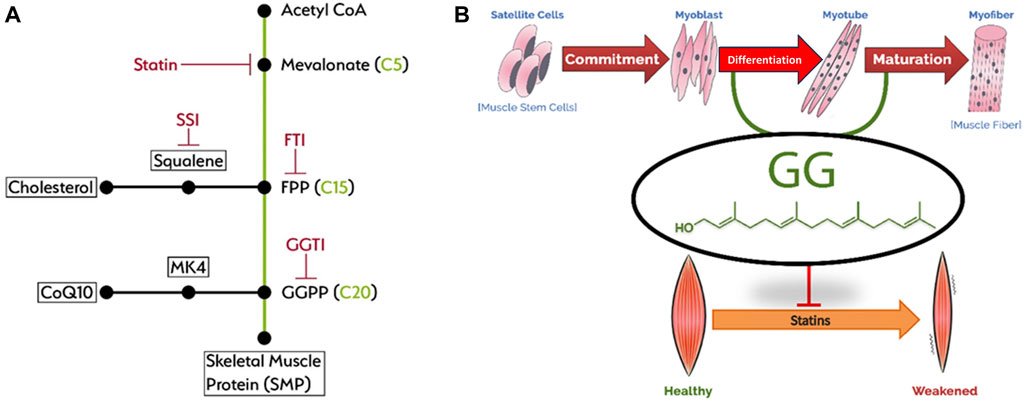

FIGURE 3. Mevalonic acid pathway (A) and statin myotoxicity (B).

One novel mechanism for which statin inhibits COVID-19 is via the mevalonate-isoprenoid reduction of FPP/cholesterol. There is a remarkable similarity to the pleiotropic statin effects on the cardiovascular system (Oesterle et al., 2017). GG is uniquely required for the synthesis of skeletal muscle protein. GG increases the differentiation of muscle cells and suppresses the expression of skeletal muscle atrophy-related ubiquitin ligases (Matsubara et al., 2018) (Figure 3). Statins obligatorily inhibit this GG isoprenoid and prevent the prenylation of skeletal muscle protein, thus myopathy occurs. GG is a non-terminal nutrient, the “missing piece” in skeletal muscle protein. Several in vivo models have showcased the potential of GG in improving muscle health. First, GG prevents statin-induced muscle fatigue by increasing force production and muscle performance (Irwin et al., 2020). Second, GG prevents denervation-induced reduction in muscle fibres (Miyawaki et al., 2020). Third, GG prevents degenerations of soleus muscle in diabetic animals by improving mitochondrial quality and autophagy (Jiwan et al., 2022). In a related in vitro study, GG also rescues mitochondrial respiration in monocytic cells suppressed by statins, likely due to GG being used for CoQ10 synthesis (Campia et al., 2009). In addition, GG interacts with the prenyltransferase UbiA prenyltransferase domain-containing protein l, which converts menadione to menaquinone (MK4) (Schumacher et al., 2015). MK4 is important for the maintenance of a healthy musculoskeletal system (Azuma and Inoue, 2019). However, there is a lack of direct evidence suggesting GG promotes MK4 synthesis. Overall, the accumulated evidence suggests the beneficial effects of GG in protecting muscle health.

The extreme case of statin-induced muscle problem, rhabdomyolysis, was noted in 1988, merely a year after the first statin was introduced in the United States. The decimation of endogenous GG was identified as the responsible cause (Raiteri et al., 1997; Johnson et al., 2004). Yet, it would take another 25 years to readdress GG as being responsible for skeletal muscle protein and its deterioration by statins. Arguably, the most prevalent side effect of statins is muscle problems, and this damage can be studied through the development of muscle atrophy. Muscle atrophy is the loss of skeletal muscle mass, decrease in force production and increase in fatigue. Atrophy can happen with neuromuscular and musculoskeletal diseases, aging (loss of testosterone), immobility/sarcopenia (use-it-or-lose-it), and exercise-induced muscle injury.

Loss of CoQ10 causes fatigue, and myalgia, but the loss of GG goes beyond energy deficits to muscle damage and atrophy. Supplemental CoQ10 compensates for CoQ10 loss caused by statins. However, supplemental GG reverses SAMS and regenerates CoQ10 (Campia et al., 2009; Sanvee et al., 2021a; Sanvee et al., 2021b). These functions of GG are summarized in Table 5. Put together, GG is the critical isoprenoid responsible for skeletal muscle protein synthesis. GG and F are isoprenoids used in the cell membranes to prenylate proteins. Hanai et al. (2007) first noted that atrogin-1 is the critical mediator of muscle damage (muscle fibre breakdown) caused by statin. Later, the same group discovered that GG—but not F—specifically rescued muscle damage from statins (Cao et al., 2009). Statin reduced myofibers by 60% and only GG completely reversed it. Furthermore, GG reduced statin-induced atrogin-1 by 65%, a mechanism responsible for muscle atrophy. The authors suggested that geranylgeranylation was required for the synthesis of the long CoQ10 sidechain. CoQ10 plays an integral part in the mitochondrial respiratory complex and statin suppresses mitochondrial function (Apostolopoulou et al., 2015). The decrease in the latter was responsible for muscle atrophy. Additionally, MK4 and GG improve mitochondrial functions by increasing mitochondrial membrane potential, mitochondrial respiratory capacity, ATP production, and spare respiratory capacity. The authors remarked that MK4 and GG both contribute to the inhibition of insulin resistance in skeletal muscles (Su et al., 2021; Wang et al., 2022). This statin-damage work has also been substantiated in animal studies (Goodman et al., 2015; Irwin et al., 2018). Oral administration of GG rescues muscle atrophy through atrogin-1 suppression (Miyawaki et al., 2020) and reverses skeletal muscle atrophy that includes oral frailty such as oral conversation and food mastication (Shirakawa et al., 2021). In muscles, statin increased atrogin-1 by about 100%–150%, followed by a consequent reduction of 30%–35% muscle force production for which GG completely abrogated. The translated dose for a 70 kg person is approximately 170 mg/d of GG. GG supplementation increased force production in muscle (Irwin et al., 2020). In an ex vivo human study, statin caused the induction of atrogin-1 by ≥ 400%, an indication of muscle damage and muscle atrophy (Gouni-Berthold et al., 2013). These studies showed GG reduced atrogin-1 to reverse muscle atrophy.

TABLE 5
www.frontiersin.org

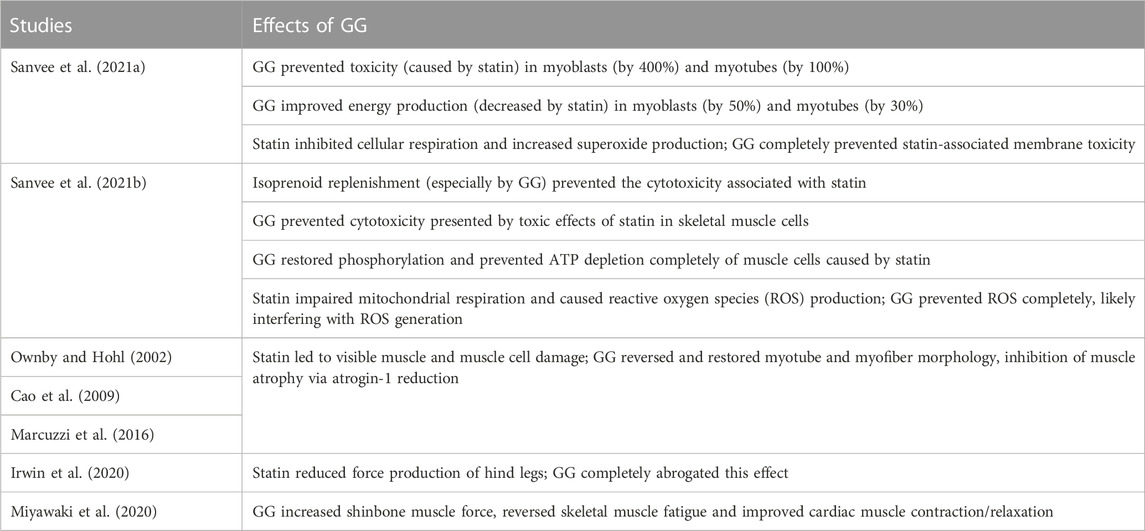

TABLE 5. Functions of geranylgeraniol (GG) in muscles and muscle cells.

4 Conclusion

The existing pleiotropic reach of statin is already large. The potential utility of statin to mitigate COVID-19 makes the extended reach of this drug enormous. Assuming a generous two-third overlap of all the possible 240 million statin takers, it is expected that by 2030, 80 million Americans may be on statins (Table 6). Statins stand to topple the most-used drug paracetamol or acetaminophen (CHPA, 2020). With the off-label prescribed statins to the elderly and use in the diabetic population, SAMS is expected to increase. Furthermore, if statins are approved for use in COVID-19 patients, and for patients with post-acute sequelae of COVID-19 (PASC) or simply long-haul COVID-19, muscle problems are staged to multiply. GG addresses this unmet need. CoQ10 is, at best, a partial statin solution, whereas GG may be a better solution to address SAMS. CoQ10 and GG combination may be used as a “statin companion” to satisfy the unmet need generated by statin’s usage. The current NIH guidelines recommend continued use of statins during COVID-19 but do not recommend initiation pending completion of randomized controlled trials. The perspectives put forward in this paper will have to be validated in future studies.

TABLE 6
www.frontiersin.org

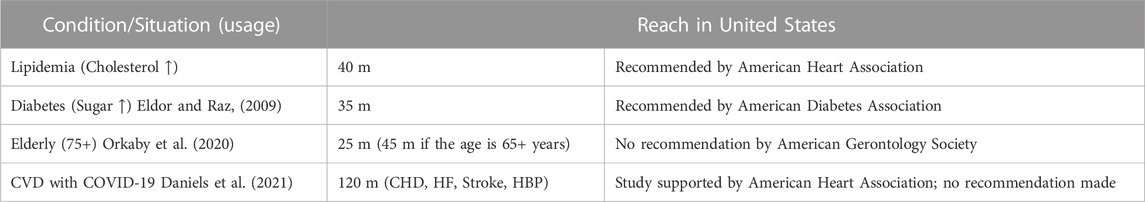

TABLE 6. Projected number of statin users for its pleiotropic benefits by 2030.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

BT drafted the manuscript. K-YC provided a critical review and edited the manuscript. All authors contributed to the article and approved the submitted version.

Funding

The publication of this article is made possible by American River Nutrition. K-YC is funded by the Malaysian Ministry of Higher Education through the Fundamental Research Grant Scheme (FRGS/1/2022/SKK10/UKM/02/3).

Acknowledgments

The authors thank Universiti Kebangsaan Malaysia and American River Nutrition for supporting the research.

Conflict of interest

BT is the President of American River Nutrition. K-YC declares the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
