Elucidation of the binding mode of organic polysulfides on the human TRPA1 receptor

Introduction: Previous studies have established that endogenous inorganic polysulfides have significant biological actions activating the Transient Receptor Potential Ankyrin 1 (TRPA1) receptor. Organic polysulfides exert similar effects, but they are much more stable molecules, therefore these compounds are more suitable as drugs. In this study, we aimed to better understand the mechanism of action of organic polysulfides by identification of their binding site on the TRPA1 receptor.

Methods: Polysulfides can readily interact with the thiol side chain of the cysteine residues of the protein. To investigate their role in the TRPA1 activation, we replaced several cysteine residues by alanine via site-directed mutagenesis. We searched for TRPA1 mutant variants with decreased or lost activating effect of the polysulfides, but with other functions remaining intact (such as the effects of non-electrophilic agonists and antagonists). The binding properties of the mutant receptors were analyzed by in silico molecular docking. Functional changes were tested by in vitro methods: calcium sensitive fluorescent flow cytometry, whole-cell patch-clamp and radioactive calcium-45 liquid scintillation counting.

Results: The cysteines forming the conventional binding site of electrophilic agonists, namely C621, C641 and C665 also bind the organic polysulfides, with the key role of C621. However, only their combined mutation abolished completely the organic polysulfide-induced activation of the receptor.

Discussion: Since previous papers provided evidence that organic polysulfides exert analgesic and anti-inflammatory actions in different in vivo animal models, we anticipate that the development of TRPA1-targeted, organic polysulfide-based drugs will be promoted by this identification of the binding site.

1 Introduction

Chronic pain and persistent inflammation are major problems in the modern population (Mha et al., 2008; Apkarian et al., 2009; Harden et al., 2010; Nathan and Ding, 2010). Chronic pain is a direct cause of diminishing quality of life or even loss of body functions (Niv and Kreitler, 2001; Keeley et al., 2008; Helyes et al., 2019; Raja et al., 2020). Persistent inflammation without pain sensation may stay latent, but can contribute to a wide variety of other chronic diseases, such as type II diabetes, allergies, cardiovascular diseases, and several types of cancer (Medzhitov, 2021; Pahwa et al., 2021; Nathan, 2022). Conventional analgesic and anti-inflammatory drugs, such as steroids, NSAIDs, and opioids are, commonly unsuitable for long-term treatments because of their gradually overwhelming adverse effects (Alarcón, 2000; Schett and Gravallese, 2012; Schuelert and McDougall, 2012; Horváth et al., 2016; Cavalli et al., 2019). Therefore, there is a great demand for new drugs against chronic pain and persistent inflammation. Polysulfides could be promising drug candidates and became increasingly well-studied compounds in pharmacological research. Formerly, the gaseous regulator hydrogen sulfide (H₂S) was thought to have analgesic and anti-inflammatory effects. Now, it is well-understood that H₂S released in the location of inflammation is spontaneously oxidized into sodium hydrosulfide (NaSH) and sodium sulfide (Na₂S) and polymerized into inorganic polysulfides (e.g. Na₂S₃). These compounds are reactive enough to bind covalently to the cysteine residues of the transient receptor potential ankyrin 1 (TRPA1) receptor and activate it (Ogawa et al., 2012; Hatakeyama et al., 2015; Pozsgai et al., 2017; Bátai et al., 2019).

TRPA1 is a non-selective cation channel sensing a wide variety of irritations such as mechanical stimuli, extreme heat and cold, acids, reactive oxidative species, and thousands of identified agonists (Liu et al., 2021). TRPA1 is mainly expressed in the capsaicin-sensitive peptidergic nociceptive primary sensory neurons; therefore, receptor activation leads to local acute pain and to the secretion of pro-inflammatory neuropeptides (e.g., substance P and calcitonin gene-related peptide), which contribute to neurogenic inflammation by prompting vasodilation and plasma leakage. However, as a counter-regulation, these peptidergic neurons also release analgesic and anti-inflammatory neuropeptides such as somatostatin upon TRPA1 activation (Kun et al., 2014; Zygmunt and Högestätt, 2014; Pozsgai et al., 2017; Dombi et al., 2021). Somatostatin has systemic analgesic and anti-inflammatory effects mediated by the SST₄ receptor (Matsuoka et al., 1994; Helyes et al., 2006; 2009; Sándor et al., 2006; Qiu et al., 2008; Markovics et al., 2012; Pintér et al., 2014; Scheich et al., 2016; 2017; Nemes et al., 2021). Gene knockout in mice of either Trpa1 or Sstr4 significantly attenuates these effects of polysulfides (Pozsgai et al., 2017). Based on the previous data listed previously, we assume that polysulfides exert their anti-inflammatory and pain-relieving effects, at least in part, through the activation of the TRPA1 receptor.

Despite the advantageous effects of inorganic polysulfides, they are highly unstable molecules; therefore, their delivery to the target cells or endogenous synthesis from added H₂S donors is extremely challenging, which makes them unsuitable as drugs. So, our attention turned to the much more stable organic polysulfides such as dimethyl trisulfide (DMTS), diallyl disulfide (DADS), and diallyl trisulfide (DATS), which have similar biological effects (Bai et al., 2005; Bautista et al., 2005; Koizumi et al., 2009; Lee et al., 2013; Pozsgai et al., 2017; Bátai et al., 2018; Dombi et al., 2021).

Although the molecular mechanism of action of inorganic polysulfides has been better studied, little is known about organic polysulfides. In the first step, we aimed to identify the binding site of organic polysulfides on the TRPA1 receptor via site-directed mutagenesis. Therefore, out of the 28 cysteine residues in the human TRPA1, we investigated those within the conventional binding site of electrophilic agonists on the N-terminal domain (C621, C641, and C665) (Hinman et al., 2006; Deering-Rice et al., 2011; Eberhardt et al., 2012; Shapiro et al., 2013) and the theoretical binding site of the strongly hydrophobic agonists in the transmembrane domains (C727 and C834) (Figure 1) (Paulsen et al., 2015; Alvarado et al., 2021). We created mutant TRPA1 variants, which lost the sensitivity to the tested organic polysulfides, but their other functions remained intact (e.g., sensitivity to non-electrophilic agonists and antagonists). The binding properties were calculated in silico, and the receptor functions were tested in vitro by calcium-sensitive fluorescent flow cytometry, radioactive calcium-45 liquid scintillation counting, and whole-cell patch clamp.

FIGURE 1

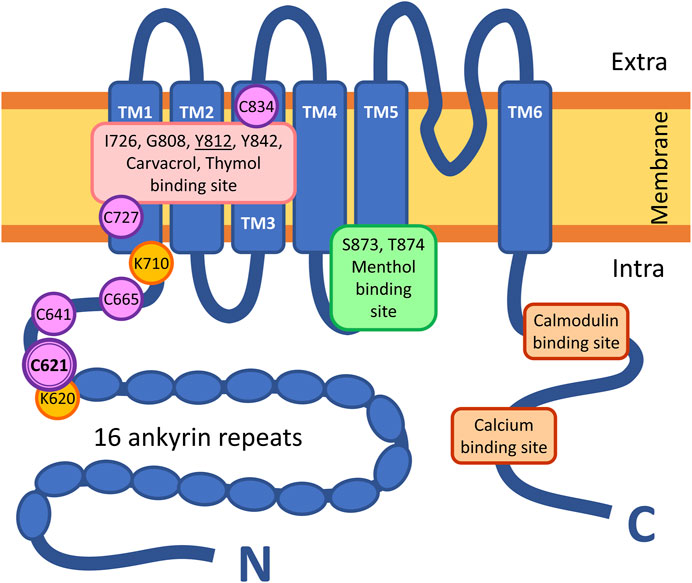

FIGURE 1. Structure of a subunit of the homotetrameric TRPA1 receptor. TM = transmembrane domain; intra = intracellular space; extra = extracellular space; N = N-terminus of the peptide, C = C-terminus of the peptide. Symbols of the highlighted amino acids: C = cysteine; G = glutamine; I = isoleucine; K = lysine; S = serine; T = threonine; Y = tyrosine.

2 Materials and methods

2.1 Computational docking of DMTS, DADS, and DATS

Dimethyl trisulfide (DMTS), diallyl disulfide (DADS), and diallyl trisulfide (DATS) were prepared by the Sketcher 2D tool of FITTED, and the CONVERT tool performed the conversion into a mol2 file. The ligands were further prepared by the SMART tool of FITTED (Corbeil et al., 2007; Therrien et al., 2012; Pottel et al., 2014). The torsion around all rotatable bonds was allowed, AMBER (Wang et al., 2004) atom types were assigned, and Gasteiger–Hückel (Gasteiger and Marsili, 1980) partial charges were added. The same ligands were prepared for AutoDock (RRID:SCR_012746 (Morris et al., 1998)) calculations, as described before (Mohos et al., 2020a; 2020b; Zsidó et al., 2020; Fliszár-Nyúl et al., 2021); briefly, the structures were built by Maestro (Schrödinger, 2022), energy was minimized by OpenBabel (RRID: SCR_014920), and Gasteiger–Marsili partial charges were added with OpenBabel (O’Boyle et al., 2011).

The atomic coordinate file of the ligand-free TRPA1 receptor was obtained from the Worldwide Protein Data Bank (wwPDB, RRID:SCR_006555 (Berman et al., 2002)), under the accession code 6V9W (Zhao et al., 2020). As the four chains of the target are symmetrical (homotetramer), only one chain was used to reduce computational costs. The amino acids of a chain do not interfere with the binding of the ligand to another chain. The missing atoms and residues were rebuilt using SWISS-MODEL (Waterhouse et al., 2018), and energy was minimized with GROMACS (Van Der Spoel et al., 2005). The convergence threshold of the steepest descent optimization was set to 103 kJ mol−1 nm−1, and that of the conjugate gradient optimization to 10 kJ mol−1 nm−1. The AMBER99SB-ILDN force field (Wang et al., 2004) was used for calculation, and a position restraint at a force constant of 103 kJ mol-1 nm-2 was applied on heavy atoms. The same preparation process was carried out for the mutant (C621S) receptor, accessible under the PDB code 6PQQ (Suo et al., 2020), and the holo (6PQP) receptor. The holo receptor contains benzyl isothiocyanate (BITC) covalently bound to the C621 amino acid, BITC was removed, and the hydrogen atom was restored on the target side before calculations. The targets were further optimized by the ProCESS tool of FITTED, with the original settings (Corbeil et al., 2007). In the case of AutoDock, the added H atoms and partial charges were kept from energy minimization. The mutation of the 6PQQ apo receptor S621A was performed by PyMol (The PyMOL Molecular Graphics System, 2022).

Covalent docking calculations were carried out using FITTED. The covalent residue (C621 or S621) and adjacent basic residue (P622) were adjusted in the graphical user interface of the program. Root mean square deviation (RMSD) values were calculated between the crystallographic and representative ligand conformations, if available. All other settings were used as the default of the program. Ten docking runs were performed for all ligands, and the resulting ligand conformations were ranked based on their calculated free energy of binding (ΔG_calc) values.

2.2 Organic polysulfide synthesis

2.2.1 Chemicals

Dimethyl trisulfide, sulfur, sodium sulfide, ammonium hydroxide, ethanol, and activated charcoal were purchased from Reanal, Hungary. Cysteine (168149), tetrabutyl ammonium iodide (140775), and allyl bromide (337528) were purchased from Sigma-Aldrich.

All reagents and materials were used without purification.

2.2.2 Instruments

For the synthesis of the two sulfides we prepared, we used a modified version of the method found in the literature (Yuan et al., 2006). In our reaction, by using a more efficient phase transfer catalyst than the published one, the reaction could be carried out in a more energy-efficient way and with simpler tools, while maintaining the original production and purity. Infrared spectra were recorded on a PerkinElmer Spectrum Two Fourier-transform infrared spectrometer (FTIR) with a universal attenuated total reflectance accessory (UATR) head. Mass spectra (MS) and the analysis of the product compounds were obtained by a GC/MS QP-2010 spectrometer (EI, 70 eV). The capillary column used was ZB5-MSI, 30 m in length and 0.25 mm in diameter. The conditions were as follows: column temperature was set at 80°C and then increased to 250°C; helium was used as carrier gas at a linear flow of 1 ml/min.

2.2.3 Diallyl disulfide and diallyl trisulfide

Both compounds were prepared by a modified version of the method published by Yuan et al. (2006). In the first step, sodium disulfide and sodium trisulfide solutions were prepared by sulfur and sodium sulfide as follows: for diallyl disulfide: 6.4 g (0.2 mol) sulfur and 48 g (0.2 mol) sodium sulfide, and for diallyl trisulfide: 6.4 g (0.2 mol) sulfur and 24 g (0.1 mol) sodium sulfide, and the solution was dissolved in 100 ml distilled water in a round-bottom flask. The solutions were stirred at RT for 1 day and then filtrated using a paper filter. About 0.3 g tetrabutyl-ammonium iodide was added to the brownish red solutions as a phase transfer catalyst. For diallyl disulfide and diallyl trisulfide, 36.3 g (0.3 mol) allyl bromide and 18.2 g (0.15 mol) allyl bromide were added dropwise in 20 min, respectively, and the temperature of the reaction mixture was increased. After addition, the reaction mixtures were cooled with ice. The resulting mixtures were extracted with 300 ml ether. The organic phase was dried over anhydrous MgSO₄ overnight. The organic phase was placed on a rotary evaporator under aspirator pressure to eliminate the solvent. Then, the residual phase was distilled in low vacuum.

Diallyl disulfide: the fraction at 45°C–60°C and 0.8 torr. was obtained. In addition, 25.8 g diallyl disulfide oil with light yellow color and intensive garlic smell was obtained with the yield of 88%, purity (GC-MS): 90% (Supplementary Figure S1).

The functional group was identified by FT-IR (UATR, cm-1): 3,081 (=C-H); 3,009 (-CH2); 2,979 (-CH2); 1,634 (C=C); 1,422 (C-S). (Supplementary Figure S2).

Diallyl trisulfide: the fraction at 90°C–110°C and 1.0 torr. was obtained . In addition, 5.1 g diallyl trisulfide oil with yellow color and intensive garlic smell was obtained with the yield of 37%, purity (GC-MS): 63.5% (Supplementary Figure S3).

The functional group was identified by FT-IR (UATR, cm-1): 3,081 (=C-H); 3,009 (-CH2); 2,979 (-CH2); 1,634 (C=C); 1,422 (C-S). (Supplementary Figure S4).

The impurity of DADS was DATS, and the impurity of DATS was DADS. No other contaminant was found in either compound. The difference in retention times for GC-MS measurements is due to instrument maintenance between the two measurements (Supplementary Figures S1, 3).

2.3 Site-directed mutagenesis via PCR

Our research group has already created an expression vector containing the wild-type human TRPA1 cDNA, which is now called pT31-hTRPA1, and its creation was described by Pozsgai et al. (2017). This plasmid contains the TRPA1 coding sequence within a Sleeping Beauty 100 transposon, flanked by a cytomegalovirus (CMV) promoter at the 5′ end and the bovine growth hormone polyA at the 3’ end. Selective markers were ampicillin, kanamycin/neomycin, and geneticin (G418) resistance genes. Although this vector was originally prepared for integrating the transgene into the chromosome of the CHO cells, we only used it for transient transfection, without the SB100 transposase enzyme.

The single mutant TRPA1 variants were created in two consecutive PCR reactions (Supplementary Tables S1A, B). TAdvanced Twin (Analytik Jena 846-2-070-2xx) PCR machine and Q5 Hot Start High-Fidelity DNA polymerase (New England Biolabs M0493) were used for all PCR reactions, following the manufacturer’s manuals. All primers were designed by Primer-BLAST (RRID: SCR_003095 (Ye et al., 2012)) and Integrated DNA Technologies (IDT) OligoAnalyzer Tool (RRID:SCR_001363 (Owczarzy et al., 2008)), synthesized by IDT. Mutation-carrying primers were designed for each codon of the targeted amino acids (C621, C641, C665, C727, and C834), both in forward and reverse orientation (Supplementary Table S2). Terminal primers CysF2 and CysR2 (Supplementary Table S2) were designed to include unique restriction endonuclease cutting sites (BstEII near the 5′ end and BbvCI near the 3′ end) in the PCR product. In the first PCR (Supplementary Table S1A), the mutation-carrying primers were paired with their opposing terminal primer, each orientation in a separate reaction (e.g., CysF2 and C621A-R; C621A-F and CysR2) creating two halves of the intended final mutation-carrying PCR product (Figure 2A). These halves were combined in the second PCR by the terminal primers (Figure 2B; Supplementary Table S1B). The final PCR products and intact pT31-hTRPA1 plasmid were digested by BstEII-HF (New England Biolabs R3162) and BbvCI (New England Biolabs R0601) enzymes (Figure 2C), then isolated by agarose gel electrophoresis, and extracted by NucleoSpin DNA Gel and PCR Clean-up kit (Macherey-Nagel 740609.50). The vector fragment without the intact TRPA1 coding fragment (8,192 bp) and the new mutation-carrying fragment (1,461 bp) were ligated by T4 DNA ligase (New England Biolabs M0202L) (Figure 2D).

FIGURE 2

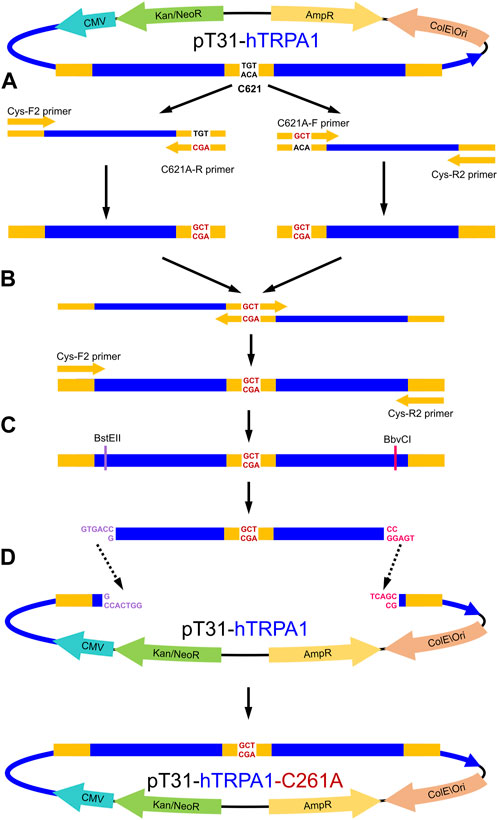

FIGURE 2. Process of the TRPA1 PCR-based site-directed mutagenesis, with the example of C621A mutation. (A) Starting from the wild-type TRPA1 coding pT31-hTRPA1 plasmid, in the first PCR, the two halves of the cloning region were separately amplified by a mixed pair of mutation primer and cloning primer (in this case: Cys-F2 with C621A-R, and C621A-F with Cys-R2). (B) In the second PCR, the two halves were joined and amplified by Cys-F2 and Cys-R2 cloning primers. (C) Mutation-carrying complete PCR product and the original pT31-hTRPA1 plasmid were sequentially digested by BstEII and BbvCI unique restriction endonucleases. (D) Mutation-carrying PCR product was ligated into the “empty” plasmid, creating the mutant TRPA1 coding expression vector. CMV–cytomegalovirus promoter; AmpR–ampicillin resistance cassette; Kan/NeoR–kanamycin and neomycin resistance cassette; ColE\Ori–E. coli specific origin of replication; blue region–TRPA1 cDNA; orange–primer sites; black-lettered bases–codon of the 621st cysteine; red-lettered bases–codon of alanine (C621A mutation); purple-lettered bases–DNA sticky end after BstEII cleaving; pink-lettered bases–DNA sticky end after BbvCI cleaving.

Double- and triple-mutant TRPA1 variants were created the same way, except they were produced from single- and double-mutant pT31-hTRPA1 variants, respectively, rather than from the WT. All TRPA1 mutant variants were examined by Cys-F and Cys-R sequencing primers in Sanger sequencing (Szentágothai Research Centre, University of Pécs, Hungary) for carrying the intended mutations but lacking any unintended mutation.

2.4 Plasmid amplification in E. coli

Chemically competent DH5α E. coli cells were prepared by the calcium chloride method (Chang et al., 2017). About 10 µl ligated vector was added to 100 µl competent cells, and then the cells were incubated for 30 min on ice. The cells were transformed by heat-shock (42 °C for 60 s), then 1 ml LB medium was added, and the cells were incubated at 37 °C for 1 h. Then, 200 μl cells was spread on 100 μg/ml ampicillin (Amp) selective LB-agar plates and incubated at 37°C overnight. The grown colonies were streaked on new Amp plates (max. six colonies per TRPA1 mutant variant) and incubated at 37 °C overnight. One colony of each cell line was transferred to 1 ml 100 μg/ml ampicillin selective LB medium and incubated with continuous shaking at 200 rpm at 37 °C overnight. The plasmids were isolated by the GeneJET Plasmid Miniprep Kit (Thermo Fisher Scientific K0503). The plasmid concentration was measured by the Jenway 7310 UV/Vis spectrophotometer. First, the plasmids were tested by a diagnostic digest by SpeI (R0133), PvuI (R0150), PstI (R0140), and EcoRI (R0101) DNA restriction endonucleases from New England Biolabs. Second, intact plasmids were tested by Sanger sequencing (Bioinformatical Research Group, Szentágothai Research Centre, University of Pécs) using the CysF and CysR primers (Supplementary Table S2). The raw sequencing data were analyzed by the ApE A plasmid Editor (RRID: SCR_014266) and Nucleotide-BLAST (NIH, NCBI RRID: SCR_001598) and compared to those of the TRPA1 WT in pT31-hTRPA1 plasmid. Only those plasmids were suitable and used for later research, which contained only the intended mutation. These selected plasmids were amplified by transferring the carrying bacterium cells from the streaking plate to 200 ml and 100 μg/ml ampicillin selective LB medium, and these cells were incubated with continuous shaking at 200 rpm at 37 °C overnight. A high amount of plasmid DNA was isolated by the NucleoBond Xtra Maxi Plus EF Kit (Macherey-Nagel 740426.50), and their concentration was measured by the Jenway 7310 UV/Vis spectrophotometer. The final concentration of each plasmid was set to 250 ng/μl.

2.5 CHO transfection

The Chinese hamster ovary (CHO, RRID: CVCL_0213) cells were transfected by TurboFect (Thermo Fisher Scientific R0532). Regarding the TurboFect–DNA–medium ratio, some alterations from the manufacturer’s recommendation were needed to achieve an optimal transfection rate. The empirical data showed best results with 10 µl TurboFect and 10 µl plasmid (2.5 µg DNA) for 1 ml CHO cells at 50% confluency in a 24-well plate (∼100,000 cells per well) instead of 2 µl TurboFect and 1 µg plasmid recommended by the manufacturer. TurboFect and the plasmid were mixed in 90 µl Opti-MEM (Thermo Fisher Scientific 31985062) and were incubated at room temperature (RT) for 30 min before adding to 1 ml CHO cells. The CHO cells were incubated at 37 °C for 24 h before the experiment. Since this method is a transient transfection, the TRPA1 expression was drastically decreased after 48 h, and the cells became unsuitable for experimentation.

The expression of TRPA1 variants was tested by immunohistochemistry, using polyclonal anti-human TRPA1 rabbit IgG primary antibody (Thermo Fisher OST00061W, RRID: AB_2207890) and peroxidase-linked polyclonal anti-rabbit IgG goat IgG secondary antibody (Thermo Fisher Scientific 31460, RRID: AB_228341), and stained by the 3,3′-diaminobenzidine (DAB) Liquid Substrate System (Sigma-Aldrich D7304). Non-transfected CHO cells were used as negative control. The resulting microscopic images were measured by pixel darkness analysis. Immunohistochemistry showed no inhibition in the TRPA1 expression due to the mutations (data not shown).

2.6. Fluo-4 flow cytometry

In total, 1 ml (∼100,000 cells) of each transfected CHO cell line was stained by 4 µl Invitrogen Fluo-4, AM (Invitrogen, Thermo Fisher Scientific F14201) cell permeant calcium indicator fluorescent dye at 37 °C for 1 h in non-adhesive tubes. For each sample condition, 100 µl of CHO cells was transferred to a fresh tube and 900 µl reagent was added. The reagents were organic polysulfides (DMTS, 90% DADS, 63.5% DATS), other electrophilic agonists (allyl isothiocyanate (AITC) and cinnamaldehyde, JT010), non-electrophilic agonists (carvacrol, menthol, and thymol), and antagonists (HC-030031 and A-967079). The vehicle and control solutions were the extracellular solution (ECS) buffer containing 1 mM CaCl₂. The final concentration of reagents was mostly 100 μM, except for the much more competent JT010, which needed to be used always in 1,000 x dilution compared to other agonists (usually in 100 nM).

Right after adding the agonist, each sample was measured for green fluorescence (excitation: 488 nm, emission: 516 nm, filter: 527/30) by the CyFlow Space Flow Cytometer (Sysmex Partec, Germany). The results were analyzed by FloMax (RRID: SCR_014437) and GraphPad Prism 8 (RRID: SCR_002798) software. The data were analyzed by the following equation:

$\mathrm{r}\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{e}\mathrm{T}\mathrm{R}\mathrm{P}\mathrm{A}1\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{n}\mathrm{g}\mathrm{e}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{c}\mathrm{t}=\frac{{\mathrm{I}}_{\mathrm{e}\mathrm{l}\mathrm{e}\mathrm{c}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{p}\mathrm{h}\mathrm{i}\mathrm{l}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{g}\mathrm{o}\mathrm{n}\mathrm{i}\mathrm{s}\mathrm{t}}-{\mathrm{I}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}}{{\mathrm{I}}_{\mathrm{C}\mathrm{a}\mathrm{r}\mathrm{v}\mathrm{a}\mathrm{c}\mathrm{r}\mathrm{o}\mathrm{l}}-{\mathrm{I}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}},$

where I is the average fluorescence (512–542 nm) intensity of the cells per sample. Electrophilic agonists were the DMTS, 63.5% DATS, 90% DADS, AITC, and JT010. ECS buffer was the control.

2.7 Radioactive calcium-45 uptake experiments in CHO cells expressing mutant TRPA1 receptor variants

Transiently transfected CHO cells expressing TRPA1 WT, C621A, C641A, C665A, and C621A/C641A/C665A mutants were grown to approximately 70% confluency in a 24-well plate, then digested in trypsin for 5 min, and suspended in 300 µl complete DMEM per well. The suspended cells were transferred to 72-well microbatch plates (15 µl suspended cells per well) and incubated overnight to adhere properly to the bottom of the well. The following day, the cells were washed five times with calcium-free Hank’s solution (pH 7.4) and incubated in 10 μL of the same buffer containing 200 μCi/ml ⁴⁵Ca isotope (1.3 Ci/mmol, PerkinElmer NEZ013001MC) and 100 µM of either carvacrol (Sigma-Aldrich 282197), AITC (Sigma-Aldrich 377430), DMTS (Sigma-Aldrich W327506), 63.5% DATS, or 90% DADS (and control sample without the TRPA1 agonist) for 2 min at room temperature. After washing five times with ice-cold ECS, the residual buffer was evaporated in 10 min at 37°C. Then, the retained isotope in the cells was collected in 15 μL of 0.1% SDS, and the radioactivity was measured in 2 ml Ultima Gold XR scintillation liquid (Packard BioScience 6013119) in a Packard Tri-Carb 2800 TR scintillation counter. The data were analyzed by the following equation:

$\mathrm{r}\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{e}\mathrm{T}\mathrm{R}\mathrm{P}\mathrm{A}1\mathrm{a}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{n}\mathrm{g}\mathrm{e}\mathrm{f}\mathrm{f}\mathrm{e}\mathrm{c}\mathrm{t}=\frac{{\mathrm{C}\mathrm{P}\mathrm{M}}_{\mathrm{e}\mathrm{l}\mathrm{e}\mathrm{c}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{p}\mathrm{h}\mathrm{i}\mathrm{l}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{g}\mathrm{o}\mathrm{n}\mathrm{i}\mathrm{s}\mathrm{t}}-{\mathrm{C}\mathrm{P}\mathrm{M}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}}{{\mathrm{C}\mathrm{P}\mathrm{M}}_{\mathrm{C}\mathrm{a}\mathrm{r}\mathrm{v}\mathrm{a}\mathrm{c}\mathrm{r}\mathrm{o}\mathrm{l}}-{\mathrm{C}\mathrm{P}\mathrm{M}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}},$

where CPM means “count per minute”, the number of radioactive decays per sample measured during 2 min and averaged for 1 min. The electrophilic agonists were the DMTS, 63.5% DATS, 90% DADS, and AITC. The calcium-free Hank’s solution was the control.

2.8 Whole-cell patch clamp

Whole-cell currents of voltage-clamped cells were recorded through manual patch-clamp electrophysiology according to standard protocols using Axopatch 200B amplifiers connected to a computer and digitized with Digidata 1550B (Molecular Devices, San Jose, CA, United States). Data were acquired with pClamp10.7 (Molecular Devices, San Jose, CA, United States). In general, currents were low-pass-filtered using the built-in analog four-pole Bessel filters of the amplifiers and sampled at 5 kHz. Before analysis, whole-cell current traces were digitally filtered (five-point boxcar smoothing). GFP-positive TRPA1 co-transfected CHO (Chinese hamster ovary) cells were identified using a Nikon Eclipse TE2000-U fluorescence microscope (Auro-science LLC, Budapest, Hungary). Pipettes were pulled from GC 150F-15 borosilicate glass capillaries (Harvard Apparatus, Holliston, MA, United States) in five stages with 4–10 MΩ resistance. Before the measurement, the cells were maintained in the recording Petri dish in a bath solution that consisted of 145 mM NaCl, 5 mM KCl, 1 mM MgCl₂, 2.5 mM CaCl₂, 5.5 mM glucose, and 10 mM HEPES (pH 7.35; 302–308 mOsmol/kg). For the recordings, the composition of the solution used in the patch pipette (internal solution) was 150 mM NaCl, 10 mM HEPES, and 2 mM EDTA-Na (Ca²⁺-free solution; pH 7.35; ∼300 mOsmol/kg). The composition of the external (control) solution was the same as that of the pipette solution, with the addition of 1 V/V% DMSO as carvacrol was dissolved in DMSO. The solution exchange was achieved by a gravity-driven perfusion system with continuous excess fluid removal. Peak currents were measured every 5 s during 20 m steps at +50 mV after 100-m voltage ramps from 0 mV to +50 mV using a holding potential of 0 mV. To quantify the current activating effect of the activators, if the current increase was detected within 100 s, we waited for its saturation, defined by no further current increase in a 20-s-long period. Only measurements where the positive control agonist (100 µM carvacrol) and antagonist (50 µM HC-030031) showed the desired effect were included in the analysis.

2.8.1 Data analysis

Clampfit 10.7 (Molecular Devices, San Jose, CA, United States of America) and GraphPad Prism 7 (Graphpad, San Diego, CA, United States of America) were used for data display and analysis. The current activation ratio was quantified by the following equation:

$\frac{{\mathrm{I}}_{\mathrm{D}\mathrm{M}\mathrm{T}\mathrm{S}}}{{\mathrm{I}}_{\mathrm{C}\mathrm{a}\mathrm{r}\mathrm{v}\mathrm{a}\mathrm{c}\mathrm{r}\mathrm{o}\mathrm{l}}}=\frac{{\mathrm{I}}_{\mathrm{D}\mathrm{M}\mathrm{T}\mathrm{S}\mathrm{p}\mathrm{e}\mathrm{a}\mathrm{k}}-{\mathrm{I}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}}{{\mathrm{I}}_{\mathrm{C}\mathrm{a}\mathrm{r}\mathrm{v}\mathrm{a}\mathrm{c}\mathrm{r}\mathrm{o}\mathrm{l}\mathrm{p}\mathrm{e}\mathrm{a}\mathrm{k}}-{\mathrm{I}}_{\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}}},$

where I_DMTS and I_Carvacrol are the activated TRPA1 currents by DMTS and carvacrol, respectively. The control current (I_control) is the peak current measured before the addition of the DMTS, I_{DMTS peak} is the peak current measured in the presence of 100 µM DMTS, and I_{Carvacrol peak} is the peak current measured in the presence of 100 µM carvacrol, a known activator of TRPA1. This calculation was used for the other polysulfides (90% DADS, 63.5% DATS in 100 µM) as well.

To investigate whether point mutations altered the response to the application of the tested agonists, we used one-way ANOVA with Dunnett’s multiple comparison post-hoc test. Differences were labeled as significant if p < 0.05.

3 Results

3.1 Computational docking of DMTS, DADS, and DATS

The ligand-binding conformation of DMTS, DADS, and DATS was calculated targeting the ligand-free conformation of the TRPA1 receptor (6V9W) as described in the Methods section. The docking calculations were also performed on two mutant receptors (6PQQ: C621S and a modeled C621A receptor) and the holo receptor (6PQP) to analyze the effect of the mutation on ligand binding at an atomic resolution level.

DMTS, DADS, and DATS are polysulfide compounds (Figure 3) that presumably form a disulfide bond with previously unknown active site cysteine residues of the TRPA1 receptor (Pozsgai et al., 2019) (Figure 4), which are important in receptor activation. During ligand binding, an intracellular N-terminal loop (A-loop), defined by amino acid residues 666–680, elicits an upward motion (Zhao et al., 2020; Zsidó et al., 2021). In the present study, we found that in the apo structure, this loop overlays the nucleophilic binding cavity, and the amino acids P666 and F669 play a role in the binding of DMTS, DADS, and DATS. These interactions might play an important role in the beginning of the upward motion of the A-loop. In the holo structures, the ligands do not interact with the A-loop (Table 1).

FIGURE 3

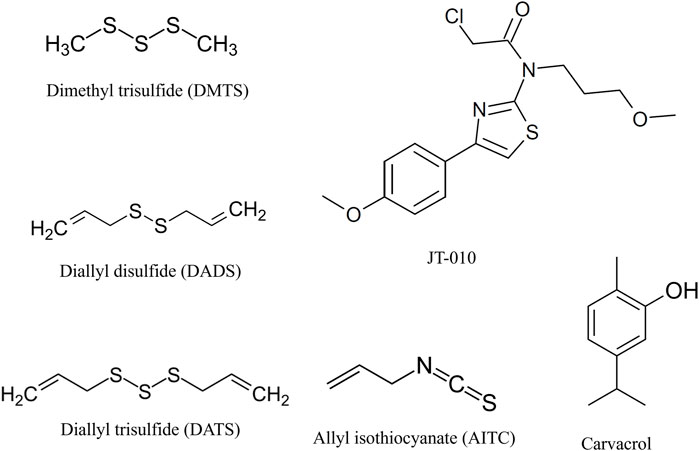

FIGURE 3. Structure of tested TRPA1 agonists. Organic polysulfides, dimethyl trisulfide (DMTS), diallyl trisulfide (DATS), and diallyl disulfide (DADS), are reversible electrophile agonists. JT010 is a very potent and selective irreversible electrophile TRPA1 agonist. Allyl isothiocyanate (AITC) or mustard oil is a potent natural reversible electrophile TRPA1 agonist. Carvacrol is a non-electrophile TRPA1 agonist with different binding sites on TRPA1, and we used it as a control activator. Illustration is made by ChemDraw Direct (RRID: SCR_016768).

FIGURE 4

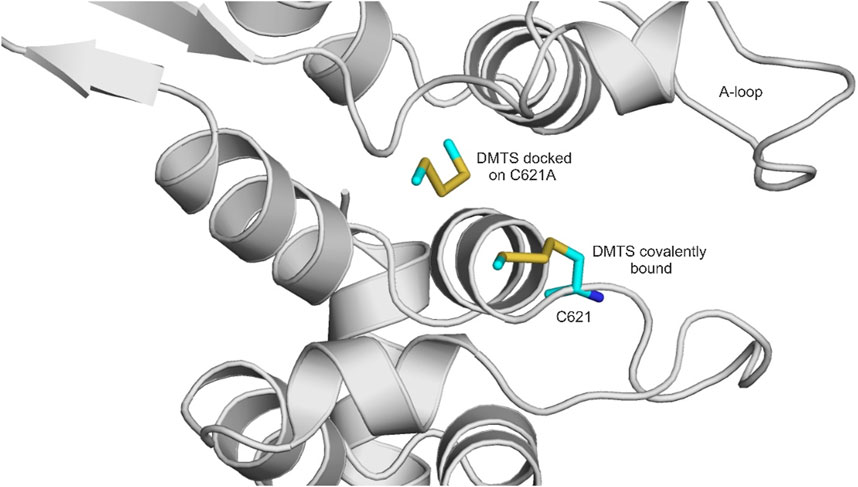

FIGURE 4. Covalently docked binding position of DMTS to the native holo TRPA1 (attached covalently to C621) and the non-covalently docked binding position of DMTS to the alanine mutant TRPA1 (located further to the left). DMTS is shown as all atom representation sticks (teal). The protein is shown as gray cartoon. A-loop (see Results) is labeled.

TABLE 1

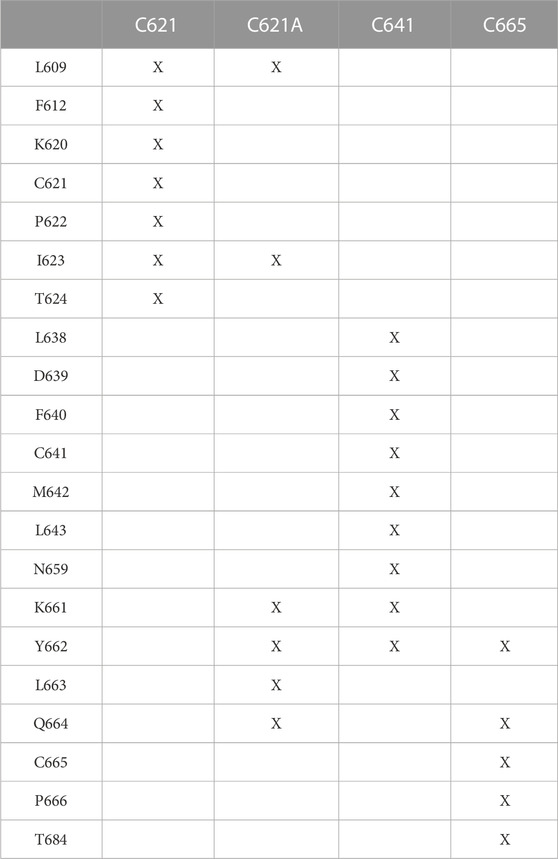

TABLE 1. Interacting amino acids in the binding of DMTS to the binding site cysteines and to the alanine mutant receptor. Amino acids within 3.5 Å distance are included.

Regarding the calculated free energies of binding (ΔG_calc, Table 2), it is important to note that from the perspective of receptor activation, only the occurrence of the covalent binding is significant, and not the actual value of binding affinity (Pozsgai et al., 2019). Furthermore, as the closed (ligand-free) conformation of TRPA1 is not appropriate for ligand binding, the prerequisite binding position of DMTS and DATS is far from the S atom of C621 (Supplementary Table S3), and the molecules have to find their way under the A-loop to reach their covalent binding positions. The ΔG_calc of all three compounds similarly reflects strong binding to the different cysteine residues (Table 2), with DATS having the largest negative values due to its larger size. As it was expected, a considerable decrease of ΔG_calc can be observed in the case of the C621A mutant due to the missing covalent bond (Table 2), if compared with the wild-type holo and the apo receptors (Table 2; Supplementary Table S4). Furthermore, the interaction list in Table 1 reflects that in the case of C621A, and DMTS occupies a binding pocket far from C621. At the same time, approaching C641 and C665 (common interacting residues in Table 1) shows the possibility of the interaction between the DMTS and these cysteines, if C621 is not available for covalent bonding.

TABLE 2

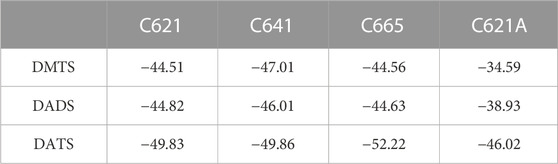

TABLE 2. Covalent docking of DMTS, DADS, and DATS with FITTED to the three cysteines forming the nucleophilic binding cavity in the intracellular TRPA1 (6pqp holo structure) agonist binding site. Non-covalent docking of the same ligand to the C621A mutant receptor. All calculated binding free energy values are in kcal/mol.

3.2 The changes in TRPA1 function due to the mutations

Since the TRPA1 receptor is a non-selective cation channel, its activity is trackable by the intracellular Ca²⁺ concentration changes. For this purpose, we used the Fluo-4 calcium-sensitive fluorescent flow cytometry and radioactive Ca-45 liquid scintillation counting. The whole-cell patch clamp was used to measure the agonist-activated cation current. For most measurement, we used each agonist in 100 µM concentration: organic polysulfides DMTS, DADS, and DATS; AITC and carvacrol; except JT010, which is much more potent than the others, and it was used in 100 nM concentration (Figure 2). The purity of the factory-made DMTS was ≥98%. The purity of our own synthesized DADS was 90% with 10% DATS, and the purity of DATS was 63.5%, with 36.5% DADS as a contaminant. No other contaminant was found in either synthesized compound; only these two compounds, which are chemically and physically very similar and are also contaminants in their natural source, garlic oil, were found. The purity of DADS and DATS was measured by GC-MS (Supplementary Figures S1, 3), and their functional groups were identified by FTIR (Supplementary Figures S2, 4).

Transient transfection was a good method to test the numerous TRPA1 variants much faster than creating stable expressing cell lines before measurements. However, this method needs the cells transfected each time before the experiment, resulting in fluctuating transfection efficiency, and therefore, fluctuating expression levels of TRPA1 regardless of the mutations. The expression level differences have been compensated by normalizing the results to the effect of the non-electrophile agonist carvacrol (Figure 2), which has a different binding site on the TRPA1, and its effect should be unaffected by the mutations we created. Only carvacrol-sensitive TRPA1 variants were adequate for examining the effects of organic polysulfides because they proved to retain other receptor functions.

3.2.1 Transient intracellular calcium concentration changes in mutant TRPA1-expressing cells induced by organic polysulfides

Each mutant TRPA1 variant expressing CHO cells was stained by Fluo-4 calcium-sensitive fluorescent dye, and then the activating effect of agonists was measured by flow cytometry and compared to that of carvacrol.

First, we measured the dose-dependent effect of DMTS on each TRPA1 mutant variant and compared it to that of 1 mM carvacrol (Figure 5). The single mutation of C621, C641, and C665 showed decreased sensitivity to DMTS. Except between C621A and C665A at 100 µM DMTS (p = 0.0024), there were no significant differences between the single mutants (p > 0.05, two-way ANOVA with Bonferroni multiple comparison test). The C621A/C641A double mutant and C621A/C641A/C665A triple mutant showed insensitivity to DMTS.

FIGURE 5

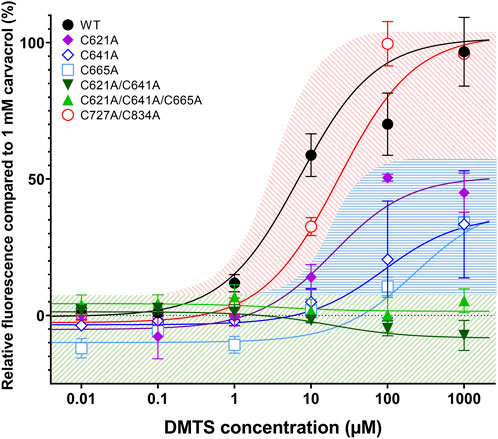

FIGURE 5. DMTS dose–effect curves in TRPA1 mutant variants, compared to the effect of 1 mM carvacrol. Fluo-4 calcium-sensitive fluorescence was measured by flow cytometry in different TRPA1 variants, using increasing DMTS concentration, compared to the fluorescent signal of 1 mM carvacrol (100%). The single mutation of C621, C641, and C834 decreased the effect of DMTS in TRPA1, but C621A/C641A double mutant and C621A/C641A/C665A triple mutant showed insensitivity to DMTS, indicating that these amino acids are involved in the binding site of the organic polysulfides. The combined double mutation of C727 and C834 (C727A/C834A) made no significant difference from the wild-type TRPA1, suggesting that they are not parts of the binding site of the organic polysulfides. Mean ± SEM, N = 2-4 (number of measurements per TRPA1 variation), n > 10000 (number of cells per measurement).

In the transmembrane domain, the theoretical binding sites C727 and C834 showed no contribution to the DMTS binding because neither their single (not shown) nor double mutation caused any difference in the effect of DMTS on the TRPA1 receptor, compared to wild-type TRPA1. Therefore, we can reject the idea of C727 and C834 to be parts of the binding site of the strongly hydrophobic organic polysulfides. These mutations were excluded from further experiments.

Next, we measured the effect of organic polysulfides DMTS, 90% DADS and 63.5% DATS, as well as AITC and JT010, and compared to that of 100 µM carvacrol (Figure 6). It is important to note that 100 µM carvacrol could not fully activate the TRPA1, in contrast to 1 mM in the previous measurement. This was also the reason why AITC had a consistently higher effect than 100%, except in the triple mutant. The single-mutant TRPA1 variants did not show significant changes, probably due to the limitation of Fluo-4 dye, which was easily saturated by calcium at the relatively high organic polysulfide concentration (100 µM). However, C621A had completely lost sensitivity to JT010, which is strong evidence that C621 binds to this agonist covalently. JT010 showed decreased efficacy in C641A and C665A mutations, which suggests their assisting role in binding JT010 to C621. The triple mutation of C621, C641, and C665 resulted in complete insensitivity to DMTS, DATS, DADS, and JT010, but only minimized the effect of AITC. There was no significant difference between the effects of the three organic polysulfides.

FIGURE 6

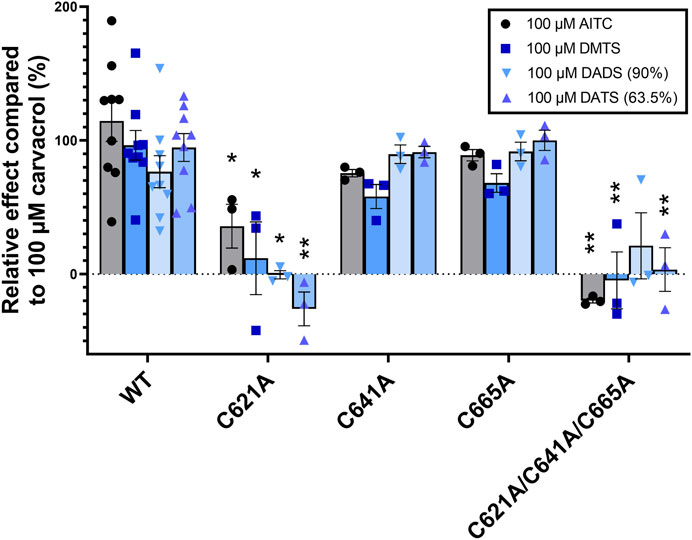

FIGURE 6. TRPA1 activity measured by calcium-sensitive fluorescence flow cytometry. The different TRPA1 variant-expressing CHO cells were stained by Fluo-4 calcium-sensitive fluorophore. TRPA1 activation causes calcium influx, and therefore increases the intensity of fluorescence, which was measured by flow cytometry. The signal intensity was compared to the effect of 100 µM carvacrol, which was used as a non-electrophilic control agonist. Relatively high concentration (100 µM) of organic polysulfides (DMTS, 90% DADS and 63.5% DATS) showed only slight changes in their receptor-activating effect in the case of TRPA1 single mutants (C621A, C641A, and C665A), but their effect was completely eliminated in the triple-mutant TRPA1 variant (C621A/C641A/C665A). The effect of JT010 was eliminated even in the C621A single mutant, and the other two single mutants also showed a tendency for decreased JT010 sensitivity. Diagram shows the means ± SEM, two-way ANOVA with Bonferroni’s multiple comparison test, significance compared to WT TRPA1: *p < 0.0001, WT TRPA1 replication experiments (N = 4-12), mutant TRPA1 replication experiments (N = 2-5), sample size (n = 4–19), cell number per sample (n > 2000).

3.2.2 Radioactive Ca-45 uptake in mutant TRPA1-expressing cells induced by organic polysulfides

To confirm the results with an alternative method and to better understand the priorities between C621, C641, and C665 cysteines in binding the organic polysulfides, we tested the effect of DMTS, 90% DADS, 63.5% DATS, and AITC on each mutant TRPA1 variant in the radioactive Ca-45 uptake assay (Figure 7). The radioactive Ca-45 uptake due to TRPA1 activation was measured by liquid scintillation counting. The results were compared to those of 100 µM carvacrol. C641A and C665A single mutations showed no significant changes, suggesting the secondary role of these cysteines in binding organic polysulfides. C621A and the triple mutant had significantly reduced sensitivity to all measured electrophilic agonists, except for the triple mutant to DADS due to an outlier. There was no significant difference between the effects of the three organic polysulfides.

FIGURE 7

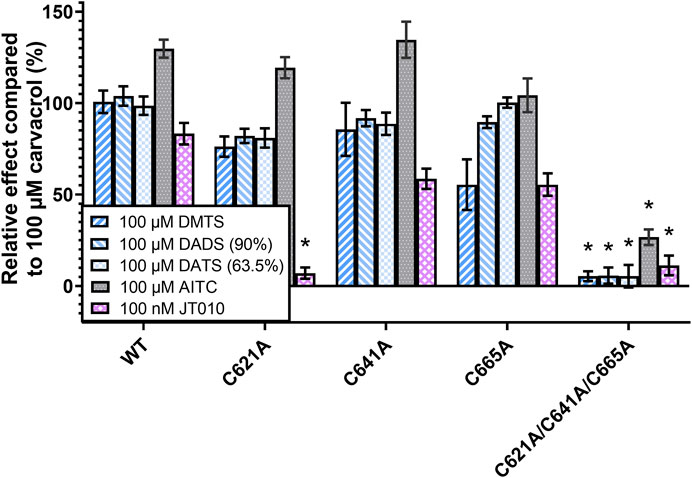

FIGURE 7. TRPA1 activity measured by radioactive Ca-45 liquid scintillation counting. The radioactive Ca-45 uptake due to TRPA1 activation was measured by liquid scintillation counting and compared to the effect of 100 µM carvacrol. Out of the three TRPA1 single mutants, C612A shows the highest decrease in sensitivity to electrophilic agonists, indicating its key role in agonist binding. Triple mutation eliminated the effect of electrophilic agonists. Diagram shows the individual values and means ± SEM, two-way ANOVA with Bonferroni’s multiple comparison test, significance compared to WT TRPA1: *p < 0.005, **p < 0.0001, n = 3–6

3.2.3 Current-activating effect of organic polysulfides in mutant TRPA1-expressing cells

To further confirm the possible binding sites of the tested sulfide-containing agonists, we used the patch-clamp technique and determined the current-activating ability of DMTS, 90% DADS, and 63.5% DATS relative to carvacrol. Using the formula described in the Materials and methods section, a ratio was calculated, which shows the relative channel-opening ability of the tested agonists normalized to the current-activating effect of the known non-electrophilic agonist carvacrol. Figures 8A,B show the representative measurements of DMTS, while in Figures 8C–E, the current activation ratios are plotted. Mutating C621 to alanine significantly decreased the effect of the polysulfides compared to the WT. The mutation in C665 also affected the current-activating ability of DADS and DATS, but failed to significantly alter the effect of DMTS. Mutation C641A did not influence the agonist effect of DMTS and DATS, but only modified the effect of DADS. We also have checked the effect of DMTS on the double (C621A/C641A) and triple (C621A/C641A/C665A) mutants (Figures 8B, C). The TRPA1 currents of the double- and triple-mutant channels in the presence of DMTS were significantly reduced compared to the WT (p ≤ 0.0001 for both) and also compared to the C621A mutant (p = 0.01 and 0.0006, respectively, data not shown). DADS showed a stronger effect on WT TRPA1 than the other organic polysulfides, compared to 100 µM carvacrol. The C621A/C641A/C665A triple mutant showed insensitivity to HC-030031 antagonist.

FIGURE 8

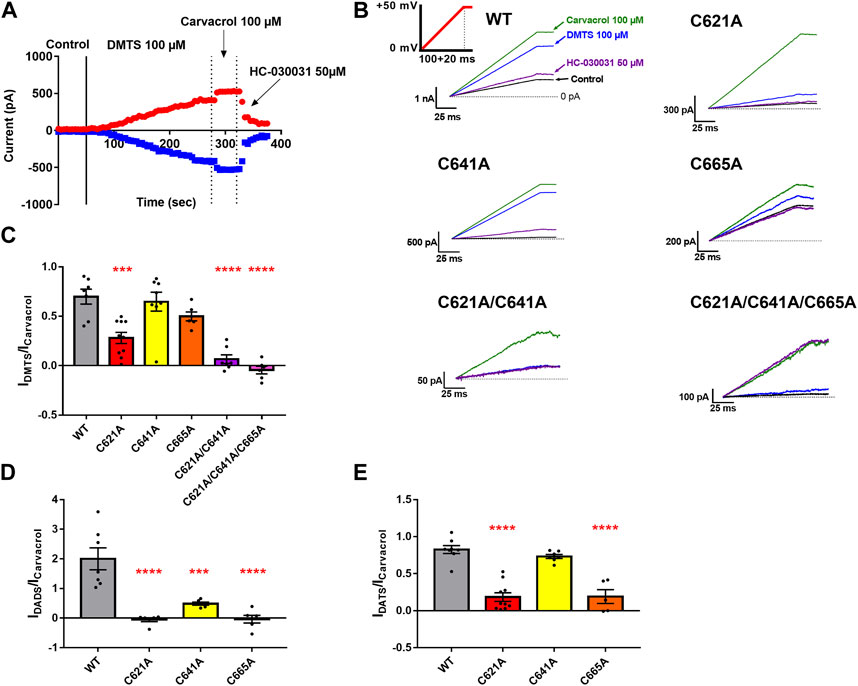

FIGURE 8. Effect of the polysulfides on the WT and on the cysteine mutant TRPA1 using the whole -cell patch-clamp technique. (A) Representative whole-cell patch-clamp measurement of a WT TRPA1-expressing CHO cell. Until the continuous line, Ca2+ free control solution was applied, and between the continuous and the first dotted line, the effect of 100 µM DMTS is shown. Between the two dotted lines, and after the second dotted line, we can see the effects of the two positive controls (carvacrol and HC-030031, respectively). The red symbols represent the peak currents at +50 mV, while the blue ones are the peak currents at -50 mV command voltage. (B) Representative whole-cell measurements regarding the WT, C621A, C641A, C665A, C621A/C641A, and C621A/C641A/C665A populations (saturated traces). The green, blue, purple, and black solid lines were measured in the presence of 100 µM carvacrol, 100 µM DMTS, 50 µM HC-030031, and Ca2+-free control solution, respectively. The horizontal dashed line represents 0 pA current. The voltage protocol is shown with a solid red line as an inset on the top left panel. The fluctuation of the effect of carvacrol correlated to and indicated the overall TRPA1 response rate. (C–E) Bar charts of the activated current ratios by the application of 100 µM DMTS, 90% DADS, and 63.5% DATS, respectively. The colored bars represent the WT and the C621A, C641A, C665A, C621A/C641A, and C621A/C641A/C665A mutant TRPA1 (N_transfection≥2 and n_cell≥5 for each population). Black dots indicate individual measurements, and bar chart height and error bars show mean ± SEM. Asterisks represent significant difference (*p ≤ 0.05, **p ≤ 0.01, ***p ≤ 0.001, and ****p ≤ 0.0001).

4 Discussion

The activating effect of garlic-derived organic polysulfides on the TRPA1 receptor is well-established (Koizumi et al., 2009; Terada et al., 2014; Pozsgai et al., 2017; 2019; Bátai et al., 2018; 2022; Dombi et al., 2021; Mahajan et al., 2021), but we are the first to create site-directed mutant variants of TRPA1 to identify the binding site of organic polysulfides. Our data were acquired on these mutant TRPA1 variants by in silico modeling and three different functional methods: whole-cell patch clamp, radioactive calcium-45 liquid scintillation counting, and calcium-sensitive fluorescent flow cytometry. The results are overlapping and strongly support each other. In the present study, we have proven that organic polysulfides DMTS, DADS, and DATS bind covalently to the C621, C641, and C665 amino acids activating the human TRPA1 receptor, respectively. C621 had the most important role, but C641 and C665 also contributed to binding the electrophilic agonists. Only their combined triple mutation led the TRPA1 to become completely insensitive to organic polysulfides.

Out of the three polysulfides, DATS, the largest ligand, showed the most favorable calculated free energy of binding; however, as it was highlighted by experimental results, the formation of a covalent bond with C621 is more important than the strength of the binding interactions. Notably, the apo TRPA1 conformation is not favorable for binding the electrophilic agonists, as seen in the prerequisite docking calculations. Prerequisite docking on the holo target protein resulted in smaller distances between the covalently binding atoms. This observation is explained by the overlapping A-loop in the binding site that hinders ligand accessibility in the apo structure, but not in the holo structure. As shown in our previous paper (Zhao et al., 2020; Zsidó et al., 2021), the upward motion of the A-loop after the prerequisite binding of the agonist to P666 and F669 is necessary for the accessibility of the actual binding site.

These three cysteine residues have been known to conform the binding site of most electrophilic agonists, with the exception of AITC, which additionally binds to the K710 lysine, and the irreversible agonist JT010, whose activating effect can be abolished entirely by the mutation of C621 alone (Hinman et al., 2006; Deering-Rice et al., 2011; Eberhardt et al., 2012; Shapiro et al., 2013; Suo et al., 2020).

In contrast to the patch clamp and calcium-45 liquid scintillation measurements, the calcium-sensitive fluorescent flow cytometry did not show distinction between the single-mutant TRPA1 variants. This was probably due to the limitation of Fluo-4 dye, which could be easily saturated by calcium at the relatively high concentration (100 µM) of organic polysulfides. Therefore, radioactive calcium-45 liquid scintillation counting and whole-cell patch clamp are more precise and more reliable methods, and we could use them to find the differences between the three cysteine residues.

Out of these three cysteine residues, the key role of C621 in organic polysulfide binding has been predicted by our in silico model and supported by the results of calcium-45 liquid scintillation counting and whole-cell patch clamp. The key role of C621 is well-known for numerous electrophilic agonists, such as JT010, iodoacetamide, BODIPY-iodoacetamide, AITC, N-benzylthioformamide (9BE), and benzyl isothiocyanate (Macpherson et al., 2007; Eberhardt et al., 2012; Bahia et al., 2016; Suo et al., 2020; Habgood et al., 2022). Whole-cell patch clamp showed C665 as the second-most important cysteine in organic polysulfide binding. The secondary role of C665 has also been shown in cases of some other electrophilic agonists, such as iodoacetamide, BODIPY-iodoacetamide, N-ethylmaleimide, and benzyl isothiocyanate (Wang et al., 2004; Bahia et al., 2016; Suo et al., 2020; Habgood et al., 2022).

Although a single mutation of either cysteine only reduces the efficacy of organic polysulfides, the activating effect of JT010 was completely eliminated by the single mutation of C621. Several pieces of evidence have shown that JT010 only binds to C621 covalently, and not to other cysteines (Takaya et al., 2015; Suo et al., 2020; Matsubara et al., 2022). According to this fact, the reduced effect of JT010 on TRPA1 with the single mutation of C641 or C665 suggests other roles of these cysteines instead of directly binding the electrophilic agonist, which has been shown in our calcium-sensitive fluorescent flow cytometry. Presumably, C641 and C665 amino acids maintain the structure of the binding pocket or create an attracting environment for the electrophilic agonists or both. Since the single mutation of C621 was not enough for the complete inhibition of polysulfides, we conclude that C641 and C665 also bind covalently to these compounds. Only the combined triple mutation of these cysteines completely abolished the activating effect of organic polysulfides. Other electrophilic agonists have also been reported to lose effects on the triple cysteine mutant TRPA1 variant, except for the AITC, which retains a minimal effect in the presence of intact K710 lysine (Hinman et al., 2006; Deering-Rice et al., 2011; Eberhardt et al., 2012; Shapiro et al., 2013). According to our calcium-sensitive fluorescent flow cytometry data, AITC showed higher efficacy than the control agonist non-electrophilic carvacrol both in wild-type TRPA1 and single-mutant variants. In contrast with the total insensitivity to the organic polysulfides, triple-mutant TRPA1 showed a minimal sensitivity to AITC.

Neither the single nor the combined double mutation of C727 and C834 made any difference in the effect of DMTS, compared to wild-type TRPA1. Therefore, we have to reject the idea that C727 and C834 are parts of the binding site for highly hydrophobic organic polysulfides, and possibly other electrophilic agonists.

In HEK293 cells expressing mouse Trpa1, C415, and C422, cysteine residues have been shown to bind inorganic polysulfide (disodium trisulfide) and other electrophilic agonists (Macpherson et al., 2007; Fujita et al., 2008; Hatakeyama et al., 2015). Whether the human homologous cysteine residues (C414 and C421) or the remaining 21 out of 28 cysteine residues have any role in binding organic polysulfides and other electrophilic agonists has to be clarified.

Out of the organic polysulfides we used, the factory-made DMTS was almost pure (≥98%), but the synthesized DADS and DATS were inseparable, as our DADS was 90% and the DATS was 63.5%, accompanying each other much like in their natural source, garlic oil. The whole-cell patch clamp showed the effect of DADS to be higher on WT TRPA1, but more affected by single mutations than the effect of other organic polysulfides. C621A and C665A single mutants showed decreased sensitivity to DMTS and DATS, and they were completely insensitive to DADS. The C641A single mutant showed decreased sensitivity to DADS, but not to DMTS and DATS. This finding may suggest a higher efficacy of DADS, but this needs to be further investigated as it is not supported by our data from other measurement methods, in which the three organic polysulfides showed equivalent effects. In the whole-cell patch clamp technique, the C621A/C641A/C665A triple mutant showed insensitivity to antagonist HC-030031, which needs further investigation. The triple-mutant receptors were completely insensitive to polysulfides, but their remained functional ability was proven by the fact that they still showed well-measurable activity in response to carvacrol.

We have to mention that the main limitation of the present study is that the overall TRPA1 response rate fluctuated from transfection to transfection in cell lines, which was the drawback of the applied transient transfection method. The transient transfection efficiency is highly dependent on a wide range of conditions, and even slight changes may lead to different results, and therefore, practically, it has intrinsic variability. The complexity of expression from transiently transfected plasmids highlights the importance of appropriate experimental controls (Bollin et al., 2011; Nejepinska et al., 2012; Di Blasi et al., 2021; Fus-Kujawa et al., 2021). The fluctuation of the effect of carvacrol correlated to and indicated the overall TRPA1 response rate. After a detailed analysis of our data, we are confident that the sensitivity of the TRPA1 variants did not change in response to carvacrol. This has been demonstrated by the consistent [electrophilic agonist/carvacrol] effect ratio in our repeated experiments. For the equivalent C621S/C641S/C665S triple-mutant human TRPA1, carvacrol has been used commonly as a positive control agonist and shown to retain its complete effect (Babes et al., 2013; Ibarra and Blair, 2013; Meents et al., 2016; Schenk et al., 2019).

Using three functional tests, we have proven that organic polysulfides covalently bind to C621, C641, and C665 cysteine residues activating the TRPA1 receptor, and only their combined triple mutation is able to abolish the effect of organic polysulfides. We also identified C621 as the most important and C665 as the second most important cysteine in the binding of organic polysulfides. This highly overlaps with the binding site of most electrophilic agonists on the TRPA1 receptor, which, in turn, may further clarify the binding mechanism of the other electrophilic agonists.

Our present study has not only demonstrated that TRPA1 can be an important target molecule for organic polysulfides but also determined their precise binding sites using mutant receptors.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.

Author contributions

EP, ZS, and CH guided the scope of the research. BZ and CH performed the in silico docking. SL synthesized and purified the polysulfides. BN and ZS created the mutant TRPA1 variants and tested their expression level by immunohistochemistry and their function by fluorescent flow cytometry. ES, BN and ZS tested the function of mutant TRPA1 variants by radioactive Ca-45 liquid scintillation counting. AF, FP, and ZV tested the function of mutant TRPA1 variants with the whole-cell patch-clamp technique. BN researched the background and wrote the first manuscript. EP, ZS, and CH revised it critically to meet the standard for publication. All authors contributed to the article and approved the submitted version.

Funding

EP, ZS, and BN were funded by National Brain Research Program 3.0 (NAP 3.0); RRF-2.3.1-21-2022-00015 National Laboratory for Drug Research and Development; TKP2021-EGA-16 National Research, Development, and Innovation Fund of Hungary and the ELKH Network. BZ and CH were supported by the Medical School, University of Pécs (PTE ÁOK KA-2022-26), and by the European Union, co-financed by the European Social Fund (project name and code: Comprehensive Development for Implementing Smart Specialization Strategies at the University of Pécs, EFOP-3.6.1-16-2016-00004). SL was funded by OTKA_NKFI-K-134214. Project no. TKP2021-EGA-13 was implemented with the support provided from the National Research, Development, and Innovation Fund of Hungary, financed under the EGA-13 funding scheme; National Research, Development and Innovation Office (Pharma-Lab, RRF-2.3.1-21-2022-00015). ZV was funded by OTKA_NKFI-K-132906, and AF was supported by the UNKP-22-3-II-DE-38 New National Excellence Program of the Ministry for Culture and Innovation from the source of the National Research, Development and Innovation Fund.

Acknowledgments

The authors are thankful to Gábor Pozsgai for his expertise in polysulfides and his helpfulness with regular consultations. The research was performed in collaboration with Genomics and Bioinformatics Core Facility at the Szentágothai Research Centre of the University of Pécs. They acknowledge the support from the Governmental Information Technology Development Agency, Hungary. They also acknowledge that the results of this research have been achieved using the DECI resource Archer2 based in the United Kingdom at the National Supercomputing Service with support from the PRACE aisbl. They are grateful to the referees and editors of the journal for their thorough work and valuable suggestions.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2023.1180896/full#supplementary-material

References

Alarcón, G. S. (2000). Methotrexate use in rheumatoid arthritis. A Clinician’s perspective. Immunopharmacology 47, 259–271. doi:10.1016/s0162-3109(00)00184-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Alvarado, M. G., Thakore, P., and Earley, S. (2021). Transient receptor potential channel ankyrin 1: A unique regulator of vascular function. Cells 10, 1167. doi:10.3390/cells10051167

PubMed Abstract | CrossRef Full Text | Google Scholar

Apkarian, A. V., Baliki, M. N., and Geha, P. Y. (2009). Towards a theory of chronic pain. Prog. Neurobiol. 87, 81–97. doi:10.1016/j.pneurobio.2008.09.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Babes, A., Fischer, M. J. M., Filipovic, M., Engel, M. A., Flonta, M. -L., and Reeh, P. W. (2013). The anti-diabetic drug glibenclamide is an agonist of the transient receptor potential Ankyrin 1 (TRPA1) ion channel. Eur. J. Pharmacol. 704, 15–22. doi:10.1016/j.ejphar.2013.02.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Bahia, P. K., Parks, T. A., Stanford, K. R., Mitchell, D. A., Varma, S., Stevens, S. M., et al. (2016). The exceptionally high reactivity of Cys 621 is critical for electrophilic activation of the sensory nerve ion channel TRPA1. J. General Physiology 147, 451–465. doi:10.1085/jgp.201611581

PubMed Abstract | CrossRef Full Text | Google Scholar

Bai, A.-P., Ouyang, Q., and Hu, R.-W. (2005). Diallyl trisulfide inhibits tumor necrosis factor-alpha expression in inflammed mucosa of ulcerative colitis. Dig. Dis. Sci. 50, 1426–1431. doi:10.1007/s10620-005-2857-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Bátai, I. Z., Dombi, Á., Borbély, É., Fehér, Á., Papp, F., Varga, Z., et al. (2022). Investigation of the role of the TRPA1 ion channel in conveying the effect of dimethyl trisulfide on vascular and histological changes in serum-transfer arthritis. Pharmaceuticals 15, 671. doi:10.3390/ph15060671

PubMed Abstract | CrossRef Full Text | Google Scholar

Bátai, I. Z., Horváth, Á., Pintér, E., Helyes, Z., and Pozsgai, G. (2018). Role of transient receptor potential ankyrin 1 ion channel and somatostatin sst4 receptor in the antinociceptive and anti-inflammatory effects of sodium polysulfide and dimethyl trisulfide. Frontiers in Endocrinology 9. Available at: https://www.frontiersin.org/article/10.3389/fendo.2018.00055 (Accessed May 21, 2022).

Google Scholar

Bátai, I. Z., Sár, C. P., Horváth, Á., Borbély, É., Bölcskei, K., Kemény, Á., et al. (2019). TRPA1 ion channel determines beneficial and detrimental effects of GYY4137 in murine serum-transfer arthritis. Front. Pharmacol. 10, 964. doi:10.3389/fphar.2019.00964

PubMed Abstract | CrossRef Full Text | Google Scholar

Bautista, D. M., Movahed, P., Hinman, A., Axelsson, H. E., Sterner, O., Högestätt, E. D., et al. (2005). Pungent products from garlic activate the sensory ion channel TRPA1. Proc. Natl. Acad. Sci. 102, 12248–12252. doi:10.1073/pnas.0505356102

PubMed Abstract | CrossRef Full Text | Google Scholar

Berman, H. M., Battistuz, T., Bhat, T. N., Bluhm, W. F., Bourne, P. E., Burkhardt, K., et al. (2002). The protein Data Bank. Acta Crystallogr. D. Biol. Crystallogr. 58, 899–907. doi:10.1107/s0907444902003451

PubMed Abstract | CrossRef Full Text | Google Scholar

Bollin, F., Dechavanne, V., and Chevalet, L. (2011). Design of Experiment in CHO and HEK transient transfection condition optimization. Protein Expr. Purif. 78, 61–68. doi:10.1016/j.pep.2011.02.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Cavalli, E., Mammana, S., Nicoletti, F., Bramanti, P., and Mazzon, E. (2019). The neuropathic pain: An overview of the current treatment and future therapeutic approaches. Int. J. Immunopathol. Pharmacol. 33, 2058738419838383. doi:10.1177/2058738419838383

PubMed Abstract | CrossRef Full Text | Google Scholar

Chang, A. Y., Chau, V. W. Y., Landas, J. A., and Pang, Y. (2017). Preparation of calcium competent Escherichia coli and heat-shock transformation. Available at: https://ujemi.microbiology.ubc.ca/node/127 (Accessed October 13, 2022).

Google Scholar

Corbeil, C. R., Englebienne, P., and Moitessier, N. (2007). Docking ligands into flexible and solvated macromolecules. 1. Development and validation of FITTED 1.0. J. Chem. Inf. Model. 47, 435–449. doi:10.1021/ci6002637

PubMed Abstract | CrossRef Full Text | Google Scholar

Deering-Rice, C. E., Romero, E. G., Shapiro, D., Hughen, R. W., Light, A. R., Yost, G. S., et al. (2011). Electrophilic components of diesel exhaust particles (dep) activate transient receptor potential ankyrin-1 (TRPA1): A probable mechanism of acute pulmonary toxicity for dep. Chem. Res. Toxicol. 24, 950–959. doi:10.1021/tx200123z

PubMed Abstract | CrossRef Full Text | Google Scholar

Di Blasi, R., Marbiah, M. M., Siciliano, V., Polizzi, K., and Ceroni, F. (2021). A call for caution in analysing mammalian co-transfection experiments and implications of resource competition in data misinterpretation. Nat. Commun. 12, 2545. doi:10.1038/s41467-021-22795-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Dombi, Á., Sánta, C., Bátai, I. Z., Kormos, V., Kecskés, A., Tékus, V., et al. (2021). Dimethyl trisulfide diminishes traumatic neuropathic pain acting on TRPA1 receptors in mice. Int. J. Mol. Sci. 22, 3363. doi:10.3390/ijms22073363

PubMed Abstract | CrossRef Full Text | Google Scholar

Eberhardt, M. J., Filipovic, M. R., Leffler, A., de la Roche, J., Kistner, K., Fischer, M. J., et al. (2012). Methylglyoxal activates nociceptors through transient receptor potential channel A1 (TRPA1): A possible mechanism of metabolic neuropathies. J. Biol. Chem. 287, 28291–28306. doi:10.1074/jbc.M111.328674

PubMed Abstract | CrossRef Full Text | Google Scholar

Fliszár-Nyúl, E., Faisal, Z., Mohos, V., Derdák, D., Lemli, B., Kálai, T., et al. (2021). Interaction of SZV 1287, a novel oxime analgesic drug candidate, and its metabolites with serum albumin. J. Mol. Liq. 333, 115945. doi:10.1016/j.molliq.2021.115945

CrossRef Full Text | Google Scholar

Fujita, F., Uchida, K., Moriyama, T., Shima, A., Shibasaki, K., Inada, H., et al. (2008). Intracellular alkalization causes pain sensation through activation of TRPA1 in mice. J. Clin. Invest. 118, 4049–4057. doi:10.1172/JCI35957

PubMed Abstract | CrossRef Full Text | Google Scholar

Fus-Kujawa, A., Prus, P., Bajdak-Rusinek, K., Teper, P., Gawron, K., and Kowalczuk, A. (2021). An Overview of Methods and Tools for Transfection of Eukaryotic Cells in vitro. Front. Bioeng. Biotechnol. 9, Available at: https://www.frontiersin.org/articles/10.3389/fbioe.2021.701031 (Accessed May 2, 2023)

CrossRef Full Text | Google Scholar

Gasteiger, J., and Marsili, M. (1980). Iterative partial equalization of orbital electronegativity—A rapid access to atomic charges. Tetrahedron 36, 3219–3228. doi:10.1016/0040-4020(80)80168-2

CrossRef Full Text | Google Scholar

Ibarra, Y., and Blair, N. T. (2013). Benzoquinone Reveals a Cysteine-Dependent Desensitization Mechanism of TRPA1. Mol. Pharmacol. 83, 1120–1132. doi:10.1124/mol.112.084194

PubMed Abstract | CrossRef Full Text | Google Scholar

Habgood, M., Seiferth, D., Zaki, A.-M., Alibay, I., and Biggin, P. C. (2022). Atomistic mechanisms of human TRPA1 activation by electrophile irritants through molecular dynamics simulation and mutual information analysis. Sci. Rep. 12, 4929. doi:10.1038/s41598-022-08824-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Harden, R. N., Bruehl, S., Perez, R. S. G. M., Birklein, F., Marinus, J., Maihofner, C., et al. (2010). Validation of proposed diagnostic criteria (the “budapest criteria”) for complex regional pain syndrome. Pain 150, 268–274. doi:10.1016/j.pain.2010.04.030

PubMed Abstract | CrossRef Full Text | Google Scholar

Hatakeyama, Y., Takahashi, K., Tominaga, M., Kimura, H., and Ohta, T. (2015). Polysulfide evokes acute pain through the activation of nociceptive TRPA1 in mouse sensory neurons. Mol. Pain 11, 24–015. doi:10.1186/s12990-015-0023-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Helyes, Z., Pintér, E., Németh, J., Sándor, K., Elekes, K., Szabó, A., et al. (2006). Effects of the somatostatin receptor subtype 4 selective agonist J-2156 on sensory neuropeptide release and inflammatory reactions in rodents. Br. J. Pharmacol. 149, 405–415. doi:10.1038/sj.bjp.0706876

PubMed Abstract | CrossRef Full Text | Google Scholar

Helyes, Z., Pinter, E., Sandor, K., Elekes, K., Banvolgyi, A., Keszthelyi, D., et al. (2009). Impaired defense mechanism against inflammation, hyperalgesia, and airway hyperreactivity in somatostatin 4 receptor gene-deleted mice. Proc. Natl. Acad. Sci. 106, 13088–13093. doi:10.1073/pnas.0900681106

PubMed Abstract | CrossRef Full Text | Google Scholar

Helyes, Z., Tékus, V., Szentes, N., Pohóczky, K., Botz, B., Kiss, T., et al. (2019). Transfer of complex regional pain syndrome to mice via human autoantibodies is mediated by interleukin-1–induced mechanisms. Proc. Natl. Acad. Sci. 116, 13067–13076. doi:10.1073/pnas.1820168116

PubMed Abstract | CrossRef Full Text | Google Scholar

Hinman, A., Chuang, H., Bautista, D. M., and Julius, D. (2006). TRP channel activation by reversible covalent modification. PNAS 103, 19564–19568. doi:10.1073/pnas.0609598103

PubMed Abstract | CrossRef Full Text | Google Scholar

Horváth, Á., Tékus, V., Boros, M., Pozsgai, G., Botz, B., Borbély, É., et al. (2016). Transient receptor potential ankyrin 1 (TRPA1) receptor is involved in chronic arthritis: In vivo study using TRPA1-deficient mice. Arthritis Res. Ther. 18, 6. doi:10.1186/s13075-015-0904-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Keeley, P., Creed, F., Tomenson, B., Todd, C., Borglin, G., and Dickens, C. (2008). Psychosocial predictors of health-related quality of life and health service utilisation in people with chronic low back pain. PAIN® 135, 142–150. doi:10.1016/j.pain.2007.05.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Koizumi, K., Iwasaki, Y., Narukawa, M., Iitsuka, Y., Fukao, T., Seki, T., et al. (2009). Diallyl sulfides in garlic activate both TRPA1 and TRPV1. Biochem. Biophysical Res. Commun. 382, 545–548. doi:10.1016/j.bbrc.2009.03.066

PubMed Abstract | CrossRef Full Text | Google Scholar

Kun, J., Szitter, I., Kemény, Á., Perkecz, A., Kereskai, L., Pohóczky, K., et al. (2014). Upregulation of the transient receptor potential ankyrin 1 ion channel in the inflamed human and mouse colon and its protective roles. PLOS ONE 9, e108164. doi:10.1371/journal.pone.0108164

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, H.-J., Lee, H. G., Choi, K.-S., Surh, Y.-J., and Na, H.-K. (2013). Diallyl trisulfide suppresses dextran sodium sulfate-induced mouse colitis: NF-κB and STAT3 as potential targets. Biochem. Biophys. Res. Commun. 437, 267–273. doi:10.1016/j.bbrc.2013.06.064

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, C., Reese, R., Vu, S., Rougé, L., Shields, S. D., Kakiuchi-Kiyota, S., et al. (2021). A non-covalent ligand reveals biased agonism of the TRPA1 ion channel. Neuron 109, 273–284.e4. doi:10.1016/j.neuron.2020.10.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Macpherson, L. J., Dubin, A. E., Evans, M. J., Marr, F., Schultz, P. G., Cravatt, B. F., et al. (2007). Noxious compounds activate TRPA1 ion channels through covalent modification of cysteines. Nature 445, 541–545. doi:10.1038/nature05544

PubMed Abstract | CrossRef Full Text | Google Scholar

Mahajan, N., Khare, P., Kondepudi, K. K., and Bishnoi, M. (2021). TRPA1: Pharmacology, natural activators and role in obesity prevention. Eur. J. Pharmacol. 912, 174553. doi:10.1016/j.ejphar.2021.174553

PubMed Abstract | CrossRef Full Text | Google Scholar

Markovics, A., Szőke, É., Sándor, K., Börzsei, R., Bagoly, T., Kemény, Á., et al. (2012). Comparison of the anti-inflammatory and anti-nociceptive effects of cortistatin-14 and somatostatin-14 in distinct in vitro and in vivo model systems. J. Mol. Neurosci. 46, 40–50. doi:10.1007/s12031-011-9577-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Matsubara, M., Muraki, Y., Hatano, N., Suzuki, H., and Muraki, K. (2022). Potent activation of human but not mouse TRPA1 by JT010. Int. J. Mol. Sci. 23, 14297. doi:10.3390/ijms232214297

PubMed Abstract | CrossRef Full Text | Google Scholar

Matsuoka, N., Maeda, N., Yamaguchi, I., and Satoh, M. (1994). Possible involvement of brain somatostatin in the memory formation of rats and the cognitive enhancing action of FR121196 in passive avoidance task. Brain Res. 642, 11–19. doi:10.1016/0006-8993(94)90900-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Medzhitov, R. (2021). The spectrum of inflammatory responses. Science 374, 1070–1075. doi:10.1126/science.abi5200

PubMed Abstract | CrossRef Full Text | Google Scholar

Meents, J. E., Fischer, M. J. M., and McNaughton, P. A. (2016). Agonist-induced sensitisation of the irritant receptor ion channel TRPA1. The Journal of Physiology 594, 6643–6660. doi:10.1113/JP272237

PubMed Abstract | CrossRef Full Text | Google Scholar

Mha, A. N., Peleg, R., Singer, Y., Sherf, M., and Shvartzman, P. (2008). Chronic pain. A Population-Based Study 10, 5.

Google Scholar

Mohos, V., Fliszár-Nyúl, E., Lemli, B., Zsidó, B. Z., Hetényi, C., Mladěnka, P., et al. (2020a). Testing the pharmacokinetic interactions of 24 colonic flavonoid metabolites with human serum albumin and cytochrome P450 enzymes. Biomolecules 10, 409. doi:10.3390/biom10030409

PubMed Abstract | CrossRef Full Text | Google Scholar

Mohos, V., Fliszár-Nyúl, E., Ungvári, O., Bakos, É., Kuffa, K., Bencsik, T., et al. (2020b). Effects of chrysin and its major conjugated metabolites chrysin-7-sulfate and chrysin-7-glucuronide on cytochrome P450 enzymes and on OATP, P-gp, BCRP, and MRP2 transporters. Drug Metab. Dispos. 48, 1064–1073. doi:10.1124/dmd.120.000085

PubMed Abstract | CrossRef Full Text | Google Scholar

Morris, G. M., Goodsell, D. S., Halliday, R. S., Huey, R., Hart, W. E., Belew, R. K., et al. (1998). Automated docking using a Lamarckian genetic algorithm and an empirical binding free energy function. J. Comput. Chem. 19, 1639–1662. doi:10.1002/(SICI)1096-987X(19981115)19:14<1639:AID-JCC10>3.0.CO;2-B

CrossRef Full Text | Google Scholar

Nathan, C., and Ding, A. (2010). Nonresolving inflammation. Nonresolving Inflamm. Cell 140, 871–882. doi:10.1016/j.cell.2010.02.029

PubMed Abstract | CrossRef Full Text | Google Scholar

Nathan, C. (2022). Nonresolving inflammation redux. Immunity 55, 592–605. doi:10.1016/j.immuni.2022.03.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Nejepinska, J., Malik, R., Moravec, M., and Svoboda, P. (2012). Deep Sequencing Reveals Complex Spurious Transcription from Transiently Transfected Plasmids. PLOS ONE 7, e43283. doi:10.1371/journal.pone.0043283

PubMed Abstract | CrossRef Full Text | Google Scholar

Nemes, B., Bölcskei, K., Kecskés, A., Kormos, V., Gaszner, B., Aczél, T., et al. (2021). Human somatostatin SST4 receptor transgenic mice: Construction and brain expression pattern characterization. Int. J. Mol. Sci. 22, 3758. doi:10.3390/ijms22073758

PubMed Abstract | CrossRef Full Text | Google Scholar

Niv, D., and Kreitler, S. (2001). Pain and quality of life. Pain Pract. 1, 150–161. doi:10.1046/j.1533-2500.2001.01016.x

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Boyle, N. M., Banck, M., James, C. A., Morley, C., Vandermeersch, T., and Hutchison, G. R. (2011). Open Babel: An open chemical toolbox. J. Cheminformatics 3, 33. doi:10.1186/1758-2946-3-33

CrossRef Full Text | Google Scholar

Ogawa, H., Takahashi, K., Miura, S., Imagawa, T., Saito, S., Tominaga, M., et al. (2012). H(2)S functions as a nociceptive messenger through transient receptor potential ankyrin 1 (TRPA1) activation. Neuroscience 218, 335–343. doi:10.1016/j.neuroscience.2012.05.044

PubMed Abstract | CrossRef Full Text | Google Scholar

Owczarzy, R., Tataurov, A. V., Wu, Y., Manthey, J. A., McQuisten, K. A., Almabrazi, H. G., et al. (2008). IDT SciTools: A suite for analysis and design of nucleic acid oligomers. Nucleic Acids Res. 36, W163–W169. doi:10.1093/nar/gkn198

PubMed Abstract | CrossRef Full Text | Google Scholar

Pahwa, R., Goyal, A., Bansal, P., and Jialal, I. (2021). Chronic inflammatio. Available at: https://www.ncbi.nlm.nih.gov/books/NBK493173 (Accessed May 16, 2022).

Google Scholar

Paulsen, C. E., Armache, J.-P., Gao, Y., Cheng, Y., and Julius, D. (2015). Structure of the TRPA1 ion channel suggests regulatory mechanisms. Nature 520, 511–517. doi:10.1038/nature14367

PubMed Abstract | CrossRef Full Text | Google Scholar

Pintér, E., Pozsgai, G., Hajna, Z., Helyes, Z., and Szolcsányi, J. (2014). Neuropeptide receptors as potential drug targets in the treatment of inflammatory conditions. Br. J. Clin. Pharmacol. 77, 5–20. doi:10.1111/bcp.12097

PubMed Abstract | CrossRef Full Text | Google Scholar

Pottel, J., Therrien, E., Gleason, J. L., and Moitessier, N. (2014). Docking ligands into flexible and solvated macromolecules. 6. Development and application to the docking of HDACs and other zinc metalloenzymes inhibitors. J. Chem. Inf. Model. 54, 254–265. doi:10.1021/ci400550m

PubMed Abstract | CrossRef Full Text | Google Scholar

Pozsgai, G., Bátai, I. Z., and Pintér, E. (2019). Effects of sulfide and polysulfides transmitted by direct or signal transduction-mediated activation of TRPA1 channels. Br. J. Pharmacol. 176, 628–645. doi:10.1111/bph.14514

PubMed Abstract | CrossRef Full Text | Google Scholar

Pozsgai, G., Payrits, M., Sághy, É., Sebestyén-Bátai, R., Steen, E., Szőke, É., et al. (2017). Analgesic effect of dimethyl trisulfide in mice is mediated by TRPA1 and sst4 receptors. Nitric Oxide 65, 10–21. doi:10.1016/j.niox.2017.01.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Qiu, C., Zeyda, T., Johnson, B., Hochgeschwender, U., Lecea, L., and Tallent, M. K. (2008). Somatostatin receptor subtype 4 couples to the M-current to regulate seizures. J. Neurosci. 28, 3567–3576. doi:10.1523/JNEUROSCI.4679-07.2008

PubMed Abstract | CrossRef Full Text | Google Scholar

Raja, S. N., Carr, D. B., Cohen, M., Finnerup, N. B., Flor, H., Gibson, S., et al. (2020). The revised international association for the study of pain definition of pain: Concepts, challenges, and compromises. Pain 161, 1976–1982. doi:10.1097/j.pain.0000000000001939

PubMed Abstract | CrossRef Full Text | Google Scholar

Sándor, K., Elekes, K., Szabó, Á., Pintér, E., Engström, M., Wurster, S., et al. (2006). Analgesic effects of the somatostatin sst4 receptor selective agonist J-2156 in acute and chronic pain models. Eur. J. Pharmacol. 539, 71–75. doi:10.1016/j.ejphar.2006.03.082

PubMed Abstract | CrossRef Full Text | Google Scholar

Scheich, B., Csekő, K., Borbély, É., Ábrahám, I., Csernus, V., Gaszner, B., et al. (2017). Higher susceptibility of somatostatin 4 receptor gene-deleted mice to chronic stress-induced behavioral and neuroendocrine alterations. Neuroscience 346, 320–336. doi:10.1016/j.neuroscience.2017.01.039

PubMed Abstract | CrossRef Full Text | Google Scholar

Scheich, B., Gaszner, B., Kormos, V., László, K., Ádori, C., Borbély, É., et al. (2016). Somatostatin receptor subtype 4 activation is involved in anxiety and depression-like behavior in mouse models. Neuropharmacology 101, 204–215. doi:10.1016/j.neuropharm.2015.09.021

PubMed Abstract | CrossRef Full Text | Google Scholar

Schenk, S. A., Dick, F., Herzog, C., Eberhardt, M. J., and Leffler, A. (2019). Active metabolites of dipyrone induce a redox-dependent activation of the ion channels TRPA1 and TRPV1. Pain Rep 4, e720. doi:10.1097/PR9.0000000000000720

PubMed Abstract | CrossRef Full Text | Google Scholar

Schett, G., and Gravallese, E. (2012). Bone erosion in rheumatoid arthritis: Mechanisms, diagnosis and treatment. Nat. Rev. Rheumatol. 8, 656–664. doi:10.1038/nrrheum.2012.153

PubMed Abstract | CrossRef Full Text | Google Scholar

Schrödinger (2022). Schrödinger Release 2022-4. Maestro.

Schuelert, N., and McDougall, J. J. (2012). Involvement of Nav 1.8 sodium ion channels in the transduction of mechanical pain in a rodent model of osteoarthritis. Arthritis Res. Ther. 14, R5. doi:10.1186/ar3553

PubMed Abstract | CrossRef Full Text | Google Scholar

Shapiro, D., Deering-Rice, C. E., Romero, E. G., Hughen, R. W., Light, A. R., Veranth, J. M., et al. (2013). Activation of transient receptor potential ankyrin-1 (TRPA1) in lung cells by wood smoke particulate material. Chem. Res. Toxicol. 26, 750–758. doi:10.1021/tx400024h

PubMed Abstract | CrossRef Full Text | Google Scholar

Suo, Y., Wang, Z., Zubcevic, L., Hsu, A. L., He, Q., Borgnia, M. J., et al. (2020). Structural insights into electrophile irritant sensing by the human TRPA1 channel. Neuron 105, 882–894. doi:10.1016/j.neuron.2019.11.023

PubMed Abstract | CrossRef Full Text | Google Scholar

Takaya, J., Mio, K., Shiraishi, T., Kurokawa, T., Otsuka, S., Mori, Y., et al. (2015). A potent and site-selective agonist of TRPA1. J. Am. Chem. Soc. 137, 15859–15864. doi:10.1021/jacs.5b10162

PubMed Abstract | CrossRef Full Text | Google Scholar

Terada, Y., Hosono, T., Seki, T., Ariga, T., Ito, S., Narukawa, M., et al. (2014). Sulphur-containing compounds of durian activate the thermogenesis-inducing receptors TRPA1 and TRPV1. Food Chem. 157, 213–220. doi:10.1016/j.foodchem.2014.02.031

PubMed Abstract | CrossRef Full Text | Google Scholar

The PyMOL Molecular Graphics System (2022). The PyMOL molecular Graphics system, version 2.0. New York: Schrödinger, LLC.

Google Scholar

Therrien, E., Englebienne, P., Arrowsmith, A. G., Mendoza-Sanchez, R., Corbeil, C. R., Weill, N., et al. (2012). Integrating medicinal chemistry, organic/combinatorial chemistry, and computational chemistry for the discovery of selective estrogen receptor modulators with forecaster, a novel platform for drug discovery. J. Chem. Inf. Model. 52, 210–224. doi:10.1021/ci2004779

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Der Spoel, D., Lindahl, E., Hess, B., Groenhof, G., Mark, A. E., and Berendsen, H. J. C. (2005). Gromacs: Fast, flexible, and free. J. Comput. Chem. 26, 1701–1718. doi:10.1002/jcc.20291

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, J., Wolf, R. M., Caldwell, J. W., Kollman, P. A., and Case, D. A. (2004). Development and testing of a general amber force field. J. Comput. Chem. 25, 1157–1174. doi:10.1002/jcc.20035

PubMed Abstract | CrossRef Full Text | Google Scholar

Waterhouse, A., Bertoni, M., Bienert, S., Studer, G., Tauriello, G., Gumienny, R., et al. (2018). SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 46, W296–W303. doi:10.1093/nar/gky427

PubMed Abstract | CrossRef Full Text | Google Scholar

Ye, J., Coulouris, G., Zaretskaya, I., Cutcutache, I., Rozen, S., and Madden, T. L. (2012). Primer-BLAST: A tool to design target-specific primers for polymerase chain reaction. BMC Bioinforma. 13, 134. doi:10.1186/1471-2105-13-134

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, X., Chen, X., Jiang, X., and Nie, Y. (2006). Synthesis, characterization and bioactivity evaluation of diallyl disulfide. J. Cent. South Univ. Technol. 13, 515–518. doi:10.1007/s11771-006-0079-4

CrossRef Full Text | Google Scholar

Zhao, J., Lin King, J. V., Paulsen, C. E., Cheng, Y., and Julius, D. (2020). Irritant-evoked activation and calcium modulation of the TRPA1 receptor. Nature 585, 141–145. doi:10.1038/s41586-020-2480-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Zsidó, B. Z., Balog, M., Erős, N., Poór, M., Mohos, V., Fliszár-Nyúl, E., et al. (2020). Synthesis of spin-labelled bergamottin: A potent CYP3A4 inhibitor with antiproliferative activity. Int. J. Mol. Sci. 21, 508. doi:10.3390/ijms21020508

PubMed Abstract | CrossRef Full Text | Google Scholar

Zsidó, B. Z., Börzsei, R., Pintér, E., and Hetényi, C. (2021). Prerequisite binding modes determine the dynamics of action of covalent agonists of ion channel TRPA1. Pharmaceuticals 14, 988. doi:10.3390/ph14100988

PubMed Abstract | CrossRef Full Text | Google Scholar

Zygmunt, P. M., and Högestätt, E. D. (2014). “TRPA1,” in Mammalian transient receptor potential (TRP) cation channels: Volume I handbook of experimental pharmacology. Editors B. Nilius, and V. Flockerzi (Berlin, Heidelberg: Springer), 583–630. doi:10.1007/978-3-642-54215-2_23

CrossRef Full Text | Google Scholar

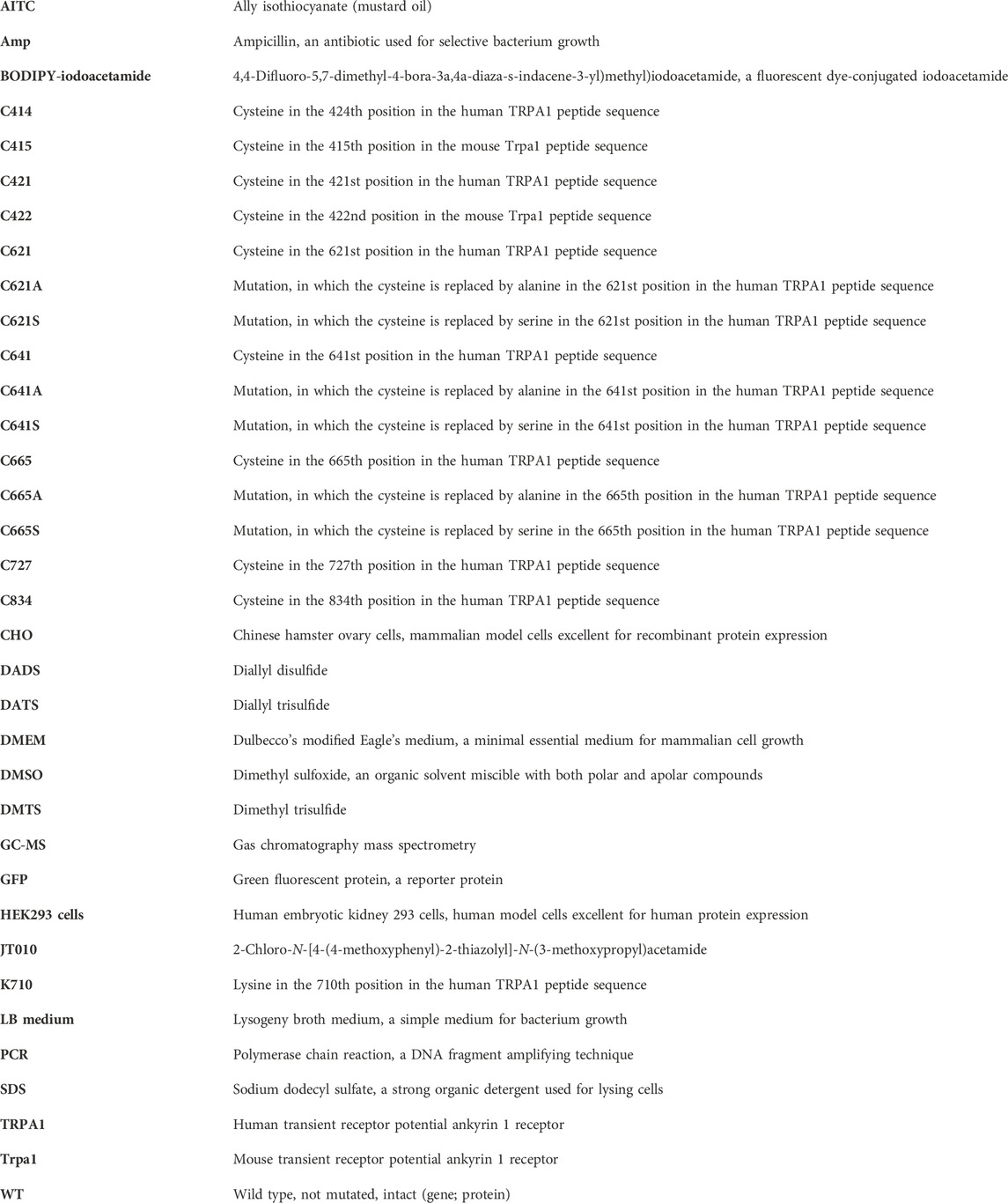

Glossary
