Background: Electrical stimulation has recently been introduced to treat patients with Obstructive sleep apnoea There are, however, few data on the effects of transcutaneous submental electrical stimulation (TES) on the cardiovascular system. We studied the effect of TES on cardiorespiratory variables in healthy volunteers during head-down-tilt (HDT) induced baroreceptor loading.
Method: Cardiorespiratory parameters (blood pressure, heart rate, respiratory rate, tidal volume, airflow/minute ventilation, oxygen saturation, and end-tidal CO2/O2 concentration) were recorded seated, supine, and during head-down-tilt (50) under normoxic, hypercapnic (FiCO2 5%) and poikilocapnic hypoxic (FiO2 12%) conditions. Blood pressure (BP) was measured non-invasively and continuously (Finapres). Gas conditions were applied in random order. All participants were studied twice on different days, once without and once with TES.
Results: We studied 13 healthy subjects (age 29 (12) years, six female, body mass index (BMI) 23.23 (1.6) kg·m−2). A three-way ANOVA indicated that BP decreased significantly with TES (systolic: p = 4.93E-06, diastolic: p = 3.48E-09, mean: p = 3.88E-08). Change in gas condition (systolic: p = 0.0402, diastolic: p = 0.0033, mean: p = 0.0034) and different postures (systolic: 8.49E-08, diastolic: p = 6.91E-04, mean: p = 5.47E-05) similarly impacted on BP control. When tested for interaction, there were no significant associations between the three different factors electrical stimulation, gas condition, or posture, except for an effect on minute ventilation (gas condition/posture p = 0.0369).
Conclusion: Transcutaneous electrical stimulation has a substantial impact on the blood pressure. Similarly, postural changes and variations in inspired gas impact on blood pressure control. Finally, there was an interaction between posture and inspired gases that affects minute ventilation. These observations have implications on our understanding of integrated cardiorespiratory control, and may prove beneficial for patients with SDB who are assessed for treatment with electrical stimulation.
Introduction
Obstructive sleep apnoea (OSA) is a highly prevalent condition that affects about one billion people worldwide (Benjafield et al., 2019). In patients with OSA, intermittent and repeated upper airway collapse during sleep results in irregular breathing at night. Nocturnal apnoeas and hypopnoeas lead to an altered drive to breathe, high work of breathing, oxygen desaturations, and arousals from sleep (Hilton et al., 2001). These effects can cause daytime symptoms, such as sleepiness, and are associated with increased sympathetic tone activation and elevated blood pressure (Remmers et al., 1978). OSA is associated with co-morbidities, including hypertension (Marin et al., 2005; Parati et al., 2014), ischaemic heart disease (Martinez et al., 2012), stroke (Palomäki et al., 1989), congestive heart failure (Bradley et al., 1985), obesity and metabolic syndrome (Levy et al., 2009), and diabetes (Punjabi et al., 2002).
Treatment of OSA includes continuous positive airway pressure (CPAP), and mandibular advancement devices (MAD) (National Institute for Care Excellence, 2021). Primary airway therapies aim to maintain upper airway patency during sleep and lead to a normalisation of the work of breathing and prevention of apnoeas, hypopnoeas, and arousals from sleep that could cause the sympathetic response. Long-term therapy of OSA improves daytime symptoms and, potentially, long-term cardiovascular risks (Somers et al., 2008).
CPAP therapy remains the most common treatment for moderate-to-severe OSA, while for milder cases of OSA, MADs can also be effective (NICE (National Institute for Health and Care Excellence), 2008). However, long-term adherence to CPAP therapy is limited, with only 70% adherence at 3-month (Benjafield et al., 2019b) and further reductions at later follow up (Benjafield et al., 2021). Non-CPAP therapies provide alternatives for patients who have difficulties with long-term compliance to CPAP (Randerath et al., 2021) and may be preferred over conventional treatment (Campbell et al., 2015).
Recently, electrical stimulation invasively applied using hypoglossal nerve stimulation (HNS) (Strollo et al., 2014) or transcutaneous electrical stimulation (TESLA) in the submental area to target the upper airway dilator muscles, particularly the genioglossus muscle, has been developed to treat OSA (Pengo et al., 2016). The randomised controlled trial using HNS (STAR-trial) reported modest improvements in the diastolic blood pressure with no significant changes in systolic blood pressure or heart rate over a 1-year period (Strollo et al., 2014). However, data on the acute cardiorespiratory responses to transcutaneous electrical stimulation of the upper airway dilator muscles, in both health and disease remain sparse (Pengo and Steier, 2015). This is a study to consider the physiological response to the use of electrical stimulation in direct proximity to the carotides, as hypoglossal nerve stimulation (HNS) and transcutaneous electrical stimulation is nowadays being used to treat obstructive sleep apnoea; the purpose of this study was to test the effects of the current has on the cardiorespiratory system in a cohort of normal subject (Strollo et al., 2014).
We hypothesize that acute application of transcutaneous electrical stimulation of the submental area will influence cardiovascular control in healthy, awake subjects. In the current study, we sought to describe the effect of transcutaneous electrical stimulation of the submental area on the cardiorespiratory control, for this particular purpose, we recorded beat-by-beat blood pressure with other cardiopulmonary variables when exposed to room air, hypoxic and hypercapnic gas mixtures (chemosensitivity) while in seated and supine postures, as well as with 50° HDT (baroreceptor response) while using electrical stimulation of the submental area (TES).
Methods and subjects
The study was approved by the local research ethics committee (King’s College London; RESCM-20/21-8487) and performed in accordance with the Declaration of Helsinki. All participants received an information sheet and provided informed and written consent prior to participation.
Subjects
We included healthy, normal- and slightly overweight subjects of both sexes over 16 years of age. All participants were non-smokers and free of cardiorespiratory and other significant acute or chronic illness and had normal blood pressure. Participants visited the respiratory physiology laboratory on two occasions at least 1 week apart, with one visit acting as control without electrical stimulation and the other during which TES was used during in all postures and gas conditions.
Inclusion criteria
Subjects for the study met all the following criteria: age >16 years, body-mass index (BMI) > 18.5 and <30 kg/m2, non-smoker, and clinically stable in the last 28 days.
Exclusion criteria
Subjects were excluded from the study if any of the following conditions were met: history of cardiovascular, respiratory, or neuromuscular disease, cardiac pacemaker, active seizures, current smokers, acute illness, allergy to skin patches, oobesity (BMI>30 kg/m2) or cachexia (BMI<18.5 kg/m2), and vertigo.
Primary and secondary outcomes
The primary outcome of the study was the change in the diastolic blood pressure (BP) with electrical stimulation, affecting baro- and chemoreceptor response. Secondary outcomes were changes in other cardiovascular (systolic/mean BP, heart rate) and respiratory variables (respiratory rate, tidal volume, minute ventilation, modified Borg scale) during electrical stimulation.
Equipment
Following the baseline visit without electrical stimulation the participants were continuously stimulated using electrical current in the submental area (4 × 4 cm dermal patches; Med-Fit Plus Ltd., Stockport, United Kingdom), at a frequency of 30 Hz and a pulse width of 250 microseconds during the second visit. Intensity of the electrical current was titrated according to individual comfort using a TENS machine (Premier Combo Plus, the TENS + Company Lets, Stockport, United Kingdom, placed in the submental area midway between angle of mandible and the chin (Figure 1) as previously described elsewhere (Steier et al., 2011). Continuous, beat-by-beat arterial blood pressure was measured continuously using digital artery photoplethysmography (Finapres, Ohmeda 2,300, BOC Healthcare, Englewood CO, United States of America). Heart rate was measured from the electrocardiogram (ECG) with electrodes positioned in the lead II configuration (ML132 bioamplifier, ADInstruments, Oxford, United Kingdom).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-g001.jpg)
FIGURE 1. Placed in the submental area midway between angle of mandible and the chin as described previously (Steier et al., 2011).
Respiratory flow was measured via a mouthpiece, with the subject wearing a noseclip using a pneumotachograph (4,800 series, Hans Rudolph Inc., Shawnee Kansas, United States of America) and associated differential pressure transducer (Spirometer, ADInstruments, Oxford, United Kingdom). The distal end of the pneumotachograph was attached to a two way non-rebreathing valve (2,700 series, Hans Rudolph Inc., Shawnee, Kansas, United States of America, deadspace 77 ml) with inspired and expired gases measured continuously using a gas analyser (ML, 206, ADInstruments, Oxford, United Kingdom), connected to a side port on the pneumotachograph via a fine-bore catheter. Blood oxygen saturation (SpO2) was measured using a pulse oximeter (Sat 805 pulse oximeter, Charter Kontron, United Kingdom) attached to the subject’s finger. All data were acquired (PowerLab 16, ADInstruments, Oxford, United Kingdom) with 1 Khz sampling and displayed (LabChart ver 8, ADInstruments, Oxford, United Kingdom). Tidal volume was obtained by digital integration of flow by the acquisition software.
An open circuit (Figure 2) was used to deliver a continuous supply of medical air (wall outlet) to the inspiratory port of the two-way non-rebreathing valve via a low volume (2.5 L) reservoir bag. The inspired gas could be enriched with 100% nitrogen or 100% carbon dioxide from cylinders (BOC, Guildford, United Kingdom) to provide the appropriate inspired gas concentration. Three inspired gas mixtures were used; medical air (21% O2, balance N2), poikilokapnic hypoxia (12% O2, balance N2) and normoxic hypercapnia (5% CO2, balance N2). Symptoms of breathlessness were scored using the modified Borg scale in each posture (seated, supine, and 50°HDT).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-g002.jpg)

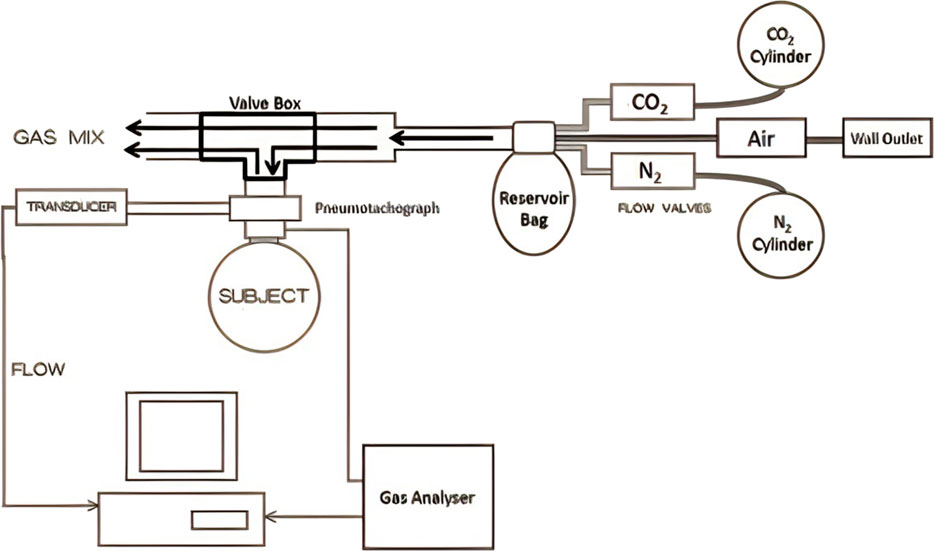

FIGURE 2. Experimental setup; and the inspiratory gas mixture could be enriched titrated (0%–100%) with 100% nitrogen or 100% carbon dioxide from cylinders (BOC, Guildford, United Kingdom).
An electrically operated tilt table (Plinth2000 Ltd., Stowmarket, United Kingdom) which could be adjusted from 0° (flat) to 50°HDT was used to change posture.
Short protocol
The following parameters were recorded at baseline: Demographic data (date of birth, height, weight, body mass index, ethnicity, and gender), clinical history, and medications. The neck, hips, and waist were measured along with vital signs (heart rate and blood pressure).
Measurements were first recorded in the seated position with the subject exposed to 5 min of each gas mixture, randomly assigned, before moving to the tilt table with measurements commencing in the supine position. Subjects were secured to the tilt table using a foam mattress and a foot strap across the ankles. Participants were familiarized with the 50°HDT procedure prior to the experiment commencing. After an initial period of stabilisation (at least 5 min) in the supine position, a period of 5 min resting breathing was recorded. The table was then tilted to the 50°HDT for 10 min. At the end of the 50°HDT, the subject was returned to the supine position for a further 5 min. Spontaneous ventilation and end-tidal gases (EtO2, EtCO2), and oxygen saturations were recorded throughout. The tilt table procedure was repeated three times with the subject breathing in random order (Figure 3). Participants were blinded to the identity of the gas being administered. For safety, the stop criterion for the hypoxic gas mixture was achieved if the arterial oxygen saturation (SpO2) dropped below 80%. To account for equilibration for change in posture and different gas mixtures, the final 2 min of recording for each posture and each gas mixture were analysed and an average reported for each variable.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-g003.jpg)

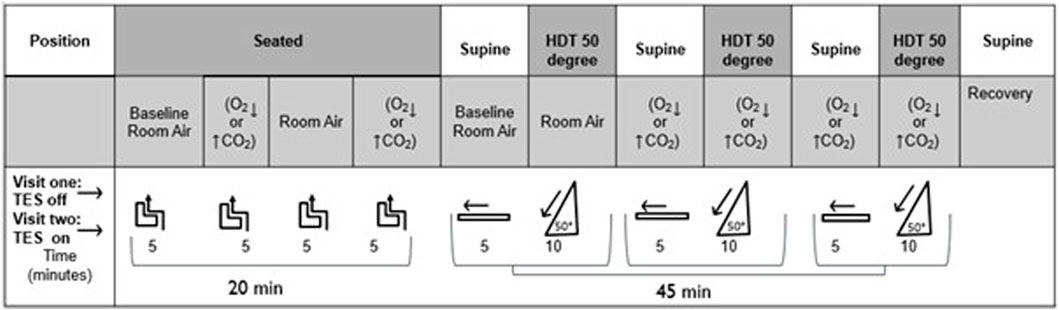

FIGURE 3. Schematic representation of study procedures. HDT: Head down Tilt. CO2: hypercapnic gas mixture (5% CO2). O2: hypoxic gas mixture (12% O2). Subjects were breathing room air, hypoxic, or hypercapnic gas mixtures in random order in seated, supine, and HDT (50) position. (off): electrical current off. (on): electrical current on (transcutaneous electrical nerve stimulation). Subjects were studied using each gas mixture for 5 min seated and supine, and for 10 min in HDT.
Data processing
All data were recorded in real-time using LabChart software (Chart V8, ADInstruments, Dunedin, New Zealand) with an analog-to-digital conversion at a sampling of 1 kHz. Data were exported and assigned key time periods for further analysis. Each variable was averaged over the last 2 min in seated, supine, and HDT positions. Respiratory variables (tidal volume (Vt) and respiratory rate (RR)) were extracted and multiplied to calculate minute ventilation (VE). Systolic (SBP), diastolic (DBP), and pulse blood pressure (pBP) was computed as pBP = SBP-DBP, and mean arterial pressure (MAP) was calculated as MAP = 1/3 SBP + 2/3 DBP. Heart Rate was derived from the 3-lead ECG, and SpO2 from the pulse oximeter.
Sample size calculation
Based on the sample size of 13 subjects, the study detected a treatment difference at a two-sided significance level of 0.025 if the true mean difference in diastolic blood pressure (electrical stimulation on vs. off) was at least 8.049 mmHg (SD 10.6) with 80% power. The variable calculated was the minimal detectable difference in mean diastolic blood pressure, based on previous data (Strollo et al., 2014).
Statistical analysis
Following testing for normality, data were presented as mean (SD) unless otherwise indicated. Data were analysed using a three-way analysis of variance (ANOVA)) followed by a Tukey’s test using the ‘anovan’ and ‘multcompare’ function of MATLAB (Version 2022B, MathWorks Ltd, Natick/MA, United States of America) to evaluate overall effects of three factors: a) TES (on/off), b) posture (seated, supine, HDT), and c) inspired gas (RA, hypercapnia, and hypoxia); furthermore, baroreflex and chemoreflex interaction was tested with the combination of these three factors. A level of significance was defined as p < 0.05.
Results
We studied 13 healthy subjects (age 29 (12) years, six female, BMI 23 (1.6) kg/m2, waist: hip (W: H) ratio 0.87 (0.05)) (Supplementary Table S1). Two more volunteers were unable to participate in the second visit and had incomplete datasets recorded for the primary outcome, these were not included in the analysis. Subjects used an electrical current of 8 (2) mA, which had been titrated to a comfortable and tolerable level of skin sensation. There were no adverse events, and no participant required electrical stimulation to be stopped.
Cardiovascular variables
Systolic blood pressure
A marked reduction in systolic blood pressure during electrical stimulation was observed under hypoxic conditions in the HDT posture; there was also a trend towards reduction in other postures. (Table 1).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t001.jpg)

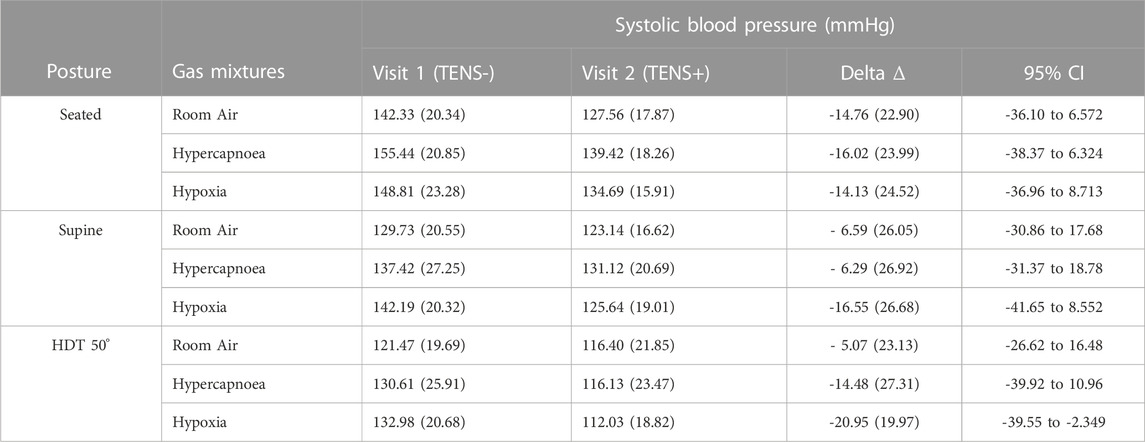

TABLE 1. Systolic blood pressure with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD). HDT, head down tilt. TENS-, electrical current off. TENS + electrical current turned on. 95% CI, 95% confidence interval.
Diastolic and Mean Blood Pressure
A marked reduction in both diastolic and mean arterial blood pressures were also observed during electrical stimulation in supine and HDT postures. There was also a tendency towards a reduction in diastolic blood pressure during electrical stimulation when seated under hypoxic conditions, and during HDT both under hypercapnic and room air conditions. (Tables 2, 3).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t002.jpg)

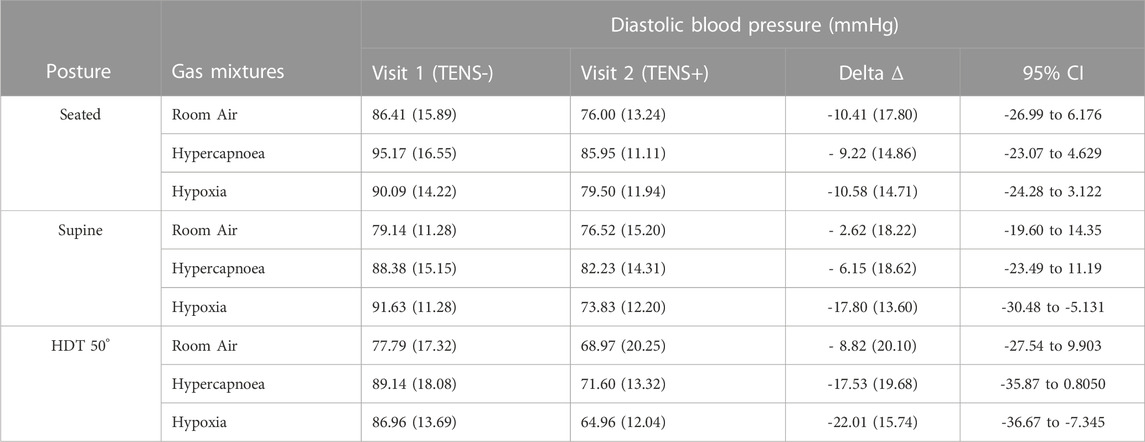

TABLE 2. Diastolic blood pressure with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD). HDT, head down tilt. TENS-, electrical current off. TENS + electrical current turned on. 95% CI, 95% confidence interval.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t003.jpg)

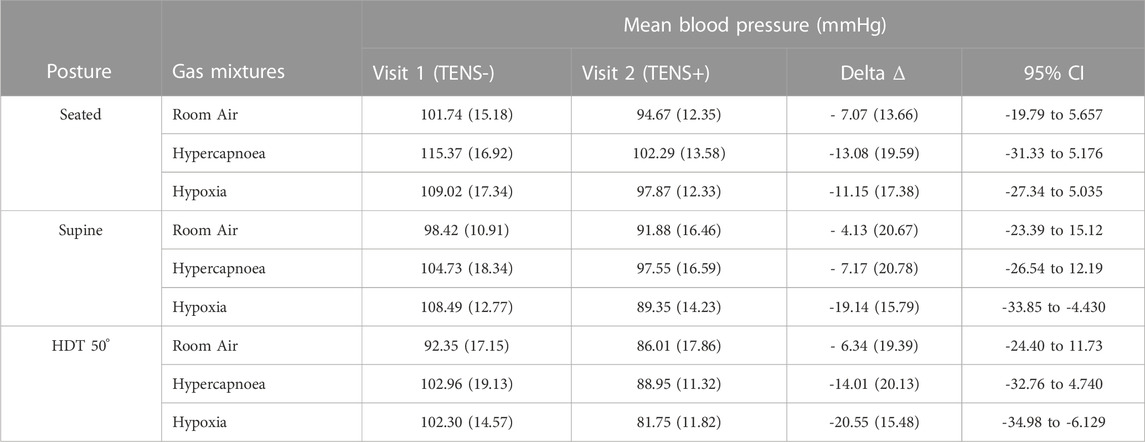

TABLE 3. Mean blood pressure with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD), HDT: head down tilt. TENS-, electrical current off. TENS + electrical current turned on. 95% CI, 95% confidence interval.
Pulse pressure
There was no significant change to the pulse pressure when applying electrical stimulation, independent of different postures and gas mixtures. (Table 4).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t004.jpg)

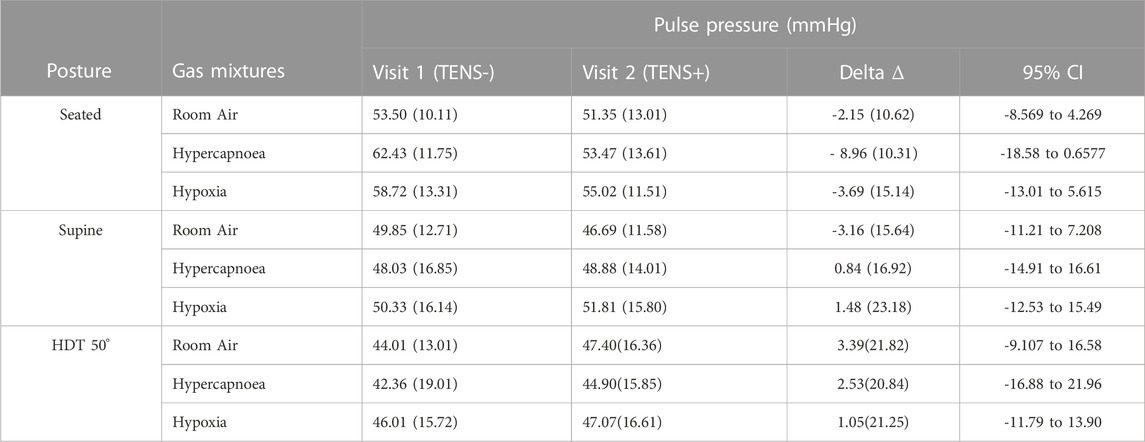

TABLE 4. Pulse Pressure with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD). HDT, head down tilt. TENS-, electrical current off. TENS + electrical current turned on. CI, 95% confidence interval.
Heart rate
The heart rate did not significantly change with electrical stimulation, and this observation was independent of posture or gas mixture. (Table 5).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t005.jpg)
TABLE 5. Heart rate with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD). HDT, head down tilt. TENS-, electrical current off. TENS + electrical current turned on. CI, 95% confidence interval.
Respiratory variables
There was no change in the respiratory rate with electrical stimulation in any of the three postures studied. (Table 6).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t006.jpg)

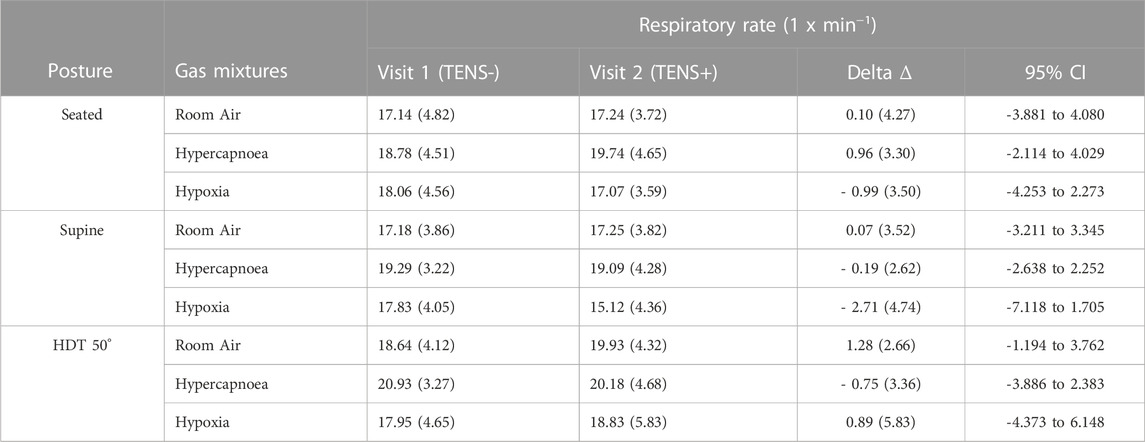

TABLE 6. Respiratory rate with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD), HDT: head down tilt. TENS-, electrical current off. TENS + electrical current turned on. CI, 95% confidence interval.
Tidal volume and minute ventilation
There was a trend towards increased tidal volume in the supine posture under hypercapnic conditions with electrical stimulation, although this did not reach significance. (Table 7) Additionally, there was increased minute ventilation with electrical stimulation (p=0.0443; Table 8;Figure 4; details is provided in Supplementary Table S3).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t007.jpg)

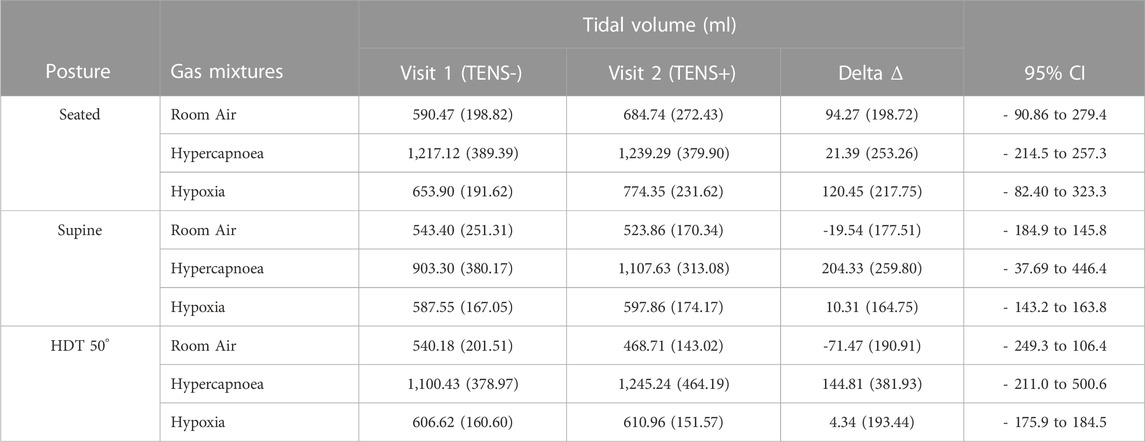

TABLE 7. Tidal volume with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD). HDT, head down tilt. TENS-, electrical current off. TENS + electrical current turned on. CI, 95% confidence interval.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-t008.jpg)

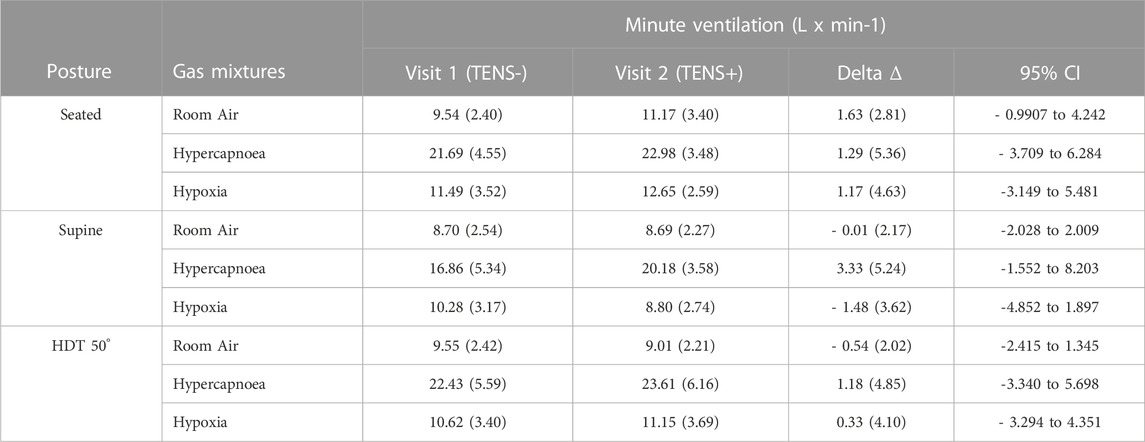

TABLE 8. Minute ventilation with and without electrical stimulation in seated, supine and HDT postures. Data are presented as mean (SD), HDT: head down tilt. TENS-, electrical current off. TENS + electrical current turned on. CI, 95% confidence interval.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1089837/fphys-14-1089837-HTML/image_m/fphys-14-1089837-g004.jpg)

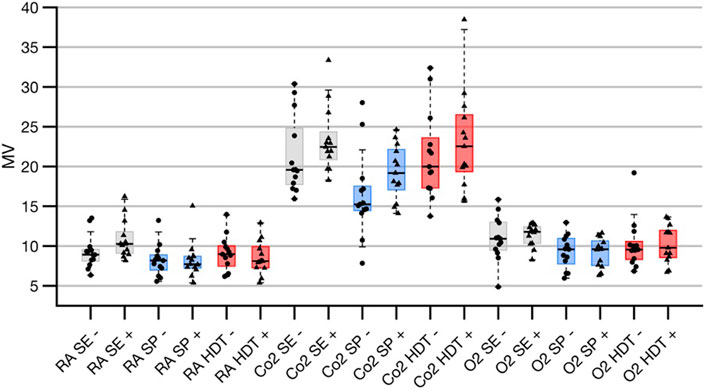

FIGURE 4. Results of 3-way ANOVA of minute ventilation derived from variation of three different factors, (A) TES (electrical stimulation on/off), (B) posture (seated, supine, HDT), and (C) inspired gas (room air, hypoxic and hypercapnic conditions). For further details of group assignments please refer to Supplementary Table S4. There was a significant interaction between factor b and c on minute ventilation. Data shown as median ±25 and 75% percentiles, behind individual data points.
End-tidal carbon dioxide (ETCO2) and oxygen saturation
No changes in EtCO2 during electrical stimulation in seated, supine or HDT posture were observed when breathing room air, under hypoxic or hypercapnic conditions. The SpO2 did not change when comparing electrical stimulation to baseline in any posture or gas condition studied.
Modified borg scale
There was no significant change in the breathlessness scores when applying electrical stimulation, independent of posture and gas mixture. (Supplementary Table S2).
3-Way ANOVA
In a 3-way ANOVA, BP decreased significantly with TES (systolic: p = 4.3E-06, diastolic: p = 3.01E-09, mean: p = 3.26E-08). Change in gas condition (systolic: p = 0.0386, diastolic: p = 0.0032, mean: 3.2E-03) and different postures (systolic: 6.91E-08, diastolic: p = 6.55E-04, mean: p = 4.91E-05) similarly impacted on BP control. There were no significant interactions between the three different factors: electrical stimulation, gas condition, or posture, except for an effect on minute ventilation (gas condition/posture p = 0.0348; Figure 4 for supplemental information on the analysis please refer to Supplementary Table S3).
Discussion
The cardiorespiratory response to submental transcutaneous electrical stimulation, a novel therapeutic approach in OSA, applied during enhanced chemoreceptor (gas conditions) activation and baroreceptor (posture) loading demonstrates marked effects on cardiovascular control, with a modest effect on the respiratory control. Electrical stimulation appears to sensitise the arterial baroreceptor response resulting in decreased diastolic blood pressure, by 19%–25%, under hypoxic conditions (chemoreceptor) supine and with HDT (baroreceptor). The effect of electrical current on the systolic blood pressure was slightly less consistent, albeit a reduction of 16% was observed in HDT position under hypoxic conditions. There were no significant differences in the heart rate or the pulse pressure with electrical current; this was independent of posture or gas mixture used. Respiratory variables did not change significantly with electrical stimulation, except for the minute ventilation.
Significance of findings
A number of pathways are involved in the cardiovascular responses to systemic hypoxia (Marshall, 1994), involving the primary effects of peripheral chemoreceptor stimulation, secondary effects of ventilation, and direct effects of hypoxia on the heart and peripheral vasculature leading to subsequent effects on the autonomic and the central nervous system (Marshall, 1994). The full effects of ventilation, mediated by carbon dioxide and oxygen, on the cardiovascular system remain to be fully elucidated (Heistad et al., 1974). Importantly, there is cardiorespiratory interaction which is mediated via hypoxia and that affects the baroreflex response, as suggested by our observations. It has been described previously that stimulation of the chemoreceptors can lead to an increased heart rate and a change in the blood pressure (cardiovagal baroreflex) in humans (Bristow et al., 1971); (Bristow et al., 1974). This is further supported by recent evidence showing that exposure to hypoxia can alter the arterial baroreflex and change heart rate and sympathetic nerve activity with a higher blood pressure. (Heistad et al., 1974); (Halliwill and Minson, 2002); (Halliwill et al., 2003).
Electrical stimulation targets the upper airway dilator muscles, particularly the genioglossus muscle (GG), and counteracts their diminished neuromuscular state-dependent tone which promotes upper airway collapsibility (Mezzanotte et al., 1996). Both the invasive and transcutaneous approaches to stimulating the upper airway dilator muscles are beneficial for maintaining airway patency during sleep in patients with OSA (Strollo et al., 2014; Pengo et al., 2016) improving the AHI by a mean of 9.1 (95% confidence interval, CI 2.0, 16.2) events/hour and the 4% ODI improved by a mean of 10.0 (95% CI 3.9, 16.0) events/hour (Pengo et al., 2016). Furthermore, the initial feasibility studies used TESLA with a current of 10.1 (3.7) mA (Steier et al., 2011). In the current study, electrical stimulation was well tolerated and had no adverse effects, underlining its safety for the use in the submental area and its efficacy in lowering diastolic blood pressure. In the context of potential long-term treatments for patients with OSA who have a high prevalence of cardiovascular comorbidities it is important to highlight that heart rate did not change significantly. A reduction in the blood pressure, systolic and diastolic, remains a favourable outcome for patients with sleep-disordered breathing, as the cardiovascular risk is typically raised and treatment resistant hypertension is of clinical relevance in this cohort (Antic et al., 2015). There are various interactions between different types of sleep apnoea and cardiovascular variables (e.g., blood pressure). On the one hand, central sleep apnoea is driven by heart failure (Javaheri and Javaheri, 2022). On the other hand, obstructive sleep apnoea leads to an increased sympathetic tone with may impact on the blood pressure contributing to hypertension (Antic et al., 2015); (Pengo et al., 2021); (Pengo et al., 2020).
Limitations of the study
This prospective physiological study had a relatively small sample size and certain interactions could become more significant with a larger sample size, for example the effect of the three factors on minute ventilation. The effects of TES on the primary outcome variable, diastolic blood pressure, were highly consistently observed in all subjects with a large effect size. Longer steady state periods could have had further advantages over quasi-steady state achieved during the 5 min baseline periods used. The choice of this was pragmatic to allow for completion of what was a lengthy protocol and return of the healthy volunteers for a demanding second session. We were also limited with making causal inferences due to the observational nature of the design of the study. Despite a complex experimental setup, some parameters such as neural respiratory drive, blood gases, and perfusion could have provided helpful additional insights into the interaction between the cardiovascular, the respiratory, the peripheral autonomic and the central nervous system but were not measured on this occasion. In addition, this study focused on healthy subjects with normal blood pressure. Thus, further studies in subjects with hypertension and sleep-disordered breathing need to provide a comprehensive dataset on how electrical stimulation affects the chemo- and baroreceptor response in these clinically relevant cohorts. However, these points do not negate the insightful setup of a highly complex physiological experiment in human beings with a large effect size that enables to derive useful information for future clinical applications.
Conclusion
Electrical stimulation of the submental area affects the chemo- and the baroreceptor response in normal healthy volunteers resulting in substantially lower levels of blood pressure. Similarly, inspired gas and posture impact on blood pressure regulation. Furthermore, electrical stimulation might modulate the cardiovascular risk in patients with hypertension and sleep-disordered breathing, a hypothesis that warrants further investigation in the respective clinical cohorts.
