Hong-Hao Chen1,2
Youssef Dewer
Yan Wang
Shu-Qian Tan
Wang-Peng Shi- 1Department of Entomology and MOA Key Laboratory of Pest Monitoring and Green Management Chinese Medicinal Herbs Research Center and College of Plant Protection, China Agricultural University, Beijing, China
- 2Institute of Plant Protection, Ningxia Academy of Agriculture and Forestry Sciences, Yinchuan, China
- 3Phytotoxicity Research Department, Central Agricultural Pesticide Laboratory, Agricultural Research Center, Dokki, Egypt
Introduction: Diorhabda tarsalis Weise is an important insect pest of the Chinese licorice Glycyrrhiza uralensis Fisch. Behavior of the beetle, including host location, oviposition site selection, self-defense, and aggregation, were regulated by plant volatiles or insect pheromones.
Aim: In this study, Identification of ORs and function research on orco were carried out, these could lead to the development of understand for olfaction mechanism in D. tarsalis.
Methods: ORs were identified by PacBio RS II platform to sequence the antennas of adult D. tarsalis, the function of orco was explored by dsRNA interference.
Results: 29 odorant receptor candidate genes of D. tarsalis were obtained, which code for 130–479 amino acids. Phylogenetic trees of olfactory receptors were constructed with 243 ORs from eight Coleoptera species. DtarORco, DtarOR7 and DtarOR26 are specifically expressed in the antenna, and the expression levels were significantly higher than other DtarORs in antenna, there were no differential expression between male and female beetles. An odorant coreceptor gene (DtarORco) has characteristics of an odorant receptor family member, the encoded mature protein has a predicted molecular weight of 53.898 kDa, dsRNA L4440 expression vectors were constructed and successfully transformed into ribonuclease III-deficient Escherichia coli strain HT115 DE3. After interference treatment, the relative expression level of DtarORco in D. tarsalis antennae significantly decreased and electrophysiological responses to host localization odor signals significantly decreased. At the same time, beetles lost the ability to locate hosts.
Discussion: The research on its mechanism of olfaction may lead to the development of new control measures that are environmentally friendly.
1 Introduction
Diorhabda tarsalis Weise feeds exclusively on Chinese licorice (Glycyrrhiza uralensis Fisch) a traditional medicine. D. tarsalis causes large economic losses yearly (Qi et al., 2008). Chemical pesticides are commonly used for population management, it is important to find alternative methods because of the side-effects of chemical insecticides. The olfactory system is vital to regulating insect behavior, such as host localization, mate-seeking, predator avoidance and selection of spawning sites, etc. Olfactory recognition is a complex biological process involving many protein molecules (Wicher 2015; Butterwick et al., 2018; Pelosi et al., 2018). Odorant receptors (ORs) are transmembrane proteins that are expressed on the membranes of olfactory neurons.
ORs can convert chemical signals to electrical signals. They contain seven transmembrane domains, with the N terminal located in the intramembrane region and the C terminal located at the extramembrane region. ORs are critical proteins for insect recognition of odor substances, insect ORs are associated with pheromones, volatile phytochemicals and other natural odor compounds (Wang et al., 2010). Olfactory neurons (ORNs) express the highly conserved non-classical receptor Orco and the classical receptor ORx. The resulting Orco-OR heterodimer controls the specificity of the ion channel and determines the specificity of odor molecules recognized by ORs (Sato et al., 2008). Research on D. tarsalis odorant receptors can establish the mechanism by which chemical signals are converted to electrical signals in the olfactory nerve and reveal the co-evolution process between the pest and its host. Odorant receptors can also provide information useful for the development of less toxic management techniques by RNAi and screening odorant ligands.
ORs in beetles from the Chrysomelinae such as Pyrrhalta maculicollis, Pyrrhalta aenescens, Galeruca daurica, Diabrotica virgifera, and Ophraella communa have been identified. The PacBio SMRT single molecule real-time sequencing technique has ultra-long reading capacity. It supports the mining of isoforms, homologs, superfamily genes and alleles and is a suitable method for OR identification (Gordon et al., 2015). Orco function of Dendroctonus armandi, Tenebrio molitor, Ophraella communa, Rhodnius prolixus and Apolygus lucorum have been explored by RNAi (Jackson et al., 2003; Zhou et al., 2014; Zheng et al., 2015; Zhang B. et al., 2016; Franco et al., 2016; Liu et al., 2016). It is necessary to identify all the ORs and confirm the function of critical genes in D. tarsalis, however, there have been no report on OR identification and Orco function.
Identification and function research on ORs could lead to the development of understand for olfaction mechanism in D. tarsalis. More importantly, it could help for implement comprehensive pest control measures. We tested the following hypotheses: 1) that ORs would be identified by PacBio RS II platform to sequence the antennas of adult D. tarsalis; and 2) that the function of orco would be explored by dsRNA interference.
2 Materials and methods
2.1 Insect housing
In 2020, Diorhabda tarsalis were obtained from the Chinese licorice field in Yinchuan city (106.2517 N, 38.27559 E), NingXia Hui Autonomous Region, China. The indoor growing conditions were: temperature: 25 ± 1°C, relative humidity: 60% ± 5% and a 14:10 h (L:D) photoperiod. Adult beetles and larvae in cages were fed Chinese licorice leaves collected from the field. Eggs and pupae were placed in culture dishes containing cotton balls for moisture retention and the culture dishes were placed in the dark for egg hatching and adult eclosion.
2.2 PacBio sequencing
A total of 500 pairs of male and female D. tarsalis were collected and combined respectively. Total RNA was extracted using an assay kit and Nanodrop was used to measure RNA purity and concentration. Agilent 2100 was used to measure RNA integrity and qualified samples had an OD (260/280) of 1.8–2.2, RIN ≥ 7.5, and nucleic acid electrophoresis was used to detect the integrity of RNA. Qualified samples were used for library construction. The SMARTer™ PCR cDNA Synthesis Kit (Clontech, Palo Alto, CA, USA) was used to synthesize full-length cDNA of mRNAs. PCR was used to amplify full-length cDNAs, and end-terminal repair was carried out on full-length cDNAs. Then, SMRT dumbbell adapters (SMRTbell Template Prep Kit) were ligated to cDNAs and exonuclease digestion was carried out to obtain sequencing libraries. After library construction was completed, Qubit2.0 was used for accurate quantitation and Agilent 2100 was used to measure the size of the libraries. After the library quality control was confirmed to meet expectations, PacBio RS II was used for full-length transcriptome sequencing, which was carried out by Biomarker Technologies Co. Ltd. (Beijing).
2.3 Transcriptome bioinformatics analysis
Transcriptome polymerase fragments were screened and sub-reads of length >50 bp and accuracy rate >0.80 were selected. Sequences were converted to reads of insert (RoI) based on the number of adapters. RoI sequences were classified as full-length non-chimeric sequence, full-length chimeric sequence, and non-full-length sequence based on the presence of the 3′ primer, 5′ primer, and polyA sequence. SMRT Analysis software Iterative Clustering for Error Correction (ICE) was used to cluster RoIs with similar sequences to obtain a consensus sequence. Non-full-length sequences were used to polish the consensus sequence to obtain high-quality sequences. CD-HIT (identity > 0.99) non-redundancy processing was used to obtain full-length transcripts of Pacbio transcriptome and BUSCO was used for integrity evaluation of the transcriptome (Sharon et al., 2013; Thomas et al., 2014; Gordon et al., 2015). BLAST software (ver. 2.2.26) was used for transcript functional annotation classification in the NR, Pfam, Swiss-Pro, KEGG, KOG, COG, eggNOG, and GO databases (Ashburner et al., 2000; Tatusov et al., 2000; Koonin et al., 2004; Li et al., 2013; Finn et al., 2014; The UniProt Consortium, 2017).
2.4 OR identification
We used ORF finder (https://www.ncbi.nlm.nih.gov/gorf/gorf.html) to predict open reading frames in transcripts with odorant receptor in the annotation information. Blastx (https://blast.ncbi.nlm.nih.gov/) was used to screen for candidate ORs that may be homologous to those in other insects (E < 10–5). HMMTOP (http://www.sacs.ucsf.edu/cgi-bin/hmmtop.py) was used to predict the transmembrane domains of the encoded protein, which were combined with protein sequence length, structural characteristics, Nr annotation results, phylogenetics, and expression spectrum characteristics to determine candidate Orco genes. PRALINE (http://www.ibi.vu.nl/programs/pralinewww) was used to display the aligned Orco sequences. NetPhos 2.0 Server (http://www.cbs.dtu.dk/services/NetPhos/) was used to predict protein phosphorylation sites and the ProtParam tool (http://web.expasy.org/protparam/) was used to analyze physicochemical characteristics. The 214 ORs (>200 aa) from eight Coleoptera species, and 29 D. tarsalis ORs were used to construct phylogenetic trees, of which 22, 19, 25, 34, 31, 27, 28, and 28 ORs were from P. maculicollis, T. molitor, P. aenescens, Colaphellus bowringi, Leptinotarsa decemlineata, D. virgifera, Tribolium castaneum, and Anoplophora chinensis, respectively. The ginsi parameter in MAFFT was used for alignment of phylogenetic trees and JTT + CAT model in FASTTREE was used for tree construction. iTOL v3 (https://itol.embl.de) was used to modify the phylogenetic trees.
2.5 RT-qPCR analysis
RT-qPCR was used to detect the expression levels of Orco and 15 ORs in various body sites in adult beetles, various developmental stages, and in the antennas afterRNAi treatment (Supplementary Table S1). Antennas, heads (without antennae), legs, thorax, abdomen, and elytra of male and female D. tarsalis adults, fresh eggs, 1st–3rd instar larvae, and pupae were collected. After 1, 3, 5, 7, and 9 d of Orco dsRNA interference, the antennae were collected from the dsRNA treatment group and the control group. Triplicates were collected for each sample that from 100 beetles. The tissue and cell extraction kit (TRIzol) kit were used to extract total RNA and PrimeScript™RT reagent Kit with gDNA Eraser (Perfect Real Time) was used to synthesize cDNA. The abm®EvaGreen qPCR MasterMix-no dye assay kit was used for fluorescence quantitation and Roche LightCycler480 was used for quantitative PCR. Tubulin was used as an internal reference for RT-PCT. Supplementary table 1 shows the gene amplification primers. Real-time PCR reaction program was: 95°C, 5 min of pre-denaturation, followed by 40 cycles of 94°C, 30 s for denaturation, and 60°C, 1 min of annealing and extension. The conditions for the melt curve were 95 °C for 10 s, 65°C for 5 s, and 95°C for 0.5 s.
2.6 Orco dsRNA interference
The nucleic acid fragments (300 bp) encoding the first and second transmembrane domains of D. tarsalis Orco (DtarORco) were used as interference targets and Ribobio (Guangzhou, China) was used to chemically synthesize the target fragments (Li et al., 2016). XhoI was used to linearize the L4440 vector and agarose gel electrophoresis was used to examine the linearization results. The target fragment and linearized plasmid were mixed in a 5:1 M ratio and ligated at 37°C for 30 min. The cloning sites were EcoRI and XhoI. After ligation, the plasmid was immediately transformed into ribonuclease III-deficient Escherichia coli strain HT115 DE3, incubation in 2 × YT broth medium containing 100 μg/ml ampicillin and 10 μg/ml tetracycline (Chen et al., 2016). The Single colony of HT115 transformant were cultured in LB at 37 °C overnight. The bacteria culture was diluted 100-fold in 2 × YT medium with above antibiotic, then incubated at 37°C to OD600 = 0.5. The bacteria were cultured for additional4 h at 37 °C after add 0.4 mM IPTG. The bacteria were collected by centrifugation at 5000 g for 10 min and resuspened in ddH2O to 250×. The suspension were sprayed on G. uralensis leaves. The same concentration of untransformed L4440 plasmid was used as a control. After D. tarsalis fed on G. uralensis leaves for 24 h, fresh leaves were provided.
2.7 Electrophysiology and behavioral measurements
Based on orco expression level, 3 days after OrcoRNAi treatment of D. tarsalis, electrophysiology and behavioral responses to hexanal (CAS: 66-25-1), Z-3-hexenal (CAS: 6789-80-6), and Z-3-hexenol (CAS: 928-96-1) were measured, with dichloromethane as a control. The measurement concentration was 10 μg/μL.
EAG measurement: Antennas were resected at the base from adult D. tarsalis. The incision end was connected to the reference electrode and the recording electrode was inserted at the tip of the antenna. A silver-silver chloride wire was inserted in the electrode and connected to a signal amplifier. The conducting solution was an aqueous solution of 750 mg/ml NaCl+35 mg/ml KCl+29 mg/ml CaCl2 2H2O. 400 ml/min clean and moist air was continuously blown on the setup. 10 ul of test solution was added to 2.5 cm × 0.5 cm filter paper and allowed to equilibrate for 20 s inside a Pasteur pipette before stimulation was carried out. The stimulation duration was 0.2 s and stimulation interval were 2 min. EAG 2000 (Syntech, the Netherlands) was used to monitor the antenna signal and data was collected (Chen et al., 2019). Four replicates were measured for each treatment and five antennas were repeated each time.
Behavioral measurement: The Y-shaped olfactometer used ha a main arm length of 25 cm, two lateral arms of length 15 cm and a 45° angle between lateral arms. The internal diameter of the main and lateral arms was 3 cm. The two lateral arms were connected with 100 ml conical flask using a Teflon tube and the test compound and control solvent dichloromethane were added to the conical flask. Purified air was blown into the flasks at a flow rate of 0.5–0.6 L/min. During measurement, each insect was observed for 15 min and entrance into the lateral arm and retention for 1 min was used as the selection criteria. A total of 50 insects were measured for each treatment. After the end of the experiment for each group, all conical flasks and connecting tubes were thoroughly cleaned with alcohol and dried with a hair dryer.
2.8 Data analysis
The 2−(△△Ct) method (Adnan et al., 2011; Livak and Schmittgen 2001) was used for RT-qPCR quantitative data processing. One-way ANOVA followed by Tukey’s multiple comparison was used for analysis of gene expression differences. Student’s t test was used for analysis of electrophysiological response differences between the two groups. χ2 was used to analyze behavioral differences. GraphPad Prism eight was used for the statistical analysis and graph plotting for all experimental data.
3 Results and analysis
3.1 PacBio full-length sequences

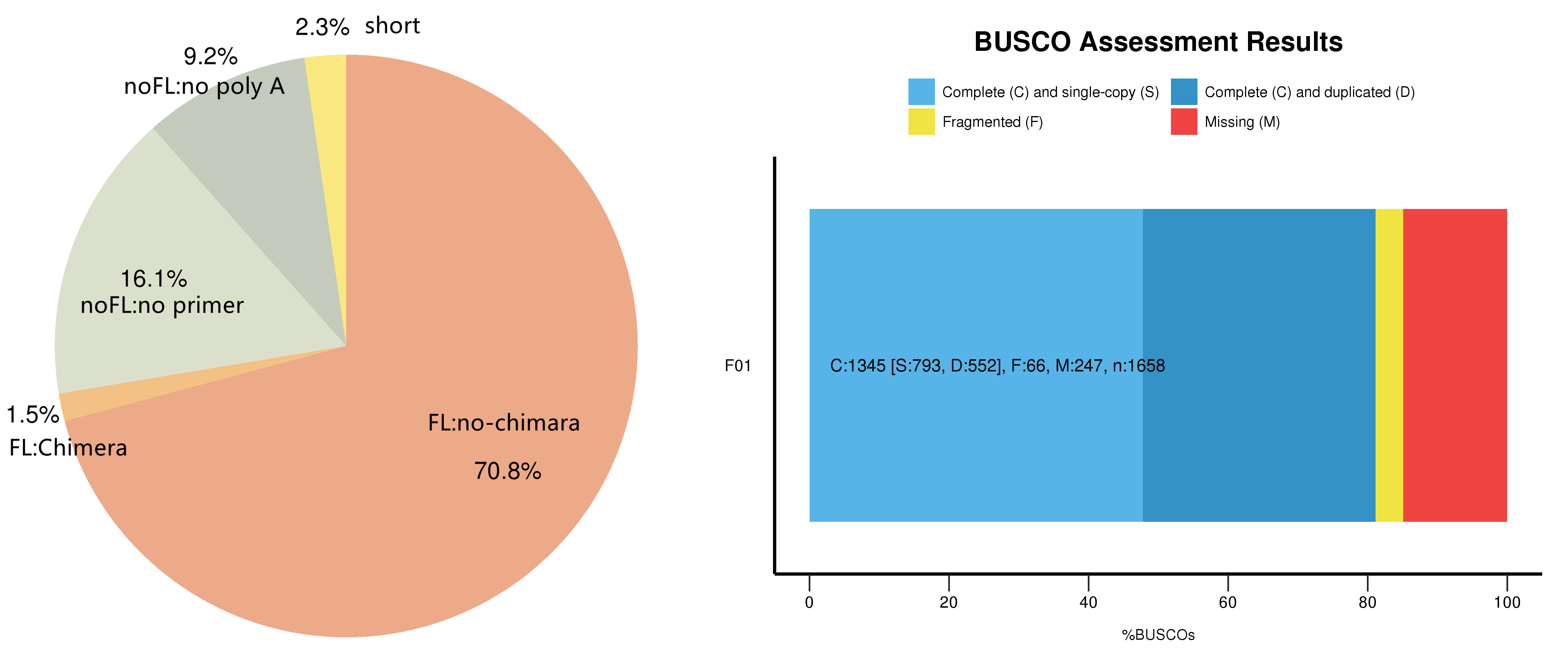

Full passes ≥0 and sequence accuracy >0.80 were used as criteria to obtain 632,484 reads of interest (ROI) from the original sequences. The mean length, number of ROI sequences, and passes of inserted sequences in the library were 2,398 bp, 0.95, and 14, respectively, and were used to evaluate the offline data (Supplementary Table S2).
A total of 448,083 FL non-chimeric fragments were obtained, accounting for 70.8% of all sequences. The mean length was 2203 bp. In addition, there were 101,895 no primer sequences (16.1%), 58,225 no poly-A sequences (9.2%), 14,575 short reads (2.3%), and 9,712 full-length chimeric sequences (1.5%) (Supplementary Table S3, Supplementary Figure S1A).
Iterative cluster analysis was carried out on ROI sequences to obtain 277,861 consensus transcripts, mean length was 2,364 bp, and accuracy was more than 99%. After polishing using non-full-length sequences, a total of 204,545 high-quality transcripts were obtained, accounting for 73.61% of all transcripts. CD-HIT non-redundancy analysis was carried out on high-quality transcripts and polished transcripts to obtain 63,493 transcript sequences. Integrity evaluation was carried out on the transcriptome after redundancy removal and a total of 1658 BUSCO groups were found. A total of 1345 intact BUSCO C) groups were found, accounting for 81.13%, including 793 single copy S) and 552 duplicated D) BUSCO groups. 66 fragmented BUSCO (F, 3.98%) and 247 missing BUSCO (M, 14.90%) groups were obtained (Supplementary Figure S1B), showing that the integrity of the transcriptome was reliable.
3.2 Functional annotation of non-redundant high-quality transcripts
Obtain annotation information for 52,436 transcripts (Supplementary Table S4), and annotation rate was 82.59%. Alignment results showed that the species with the highest homology in annotated transcripts obtained from the NR database (E-value≤1.0e−5) was L. decemlineata, which also belongs to the Chrysomeloidea superfamily followed by Anoplophora glabripennis (Coleoptera) and 27.9% and 25.9%, respectively of the transcripts were annotated (Supplementary Figure S2).
Transcripts with E-value <1.0e−5 for GO classification and 13,372 transcripts were classified into three major categories and 51 subcategories, 16,402 molecular functions, 16,363 cellular components, and 25,983 biological processes. Of the 17 cell components subclasses, cellular components (3,527 transcripts, 26.38%), cells (3,526 transcripts, 26.37%), organelles (2,384 transcripts, 17.83%), cell membrane (2,310 transcripts, 17.27%), membrane components (1,627 transcripts, 12.17%), and macromolecular complexes (1,544 transcripts, 11.55%) were annotated. Of the 14 molecular function subclasses, binding (7,135 transcripts, 53.36%) and catalytic activity (6,558 transcripts, 49.04%) were annotated. Of the 20 biological process subclasses, metabolic processes (7,872 transcripts, 58.87%), cell transformation (6,306 transcripts, 47.16%), and single organism process (4,589 transcripts, 34.32%) were annotated. The above 11 subclasses are representative subcategories in GO classification. A total of 18,521 transcripts were divided into 25 subcategories based on COG classification. Of these, the top three subcategories by number of transcripts were replication, recombination, and repair (1,470 transcripts, 7.94%), post-translational modification, protein turnover, and chaperone functions (1,380 transcripts, 7.45%), and amino acid metabolism and transport (1,334 transcripts, 7.20%). The eggNOG database was used for functional description and functional annotation of orthologous groups and 46,455 transcripts were classified into 25 subgroups. With the exception of 20,673 transcripts without predicted annotation, the top three transcripts by number were post-translational modification, protein turnover, and chaperone (3,069 transcripts, 6.61%), intracellular trafficking, secretion, and vesicle transport (2,153 transcripts, 4.63%), and transcription (1,693 transcripts, 3.64%). A total of 25 subclasses were obtained after alignment with the KOG database, including 3,0676 transcripts, of which signal transduction mechanisms (3657 transcripts, 11.92%), post-translational modification, protein turnover, and chaperone (2456 transcripts, 8.00%), and general function prediction only (6475 transcripts, 21.11%) were representative subclasses. The KEGG database was used to predict 268 pathways containing 19,189 transcripts.
3.3 Identification of odorant receptors in Diorhabda tarsalis

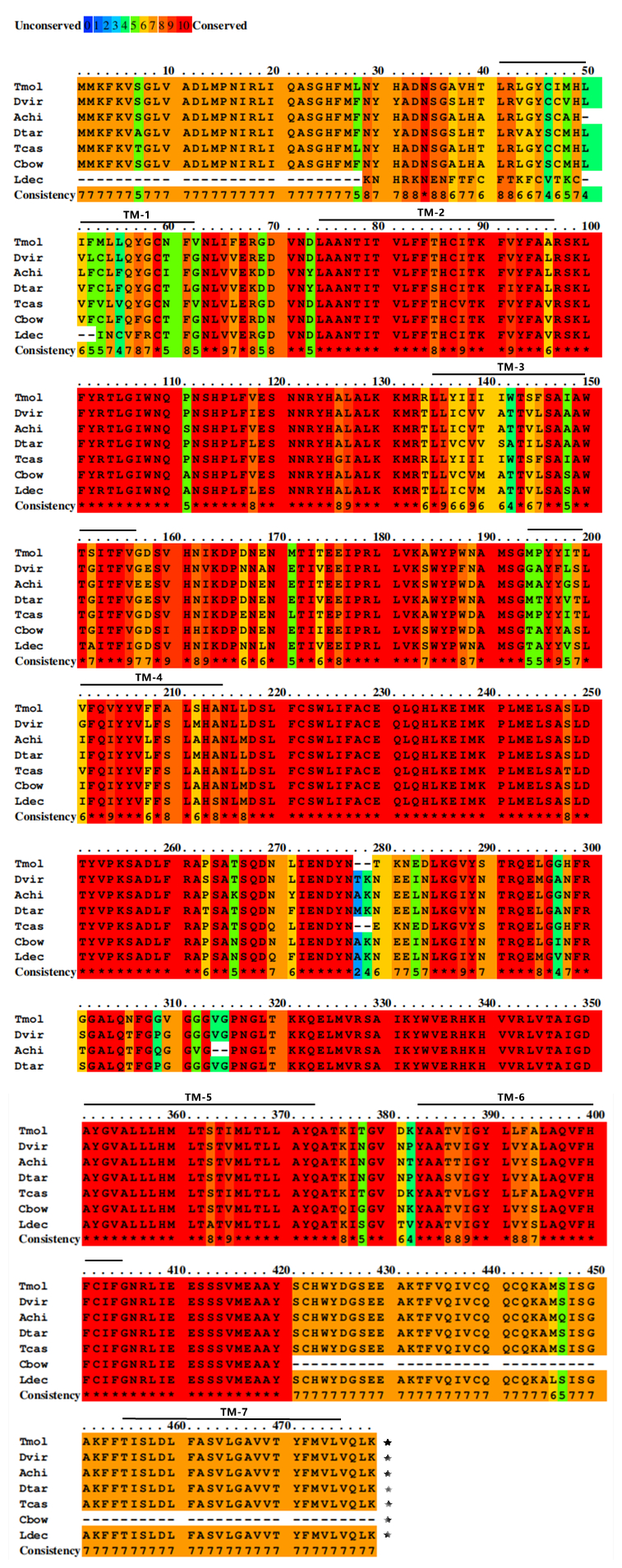

29 candidate D. tarsalis odorant receptor genes were identified. These genes were given temporary names based on phylogenetics by which classical odorant receptors were named “DtarORx” (x = 1–28) and the non-classical odorant receptor was named DtarORco (Table 1). The candidate ORs encode for 130–479 amino acids of which intact ORFs were present for eleven ORs, accounting for37.93%. Odorant receptors contain 1–7 transmembrane domains and 24 (85.71%) ORs have more than five transmembrane helices. Twenty ORs with E-values of more than 10−25 and similarity > 50% were identified, accounting for 68.97%. The identified 29 ORs were homologous to eight other insects, of which 9, 9, 4, 2, 1, 1, 1, and one homolog was found in P. maculicollis, P. aenescens, C. bowringi, G. daurica, A. chinensis, D. virgifera, Sitophilus oryzae, and A. glabripennis, respectively. DtarORco possess classical odorant receptor characteristics as its sequences includes a 1440 bp open reading frame (ORF) that encodes 479 amino acids and shows extremely high conservation compared with homologs in the Coleoptera. Its amino acid similarity with non-classical odorant receptors in O. communa, D. virgifera, L. decemlineata, C. bowringi, T. castaneum, and A. chinensis) was 94.99%, 86.22%, 92.69%, 78.71%, 77.45%, 85.59%, and 90.81%, respectively (Supplementary Figure S3). DtarORco contains seven transmembrane helices, with the N-terminal located at the intramembrane region and C-terminal located at the extramembrane region. The 1st, 3rd, and 4th transmembrane helices have high sequence heterogeneity and the other four transmembrane domains have extremely high sequence similarity. The predicted molecular weight of the mature DtarORco protein is 3.898 kDa and its molecular formula is C2462H3796N624O677S29. DtarORco has an isoelectric point of 7.94, contains 35 negatively charged residues (Asp + Glu), and 37 positively charged residues (Arg + Lys). The hydrophobicity index (GRAVY) is 0.264 and the lipophilicity index is 99.75 indicating that the protein is strongly lipophilic. The predicted in vitro half-life in mammalian reticulocytes is 30 h, instability index II) is 34.55, and the protein is stable. A total of 42 phosphorylation sites were predicted, showing that there is diverse phosphorylation regulation of the protein after translation.

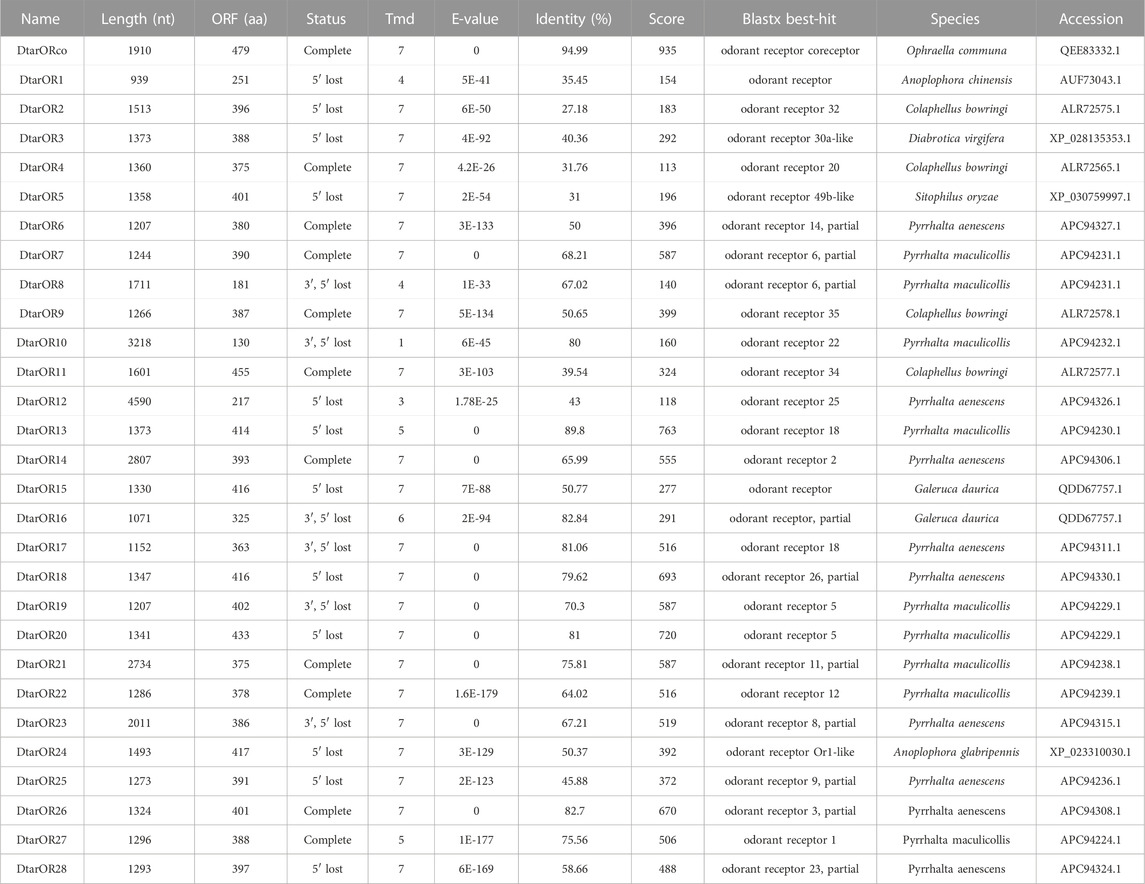

TABLE 1. List of odorant receptor genes in D. tarsalis antennal transcriptome.
3.4 Relative expression level of odorant receptors in Diorhabda tarsalis

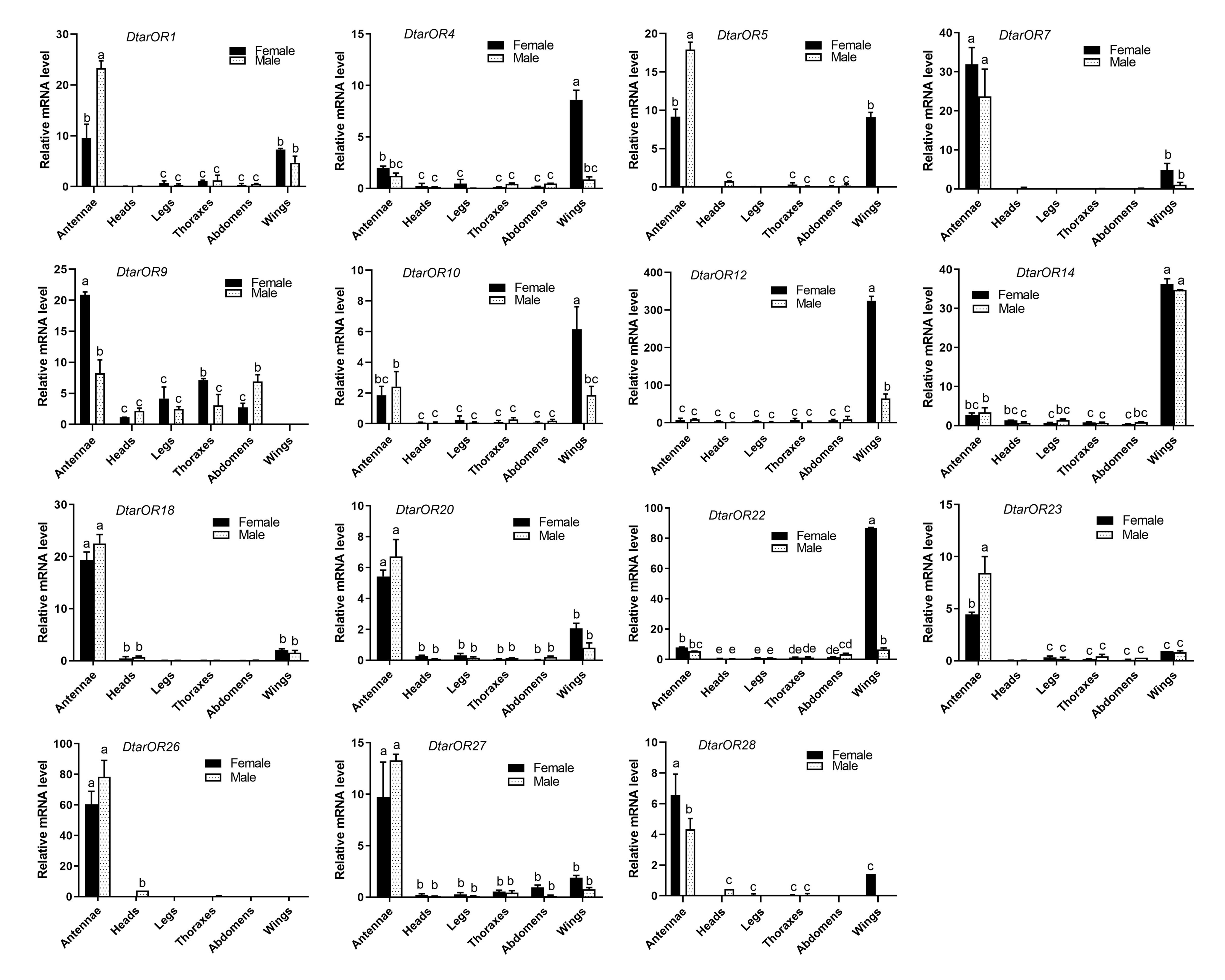

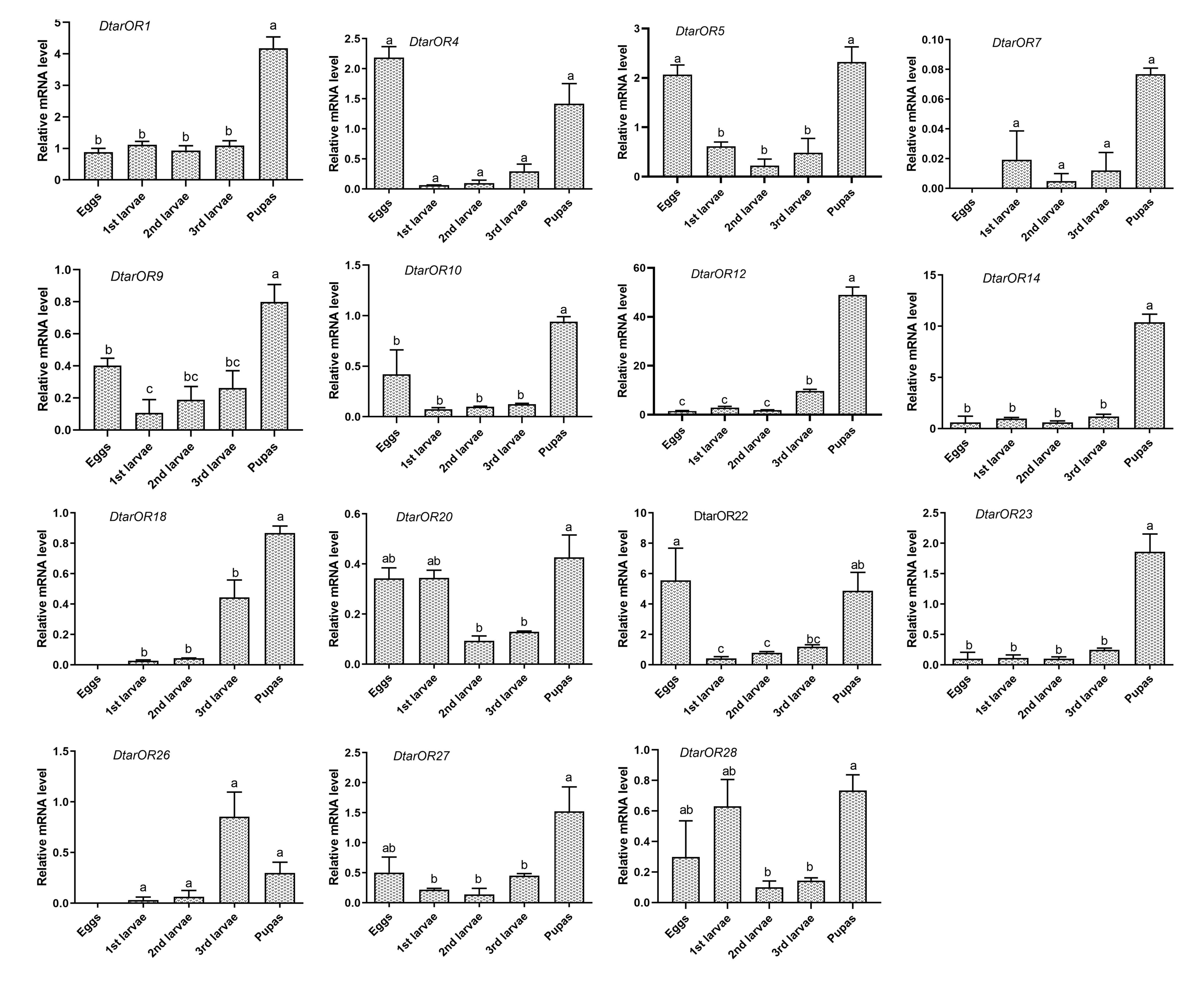

RT-qPCR was used to measure the expression level of 15 randomly selected ORs and DtarORco in various organs of adult D. tarsalis and various life cycle stages of D. tarsalis (Figure 1, Supplementary Figures S4, 5). DtarORco, DtarOR7 and DtarOR26 shows extremely significant differences in relative expression level at various sites in adult beetles (F = 53.43, p < 0.01; F = 19.76, p < 0.01; F = 43.33, p < 0.01 respectively), and the expression levels were significantly higher than other DtarORs in antenna, DtarORco (female: 474.28 ± 137.60, male: 433.26 ± 73.50), DtarOR7 (female: 31.91 ± 7.46, male: 23.70 ± 12.09) and DtarOR26 (female: 60.39 ± 14.62, male: 78.50 ± 18.45) in antenna. Three genes were no differential expression between male and female beetles, and almost no expression in other sites except that DtarORco and DtarOR7 had low expression in the elytra. In particular, the expression levels of DtarOR12, DtarOR14, and DtarOR22 were high in the elytra. There were significant differences in relative expression level of most ORs (DtarORco) in different life stages and among different instars, however, the overall expression level was low, expression levels in pupae were higher than in the other life stages.
FIGURE 1. Relative expression levels of DtarORco in adult antenna, head, leg, thorax, abdomen, wing (A) and in different life stages or among different instars (B) using RTqPCR. The relative expression level is indicated as mean ± SE (N = 3). Different capital letters mean significant difference between tissues (p < 0.05).
3.5 Phylogenetic analysis
A total of 29 D. tarsalis odorant receptors and 243 ORs from eight Coleoptera species (>200 aa) were used to construct phylogenetic trees (Figure 2). The overall support was high, showing that the phylogenetic relationship obtained was reliable. All OR sequences were clustered into seven branches and the 29 DtarORs were dispersed in various branches in the phylogenetic net. Orco from the species used for tree construction clustered together. DtarOR1- DtarOR10, DtarOR12- DtarOR17, DtarOR18-DtarOR20, DtarOR21-DtarOR23, and DtarOR24-DtarOR28 clustered in the same branches while DtarOR11 and CbowOR34 from C. bowringi clustered in a single branch, showing that they have further phylogenetic distances compared with other odorant receptors. Most DtarORs and odorant receptors from Chrysomelinae species clustered together, showing that the homologous relationships and inter-species phylogenetic relationships of ORs were consistent.
FIGURE 2. Phylogenetic tree of odorant receptor genes from D. tarsalis and other Coleoptera. Pmac, Pyrrhalta maculicollis (N = 22); Temo, Tenebrio molitor (N = 19); Paem, Pyrrhalta aenescens (N = 25); Cbow, Colaphellus bowringi (N = 34); Ldec, Leptinotarsa decemlineata (N = 31); Dvir, Diabrotica virgifera (N = 27); Tcas, Tribolium castaneum (N = 28); Achi, Anoplophora chinensis (N = 28).
3.6 Expression level changes after DtarORco RNAi
After D. tarsalis fed on leaves that were sprayed with dsRNA-expressing HT115, RT-qPCR was used to measure the relative expression level of DiarORco on Days 1, 3, 5, 7, 11, and 15 (Figure 3). The differences in the relative expression level of DtarORco on different days after interference treatment were significant (F = 5.641, p = 0.0161). The differences between 1 d after interference and 3 d and 5 d after interference were significant, but other differences were not significant. The relative expression level on Day 1 was 1.01 ± 0.13, which was an increase compared with the control group that was fed untransformed L4440 plasmid. The Day 3 expression level was the lowest (0.74 ± 0.03) and was 26% lower than the control group. Subsequently, expression levels on various days gradually increased but were lower than the control group and the expression level on Day 15 was similar to the control group. This shows that the DtarORco expression level first increased before decreasing and then gradually increased after dsRNA interference in D. tarsalis. The decrease in the expression level was most significant on Day 3 of interference. The interference effects persisted for 15 d.

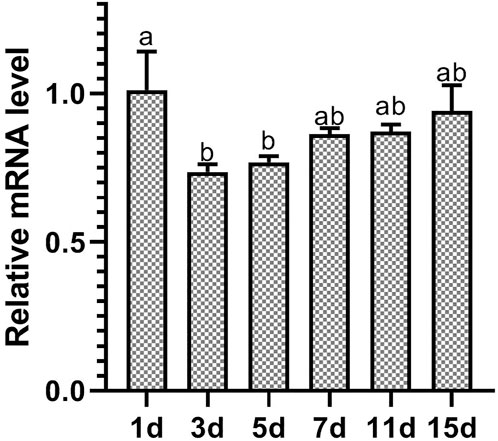

FIGURE 3. Expression levels of DtarORco after knockdown by RNAi (n = 3, p < 0.05).
3.7 Electrophysiology and behavioral measurements after DtarORcoRNAi
The EAG responses of D. tarsalis to three sensitive host volatile substances were measured 3 days after DtarORco dsRNA interference in D. tarsalis (Figure 4). After interference of DtarORco expression, antenna responses to the three volatile substances significantly decreased. The response time to hexanal was 2.19 ± 0.37 mv, which was a decrease of 38.47% compared to the control group and this difference was significant (t = 3.7794, p = 0.0129). The response time to Z-3-hexenal was 0.61 ± 0.40 mv, which was a decrease of 55.77% compared with the control group and this difference was significant (t = 2.6570, p = 0.0450). The response time to Z-3-hexenol was 0.86 ± 0.16 mv, which was a decrease of 40.60% compared with the control group and this difference was significant (t = 3.8146, p = 0.0124). Hexanal, Z-3-hexenal, Z-3-hexenol are signaling molecules that D. tarsalis uses to locate its host and decreased electrophysiological responses to these substances means that DtarORco interference decreases recognition of host odor molecules.
FIGURE 4. Electroantennogram (EAG) responses ofRNAi-treated D. tarsalis to host volatiles after 3 d *represents significant difference,**represents extremely significant difference (n = 4).
The preferences of D. tarsalis to three sensitive host volatiles were not significant (hexanal: χ2 = 3.0695, p = 0.0798; Z-3-hexenal: χ2 = 0.0731, p = 0.7869; and Z-3-hexenol: χ2 = 0.0731, p = 0.7869), after DtarORco dsRNA interference 3 days, and they exhibited random selection behavior (Figure 5). In contrast, the control group exhibited extremely significant preference. The difference in selection success rate of D. tarsalis towards hexanal was extremely significant compared with the control group, which was a decrease of 44.72%. The difference in selection success rate of D. tarsalis towards Z-3-hexenal was significant compared to the control group, which was a decrease of 36.99%. The difference in selection success rate of D. tarsalis towards Z-3-hexenol was not significant compared with the control group, which was a decrease of 25.21%. These data show that host tracking signal and host localization capabilities were weakened in D. tarsalis after DtarORco interference.
FIGURE 5. Behavioral response of D. tarsalis to three odorant signals for host location after DtarORco silencing. *represents significant difference,**represents extremely significant difference (n = 50).
4 Discussion
We obtained 29 D. tarsalis ORs and many full-length ORFs. This number is comparable to the number of ORs in other Coleoptera species, such as 26, 22, 21, 34, 24, 30, and 37 in P. aenescens, P. maculicollis, G. daurica, Ambrostoma quadriimpressum, A. tetrariimpressum, O. communis, and L. decemlineata, respectively, but lower than C. bowringi, P. striolata, and B. longissima that had 43, 73, and 48 ORs, respectively, and far fewer than T. castaneum (341 ORs) (Hunt et al., 2007; Mitchell et al., 2012; Li et al., 2015a; Zhang R. R. et al., 2016; Wang et al., 2016). This may be because the level of some transcripts is too low and not covered by transcriptome sequencing or the evolution of certain transcripts is too specific and cannot be annotated. Therefore, the identified odorant receptors cannot completely reflect the odorant receptors in the D. tarsalis antenna (Li et al., 2015b). However, the genome data of D. tarsalis has not been published and it is not possible to mine other OR genes. Quantitative analysis showed that 15 ORs are highly expressed in wings. For example, DtarOR14 is specifically expressed in wings and its ecological function requires further study. In the phylogenetic trees constructed in this study, most D. tarsalis odorant receptor genes clustered with homologs in related species, while DtarOR11 and CbowOR34 from C. bowringi clustered together. This species-specific expansion was also found in the OR genes of T. castaneum, M. caryae, and A. corpulenta. Phylogenetic trees were constructed and DtarORco was found to have a complete ORF and typical characteristics of the odorant receptor family. In addition, DtarORco was highly expressed in the antenna. These findings increased understanding of the molecular mechanisms of olfactory recognition in D. tarsalis. The expression level of DtarORco significantly decreased whenRNAi targeting DtarORco was used. In addition, the ability to sense host volatile substances decreased and tactic behavior was lost. The study results provide a theoretical basis to better understand the molecular mechanisms of olfactory recognition in D. tarsalis and simultaneously proves the feasibility of green prevention and control using D. tarsalisRNAi against DtarORco.
Orco plays an important role in chemical olfactory recognition in insects (He et al., 2018) and knocking out this function can decrease their olfactory recognition capabilities (Soffan et al., 2016). For example, silencing Orco in Ophraella communa blocks its ability to seek hosts. This is because ORs cannot normally bind to Orco to form dimers and specifically transduce odor signals (Benton et al., 2006). Here DtarORco is expressed in the antennae of both male and female beetles and there was no statistical difference in expression level between the sexes. This is consistent with findings in Drosophila melanogaster (Menuz et al., 2014) and may be due to common ecological benefits in both males and females under normal circumstances. We found that DtarORco also has high expression in wings in addition to the antennae. Sitobion avenae uses the pheromone E-β-farnesene to induce wing bud development and olfactory recognition is associated with many biological processes (Fan et al., 2015). Similarly, DtarORco may have other unique functions in wings. In this study, dsRNA was used to silence DtarORco and there were significant changes in electrophysiology and behavioral phenotypes in D. tarsalis towards host volatile substances. This proved that DtarORco is indispensable to host seeking and localization by D. tarsalis. Therefore, regulation of host localization behavior using DtarORco as a target has application potential. Orco knockout not only silences host localization ability but also affects mating, reproduction, and population growth. Further research is needed to evaluate its combined effects. This study also conducted partial suitability research on the induction of DtarORco silencing. The C-terminal of Orco binds to the classical odorant receptor to form a dimer (Ma et al., 2020) and is highly conserved in insects. To design highly specific dsRNAs, the 1st and 2nd transmembrane domains in the N-terminal of DtarORco were used as targets to design a 300 bp dsRNA. The most direct effects of Orco silencing are significant changes in movement speed and movement paths. For example, Orco mutations in ants disrupted their foraging and induced a wandering phenotype (Yan et al., 2017). When DtarORco was silenced, the preferences of D. tarsalis towards three important host volatile substances were significantly decreased, demonstrating that Orco is vital for recognition of these three substances. The RT-qPCR results in this study showed that DtarORco expression was only partially silenced and the most significant reduction in relative expression level was only 26%. However, this decreased electrophysiological responses in antennae by 38.4%–55.77% and significantly decreased host localization behavior in D. tarsalis. This may have occurred because Orco needs to bind to many ORs and a small decrease in Orco significantly affected allocation to specific ORs. Although EAG response was somewhat decreased, it had reached the potential threshold for behavioral decisions.
Data availability statement
The deep sequencing dataset has been uploaded to the NCBI Short Read Archive database, BioProject ID number PRJNA312006. The Accession numbers are SRR3170921,SRR3170922 and SRR3170923.
Author contributions
W-PS designed the experiments. H-HC, S-QT, YW, X-LL, and F-QL performed the experiments and analyzed the data. H-HC, W-PS, and YD wrote the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This research was supported by the Leading Fund of Science and Technology Innovation of ningxia (Grant No. DWX-2019002).
Acknowledgments
The authors thank the reviewers for helpful comments and valuable suggestions during the revision of the early version of the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2022.1069391/full#supplementary-material
