Effects of Prenatal Exposure to Alcohol and Smoking on Fetal Heart Rate and Movement Regulation

Negative associations of prenatal tobacco and alcohol exposure (PTE and PAE) on birth outcomes and childhood development have been well documented, but less is known about underlying mechanisms. A possible pathway for the adverse fetal outcomes associated with PTE and PAE is the alteration of fetal autonomic nervous system development. This study assessed PTE and PAE effects on measures of fetal autonomic regulation, as quantified by heart rate (HR), heart rate variability (SD-HR), movement, and HR-movement coupling in a population of fetuses at ≥ 34 weeks gestational age. Participants are a subset of the Safe Passage Study, a prospective cohort study that enrolled pregnant women from clinical sites in Cape Town, South Africa, and the Northern Plains region, United States. PAE was defined by six levels: no alcohol, low quit early, high quit early, low continuous, moderate continuous, and high continuous; while PTE by 4 levels: no smoking, quit early, low continuous, and moderate/high continuous. Linear regression analyses of autonomic measures were employed controlling for fetal sex, gestational age at assessment, site, maternal education, household crowding, and depression. Analyses were also stratified by sleep state (1F and 2F) and site (South Africa, N = 4025, Northern Plains, N = 2466). The final sample included 6491 maternal-fetal-dyad assessed in the third trimester [35.21 ± 1.26 (mean ± SD) weeks gestation]. PTE was associated with a decrease in mean HR in state 2F, in a dose dependent fashion, only for fetuses of mothers who continued smoking after the first trimester. In state 1F, there was a significant increase in mean HR in fetuses whose mother quit during the first trimester. This effect was driven by the Norther Plains cohort. PTE was also associated with a significant reduction in fetal movement in the most highly exposed group. In South Africa a significant increase in mean HR both for the high quit early and the high continuous group was observed. In conclusion, this investigation addresses a critical knowledge gap regarding the relationship between PTE and PAE and fetal autonomic regulation. We believe these results can contribute to elucidating mechanisms underlying risk for adverse outcomes.

Introduction

Many deleterious effects of alcohol consumption during pregnancy on fetal development, birth outcomes, and subsequent childhood development are well-documented (Popova et al., 2016). Prenatal alcohol exposure (PAE) is associated with increased risk of preterm birth, stillbirth, low birth weight, birth defects, and risk for neurodevelopmental disorders (Bailey and Sokol, 2011). Prenatal tobacco exposure (PTE) has also been associated with higher risk of negative outcomes including preterm birth and stillbirth as well as sudden infant death syndrome (SIDS), attention deficit hyperactivity disorder (ADHD) (Huang et al., 2018), and conduct disorder in offspring (Klonoff-Cohen and Lam-Kruglick, 2001; Cnattingius, 2004; Vardavas et al., 2010). Prior research has not elucidated a safe quantity or timing of alcohol or tobacco exposure during pregnancy, thus national guidelines in most countries advise against consuming any alcohol and smoking during pregnancy (American College of Obstetricians and Gynecologitsts, 2017; International Alliance for Responsible Drinking (Iard)., 2019).

A possible marker of effects of alcohol and smoking on fetal development is autonomic nervous system (ANS) activity as assessed through measures of fetal heart rate (HR) and heart rate variability (HRV). HRV is the variation in the heart’s beat-to-beat intervals and it is regulated by the ANS, through the synergistic activity of the parasympathetic and sympathetic branches (Saul, 1990; Acharya et al., 2006). With increasing gestational age (GA), fetal HR tends to decrease while HRV increases, due to increased parasympathetic activity, maturation of central mechanisms, and more frequent occurrence of breathing movements (Cnattingius, 2004).

Studies investigating the effects of PAE on fetal HRV have obtained mixed results: some, performed during maternal intoxication, showed reduced fetal HRV (Halmesmaki and Ylikorkala, 1986; Silva et al., 1987; Schneider et al., 2008). However, two other reports found that moderate levels of acute PAE resulted in no change in fetal HR (McLeod et al., 1983; Mulder et al., 1998). In other physiological studies, McLeod and co-workers found a reduction in fetal breathing movements in response to acute alcohol exposure (McLeod et al., 1983) while Mulder et al. (1998) found no change in fetal breathing movements but observed suppressed fetal eye movements immediately following alcohol exposure. Studies investigating the effect of chronic PAE are sparse and typically retrospective. Studies reporting the effects of PTE on HR and HRV have also demonstrated mixed results. Prior studies have either reported an increase in fetal HR from acute exposure to maternal smoking (Quigley et al., 1979; Kelly et al., 1984; Péterfi et al., 2019) or no statistically significant difference in fetal HR after acute exposure to maternal smoking (Barrett et al., 1981; Goodman et al., 1984; Oncken et al., 2002). Additionally, prior studies have reported decreased HRV in response to acute maternal smoking (Eriksen et al., 1984; Goodman et al., 1984; Péterfi et al., 2019). Investigations of fetal HR and HRV in chronic maternal smokers reported decreased baseline fetal HR compared to controls and reduced HRV (Kapaya et al., 2014; Spyridou et al., 2017; Zeskind and Gingras, 2018). Chronic effects of maternal smoking have also been associated with reduced fetal breathing movements (Gennser et al., 1975), reduced fetal movement (Coppens et al., 2001), and non-reactive fetal activity-acceleration determination tests (Phelan, 1980).

In sum, research to date has primarily investigated acute effects of high levels of PAE or PTE on fetal HR or HRV. Additionally, the effects of acute and chronic maternal smoking and alcohol consumption on FHR and fetal HRV have been investigated independently of one another. This leaves a significant gap in the literature for understanding the dual effects of chronic low and moderate alcohol and tobacco use during pregnancy on function and development of fetal autonomic nervous system. The dataset analyzed in this report is a subset of the Safe Passage Study conducted by the Prenatal Alcohol and SIDS and Stillbirth (PASS) Network (Dukes et al., 2014). The aim of the study was to characterize the role of prenatal exposure to alcohol, cigarettes, and other environmental stressors on SIDS, stillbirth, and FASD. The Safe Passage Study enrolled approximately 12,000 maternal-fetal dyads in the Northern Plains (NP) of the United States (North and South Dakota) and Cape Town, South Africa (SA). Both these areas are known for high risks of SIDS, stillbirth, and FASD and have high rates of alcohol consumption and smoking during pregnancy as well as other known risk factors such as recreational drug use, or prior trauma (Bulterys, 1990; Iyasu, 2002; May et al., 2005, 2014; Popova et al., 2017). The present report focuses on reporting the effects of data driven patterns of alcohol consumption and smoking during pregnancy on measures of fetal HR, HRV movement and HR-movement coupling obtained from cardiotocographic recordings of fetuses at ≥ 34 weeks gestational age (GA).

Materials and Methods

Participants

From 2007 until 2015, the Safe Passage Study followed the outcomes of ∼12,000 pregnancies among women from two comprehensive clinical site (CCS), one in the Cape Town area, South Africa, and one in the Northern Plains, United States. The United States site is comprised of five clinical sites in North Dakota and South Dakota, including two sites on American Indian Reservations. In South Africa, recruitment occurred from Bishop Lavis and Belhar residential areas within Cape Town, which serve mainly the multiracial population (South African multiracial ethnic group (multiracial group), which have ancestry from more than one of the various populations inhabiting the region, including Khoisan, Bantu, European, Austronesian, and East Asian or South Asian). Screening and enrollment occurred at prenatal clinics affiliated with each CCS between 6 weeks gestation up to, but not including, delivery. Ethical approval was obtained from Stellenbosch University, Sanford Health, the Indian Health Service, and New York State Psychiatric Institute. Written informed consent to record fetal HR was part of the consent for the main study. Maternal and infant charts were abstracted to obtain demographic and relevant clinical information. We excluded participants with maternal health conditions known to affects our outcome measures (gestational diabetes, preeclampsia, hypertension), psychiatric medication use during pregnancy (SSRI’s, antidepressants, classic antipsychotics, atypical antipsychotics, mood stabilizers, stimulants, antianxiety medications, or anticonvulsants), any recreational drug use during pregnancy, multiple births, and congenital anomalies.

Self-Reported Exposure Measures

The protocol used to obtain detailed information about quantity and timing of prenatal exposure to alcohol and smoking is presented in Dukes et al. (2017). A modified Timeline Follow-back interview was employed to collect this information. Maternal smoking information was obtained through maternal interviews by trained research staff to estimate average cigarettes smoked per week for each week of pregnancy. Interviews were performed up to 4 times during pregnancy (recruitment, 20–24 weeks GA, 28–32 weeks GA, and 34–38 weeks GA). A validation study using a subset of N = 108 Safe Passage Study women was performed and it indicated strong concordance between maternal report and meconium biomarkers (Himes et al., 2015). As a result of the methodology for the collection of self-report exposure information, a given participant could potentially have single or multiple segments of missing information on alcohol or smoking consumption. For this reason, we imputed missing daily exposure data using a K-Nearest Neighbor approach (Sania et al., 2020). Further information can be found in the Supplementary Material 1.

We then used clustering techniques to characterize multiple patterns of maternal drinking and smoking behaviors (Pini et al., 2019). Further information on alcohol and smoking exposure clustering can be found in the Supplementary Material 2. In the present analysis we utilized six categories of PAE (no alcohol, low quit early, high quit early, low continuous, moderate continuous, and high continuous) and a four-level PTE variable (no, quit early, low continuous, and moderate/high continuous). Depression was assessed using the Edinburgh Postnatal Depression Scale (EPDS), which has been validated for use during pregnancy, at the first study visit (Cox et al., 1987; Rubertsson et al., 2011).

Data Acquisition and Processing

Fetal assessments were performed at 34–38 weeks gestation (Mean ± SD = 35.4 ± 1.2 weeks). Assessments were completed between 9 am and 4 pm and lasted approximately 50 min. Mothers were seated in a reclining chair or were lying supine with a 15° lateral tilt and fitted with the recording equipment. Mothers were undisturbed for the first 20 min of data collection and then answered questions on alcohol and smoking habits, recreational drug use and depression during the remaining 30 min. Fetal HR and movement data were collected using a single wide-array Doppler transducer placed on the maternal abdomen connected to a Toitu MT-320 or a MT-516 model Doppler actocardiograph (Toitu Company, Ltd., Toyko, Japan). FHR and FMOV signals were digitized at 20 Hz using a custom-built physiological data acquisition hardware and software system (DATACQ, Medelex, Inc) interfaced to a laptop computer. Specific details on the acquisition protocol can be found in previous articles (Myers et al., 2017; Shuffrey et al., 2019). Further information on data processing can be found in the Supplementary Material 3.

Outcome Parameters

Mean HR and standard deviation (SD) of HR were computed for each epoch, using only the non–interpolated values. The median fetal movement was computed for each accepted fetal HR epoch except in cases where the fetal movement signal exceeded the range of the Toitu fetal movement amplifier or was not present. These cases comprised 2.5% of all records and were due to equipment failure or user error. In addition, the cross-correlation of fetal HR and movement (heart rate/movement coupling) and the lag (seconds) between movement and fetal HR derived from the cross-correlation function were computed for each accepted 4-min fetal HR epoch. The fetal HR and movement signals were first low-pass filtered between 0.002 and 0.05 Hz using a 400-point FIR filter. The fetal movement signal was z–transformed and the fetal HR was further processed by subtracting the mean from a local regression of 6 s and negative fetal HR values were set to zero (Dipietro et al., 2001). As a further control for artifact, each segment required a minimum covariance value of 0.5 and a lag at the maximum cross–correlation greater than –15 sec or less than 0 sec (i.e., changes in FMOV were required to precede changes in FHR) (Dipietro et al., 2001). For each recording, means of all the above variables were computed for the accepted segments, for each fetal state, including state 1F, also known as the quiet fetal behavioral state, and state 2F, also known as the active behavioral sleep state. More information about fetal behavioral sleep states in available in S.M.4.

Statistical Analyses

Linear regression analyses were used to estimate the associations between exposure categories and HR and HRV and movement parameters. We fit separate models for HR mean, SD, and the cross-correlation of fetal HR and movement parameters as outcomes. All models included sex and gestational age at assessment as covariates (Dipietro et al., 2015). We additionally adjusted for maternal education (any primary school, some high school, completed high school, and beyond high school), household crowding index (CI: 0–25th, 25–75th, and 75–100th percentile), depression scores measured with the Edinburgh scale (considered as a continuous variable), and clinical site as potential confounders. For these additional adjustments, we accounted for missing covariate data by adding a missing indicator variable in the model. Analyses were performed for all subjects combined across both sites and were repeated after stratifying by clinical site, i.e., Northern Plains and South Africa, Cape Town. Analyses were performed using R for Windows 3.6.1.

Results

In total, 11,929 mother-infant pairs were enrolled in the Safe Passage Study. We performed fetal HR assessments on 9240. Because of their known association with outcomes (Jansson et al., 2005; Rurak et al., 2011), we excluded 1098 for maternal conditions (gestational diabetes, hypertension, and preeclampsia) and congenital abnormalities and 1,236 for psychiatric medications and recreational drugs use. We also excluded 394 for incomplete exposure data and 21 for missing covariates (sex). Our final sample included a total of 6,491, 4,025 from SA and 2,466 from NP. Roughly half of the fetuses were males. Supplementary Figure 1 shows a study consort chart.

Mean age at enrollment was 25.8 ± 5.7 years (Mean ± SD) and most participants (95.1%) had at least some high school education, and roughly half of the participants were employed. The population was composed of individuals who self-identified as white, multiracial, American Indians/Alaska natives or Other/unknown races.

A total of 51.9% of the women drank and 42.7% smoked at some point during pregnancy. Of the smokers, 14.9%, 24.1%, and 3.8% were grouped into high/moderate, low continuous and quit early groups, respectively. For alcohol 4.6%, 9.1%, 8.6%, 5.4%, and 24.3% were grouped into high continuous, moderate continuous, low continuous, and high quit early and low quit early groups, respectively.

Fetuses were assessed on average at 35.2 (± 1.3 SD) weeks of gestation. They were successively born at 39.4 (± 1.4 SD) weeks gestational age. Table 1 contains information on maternal demographic, exposure variables, and infant characteristics, including the breakdown by study site.

TABLE 1

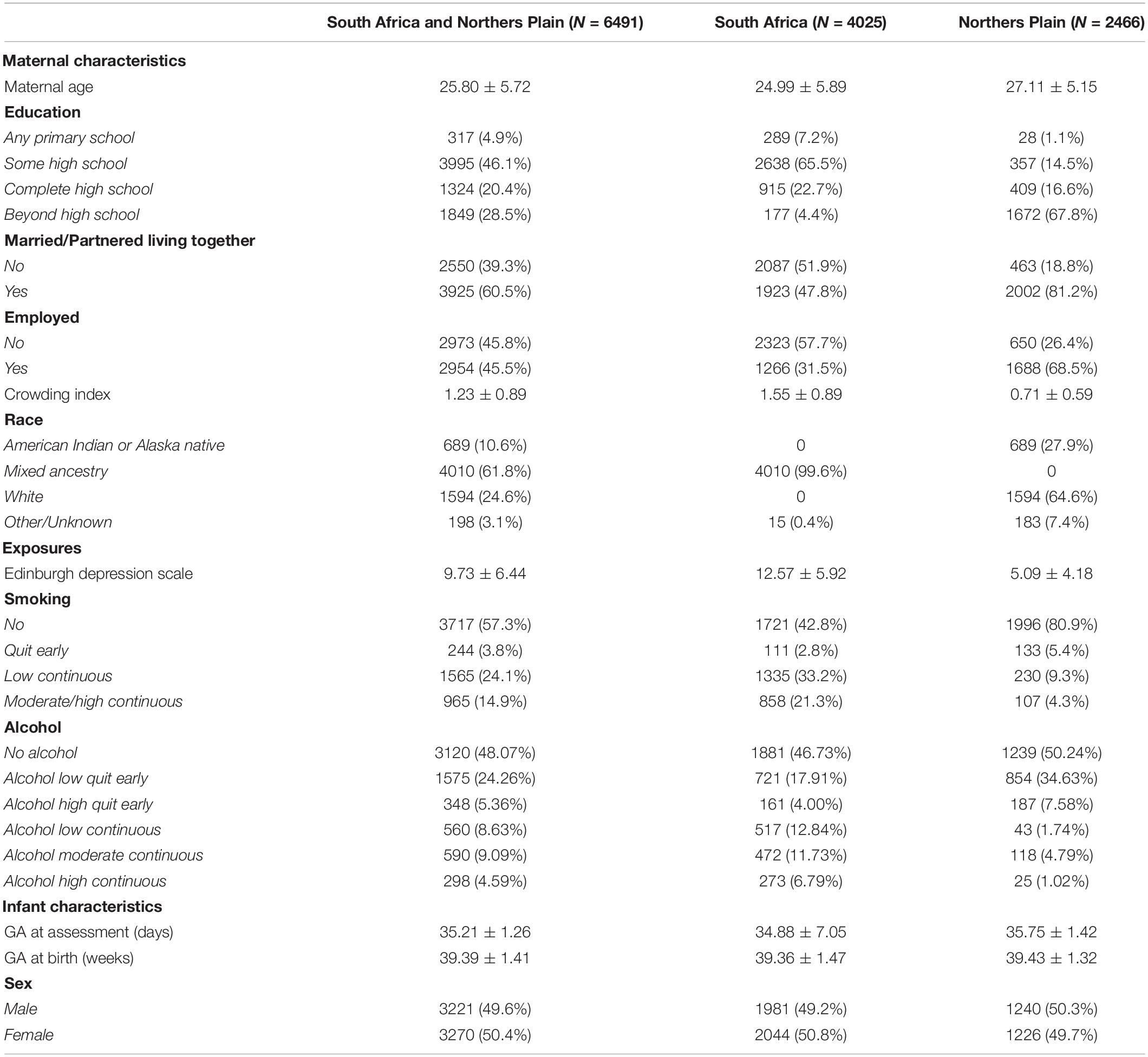

Table 1. Maternal and infant demographics and prenatal exposure information.

Table 2 shows the cross-tabulations of the exposure groups for the overall population and by site.

TABLE 2

Table 2. Cross Tabulation of smoking and drinking groups in the overall population, South Africa population, and Northern Plains population.

Tables 3, 4 show the average number of drinks and the average number of binge events per trimester and the average number of cigarettes/week per trimester. Tables 5–12 summarize results from linear regression models discussed in the next sections.

TABLE 3

Table 3. Number of drinks and binge events by trimester per alcohol group in the overall population, South Africa population, and Northern Plains population.

TABLE 4

Table 4. Number of cigarettes per week by trimester per smoking group in the overall population, South Africa population, and Northern Plains population.

TABLE 5

Table 5. Linear regression results from alcohol and smoking exposure predicting Mean HR in 1F.

TABLE 6

Table 6. Linear regression results from alcohol and smoking exposure predicting Mean HR in 2F.

TABLE 7

Table 7. Linear regression results from alcohol and smoking exposure predicting HR-SD in 1F.

TABLE 8

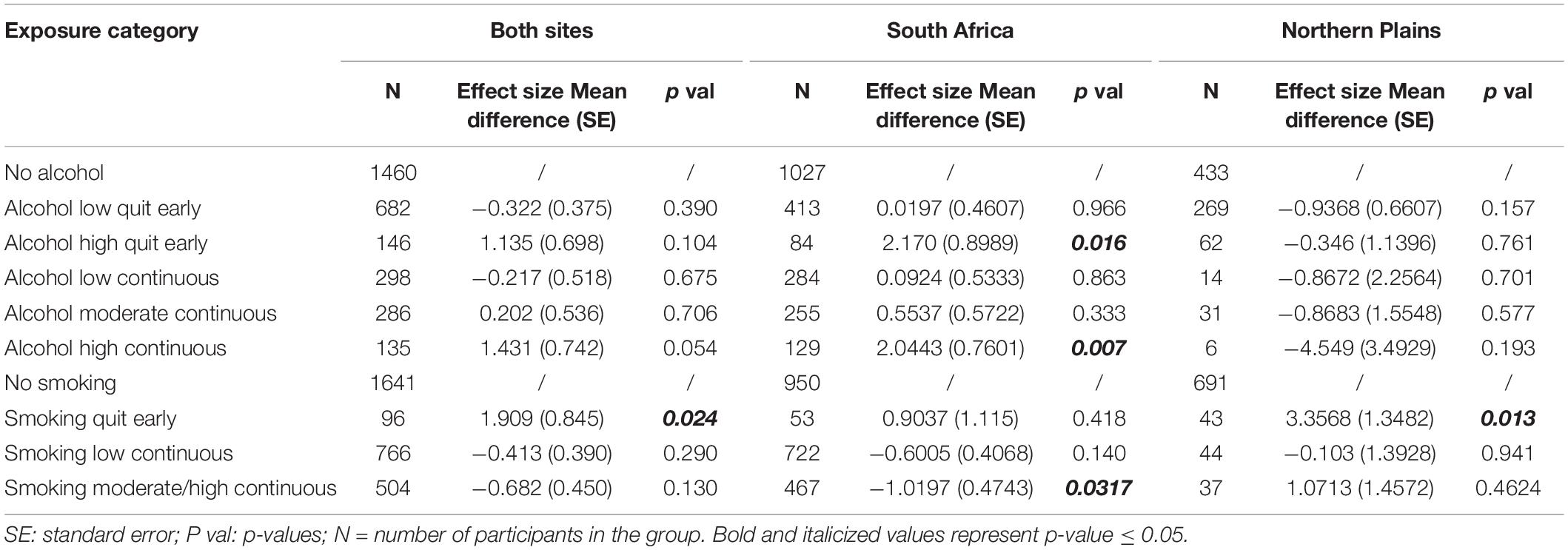

Table 8. Linear regression results from alcohol and smoking exposure predicting HR−SD in 2F.

TABLE 9

Table 9. Linear regression results from alcohol and smoking exposure predicting mean fetal movement in 1F.

TABLE 10

Table 10. Linear regression results from alcohol and smoking exposure predicting mean fetal movement in 2F.

TABLE 11

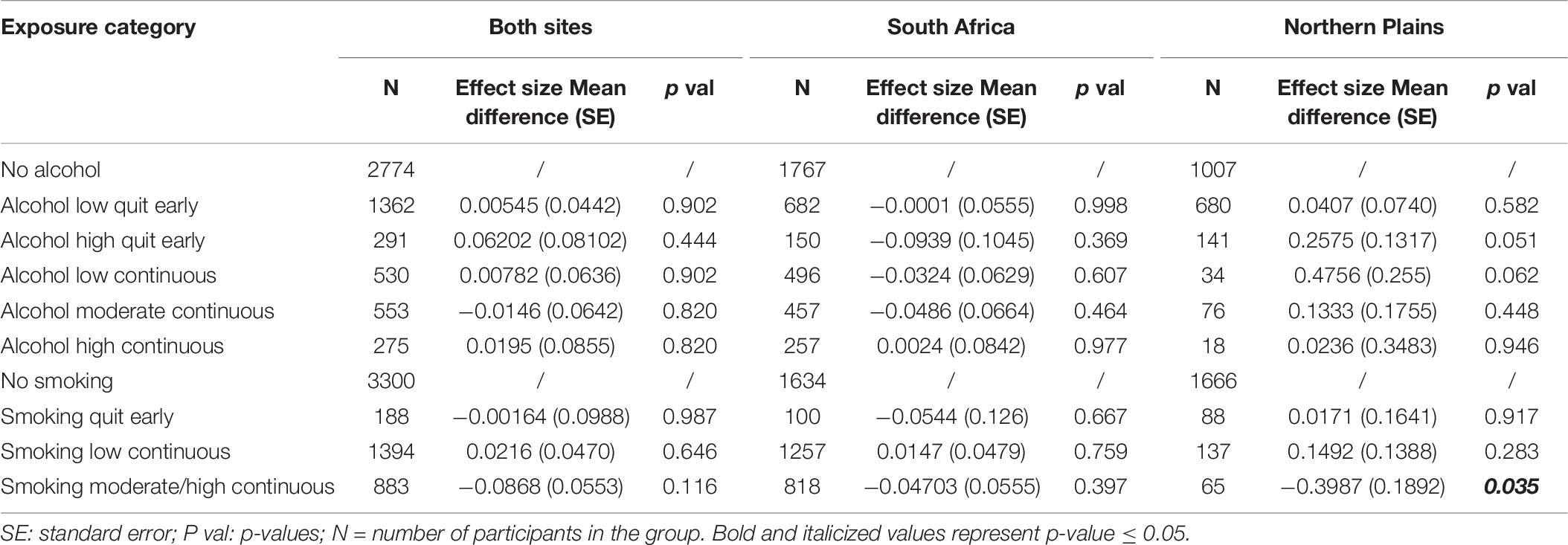

Table 11. Linear regression results from alcohol and smoking exposure predicting fetal movement/HR cross-correlation Lag.

TABLE 12

Table 12. Linear regression results from alcohol and smoking exposure predicting HR/fetal movement cross-correlation.

Significant Associations of Covariates With Fetal Physiology

In the analysis with sites combined, sex, GA at assessment and site were significantly associated with mean HR in 1F (Higher HR in females, β = 0.85 ± 0.29, p = 0.0036; decreasing HR with increasing GA, β = −0.10 ± 0.02, p < 0.001; lower HR in the Northern Plains β = −2.23 ± 0.55, p < 0.001), and with mean HR in state 2F (Higher HR in females, β = 1.06 ± 0.20, p < 0.001; decreasing HR with increasing GA β = −0.025 ± 0.012, p = 0.041; lower HR in the Northern Plains β = −2.63 ± 0.37, p < 0.001).

Sex, GA at assessment and site were all significantly related to HR-SD in both fetal states. In state 1F males had higher HR-SD than females (β = −0.06 ± 0.026, p = 0.023), HR-SD decreased with age (β = −0.07 ± 0.002, p < 0.001), and HR-SD was higher in fetuses from the Northern Plains (β = 0.18 ± 0.05; p < 0.001). Each of these findings were also seen in state 2F (β = −0.10 ± 0.03, p = 0.003; β = 0.01 ± 0.002, p < 0.001; β = 0.43 ± 0.06, p < 0.001, respectively).

Site was significantly associated with fetal movement in state 1F with mean levels of movement greater in the South Africa cohort (β = −0.19 ± 0.08, p = 0.017).

For fetal HR/movement cross-correlation, GA at assessment and site were significant predictor (higher values with increasing GA β = 0.0008 ± 0.0002, p < 0.001; Lower values in the Northern Plains β = −0.017 ± 0.0047, p < 0.001), whereas for the lag of the cross-correlation sex and CI were significant (lower values for females, β = −0.18 ± 0.06, p = 0.0036; β = −0.86 ± 0.41, p = 0.034; β = −1.00 ± 0.40, p = 0.013; β = −0.94 ± 0.41, p = 0.020).

In South Africa, sex, GA at assessment and depression were significant predictors of mean HR in 1F (Higher HR for females, β = 0.73 ± 0.34, p = 0.03; decreasing HR with increasing GA, β = −0.10 ± 0.02, p < 0.001; decreasing HR with increasing depression, β = −0.06 ± 0.03, p = 0.025). Sex, depression and CI 25–75th were significant predictors of mean HR in 2F (respectively, β = 0.89 ± 0.24, p < 0.001; β = −0.04 ± 0.02, p < 0.04; β = 3.42 ± 1.74, p < 0.049). Sex was also a significant predictor of HR SD in 1F (Lower HR SD for females, β = −0.06 ± 0.03, p = 0.037), while sex and GA at assessment were significant for HR SD in 2F (Lower HR SD for females, β = −0.088 ± 0.040, p = 0.027, increasing HR SD with increasing GA β = 0.01 ± 0.003, p < 0.001). No additional significant predictors were found for mean fetal movement. For fetal HR/movement cross-correlation, GA at assessment was significant (increasing values with increasing GA, β = 0.0006 ± 0.0002, p < 0.0121), whereas for the lag of the cross-correlation sex and CI were significant (lower values for females, β = −0.20 ± 0.08, p = 0.01; β = −1.27 ± 0.58, p = 0.027; β = −1.24 ± 0.55, p = 0.023; β = −1.19 ± 0.55, p = 0.030).

In the Northern Plains, sex and GA at assessment were significant predictors of mean HR in 1F (respectively, β = 1.37 ± 0.58, p = 0.019; β = −0.10 ± 0.03, p < 0.0016), and sex and CI were significant predictors of mean HR in 2F (β = 1.42 ± 0.34, p < 0.001, β = 3.91 ± 1.96, p = 0.047; β = 3.94 ± 1.98, p = 0.047). GA at assessment was a significant predictor of HR std in 1F (β = −0.01 ± 0.003, p < 0.001), and sex, GA at assessment and education level 1 and 2 were significant predictors for HR-SD in 2F (β = −0.13 ± 0.07, p = 0.041; β = 0.01 ± 0.003, p = 0.0021; β = 0.78 ± 0.35, p = 0.025; β = 0.29 ± 0.13, p = 0.023). Sex was a significant predictor of fetal movement in 1F (β = 0.16 ± 0.07, p = 0.023) and GA at assessment in 2F (β = −0.009 ± 0.003, p < 0.001). Similarly, GA at assessment was significant for fetal HR/movement cross-correlations (β = 0.001 ± 0.0002, p < 0.001).

In summary, expected findings of sex on autonomic regulation were observed, with females having higher HR and lower HR-SD. GA at assessment was also significant in many associations that are consistent with the literature, with HR decreasing and variability increasing with GA (Burtchen et al., 2019). Depression was also an important covariate, with increasing values of the EDPS associated with reduced HR in SA, where many mothers presented with high scores on the EPDS questionnaire. Lastly, we observed that site was significantly associated with autonomic measures, with fetuses in SA having higher HR and lower variability compared to the NP.

Effects of Prenatal Tobacco Exposure

In the analyses considering both sites combined, we found a significant association between smoking and mean HR in state 2F. A dose response effect was observed, with the low continuous group having a decrease of 0.84 ± 0.27 beats per minute (BPM, Mean ± SD) compared to non-smokers (p = 0.0018) and the moderate/high continuous group having a decrease of 1.25 ± 0.32 BPM (p = 0.0001) compared to non-smokers. Women who quit in the first trimester were not significantly different from non-smokers. These results are shown in Figure 1. We also found a significant association between smoking and mean HR in state 1F, but only for women who quit before the end of the first trimester. The HR of their fetuses was 1.91 ± 0.9 BPM per minute higher compared to the unexposed group (p = 0.024).

FIGURE 1

Figure 1. Estimated marginal means from linear regression models of mean fetal HR in 2F, shown for the overall population (black), South Africa (red), and Northern Plains (blue).

Smoking was also significantly associated with fetal movement in both states 1F and 2F. The moderate/high continuous group showed lower fetal movement compared to the non-smokers (1F: decrease of 0.14 ± 0.06 a.u., p = 0.031; 2F decrease of 0.13 ± 0.05 a.u., p = 0.01). These results are portrayed in Figure 2.

FIGURE 2

Figure 2. Estimated marginal means from linear regression models of mean fetal movement, shown for the overall population by fetal behavioral sleep state (green 1F and red 2F).

In South Africa, similar significant associations with smoking were observed for mean HR in state 2F, with a dose response reduction observed (Low continuous group decrease of 1.03 ± 0.30 BPM, p < 0.001; Moderate/high continuous group decrease of 1.51 ± 0.34 BPM, p < 0.001). A significant association with smoking was also observed in state 1F, with a decrease of 1.02 ± 0.47 BPM in mean HR for the moderate/high continuous group (p = 0.032).

Regarding the association of smoking and fetal movement, in South Africa subjects there was as significant reduction in fetal movement in the moderate/high group only in 2F was observed (decrease of 0.10 ± 0.05 a.u., p = 0.047).

In the Northern Plains, there was a significant increase in mean HR of 3.36 ± 1.35 BPM in 1F in fetuses of women who quit smoking in the first trimester (p = 0.013). In addition, there was a significant increase in HR-SD in 1F in the smoking moderate/high continuous group compared to the non-smokers (increase of 0.27 ± 0.13 BPM, p = 0.034), while a significant decrease in HR-SD was observed in 2F for smoking moderate/high continuous group (decrease of 0.40 ± 0.19 BPM, p = 0.035). In site-combined analyses similar trends to the combined were observed. Specifically, there was a reduction of fetal movement for the moderate/high group in 1F, but it did not reach significance (decrease of 0.34 ± 0.18 a.u., p = 0.052).

Effects of Prenatal Alcohol Exposure

In the dataset with both sites combined, we found a significant association between PAE and the HR-SD in 1F, with an increase for the moderate continuous group by 0.10 ± 0.05 BPM (p = 0.045). Additionally, we found a significant reduction in fetal movement in 2F for the low quit early group (decrease of 0.09 ± 0.04 a.u., p = 0.028) compared to the non-drinkers.

The fetal movement/HR cross-correlation lag of the low continuous group was 0.27 s shorter than the non-drinkers (β = −0.27 ± 0.12, p = 0.025).

In the South Africa dataset, we found an increase in mean HR in 1F both for the high quit early and the high continuous group (respectively, increase of 2.17 ± 0.90 BPM, p = 0.016; 2.04 ± 0.76 BPM, p = 0.007). Similarly, in 2F the mean HR of the high continuous group was elevated compared to the non-drinkers (increase of 1.09 ± 0.52 BPM, p = 0.036). Results are shown in Figure 3. The moderate continuous alcohol group had a higher HR-SD in 1F (increase of 0.13 ± 0.05 BPM, p = 0.011) compared to non-drinkers.

FIGURE 3

Figure 3. Estimated marginal means from linear regression models of mean fetal HR, shown for the SA population by fetal behavioral sleep state (green 1F and red 2F).

The low continuous group showed shorter cross-correlation lag times between movement and change in HR than the non-drinkers (β = −0.29 ± 0.13, p = 0.028).

In the Northern Plains, we only observed a significant a decrease in fetal movement in 2F in the low quit early group compared to non-drinkers (decrease of 0.17 ± 0.06 a.u., p = 0.004).

Discussion

Several studies have reported associations of smoking and drinking during pregnancy with negative gestational outcomes and health in offspring (Schoendorf and Kiely, 1992; Scragg et al., 1993; Cnattingius, 2004; Mamluk et al., 2017; Shuffrey et al., 2020). Although these reports clearly demonstrate there are adverse effects of PAE and PTE, they do not provide information about the contributions of timing and amount of exposure on fetal ANS function. This current study addresses that shortcoming by focusing on assessments of fetal HR, HR-SD, and movement during weeks 34 to 38 of pregnancy. To our knowledge, the Safe Passage Study data set is unique in size, details of exposures, and breadth of subject characteristics.

Prenatal Tobacco Exposure

In this study, PTE was associated with a decrease in mean HR in fetal state 2F, both in the overall population and in the sub-analysis on the SA population. These effects appeared to be dependent on dose, in that the mean decreases in HR were greatest in the fetuses of mothers who smoked at the highest levels and were not significant in fetuses of women who quit smoking during the first trimester. There were no significant PTE exposure effects in state 2F in the Northern Plans cohort; however, the number of subjects in the highest exposure group in the NP was only 65 as compared to 818 in SA. In state 1F, overall, there a significant increase in fetal HR in fetuses whose mothers smoked but quit during the first trimester. Broken down by site, this effect was significant only in the NP cohort. A decrease in HR in state 2F with high exposure but only in SA, and an increase in HR in state 1F in subjects whose mothers quit smoking early in pregnancy, but only in the NP suggests there are site specific factors that interact with PTE exposure, though our analyses did not reveal what these might be.

Combining both sites there were no significant effects of PTE on HR-SD. However, in the NP, the moderate-high continuous groups showed an increase in HR-SD in 1F and a decrease in 2F. The fact that PTE was associated with divergent effects in the two fetal sleep states and only in the NP site was unexpected. However, this effect might represent less differentiated state dependent autonomic activity in some populations. In both sleep states in the combined data set PTE was also associated with a significant reduction in fetal movement in the most highly exposed group. This association was significant or approaching significance at both sites.

Tobacco cigarette smoke contains several substances which can potentially be harmful to the fetus, of these, nicotine is the most studied. Nicotine enters in the mother’s bloodstream quickly and easily crosses the placenta into the fetal bloodstream (Slotkin, 1998; Cohen et al., 2005). High levels of nicotine on the fetal side of the placenta can result in a variety of adverse effects on the developing fetus (Duncan et al., 2009). Prenatal exposure to nicotine may induce functional alterations in neuronal differentiation including changes in hippocampal, cerebellar, and sensory cortex development (Shuffrey and Fifer, 2020). Previous studies looking at the acute effects of smoking on fetal autonomic regulation reported mixed findings (Lehtovirta et al., 1983; Goodman et al., 1984; Kelly et al., 1984; Ates et al., 2004; Cowperthwaite et al., 2007). Part of the reasons for the disparate findings can be attributed to the small sample size and the inconsistent characterization of patterns of smoking. Additionally, some studies investigated the acute effect of smoking while very few addressed the effect of chronic exposure. When acute effects of smoking were investigated most studies found an increase in fetal HR paired with a decrease in fetal HRV and reactivity (Goodman et al., 1984; Oncken et al., 2002), suggesting that smoking causes increased sympathetic activity.

Results from our study address the chronic effect of smoking exposure during pregnancy, which seems to go in the opposite direction of most acute studies, with a decrease in mean HR usually interpreted as a result of parasympathetic activation or sympathetic inhibition (or a combination of the two). There are few studies assessing fetuses chronically exposed to cigarette smoke. In one small study (n = 13 exposed, 13 controls), exposed fetuses were observed to spend more time in a low fetal HR variation pattern and fetal activity was decreased (Coppens et al., 2001), the latter finding in agreement with our own. Kapaya et al., also found results similar to those presented in this article, with a significantly lower HR baseline in fetuses of smokers (Kapaya et al., 2014). Analogously, Duncan et al. found that fetal baboons with chronic exposure to nicotine showed an increased parasympathetic control of the heart with an increase in high-frequency HRV. These changes in HRV were associated with abnormal 5-HT-nicotine alterations in the raphe’ obscurus and increased nicotinic receptor binding in the raphe’ obscurus and vagal complex in the nicotine-exposed animals (Duncan et al., 2009). Prenatal exposure to maternal smoking may also result in reduced fetal oxygenation. Pathology evaluations of the placentas of smokers have shown structural changes, including a reduction in the fraction of capillary volume and increased thickness of the villous membrane when compared with non-smokers (Burton et al., 1989; Jauniaux and Burton, 1992; Larsen et al., 2002). Both factors may contribute to abnormal gas exchange within the placenta and could explain the reduced fetal movement observed in our findings (Bocking, 2003). Furthermore, it is well-known that smoking can affect fetal growth, increasing the risk for fetal growth restriction (Reeves and Bernstein, 2008). In fetuses affected by fetal growth restriction a reduction in fetal movements has been observe, potentially to conserve energy (Baschat et al., 2001). A decline in fetal movements may lead to fewer accelerations, which could induce the observed reduction in the mean HR. It is noteworthy that mean changes in fetal HR and other variables associated with smoking were small and not of immediate clinically significance in and of themselves. However, these current results support the view that chronic prenatal smoking exposure shifts the cardiac autonomic regulation to favor inhibitory actions on cardiac function.

Importantly, from a public health perspective, HR parameters of fetuses whose mothers quit smoking by the end of first trimester were not significantly different from those of non-smokers. This is in line with epidemiological findings showing that risk of stillbirth to mothers who stopped smoking during the first trimester was comparable to the risk among women who were non-smokers during the entire pregnancy (Wisborg et al., 2001) and similarly mothers who quit smoking in the first trimester have a reduced risk of preterm delivery compared to those who continued to smoke (Mainous and Hueston, 1994). Additionally, quitting before 12 weeks GA was found to diminish differences in fetal growth in comparison to non-smokers (Vardavas et al., 2010). Thus, it appears that smoking is more harmful to the developing fetus during the latter part of gestation and these findings reinforce the importance of smoking cessation early during pregnancy.

Prenatal Alcohol Exposure

In this study there were few significant findings regarding the associations of alcohol and fetal physiology. While differences in findings between sites for the high continuous group could be due to different distributions of participants across exposure groups, it is worth noting that similar results were not observed in the high quit early groups, which had similar number of subjects in the two sites. One possible interpretation for the different site findings, is differential rates of alcohol metabolization, potentially related to body mass index (BMI). Mothers’ diet can affect the fraction of body mass composed by adipose tissue, which is relevant since ingested alcohol distributes through the body water differently between lean and fat body mass (Reed, 1978).

To our knowledge, no previous studies have investigated the effects of chronic alcohol consumption during pregnancy on ANS function. Nonetheless, a few studies have investigated other aspects of fetal neurobehavior, such as behavioral states, and spontaneous and elicited startles. Hepper et al. showed that alcohol consumption delayed the decrease in the incidence of fetal startles observed with normal development. Regarding elicited startles, they found instead that fetuses exposed to alcohol were less likely to startle in response to sound than fetuses of non-drinkers (Hepper, 2007). Another relevant study from Haley et al. reported similar results to what we found but in 5–7 months old infants, who showed higher HR when exposed to high frequency drinking prenatally (Haley et al., 2006). Thus, these findings are convergent with results observed in the South Africa cohort were alterations in autonomic regulation were observed in fetuses exposed to high levels of alcohol, even if only in the first trimester.

PAE and PTE are risk factors for adverse fetal and neonatal outcomes such as intra uterine growth restriction, SIDS, and these same outcomes have been associated with altered ANS profiles (Pincus et al., 1993; Matturri and Lavezzi, 2011; Pini et al., 2021). Thus, the alterations of fetal physiology associated with PTE and PAE we describe could inform our understanding of the possible mechanisms linking PTE and PAE and adverse fetal and infant outcome. In addition, a large body of research has stressed the profound importance of the fetal environment in “programming” postnatal neurobehavioral and medical outcomes (Godfrey and Barker, 2001). The dominant theory suggests that fetuses adapt their physiology to cope with stressful environments and that, while effective in the short term these adaptations may predispose offspring to increased long term morbidity or mortality (Cao-Lei et al., 2017). Fetal HR and movement are measures of fetal well-being and maturation and have been found to be associated with later neurodevelopment (DiPietro et al., 2007; Voegtline et al., 2016). Thus, is it also possible that changes in these physiological systems in response to drinking and/or smoking are adaptations to these exposures and that adverse postnatal consequences reflect this adaptation. Regardless of mechanism, even small shifts in physiology move more individuals into low or high regions of the normal distribution. We speculate that these shifts to extreme values underly and/or are correlated with adverse outcomes associated with these toxic exposures.”

Limitations of this study include the possible under-reporting of PTE and PAE due to the use of self-report measure and the lack of information on acute smoking in recordings from mothers in the low, moderate and high continuous group. We do not know the precise interval between the last cigarette that the mothers smoked and the fetal assessment. Nonetheless, given the typical time required to transport the participant and prepare for the study protocol, it is highly unlikely that women smoked a cigarette in the hour before fetal monitoring. Another limitation is the lack of precise information on time of the day of assessments, which could affect HR since fetuses start to show circadian autonomic regulation during the third trimester. In addition, part of the fetal data collection occurred while mothers were responding to questionnaires, which could have affected maternal and fetal HR regulation. Lastly, our data could reflect a potential selection bias, since the effect of alcohol and smoking on fetal autonomic parameters were not investigated in adverse pregnancy outcomes such as early delivery or fetal demise.

In conclusion, this investigation addresses a significant gap in the literature on the association smoking and drinking during pregnancy with fetal autonomic regulation. To our knowledge, this study is unique both due to the size of the cohort and the comprehensive characterization of patterns of PTE and PAE, summarized in data driven exposure groups, taking into account both timing and magnitude of exposure. We believe these results can contribute to identifying biomarkers and potentially understanding the mechanisms underlying risk for adverse outcomes.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics Statement

The studies involving human participants were reviewed and approved by Health Research Ethics Committee of Stellenbosch University, Sanford Health’s Institutional Review Board, New York State Psychiatric Institute of Institutional Review Board, and Indian Health Service Institutional Review Board. Written informed consent to participate in this study was provided by the participants’ legal guardian/next of kin.

Author Contributions

ML, LS, NP, AS, MM, WF, HO, and AE contributed to the conception and design of the study. LS, CP, CF, JA, LB, LTB, and CG contributed to the acquisition. ML, JN, LS, AS, NP, and MN contributed to the analysis of data. All authors significantly contributed to the interpretation of the data and drafting the article.

Funding

This research was supported by the Sackler Parent Infant Project, a NIMH T32 Fellowship T32MH016434, grant OPP1184816 issued by the Bill and Melinda Gates Foundation, and grants U01HD055154, UH3OD023279, U01HD045935, U01HD055155, and U01AA016501, issued by the Office of the Director, National Institutes of Health, National Institute on Alcohol Abuse and Alcoholism, Eunice Kennedy Shriver National Institute of Child Health and Human Development, and the National Institute on Deafness and Other Communication Disorders. The opinions expressed in this article are those of the authors and do not necessarily represent the official views of the Sackler Institute of Developmental Psychobiology, the Bill and Melinda Gates Foundation, the National Institutes of Health, the Eunice Kennedy Shriver National Institute of Child Health and Development, the National Institute on Alcohol Abuse and Alcoholism, or the National Institute on Deafness and Other Communication Disorders.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The following researchers comprised the PASS Network: PASS Steering Committee Chair (University of Texas Medical Branch): Gary DV Hankins, MD. Data Coordinating & Analysis Center (DM-STAT, Inc.): PI: Kimberly A Dukes, Ph.D.; Co-PI: Lisa M Sullivan, Ph.D.; Biostatistics: Tara Tripp, MA; Fay Robinson, MPH; Cheri Raffo, MPH; Project Management/Regulatory Affairs: Julie M Petersen, BA; Rebecca A Young, MPH; Statistical Programming/Data Management: Cindy Mai, BA; Elena Grillo, MBA BS, BBA; Data Management/Information Technology: Travis Baker, BS; Patti Folan; Gregory Toland, MS; Michael Carmen, MS. Developmental Biology & Pathology Center (Children’s Hospital Boston): PI: Hannah C Kinney, MD; Assistant Director: Robin L Haynes, Ph.D.; Co-investigators: Rebecca D Folkerth, MD; Ingrid A Holm, MD; Theonia Boyd, MD; David S Paterson, Ph.D.; Hanno Steen, Ph.D.; Kyriacos Markianos, Ph.D.; Drucilla Roberts, MD; Kevin G Broadbelt, Ph.D.; Richard G Goldstein, MD; Laura L. Nelsen, MD; Jacob Cotton, BS; Perri Jacobs, BS. Comprehensive Clinical Site Northern Plains (Sanford Research): PI: Amy J Elliott, Ph.D.; Co-PI: Larry Burd, Ph.D.; Co-investigators: Jyoti Angal, MPH; Jessica Gromer, RN; H Eugene Hoyme, MD; Margaret Jackson, BA; Luke Mack, MA; Bradley B Randall, MD; Mary Ann Sens, MD; Deborah Tobacco, MA; Peter Van Eerden, MD. Comprehensive Clinical Site South Africa (Stellenbosch University): PI: Hendrik Odendaal, MBChB, FRCOG, MD; Co-PI: Colleen Wright, MD, FRCPath, Ph.D.; CoInvestigators: Lut Geerts, MD, MRCOG; Greetje de Jong, MBChB, MMed, MD; Pawel Schubert, FCPath (SA) MMed; Shabbir Wadee, MMed; Johan Dempers, FCFor Path (SA); Elsie Burger, FCFor Path (SA), MMed Forens Path; Janetta Harbron, Ph.D.; Co-investigator & Project Manager: Coen Groenewald, MBChB, MMed, FCOG, M Comm. Physiology Assessment Center (Columbia University): Co-PIs: William Fifer, Ph.D.; Michael Myers, Ph.D.; Coinvestigators: Joseph Isler, Ph.D.; Yvonne Sininger, Ph.D.; Project Management: J David Nugent, MA; Carmen Condon, BA; Data Analysis: Margaret C Shair, BA; Tracy Thai, MA. NIH Project Scientists: Marian Willinger, Ph.D. (NICHD); Dale Hereld, MD, Ph.D. (NIAAA); Howard J Hoffman, MA (NIDCD); Chuan-Ming Li, MD, Ph.D. (NIDCD).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2021.594605/full#supplementary-material

Supplementary Figure 1 | Study flowchart.

Supplementary Material 1 | Missing data imputation.

Supplementary Material 2 | Alcohol and smoking cluster analysis.

Supplementary Material 3 | Data processing.

Supplementary Material 4 | Fetal state coding.
