The samurai wasp, Trissolcus japonicus, is the predominant egg parasitoid of the brown marmorated stink bug, Halyomorpha halys, in its native range in China. (E)-2-Decenal is a major component of the alarm pheromone of H. halys, an important invasive insect pest with significant economic importance. T. japonicus can be strongly repelled by (E)-2-decenal, and thus its host location efficiency would be reduced in the field. Better understanding on the molecular basis of olfactory reception of this host alarm pheromone component by T. japonicus may provide opportunities to develop novel approaches to enhance biological control efficacy of the parasitoid against H. halys. We identified six Odorant Binding Proteins (OBPs) from T. japonicus by transcriptome sequencing, within which three classical OBPs were expressed in a heterologous expression system with E. coli, harvested, and then challenged with (E)-2-decenal in binding assay experiments. TjapOBP2 showed the highest binding ability to (E)-2-decenal, compared to TjapOBP1 and TjapOBP3. Our results unambiguously suggest that TjapOBP2 would play an important role in discriminating (E)-2-decenal and could be a possible target for further intervention in the parasitoid–host system.
Introduction
Olfaction plays a crucial role in insects to sense biologically meaningful chemical signals in their surroundings for food, a mate, oviposition, prey, or enemies (Schneider, 1969; Bruyne and Baker, 2008; Conchou et al., 2019). Insect olfaction starts with reception of odorants at the periphery level during which a variety of olfactory proteins are involved in this early olfactory process, including odorant-binding proteins (OBPs), chemosensory proteins (CSPs), odorant-degrading enzymes (ODEs), odorant receptors (ORs), ionotropic receptors (IRs), and sensory neuron membrane proteins (SNMPs) (Vogt and Riddiford, 1981; Steinbrecht, 1998; Leal, 2013; Pelosi et al., 2018). Despite a variety of physiological roles, the OBPs are essential for a functional olfactory system in insects, acting as carriers of odorants and liaisons between the external environment and ORs (Steinbrecht, 1998; Leal, 2005, 2013; Pelosi et al., 2018). Since its first detection in the giant moth Antheraea polyphemus in 1981 (Vogt and Riddiford, 1981), a large number of OBPs have been identified in different insect species, particularly phytophagous insect pests, social insects, and mosquitoes (Calvello et al., 2003; Zhou et al., 2004; Fan et al., 2011; McKenzie et al., 2014; Pelosi et al., 2018; Li et al., 2019), while there are only a few studies with parasitoids of insect pests (Vieira et al., 2012; Li et al., 2015; Zhou et al., 2015).
The brown marmorated stink bug (BMSB), Halyomorpha halys (Stål) (Hemiptera: Pentatomidae), native to East Asia (Hoebeke and Carter, 2003), has become a global invasive insect pest since its introduction into North America, Europe, and South America in 1990s, 2000s, and 2017, respectively (Haye and Weber, 2017; Valentine et al., 2017; Leskey and Nielsen, 2018). The BMSB has a broad host range with over 170 plants, many of which are economically important fruits, vegetables, and field crops (Lee et al., 2013; Leskey and Nielsen, 2018). In northern China, BMSB caused 50–80% losses in peach and pear production in the 1980s (Qin, 1990). In addition to its agricultural pest status, BMSB is regarded as an important nuisance pest as adults often overwinter in large aggregation populations in human-made structures and produce a pungent and unpleasant odor resulting from its defensive chemicals (Lee et al., 2013; Haye et al., 2015). Management of BMSB is still heavily relying on chemical pesticides, particularly broad-spectrum insecticides such as pyrethroids and neonicotinoids (Lee et al., 2013; Leskey and Nielsen, 2018). However, the extensive use of broad-spectrum insecticides may have adverse effects such as environmental pollution and residual problems for the health of farmers and consumers (Leong et al., 2020), increased chances of insecticide resistance (Haye et al., 2015), and outbreak of secondary pests (Leskey et al., 2012). To overcome these shortcomings of chemical control, it is very important to develop an alternative, safe, and eco-friendly method based on integrated pest management (IPM) practices, such as biological control, for sustainable management of BMSB.
The samurai wasp, Trissolcus japonicus (Ashmead) (Hymenoptera: Scelionidae) (syn. T. halyomorphae Yang; Talamas et al., 2013) is an important egg parasitoid of BMSB in its native range, causing high levels of parasitism up to 70% with significant control effects in the field in northern China (Yang et al., 2009; Zhang et al., 2017). Recent studies showed that adventive populations of T. japonicus were present in the United States (Talamas et al., 2015; Herlihy et al., 2016; Milnes et al., 2016; Hedstrom et al., 2017; Leskey and Nielsen, 2018), Switzerland (Stahl et al., 2018), Italy (Sabbatini Peverieri et al., 2018), and Canada (Abram et al., 2019). Although non-target risk of the samurai wasp would be a concern (Hedstrom et al., 2017; Botch and Delfosse, 2018; Haye et al., 2019; Milnes and Beers, 2019), the presence of T. japonicus together with endemic natural enemies might enhances the biological control of BMSB in North America and Europe (Leskey and Nielsen, 2018; Haye et al., 2019).
Our previous study showed that T. japonicus senses chemical volatiles released by BMSB adults, and the samurai wasp was attracted by n-tridecane while strongly repelled by (E)-2-decenal (Zhong et al., 2017). The strong repellence of (E)-2-decenal would reduce the efficiency of T. japonicus attacking BMSB. Furthermore, the alarm function of (E)-2-decenal and its olfactory perception by BMSB were characterized on behavioral and molecular levels (Zhong et al., 2018). However, the molecular mechanism underlying the olfactory perception of the alarm pheromone component in T. japonicus is still unknown. Thus, we carried out transcriptome sequencing to identify three classical ones from totally six OBPs in T. japonicus that are playing key roles in the process of olfaction. Our study also performed a competitive fluorescence-binding assay with the putative OBPs to elucidate the molecular mechanism underlying the recognition of (E)-2-decenal by T. japonicus. Thus, our work paves the way on the molecular basis of olfaction in T. japonicus, which further help in the inter-specific chemical communication between T. japonicus and BMSB.
Materials and Methods
Insects
Trissolcus japonicus was originally obtained from egg masses of H. halys collected from a peach orchard in Beijing, China (E116°12′41″; N40°02′06″) in June 2016 and used for the experiments after four generations of rearing in laboratory. Halyomorpha halys adults were continuously reared on a diet of pods of organic green beans (Phaseolus vulgaris L.) and cobs of corn (Zea mays L.) in rearing cages (60 × 60 × 60 cm). Eggs were collected daily and maintained in separate rearing cages until completion of the nymphal stage or provided to T. japonicus for the rearing of the parasitoid. Laboratory colonies of the samurai wasp were continuously reared with H. halys egg masses, maintained in transparent acrylic rearing cages (25 × 25 × 25 cm) and fed daily with a cotton wick saturated with 10% honey solution under laboratory condition of 25 ± 1°C, 65 ± 5% RH and 16 L: 8 D photoperiod (Zhong et al., 2017). Mated 3-day-old T. japonicus females were collected and used in all the experiments.
RNA-Seq Construction and Sequencing
A total of 800 antennae, 400 heads (without antennae), or abdomen from T. japonicus females were grounded in TRIzol reagent (Invitrogen, Life Technologies, Carlsbad, CA, United States), and total RNA was obtained by the TaKaRa MiniBEST Universal RNA Extraction Kit (TaKaRa, Dalian, China). The RNA concentration and the ratio of OD260/OD280 were measured by NanoDrop. Data integrity of RNA was tested by Agilent 2100. The RNA samples (2.5 μg) extracted from T. japonicus tissues were sent to LC-Bio Co. (Hangzhou, China) for cDNA library construction and RNA-Sequencing (RNA-Seq). Enrichment and purification for mRNA were conducted by magnetic beads with Oligo (dT), then the fragmentation buffer was added to make the mRNA become a short segment. The mRNA was used to the template, and the first strand of cDNA was synthesized by a random primer of six bases. Then, the second strand of cDNA was synthesized by the DNA polymerase, and the double strands were purified by AMPure XP beads to obtain the finally library. The cDNA library with sufficient quality was sequenced by Illumina HiSeqTM 2000 (Illumina, Inc., San Diego, CA, United States).
Transcriptome Assembly and Annotation of Functional Genes
Clean reads were obtained after quality control by getting rid of the reads unconfirmed, with adapter and low quality. The assembly was conducted with the Trinity software (Haas et al., 2013) using the jellyfish kmer method (with default parameter settings). Gene annotations were performed using BLAST algorithm-based searches with an E-value less than 1.0E-5 against the NR, NT, Swiss-Prot, KEGG, COG, and GO databases (Xu et al., 2018). The Unigenes were obtained for T. japonicus antennae, heads, and abdomen, respectively. The confirmed sequences were deposited in the GenBank database with the accession numbers MN923521, MN923522, and MN923523.
Putative OBP Gene Identification
Using the BLAST homology search method, the critical OBP gene was obtained from the antennal transcriptome of T. japonicus. According to the OBP genes of Telenomus podisi from the NCBI, homology searching was conducted by BLAST in BioEdit software to identify the candidate OBP genes. Alignment of all the OBP genes with NCBI non-redundant (NR) protein sequence database was conducted to confirm the candidate OBP genes from T. japonicus. The Signal IP (version 4.1)1 was used to identify signal peptides in the candidate OBPs. A phylogenetic analysis of the OBPs was performed using maximum likelihood trees constructed using MEGA5.1 with 1000 bootstrap replications (Tamura et al., 2011).
Cloning, Expression and Purification of OPB Proteins
Total RNA was extracted from 50 antennae of female T. japonicus using TRIzol. The first-strand total cDNA was obtained from 96.4 ng RNA by the kit of TransScript® RT/RI Enzyme Mix (Trans, TransGen Biotech, Beijing). According to the database of transcriptome, we searched the sequence of the three OBPs and got rid of the signal peptide by the website of SignalIP1. The sequence primers of three OBPs were designed by using Primer Premier 5 (PREMIER Biosoft, Palo Alto, CA, United States), and NdeI and HindIII restriction enzyme-cutting sites (underlined) were added in primer as follows. The sequence primers were used as follows: OBP1 forward: 5′-CCGGATCCCTGAAATGTCGCACCGGCAA-3′, OBP1 reverse: 5′CCAAGCTTTTACTTTTTGTAATTACTTATCCAATCGTCA CA-3′, OBP2 forward: 5′-CCGGATCCAAGCGACCGGATTTTA TTGACGATGACAT-3′; OBP2 reverse: 5′-CCCAAGCTTTTA CACGATGAACCACATTTCCGGACAATTATTTATTATACAC TG-3′, OBP3 forward: 5′-CCGGATCCAAACTCTCAGTGCCT CAGCTCAAAGG-3′; OBP3 reverse: 5′-CCCAAGCTTTCATG GAAAGATGTACATTTCTGGATTTTTATGATACCAGCACC-3′. Each PCR reaction consisted of the 1-μl cDNA template, 1 μl forward and reverse primers, 22 μl dd H2O, and 25 μl Premix Taq. The PCR program was an initial denaturation at 95°C for 5 min, followed by 35 cycles of 95°C for 30 s, 55°C for 30 s, 72°C for 1 min, and a final extension of 72°C for 10 min. The PCR products were detected by 1.5% agarose gel electrophoresis and were recycled by the kit of TaKaRa Agarose Gel DNA Purification (TaKaRa). Once the PCR products were obtained, the positive clones of the three OBPs were digested with NdeI and HindIII simultaneously with the pEASY®-T1 Cloning vector and then transformed into Trans-T1 competent cells to amplify. The positive plasmids were extracted by the kit of plasmid mini (TIANGEN, TIANGEN BIOTECH, Beijing), and then the plasmids were transformed into the Escherichia coli BL21 competent cells for amplification. The positive clones of the three OBPs were selected for culture to an OD600 value of 0.6, and the bacteria solution were divided into two parts, one for control and the other for further experiments. The isopropyl-β-D-thiogalactopyranoside (IPTG) was added at a final concentration of 1 mM, and the protein expression was conducted at 15°C, 220 rpm for 16 h. The commensurable lysate was added to the bacteria solution for ultrasonication (sonicated for 30 min, worked for 3 s, stopped for 6 s). After the crushing, the supernatant and the precipitate were collected by centrifugation (13,000 rpm for 30 min at 4°C). Pilot expression levels of each OBP were detected by SDS-PAGE and Western Blot (Primary antibody: Mouse-anti-His mAb, GenScript, Cat. No. A00186).
The supernatant was loaded to a HisTrap affinity chromatography column (TaKaRa, Dalian, China) and the speed was 1 ml/min. The target proteins were eluted by Buffer 20 (50 mM Tris–Hcl, 150 mM NaCl, 20 mM imidazole, pH 8.0), Buffer 50 (50 mM Tris–Hcl, 150 mM NaCl, 50 mM imidazole, pH 8.0), and Buffer 500 (50 mM Tris–Hcl, 150 mM NaCl, 500 mM imidazole, pH 8.0) separately. Different streaming liquids were collected by the different concentration elutions. The OBP protein sample which has the single band was detected by SDS-PAGE and Western Blot for the protein purity and molecular weight. The protein concentrations were measured by Bradford protein assay with BSA as a standard (TIANGEN, TIANGEN BIOTECH, Beijing). The OBP proteins were then desalted through extensive dialysis, lyophilized, and stored at −80°C until use.
Competitive Fluorescence-Binding Assay
The fluorescence spectrophotometer (HORIBA FluoroMax®-4) was used to measure the emission fluorescence in a right-angle configuration with a 1 cm light path quartz cuvette. The excitation wavelength was 337 nm, and the range of the scanning emission wavelength was 380–450 nm. The protein was dissolved in 50 mM Tris–HCl buffer (PH = 7.4), and all the ligands that are used in the experiments were dissolved in the 1 mM methanol solutions. N-Phenyl-1-naphtylamine (1-NPN) was used as the fluorescent probe, and the binding constants of OBP with 1-NPN were determined according to the Scatchard equation. Then, the binding abilities of T. japonicus OBPs and (E)-2-decenal were investigated following the protocol as described by Zhong et al. (2018). Each OBP was tested three times and means were used for the analysis.
Data Analysis
For determination of binding constants, the intensity values corresponding to the maximum fluorescence emission were plotted against the total concentration of 1-NPN (Gong et al., 2009). The binding curve was linearized using the Scatchard equation. The dissociation constant was calculated using the formula Kd = [IC50]/(1 + [1-NPN]/K1–NPN), where IC50 is the (E)-2-decenal concentration at which the fluorescence intensity of [OBP/1-NPN] is reduced by half of the highest value, [1-NPN] is the dissociative concentration of 1-NPN, and K1–NPN is the dissociation constant of OBP/1-NPN.
Results
Overview of T. japonicus Transcriptome
A total of 64 290 024, 48 155 024, and 53 983 790 raw reads were obtained from the antenna, abdomen, and head of T. japonicus, respectively. After removing the reads with adapter, low-quality reads, and contaminative reads, 63 783 998, 47 369 672, and 53 191 614 valid reads were obtained from the antenna, abdomen, and head of T. japonicus, respectively (Supplementary Table S1). 59 214 transcript and 49 673 genes were obtained by de novo splicing use Trinity software (Supplementary Table S2). The obtained genes were matched with 5 public databases (Swiss-Prot, NR, KEGG, KOG, and Pfam) with an E-value less than 1.0E-10, and functional annotation was done by sequence similarity. The alignment of sequence similarity was searched with the BLAST (Blast Local Alignment Search Tool) algorithm. The result of annotation showed that 21 846, 25 735, 22 663, 9 577, 12 889, and 19 962 genes were annotated by Swiss-Prot, NR, Pfam, KEGG, KOG, and GO, respectively (Supplementary Table S3). A total of 19 962 genes was annotated to 50 classification of Gene Ontology (GO) function and categorized by biological process, cellular component, and molecular function (Supplementary Figure S1). The GO functions more directly related to insect olfaction in the list of biological processes included transmembrane transport, protein transport, and intracellular signal transduction.
Moreover, 9 577 genes were annotated to Kyoto encyclopedia of genes and genomes (KEGG) classification, and categorized by metabolism, organismal systems, cellular processes, genetic information processing, and environmental information processing in descending order of abundance (Supplementary Figure S2). The categories more directly related to insect olfaction in KEGG classification included the sensory system, nervous system, signaling molecules and interaction, signal transduction, membrane transport, and cell communication.
Identification and Sequence Analysis of TjapOBPs
Totally six T. japonicus OBPs (TjapOBPS) were found in the tested tissues of T. japonicus (Figure 1 and Supplementary Table S4). TjapOBP1 was relatively abundant among all annotated OBPs and broadly expressed in antenna, abdomen, and head without antenna, whereas TjapOBP2 and TjapOBP3 showed a much lower expression compared with TjapOBP1 and a relatively higher expression in antenna compared with abdomen and head without antenna. Alignment of the amino acid sequences of these three TjapOBPs with full-length transcripts contained six conserved cysteine residues (Figure 2), indicating they were classified as classical OBPs. We compared the selected three TjapOBPs with those of its host H. halys and congeneric species Telenomus podisi, as well as other model insects such as the fruit fly Drosophila melanogaster and honeybee, Apis mellifera. According to the Bayesian Information Criterion (BIC) score, the Whelan and Goldman (WAG) model was used for the phylogenetic analysis of the TjapOBPs. A phylogenetic tree of the TjapOBPs was constructed according to orthologs from H. halys, T. podisi, D. melanogaster, and A. mellifera (Figure 3). TjapOBP1, TjapOBP2, and TjapOBP3 were not clearly linked to each other (bootstrap support 0). TjapOBP1 was distantly related to D. melanogaster OBP56a, 56e, and 57d (bootstrap support 21). TjapOBP2 was most closely related to A. mellifera OBP1 (bootstrap support 66). TjapOBP3 was distantly related to H. halys OBP8, A. mellifera OBP6, and A. mellifera OBP8 (bootstrap support 26).

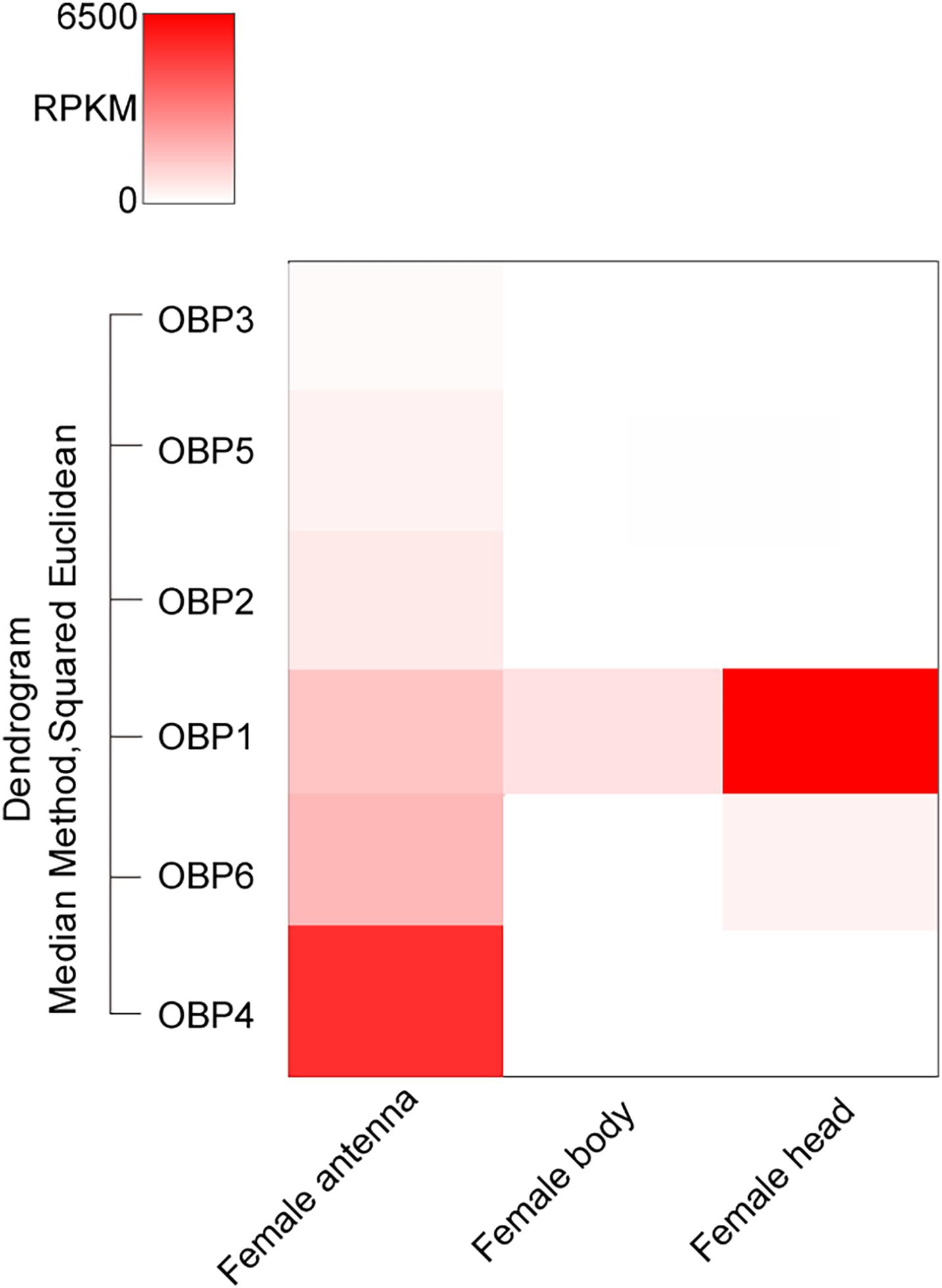

Figure 1. Expression patterns of annotated OBP genes in tested Trissolcus japonicus tissues.

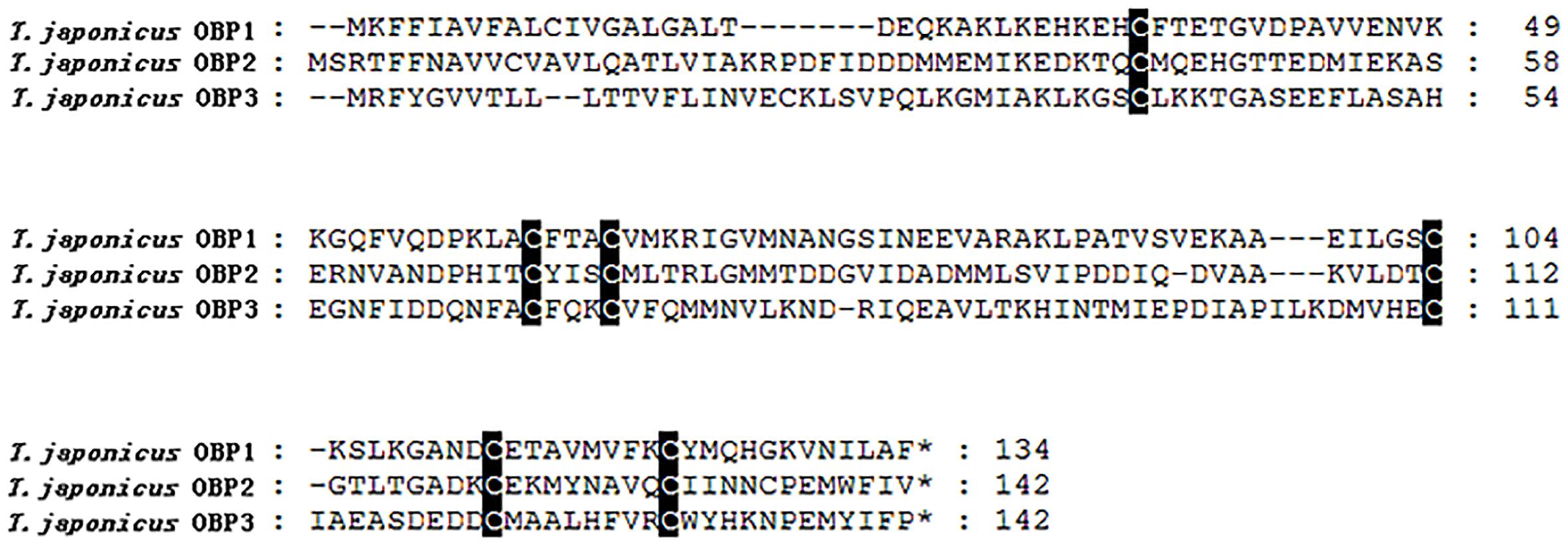

Figure 2. Alignment of amino acid sequences of OBPs in Trissolcus japonicus.
Figure 3. Maximum-likelihood dendrogram based on protein sequences of candidate OBPs from Trissolcus japonicus (Tjap), and Telenomus podis (Tpod), Halyomorpha halys (Hhal), Drosophila melanogaster (Dmel), and Apis mellifera (Amel). Blue dots indicate TjapOBP1, TjapOBP2, and TjapOBP3.
Expression and Purification of TjapOBP1, TjapOBP2, and TjapOBP3
TjapOBP genes were cloned in vitro through a bacterial expression system. After the cleavage of the His-tag and purification, sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and western blotting showed that the molecular masses of TjapOPB1, TjapOBP2, and TjapOBP3 were ∼14, 15, and 15 kDa, respectively. The molecular mass information obtained from SDS-PAGE and western blot tests was consistent with the amino acid lengths predicted from the T. japonicus transcriptome (Figure 4). There were great expressions for target proteins when the condition is 15°C, 150 rpm, and 16 h for induction. TjapOBP1 and TjapOBP3 had a large amount of expression in inclusion body after sonication and centrifugation; on the contrary, TjapOBP2 had a large amount of expression in supernatant (Figure 4). The final proteins were obtained by the purification and concentration, and the final concentrations were 1.2, 1.4, and 1.1 mg/ml for TjapOBP1, TjapOBP2, and TjapBP3, respectively.
Figure 4. SDS-PAGE (left) and Western blot (right) analysis of Trissolcus japonicus OBP1 (A), T. japonicus OBP2 (B), and T. japonicus OBP3 (C). M1: Protein Marker 1; M2: Protein Marker 2; 1: BSA, 2.0 μg; 2: SDS-PAGE OBPs; 3: Western blot OBPs. Arrows indicate the protein bands.
Binding Activities of TjapOBP1, TjapOBP2, and TjapOBP3 to (E)-2-Decenal
The fluorescent probe 1-NPN was used to bind the selected OBPs. Significant increases in fluorescence intensity levels were observed when the OBPs were added. Among the tested OBPs, TjapOBP1 revealed the highest slope (Figure 5). We then challenged each OBP/1-NPN complex with (E)-2-decenal to test their binding affinities to this alarm pheromone component. All three OBPs bound to (E)-2-decenal (Figure 6). TjapOBP2 had a strong ability to bind (E)-2-decenal, and the value of kd was 5.68 ± 0.47 μM and the value of IC50 was 7.92 ± 1.03 μM, whereas, TjapOBP1 and TjapOBP3 had a weak ability to bind (E)-2-decenal.
Figure 5. Competitive fluorescence binding of Trissolcus japonicus OBPs and 1-NPN.
Figure 6. Competitive fluorescence binding of Trissolcus japonicus OBPs and (E)-2-decenal with 1-NPN.
Discussion
The molecular mechanisms of insect olfaction have been widely investigated, particularly since high-throughput sequencing has provided easy access to an increasing amount of genomic and transcriptomic data (Pelosi et al., 2018). OBPs together with olfactory receptors (ORs) are crucial in insect-specific and -sensitive olfaction (Fan et al., 2011). OBPs have been characterized as small globular water-soluble acidic proteins (about 120–150 amino acids) with a signal peptide in the N-terminal region, six cysteine residues (Cys) in conserved positions, and predominant α-helical domains (Tegoni et al., 2004; Farias et al., 2015; Pelosi et al., 2018). Characterized by signature Cys, OBPs have been classified into four subfamilies: classical, Plus-C, Minus-C, and atypical OBPs (Zhou et al., 2004, Zhou et al., 2010b; Xu et al., 2009; Farias et al., 2015; Paula et al., 2016; Pelosi et al., 2018). In our study, for the first time, we identified six TjapOBPs, and three of them were all classical OBPs with 6 Cys. Previously, three full-length classical OBPs were identified and characterized in T. podisi (Farias et al., 2015). Classical OBPs was found in the solitary bee, Osmia cornuta (Yin et al., 2013), whereas both Minus-C and classical OBPs were found in A. mellifera (Forêt and Maleszka, 2006). However, the numbers of OBPs from both T. japonicus and T. podisi (i.e., 7 OBPs; Farias et al., 2015) were smaller than those obtained from genome analyses of other Hymenoptera species, e.g., 21 from A. mellifera (Forêt and Maleszka, 2006), 22 from Cotesia vestalis (Nishimura et al., 2012), and 90 from Nasonia vitripennis (Vieira et al., 2012). This might be attributed to the independent evolutionary history of the OBP genes in T. japonicus or T. podisi specialized in recognizing host semiochemcial cues comparing with other identified hymenopteran OBPs (Farias et al., 2015).
OBPs are divergent both between and within species and only share an average of 10–15% of their residues between species compared to CSPs (Pelosi et al., 2006, 2018). The phylogenetic analyses based on the OBP sequences clearly indicated a restricted conservation between various insect orders (Zhou et al., 2010a). However, few exceptions were observed from previous studies (e.g., Gu et al., 2013; Yin et al., 2013). Farias et al. (2015) confirmed very high similarity between the parasitoid T. podisi OBPs and its preferred stink bug host Euschistus heros (> 80%) while these OBPs were not orthologous to any known hymenopteran OBPs, suggesting that the parasitoid might have evolved independently and converged to the host OBPs. This would provide a possible explanation on molecular mechanism for the host location of T. podisi using E. heros semiochemical cues (Borges et al., 2011). However, we did not find close phylogenetic relationships between TjapOBPs and its host H. halys OBPs, except TjapOBP3 and H. halys OBP8. TjapOBP2 was mostly related to A. mellifera OBP1, indicating that these highly conserved OBPs would have a similar function in both hymenopteran species, e.g., recognizing similar odors. The three TjapOBPs mapped to different parts of the OBP phylogeny, which might be attributed to different genes for recognition of different odors (Farias et al., 2015). Our competitive fluorescence-binding assay result also showed that the three TjapOBPs had different binding abilities to (E)-2-decenal.
Pentatomid stink bugs release a wide variety of hydrocarbons, aldehydes, oxo-aldehydes, and other volatile compounds from the dorsal abdominal glands of nymphs, and the metathoracic glands of adults (Weber et al., 2017). As a major component of the defensive compounds in the stink bugs, (E)-2-decenal is emitted by BMSB adults and third-instar nymphs and functions as an alarm pheromone in BMSB (Harris et al., 2015; Zhong et al., 2017, 2018). It also functions as a repellent allomone to T. japonicus that significantly extends the host searching time of the parasitoid in the laboratory bioassays (Zhong et al., 2017). This alarm pheromone component was sensed by olfactory reception through H. halys OBP25, OBP30, OBP16, OBP8, and OBP4 in BMSB (Zhong et al., 2018; Sun et al., 2020). Interestingly, our results showed that TjapOBP3 was distantly related to H. halys OBP8. Thus, it is very possible that TjapOBP3 and H. halys OBP8 might evolve from closely related genes and thus are involved in detecting similar odors. The similar OBPs in the parasitoid and its host could suggest that the parasitoid can recognize host semiochemicals (Farias et al., 2015). This was already confirmed in T. podisi and its host E. heros that the parasitoid used the host sex pheromone to locate its host (Borges et al., 2011). Vandermoten et al. (2011) also found that SaveOBP3 in the aphid Sitobion avenae and EbalOBP3 in its predator, the syrphid fly Episyrphus balteatus, shared higher similarity and both OBPs are specifically tuned to (E)-β-farnesene, acting as an alarm pheromone for aphid and a kairomone for the natural enemies.
Our present study showed that the chemoreception of T. japonicus to (E)-2-decenal through its olfactory system is slightly complex. The binding ability of TjapOBP2 to the (E)-2-decenal is much stronger than TjapOBP1 and TjapOBP3, while the latter two OBPs still have weaker affinities to the volatile compound. We could deduce that TjapOBP2 is involved in a rapid response pathway that drives the initial escape behavior of T. japonicus within a short time period when the parasitoid encounters BMSB in the field, while TjapOBP1 and TjapOBP3 would be also involved in this alarm pheromone reception process but not as specific as TjapOBP2. Further studies are still needed to illustrate the complete olfactory mechanism of T. japonicus in host location behavior, which will provide a molecular basis in developing behavioral-mediating tools such as gene silencing/RNA interference to enhance the efficacy of biological control of H. halys with this important parasitoid.
Conclusion
We identified three classical OBPs from totally six OBPs in T. japonicus, namely, TjapOPB1, TjapOBP2, and TjapOBP3. We also tested their binding functions with (E)-2-decenal, an alarm pheromone component of H. halys. TjapOBP2 showed the highest binding ability to (E)-2-decenal, indicating that this odor carrier protein might play an important role in T. japonicus detecting the (E)-2-decenal.
Data Availability Statement
The sequencing data has been deposited into GenBank (accession: MN923521, MN923522, and MN923523).
Author Contributions
JZ, GC, and FZ contributed to conceptualization. YZ contributed data curation. YZ, KR, and FL contributed to the formal analysis. FZ contributed to the funding acquisition. YZ, JZ, and RT contributed to the investigation. RT and YZ contributed to the methodology. FZ contributed to the project administration. JZ and GC contributed to resources. JZ and FL contributed to the software. YZ and JZ contributed to the writing of the original draft. KR and FZ contributed to the writing – review and editing. All authors contributed to the article and approved the submitted version.
Funding
Financial support for this work was provided by China’s donation to CABI Development Fund, National Key R&D Programme of China (2019YFD0300105), and GDAS Special Project of Science and Technology Development (2018GDASCX-0107).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We would like to thank Haixia Zhan and Qianqian Mi for insect rearing in the laboratory. We also thank three reviewers for their critical comments to improve an earlier version of the manuscript. CABI is an international intergovernmental organization, and we gratefully acknowledge the core financial support from our member countries (and lead agencies) including the United Kingdom (Department for International Development), China (Chinese Ministry of Agriculture and Rural Affairs), Australia (Australian Centre for International Agricultural Research), Canada (Agriculture and Agri-Food Canada), The Netherlands (Directorate-General for International Cooperation), and Switzerland (Swiss Agency for Development and Cooperation; see http://www.cabi.org/aboutcabi/who-we-work-with/key-donors/ for full details).
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2020.01058/full#supplementary-material
TABLE S1 | Overview of RNA-sequencing data of Trissolcus japonicus.
TABLE S2 | Assembly of unigene and transcripts of Trissolcus japonicus.
TABLE S3 | Annotation of Trissolcus japonicus unigenes with BLAST.
TABLE S4 | The FPKM values of OBPs in different tissues of Trissolcus japonicus.
FIGURE S1 | Gene ontology (GO) classification of T. japonicus transcriptome. Unigenes were classified into three main categories: biological process, cellular component, and molecular function. The Y-axis indicates the percentage of a specific category of genes in each main category.
FIGURE S2 | KEGG functional classification of T. japonicus transcriptome.
