Shuying Fu1†
Yuhuan Meng1†
Wenlu Zhang1
Jiajian Wang1
Yuting He1Lizhen Huang1Hongmei Chen2Jian Kuang2
Hongli Du1*- 1School of Biology and Biological Engineering, South China University of Technology, Guangzhou, China
- 2Department of Endocrinology, Guangdong General Hospital/Guangdong Academy of Medical Sciences, Guangzhou, China
Physical activity exerts positive effects on glycemic control in type 2 diabetes (T2D), which is mediated in part by extensive metabolic and molecular remodeling of skeletal muscle in response to exercise, while many regulators of skeletal muscle remain unclear. In the present study, we investigated the effects of acute exercise on skeletal muscle transcriptomic responses in the Goto-Kakizaki (GK) rats which can spontaneously develop T2D. The transcriptomes of skeletal muscle from both 8-week-old GK and Wistar rats that underwent a single exercise session (60 min running using an animal treadmill at 15 m/min) or remained sedentary were analyzed by next-generation RNA sequencing. We identified 819 differentially expressed genes in the sedentary GK rats compared with those of the sedentary Wistar rats. After a single bout of running, we found 291 and 598 genes that were differentially expressed in the exercise GK and exercise Wistar rats when compared with the corresponding sedentary rats. By integrating our data and previous studies including RNA or protein expression patterns and transgenic experiments, the downregulated expression of Fasn and upregulated expression of Tbc1d1, Hk2, Lpin1, Ppargc1a, Sorbs1, and Hmox1 might enhance glucose uptake or improve insulin sensitivity to ameliorate hyperglycemia in the exercise GK rats. Our results provide mechanistic insight into the beneficial effects of exercise on hyperglycemia and insulin action in skeletal muscle of diabetic GK rats.
Introduction
Diabetes has become a growing global public health problem, leading to millions of deaths and considerable healthcare expenditure (Da et al., 2016). According to the International Diabetes Federation (IDF), 451 million people were estimated to have diabetes worldwide in 2017, with a projected increase to 693 million people by 2045 (Cho et al., 2018). Among these patients, 87–91% suffered from type 2 diabetes (T2D) which is characterized by hyperglycemia and insulin resistance in target organs (Chatterjee et al., 2017). In a short period, the prevalence of T2D in Asian populations has increased rapidly, with more than 60% of global T2D cases occurred in Asia. Moreover, it is increasingly recognized that Asian T2D patients may have different patterns from western counterparts, especially with a relatively lower mean body mass index (BMI) (Ramachandran et al., 2010; Yang and Weng, 2014). Therefore, suitable animal models are needed to study the pathophysiology and treatments of non-obese T2D patients.
The Goto-Kakizaki (GK) rat is one of the best spontaneous non-obese T2D animal models generated by repeated inbreeding of glucose intolerant Wistar rats, and has been extensively used in diabetic research (Portha et al., 2012; Hou et al., 2017). According to previous studies, GK rats had 10–20% lower body weights than control Wistar rats and exhibited hyperglycemia, hyperinsulinemia, and glucose intolerance at 8 weeks of age (Movassat et al., 2008; Almon et al., 2009). Moreover, insulin resistance and related signal transduction defects have also been reported in peripheral tissues such as skeletal muscle of adult GK rats (Nie et al., 2011). Due to these shared characteristics, GK rats may be a good model to study pathogenesis and treatments for T2D patients without obesity.
Physical activity, as a well-known beneficial factor, contributes to T2D both in prevention and treatment by improving glycemic control and insulin sensitivity (Praet and van Loon, 2008; Colberg et al., 2010; Borror et al., 2018). Skeletal muscle, one of the predominant sites of glucose disposal, plays a critical role in glycemic and metabolic homeostasis (DeFronzo and Tripathy, 2009). Benefits of physical activity are partly mediated by extensive metabolic and molecular remodeling of skeletal muscle responding to exercise (Egan and Zierath, 2013). It has been reported that the glucose uptake of skeletal muscle increased by up to 50-fold during bouts of exercise and remained elevated post exercise for several hours (Richter and Hargreaves, 2013; Sylow et al., 2017). Moreover, contraction-induced signal transduction can improve insulin resistant in skeletal muscle after exercise (Dela et al., 2018; Naufahu et al., 2018). Although considerable effort has been made to reveal comprehensive changes stimulated by exercise (Pilegaard et al., 2000; Mahoney et al., 2005; Catoire et al., 2012), many regulators of skeletal muscle have not yet been discovered, especially in the non-obese T2D.
To reveal the molecular responses of diabetic GK rats responding to a single bout of treadmill running, we assessed transcriptional profiles in skeletal muscle from both 8-week-old GK and Wistar rats with and without exercise by next-generation RNA sequencing (RNA-Seq) in the current study. The findings of molecular changes stimulated by exercise in skeletal muscle may provide the potential intervenient targets to treat and prevent deterioration in human T2D.
Materials and Methods
Animals
Male GK rats and age-matched male Wistar rats were purchased at the ages of 6 weeks from Shanghai SLAC Laboratory Animal Co., Ltd. (China) and were maintained under specific-pathogen-free (SPF) conditions with a temperature of 23–24°C, a 12:12-h light–dark cycle, and 50–60% atmospheric humidity. The animals received standard rat chow and water ad libitum. The study was approved by the institutional review board of the Guangdong Key Laboratory of Laboratory Animals. Research protocols conform to the guidelines of the Institutional Animal Care and Use Committee (IACUC) (Ethics Certificate No.: IACUC2014029).
Exercise Training
All rats were familiarized with treadmill running using a progressive running program for 3 days at 7 weeks of age. On day 1, all rats ran at speeds of 8 m/min for 5 min, followed by 10 m/min for 10 min. On days 2 and 3, rats ran at speeds of 10 m/min for 5 min, followed by 15 m/min for 10 min. After the treadmill familiarization program, animals rested for 2 days. Then both GK and Wistar rats were randomly assigned to either a sedentary or an exercise group (Wistar, GK, exercise Wistar, exercise GK, n = 10/group). The formal acute exercise experiment was conducted at 8 weeks of age. The exercise groups (exercise Wistar, exercise GK) performed a single bout running at speeds 15 m/min for 60 min (Tsutsumi et al., 2015). Rats were encouraged to run by noise. During the exercise session, food and water were removed from both exercise and sedentary groups and immediately returned to cages after running.
Tissue and Blood Sampling
Animals were anesthetized with pentobarbital sodium (50 mg/kg weight), and blood samples were collected from the abdominal aortic exsanguination using EDTA as an anticoagulant. Then gastrocnemius muscles were isolated, rapidly frozen in liquid nitrogen, and stored at -80°C. Plasma was centrifuged (2000 × g, 4°C, 15 min) from whole blood, and kept at -80°C before beginning the assays. The tissue and blood samples were collected at 2 h after acute exercise (Takimoto and Hamada, 2014; Pourteymour et al., 2017). Sedentary rats from both GK and Wistar groups were anesthetized at the same times coinciding with exercise groups.
Assessment of Glucose and Insulin Levels in the Plasma
Blood glucose was measured by using FUJI DRI-CHEM SLIDE GLU-P III (FUJIFILM, Japan) with an automatic FUJI DRI-CHEM analyzer from plasma. Insulin was measured in plasma samples using commercial Rat Insulin ELISA Kits (Thermo Scientific, United States). Assays were conducted according to the manufacturer’s instructions. All standards and samples were assayed in triplicate.
RNA Isolation, Library Preparation, and Sequencing
Totally, 24 gastrocnemius muscle samples (RNA from six animals in each subgroup) were prepared for RNA-Seq. Total RNA was isolated using TRIzol Reagent (Thermo Scientific, United States) according to the manufacturer’s instructions and resuspended in nuclease-free ultrapure dH2O. We used the Qubit®3.0 Fluorometer (Life Technologies, Pleasanton, CA, United States) to determine RNA purity. Then RNA integrity and concentration were assessed by the RNA Nano 6000 Assay Kit of the Bioanalyzer 2100 System (Agilent Technologies, Santa Clara, CA, United States). Sequencing libraries were prepared using NEBNext®UltraTM RNA Library Prep Kit for Illumina®(NEB, United States) and index codes were added to attribute sequences to each sample. Briefly, we used poly-T oligo-attached magnetic beads to purify mRNA samples from total RNA, and divalent cations under elevated temperature in NEBNext First Strand Synthesis Reaction Buffer (NEB, United States) to carry out fragmentation. The library fragments were purified with QIAquick PCR Kits (Qiagen, Germany) following first-strand and second-strand cDNA synthesized. A-tailing and adapter added were implemented to complete terminal repair, and we used agarose gel electrophoresis to retrieve the target products. After this step, PCR was performed to enrich templates and complete the library. The sequencing library quantitation was measured by the QubitTM 3.0 Fluorometer. Finally, the libraries were sequenced on an Illumina HiSeq X platform (Illumina, United States) to generate 150 bp paired-end reads after the clustering of the index-coded samples performed.
Reads Filtering
Reads were discarded using the following filtering criteria to obtain clean reads: (1) reads with over 50% bases with quality less than 20; (2) reads with over 5% unidentified bases; and (3) reads with overrepresented adaptors.
Differentially Expressed Genes
Clean reads from each sample were aligned to the Rattus norvegicus reference genome (Rattus norvegicus: Rnor 6.0 Ensembl version 86) using STAR2 (Dobin et al., 2013; Dobin and Gingeras, 2015) (version 020201). StringTie (Pertea et al., 2015) (version 1.3.0) was used to assemble the transcripts. StringTie also provides a Python script (prepDE.py) to extract read count information directly from the gtf generated by StringTie to build count matrices. The edgeR (Robinson and Smyth, 2008; Robinson and Oshlack, 2010; Lun et al., 2016), a bioconductor package, was used for differential expression analysis of read counts. Multiplicity correction was performed by applying the Benjamin–Hochberg method (Benjamini and Hochberg, 1995). Genes with false discovery rate (FDR) < 0.05 and absolute log2 fold change > 0.585 (1.5-fold) were considered as differentially expressed (Dickinson et al., 2018).
Functional Enrichment Analysis
Differentially expressed genes (DEGs) were subjected to the Gene Ontology (GO), including biological process (BP), cell component (CC), and molecular function (MF), and the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis using the clusterProfiler R package (Yu et al., 2012, 2015). The GO terms and KEGG pathways with a corrected P-value < 0.05 were considered to be significantly enriched.
Protein–Protein Interaction (PPI) Network Analysis
The STRING (version 11.0) database was employed to construct the PPI network of DEGs with an interaction score >0.4 (Szklarczyk et al., 2015). Based on the interaction pair information, the PPI network was visualized in the Cytoscape software (version 3.5.1). The Molecular Complex Detection (MCODE) as a Cytoscape plugin was used to detect significant functional modules in the PPI network with default parameter settings: degree cutoff of 2, node score cutoff of 0.2, and K-core of 2 (Bader and Hogue, 2003).
Transcriptional Regulatory Network Analysis
The Match tool in the TRANSFAC database was used to predict potential transcriptional factors (TFs) based on the 2000 bp upstream of transcription start sites of DEGs (Szklarczyk et al., 2015). The TFs with a relative score <0.9 were filtered out. A transcriptional regulatory network was constructed among the DEGs and their corresponding TFs and visualized by Cytoscape software.
Quantitative Real-Time PCR (qRT-PCR) Validation
In order to validate the gene expression changes, total RNA was reverse transcribed using PrimescriptTM RT Reagent Kit with gDNA Eraser (Takara, Japan), and qRT-PCR was performed with SYBR®Premix Ex TaqTM II (Takara, Japan). Reactions were run in a Light Cycler 96 System (Roche, Switzerland). Relative expression ratios were calculated using beta-actin (Actb) as a housekeeping gene and comparative cycle threshold method (2-ΔΔCt). The primer sequences for these genes were designed by Primer Express 6.0, and the details were listed in Supplementary Table S1.
Statistical Analysis
For metabolic measurements, the data are represented as means ± SEM. Two-way analysis of variance (ANOVA) with Tukey’s post hoc analysis was performed to identify differences among groups. Statistical analysis was carried out using GraphPad Prism (version 7), and a P-value < 0.05 was considered to be statistically significant.
Data Availability
The RNA-Seq raw data have been submitted to the NCBI SRA database (PRJNA490045).
Results
Animal Characteristics
To determine the effects of acute exercise, plasma glucose and insulin levels were analyzed. For glucose levels, two-way ANOVA analysis revealed rat strain (GK > Wistar, P < 0.01) and exercise (sedentary > exercise, P < 0.05) had significant main effects. Post hoc analysis showed that plasma glucose levels of GK rats were higher than Wistar rats and reached the diagnostic criteria for T2D (the random glucose > 11.1 mmol/L) (P < 0.01) at the 8 weeks of age (Supplementary Figure S1A). At 2 h post exercise, the levels of plasma glucose were similar between the sedentary and exercise Wistar groups while glucose levels showed distinct decreases in the exercise GK group compared with sedentary one (P < 0.05) (Supplementary Figure S1A). Although a single bout of running relieved hyperglycemia in exercise GK rats, the glucose levels remained significantly higher than in Wistar rats (P < 0.01) (Supplementary Figure S1A). For plasma insulin, rat strain (GK > Wistar, P < 0.01) and exercise (sedentary > exercise, P < 0.01) also had significant main effects. The insulin levels were significantly elevated in the GK rats compared with the Wistar rats (P < 0.01) (Supplementary Figure S1B). After acute exercise, insulin did not differ between two Wistar groups, but the levels in exercise GK rats displayed significant decreases in comparison with sedentary GK rats (P < 0.01) (Supplementary Figure S1B).
Identification of Differentially Expressed Genes
To investigate the regulatory mechanisms involved in response to acute exercise, we analyzed the transcriptomes of skeletal muscle from four groups (Wistar, GK, exercise Wistar, and exercise GK). Among the 32,494 surveyed genes, 12,729 genes [kept genes with at least 1 count-per-million reads (CPM) in at least 12 samples] were considered as a quantifiable dataset. A total of 1396 DEGs were identified in three comparisons (GK vs. Wistar, exercise GK vs. GK, and exercise Wistar vs. Wistar) and the details of these genes were presented in Supplementary Table S2. There were 819 genes whose expression was significantly altered in GK rats relative to Wistar rats (Figure 1A). Of these DEGs identified in GK vs. Wistar comparison, 455 genes were upregulated, and 364 genes were downregulated (Figures 1A,B). A single session of running in Wistar rats resulted in 598 DEGs in skeletal muscle, with 215 upregulated and 383 downregulated (Figures 1A,C). However, exercise only induced 291 DEGs in GK rats, of which 194 genes were upregulated and 97 genes were downregulated (Figures 1A,D). Venn diagram analysis revealed that 32 DGEs were common in three comparisons, and 610, 381, and 125 DGEs were unique to GK vs. Wistar, exercise Wistar vs. Wistar, and exercise GK vs. GK, respectively (Figure 1A). These results indicated that transcriptomes of skeletal muscle varied widely between GK and Wistar rats. Moreover, the magnitude of transcriptional changes responding to exercise in the Wistar rats was greater than that in the GK rats. To validate RNA-Seq data, several DEGs were selected for validation of expression by qRT-PCR analysis (Supplementary Figure S2). The results exhibited similar expression patterns between RNA-Seq and qRT-PCR, and the correlation coefficient was 0.95 (P < 0.0001), which indicated the reliability of RNA-Seq data (Supplementary Figure S2).
Figure 1. The number of DEGs. (A) Venn diagram representing the overlap of DEGs in skeletal muscle among the three comparisons (GK vs. W, EGK vs. GK, and EW vs. W). MA plots representing the distribution of DEGs in GK (B), EW (C), and EGK (D). The dots between two horizontal lines indicate absolute fold change <1.5, red dots indicate significantly upregulated genes, and blue dots indicate significantly downregulated genes (FDR < 0.05). W, Wistar; EW, exercise Wistar; GK, Goto-Kakizaki; EGK, exercise GK.
Functional Enrichment and PPI Analysis of Differentially Expressed Genes Between GK and Wistar Rats
To characterize the potential functions altered by the DEGs, we carried out GO and KEGG pathway enrichment analysis. For the GK vs. Wistar comparison, we found DEGs were significantly enriched in the muscle-related GO terms such as skeletal muscle organ development, skeletal muscle tissue development, and negative regulation of smooth muscle cell proliferation among the top 20 terms (Supplementary Table S3 and Figure 2A). Moreover, some enriched GO terms related to metabolism were found, including small molecular catabolic process, intracellular receptor signaling pathway, fatty acid metabolic process, and glutathione metabolic process. In the KEGG pathway enrichment analysis, several significant pathways were related to diabetes, including AMPK signaling pathway, PPAR signaling pathway, insulin signaling pathway, and so on (Supplementary Table S3 and Figure 2B). These functional enrichment results suggested that GK rats might have significant changes in energy metabolism and signal transduction compared to Wistar rats, which might contribute to the development of T2D. Among these enriched pathways, five genes (Slc27a1, Fasn, Tbc1d1, Pfkfb3, and Igf1r) related to the regulation of glucose homeostasis were screened. Of these five genes, the expression of Slc27a1 (solute carrier family 27, member 1), Fasn [fatty acid synthase (FASN)], and Tbc1d1 (TBC1 domain family member 1) was significantly increased in the GK rats compared with Wistar rats. In contrast, the expression of Pfkfb3 (6-phosphofructo-2-kinase) and Igf1r (insulin-like growth factor 1) was significantly decreased in the GK rats. To reveal functional interactions between DEGs, we constructed a PPI network by mapping genes via the STRING database and identified densely connected networks using the MCODE plugin in Cytoscape. Twenty-three models were obtained and the highest score module consisted of 14 nodes and 87 edges (Supplementary Figure S3A).
Figure 2. GO and KEGG enrichment analysis of DEGs in GK vs. Wistar comparison. The top 20 significantly enriched GO terms (A) and KEGG pathways (B).
Functional Enrichment and PPI Analysis of Differentially Expressed Genes Between Exercise Wistar and Wistar Rat
To investigate the effect of exercise on healthy control rats, the 598 DEGs identified between exercise Wistar and Wistar rats were subjected to functional enrichment analysis. The top 20 significantly enriched GO terms were mainly associated with muscle, including muscle tissue development, striated muscle tissue development, muscle organ development, muscle system process, and so on (Supplementary Table S3 and Figure 3A). The GO enrichment analysis indicated that the development of muscle underwent significant changes in the exercise Wistar rats. The KEGG pathway analysis showed that insulin signaling pathway, AMPK signaling pathway, PPAR signaling pathway, and glucagon signaling pathway associated with metabolism were significantly enriched, indicating that exercise also affected metabolism in the skeletal muscle of Wistar rats (Supplementary Table S3 and Figure 3B). Moreover, we performed the PPI network analysis of DEGs and extracted eight significantly clustered modules. The module with the highest score had 24 gene nodes and 134 edges (Supplementary Figure S3B).
Figure 3. GO and KEGG enrichment analysis of DEGs in exercise Wistar vs. Wistar comparison. The top 20 significantly enriched GO terms (A) and KEGG pathways (B).
Functional Enrichment and PPI Analysis of Differentially Expressed Genes Between Exercise GK and GK Rats
The GO enrichment analysis in the exercise GK vs. GK comparison showed that DEGs were enriched in the GO terms related to muscle, including muscle tissue development, muscle cell development, and so on (Supplementary Table S3 and Figure 4A). These results were consistent with the other two comparisons. Moreover, carboxylic acid biosynthetic process, organic acid biosynthetic process, monocarboxylic acid biosynthetic process, and response to fatty acid were identified in the top 20 GO terms, indicating the metabolism might be significantly changed after exercise in the GK rats. In the top 20 enriched pathways, insulin signaling pathway, AMPK signaling pathway, glycerophospholipid metabolism, insulin resistance, and FoxO signaling pathway related to metabolism and diabetes were identified (Supplementary Table S3 and Figure 4B). We also carried out the PPI network analysis using the DEGs induced by exercise in the GK rats. Eight significant modules in the PPI network were identified, and the highest score module was visualized and presented in Supplementary Figure S3C, which contained 14 genes with 38 edges.
Figure 4. GO and KEGG enrichment analysis of DEGs in exercise GK vs. GK comparison. The top 20 significantly enriched GO terms (A) and KEGG pathways (B).
To gain a further understanding of how exercise exerts the effect on diabetic GK rats, we analyzed the expression patterns of 291 DEGs between exercise GK and GK rats using k-means clustering, and three major groups were clustered (Figure 5A and Supplementary Table S4). The first cluster revealed high average levels of expression in sedentary groups (Wistar and GK rats), decreasing after exercise (exercise Wistar and exercise GK) (Figures 5A,B). In contrast, the second cluster exhibited low average levels of expression in sedentary groups, increasing after exercise (Figures 5A,C). The DEGs in cluster 1 were significantly enriched in carbohydrate digestion and absorption, and fatty acid metabolism pathways (Supplementary Table S4). The expression of gene Fasn (FASN) was significantly downregulated in both Wistar and GK groups after exercise (Table 1). In cluster 2, pathways significantly enriched for DEGs were related to glycerophospholipid metabolism, AMPK signaling, and so on (Supplementary Table S4). In the glycerophospholipid metabolism pathway, the expression of gene Lpin1 (Lipin-1) was significant upregulation in both exercise strains (Table 1). Moreover, the expression of Tbc1d1 (TBC1 domain family member 1) involved in AMPK signaling pathway was also significantly upregulated in two exercise groups (Table 1).
Figure 5. The expression patterns of DEGs of exercise GK in the four groups. DEGs in the exercise GK rats were analyzed using k-means clustering method. This identified three major groups, presented in heat map based on patterns of expression (A), and graphical format based on the mean value of z-score values of gene expression in cluster 1 (B), cluster 2 (C), and cluster 3 (D).

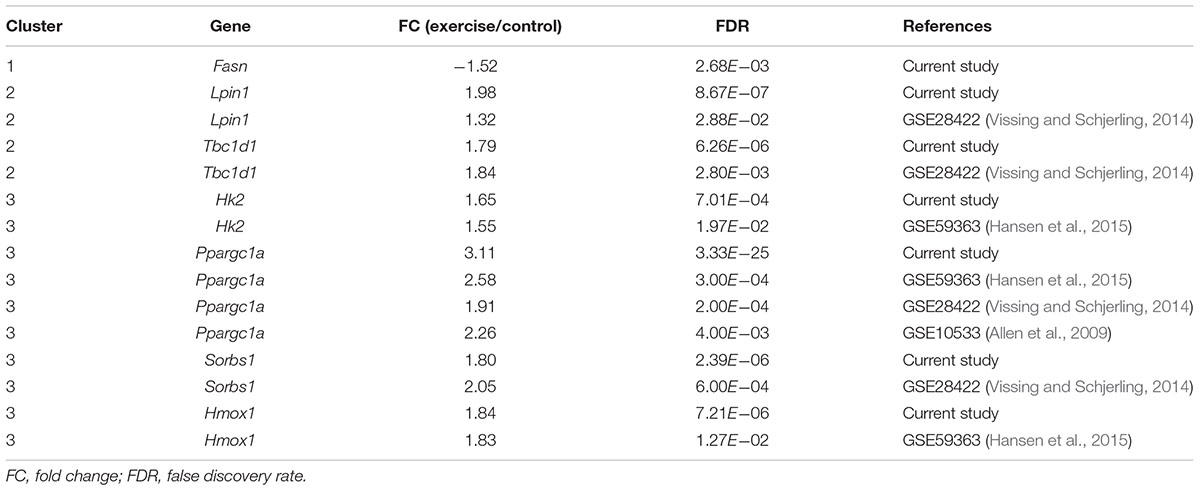

Table 1. The details of key DEGs in the exercise GK rats and other datasets.
Interestingly, we found that the third cluster was distinctive, with high average levels of expression only in exercise GK rats (Figures 5A,D). These DEGs whose expression was dramatically upregulated after exercise in GK rats might provide some critical clues regarding pathways and genes to reveal the mechanisms of improving hyperglycemia. For cluster 3, a total of 29 significantly enriched pathways were identified, and several pathways were associated with diabetes, including insulin signaling pathway, insulin resistance, glycolysis/gluconeogenesis, FoxO signaling pathway, HIF-1 signaling pathway, and type 2 diabetes mellitus (Supplementary Table S4). Among these pathways, some key regulators Hk2 [hexokinase 2 (HKII)], Ppargc1a (PPARG coactivator 1 alpha), Sorbs1 (sorbin and SH3 domain containing 1), Hmox1 [heme oxygenase 1 (HO-1)] which had been reported involving in regulation of glucose homeostasis, were significantly upregulated induced by exercise in GK rats (Table 1).
Transcriptional Regulatory Network Analysis
Through the above analysis, we identified seven key DEGs in the exercise GK rats, including Fasn, Tbc1d1, Lpin1, Hk2, Ppargc1a, Sorbs1, and Hmox1. To explore factors affecting the expression of these DEGs, we used the TRANSFAC database to predict potential TFs. A total of 50 potential TFs were involved in the regulation of these key genes (Supplementary Table S5). The number of TFs that regulated the genes Fasn, Tbc1d1, Lpin1, Hk2, Ppargc1a, Sorbs1, and Hmox1 were 19, 12, 18, 18, 12, 8, and 10, respectively. Of these predicted TFs, 11 were significantly altered in the exercise GK rats, with 2 downregulated and 9 upregulated (Figure 6). These differentially expressed TFs might lead to the altered expression of genes Fasn, Tbc1d1, Lpin1, Hk2, Ppargc1a, Sorbs1, and Hmox1, which might help for understanding the transcriptomic responses in the exercise GK rats.
Figure 6. The network of DEGs and their corresponding TFs. The circles represent the target genes of the TFs, and the diamonds represent the TFs. Red indicates significantly upregulated, green indicates significantly downregulated, and blue indicates the expression of genes without significant difference.
Discussion
Skeletal muscle plays an important role in maintaining systemic glucose homeostasis because it is one of the primary organs for glucose metabolism. Substantial evidence indicated that physical activity plays an essential role in the prevention and treatment of T2D and even a single bout of exercise can improve hyperglycemia and insulin resistance (Colberg et al., 2010; Richter and Hargreaves, 2013). However, the molecular mechanisms underlying the beneficial effects are still unclear, and few studies were forced on the non-obese T2D which often occurred in the Asian diabetic patients. The GK rat, a spontaneously non-obese T2D model, displayed hyperglycemia, insulin resistance, and glucose intolerance at the 8 weeks age (Movassat et al., 2008; Almon et al., 2009; Portha et al., 2012). Considering these characteristics, GK rats are a suitable model for studying the exercise effects on the non-obese T2D. In the current study, the transcriptomes of skeletal muscle from both 8-week-old GK and Wistar rats that underwent a single bout of exercise (60 min running using an animal treadmill at 15 m/min) or not were analyzed by RNA-Seq technology (Bedford et al., 1979; Tsutsumi et al., 2015). The differential expression analysis showed that 819 genes were significantly changed between GK rats and Wistar rats. At 2 h post exercise, 598 and 291 DEGs were identified in the exercise Wistar and exercise GK rats, respectively, compared with the corresponding sedentary rats. To reveal the acute exercise induced specific transcriptional adaptions involved in diabetic GK rats, 291 DEGs found in exercise GK rats were further clustered to three groups based on the expression patterns. There were three genes (Fasn, Lpin1, and Tbc1d1) found in clusters 1 and 2, which were significantly altered in both exercise Wistar and exercise GK rats. Moreover, four genes (Hk2, Hmox1, Sorbs1, and Ppargc1a) which were significantly upregulated in the exercise GK rats were identified in cluster 3. By integrating our data and previous studies including RNA or protein expression patterns and transgenic experiments of these key genes, we predicted that the seven key genes might be associated with the improvement of hyperglycemia or insulin sensitivity.
Among these four DEGs which were significantly upregulated in the exercise GK rats, the gene Hk2 encodes hexokinase II which catalyzes glucose to glucose-6-phosphate, the first rate-limiting step in glycolysis. It has been reported that the expression of Hk2 was reduced in skeletal muscle of diabetes (Braithwaite et al., 1995; Esteves et al., 2018). In the current study, the gene Hk2 was significantly upregulated in the exercise GK rats, which was consistent with previous studies that the expression of Hk2 and HKII protein content was significantly increased in the T2D or obese subjects after exercise (Croymans et al., 2013; Hansen et al., 2015). Moreover, transgenic studies showed that partial Hk2 knockout in mice impaired glucose uptake and suppressed insulin action (Fueger et al., 2007), while overexpression of Hk2 enhanced exercise-stimulated glucose uptake in high-fat-fed mice (Fueger et al., 2004). In light of these, the upregulated expression of Hk2 in exercise GK rats might promote glycolysis, increase glucose uptake, and improve insulin sensitivity. The gene Ppargc1a encodes peroxisome proliferator-activated receptor gamma coactivator 1 alpha (PGC-1α) which is a transcription coactivator regulating energy metabolism. Accumulating evidence suggested that PGC1-α was associated with the regulation of T2D (Wu et al., 2016). In the diabetic muscle, the expression of Ppargc1a was significantly decreased, which might contribute to insulin resistance (Mootha et al., 2003; Patti et al., 2003; Chan and Arany, 2014). Interestingly, recent studies indicated that Ppargc1a was upregulated after exercise in skeletal muscle of T2D rodents and patients, improving glucose homeostasis and insulin sensitivity (Allen et al., 2009; Summermatter et al., 2013; Vissing and Schjerling, 2014; Hansen et al., 2015). In addition, transgenic increased expression of Ppargc1a in the skeletal muscle enhanced glucose uptake (Wende et al., 2007; Zhang et al., 2013; Wu et al., 2016). Therefore, increased expression in Ppargc1a might be associated with improvement of hyperglycemia in the exercise GK rats. Cbl-associated protein (CAP), encoding by Sorbs1, played a positive role in the insulin signaling pathway (Baumann et al., 2000). The genetic variation of Sorbs1 was associated with the incidence of diabetes and glucose homeostasis, supporting the involvement of Sorbs1 in the pathogenesis of diabetes (Chang et al., 2018). Besides, the expression of Sorbs1 was correlated negatively with homeostatic model assessment for insulin resistance (HOMA-IR). In other words, overexpression of Sorbs1 meant higher insulin sensitivity (Pettersson et al., 2013). The expression of Sorbs1 was increased after acute exercise, which might be related to the amelioration of glucose levels in the exercise GK rat (Vissing and Schjerling, 2014). The gene Hmox1 encodes the enzyme HO-1 associated with insulin sensitivity and protecting cellular defense from oxidative stress (Ndisang et al., 2010). According to previous studies, the expression of Hmox1 in skeletal muscle of T2D decreased significantly, but it increased markedly after exercise, which was consistent with our data (Bruce et al., 2003; Hansen et al., 2015). Besides, it has been demonstrated that the use of hemin to induce Hmox1 improved glucose tolerance and enhanced insulin sensitivity in the GK rats (Ndisang and Jadhav, 2009). Collectively, these data suggested that the upregulated expression of Hk2, Ppargc1a, Sorbs1, and Hmox1 might be implicated in the improvement of hyperglycemia and insulin resistance in the exercise GK rats.
Three genes (Fasn, Lpin1, and Tbc1d1) associated with insulin sensitivity and glucose homeostasis had significant changes in both exercise GK and Wistar rats. It has been known for many years that the dysregulated lipid metabolism leads to lipotoxicity which implicated in insulin resistance and T2D. FASN plays a vital role in lipogenesis via converting acetyl-CoA and malonyl-CoA to palmitate. Overexpression of Fasn has been associated with insulin resistance and diabetes (Menendez et al., 2009). In contrast, muscle-specific Fasn knockout ameliorated insulin resistance, glucose intolerance, and increased glucose uptake in high-fat diet fed mice (Funai et al., 2013). In the GK skeletal muscle, the significantly upregulated Fasn might be associated with insulin resistance to cause hyperglycemia and hyperinsulinemia. After a single bout of running, we found that Fasn expression was significantly decreased, which might improve insulin sensitivity in both two exercise groups and attenuate plasma glucose in GK rats. Besides, we also found gene Lpin1 related to triacylglycerol synthesis was significantly upregulated in the exercise GK rats and Wistar rats, which was also found in the human skeletal muscle after exercise (Raue et al., 2012; Vissing and Schjerling, 2014). The mutations in Lpin1 resulted in systemic insulin resistance, and downregulation of Lpin1 in C2C12 myotubes via siRNA transfection suppressed insulin action due to the elevated accumulation of intermediate ceramide (Huang et al., 2017). In our data, significantly upregulated Lpin1 indicated that insulin resistance might be improved in skeletal muscle of exercise GK rats. The gene Tbc1d1 encodes Tre-2/BUB2/cdc16 domain family member 1 (TBC1D1) which implicated in regulating the traffic of the glucose transporter 4 (GLUT4) and thus modulating glucose uptake (Leto and Saltiel, 2012). Under basal conditions, TBC1D1 prevented GLUT4 translocation by attenuating guanosine triphosphate (GTP) loading of their target Rab GTPases, and silencing of Tbc1d1 increased the level of surface GLUT4 to promote glucose uptake in the unstimulated L6 muscle cells (Ishikura and Klip, 2008; Cartee and Funai, 2009; Jaldin-Fincati et al., 2017). However, overexpression Tbc1d1 was required for contraction-induced metabolic responses and deletion of Tbc1d1 impaired glucose uptake in the exercise-stimulated mice (Stockli et al., 2015; Whitfield et al., 2017; Kjobsted et al., 2019). The significantly upregulated expression of Tbc1d1 was also observed in the human skeletal muscle after acute exercise (Raue et al., 2012; Vissing and Schjerling, 2014). In the GK rats, Tbc1d1 expression was increased, indicating that the glucose uptake might be impaired under sedentary condition. Although the gene Tbc1d1 was further upregulated after exercise in the GK rats, it might be associated with increased contraction-induced glucose uptake. The further study of post-translational modifications of TBC1D1 might help to reveal exercise effects on diabetic GK rats, since it has been reported that phosphorylation of TBC1D1 was increased after exercise and positively associated with contraction-induced muscle glucose uptake, which played an essential role in glucose homeostasis (An et al., 2010; Jessen et al., 2011; Kjobsted et al., 2019).
In the present study, we found a single bout of exercise can improve hyperglycemia in the diabetic GK rats, and RNA-Seq was utilized to investigate the transcriptomic responses of skeletal muscle in GK and Wistar rats with and without exercise. It is the first time to investigate post-acute exercise transcriptomic responses in diabetic GK rats. By integrating our data and previous studies, downregulated Fasn and upregulated Tbc1d1, Hk2, Lpin1, Ppargc1a, Sorbs1, and Hmox1 might be key regulations to lower plasma glucose and improve insulin sensitivity in the exercise GK rats. Our research provides a new scope for molecular mechanisms on the improvement of hyperglycemia and insulin sensitivity by exercise.
Ethics Statement
The study was approved by the institutional review board of the Guangdong Key Laboratory of Laboratory Animals. Research protocols conform to the guidelines of the IACUC (Ethics Certificate No.: IACUC2014029).
Author Contributions
HD and SF conceived and designed the research. SF, YM, and WZ performed the experiments. SF and YM analyzed the data. SF drafted the manuscript. YM, WZ, YH, and HD edited and revised the manuscript. SF, YM, WZ, JW, YH, LH, HC, JK, and HD approved the final version of the manuscript.
Funding
This research was supported by the National Key R&D Program of China (2018YFC0910201), the Key R&D Program of Guangdong Province (2019B020226001), the National Science and Technology Support Program (2015BAI07B01).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We are grateful to the editor and the reviewers for their comments and suggestions.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2019.00872/full#supplementary-material
FIGURE S1 | The levels of plasma glucose and insulin. (A) Plasma glucose. (B) Plasma insulin. Data were analyzed by two-way ANOVA, and Tukey’s post hoc analysis was performed to identify differences between groups. Values are mean ± SEM; n = 7–8/group, ∗∗P < 0.01, ∗P < 0.05. W, sedentary Wistar group; EW, exercise Wistar group; GK, sedentary GK group; EGK, exercise GK group.
FIGURE S2 | The relative expression levels of selected genes measured by qRT-PCR. Data were analyzed by ANOVA, and Tukey’s post hoc analysis was performed to identify differences between groups. Values are mean ± SEM; n = 4–5/group, ∗∗P < 0.01, ∗P < 0.05. Linear regression analysis was performed to determine the correlation coefficient between qRT-PCR and RNA-seq.
FIGURE S3 | The highest score modules selected from PPI networks in each comparison. (A)–(C) represent GK vs. Wistar, exercise Wistar vs. Wistar, and exercise GK vs. GK, respectively. Red nodes indicate upregulated DEGs, and green nodes indicate downregulated DEGs.
TABLE S1 | The qRT-PCR primers.
TABLE S2 | The details of DEGs among the three comparisons.
TABLE S3 | The GO and KEGG pathway enrichment analysis of three comparisons.
TABLE S4 | Three clusters of DEGs and related KEGG pathway enrichment analysis.
TABLE S5 | The TFs predicted by TRANSFAC.
References
Allen, D. L., Bandstra, E. R., Harrison, B. C., Thorng, S., Stodieck, L. S., Kostenuik, P. J., et al. (2009). Effects of spaceflight on murine skeletal muscle gene expression. J. Appl. Physiol. 106, 582–595. doi: 10.1152/japplphysiol.90780.2008
Almon, R. R., DuBois, D. C., Lai, W., Xue, B., Nie, J., and Jusko, W. J. (2009). Gene expression analysis of hepatic roles in cause and development of diabetes in Goto-Kakizaki rats. J. Endocrinol. 200, 331–346. doi: 10.1677/JOE-08-0404
An, D., Toyoda, T., Taylor, E. B., Yu, H., Fujii, N., Hirshman, M. F., et al. (2010). TBC1D1 regulates insulin- and contraction-induced glucose transport in mouse skeletal muscle. Diabetes 59, 1358–1365. doi: 10.2337/db09-1266
Bader, G. D., and Hogue, C. W. (2003). An automated method for finding molecular complexes in large protein interaction networks. BMC Bioinformatics 4:2. doi: 10.1186/1471-2105-4-2
Baumann, C. A., Ribon, V., Kanzaki, M., Thurmond, D. C., Mora, S., Shigematsu, S., et al. (2000). CAP defines a second signalling pathway required for insulin-stimulated glucose transport. Nature 407, 202–207. doi: 10.1038/35025089
Bedford, T. G., Tipton, C. M., Wilson, N. C., Oppliger, R. A., and Gisolfi, C. V. (1979). Maximum oxygen consumption of rats and its changes with various experimental procedures. J. Appl. Physiol. Respir. Environ. Exerc. Physiol. 47, 1278–1283. doi: 10.1152/jappl.1979.47.6.1278
Benjamini, Y., and Hochberg, Y. (1995). Controlling the false discovery rate: a practical and powerful approach to multiple testing. J. R. Stat. Soc. B 57, 289–300. doi: 10.1111/j.2517-6161.1995.tb02031.x
Borror, A., Zieff, G., Battaglini, C., and Stoner, L. (2018). The effects of postprandial exercise on glucose control in individuals with type 2 diabetes: a systematic review. Sports Med. 48, 1479–1491. doi: 10.1007/s40279-018-0864-x
Braithwaite, S. S., Palazuk, B., Colca, J. R., Edwards, C. R., and Hofmann, C. (1995). Reduced expression of hexokinase II in insulin-resistant diabetes. Diabetes 44, 43–48. doi: 10.2337/diabetes.44.1.43
Bruce, C. R., Carey, A. L., Hawley, J. A., and Febbraio, M. A. (2003). Intramuscular heat shock protein 72 and heme oxygenase-1 mRNA are reduced in patients with type 2 diabetes: evidence that insulin resistance is associated with a disturbed antioxidant defense mechanism. Diabetes 52, 2338–2345. doi: 10.2337/diabetes.52.9.2338
Cartee, G. D., and Funai, K. (2009). Exercise and insulin: convergence or divergence at AS160 and TBC1D1? Exerc. Sport Sci. Rev. 37, 188–195. doi: 10.1097/JES.0b013e3181b7b7c5
Catoire, M., Mensink, M., Boekschoten, M. V., Hangelbroek, R., Muller, M., Schrauwen, P., et al. (2012). Pronounced effects of acute endurance exercise on gene expression in resting and exercising human skeletal muscle. PLoS One 7:e51066. doi: 10.1371/journal.pone.0051066
Chan, M. C., and Arany, Z. (2014). The many roles of PGC-1alpha in muscle–recent developments. Metabolism 63, 441–451. doi: 10.1016/j.metabol.2014.01.006
Chang, T. J., Wang, W. C., Hsiung, C. A., He, C. T., Lin, M. W., Sheu, W. H., et al. (2018). Genetic variation of SORBS1 gene is associated with glucose homeostasis and age at onset of diabetes: a SAPPHIRe Cohort Study. Sci. Rep. 8:10574. doi: 10.1038/s41598-018-28891-z
Chatterjee, S., Khunti, K., and Davies, M. J. (2017). Type 2 diabetes. Lancet 389, 2239–2251. doi: 10.1016/S0140-6736(17)30058-2
Cho, N. H., Shaw, J. E., Karuranga, S., Huang, Y., Da, R. F. J., Ohlrogge, A. W., et al. (2018). IDF diabetes atlas: global estimates of diabetes prevalence for 2017 and projections for 2045. Diabetes Res. Clin. Pract. 138, 271–281. doi: 10.1016/j.diabres.2018.02.023
Colberg, S. R., Sigal, R. J., Fernhall, B., Regensteiner, J. G., Blissmer, B. J., Rubin, R. R., et al. (2010). Exercise and type 2 diabetes: the American college of sports medicine and the American diabetes association: joint position statement. Diabetes Care 33, e147–e167. doi: 10.2337/dc10-9990
Croymans, D. M., Paparisto, E., Lee, M. M., Brandt, N., Le, B. K., Lohan, D., et al. (2013). Resistance training improves indices of muscle insulin sensitivity and beta-cell function in overweight/obese, sedentary young men. J. Appl. Physiol. 115, 1245–1253. doi: 10.1152/japplphysiol.00485.2013
Da, R. F. J., Ogurtsova, K., Linnenkamp, U., Guariguata, L., Seuring, T., Zhang, P., et al. (2016). IDF diabetes atlas estimates of 2014 global health expenditures on diabetes. Diabetes Res. Clin. Pract. 117, 48–54. doi: 10.1016/j.diabres.2016.04.016
DeFronzo, R. A., and Tripathy, D. (2009). Skeletal muscle insulin resistance is the primary defect in type 2 diabetes. Diabetes Care 32(Suppl. 2), S157–S163. doi: 10.2337/dc09-S302
Dela, F., Ingersen, A., Andersen, N. B., Nielsen, M. B., Petersen, H., Hansen, C. N., et al. (2018). Effects of one-legged high-intensity interval training on insulin-mediated skeletal muscle glucose homeostasis in patients with type 2 diabetes. Acta Physiol. 22:e13245. doi: 10.1111/apha.13245
Dickinson, J. M., D’Lugos, A. C., Naymik, M. A., Siniard, A. L., Wolfe, A. J., Curtis, D. R., et al. (2018). Transcriptome response of human skeletal muscle to divergent exercise stimuli. J. Appl. Physiol. 124, 1529–1540. doi: 10.1152/japplphysiol.00014.2018
Dobin, A., Davis, C. A., Schlesinger, F., Drenkow, J., Zaleski, C., Jha, S., et al. (2013). STAR: ultrafast universal RNA-seq aligner. Bioinformatics 29, 15–21. doi: 10.1093/bioinformatics/bts635
Dobin, A., and Gingeras, T. R. (2015). Mapping RNA-seq reads with STAR. Curr. Protoc. Bioinformatics 51, 11.14.1–11.14.19. doi: 10.1002/0471250953.bi1114s51
Egan, B., and Zierath, J. R. (2013). Exercise metabolism and the molecular regulation of skeletal muscle adaptation. Cell Metab. 17, 162–184. doi: 10.1016/j.cmet.2012.12.012
Esteves, J. V., Yonamine, C. Y., Pinto-Junior, D. C., Gerlinger-Romero, F., Enguita, F. J., and Machado, U. F. (2018). Diabetes modulates MicroRNAs 29b-3p, 29c-3p, 199a-5p and 532-3p expression in muscle: possible role in GLUT4 and HK2 repression. Front. Endocrinol. 9:536. doi: 10.3389/fendo.2018.00536
Fueger, P. T., Bracy, D. P., Malabanan, C. M., Pencek, R. R., Granner, D. K., and Wasserman, D. H. (2004). Hexokinase II overexpression improves exercise-stimulated but not insulin-stimulated muscle glucose uptake in high-fat-fed C57BL/6J mice. Diabetes 53, 306–314. doi: 10.2337/diabetes.53.2.306
Fueger, P. T., Lee-Young, R. S., Shearer, J., Bracy, D. P., Heikkinen, S., Laakso, M., et al. (2007). Phosphorylation barriers to skeletal and cardiac muscle glucose uptakes in high-fat fed mice: studies in mice with a 50% reduction of hexokinase II. Diabetes 56, 2476–2484. doi: 10.2337/db07-0532
Funai, K., Song, H., Yin, L., Lodhi, I. J., Wei, X., Yoshino, J., et al. (2013). Muscle lipogenesis balances insulin sensitivity and strength through calcium signaling. J. Clin. Invest. 123, 1229–1240. doi: 10.1172/JCI65726
Hansen, J. S., Zhao, X., Irmler, M., Liu, X., Hoene, M., Scheler, M., et al. (2015). Type 2 diabetes alters metabolic and transcriptional signatures of glucose and amino acid metabolism during exercise and recovery. Diabetologia 58, 1845–1854. doi: 10.1007/s00125-015-3584-x
Hou, J., Li, Z., Zhong, W., Hao, Q., Lei, L., Wang, L., et al. (2017). Temporal transcriptomic and proteomic landscapes of deteriorating pancreatic islets in type 2 diabetic rats. Diabetes 66, 2188–2200. doi: 10.2337/db16-1305
Huang, S., Huang, S., Wang, X., Zhang, Q., Liu, J., and Leng, Y. (2017). Downregulation of lipin-1 induces insulin resistance by increasing intracellular ceramide accumulation in C2C12 myotubes. Int. J. Biol. Sci. 13, 1–12. doi: 10.7150/ijbs.17149
Ishikura, S., and Klip, A. (2008). Muscle cells engage Rab8A and myosin Vb in insulin-dependent GLUT4 translocation. Am. J. Physiol. Cell Physiol. 295, C1016–C1025. doi: 10.1152/ajpcell.00277.2008
Jaldin-Fincati, J. R., Pavarotti, M., Frendo-Cumbo, S., Bilan, P. J., and Klip, A. (2017). Update on GLUT4 vesicle traffic: a cornerstone of insulin action. Trends Endocrinol. Metab. 28, 597–611. doi: 10.1016/j.tem.2017.05.002
Jessen, N., An, D., Lihn, A. S., Nygren, J., Hirshman, M. F., Thorell, A., et al. (2011). Exercise increases TBC1D1 phosphorylation in human skeletal muscle. Am. J. Physiol. Endocrinol. Metab. 301, E164–E171. doi: 10.1152/ajpendo.00042.2011
Kjobsted, R., Roll, J., Jorgensen, N. O., Birk, J. B., Foretz, M., Viollet, B., et al. (2019). AMPK and TBC1D1 regulate muscle glucose uptake after - but not during - exercise and contraction. Diabetes 68, 1427–1440. doi: 10.2337/db19-0050
Leto, D., and Saltiel, A. R. (2012). Regulation of glucose transport by insulin: traffic control of GLUT4. Nat. Rev. Mol. Cell Biol. 13, 383–396. doi: 10.1038/nrm3351
Lun, A. T., Chen, Y., and Smyth, G. K. (2016). It’s DE-licious: a recipe for differential expression analyses of rna-seq experiments using quasi-likelihood methods in edgeR. Methods Mol. Biol. 1418, 391–416. doi: 10.1007/978-1-4939-3578-9_19
Mahoney, D. J., Parise, G., Melov, S., Safdar, A., and Tarnopolsky, M. A. (2005). Analysis of global mRNA expression in human skeletal muscle during recovery from endurance exercise. FASEB J. 19, 1498–1500. doi: 10.1096/fj.04-3149fje
Menendez, J. A., Vazquez-Martin, A., Ortega, F. J., and Fernandez-Real, J. M. (2009). Fatty acid synthase: association with insulin resistance, type 2 diabetes, and cancer. Clin. Chem. 55, 425–438. doi: 10.1373/clinchem.2008.115352
Mootha, V. K., Lindgren, C. M., Eriksson, K. F., Subramanian, A., Sihag, S., Lehar, J., et al. (2003). PGC-1alpha-responsive genes involved in oxidative phosphorylation are coordinately downregulated in human diabetes. Nat. Genet. 34, 267–273. doi: 10.1038/ng1180
Movassat, J., Bailbe, D., Lubrano-Berthelier, C., Picarel-Blanchot, F., Bertin, E., Mourot, J., et al. (2008). Follow-up of GK rats during prediabetes highlights increased insulin action and fat deposition despite low insulin secretion. Am. J. Physiol. Endocrinol. Metab. 294, E168–E175. doi: 10.1152/ajpendo.00501.2007
Naufahu, J., Elliott, B., Markiv, A., Dunning-Foreman, P., McGrady, M., Howard, D., et al. (2018). High-Intensity exercise decreases IP6K1 muscle content and improves insulin sensitivity (SI2∗) in glucose-intolerant individuals. J. Clin. Endocrinol. Metab. 103, 1479–1490. doi: 10.1210/jc.2017-02019
Ndisang, J. F., and Jadhav, A. (2009). Up-regulating the hemeoxygenase system enhances insulin sensitivity and improves glucose metabolism in insulin-resistant diabetes in Goto-Kakizaki rats. Endocrinology 150, 2627–2636. doi: 10.1210/en.2008-1370
Ndisang, J. F., Lane, N., Syed, N., and Jadhav, A. (2010). Up-regulating the heme oxygenase system with hemin improves insulin sensitivity and glucose metabolism in adult spontaneously hypertensive rats. Endocrinology 151, 549–560. doi: 10.1210/en.2009-0471
Nie, J., Xue, B., Sukumaran, S., Jusko, W. J., Dubois, D. C., and Almon, R. R. (2011). Differential muscle gene expression as a function of disease progression in Goto-Kakizaki diabetic rats. Mol. Cell. Endocrinol. 338, 10–17. doi: 10.1016/j.mce.2011.02.016
Patti, M. E., Butte, A. J., Crunkhorn, S., Cusi, K., Berria, R., Kashyap, S., et al. (2003). Coordinated reduction of genes of oxidative metabolism in humans with insulin resistance and diabetes: potential role of PGC1 and NRF1. Proc. Natl. Acad Sci. U.S.A. 100, 8466–8471. doi: 10.1073/pnas.1032913100
Pertea, M., Pertea, G. M., Antonescu, C. M., Chang, T. C., Mendell, J. T., and Salzberg, S. L. (2015). StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat. Biotechnol. 33, 290–295. doi: 10.1038/nbt.3122
Pettersson, A. M., Stenson, B. M., Lorente-Cebrian, S., Andersson, D. P., Mejhert, N., Kratzel, J., et al. (2013). LXR is a negative regulator of glucose uptake in human adipocytes. Diabetologia 56, 2044–2054. doi: 10.1007/s00125-013-2954-5
Pilegaard, H., Ordway, G. A., Saltin, B., and Neufer, P. D. (2000). Transcriptional regulation of gene expression in human skeletal muscle during recovery from exercise. Am. J. Physiol. Endocrinol. Metab. 279, E806–E814. doi: 10.1152/ajpendo.2000.279.4.E806
Portha, B., Giroix, M. H., Tourrel-Cuzin, C., Le-Stunff, H., and Movassat, J. (2012). The GK rat: a prototype for the study of non-overweight type 2 diabetes. Methods Mol. Biol. 933, 125–159. doi: 10.1007/978-1-62703-068-7_9
Pourteymour, S., Eckardt, K., Holen, T., Langleite, T., Lee, S., Jensen, J., et al. (2017). Global mRNA sequencing of human skeletal muscle: search for novel exercise-regulated myokines. Mol. Metab. 6, 352–365. doi: 10.1016/j.molmet.2017.01.007
Praet, S. F., and van Loon, L. J. (2008). Exercise: the brittle cornerstone of type 2 diabetes treatment. Diabetologia 51, 398–401. doi: 10.1007/s00125-007-0910-y
Ramachandran, A., Ma, R. C., and Snehalatha, C. (2010). Diabetes in Asia. Lancet 375, 408–418. doi: 10.1016/S0140-6736(09)60937-5
Raue, U., Trappe, T. A., Estrem, S. T., Qian, H. R., Helvering, L. M., Smith, R. C., et al. (2012). Transcriptome signature of resistance exercise adaptations: mixed muscle and fiber type specific profiles in young and old adults. J. Appl. Physiol. 112, 1625–1636. doi: 10.1152/japplphysiol.00435.2011
Richter, E. A., and Hargreaves, M. (2013). Exercise, GLUT4, and skeletal muscle glucose uptake. Physiol. Rev. 93, 993–1017. doi: 10.1152/physrev.00038.2012
Robinson, M. D., and Oshlack, A. (2010). A scaling normalization method for differential expression analysis of RNA-seq data. Genome Biol. 11:R25. doi: 10.1186/gb-2010-11-3-r25
Robinson, M. D., and Smyth, G. K. (2008). Small-sample estimation of negative binomial dispersion, with applications to SAGE data. Biostatistics 9, 321–332. doi: 10.1093/biostatistics/kxm030
Stockli, J., Meoli, C. C., Hoffman, N. J., Fazakerley, D. J., Pant, H., Cleasby, M. E., et al. (2015). The rabgap TBC1D1 plays a central role in exercise-regulated glucose metabolism in skeletal muscle. Diabetes 64, 1914–1922. doi: 10.2337/db13-1489
Summermatter, S., Shui, G., Maag, D., Santos, G., Wenk, M. R., and Handschin, C. (2013). PGC-1alpha improves glucose homeostasis in skeletal muscle in an activity-dependent manner. Diabetes 62, 85–95. doi: 10.2337/db12-0291
Sylow, L., Kleinert, M., Richter, E. A., and Jensen, T. E. (2017). Exercise-stimulated glucose uptake - regulation and implications for glycaemic control. Nat. Rev. Endocrinol. 13, 133–148. doi: 10.1038/nrendo.2016.162
Szklarczyk, D., Franceschini, A., Wyder, S., Forslund, K., Heller, D., Huerta-Cepas, J., et al. (2015). STRING v10: protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 43, D447–D452. doi: 10.1093/nar/gku1003
Takimoto, M., and Hamada, T. (2014). Acute exercise increases brain region-specific expression of MCT1, MCT2, MCT4, GLUT1, and COX IV proteins. J. Appl. Physiol. 116, 1238–1250. doi: 10.1152/japplphysiol.01288.2013
Tsutsumi, E., Murata, Y., Sakamoto, M., and Horikawa, E. (2015). Effects of exercise on the nephron of Goto-Kakizaki rats: morphological, and advanced glycation end-products and inducible nitric oxide synthase immunohistochemical analyses. J. Diabetes Complications 29, 472–478. doi: 10.1016/j.jdiacomp.2015.03.002
Vissing, K., and Schjerling, P. (2014). Simplified data access on human skeletal muscle transcriptome responses to differentiated exercise. Sci. Data 1:140041. doi: 10.1038/sdata.2014.41
Wende, A. R., Schaeffer, P. J., Parker, G. J., Zechner, C., Han, D. H., Chen, M. M., et al. (2007). A role for the transcriptional coactivator PGC-1alpha in muscle refueling. J. Biol. Chem. 282, 36642–36651. doi: 10.1074/jbc.M707006200
Whitfield, J., Paglialunga, S., Smith, B. K., Miotto, P. M., Simnett, G., Robson, H. L., et al. (2017). Ablating the protein TBC1D1 impairs contraction-induced sarcolemmal glucose transporter 4 redistribution but not insulin-mediated responses in rats. J. Biol. Chem. 292, 16653–16664. doi: 10.1074/jbc.M117.806786
Wu, H., Deng, X., Shi, Y., Su, Y., Wei, J., and Duan, H. (2016). PGC-1alpha, glucose metabolism and type 2 diabetes mellitus. J. Endocrinol. 229, R99–R115. doi: 10.1530/JOE-16-0021
Yang, W., and Weng, J. (2014). Early therapy for type 2 diabetes in China. Lancet Diabetes Endocrinol. 2, 992–1002. doi: 10.1016/S2213-8587(14)70136-6
Yu, G., Wang, L. G., Han, Y., and He, Q. Y. (2012). clusterProfiler: an R package for comparing biological themes among gene clusters. OMICS 16, 284–287. doi: 10.1089/omi.2011.0118
Yu, G., Wang, L. G., Yan, G. R., and He, Q. Y. (2015). DOSE: an R/Bioconductor package for disease ontology semantic and enrichment analysis. Bioinformatics 31, 608–609. doi: 10.1093/bioinformatics/btu684
