Yan Shi1,2
Tian-Yuan Liu1,2
Hong-Bo Jiang1,2,3Xiao-Qiang Liu1,2
Wei Dou1,2,3Yoonseong Park4
Guy Smagghe1,2,3,5*
Jin-Jun Wang1,2,3*- 1Key Laboratory of Entomology and Pest Control Engineering, College of Plant Protection, Southwest University, Chongqing, China
- 2Academy of Agricultural Sciences, Southwest University, Chongqing, China
- 3International Joint Laboratory on China-Belgium Sustainable Crop Pest Control Between Southwest University in China and Ghent University in Belgium, Chongqing, China
- 4Department of Entomology, Kansas State University, Manhattan, KS, United States
- 5Department of Plants and Crops, Faculty of Bioscience Engineering, Ghent University, Ghent, Belgium
Ecdysis triggering hormone (ETH), released by the Inka cells, is a master hormone in regulating the ecdysis process in insect. Here we investigated the presence and role of the ETH signaling in the female adult of the oriental fruit fly, Bactrocera dorsalis (Hendel) that is one of the most important invasive pest insects in agriculture worldwide. In the female adult, ETH was confirmed in the Inka cells at the tracheae by immunostaining and also in vitro exposure to ETH stimulated the isolated corpora allata of adult in activity. Then we prepared cDNA of females at 0, 5, 10, 15, and 20 days after adult eclosion, and RT-qPCR showed that the expression pattern of ETH and its receptor ETHR-B started from a peak at the day of adult eclosion (day 0), then dropped to basal levels and increased again between day 10 and 15 which is also the period corresponding to ovary growth. In contrast, ETHR-A was absent with Ct values of >33. The expression patterns of the ecdysteroid-producing Halloween genes Spook and Shade, and the vitellogenin genes Vg1, Vg2, and Vg3 co-occurred with peak levels at days 10–15, and also juvenile hormone acid methyltransferase (JHAMT) showed increased levels on day 15. Further in RNAi assays to better understand the role of ETH and ETHR, dsRNA was injected to adult and this led to a respective decrease in expression of 62 and 56% for ETH and ETHR-B, while ETHR-A stayed absent with Ct values of 33. In these RNAi-females, there was an apparently decreased expression for JHAMT and Vg2, together with a significant decrease of the JH titer and egg production. Injection of the JH mimetic methoprene could rescue Vg2 expression and egg production. Upstream, in dsETH/dsETHR-injected females, 20-hydroxyecdysone (20E) injection rescued the transcriptions of ETH and ETHR and also egg production. In summary, our results shed more light on the pivotal role that the ETH peptide hormone and its receptor ETHR-B play an essential role in the reproduction of the female adult of B. dorsalis, via the regulation of JH and vitellogenin, which are controlled by a pulse of 20E.
Introduction
The oriental fruit fly, Bactrocera dorsalis (Hendel) (Diptera: Tephritidae) is a quarantine polyphagous pest and one of the most destructive pest of fruit and vegetable industries, wide distribution and rapid invasiveness because the females show a very highly reproductive capacity (Clarke et al., 2005; Stephens et al., 2007).
The insect reproductive system is regulated by hormones produced in the neuroendocrine system. Ecdysis triggering hormone (ETH) is a small C-terminally amidated peptide hormone, and when released from the Inka cells into the hemolymph, it acts as a command chemical to trigger a behavior sequence critical for shedding of the exocuticle in insects at the larval stages (Park et al., 1999; Zitnan et al., 2003; Li and Adams, 2009; Roller et al., 2010). Typically, deletion or knocking down expression of the ETH gene results in ecdysis-related deformities and lethal phenotypes (Park et al., 2002; Lenaerts et al., 2017; Shi et al., 2017). Previous observations found that Inka cells, the sole source of ETH, persist into the adult stage implied the possible reproduction and courtship memory functions for this peptide system (Park et al., 2002; Lee et al., 2017; Meiselman et al., 2017).
On the regulation upstream of ETH, previous studies demonstrated that 20-hydroxyecdysone (20E) regulates synthesis and release of ETH and expression of its receptor ETHR in the larval stages of moths, mosquitoes, desert locust and the adult of Drosophila (Zitnan et al., 1999; Zitnan et al., 2007; Li and Adams, 2009; Lenaerts et al., 2017; Meiselman et al., 2017). Because 20E is of major physiological and reproductive relevance (Parthasarathy et al., 2010a; Schwedes and Carney, 2012; Meiselman et al., 2018), we measured whether 20E influences the gene expressions of ETH/ETHR during the female adult stage. We hypothesize here that 20E regulates ETH signaling and in turn the high reproduction capacity of B. dorsalis.
On the function of ETH itself, in the yellow fever mosquito Aedes aegypti, the peptide was found to work as an allatotropin with an activation of juvenile hormone (JH) acid methyltransferase (JHAMT) (Areiza et al., 2014). Previous studies also detected ETHR transcripts in the corpora allata (CA) of Bombyx mori, Manduca sexta, and Drosophila melanogaster (Yamanaka et al., 2008; Areiza et al., 2014; Meiselman et al., 2017). CA is responsible for release of JH which has a prominent role in the regulation of development, reproduction, courtship, and diapause in insects (Jindra et al., 2013; Smykal et al., 2014; Wijesekera et al., 2016; Lee et al., 2017). Therefore, we hypothesize here that ETH regulates JHAMT expression, which encodes JH acid o-methyltransferase and catalyzes a final step in JH synthesis (Niwa et al., 2008), and which in turn controls the JH titer, ovary growth and reproduction in the female adult.
This study is a continuation of our previous study on ETH signaling where we confirmed the role of the ETH/ETHR-A in the ecdysis process in the larval stages of B. dorsalis (Shi et al., 2017). Now, we aim to unravel on the presence and function of ETH and its receptors ETHR-A and -B in the female adult stage and the interaction with 20E and JH. This new information will help to understand ovary growth and the high reproductive success in B. dorsalis. Hereto, at first, we investigated for the presence of ETH and the adult Inka cells at the tracheal system in the female with an immunochemical assay, and then for its stimulatory role on the CA with isolated CA cultures from females under exposure of ETH peptide. Subsequently, we prepared a cDNA library with female adults at different time points after adult eclosion, which are corresponding to the growth of the ovary in the female adult. To document on the presence of 20E, JH, and vitellogenin, we followed the expression of essential marker genes, such as: two Halloween genes Spook and Shade, which are involved in 20E production; JHAMT related to JH production; and three vitellogenin genes (Vg1, Vg2, Vg3) involved in oocyte growth. Subsequent RNAi assays with dsETH and dsETHR were conducted to confirm the functions in JH titer synthesis, ovary growth and egg production. Finally, the rescue experiments with 20E and JH mimetic (methoprene) were carried out to show their position up or downstream of ETH signaling. We believe these new data will help to further unravel the role of ETH and its receptor in the female adult insect. Specifically, if our hypothesis that receptor isoforms may difference in presence and function during the different developmental stages of the same species, is confirmed, then it is unique that the ETHR-B is playing a role in the female adult via JH in ovary growth regulation. While it is the ETHR-A isoform in the larval immature stages that is regulating the ecdysis progress (Shi et al., 2017). In addition, we expect that the ETH signaling is under control of a pulse of 20E. Finally, because this work was done with a world important agricultural pest insect, the oriental fruit fly B. dorsalis, it may provide novel insights to pest control through the manipulation of the ETH pathway and/or interactions with commercial 20E and/or JH agonists or antagonists.
Materials and Methods
Insect Rearing
All stages of a continuous colony of B. dorsalis were maintained as previously described (Shen et al., 2013; Wang et al., 2013). Briefly, B. dorsalis were reared in the Insect Molecular Ecology laboratory of Southwest University at 27°C, 70% relative humidity, and a day/night (14:10 h) photoperiod cycle. Adult females oviposited into pinpricked plastic tubes containing fresh orange juice and then eggs were collected. Newly hatched larvae and newly emerged adults were fed with different artificial diets as previously described (Wang et al., 2013).
Immunohistochemistry and in situ Hybridization for ETH Detection
The tracheae of B. dorsalis female adult were dissected in chilled phosphate buffered saline (PBS, 0.01 M, pH = 7.4). Immunohistochemistry was conducted as previously described (Jiang et al., 2013) with the antibody (1:1000 dilution) as prepared for the ETH peptide of D. melanogaster (DmETH1, DSSPGFFLKITKNVPRLamide) (Park et al., 2002). For in situ hybridization, the ETH probes were prepared by the method of asymmetric PCR using a DIG Probe Synthesis Kit (Roche, Mannheim, Germany) and analyzed as previously described method (Shi et al., 2017).
In vitro Bioassay With Isolated CA
We selected 15-day-old female adults and dissected the CA in PBS 1% under a binocular stereoscope. Upon dissection, the CA were immediately placed in a Petri dish (Diameter 90 mm, Thermo Fisher Scientific) and incubated at room temperature in the dark for 60 min in Hank’s balance salt solution (HBSS, pH = 6.7–7.8) containing non-fluorescent acetoxymethyl ester (Fluo-4 AM, 50 μM) and pluronic F-127 (0.1%) following the protocol of the supplier (Life Technologies, Carlsbad, CA, United States). After incubation, the Fluo-4 AM solution was washed out three times with HBSS. Calcium was visualized with a confocal microscope (Zeiss LSM780, Zeiss, Jena, Germany). The excitation wavelength was 488 nm, and exposure time was 1 s. Images were acquired for 1 h continuous from each tissue preparation and ETH (GenScript, Piscataway, NJ, United States) was applied into a bathing media ∼9 min after imaging onset. The volume of applied ETH was 5 μl (ETH was added in ∼9 min after imaging onset). We used a mixture of BdETH1 and BdETH2 for all experiments; 600 nM ETH (600 nM BdETH1 + 600 nM BdETH2) was added to a stagnant bathing bath with a micropipette. The calcium level was represented as relative fluorescence changes (ΔF/F), where F is the baseline fluorescence and ΔF is the difference between the peak fluorescence caused by stimulation.
Molecular Cloning and Phylogenetic Analyses of BdJHAMT
Based on the genome database and transcriptome of B. dorsalis1, the BdJHAMT gene was identified by performing a TBLASTN search for the JHAMT homolog in D. melanogaster. RNA was extracted and first-strand cDNA prepared as previously described method (Shi et al., 2017). Primers were designed based on the genome data of B. dorsalis (Supplementary Table S1). Using high fidelity DNA polymerase PrimeSTAR (Takara), the full open reading frame (ORF) of BdJHAMT was amplified. PCR conditions were as follows: 98°C for 3 min, 95°C for 30 s, 60°C for 30 s, and 72°C for 1.5 min with 35 cycles, and finally 72°C for 10 min. PCR product was purified and cloned into a pGEMT Easy vector (Promega, Beijing, China) and sequenced (BGI, Beijing, China). All JHAMT AA sequences were aligned using ClustalX2 software (Larkin et al., 2007) with default settings (Supplementary Table S2). A neighbor-joining tree, gaps/missing date-pairwise deletion, was produced in MEGA 5.0 (Tamura et al., 2011) with 1,000 bootstrap replicates.
cDNA Library Preparation and RT-qPCR of Marker Genes
We collected virgin female flies on 0, 5, 10, 15, and 20 days after eclosion. At every time point, four biological replicates were performed and each replicate consisted of four adults. Subsequently, the flies were homogenized in Trizol reagent (Invitrogen, Carlsbad, CA, United States) and then RNA was extracted and first-strand cDNA was prepared with PrimeScript first-strand synthesis system (Takara, Dalian, China).
For the RT-qPCR analysis, we selected the ETH signaling genes (ETH, ETHR-A, and ETHR-B) and pathway marker genes (Shade, Spook, JHAMT, Vg1, Vg2, and Vg3). The reactions were performed in duplicate in 384- or 96-well plates on a StepOne system (ABI, Applied Biosystems, Foster City, CA, United States). The 10 μl of each reaction contained 5 μl of SYBR Green Supermix (Novoprotein, Shanghai, China), 3.5 μl of nuclease free water, 0.5 μl of each primer, and 0.5 μl of cDNA sample (∼200 ng/μL). The PCR conditions were 95°C for 2 min, and 40 cycles of 95°C for 15 s and 60°C for 30 s, 95°C for 1 min. This was followed by melting curve analysis (60–95°C). Based on our previous evaluations (Shen et al., 2010), α-tubulin (GU269902) was used as a stable reference gene. All data were analyzed with qBase software (Jan et al., 2007).
RNA Interference (RNAi) Assays
To explore the functions of ETH signaling in female B. dorsalis, RNAi bioassays with dsRNA injections were performed. The most unique nucleotide regions of BdETH and BdETHR were selected to design the specific dsRNA sequences (Supplementary Table S1), and dsGFP was used as a negative control. These dsRNAs were synthesized with the Transcript Aid T7 High Yield Transcription Kit (Thermo Scientific, Vilnius, Lithuania). For injections of dsRNA, 10-day-old virgin female flies were injected with 1.5 μg of dsRNA. After 24 or 48 h, whole bodies were homogenized and mRNA samples were extracted using Trizol (Life Technologies). The RNAi efficiency was calculated by RT-qPCR based on four biological repeats.
High Performance Liquid Chromatography (HPLC) Analysis for JH III Titer
The samples were extracted and the HPLC analysis executed as previously described method with slight modifications (Zhou et al., 2011). Methanol, hexane, acetonitrile, ether and JH III were all purchased from Sigma-Aldrich. Prothorax and head tissues were collected from 100 females (treatment and control) for each sample with three biological repeats. All the tissues were transferred into four 1.5 ml-centrifuge tubes filled with 1 ml of methanol and fully grounded, respectively. Then, the samples were sonicated for 3–5 min using an ultrasonic cleaning bath (model KQ100E; Kunshan Instruments, China). After the addition of 500 μl of hexane, the samples were sonicated for 10 min. The mixed solution was centrifuged at 10,000 rcf for 10 min, and then the upper hexane layer was transferred into a new 2 ml tube. Ultrasound-assisted extraction was repeated five times with hexane. After the end of each sonication, hexane solution was introduced in the centrifuge tube. The combined extracts were evaporated to dryness under a CoolSafe 55-4 (ScanLaf, Labogene, Lynge, Denmark). The residue was reconstituted in 200 μl of acetonitrile and transferred to injection vials (insert for shell vial), and analyzed by an Agilent 1260 HPLC (Agilent Technologies Inc., Germany) to determine the concentration of JH III. Samples were eluted through a Zorbax 300SB-C18 column (4.6 mm × 150 mm) with a solvent mixture of 75% methanol and 25% water at a flow rate of 0.6 ml/min and injection volume of 10 μl. The column thermostat was maintained at 25°C.
Effect of 20E on the Expression of BdETH and BdETHR
A 5 μg/μl-stock solution of 20E (Sigma-Aldrich, St. Louis, MO, United States) was prepared in 95% ethanol. The 5-day-old females were injected with a 20E solution at doses of 0.5 μg/fly. The control was injected with an equivalent volume of ethanol. Four injected females were randomly selected at 8 h after injection, and total RNA was isolated to analyze relative expression levels of BdETH and BdETHR by RT-qPCR as described above.
Observation of Egg Numbers
Newly eclosed males and females were separated and kept at 27°C, 70% relative humidity and a day/night (14:10 h) photoperiod cycle. Subsequently, females were paired with males in a courtship chamber (Meiselman et al., 2017). Following mating over 12 h, each female was isolated in a small round inverted cup (6 cm in diameter, 10 cm high) with inside a tube (tie 16 holes) filled with 4 ml of orange juice. The numbers of eggs laid by successfully mated females were recorded for three consecutive days.
Rescue of RNAi Effect by Injection of 20E or Methoprene
To rescue the RNAi effect by dsETH and dsETHR, we co-injected 20E (stock 5 μg/μl) and dsRNA (20E: 0.5 μg/fly; dsRNA: 1.5 μg/fly) or methoprene (stock 5 μg/μl, Sigma-Aldrich), and dsRNA (methoprene: 0.5 μg/fly; dsRNA: 1.5 μg/fly) into 12-day-old virgin females following mating with normal virgin males. The RT-qPCR data and egg production were analyzed as described above.
Statistical Analysis
All statistical analyses were performed in SPSS 20.0. A Student’s t-test was used to determine the significance of differences between the treatment and control in the dsRNA injection and rescue assay. Means ± SE (standard error) were determined based on four biological replications.
Results
Localization of ETH in Inka Cells at the Female Tracheae
As shown in Figure 1A, we localized the Inka cells that produce/contain ETH peptide at the tracheae of the female adult of B. dorsalis by immunohistochemistry. Also fluorescent in situ hybridization by digoxin-labeled DNA probes with dissected tracheae of the 15-day-old females confirmed mRNA expression of ETH (Figure 1B). The adult Inka cells were localized at each branch point of the transverse connectives position of the female tracheae.
Figure 1. Localization of Inka cells in trachea of the female adult. White triangles indicate Inka cells stained using immunohistochemistry and in situ hybridization. (A) Trachea was dissected from a 5-day-old female adult and stained with an antiserum to DmETH1. (B) Trachea of a 15-day-old female adult stained with in situ DNA probe against BdETH mRNA. (C,D) BdETH mature peptides mobilizes calcium in the CA of female adult. CA from a female before (C) and after (D) exposure to 600 nM BdETH mixture peptides. (E) Time course of calcium mobilization in the CA in the response to 600 nM BdETH mixture peptides. Scale bar, 100 μm.
Activation of the CA by Exposure to ETH in vitro
We dissected adult CA from 15-day-old female (Supplementary Figure S1), and immediately upon isolation, the calcium imaging was captured. The exposure to ETH (600 nM) produced a robust calcium mobilization, confirming activation of the CA by ETH (Figures 1C–E).
cDNA Library and Expression Patterns of ETH Signaling in Female Adult Flies
With the cDNA library of female adults at 0, 5, 10, 15, and 20 days after eclosion, the RT-qPCR profiles of ETH and ETHR-B showed the similar pattern (Figure 2). The expression of both genes started from a peak at the day of adult eclosion (day 0), then dropped to a basal level, and further increased again between day 10 and 15, whereafter it dropped to a basal level at day 20. In contrast, ETHR-A was absent over the whole period because the Ct values were ≥33; therefore it is not shown in Figure 2. In addition, the expression profiles of the two Halloween genes Spook and Shade, and the three vitellogenins Vg1, Vg2, and Vg3 showed the increased levels at days 10 and 15 (Figure 2C). On JHAMT, this was cloned and the phylogenetic analysis confirmed that BdJHAMT is closely related to JHAMT from other Diptera, such as D. melanogaster, Glossina morsitans, Lucilia cuprina, and Aedes aegypti (Supplementary Figures S2A,B). The expression of JHAMT showed a rise at day 15 which concurs with the increased levels of ETH and ETHR-B at that time-point (Figure 2C).
Figure 2. Ecdysis triggering hormone (ETH) signaling persists into the adult stage, evidenced by RT-qPCR. (A) Expression patterns of BdETH and BdETHR-B of female on days 0, 5, 10, 15, and 20 after eclosion detected by RT-qPCR. (B) The ovarian development including the day 0, 5, 10, 15, and 20 in the female adult of B. dorsalis. (C) Expression patterns of Shade, Spook, JHAMT, Vg1, Vg2, and Vg3 detected by RT-qPCR in the female adult on days 0, 5, 10, 15, and 20 after eclosion. Different letters on the bars of the histogram indicate statistical differences based on the one-way ANOVA followed by Tukey’s honest significant difference (HSD) multiple comparison test (P < 0.05).
20E Regulates ETH Signaling in Female Adult
We examined whether the expressions of ETH and ETHR are induced by 20E in the female adult of B. dorsalis. Indeed, with the injection of 0.5 μg of 20E into a 5-day-old female adult, which is a time moment of low basal levels of ETH and ETHR-B (Figure 2A), significant increases of the expression of ETH and ETHR-B were observed (Figure 3). Whereas ETHR-A stayed absent as Ct values were ≥33. 20E also plays a major role in significant promoting the Vg1, Vg2, and Vg3 genes expression (Figure 3).

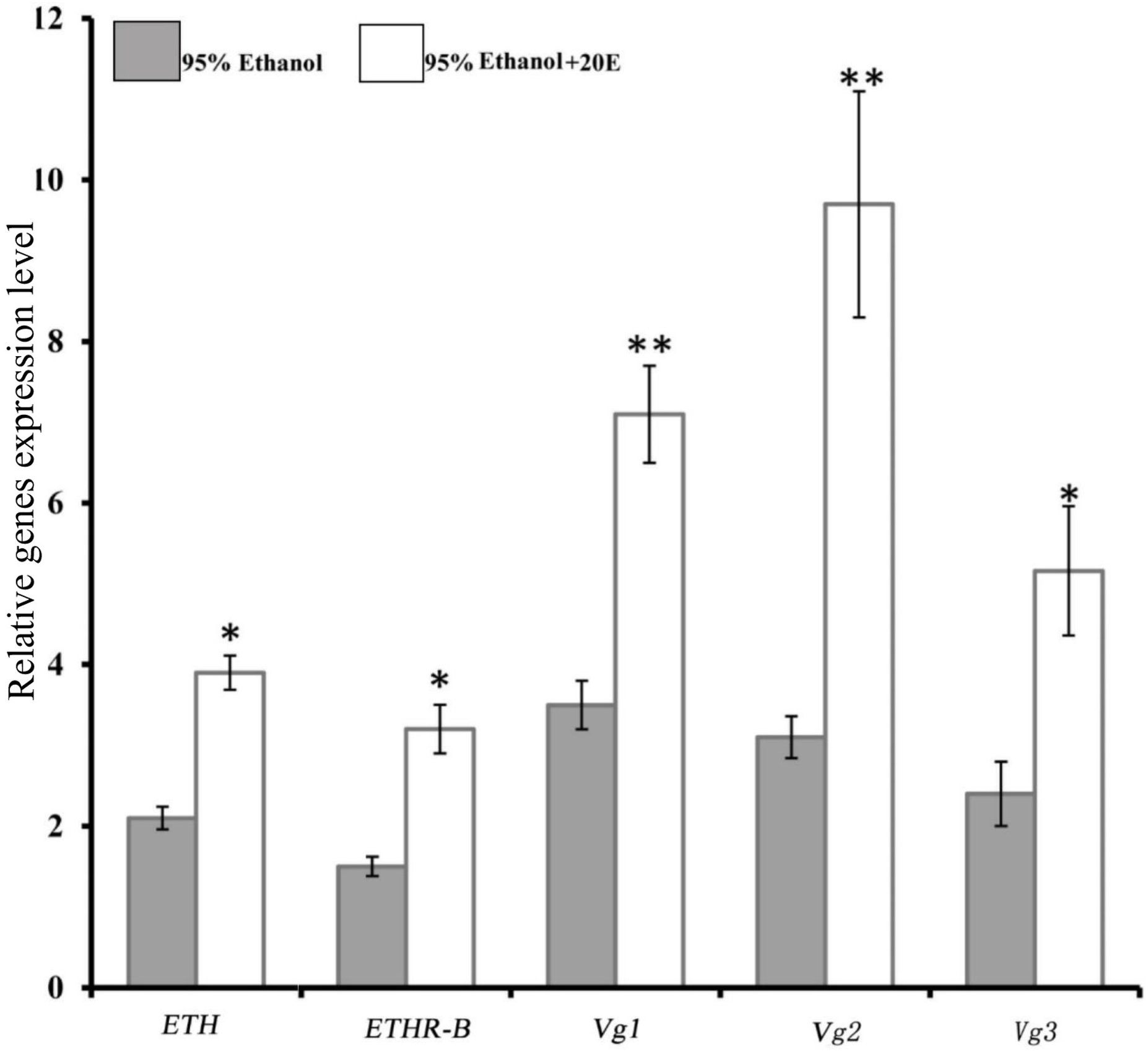

Figure 3. Induce of 20E signaling affect the expression of BdETH, BdETHR-B, Vg1, Vg2, and Vg3 genes. Fold change in expression at 8 h after 20E injection measured by RT-qPCR in female adult of B. dorsalis. Data are means ± SD. Asterisks indicate significant differences with relative expression (∗P < 0.05; ∗∗P < 0.01). BdETHR-A was absent as the Ct values were >33.
RNAi of ETH Signaling Reduced Egg Production
At 24 h after injection of specific dsRNA, the knockdown efficiencies for ETH and ETHR-B were 62 and 56%, respectively (Figure 4 and Supplementary Figure S3). With dsETHR injection, ETHR-A stayed absent as Ct values were ≥33 (Supplementary Figure S3). In these RNAi-ETH females, we observed a significantly decreased expression of ETHR, JHAMT, and Vg2 (P < 0.05), whereas the expressions of Vg1 and Vg3 were unaffected (Figure 4A). However, in RNAi-ETHR females, we observed a decreased expression of JHAMT and Vg2, but not of ETH, Vg1 and Vg3 (Figure 4A). As JHAMT was decreased, we measured the JH III titers of female adult by HPLC. With an optimized HPLC protocol using, a gradient elution procedure with a total run time of 30 min to quantify JH III (22.303 min), we confirmed a significant decrease of the JH III titer by 50% and this was the case for dsETH and dsETHR (Figures 4B,C).

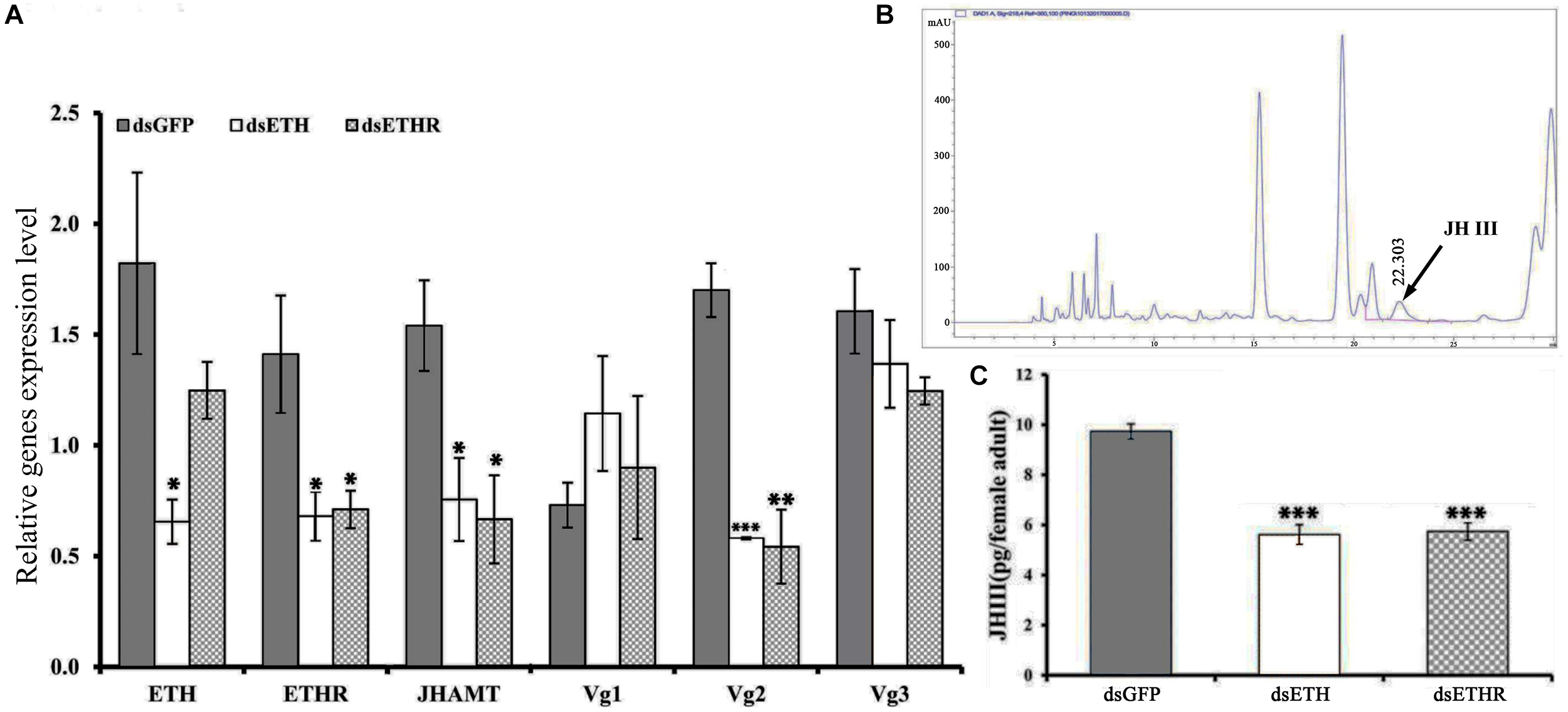

Figure 4. Silencing efficiency of genes of the ETH signaling (BdETH/BdETHR) in the female adult. (A) BdETH, BdETHR, BdJHAMT, BdVg1, BdVg2, and BdVg3 transcript levels after silencing with RNAi compared with control. (B) HPLC spectrum of crude extract and JH III peak is detected in 22.303 min. (C) The column chart represents the JH III titer per female adult. Data are means ± SD. Asterisks indicate significant differences with relative expression (∗P < 0.05; ∗∗P < 0.01, ∗∗∗P < 0.001).
Rescue of RNAi Effects by Injection of 20E and JH Mimetic (Methoprene)
The co-injection of 20E into the RNAi-females with a knockdown of ETH or ETHR, could rescue the expression of ETH and ETHR-B, and also the egg production was increased to normal levels as in the control groups (Figures 5A,B,E). Also the injection of the JH mimetic methoprene into these RNAi-females could rescue the expression of Vg2 and egg production (Figures 5C–E). With dsETH injection females, we observed a significant decrease in egg production (P < 0.01). In these RNAi-ETHR females, the results also showed a significant dropping in egg production (P < 0.05) (Figure 5E).

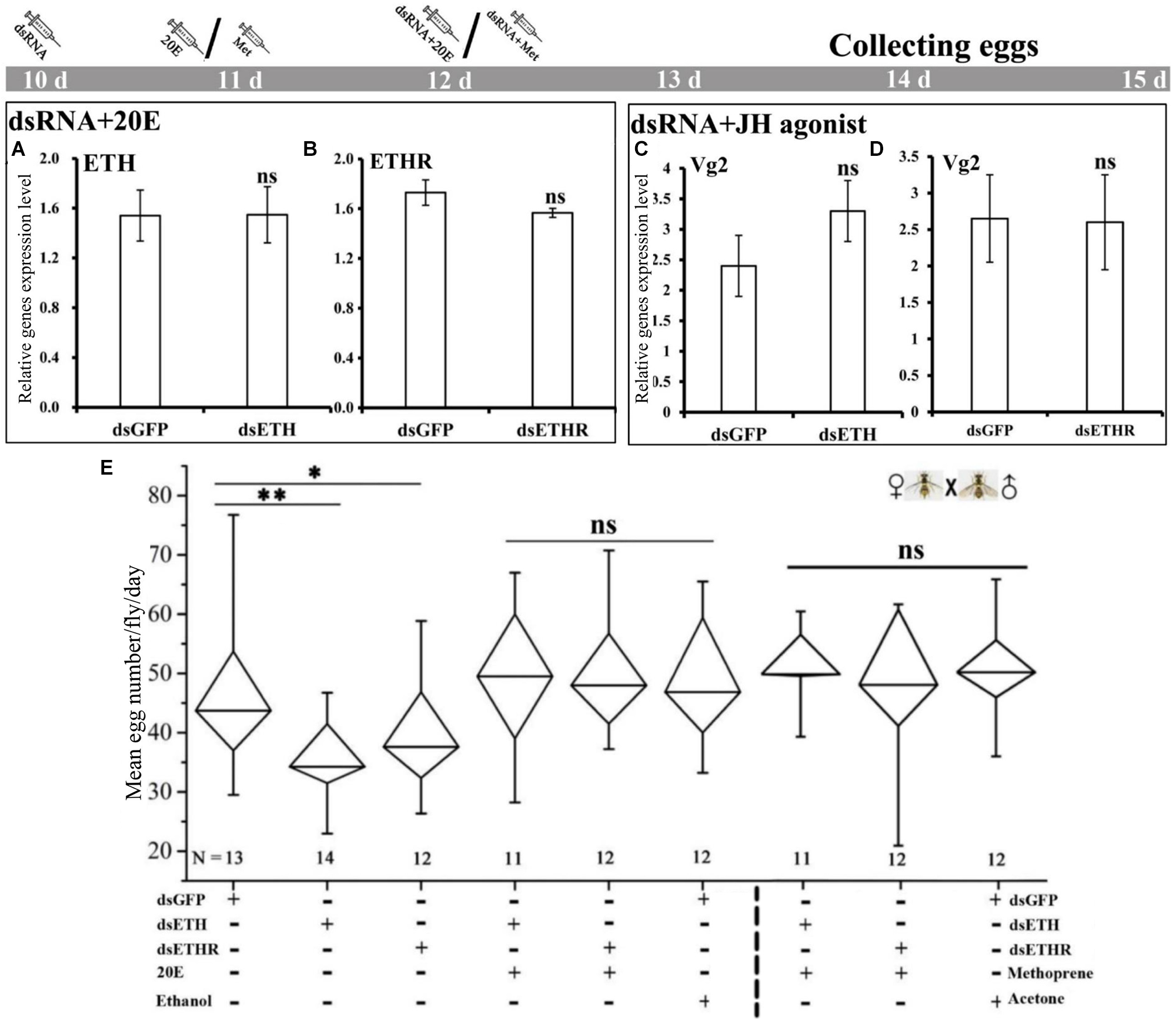

Figure 5. Impairment of ETH signaling resulted in reduced reproduction and 20E or methoprene injection rescued the egg production in female adults of B. dorsalis. (A–D) represent BdETH, BdETHR, and Vg2 expression levels. (E) Represents the mean egg numbers per fly per day for the mated and RNAi female adults. The Whisker plot shows the maximum, minimum, and median values. dsGFP, double stranded green fluorescent protein; dsETH, double stranded ecdysis triggering hormone; dsETHR, double stranded ecdysis triggering hormone receptor. NS represents no significant difference; ∗P < 0.05; ∗∗P < 0.01, t-test.
Discussion
In this study, we confirmed the presence of Inka cells and ETH in the female adult of B. dorsalis by immunohistochemistry and in situ hybridization. In the larval stages of B. dorsalis, the Inka cells are positioned just at each branch point of the transverse connectives of the tracheae (Shi et al., 2017). This result is in agreement with the observations in Drosophila (Meiselman et al., 2017; Lee et al., 2017). As seen also in Drosophila (Meiselman et al., 2017), the expression of ETH and its receptor are in phase with growth of the ovary. The correlation of ETH with ovary growth will be discussed later (Figure 2B). Interesting in our work is the ETHR-B receptor that is present in the female adult stage, while ETHR-A is absent with Ct values of ≥33. This is in great contrast to the presence of ETH signaling during the larval stages of B. dorsalis that is involved in successful shedding of the cuticle for molting where the ETHR-A was present (Shi et al., 2017). At present we have no deeper insights in the reasons of this unique difference for the two ETH receptors, where ETHR-B seems to have a role in the female adult in reproduction regulation versus ETHR-A in the larval molting process. Future research can focus on factors as tissue specificity, functional role in larval versus adult stages, ligand binding sites specificities. However, differences between fruit flies with D. melanogaster that is the super model for scientific research, and the less studied B. dorsalis that is of large agriculture importance, may occur as was also reported before for other peptide hormones (Gui et al., 2017).
On the role of ETH in the female adult of B. dorsalis, our data agree with previous reports that ETH signaling plays a vital functional role as an allatotropin for maintenance JHAMT expression required for normal JH, vitellogenesis and reproduction in females (Meiselman et al., 2017). Indeed, when we incubated the CA tissues from females with ETH peptide, CA was activated. Also in the RNAi assays with dsETH-ETHR injection, the JHAMT was downregulated, and the JH titers and the egg productions were all reduced. These data suggest that receptors for ETH peptide are present in the CA of B. dorsalis adults, implying that this endocrine gland is the target of ETH. In previous studies, ETHR transcripts were detected in the CA of 4th and 5th instar larvae of Bombyx mori (Yamanaka et al., 2008). Also intriguing here is that the knockdown of ETH and its receptor via RNAi led to a reduction of Vg2 only, but not for Vg1 and Vg3. The reason for this we believe is that Vg2 had a great response to JH, whereas Vg1 and Vg3 are more responsive to variation in ecdysone signaling (Chen et al., 2012; Tarone et al., 2012). Taken together, our data confirmed that loss of the ETH signaling impaired the JH levels and vitellogenin synthesis, and then restrained the egg production in the female flies.
On JH, it is well known that this sesquiterpenoid hormone regulates the female fertility by controlling the biosynthesis of vitellogenin and its uptake by the growing oocyte (Jindra et al., 2013). This was reported in ants (Brent et al., 2006), wasps (Dong et al., 2009), bees (Pinto et al., 2000), beetle (Parthasarathy et al., 2010b), and Drosophila (Marchal et al., 2011). JH III is found in all insects, except for the Hemipteran (Kotaki et al., 2009; Bendena et al., 2011; Meiselman et al., 2017). Therefore, we believe that also in B. dorsalis it is JH III that regulates the reproductive maturation in the female adult. Our RNAi experiments resulted in a reduction of JHAMT and the JH titer (Figures 4B,C), and this led to a loss of egg production.
We confirmed with this work in B. dorsalis that the steroid hormone 20E is an upstream regulator for ETH expression and its receptor. At the larval stage of Drosophila, rising of the ecdysteroid levels resulted in an increase of ETH levels and size of the Inka cells (Kingan et al., 1998). This agrees with our observations that the expression of both ETH and ETHR-B showed an increase between day 10 and 15, and this co-occurred with the peak levels of the two Halloween genes Spook and Shade, which were involved in 20E production at days 10–15 after adult eclosion (Figure 2C). Besides, injection of 20E in 5-day-old females increased the expression of ETH and ETHR-B, and moreover the injection of 20E in RNAi-females could rescue the expression of ETH, its receptor and reproduction (Figure 5).
Conclusion
In conclusion, we investigated the role of the ETH/ETHR pathway in the reproduction of B. dorsalis. It was of interest that it is the ETHR-B isoform that is playing a role in the female adult via JH in ovary growth regulation. This is in great contrast to the larval immature stages of B. dorsalis where it is the ETHR-A isoform that is regulating for successful shedding of the cuticle for molting (Shi et al., 2017). Hence, with RNAi and rescue experiments, we showed here that ETH signaling is under control of a pulse of 20E. With this information, we also shed light on potential novel insecticidal targets for instance with use of hormone antagonists to control important pest insects.
Ethics Statement
The research project was conducted on invertebrate species that are not subjected to any specific ethical issue and legislation.
Author Contributions
YS, H-BJ, YP, WD, YP, and GS designed the research. YS, T-YL, and X-QL performed all of the experiments with the help of H-BJ. YP, GS, and J-JW provided the materials. YS, H-BJ, YP, GS, and J-JW analyzed the data. YS, H-BJ, YP, GS, and J-JW wrote the manuscript.
Funding
This study was supported in part by the National Natural Science Foundation of China (31572016), the 111 Project (B18044), the earmarked fund for Modern Agro-industry (Citrus) Technology Research System (CARS-26), the Foundation Project of Southwest University (SWU114049), the European Union’s Horizon 2020 Research and Innovation Programme under grant agreement No. 634361, and the Fundamental Research Funds for the Central Universities (XDJK2017D162) of China.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphys.2019.00151/full#supplementary-material
Footnotes
References
Areiza, M., Nouzova, M., Rivera-Perez, C., and Noriega, F. G. (2014). Ecdysis triggering hormone ensures proper timing of juvenile hormone biosynthesis in pharate adult mosquitoes. Insect Biochem. Mol. Biol. 54, 98–105. doi: 10.1016/j.ibmb.2014.09.006
Bendena, W. G., Zhang, J., Burtenshaw, S. M., and Tobe, S. S. (2011). Evidence for differential biosynthesis of juvenile hormone (and related) sesquiterpenoids in Drosophila melanogaster. Gen. Comp. Endocrinol. 172, 56–61. doi: 10.1016/j.ygcen.2011.02.014
Brent, C., Peeters, C., Dietemann, V., Crewe, R., and Vargo, E. (2006). Hormonal correlates of reproductive status in the queenless ponerine ant, Streblognathus peetersi. J. Comp. Physiol. A Neuroethol. Sens. Neural Behav. Physiol. 192, 315–320. doi: 10.1007/s00359-005-0065-6
Chen, S. L., Lin, C. P., and Lu, K. H. (2012). cDNA isolation, expression, and hormonal regulation of yolk protein genes in the oriental fruit fly, Bactrocera dorsalis (Hendel) (Diptera: Tephritidae). J. Insect Physiol. 58, 763–770. doi: 10.1016/j.jinsphys.2011.12.007
Clarke, A. R., Armstrong, K. F., Carmichael, A. E., Milne, J. R., Raghu, S., Roderick, G. K., et al. (2005). Invasive phytophagous pests arising through a recent tropical evolutionary radiation: the Bactrocera dorsalis complex of fruit flies. Annu. Rev. Entomol. 50, 293–319. doi: 10.1146/annurev.ento.50.071803.130428
Dong, S. Z., Ye, G. Y., Guo, J. Y., and Hu, C. (2009). Roles of ecdysteroid and juvenile hormone in vitellogenesis in an endoparasitic wasp, Pteromalus puparum (Hymenoptera: Pteromalidae). Gen. Comp. Endocrinol. 160, 102–108. doi: 10.1016/j.ygcen.2008.11.007
Gui, S. H., Jiang, H. B., Smagghe, G., and Wang, J. J. (2017). The neuropeptides and protein hormones of the agricultural pest fruit fly Bactrocera dorsalis: what do we learn from the genome sequencing and tissue-specific transcriptomes? Peptides 98, 29–34. doi: 10.1016/j.peptides.2017.10.009
Jan, H., Geert, M., Anne, D. P., Frank, S., and Jo, V. (2007). qBase relative quantification framework and software for management and automated analysis of real-time quantitative PCR data. Genome Biol. 8:R19.
Jiang, H., Lkhagva, A., Daubnerová, I., Chae, H. S., Šimo, L., Jung, S. H., et al. (2013). Natalisin, a tachykinin-like signaling system, regulates sexual activity and fecundity in insects. Proc. Natl. Acad. Sci. U.S.A. 110, 3526–3534. doi: 10.1073/pnas.1310676110
Jindra, M., Palli, S. R., and Riddiford, L. M. (2013). The juvenile hormone signaling pathway in insect development. Annu. Rev. Entomol. 58, 181–204. doi: 10.1146/annurev-ento-120811-153700
Kingan, T. G., Gray, W., Zitnan, D., and Adams, M. E. (1998). Regulation of ecdysis-triggering hormone release by eclosion hormone. J. Exp. Biol. 200, 3245–3256.
Kotaki, T., Shinada, T., Kaihara, K., Ohfune, Y., and Numata, H. (2009). Structure determination of a new juvenile hormone from a heteropteran insect. Org. Lett. 11, 5234–5237. doi: 10.1021/ol902161x
Larkin, M. A., Blackshields, G., Brown, N. P., Chenna, R., Mcgettigan, P. A., Mcwilliam, H., et al. (2007). Clustal W and Clustal X version 2.0. Bioinformatics 23, 2947–2948. doi: 10.1093/bioinformatics/btm404
Lee, S. S., Ding, Y., Karapetians, N., Rivera-Perez, C., Noriega, F. G., and Adams, M. E. (2017). Hormonal signaling cascade during an early-adult critical period required for courtship memory retention in Drosophila. Curr. Biol. 27, 2798–2809.e3. doi: 10.1016/j.cub.2017.08.017
Lenaerts, C., Cools, D., Verdonck, R., Verbakel, L., Van den Broeck, J., and Marchal, E. (2017). The ecdysis triggering hormone system is essential for successful moulting of a major hemimetabolous pest insect, Schistocerca gregaria. Sci Rep 7:46502. doi: 10.1038/srep46502
Li, D., and Adams, M. E. (2009). Ecdysis triggering hormone signaling in the yellow fever mosquito Aedes aegypti. Gen. Comp. Endocrinol. 162, 43–51. doi: 10.1016/j.ygcen.2009.03.004
Marchal, E., Zhang, J. R., Badisco, L., Verlinden, H., Hult, E. F., Wielendaele, P. V., et al. (2011). Final steps in juvenile hormone biosynthesis in the desert locust, Schistocerca gregaria. Insect Biochem. Mol. Biol. 41, 219–227. doi: 10.1016/j.ibmb.2010.12.007
Meiselman, M., Lee, S. S., Tran, R. T., Dai, H., Ding, Y., Rivera-Perez, C., et al. (2017). Endocrine network essential for reproductive success in Drosophila melanogaster. Proc. Natl. Acad. Sci. 114:E3849. doi: 10.1073/pnas.1620760114
Meiselman, M. R., Kingan, T. G., and Adams, M. E. (2018). Stress-induced reproductive arrest in Drosophila occurs through ETH deficiency-mediated suppression of oogenesis and ovulation. BMC Biol. 16:18. doi: 10.1186/s12915-018-0484-9
Niwa, R., Niimi, T., Honda, N., Yoshiyama, M., Itoyama, K., Kataoka, H., et al. (2008). Juvenile hormone acid O-methyltransferase in Drosophila melanogaster. Insect Biochem. Mol. Biol. 38, 714–720. doi: 10.1016/j.ibmb.2008.04.003
Park, Y., Valery, F., Gill, S. S., and Adams, M. E. (2002). Deletion of the ecdysis-triggering hormone gene leads to lethal ecdysis deficiency. Development 129, 493–503.
Park, Y., Zitnan, D., Gill, S. S., and Adams, M. E. (1999). Molecular cloning and biological activity of ecdysis-triggering hormones in Drosophila melanogaster. FEBS Lett. 463, 133–138. doi: 10.1016/S0014-5793(99)01622-1
Parthasarathy, R., Sheng, Z., Sun, Z., and Palli, S. R. (2010a). Ecdysteroid regulation of ovarian growth and oocyte maturation in the red flour beetle, Tribolium castaneum. Insect Biochem. Mol. Biol. 40, 429–439. doi: 10.1016/j.ibmb.2010.04.002
Parthasarathy, R., Sun, Z., Bai, H., and Palli, S. R. (2010b). Juvenile hormone regulation of vitellogenin synthesis in the red flour beetle, Tribolium castaneum. Insect Biochem. Mol. Biol. 40, 405–414. doi: 10.1016/j.ibmb.2010.03.006
Pinto, L. Z., Bitondi, M. M. G., and Simões, Z. L. P. (2000). Inhibition of vitellogenin synthesis in Apis mellifera workers by a juvenile hormone analogue, pyriproxyfen. J. Insect. Physiol. 46, 153–160. doi: 10.1016/S0022-1910(99)00111-0
Roller, L., Li, D., Park, Y., Satake, H., Tanaka, Y., and Zitnan, D. (2010). Ecdysis triggering hormone signaling in arthropods. Peptides 31, 429–441. doi: 10.1016/j.peptides.2009.11.022
Schwedes, C. C., and Carney, G. E. (2012). Ecdysone signaling in adult Drosophila melanogaster. J. Insect Physiol. 58, 293–302. doi: 10.1016/j.jinsphys.2012.01.013
Shen, G. M., Dou, W., Huang, Y., Jiang, X. Z., Smagghe, G., Wang, J. J., et al. (2013). In silico cloning and annotation of genes involved in the digestion, detoxification and RNA interference mechanism in the midgut of Bactrocera dorsalis Hendel (Diptera: Tephritidae). Insect Mol. Biol. 22, 354–365. doi: 10.1111/imb.12026
Shen, G. M., Jiang, H. B., Wang, X. N., and Wang, J. J. (2010). Evaluation of endogenous references for gene expression profiling in different tissues of the oriental fruit fly Bactrocera dorsalis (Diptera: Tephritidae). BMC Mol. Biol. 11:76. doi: 10.1186/1471-2199-11-76
Shi, Y., Jiang, H. B., Gui, S. H., Liu, X. Q., Pei, Y. X., Xu, L., et al. (2017). Ecdysis triggering hormone signaling (ETH/ETHR-A) is required for the larva-larva ecdysis in Bactrocera dorsalis (Diptera: Tephritidae). Front. Physiol. 8:587. doi: 10.3389/fphys.2017.00587
Smykal, V., Bajgar, A., Provaznik, J., Fexova, S., Buricova, M., Takaki, K., et al. (2014). Juvenile hormone signaling during reproduction and development of the linden bug, Pyrrhocoris apterus. Insect Biochem. Mol. Biol. 45, 69–76. doi: 10.1016/j.ibmb.2013.12.003
Stephens, A. E. A., Kriticos, D. J., and Leriche, A. (2007). The current and future potential geographical distribution of the oriental fruit fly, Bactrocera dorsalis (Diptera: Tephritidae). B. Entomol. Res. 97, 369–378. doi: 10.1017/S0007485307005044
Tamura, K., Peterson, D., Peterson, N., Stecher, G., Nei, M., and Kumar, S. (2011). MEGA5: molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 28, 2731–2739. doi: 10.1093/molbev/msr121
Tarone, A. M., McIntyre, L. M., Harshman, L. G., and Nuzhdin, S. V. (2012). Genetic variation in the yolk protein expression network of Drosophila melanogaster: sex-biased negative correlations with longevity. Heredity 109, 226–234. doi: 10.1038/hdy.2012.34
Wang, J. J., Wei, D., Dou, W., Hu, F., Liu, W. F., and Wang, J. J. (2013). Toxicities and synergistic effects of several insecticides against the oriental fruit fly (Diptera: Tephritidae). J. Econ. Entomol. 106, 970–978. doi: 10.1603/EC12434
Wijesekera, T. P., Saurabh, S., and Dauwalder, B. (2016). Juvenile hormone is required inadult males for Drosophila courtship. PLoS One 11:e0151912. doi: 10.1371/journal.pone.0151912
Yamanaka, N., Yamamoto, S., Zitnan, D., Watanabe, K., Kawada, T., Satake, H., et al. (2008). Neuropeptide receptor transcriptome reveals unidentified neuroendocrine pathways. PLoS One 3:e3048. doi: 10.1371/journal.pone.0003048
Zhou, J., Qi, Y., Hou, Y., Zhao, J., Li, Y., Xue, X., et al. (2011). Quantitative determination of juvenile hormone III and 20-hydroxyecdysone in queen larvae and drone pupae of Apis mellifera by ultrasonic-assisted extraction and liquid chromatography with electrospray ionization tandem mass spectrometry. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 879, 2533–2541. doi: 10.1016/j.jchromb.2011.07.006
Zitnan, D., Kim, Y.-J., Žitňanová, I., Roller, L., and Adams, M. E. (2007). Complex steroid-peptide-receptor cascade controls insect ecdysis. Gen. Comp. Endocrinol. 153, 88–96. doi: 10.1016/j.ygcen.2007.04.002
Zitnan, D., Ross, L. S., Žitňanova, I., Hermesman, J. L., Gill, S. S., and Adams, M. E. (1999). Steroid induction of a peptide hormone gene leads to orchestration of a defined behavioral sequence. Neuron 23, 523–535. doi: 10.1016/S0896-6273(00)80805-3
