Fernando GogliaIntroduction
Thyroid hormones (THs) have been known to affect energy metabolism (calorigenic effect) for over a century (Magnus-Levy, 1895; Thompson et al., 1929). In 1985 Magnus-Levy observed that patients with mixedema exhibited an abnormal low oxygen consumption when compared to normal individuals and that unusually higher amount of oxygen was consumed by hyperthyroid patients. 3,3′,5-triiodo-L-thyronine (T3) is the active form of THs and it is a major regulator of growth and development and of cellular and tissue metabolism (both intermediate and energy metabolism) throughout the body. Metabolic actions include regulation of: basal metabolic rate in homeotherms, synthesis of mitochondrial respiratory enzymes and membranes, oxidative phosphorylation and energy transduction, movement of water and Na+ ions across cell membranes; calcium and phosphorus metabolism, lipids synthesis and storage, catabolism of fatty acids, cholesterol, carbohydrate; and nitrogen (urea, creatine) metabolism; growth and developmental actions include actions on: rate of postnatal growth of many mammalian and avian tissue, maturation of fetal brain and bone, amphibian larval metamorphosis, and molting in birds. It is now recognized that T3 affects gene expression in target tissues/cells by binding to its cognate nuclear receptors (TR) which are ligand-inducible transcription factors. Two TR genes α and β encode four T3-binding receptor isoforms (α1, β1, β2, and β3). The transcriptional activity of TRs is regulated at multiple levels. Besides being regulated by T3, transcriptional activity is also regulated: (i) by the type of thyroid hormone response elements located on the promoters of T3 target genes, (ii) by the developmental- and tissue-dependent expression of TR isoforms, and (iii) by a host of nuclear coregulatory proteins (corepressors and coactivators). These nuclear proteins modulate the transcription activity of TRs in a T3-dependent manner. In the absence of T3, corepressors act to repress the basal transcriptional activity, whereas in the presence of T3, coactivators act to activate transcription. The activities regulated via the previous described mechanisms are described as “genomic actions.” However, between the mid-1980's and the beginning of the 1990's it became evident that some TH effects are non-genomic in origin. Indeed, high-affinity binding sites for thyroid hormones have for many years been recognized on the plasma membrane and other cellular sites such as mitochondria and cytoplasm (for review see Cheng et al., 2010). Recently, a structural protein of the plasma membrane, integrin αvβ3, has been shown to contain a binding domain for iodothyronines that is an initiation site for hormone-directed complex cellular events, such as cell division and angiogenesis (Bergh et al., 2005) and this qualifies the binding site for characterization as a receptor. Examples of non-genomic action of thyroid hormones are activation of: membrane Ca2-ATPase activity, 2-Deoxyglucose transport, Na, K-ATPase activity, Na+ current in myocardiocytes, Na+ current in sensory neuron, Na+/H+ exchanger, cancer cell proliferation, angiogenesis (for review see Cheng et al., 2010). In addition to this, it is now recognized that other iodothyronines or THs analogs/derivatives are able to exert relevant biological actions (for recent review, see Moreno et al., 2008; Senese et al., 2014; Zucchi et al., 2014). This article is particularly intended to describe the effects of the 3,5 diiodo-L-thyronine (T2) on energy balance (Moreno et al., 1997; Goglia, 2005).
3,5-Diiodo-L-Thyronine (T2)
T2, a naturally occurring diiodothyronine, is a product of a currently unknown enzymatic process most probably utilizing T3 as its precursor (Moreno et al., 2002). Some years ago surprising results were published showing that (among a lot of iodothyronines tested) T2, at a very low concentration (pM), induced a rapid stimulation of oxygen consumption in perfused livers isolated from hypothyroid rats. In the same study, it was shown that T3 showed a similar effect but this effect was largely abolished by the addition of an inhibitor of D1 deiodinase, while the effect of T2 was not. Moreover, T2 exerted its effect more rapidly than T3 (Horst et al., 1989). Stimulated by that report and another study showing an interaction of a diiodothyronine with mitochondria (Goglia et al., 1981) some laboratories started to investigate more deeply on possible specific biological actions of T2. Initially, energy metabolism was the major area of interest. Indeed, several reports from various laboratories showed that acute or chronic administration of T2 to rats resulted in significant changes in energy metabolism. When either T3 or T2 were acutely injected to hypothyroid rats, T2 had a more rapid effect on resting metabolic rate than T3 (Lanni et al., 1996). The experimental design used in this study was basically the same as that employed by Tata in the early 1960's (Tata et al., 1962; Tata, 1963) and the only difference was that in the study of Lanni et al. hypothyroidism was achieved by the simultaneous administration of propylthiouracil (PTU) and iopanoic acid (IOP). This treatment produces animals with severe hypothyroidism and at the same time, with a powerful inhibition of all three types of deiodinase enzymes. In such conditions the effects of T2 were evident as soon as 1 h after its injection reaching the maximal value after 24 h, while that of T3 became evident only after 24 h reaching the maximal value after 72 h (these effects of T3 were overlapping to those obtained by Tata, 1963). Moreover, while the effect of T3 was inhibited by a inhibitor of transcription such as actinomycin D (as shown also by Tata, 1963). the effect of T2 was not (Lanni et al., 1996; Moreno et al., 1997) (see Figure 1).

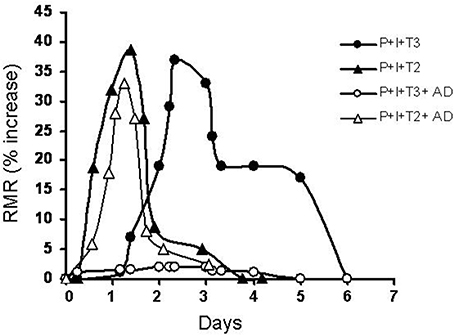

Figure 1. Time course of variation in the resting metabolic rate of hypothyroid rats following administration of a single dose of iodothyronines (25 μg/100 g BW for both T2 and T3) with or without a concomitant administration of actinomycin D (8 μg/100 g BW) (AD). Hypothyroidism was induced by combined treatment with PTU and IOP (P + I). Resting metabolic rate (RMR) is reported as % increase [vs. time 0 (immediately before the injection)].
Following these results studies continued to try to clarify the mechanisms underlying the previous described results. In light of the effects of T2 on energy metabolism, the mitochondria became the obvious candidates to study such mechanisms. In this context, some years ago, by top-down elasticity analysis, it was showed a stimulation of the activity of both cytochrome c-oxidizers and the cytochrome c-reducers components of the respiratory chain, 1 h after the injection of 3,5-T2 (Lombardi et al., 1998). These data indicate a possible direct interaction of T2 with some components of the respiratory chain. Indeed, this hypothesis was in agreement with previous results showing a direct stimulation of the enzyme cytochrome oxidase (COX) activity isolated from bovine heart (Goglia et al., 1994). Arnold and Kadenbach (1997) showed that (in addition to the mitochondrial membrane potential, the substrate pressure in the respiratory chain and the oxygen concentration) the respiration of animal cells is also controlled by the matrix ATP/ADP ratio, via an interaction of nucleotides with COX. In fact, ATP produces an allosteric inhibition of the COX activity. In a further investigation, Arnold et al. (Arnold et al., 1998) showed that 3,5-T2 specifically binds to subunit Va of the COX complex and completely abolishes the allosteric inhibition of respiration induced by ATP. Subunit Va of the COX complex is therefore a mitochondrial site through which T2 may directly affect mitochondrial activities. In addition to activating mitochondrial substrate oxidation, 3,5-T2 also stimulates skeletal muscle mitochondrial uncoupling in a very rapid manner (Lombardi et al., 2007, 2009). By discriminating between proton-leak and redox-slip processes, an increased mitochondrial proton conductance has been addressed as the “pathway” underlying the effect of T2 on mitochondrial uncoupling. Thus, activation of COX complex above described associated to changes in the efficiency of the skeletal muscle mitochondrial energy-transduction apparatus, may explain, at least in part, the rapid effect of T2 on metabolic rate.
The stimulatory effects exerted by T2 on RMR prompted my group to investigate on a possible effect of this iodothyronine in counteracting overweight and lipid accumulation without deleterious side effects in particular on hearth and skeletal muscle such as those showed by T3 when tested as slimming agent. To test this idea, we administered T2 for 30 days to rats on a high fat diet (HFD) and then we measured the adipose tissue mass, the body weight gain, the liver adiposity, the liver fatty acid oxidation rate, and the serum levels of triglyceride, fatty acids, and cholesterol. In this study we also looked at a possible effect of T2 on HPT axis (Lanni et al., 2005). The results showed that, except a slight decrease (−20%) in T4 serum level, no variation in the Hypothalamus-Pituitary-Thyroid axis (HPT) was evident measured by the “TRH-test.” In this study rats treated with T2 showed lower body weight, a higher liver fatty acid oxidation rate, less fat mass, an almost complete disappearance of fat from the liver, and significant reductions in the serum triglyceride and cholesterol levels. Recently, most of these results have been confirmed also in animals with a standard laboratory diet and with a prolonged time of treatment (Padron et al., 2014). In addition, several studies from both our and others laboratories showed relevant biological effects of T2 and some of them reported beneficial effects of T2, among others:
Moreno et al. (2011) and de Lange et al. (2011) showed that T2 prevented high-fat-diet-induced insulin resistance in rat whose action involved activation of sirtuin 1 (SIRT1).
Markova et al. (2013) showed an antidepressant-like effect of T2 in rats after a bolus administration of T2 at the doses 75 and 150 μg/100 g b.w.
Shang et al. (2013) showed that T2 was a protective agent against renal damage in diabetic nephropathy in streptozotocin-induced diabetic rats, confirming the involvement of sirtuin 1 (SIRT1).
These effects were observed in absence of deleterious side effects. However, some studies have shown some deleterious effect at cardiac level and on HPT axis (Goldberg et al., 2012; Jonas et al., 2014) but in these studies unusual very high doses of T2 were studied and unspecific interaction of T2 with nuclear TRs may have occurred.
Further details about the actions of T2 can be found in some reviews (Goglia, 2005; Coppola et al., 2014; Senese et al., 2014).
Of Note, the understanding of the physiological and pathophysiological role of T2 would benefit from development and standardization of new methods for analytical measurement of T2 and other TH derivatives. Actually, measurements of T2 in human tissue and sera have been so far taken using immunoassays (Kirkegaard et al., 1981; Nishikawa et al., 1981). However, the lack of labeled iodothyronines with high specific activity as well as of specific antibodies has represented an important limitation to the application of such approach. Promising developments in this field have recently emerged from the optimization of a new competitive chemiluminescence immunoassay (CLIA) based on the use of one selected mouse monoclonal anti-T2 antibody with very low cross-reactivity to structurally related THs and thyronamines (Lehmphul et al., 2014). Mass spectrometry techniques have also drawn attention to the analyses of iodothyronines (Köhrle et al., 2013), however, intrinsic instrumental limits still restrain the application of such approaches as routine tools.
Conclusion and Perspectives
The data reported and discussed in this article have generated a large interest in the possibility of identifying analogs/derivatives of thyroid hormone that may prove effective as therapeutic agents to counteract some major diseases that are growing in importance worldwide. But, before this perspective can be realized further studies are needed to elucitade the cellular/molecular mechanisms of action of these agents and, in addition, a possible therapeutic use of these agents need deep investigations on possible deleterious side effects especially when administered for a long time. As for T2 it remains to be established whether it has a physiological role or not and in an affirmative case it remains unclear what are the possible physiological roles that differentiate the actions of T2 and T3. Another aspect is related to the problem of possible TR-mediated genomic effect of T2. It has been recently proven that T2 is a specific ligand for a long isoform of TRβ in tilapia (Mendoza et al., 2013) affecting the growing processes in this specie. T3 and T2 both participate in the growth process, however their effects are mediated by different, specific TRβ1 isoforms (STRβ1 and LTRβ1 respectively). However, no data are present at the moment showing that a such binding can affect energy metabolism in higher species and further studies are needed to verify this possibility. Further studies may also be useful to try to develop new concepts that could help toward a better understanding of some of the effects of thyroid hormones and those of their analogs/derivatives.
Conflict of Interest Statement
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
Arnold, S., Goglia, F., and Kadenbach, B. (1998). 3,5-Diiodothyronine binds to subunit Va of cytochrome-c oxidase and abolishes the allosteric inhibition of respiration by ATP. Eur. J. Biochem. 252, 325–330. doi: 10.1046/j.1432-1327.1998.2520325.x
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Arnold, S., and Kadenbach, B. (1997). Cell respiration is controlled by ATP, an allosteric inhibitor of cytochrome-c oxidase. Eur. J. Biochem. 249, 350–354
Bergh, J. J., Lin, H. Y., Lansing, L., Mohamed, S. N., Davis, F. B., Mousa, S., et al. (2005). Integrin αvβ3 contains a cell surface receptor site for thyroid hormone that is linked to activation of mitogen-activated protein kinase and induction of angiogenesis. Endocrinology 146, 2864–2871 doi: 10.1210/en.2005-0102
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Cheng, S. Y., Leonard, J. L., and Davis, P. J. (2010). Molecular aspects of thyroid hormone actions. Endocr. Rev. 31, 139–170. doi: 10.1210/er.2009-0007
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Coppola, M., Glinni, D., Moreno, M., Cioffi, F., Silvestri, E., and Goglia, F. (2014). Thyroid hormone analogues and derivatives: actions in fatty liver. World J. Hepatol. 6, 114–129. doi: 10.4254/wjh.v6.i3.114
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
de Lange, P., Cioffi, F., Senese, R., Moreno, M., Lombardi, A., Silvestri, E., et al. (2011). Nonthyrotoxic prevention of diet-induced insulin resistance by 3,5-diiodo-L-thyronine in rats. Diabetes 60, 2730–2739. doi: 10.2337/db11-0207
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Goglia, F., Lanni, A., Barth, J., and Kadenbach, B. (1994). Interaction of diiodothyronines with isolated cytochrome c oxidase. FEBS Lett. 346, 295–298. doi: 10.1016/0014-5793(94)00476-5
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Goglia, F., Torresani, J., Bugli, P., Barletta, A., and Liverini, G. (1981). In vitro binding of triiodothyronine to rat liver mitochondria. Pflugers Arch. 390, 120–124. doi: 10.1007/BF00590193
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Goglia, F. (2005). Biological effects of 3,5-diiodothyronine (T(2)). Biochemistry (Mosc) 70, 164–172. doi: 10.1007/s10541-005-0097-0
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Goldberg, I. J., Huang, L. S., Huggins, L. A., Yu, S., Nagareddy, P. R., Scanlan, T. S., et al. (2012). Thyroid hormone reduces cholesterol via a non-LDL-receptor-mediated pathway. Endocrinology 153, 5143–5149. doi: 10.1210/en.2012-1572
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Horst, C., Rokos, H., and Seitz, H. J. (1989). Rapid stimulation of hepatic oxygen consumption by 3,5-di-iodo-L-thyronine. Biochem. J. 261, 945–950.
Jonas, W., Lietzow, J., Wohlgemuth, F., Hoefig, C. S., Wiedmer, P., Schweizer, U., et al. (2014). 3,5-diiodo-L-thyronine (3,5-T2) exerts thyromimetic effects on hypothalamus-pituitary-thyroid axis, body composition, and energy metabolism in male diet-induced obese mice. Endocrinology 1, 389–399. doi: 10.1210/en.2014-1604
Kirkegaard, C., Faber, J., Siersbæk-Nielsen, K., and Friis, T. (1981). A radioimmunoassay of serum 3,5-diiodothyronine. Acta Endocrinol. 97, 196–201.
Köhrle, J., Martin, C., Renko, K., and Hoefig, C. S. (2013). “Simultaneous analysis of all nine possible iodothyronines by liquid chromatography-tandem mass spectrometry,” in 37th Annual Meeting of European Thyroid Association, eds J. Smit and T Visser (Leiden, The Netherlands; Basel, Reinhhardt Druck: Karger, P241), 176
Lanni, A., Moreno, M., Lombardi, A., de Lange, P., Silvestri, E., Ragni, M., et al. (2005). 3,5-Diiodo-L-thyronine powerfully reduces adiposity in rats by increasing the burning of fats. FASEB J. 19, 1552–1554. doi: 10.1096/fj.05-3977fje
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Lanni, A., Moreno, M., Lombardi, A., and Goglia, F. (1996). Calorigenic effect of diiodothyronines in the rat. J. Physiol. 494, 831–837.
Lehmphul, I., Brabant, G., Wallaschofski, H., Ruchala, M., Strasburger, C. J., Kohrle, J., et al. (2014). Detection of 3,5-diiodothyronine in sera of patients with altered thyroid status using a new monoclonal antibody-based chemiluminescence immunoassay. Thyroid 24, 350–1360. doi: 10.1089/thy.2013.0688
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Lombardi, A., de Lange, P., Silvestri, E., Busiello, R. A., Lanni, A., Goglia, F., et al. (2009). 3,5-Diiodo-L-thyronine rapidly enhances mitochondrial fatty acid oxidation rate and thermogenesis in rat skeletal muscle: AMP-activated protein kinase involvement. Am. J. Physiol. Endocrinol. Metab. 296, E497–E502. doi: 10.1152/ajpendo.90642
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Lombardi, A., Lanni, A., de Lange, P., Silvestri, E., Grasso, P., Senese, R., et al. (2007). Acute administration of 3,5-diiodo-L-thyronine to hypothyroid rats affects bioenergetic parameters in rat skeletal muscle mitochondria. FEBS Lett. 581, 5911–5916 doi: 10.1016/j.febslet.2007.11.073
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Lombardi, A., Lanni, A., Moreno, M., Brand, M. D., and Goglia, F. (1998). Effect of 3,5-di-iodo-L-thyronine on the mitochondrial energy-transduction apparatus Biochem. J. 330, 521–526.
Magnus-Levy, A. (1895). Uber den respiratorischen Gaswechsel unter dem Ein fluss der Thyroidea sowie unter verschiedenen pathologischen Zustanden. Berl. Klin. Wochenschr. 32, 650–652.
Markova, N., Chernopiatko, A., Schroeter, C. A., Malin, D., Kubatiev, A., Bachurin, S., et al. (2013). Hippocampal gene expression of deiodinases 2 and 3 and effects of 3,5-diiodo-L-thyronine T2 in mouse depression paradigms. Biomed. Res. Int. 2013:565218. doi: 10.1155/2013/565218
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Mendoza, A., Navarrete-Ramírez, P., Hernández-Puga, G., Villalobos, P., Holzer, G., Renaud, J. P., et al. (2013). 3,5-T2 is an alternative ligand for the thyroid hormone receptor β1. Endocrinology. 154, 2948–58. doi: 10.1210/en.2013-1030
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Moreno, M., de Lange, P., Lombardi, A., Silvestri, E., Lanni, A., and Goglia, F. (2008). Metabolic effects of thyroid hormone derivatives. Thyroid 18, 239–253. doi: 10.1089/thy.2007.0248
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Moreno, M., Lanni, A., Lombardi, A., and Goglia, F. (1997). How the thyroid controls metabolism in the rat: different roles for triiodothyronine and diiodothyronines. J. Physiol. 505, 529–538. doi: 10.1111/j.1469-7793.1997.529bb.x
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Moreno, M., Lombardi, A., Beneduce, L., Silvestri, E., Pinna, G., Goglia, F., et al. (2002). Are the effects of T3 on resting metabolic rate in euthyroid rats entirely caused by T3 itself? Endocrinology 143, 504–510. doi: 10.1210/endo.143.2.8613
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Moreno, M., Silvestri, E., De Matteis, R., de Lange, P., Lombardi, A., and Glinni, D. (2011). 3,5-Diiodo-L-thyronine prevents high-fat-diet-induced insulin resistance in rat skeletal muscle through metabolic and structural adaptations. FASEB J. 25, 3312–3324. doi: 10.1096/fj.11-181982
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Nishikawa, M., Inada, M., Naito, K., Ishii, H., Tanaka, K., Mashio, Y., et al. (1981). Age-related changes of serum 3,3′-diiodothyronine, 3′,5′-diiodothyronine, and 3,5-diiodothyronine concentrations in man. J. Clin. Endocrinol. Metab. 52, 517–522. doi: 10.1210/jcem-52-3-517
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Padron, A. S., Neto, R. A., Pantaleão, T. U., de Souza dos Santos, M. C., Araujo, R. L., de Andrade, B. M., et al. (2014). Administration of 3,5-diiodothyronine (3,5-T2) causes central hypothyroidism and stimulates thyroid-sensitive tissues. J Endocrinol. 221, 415–427. doi: 10.1530/JOE-13-0502
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Senese, R., Cioffi, F., de Lange, P., Goglia, F., and Lanni, A. (2014). Thyroid: biological actions of nonclassical' thyroid hormones. J. Endocrinol. 221, R1–R12. doi: 10.1530/JOE-13-0573
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Shang, G., Gao, P., Zhao, Z., Chen, Q., Jiang, T., Zhang, N., et al. (2013). 3,5-Diiodo-L-thyronine ameliorates diabetic nephropathy in streptozotocin-induced diabetic rats. Biochim. Biophys. Acta 1832, 674–684. doi: 10.1016/j.bbadis.2013.01.023
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Tata, J. R., Ernster, L., and Lindberg, O. (1962). Control of basal metabolic rate by thyroid hormones and cellular function. Nature 198, 1059–1060.
Tata, J. R. (1963). Inhibition of the biological action of thyroid hormones by actinomycin D and puromycin. Nature, 197, 1167–1168. doi: 10.1038/1971167a0
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Thompson, W. O., Thompson, P. K., Brailey, A. G., and Cohen, A. C. (1929). The calorigenic action of thyroxin at different levels of basal metabolosm in myxedema. J. Clin. Invest. 7, 437–463. doi: 10.1172/JCI100237
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Zucchi, R., Accorroni, A., and Chiellini, G. (2014). Update on 3-iodothyronamine and its neurological and metabolic actions. Front. Physiol. 5:402. doi: 10.3389/fphys.2014.00402
Pubmed Abstract | Pubmed Full Text | CrossRef Full Text | Google Scholar
Keywords: thyroid hormone, resting metabolism, 3-5-diiodothyronine, mitochondria, energy balance
Citation: Goglia F (2015) The effects of 3,5-diiodothyronine on energy balance. Front. Physiol. 5:528. doi: 10.3389/fphys.2014.00528
Received: 30 October 2014; Accepted: 23 December 2014;
Published online: 13 January 2015.
Edited by:
Jean-Pierre Montani, University of Fribourg, SwitzerlandReviewed by:
Francesco S. Celi, National Institutes of Health, USACopyright © 2015 Goglia. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: goglia@unisannio.it
