A secure and efficient authentication scheme for vehicle to grid in smart grid

As environmental issues and climate change worsen, Smart Grid has become a crucial technology for tackling energy challenges. Smart Grid substantially enhances the reliability, security and efficiency of power systems by integrating state-of-the-art communication, control and information technologies. As a crucial component of Smart Grid, Vehicle to Grid (V2G) facilitates bidirectional energy flow between electric vehicle (EV) and the grid. This not only optimizes energy utilization but also accelerates the large-scale adoption of EV, contributing to a more sustainable energy ecosystem. However, security and privacy concerns in V2G cannot be ignored, particularly regarding identity authentication and data protection. Therefore, enabling the secure transmission of users’ private information within V2G is crucial. This paper presents a secure and efficient authentication scheme for privacy preserving in V2G. The scheme validates vehicle user identities and leverages chebyshev chaotic maps along with hash function to enable V2G communication. It ensures both data integrity and user privacy during transmission, addressing key security concerns in V2G. Through formal security analysis, it is confirmed that the scheme can withstand common attacks. Additionally, detailed informal security discussions demonstrate that the scheme can resist known attacks and meet design objectives. Further performance evaluation shows that the proposed scheme balances efficiency and security.

1 Introduction

As awareness of environmental issues and climate change increases, concerns over fossil fuels and environmental pollution are also rising. Against this backdrop, traditional power grids can no longer meet the demands for energy security, economic efficiency, and environmental protection. As a result, Smart Grid has emerged [1], incorporating advanced communication, control and information technologies to enable monitoring, control and optimization of the power grid. These advancements enhance the grid’s security and economic performance [2]. V2G refers to using electric vehicles (EVs) as energy storage and regulation devices that connect to the power grid, enabling the bidirectional flow of electricity, thereby enhancing energy utilization efficiency and cutting costs [3]. The significance of V2G technology stems from its ability to facilitate bidirectional energy flow and management. On one hand, during periods of lower demand, the surplus electricity can be directed to charge electric vehicle batteries, helping to avoid resource waste. On the other hand, when grid load is high, electric vehicles can return stored energy from their batteries to the grid, thereby reducing pressure on the grid and improving its flexibility and stability [4]. Meanwhile, vehicle owners can use V2G technology to turn their electric vehicles into reliable energy storage devices and earn income. This new revenue stream can encourage more people to purchase electric vehicles, driving their widespread adoption [5]. Therefore, V2G in Smart Grid presents significant practical benefits and has wide-ranging potential applications.

V2G facilitates the bidirectional exchange of information and electricity between electric vehicles and the power grid, greatly improving the Smart Grid’s operational efficiency. Nevertheless, V2G faces considerable challenges related to security and privacy concerns [6]. Prior to the power grid delivering services to electric vehicles, mutual authentication between the two parties is necessary. In the absence of such authentication, malicious actors may impersonate legitimate entities to gain access to the identity and location data of electric vehicle [7]. Moreover, since the communication takes place over public wireless networks, external attackers could intercept user information and compromise privacy for personal benefit [8]. If malicious attackers gain access to an electric vehicle’s user identity data and vehicle information, they could deduce the vehicle’s movement patterns based on charging and discharging locations and times, further inferring the user’s life patterns, such as home address, workplace, social activities and when the user leaves home. Such privacy breaches pose threats to both the user’s life and property [9]. V2G also involves payment processes during charging and discharging, which raises further security and privacy concerns for users. Therefore, dependable and secure mechanisms for privacy protection are essential in Smart Grid [10]. Authentication is a security mechanism used to confirm that an entity’s identity is legitimate and genuine, aiming to ensure that only authorized entities can access protected resources, engage in communication, or perform specific operations [11–13]. In V2G environment, authentication is particularly important, as it prevents unauthorized access and tampering, ensuring the security of both information and systems, thus providing reliable services to EV users, aggregators and grid operators [14]. To prevent malicious attackers from impersonating legitimate entities in V2G communication and stealing users’ private information, it is critical to develop a protocol that verifies the authenticity of the participants’ identities and guarantees communication security within the V2G network. The key contributions are as follows:

1) This paper proposes a secure and efficient authentication scheme for V2G. First, the scheme verifies vehicle user identities, allowing users to participate in subsequent authentication and secure charging/discharging transactions only after successful login. In addition, the scheme employs the chebyshev chaotic maps algorithm and hash function to achieve lightweight V2G communication.

2) To evaluate the effectiveness and practicality of the proposed scheme, formal and informal security analysis are used to conduct an analysis. Through proof, the scheme achieves mutual authentication, data integrity, forward security and other essential security properties, successfully defending against typical security threats. Additionally, the proposed scheme balances security and efficiency, with performance analysis showing that it has advantages in resource consumption, meeting the scalability and efficiency demands of the Smart Grid.

The rest is organized as follows: Section 2 provides related work on V2G. Section 3 outlines the network and adversary models. Section 4 describes the design. Section 5 conducts a security analysis of the scheme. Section 6 presents the performance evaluation, and Section 7 summarizes the paper.

2 Literature review

V2G refers to a technology that facilitates two-way communication, enabling electric vehicles to serve not only as energy consumers but also as energy storage units capable of supplying power to the grid. However, security and privacy concerns for V2G have attracted considerable attention from researchers globally and domestically.

Wu et al. [15] introduced a management protocol that integrates symmetric key techniques with elliptic curve public key cryptography. This protocol offers benefits such as high scalability, and efficiency. However, Xia et al. [16] highlighted that the protocol is susceptible to man-in-the-middle attacks and suggested a trusted third-party-based authentication and key distribution protocol, which has been proven to defend against such attacks. Park et al. [17] noted that this approach relies entirely on the security of the underlying cryptographic algorithm and is incapable of resisting unknown key-sharing and impersonation attacks. Given the substantial data transmission required in vehicle-to-grid communications, Guo et al. [18] proposed a batch authentication protocol for V2G networks. However, this protocol is essentially a variation of the standard DSA algorithm and fails to ensure privacy protection for sensitive vehicle data or provide security against various network threats. Turkanovic [19] introduced an authentication protocol that provides password protection and supports the addition of dynamic nodes. Chang [20] highlighted several weaknesses in the protocol, including vulnerability to impersonation attacks, node capture, theft of smart devices, and spoofing of sensor nodes, as well as its failure to provide forward security. To address these issues, Chang et al. [20] introduced an authentication scheme using elliptic curve encryption that guarantees optimal forward security. However, the introduction of blockchain significantly increases the resource overhead of the protocol. To reduce authentication overhead, researchers both domestically and internationally have carried out a series of studies on lightweight authentication protocols. Wazid et al. [21] combined passwords, biometrics, and mobile devices to design a three-factor authentication protocol for V2G networks. Although the protocol achieves the goal of being lightweight, it fails to protect user privacy. However, it fails to provide user privacy protection. Shen et al. [22] introduced a lightweight authentication protocol designed for V2G networks. Although this protocol reduces computational overhead, it results in significant storage overhead due to the aggregation of vehicle authentication information. Bansal et al. [23] introduced an authentication protocol utilizing physical unclonable functions. Ahmed et al. [24] developed a protocol using signcryption and unsigncryption techniques within a V2G communication setting based on the energy internet. Nevertheless, this protocol does not provide protection for vehicle data privacy and falls short in ensuring the forward security of session keys.

Chim et al. [25] introduced an electric vehicle authentication protocol that utilizes blind signatures. In this protocol, electric vehicles initially create a set of anonymous credentials, which are blindly signed by a trusted authority after verifying the vehicle’s identity. These signed anonymous credentials can then be used by vehicles to search for, query, and reserve charging stations. However, the security of this protocol depends on a trusted authority to verify the vehicle’s identity. If the authority is compromised or malicious, user privacy may not be adequately protected. Furthermore, this protocol only provides one-way authentication, with the authority authenticating the vehicle, which may lead to impersonation attacks. Chen et al. [26] proposed an authentication protocol, allowing charging/discharging stations to perform anonymous authentication and dynamic management of electric vehicles. However, the protocol suffers from high overhead in managing vehicle revocation. Yang et al. [27] used identity-based restrictive partially blind signature technology to construct a privacy-preserving authentication protocol, ensuring that verifiers cannot link the permits to the real identity of the electric vehicles. However, Wang et al. [28] highlighted that the reward system structure of the V2G network in protocol [27] lacks a formal security definition to capture real-world attacks. Wang et al. subsequently proposed a new traceable anonymous authentication protocol, which was proven secure in a formal security model. Saxena et al. [29] developed a two-factor authentication protocol, which relies on bilinear pairing technology. This method boosts the efficiency of authentication while preserving message integrity, ensuring forward privacy, and protecting identity anonymity. Nevertheless, the protocol lacks the capability to track the identities of malicious vehicles. Eiza et al. [30] employed certificateless public key encryption technology to construct a protocol, protecting the identity and location privacy of mobile electric vehicles. However, in this protocol, electric vehicles must interact with the server multiple times to verify their legitimacy, resulting in significant computational overhead. Gope et al. [31] proposed a protocol for V2G based on the energy internet, allowing charging and discharging at different geographically distributed charging stations. However, pseudonyms in this protocol do not provide complete anonymity, and semi-trusted service providers may collude with external attackers to gain users’ privacy. To address this issue, Feng et al. [32] introduced an anonymous and traceable authentication protocol that incorporates a certificate blinding algorithm to protect user privacy. However, the protocol fails to ensure forward security and imposes significant computational burdens on the vehicle side. The existing framework struggles to balance efficiency and security, leading to potential risks in deployment. The provably secure and easy-to-deploy solution proposed in this paper provides technical support to address these pressing challenges and helps promote the large-scale application of V2G.

3 Preliminaries

3.1 Communication model

In our communication model, when the grid and electric vehicles engage in communication sessions, the electric vehicle needs to frequently report real-time information to the grid. Before joining the V2G network to submit information reports, EVs must undergo mutual authentication with local aggregators to ensure the accuracy and reliability of the reported information. In Figure 1, the communication model in this paper includes Trust Authority (TA), Aggregator (AGT) and Electric Vehicle (EV) [22–24].

Figure 1

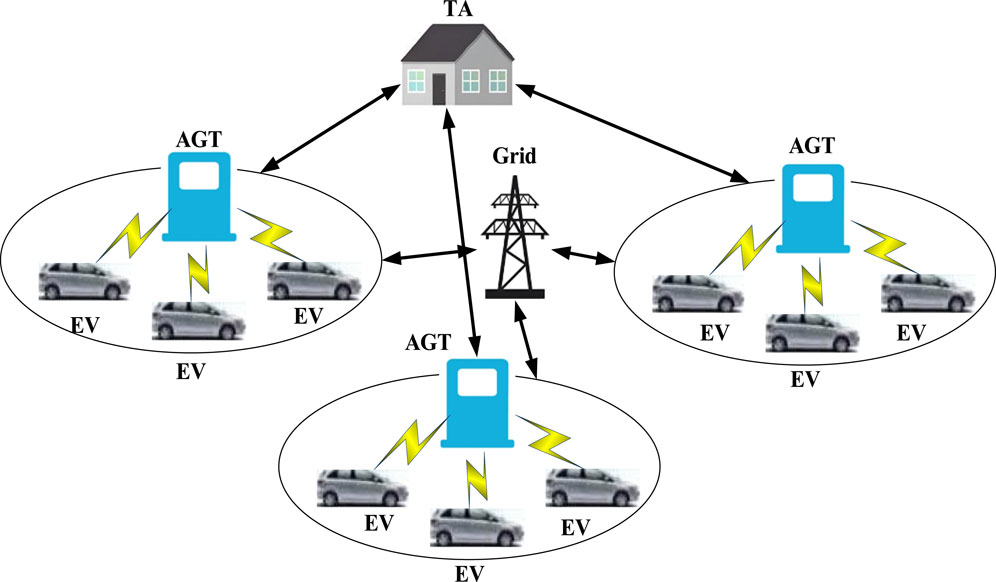

Figure 1. Communication Model of V2G System.

TA is the cornerstone of the system, primarily responsible for generating system parameters, thereby ensuring the stable operation of the V2G network.

AGT plays the role of an information hub, responsible for collecting real-time status data from electric vehicles within its communication coverage area that wish to connect to the grid. The AGT is also tasked with verifying the legitimacy of EV identities, ensuring that only authenticated EV can participate in information exchange, thereby maintaining network security and ensuring data integrity.

EV must report a series of key data to the AGT in real-time, including but not limited to its battery level, charging location, battery type, battery capacity, and current charging status. This information is critical for grid scheduling and optimization. To achieve this, each EV is outfitted with an onboard unit (OBU) that serves as a communication device, enabling a secure and reliable link for communication with AGT.

3.2 Threat model

In the model, we define the foundational assumptions of system security. In this scheme, the channel between EV and AGT is assumed to be insecure and may be vulnerable to various forms of external attacks and interference. We assume that the TA is capable of defending against both known and unknown attacks, and its security and reliability are critical to the overall security of the system. In this model, AGT is considered a semi-trusted entity, meaning it strictly follows predefined protocols and processes, but may, out of curiosity or potential self-interest, attempt to exploit the information obtained during the authentication process. EV, on the other hand, is considered an untrusted entity. This assumption is based on the fact that EV may be produced by different manufacturers with varying levels of security and reliability, and there is a risk of the vehicle being manipulated by malicious users. Malicious EV may exploit the insecure channel to carry out a range of network attacks, including data tampering, replay attack, and so on, which would pose serious threats to the overall security and stability of the system [27–29].

3.3 Chebyshev chaotic maps

The Chebyshev chaotic maps do not require handling scalar multiplication in elliptic curves cryptography (ECC) or time-consuming modular exponentiation, offering high parallel computational efficiency. Its lightweight nature makes it highly suitable for constructing authentication protocols in IoT application scenarios [33].

Definition 1. Define n as an integer and x within the interval $\left[-1,1\right]$. The Chebyshev polynomial can be expressed either as Equations 1, 2:

$T_n\left(x\right)=\mathit{cos}\left(n\cdot \mathit{arccos}\left(x\right)\right)(1)$

$T_n\left(x\right)=2x{T}_{n-1}\left(x\right)-T_{n-2}\left(x\right)\left(modp\right)(2)$

Definition 2. (Semigroup Property): A key characteristic of Chebyshev polynomials is semigroup property. This property persists even when the domain of Chebyshev polynomials extends over the intervals (−∞, +∞). An enhanced version is formulated as Equation 3:

$T_r\left(T_s\left(x\right)\right)=T_s\left(T_r\left(x\right)\right)=T_{rs}\left(x\right)\left(\mathit{mod}p\right)(3)$

Zhang [34] has shown the consistency of the semigroup property in Chebyshev polynomials.

Definition 3. (Chaotic Map-Based Discrete Logarithm Problem (CMDLP)): Given x and y, it is almost impossible to find the integer n, such that $T_n\left(x\right)=y\left(\mathrm{mod}p\right)$.

Definition 4. (Chaotic Map-Based Diffie-Hellman Problem (CMDHP)): For given x, $T_s\left(x\right)$, and $T_r\left(x\right)$, it is exceedingly difficult to ascertain $T_{rs}\left(x\right)$.

4 Proposed scheme

Since communication devices in the V2G environment operate in public settings, this scheme is designed to prevent privacy information from being leaked due to attacks. The scheme facilitates session key negotiation between the EV and the AGT based on chebyshev chaotic maps. Lightweight cryptographic operations are employed during the authentication process, reducing both communication and storage overhead. Table 1 shows the definitions of symbols used in the designed protocol.

Table 1

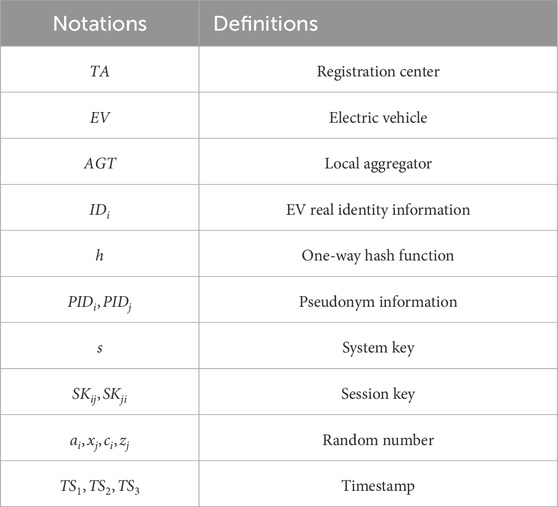

Table 1. Notations.

4.1 System initialization phase

TA will perform the following operations: TA selects a random number x and a large prime number p. Then, TA chooses a one-way hash function h and random number s for the private key, then computes $P_{pub}=T_s\left(x\right)$. Subsequently, TA publishes the system parameters $\left\{h,x,p,P_{pub}\right\}$.

4.2 Registration phase

Step 1: $E{V}_i$ generates its real identity information $I{D}_i$, password $W_i$ and a random number $a_i$. It calculates $A_i=T_{a_i}\left(I{D}_i\Vert W_i\right)$, $E{W}_i=h\left(I{D}_i\parallel W_i\Vert a_i\right)$, and sends the registration request $\left\{A_i,a_i,I{D}_i,E{W}_i\right\}$ to TA.

Step 2: After receiving registration request, TA uses a random number $b_i$, the private key s and $A_i$ to compute the pseudonym information $PI{D}_i=I{D}_i\oplus h\left(A_i\parallel s\right)$ for the electric vehicle, as well as ${ES}_i=h\left(PI{D}_i\parallel s\parallel b_i\parallel h\left(I{D}_i\parallel s\right)\right)$ and $E{A}_i=E{W}_i\oplus a_i\oplus {ES}_i$. TA then sends $\left\{E{A}_i,PI{D}_i\right\}$ to the electric vehicle and stores the corresponding information table $\left\{\left\{PI\right\}{D}_i,A_i\right\}$ in its local memory for further communication.

Step 3: After receiving $\left\{\left\{PI\right\}{D}_i,A_i\right\}$, $E{V}_i$ computes $E{S}_i={EA}_i\oplus E{W}_i\oplus a_i$, ${EB}_i=h\left(E{S}_i\parallel PI{D}_i\parallel E{W}_i\right)$, and $E{D}_i={ES}_i\oplus E{W}_i$, as well as ${AE}_i=a_i\oplus h\left(I{D}_i\parallel W_i\right)$. It then stores $\left\{PI{D}_i,{AE}_i,\mathrm{E}{B}_i,{ED}_i\right\}$ locally.

The aggregator $AG{T}_j$ also needs to be securely registered with the TA. $AG{T}_j$ selects its real identity information $I{D}_j$ and a random number $x_j$, calculates $X_j=T_{x_j}\left(I{D}_j|\left|x_j\right.\right)$, and sends {$I{D}_j,X_j$} to the registration center. TA generates a pseudonym information $PI{D}_j=I{D}_j\oplus h\left(X_j\parallel s\right)$ and ${AX}_j=T_{x_j}\left(I{D}_j\Vert x_j\right)\oplus h\left(PI{D}_j\parallel \mathrm{s}\right)$. After registration, TA stores the information table $\left.\left\{PI\right.D_j,X_j\right\}$ locally and sends $\left.\left\{PI\right.D_j,{AX}_j\right\}$ to $AG{T}_j$. $AG{T}_j$ generates a random number $r_j$, calculates $R_j=T_{r_j}\left(x\right)$, and broadcasts the pseudonym information $PI{D}_j$ along with $R_j$.

4.3 Login phase

To successfully initiate the electric vehicle, the user must input the password and identity information $I{D}_i$ and password $W_i$. The system computes $E{W}_i$, ${ES}_i$, ${EB}_i^{\prime }$ and verifies whether $E{B}_i^{\prime }={EB}_i$ holds true. The calculation steps are shown in the following Formulas 4–7:

$a_i={AE}_i\oplus h\left(I{D}_i\parallel W_i\right)(4)$

$E{W}_i=h\left(I{D}_i\parallel W_i\Vert a_i\right)(5)$

$E{S}_i={ED}_i\oplus E{W}_i(6)$

${EB}_i^{\prime }=h\left(E{S}_i\parallel PI{D}_i\parallel E{W}_i\right)(7)$

4.4 Authentication phase

Figure 2 shows the detailed authentication process.

Figure 2

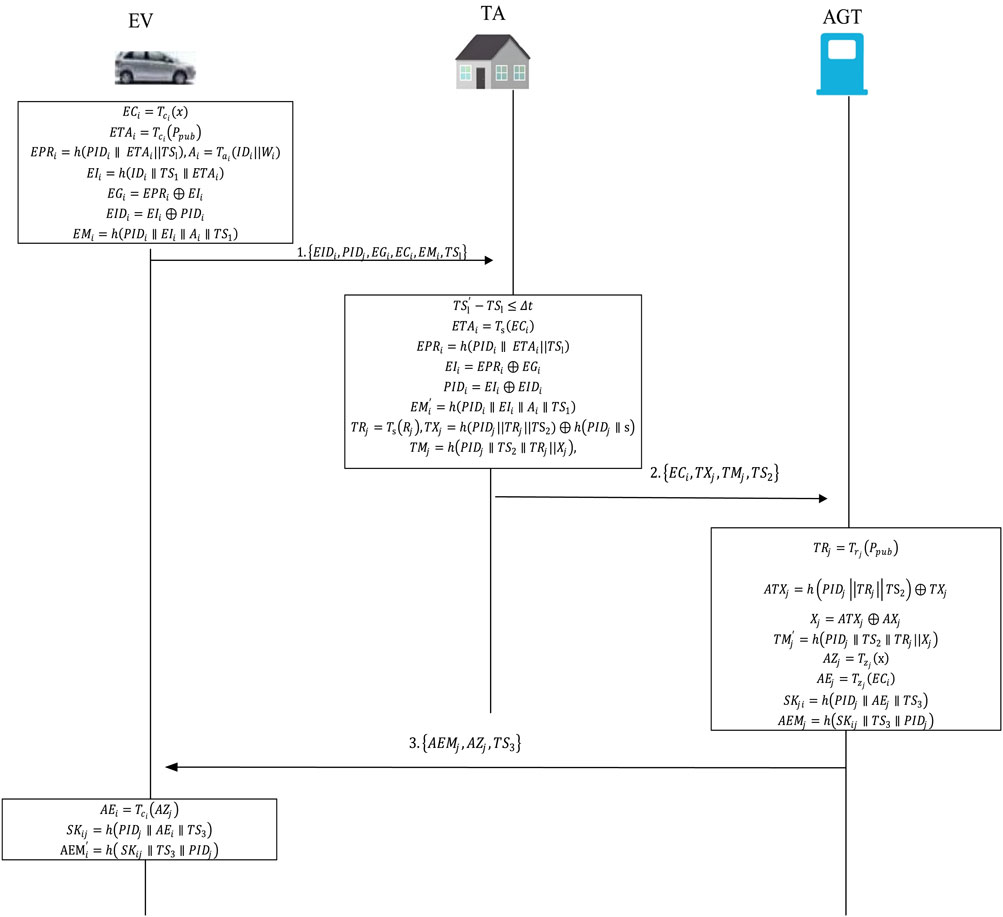

Figure 2. Authentication process.

Step 1. $E{V}_i$ randomly chooses $c_i$ and a timestamp $T{S}_{\mathrm{l}}$. $E{V}_i$ generates ${EC}_i=T_{c_i}\left(x\right)$, ${ETA}_i=T_{c_i}\left(P_{pub}\right)$ and ${EPR}_i=h\left(PI{D}_i\parallel {ETA}_i‖T{S}_{\mathrm{l}}\right)$. It then calculates $A_i=T_{a_i}\left(I{D}_i\Vert W_i\right)$, ${EI}_i=h\left({ID}_i\parallel T{S}_1\parallel {ETA}_i\right)$, ${EG}_i={EPR}_i\oplus {EI}_i$, ${EID}_i={EI}_i\oplus PI{D}_i$ and $E{M}_i=h\left(PI{D}_i\parallel {EI}_i\parallel A_i\parallel T{S}_1\right)$. Finally, $E{V}_i$ obtains $PI{D}_j$ and $R_j$ from the broadcast channel. $E{V}_i$ sends the authentication request $\left\{{EID}_i,PI{D}_j,{EG}_i,{EC}_i,E{M}_i,T{S}_{\mathrm{l}}\right\}$ to TA.

Step 2. On receiving $\left\{{EID}_i,PI{D}_j,{EG}_i,{EC}_i,E{M}_i,T{S}_{\mathrm{l}}\right\}$, TA verifies the validity of $T{S}_{\mathrm{l}}$. If the threshold is exceeded, the authentication process is terminated. TA computes ${ETA}_i=T_{\mathrm{s}}\left({EC}_i\right)$, ${EPR}_i=h\left(PI{D}_i\parallel {ETA}_i‖T{S}_{\mathrm{l}}\right)$, ${EI}_i={EPR}_i\oplus {EG}_i$ and $PI{D}_i={EI}_i\oplus EI{D}_i$. TA then checks the local database to see if $PI{D}_i$ and $PI{D}_j$ exist. If the identities are found, it retrieves $A_i$ and $X_j$. To verify the legitimacy of $E{V}_i$, TA computes ${EM}_i^{\prime }=h\left(PI{D}_i\parallel {EI}_i\parallel A_i\parallel T{S}_1\right)$ and checks if ${EM}_i^{\prime }=E{M}_i$. If verified, TA selects the current timestamp $T{\mathrm{S}}_2$, computes ${TR}_j=T_{\mathrm{s}}\left(R_j\right)$, ${TX}_j=h\left(PI{D}_j\Vert {TR}_j‖T{\mathrm{S}}_2\right)\oplus h\left(PI{D}_j\parallel \mathrm{s}\right)$, ${TM}_j=h\left(PI{D}_j\parallel T{S}_2\parallel {TR}_j\Vert X_j\right)$ and sends $\left\{{EC}_i,{TX}_j,{TM}_j,T{\mathrm{S}}_2\right\}$ to $AG{T}_j$.

Step 3. Upon receiving the message, $AG{T}_j$ verifies the validity of $T{S}_2$. If the timestamp exceeds the threshold, the message is discarded. Otherwise, $AG{T}_j$ computes ${TR}_j=T_{r_j}\left(P_{pub}\right)$, ${ATX}_j=h\left(PI{D}_j\Vert {TR}_j‖T{\mathrm{S}}_2\right)\oplus {TX}_j$, and $X_j={ATX}_j\oplus {AX}_j$. Then, ${TM}_j^{\prime }=h\left(PI{D}_j\parallel T{S}_2\parallel {TR}_j\Vert X_j\right)$ is calculated to verify if ${TM}_j^{\prime }={TM}_j$. If ${TM}_j^{\prime }={TM}_j$, $AG{T}_j$ selects a random number $z_j$ and a timestamp $T{S}_3$, calculates ${AZ}_j=T_{z_j}\left(\mathrm{x}\right)$ , ${AE}_j=T_{z_j}\left({EC}_i\right)$, the session key $S{K}_{ji}=h\left(PI{D}_j\parallel {AE}_j\parallel T{S}_3\right)$ and the verification message ${AEM}_j=h\left(S{K}_{ij}\parallel T{S}_3\parallel PI{D}_j\right)$. The message $\left\{{AEM}_j,{AZ}_j,T{S}_3\right\}$ is then sent to $V_i$.

Step 4. On receiving $\left\{{AEM}_j,{AZ}_j,T{S}_3\right\}$, $E{V}_i$ checks $T{S}_3$. If it is valid, $E{V}_i$ computes ${AE}_i=T_{c_i}\left({AZ}_j\right)$, the session key $S{K}_{ij}=h\left(PI{D}_j\parallel {AE}_i\parallel T{S}_3\right)$, and the verification message ${\text{AEM}}_i^{\prime }=h\left(S{K}_{ij}\parallel T{S}_3\parallel PI{D}_j\right)$. If ${\text{AEM}}_i^{\prime }={AEM}_j$, it proves that $S{K}_{ij}=S{K}_{ji}$. At this point, $E{V}_i$ and $AG{T}_j$ have successfully established a session key. If any step in the verification process fails, the protocol is terminated.

5 Security analysis of the protocol

5.1 Formal security analysis

The security model [28,34–39] will be introduced in detail below.

Definition 3.1. (Participant): Let $E{V}_i^a$, $AG{T}_j^b$, and $T{A}^c$ denote the a-th instance of electric vehicle ${EV}_i$, the b-th instance of local aggregator $AG{T}_j^b$, and the c-th instance of the TA, respectively.

Definition 3.2. (Partnership): All transmitted information has a session identifier (SID). Instances $E{V}_i^a$ and $AG{T}_j^b$ are considered partners if they satisfy the following four conditions:

(1) Both $E{V}_i^a$ and $AG{T}_j^b$ are in the accepted state;

(2) $E{V}_i^a$ and $AG{T}_j^b$ share the same SID;

(3) The partner identifier of $E{V}_i^a$ is $AG{T}_j^b$, and the partner identifier of $AG{T}_j^b$ is $E{V}_i^a$;

(4) No other instance is in the receiving state with the same partner identifier as $E{V}_i^a$ or $AG{T}_j^b$.

Definition 3.3. (Freshness):

If the session key SK remains confidential between instances $E{V}_i^a$ and $AG{T}_j^b$, and has not been disclosed to adversary A, then the session is regarded as fresh. It is hypothesized that adversary $\mathcal{A}$ has control over all communication exchanges between entities. Consequently, adversary $\mathcal{A}$ is able to conduct the following queries:

•$Execute\left(E{V}_i^a,AG{T}_j^b,T{A}^c\right)$: The adversary $\mathcal{A}$ can obtain all the information transmitted between the legitimate entities $E{V}_i$, $AG{T}_j$, and TA.

•$Send\left(E{V}_i^a,AG{T}_i^b,M\right)$: The adversary $\mathcal{A}$ sends message M to either instance $E{V}_i^a$ or $AG{T}_i^b$, and the participant computes the protocol result and returns it to the adversary $\mathcal{A}$.

•$Reveal\left(E{V}_i^a,AG{T}_j^b\right)$: If a session key SK has been established between instances $E{V}_i^a$ and $AG{T}_j^b$, the established session key is sent to the adversary $\mathcal{A}$. Otherwise, the answer is $\perp$ (meaning no established session key exists).

•$Corrupt\left(E{V}_i^a,AG{T}_j^b\right)$: The adversary can obtain the secret information from the instances $E{V}_i^a$ and $AG{T}_j^b$ in $Corrupt$.

•$Test\left(E{V}_i^a,AG{T}_j^b\right)$: It is used to verify the semantic security of the session key. Before executing Test, a coin b is flipped. If b = 1, the session key is sent to the adversary $\mathcal{A}$. If b = 0, a random number is returned as the answer. After this query is executed, if no session key SK has been established or if the session between $E{V}_i^a$ and $AG{T}_j^b$ is not fresh, $\perp$ is returned to the adversary $\mathcal{A}$.

Theorem 1. Assume that adversary $\mathcal{A}$ operates in the model and attacks the proposed scheme in polynomial time. The advantage of adversary $\mathcal{A}$ in breaking the session key security is defined as follows:

${\text{Adv}}_{\mathcal{P},\mathcal{A}}^{AKA}\left(\mathcal{A}\right)\le \frac{q_H^2}{\left|hash\right|}+2q_s{\text{Adv}}_{\mathcal{P},\mathcal{A}}^{CMDHP}\left(t\right)(8)$

Here, $q_h,q_{Send},$ and $\left|Hash\right|$ represent hash query, send query and the size of the hash function output, respectively. ${\text{Adv}}_{\mathcal{P},\mathcal{A}}^{CMDHP}\left(t\right)$ denotes the advantage of $\mathcal{A}$ in solving the CMDHP problem within polynomial time t.

Proof: The proof process is as follows:

• Game $\mathit{G}{\mathit{M}}_0$: This game simulates the actual attack initiated by the adversary, so we can express:

${\text{Adv}}_p^{AKA}\left(\mathcal{A}\right)=\mid 2\mathrm{Pr}\left[Suc{c}_0\right]-1\mid (9)$

•Game $\mathit{G}{\mathit{M}}_1$: $G{M}_1$ simulates all the queries from $G{M}_0$. In addition, it simulates an eavesdropping attack performed by adversary $\mathcal{A}$. After the game, adversary $\mathcal{A}$ performs $Execute$. Adversary $\mathcal{A}$ must distinguish whether the output of the $Test$ is the real session key or a random value. Since the final session key is generated as $S{K}_{ij}=h\left(PI{D}_j\parallel {AE}_i\parallel T{S}_3\right)$, which includes the secret value ${AE}_i$, adversary $\mathcal{A}$ cannot obtain this secret value via eavesdropping within polynomial time. Hence, adversary A’s probability of winning does not increase, meaning that the probabilities in games $G{M}_0$ and $G{M}_1$ are identical:

$\mathrm{Pr}\left[Suc{c}_1\right]=\mathrm{Pr}\left[Suc{c}_0\right](10)$

•Game $\mathit{G}{\mathit{M}}_2$: $G{M}_2$ simulates all the queries from $G{M}_1$ and adds Send query and hash query, thus modeling active attacks by adversary $\mathcal{A}$. In this game, the adversary’s goal is to deceive participants into accepting modified messages. Adversary $\mathcal{A}$ can also perform different hash queries to find collisions. Since the transmitted information in the channel, such as $\left\{{EID}_i,PI{D}_j,{EG}_i,{EC}_i,E{M}_i,T{S}_{\mathrm{l}}\right\}$, $\left\{{EC}_i,{TX}_j,{TM}_j,T{S}_2\right\}$, $\left\{{AEM}_j,{AZ}_j,T{S}_3\right\}$, includes identity information, timestamps, nonces, and secret values, adversary $\mathcal{A}$ will not generate collisions during Send query. Based on the birthday paradox, we obtain:

$\left|\mathrm{Pr}\left[Suc{c}_2\right]-\mathrm{Pr}\left[Suc{c}_1\right]\right|\le \frac{q_H^2}{2\left|Hash\right|}(11)$

•Game $\mathit{G}{\mathit{M}}_3$: All queries are simulated in $G{M}_3$. Suppose adversary $\mathcal{A}$ attempts to compute the session key $S{K}_{ij}=h\left(PI{D}_j\parallel {AE}_i\parallel T{S}_3\right)$. Even if $\mathcal{A}$ performs Corrupt query in the game to obtain information, it must calculate $T_{z_j{c}_i}\left(\mathrm{x}\right)$ based on ${AZ}_j=T_{z_j}\left(\mathrm{x}\right)$ and ${EC}_i=T_{c_i}\left(x\right)$. It can be shown that adversary $\mathcal{A}$ can solve the CMDHP problem within polynomial time t. Hence, it has:

$\left|\mathrm{Pr}\left[Suc{c}_3\right]-\mathrm{Pr}\left[Suc{c}_2\right]\right|\le q_s{\text{Adv}}_{\mathcal{P},\mathcal{A}}^{CMDHP}\left(t\right)(12)$

In $G{M}_3$, adversary $\mathcal{A}$ performs the $Test$ query and guesses the bit b to win the game. It has

$\mathrm{Pr}\left[Suc{c}_3\right]=\frac{1}{2}(13)$

Finally, by combining the results from Equations (8)–(13), it has

${\text{Adv}}_{\mathcal{P},\mathcal{A}}^{AKA}\left(\mathcal{A}\right)\le \frac{q_H^2}{\left|hash\right|}+2q_s{\text{Adv}}_{\mathcal{P},\mathcal{A}}^{CMDHP}\left(t\right)(14)$

5.2 Informal security analysis

Informal security analysis of the security protocol is used to evaluate the protocol’s security and correctness, aiming to identify potential security risks and vulnerabilities [27,40–43]. The security of the protocol is described informally in this paper, demonstrating that the designed protocol satisfies the security, and can resist impersonation attack, replay attack and other potential threats.

5.2.1 Mutual authentication

Upon receiving the message $\left\{{EID}_i,PI{D}_j,{EG}_i,{EC}_i,E{M}_i,T{S}_{\mathrm{l}}\right\}$ from the electric vehicle $E{V}_i$, the TA verifies whether ${EM}_i^{\prime }=h\left(PI{D}_i\parallel {EI}_i\parallel A_i\parallel T{S}_1\right)$ matches $E{M}_i$. If ${EM}_i^{\prime }\ne E{M}_i$, the TA terminates the session. If ${EM}_i^{\prime }=E{M}_i$, the TA considers $E{V}_i$ a legitimate user. After receiving the message $\left\{{EC}_i,{TX}_j,{TM}_j,T{S}_2\right\}$ from TA, $AG{T}_j$ verifies whether ${TM}_j^{\prime }=h\left(PI{D}_j\parallel T{S}_2\parallel {TR}_j\Vert X_j\right)={TM}_j$. If valid, $AG{T}_j$ considers TA legitimate. When $E{V}_i$ receives the message $\left\{{AEM}_j,{AZ}_j,T{S}_3\right\}$ from $AG{T}_j$, it verifies whether ${\text{AEM}}_i^{\prime }=h\left(S{K}_{ij}\parallel T{S}_3\parallel PI{D}_j\right)={AEM}_j$. If they match, $E{V}_i$ considers $AG{T}_j$ legitimate. Therefore, the scheme ensures mutual authentication.

5.2.2 Unlinkability

Each time communication occurs, $E{V}_i$ identity information is transmitted in encrypted form, and the associated authentication information is calculated using random numbers and timestamps. Therefore, each encrypted identity and authentication message is independent, with no linkable information between them. As a result, external attackers cannot determine whether two or more messages originate from the same sender, demonstrating that the scheme satisfies unlinkability.

5.2.3 Conditional privacy protection and traceability

In the proposed protocol, the vehicle only transmits its real identity information to the registration center during the registration phase. Upon receiving the user’s registration request, the registration center uses its private key to compute a pseudonym $PI{D}_i=I{D}_i\oplus h\left(A_i\parallel s\right)$, which is then sent to the user as the identity for subsequent communication. Throughout the entire protocol, the user’s real identity information is not revealed, ensuring conditional privacy protection. Furthermore, since the pseudonym is generated using the registration center’s private key, any malicious vehicle in the V2G environment can be traced by the registration center. TA can trace a malicious vehicle by locating its pseudonym, retrieving $A_i$ from the local database, and using the private key to compute $I{D}_i=PI{D}_i\oplus h\left(A_i\parallel s\right)$, thus revealing the vehicle’s real identity.

5.2.4 Forward security

After successful mutual authentication between $E{V}_i$ and $AG{T}_j$, a temporary session key $S{K}_{ij}=h\left(PI{D}_j\parallel {AE}_i\parallel T{S}_3\right)$ is established. This session key is related to the random numbers $z_j$ or $c_i$ selected. Even if a previous session key is compromised, earlier session keys remain secure due to the uniqueness of the random numbers in each session. Thus, the proposed protocol ensures forward security.

5.2.5 Session key security

Only legitimate $E{V}_i$ and $AG{T}_j$ will negotiate a session key $S{K}_{ij}=h\left(PI{D}_j\parallel {AE}_i\parallel T{S}_3\right)$ for communication after the authentication process is completed. Since the adversary cannot solve the CMDHP within polynomial time t, ${AE}_i$ remains unrecoverable by the adversary. Additionally, the timestamp $T{S}_3$ included in the session key ensures the security of the session. If the session key is leaked, the adversary will not be able to use it to recover previous or future session keys.

5.2.6 Resistance to impersonation attack

The adversary attempts to impersonate a legitimate vehicle $E{V}_i$ or aggregator $AG{T}_j$. In this attack, the adversary tries to masquerade as a legitimate entity by altering the authentication information they send. If successful, the adversary would gain unauthorized access to network resources. To successfully impersonate a legitimate vehicle, the adversary would need to compute the correct $E{M}_i$ and send it to the registration center for verification. However, since $E{M}_i=h\left(PI{D}_i\parallel {EI}_i\parallel A_i\parallel T{S}_1\right)$ includes ${EI}_i$, which requires the secret value ${\mathrm{c}}_i$ only known to the legitimate vehicle, it is not feasible for the adversary to forge a legitimate vehicle. Similarly, if the adversary attempts to impersonate an aggregator, they would also need to obtain the secret value ${\mathrm{z}}_{\mathrm{j}}$, without which they cannot pass the vehicle’s verification of ${AEM}_j$.

5.2.7 Resistance to man-in-the-middle attack

Even if an adversary attempts to act as a man-in-the-middle and establish a connection with both legitimate parties, they cannot negotiate a session key with either party because they lack valid authentication credentials and cannot pass the verification process. Due to the complexity of the CMDHP, the adversary cannot forge valid authentication credentials, making the protocol resistant to man-in-the-middle attack.

5.2.8 Resistance to replay attack

All transmitted messages $\left\{{EID}_i,PI{D}_j,{EG}_i,{EC}_i,E{M}_i,T{S}_{\mathrm{l}}\right\}$, $\left\{{EC}_i,{TX}_j,{TM}_j,T{S}_2\right\}$, and $\left\{{AEM}_j,{AZ}_j,T{S}_3\right\}$ include timestamps $\left\{T{S}_1,T{S}_2,T{S}_3\right\}$ representing the freshness of the information. Upon receiving these messages, the recipient only needs to verify the freshness of the timestamps to determine whether a replay attack has occurred. In summary, the proposed scheme resists replay attack.

6 Performance analysis

6.1 Computational overhead

In this part of the paper, we assess the computational overhead associated with the proposed scheme. Fundamental operations in this scheme include ECC operations, bilinear pairing operations, and chaotic mapping operations. Similar to existing scheme, this evaluation focuses on high-cost computations. The computation overhead is primarily evaluated based on ECC operations, bilinear pairing operations, and chaotic map operations.

Table 2 lists the time consumption of each cryptographic operation used in the scheme. Let $T_{pair}$ be the time required for a single bilinear pairing operation, $T_{a-bp}$ for an addition operation in bilinear pairing, $T_{m-bp}$ for a multiplication operation in bilinear pairing, $T_{m-\text{ecc}}$ for a multiplication operation in elliptic curves cryptography (ECC), $T_{a-\sec }$ for an addition operation in ECC, and $T_{\mathrm{c}}$ for a chaotic mapping operation. The experiments were conducted in a hardware environment consisting of 64-bit Windows 11, 16 GB of RAM, and the JPBC library.

Table 2

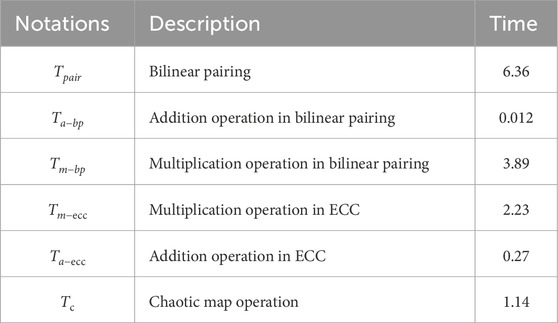

Table 2. Time consumption of basic operations (ms).

We selected three similar schemes for comparison with our scheme. Table 3 displays the basic operations within each scheme. Figure 3 shows the computational overhead comparison for the authentication process of a single EV in the four schemes. In the authentication process, proposed scheme shows notable benefits in computational overhead when compared to other schemes.

Table 3

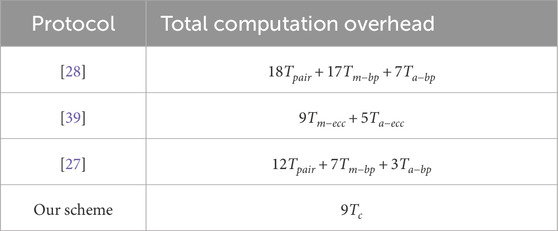

Table 3. Comparison of computational overhead.

Figure 3

Figure 3. Computation overhead.

6.2 Communication overhead

In this part, it is assumed that the output length of the hash function is 20 bytes, while the output of identity information and chaotic mapping are 20 bytes and 40 bytes, respectively. Additionally, during the authentication process, the output lengths of ECC, bilinear pairing, and the timestamp are 40 bytes, 64 bytes and 4 bytes, respectively. Based on the above, We evaluated the communication overhead of the proposed scheme.

Table 4 compares the communication overhead during authentication for each scheme. The communication overhead of [28] is 1456 bytes. In [39], two messages are exchanged, resulting in a communication overhead of 184 bytes. In [27], the communication overhead is 956 bytes. In our scheme, the EV sends one message to the TA, the TA sends one message to the AGT, and the AGT sends one message to the EV. Overall, the total communication overhead of the proposed scheme is 272 bytes. Figure 4 shows a comparison during authentication for each scheme. The communication overhead of our scheme is significantly lower than [27,28], while it is slightly higher than [39]. However [39], does not satisfy traceability and forward security. Overall, while the proposed scheme is slightly less efficient in terms of communication compared to [39], it provides more comprehensive security features. As a result, our scheme demonstrates better overall performance.

Table 4

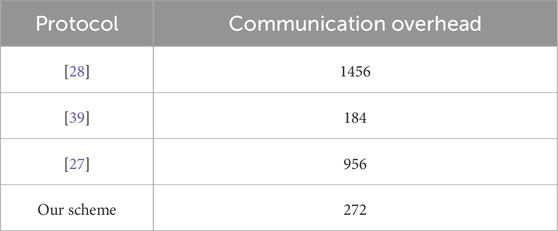

Table 4. Comparison of the communication Overhead.

Figure 4

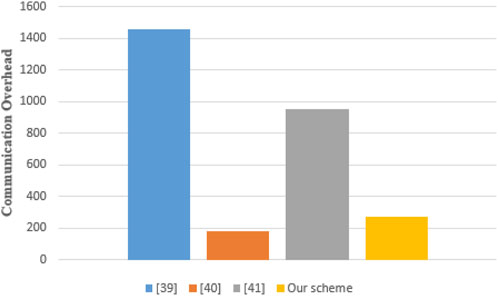

Figure 4. Communication overhead.

7 Conclusion

V2G integrates smart grids with electric vehicles, allowing EV fleets to serve as energy storage units that buffer the grid and renewable energy, thereby reducing the costs associated with power generation infrastructure and leveraging electric vehicles to address environmental concerns. However, the wireless communication network in V2G is an open network, making it susceptible to various types of network attacks, posing a range of threats to EV users. The secure and efficient V2G authentication scheme proposed in this paper, through rigorous vehicle user identity verification mechanisms combined with chaotic mapping technology, effectively resists malicious attacks, ensuring the authenticity of identities and the integrity of data during V2G communication. The performance analysis demonstrates that the scheme performs excellently regarding overhead. This scheme not only provides essential security guarantees but also contributes to the development of green energy. In the future, as smart grid and electric vehicle technologies continue to advance, the scheme proposed in this paper can contribute to building a secure, efficient, and sustainable energy ecosystem.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

NX: Conceptualization, Formal Analysis, Validation, Writing–original draft, Writing–review and editing. ZW: Conceptualization, Formal Analysis, Validation, Writing–original draft. XS: Formal Analysis, Validation, Writing–original draft.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
