The two-mass nonlinear vocal cord vibration system (VCVS) serves as a mechanical representation of the fundamental vocalization process. Traditional models of the VCVS, which are based on integer-order dynamics, often overlook the impact of memory effects. To address this limitation and enhance the accuracy of simulations, this study incorporates the memory effects of vocal cord vibrations by integrating the Grunwald–Letnikov fractional derivative into the two-mass nonlinear VCVS framework. Initially, a high-precision computational scheme is formulated for the two-mass nonlinear fractional-order VCVS. Subsequently, the model undergoes a comprehensive series of numerical simulations to investigate its dynamic characteristics. The findings reveal that the dynamics of the fractional-order VCVS exhibit a significantly higher complexity compared to the conventional integer-order models, with the emergence of novel chaotic behaviors that were previously unobserved.
1 Introduction
With the continuous development and improvement of computer technology and numerical simulation methods, the application of nonlinear vibration technology has been widely used in many fields and has become one of the hot topics in various fields.
Nonlinear dynamics can not only be used to analyze and explore certain natural phenomena and physical processes but can also be applied to other fields such as medicine, acoustics, ecology, and economics. Nonlinear vibration is very important in the study of MEMS oscillators [1, 2] and their interaction with structures. MEMS oscillators have a wide range of applications, including consumer electronics, automotive, healthcare, industries, aerospace, and many other fields. In recent years, vocal cord computer simulation technology has been used in the diagnosis of laryngeal diseases, can use the vocal cord pronunciation function [3], acoustic analysis to reflect the lesions of the vocal band. The study of the vocal cord vibration model [4] can reveal the characteristics of vocal band vibration and help understand the mechanism of vocal cord vibration. This study provides theoretical guidance for laryngeal pathology, artificial organs, voice therapy, and other medical fields and has practical application value. Researchers have also been trying to mimic human sound production by not only developing mechanical and mathematical models to describe the human organs associated with sound production but also studying the process of producing sound.
Vocal cord vibration can be simplified into various physical models, and the mass model represented by the spring mass block is a typical physical model of the vocal cord. These vocal cord vibration models represent vocal cord and polyp vibration with different numbers of spring mass blocks, such as the single-mass block model [5], the two-mass vocal cord model [6], three-mass vocal cord model, and H-C model. Latest research on the vocal cord vibration model involves the single-mass block model [5]. One of the simplest models is the single-degree-of-freedom single-mass model, which was first proposed by Dr. Flanagan and has since been studied by many researchers in related fields. Dr. Flanagan uses electricity acoustic analysis [7] which describes the dynamic knowledge of vocal cords and proposes a vocal cord model of a single-mass vibration system, in which self-excited vibration is caused by air flow that changes with pressure. [6] introduced the nonlinear properties of vocal cord organization into the two-mass model of vocal cords and proposed an improved nonlinear two-mass model of symmetrical vocal cords. In this model, the two vocal cords are assumed to be identical and move symmetrically relative to the glottic midline. When the glottis is open, the equation for vocal cord movement can be written as follows:
where
On the other hand, for damping forces, instead of using the usual linear term
The nonlinear term is used because when the width of the glottis increases, it is necessary to limit the amplitude of vocal cord vibration to ensure the effectiveness of the simulation.
As is known, there are many kinds of fractional derivatives, such as the Caputo fractional derivative, Caputo fractional derivative, Gr
where
The Gr
Some scholars have applied the fractional microproduct to memory modeling damping vibration systems. [14] focused on investigating the chaotic behavior of a 2-D vocal dynamical system using fractional-order Caputo difference operators, both commensurate and incommensurate. The methodology involves a dynamical analysis of the discrete fractional-order system, employing bifurcation theory, Lyapunov exponents, and coexisting attractors to understand the dynamical behavior. [15] gave a high-precision numerical approach to solving the space fractional Gray–Scott model. [16] gave some novel patterns for a class of fractional reaction–diffusion models with the Riesz fractional derivative. [17] researched on the pattern dynamics behavior of a fractional vegetation-water model in an arid flat environment. [18] researched the chaotic dynamic behavior of fractional-order financial systems with constant inelastic demand. [19] solved two-sided fractional super-diffusive partial differential equations with variable coefficients in a class of new reproducing kernel spaces. [20] studied the low frequency property of a fractal vibration model for a concrete beam. The fractal dimension formulation [21] made the fractal theory accessible to porous media and discontinuous time. [22] implemented the homotopy perturbation method for fractal duffing oscillators with arbitrary conditions. [23, 24] applied Li–He’s modified homotopy perturbation method for the doubly clamped electrically actuated microbeam-based micro-electromechanical system and the dropping shock response of a tangent nonlinear packaging system. [25] studied autonomous ordinary differential systems. [26] studied the Kaup–Newell system. [27] studied the nanobeam-based N/MEMS system, and [28] studied the fractal pull-in motion of electrostatic MEMS resonators. This paper introduces a numerical approach for the fractional-order vocal cord vibration model. [29] used the discontinuous Galerkin finite element method for the Caputo-type nonlinear conservation law. [30] used nonuniform L1/discontinuous Galerkin approximation for the time-fractional convection equation with a weak regular solution and the time fractional convection-diffusion-reaction Equation [31], and so on fractional systems [32, 33].
Fractional calculus has become a fundamental tool for modeling memory phenomena. However, due to the complexity and the nonlocality of fractional calculus, numerical methods are often used to approximate solutions to fractional differential equations, especially when analytical solutions are not feasible. The numerical computation of solving fractional differential equations is both cumbersome and time-consuming. Developing numerical and analytical methods for solving nonlinear fractional differential equations is currently a hot research topic. This paper introduces a high-precision method to study a class of fractional-order vocal cord vibration model.
2 Numerical method
Definition 2.1:. [34] The Grünwald–Letnikov fractional derivative for the function
where
Let
Using Newton’s binomial theorem, get
Theorem 2.2:. [34] The Grünwald–Letnikov fractional derivative for the function
where
According to Equation 7, let
Using Theorem (2.2), we can obtain the numerical calculation scheme for Equation 8, which is Equation 9:
In Ref. [35, 36] gave the construction method of generating function of any order in order to obtain high accuracy, and then gave the high-precision recursive formula of fractional derivative.
Theorem 2.3:. [35] The Grünwald–Letnikov fractional derivative for the function
where
Using Theorem (2.3), we can obtain the following the numerical calculation scheme (Equation 13) of Equation 8:
3 Numerical simulation and dynamics analysis
First, we consider the dynamic behavior of the VCVS with linear elasticity and resistance. Then, the dynamic behavior of the VCVS with nonlinear elasticity and resistance is considered. In numerical simulations, we set
3.1
We consider the dynamic behavior of the VCVS with linear elasticity and resistance

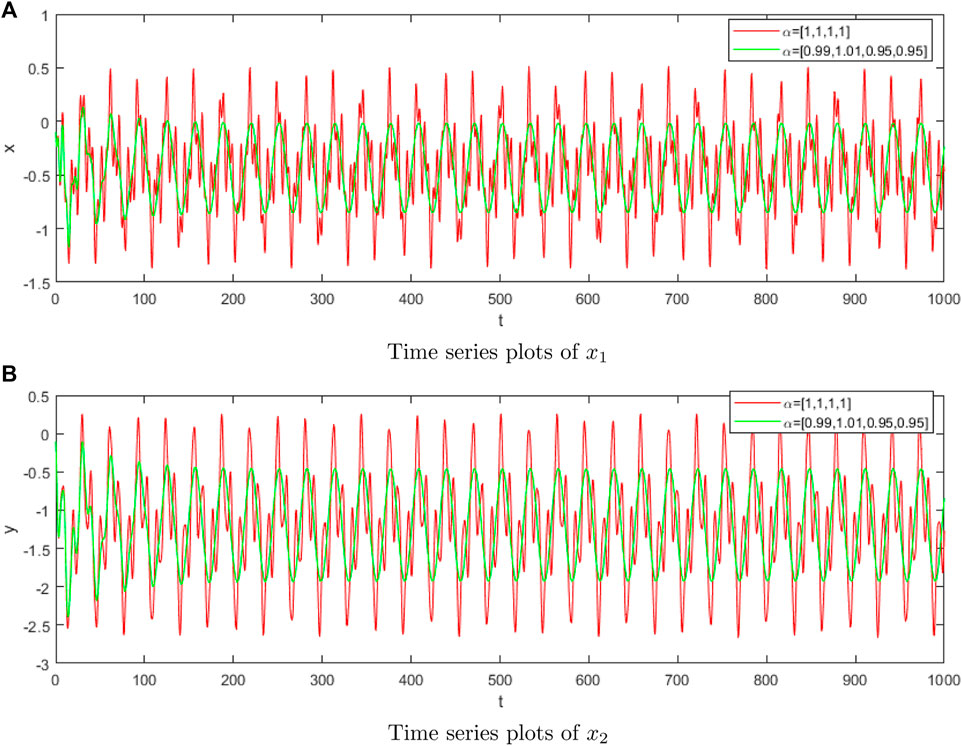

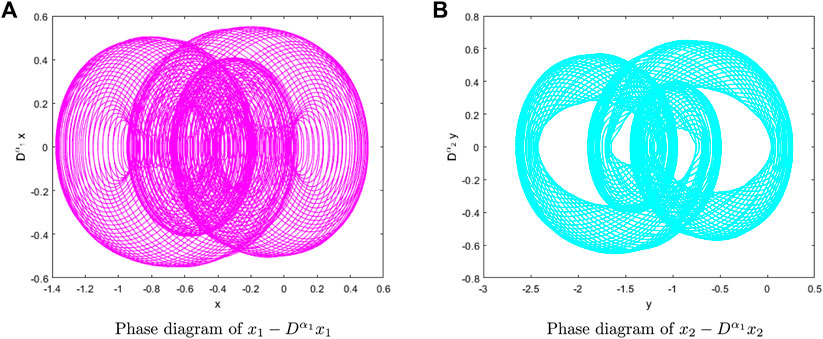

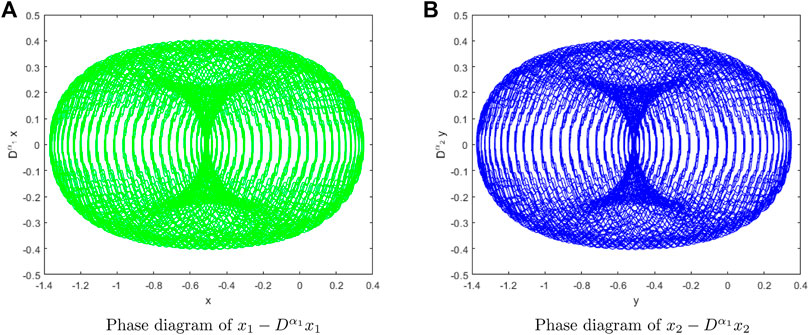

We choose different fractional derivatives and different parameters for numerical simulation. Figure 1 shows numerical simulation results of time series plots at
From numerical simulation results in Figure 1, we can observe the fractional derivative can control the amplitude of vocal cord vibration, which will lead to different sounds in the larynx, so as to ensure the effectiveness of the simulation. Figures 2–4 show the chaotic dynamic behavior of the fractional-order VCVS. Unstable and irregular movements of the vocal cords can indicate disease or abnormalities. The dynamic behavior of the fractional-order VCVS is much more complex than that of the integer-order model.

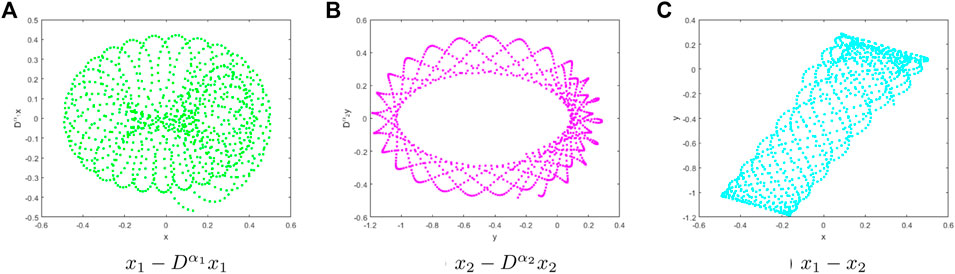

Figure 5 shows the Poincare surface of section at
3.2
The nonlinear term is used because it is necessary to limit the amplitude and chaotic behavior of vocal cord vibration as the width of the glottis increases.

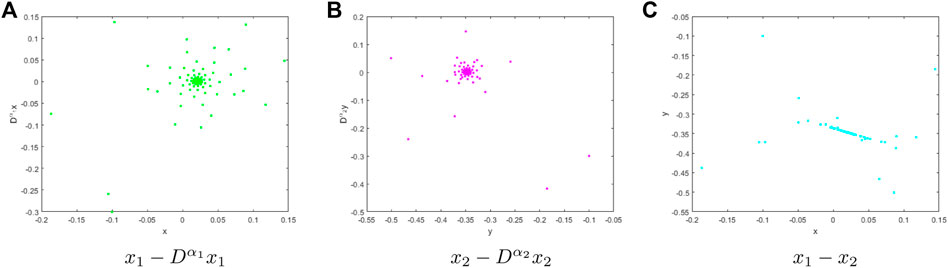

Figure 6 shows the Poincare surface of section at
When there is only one fixed point and a few discrete points on the Poincare section, the system can be judged to be periodically vibrating. When the Poincare section is a closed curve, it can be determined that the system is quasi-periodic vibration. When the Poincare section is a dense piece of points and there is a hierarchical structure, the system motion can be determined to be in a chaotic state.

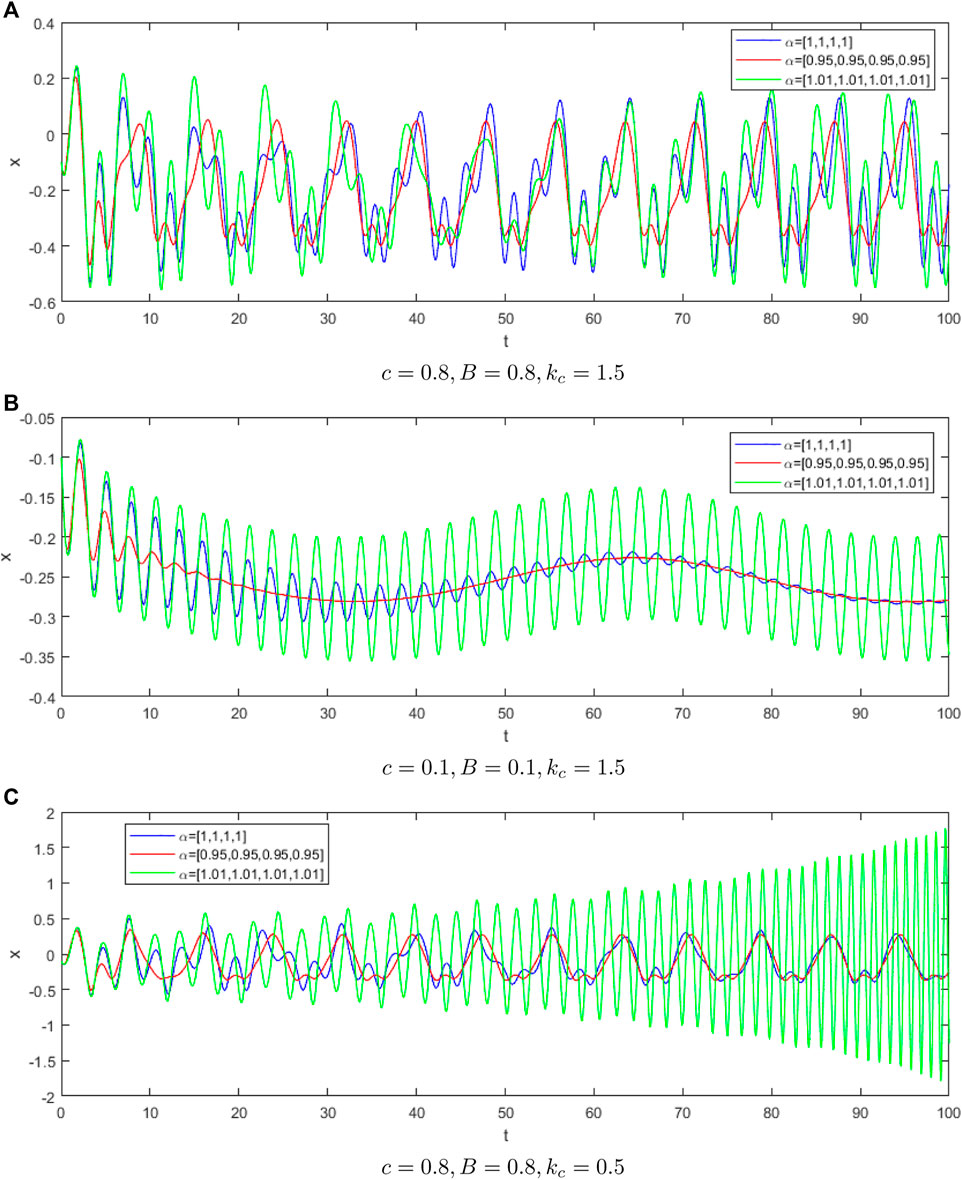

Figure 7 shows time series plots at different fractional derivatives

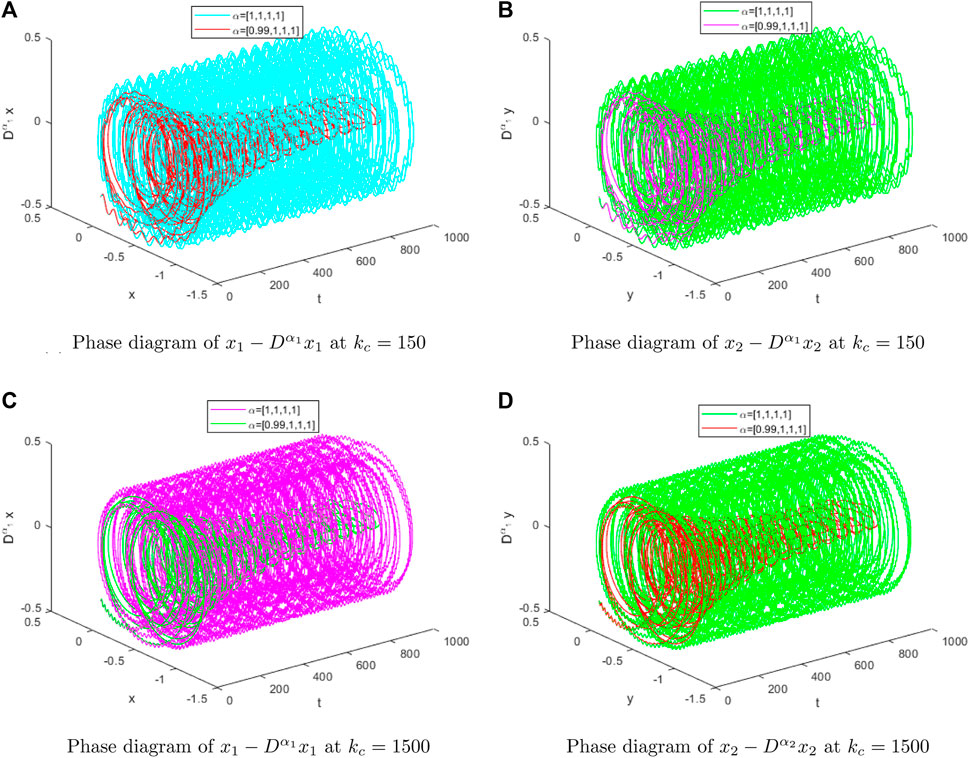

Figure 8 shows
The dynamic behavior of the system under fractional-order influence is analyzed, and the advantages of introducing fractional-order operators into the vocal cord vibration system are demonstrated. In this paper, a series of numerical simulations are carried out to explore the dynamic behavior of the model. The results show that it is very different from the traditional whole-order model, showing a richer and more complex dynamic landscape. Notably, the introduction of fractional derivatives reveals chaotic behavior in the system that was not previously observed.
4 Conclusion
This paper delves into the study of a two-mass nonlinear fractional-order VCVS, proposing a high-precision control scheme. The incorporation of nonlinear elements and fractional derivatives is motivated by their ability to regulate the amplitude and chaotic tendencies of vocal cord vibrations as the glottis widens. This regulation is essential for producing distinct vocal sounds in the throat, thereby enhancing the efficacy of the simulation. Numerical simulations reveal the system’s dynamic behavior and highlight intriguing novel chaotic dynamics. These findings offer innovative insights into the mechanical aspects of the vocal articulation process. In the future, we will study the multi-mass block model of the asymmetric vocal cord vibration system.
