Cross-modality feature fusion for night pedestrian detection

Night pedestrian detection with visible image only suffers from the dilemma of high miss rate due to poor illumination conditions. Cross-modality fusion can ameliorate this dilemma by providing complementary information to each other through infrared and visible images. In this paper, we propose a cross-modal fusion framework based on YOLOv5, which is aimed at addressing the challenges of night pedestrian detection under low-light conditions. The framework employs a dual-stream architecture that processes visible images and infrared images separately. Through the Cross-Modal Feature Rectification Module (CMFRM), visible and infrared features are finely tuned on a granular level, leveraging their spatial correlations to focus on complementary information and substantially reduce uncertainty and noise from different modalities. Additionally, we have introduced a two-stage Feature Fusion Module (FFM), with the first stage introducing a cross-attention mechanism for cross-modal global reasoning, and the second stage using a mixed channel embedding to produce enhanced feature outputs. Moreover, our method involves multi-dimensional interaction, not only correcting feature maps in terms of channel and spatial dimensions but also applying cross-attention at the sequence processing level, which is critical for the effective generalization of cross-modal feature combinations. In summary, our research significantly enhances the accuracy and robustness of nighttime pedestrian detection, offering new perspectives and technical pathways for visual information processing in low-light environments.

1 Introduction

Pedestrians are a vital element in traffic scenarios, and the ability to detect pedestrians quickly and accurately has increasingly become a critical research topic in the field of computer vision. Pedestrian detection plays an essential role in various practical applications, such as autonomous driving perception systems [1–3] and intelligent security monitoring systems [4–6]. Additionally, pedestrian detection serves as the foundational task for downstream tasks like pedestrian tracking [7–9], action recognition and prediction [10–12], with its accuracy directly impacting the performance of these tasks. With the significant advancements in convolutional neural networks (CNNs), pedestrian detection models [13–16] have been continually updated and iterated, bringing forth models with outstanding performance. However, most pedestrian detection models are trained on single-modality, well-illuminated visible light datasets [17–19]. When faced with low-light conditions such as at night, their performance significantly declines due to excessive noise and decreased discriminability [4, 20]. Pedestrian detection using only nighttime visible light images is particularly challenging because the data modality itself lacks a valid target area. Therefore, an increasing amount of research is focusing on cross-modality fusion learning, such as the fusion detection of visible and infrared images [21–26].

Infrared vision sensors operate on the principle of thermal imaging, distinguishing pedestrians from the background by differences in thermal radiation. Infrared imagery is robust against interference and is not easily affected by adverse environmental conditions [27, 28]. Even at night, infrared images can reveal the shape of pedestrians, effectively compensating for the vulnerability of visible light images to lighting conditions. However, infrared images also have drawbacks, such as lower resolution and a lack of texture information. On the other hand, visible light images provide rich detail and texture information [22]. Therefore, cross-modal fusion aims to extract complementary information between these two modalities, enhancing the flow of information between them and improving the perceptibility and robustness of detection algorithms. In the field of image fusion, a lot of work [29] has been carried out on the effective fusion of infrared images and visible light images.

In the field of pedestrian detection that fuses visible and infrared imaging, many approaches rely solely on Convolutional Neural Networks (CNN) to extract deep features [21, 23, 25, 26], with artificially designed complex fusion mechanisms to integrate features from different modalities. Extensive research has demonstrated the powerful representational capabilities of CNNs for expressing visual features in single-modality scenarios [30–32]. However, due to the limited receptive field, CNNs, while adept at capturing local information, exhibit weaker capabilities in capturing global texture information across modalities in fusion tasks. Transformer [33, 34] is equipped with self-attention mechanisms, possess a global receptive field and excel at learning long-range dependencies. Therefore, combining CNNs with transformers for cross-modality nighttime pedestrian detection can leverage the strengths of both, resulting in complementary advantages and enhanced detection performance.

Recently, vision transformers [33, 35–37] have been processing inputs as sequences and have demonstrated the capability to capture long-range correlations, offering a promising avenue towards a unified framework for multi-modal tasks. However, it remains to be clarified whether vision transformers can bring potential improvements to vis-inf pedestrian detection compared to existing multi-modal fusion modules [38–40] based on Convolutional Neural Networks (CNNs). Crucially, while some earlier studies have employed a simplistic global multi-modal interaction strategy, such an approach has not been universally applicable across various sensing data combinations [41–43]. We posit that in vis-inf pedestrian detection, which involves a variety of supplementary information and uncertainties, a comprehensive cross-modal interaction should be implemented to fully leverage the potential of cross-modal complementary features.

To address the challenges in vis-inf nighttime pedestrian detection, we propose an interactive cross-modal fusion framework based on yolov5, named FRFPD. This framework aims to enhance the performance of detection algorithms through efficient information fusion. FRFPD is constructed as a dual-stream architecture, specifically handling visible light (VIS) and infrared (Inf) data streams. On this foundation, we have designed feature interaction and fusion modules to optimize model performance: The Cross-Modal Feature Rectification Module (CMFRM) fine-tunes VIS and Inf features at a granular level, utilizing their spatial correlations to enhance the model’s focus on complementary information and effectively reduce the uncertainty and noise from different modalities. This process precisely handles the complexity of multi-source data, paving the way for more effective feature extraction and interaction. Moreover, the Feature Fusion Module (FFM) [41] is structured in two stages, ensuring ample information exchange before feature fusion on a global scale. In the first stage, we introduce a cross-attention mechanism for cross-modal global reasoning, propelled by a wide receptive field facilitated by the self-attention mechanism. In the second stage, a mixed channel embedding is employed to generate enhanced feature outputs. In essence, the interaction strategy we introduce is multidimensional: within the CMFRM module, we correct feature maps on a spatial dimension; while in the FFM module, it apply a cross-modal attention mechanism for feature fusion across the global channel dimension. These approaches are vital for the effective generalization of cross-modal feature combinations, enhancing the model’s capability to process information from diverse sensory modalities. Our contributions are summarized as follows:

(1) A dual-stream architecture is proposed in the FRFPD framework, leveraging YOLOv5, to handle visible light (VIS) and infrared (INF) data streams separately, tailored for addressing low-light challenges in nighttime pedestrian detection.

(2) The Cross-Modal Feature Rectification Module (CMFRM) is introduced to fine-tune visible and infrared features, exploiting their spatial correlations to enhance focus on complementary information, significantly reducing uncertainty and noise from different modalities. NF.

(3) An advanced Feature Fusion Module (FFM) developed in [41] is introduced, in two stages to promote ample information exchange and utilize a mixed channel embedding for generating enhanced feature outputs, improving detection capabilities.

2 Related works

The widespread application of Transformers in the field of Natural Language Processing (NLP) has proven their excellence and convenience in handling sequential data, which has also made them popular for visual tasks.

2.1 Vision transformer

The widespread application of Transformers in the field of Natural Language Processing (NLP) has proven their excellence and convenience in handling sequential data, which has also made them popular for visual tasks [35, 36, 44]; [45, 46]. ViT [35] addresses the high computational cost issue of Transformers in traditional visual tasks by flattening images into a series of pixel blocks (patches), transforming image processing tasks into a form similar to the word sequence processing in NLP. DeiT [47] further proposes a convolution-free Transformer structure, introducing a teacher-student strategy through distillation tokens, with training conducted solely on ImageNet. Moreover, the positional encoding feature of Transformers is used to capture the order information of sequence data, which can be either fixed or learnable [48].

In the field of computer vision, Visual Transformer (VT) have demonstrated significant capabilities across various tasks such as image Fusion [49, 50]), pedestrian detection [51], particularly excelling in multispectral detection tasks [52–55] where they can focus on important features scattered across different spectral bands. Their self-attention mechanism’s ability to model long-range dependencies and capture global context is especially valuable. Unlike convolutional neural networks [26, 56–58], VT operate on sequences of image patches (tokens) and are adept at learning to concentrate on the most informative parts of the input, making them inherently suited for multispectral detection where significant features may be sparsely distributed across spectral bands. However, the application of VT in multispectral detection, especially under challenging lighting conditions, remains a developing field. Our work is inspired by the intrinsic advantages of VT to tackle unique challenges in low-light multispectral scenarios. We have introduced a novel VT-based framework, specifically designed for this purpose, that incorporates modules sensitive to the nuances of multispectral data. Our proposed Cross-Modal Feature Rectification Module (CMFRM) expands the concept of VT by integrating cross-modal learning directly into the transformer architecture, serializing tokens along the spatial dimension, thereby enhancing the model’s ability to perform fine-grained feature adjustment. This is critical for aligning features across different modalities, particularly when contending with varying levels of illumination and noise inherent in low-light conditions.

2.2 Multispectral pedestrian detection

The field of pedestrian detection has seen the emergence of numerous outstanding studies, including early traditional detection methods [59, 60] and the surge of CNN-based detection technologies [61–64] that came with the rapid development of Convolutional Neural Networks (CNN). However, the majority of research is still focused on single-modality visible light images. In nocturnal environments, relying solely on visible light images for pedestrian detection often fails to achieve satisfactory results, mainly because conventional visible light cameras perform poorly in night-time imaging, with target areas not being distinct and substantial noise interference. For this reason, it becomes extremely difficult for models like CNNs to extract effective features from nighttime visible light images. As research has deepened, infrared imagery, with its unique advantages in night-time settings, has started to be used to complement the shortcomings of visible light images. This has attracted increasing attention from researchers and has spurred the advancement and exploration of multispectral pedestrian detection technologies, especially those based on CNN approaches.

In the field of multispectral detection, fusion algorithms play a crucial role. The AR-CNN [65] model introduces an end-to-end region alignment algorithm, which addresses the subtle misalignments caused by positional offsets between multimodalities. This fusion approach reweights features to prioritize more reliable characteristics and suppress ineffective ones. Meanwhile, the CIAN [26] model leverages the interactive properties of multispectral input sources, proposing a cross-channel interactive attention network. This network extracts global features from each channel of the two modalities and recalibrates the channel responses of intermediate feature maps using an attention mechanism by computing the inter-channel correlation. In existing multispectral detection research, models like AR-CNN and CIAN offer solutions for minor misalignments between modalities and feature recalibration; however, these methods still show limitations in complex scenarios under low-light conditions, such as night-time pedestrian detection. These limitations manifest in two aspects: firstly, feature information loss due to insufficient lighting under low-light conditions cannot be compensated for by simply reweighting features; secondly, despite the CIAN model employing an interactive attention mechanism, more efficient strategies for information exchange and fusion are needed to handle the complex interactions between different modalities. CFT [66] proposed a fusion algorithm that combines transformer and CNN, which can learn remote dependencies and extract global context information. Self-attention can fuse features within and between modes. It is a relatively novel method recently, but this model uses traditional transformer, which has the problems of positional encoding and multi-head attention mismatch cross-modality fusion. ProbEn [67] research primarily focuses on the issue of multimodal object detection, with a particular emphasis on addressing the challenges of object detection in low-light conditions. It introduces the ProbEn probabilistic ensemble technique to effectively fuse object detection results from different sensors, thereby significantly enhancing the performance of multimodal object detection. UGC [68] is dedicated to addressing crucial challenges in multispectral pedestrian detection, encompassing issues such as image calibration and disparities between different modalities. The authors introduce a novel approach that aims to enhance pedestrian detection performance by incorporating Region of Interest (RoI) uncertainty and predictive uncertainty into the feature fusion and modality alignment processes.

To overcome these limitations, we propose the FRFPD framework, central to which are the Cross-Modal Feature Rectification Module (CMFRM) and the Feature Fusion Module (FFM). The CMFRM is motivated by the need to serialize tokens in the spatial dimension for fine-grained feature adjustment, aligning features within the visible and infrared modalities. Its design aims to finely tune features across modalities by exploiting their spatial correlations to amplify complementary information, thereby significantly reducing uncertainty and noise in low-light conditions. This approach is crucial for enhancing the accuracy and robustness of detection under varied lighting conditions. Concurrently, the FFM addresses the challenge of integrating diverse modalities effectively. It serializes tokens globally in the channel dimension, first performing global reasoning between modalities through a cross-attention mechanism, then refining the feature output with hybrid channel embedding. This strategy is driven by the need to provide not only an in-depth exchange of information but also a more nuanced enhancement of channel responses than the CIAN model. The motivation behind FFM is to improve the overall quality of feature fusion, enhancing the detection capabilities in complex scenarios. The FRFPD framework sets a new performance benchmark for cross-modal feature fusion through its multi-dimensional interaction strategy, correcting feature maps on the channel and spatial dimensions, and implementing cross-attention at the sequence processing level.

3 Proposed method

3.1 Overview

Among the numerous target detection CNN models, YOLOv5 [69] is a highly reliable algorithm with fast recognition speed, which is easier to deploy and train. It is also one of the most popular detection frameworks currently and has a wide range of applications. Therefore, in this paper, we choose YOLOv5 to extract deep features and extend the transformer fusion algorithm to a dual-stream architecture. The backbone of YOLOv5 is modified from a single-stream structure to a dual-stream structure to separately extract deep features of the input visible light and infrared images. The rectification module, called Cross-Modal Feature Rectification Module (CMFRM), is implemented three times in the backbone. CMFRM is corrected one feature against another, and vice versa. In this way, the features of both modalities can be corrected. Additionally, as illustrated in Figure 1B, we introduced a Feature Fusion Module (FFM) [41] that merges features belonging to the same level into a single feature map. Then, a detection head is used to predict the final pedestrian positions. Our proposed network framework is illustrated in Figure 1.

Figure 1

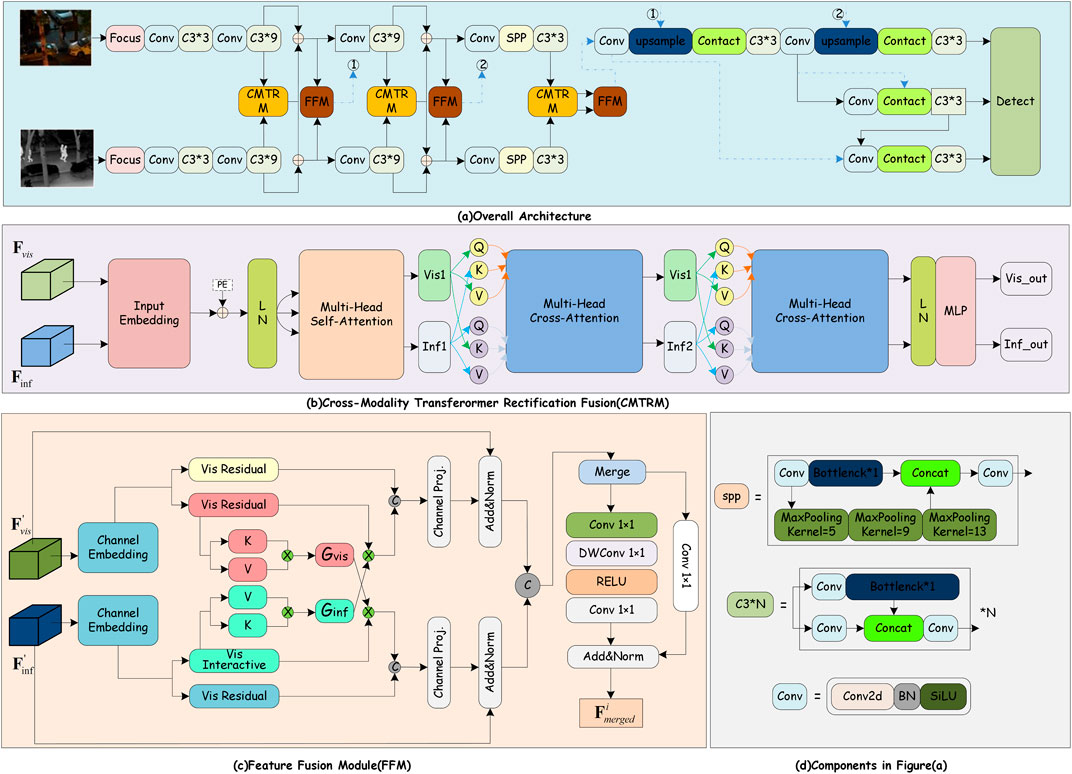

Figure 1. The Network structure of our proposals. (A) shows our overall network architecture, which adopts a novel combination of CNN and transformer. The deep features of visible and infrared images are extracted by two-stream CNN, and the proposed CMFRM module is used to leverag the features from one modality to rectify the features of the other modality. Feature Fusion Module (FFM) operates through a bifurcated process, as illustrated in (C) an initial stage of global information exchange followed by a stage of comprehensive global feature fusion. This structure is designed to facilitate extensive information interchange preceding the fusion of features at a global level. In addition, (D) shows the structure of the components in (A).

3.2 Cross-modality feature rectification module

In this paper, we explore the complementarity of information from different sensors [8], [9], noting that while this information is valuable, it is often affected by noise. To address this issue, we introduce a novel Cross-Modal Feature Rectification Module (CMFRM) in Figure 1B, which is capable of performing precise feature correction at each stage of feature extraction on parallel data streams. Utilizing Transformer technology for spatial feature correction, the CMFRM provides a granular correction mechanism. This not only effectively handles noise and uncertainty across different sensory modalities but also enhances the extraction and interaction of multimodal features, thereby improving the overall performance of the system.

In a two-stream structure, we extract features from visible and infrared images independently through Convolutional Neural Networks (CNN), obtaining visible feature and infrared feature, respectively. Both feature sets have the shape (B, C, H, W), where B is the batch size, C is the number of channels, and H and W are the dimensions of the spatial size. To adapt these features for the transformer, we flatten them into the shape (B, N, C), while proceeding along the spatial dimensions. where N is the number of tokens, given by N = H × W. This step is a crucial phase in the transition of CNN features to transformer-based CMFRM module.

${\text{flat}}_{\mathit{vis}}=F_{\mathit{vis}}\cdot \mathrm{v}\mathrm{i}\mathrm{e}\mathrm{w}\left(B,C,-1\right)(1)$

${\text{flat}}_{\mathit{inf}}=F_{\mathit{inf}}\cdot \mathrm{v}\mathrm{i}\mathrm{e}\mathrm{w}\left(B,C,-1\right)(2)$

${\text{flat}}_{\text{cat}}=\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{c}\mathrm{a}\mathrm{t}\left(\left(fla{t}_{\mathit{vis}},fla{t}_{\text{inf}}\right),\mathrm{d}\mathrm{i}\mathrm{m}=2\right)(3)$

$Z={\text{flat}}_{\text{cat}}.\text{permute}\left(\mathrm{0,2,1}\right)(4)$

where F_vis and F_inf represent the visible and infrared features from the CNN, respectively. The view function reshapes the tensor of specified shape without changing its data, and concat concatenates the given tensors along the specified dimension. The permute function outputs a tensor after permuting the dimensions of the input tensor. Thus, in Eq 4, the shape of Z is (B, 2N, C).

Positional embeddings enable the model to discern spatial relationships between different tokens during training. After positional embedding, the input sequence Z is then projected onto three weight matrices to compute a set of queries, keys, and values (Q, K, andV), expressed as Q = ZW^Q, K = ZW^K, V = ZW^V. In this context, the weight matrices are defined as $W^Q\in {\mathbb{R}}^{C\times D_Q}$, $W^K\in {\mathbb{R}}^{C\times D_K}$, and $W^V\in {\mathbb{R}}^{C\times D_V}$. Furthermore, the dimensions D_Q, D_K, and D_V are equivalent in our transformer model, such that D_Q = D_K = D_V = C. The Multi-head Self-Attention layer computes the attention weights by calculating the scaled dot products between Q and K. These weights are then applied to V to infer the refined output $\widehat{Z}$.

$\widehat{Z}=\mathrm{A}\mathrm{t}\mathrm{t}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\left(Q,K,V\right)=\mathrm{s}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(\frac{Q{K}^T}{\sqrt{D_K}}\right)V(5)$

However, multimodal data is distributed across different spatial domains, and relying solely on self-attention is insufficient for fully exploiting the mixed modality information, which may result in inadequate rectification. Based on the principle of self-attention, we speculate that exchanging the “values” and “keys” between different modalities might better enhance the vital information and facilitate the flow of complementary information. Building on these considerations, we have extended the traditional multi-head attention based on a cascading strategy by incorporating two instances of Cross-Attention (CA), as shown in Figure 1B. Additionally, the process of information exchange during the two instances of Cross-Attention can be represented by Eqs. 6–9.

$C{A}_{vis}^1\left(Q_{vis},K_{inf},V_{vis}\right)=\mathrm{s}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(\frac{Q_{vis}{K}_{inf}^T}{\sqrt{d_k}}\right)V_{vis}(6)$

$C{A}_{inf}^1\left(Q_{inf},K_{vis},V_{inf}\right)=\mathrm{s}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(\frac{Q_{inf}{K}_{vis}^T}{\sqrt{d_k}}\right)V_{inf}(7)$

and

$C{A}_{vis}^2\left(Q_{vis},K_{vis},V_{inf}\right)=\mathrm{s}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(\frac{Q_{vis}{K}_{vis}^T}{\sqrt{d_k}}\right)V_{inf}(8)$

$C{A}_{inf}^2\left(Q_{inf},K_{inf},V_{vis}\right)=\mathrm{s}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(\frac{Q_{inf}{K}_{inf}^T}{\sqrt{d_k}}\right)V_{vis}(9)$

where vis, inf represent visible token and infrared token from $\widehat{Z}$ respectively. After processing through two cascaded multi-head cross-attention layers, the visible and infrared features are subjected to Layer Normalization (LN) and Multi-Layer Perceptron (MLP), ultimately producing two output features, ${\tilde{\mathbf{F}}}_{vis}$ and ${\tilde{\mathbf{F}}}_{inf}$.

3.3 Two-stage feature fusion module

After obtaining the feature mappings from each layer, a two-stage feature fusion module (Feature Fusion Module, FFM) [41] is introduced to enhance the interaction and integration of global information. As illustrated in Figure 1C, in the first stage, the two branches are kept separate, and a cross-attention mechanism is designed to facilitate the global exchange of information between the two branches. In the stage 2, the concatenated features are transformed back to the original scale through a mixed channel embedding.

Global Information exchange stage. We first flatten the input feature of size ${\tilde{\mathbf{F}}}_{vis}$ and ${\tilde{\mathbf{F}}}_{inf}\in {\mathbb{R}}^{H\times W\times C}$ into R^N×C along with channel dimension, where N = H × W, and C is the number of tokens, Then, through linear embedding, we generate two vectors of the same size R^N×C, named the residual vector X_res and the interactive vector X_inter. Building upon this, we propose an efficient cross-attention mechanism that applies to these two interactive vectors from different modal pathways, achieving comprehensive information exchange across modalities. This mechanism offers complementary interactions from a sequence-to-sequence perspective, surpassing the rectification-based interactions from the feature map perspective in CMFRM.

Our cross-attention mechanism, designed for improved cross-modal feature fusion, is an adaptation of the conventional self-attention mechanism [33]. The traditional method encodes inputs into Queries (Q), Keys (K), and Values (V), computing a global attention map via QK^T. This results in a computationally expensive N × N matrix. Alternatively [70], proposes using a global context vector G = K^TV, reducing the size to C_head × C_head. Our approach builds on this by embedding interactive vectors into K and V for each head, with both matrices sized N × C_head. The final output is a product of these interactive vectors and the context vector from an alternate modality, constituting the cross-attention process.

$\begin{array}{cc}\hfill G_{\mathit{vis}}& ={\widehat{K}}_{\mathit{vis}}^T{\widehat{V}}_{\mathit{vis}}\hfill \\ \hfill G_{\mathit{inf}}& ={\widehat{K}}_{\mathit{inf}}^T{\widehat{V}}_{\mathit{inf}}\hfill \end{array}(10)$

$\begin{array}{cc}\hfill U_{\mathit{vis}}& =X_{\mathit{vis}}^{\text{inter}}\mathrm{S}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(G_{\mathit{inf}}\right)\hfill \\ \hfill U_{\mathit{inf}}& =X_{\mathit{inf}}^{\text{inter}}\mathrm{S}\mathrm{o}\mathrm{f}\mathrm{t}\mathrm{m}\mathrm{a}\mathrm{x}\left(G_{\mathit{vis}}\right)\hfill \end{array}(11)$

Note that G denotes the global context vector, while U indicates the attended result vector. To realize attention across different representational subspaces, we maintain the multi-head mechanism, where the number of heads corresponds to the number of elements in the transformer backbone. Subsequently, the attended result vector U and the residual vector are concatenated. Finally, we apply a second linear embedding and resize the feature back to R^H×W×C.

Global Feature Fusion Module. In the fusion component of the Feature Fusion Module (FFM), channel-wise integration is performed using 1 × 1 convolution for combining features from dual pathways. Considering the necessity of spatial context for Vis-Inf pedestrain detection, we adopt a strategy influenced by Mix-FFN [71] and ConvMLP [72], incorporating a depth-wise 3 × 3 convolution (DW Conv) to form a skip connection architecture. This approach facilitates the consolidation of the concatenated feature dimensions R^H×W×2C into the decoder output dimension R^H×W×C.

4 Experiments

In this section, we first introduce two multispectral datasets, KAIST [73] and LLVIP [22]. The KAIST dataset compiles data from day and night autonomous driving scenarios, while the LLVIP dataset is composed of night-time surveillance scenarios. Given our focus on nighttime pedestrian detection, we exclusively selected the nighttime subset of the KAIST dataset. Subsequently, we delve into some specifics of the model training phase. The evaluation metrics for pedestrian detection diverge slightly from those of traditional object detection, hence we will clarify the evaluation metrics utilized in this study. We benchmark our results against state-of-the-art methods and conduct ablation studies to assess the effectiveness of our proposed module. Lastly, the visualization of our proposals is provided to facilitate an intuitive understanding of their impact. At last, we provide a visualization of the predicted results as shown in Figure 2.

Figure 2

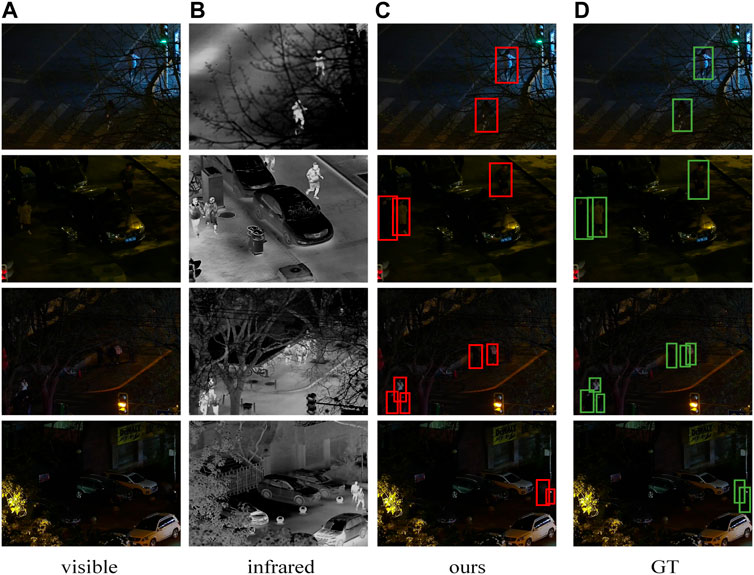

Figure 2. The visualization of the detection results, subfigure (A) shows the input visible lr images, subfigure(B) is the corresponding infrared images, subfigure (C) is the prediction result of our model, and subfigure (D) is the ground truth. These images are selected from the dataset listed at https://soonminhwang.github.io/rgbt-ped-detection/

4.1 Dataset

KAIST. The KAIST dataset [73], introduced at CVPR2015, consists of 95k aligned pairs of visible and infrared images and has been extensively utilized. All annotations are manually labeled, including 1,182 pedestrian instances. Due to biased annotations in the original training set, this study employs the sanitized version [23]. The sanitized KAIST provides 7,601 training images with at least one valid pedestrian instance, filtered and sampled from the original training videos. There are 2,846 pairs for night training and 4,755 pairs for day training. The test set comprises 2,252 image pairs, with 797 for night and 1,455 for day. Test annotations from the improved version [31], which corrects the initial annotations, are used. The resolution of training and test images is 640 × 512.

LLVIP. LLVIP [22] is a nighttime pedestrian dataset for surveillance scenarios, presented at ICCV2021. It includes 15,488 strictly aligned visible-infrared image pairs, featuring numerous pedestrians and cyclists from diverse street locations between 6 and 10 p.m. [22]. The original resolution of the images is 1280 × 1024, but to reduce computational demands, we scale down the images by half to 640 × 512 in this paper.

4.2 Evaluation

Evaluation metrics. The first assessment metric is the Log-Average Miss Rate (LAMR), which is a specialized metric for evaluating the performance of pedestrian detection systems. The relationship between the Miss Rate (MR) and the False Positives Per Image (FPPI) is plotted on a log-log scale, and nine FPPI reference points are selected within the range [10^–2, 10⁰], evenly spaced in the logarithmic space. LAMR is defined as shown in Eq 14.

$MR=\frac{FN}{TP+FN}(12)$

$FPPI=\frac{FP}{imgs\text{\hspace{0.17em}num\hspace{0.17em}}}(13)$

$LAMR=\exp \left(\frac{1}{9}{\displaystyle \sum _f}\log \left(MR\underset{FPPI\le f}{\mathrm{a}\mathrm{r}\mathrm{g}\mathrm{m}\mathrm{a}\mathrm{x}}FPPI\right)\right)(14)$

where f is within the set {10^–2, 10^–1.75, … , 10⁰}, TP represents the number of True Positives, FP is the number of False Positives, and FN denotes the number of False Negatives. Additionally, we utilize AP50 as our second metric, complementing LAMR. In the evaluation process, all detected bounding boxes are matched to ground truth annotations for each image via a greedy algorithm. If the Intersection over Union (IoU) between the detection box and the ground truth exceeds a specified threshold, the detection is considered a True Positive (TP), indicating a successful prediction. Due to the highly non-rigid nature of pedestrians, we adopt the common IoU threshold of 0.5. Thus, AP50 denotes the Average Precision when the IoU threshold is 0.5.

4.3 Comparison of results on KAIST night dataset

We compared our model with the results of state-of-the-art models on the KAIST Night test set, as presented in Table 1. Our model builds upon a two-stream architecture extended from yolov5; hence, we assessed the single-modality detection capabilities of yolov5 with only visible and only infrared images on the same dataset. The task of night-time pedestrian detection using solely visible light images poses a substantial challenge, reflected in a high LAMR of 63.65%. Through the development of effective cross-modality fusion algorithms, such as MSDS-RCNN [23] and CFT [66], the LAMR for night-time pedestrian detection can be significantly decreased, improving detector performance. Furthermore, our proposed method records a LAMR of 10.79% and an AP50 of 82.48%, evidencing the effectiveness and competitive edge of our approach.

Table 1

Table 1. Results on KAIST night dataset and the results in bold indicate the optimal.

4.4 Ablation study

From the previous sections, we have familiarized ourselves with the architecture and proposed modules such as CMFRM, as well as the enhancements in our method. However, the exact quantitative improvements contributed by these modules remain uncertain. Therefore, in this section, we present a succinct and insightful ablation study to address the aforementioned inquiries. Table 2 illustrates that CMFRM has led to a decrease of 1.14% in LAMR and an enhancement of 1.47% in AP50 on the KAIST Night dataset, and a reduction of 0.63% in LAMR on the LLVIP dataset. FFM contributes to a decrease of 0.57% in LAMR and an improvement of 1.18% in AP50 on the KAIST Night dataset, and a reduction of 0.80% in LAMR on the LLVIP dataset. Finally, when compared to the baseline model CFT [66], our comprehensive model CMTF decreases LAMR by 1.38% and enhances AP50 by 3.2% on the KAIST Night dataset, and lowers LAMR by 1.62% on the LLVIP dataset.

Table 2

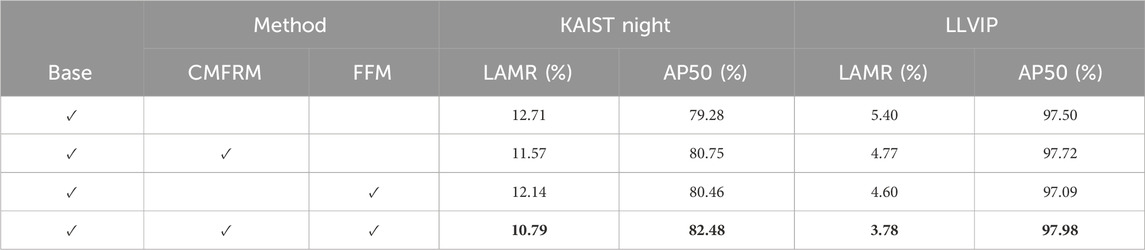

Table 2. Results of ablation study and the results in bold indicate the optimal.

4.5 Conclusion

In this paper, we introduce an interactive cross-modal fusion framework based on YOLOv5, designed to improve the performance of nighttime pedestrian detection algorithms through efficient information fusion. Our framework utilizes a dual-stream architecture to separately handle visible and infrared images, effectively addressing the challenges posed by low-light conditions. Our proposed FRFPD significantly enhance model performance by fine-tuning features across modalities, reducing uncertainty and noise, and focusing on complementary information. These modules also facilitate multi-dimensional feature interaction and rectification, including cross-attention mechanisms at the sequence processing level, which are crucial for the effective generalization of cross-modal feature combinations. Overall, our research not only boosts the performance of nighttime pedestrian detection but also offers new technical solutions and perspectives for visual information processing under low-light conditions.
