The effects of plasma density structure on the propagation of magnetosonic waves: 1-D particle-in-cell simulations

Tong Shao,,Tong Shao1,2,3Xinliang Gao,,
Xinliang Gao1,2,3*Yangguang Ke,,
Yangguang Ke1,2,3*Quanming Lu,,Quanming Lu1,2,3Xueyi WangXueyi Wang4
  • 1Deep Space Exploration Laboratory, School of Earth and Space Sciences, University of Science and Technology of China, Hefei, China
  • 2CAS Center for Excellence in Comparative Planetology, Hefei, China
  • 3Collaborative Innovation Center of Astronautical Science and Technology, Harbin, China
  • 4Physics Department, Auburn University, Auburn, AL, United States

Magnetosonic (MS) waves, i.e., ion Bernstein mode waves, are one of the common plasma waves in the Earth’s magnetosphere, which are important for regulating charged particle dynamics. How MS waves propagate in the magnetosphere is critical to understanding the global distribution of the waves, but it remains unclear. Although previous studies present that MS waves can be reflected by fine-scale density structures, the dissipation of waves by background plasma has long been neglected. In this study, we perform one-dimensional (1-D) particle-in-cell (PIC) simulations to study the propagation of MS waves through density structures, where both absorption and reflection have been included. We find that absorption is as important as reflection when considering the propagation of MS waves through density structures, and both of them are strongly dependent on the shape of density structures. Specifically, the reflectivity of MS waves is positively and negatively correlated with the height and width of density structures, respectively, while the absorptivity of MS waves has a positive correlation with both the height and width of density structures. Our study demonstrates the significance of absorption during the propagation of MS waves, which may help better understand the distribution of MS waves in the Earth’s magnetosphere.

1 Introduction

Magnetosonic (MS) waves, also known as ion Bernstein mode waves, are one of the intense electromagnetic emissions observed in the Earth’s inner magnetosphere [1]. These waves were first detected by the OGO 3 satellite and named “equatorial noise” due to their occurrence within about ±2° of the magnetic equator [24]. Recent observations made by Cluster and THEMIS satellites [5,6] have shown that MS waves can occur both inside and outside the plasmasphere near the magnetic equator. The waves are excited at harmonics of the proton gyrofrequency [7] and at large (∼90°) wave normal angles [8,9] by ring velocity distributions of ring current protons [10,11]. MS waves play a significant role in regulating the dynamics of charged particles in the Earth’s magnetosphere [1218]. They have been proposed as a candidate for accelerating ∼100 keV electrons up to relativistic energies in the outer radiation belt [14]. Additionally, scattering by MS waves may explain the formation of butterfly distributions of radiation belt electrons [19,18,2123]. Furthermore, MS waves can effectively energize the background cold protons and electrons [24,25].

Understanding the propagation of MS waves in the Earth’s magnetosphere is crucial in comprehending the global distributions of these waves and their impact on energy transfer among different particle populations. Satellite observations indicate that the occurrence rate of MS waves strongly depends on the magnetic local time (MLT) outside the plasmapause, but remains nearly uniform inside the plasmapause [26]. This coincides with the scenario that MS waves are initially generated outside the plasmasphere in the noon and dusk sectors and then propagate both outward and inward, crossing the plasmapause and migrating globally over MLT [27,28]. Moreover, the occurrence rate and intensity of MS waves outside the plasmapause are higher than inside it [26] and the majority of MS waves inside the plasmapause have lower frequencies than the local proton cyclotron frequency [7,22], making radial propagation the most plausible explanation [5,6,29].

The propagation of MS waves is strongly influenced by the inhomogeneous background plasma density. By performing one-dimensional (1-D) full wave simulations with the finite difference time domain (FDTD) method, Liu et al. [30] have found that MS waves can propagate deep into the plasmasphere with only a small fraction of the MS wave power being reflected by the plasmapause. Instead, the fine-scale density structures near the outer edge of the plasmapause can effectively reflect MS waves. Such fine-scale density structures have been widely observed in the Earth’s magnetosphere [29,3031]. However, previous simulations have also revealed that MS waves can be significantly damped by the background cold plasma [17,24,34], which was neglected in the study of Liu et al. [30] due to the limitation of their model. Therefore, we utilize the 1-D PIC model to simulate the propagation of MS waves through the fine-scale density structures, where both absorption and reflection have been considered. We have also quantified the reflectivity and absorptivity of MS waves passing through the density structure and investigated their dependences on the shape of the density structure.

2 Simulation model and method

In this study, we employ a 1-D PIC simulation model to investigate the effects of density structures on the propagation of MS waves. The background magnetic field B0 is directed along the z-axis, and the wave vector of MS waves is lying in the x-z plane. Here, the simulation box is along the wave vector (or the propagating direction), which is defined as the r direction. This model includes full three-dimensional electromagnetic fields and velocities but only allows spatial variations in the r direction. The periodic boundary conditions are adopted. The units of time and space are the inverse of the proton gyrofrequency Ωcp1, and the proton inertial length λp, respectively. The plasma system only consists of background protons and electrons which are denoted by subscripts “p” and “e” hereafter. Both protons and electrons satisfy a Maxwellian velocity distribution and have the same temperature Tp=Te=1eV. To reduce computational costs, the mass ratio of proton to electron mp/me is set to 1600, and the ratio of light speed to the Alfven speed c/VA is set to 20. The simulation domain with a length of 41.89λp is divided equally into 30000 grids. The average number of superparticles in each grid is approximately 100 for each species, and the time step is set to t=3.125×105Ωcp1.

The angle between the wave vector and the background magnetic field is defined as θ, i.e., the wave normal angle. Here we will consider two categories of MS waves: perpendicular (θ=90°) and quasi-perpendicular waves (θ=85°). For each run, we initially pump the monochromatic MS wave from the left boundary to r=10λw (λw is the wavelength) by assigning fluctuating wave fields on each grid and fluctuating bulk velocity to each particle in the form of Aieikr (Ai is the related parameter and k is the wave number, respectively) along the r direction. Based on the dispersion relation of MS waves in a cold plasma, we can obtain the wave fields by the following relations:

Bwx=1tanθBwz(1)
Bwy=in2SPDtanθPn2sin2θBwz(2)
Ewy=ωksinθBwz(3)
Ewx=n2SiDEwy(4)
Ewz=n2sin2θPn2sinθcosθEwx(5)
n=ckω=RLS(6)

where P, D, R, L, and S are the Stix parameters [35,36] and n is the refraction index in Eqs 16. Besides, the corresponding bulk velocities of protons and electrons are given by Eqs 79:

vxjr,t=iqjmjω1Ωcj/ω21Ewx+iΩcj/ωΩcj/ω21Ewy(7)
vyjr,t=ReiqjmjωiΩcj/ωΩcj/ω21Ewx+1Ωcj/ω21Ewy(8)
vzjr,t=ReiqjmjωEwz(9)

where qj, mj, and Ωcj denote the charge, mass, and cyclotron frequency of the j-component of plasma (j indicates p or e), respectively. In each run, the Bwz is set to 0.02B0, and other parameters can be calculated according to the above relations.

For convenience, the density structure is assumed as the sinusoidal variation of density, so the plasma density as a function of r is given by Eq. 10:

np=n01+H1sinrr0+L2Lπ,r0L2rr0+L2n0,otherwise(10)

where n0 is the ambient number density (outside the density structure), and H is the height of the density structure which is the ratio of the peak density to the ambient density n0. r0 and ΔL denote the location and width of the density structure, respectively. The location of the density structure is fixed at r0=20.95λp in each run.

In the following section, we will present the simulation results of three runs in detail: Run 1 with θ=90°, H=5, and ΔL=1λw, Run 2 with θ=90° and no structure, and Run 3 with θ=85°, H=5, and ΔL=1λw. To show how we initialize the simulation model, we present the spatial profiles of (a) plasma density, (b) wave fields, bulk velocities of (c) electrons, and (d) protons at t=0 for Run 1 in Figure 1. There is a density structure located at r0=20.95λp with the width ΔL=1.2λp=1λw and the height H=5 (Figure 1A). The MS waves are launched within the region of 0r12λp (i.e., 10λw). For the perpendicular MS wave, there are only one component of fluctuating magnetic fields (δBz) and two components of fluctuating electric fields (δEx and δEy) (Figure 1B). The bulk velocities of protons and electrons are shown in Figures 1C, D, respectively. Although the corresponding fluctuating density is not initialized, the density fluctuation will be self-consistently coupled to the MS wave very quickly in the PIC model

Figure 1
www.frontiersin.org

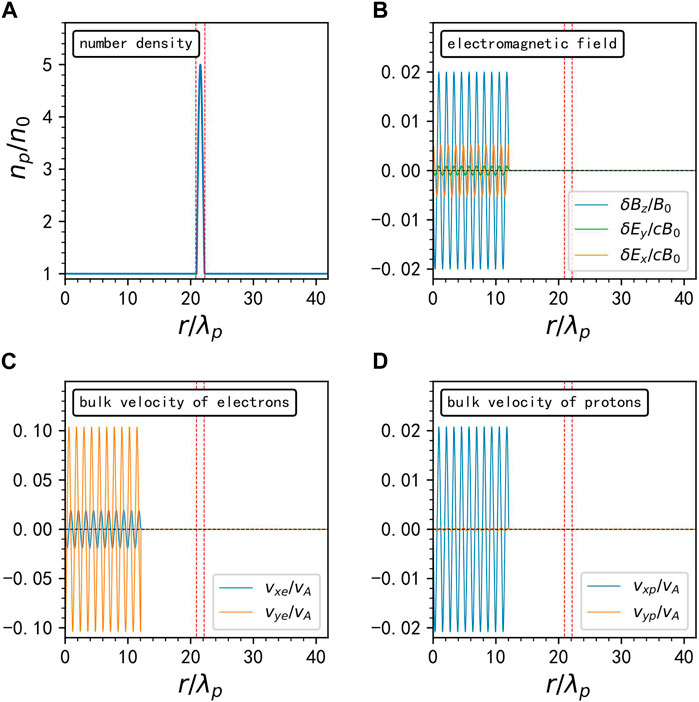

Figure 1. The initialization of the spatial distribution of (A) plasma number density, (B) wave fields δBz (blue line), δEx (orange line), δEy (green line) (C) bulk velocities of electrons vxe (blue line), vye (orange line) and (D) bulk velocities of protons vxp (blue line), vyp (orange line) at tΩcp=0 in Run 1. The central vertical red dashed lines denote the position of the density structure.

3 Simulation results

3.1 Perpendicular waves: θ=90°

Figure 2 displays the propagation of the MS waves in Run 1 with a density structure and in Run 2 without it. Without the density structure, the MS waves propagate along the r direction (x-axis) with a constant speed of 0.96VA, which is consistent with the linear dispersion relation (Figures 2C, D). As expected, we can find that the wave amplitude is gradually decreasing during the propagation due to the dissipation caused by background plasma. In Run 1, the MS wave encounters the density structure at about 9Ωcp1, and then there appears the weak backward propagating MS wave emitting from the left boundary of the density structure. Such a wave is just reflected by the density structure. Besides, the phase velocity inside the density structure becomes smaller than that outside the structure due to the enhanced plasma density (Figure 2A). Meanwhile, the wave fields δBz and δEx become larger and smaller inside the density structure (Figures 2A, B), respectively, consistent with the results of Liu et al. [30].

Figure 2
www.frontiersin.org

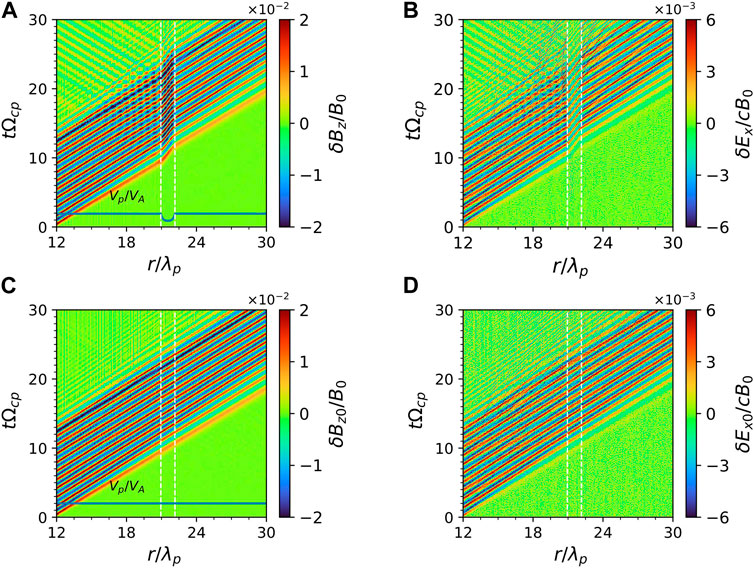

Figure 2. The temporal evolution of wave (A) magnetic field and (B) electric field in Run 1, and wave (C) magnetic field and (D) electric field in Run 2.The blue curves in (A, C) denote the variation of phase velocity along the simulation direction.

Figure 3A shows the time evolution of the energy of MS wave fields (orange line), the kinetic energy of charged particles (green line), and their sum (blue line) for Run 1. First of all, the total energy in our model is well conserved within a 0.06% margin of error. Secondly, it is clearly shown that the wave energy decreases as the particle kinetic energy increases with time, suggesting the wave dissipation takes effect during the propagation. We further display the time evolution of kinetic energies of protons and electrons inside the density structure in Figures 3B, C, respectively, where the vertical dashed lines mark the tie when the wave enters and leaves this structure. For both protons and electrons, their parallel kinetic energy remains nearly unchanged, since the perpendicular MS wave does not have the parallel electric field and cannot energize particles in the parallel direction. The perpendicular kinetic energy of protons Ep rapidly increases as the wave enters the density structure mainly due to the pick-up process. After the wave leaves the density structure, the Ep rapidly drops, but there is still the obvious net increase of kinetic energy (Figure 3B), which is caused by the perpendicular heating by the MS wave (also see Supplementary Material). However, the net increase of kinetic energy for electrons is not significant (Figure 3C).

Figure 3
www.frontiersin.org

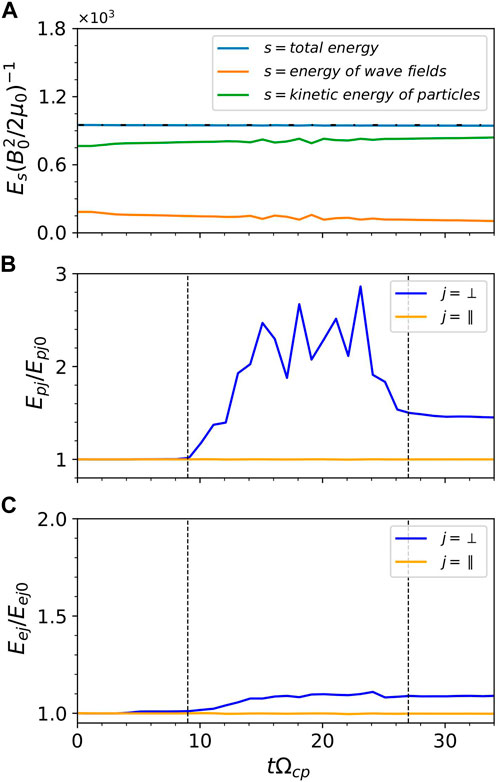

Figure 3. (A) The time evolution of the energy of the electromagnetic fields (green line), the kinetic energy of the particles (orange line), and their sum (blue line), respectively. The horizontal black dash-dotted line denotes the initial value of the total energy. The time evolution of kinetic energy of (B) protons and (C) electrons. Blue lines and orange lines denote the perpendicular direction and parallel direction, respectively. Epj0 denotes the kinetic energy of species j at tΩcp=0. The black dashed lines in (B, C) denote the time of wave arrival and departure of the density structure.

To quantify the effects of the density structure on the propagation of MS waves, we need to calculate the reflectivity RM, absorptivity AM, and transmissivity TM of MS waves. Here, the RM, TM, AM are estimated based on the following formulas:

RM=PrPi=B¯wzrB¯wzi2(11)
TM=PtPi=B¯wztB¯wzi2(12)
AM=1RMTM(13)

where Pi, Pr, and Pt are the Poynting flux of the incident, reflected, and transmitted waves, respectively, and the corresponding amplitudes are B¯wzi, B¯wzr, and B¯wzt. The waveform of transmitted waves is shown in Figure 4C, which is directly obtained by recording the time series of δBz at the right boundary of the density structure. The eight clearest wavelengths are selected by marking the peaks and troughs with red dots, and then the amplitude of transmitted wave B¯wzt is given by their average. However, the reflected and incident MS waves cannot be directly obtained, since the incident and reflected waves are mixed at the left boundary in Run 1. Instead, we use the recorded waveform at the left boundary of the density structure in Run 2 to represent the incident wave (Figure 4A), and the amplitude B¯wzi is the average of those marked points. Then, the waveform of reflected waves is obtained by subtracting the reflected waveform shown in Figure 4A from the mixed waveform recorded at the left boundary in Run 1, and the amplitude B¯wzr is calculated as above. For Run 1, the B¯wzi, B¯wzr, and B¯wzt are estimated as 0.01783, 0.00392, and 0.01683, so the RM, AM, and TM are 4.83%, 6.07%, and 89.1% according to Eqs 1113. It is clearly found that the absorption of MS wave by the density structure is even more significant than the reflection in this case.

Figure 4
www.frontiersin.org

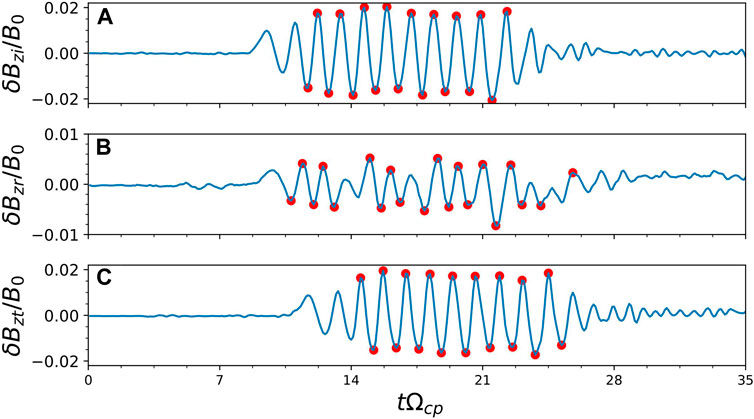

Figure 4. The time evolution of the fluctuating magnetic field of (A) the incident MS wave (δBzi) and (B) reflected MS wave (δBzr) at the left boundary (x1 = 20.94λp) of the density structure, and of (C) the transmitted MS wave (δBzt) at the right boundary (x2 = 22.15λp) of the density structure for the Run 1. Red circles denote the wave peaks used to calculate the wave magnetic amplitude.

Furthermore, we have also studied the effects of the shape of density structure on the reflection and absorption of MS wave by considering the various widths ΔL and heights H. Figure 5 summarizes the simulation results (32 additional runs). First of all, there is a clear trend that both the RM and AM are positively correlated with the height of density structure H (Figures 5A, B). Just as expected, the corresponding transmissivity TM must be decreasing with the height H (Figure 5C). However, with the increasing ΔL, the RM decreases while the AM increases (Figures 5D, E). Their opposite correlation with the width of density structure ΔL results in the particular dependence of TM on the ΔL. With the increasing ΔL, the TM first increases and then decreases, leading to a maximum on a certain value of ΔL (Figure 5F). Moreover, comparing the AM with TM, we can find that the absorptivity AM is comparable to or even larger than the reflectivity RM in most cases, suggesting the absorption of waves should not be neglected when modeling the propagation of MS wave through the density structure.

Figure 5
www.frontiersin.org

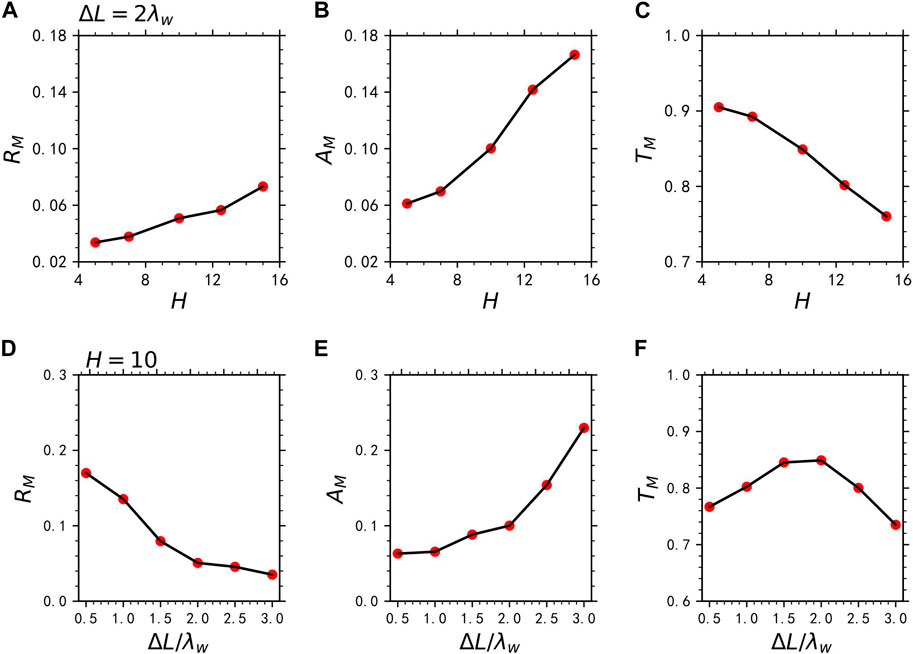

Figure 5. The (A) reflectivity RM, (B) absorptivity AM and (C) transmissivity TM as a function of various heights with a constant width ΔL=2λw, and the (D) reflectivity RM, (E) absorptivity AM, and (F) transmissivity TM as a function of various widths with a constant height H=10. Red dots are the simulation runs with different parameters when the pump wave propagates exactly perpendicularly.

3.2 Quasi-perpendicular waves: θ=85°

Besides the strictly perpendicular waves, we have also studied the propagation of MS waves with θ=85° through the density structure due to the different interactions with charged particles [24]. Figure 6 shows the spatial-temporal evolution of wave fields for Run 3. Similar to Run1, the reflected wave immediately shows up when the MS wave encounters the left boundary of the density structure at t7Ωcp1, and the transmitted waves become weaker after the MS wave leaves the density structure.

Figure 6
www.frontiersin.org

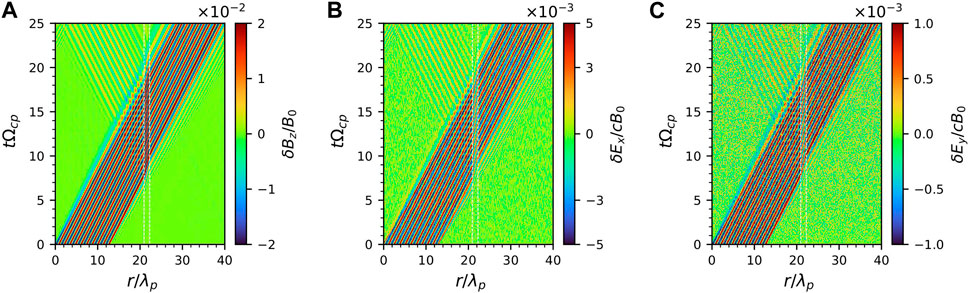

Figure 6. Temporal evolution of wave magnetic field (A) δBz, electric field (B) δEx, (C) δEy in Run 3.

Figure 7A displays the time history of the wave energy and particle kinetic energy for Run 3. The total energy (blue line) is well conserved in this simulation model, and the energy exchange between MS wave and plasma can be easily found. Figures 7B, C present the time evolution of the kinetic energies of protons and electrons inside the density structure, respectively. The perpendicular kinetic energy of protons and electrons inside the structure first increases as the wave enters the density structure and then decreases after the wave leaves, with a weak net increase. However, the parallel kinetic energy of electrons gradually increases when the wave passes through the structure and then remains nearly constant after the wave leaves. This is due to the efficient parallel heating of electrons by quasi-parallel MS waves (Supplementary Figure S2).

Figure 7
www.frontiersin.org

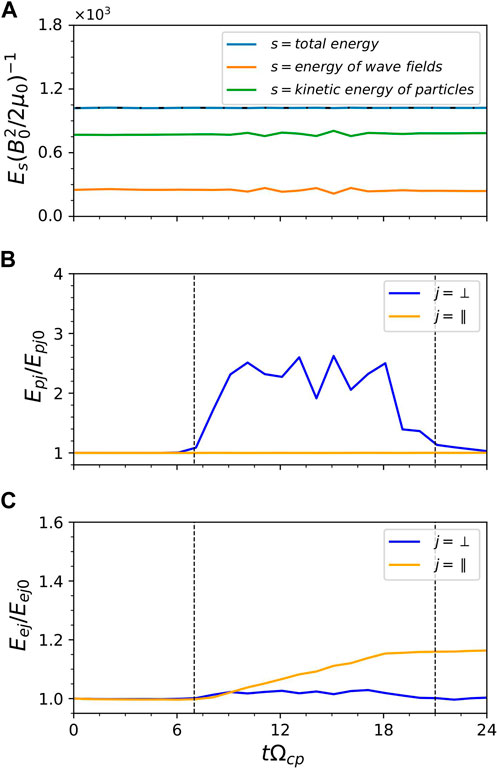

Figure 7. (A) The time evolution of the energy of the electromagnetic fields (green line), the kinetic energy of the particles (orange line), and their sum (blue line), respectively. The horizontal black dash-dotted line denotes the initial value of the total energy. The time evolution of kinetic energy of (B) protons and (C) electrons. Blue lines and orange lines denote the perpendicular direction and parallel direction, respectively. Epj0 denotes the kinetic energy of species j at tΩcp=0. The black dashed lines in (B, C) denote the time of wave arrival and departure of the density structure.

We further investigate the effects of the shape of density structure on the reflection and absorption of the MS wave with θ=85°. The calculation method of RM, AM, and TM is the same as above. The simulation results marked by red dots and solid lines are summarized in Figure 8. Similar to the perpendicular MS wave, the RM and AM increase with the increasing H, resulting in the decreasing TM. Then, the AM and the RM have a positive correlation and an anti-correlation with the ΔL, respectively, leading to a maximum of TM at a certain ΔL. Although the trends of AM, RM, and TM with the H and ΔL are very similar to the perpendicular cases, the reflectivity RM and the absorptivity AM of the quasi-perpendicular MS waves are smaller than those of the MS waves with θ=90°, which may imply that the quasi-perpendicular MS waves can propagate further than those perpendicular waves in the magnetosphere.

Figure 8
www.frontiersin.org

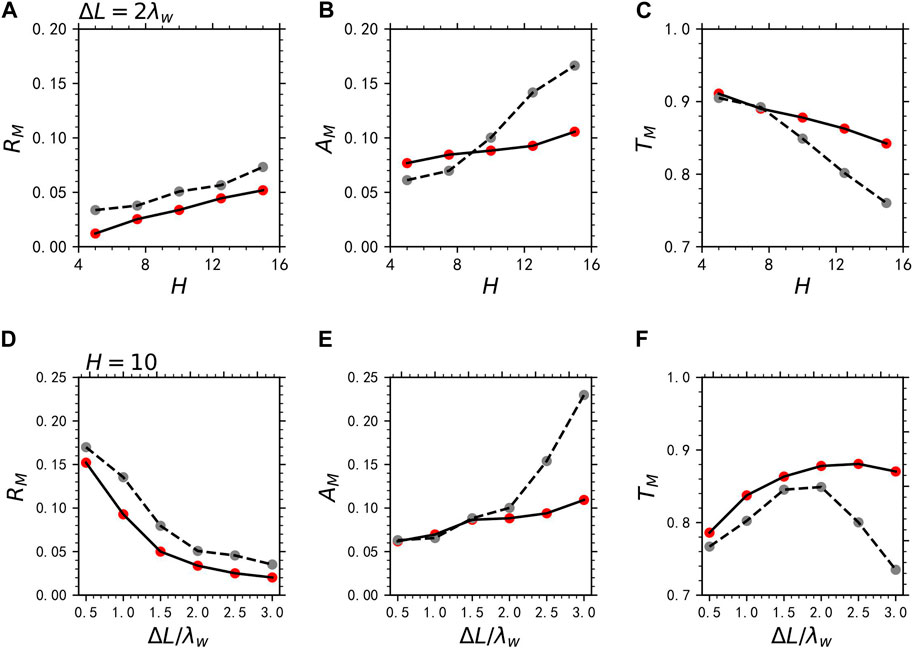

Figure 8. The (A) reflectivity RM, (B) absorptivity AM, and (C) transmissivity TM as a function of various heights with a constant width ΔL=2λw, and (D) the reflectivity RM, (E) absorptivity AM, and (F) transmissivity TM as a function of various widths with a constant height H=10. Red dots are the simulation runs with different parameters when the pump wave propagates quasi-perpendicularly. The gray dots and black dashed lines denote the result of Figure 5.

4 Conclusion and discussion

The effects of density structures on MS waves are important to understand the distribution and propagation of MS waves in the Earth’s magnetosphere, which are attracting more and more attention. However, previous simulations and theoretical models [30,36] only include the reflection of MS waves caused by the density structure. To include both the absorption and reflection of waves, we utilize a self-consistent model, i.e., PIC model, to study the propagation of MS waves across density structures. We find that both perpendicular and quasi-perpendicular propagating MS waves can be effectively reflected and absorbed by the fine-scale density structure. Generally, the absorption of MS waves is as important as the reflection when MS waves propagate through the density structure, and they are strongly dependent on the shape of the density structure. The reflection of MS waves is positively correlated with the height but is inversely related to the width of a density structure. While the absorption of MS waves is positively correlated with the height and width of a density structure. Our simulation results reveal that the absorption also plays an important role in the propagation of MS waves in the Earth’s magnetosphere, which can help better understand the properties and distribution of MS waves.

To obtain the reliable reflectivity, absorptivity, and transmissivity of the MS waves, we must ensure that the total energy of this system is conserved. As shown in Figures 3A, 7A, it is clear shown that the total energy is well conserved within a margin of error below 0.1%, which is much lower than the energy change (>5%) of charged particles or wave fields. This is true for all simulation runs in this study. Thus, the dependences of reflectivity and absorptivity of MS waves on the shape of density structure as shown in Figures 5, 8 are quite reliable. Since the reflectivity of MS wave is strongly dependent on the density gradient, so the RM will increase with the increase of the height or the decrease of width, i.e., steep density structure. While, the absorptivity should be positively correlated with the number of particles inside the density structure, so the AM increases with the increase of the height or width, i.e., large density structure. However, because the corresponding transmissivity TM relies on the sum of RM and AM, the dependence of TM on the shape of density structure is somehow unpredictable.
