ORIGINAL RESEARCH article

Front. Phys., 20 December 2023
Sec. Space Physics

Rankine-Hugoniot relations in turbulent shocks

  • Department of Physics, Ben Gurion University of the Negev, Be’er Sheva, Israel

A collisionless shock is often regarded as a discontinuity with a plasma flow across it. Plasma parameters before the shock (upstream) and behind the shock (downstream) are related by the Rankine-Hugoniot relations (RH) which essentially are the mass, momentum, and energy conservation laws. Standard RH assume the upstream and downstream regions are uniform, that is, the fluctuations of the plasma parameters and magnetic field are negligible. Observations show that there exist shocks in which these fluctuations remain large well behind the shock. The pressure and energy of these fluctuations have to be included in the total pressure and energy. Here we lay down a basis of theory taking into account persisting non-negligible turbulence. The theory is applied to the case where only downstream magnetic turbulence is substantial. It is shown that the density and magnetic field compression ratios may significantly deviate from those predicted by the standard RH. Thus, turbulent effects should be taken into account in observational data analyses.

1 Introduction

Collisionless shocks are one of the most ubiquitous phenomena in the plasma universe. In fast collisionless shocks the upstream flow is decelerated and the downstream magnetic field, density, and temperature increase. The relations between the upstream and downstream plasma parameters and the magnetic fields are represented using Rankine-Hugoniot relations (RH) [1, 2]. These relations assume that the upstream and downstream states, both sufficiently far from the shock transition layer, are uniform, that is, all relevant variables converge to their constant values. In most cases the ion and electron pressure are assumed isotropic with the polytropic equation of state in both asymptotic regions [2]. These assumptions are especially typical for astrophysical shocks [3]. In a number of studies the assumption of isotropy was relaxed [410] but fluctuations are still assumed to disappear. It has been shown that pre-existing turbulence may affect the plasma parameters [1118].

In the solar wind turbulence at the scales of interest is typically modest [19, 20], while behind the shock transition, in the downstream region, the level of the turbulence is typically by an order of magnitude higher [2123]. Very long waves with the period of tens of seconds pass from the foreshock of the Earth bow shock and propagate in the magnetosheath toward the magnetopause [24]. Recent simulations show enhancement of turbulence on transmission through the shock [2527] and modifications of the shock front itself. In these simulations a pre-existing turbulence was included with amplitudes higher than those observed and wavelengths much smaller than those observed, because of the simulation limitations. The box was not large enough to catch the far downstream state of the plasma and magnetic field. Theoretical studies [22, 28] treated transmission of the turbulence which was decoupled from the mean fields. A step toward theoretical incorporation of turbulence in the shock conditions was done within the Burgers equation for an incompressible fluid without magnetic field [11]. It was shown that the magnetic field in shocks may be amplified due to the large scale (wavelength of 101–102 shock widths) upstream density fluctuations [29]. RH with turbulence included were introduced ad hoc by [13], without addressing the magnetic field. Observations at the Earth bow shock reveal presence of substantial downstream magnetic fluctuations well behind the shock transition layer in most shocks. Figure 1 shows the magnetic field magnitude measured by the Magnetospheric Multiscale mission (MMS) [30], probe 1, around the shock crossing on 2015-10-21 at 07:05:05 UTC. MMS1 shock crossings are documented on the SHARP webpage https://sharp.fmi.fi/shock-database/ (see also [31]). According to the SHARP list, the angle between the model shock normal [32] and the upstream magnetic field is θu = 30° and the Alfvénic Mach number (see definition in Section 4) is M = 9.4. The shown downstream region, t < 0, lasts for 20 min behind the transition at t = 0, while the magnetic field does not converge to a uniform value. These fluctuations have to be taken into account when deriving Rankine-Hugoniot relations. Recently, observed fluctuations of electric and magnetic fields were included in the Poynting flux [33]. In this paper we systematically study Rankine-Hugoniot relations in the presence of a substantial turbulence.

FIGURE 1
www.frontiersin.org

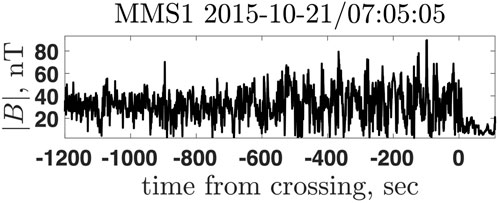

FIGURE 1. The magnetic field magnitude measured by the Magnetospheric Multiscale mission (MMS), probe 1. Large amplitude magnetic fluctuations in the downstream region, t < 0, are clearly seen.

2 General Rankine-Hugoniot relations

We treat the plasma within the magnetohydrodynamic (MHD) approach. The plasma is described by the mass density ρ(x, y, z, t), hydrodynamic velocity V(x, y, z, t), and kinetic pressure P(x, y, z, t). Here we restrict ourselves with the isotropic pressure only. This should be completed with the magnetic field B(x, y, z, t) and electric field E(x, y, z, t). The latter obeys the Ohm’s law E + V ×B/c = 0 in the ideal MHD. The MHD equations for the plasma can be written in the form of conservation laws:

tρ+xiJi=0(1)
tρVi+xjTij=0(2)
t12ρV2+ϵ+xiQi=0(3)

where i = x, y, z, ϵ is the internal energy density, and the mass, momentum, and energy fluxes are

Ji=ρVi(4)
Tij=ρViVj+pδij+B28πδijBiBj4π(5)
Qi=12ρV2+ϵ+PVi+B2Vi4πBiBjVj4π(6)

These equations are completed with the Maxwell equation

tBi=xjViBjVjBi(7)

Let the shock normal be in the x-direction. This means that after averaging over physically meaningful time and space the x-component of the fluxes are constant

ρVx=Jx=const(8)
ρViVx+Pδix+B28πδixBiBx4π=Tix=const(9)
12ρV2Vx+ϵVx+PVx+B2Vx4πBxBjVj4π=Qx=const(10)

and

VxBiViBx=0(11)

We split all variables into a mean part and a fluctuating part using the notation

ρρ+r,r=0(12)
PP+p,p=0(13)
ϵϵ+e,e=0(14)
VV+v,v=0(15)
BB+b,b=0(16)

Substituting into the fluxes we have

ρVx+rvx=const(17)
ρViVx+Pδix+B28πδixBiBx4π+ρvivx+rviVx+rvxVi+b28πδixbibx4π=const(18)
12ρV2Vx+ϵVx+PVx+B2Vx4πBxBjVj4π+rvjVjVx+12rvxV2+ρVxv2+evx(19)
+pvx+Bj2πbjvx+Vx4πb2Bx4πbjvjBj4πbxvjVj4πbxbj=constVxBiViBx+vxbivibx=0(20)
Bx=const(21)

In general, triple correlations should be retained and analyzed. For simplicity and brevity in the above expressions only pairwise averages are included. The last equation follows from B = 0. A simpler set of equations was proposed by [13] without derivation. The introduced averaging should be an ensemble averaging which is replaced by appropriate time and space averaging (as is done below) for the purposes of the observational data analysis.

3 The case of the shock crossing 2015-10-21/07:05:05

Figure 2 shows three components of the magnetic field in the GSE coordinate system for the MMS1 shock 2015-10-21/07:05:05 mentioned above. In the region −600 < t < − 200 the magnetic field variance exceeds the mean magnetic field squared, ⟨(B −⟨B⟩)2⟩/⟨B2 = 2.5. In the region −1200 < t < − 600 the magnetic field variance is smaller but still very significant, ⟨(B −⟨B⟩)2⟩/⟨B2 = 0.68. For comparison, Figure 3 shows the ion density, temperature, and speed, calculated onboard by the Fast Plasma Investigation instrument of MMS [34] and Figure 4 shows the electron density, temperature, and speed. The relative fluctuations of these parameters are much smaller, e.g., (nini)2/(ni)20.01 and (vivi)2/(vi)20.1.

FIGURE 2
www.frontiersin.org

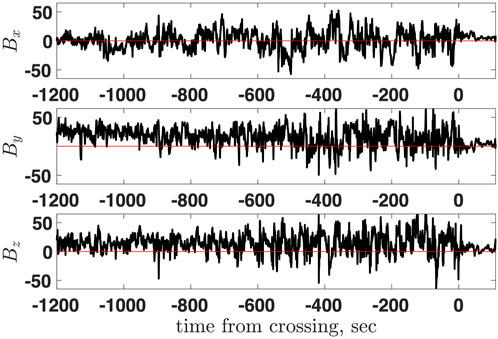

FIGURE 2. The GSE magnetic field components measured by the Magnetospheric Multiscale mission (MMS), probe 1.

FIGURE 3
www.frontiersin.org

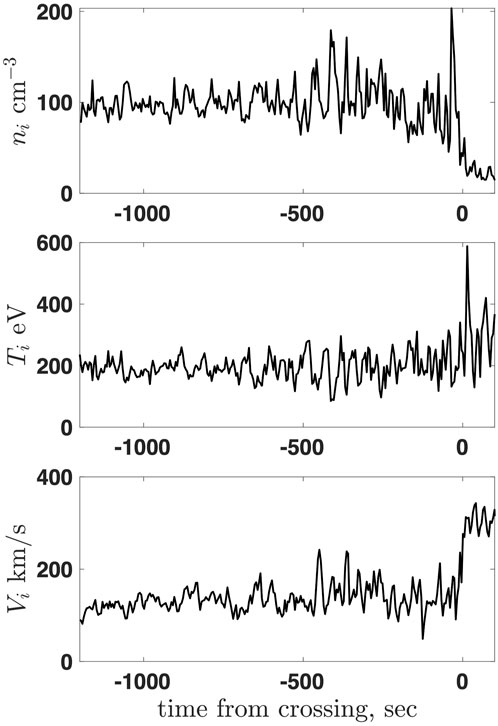

FIGURE 3. Top: the ion density ni. Middle: the ion temperature Ti. Bottom: the ion speed Vi. All are onboard moments by the FPI instrument [34].

FIGURE 4
www.frontiersin.org

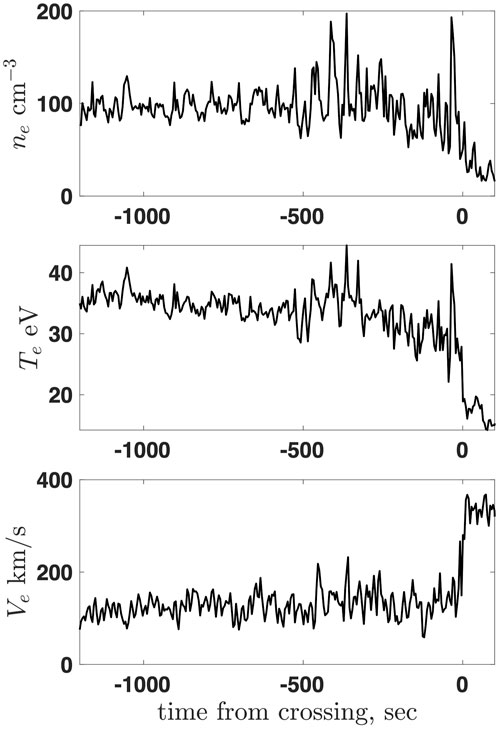

FIGURE 4. Top: the electron density ne. Middle: the electron temperature Te. Bottom: the electron speed Ve.

The time resolution for the moments is 4.5 s, much larger than 0.125 s for the magnetic field. However, even quick visual inspection of Figure 2 shows that the temporal scale of the large magnetic fluctuations is comparable with the scale of the density and temperature fluctuations. Thus, the relative significance of the magnetic fluctuations is substantially larger than that of the density and temperature fluctuations.

The ratio of the eigenvalues of the variance matrix Sij = ⟨bibj⟩ is 1:1.2:1.5, that is, the turbulence is nearly isotropic.

4 Magnetic fluctuations

In view of the above we restrict ourselves here with the magnetic fluctuations only, neglecting r, p, e, and vi, so that

ρVx=const(22)
ρVx2+P+B28π+b28πbx28π=const(23)
ρViVBBx4πbbx4π=const,(24)
12ρV2Vx+ϵVx+PVx+Bx2Vx4π+Vx4πb2=const(25)
VxBVBx=0(26)
Bx=const(27)

where ⊥ refers to y, z. The case of Alfvén turbulence, where the relative velocity fluctuations are also large and have to be taken into account, has been treated by [35] in the strong shock limit.

Assuming, for simplicity, isotropy of the fluctuations, we have eventually

ρVx=const(28)
ρVx2+P+B28π1+G3=const(29)
ρVxVBBx4π=const,(30)
12ρV2Vx+ϵVx+PVx+VxB2BxVB4π+B2G4π=const(31)
VxBVBx=const(32)
Bx=const(33)

where G = ⟨b2⟩/B2.

It is convenient to proceed in the de Hoffman-Teller frame (HT). Let u and d denote upstream and downstream, respectively. Eqs 30, 32 mean that Bu,⊥, Bd,⊥, Vu,⊥, Vd,⊥, and x̂ are all in one plane. Let it be xz plane. bThe angle between the shock normal and the local magnetic field is given by

cosθ=BxB(34)
Bucosθu=Bdcosθd(35)

for both upstream and downstream. HT is the shock frame in which VB in both asymptotic regions. The Normal Incidence Frame (NIF) is the frame in which Vu,⊥ = 0. In NIF Vu=Vux̂ while in HT Vu=UuB̂u, with Vu = Uu cos θu and similarly for the downstream region. The Alfvénic Mach number M is defined as

M=VuvA,vA=Bu4πρu(36)

It is widely accepted also to define β=8πPu/Bu2. With this notation we shall have

ρuUucosθu=ρdUdcosθd(37)
ρuUu2cos2θu+Pu+Bu28π=ρdUd2cos2θd+Pd+Bd28π1+G3(38)
ρuUu2sinθucosθuBu2sinθucosθu4π=ρdUd2sinθdcosθdBd2sinθdcosθd4π(39)
12ρuUu3cosθu+ϵu+PuUucosθu=12ρdUd3cosθd+ϵd+PdUdcosθd+Bd2G4πUdcosθd(40)

Here we are treating the case where the upstream region is quiet while the downstream region contains significant magnetic fluctuations.

Let us define

R=BdBu,N=ρdρu,Π=PdρuUu2cos2θu,Y=UdUu,ϵ+P=γγ1P(41)

we have also

cosθdcosθu=BuBd=1R(42)

Now the equations take the following dimensionless form

R=NY(43)
1+1+β2M2=YR+Π+R21+G/32M2(44)
1cos2θuM2=YRcos2θuM2R2cos2θuRsinθu(45)
1+γγ1βcos2θuM2=Y2+2γΠYRγ1cos2θu+2RYGcos2θuM2(46)

Figure 5 shows the dependence of the density compression N = nd/nu (left column) and the magnetic compression R = Bd/Bu (right column) on the Alfvénic Mach number M, for two cases: a) θu = 60°, β = 0.2 (top row), and b) θu = 20°, β = 2 (bottom row), and for various values of G=b2/Bd2. In both cases both compression ratios increase with the increase of G. For θ = 60° and sufficiently large G the compression ratios exceed the theoretical maximum for G = 0 and M. Deviations of the ratios from the standard ratios at G = 0 are larger for lower Mach numbers.

FIGURE 5
www.frontiersin.org

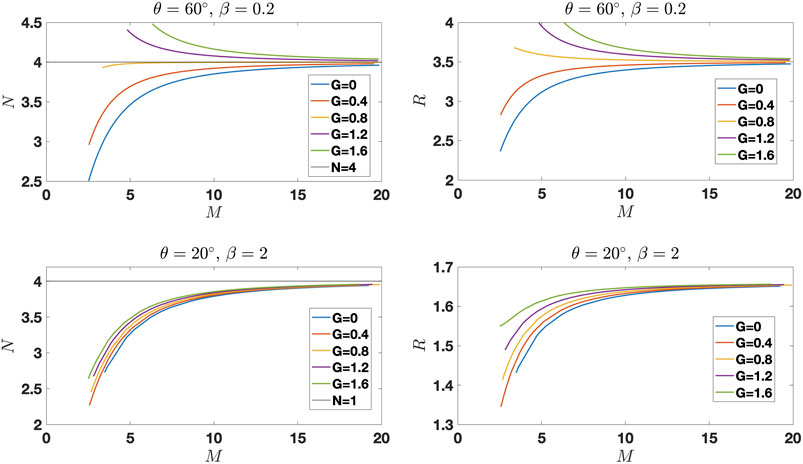

FIGURE 5. The density compression ratio N = nd/nu (left column) and the magnetic compression ratio R = Bd/Bu (right column), as functions of the Alfvénic Mach number M, for two cases: a) θu = 60°, β = 0.2 (top row), and b) θu = 20°, β = 2 (bottom row). In both case presence of fluctuations results in the increase of the compression ratios.

5 Discussion and conclusion

We have shown that undamped fluctuations in the downstream region have to be taken into account in the Rankine-Hugoniot conditions which relate the mean upstream and downstream values of the plasma parameters and magnetic field. It appears that if only isotropic magnetic fluctuations are included, the density and magnetic field compression ratios may be substantially different from those expected from the standard RH. The density compression ratio may even exceed the theoretical maximum for strong shocks. Such unusual density compression ratios are observed at the Earth bow shock. They are usually attributed to the difficulties of particle measurements and are often considered as a sufficient argument to exclude shocks from the analysis [36, 37]. The findings in this paper encourage re-consideration of analysis of shocks with unconventional compression ratios.

The present analysis is incomplete, since we limited ourselves with magnetic fluctuations only. For the shock, used as an example, this was justified, since the relative fluctuations of density and temperature were much smaller. This would not necessarily happen in all shocks, so that other fluctuations have to be taken into account too.
