Fabrication and quantum sensing of spin defects in silicon carbide

In the past decade, color centers in silicon carbide (SiC) have emerged as promising platforms for various quantum information technologies. There are three main types of color centers in SiC: silicon-vacancy centers, divacancy centers, and nitrogen-vacancy centers. Their spin states can be polarized by laser and controlled by microwave. These spin defects have been applied in quantum photonics, quantum information processing, quantum networks, and quantum sensing. In this review, we first provide a brief overview of the progress in single-color center fabrications for the three types of spin defects, which form the foundation of color center-based quantum technology. We then discuss the achievements in various quantum sensing, such as magnetic field, electric field, temperature, strain, and pressure. Finally, we summarize the current state of fabrications and quantum sensing of spin defects in SiC and provide an outlook for future developments.

1 Background and introduction

Solid-state color centers have been one of the leading systems in quantum technology [1–5]. Color centers exist in many materials, including diamond [1–5], silicon carbide (SiC) [1–5], hexagonal boron nitride [6], and gallium nitride [7, 8]. There are five primary types of color centers in diamond, including nitrogen-vacancy (NV) centers and group-IV color centers, such as silicon-vacancy centers, germanium-vacancy centers, lead-vacancy centers, and tin-vacancy centers [9]. In particular, the NV center in diamond has been the most studied solid-state spin defect. Its spin state can be initialized and controlled by laser and microwave, respectively [1–3]. It has been used in various quantum technologies, such as 1.3-km spin–photon entanglement [10], ten-qubit quantum register [11], and high-sensitivity nanoscale quantum sensing [12], for its excellent properties, such as large optically detected magnetic resonance (ODMR) contrast [13] and long spin coherence time [14] at room temperature. However, the lack of established nanotechnology of diamond and visible-range fluorescence of the NV center limits its wider applications, such as long-distance quantum sensing and spin-photon entanglement [4, 15–17]. Additionally, while color centers in hexagonal boron nitride have been used in quantum photonics and quantum information processing [6], their coherence time is limited to a few microseconds at present [6]. These limitations have motivated scientists to search for other color centers in different host materials.

SiC is a wide-bandgap semiconductor material with mature inch-scale growth and micro- and nano-fabrication technologies [4, 15–17]. It has been widely applied in high-power and high-temperature electronic devices. SiC has approximately 250 known polytypes with the hexagonal 4H–SiC and 6H–SiC and the cubic 3C–SiC being the most widely used polytypes [4, 15–17]. Since the coherent control of divacancy center spin in 4H–SiC at room temperature was first realized in 2011, color centers in SiC have drawn much attention and become one of the promising platforms for quantum information [4, 15–17]. There are two types of color centers in SiC: one is room-temperature stable bright single-photon sources, and the other is the spin defects. The fluorescence range of these bright single photon sources covers from the visible range to the telecom range, with the fluorescence counts reaching greater than 1 Mcps [18, 19]. Due to the mature doping technology, integrated SiC p–n junction single-photon diodes are also fabricated [18]. Similar to NV centers in diamond, there are also three main types of spin defects in SiC: silicon-vacancy centers [1, 4, 17, 20], divacancy centers [1, 4, 15, 16], and nitrogen-vacancy centers [1, 4, 21–24]. Figures 1A, B, C show the atom configurations of the three main types of spin defects in SiC, respectively.

FIGURE 1

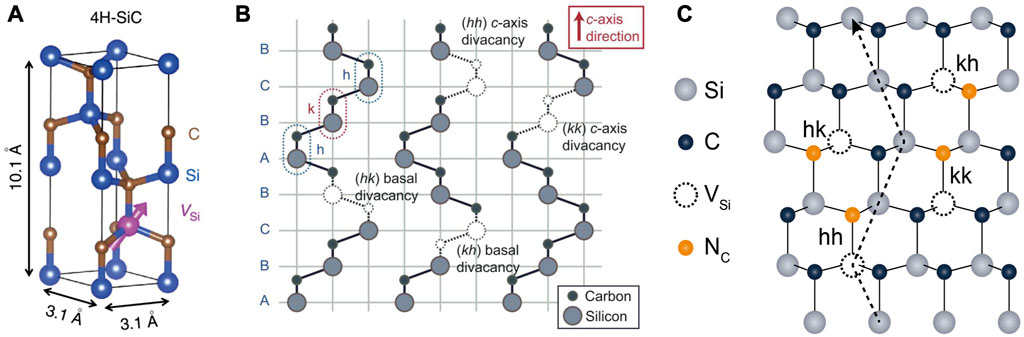

FIGURE 1. Atom configurations of the three main types of spin defects in silicon carbide. (A) Silicon-vacancy center [20], reprinted with permission from Macmillan Publishers Ltd.: Nature Communications [20], copyright (2015). (B) Divacancy center [15], reprinted with permission from Macmillan Publishers Ltd.: Nature [15], copyright (2011). (C) Nitrogen-vacancy centers [24], reprinted with permission from AAAS.

All three types of spin defects have achieved efficient fabrication of single spin and have been applied in various quantum technology applications [15, 16, 22], including integrated quantum photonics [18, 25], quantum information processing [15–17], quantum networks [26, 27], and quantum sensing [24]. In quantum photonics, nanopillars [25] and solid immersion lenses [17] have been used to enhance the silicon-vacancy center count several times. Photonic crystal cavities realize an 80-fold selective Purcell enhancement of the zero-phonon line (ZPL) for silicon-vacancy centers [28]. Most recently, the silicon carbide-on-insulator on-chip integrated nanophotonic cavity has efficiently enhanced the emission of a single silicon-vacancy center and the frequency conversion [29]. Moreover, silicon-vacancy centers can be integrated into nano-fabricated waveguide devices. In addition, the photonic crystal cavity also realizes a 50-fold Purcell enhancement of a single divacancy center [30]. In the quantum information process, coherent control of single silicon-vacancy and divacancy centers has been realized, demonstrating their longer coherence times of approximately 1 ms [16, 17]. The coherence time of divacancy centers has been extended to greater than 5 s using the dynamical decoupling methods and an isotopically purified SiC sample [31]. High-fidelity nuclear quantum registers have been demonstrated using a single silicon-vacancy center [32] and divacancy center [33]. The spin defects have advantages in long-distance quantum networks for their near-infrared fluorescence [26, 27, 34, 35]. A high-fidelity spin-photon interface has been realized in a single silicon-vacancy center [26] and divacancy center [27, 34, 35]. Moreover, the charge depletion technology has been found to narrow optical linewidths by more than 50-fold, approaching the lifetime limit [34]. Optical Rabi oscillations of single divacancy centers have also been realized [35]. All three spin defects have been widely used in high-sensitivity multiple quantum sensing, including magnetic field [36], electric field [37], temperature [38], strain [39], and pressure [40].

Given the rapid development of SiC-based quantum technologies, in this review, we discuss recent progress in the fabrication and quantum sensing of spin defects in SiC. We begin by focusing on the advances in single and ensemble fabrication methods of the three spin defects. Then, we discuss the achievements of the SiC-based multiple quantum sensing applications under atmospheric environments and high pressure. Finally, the conclusions and outlook of SiC spin defect fabrication and quantum sensing are discussed.

2 Fabrication of the three spin defects in SiC

Spin defects in SiC, such as the silicon-vacancy center, divacancy center, and nitrogen-vacancy centers, exhibit excellent spin and optical properties for quantum technologies [41–43]. Efficient and controllable fabrication technologies are very important to fully realize their potential in various SiC-based quantum technologies. In this section, we first review the progress in the fabrication of three spin defects in SiC, respectively. Currently, four methods, including electron or neutron irradiation [17, 20], ion implantation [44, 45], focused ion beam implantation [46, 47], and laser writing [48], have been used in the fabrication of three types of spin defects in SiC.

2.1 Silicon-vacancy centers

The silicon-vacancy center is a paramagnetic defect consisting of a missing silicon atom in the SiC lattice [17, 20]. The negatively charged silicon-vacancy center has the spin state S = 3/2. There are two types of silicon-vacancy centers in 4H–SiC: V1 and V2, and their corresponding ZPLs are 861 nm (V1) and 915 nm (V2), respectively [17, 20, 44–46]. There are three types of silicon-vacancy centers in 6H–SiC, the ZPLs of which are at 865 nm (V1), 887 nm (V2), and 908 nm (V3), respectively [49]. Due to its spin state, which can be coherently controlled at room temperature, the V2 in 4H–SiC has become the most studied type of silicon-vacancy center [17, 20, 44–46]. The zero-field-splitting D of V2 is 35 MHz.

In order to isolate single silicon-vacancy centers, most of the experiments use commercially available high-purity SiC samples [17, 20, 44–46]. High-energy electron and neutron irradiations are used to generate single silicon-vacancy centers, and a confocal scanning microscopy image is shown in Figure 2A [17]. This method can generate silicon-vacancy centers throughout the sample. Particularly, F. Fuchs et al. used neutron irradiation (0.18 MeV–2.5 MeV) in a fission reactor to generate single silicon-vacancy centers [20]. The irradiation dose is varied over more than eight orders of magnitude, from 1 × 10⁹ to 5 × 10¹⁷ cm⁻². The single silicon-vacancy center can be observed at the level of 1 × 10⁹ cm⁻².

FIGURE 2

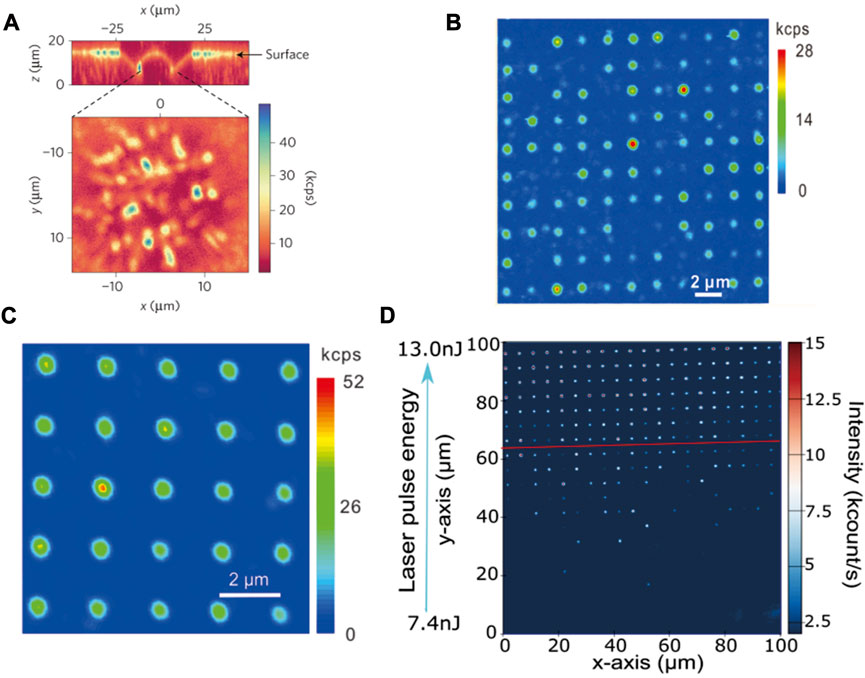

FIGURE 2. Confocal images of silicon-vacancy centers on SiC by using different methods. (A) PL confocal map of irradiation on 4H–SiC using 2 MeV electrons after annealing [17], reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [17], copyright (2015). (B) PL image of the ion implantation confocal map after annealing at 600°C for 1 h [45], copyright (2019), American Chemical Society. (C) PL image of focused ion implantation using Si²⁺ [46], copyright (2017), American Chemical Society. (D) PL image of laser writing at an energy from 7.4 to 13 nJ [48], copyright (2019), American Chemical Society.

Compared to irradiation, ion implantation allows color centers’ predetermined location fabrication [44, 45]. Carbon, hydrogen, and helium ions are demonstrated to generate shallow single silicon vacancies over a wide dose ranging from 10¹¹ cm⁻² to 10¹⁴ cm⁻². With the same energy, helium ions have better implantation conversion efficiency than carbon and hydrogen ions [45]. After using the optimized annealing, the conversion yield can be further increased more than 2 times. High-concentration silicon ensemble defects contribute to higher sensitivity in magnetic or temperature sensing [45]. To generate single silicon-vacancy center arrays, a polymethyl methacrylate (PMMA) layer, usually several hundred nanometers thick, should be deposited on the SiC surface by spin coating. Electron-beam lithography (EBL) is then employed to make an array of apertures with a specific separation [44]. Then, holes are made before ion implantation. The stopping and range of ions in matter (SRIM) simulation shows that carbon atoms can be blocked by the PMMA layer, which leads to the generation of defects only in the SiC layer below the holes of PMMA layer. By contrast, 20 keV helium and hydrogen ions can penetrate through the 200-nm PMMA layer. After implantation, the PMMA layer is removed in acetone, and the apertures are also cleaned by isopropanol ultrasonication. By using 30 keV carbon ions, the single defect generation ratio is approximately 34% ± 4%, and the conversion yield of the implanted carbon ions into the silicon-vacancy defects is approximately 19% ± 4% [44]. Furthermore, by adding the annealing process (temperature at 600°C for 1 h), the conversion yield can be improved to approximately 78% ± 5%, which is approximately four times higher than unannealed results and leads to less residual radiation damage [45]. Figure 2B shows the confocal image of the silicon-vacancy center array after annealing. This method can realize the on-demand generation of single silicon-vacancy centers [45]. However, since the ion implantation creates residual radiation damage, this method may degrade its effect on the coherence properties of silicon-vacancy centers.

As is mentioned in ion implantation, the determination of the location needs a PMMA mask, making it inconvenient to integrate with photonic devices [46, 47, 50]. Focused ion beam (FIB) implantation provides a method for three-dimensional silicon-vacancy center engineering, which needs no mask, and vacancies are generated by ion collision [46, 47]. The depth of defects is determined and can be predicted by SRIM simulation based on the ion energy and the relationship between the ion energy loss in a particular implanted material and the depth of implantation, while the lateral distribution is controlled by the focused ion beam with nanometer resolution implemented by predesigned computer files [46, 47]. The focused ion spot scale is a nanometer, and the implantation dose that determines the vacancy number can be precisely controlled by the beam current and the residence time [17]. So far, there are hydrogen (H⁺, 1.7 MeV) [47], silicon (Si²⁺, 35 keV) [46], and helium (He²⁺, 30 keV with a dose of 1×10¹³ cm^-2) [50] ions used in focused ion beam implantation. The Si²⁺ and He²⁺ implantations need the annealing process to restore the lattice damage caused by implantation at 650°C in air for 6 h and 500°C for 2 h in a vacuum, respectively. In addition, in the He²⁺ ion implantation process, post-annealing at 600°C in vacuum is adopted to remove the interstitial defects and reduce background fluorescence. Figure 2C presents the PL confocal scan of focused Si²⁺ beam implantation. By optimizing the dose at 20 ions per spot, focused He²⁺ and Si²⁺ ion beam implantation can achieve a conversion yield of approximately 6.95% and 3.9% and a generation rate for a single silicon-vacancy center of approximately 35% and 38%, respectively [46, 50].

All the aforementioned methods inevitably cause residual damage to the lattice, which may degrade the defects’ optical and spin properties. Femtosecond (fs) laser writing minimizes the damage to the crystal lattice and is convenient to realize on-demand location vacancy center generation in 4H–SiC and 6H–SiC [48, 51, 52]. A femtosecond pulsed laser with a central wavelength of 790 nm and a duration time of 250 fs is used [48]. An objective is used to focus the laser beam onto the sample that is fixed on the three-dimensional highly precise translation stage. Before laser writing, samples need to be cleaned using Piranha solution to remove organic contaminants [18–20]. Generally, the separation between arrays is 5 μm, and laser energy from several to hundreds of nanojoules is performed per pulse for each line. Figure 2D shows the confocal image after different energy laser writing. Experimental results get an optically stable single V_Si yield of up to 30% and a lateral position accuracy of 80 nm without post-annealing, which is sufficient for coupling V_Si centers to optical structures, such as multi-mode waveguides, solid immersion lenses, or nanopillars. However, to enhance the photostability and yield, an extra annealing process can be employed. Moreover, the pulse laser can also be used to ablate 4H–SiC nanoparticles with silicon-vacancy centers [53].

2.2 Divacancy centers

Divacancy centers in SiC consist of a missing Si atom adjacent to a missing C atom, and the neutrally charged divacancy centers have spin state S = 1 [15, 16]. Divacancy centers exist in three polytypes of SiC: 4H–, 6H–, and 3C–SiC [15, 16, 54]. There are seven types of divacancy centers in 4H–SiC, named PL1–PL7. Similarly, there are also six types of divacancy centers in 6H–SiC, named QL1–QL6. There is only one type of divacancy center in 3C–SiC. Since the ODMR contrast and coherence time of the divacancy centers in 4H–SiC are larger than those of divacancy centers in 6H–SiC, most experiments focus on the divacancy centers in 4H–SiC [15, 16, 54]. The basic method for generating divacancy centers by irradiation is the same as for generating silicon-vacancy centers. Using 2 MeV electrons with a dose ranging from 5 × 10¹² cm⁻² (for generation single divacancy centers) to 1 × 10¹⁵ cm⁻² to generate Si and C vacancies uniformly, followed by annealing at 750°C or 850°C (for neutral VV⁰) for 30 min in Ar gas, enables Si and C vacancies to migrate and form divacancies [16, 27]. As shown in Figures 3A, 3B, this method has been used to generate single divacancy centers in 4H– and 3C–SiC [16, 27]. However, the position of the divacancy center is random.

FIGURE 3

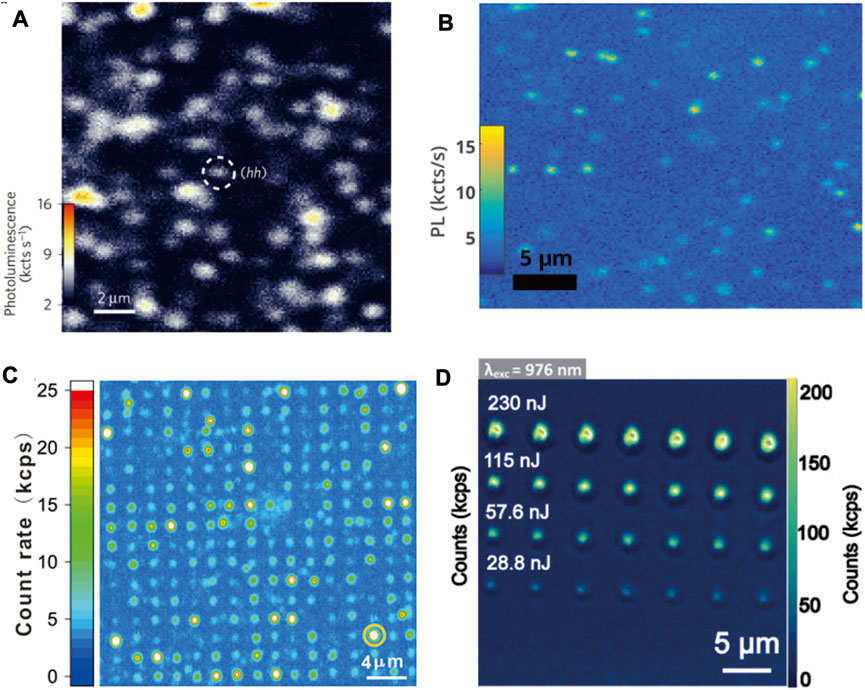

FIGURE 3. Confocal images of divacancy centers on SiC by using different methods and materials. (A) Irradiation at 10¹³ cm⁻² fluence at a depth of 20 µm into the 4H–SiC membrane [16]. Not all spots are isolated single defects, reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [16], copyright (2015). (B) PL scan of 3C–SiC by irradiation [27], copyright (2017), American Physical Society. (C) 30 keV carbon ion implantation on 4H–SiC [55], copyright (2021), China Science Publishing & Media Ltd. (D) Laser writing PL confocal image. No dots are observed under 28.8 nJ [56], reprinted with permission from Almutairi AFM et al., Copyright (2022), AIP Publishing LLC.

Similar to silicon-vacancy center generation using ion implantation, divacancy centers can be fabricated in the same way. A 200-nm-thick positive electron-beam photoresist PMMA layer is spin-coated onto the sample surface. EBL is performed to create a mask, on which an array of apertures with a separation distance of 2 μm and a diameter of 50 ± 10 nm are produced [55]. 30 keV C⁺ with a dose of 1.02 × 10¹⁵ cm⁻² are implanted, making approximately 20 ions per spot. The results are shown in Figure 3C. After removing the mask in acetone solution with an ultrasonic bath, the sample is annealed at 900°C for 30 min in vacuum [55]. To reduce background fluorescence, the sample was cleaned again in a mixture of concentrated sulfuric acid and hydrogen peroxide with a ratio of 3:1 [23]. This method generates different types of divacancy centers. The coherent manipulation of single PL6 divacancy center spins in 4H–SiC with a high readout contrast (30%) and a high photon count rate (150 kcps) at room temperature is demonstrated [55]. The coupling between a single divacancy spin and a nearby silicon nuclear spin is also observed.

As divacancy centers generated by electron irradiation are randomly distributed, ion implantation with a PMMA mask causes residual lattice damage, and shallow color centers limit some applications, laser writing is adopted. Using a high-purity 4H–SiC sample as the host material, with a laser wavelength of 1,030 nm, and writing in an argon atmosphere [56], the procedure for generating divacancy centers is the same as that for silicon-vacancy centers. As presented in Figure 3D, divacancy centers in the same row are formed with the same laser energy of 230, 115, 57.7, and 28.8 nJ, respectively [56]. The post-annealing method is performed from 500°C to 1,000°C in a step of 100°C for 30 min in argon gas. Results show that the optimized annealing temperature is 800 °C [56].

2.3 Nitrogen-vacancy center

The N_CV_Si center in SiC consists of a nitrogen impurity substituting a carbon atom (N_C) and a silicon vacancy (V_Si) adjacent to it [21–24]. It can be observed in three polytypes of SiC: 4H–, 6H–, and 3C–SiC [21–24, 57, 58]. The negatively charged state NV center has a spin state of 1. In n-type 4H–SiC, 12 MeV proton irradiation with a dose of 1 × 10¹⁴ cm^-2 and post-annealing at 900°C can create NV centers [21]. High-energy protons and electrons can cause point defects, while heavy ions generate large residual lattice damage [21]. Except for n-type 4H–SiC with a nitrogen concentration of 10¹⁸ cm⁻³, high-purity semi-insulting 4H–SiC (nitrogen concentration = 3 × 10¹⁵ cm⁻²) is also used in NV center generation. Various ions, such as 240 keV hydrogen, 2 MeV nitrogen, 4 MeV silicon, and 7 MeV iodine ion beams, are utilized for irradiation to generate the NV center ensemble, as shown in Figure 4A [59]. Then, all samples are annealed in Ar gas (1 × 10⁵ Pa) at different temperatures for 30 min and naturally cooled down to room temperature. Results show that 1,000°C is the optimal annealing temperature to generate NV centers [59].

FIGURE 4

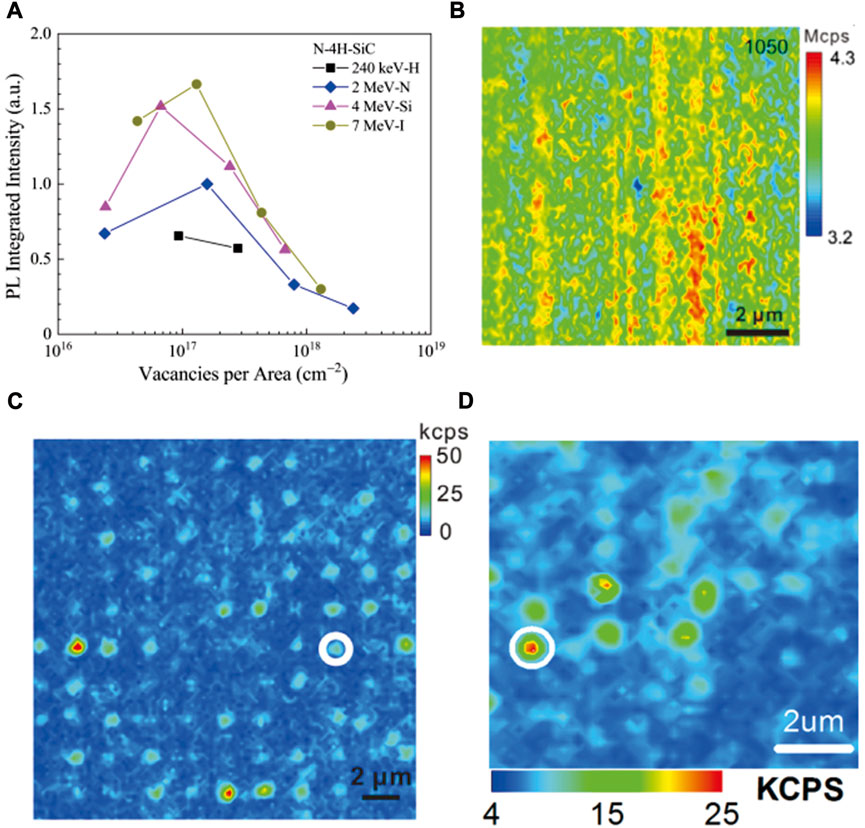

FIGURE 4. Confocal images of NV centers in 4H–SiC by using different methods and calculations of PL integrated intensity as a function of vacancy centers per area. (A) PL integrated intensity of the NV centers as a function of vacancy centers per area [59], reprinted with permission from Sato SI et al., Copyright (2019), AIP Publishing LLC. (B) PL images of the NV center ensemble by carbon ion implantation after annealing at 1,050°C [22], copyright (2020), American Physical Society. (C) Confocal scan image of the single NV center array [22], copyright (2020), American Physical Society. (D) Confocal scan image of single NV centers at a low dose (10¹⁰/cm²) [23], copyright (2020), American Chemical Society.

In addition, as shown in Figure 4B, 30 keV nitrogen ion implantation (dose 1 × 10¹⁴ cm⁻²) can create shallow single NV center ensemble at a depth of 60 nm in a bulk high-purity 4H–SiC epitaxy layer sample. After annealing under optimal conditions at 1,050°C for 2 h, NV centers’ concentration can increase by six times. Using the masked implantation methods, the single NV center array is generated. Figures 4C, 4D show confocal images of the single NV center array by nitrogen ion implantation. The single defect generation efficiency is around 30%, and the conversion yield of the implanted nitrogen ions into the NV center is approximately 4.3% [22]. The NV centers are proven as a three-energy-level electronic structure system. Both the excitation and the emission polarization degrees are approximately 90% for c-axis NV centers [60].

3 Quantum sensing

Color centers in SiC have been applied to various quantum sensing fields, such as magnetic field, electric field, temperature, strain, and pressure [36–40]. They have some advantages, including high sensitivity and high spatial resolution under ambient conditions. Combined with mature micro- and nano-fabrication and growth technologies of SiC, SiC color center-based quantum sensing will have widespread applications [36–40]. Figure 5 shows the Hamiltonian of the spin defects’ spin state and their relevant physical parameters [3, 61, 62]. The spin state S is 1 for the divacancy and NV centers in SiC, and it is 3/2 for the silicon-vacancy centers in SiC. The electron gyromagnetic ratio γ is 2.8 MHz/G. The first item is zero-field splitting (ZFS), and D is related to temperature and pressure, which can be used for temperature sensing and pressure sensing [3, 62]. The second item is the Zeeman splitting, which can be used for magnetic field sensing, and the last item is the Stark effect, which can be used for electric field and strain [3, 62]. We then discuss the progress of these various quantum sensing methods in detail.

FIGURE 5

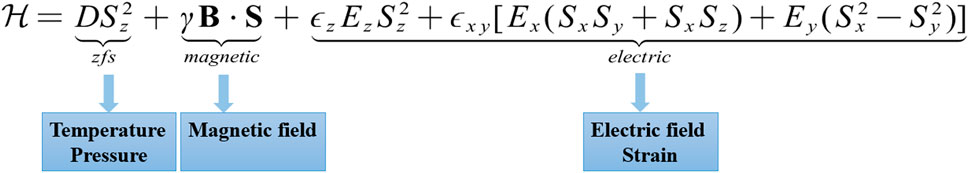

FIGURE 5. Spin Hamiltonian of the spin defects in SiC and related quantum sensing physical quantities for each term of the Hamiltonian.

3.1 Magnetic field sensing

Since these color centers in SiC are spin defects, one of the main quantum sensing is magnetic field sensing through measuring the Zeeman splitting [36]. SiC offers a platform for wafer-scale quantum sensing at room temperature, benefiting from its mature fabrication and generation technologies. Continuous wave ODMR is the most useful and simplest magnetic field detection method [36, 63–66]. The ODMR magnetic field sensitivity is [63] ${\eta }_B\approx \frac{h}{g{\mu }_B}\frac{\Delta \nu }{C\sqrt{R}}$, where h is the Planck constant, C is the ODMR contrast, R is the count rate of detected photons, and $\Delta \nu$ is the linewidth of the ODMR spectra. By measuring the evolution of the ODMR spectra with respect to the polar angle θ and the strength of the magnetic field, we can get the polar angle of the external magnetic field [66]. The strength and angle sensitivity are approximately 10 μT/Hz^1/2 and 0.5°/Hz^1/2, respectively [66]. Moreover, both the ODMR contrast and frequency of the divacancy center vary with the off-axis magnetic field angle and strength, paving the way for SiC-based all-optical magnetic field imaging and sensing [67]. Additionally, the coherence time also decreases with the polar angle θ of the magnetic field. All optical methods require no RF system, which makes it easier for practical uses and more stable in complex environments. Simin et al. found a sharp variation of the photoluminescence intensity in the vicinity of level anticrossing (1.25 mT) of the silicon-vacancy center as shown in Figure 6A, giving the basis for all-optical sensing of the magnetic field as shown in Figure 6B [68]. The DC magnetic field sensitivity is better than 100 nT/Hz^1/2 within a volume of 3 × 10⁻⁷ mm³ for isotopically purified 4H–²⁸SiC at room temperature [68]. Since it does not need a microwave, it will be easier to improve the sensitivity by using larger-volume samples. Using three Helmholtz coil pairs, silicon-vacancy centers-based vector magnetometry can be realized.

FIGURE 6

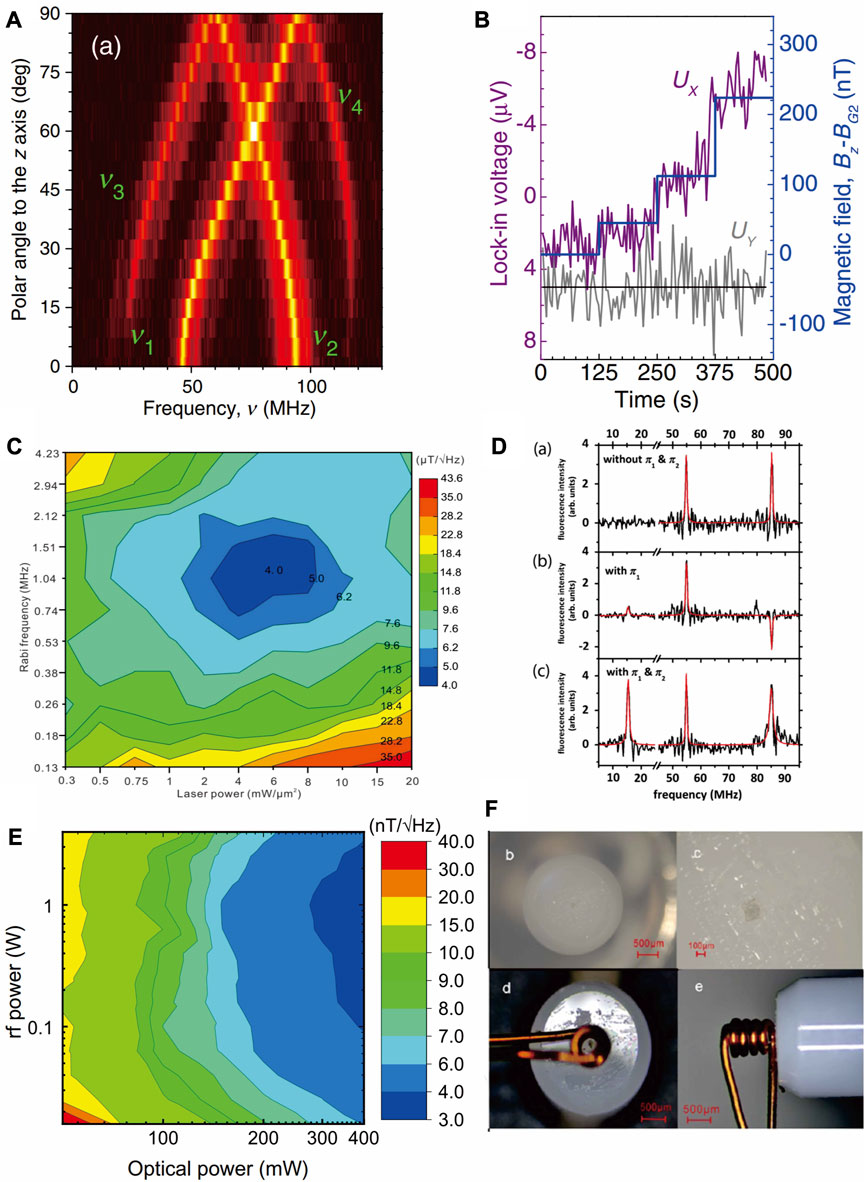

FIGURE 6. Magnetometry sensitivity maps and set-up images. (A) Experimental results of the angle evolution of V_si ODMR spectra under an external magnetic field of B = 0.8 mT [66], copyright (2015), American Physical Society. (B) Lock in signal in-phase Ux and quadrature Uy as a function of sub-μT magnetic fields. The magnetic field increases in the sub-μT level every 125 s [68], copyright (2016), American Physical Society. (C) The magnetometry sensitivity as a function of laser power and Rabi frequency [64], copyright (2020), American Physical Society. (D) Pulsed ODMR spectra in the same magnetic field and at the same angle but using different pulse sequences. (a) Sweep pulse. (b) A π pulse before the sweep pulse. (c) A π pulse before and after the sweep pulse [36], copyright (2016), American Physical Society. (E) The shot-noise-limited sensitivity map in magnetometry after thermal quenching [65], copyright (2021), American Physical Society. (F) Images of the fiber-integrated probe. The probe consists of a multi-mode fiber tip, a copper wire, and a SiC sample pasted on the fiber tip. b, c, d, and e are pictures of the probe at different angles [69], copyright (2023), Optica Publishing Group.

The linewidth of the ODMR is fundamentally limited by the dephasing time T₂^∗ of the spin defects [63]. The laser- and MW-dependent power broadening also affects the ODMR linewidth [63, 64]. Increasing the ODMR contrast and decreasing the ODMR linewidth will generate higher sensitivity. Wang J. F. et al. investigated the ODMR contrast and linewidth as functions of laser power and the microwave (MW) power of the divacancy center at room temperature [64]. The results show that the ODMR contrast decreases with the laser power, while the ODMR linewidth only slightly increases as the laser power increases [64]. Both the ODMR contrast and the linewidth increase with the MW power. Finally, they present a two-dimensional experimental magnetic field sensitivity image as a function of laser and MW power as shown in Figure 6C. The sensitivity increases by approximately 10 times (4 μT/Hz^1/2) for the optimized laser and MW power range [64]. In order to further decrease the linewidth of the ODMR, the pulsed ODMR spectra are used in the experiments as shown in Figure 6D [36]. The linewidth can be reached at approximately 500 kHz, which causes a sensitivity of 200 μT/Hz^1/2 [36].

The ODMR contrast is one of the main factors limiting the SiC defects’ sensitivity. Recently, a study found that the ODMR contrast and count rate can increase approximately ten and two times by using thermally quenched methods as shown in Figure 6E [65]. After optimizing the laser and microwave power broadening of the ODMR, the experimental sensitivity can increase to approximately 3.5 nT/Hz^1/2 [65]. However, all the previous magnetometers use the confocal system, which is not suitable for applications in practical environments. To further increase the capability of the magnetometer and make it compatible with practical environments, it needs to integrate the silicon-vacancy center-based magnetometer with optical fiber [69, 70]. SiC is a technology-friendly semiconductor material, which has mature growth and fabrication techniques. SiC-based magnetic field sensing is compatible with the semiconductor industry and could be widely used. Moreover, since the wavelengths of the spin defects in SiC are near-infrared, they are useful for long-distance magnetometry. Quan W. K. et al. realized the fiber-integrated SiC-based magnetometer [69, 70]. As shown in Figure 6F they pasted a pasted a 100-µm-diameter sample on a fiber tip and realized an efficient coupling of the silicon-vacancy and divacancy centers with the fiber. After optimizing the laser and MW powers broadening the linewidth of ODMR peaks, they obtained a sensitivity of 12.3 μT/Hz^1/2 and 3.9 μT/Hz^1/2, respectively [69, 70]. It has been used to sense external magnetic field strength and angle.

3.2 Temperature sensing

The basic principle of SiC-based temperature sensing is that the ground zero-field-splitting (ZFS) D of the divacancy center decreases with the temperature [38, 71, 72]. The three types of divacancy centers’ D parameters in 4H–SiC decrease when the temperature increases, and PL5 and PL6 divacancy centers’ ZFS linearly decrease around room temperature with a slope of approximately −109.5 and 100 kHz/Hz^1/2 as shown in Figure 7A, respectively. Those values are approximately 1.5 times larger than that of the NV centers in diamond [38, 73]. On this basis, the Ramsey methods have been used to measure the temperatures and the results are shown in Figure 7B. The dephasing time T₂^* is approximately 2 μs, and it does not change as the temperature decreases from 300 K to 20 K [38]. The change of the Ramsey oscillation frequency is due to the change of the temperature, which can be used for temperature sensing. The sensitivity is

$\eta =\sqrt{\frac{2\left(p_0+p_1\right)}{{\left(p_0-p_1\right)}^2}}\frac{1}{2\pi \frac{dD}{dT}\exp \left(-{\left(\frac{t}{T_d}\right)}^n\right)\sqrt{t}},(1)$

where $p_1$ and $p_0$ are the photon counts in the dark and bright spin states per shot, respectively [38, 74]. dD/dT is the slope of the divacancy centers’ ZFS with temperature, and T_d is the coherence time. The sensitivity is approximately 206 mK/Hz^1/2 [38]. Since the PL5 is a basal divacancy center with a large transverse strain E, it can protect the temperature sensor against magnetic field noise [38]. This is useful for practical environments. Moreover, it can also be used to sense higher temperatures. The experiments show that both the value of ZFS and ODMR contrast of the ZFS of the PL5 divacancy centers decrease as the temperature increases from 300 K to 600 K. The dephasing time T₂^* decreases with temperature [75]. A Ramsey-based temperature sensing at approximately 450 K is realized, and the sensitivity is approximately 880 mK/Hz^1/2 [75]. Moreover, the anti-Stokes excited counts obviously increases as temperature ranges from 300 to 500 K, which is suitable for all fast optical temperature sensing applications [76].

FIGURE 7

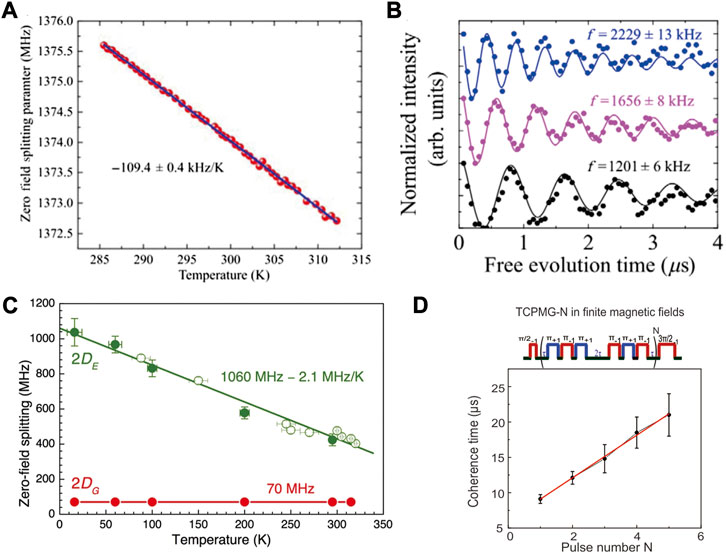

FIGURE 7. ODMR, Ramsey, and TCPMG measurements under different temperatures. (A) ODMR resonant frequency as a function of temperature [38]. The blue line is a linear fitting to the data, copyright (2017), American Physical Society. (B) Ramsey oscillation under three representative temperatures [38], copyright (2017), American Physical Society. (C) The ground-state (GS) and excited-state (ES) ZFS as a function of temperature [77], reprinted with permission from Macmillan Publishers Ltd.: Scientific Reports [77], copyright (2016). (D) The TCPMG-N pulse sequences and corresponding coherence time experimental results [73], copyright (2023), the Royal Society of Chemistry.

Except for the ground-state ZFS, the excited-state ZFS can also be used for temperature sensing [77, 78]. The ground-state ZFS of the silicon-vacancy centers in SiC does not change as the temperature decreases from 320 K to approximately 20 K, which is due to Kramers’ theorem [76, 77, 79]. The half-integer spin system is insensitive to fluctuations in strain, temperature, and electric field [79]. However, as shown in Figure 7C, the excited-state ZFS is found to have a large thermal shift of 2.1 MHz/K in 4H–SiC, and the sensitivity is approximately 100 mK/Hz^1/2 [77]. Combined with the 4H–SiC p–n diode using proton beam writing, the temperature change induced by an injected current is measured [78]. The results pave the way for practical applications inside SiC power devices like thermometers. In order to further increase the sensitivity, the coherence time needs to be further increased. The thermal Carr–Purcell–Meiboom–Gill (TCPMG) methods are performed on the PL6 divacancy center at room temperature [73]. As shown in Figure 7D, the coherence time linearly increases with the pulse numbers, and the longest coherence time is approximately 21 μs, which is 10 times higher than T₂^*. The corresponding sensitivity is 13.4 mK/Hz^1/2, which is approximately 15 times higher than that of the Ramsey results [73]. In order to apply the SiC-based thermometer to practical environments, fiber-coupled PL5 divacancy center thermometers are prepared. A 100-μm-diameter SiC with divacancy centers is pasted on the fiber tips. The ODMR and Ramsey methods are used for wide-range and highly precise temperature sensing, respectively. The sensitivity can reach approximately 163 mK/Hz^1/2 [70].

3.3 Electric field sensing

The basic principle of electric field sensing of spin defects in SiC is the Stark effect. For divacancy centers, their Hamiltonian (the defects are z-axis) is as follows [39]:

$H=hD{{\sigma }_z}^2-E_x\left({{\sigma }_x}^2-{{\sigma }_y}^2\right)+g{\mu }_B\mathit{\sigma }·\mathit{B}+E_y\left({\sigma }_x{\sigma }_y+{\sigma }_y{\sigma }_x\right),(2)$

where h is Planck’s constant; D, Ex, and Ey are the zero-magnetic-field splitting parameters, g is the electron g factor, μ_B is the Bohr magneton, B is the magnetic field, and σ is the vector of spin-1 Pauli matrices. D can be written as $D=D^0+d_{\parallel }F$, and $E_{x,y}=E_{x,y}^0+d_{\perp }{F}_{x,y}$, where D⁰ and E⁰_x,y terms are the crystal-field splittings in the absence of applied strain and electric fields and $d_{\perp }$ and $d_{\parallel }$ are the Stark coupling parameters of the ground-state spin to an electric field F [39].

In order to detect the AC electric field, the ± V_mem pulses are applied across a 53-μm-thick SiC membrane sample with divacancy centers (see Figure 8A). The Hahn-echo pulse scheme is used for T₂-limited AC electric field sensing [39]. During the free evolution periods, V_mem pulses can cause an electric field-induced phase shift of the spin superposition. Five types of divacancy centers, including both basal and c-axis-oriented, are used to measure the electric field both at 20 K and 300 K [39]. The fits use exponentially decaying sine curves, and fitted frequencies are spin–electric field coupling parameters. Experimentally measured and calculated Stark parameters for the PL1–PL6 ground-state-spin Hamiltonians in 4H–SiC are shown in Table 1.

FIGURE 8

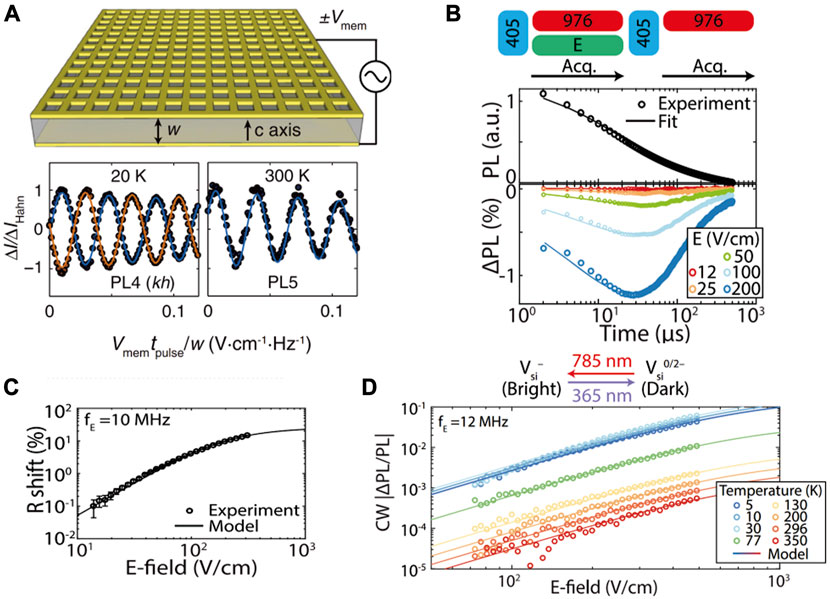

FIGURE 8. Experimental setup and measurements under different electric fields. (A) Schematic of the SiC sample and the voltage applied on the sample for electric field measurement (upper part) and experimental results by utilizing the pulse sequence (lower part) [39], copyright (2014), American Physical Society. (B) Pulse sequence used in measurement (upper part) and the normalized PL at different electric fields (lower part) [37], reproduced from [37], CC BY 4.0. (C) R shift as a function of the electric field. The points are experimental results, and the black line is the fitting by using the model [37], reproduced from [37], CC BY 4.0. (D) EOCC contrast as a function of the electric field under different temperatures by using silicon-vacancy centers [37], reproduced from [37], CC BY 4.0.

TABLE 1

TABLE 1. Experimentally measured and calculated Stark parameters for the PL1–PL6 ground-state-spin Hamiltonians in 4H–SiC [39], copyright (2014), American Physical Society.

Except for the spin methods, all-optical method electrometry is also realized. The optical charge conversion (OCC) rate between the bright and dark charge states of both divacancy and silicon-vacancy centers is strongly modulated by the applied microwave (megahertz to gigahertz) electric field and, therefore, can be used to detect the electric field through changes in photoluminescence (PL). G. Wolfowicz et al. characterized OCC transient decays by resetting the charge state with 405 nm illumination followed by a 976-nm pump laser (pulse sequence is shown at the top of Figure 8B) [37]. As shown in Figure 8B, the decay can be fitted by an exponential decay function: f(t) is exp (−(Rt)ⁿ), where R is the decay time. The electric field-induced changed R is $\Delta R\left(E\right)=\Delta R_{\infty }{\langle \frac{{\left(E/E_{\text{sat}}\right)}^2}{1+{\left(E/E_{\text{sat}}\right)}^2}\rangle }_{\mathrm{t}}$, where $\langle \rangle \mathrm{t}$ corresponds to a time average over an oscillation of the RF electric field, E_sat is the root-mean-square amplitude of the saturation electric field, and ΔR_∞ is the maximum R shift when E_sat changes [37]. They found in this sample ΔR_∞ = 27 ± 1% and E_sat = 158 ± 20 V/cm for the divacancy center. Figure 8C presents the R shift as a function of the electric field. The OCC sensitivity increases with the 976 nm laser power. As shown in Figure 8D, the OCC methods can also be used for silicon-vacancy center-based electric field sensing for a wide temperature range. The optimized measured OCC sensitivity can reach 41 ± 8 (V/cm)²/Hz^1/2 [37]. The AC electric field can also be used to coherently drive the spin state of divacancy centers (Rabi oscillator) in 6H–SiC [80]. Most recently, the NV center ensembles in 4H–SiC were used to sense an artificial AC radio-frequency field centered at ∼900 kHz with a resolution of 10 kHz [24]. The experiments pave the way for the SiC spin defects based on high-sensitivity and high-spatial resolution electric field sensing.

3.4 Strain sensing

Electrical field and strain interactions with spin defects are intertwined, so the spin defects can also be used to detect the strain. The D and E_x,y in Eq. 2 are also related to strain as follows: $D=D^0+e_{\parallel }\epsilon$; $E_{x,y}=E_{x,y}^0+e_{\perp }{\epsilon }_{x,y}$, where D⁰ and E⁰_x,y terms are the crystal-field splitting in the absence of applied strain and electric fields, $e_{\parallel }$ and $e_{\perp }$ are the strain-coupling parameters, and ε is the effective strain field [39]. In order to detect strain, a 4H–SiC membrane with divacancy centers is placed on the top of a piezo actuator, which applies strain to the SiC membrane as it stretches (Figure 9A). The strain can affect the ZPL of the six types of divacancy centers in 4H–SiC. The ZPLs of the c-axis-oriented divacancy centers bifurcate as the strain increases, reflecting the reduction of the C_3v symmetry due to the strain.

FIGURE 9

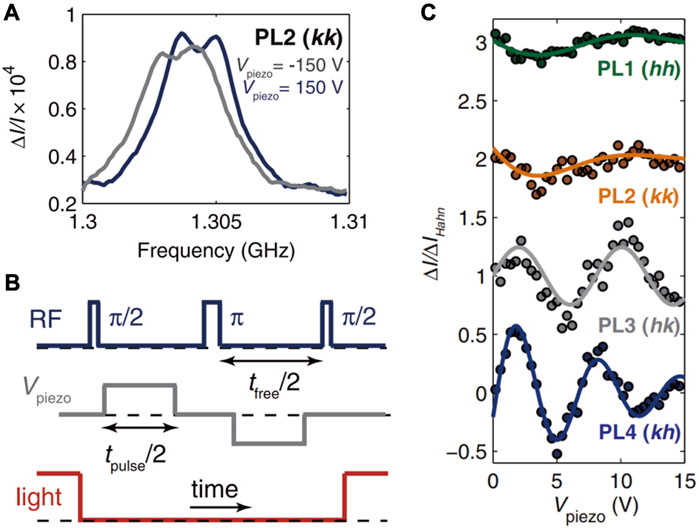

FIGURE 9. ODMR measurements and Hahn-echo pulse sequence and corresponding results. (A) DC ODMR results for strain sensing at a temperature of 20 K. By utilizing the opposite voltage, a 0.8 MHz shift is observed [39], copyright (2014), American Physical Society. (B) The Hahn-echo pulse sequence used to measure the strain [39], copyright (2014), American Physical Society. (C) Hahn-echo results for PL1–PL4 without external magnetic field [39], copyright (2014), American Physical Society.

Strain also affects the spin states. Transverse strain shifts the ODMR of the PL2 for approximately 0.8 MHz, with a 300 V piezo value [39]. The DC strain sensing is limited by T₂^*, which is the inhomogeneous spin-dephasing time (approximately 1.5 μs). It can also be used to detect AC strain. The Hahn-echo pulse scheme is used for T₂-limited AC strain sensing, as shown in Figure 9B. The corresponding AC strain sensing data are shown in Figure 9C.

3.5 High-pressure sensing

High-pressure technologies have been widely applied in physics, geophysics, and material sciences, inducing many unusual and important phenomena at high pressures [81–83]. In the last few decades, pressure-induced high-critical-temperature (T_c) superconductivity has drawn much attention [82, 83]. For example, the T_c of lanthanum hydride increases to 250 K at 170 GPa [82, 83]. However, measuring the local magnetic field in the diamond anvil cell (DAC) is still a great challenge due to the micrometer-sized sample chamber [84–87]. It is important to generate new methods to overcome the challenges. The ZFS of the NV centers linearly increases with a slope of 14.6 MHz/GPa at high pressure [88]. Using the ODMR of the NV centers in diamond, the pressure-induced magnetization of the Fe particles and the Meissner effect of superconductors have been measured [84–87]. However, the NV centers have four axes, and their ZFS decreases with temperature, which makes it a little difficult to analyze the ODMR spectra [84–87]. Similar to NV centers in diamond, defects in silicon carbide (SiC) could also be used to measure the magnetic properties of materials at high pressure [40, 89]. SiC is a widely used semiconductor, which has mature inch-scale growth and micro/nano-fabrication technologies.

The silicon-vacancy center in SiC has only a single axis, and the ODMR has only two resonant peaks at an external magnetic field. Moreover, it also has a temperature-independent ZFS. The two superior properties make it convenient to analyze the ODMR spectra [40, 76]. Recently, Wang J. F. et al. realized a magnetic detection under high pressures using designed silicon-vacancy centers in SiC [40]. As presented in Figure 10A, two high-quality single-crystal 4H-SiC cubes are used to fabricate SiC anvils with 200-µm-diameter culets. A 100-nm-deep high-density shallow silicon-vacancy center is generated (20keV He implantation) for magnetic detection. The ZFS increases with the pressure with a slope of 0.31 MHz/GPa (Figure 10B), which is obviously smaller than the coefficient of 14.6 MHz/GPa for NV centers in diamond. The coherence time T₂ remains invariable up to 25 GPa. Then, a tiny Nd₂Fe₁₄B sample is placed on the culet surface, and using the ODMR of the shallow silicon-vacancy centers, the pressure-induced magnetic phase transition is observed and presented in Figure 10C. The phase transition range is from 6 GPa to 10 GPa, which is consistent with previous results [87]. Finally, they used the ODMR methods to measure the Meissner effect of a well-known superconductor YBa₂Cu₃O_6.6 (Figure 10D) and map the T_c–pressure phase diagram. The T_c increases as the pressure increases to approximately 17.1 GPa (Figure 10E), which is consistent with the results obtained by AC susceptibility methods in the DAC [40]. The experiments prove that the silicon-vacancy center is an excellent quantum sensor at high pressure.

FIGURE 10

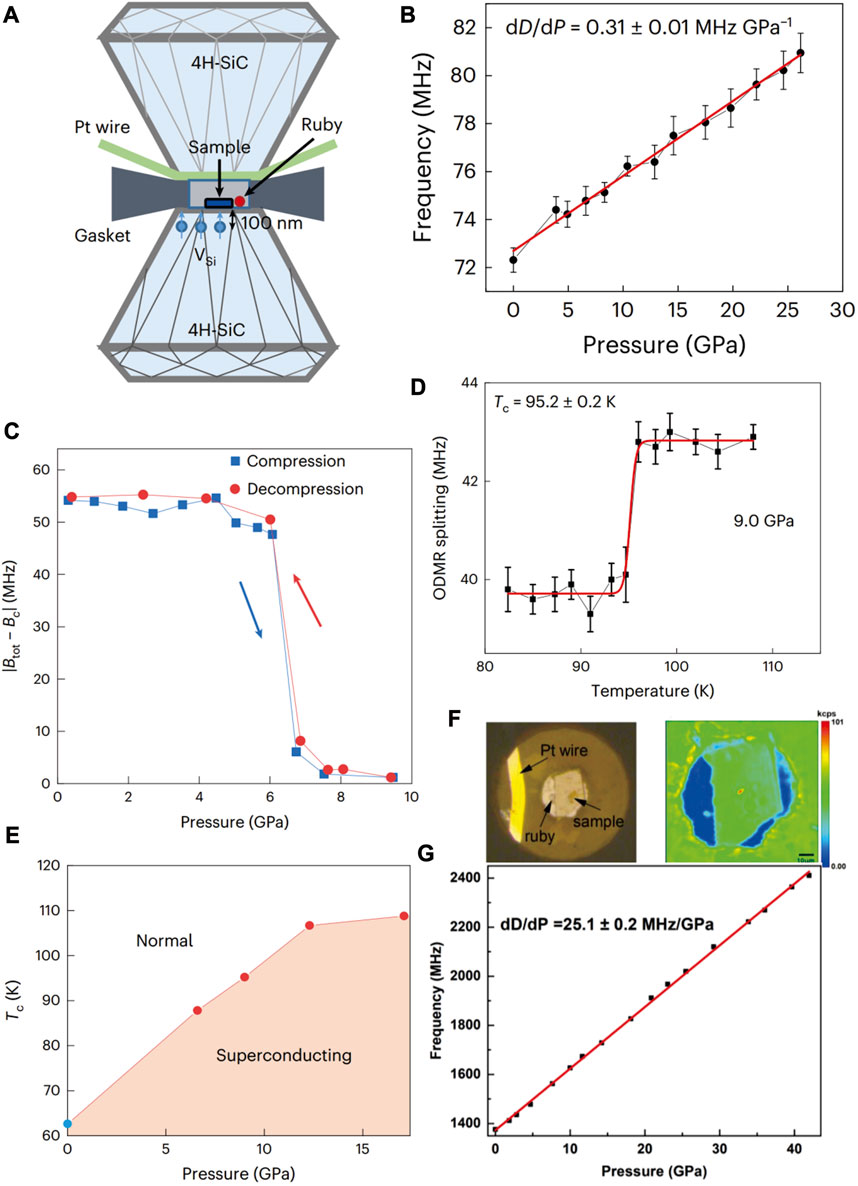

FIGURE 10. (A) Schematic of the SiC anvil cell [40], reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [40], copyright (2023). (B) The D shifts under different pressure. The red line shows that the D value has a linear dependence on pressure [40], reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [40], copyright (2023). (C) The magnetometry of the Nd₂Fe₁₄B sample by using silicon-vacancy centers under compression (blue) and decompression (red) processes, respectively [40], reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [40], copyright (2023). (D) ODMR splitting as a function of temperature under 9.0 GPa. The mutation point shows the superconducting transition [40], reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [40], copyright (2023). (E) The YBa₂Cu₃O_6.6 phase diagram [40]. By measuring Tc under different pressures, the Tc–pressure phase diagram can be obtained. The orange part is in the superconducting phase, and the white part is in the normal state, reprinted with permission from Macmillan Publishers Ltd.: Nature Materials [40], copyright (2023). (F) Optical image of the culet surface (left) and the fluorescence scanning confocal image of the sample (right), respectively [89], copyright (2022), American Chemical Society. (G) The D shift as a function of pressure. The red line is a linear fitting to the data [89], copyright (2022), American Chemical Society.

Divacancy centers can also be used in quantum sensing at high pressure. As shown in Figure 10F, a tiny SiC sample with high-concentration divacancy centers is placed in the DAC chamber. The ZPLs of the PL5 and PL6 are also blueshifted with pressure. The ZFS D of the PL5, PL6, and PL7 linearly increases with pressure with coefficients of 25.1, 11.8, and 23.6 MHz/GPa, respectively (Figure 10G). The ZFS E of PL5 values keep stable at 17 MHz as the pressure increases to 8 GPa. The ODMR contrast decreases with the pressure. The pressure sensing sensitivity of the divacancy center ensemble at room temperature is $\mathit{\eta }\left(P\right)=\frac{1}{2\pi \frac{dD\left(P\right)}{dP}K\sqrt{T_2^{*}}}$, where K = (1 + 2(a₀ + a₁)/(a₀ - a₁)²)^−1/2, where a₀ = I × τ, a₁ = I × τ × (1 - c), and $T_2^{*}$ is the dephasing time [88, 89]. Here, I is the photon count, τ is the Rabi readout duration time, and c is the ODMR contrast. The calculated pressure sensing sensitivity is 0.28 $\text{MPa}/\sqrt{\text{Hz}}$ [89]. The coherence time T₂ of PL5 decreases quickly as the pressure increases from ambient pressure to approximately 5 GPa, and then, it slowly declines as the pressure increases up to 36.1 GPa [89]. The PL6 can also be applied to detect the pressure-induced magnetic phase transition of a Nd₂Fe₁₄B magnet [89]. The experiments pave the way for the applications of silicon-vacancy centers and divacancy centers in SiC in quantum sensing at high pressures and give quantum platforms for in situ magnetic detection at high pressures.

4 Conclusion and outlook

In this review, we focused on the fabrication of three spin defects and various quantum sensing of the spin defects in SiC. We first summarize four main methods used to generate the three spin defects: electron or neutron irradiation, ion implantation, focused ion implantation, and laser writing, discussing the specific advantages of the efficiency and position accuracy of these methods. On this basis, we discuss the progress in various quantum sensing fields, including magnetic field, temperature, electric field, strain, and high pressure. We introduce the basic working principles, sensing sensitivities, and spatial resolutions of these quantum sensing methods.

Because of the low counts of the single-spin defects, one of the challenges in spin defect fabrication is the on-demand generation with high spatial accuracy, which will be beneficial for coupling with the photonic structures. For quantum sensing, there are some methods to further increase the sensitivity. The first one is using photonic structures, such as nanopillars [25], solid immersion lenses [17], ring resonators, and photonic crystal cavities [29], to increase the counts of the spin defects. The second is using the isotope purification SiC sample or dynamical decoupling methods to increase the coherence time [31]. The third is optimizing the generation method to increase the concentration of spin defects. Combining nano SiC samples with an atomic force microscope (AFM), spin defects can be used to realize nanoscale quantum sensing imaging [53, 90]. Various SiC spin defect-based quantum sensing have high sensitivity and spatial resolution, opening up wide applications in physics, biology, and materials science. With the progress of this technology, quantum sensing will extend the range of applications and make them more feasible in practical environments.
