Adding a low frequency limit to fractional wave propagation models

  • 1Physics Department, University of Oslo, Oslo, Norway
  • 2Department of Informatics, University of Oslo, Oslo, Norway

Power-law attenuation in elastic wave propagation of both compressional and shear waves can be described with multiple relaxation processes. It may be less physical to describe it with fractional calculus medium models, but this approach is useful for simulation and for parameterization where the underlying relaxation structure is very complex. It is easy to enforce a low-frequency limit on a relaxation distribution and this gives frequency squared characteristics for low frequencies which seems to fit some media in practice. Here the goal is to change the low-frequency behavior of fractional models also. This is done by tempering the relaxation moduli of the fractional Kelvin-Voigt and diffusion models with an exponential function and the effect is that the low-frequency attenuation will increase with frequency squared and the square root of frequency respectively. The time-space wave equations for the tempered models have also been found, and for this purpose the concept of the fractional pseudo-differential operator borrowed from the field of Cole-Davidson dielectrics is useful. The tempering does not remove the singularity in the relaxation moduli of the models, but this has only a minor effect on the solutions.

1 Introduction

In many complex elastic media, attenuation of compressional and/or shear waves often follows a power-law. The amplitude as a function of distance, x, for a sinusoidal input of frequency ω, is therefore:

|ux|eαkωx,αkω=α0ωα+1,(1)

where αk(ω) is the attenuation, u is particle displacement, and 0 < α ≤ 1. For many complex media, the attenuation increases with a power close to unity, i.e. α is close to zero [1].

In recent years, it has been found that such power-law attenuation can be obtained as the solution of fractional partial differential equations. These fractional wave equations build on medium models where Newtonian viscosity has been substituted with a more general fractional derivative relationship between stress and strain, see, e.g., Mainardi [2] and Holm [3, Chap. 1].

Although these models may not describe the underlying physics of the wave medium interaction, they are very useful for simulation of wave propagation [4]. Fractional models are also parsimonous descriptions of complex media where the underlying physics is too complex to be described, e.g., in shear wave elastography [5]. Fractional models may also shed light on desirable properties of solutions based on criteria such as causality and passivity of the medium [6].

A more physical model is based on multiple relaxation processes. The elastic wave attenuation resulting from a relaxation process is:

αkω=Ωω2+Ω2ω2,(2)

where Ω = 1/τ represents a characteristic relaxation frequency and τ is the relaxation time. This expression increases with ω2 in the most important frequency region up to the relaxation frequency and levels off asymptotically to a constant value above the relaxation frequency. As an example, attenuation in seawater can be described by a sum of three such relaxation processes, due respectively, to structural relaxation of water molecules, and chemical relaxation of boric acid and magnesium sulfate [7].

For more complex media, such a finite sum is generalized to an integral over the whole frequency domain with a weighting function A(Ω):

αkω=ω20AΩω2+Ω2dΩ.(3)

It can be shown that in order to achieve the power-law attenuation of (Eq. 1) the following weighting function is required [8, 9], Holm [3, Chap. 7]:

AΩ=Ωα.(4)

This may readily be shown by solving (Eq. 3) as in [10] or by using Gradshteyn and Ryzhik [11, integral 3.241.2].

Often in practice, there are limitations on the relaxation processes in a medium. The most important one is a low-frequency limit. Working in the context of seismology, Futterman [12] analyzed attenuation which increases linearly with frequency. This is also called constant-Q attenuation. He found that in order to satisfy the Kramers–Kronig relations dictated by causality, there has to be a low-frequency cutoff below which attenuation increases faster with frequency. For instance in sediment acoustics, the attenuation follows a steeper power law below a few kHz, Williams et al. [13, Figure 6].

A multiple relaxation distribution may easily be limited so that it has no contributions below a certain frequency ΩL:

αkω=ω2ΩLAΩω2+Ω2dΩ.(5)

The effect of this limit is that attenuation follows frequency squared below ΩL. This low-frequency limit is not present in the standard fractional models, as they will describe power-law attenuation from 0 frequency to infinity.

Realistically, there is a high-frequency limit also, for instance due to the continuum model breaking down as wavelengths approach molecular dimensions making the distribution of mechanisms unpopulated above some upper frequency limit. The relaxation frequency of structural relaxation in water is near such a limit, see [14] and also the discussion of “fast sound” in water in Holm [Section 4.1.3]. Another high-frequency effect has to do with whether the model’s transient response reaches all over the medium instantaneously or not. If it does, the model is weakly causal, if the transient only reaches the medium for t > 0, it is strongly causal Holm [3, Section 4.2]. In this study, we will focus on this causality property and not possible high-frequency limits.

The purpose of this paper is first to give a brief review of present linear viscoleasticity models, both ordinary and in particular fractional ones, focusing on how they behave for low and high frequencies. The topics of weak and strong causality are of importance here. Second, the purpose is to contribute to better modeling of the band-limited response of Eq. 5 for fractional models. A low-frequency limit can be superimposed on the model by introducing tempering of the medium’s relaxation response, and the effect of that is analyzed.

2 Mechanical medium models

2.1 Standard models

The most general standard model in linear viscoelasticity is the Zener model. The relationship between stress, σ(t), and strain, ϵ(t), is Tschoegl [15, Section 3.4], Mainardi [2, Chap. 2]. Here the terminology follows Holm [3, Chap. 3]:

σt+τσσtt=Eeϵt+τϵϵtt.(6)

The two time constants given by the parameters of Figure 1C are:

τσ=ηEeτϵ=E+EeEeτσ,(7)

where Ee is the equilibrium value for the relaxation modulus, τσ is the relaxation time constant, and τϵ is the retardation time constant. The Zener model’s stress response to a unit-step excitation in strain, the relaxation modulus, G(t), is given in Table 1.

FIGURE 1
www.frontiersin.org

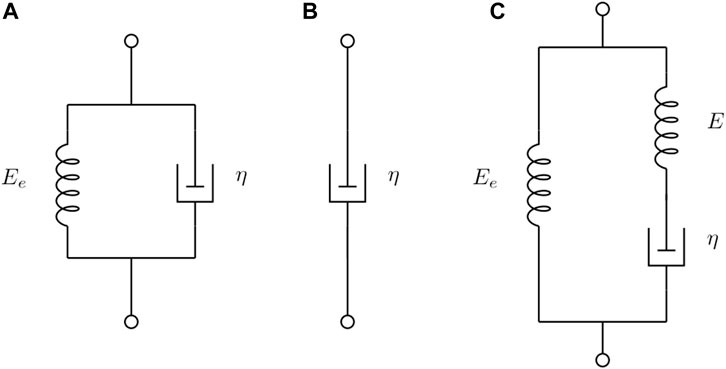

FIGURE 1. Spring-damper representations of constitutive models for viscoelastic media: (A) Kelvin-Voigt, (B) diffusion, and (C) the Zener model.

TABLE 1
www.frontiersin.org

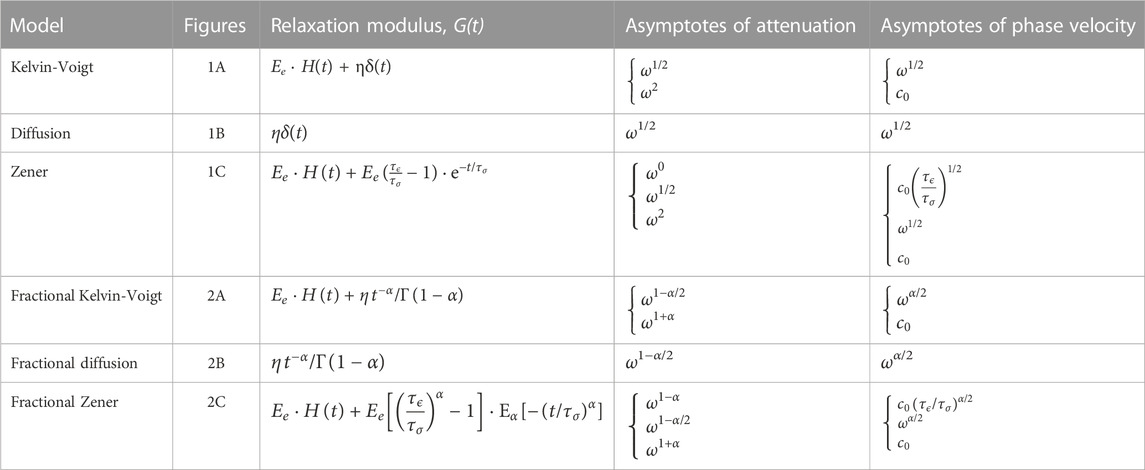

TABLE 1. Relaxation responses for t ≥ 0 with H(t) the Heaviside step function, asymptotes of attenuation and of phase velocity of standard and fractional linear viscoelasticity models. Attenuation and phase velocity asymptotes are shown with the low-frequency asymptote at the bottom and the high-frequency asymptote at the top. Results from Holm [3, Chs. 2, 3, and 5].

The wave equation for the Zener model can be found by combining the principles of linearized conservation of momentum and linearized conservation of mass with the linearized stress-strain relation for the medium. It can then be shown that the dispersion relation is, Holm [3, Section 3.5]:

k2ω=ρ0ω2iωGω.(8)

Here k is wavenumber, ρ0 is density, and G(ω) is a complex frequency-dependent relaxation modulus which is the Fourier transform of the step response of the model. For the Zener model, it is:

Gω=Eeiω1+iωτϵ1+iωτσ.(9)

This will lead to the following wave equation for the Zener model, as given in, e.g., [16]:

2u1c022ut2+τϵt2uτσc023ut3=0,(10)

corresponding to the following dispersion relation:

k2=ω2c021+iωτσ1+iωτϵ,c02=Eeρ0.(11)

It can be solved for attenuation, αk(ω) and phase velocity, cph(ω) by solving first for the complex wave number:

k=k+ik=ωcphωiαkω.(12)

The asymptotes of the attenuation and phase velocities are also given in Table 1. Note that this model has three distinct frequency regions, defined by the two time constants. The low frequency region is for ωτσ ≪ 1 and ωτϵ ≪ 1, the high-frequency region is when both ωτσ ≫ 1 and ωτϵ ≫ 1, and the mid-frequency region is between the two time constants.

It is common in realistic media that the two time constants are almost the same, τστϵ. In that case the medium frequency region vanishes and the attenuation follows the relaxation response of Eq. 2.

The Kelvin-Voigt model of Figure 1A can be found by setting τσ = 0 and this will result in a singularity in the relaxation modulus, as well as removal of the high-frequency region of the Zener model. Thus, there will only be two frequency regions for the asymptotes, [17]. Finally, in the diffusion model of Figure 1B, the spring is also removed, Ee = 0. The results for both these models are also given in Table 1.

2.1.1 Singularity in the relaxation modulus

Two of the standard models, the Kelvin-Voigt model and the diffusion model, both have an impulse in the relaxation modulus, and thus a singularity. The same is the case for their fractional versions. Whenever there is such a singularity in the relaxation modulus, it is evident from Table 1 that the asymptotic phase velocity will also approach infinity. This is the reason why in the linear viscoelasticity literature it is said that the Kelvin-Voigt model “cannot represent viscoelastic behavior adequately” and that it is “physically unrealistic” Tschoegl [15, Sections 3.3, 3.4]. This may be too harsh a judgement as the Kelvin-Voigt model, which is also called the viscous model, is important in many applications and is also the basis for the Navier-Stokes description of a viscous medium. The Zener model’s relaxation modulus is well-behaved and the phase velocity is limited in value.

The relaxation modulus for the Kelvin-Voigt model is:

Gω=Eeiω+ηωη(13)

The limit indicates that this is indistinguishable from that of a diffusion model for high frequencies. This can also be seen from the asymptotic values for high frequencies where the Kelvin-Voigt and the diffusion models have the same values in Table 1. Therefore, an analysis of the diffusion model will give insight into the properties of the viscous Kelvin-Voigt model as well.

The singularity of the diffusion model which is the same as the heat equation, manifests itself in the solution kernel, or impulse response, also called Green’s function, which is [18]:

ϕx,t=Ht2πκtexpx24κt,κ=ηρ0,(14)

where H(t) is the Heaviside step function. The Gaussian term is non-zero for every t > 0, i.e., the pulse has spread instantly over the entire medium, even to infinite values of x. This is the infinite-speed paradox of the diffusion equation and there are several ways to amend it [19], which are beyond the scope of this article.

An excellent historical review of the properties is found in [18] who quotes the second edition of Maxwell’s book from 1888, Maxwell [20, pp. 238–240]:

“Hence, in a strict sense, the influence of a heated part of the body extends to the most distant part of the body in an incalculably short time, so that it is impossible to assign to the propagation of heat a definite velocity initially and these properties also apply to the Kelvin-Voigt or viscous wave equation as can be seen from the singularity.”

Do these causality properties matter much in practical modeling? Not really, as stated by Maxwell. He is further quoted in [18] as saying:

“But while this influence can be expressed mathematically from the first instant, its numerical value is excessively small… The sensible propagation of heat, so far from being instantaneous, is excessively slow process and the time required to produce… change of temperature… is proportional to the ‘square’ of the ‘linear dimension’.”

The last sentence refers to the maximum in time of Eq. 14 which occurs at tm=x2/(2κ). Maxwell’s statement is another way of saying that the infinite velocity of the diffusion and Kelvin-Voigt (viscous) wave equation is attenuated by the infinite attenuation to be so small that it matters little in practice. There is however a simple way to avoid it and that is by adding one more spring to the mechanical model of the medium as is done in the Zener model and this is why it is called the standard linear solid model.

2.2 Fractional medium models

In the fractional Zener model, shown in Figure 2C, the medium model of Eq. 10 will be modified to include fractional derivatives, Mainardi [2, Chap. 3]:

σt+τσαασttα=Eeϵt+τϵααϵttα,0<α1.(15)

As in Mainardi [21, Section 3.1], the fractional derivatives here and in the rest of the paper are assumed to be of the Caputo type. The equation reduces to the standard Zener model for α = 1. The fractional Kelvin-Voigt and fractional diffusion models are found in the same way as in the non-fractional case. The impulses in their responses will now be changed into power-law functions which will still be singular.

FIGURE 2
www.frontiersin.org

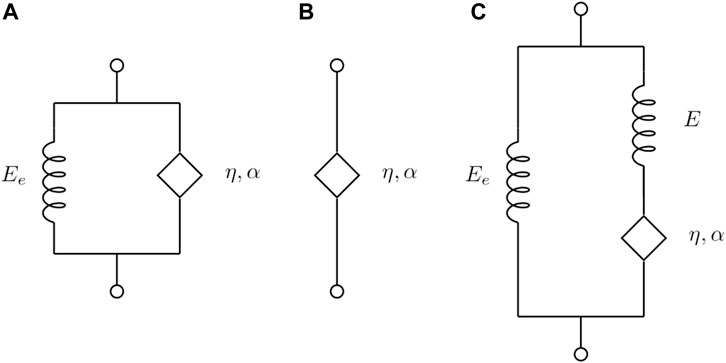

FIGURE 2. (A) Fractional Kelvin-Voigt, (B) fractional diffusion, and (C) Fractional Zener models for an order 0 < α ≤ 1.

The relaxation response of the fractional Zener model will change from dependence on an exponential, et/τσ to its generalization, the Mittag-Leffler function, Eα[(t/τσ)α]. This function is defined as:

Eαt=n=0tnΓαn+1,0<α1,(16)

and it is seen that it becomes the exponential function for α = 1. The Mittag-Leffler function has power-law characteristics for large arguments, and is finite like the exponential function for small arguments.

The wave equations and asymptotes for attenuation and phase velocity for the fractional Kelvin-Voigt and fractional diffusion models shown in Figures 2A, B, will be special cases of the results to be derived in the next section.

3 Wave equation for a tempered medium model

We modify the power-law relaxation response of the fractional Kelvin-Voigt model by tempering. Tempering is a fairly common way of limiting the extent of a power-law kernel and is done by tapering it off with an exponential with time-constant τ [22, 23],:

Gt=EeHt+ηtαΓ1αet/τ.(17)

This will limit the tail of the power-law function and thus mainly affect what happens for large time, i.e., it changes properties for low frequencies as will be evident. Other smoothly falling tempering functions could also be considered, for instance the 3-parameter Mittag-Leffler function as in [24], and which includes the exponential as a special case. Due to the shift property of the Fourier transform, an exponential is more tractable and is therefore used here, see Eqs. 22, 23.

Taking the Fourier transform gives the corresponding complex modulus:

Gω=Eeiω+ητ1α1+iωτ1α,(18)

where the second term happens to be equivalent to the complex modulus of a Cole-Davidson dielectric model of order (1 − α) [25] as pointed out in [[3], Section 8.2]. Equation 18 will be the basis for the derivation of dispersion relations and wave equations.

3.1 Tempered fractional Kelvin-Voigt model

We consider the tempered fractional Kelvin-Voigt medium and by using its Fourier transform from Eq. 18 and substituting it in Eq. 8, we obtain the dispersion relation as

ρ0ω2Ee=k2+ηEeτ1αiω1+iωτ1αk2.(19)

With c02=Ee/ρ0, the wave number can be solved for to give:

k=ωc01+ηEeτ1αiω1+iωτα11/2.(20)

The asymptotic values for attenuation and phase velocity can be found using the methods of [16, 17], and Holm [3, Chap. 5]. For the different frequency regimes, the wave number can be approximated as:

kωc0ηEeτ1αiωiωτα11/2=ωc0ηEe1/2iωα/2,ωτ1,ωη/Ee1ωc01+ηEeτ1αiωiωτα11/2ωc01η2Eeiωα,ωτ1,ωη/Ee1ωc01+ηEeτ1αiω1/2ωc0112ηEeτ1αiω,ωτ1,ωη/Ee1.(21)

The asymptote of the negative imaginary part of the wavenumber, i.e., the attenuation of Eq. 12, follows the asymptotes of the fractional Kelvin-Voigt model for high frequencies and for the medium range (upper and middle lines in Eq. 21 respectively),

In order for the tempering to affect the lowest frequencies, the tempering time constant has to be larger than that of the spring-damper system, i.e., τη/E. This is assumed in the approximations of Eq. 21. From the expression in the lower line of Eq. 21, it can be seen that the imaginary part of k, i.e., the attenuation, will be proportional to ω2. This latter result is exactly the low frequency response of the band-limited relaxation integral of Eq. 5 with ΩL = 1/τ, so our goal has been achieved. Likewise, from the real part of the same equation, it can be seen that for low frequencies, the phase velocity remains constant. The results are summarized in Table 2.

TABLE 2
www.frontiersin.org

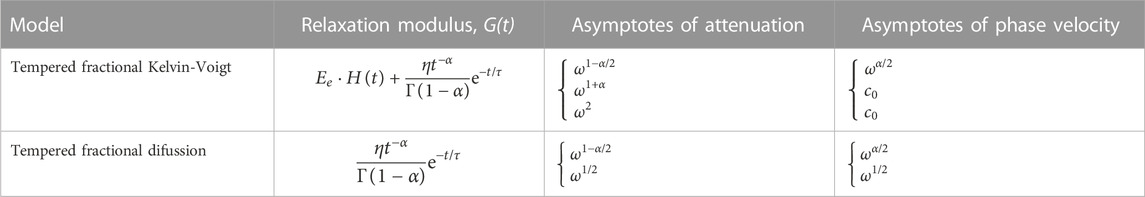

TABLE 2. Relaxation responses for t ≥ 0, and asymptotes of attenuation and of phase velocity for tempered fractional linear viscoelasticity models. Attenuation and phase velocity asymptotes are shown with the low-frequency asymptote at the bottom and the high-frequency asymptote on the top.

We now want to find the corresponding wave equation. The temporal operator corresponding to the factor (1 + iωτ)1−α is not trivial to find, but by employing results in the dielectrics literature it can be done. The paper [26] provides a step by step derivation of the following time–frequency equivalence:

τα11+iωτ1αDt+1/τ1α.(22)

Here Dt1α is a standard non-integer or fractional derivative operator of order 1 − α defined by a convolution integral and Dt+1/τ1α refers to the shifted time-fractional derivative or the fractional pseudo-differential operator. The fractional pseudo-differential operator is defined as a weighted fractional derivative operator with a kernel weighted by an exponential [27, 28]:

Dt+1/τ1α=et/τDt1αet/τ.(23)

We can now derive the wave equation from Eq. 19:

2u1c022ut2+ηEeDt+1/τα1t2u=0.(24)

As a test of this result the already existing power-law wave equation corresponding to the fractional Kelvin-Voigt model can be obtained as a limiting case. The fractional pseudo-differential operator can be expanded using an infinite binomial series of fractional derivatives, Garrappa et al. [28, Eq. B.18]:

Dt+1/τ1α=n=01αnτnDt1αn.(25)

When t/τ → 0, i.e. n = 0, this infinite series simplifies to

limt/τ0Dt+1/τ1α=Dt1α.(26)

Hence, in the limit we observe that the wave equation (Eq. 24) simplifies to the following:

2u1c022ut2+ηEeαtα2u=0.(27)

This is indeed the wave equation one would have found if one had started with the relaxation modulus of the fractional Kelvin-Voigt model as shown in, e.g., [17, 29].

3.2 Tempered fractional diffusion-wave equation

Substituting the complex modulus of Eq. 18 with Ee = 0 into Eq. 8, we obtain:

k2ρ0ητα11+iωτ1αiω=0.(28)

Dispersion analysis similar to that of Eq. 21 will give attenuation which increases with ω1/2 for low frequencies and the same as for fractional diffusion for higher frequencies. Likewise the phase velocity will also vary with ω1/2 for very low frequencies.

Using the same procedure as for the tempered fractional Kelvin-Voigt medium, we find the tempered fractional diffusion-wave equation:

2uρ0ηDt+1/τ1αut=0.(29)

This is equivalent to the tempered fractional diffusion wave equation of, e.g., [30] (Section 2.2), that can describe a transition from an anomalous sub-diffusion regime to the normal diffusion regime. The relaxation response of the tempered fractional diffusion wave equation has been used to model the responses of elastomers, Polydimethylsiloxane (PDMS), and the rheological behavior of alginate-based gels [31].

Using the same limiting operation for τ as in the previous section, we observe that the wave equation (Eq. 29) simplifies to the following:

2uρ0η2αut2α=0.(30)

This is the fractional diffusion-wave equation.

The properties of the tempered Kelvin-Voigt and diffusion models are summarized in Table 2.

4 Discussion

There exist numerical schemes for fractional derivative equations in general [32] as well as for the fractional pseudo-differential operator of Eq. 23, e.g., the diffusive representation of [33].

The fractional diffusion-wave equation (Eq. 30), has been analyzed extensively. The Green’s function, the generalization of Eq. 14, is given in [[34], Eq. 9]. They also comment that their time-space solution “can be used to give a new proof of the known fact that …a response of the time-fractional diffusion–wave equation …to a localized disturbance spreads infinitely fast.” They also shows that the maximum in time occurs at a time proportional to x2/(2−α), Luchko et al. [34, Eq. 16].

Relaxation responses of the form of Eq. 17 have some similarity with the compressional and shear wave models of the Viscous Grain-Shearing model for sediment acoustics. The derivation is however very different as [35] starts with time-varying models to get the relevant relaxation responses. There are also changes in constants and terminology, as well as an additional independent power-law term in Eq. 17 in that work. As fractional calculus is not used in that work, the wave equations formulated as in Eqs. 24, 29, are not found there.

In the case of a fit to a lower frequency limit of, for example, 2 kHz as in the sediment acoustics example of Williams et al. [13, Figure 6] mentioned earlier, the time constant of the tempering would be in the order of τ = 1/(2π ⋅ 2000) ≈ 0.08 ms. This value is comparable to the value of 0.12 ms used for what is called the viscoelastic time constant in Buckingham [35, Table 1].

The tempered models considered here both have relaxation responses with an initial singularity. Although we have argued that the resulting initial transient that travels with infinite velocity is negligible, it may be desirable with a model that avoids it completely. This can be achieved by tempering the non-singular relaxation response of the fractional Zener model, i.e., by multiplying the Mittag-Leffler function in the lower left corner of Table 1 with an exponential. Its Laplace transform is given in [24] and it is possible to find the corresponding wave equation. It will have a total of five terms including three loss terms, one more loss term than that of the fractional Zener model. The fractional Maxwell model also avoids the singularity at t = 0. Its relaxation response is similar to that of the fractional Zener model, but without the constant term. As the Maxwell model is primarily relevant for fluid media, it will not be considered here.

An alternative way for tempering the fractional Zener model is to start with the four-term wave equation for the fractional Zener model. It is similar to that for the fractional Kelvin-Voigt model in Eq. 27 but with the addition of a loss term with temporal derivative order α + 2 [16]. One may substitute all the fractional derivatives with fractional pseudo-differential operators, similar to when moving from Eq. 27 to Eq. 24. The relaxation response which corresponds to this new wave equation can then be found, but G(t) only can be expressed as an infinite series as in [24]. Such a tempered fractional Zener wave equation is also relevant for modeling acoustic wave propagation in marine sediments. In [26], it was shown that the shear wave mode and the fast compressional wave mode of the Biot poroelastic model can be described by tempered half-order fractional Zener models.

In our view, the added complexity of either of these approaches for finding a tempered non-singular kernel based on the fractional Zener model outweighs the advantages, so further results are therefore not given here.

5 Conclusion

The goal of this paper was to modify the fractional Kelvin-Voigt and fractional diffusion medium models in order make the variation with frequency at low frequencies more steep. This was patterned after the ω2 behavior of a truncated sum of relaxation processes below the lower frequency limit. We found that tempering of the relaxation modulus with an exponential would lead to such behavior for the fractional Kelvin-Voigt model. In the case of the fractional diffusion model, it led to ω behavior below the low frequency limit. Both of these models are used for modeling compressional and shear waves in sediment acoustics, but in these cases they are formulated without fractional derivatives as done in the current work.

The wave equations for the tempered models were found by employing the fractional pseudo-differential operator, as is also done in analysis of the Cole-Davidson model for dielectrics. The tempered power-law wave equations are equivalent to equations discussed in the fractional calculus literature and this makes it possible to draw on already existing literature for analysis of the properties of the solutions, like the effect of the singularity in the relaxation modulus of these models.
