A theoretical model of high Curie temperature for N-type ferromagnetic diluted semiconductors based on iron-doped indium antimonide

In this paper, without using an external magnetic field, ferromagnetism on diluted InFeSb magnetic semiconductors is studied up to 317.65 K. The spin-wave model that the Heisenberg Hamiltonian translates into in the system has been developed using the green function formalism and the Holstein–Primakoff transformation estimate. The numbers of magnons, dispersion, Curie temperature, susceptibility, and specific heat capacity of the system have all been determined using the established model. The findings demonstrate that the ferromagnetic in ${In}_{0.893}{Fe}_{0.107}Sb$ has a Curie temperature that is significantly higher than those found in prior investigations (317.65 K).

1 Introduction

Before 1960, magnetic and semiconductor devices had different purposes: magnetic devices were used to store data, whereas semiconductor devices were used to transmit and analyze data [1–2]. The device made of these materials replaced two different devices made of magnetic and nonmagnetic semiconductors simultaneously around the time that EuO ferromagnetic semiconductors were discovered in the 1960s; however, since the device only works at low temperatures, we conducted the study to investigate for a different result [3–4]. Since spin-based electronics with diluted magnetic semiconductors have recently been developed, research to overcome this constraint has doped Mn in II-IV semiconductors [4–6]. Because of their potential as a novel material that will open the door to new applications, diluted magnetic semiconductors are of great interest to the industry [7]. Thus, diluted magnetic semiconductors are expected to play an important role in next-generation spin-based electronics, or spintronics technology [8–11]. This type of technology is required if the DMS Curie temperature (T_C) is higher than the room temperature for the application [9]. As is observed, diluted magnetic semiconductor devices not only fill the gap between the magnet and the semiconductor devices but also use it to store, process, and transmit data simultaneously, saving time, space, and money [12–18].

Manganese doped on II–IV, one of the 3D transition elements according to the study, has been the subject of numerous studies. The Curie temperature is promising compared to an intrinsically magnetic semiconductor, but because it is very low compared to room temperature [4, 18], it has attracted the attention of other researchers. In contrast, manganese doped in III–V has been able to achieve a higher Curie temperature than manganese doped in II–IV [10, 20]. However, its Curie temperature is less than the room temperature.

Some researchers have studied manganese-doped III-V narrow-band-gap semiconductors, with Curie temperatures higher than room temperature in some studies and lower Curie temperatures in others. Previous research has shown that a ferromagnetic Curie temperature is less than room temperature in the absence of an external magnetic field, as shown as follows: In [21–24], the Curie temperatures of (In, Mn) Sb are 2 K, 4 K, 20 K, and 130 K; in addition, in [25–29], the Curie temperatures of (In, Mn) As are 7.5 K, 35 K, 82 K, and 175 K. Previous research has shown that when an external magnetic field is used, the Curie temperature of the ferromagnetic is higher than the room temperature. In [8], [9], [12], [15],[22], [25], and [31–33], by setting a magnetic field from 1.6T to 15T, the (In, Mn) Sb curie temperatures were found to range from 300 K to 600 K. In addition, in [33–36], applying a magnetic field from 1.6T to 15T, the (In, Mn) As Curie temperatures from 293 K to 400 K have been found. However, Mn-doped III-V semiconductors have been found to exhibit ferromagnetism only from the origin of p-type carriers, so n-type diluted semiconductors may not be realized on this system. Most semiconductor devices, such as p-n junction diodes, spin light-emitting diodes, and field-effect transistors (semiconductor lasers), require a pair of n-type and p-type semiconductor materials to work. Due to this, we initiated the study of Fe doped on InSb with electrons exhibiting n-type electron-induced ferromagnetism, that is, filling the missing counterpart of p-type diluted magnetic semiconductors. Fe-doped InSb ferromagnetism originates from p-type carriers and shows electron-induced ferromagnetism, which is an n-type diluted semiconductor, making it easy to be used in real spin devices [37–40]. The n-type InSb (In, Fe) Sb ferromagnetic diluted magnetic semiconductor shows significance for next-generation nanoelectronic device [41] applications such as spintronics [42], biosensors to detect bacteria [43], Hall sensors [44], photonics [45], optoelectronics [46], infrared emitters [46,47], gas sensors [48], magneto resistors [49-50], and speed-sensitive sensors [51]. To use and apply the devices mentioned previously, it is necessary to understand the ferromagnetism properties of Fe-doped InSb.

Fe doped on InSb obtained an n-type diluted magnetic semiconductor; its curie temperature is higher than or less than the room temperature, with or without an applied external magnetic field; in [13], [19], and [37–52], the Curie temperatures of InFeSb are 131 K–385 K, when x = 5%–16% and 20%–35%.

When Fe³⁺ is replaced by a III-V semiconductor, the total spin quantum of Fe³⁺ (S = 5/2) [38], it is observed that the atomic mass of the pre-unit volume reaches from 6 $\times {10}^{18}{cm}^{-3}$ to 2.6 × 1 $\times {10}^{21}{cm}^{-3}$ [19, 38, 39] and that the number of atoms in the pre-unit volume reaches ${10}^{22}{cm}^{-3}$ to 2.2 $\times {10}^{22}{cm}^{-3}$ [11].

The Fe–Fe magnetic coupling impurity interaction value of an n-type semiconductor depends on the distance. In [53], when manganese is doped on CdTe, the maximum ferromagnetism value is 9.77 meV with a distance of 6.3 ± 0.3 and 0.810 meV with a distance 1.9 ± 1.1 using the RKKY model. The Fe–Co–Fe coupling interaction value, as cited in [54], is 10 meV using the RKKY model.

According to [55], there are three distinct energy ranges for spin waves. The lowest range, known as low-energy spin waves, is from 9 to 70 meV; the second ranges from 80 to 140 meV; and the third ranges from 180 meV to 230 meV. We can set quantitative limits on the effective exchange couplings in the Heisenberg Hamiltonian, thanks to the high-quality spin-wave data. As a result, our system developed on low-energy spin waves, and for our calculation, we took the value that is closest to the smallest range (9 meV), which is 10 meV.

The exceptional fact observed in this study is that we have found the Curie temperature of the ferromagnetism of InFeSb n-type diluted magnetic semiconductors to be 317.65 K without applying an external magnetic field. We used the green function formalism and the Holstein–Primakoff transformation estimate to develop the spin-wave model translated by the Heisenberg Hamiltonian into our system. According to the developed model, the number of magnons, dispersion, Curie temperature, specific heat capacity, and susceptibility were calculated. To obtain this result, we used the results of the Fe ion concentration from 5% to 10.7% from [19], the number of atoms per unit volume 1 $\times {10}^{21}{cm}^{-3}$ from [11, 19, 38, 39], and the lattice constant of a = 6.48 $A^0$ from [31], which had also been used for the theoretical analysis.

2 Hamiltonian model of the system and Green’s function formalism

In the presence of an applied magnetic field $B_O$ oriented in the z-direction, the Hamiltonian of the Heisenberg ferromagnetic model is written as follows [56]:

$H=-{\displaystyle \sum }_{〈i,j〉}J\left(R_i-R_j\right){\widehat{S}}_i.{\widehat{S}}_j-g{\mu }_B{B}_O{\displaystyle \sum }_i{S}_{iz}.(1)$

Without a magnetic field applied to the system, H becomes as follows [58]:

$H=-{\displaystyle \sum }_{〈i,j〉}J\left(R_i-R_j\right){\widehat{S}}_i.{\widehat{S}}_j,(2)$

where the symbol $〈i,j〉$ implies a sum over all distinct pairs of nearest neighbors, and $S_i$ is the total angular momentum of the $i^{th}$ ion and is parallel to the magnetic moment of the ion rather than opposite to the moment. If we write ${\widehat{S}}_i.{\widehat{S}}_j$ in terms of x, y, and z components of the spin operators, the Hamiltonian becomes

$\mathrm{H}=-{\displaystyle \sum }_{〈i,j〉}{J}_{ij}\left({\widehat{S}}_{ix}{\widehat{S}}_{jx}+{\widehat{S}}_{iy}{\widehat{S}}_{jy}+{\widehat{S}}_{iz}{\widehat{S}}_{jz}\right)=-{\displaystyle \sum }_{〈i.j〉}{J}_{ij}(\left(\frac{1}{2}{{\widehat{S}}_i}^{+}{{\widehat{S}}_j}^{-}+{{\widehat{S}}_i}^{-}{{\widehat{S}}_j}^{+})+{\widehat{S}}_{iz}{\widehat{S}}_{jz}\right),(3)$

where ${\widehat{S}}_{ix}{\widehat{S}}_{jx}+{\widehat{S}}_{iy}{\widehat{S}}_{jy}=\frac{1}{2}{{\widehat{S}}_i}^{+}{{\widehat{S}}_j}^{-}+\frac{1}{2}{{\widehat{S}}_i}^{-}{{\widehat{S}}_j}^{+}.$

Notice that ${a_j}^{+}$, which creates one spin deviation on site j, acts like lowering the operator ${S_j}^{-},$ while $a_j$ acts, by destroying one spin deviation on j, like ${S_j}^{+}$.

Using the Holstein–Primakoff transformation to boson creation and annihilation operators ${a_j}^{+}$ and $a_j$, and substituting in Eq. 3, it can be written as follows:

$H=-S{\displaystyle \sum }_{〈i,j〉}{J}_{ij}\left\{\sqrt{1-\frac{{\widehat{n}}_i}{2S}}{a}_i{a_j}^{+}\sqrt{1-\frac{{\widehat{n}}_j}{2S}}+{a_i}^{+}\sqrt{1-\frac{{\widehat{n}}_i}{2S}}\sqrt{1-\frac{{\widehat{n}}_j}{2S}}{a}_j+S\left(1-\frac{{\widehat{n}}_i}{S}\right)\left(1-\frac{{\widehat{n}}_j}{S}\right)\right\}.(4)$

This H can be expressed as follows:

$H=E_O+H_O+H_1.(5)$

Here, $E_O$ is the ground state energy, $H_O$ is the bilinear in spin-wave variables and magnon without an interaction, and $H_1$ is the part of the Hamiltonian that is quadratic in the spin deviation creation and annihilation operators. However, it is developed in our system by the bilinear in spin-wave variables and magnon without an interaction.

$H_O$ is the bilinear in spin wave variable and magnon without an interaction, then $H_0$ can be written as

$H_0=-zS{\displaystyle \sum }_{jk}{J}_{ij}\left\{\left\{{\gamma }_k{b}_k{b_k}^{+}+{\gamma }_{-k}{b_k}^{+}{b}_k-2{b_k}^{+}{b}_k\right\}\right\}.(6)$

We introduce $\delta ,$ one of the nearest neighbor vectors connecting neighboring sites, and write $x_l=x_j+\delta$ in the summation; then, taking the term ${\displaystyle \sum }_j{J}_{ij}$ and considering the contact type of the interaction, we get the following [4]:

${\displaystyle \sum }_j{J}_{ij}={\displaystyle \sum }_{j}J\left({\overrightarrow{R}}_{ij}\right)=J{\displaystyle \sum }_j\delta \left(R_i{-R}_j\right).(7)$

Taking the average over j, we obtain

$<{\displaystyle \sum }_j\delta \left(R_i-R_j\right)>=x.(8)$

Substituting Eqs 7, Eqs 8 into Eq. 6, then we obtain Eq. 9 as follows:

$H_0=xzSJ{\displaystyle \sum }_{jk}\left\{{-\gamma }_k{b}_k{b_k}^{+}-{\gamma }_{-k}{b_k}^{+}{b}_k+2{b_k}^{+}{b}_k\right\}.(9)$

If the center of symmetry $\gamma -k={\gamma }_k.$ further, since ${\displaystyle \sum }_k{e}^{ik.R}=0$ unless R $=0$, it is apparent that ${\displaystyle \sum }_k{\gamma }_k=0$, for which

$H_0={\displaystyle \sum }_K{\omega }_k{b_k}^{+}{b}_k={\displaystyle \sum }_{K}2zxJS\left(1-{\gamma }_k\right){b_k}^{+}{b}_k.(10)$

For a long wavelength $\left[k.\delta \right]\ll 1$, in this region, we can expand $e^{ik.\delta }$ in powers of k. Therefore,

${\gamma }_k=z^{-1}{\displaystyle \sum }_{\delta }\left(1+ik.\delta -{\frac{\left(k.\delta \right)}{2}}^2+\dots \right).(11)$

Using ${\displaystyle \sum }_{\delta }1=z$ and ${\displaystyle \sum }_{\delta }\delta =0,$ the aforementioned expansion gives the following formula:

$\left(1-{\gamma }_k\right)\backsimeq \frac{1}{2z}{\displaystyle \sum }_{\delta }{\left(k.\delta \right)}^2.(12)$

For a simple cubic lattice $\left|\delta \right|=a$ and ${\displaystyle \sum }_{\delta }{\left(k.\delta \right)}^2=2k^2{a}^2$, Formula 10 is written as follows:

$H_0={\displaystyle \sum }_K{\omega }_k{b_k}^{+}{b}_k={\displaystyle \sum }_{K}2JxS{a}^2{k}^2{b_k}^{+}{b}_k.(13)$

Taking average over the impurity concentration, $H_0$ becomes $〈H_{magnon}〉$:

$〈H_{magnon}〉=〈{\displaystyle \sum }_{k}2JxS{a}^2{k}^2{b_k}^{+}{b}_k〉={\displaystyle \sum }_k{\widehat{n}}_k{\omega }_k,(14)$

where $n_k={b_k}^{+}{b}_k$ in the number of magnons in the state k,

${\omega }_k=2JxS{a}^2{k}^2.(15)$

Eq. 15 is the ferromagnetism magnon dispersion relation for the magnetic impurity concentration x.

For our present application, it is convenient to separate $\mathrm{G}\left(\mathrm{t},{\mathrm{t}}^{\prime }\right)$ into two parts that propagate a state forward or backward in time. Hence, in general, we define the retarded Green function and advanced Green’s function [59]:

${\mathrm{G}}_{\mathrm{r}}\left(\mathrm{t},{\mathrm{t}}^{\prime }\right)=\ll \mathrm{B}\left(\mathrm{t}\right),\mathrm{C}\left({\mathrm{t}}^{\prime }\right){\gg }_{\mathrm{r}}=-i\mathrm{\theta }\left(\mathrm{t}-{\mathrm{t}}^{\prime }\right)<\left[B\left(\mathrm{t}\right),\mathrm{C}\left({\mathrm{t}}^{\prime }\right)\right]>.(16)$

We consider the operators B = $b_k$ and C = ${b_k}^{+}$, then Formula 16 is written as follows:

${\mathrm{G}}_{\mathrm{k}{\mathrm{k}}^{\prime }}\left(\mathrm{t},{\mathrm{t}}^{\prime }\right)=\ll {\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right),{{\mathrm{b}}_{\mathrm{k}}}^{+}\left({\mathrm{t}}^{\prime }\right)\gg =-i\mathrm{\theta }\left(\mathrm{t}-{\mathrm{t}}^{\prime }\right)<\left[{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right),{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)\right]>.(17)$

Assuming it is ${\left[\mathrm{b}\right.}_{\mathrm{k}}\left(\mathrm{t}\right),{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)]={\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right){{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)-\mathrm{\zeta }{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}\left({\mathrm{t}}^{\prime }\right)}^{+}{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right)={\mathrm{b}}_{\mathrm{k}}{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}-\mathrm{\zeta }{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}{\mathrm{b}}_{\mathrm{k}}$, $\zeta =\pm 1.$

Simplifying Eq. 17, we obtain the following:

$G_{k{k}^{\prime }}\left(t,t^{\prime }\right)=-i\theta \left(t,t^{\prime }\right)\left[<{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right){{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)>-\mathrm{\zeta }<{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}\left({\mathrm{t}}^{\prime }\right)}^{+}{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right)>\right].(18)$

After different Formula 18 with respect to t, multiplying both sides of the result by i and substituting $\left.\begin{array}{c}{\widehat{\mathrm{H}}}_{magnon}={\displaystyle \sum }_{\mathrm{k}}{\mathrm{\omega }}_{\mathrm{k}}{{\mathrm{b}}_{\mathrm{k}}\left({\mathrm{t}}^{\prime }\right)}^{+}{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right)\\ i\frac{d}{dt}{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right)=\left[{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right),{\widehat{\mathrm{H}}}_{magnon}\right]\end{array}\right\}$, we obtain the following formula:

$\frac{d}{dt}{G}_{k{k}^{\prime }}\left(t,t^{\prime }\right)=\delta \left(t-t^{\prime }\right)<\left[{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right),{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)\right]>-i\theta \left(t-t^{\prime }\right)\left\{<\left[{\mathrm{\omega }}_{\mathrm{k}}{\mathrm{b}}_{\mathrm{k}}\left(\mathrm{t}\right),{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}\left({\mathrm{t}}^{\prime }\right)\right]>\right\}.(19)$

Simplifying Eq. 18 using the Fourier transformation and considering k = k’, then Eq. 19 can be obtained as follows:

${\mathrm{G}}_{\mathrm{k}{\mathrm{k}}^{\prime }}\left(\mathrm{\omega }\right)=\frac{1}{2\mathrm{\pi }\left(\mathrm{\omega }-{\mathrm{\omega }}_{\mathrm{k}}\right)}.(20)$

When $\mathrm{\omega }-{\mathrm{\omega }}_{\mathrm{k}}$ = 0, we obtain the dispersion relation.

The correlation function $〈{{\mathrm{b}}_{{\mathrm{k}}^{\prime }}}^{+}{\mathrm{b}}_{\mathrm{k}}〉$ is related to the analytic property of Green’s function, written as follows:

$\left.〈{{\mathrm{b}}_{\mathrm{k}}}^{+}{\mathrm{b}}_{\mathrm{k}}〉=i\underset{\delta \to 0}{\mathit{lim}}i{\int }_{-\infty }^{\infty }\frac{{{〈〈b}_k,{b_k}^{+}〉〉}_{\omega +i\delta }-{{〈〈b}_k,{b_k}^{+}〉〉}_{\omega -i\delta }}{e^{\sigma \omega }-1}{e}^{\left(-i\omega \left\{t-t^{\prime }\right\}\right)}d\omega \right\}.(21)$

Let ω = ${\mathrm{\omega }}_{\mathrm{k}}$ be considered the dispersion relation, then simplifying Eq. 21, we obtain the following:

${〈{\mathrm{b}}_{\mathrm{k}}}^{+}{\mathrm{b}}_{\mathrm{k}}〉=\underset{\mathrm{\delta }\to 0}{\lim }\mathrm{i}\int \frac{\mathrm{\delta }\left({\mathrm{\omega }}_{\mathrm{k}}-{\mathrm{\omega }}_{\mathrm{k}}\right)}{{\mathrm{e}}^{\mathrm{\sigma }{\mathrm{\omega }}_{\mathrm{k}}}-1}d\omega =\frac{1}{{\mathrm{e}}^{\mathrm{\sigma }{\mathrm{\omega }}_{\mathrm{k}}}-1}.(22)$

Substituting Eq. 13 and $\sigma =\frac{1}{K_{B}T}$ in Eq. 22, we obtain the following:

${〈{\widehat{\mathrm{n}}}_{\mathrm{k}}〉=〈{\mathrm{b}}_{\mathrm{k}}}^{+}{\mathrm{b}}_{\mathrm{k}}〉=\frac{1}{{\mathrm{e}}^{\frac{2JxS{a}^2{k}^2}{{\mathrm{K}}_{\mathrm{B}}\mathrm{T}}}-1}.(23)$

The total number of magnons in all modes excited at temperature T can be calculated as follows:

${\displaystyle \sum }_k{\overline{n}}_k=\int D\left(\omega \right)n\left(\omega \right)d\omega .(24)$

$D\left(\omega \right)$ with frequency $d\omega$ at $\omega$ is calculated as follows:

$D\left(\omega \right)={\left(\frac{1}{2\pi }\right)}^3\left(4\pi k^2\right)\left(\frac{dk}{d\omega }\right).(25)$

Substituting Eqs 23, Eqs 25 into Eq. 24, we obtain the following:

${\displaystyle \sum }_k{\overline{n}}_k={\int }_0^{\infty }\frac{1}{{\mathrm{e}}^{\frac{2JxS{a}^2{k}^2}{{\mathrm{K}}_{\mathrm{B}}\mathrm{T}}}-1}{\left(\frac{1}{2\pi }\right)}^3\left(4\pi k^2\right)\left(\frac{dk}{d\omega }\right)d\omega =0.0587{\left(\frac{K_{B}T}{2JxS{a}^2}\right)}^{\frac{3}{2}}.(26)$

Eq. 26 gives us the number of reversed spins given by the ensemble average of the spin-wave occupancy numbers.

Thermal magnetization as a function of T is referred to as spontaneous magnetization; it is expressed as [57, 60]

${\mathrm{M}}_{\mathrm{S}}\left(\mathrm{T}\right)=\frac{g{\mu }_B{S}_Z}{V}=\frac{g{\mu }_B}{V}\left(NS-{\displaystyle \sum }_k{〈b_k}^{+}{b}_k〉\right)=M_s\left(0\right)-\frac{g{\mu }_B}{V}{\displaystyle \sum }_k〈{\widehat{n}}_k〉,(27)$

$M_S\left(T\right)=M_S\left(0\right)\left(1-\frac{1}{nSV}0.0587{\left(\frac{K_{B}T}{2JxS{a}^2}\right)}^{\frac{3}{2}}\right),(28)$

$\frac{M_S\left(T\right)}{M_S\left(0\right)}=1-\frac{1}{nSV}0.0587{\left(\frac{K_{B}T}{2JxS{a}^2}\right)}^{\frac{3}{2}}.(29)$

For a primitive unit cell, the aforementioned equation is expressed as follows:

$\frac{M_S\left(T\right)}{M_S\left(0\right)}=1-\frac{1}{nS}0.0587{\left(\frac{K_{B}T}{2JxS{a}^2}\right)}^{\frac{3}{2}}=1-{\left(\frac{T}{T_c}\right)}^{\frac{3}{2}}.(30)$

Eq. 30 indicates that reduced magnetization rapidly changes and is inversely proportional to temperature.

To find the Curie temperature, we assume that reduced magnetization becomes zero, and it is expressed as $\frac{M_S\left(T\right)}{M_S\left(0\right)}=0.$

$0=1-\frac{1}{nS}0.0587{\left(\frac{K_{B}T}{2JxS{a}^2}\right)}^{\frac{3}{2}}=1-{\left(\frac{T}{T_c}\right)}^{\frac{3}{2}}.(31)$

Rearranging it, we get the Curie temperature as follows:

$T_c=x\left(\frac{2JS}{K_B}\right){\left(\frac{nS{a}^3}{0.0587}\right)}^{\frac{2}{3}}.(32)$

If the external magnetic field is zero and if magnon–magnon interactions are neglected, then we can write the magnon frequency as ${\omega }_k=2xJS{a}^2{k}^2$ for small values of k.

The internal energy per unit volume associated with this excitation is given by [56]

$U=\frac{1}{V}{\displaystyle \sum }_k{\omega }_k〈{\widehat{n}}_k〉,(33)$

where $〈{\widehat{n}}_k〉=\frac{1}{{\mathrm{e}}^{\frac{2JxS{a}^2{k}^2}{{\mathrm{K}}_{\mathrm{B}}\mathrm{T}}}-1}=\frac{1}{{\mathrm{e}}^{{\mathrm{\omega }}_{\mathrm{k}}/⊝}-1}$, $⊝={\mathrm{K}}_{\mathrm{B}}\mathrm{T},$ and ${\omega }_k=2JxS{a}^2{k}^2.$

Converting the sum to an integral over K and simplifying it by part gives the following:

$U=\frac{1}{{\left(2\pi \right)}^3}{\displaystyle \underset{0}{\overset{\infty }{\int }}}{d}^{3}k\frac{{\omega }_k}{{\mathrm{e}}^{\frac{2JxS{a}^2{k}^2}{{\mathrm{K}}_{\mathrm{B}}\mathrm{T}}}-1}=\frac{1}{{\left(2\pi \right)}^3}{\displaystyle \underset{0}{\overset{\infty }{\int }}}{d}^{3}k\frac{D{k}^2}{e^{\raisebox{1ex}{$D{k}^2$}\!\left/ \!\raisebox{-1ex}{$⊝$}\right.}-1}=0.0456\frac{{\left(K_{B}T\right)}^{\raisebox{1ex}{$5$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}{{\left(2JxS{a}^2\right)}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}.(34)$

The heat capacity of magnons will be calculated as follows:

$c_{magnon}=\frac{\partial U}{\partial T}=\frac{\partial }{\partial T}\left(0.0456\frac{{\left(K_{B}T\right)}^{\raisebox{1ex}{$5$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}{{\left(2JxS{a}^2\right)}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}\right)=0.113\left(\frac{1}{{\left(2JxS{a}^2\right)}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}\right){K_B}^{\raisebox{1ex}{$5$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}{T}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}.(35)$

The specific heat capacity of magnons will also be calculated as follows:

$C_{magnon}=\frac{c_{magnon}}{unitmass}=0.113\left(\frac{1}{{\left(2JxS{a}^2\right)}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}}\right){K_B}^{\raisebox{1ex}{$5$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}{T}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}/K\mathrm{g}.(36)$

The basic equation of magnetization for ferromagnetic material as a Brillouin function is given by

$M\left(H,T\right)=N{\mu }_{B}S{B}_S\left(x\right),(37)$

where the Brillouin function that varies from −1 to 1 is defined as

$B_S\left(x\right)=\frac{2S+1}{2S}\coth \left(\frac{2S+1}{2S}x\right)-\frac{1}{2S}\coth \left(\frac{1}{2S}x\right)=\frac{1}{S}\left(S+\frac{1}{2}\right)\coth \left(S+\frac{1}{2}\right)x-\frac{1}{2}\coth \left(\frac{x}{2}\right).(38)$

For spontaneous magnetization,

$x=\frac{g{\mu }_B{H}_{eff}}{K_{B}T}=\frac{g{\mu }_B\left(H+\lambda M\right)}{K_{B}T}.(39)$

For using expanded power series expanded for $y\ll 1,\mathit{coth}y=\frac{e^y+e^{-y}}{e^y-e^{-y}}=\frac{1}{y}+\frac{1}{3}y,$

$\begin{array}{c}{\mathrm{B}}_{\mathrm{S}}\left(\mathrm{x}\right)=\frac{1}{\mathrm{S}}\left\{\left(\mathrm{S}+\frac{1}{2}\right)\left(\frac{1}{\left(\mathrm{S}+\frac{1}{2}\right)x}+\frac{1}{3}\left(\mathrm{S}+\frac{1}{2}\right)x\right)-\frac{1}{2}\left(\frac{2}{\mathrm{x}}+\frac{x}{6}\right)\right\}\\ =\frac{1}{S}\left\{\frac{1}{x}+\frac{1}{3}{\left(\mathrm{S}+\frac{1}{2}\right)}^{2}x-\frac{1}{x}-\frac{x}{12}\right\}=\frac{1}{3S}\left(S^{2}x+Sx+\frac{1}{4}x-\frac{1}{4}x\right)=\frac{x}{3}\left(S+1\right).\end{array}(40)$

Substituting Eqs 35, Eqs 36 into Eq. 33, we obtain

$\frac{M}{H}=\frac{N{g}^2{{\mu }_B}^2\frac{S\left(S+1\right)}{3K_B}}{\left(T-N{g}^2{{\mu }_B}^2\frac{S\left(S+1\right)}{3K_B}\lambda \right)}=\frac{C}{T-C\lambda }=\frac{C}{T-T_c}.(41)$

Since $N{g}^2{{\mu }_B}^2\frac{S\left(S+1\right)}{3K_B}$ = c and $g^2{{\mu }_B}^2\frac{S\left(S+1\right)}{3K_B}\lambda$ = $T_c,$

$\chi =\frac{M}{H}=\frac{C}{T-T_c}.(42)$

This is the Curie–Weiss law.

3 Results and discussion

In the previous section, we formulated the spin-wave model translated by Hamiltonian and explored the ferromagnetism dispersion, using Green function formalism change, and comparing the dispersion with the magnitude of the ferromagnetism magnons, Curie temperature, susceptibility, and specific heat capacity (In, Fe), Sb formulas have been obtained. In this section, we have used the following parameters to analyze and graphically describe the ferromagnetism parameters mentioned previously: $J_{nm}=10meV$;the lattice constant of an InSb $a=6.48A^o$; atom $S=\frac{5}{2}$; $k_B=0.08625meV/K$; Bohr magneton = ${\mu }_B=5.49\times {10}^{-23}J/T$, the Fe ion concentration x = 0.055–0.107; and the number of lattice points per unit volume n $\approx 1\times {10}^{27}{m}^{-3}$ [11, 20, 30, 56–60]. Finally, the are plotted based on the lab cod mat, and the findings of the study are summarized in relation to the previous study on the ferromagnetism property of diluted magnetic semiconductors.

The magnon magnetic order is obtained in In_1-xFe_xSb when the manganese ion concentration is 0.05–0.107. We calculated the Curie temperature with this concentration in Eq. 32 by substituting a numerical estimation constant, and the graph plotted of the Fe concentration range with the Curie temperature is illustrated in the following paragraphs.

Figure 1 shows that the Curie temperature of (In, Fe) Sb is linearly proportional to the iron ion concentration in the given range. It meant that (In, Fe) Sb has a ferromagnetic order only in the region of the iron ion concentration from 0.05 to 0.107 and the temperature less than 317.65 K. The minimum Curie temperature of ${\mathrm{I}\mathrm{n}}_{1-\mathrm{x}}{\mathrm{F}\mathrm{e}}_{\mathrm{x}}\mathrm{S}\mathrm{b}$ is 163.4 K when we use x = 0.05, and the maximum Curie temperature is also 317.65 K when we use x = 0.107. When the temperature reaches Curie’s temperature, the phase change takes place; it becomes par magnetism. The calculated curve fits the experimental results obtained [39, 40] and [57, 58].

FIGURE 1

FIGURE 1. Curie temperature versus Mn concentration impurity.

The specific heat capacity of the (In, Fe) Sb formula is expressed in Eq. 36 by substituting the numerical estimation constant in this equation; the graph of specific heat capacity versus temperature with a constant concentration of Fe impurity is plotted.

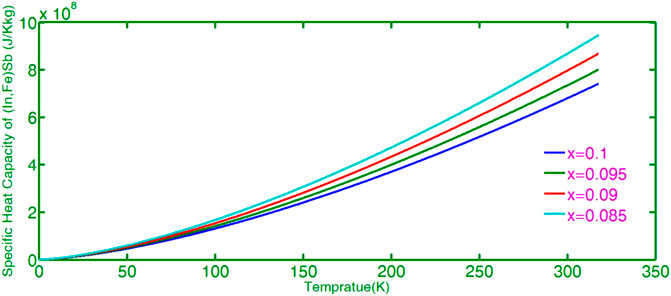

Figure 2 indicates that the internal energy and the specific heat capacity of the ferromagnetic order in In_1-xFe_xSb vanish when the temperature reaches the Curie temperature, which is 317.65 K. With a constant manganese ion concentration, the specific heat capacity is directly proportional to temperature ($T^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$), but it is inversely proportional to the manganese ion concentration ($x^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$), with the temperature constant.

FIGURE 2

FIGURE 2. Specific heat capacity versus temperature with a constant concentration of impurity x.

The reduced magnetization of the ferromagnetic magnon as a function of temperature is calculated in Eq. 34; we have plotted the graph.

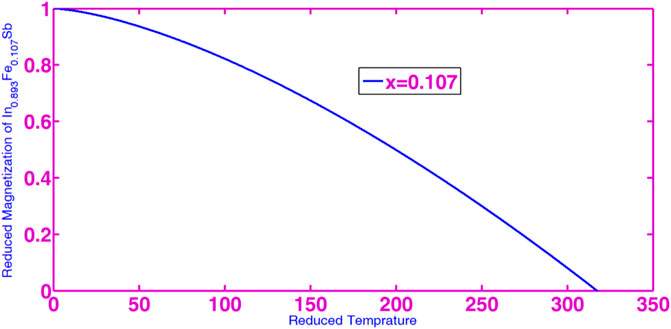

As shown in Figure 3, the reduced magnetization rapidly changes and is inversely proportional to the reduced temperature, up to the Curie temperature. Thus, when the temperature approaches the Curie temperature, magnetization goes to zero. When the temperature is equal to 317.65 K, the $\frac{M_s\left(T\right)}{M_s\left(0\right)}$ becomes zero, that is, the spontaneous magnetization disappears. When the temperature is equal to 0 K, $\frac{M_s\left(T\right)}{M_s\left(0\right)}$ approaches 1, that is, the atomic magnetic moments alignment will be completely parallel. The calculated curves fit wonderfully well with the experimental results reported.

FIGURE 3

FIGURE 3. Reduced magnetization versus reduced temperature at constant x = 0.107.

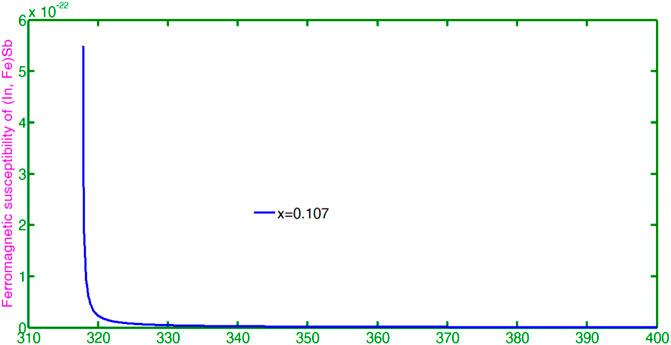

The ferromagnetic susceptibility of the (In, Fe) Sb formula is expressed in Eq. 42 by substituting the numerical estimation constant in this equation, and the ferromagnetic susceptibility of ${In}_{0.893}{Fe}_{0.107}Sb$ versus temperature is plotted.

As we observed in this figure, the susceptibility of the ferromagnetic magneton increases when the temperature decreases with a constant concentration of iron at a temperature greater than the Curie temperature. The temperature approaches 317.65 K on the right side, the susceptibility becomes infinite, and when the temperature is equal to 317.65 K, the ferromagnetic susceptibility of ${In}_{0.893}{Fe}_{0.107}Sb$ is undefined.

In this study, we used the spin-wave model of the Heisenberg Hamiltonian magnetic coupling interaction (J) without applying magnetic fields, electric fields, or chemical potential to get the Curie temperature of (In, Fe) Sb above room temperature, which is 317.65 K. If we used magnetic field, electric field, and chemical potential by using the RKKY interaction model, the Curie temperature of (In, Fe) Sb may be higher than that investigated in this study.

4 Conclusion

This study’s primary goal is to calculate the indium iron antimonide Curie temperature at temperatures higher than room temperature without the application of an external magnetic field. Indium iron antimonide material has a ferromagnetic Curie temperature that is lower than room temperature in the absence of an external magnetic field, according to earlier studies.

The unique aspect of our study is that we were able to determine the Curie temperature of the diluted (In, Fe) Sb n-type ferromagnetism without using an external magnetic field.

We developed the spin-wave model utilizing Hamiltonian translation and investigated the ferromagnetism dispersion. By comparing the dispersion with the magnitude of the ferromagnetism magnons, we were able to determine the Curie temperature, susceptibility, and specific heat capacity (In, Fe) Sb formula.

As the temperature approaches the Curie point, which is 317.65 K, the internal energy and specific heat capacity of the ferromagnetic order in ${In}_{0.893}{Fe}_{0.107}Sb$ disappear. This is shown by the relationship between specific heat capacity and temperature with a constant concentration of impurity x. With constant $x=0.107$, as illustrated in Figure 3, the relationship between reduced magnetization and lowered temperature is inversely proportional up to the Curie temperature. As seen in Figure 4, the susceptibility of ferromagnetic magnets increases as the temperature decreases while maintaining a constant iron concentration for temperatures higher than the Curie temperature.

FIGURE 4

FIGURE 4. Susceptibility versus temperature to ferromagnetism.

This n-type ferromagnetic semiconductor indium iron antimonide material exists at room temperature and is surprisingly used in modern and sophisticated spintronic devices.
