The method of moments for electromagnetic scattering analysis accelerated by the polynomial chaos expansion in infinite domains

An efficient method of moments (MoM) based on polynomial chaos expansion (PCE) is applied to quickly calculate the electromagnetic scattering problems. The triangle basic functions are used to discretize the surface integral equations. The polynomial chaos expansion is utilized to accelerate the MoM by constructing a surrogate model for univariate and bivariate analysis. The mathematical expressions of the surrogate model for the radar cross-section (RCS) are established by considering uncertain parameters such as bistatic angle, incident frequency, and dielectric constant. By using the example of a scattering cylinder with analytical solution, it is verified that the MoM accelerated by PCE presents a considerable advantage in computational expense and speed.

1 Introduction

In recent decades, the research of electromagnetic scattering is playing a crucial role in the stealth system of military structures [1, 2], exploration of underground resources and stratum structures, target recognition, antenna radiation, electromagnetic compatibility, etc. Higher target detection ability and lower detection risk are currently considered important indicators for its design [3], manufacture, and inspection. Research on electromagnetic scattering analysis [4], especially theoretical calculation, practical testing, and uncertainty analysis of radar cross-section (RCS), is the focus of the current research [5, 6]. The RCS is a scalar quantity representing the scattering ability of the target to the incident electromagnetic wave, which can be regarded as the virtual area of the measured object. It plays a vital role in the whole life cycle of equipment design, production, testing, inspection, and use. The theoretical calculation has a lower research cost than the experimental test method.

In the field of electromagnetic scattering analysis, the differential equation methods mainly include the finite element method [7] and finite difference time domain method [8]. These methods require meshing within the domain, which leads to mesh truncation error and mesh dispersion error, which are large. Moreover, it is difficult to accurately fit the complex target surface. In addition, high-frequency methods such as graphical electromagnetic computing (GRECO) [9, 10], method of geometrical optics (GO), geometrical theory of diffraction (GTD), physical optics (PO), physical theory of diffraction (PTD), uniform theory of diffraction (UTD) [11], and the bouncing ray method (SBR) [12] are widely used to analyze the electromagnetic scattering characteristics of various complex targets due to their advantages of fast calculation speed and low memory requirement. However, the disadvantage of high-frequency methods is the lower accuracy of the calculation results [13]. The method of moments (MoM) [14–19], using integral equations, has the advantages of automatically satisfying the boundary conditions, relatively few unknowns, and high calculation accuracy. Therefore, it is widely adopted in piezoelectric materials [20], dynamics [21], and acoustics [22–24]. However, the traditional MoM needs to solve huge matrix systems [25–28], which requires a large amount of calculation and memory [29]. Considering the limitations of the aforementioned methods in rapidly solving the RCS of arbitrary targets, the polynomial chaos expansion method with model universality is adopted. According to statistical correlation, a high-precision surrogate model is established with a small number of samples, which can be used to replace the accurate analysis model with high consumption of computing resources to approximate the output results, which can significantly improve the research efficiency.

The polynomial chaos expansion with strong mathematical support was originally proposed by Wiener to construct turbulence computational models [30]. It offers a robust framework for uncertainty quantification of complex engineering problems with its mathematical elegance and global convergence behavior. The method uses basis orthogonal polynomials to expand the uncertain variable and transfers the random characteristics of the variable to polynomial coefficients through the properties of orthogonal polynomials [31]. The polynomial chaos expansion method has the advantages of constructing surrogate models with high accuracy, computing system responses efficiently, and handling systems with cross-terms effectively. It has been widely used in different engineering fields, such as heat conduction [32], structural mechanics [33, 34], fluid mechanics [35], environmental and acoustic fields [36, 37], electrical properties of nanomaterials [38], flexoelectric materials [39], and stochastic difference equations [40].

In summary, a series of research results and relatively formed mature method have been developed in the field of electromagnetic scattering analysis. However, the accuracy and efficiency of these numerical methods are difficult to be balanced in the problems with the complex model due to the large computational matrix. In this paper, the PCE is applied to accelerate the electromagnetic scattering calculation by constructing surrogate models using a small number of samples. These samples are accurately obtained by the MoM. The main novelties of this paper are as follows:

1. The surrogate model of the RCS is established using PCE based on the MoM, which achieves high precision and high-efficiency calculation.

2. Univariate and multivariate analysis of the RCS are carried out considering several different parameters.

The rest of the paper is organized as follows. Section 2 provides the computational expression of the RCS. The MoM is introduced in Section 3 to solve the unknown scattering field. Section 4 includes the PCE method and the specific orthogonal polynomials. The accuracy and efficiency of the proposed method are verified by numerical examples in Section 5, followed by the conclusion in Section 6.

2 Objective function description

In this paper, a perfect electric conductor (PEC) or dielectric conductor (DIE) in the infinite domain is considered for electromagnetic scattering analysis as shown in Figure 1.

FIGURE 1

FIGURE 1. Diagram of the electromagnetic scattering. (A) Two regions R^ι: R⁰ is an unbounded domain in which the free space parameters are assigned (μ⁰, ɛ⁰); Γ denotes the boundary of R¹. On each of its interfaces, the normal vector ${\vec{\mathbf{n}}}^1$ points into R¹. (B) Near-field diagram.

The RCS is an important quantity in electromagnetism to quantify how detectable an object is to a radar signal in a given direction. It is a scalar quantity representing the scattering ability of an object, which can be understood as the equivalent scattering area of the target under the incident wave, and it is measured in square meters. It can be expressed as

$\mathrm{R}\mathrm{C}\mathrm{S}\left({\mathrm{m}}^{\mathrm{2}}\right)=2\pi \rho \frac{|{\mathbf{E}}_{\mathit{sca}}{|}^2}{|{\mathbf{E}}_{\mathit{inc}}{|}^2},(1)$

where $\rho =|\mathit{\rho }-\stackrel{⌢}{\mathit{\rho }}|$ is the distance between the source point and the field point shown in Figure 1B. E_sca is the unknown intensity of the scattering electric field and E_inc is the known intensity of incident electric waves. It is often expressed as Eq. 2, as given here.

$\mathrm{R}\mathrm{C}\mathrm{S}=\mathrm{R}\mathrm{C}\mathrm{S}\left(dBsm\right)=10\times \lg \mathrm{R}\mathrm{C}\mathrm{S}\left({\mathrm{m}}^{\mathrm{2}}\right).(2)$

The bistatic RCS depends on the location of the source and field points. The angle between the incident and the scattered wave is called the bistatic angle θ_sca. In Figure 2, the bigger brown ball denotes the source point and the smaller black point represents the field point. It can be seen that forward scattering is denoted by θ_sca = π and θ_sca = 0 denotes backscattering.

FIGURE 2

FIGURE 2. Illustration of the bistatic scattering: (A) forward scattering and (B) back scattering.

3 MOM for the electromagnetic scattering problems

In this section, we first investigate scattering problems in the context of two-dimensional structures. The MoM is used to calculate the electromagnetic field required for the RCS.

3.1 Surface integral equations

We consider a PEC cylinder with the section contour Γ of arbitrary shape impinged by a TM- or TE-polarized plane wave as illustrated in Figure 3.

FIGURE 3

FIGURE 3. Diagram of TE- and TM-polarized field: TE-polarized electric field only has a z component and TM-polarized electric field has x and y components.

We first assume a PEC domain R¹ with connected boundary Γ residing within an unbounded domain R⁰ with permittivity and permeability given by the scalar quantities ɛ⁰ and μ⁰, respectively. We further assume a polarized time-harmonic electromagnetic plane wave E_inc of angular frequency ω, which is imposed on the PEC body with a wavenumber $k=\omega \sqrt{\epsilon \mu }$. The entire setup is depicted in Figure 1. The surface integral equations on R^ι could be expressed as

${\left[i\omega {\mu }^{\iota }\left(\mathcal{P}{\mathbf{J}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)+\left(\mathcal{H}{\mathbf{M}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]}_{\tan }+\frac{1}{2}{\vec{\mathbf{n}}}^{\iota }\times {\mathbf{M}}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)={\left[{\mathbf{E}}_{\text{inc}}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]}_{\tan }.(3)$

${\left[i\omega {\epsilon }^{\iota }\left(\mathcal{P}{\mathbf{M}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)-\left(\mathcal{H}{\mathbf{J}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]}_{\tan }-\frac{1}{2}{\vec{\mathbf{n}}}^{\iota }\times {\mathbf{J}}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)={\left[{\mathbf{H}}_{\text{inc}}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]}_{\tan }.(4)$

where J^ι and M^ι denote the electric and magnetic current in R^ι, respectively, and ${\mathbf{E}}_{\text{inc}}^{\iota }(\mathit{\rho })$ and ${\mathbf{H}}_{\text{inc}}^{\iota }(\mathit{\rho })$ are the fields, respectively, generated by the incident wave and zero everywhere, except in R⁰. The operators $\mathcal{P}$ and $\mathcal{H}$ are

$\begin{array}{ll}\hfill & \left(\mathcal{P}{\mathbf{J}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)=\left[1+\frac{1}{k^2}\nabla \nabla \cdot \right]\int G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right){\mathbf{J}}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right)\hfill \\ \hfill & \left(\mathcal{H}{\mathbf{M}}^{\iota }\right)\left(\stackrel{⌢}{\mathit{\rho }}\right)=\nabla \times \int G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right){\mathbf{M}}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right),\hfill \end{array}(5)$

where $G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right)$ denotes Green’s function. For 2-D problems, it is expressed as

$G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right)=-\frac{i}{4}{H}_0^{\left(2\right)}\left(k\rho \right),\mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h}\rho =|\stackrel{⌢}{\mathit{\rho }}-\mathit{\rho }|.(6)$

Equations 3, 4 are called the electric field integral equation (EFIE) and the magnetic field integral equation (MFIE), respectively, yielding a result free of spurious solutions for DIEs. However, on closed conductors, the EFIE and MFIE cannot produce a unique solution for all frequencies, which is called the interior resonance problem. The most popular method for handling the problem is a linear combination of the EFIE and MFIE, which yields the combined field integral equation (CFIE) given by Eq. 7.

$\alpha \mathbf{E}\mathbf{F}\mathbf{I}\mathbf{E}+\left(1-\alpha \right){\eta }^{\iota }\mathbf{M}\mathbf{F}\mathbf{I}\mathbf{E},(7)$

where ${\eta }^{\iota }=\sqrt{{\mu }^{\iota }/{\epsilon }^{\iota }}$ and 0⩽α⩽1, with α = 0.5, are commonly used.

3.2 Discretization of MoM

The MoM is used to convert Eqs 3, 4 into a matrix system using Galerkin-type testing in each region. Expanding the electric and magnetic currents in R^ι using a sum of weighted basis functions yields

${\mathbf{J}}^{\iota }\left(\mathit{\rho }\right)=\sum _{n=1}^N{\alpha }_n^{J\left(\iota \right)}{\mathbf{f}}_n\left(\mathit{\rho }\right),{\mathbf{M}}^{\iota }\left(\mathit{\rho }\right)=\sum _{n=1}^N{\alpha }_n^{M\left(\iota \right)}{\mathbf{g}}_n\left(\mathit{\rho }\right),(8)$

where N is the number of electric and magnetic basis functions in R^l, and the basic functions f_n and g_n are triangle functions. We next test the EFIE and nMFIE with the electric testing functions f_m, and the MFIE with the magnetic testing functions g_m. This yields the matrix system in R^ι as follows:

$\left[\begin{array}{cc}\hfill A^{J\left(\iota \right)}\hfill & \hfill A^{M\left(\iota \right)}\hfill \end{array}\right]{\left[\begin{array}{cc}\hfill {\alpha }^{J\left(\iota \right)}\hfill & \hfill {\alpha }^{M\left(\iota \right)}\hfill \end{array}\right]}^T=S^{\left(\iota \right)},(9)$

where

$A^{J\left(\iota \right)}={\left[\begin{array}{cc}\hfill A_{\mathit{EFIE}}^{J\left(\iota \right)}\hfill & \hfill A_{\mathit{EFIE}}^{M\left(\iota \right)}\hfill \end{array}\right]}^T.(10)$

$A^{M\left(\iota \right)}={\left[\begin{array}{cc}\hfill A_{\mathit{MFIE}}^{J\left(\iota \right)}\hfill & \hfill A_{\mathit{MFIE}}^{M\left(\iota \right)}\hfill \end{array}\right]}^T.(11)$

$S_{\mathit{EFIE}}^{\left(\iota \right)}\left(m\right)=\int {\mathbf{f}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\cdot {\mathbf{E}}_{\mathit{inc}}^{\left(\iota \right)}\left(\stackrel{⌢}{\mathit{\rho }}\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(12)$

$S_{\mathit{MFIE}}^{\left(\iota \right)}\left(m\right)=\int {\mathbf{g}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\cdot {\mathbf{H}}_{\mathit{inc}}^{\left(\iota \right)}\left(\stackrel{⌢}{\mathit{\rho }}\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(13)$

and

$A_{\mathit{EFIE}}^{J\left(\iota \right)}\left(m,n\right)=i\omega {\mu }^{\iota }\left[1+\frac{1}{k^2}\nabla \nabla \cdot \right]\int {\mathbf{f}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\int G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right){\mathbf{f}}_n\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(14)$

$A_{\mathit{EFIE}}^{M\left(\iota \right)}\left(m,n\right)=\int {\mathbf{f}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\int \nabla G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right)\times {\mathbf{g}}_n\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).$

$+\frac{1}{2}\int {\mathbf{f}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\cdot \left[\vec{\mathbf{n}}\left(\stackrel{⌢}{\mathit{\rho }}\right)\times {\mathbf{g}}_n\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(15)$

$A_{\mathit{MFIE}}^{J\left(\iota \right)}\left(m,n\right)=-\int {\mathbf{g}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\int \nabla G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right)\times {\mathbf{f}}_n\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).$

$-\frac{1}{2}\int {\mathbf{g}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\cdot \left[\vec{\mathbf{n}}\left(\stackrel{⌢}{\mathit{\rho }}\right)\times {\mathbf{f}}_n\left(\stackrel{⌢}{\mathit{\rho }}\right)\right]d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(16)$

$A_{\mathit{MFIE}}^{M\left(\iota \right)}\left(m,n\right)=i\omega {\epsilon }^{\iota }\left[1+\frac{1}{k^2}\nabla \nabla \cdot \right]\int {\mathbf{g}}_m\left(\stackrel{⌢}{\mathit{\rho }}\right)\int G\left(\stackrel{⌢}{\mathit{\rho }},\mathit{\rho }\right){\mathbf{g}}_n\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\mathit{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).(17)$

It should be noted that all blocks of the matrix in Eq. 9 are square with rank of N. If we now combine the previously mentioned matrix for the two regions, a block-diagonal system is obtained as

$\left(\begin{array}{cc}\hfill A^{\left(0\right)}\hfill & \hfill \mathbf{0}\hfill \\ \hfill \mathbf{0}\hfill & \hfill A^{\left(1\right)}\hfill \end{array}\right)\left(\begin{array}{c}\hfill {\alpha }^{\left(0\right)}\hfill \\ \hfill {\alpha }^{\left(1\right)}\hfill \end{array}\right)=\left(\begin{array}{c}\hfill S^{\left(0\right)}\hfill \\ \hfill S^{\left(1\right)}\hfill \end{array}\right).(18)$

The coefficient α can be found by solving the previously mentioned system. Then, the expressions of electric and magnetic current can be obtained by substituting the obtained α in Eq. 8.

3.3 Scattering field

In the previous section, the expressions of electric and magnetic current are obtained, and we will further obtain numerical solutions for scattered fields in this section by using the 2-D near-field radiation equation as Eqs 19, 20.

$\begin{array}{ll}\hfill H_{\mathit{sca}}^x\left(\mathit{\rho }\right)& =i\frac{k}{4}\int \left(\left[{\sigma }_y{J}^z\right]\frac{H_1^{\left(2\right)}\left(k\rho \right)}{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\hfill \\ \hfill H_{\mathit{sca}}^x\left(\mathit{\rho }\right)& =i\frac{k}{4}\int \left(\left[-{\sigma }_x{J}^z\right]\frac{H_1^{\left(2\right)}\left(k\rho \right)}{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\hfill \\ \hfill H_{\mathit{sca}}^x\left(\mathit{\rho }\right)& =i\frac{k}{4}\int \left(\left[{\sigma }_x{J}^y-{\sigma }_y{J}^x\right]\frac{H_1^{\left(2\right)}\left(k\rho \right)}{\rho }\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right).\hfill \end{array}(19)$

$\begin{array}{ll}\hfill E_{\mathit{sca}}^x\left(\mathit{\rho }\right)& =\frac{k^2}{8\omega \epsilon }\int \left(\left(\left[{\sigma }_y^2-{\sigma }_x^2\right]J^x-2{\sigma }_x{\sigma }_y{J}^y\right)\frac{H_2^{\left(2\right)}\left(k\rho \right)}{{\rho }^2}-J^x{H}_0^{\left(2\right)}\left(k\rho \right)\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\hfill \\ \hfill E_{\mathit{sca}}^y\left(\mathit{\rho }\right)& =\frac{k^2}{8\omega \epsilon }\int \left(\left(\left[{\sigma }_x^2-{\sigma }_y^2\right]J^y-2{\sigma }_x{\sigma }_y{J}^x\right)\frac{H_2^{\left(2\right)}\left(k\rho \right)}{{\rho }^2}-J^y{H}_0^{\left(2\right)}\left(k\rho \right)\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right)\hfill \\ \hfill E_{\mathit{sca}}^z\left(\mathit{\rho }\right)& =-\frac{k^2}{4\omega \epsilon }\int \left(J^z{H}_0^{\left(2\right)}\left(k\rho \right)\right)d{\mathrm{\Gamma }}^{\iota }\left(\stackrel{⌢}{\mathit{\rho }}\right),\hfill \end{array}(20)$

where

${\sigma }_x=x-\stackrel{⌢}{x},{\sigma }_y=y-\stackrel{⌢}{y}.(21)$

The $E_{\mathit{sca}}^x(\mathit{\rho })$, $E_{\mathit{sca}}^y(\mathit{\rho })$, and $E_{\mathit{sca}}^z(\mathit{\rho })$ aforementioned represent the 2-D scattering electric field in x, y, and z directions, respectively. Substituting the obtained scattered field into Eq. 1, the objective function-RCS is solved successfully.

4 Polynomial chaos expansion

PCE is a method to describe the uncertainty of random variables by constructing random spaces with polynomial bases. The original non-linear problem is transformed into a weighted summation of polynomials, which is actually a process of coefficient fitting. Orthogonal polynomials are often used as the orthogonal basis of the space to express the mapping between independent variables and dependent variables.

In general, different distributions of random variables lead to different orthogonal polynomials. Table 1 lists the classical families of distributions and the corresponding univariate orthogonal polynomials.

TABLE 1

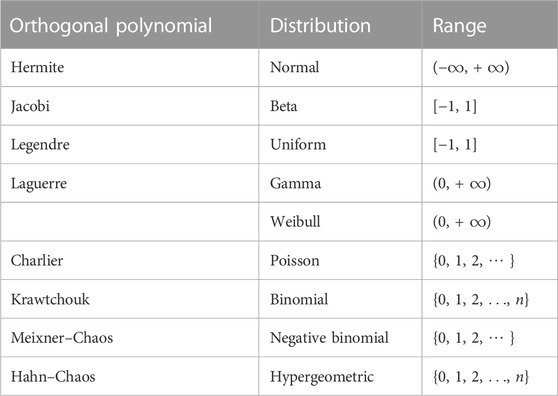

TABLE 1. Orthogonal polynomials with respect to the different distributions.

In this section, the Legendre orthogonal polynomial is adopted to construct the surrogate model of the scattered field. The uniform input variable of the system is $\mathbf{x}=\left(x_1,x_2,\dots ,x_N\right)$, and RCS is the corresponding response. There is an expression constructed by polynomial chaos as

$\mathrm{R}\mathrm{C}\mathrm{S}=f\left(\mathbf{x}\right)=\sum _{i=0}^{\infty }{\alpha }_i{\mathrm{\Phi }}_i\left(\mathbf{x}\right),\mathbf{x}=\left(x_1,x_2,\dots ,x_N\right).(22)$

where Φ_i(x) is the multi-dimensional Legendre orthogonal polynomial with vector $\mathbf{x}=\left(x_1,x_2,\dots ,x_N\right)$, and each variable x_i belongs to the interval [−1, 1]; α_i is the coefficient of the polynomial chaos expansion and RCS is square integral. The previously mentioned expansion can be truncated to Kth order as Eq. 23.

$\begin{array}{ll}\hfill \widehat{\mathrm{R}\mathrm{C}\mathrm{S}}& ={\alpha }_0{\mathrm{\Phi }}_0\left(\mathbf{x}\right)+{\alpha }_1{\mathrm{\Phi }}_1\left(\mathbf{x}\right)+\cdots +{\alpha }_{K-1}{\mathrm{\Phi }}_{K-1}\left(\mathbf{x}\right)\hfill \\ \hfill & =\mathbf{\Phi }\mathit{\alpha },\hfill \end{array}(23)$

where

$\mathbf{\Phi }={\left(\begin{array}{cccc}\hfill {\mathrm{\Phi }}_0\left(x_1\right)\hfill & \hfill {\mathrm{\Phi }}_1\left(x_1\right)\hfill & \hfill \cdots \hfill & \hfill {\mathrm{\Phi }}_{K-1}\left(x_1\right)\hfill \\ \hfill {\mathrm{\Phi }}_0\left(x_2\right)\hfill & \hfill {\mathrm{\Phi }}_1\left(x_2\right)\hfill & \hfill \cdots \hfill & \hfill {\mathrm{\Phi }}_{K-1}\left(x_2\right)\hfill \\ \hfill ⋮\hfill & \hfill ⋮\hfill & \hfill \ddots \hfill & \hfill ⋮\hfill \\ \hfill {\mathrm{\Phi }}_0\left(x_N\right)\hfill & \hfill {\mathrm{\Phi }}_1\left(x_N\right)\hfill & \hfill \cdots \hfill & \hfill {\mathrm{\Phi }}_{K-1}\left(x_N\right)\hfill \end{array}\right)}_{N\times K}(24)$

and

$\mathit{\alpha }={{\left(\begin{array}{cccc}\hfill {\alpha }_0\hfill & \hfill {\alpha }_1\hfill & \hfill \cdots \hfill & \hfill {\alpha }_{K-1}\hfill \end{array}\right)}^{\prime }}_{K\times 1},(25)$

where K is the number of orthogonal polynomials, which can be calculated as $K=C_{m+k}^k$ and m is the dimension of x. There are two key steps of the PCE method according to Eq. 23: constructing the multi-dimensional Legendre orthogonal polynomial S Φ_i(x) and solving the coefficient α_i of the expansion.

The common recurrence relation of the Legendre polynomial system ${\left\{L_k(x)\right\}}_{k=0}^{\infty }$ in the interval [−1, 1] is expressed as

$L_0\left(x\right)=1,L_1\left(x\right)=x,L_{k+1}\left(x\right)=\frac{2k+1}{k+1}x{L}_k\left(x\right)-\frac{k}{k+1}{L}_{k-1}\left(x\right)k\ge 1.(26)$

For the 1-D surrogate model, L_i = Φ_i. The truncated polynomial chaos expansion shown in Eq. 23 is actually a predicted value rather than a true solution, and the error between them is

$\mathit{\epsilon }=\mathrm{R}\mathrm{C}\mathrm{S}-\widehat{\mathrm{R}\mathrm{C}\mathrm{S}}=f\left(\mathbf{x}\right)-\sum _{i=1}^{K-1}{\alpha }_i{\mathrm{\Phi }}_i\left(\mathbf{x}\right),\mathbf{x}=\left(x_1,x_2,\dots ,x_N\right).(27)$

The residual ɛ is assumed to be a zero-mean variable and α is the unknown coefficient vector. The smaller absolute value of the residual indicates the more accurate estimation of the surrogate model. The coefficient α should minimize the expectation of the sum of squares of the residual ɛ.

$\widehat{\mathit{\alpha }}=\mathrm{arg\; min}E\left({\mathit{\epsilon }}^2\right).(28)$

Thus, the polynomial chaos expansion coefficient α can be determined by the following equation.

$\widehat{\mathit{\alpha }}={\left({\mathbf{\Phi }}^{\text{T}}\mathbf{\Phi }\right)}^{-1}{\mathbf{\Phi }}^{\text{T}}\text{RCS}.(29)$

The response from the surrogate model can be obtained with the solved coefficient α and Eq. 23. The measure used to describe the accuracy of the final model named CV (RSMD) is expressed in Eq. 30.

$CV\left(RSMD\right)=\sqrt{\frac{\sum _{i=1}^N{\left(y_i-{\widehat{y}}_i\right)}^2}{N}}/\frac{\sum _{i=1}^N{y}_i}{N},(30)$

where y_i is the output of the MoM, which is the input of PCE, and ${\widehat{y}}_i$ is the output of the obtained surrogate model using PCE. A lower value of CV means a better effect of the surrogate model. If the CV value is lower than 5%, it is considered that the expansion converges under the current order and has great fitting accuracy.

5 Numerical examples

In this section, the output of the MoM with the cylinder model in the infinite domain is used to construct the PCE surrogate model. The univariate and bivariate analyses are adopted to verify the high accuracy and efficiency of the surrogate model. The uniform incident frequency, bistatic angle, and dielectric constant are considered the input variables. The coordinate system is established with the source point (object) as the origin, and its distance to the field point is taken as 1 × 10⁵.

The Fortran 90 language is used for MoM programming, and the non-embedded PCE programming in MATLAB is utilized to obtain the polynomial expression, and all the programs are implemented on a desktop computer with Intel (R) Core (TM) i7-8700 CPU and 16 GB RAM.

5.1 Univariate analysis

The electric and magnetic field distribution scattered by the infinite PEC cylinder with a radius of 1 is depicted in Figure 4. The results under several incident frequencies (f = 100, 500, 1000 MHz) are first considered. Figures 4A–C represent the electric field in the z-direction around the cylinder with the same level, and the magnetic field in the x-direction is shown in Figures 4D–F. It can be seen that the distribution strongly depends on the frequency and becomes more complex with increase in the incident frequency. The distribution is symmetric with respect to the x-axis, which verifies the proposed method.

FIGURE 4

FIGURE 4. Scattering electric and magnetic field distribution under TE polarization with θ_sca =0. (A) Electric field, f =100MHz; (B) electric field, f =500MHz; (C) electric field, f =1000MHz; (D) magnetic field, f =100MHz; (E) magnetic field, f =500MHz; (F) magnetic field, f =1000 MHz.

No analytical solution is proposed for most of the electromagnetic problems, especially with complex problems. It is necessary to find a rapid calculation method with high accuracy. The MoM is one of the effective numerical approaches with small errors, shown in Figure 5. The convergence result of the relative error in terms of the MoM calculation degrees of freedom (DoFs) is given in Figure 5 to verify the accuracy of the MoM. The considered DoFs range from 10 to 110. The relative error for the MoM decreases with DoF increase, and the logarithmic values present a significant linear correlation. The data computed with the MoM are considered the true value when the analytical solution does not exist. However, the CPU time consumption is huge because of the calculation of the large matrix system. On the contrary, the PCE method only needs the input data irrespective of the complexity of the problem is, which makes it more efficient.

FIGURE 5

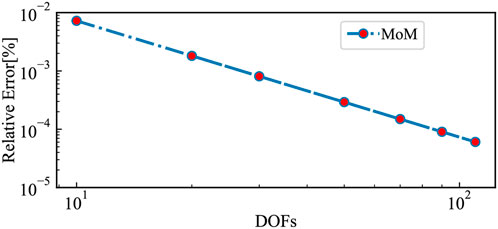

FIGURE 5. Convergence results of the average error in terms of the MOM calculation DoFs.

We should select a set of suitable orthogonal polynomials according to Section 4. Table 2 lists the first eight orders of Legendre polynomials of 1-D random variables for univariate analysis.

TABLE 2

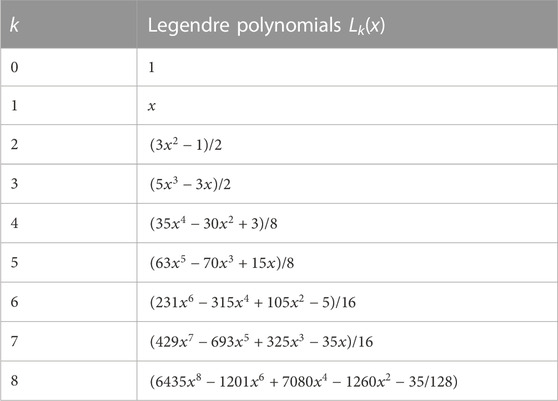

TABLE 2. One dimensional Legendre polynomials of the first eight orders (k goes from 0 to 8).

Figure 6 presents the comparison RCS results of analytical and MoM–PCE for an infinite cylinder with three random variables. We first compute the bistatic RCS for 0 ≤ θ_sca ≤ 2π and θ_inc = 0 at 10 MHz. The ɛ¹ = ∞ denotes that the cylinder is a perfect conductor. It can be seen in Figure 6A that the RCS is symmetric with respect to θ_sca. The 2nd PCE performs badly, and the accuracy increases from the 4th order. The expression of the 4th PCE shown in Figure 6A is

${\mathrm{R}\mathrm{C}\mathrm{S}}_A^{\left[4\right]}\approx 1.51\times 10^{-9}{x}^4-1.09\times 10^{-6}{x}^3+2.09\times 10^{-4}{x}^2-4.59\times 10^{-3}x+8.95,(31)$

where x denotes the bistastic angle θ_sca and ${\mathrm{R}\mathrm{C}\mathrm{S}}_A^{[4]}$ represents the 4th PCE results with respect to x in Figure 6A.

FIGURE 6

FIGURE 6. RCS value at the field point (1 × 10⁵, 0) in terms of four uniform random variables: (A) f =10MHz, ɛ¹=∞; (B) f =10MHz, θ_sca =0; (C) θ_sca = π, ɛ¹=∞; and (D) ɛ¹=2.56, θ_sca =0.

It can be seen in Figure 6B that the back-scattering RCS value decreases as the dielectric constant increases. The 1st order of the PCE model shows some errors and the 2nd PCE performs fairly well, which can be expressed as Eq. 32.

${\mathrm{R}\mathrm{C}\mathrm{S}}_B^{\left[2\right]}\approx 1.12\times 10^{-3}{x}^2-0.14x+15.17.(32)$

Figure 6C shows the back-scattering RCS in terms of frequency. The 2nd PCE shows errors again, but they are not quite as apparent as they were in case (A). The 4th order model fits well, at least within the range of frequencies considered. The 6th PCE is free of errors as expected and expressed as Eq. 33. The higher frequencies correspond to higher results, which is approximately 19.8 dBsm at 1000 MHz.

$\begin{array}{ll}\hfill {\mathrm{R}\mathrm{C}\mathrm{S}}_C^{\left[6\right]}& \approx -3.46\times 10^{-17}{x}^6+1.34\times 10^{-13}{x}^5-2.16\times 10^{-10}{x}^4\hfill \\ \hfill & +1.88\times 10^{-7}{x}^3-9.98\times 10^{-5}{x}^2+3.88\times 10^{-2}x+9.13.\hfill \end{array}(33)$

Contrary to Figure 6C, the RCS does not follow a straight direction in terms of frequency, which is shown in Figure 6D. With the increase of frequency, the RCS value increases first and then decreases in the interval [130,150] MHz. The 1st PCE shows more errors with CV = 9.3% illustrated in Figure 7D. It can be seen that the 4th PCE performs fairly well, which can be expressed as Eq. 34.

${\mathrm{R}\mathrm{C}\mathrm{S}}_D^{\left[4\right]}\approx 4.04\times 10^{-5}{x}^4-2\times 10^{-4}{x}^3+4.562x^2-414.5x+14070.(34)$

FIGURE 7

FIGURE 7. CV (RSMD) with respect to different variables. (A) PEC model, θ_sca ∈[0,2π], f =10MHz; (B) DIE model, ɛ¹∈[30,50], f =10MHz, θ_sca =0; (C) PEC model, f ∈[1,1000] MHz, θ_sca = π; (D) DIE model, f ∈[130,150]MHz, ɛ¹=2.56, θ_sca =0.

Figure 7 shows the CV values corresponding to Figure 6. The green line represents CV = 5%, which is much higher than most of the constructed models. Only one result in Figure 7D created by the 1st PCE introduced higher CV, but the accuracy improved rapidly with the increase in the order. While ensuring accuracy, the PCE combined with the MoM could also increase the speed, which can be seen in Figure 8.

FIGURE 8

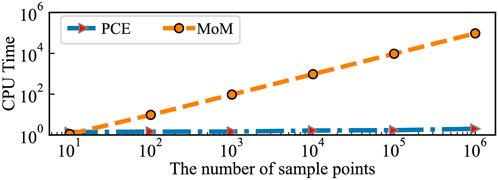

FIGURE 8. CPU time used to calculate the RCS value.

The aforementioned comparison is between the analytical and the PCE method solution with 1-D independent variables. The PCE method can also fit well and even the independent variable is 2-D data.

5.2 Bivariate analysis

In this section, the MOM-PCE method is used to construct a surrogate model of the dielectric cylinder for electromagnetic scattering analysis. The frequency is 11 MHz, ɛ⁰ and μ⁰ values of the outer region are 1, and the radius of the cylinder model is 1. We assume the dielectric constant ɛ¹ as x₁ ∈ [30, 50] and bistatic angle θ_sca as x₂ ∈ [0, 360]. The random sample points put into the PCE module are obtained from the MoM results. Table 3 lists the 2-D Legendre expressions.

TABLE 3

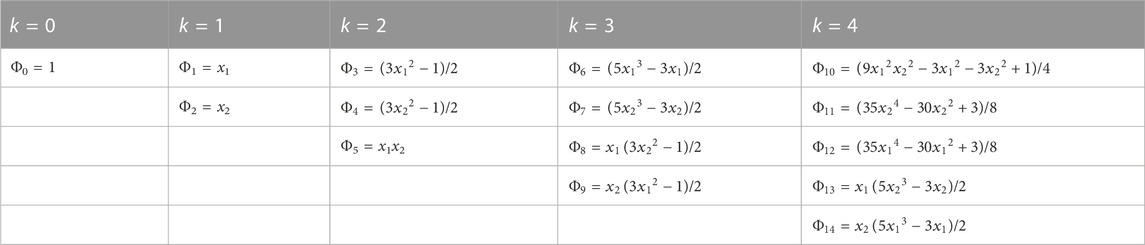

TABLE 3. Four Legendre polynomials Φ_j with two variables (k goes from 0 to 4).

The final expressions of the surrogate model with the 3rd and 4th order can be written as

$\begin{array}{ll}\hfill {\mathrm{R}\mathrm{C}\mathrm{S}}^{\left[3\right]}\approx & -8.1\times 10^{-7}{x_1}^3-7.6\times 10^{-14}{x_2}^3-7.5\times 10^{-7}{x}_1{x_2}^2-7.1\times 10^{-12}{x}_2{x_1}^2-2.7\times 10^{-4}{x}_1{x}_2\hfill \\ \hfill & +1.1\times 10^{-3}{x_1}^2-1.9\times 10^{-5}{x_2}^2+6.8\times 10^{-3}{x}_1-0.13x_2+14.85.\hfill \end{array}(35)$

$\begin{array}{ll}\hfill {\mathrm{R}\mathrm{C}\mathrm{S}}^{\left[4\right]}\approx & -8.9\times 10^{-7}{x_1}^4-3.8\times 10^{-10}{x_2}^4+7.8\times 10^{-15}{x}_1{x_2}^3-1.6\times 10^{-13}{x}_2{x_1}^3+1.1\times 10^{-8}{x_1}^2{x_2}^2\hfill \\ \hfill & +1.4\times 10^{-4}{x_1}^3+2.7\times 10^{-7}{x_2}^3-1.17\times 10^{-7}{x}_1{x_2}^2-3.9\times 10^{-6}{x}_2{x_1}^2-6.4\times 10^{-5}{x_2}^2-7.2\times 10^{-3}{x_1}^2\hfill \\ \hfill & +4.3\times 10^{-5}{x}_1{x}_2+5.5\times 10^{-3}{x}_2+7.8\times 10^{-2}{x}_1+12.97.\hfill \end{array}(36)$

The bivariate results with surrogate models of the 3rd and 4th order are shown in Figure 9A–C, which show the surface and contour solution with the same chromatic level of [10.5,12]. The red region represents a higher value of the corresponding model, and the blue region represents a lower value. It can be seen that the 4th PCE fits better as its trend and color distribution are more similar to those of the analytical solution. The relative errors are shown in Figures 9D, E using the same chromatic level of [0, 1%]. It can be clearly seen that the 4th PCE results have much higher accuracy. In addition, the CV (RMSD) of the 3rd PCE is 0.32%, and that of the 4th PCE is 0.12%, which are both much lower than 5%. In addition, it shows good agreement near the specular angles but fair to poor elsewhere, as shown in Figure 9E. It is also clear from the red region in Figure 9D that the margin of error in the interval is higher, which may be due to the Runge phenomenon.

FIGURE 9

FIGURE 9. Surface results of the bivariate analysis with dielectric constant and bistatic angle: (A) analytical solution, (B) 3rd PCE result, (C) 4th PCE result, (D) relative error of the 3rd PCE model, and (E) relative error of the 4th PCE model.

6 Conclusion

In this paper, the method of moments is accelerated by polynomial chaos expansion to construct a surrogate model for electromagnetic scattering analysis. The triangle basic functions are used to discretize the surface integral equations (EFIE, MFIE, and CFIE) with MoM, and the input variables are sampled uniformly combined with Legendre orthogonal polynomials to construct the surrogate model of electromagnetic RCS. Bistatic angle, incident frequency, and dielectric constant are considered the source of systematic uncertainty. First, three different parameters are considered for univariate analysis to construct the corresponding surrogate model. The RCS and CV results of the MoM–PCE method are compared with the analytical solutions to verify the correctness of the algorithm proposed in this work, which performs fairly well. Then, the CPU time consumption of the MoM–PCE method is compared with that of MoM. It is found that the PCE method has a significant advantage in the calculation speed, especially when the number of sample points is huge. Finally, the bivariate analysis is carried out with the bistatic angle and dielectric constant with a dielectric conductor. The result shows that the PCE method is still efficient, and high order of PCE often leads to high accuracy. In general, it is verified that the MoM based on PCE presents great accuracy and efficiency.

Future work is required to extend the proposed algorithm into 3D electromagnetic sensitivity analysis and optimization analysis for practical engineering problems.
