An electromagnetic modulator based on electrically controllable meta-molecule analogue to spontaneous emission cancellation

In this article, we present a miniaturized electromagnetic modulator based on electrically controllable spontaneous-emission-cancellation-like (SEC-like) effect in meta-molecule. The SEC-like meta-molecule with in-unit destructive interference interaction is constructed by two detuned side-coupled resonators based on zero-index-metamaterial The subwavelength ZIM-based resonators, regarding as meta-atoms, are arranged symmetrically in a cut microstrip. A diode serving as an adjustable resistor is embedded in the gap of microstrip to inductively tune the interference of two ZIM-based meta-atoms. Numerical simulations indicate that the remarkable modulation on the SEC-like spectrum can be realized by changing the resistance from 9,000 Ω (unconnected) to 10 Ω (connected). Microwave experiments validate the electromagnetic modulation in three narrow bands on the SEC-like spectrum, and a peak modulation contrast of 52.1 dB on the transmission at 2.59 GHz is achieved through electric biasing. The results in this work may pave the way for our design to be applied in new integrated active devices and applications.

1 Introduction

Electromagnetic (EM) modulator is a device typically used to control the characteristic properties of electromagnetic (EM) waves [1–8]. EM modulator has a great potential for applications in on-chip optical interconnects and communication systems, including but not limited to the polarization converters [1–3], speed regulation [4, 5], intensity modulated absorber [6, 7], and band-pass/stop filters [8]. The three instrumental factors for EM modulator performance are multi-band modulation, large modulation-depth, and miniaturized device volume. To this end, considerable efforts have been devoted and various types of functional materials have been employed [9–14]. Some representative schemes, like exploiting two-dimensional graphene sheets [9–11], using metal strips as electrical resonators with power feeds at their ends [12, 13], and integrating photo-active silicon islands into functional unit cells [14], are proposed to make EM modulator for practical applications in functional optical devices. However, on one hand, the existing designs mentioned above often come at the expense of bandwidth or structure, while others suffer from severe limitations in material properties, complicated manufacturing processes, and insignificant modulation effects. On the other hand, although active modulators in the optical realm are initially established, the low-frequency region is still in great demand for highly efficient active EM modulator, especially in the GHz frequency regime where the wavelength is large enough. Therefore, to circumvent these problems, some auxiliary subwavelength designs, like metamaterials or the related meta-molecule, should be introduced.

Metamaterials are artificial micro-structured materials with unique properties not attainable in nature [15, 16]. These artificial materials are usually composed of subwavelength-sized metallic resonant units as meta-atoms and can be designed to exhibit required values of permittivity and permeability in the desired frequency range. Among them, zero-index metamaterials (ZIMs) characterized by zero effective permittivity and permeability simultaneously, have come into sight and been actively explored. The exotic physical characteristics of ZIMs yield a variety of special EM effects, such as squeezing light wave energy [17–19], realizing high-gain and high-directivity antennas [20, 21], attaining directive radiation patterns [22], and EM cloaking [23–25]. In particular, based on effective zero-index media, the size of EM resonator is no longer restricted by the half-wavelength limit [26]. And hence, metamaterials, including ZIM-based resonator, can be well regarded as “meta-atom” and rationally engineered to form meta-molecules that exhibit some quantum optical phenomena analogue to atomic systems. For example, the spectral characteristics of electromagnetically induced transparency (EIT) have been reproduced in different types of meta-molecules, demonstrating well the low absorption and steep dispersion effects [27–30]. In spontaneous emission cancellation (SEC) analogue, the SEC-like effect is achieved in a meta-molecule by properly tailoring the destructive interference of two different emitting meta-atoms [31, 32]. It is noteworthy that, in contrast to the EIT analogue, the SEC-like effect realized by meta-molecules has an extremely deep stop-band in the transmission spectrum [33–35]. Up to now, a large number of researches have confirmed that it is feasible to realize EM modulators in actively controlled EIT-like meta-molecules [36–40]. However, the electrically controlled SEC-like effect for multi-frequency and high-performance EM modulating is still not reported.

In this paper, we propose to electrically control the SEC-like spectrum in a meta-molecule as an EM modulator. Two detuned side-coupled meta-atoms, namely ZIM-based resonators, are arranged symmetrically in a cut microstrip to construct a meta-molecule with SEC-like in-unit interaction. A PIN diode behaving as an adjustable resistor is embedded in the gap of microstrip. By electrically biasing the diode, the destructive interference between two meta-atoms can be finely tuned, which induces remarkable modulation on the SEC-like spectrum. Numerical simulations indicate that the transmission of EM waves at three characteristic peak/dips of the SEC-like spectrum can be effectively modulated by changing the resistance from 9,000 Ω (unconnected) to 10 Ω (connected). Microwave experiments confirm that the prediction of electromagnetic modulation in three narrow bands on the SEC-like spectrum, and a peak modulation contrast of 52.1 dB on the transmission at 2.59 GHz is achieved through electric biasing. Our findings may be useful as a reference for the future study of electrically controlled classic analogues to quantum interference phenomena in coherent media.

2 Model design

To illustrate our idea more explicitly, a simple schematic is demonstrated in Figure 1. As shown in Figure 1A, an upper meta-atom¹ is coupled with a discontinuous single-mode waveguide, resulting in a transparent resonance. This phenomenon is similar to a two-level atomic system, where the atom can transition from an excited state to a ground state under certain conditions (see Figure 1B). For the single-mode waveguide coupled with only a lower meta-atom², the same physical mechanism occurs, yield another typical resonance peek in transmission (see Figures 1C, D). Owing to their resonant frequencies are close to each other, we set the two detuned meta-atoms symmetrically in the cut waveguide to resemble the original physical mechanism of SEC (see Figure 1E). As is known, the SEC effect is the result of quantum destructive interference between two direct excitation pathways in a three-level V-type atomic system [31]. When two different excited states $\left|1\right.〉$ and $\left|2\right.〉$ couple to the ground state $\left|0〉\right.$, the atom can be locked in an excited states doublet due to the quantum interference between $\left|1〉\right.\to \left|0〉\right.$ and $\left|2〉\right.\to \left|0〉\right.$ transitions as sketched, as depicted in Figure 1F. Namely, the emission transition from a state midway between $\left|1\right.〉$ and $\left|2\right.〉$ is totally inhibited. Implied by these phenomena, the SEC-like effect can also be conveniently generated by utilizing a meta-molecule (two symmetric side-coupled meta-atoms) with in-unit destructive interference interaction. In consequence, an interference induced deep stopband can be achieved through the SEC-like meta-molecule. Intuitively, the stopband induced by SEC-like effect tends to be adjusted by hiring a diode in the gap of waveguide, as shown in Figure 1G. Through electrically biasing the diode, the interference between two meta-atoms can be dynamically tuned, which induces a remarkable modulation on the SEC-like spectrum. This property implies that, the proposed meta-molecule with tunable SEC-like effect can serve as a high-performance EM modulator.

FIGURE 1

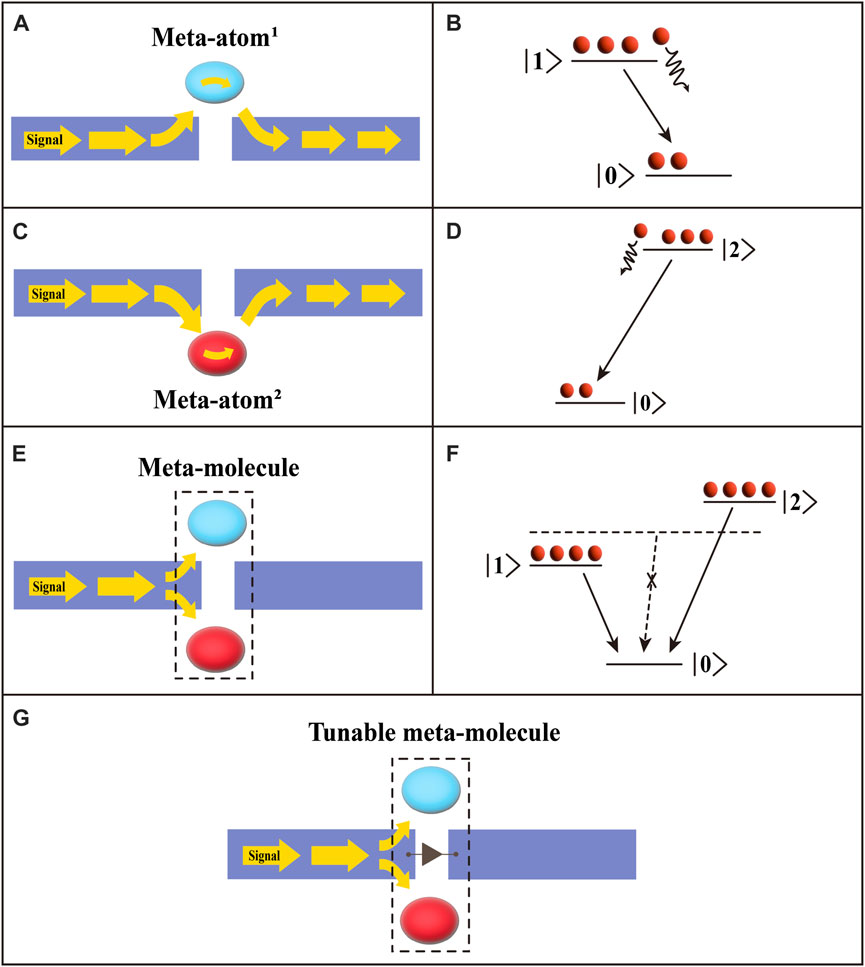

FIGURE 1. Schematic diagram of (A) an upper side-coupled meta-atom¹ analogous to (B) a two-level atomic system. Schematic diagram of (C) another lower side-coupled meta-atom² analogous to (D) a two-level atomic system with a different excited state. Schematic diagram of (E) a meta-molecule consisting of two coexistent symmetrically side-coupled meta-atoms, analogous to (F) a three-level V-type atomic system. (G) Schematic diagram of a tunable SEC-like meta-molecule.

Figure 2 depicts a proof-of-principle demonstration of the tunable SEC-like molecule, which composes of a pair of ZIM-based resonators with different resonant frequencies. The two side-coupled ZIM-based resonators serving as meta-atoms are fabricated on the microstrip transmission line by loading lumped-element series capacitances and shunt inductances. The length and width of the entire structure are 60 mm and 20 mm, respectively. The width of the microstrip line used here is w = 2.72 mm, leading to a characteristic impedance of Z₀ = 50 Ω. The sample is fabricated on a 1.0-mm-thick F4B substrate. The permittivity and loss tangent of the F4B substrate are ε_r = 2.65 and 0.001, respectively. A copper layer with a thickness of 0.035 mm is attached to the bottom of the substrate. The schematic and circuit models of the ZIM-based meta-atom with loading series capacitor and shunt inductors are given in Figures 2B, C. It is well-known that, an effective ZIM can be realized in a balanced composite right-left handed (CRLH) transmission line at a certain frequency [26, 41]. Accordingly, the effective relative permittivity and permeability of CRLH microstrip line are determined by using the following formula:

${\epsilon }_{eff}\left(\omega \right)\approx \left(C_0-\frac{1}{{\omega }^{2}L{d}_0}\right)/\left({\epsilon }_0•p\right)(1)$

${\mu }_{eff}\left(\omega \right)\approx p•\left(L_0-\frac{1}{{\omega }^{2}C{d}_0}\right)/{\mu }_0(2)$

where C₀ and L₀ each describe the distributed parameters of microstrip line, d₀ denotes the unit length of negative index materials, p is the structure constant given by $p=\sqrt{{\mu }_0/\left({\epsilon }_0{\epsilon }_r\right)}/Z_0$, C and L represent the value of series lumped capacitance and shunt lumped inductance, respectively. Therefore, the effective zero-index condition can be equivalently obtained when the following equations are satisfied [42–44]:

${\epsilon }_{eff}\left(\omega \right)d_0+{\epsilon }_{r}d=0(3)$

${\mu }_{eff}\left(\omega \right)d_0+{\mu }_{r}d=0(4)$

where d describes the unit length of the normal microstrip transmission line. The length of the ZIM-based meta-atoms is d = 20 mm, which is less than 1/7 of the wavelength in vacuum at 2.16 GHz. The distance between ZIM-based meta-atoms and microstrip line is set to be 0.2 mm. The values of all the capacitances used in this paper are chosen as C = 2.5 pF. Thus, the resonant frequency of ZIM-based meta-atoms is mainly determined by the values of two shunt inductances L₁ and L₂. A PIN diode (model: SMP1345) is soldered at the middle gap of microstrip line to and is biased through two copper wires. Numerical simulations are carried out by a commercial software CST Microwave Studio. In experiments, a vector network analyzer Keysight 85033E and a DC voltage source Keysight E3640A are used to obtain the electrically controlled modulating response.

FIGURE 2

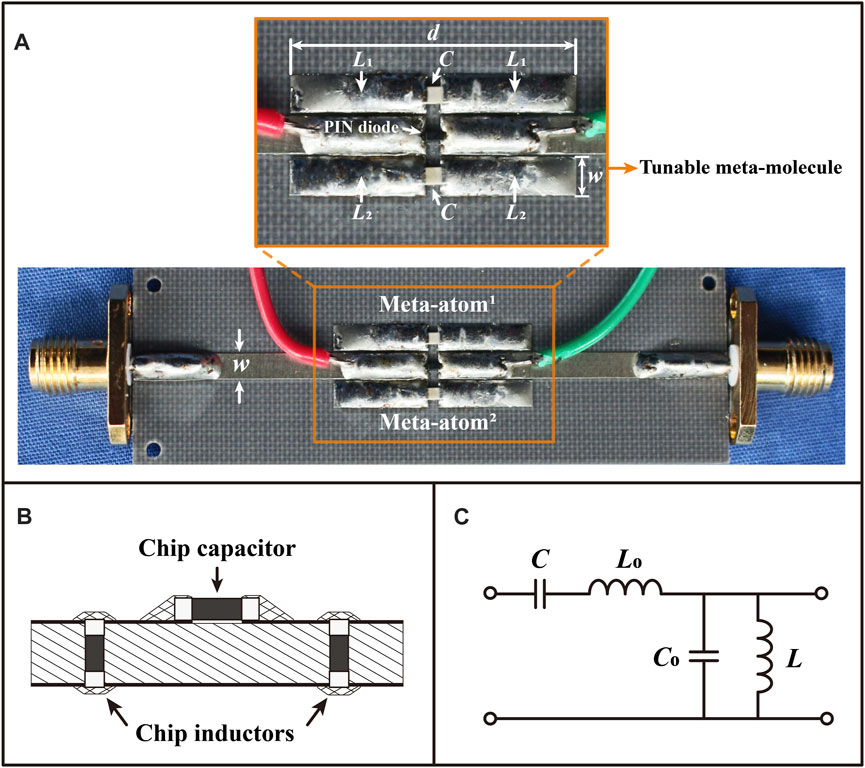

FIGURE 2. (A) Photograph of the fabricated electrically tunable SEC-like molecule. The (B) schematic model and (C) circuit model of ZIM-based meta-atom with the loading chip capacitor and chip inductors.

3 Results and discussions

To clearly illustrate the SEC-like effect in meta-molecule, the transmission spectra of the individual and coexisting side-coupled ZIM-based meta-atoms are simulated and depicted in Figure 3. Here, we choose L₁ = 3 nH for meta-atom¹ and L₂ = 3.9 nH for meta-atom². In this case, the effective zero-index condition can be satisfied at two separated resonant frequencies of f_I = 2.16 GHz and f_III = 2.42 GHz. For a cut microstrip transmission line, a sharp and deep stopband emerges at f_II = 2.26 GHz between the two individual resonant transmission peaks, explicitly demonstrating the SEC-like destructive interference effect, as shown in Figure 3A. While for a continuous microstrip, the situation is completely opposite. It is found that the two detuned ZIM-based meta-atoms instead behave as radiative resonators. As we connect the gap in the middle of the microstrip line, the original transmission dip becomes a transparency window in the spectrum separating by two narrow radiative resonant dips, as shown in Figure 3B. This phenomenon is often referred to as a direct analogue of EIT quantum destructive interference effect in a V-type atom. Moreover, group delays of the above two meta-molecules are also simulated, as shown in Figures 3C, D. It is clear that, the deep negative group delay effect near the SEC-like frequency can be transformed to a large EIT-like slow-light effect by altering the microstrip line from unconnected to connected. Take the case of a diode as an adjustable resistor, by changing the “on/off” state of the microstrip line, a remarkable modulation on the SEC-like spectrum can be directly achieved.

FIGURE 3

FIGURE 3. Simulated transmission spectra of the ZIM-based meta-atoms and the related combinative meta-molecule in a (A) cut and (B) continuous microstrip transmission line. The group delay of (C) SEC-like meta-molecule and (D) EIT-like meta-molecule.

To explore the underlying physics of SEC-like interference behavior of two parallelly side-coupled ZIM-based meta-atoms in a cut microstrip line, the electric energy density distributions at frequencies corresponding to the resonant features I, II and III marked in Figure 3A are calculated and figured out in Figure 4. The results demonstrate clearly that at the frequency f_I (or f_III), a predominant cavity resonance is formed in either upper or lower ZIM-based meta-atom. In such situation, the incident waves can tunnel efficiently. While at the frequency f_II, the situation is completely opposite. It is found that both ZIM-based meta-atoms are excited, but oscillate in opposite phase yielding almost all EM waves are blocked in the compact meta-molecule. Due to the completely destructive interference effect, the deep SEC-like stopband is achieved effectively on the transmission at f_II = 2.26 GHz.

FIGURE 4

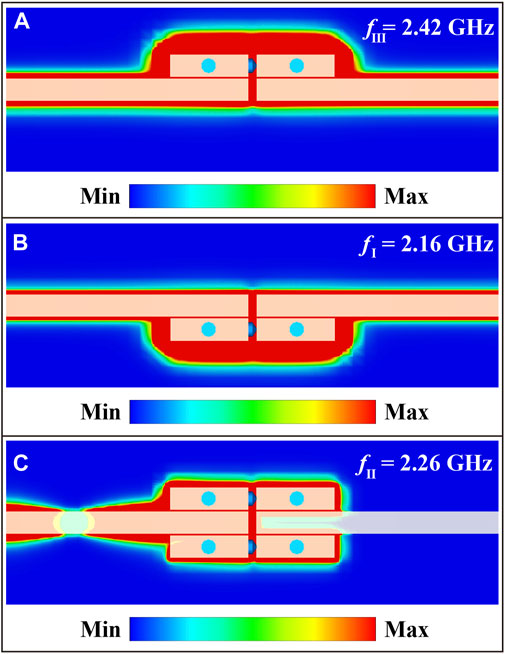

FIGURE 4. The simulated electric energy density distributions in (A) the individual upper ZIM-based meta-atom, (B) the individual lower ZIM-based meta-atom, and (C) the combinative SEC-like meta-molecule.

Subsequently, the dynamic control of SEC-like effect in the meta-molecule integrated with the PIN diode is investigated with numerical simulations. In this case, a variable lumped resistance is loaded assigned to the diode, and we set L₁ = 3 nH for meta-atom¹ and L₂ = 7.5 nH for meta-atom². Figure 5A shows the simulated transmission spectra (in dB) of the meta-molecule with the resistance ranging from 9,000 Ω to 10 Ω. It can be seen that, the initial SEC-like spectrum for high resistance gradually changes to EIT-like spectrum with the resistance decreasing to small values like 70 Ω, 30 Ω, and 10 Ω. Specifically, when the value of resistance is chosen to be 9,000 Ω, the middle of microstrip line can be approximated as a disconnected state. Via destructive interference between the two parallelly side-coupled meta-atoms along the cut microstrip line, a sharp and deep stopband emerges among the two individual resonant transmission peaks. With the resistance of 10 Ω, the cut microstrip line is almost connected. The individual side-coupled meta-atom in present acting as a reflector exhibiting a non-transparent response analogue to a two-level atom with absorption. Thus, the destructive interference of the two side-coupled meta-atoms at the same position along the continuous microstrip line leads to an EIT-like transmission spectrum. In result, the original transmission peak at 1.74 GHz eventually turns into a sharp transmission dip, demonstrating a modulation depth of 23.2 dB, and similar modulation feature is shown at 2.59 GHz. Especially, the initial deep stopband at 2.24 GHz induced by SEC-like effect tends to be an EIT-like transmission peak close to −1 dB with a modulation depth up to 39.6 dB, indicating the effective manipulation of the SEC-like effect by the PIN diode. Moreover, we have investigated that, by hiring a linear chain of meta-molecules with periodic number and periodic length equal to 11 mm and 20.1 mm, the bandwidth of the initial SEC-like deep stopband can be further expanded to a broad bandgap. The numerical simulations in Figure 5B also verify that, the spectrum shape of the broad bandgap can be tuned conveniently by changing the lumped resistance from 9,000 Ω to 10 Ω, indicating a broadband EM modulator.

FIGURE 5

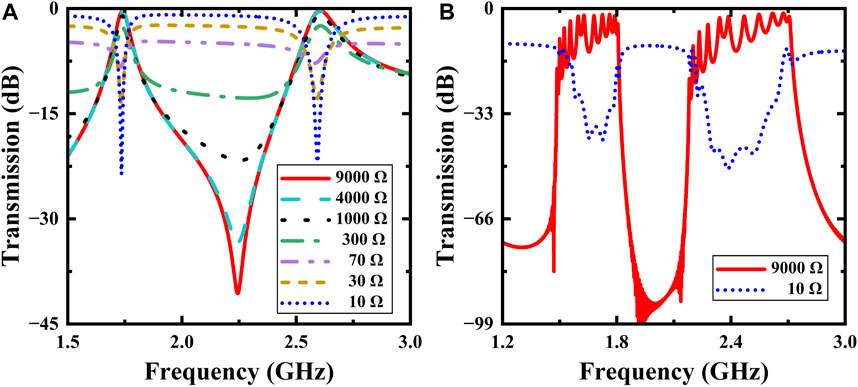

FIGURE 5. The simulated transmission spectra of tunable (A) a SEC-like meta-molecule and (B) a linear chain of SEC-like meta-molecules under different values of lumped resistance ranging from 9,000 Ω to 10 Ω.

In what follows, we experimentally investigate the dynamic tunability of SEC-like effect in the meta-molecule by applying bias voltage on the PIN diode. Figure 6 presents the measured transmission spectra with bias voltage varying from 0.0 V to 0.8 V. As no or low bias voltages is applied, taking the bias voltage of 0.2 V as an example, two resonant transmission peaks emerge at 1.74 GHz and 2.79 GHz, along with a transmission dip as deep as -52.1 dB around 2.59 GHz. As the bias voltage gradually increases to 0.8 V, the initial transmission dip around 2.59 GHz changes dramatically to a transmission peak of about −2.7 dB. We also notice that the transmission peak at 1.74 GHz presents a down and up trend, declining from −7.2 dB to −26.7 dB and then rise to a higher level at −8.6 dB. Meanwhile, the original transmission peak near 2.79 GHz decreases firstly from −5.5 dB to −22.8 dB and then increases close to −16.6 dB. We confirm that the inconsistent phenomenon with simulations is due possibly to the introduction of the biasing arms, the approximated lumped elements, as well as the accumulated errors during fabrication. Moreover, the frequency shifts and the transmittance decreases mainly result from the discrepancies between theoretical and real material parameters as well as the loss of the loaded elements. Apart from that, the measured electrical modulation behaviors match well with our theoretical prediction as illustrated in Figure 5. This indicate that the inductive modification on the destructive interference in meta-molecule can be used for practical modulating application at a subwavelength scale.

FIGURE 6

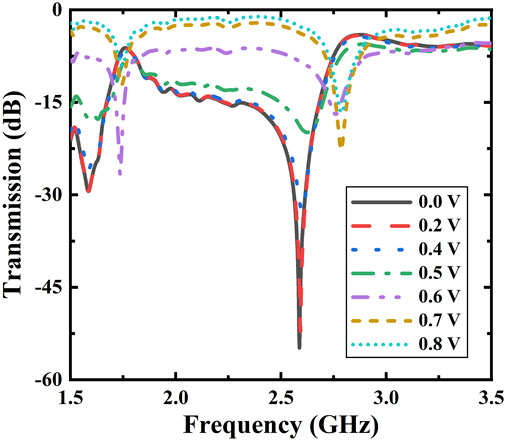

FIGURE 6. Measured transmission spectra of the tunable SEC-like meta-molecule under different biasing voltage changing from 0.0 V to 0.8 V.

At last, to show more details on the working performance of the EMM, we plot the measured transmission at three characteristic peak/dips frequencies of the SEC-like spectrum in Figure 7. Remarkable modulation in transmission can be achieved through varying the DC voltage at 1.74 GHz, 2.59 GHz, and 2.79 GHz. At the frequency of 1.74 GHz, for example, the transmission of the SEC-like structure shows a downward trend from −7.1 dB to −26.7 dB as the bias voltage varies from 0.0 V to 0.6 V, with a modulation ratio of 19.6 dB. As the bias voltage further increasing the voltage to 0.8 V, a growing transmission trend from −26.7 dB to −8.6 dB is observed with a modulation ratio of 18.1 dB. The modulations at 2.59 GHz show changing in the same bias voltage range, nevertheless, the transmission monotonously increases from the minimum −54.8 dB to the maximum −2.7 dB as the bias voltage varies from 0.0 V to 0.8 V, demonstrating a modulation depth of 52.1 dB. It is much higher than the value reported in Ref. 38 (the modulation contrast is 31 dB for the structure comprising of a single wire coupled to a paired wires loading the same PIN diode). Besides, it is obviously higher than the reported modulation depth (27 dB) in Ref. 39, which is made of orthogonal electric dipolar resonators with embedding the same PIN diode. Moreover, it is noteworthy that the proposed compact EM modulator has a two-port advantage over the above mentioned ones in integrated optical circuits and optical interconnection systems. Another obvious modulation effect is shown at 2.79 GHz, the transmission decreases from high transmission level to low transmission level as the bias voltage increases from 0.0 V to 0.7 V, with a modulation ratio of about −17.4 dB. In this sense, the electrically controllable SEC-like meta-molecule can act as a triple-band amplitude modulator.

FIGURE 7

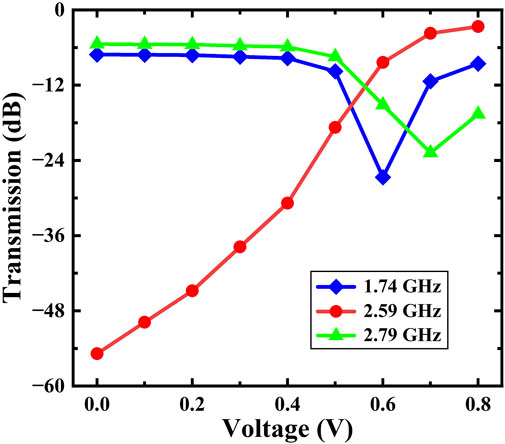

FIGURE 7. Measured transmission versus bias voltage at three characteristic frequencies of 1.74 GHz, 2.59 GHz, and 2.79 GHz, respectively.

4 Summary

In conclusion, we have proposed an EM modulator based on tunable SEC-like effect in a subwavelength meta-molecule. ZIM-based resonators serving as meta-atoms are aligned symmetrically in a cut microstrip to construct the meta-molecule with SEC-like in-unit interaction. A PIN diode is embedded in the gap of microstrip to manipulate the destructive interference between two detuned side-coupled meta-atoms. By electrically biasing the diode, the transmission properties of the SEC-like meta-molecule can be tuned flexibility. As a consequence, the transmission of electromagnetic waves in three characteristic bands located around characteristic peak/dips of the SEC-like spectrum is remarkably modulated. This configuration is also found to generate an extremely high modulation depth of up to 52.1 dB at a working frequency of 2.59 GHz. The findings may be helpful in realizing classical analogue to quantum phenomena for active photonic applications.
