Analysis of ranging biases of BOC signal threat based on non-ideal channel group delay characteristics

Satellite signal threat is an important kind of satellite signal anomaly, which will lead to ranging biases of user receiver. BOC modulation is used more and more widely in the field of satellite navigation system. In the existing literature, there is a shortage that the non-ideal characteristics of the channel are not taken into account in the ranging biases analysis of BOC signal threat. The non-ideal characteristic of the receiving channel is one of the main bias sources of navigation signal reception. In the process of receiving navigation signal, due to the jitter caused by channel noise and the non-ideal phase of the channel, ranging biases will be introduced. To solve this problem, this paper proposes the analysis model of ranging biases of BOC signal threat based on non-ideal channel characteristics, and analyzes the non-ideal group delay characteristics of BOC (1,1) signal incoherent ranging mode. From the analysis results of ranging biases under multiple threated signals, it can be seen that the non-ideal group delay characteristics will worsen the ranging biases of BOC signal threat in most cases. In the sense of minimum ranging biases caused by BOC signal threat, 0.3chip∼0.35chip is the recommended parameter for non-coherent reception of BOC (1,1) early late code.

1 Introduction

Satellite signal threat is one of the faults of the satellite system that results in abnormal integrity. In history, GPS signals have been detected abnormal for many times [1–4]. The study of the effect of satellite signal threat is an important content of the study on integrity of satellite navigation system. After the signal threat of GPS PRN 19 satellite in 1993 [1], the International Civil Aviation Organization (ICAO) used the second-order step threat model to describe the threat characteristics of BPSK signal [5–7]. The second-order step threat model of BPSK signal is also called ICAO threat model. Although the modeling of ICAO threat model is derived from the approximation of GPS PRN 19 satellite signal threat characteristics, it describes the general impact on signal characteristics when the general digital and analog devices in the satellite signal generation unit are abnormal. Therefore, as the basic model of BPSK signal integrity research, this model has extensive research significance and application value.

With the wide application of BOC modulation in GPS modernization program, European Galileo system and Beidou system in China [8–10], experts at home and abroad have made in-depth research on parameter design of BOC signal and user reception algorithm [10–15] but the research on the integrity of BOC signal has just started [16, 17]. At present, the main research on the integrity of BOC signal is that the BOC signal threat results in the receiver ranging biases. Phelts et al. extended the ICAO threat model of BPSK signal to the BOC signal and expanded the ranging of threat parameters. The ranging biases of BOC threat signal to ideal infinite bandwidth receiver in the form of early late code incoherent tracking were simulated and analyzed [16]. Fontanella et al. extended the threat parameter ranging of ICAO model to a greater extent to describe the threat model of BOC signal, and finally simulated and analyzed the ranging biases of BOC threat signal to the ideal low-pass filter receiver [17]. Xiao et al. compared the differences of phase discriminator functions of several typical BOC tracking modes and gave suggestions on the design of receiver front-end filter bandwidth and correlator interval, but did not analyze the ranging biases performance of BOC threat signals through non-ideal receiving channels and different receiver algorithms [18, 19]. The influence of waveform threat on ranging performance was analyzed by He et al. The signal used was BPSK signal, which did not involve the analysis of IBOC signal [20–23]. Gabriel Wong et al. introduced the threat of different satellite signals and the ranging biases under different code intervals [24]. M. Jean Baptiste Pagot et al. established signal threat models for new GNSS signals such as Galileo E1C, E5a, GPS L5, and compared the effect of different front-end bandwidth on signal reception [3]. Therefore, the current research on receiver ranging biases caused by BOC signal threat does not take into account the non-ideal characteristics of the channel.

Channel is an important part of the signal link of navigation receiver. Its non-ideal group delay characteristics can lead to threat of signal correlation peak, which affects the receiver’s ranging performance [25]. Chen et al analyzed the influence of receiver group delay on QMBOC signal correlation peak, but did not involve signal threat and final ranging biases [26]. Li et al have done a lot of research on channel characteristics of navigation signals, which can provide theoretical reference for channel model in this paper [27–35]. In order to reduce the influence of group delay on signal ranging performance in actual receiver channel design, it is necessary to study the effect of channel characteristics on ranging performance to guide receiver design.

This paper focuses on the influence analysis of receiver ranging biases caused by BOC signal threat. This paper reviews ICAO threat model and its extension on BOC signal, and establishes a theoretical analysis model of BOC signal threat ranging biases considering channel non-ideal characteristics. Considering the non-ideal characteristics of channel group delay, the relationship between the BOC(1,1) signal threat ranging biases and the design parameters such as the receiver’s early late code interval is analyzed, and useful conclusions for the design of BOC receiver are obtained.

2 Signal threat model

Starting from the actual satellite signal generation process, the International Civil Aviation Organization (ICAO) uses a second-order step threat model to describe the BPSK signal threat. The traditional BPSK signal threat model can be extended to the BOC signal threat. In Figure 1, satellite signal generation components include digital devices and analog devices in two categories [5, 36–38]. The second-order step threat model is divided into three basic models based on the failure condition of each type of device: digital threat (Threat Model A, TM A), analog threat (Threat Model B, TM B), digital-analog threat (Threat Model C, TM C). Digital threat model corresponds to some digital faults such as satellite navigation data processing unit, analog threat model corresponds to some analog processing unit faults in the satellite signal generation process, and digital-analog threat model corresponds to the faults in the whole satellite signal generation process [2, 8].

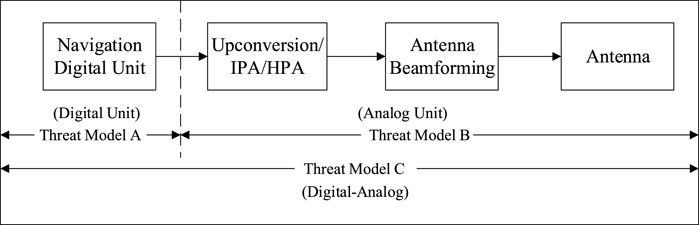

FIGURE 1

FIGURE 1. Corresponding relationship between signal threat model and fault of satellite signal generator.

2.1 Digital threat model (TM A)

The digital threat signal is caused by faults of the digital device (navigation data unit) in the satellite signal generation unit, which shows that the falling edge of the pseudo code is ahead of or behind the normal falling edge. The falling edge of pseudo code is represented by $\Delta$. When $\Delta$ > 0, the falling edge of pseudo code is behind the normal falling edge; When $\Delta$ <0, the falling edge of pseudo code is ahead of the normal falling edge.

2.2 Analog threat model (TM B)

Analog threat signal is caused by faults of analog devices in the satellite signal generation unit, which exhibits a second-order damped oscillation in amplitude. The analog threat signal can be equivalent to the response of a normal pseudo code signal after passing through a second-order filter, which is mathematically described as the unit-step response:

$e\left(t\right)=\left\{\begin{array}{cc}0& t<0\\ 1-e^{-\sigma t}\left(\cos {\omega }_{d}t+\frac{\sigma }{{\omega }_d}\sin {\omega }_{d}t\right)& t\ge 0\end{array}\right.,(1)$

where $\sigma$ is the decay frequency of the second-order damped oscillation, the value ranging is $0.8\mathrm{M}\mathrm{n}\mathrm{e}\mathrm{p}\mathrm{s}/\mathrm{s}\le \sigma \le 8.8\mathrm{M}\mathrm{n}\mathrm{e}\mathrm{p}\mathrm{s}/\mathrm{s}$, ${\omega }_d$ is the oscillation angular frequency of the second-order damped oscillation: ${\omega }_d=2\pi f_d$。 $f_d$ is the oscillation frequency of the second-order damped oscillation, the value ranging is $4\mathrm{M}\mathrm{H}\mathrm{z}\le f_d\le 17\mathrm{M}\mathrm{H}\mathrm{z}$.

2.3 Digital-analog threat model (TM C)

Digital-analog threat signals is caused by faults of digital and analog device in the satellite signal generation unit. The signal amplitude exhibits a second-order damped oscillation, and the pseudo code falling edge is ahead or behind the normal falling edge. The ranging of each threat parameter is $-0.12chip\le \Delta \le 0.12chip,0.8\mathrm{M}\mathrm{n}\mathrm{e}\mathrm{p}\mathrm{s}/\mathrm{s}\le \sigma \le 8.8\mathrm{M}\mathrm{n}\mathrm{e}\mathrm{p}\mathrm{s}/\mathrm{s},7.3\mathrm{M}\mathrm{H}\mathrm{z}\le f_d\le 13\mathrm{M}\mathrm{H}\mathrm{z}$.

The top of the correlation peak between the receiver’s local pseudo code signal and the digital-analog threat signal is flat and the whole correlation peak is threated. Figure 2 A1, B1 show digital threat signal and the correlation peak for the BOC(1,1) signal; Figure 2 A2, B2 show analog threat signal and the correlation peak for the BOC(1,1) signal; Figure 2 A3, B3 show digital-analog threat signal and the correlation peak for the BOC(1,1) signal:

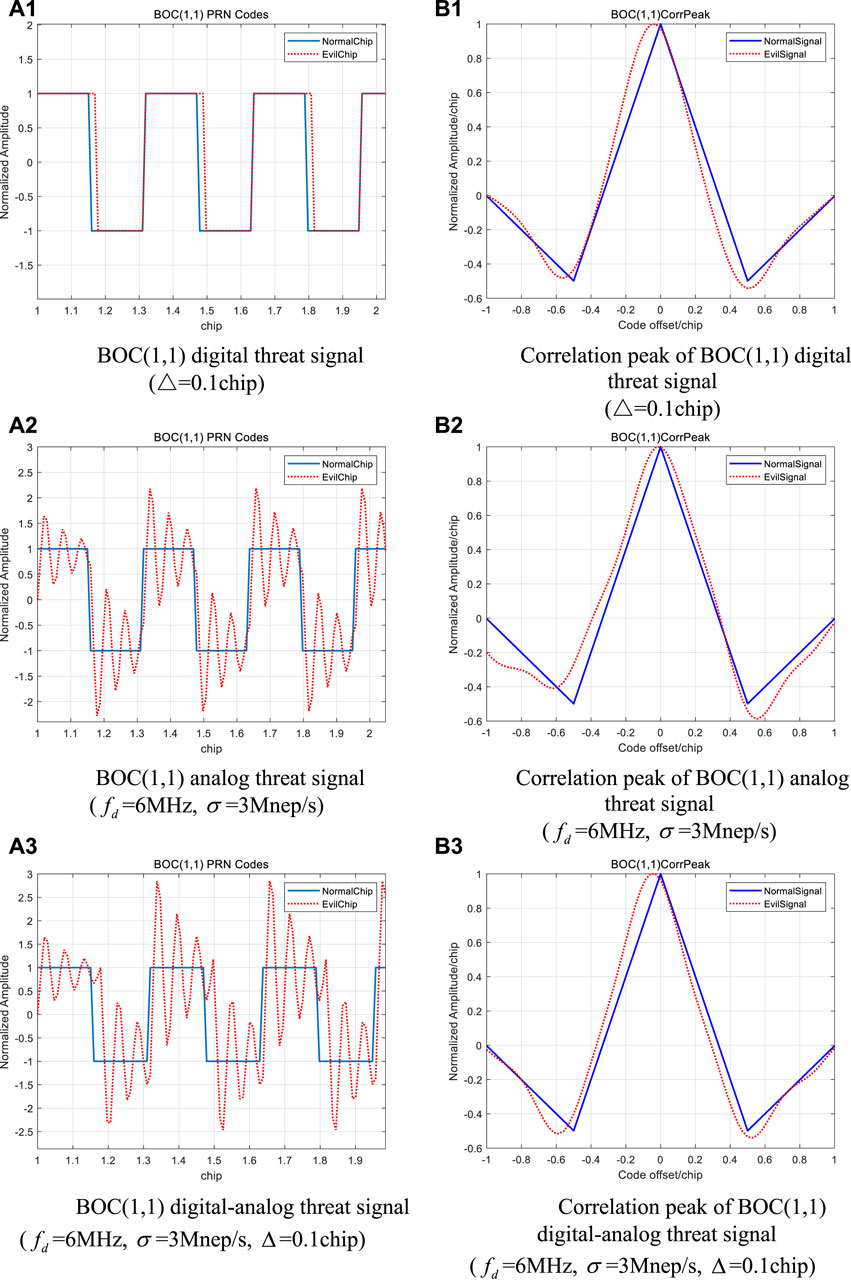

FIGURE 2

FIGURE 2. Time domain waveform and correlation peak of BOC (1,1) signal threat.

3 Analysis model of ranging biases of BOC signal threat

From the perspective of the complete processing flow from generation to reception of BOC signal, BOC signal will go through the process of satellite generation, space propagation, ground user reception and measurement. The analysis of space propagation characteristics is relatively complex, including the influence of troposphere, ionosphere, multipath and interference, among which the troposphere propagation characteristics are mainly represented by the propagation delay independent of carrier frequency. If various factors such as multipath and interference are considered in the actual environment, the complete signal flow of BOC signal will be very complex. In order to simplify the analysis of the problem, this section temporarily does not consider factors such as multipath and interference, but mainly considers the influence of non-ideal channels such as signal generation filter, ionospheric propagation characteristics and receiver equivalent filter on BOC signal threat. Therefore, the BOC signal processing flow is simplified as shown in Figure 3.

FIGURE 3

FIGURE 3. Simplified process of BOC signal generation and reception.

The threat of the BOC signal is mainly manifested in the threat of the correlation peak function, which leads to the biases of the receiver when tracking the BOC signal and measuring the pseudo range. The factors that cause the threat of correlation peak function include: threat of BOC signal, non-ideal characteristics of satellite signal generation filter (including non-ideal amplitude frequency response and non-ideal group delay), ionospheric propagation characteristics and non-ideal characteristics of receiver equivalent filter. In order to simplify the analysis, the non-ideal characteristics of satellite signal generation filter, ionospheric propagation characteristics and receiver equivalent filter are collectively referred to as channel non-ideal. It is worth pointing out that the threat of BOC signal correlation peak leads to the biases of receiver measurement (mean shift of measurement biases), which is independent of noise [27, 28]. Therefore, the influence of thermal noise is not considered in the analysis of ranging biases of BOC signal threat.

In this way, if the channel is not ideal, the equivalent analysis model of ranging biases of BOC signal threat is shown in Figure 4.

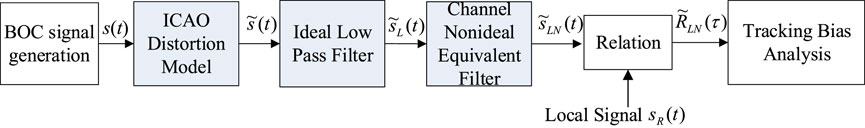

FIGURE 4

FIGURE 4. Equivalent analysis model of ranging biases of BOC signal threat based on non-ideal channel.

The original BOC signal generated on the satellite is set as $s\left(t\right)$, the BOC threat signal is set as $\stackrel{\sim }{s}\left(t\right)$, the BOC signal after passing the ideal low-pass filter and the channel non-ideal equivalent filter is ${\stackrel{\sim }{s}}_{\mathit{LN}}\left(t\right)$. The local signal $s_R\left(t\right)$ generated at the receiver is correlated with the received BOC signal ${\stackrel{\sim }{s}}_{\mathit{LN}}\left(t\right)$ to obtain the correlation function ${\stackrel{\sim }{R}}_{\mathit{LN}}\left(\tau \right)$, and then the ranging biases of BOC signal threat is obtained according to the correlation function and tracking discrimination function analysis.

According to the conversion relationship between the time domain cross correlation function and the frequency domain cross power spectrum of the two signals, we can get:

$\begin{array}{l}{\stackrel{\sim }{R}}_{\mathit{LN}}\left(\tau \right)\\ ={\int }_{-\infty }^{\infty }\stackrel{\sim }{S}\left(f\right)H_L\left(f\right)H_N\left(f\right)S_R^{*}\left(f\right)e^{j2\pi f\tau }df\\ ={\int }_{-\infty }^{\infty }{G}_{TM}\left(f\right)H_L\left(f\right)H_N\left(f\right)e^{j2\pi f\tau }df\end{array}(2)$

Where, $H_L\left(f\right)$ is the frequency domain response function of the ideal low-pass filter, $H_N\left(f\right)$ is frequency domain response function of channel non-ideal equivalent filter, $\stackrel{\sim }{S}\left(f\right)$ is the spectrum of the BOC threat signal $\stackrel{\sim }{s}\left(t\right)$, $S_R^{*}\left(f\right)$ is the spectrum of the local signal $s_R\left(t\right)$, $G_{TM}\left(f\right)$ is the cross power spectrum of the BOC threat signal and the BOC ideal signal.

The definition of ideal low-pass filtering can be written as:

$H_N\left(f\right)\stackrel{\Delta }{=}A\left(f\right)e^{j\phi \left(f\right)}(3)$

Where, $B_n$ is the one-sided cutoff bandwidth for ideal low-pass filtering.

The definition of the channel non-ideal equivalent filter can be written as:

$H_N\left(f\right)\stackrel{\Delta }{=}A\left(f\right)e^{j\phi \left(f\right)}(4)$

Where, $A\left(f\right)$ and $\phi \left(f\right)$ are the amplitude frequency response and phase frequency response of channel non-ideal equivalent filter, the group delay is defined as [9]:

${\tau }_g\left(f\right)\stackrel{\Delta }{=}-\frac{1}{2\pi }\frac{d\phi \left(f\right)}{df}(5)$

4 BOC(1,1) signal threat ranging biases based on non-ideal channel group delay

The equivalent analysis model in Figure 4 can be used to analyze the BOC signal threat ranging biases based on the non-ideal group delay characteristics. The non-ideal group delay characteristics are the typical non-ideal channel effect [27, 28]. This section analyzes the influence of BOC signal threat under the non-ideal group delay characteristics. Let $A\left(f\right)\equiv 1$, ${\tau }_g\left(f\right)$ takes different functions to analyze the correlation function characteristics and ranging biases of BOC signal under the non-ideal group delay. Next, under the quadratic curve group delay characteristics, the influence of threated signals on ranging biases is analyzed for BOC (1,1) signals.

Assuming that $B_n$ = 3MHz, the non-ideal filter is quadratic curve group delay characteristic:

$\tau \left(f\right)=k{T}_c{\left(f/B_n\right)}^2(6)$

Where $T_c$ is a chip width of the PN code of the BOC(1,1) signal, the normalized coefficient is taken as 3.

BOC signal tracking adopts the structure of Bump-jump early late code non-coherent tracking. In the Bump jump method, the correlation function of energy can be obtained by computing the square sum ($V{E}^2+P^2$) of the correlation output values of far instant and leading paths. Based on this correlation function, the unambiguous BOC signal can be captured. The output of the instant and leading correlation function obtained by the Bump jump method are [9]:

$R_p\left({\epsilon }_{\tau }\right)=\frac{1}{T_p}{\int }_{t_d-T_p}^{t_d}{s}_f^{\prime }\left(t-\tau \right)r_p\left(t-\widehat{\tau }\right)dt(7)$

$R_{VE}\left({\epsilon }_{\tau }\right)=\frac{1}{T_p}{\int }_{t_d-T_p}^{t_d}{s}_f^{\prime }\left(t-\tau \right)r_{VE}\left(t-\widehat{\tau }\right)dt(8)$

$r_p\left(t-\widehat{\tau }\right)=c\left(t-\widehat{\tau }\right)s{c}_I\left(t-\widehat{\tau }\right)=c\left(t-\widehat{\tau }\right)sc\left(t-\widehat{\tau }\right)(9)$

$r_{VE}\left(t-\widehat{\tau }\right)=c\left(t-\widehat{\tau }\right)s{c}_Q\left(t-\widehat{\tau }\right)=c\left(t-\widehat{\tau }-\frac{T_{sp}}{4}\right)sc\left(t-\widehat{\tau }-\frac{T_{sp}}{4}\right)(10)$

Figure 5 shows the correlation by BOC(1,1) Bump-jump method under ideal condition$R_p\left({\epsilon }_{\tau }\right)$ and $R_{VE}\left({\epsilon }_{\tau }\right)$ are the correlation functions of the filtered received BOC signal and the local BOC signal respectively, $r_p\left(t-\widehat{\tau }\right)$ and $r_{VE}\left(t-\widehat{\tau }\right)$ are the local BOC signals. $s_f^{\prime }\left(t\right)$ is the received BOC signal.

FIGURE 5

FIGURE 5. Correlation function by BOC (1,1) Bump-jump method under ideal condition.

The ranging biases of BOC (1,1) signal under three threat models of digital threat (TM A), analog threat (TM B) and digital-analog threat (TM C) are analyzed.

4.1 The digital threat model (TM A) of $\Delta =0.1\mathrm{c}\mathrm{h}\mathrm{i}\mathrm{p}$

Under the digital threat model (TM A) of $\Delta =0.1\mathrm{c}\mathrm{h}\mathrm{i}\mathrm{p}$, considering the quadratic curve group delay characteristics of the non-ideal filter, the correlation peak result of the BOC signal Bump-jump early late code non-coherent tracking is shown in Figure 6. The comparison between the ranging biases results under the group delay characteristics of the quadratic curve and the ranging biases results under the ideal low-pass filter is shown in Figure 7.

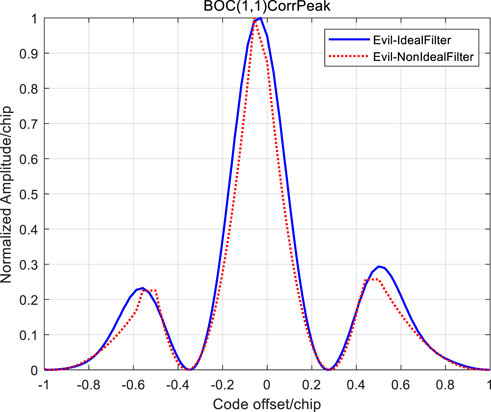

FIGURE 6

FIGURE 6. Correlation function of Bump-jump tracking method for BOC (1,1) signal TMA with non-ideal channel.

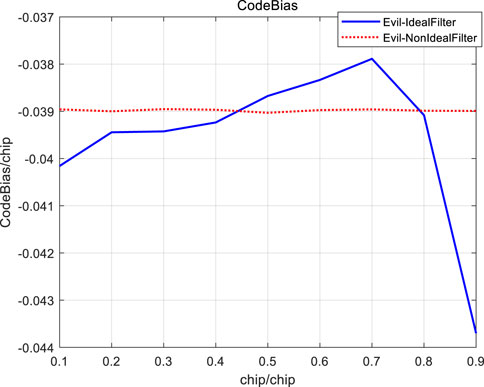

FIGURE 7

FIGURE 7. Ranging biases of Bump-jump tracking method for BOC (1,1) Signal TMA with non-ideal Channels.

4.2 The analog threat model (TM B) of $f_d=6MHz$, $\sigma =3Mnepers/s$

Under the analog threat model (TM B) of $f_d=6MHz$, $\sigma =3Mnepers/s$, considering the quadratic curve group delay characteristics of the non-ideal filter, the correlation peak result of the BOC signal Bump-jump early late code non-coherent tracking is shown in Figure 8. The comparison between the ranging biases results under the group delay characteristics of the quadratic curve and the ranging biases results under the ideal low-pass filter is shown in Figure 9.

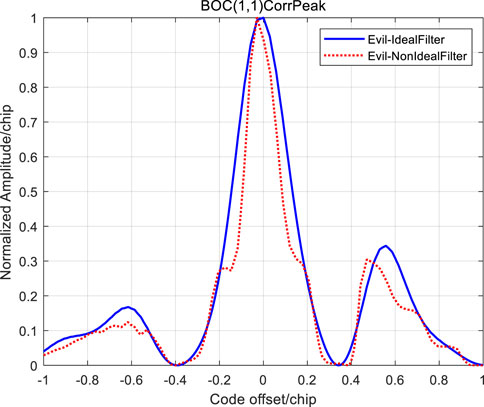

FIGURE 8

FIGURE 8. Correlation function of Bump-jump tracking method for BOC (1,1) signal TMB with non-ideal channel.

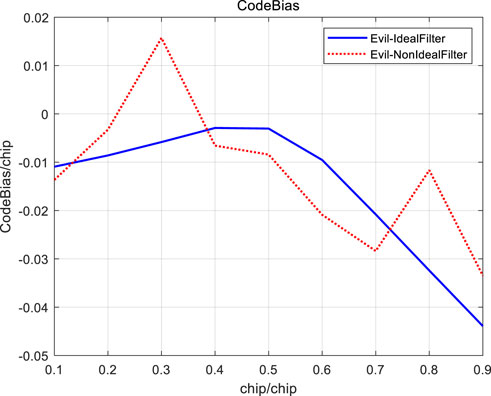

FIGURE 9

FIGURE 9. Ranging biases of Bump-jump tracking method for BOC (1,1) signal TMB with non-ideal channels.

4.3 The digital-analog threat model (TM C) of $f_d=6MHz$, $\sigma =3Mnepers/s$, $\Delta =0.1\mathrm{c}\mathrm{h}\mathrm{i}\mathrm{p}$

Under the digital-analog threat model (TM C) of $f_d=6MHz$, $\sigma =3Mnepers/s$, $\Delta =0.1\mathrm{c}\mathrm{h}\mathrm{i}\mathrm{p}$, considering the quadratic curve group delay characteristics of the non-ideal filter, the correlation peak result of the BOC signal Bump-jump early late code non-coherent tracking is shown in Figure 10. The comparison between the ranging biases results under the group delay characteristics of the quadratic curve and the ranging biases results under the ideal low-pass filter is shown in Figure 11.

FIGURE 10

FIGURE 10. Correlation function of Bump-jump tracking method for BOC (1,1) signal TMC with non-ideal channel.

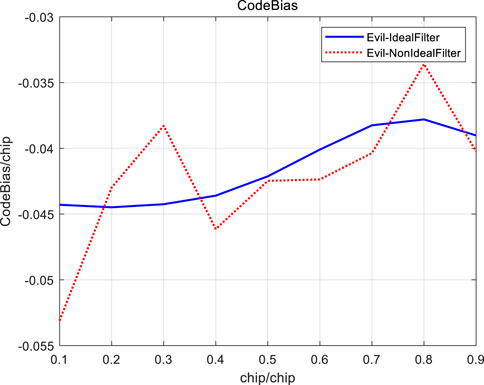

FIGURE 11

FIGURE 11. Ranging biases of Bump-jump tracking method for BOC (1,1) signal TMC with non-ideal channels.

Based on the above results, the following conclusions can be drawn: when the group delay characteristics of the channel are not ideal, the correlation peak shape of BOC signal threat will be further deteriorated under most of the early late code interval parameters, which will greatly increase the code tracking biases of BOC (1,1) signal. In addition, it is not difficult to find out from the above data results that, from the perspective of minimizing the ranging biases caused by signal threat, for the design of non-coherent reception of BOC (1,1) signal early late codes, if the early late code interval is selected between 0.3 chip and 0.35 chip, the ranging biases of BOC signal caused by the above three threat models under the ideal low-pass filter and non-ideal quadratic group delay channel characteristics are minimal or relatively small.

5 Conclusion

The non-ideal characteristics of channel group delay are not considered in the analysis of BOC signal distortion ranging deviation in the existing literature. This paper proposes an equivalent analysis model which is based on the assumption that the Bump-jump tracking method is used. And the range deviation of BOC (1,1) signal distortion under the time delay of the quadratic curve group is analyzed. The analysis results show that, the correlation peak of the BOC signal received through the non-ideal channel is deformed more than that of the BOC signal received through the ideal channel, and the ranging biases fluctuates significantly under different early late code intervals. Therefore, the characteristics of the non-ideal channel will worsen the ranging biases of the BOC signal threat in most cases. For the receiver, the early late code interval that is closer to the ranging biases of the ideal filter should be selected. It can be seen from the analysis results of ranging biases under multiple threated signals that in the sense of minimum ranging biases caused by BOC signal threat, 0.3 chip∼0.35 chip is the recommended parameter for BOC (1,1) incoherent reception of early late codes. The analysis model in this paper can also be used to analyze the ranging biases of other higher-order BOC signals under different channel non-ideal characteristics when they are threated.
